MRCOOL DIY 4th Gen Mini Split - 2-Zone 27,000 BTU Ductless Air Conditioner and Heat Pump with 12K + 12K Air Handlers, 25 ft. Line Sets, and Install Kit

Click on image to zoom Click on image to zoom

MRCOOL DIY 4th Gen Mini Split - 2-Zone 27,000 BTU Ductless Air Conditioner and Heat Pump with 12K + 12K Air Handlers, 25 ft. Line Sets, and Install Kit

Name: MRCOOL DIY 4th Gen Mini Split - 2-Zone 27,000 BTU Ductless Air Conditioner and Heat Pump with 12K + 12K Air Handlers, 25 ft. Line Sets, and Install Kit
Brand: MRCOOL
SKU: MHP15042A
Price: 3519.0 USD
Availability: OutOfStock
Rating: 4.84 (44 reviews)

| Authorized Dealer

SKU: MHP15042A

$3,519.00 $4,859.00

Line Set Mix: 25 ft. + 35 ft.

Variant

Out of Stock Discontinued

Secure Payment

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Free Shipping*
30-Day Return Policy⁺

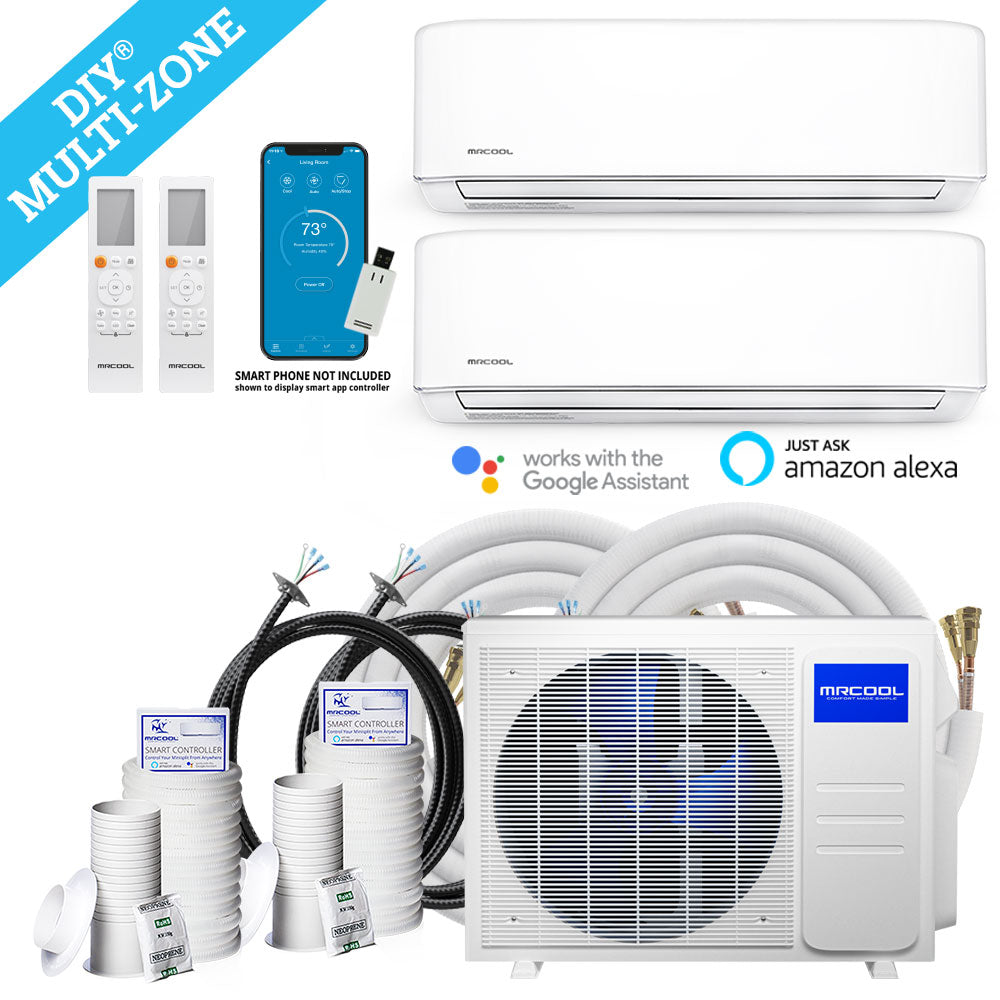

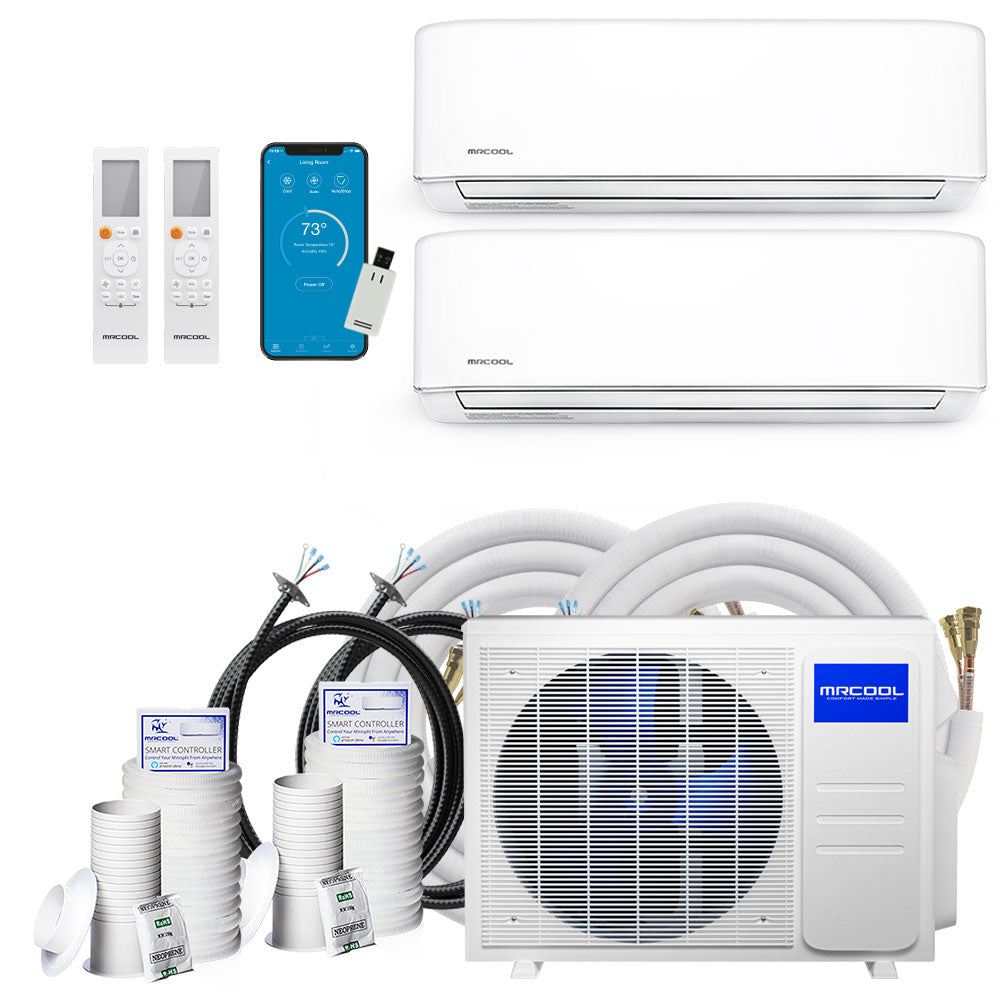

MRCOOL DIY 4th Gen Mini Split Bundle

The MRCOOL 4th Gen Mini Split bundle includes everything you need to heat and cool up to two rooms. The easy installation, Do-It-Yourself

Bundle Includes:

MRCOOL DIY 4th Gen Multi-Zone 3-Zone 27K BTU Condenser Up to 22 SEER (DIY-MULTI3-27HP230C)
MRCOOL DIY 4th Generation 12K BTU Heat Pump Wall Mount Air Handler with Enhanced WiFi - Works with Alexa & Google Assistant (DIY-12-HP-WMAH-230C25) (x2)
Line Sets - length & quantity varies based on selection:

MRCOOL 25 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor (DIY25-1412)

MRCOOL DIY 4th Generation 35 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor (DIY35-1412C)
MRCOOL DIY 4th Generation 50 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor (DIY50-1412C)
MRCOOL DIY 4th Generation 66 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor (DIY66-1412C)
MRCOOL DIY 4th Generation 75 Ft. 1/4" x 1/2" Line Set for DIY 9K, 12K, & 18K Indoor (DIY75-1412C)

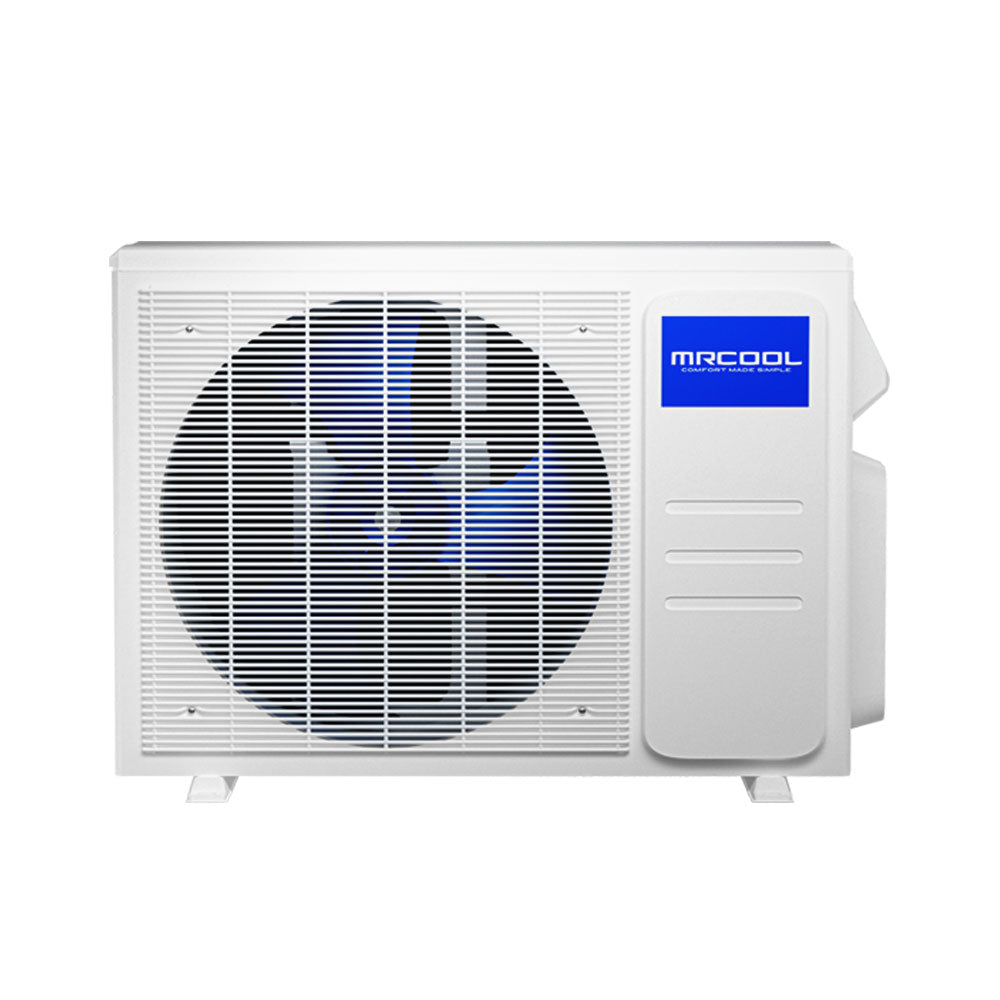

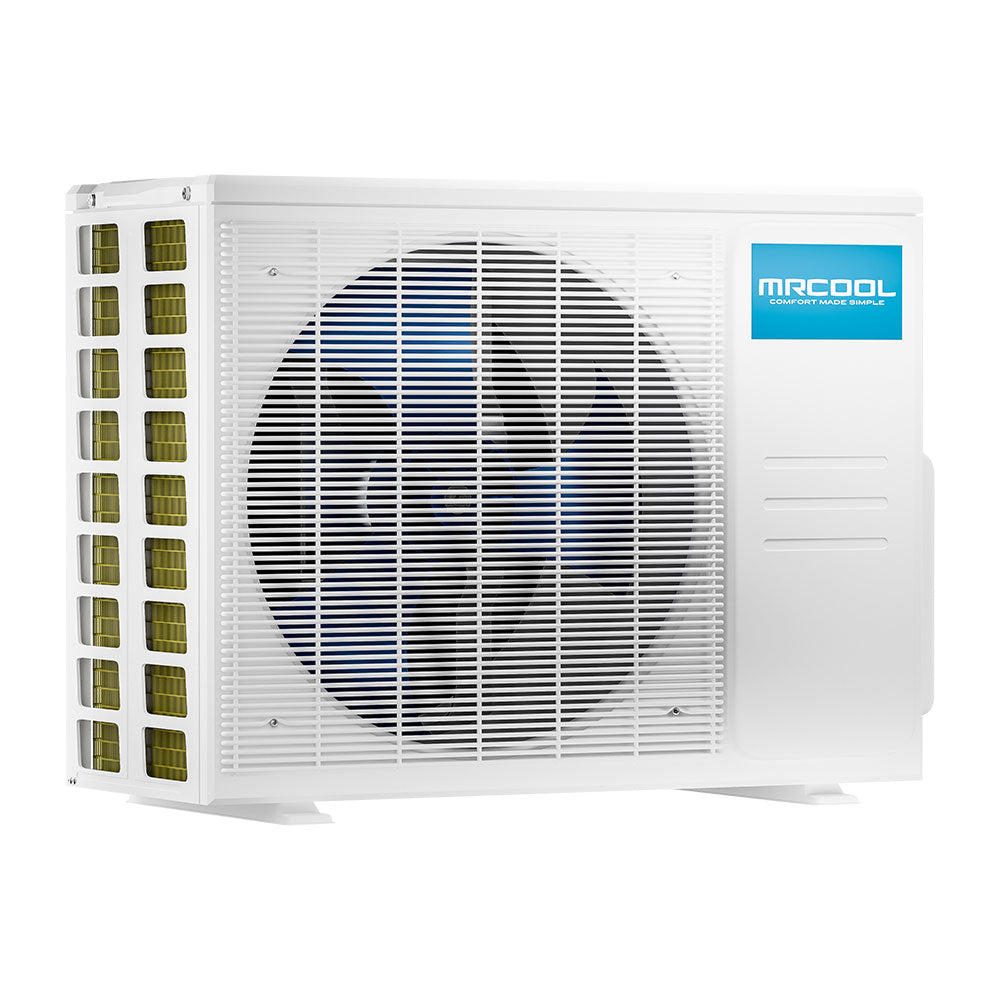

MRCOOL 4th Gen Air Conditioner and Heat Pump Condenser

Power - 27K BTUs
Zones - Cool and heat up to three rooms in your home
SEER - SEER efficiency rating of up to 22

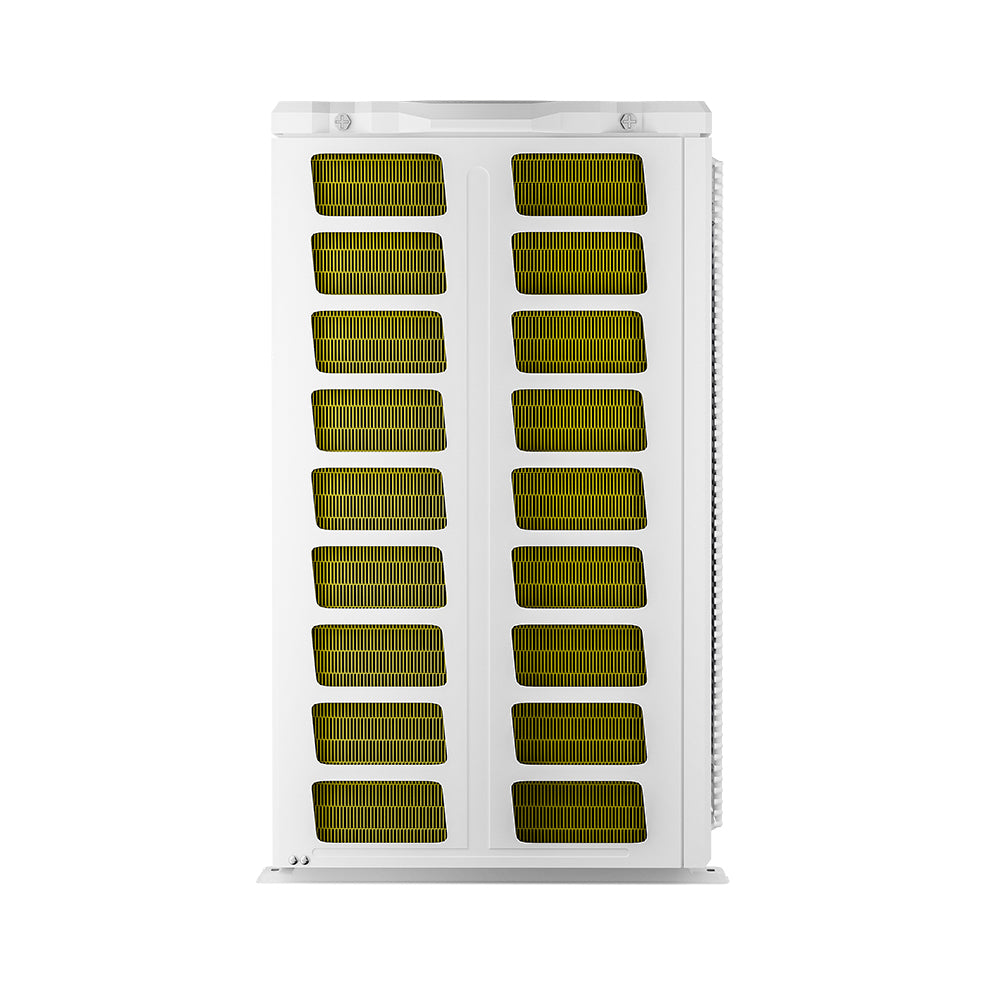

Durable - Constructed to hold up against the weather and resist corrosion with its durable Gold Fin Condenser coating. Performs in weather conditions down to 5°F
Easy DIY Installation - Easy to install and no technician required. Includes everything to easily Do-It-Yourself
Environmentally Friendly - R-410A environmentally friendly refrigerant
Warranty - Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

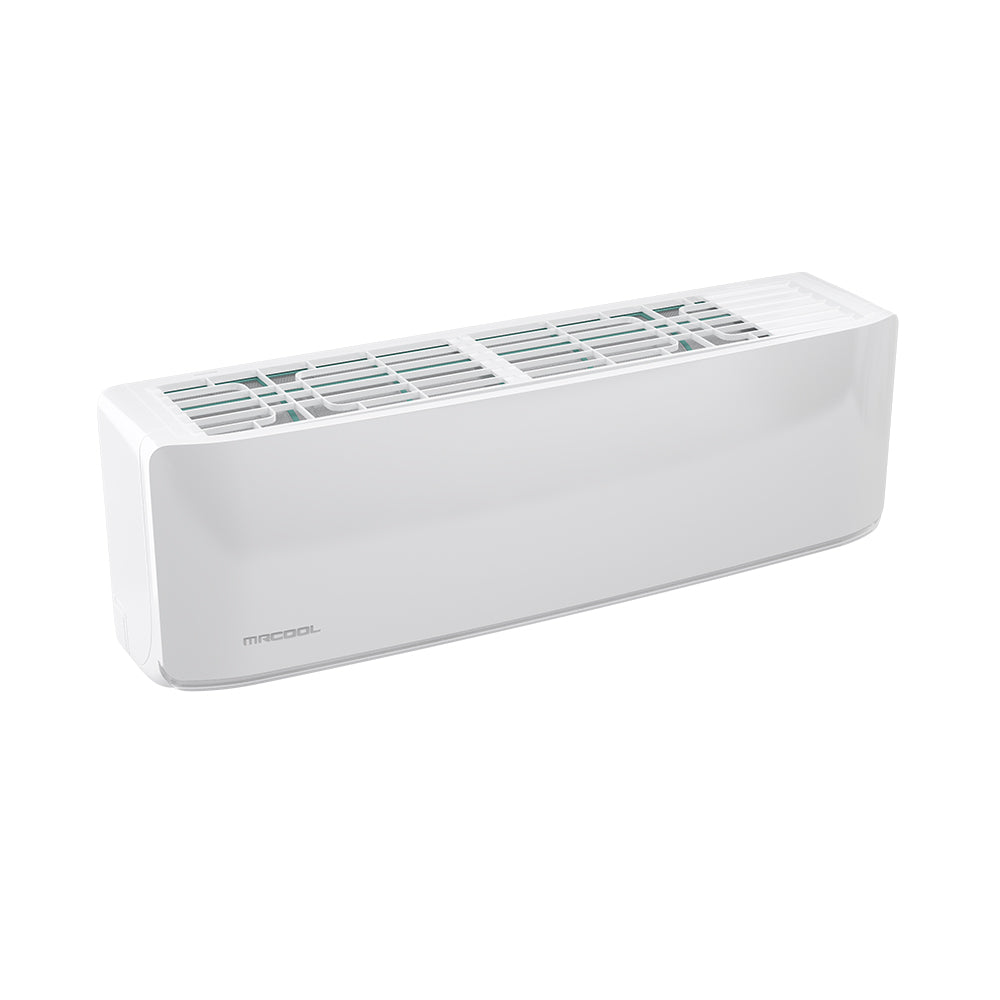

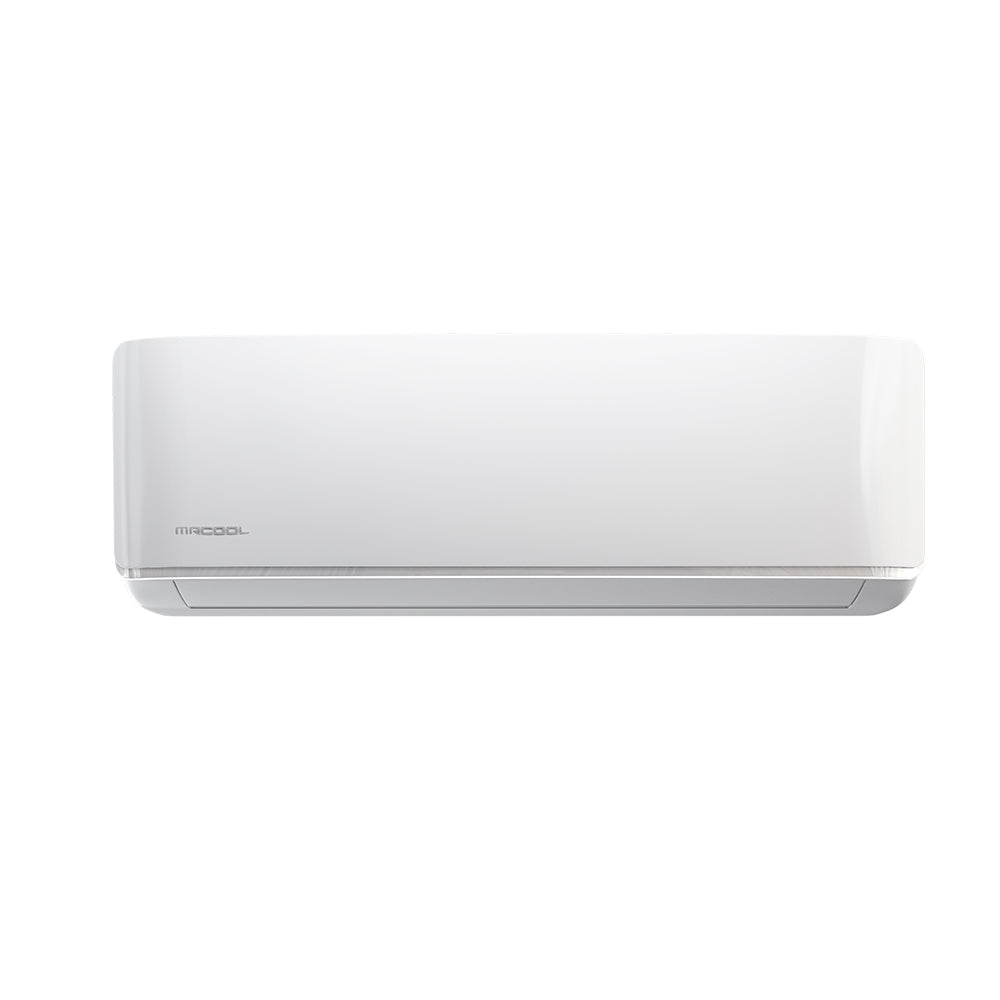

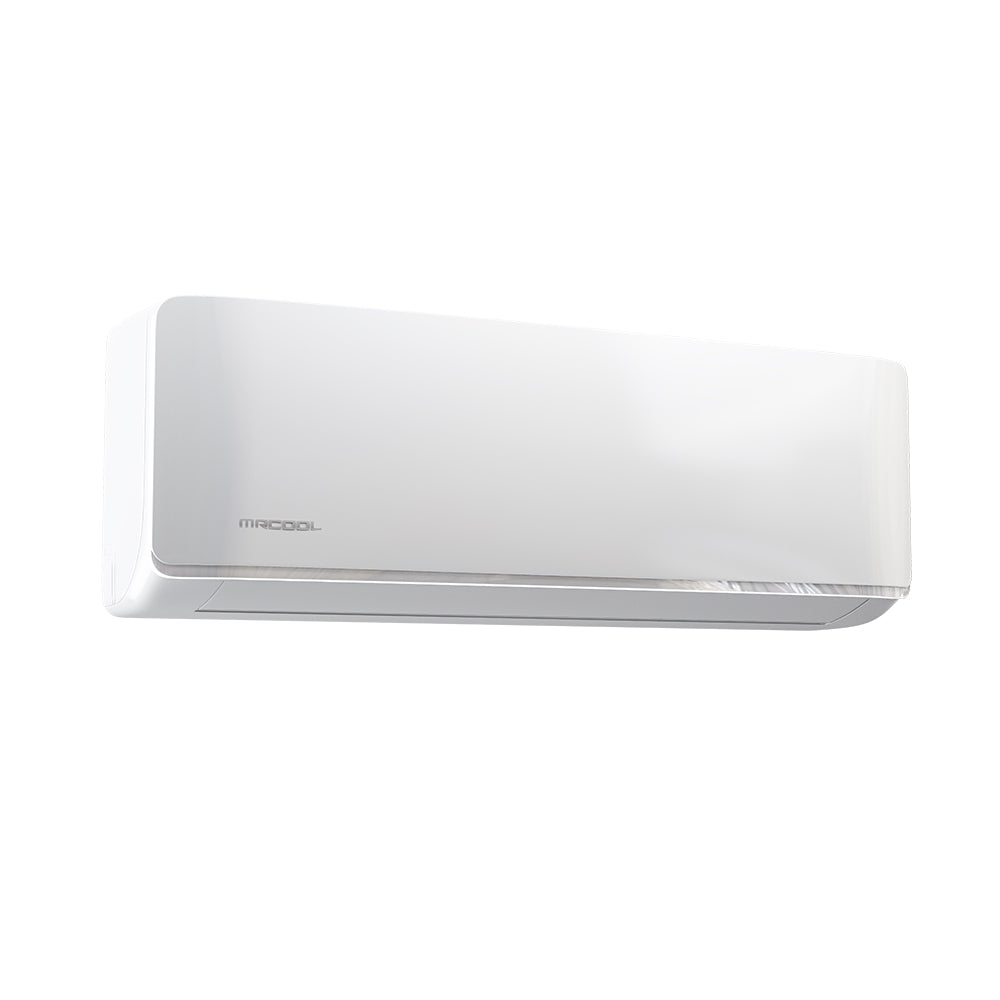

MRCOOL Wall Mount Air Handler - 12K BTU - Quantity 2

Modes - Choose from COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
Smartphone Control - Control with your Apple or Android smartphone through the use of the Smart HVAC app
Easy DIY Installation - With its light and compact design, it can be installed easily on most interior walls with the included mounting plate

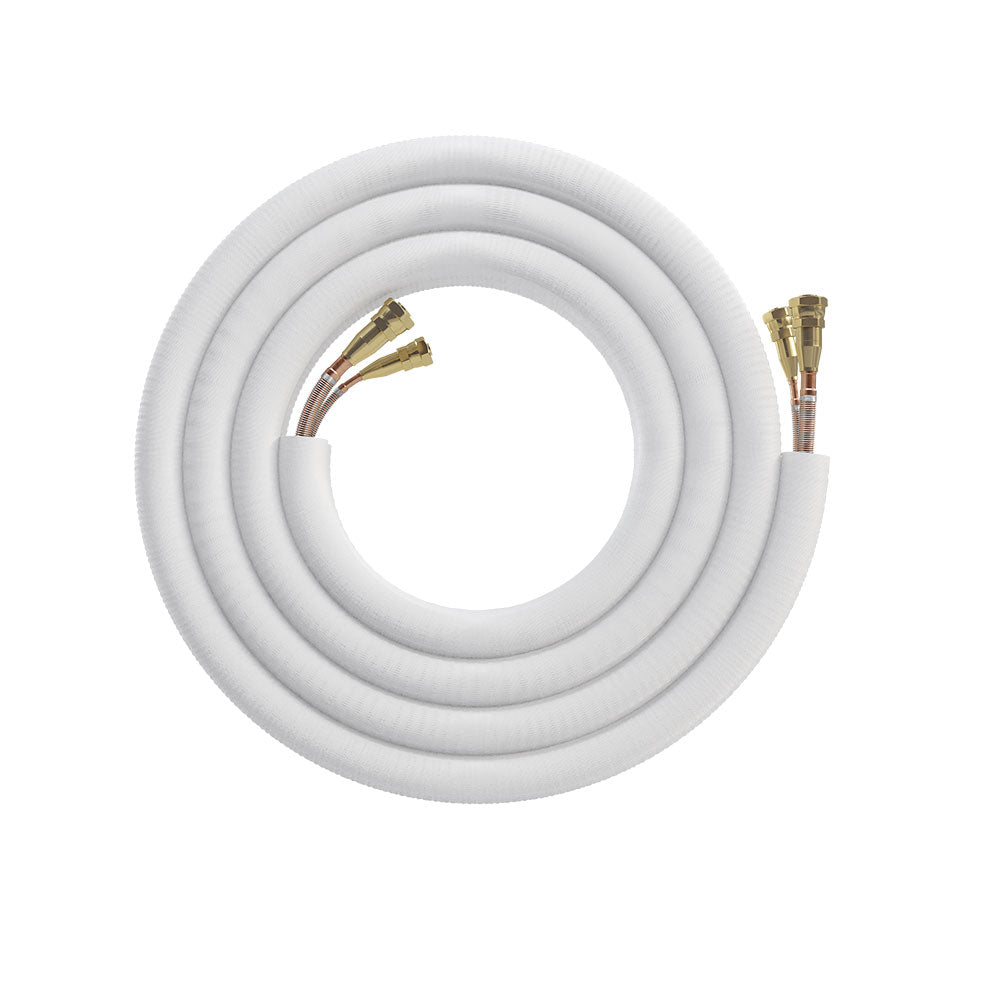

MRCOOL Line Sets

The MRCOOL copper line set is required to connect the Condenser to each Air Handler.
Environmentally Friendly - Line sets come pre-charged with R-410A refrigerant, the safest form of refrigerant.
Length Options - Select which combination of lengths you require for your installation needs.

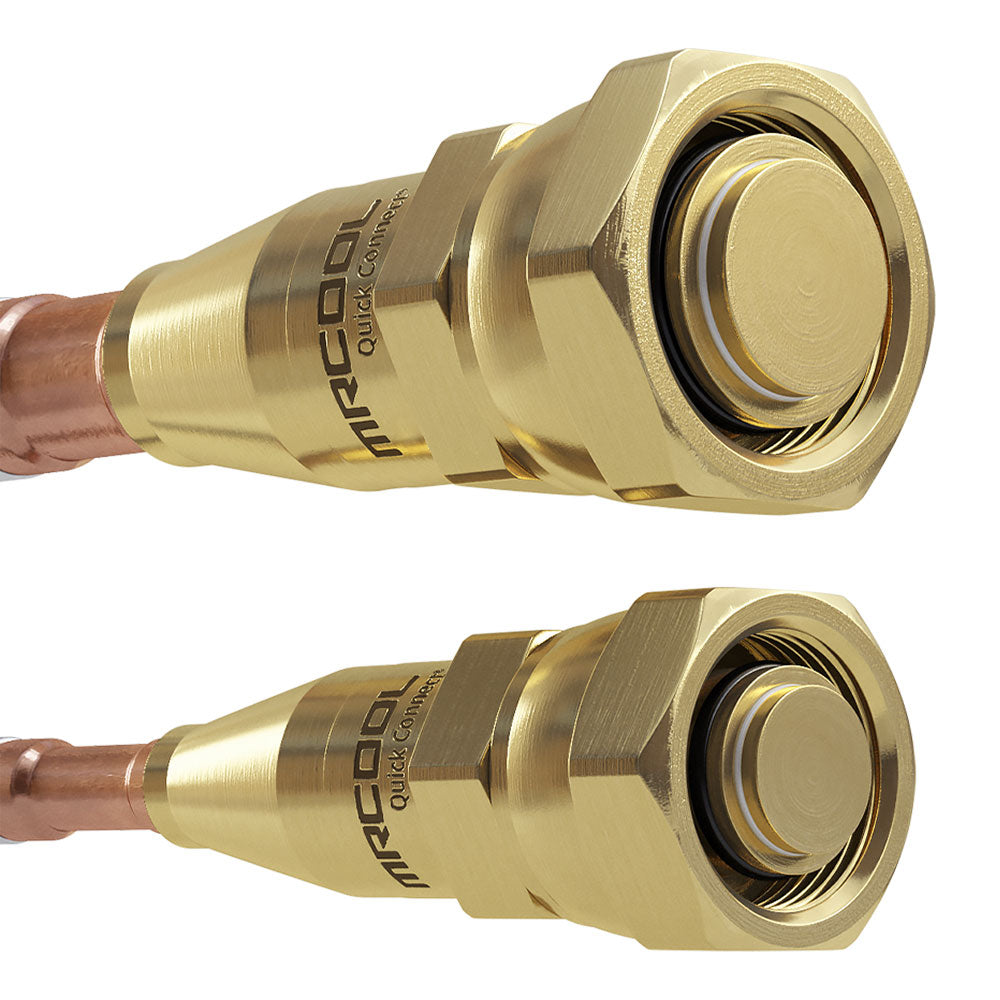

Need more length? Use a coupler to connect two lines together

Couplers connect 16 ft. or 25 ft. lines to one 50 ft. line set
Connect up to 66 ft. or 77 ft. in total length
Coupler for 9K, 12K or 18K Air Handler
Coupler for 24K or 36K Air Handler

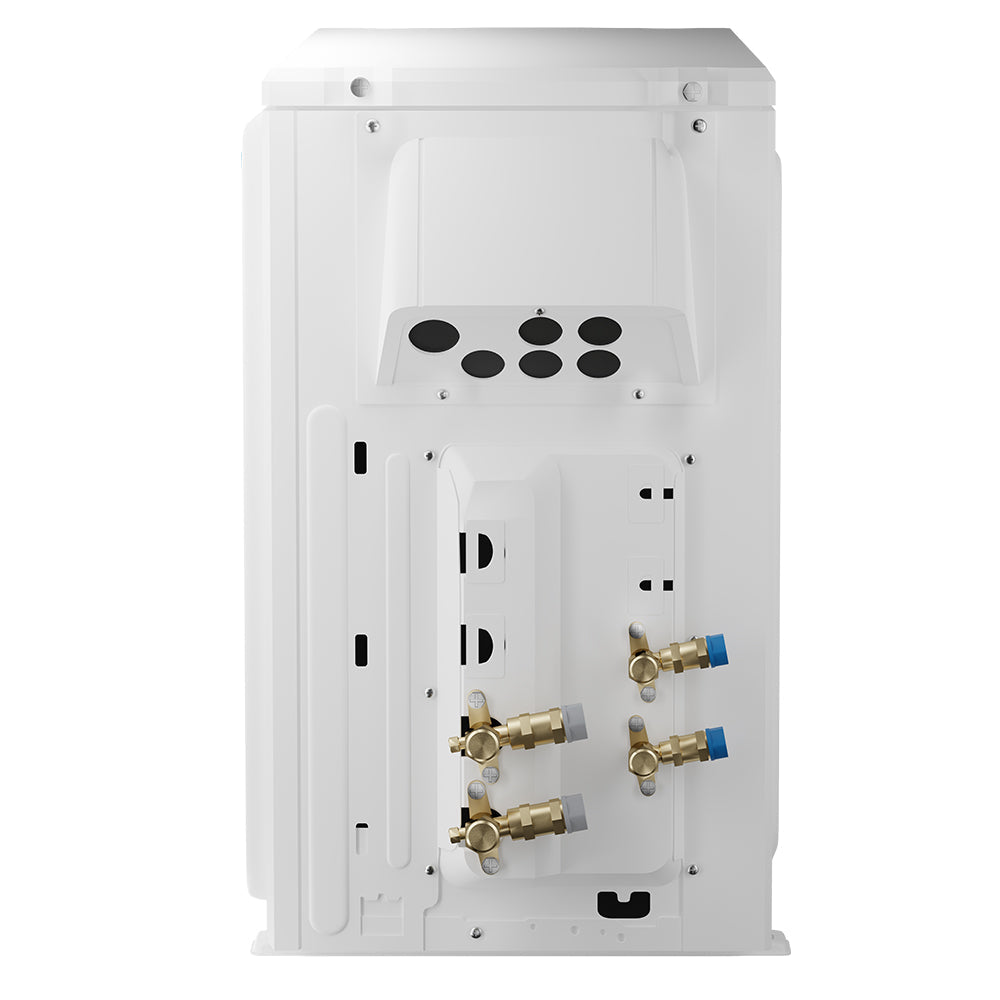

Condenser
Dimensions	16.14" D x 31.89" H x 37.24" W
Voltage	208-230 V
SEER	22
Cooling Capacity	27K BTU
Heating Capacity	27K BTU
Min-Max Ambient Cool	5F ~ 122F
Min-Max Ambient Heat	-13F ~ 75.2F
Refrigerant Type	R-410A
Max Line Set Length	147.64ft TOTAL

12K Air Handler
Product Dimensions	7.44" D x 11.69" H x 31.57" W
Voltage	208-230 V
Cooling Capacity	12K BTU
Heating Capacity	12K BTU
Modes	Auto - auto selects from Cool, Heat or Fan-Only Dry (Dehumidifies) Cool Heat Fan Only Quiet Sleep

Line Sets
Length	16 ft., 25 ft., 35 ft., or 50 ft.
Liquid Line Size	1/4"
Suction Line Size	1/2"
Couplers	Connect 50 ft. line set to 16 ft. or 25 ft. line set For 24K or 36K Air Handler: DIYCOUPLER-3858K75C For 9K, 12K, or 18K Air Handler: DIYCOUPLER-1412K75C
Restricted States	GU;PR;VI
Proposition 65 Warning	Yes

*Shipping Policy

Free Shipping on all orders.
Large Appliances: Ship via Curbside Delivery — the carrier delivers to your property but not inside your home.
Small Items: Ship via standard ground delivery (FedEx or similar), such as small appliances, range hoods, sinks, faucets, and accessories.
See our Shipping Page for full details

⁺Return/Refund Policy

30-Day Return Policy: Return requests must be submitted within 30 days of your delivery date. We cannot process returns after this period.
Return Requirements: Products must be unused, uninstalled, and in their original packaging (including box and pallet) to qualify.
Restocking Fee: A restocking fee may apply and varies by brand. Please see our Return Policy Page for full details.

Browse MRCOOL Products

Excellent price, great service

No muss, no fuss. 1 call about extended warranty which I declined. Otherwise just straight forward drop shipment to curb, on time and as expected. All items in perfect shape, no breaks or rips in boxes.
The items (Mr. Cool 27k 3 head 9k/9k/12k DIY) installed great, easy to follow instructions. 1 wall insert was slightly cracked due to no packing material in the line box, but I it taped up and it inserted fine. Could have used more custom sized lines for fitting but otherwise very happy with product.

Perfect for our needs!

I ordered a 2 zone unit for the bedrooms in our home. It took a few months to arrive (manufacturer issue, nothing to do with HOD, and we were contacted on more than one occasion with an order update which was much appreciated!), but when it did arrive was very easy to install. Both the heat and AC function work perfectly, and our family is very happy!

Decent Company

I ordered a HVAC system and it arrived in a timely manner and with no apparent issues. I thought the system was defective once installed but it was the installers fault who wired it wrong. My only issue would be the fee (30% I believe) to return a defective item within the 30 day return policy. If it is defective the customer shouldn't have to pay a fee to return an item that is not operating as designed. Other than that this is a good company.

Pretty Easy Install and Works Great!

Installed my own central HP system. It was a bit of work but nothing beyond a person with basic mechanical and electrical skills. It took me a while because I had to remove the existing electric forced air furnace from a pretty tight place. Some custom sheet metal work and a bit of custom electrical too. Worked perfectly when powered up and I actually like the thermostat provided, although I wish it was clearer how to set up a temperature set-back schedule. Pre-charged refrigerant piping was something new and I liked that too. The best thing is that my electric utility forked out $4,000 and that paid for the unit!
