MRCOOL DIY 4th Gen 27K BTU, 3-Zone, 22 SEER, Ductless Heat Pump Condenser (DIY-MULTI3-27HP230C)

This item only includes a Condenser. Browse our complete Mini Split systems here.

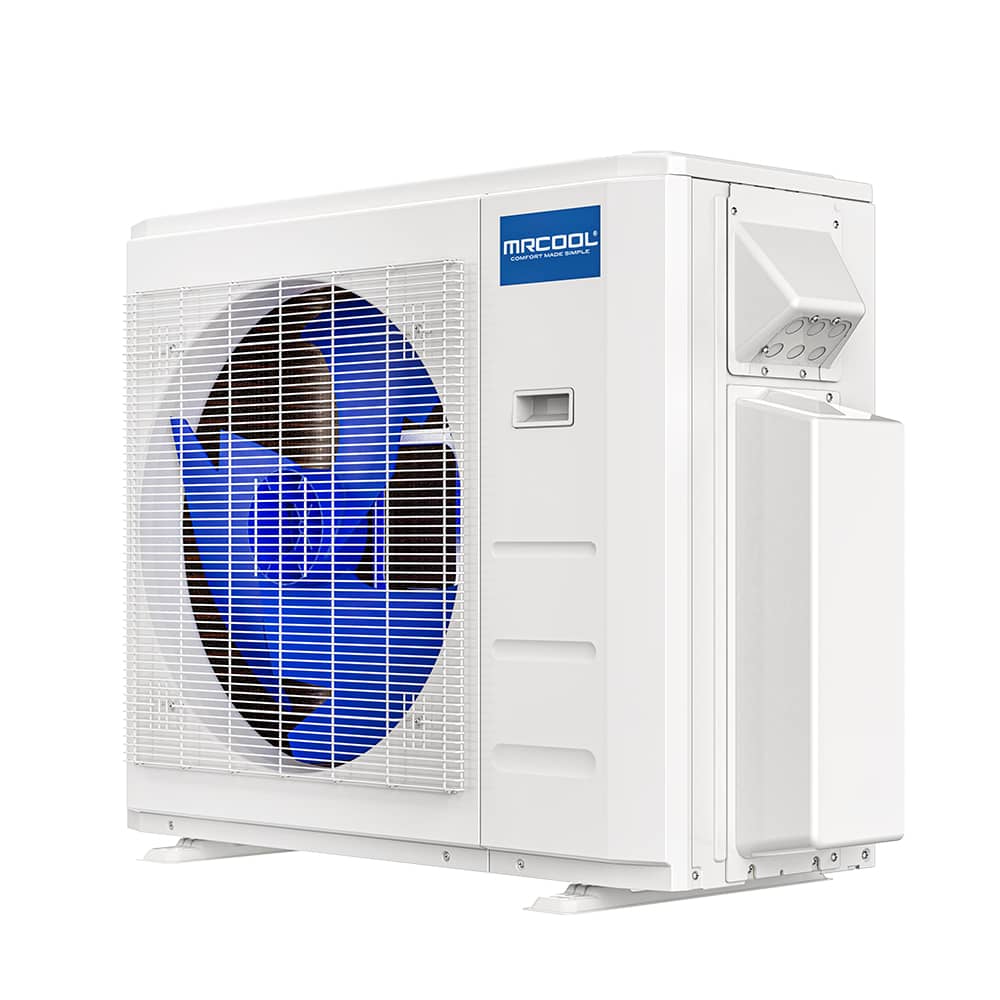

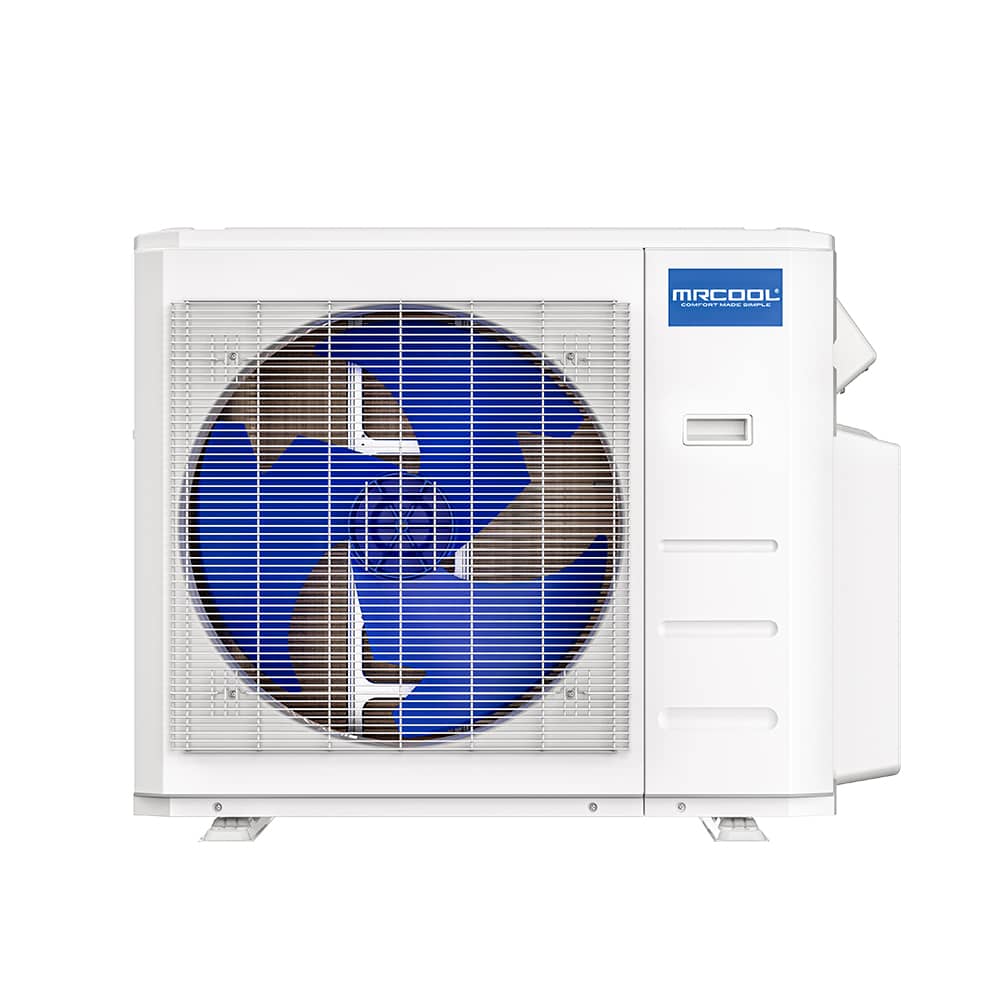

MrCool DIY 4th Gen Multi-Zone 3-Zone Condenser


Introducing the 4th Generation MrCool DIY 27K BTU 3-Zone Ductless Heat Pump Condenser which is one of the most capable heat pumps on the market.

When this 3-zone condenser is matched with select MrCool air handlers, it can produce a highly effective 22 SEER efficiency rating. It can also provide heating performance all the way down to -13F. With its Gold Fin condenser coating, it is sure to withstand the seasons. To drive home the quality of this condenser,

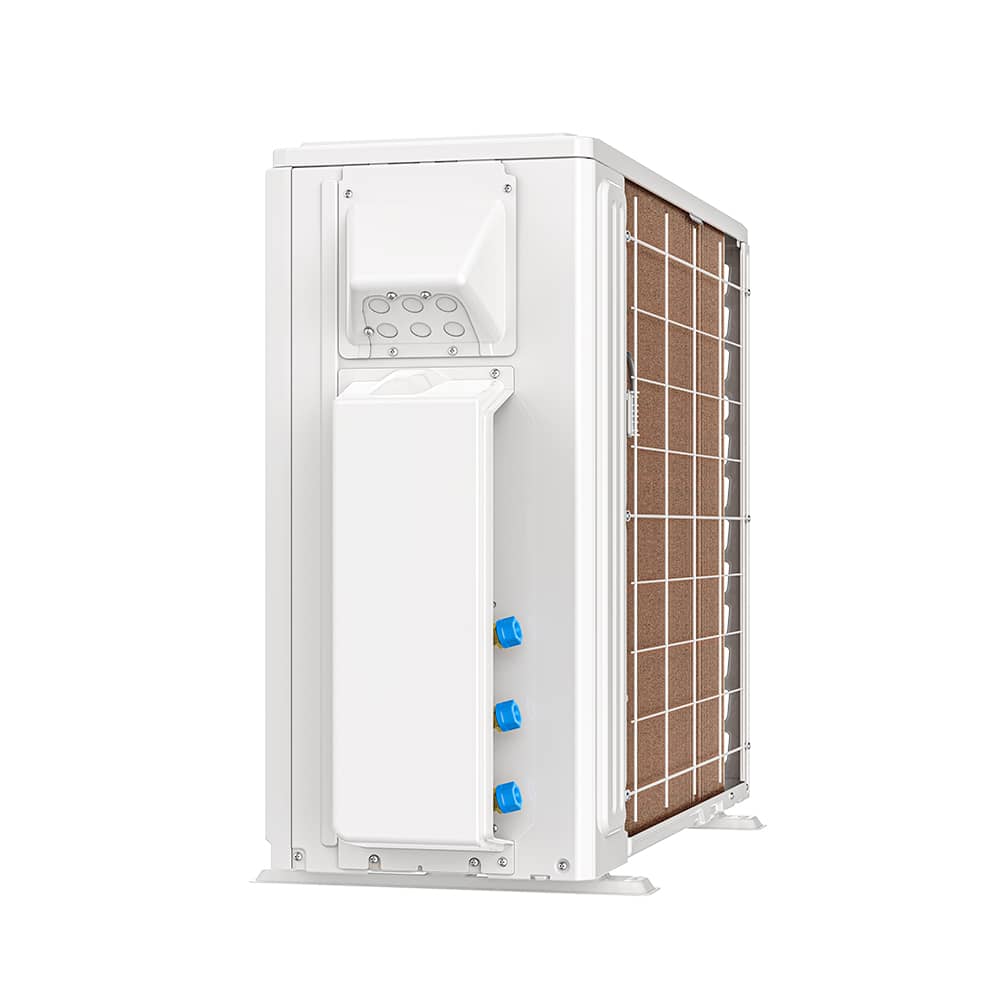

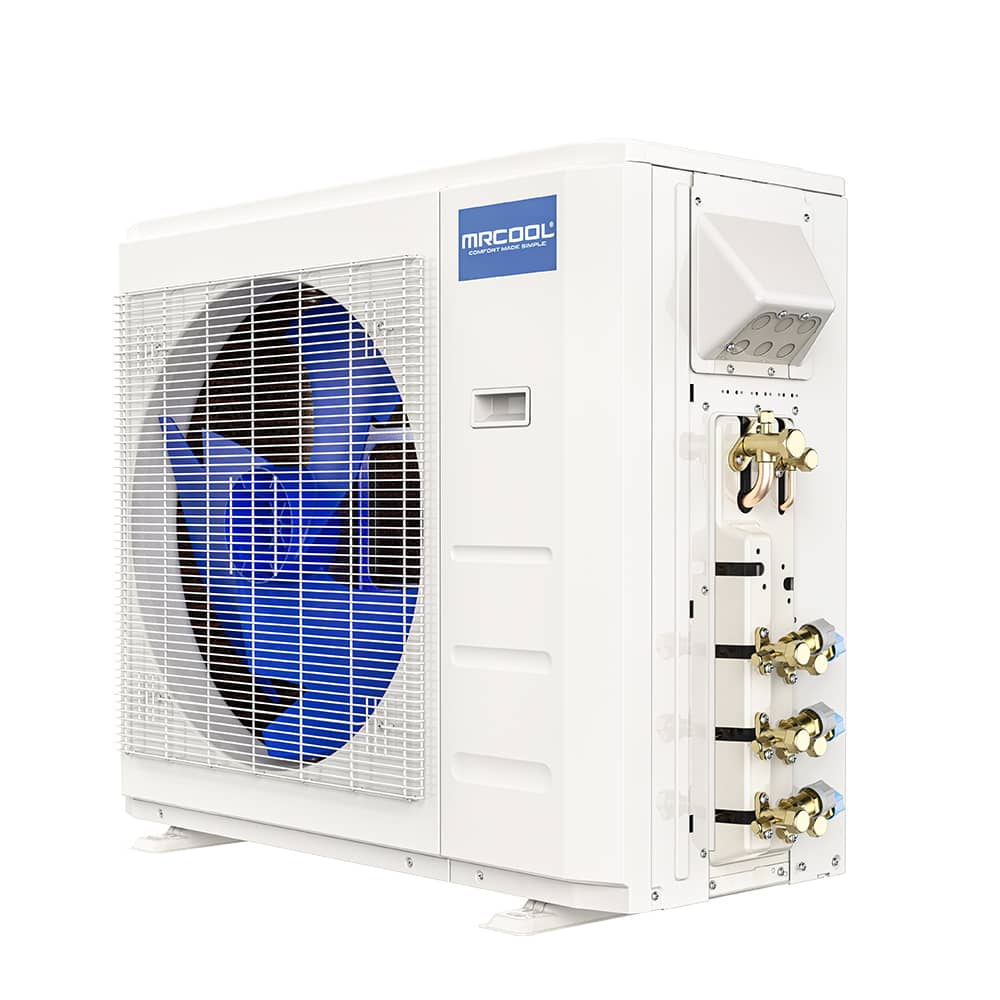

MrCool is the only manufacturer to offer a limited lifetime compressor warranty. The cornerstone of this heat pump is its ability to be a Do-It-Yourself project for a homeowner. When used with MrCool's patented Pre-Charged Quick Connect Line Set, the refrigerant piping can be connected with simple hand tools and does not require the services of a certified technician. It comes pre-charged with the correct amount of R-410A refrigerant so, once installed, it does not require vacuuming.

Allow the capability, performance, and simplicity of a DIY installation of the 4th Generation MrCool DIY 27K BTU 3-Zone Ductless Heat Pump Condenser to be your only choice for your home's heating and cooling.


  • Up to 22 SEER

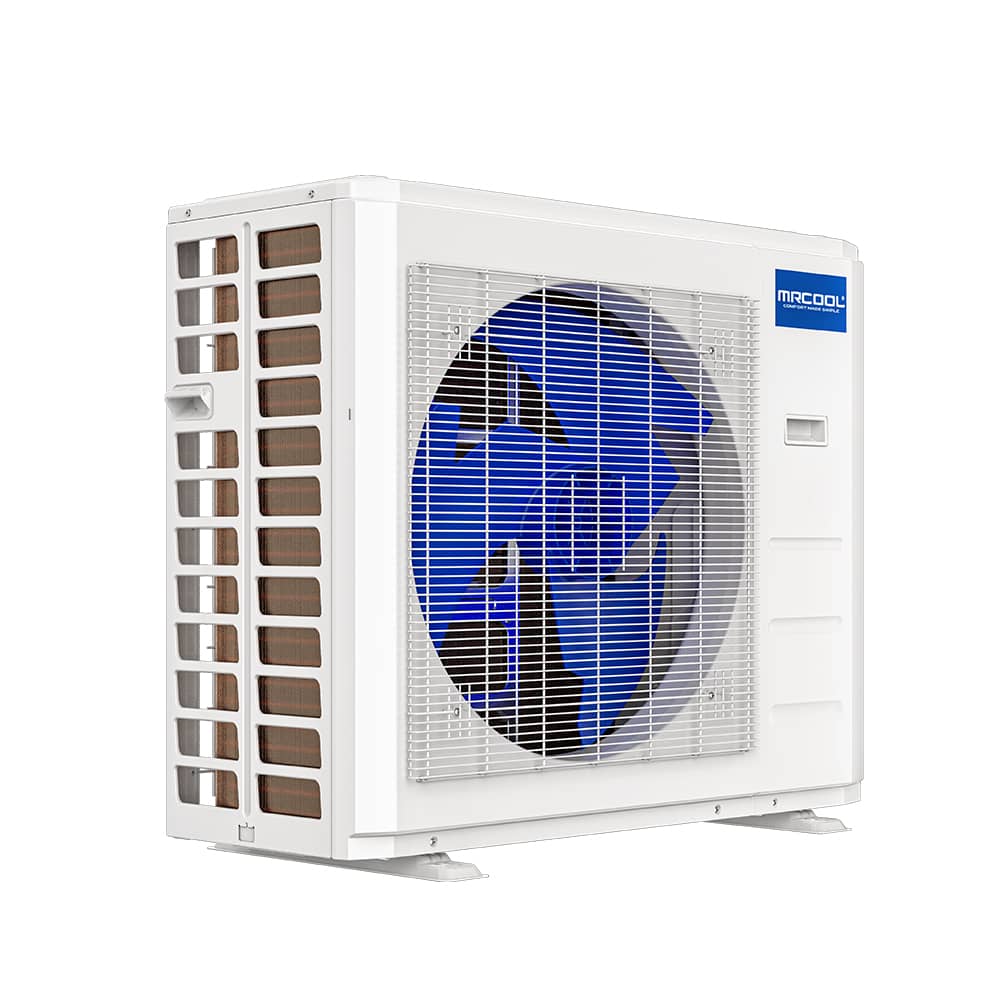

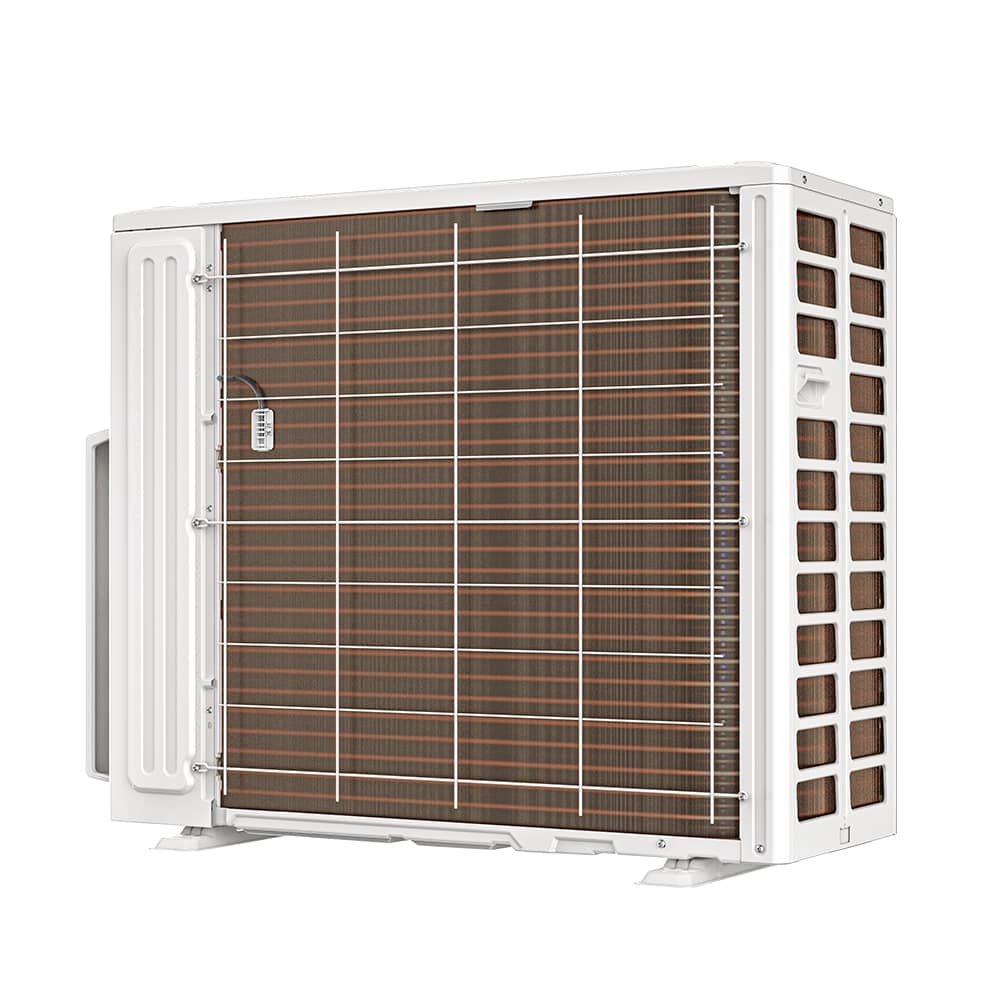

  • Gold Fin condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty


Dimensions 16.14" D x 31.89" H x 37.24" W






hspf4/hspf5 : 10.3/8.2



Cooling Capacity

27000 BTU

Heating Capacity

27000 BTU


208-230 V




60 Hz

Max Fuse Breaker

40 A

Min Circuit Ampacity

26 A



Color Family


Zone Capacity

Up to 3

Refrigerant Type


Refrigerant Volume

91.71 oz

Decibel Rating

61 dBA



Min Ambient Cool

5F ~ 122F

Min Ambient Heat

-13F ~ 75.2F

Max Lineset Length

147.64ft TOTAL

Liquid Line Size


Suction Line Size


Compressor Motor Type

Twin - Rotary

Condenser Fan Motor Rpm


Wi-Fi Compatibility


App Compatibility


Works With iOS


Works With Android


Registered Warranty

Limited Lifetime Compressor

Base Warranty

5-year Parts/7-year Compressor

Base Parts Warranty

5-year Parts

Registered Compressor Warranty

Limited Lifetime Compressor

Base Compressor Warranty

7-year Compressor

Contains Electronics


Contains Chemicals


Contains Aerosol


Contains Compressed Gas


Proposition 65 Warning


Net Weight

139.99 lbs

Gross Depth

19.88 in

Gross Height

35.04 in

Gross Width

42.91 in

Gross Weight

157.19 lbs


Mini Split FAQ

What BTU rating should I choose for my air handler?

  • This depends on the coverage area/room size you are trying to heat/cool
  • An Air Handler's BTU is how powerful the fan is. A higher BTU rating will be able to heat/cool a larger area
Air Handler BTU Coverage Area/Room Size (Sq Ft.)*
Up to 375 Sq. ft
12K BTU Up to 500 Sq. ft
18K BTU Up to 750 Sq. ft
24k BTU Up to 1000 Sq. ft
36k BTU  Up to 1500 Sq. ft

*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.

Shipping & Returns

*Shipping Policy

  • Shipping is Free
  • Large appliances ship via Freight Curbside shipment. Meaning the carrier will drop off your item on your property not inside your home. The courier company will call ahead of time to schedule a drop off date
  • For the full details, visit our Shipping Page

Return/Refund Policy
  • 30-Day Return Policy
  • If your order arrives damaged, we will exchange you for a new one. Damage must be reported within 24 hours.
  • For more details, visit our Return Policy Page


Customer Reviews

Based on 24 reviews
Peter K. (Phoenix, AZ)
Pretty Easy Install and Works Great!

Installed my own central HP system. It was a bit of work but nothing beyond a person with basic mechanical and electrical skills. It took me a while because I had to remove the existing electric forced air furnace from a pretty tight place. Some custom sheet metal work and a bit of custom electrical too. Worked perfectly when powered up and I actually like the thermostat provided, although I wish it was clearer how to set up a temperature set-back schedule. Pre-charged refrigerant piping was something new and I liked that too. The best thing is that my electric utility forked out $4,000 and that paid for the unit!

WesD (Chicago, IL)
Installed and working great

Installed with ceiling cassettes... Quiet and keeping us cool so far !

Deborah B. (Memphis, TN)
Heat pump unit

My unit arrived on time and undamaged. It was installed without a problem. I hate the fuse unit didn't come with it. They did UPS it to me so I didn't have to put installation on hold. The unit is very quiet and works well.

Nat R. (Odessa, TX)
4 ton condensing unit

Very good delivery service installed and works like a Should

walter w. (Port Neches, TX)
Old r22 unit, same capacity, worked better in temperature extremes

Product came packaged well, undamaged. Installation was difficult, followed instructions for suction line above coil on bilevel installation with coil above condenser. 108 inside house on startup, 103 ambient. First start, high pressure 500, low pressure 170, supply air temp 66 degrees. Very worried at first, but after house cooed down, everything within parameters. Researched 410a refrigerant, found out it looses efficiency exponentially during temperature extremes. My old r22 unit would supply 54 degree supply air in comparable operating conditions. EPA, government, a/c manufactures all lying to American public
