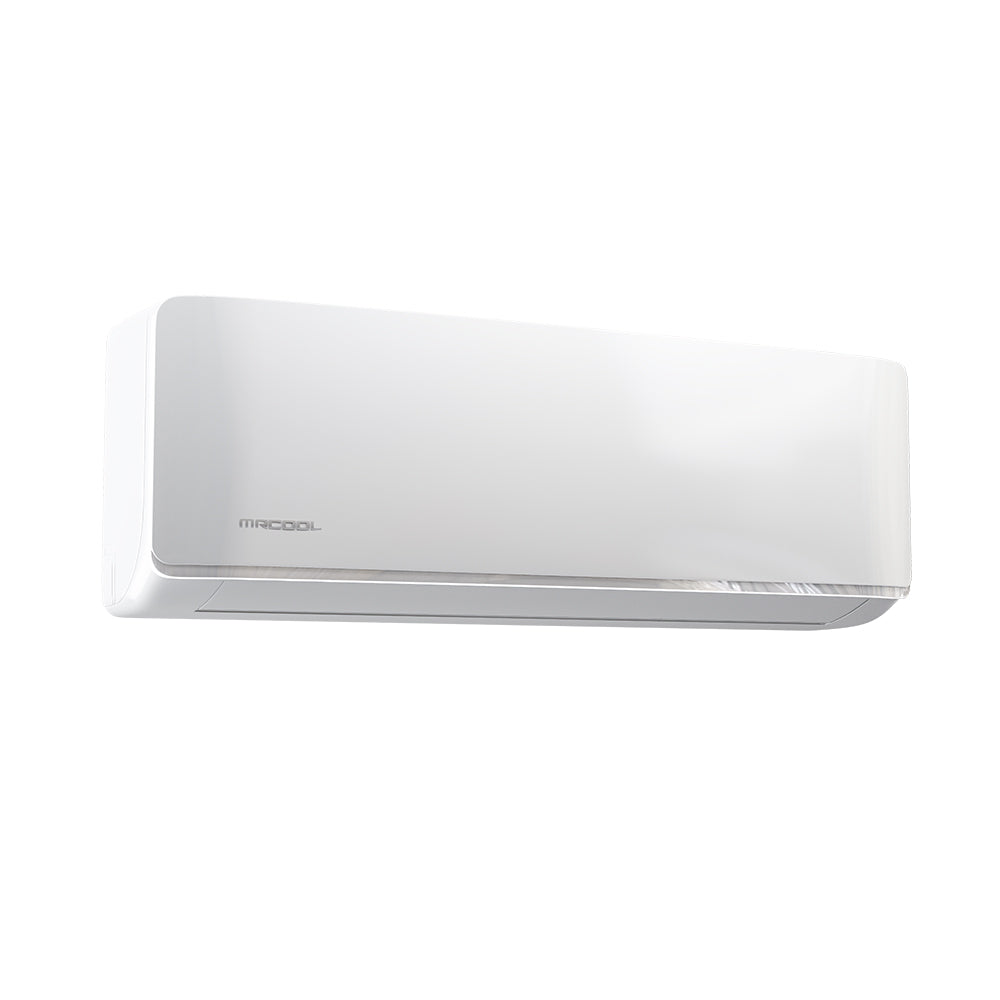

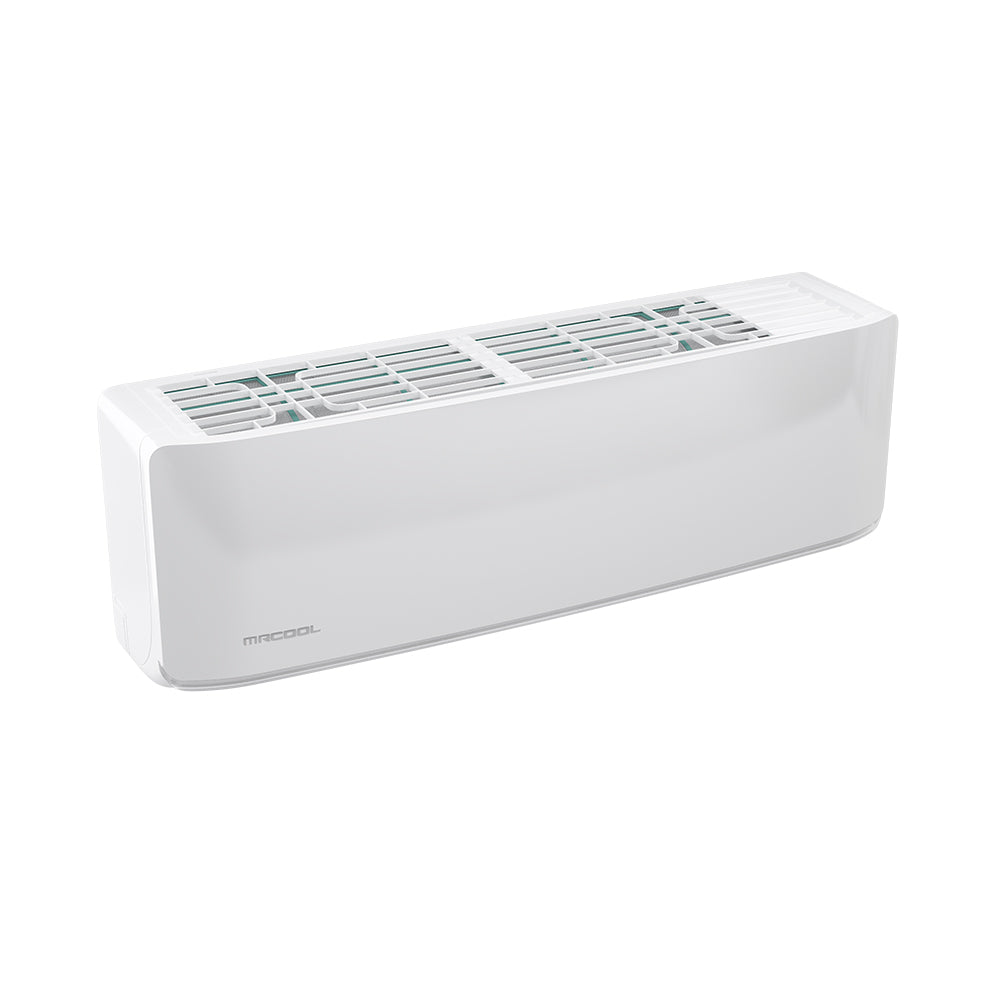

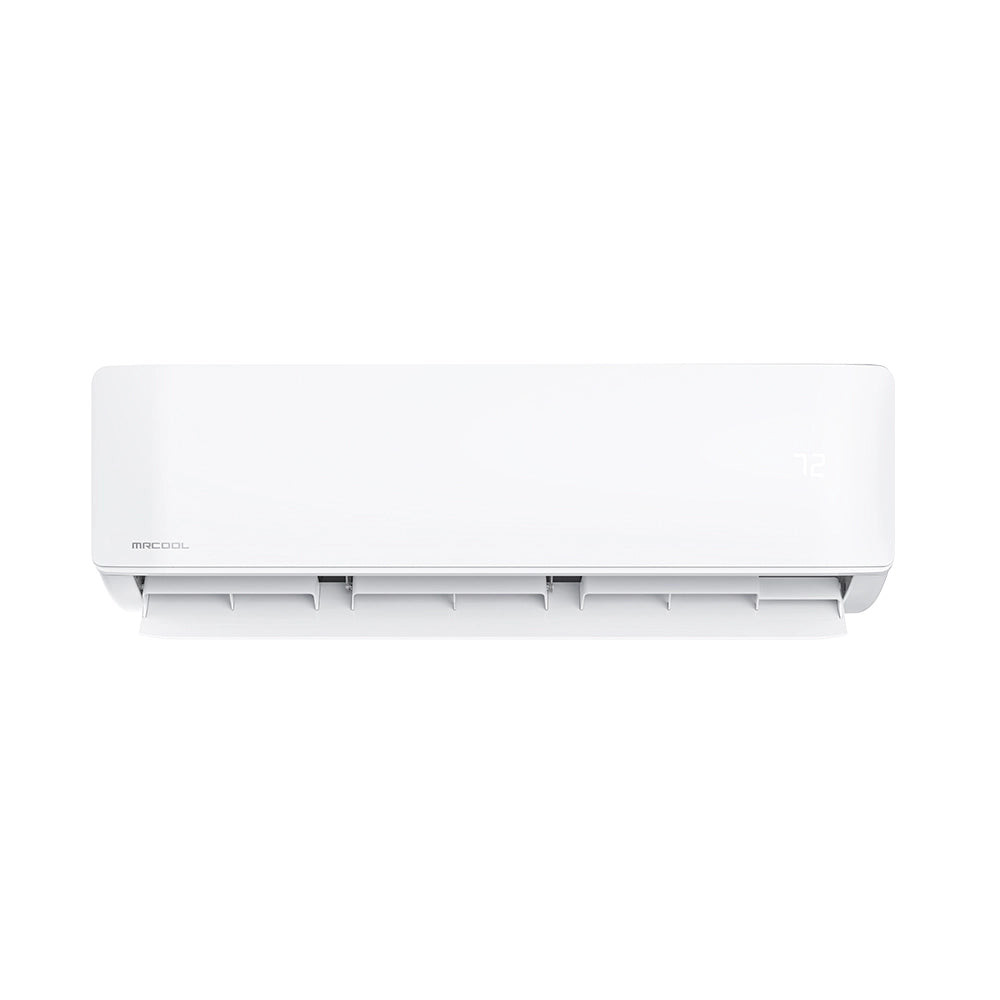

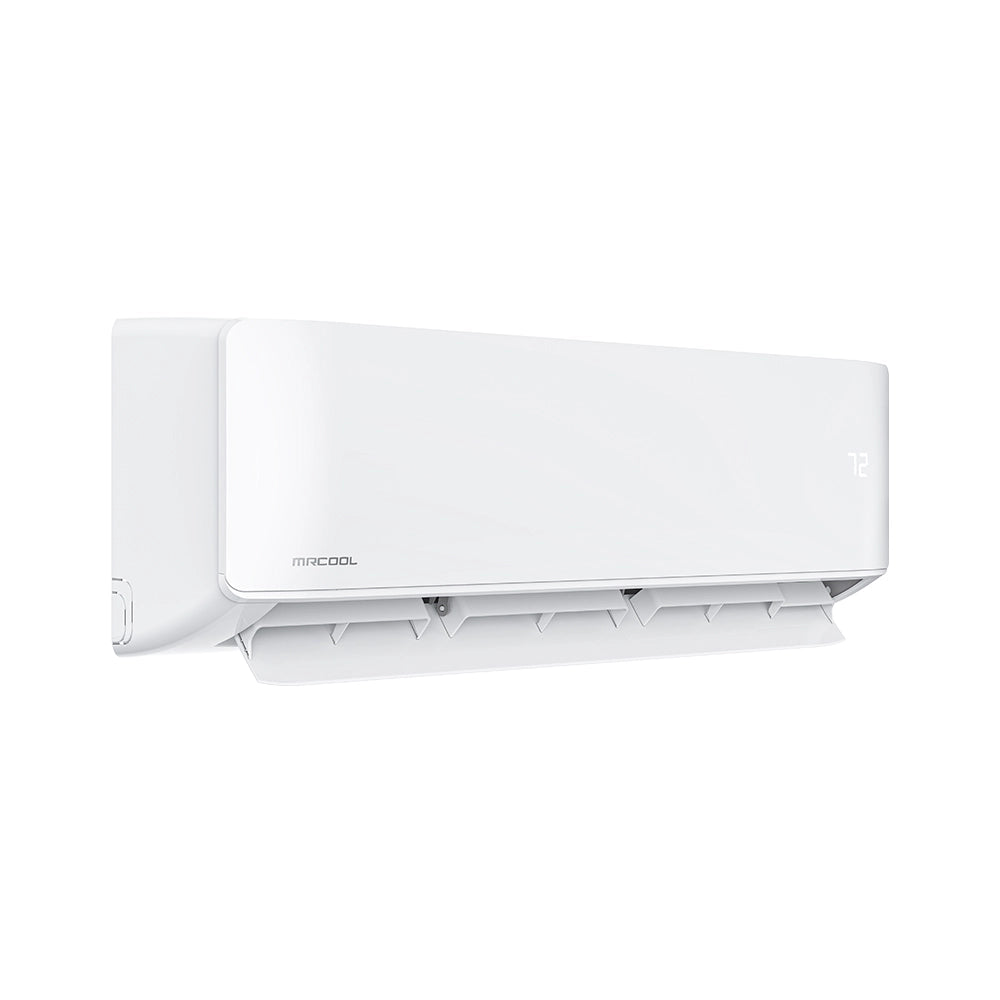

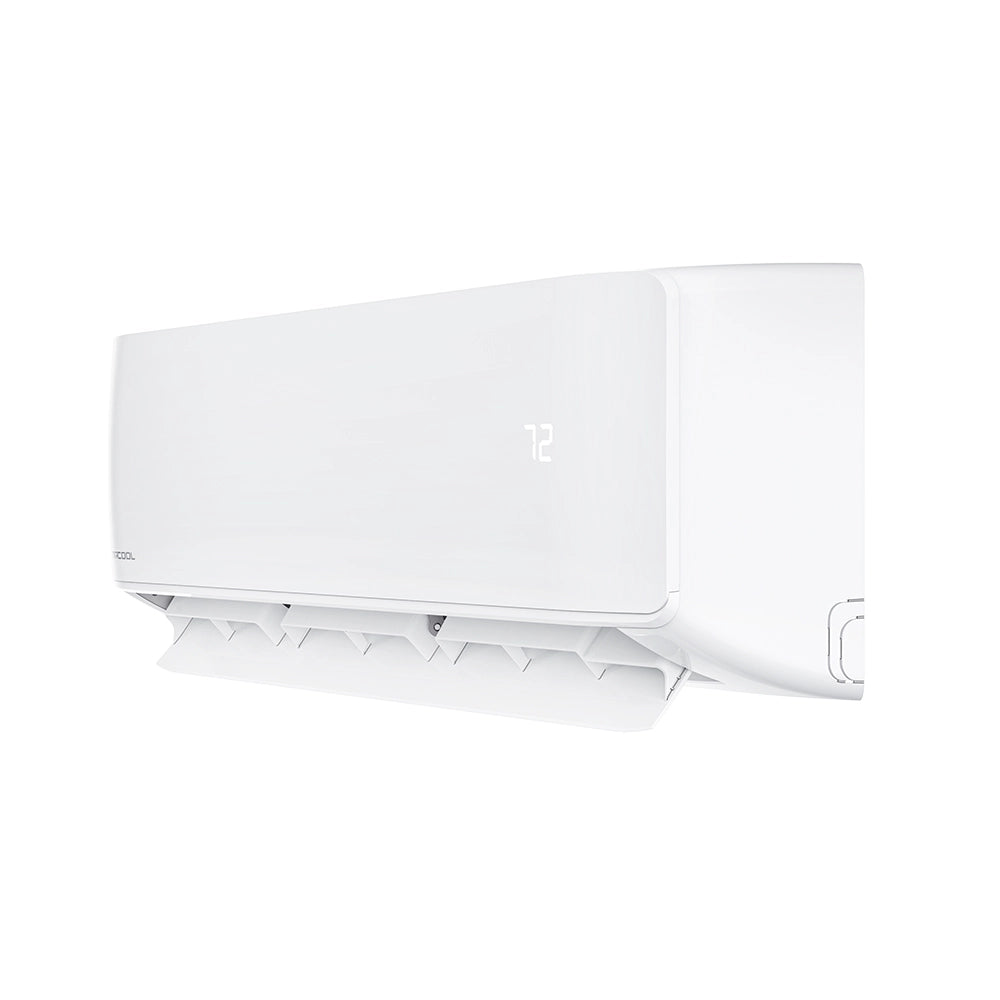

MRCOOL DIY 4th Gen 12K BTU, 22 SEER, Ductless Mini-Split Wall Mounted Air Handler (DIY-12-HP-WMAH-230C25)

This product only includes an Air Handler. Click here for our complete Mini Split systems.

MrCool E Star DIY 4th Gen 12k BTU Ductless Mini-Split Air Handler 208-230V/60Hz



The MrCool 4th Generation DIY 12K BTU Ductless Wall Mounted Air Handler is an essential component of a MrCool DIY system. When paired with a MrCool Condenser, it is capable of achieving a 22 SEER efficiency rating and has the ability to heat and cool an area of up to 500 sq ft.

It features multiple modes of operation such as COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP so it is sure to suit your needs. It can also be conveniently operated from anywhere using your Apple or Android smartphone with the Smart HVAC app.

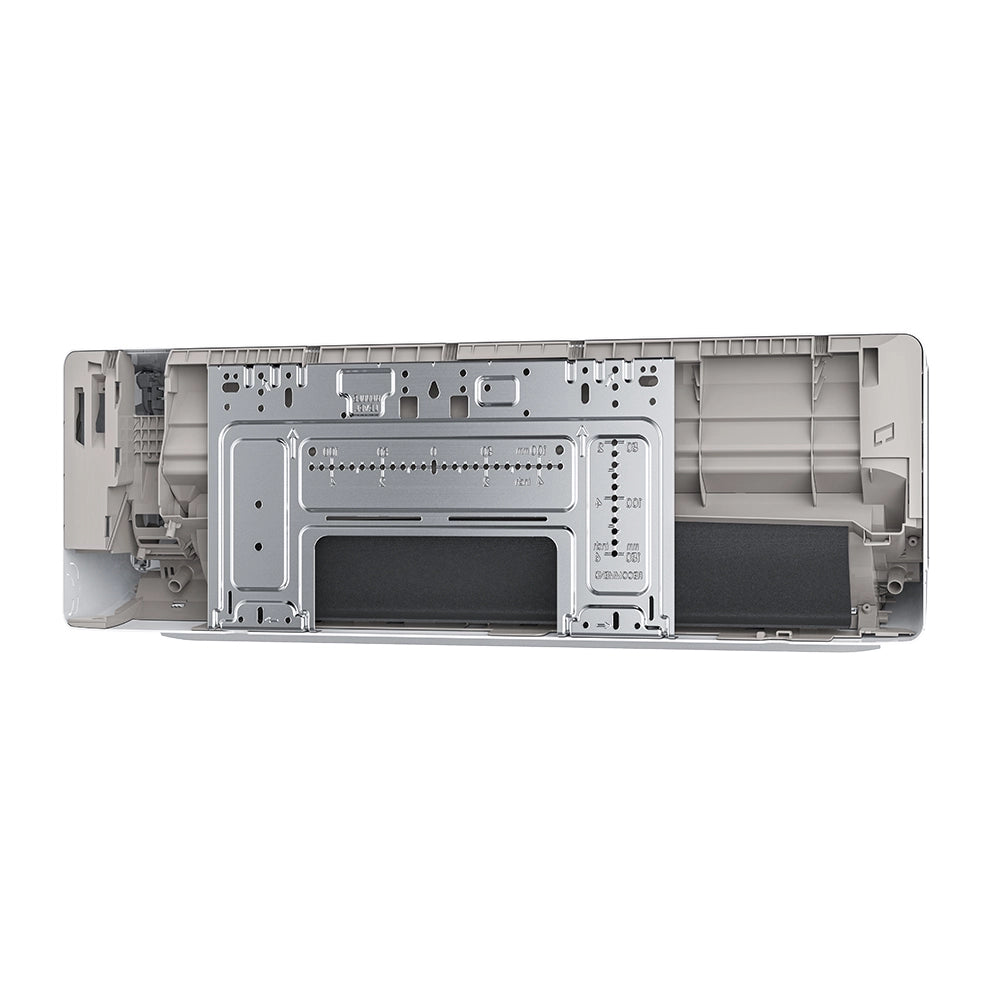

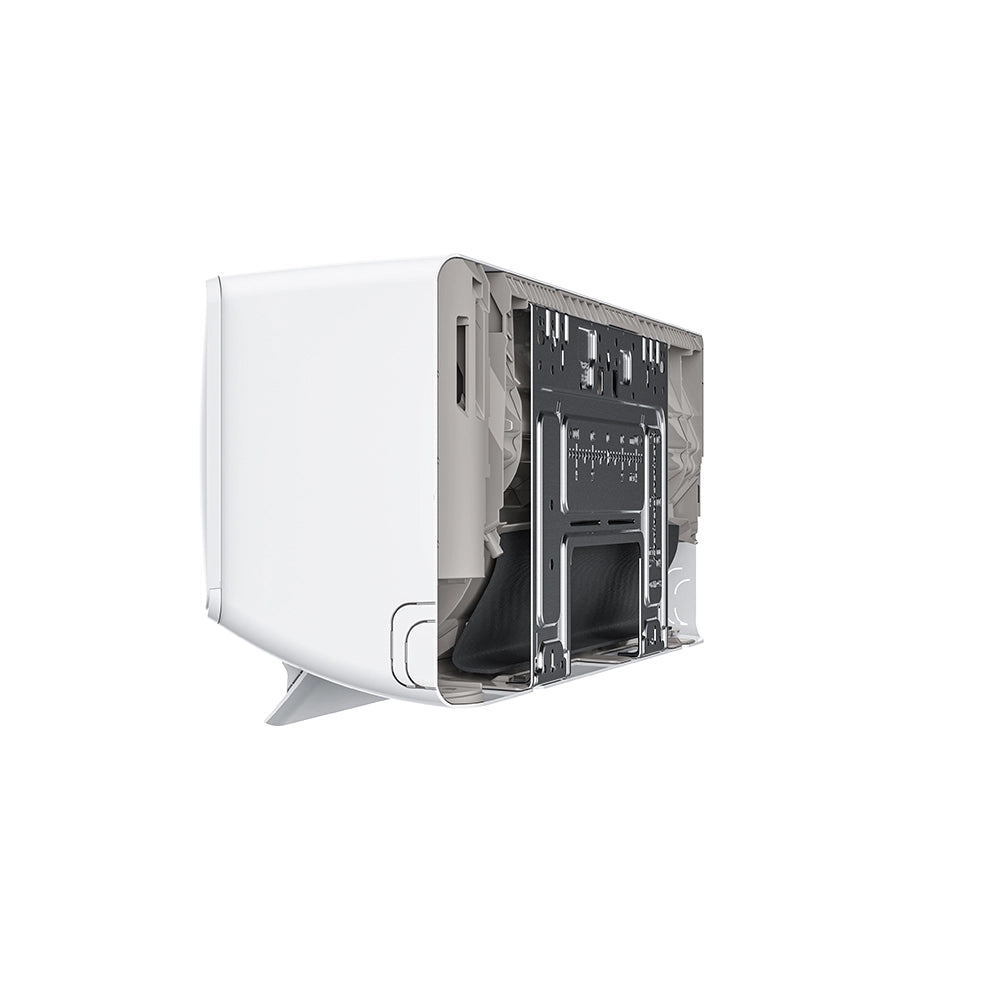

This air handler can be easily mounted with the included and easy-to-use wall mounting plate. It is also very compact, especially when compared to the components of a traditional ducted system, so it can be easily maneuvered into place. It was also designed to be used with MrCool's patented Pre-Charged Quick Connect Line Set. So, installing the refrigerant piping is as simple as turning a few wrenches. Since the line set comes pre-charged with the precise amount of R-410A refrigerant, no vacuuming or charging is required once connected. Select the MrCool 4th Generation DIY 12K BTU Ductless Wall Mounted Air Handler to be your home comfort solution.



Features

  • SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro Cable, an added safety feature to protect the wiring from the outside elements

Dimensions

7.44" D x 11.69" H x 31.57" W

Cooling Capacity

12000 BTU

Heating Capacity

12000 BTU

Voltage

208-230 V

Phase

1

Cycle

60 Hz

Max Fuse Breaker

15 A

Min Circuit Ampacity

3 A

Mount Type

Wall

Color

White

Color Family

White

Max Coverage Area

Up to 500 sqft

Refrigerant Type

R-410A

Decibel Rating

35 dBA

Decibel Rating Low

25 dBA

Decibel Rating High

40 dBA

Inverter

Yes

Liquid Line Size

1/4 in

Suction Line Size

1/2 in

Blower Motor Rpm

1050/850/650

Fan Only Option

Yes

Quiet Mode

Yes

Auto Cool

Yes

Wi-Fi Compatibility

Yes

App Compatibility

Yes

Works With iOS

Yes

Works With Android

Yes

Remote Control Included

Yes

Energy Star Certified

Yes

AHRI Certified

Yes

Registered Warranty

Limited Lifetime Compressor

Base Warranty

5-year Parts/7-year Compressor

Base Parts Warranty

5-year Parts

Registered Compressor Warranty

Limited Lifetime Compressor

Base Compressor Warranty

7-year Compressor

Has Batteries

Yes

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Aerosol

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes

Restricted States

GU;PR;VI

Net Weight

23.81 lbs

Gross Depth

16.34 in

Gross Height

13.98 in

Gross Width

36.02 in

Gross Weight

34.39 lbs
