Description

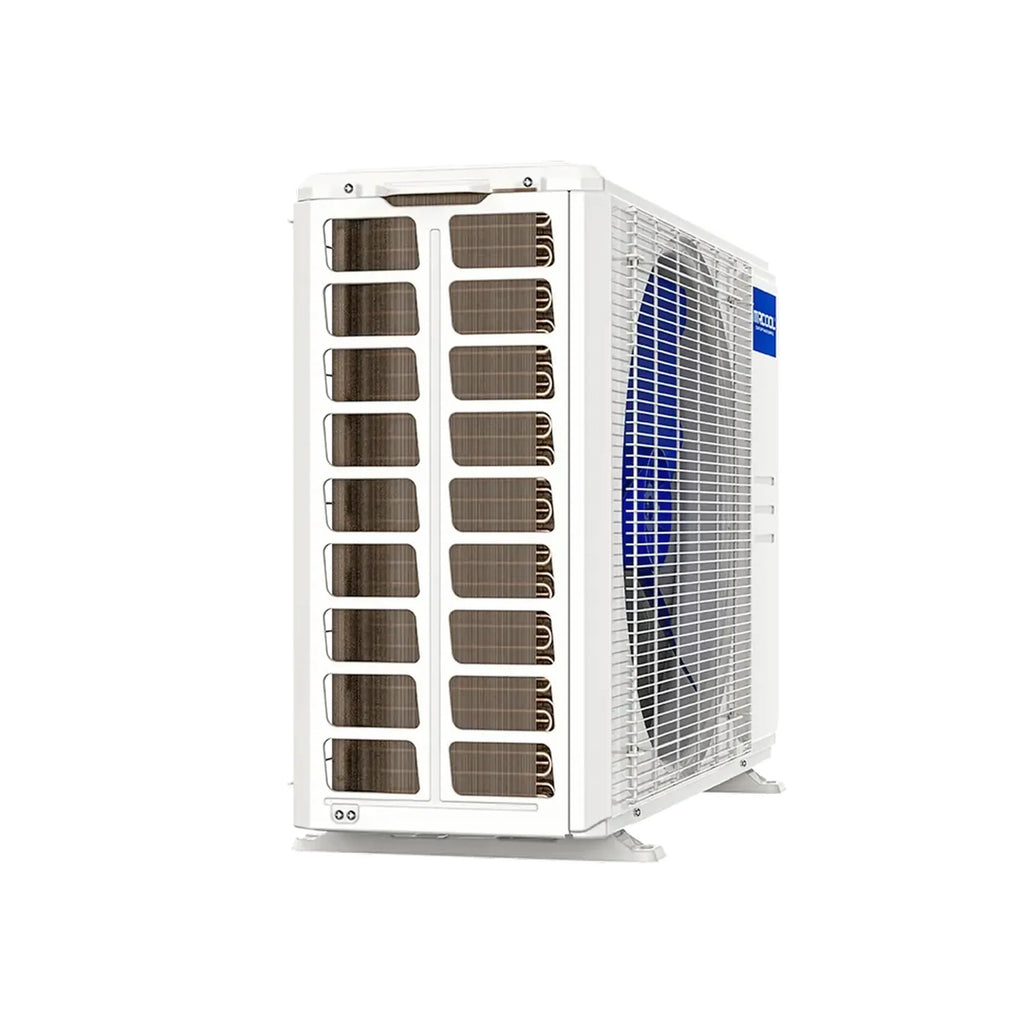

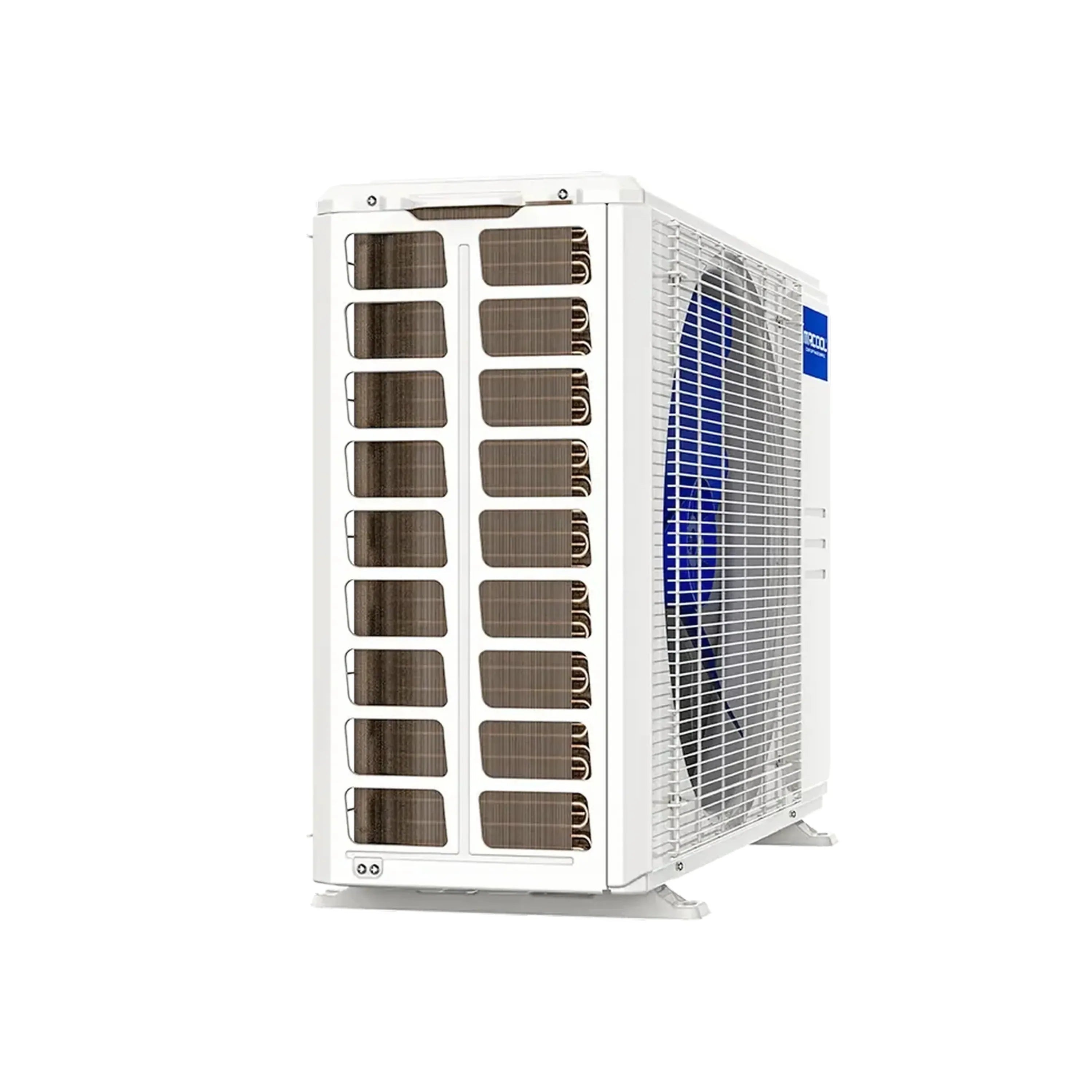

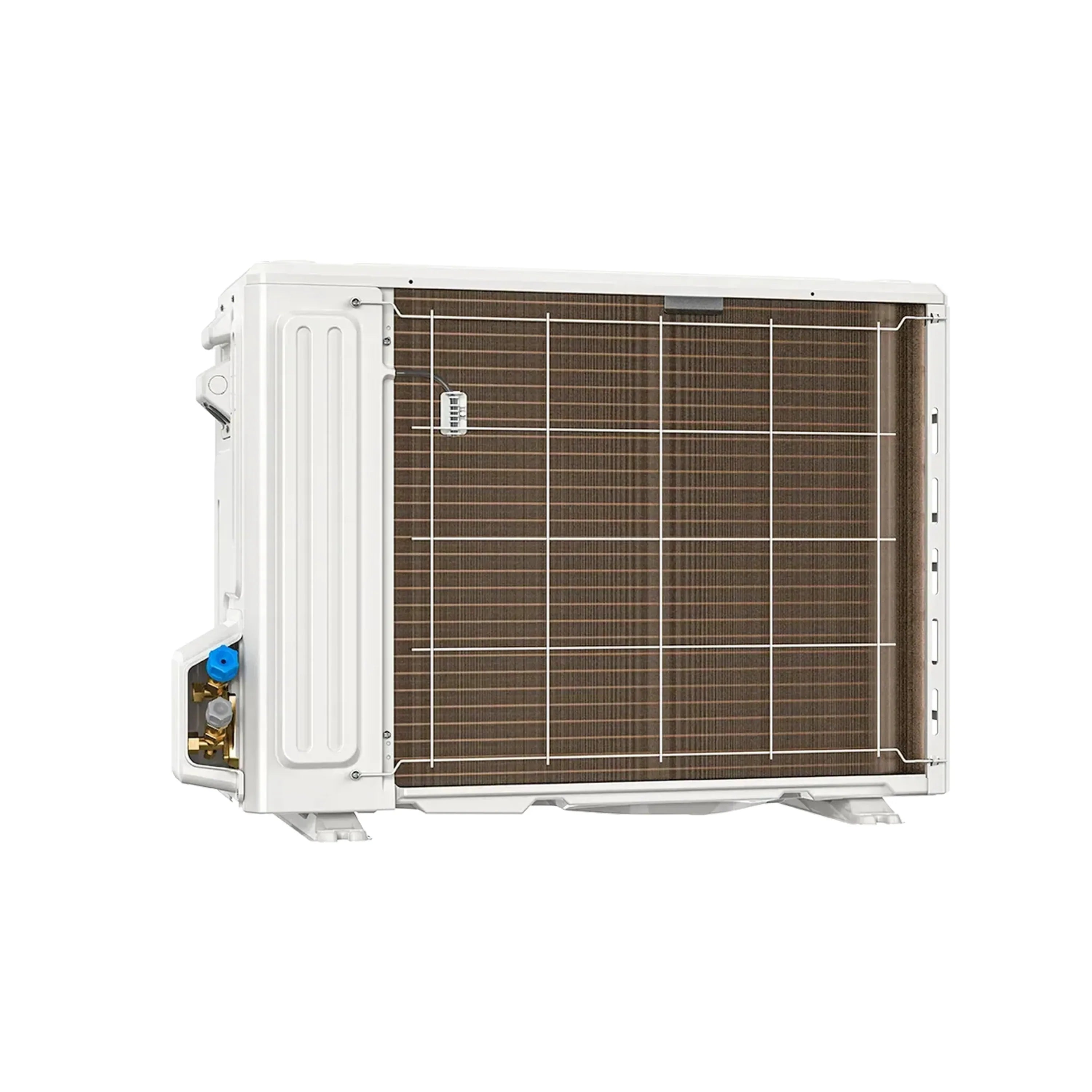

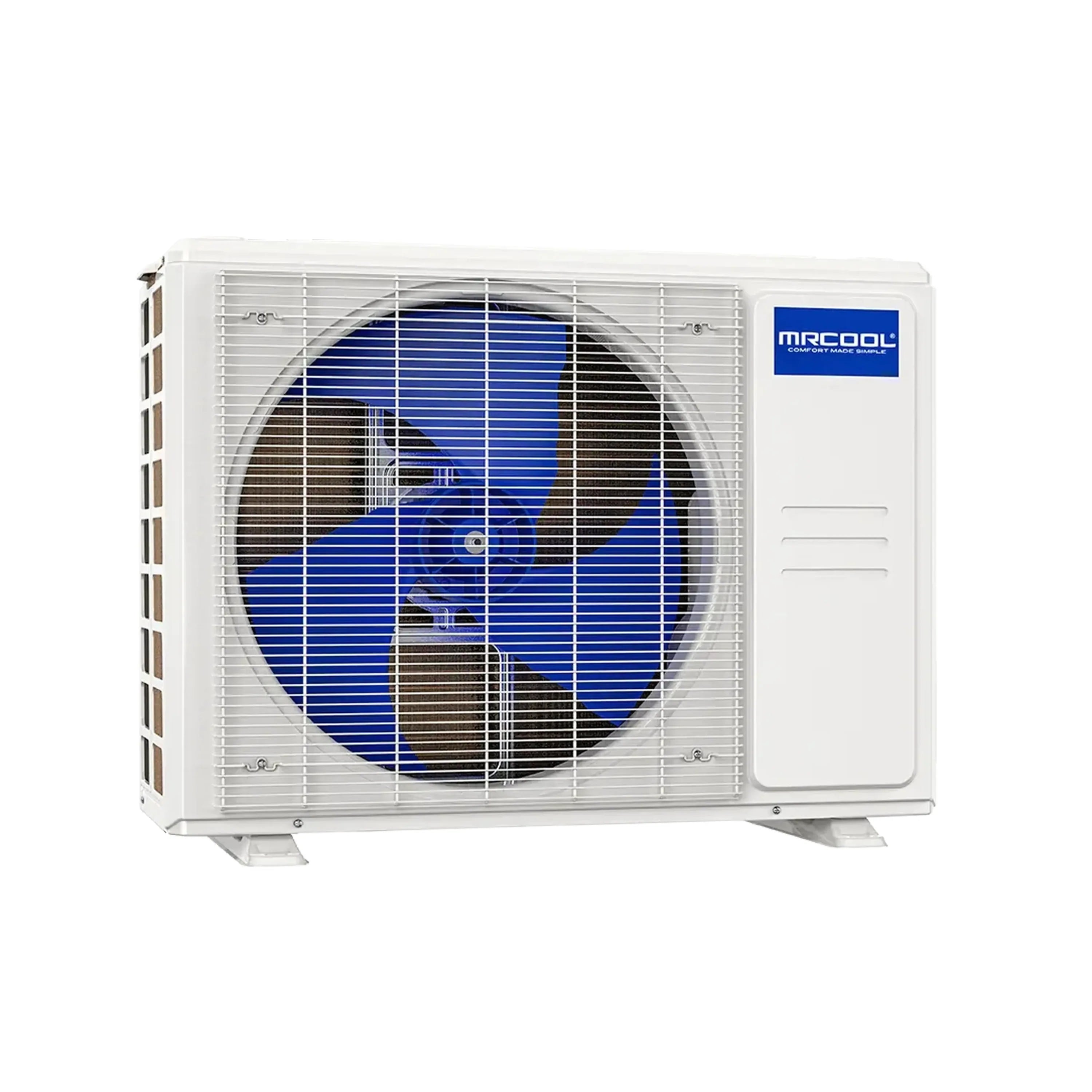

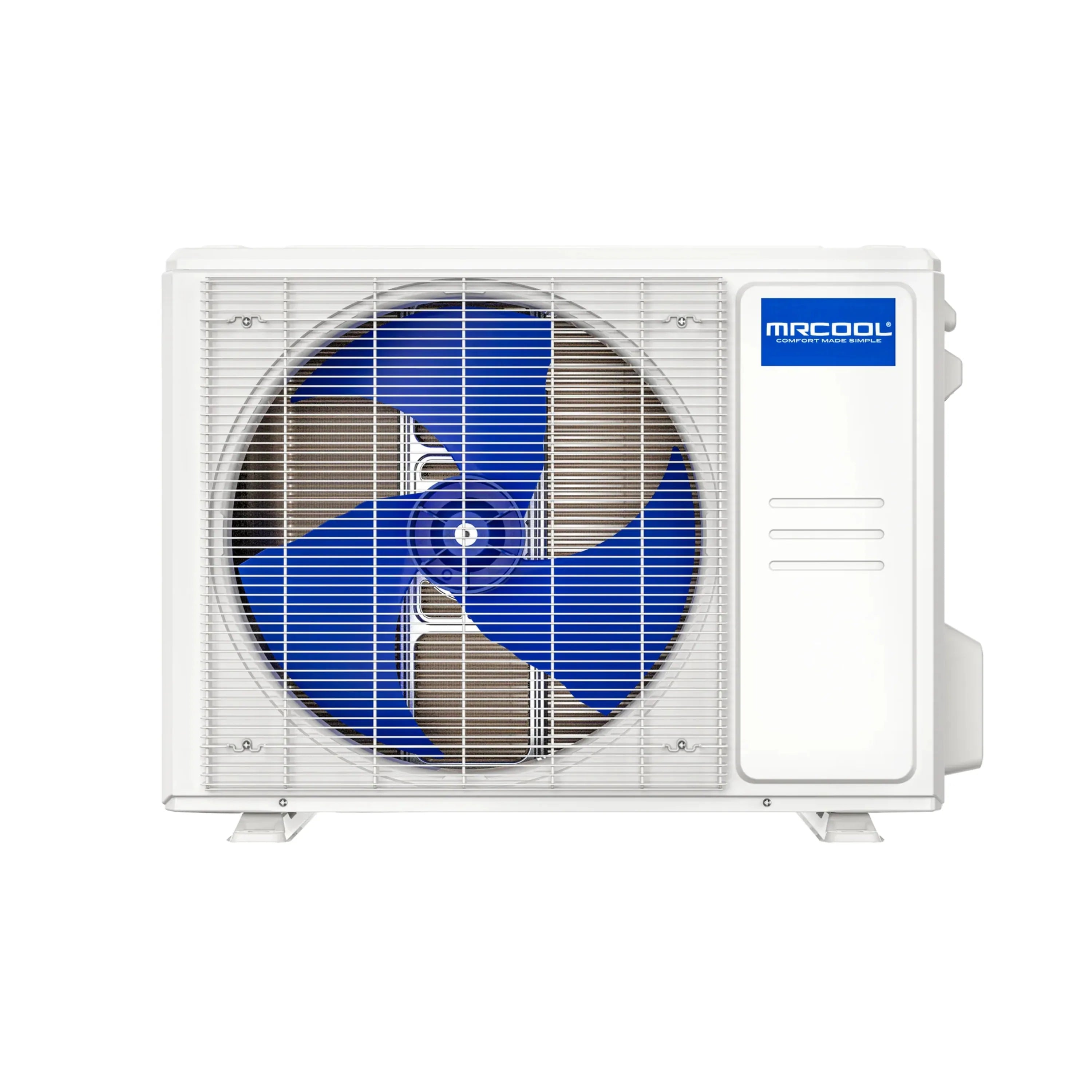

- Condenser Dimensions
- 30.12 W" x 11.93 D" x 21.85 H"

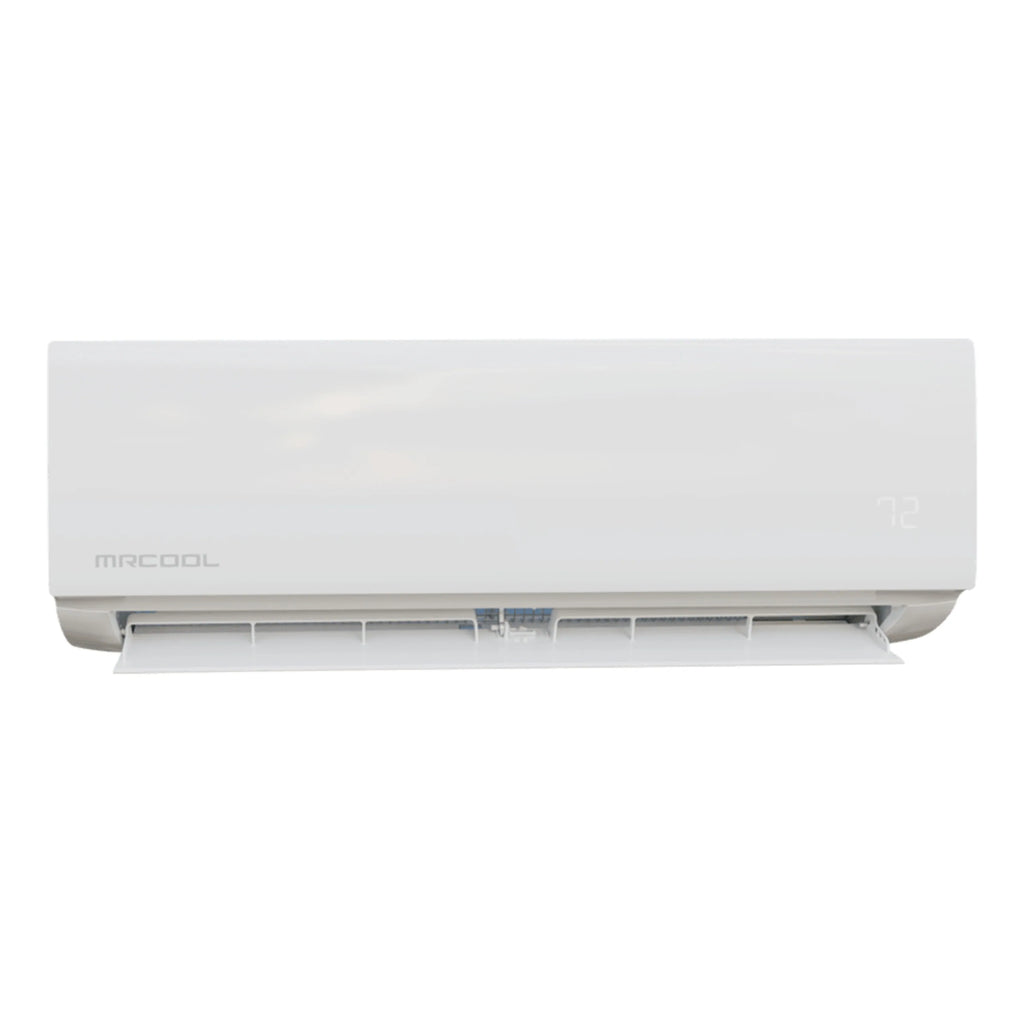

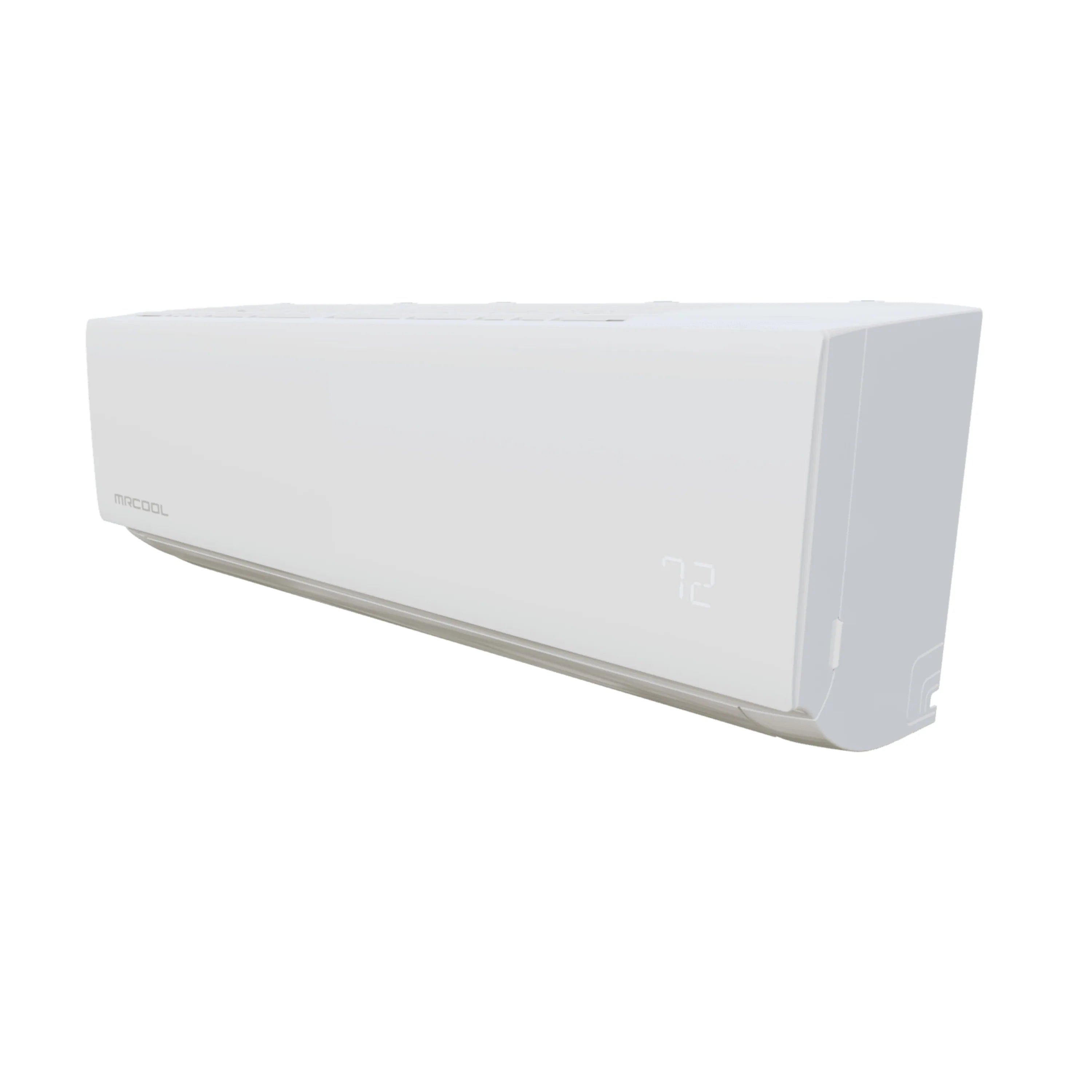

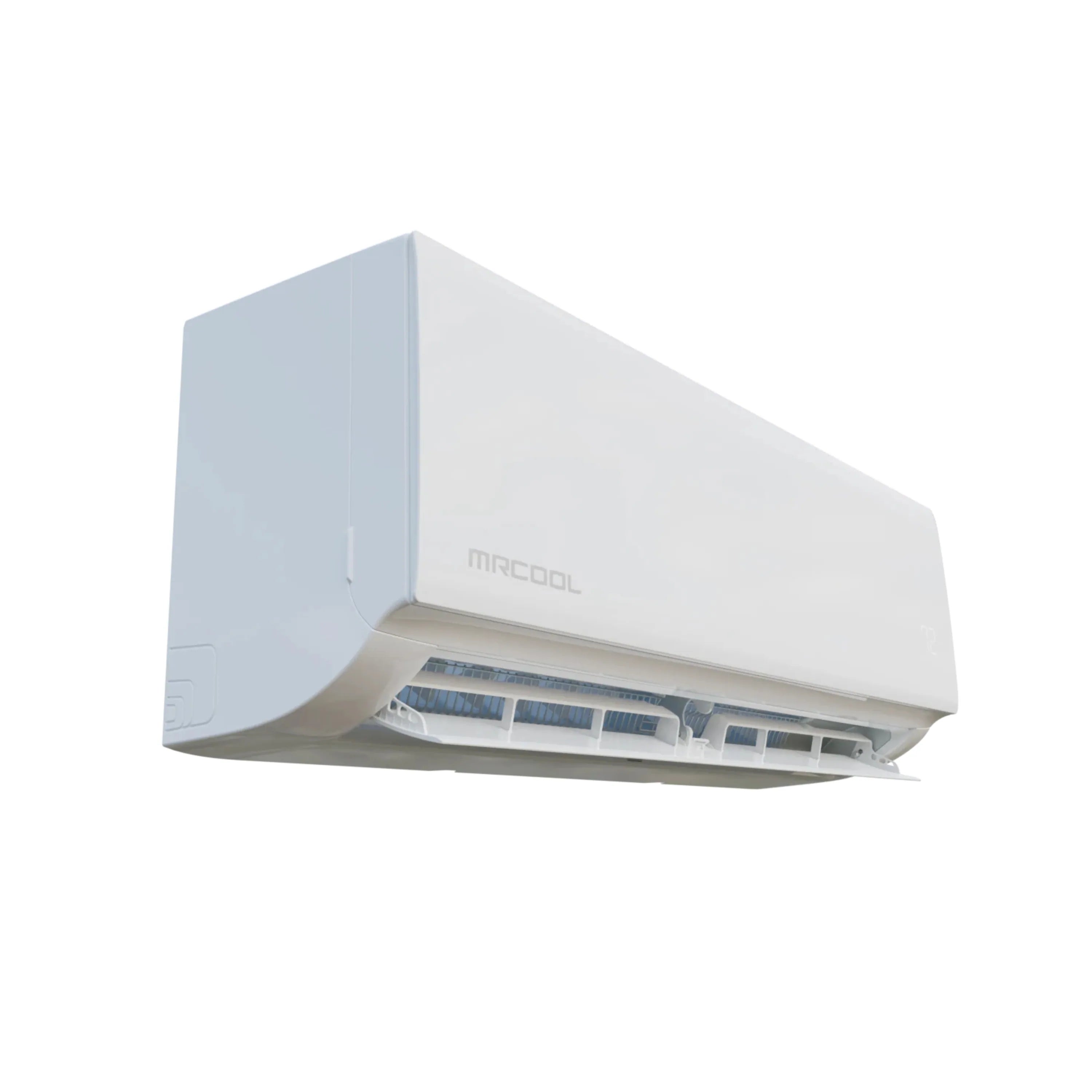

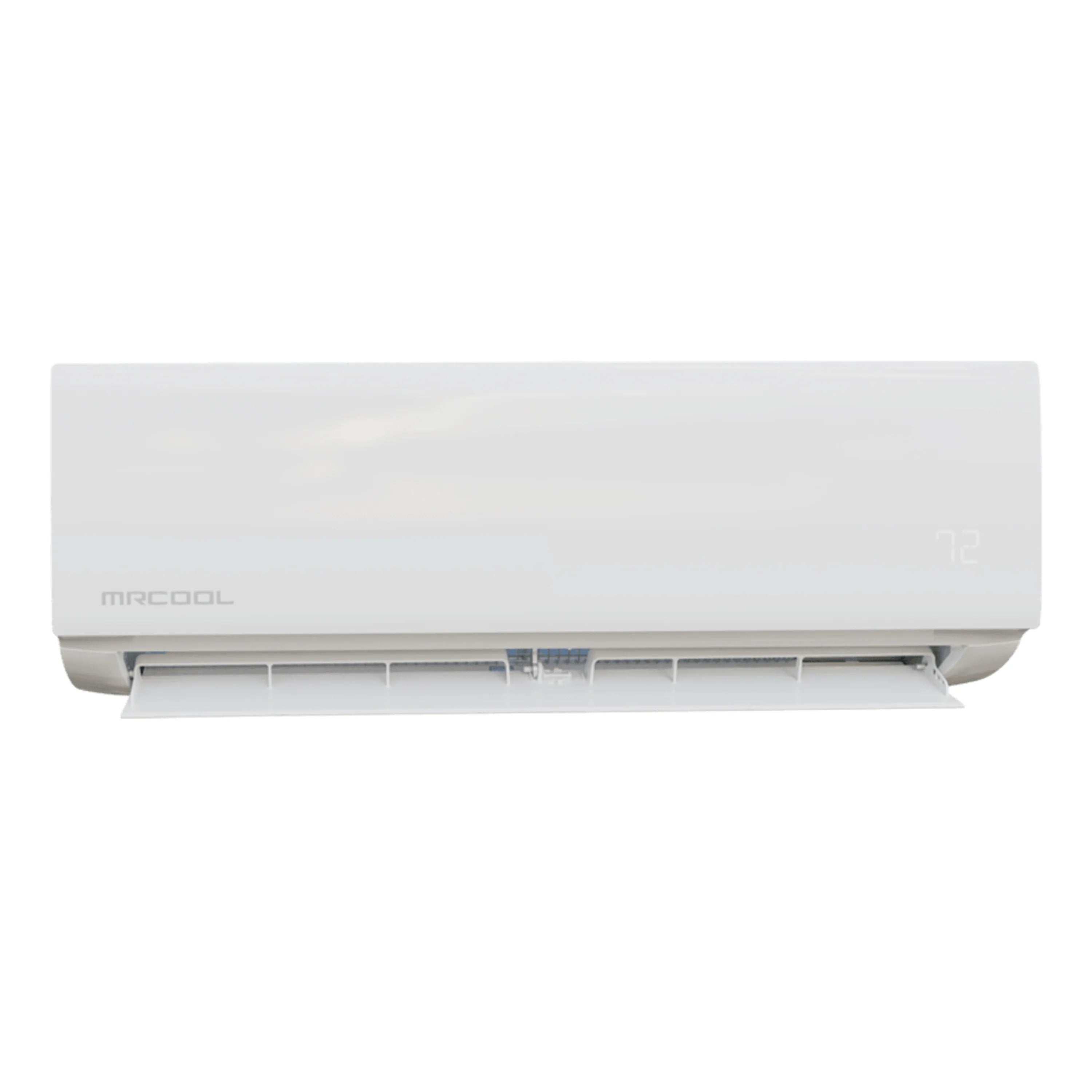

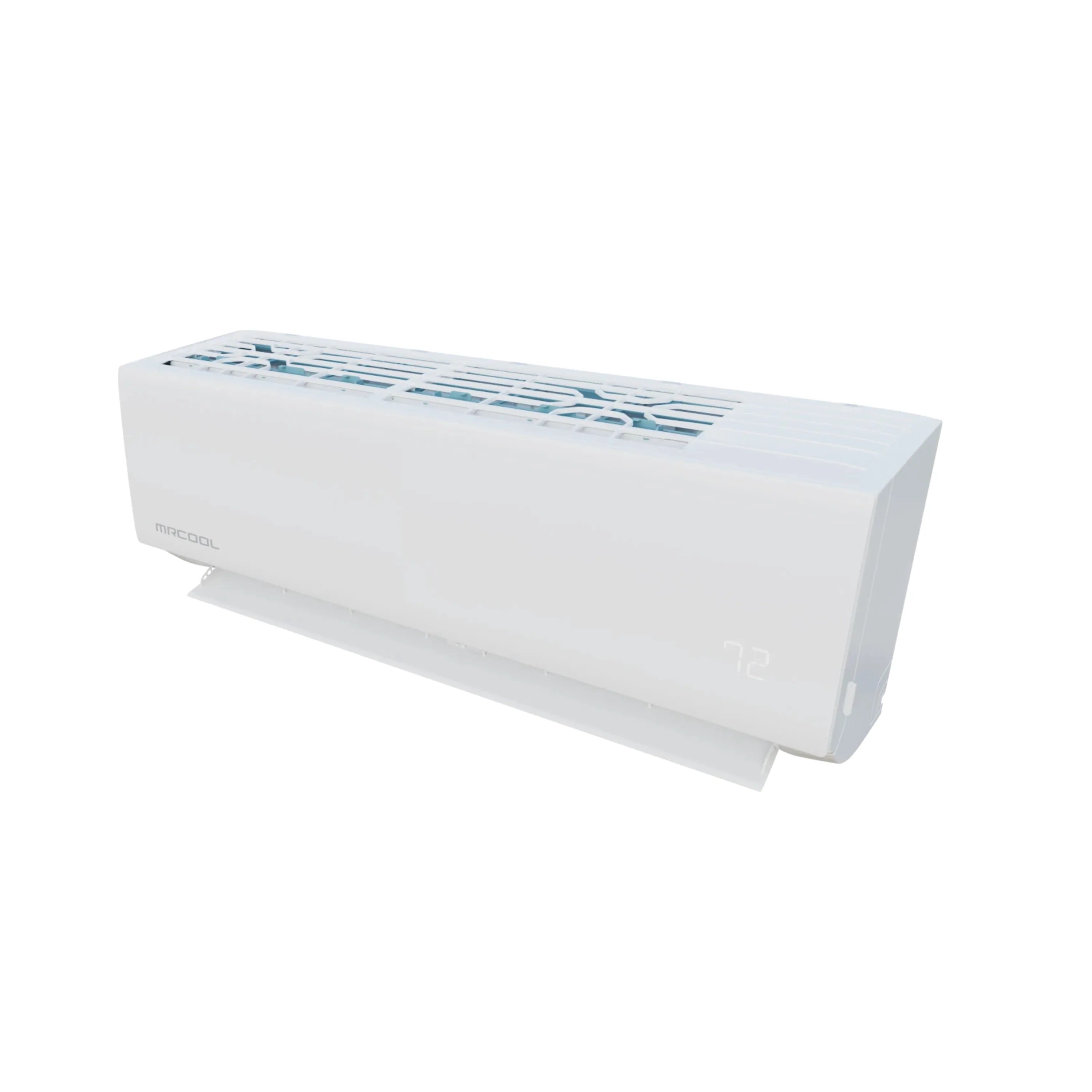

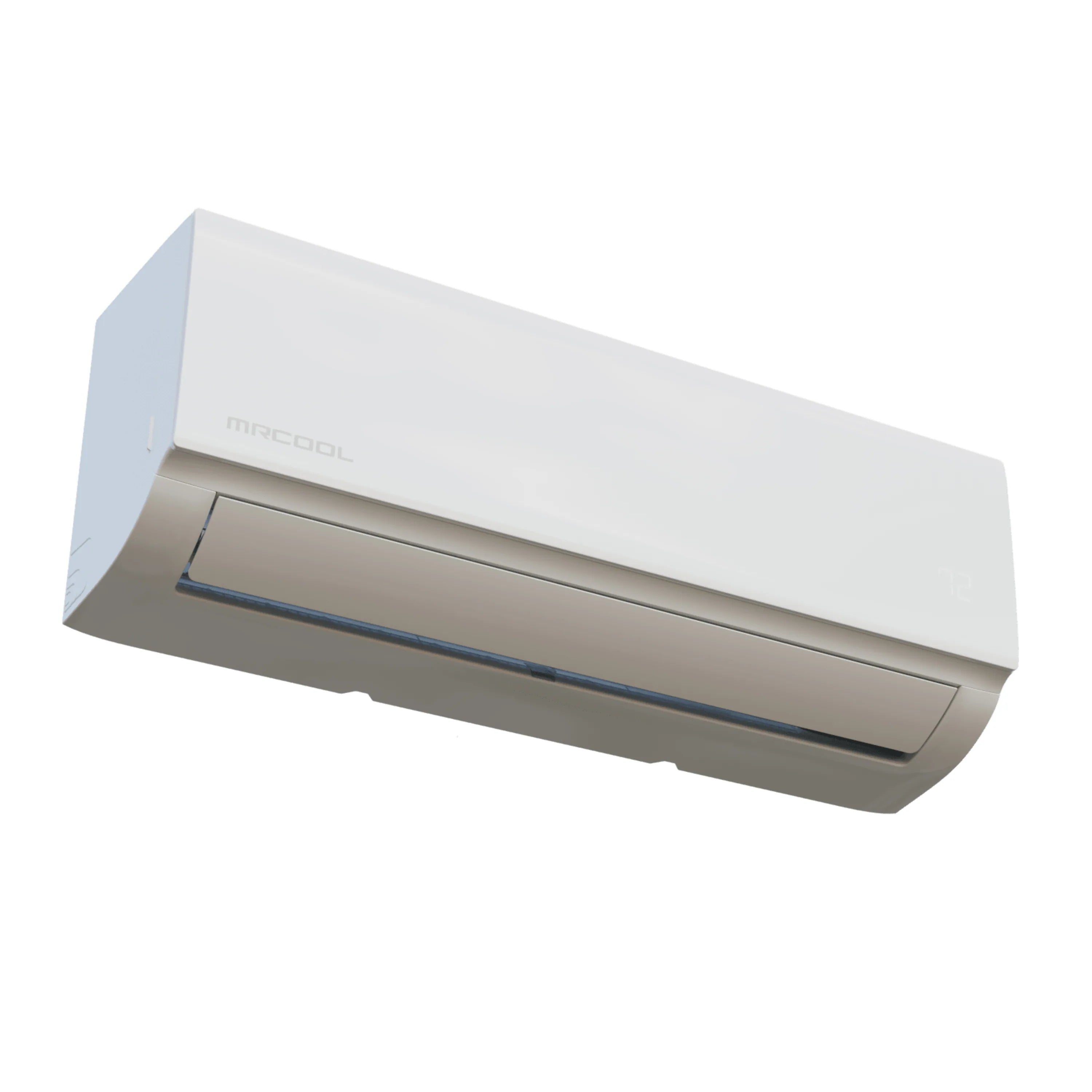

- Air Handler Dimensions
- 38.23 W" x 8.98 D" x 12.64 H"
- Condenser Weight
- 62.61 lbs
- Air Handler Weight
- 30.64 lbs
- Inverter Technology
- Yes
- Zone Capacity
- 1
- Cooling Capacity
- 17,000 BTU
- SEER2
- 17.3
- EER2
- 9
- Outdoor Operating Temperature (Cooling)
- -13 to 122°F
- Heating Capacity
- 18,000 BTU
- HSPF2-4
- 8.5
- HSPF2-5
- 6.5
- Outdoor Operating Temperature (Heating)
- -13 to 75°F
- Coverage Area
- Up to 800 sq ft.
- Outdoor Noise Level
- 55 dB(A)
- Indoor Noise Level (High / Low)
- 46.5 / 18.5 dB(A)
- Voltage
- 208/230V
- Phase
- 1
- Cycle
- 60Hz
- Min Circuit Ampacity
- 15A
- Max Fuse Breaker
- 20A
- Line Set Length
- 11.5 ft.
- Refrigerant Type
- R-454B
- Refrigerant Volume
- 34.92 oz
- Liquid Line Size
- 1/4"
- Suction Line Size
- 1/2"
- Max Line Set Length
- 75 ft.
- Wifi Compatibility
- Yes
- App Compatibility
- Yes
- Works with IOS
- Yes
- Works with Android
- Yes
- Remote Control Included
- Yes
- Warranty
- 2 Years Compressor / 1 Year Parts
