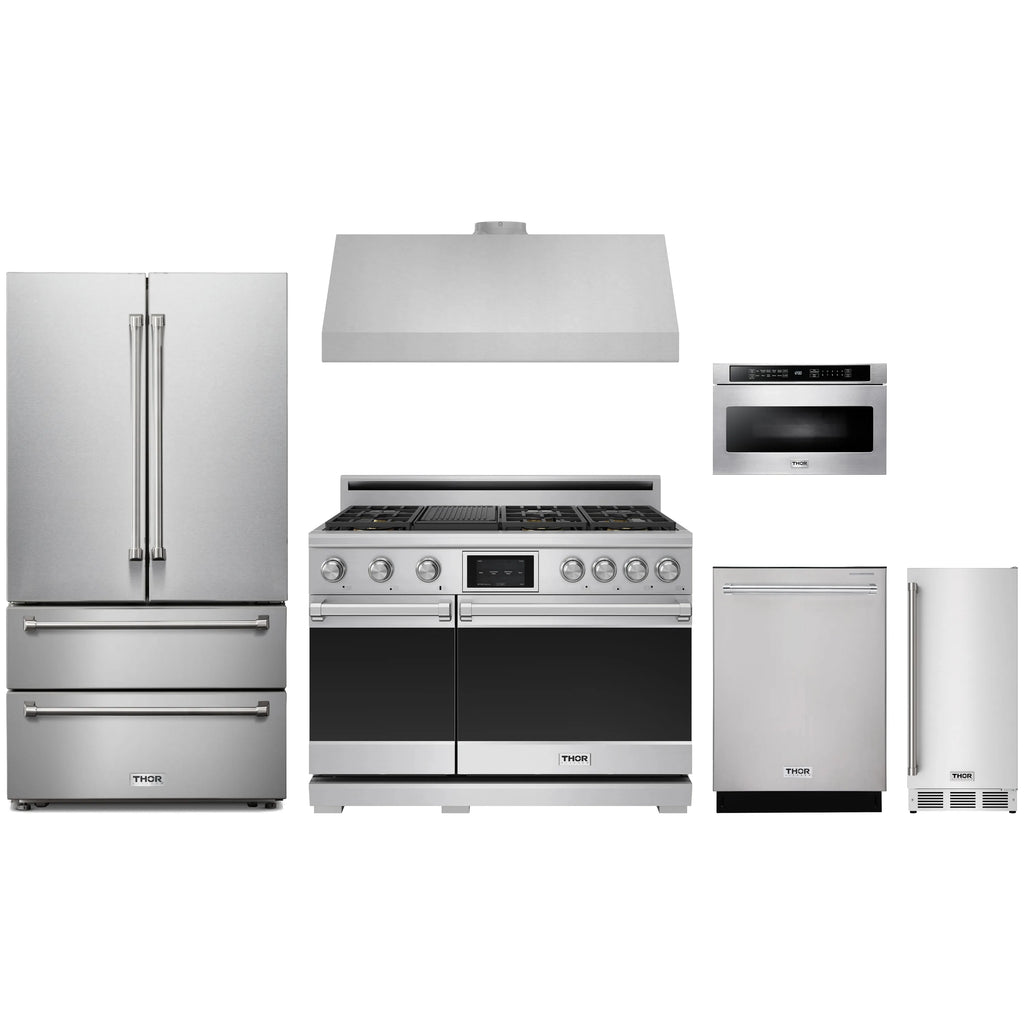

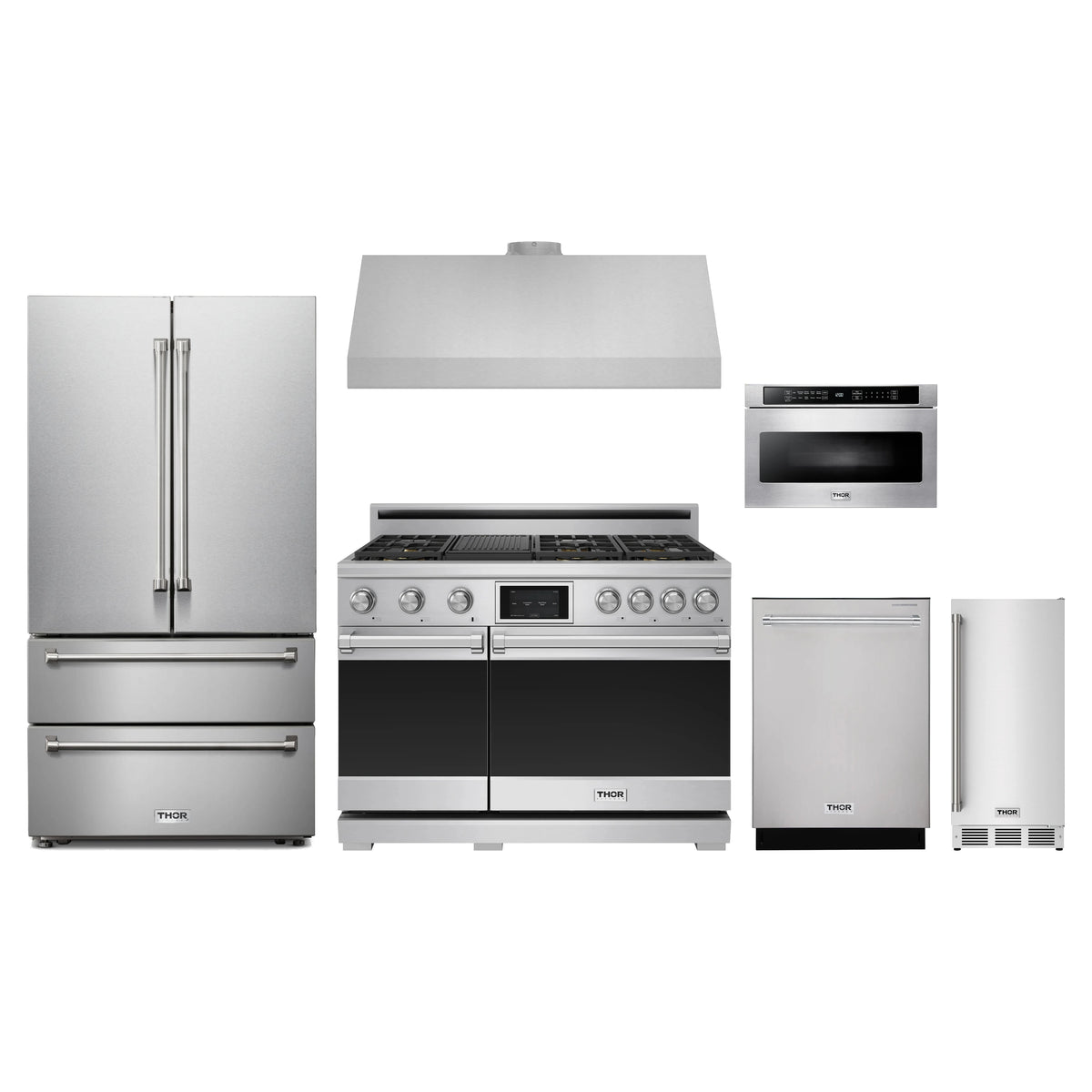

What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

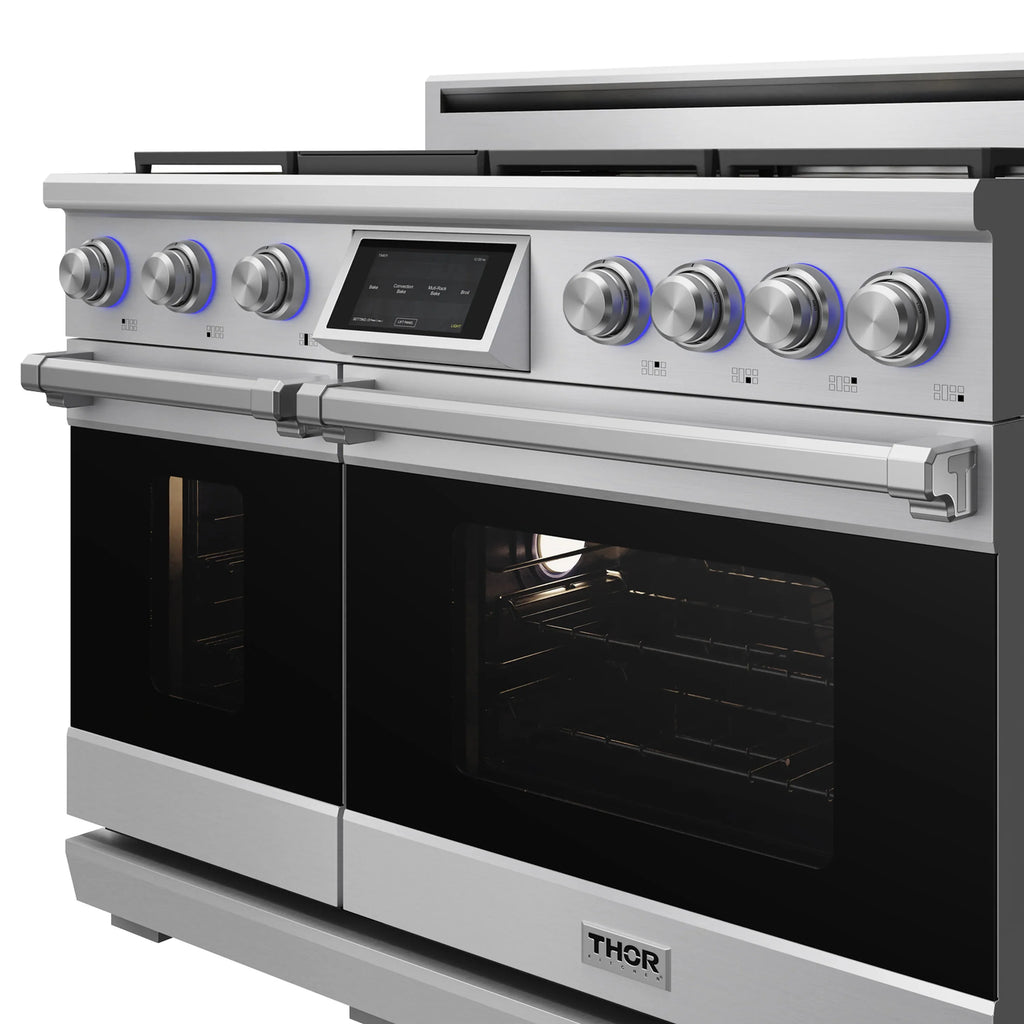

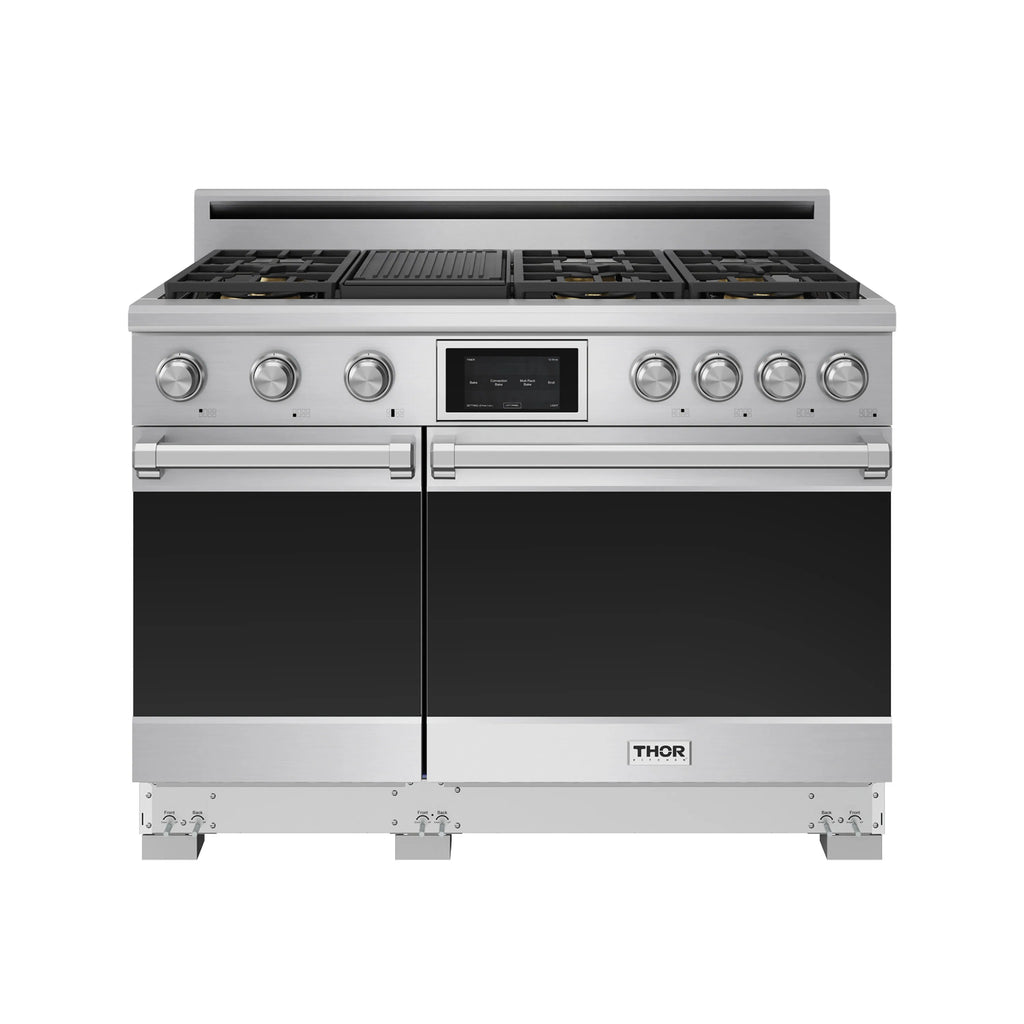

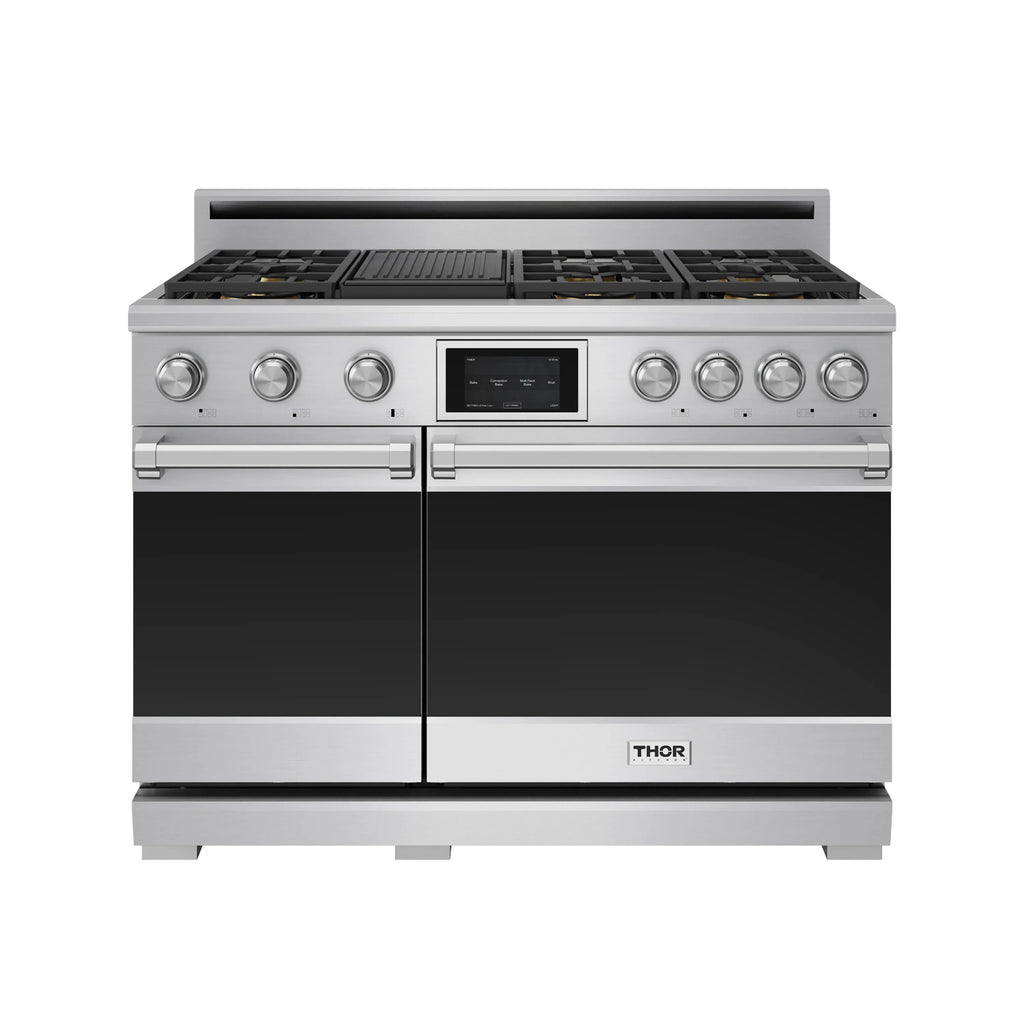

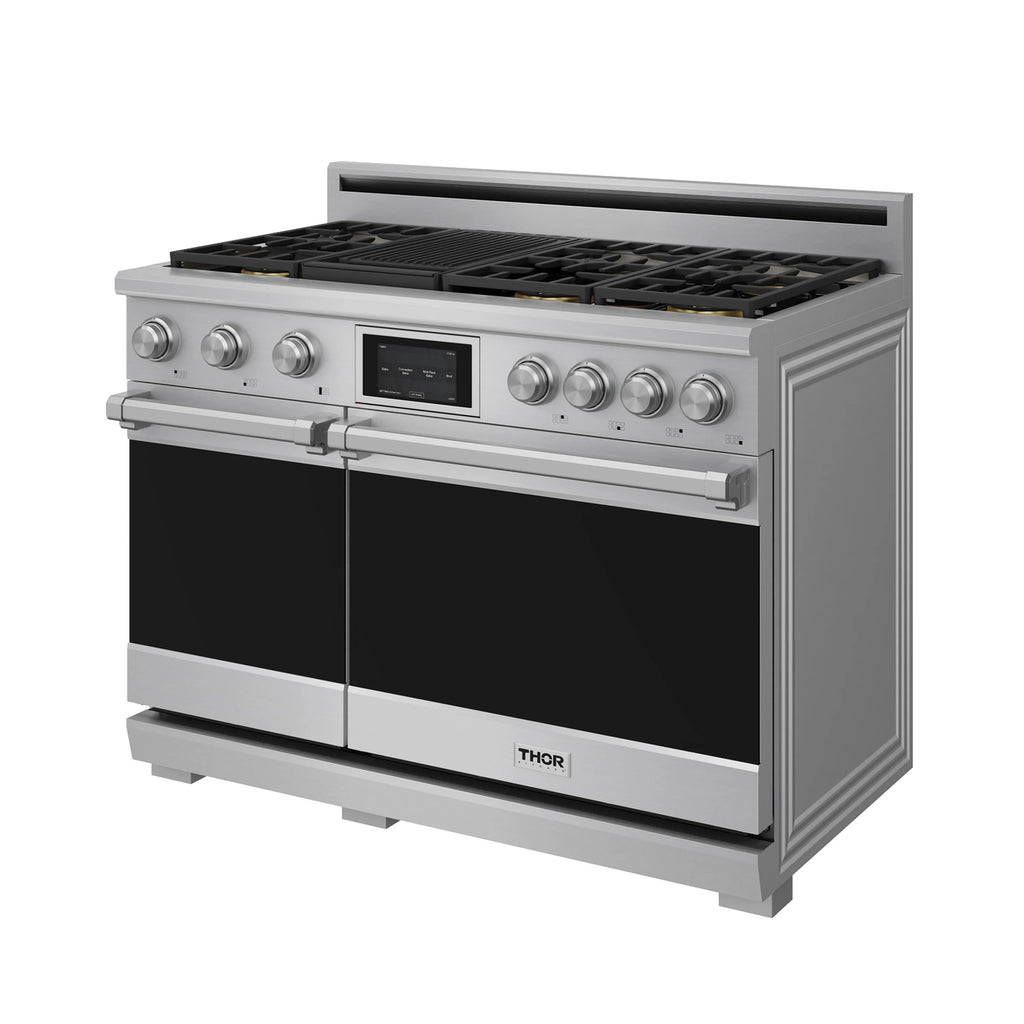

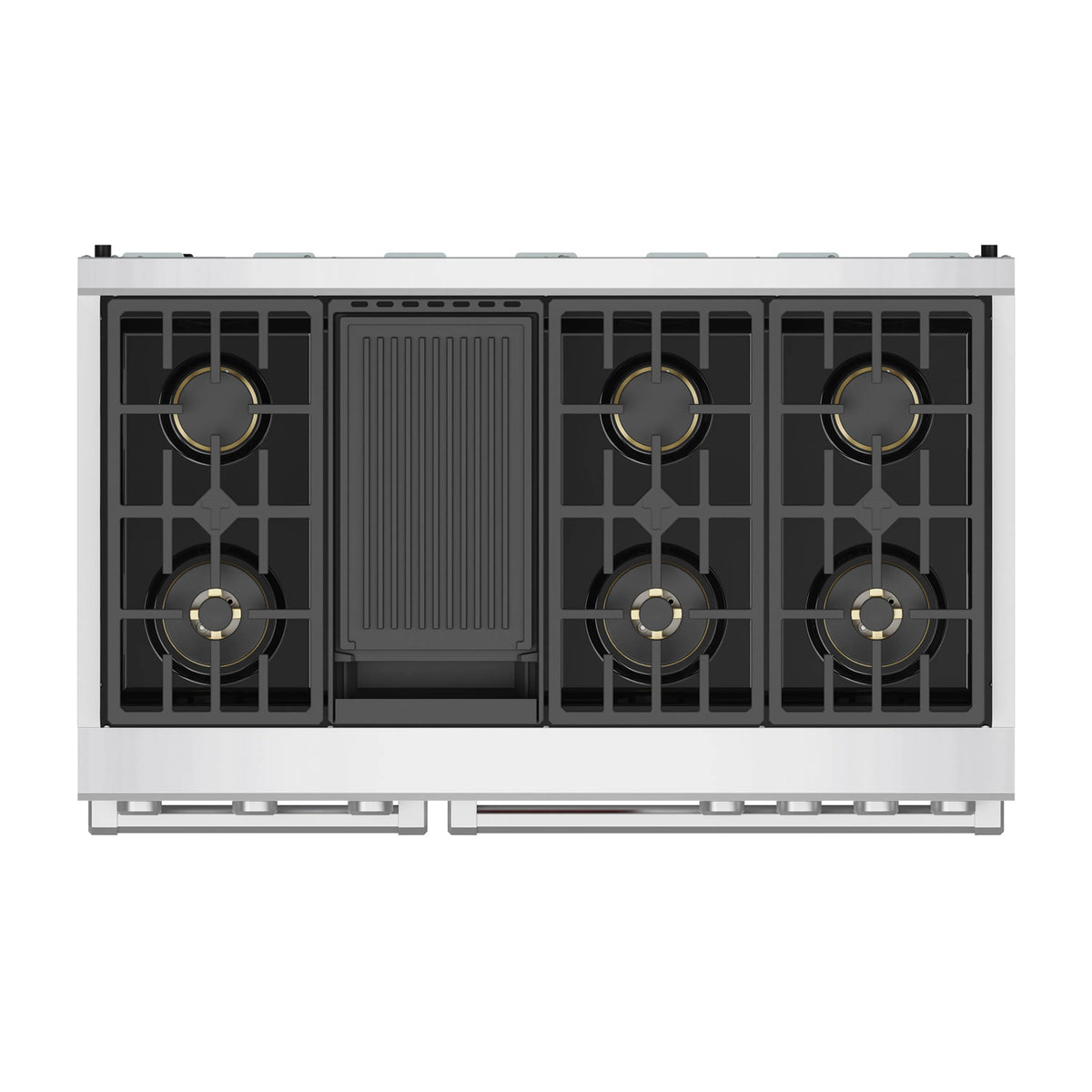

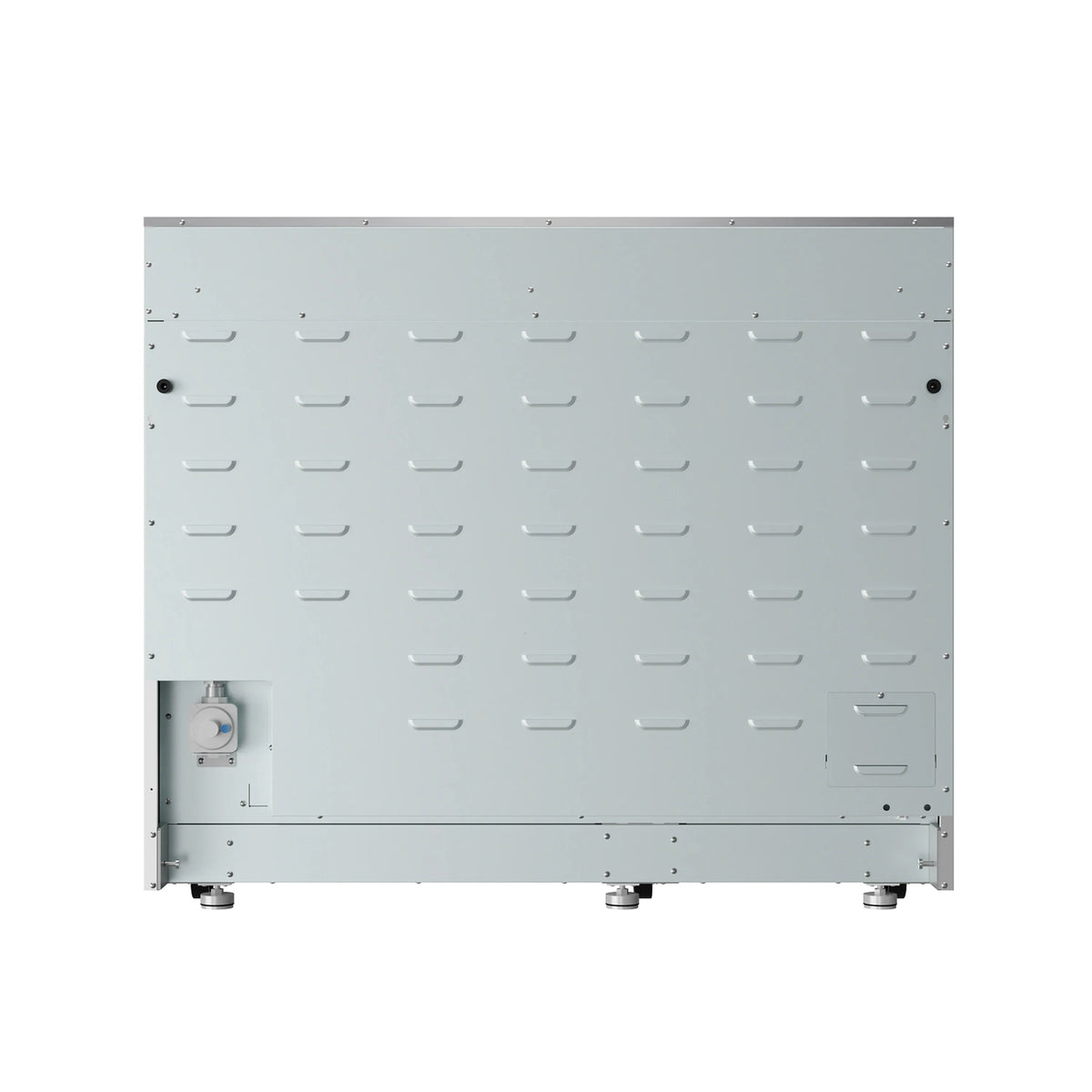

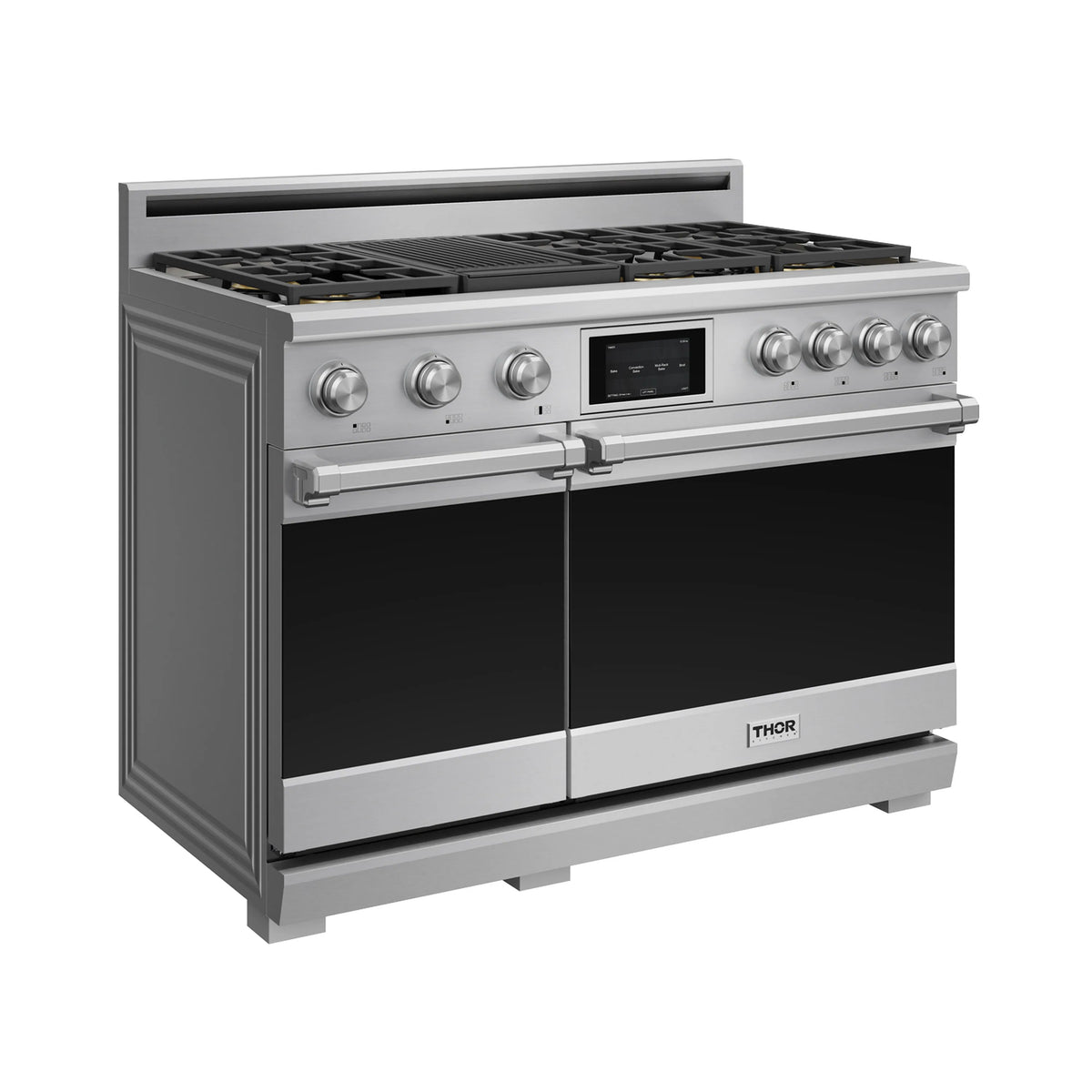

The THOR Kitchen XRD48ELP is a 48‑inch professional dual‑fuel range built for ambitious home chefs, featuring Italian brass burners including three powerful 22,000 BTU dual‑flame burners, a griddle burner, and additional high‑output burners for versatile cooktop performance. It includes a double oven configuration (4.8 cu ft and 2.2 cu ft) with independent temperature controls and a wide range of cooking modes such as Bake, Broil, Convection Bake/Roast, Air Fry, Proof, and Self‑Clean, all managed from a responsive tilt panel touch control. Premium touches like luxurious telescopic racks, soft‑close oven doors, continuous cast‑iron grates, blue LED illuminated knobs, built‑in casters with leveling legs, and automatic re‑ignition enhance functionality and ease of use, while included accessories (broiler pan, air fry basket, meat probe, grill/griddle grate) expand versatility and convenience in the kitchen.
Features
- Tilt Panel Touch Control - A tilt panel touch control is an adjustable control panel that tilts for optimal viewing and ease of use.

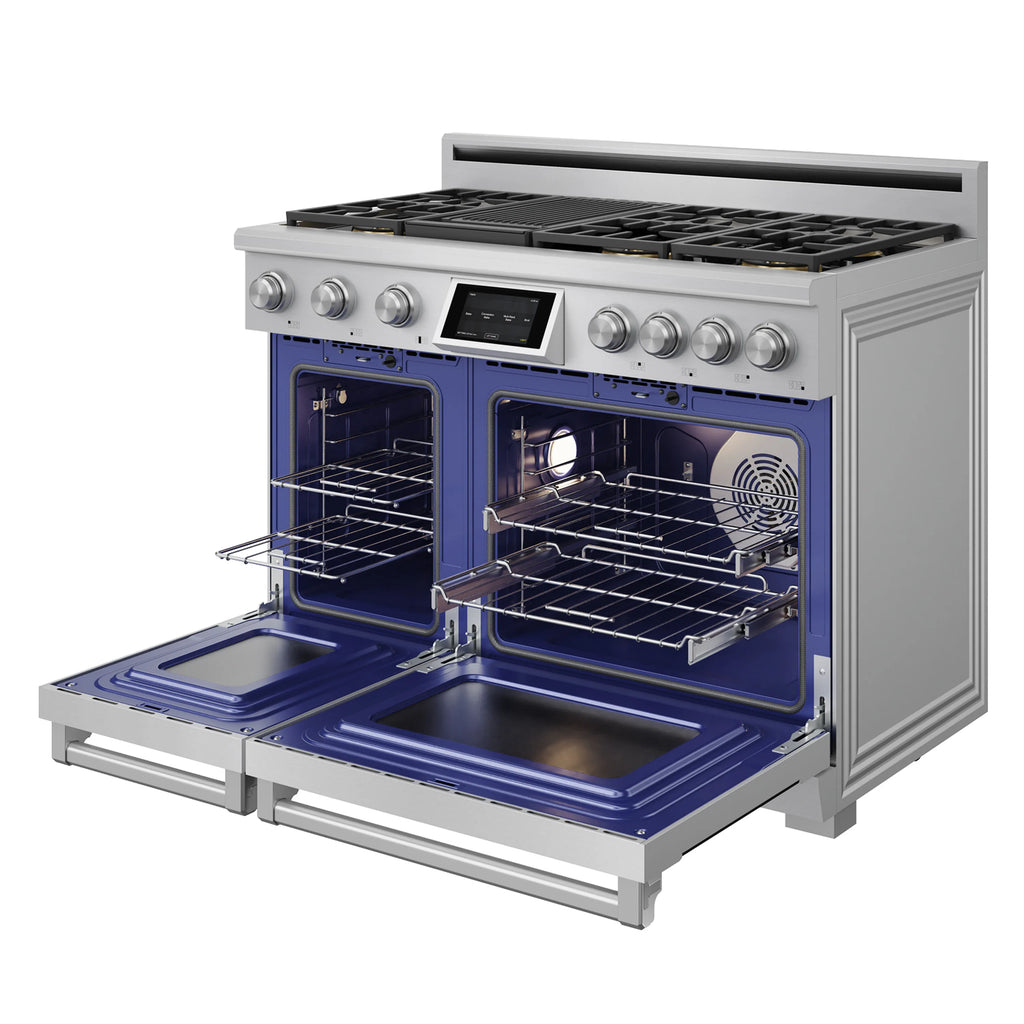

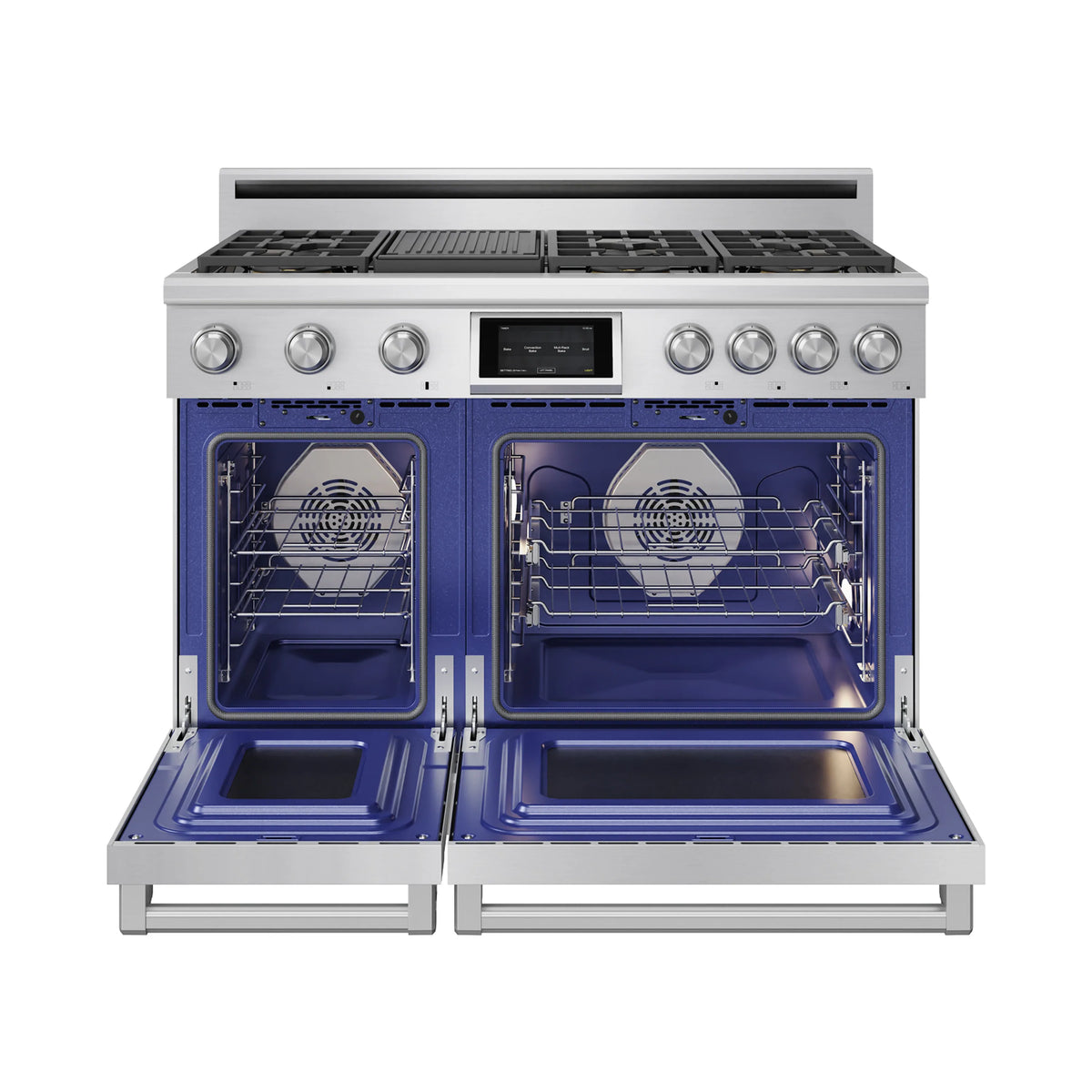

- Double Oven - 4.8 cu. ft. + 2.8 cu. ft. - Cook multiple dishes at once using separate large and small ovens, each with independent temperature control.
- LuxGlide™ Telescopic Racks - Telescopic racks use ball bearing rack guides for an effortless glide in and out of the oven. This luxury feature allows the rack to extend fully without tipping over for smooth, easy handling of even the heaviest dishes, and adjusts to fit different rack support levels.
- Soft-Close Oven Door - Gently closes for a quieter, more premium cooking experience.
- Built-In Casters and Leveling Legs - Easily reposition the range when needed, then level for a secure fit and seamless countertop alignment.

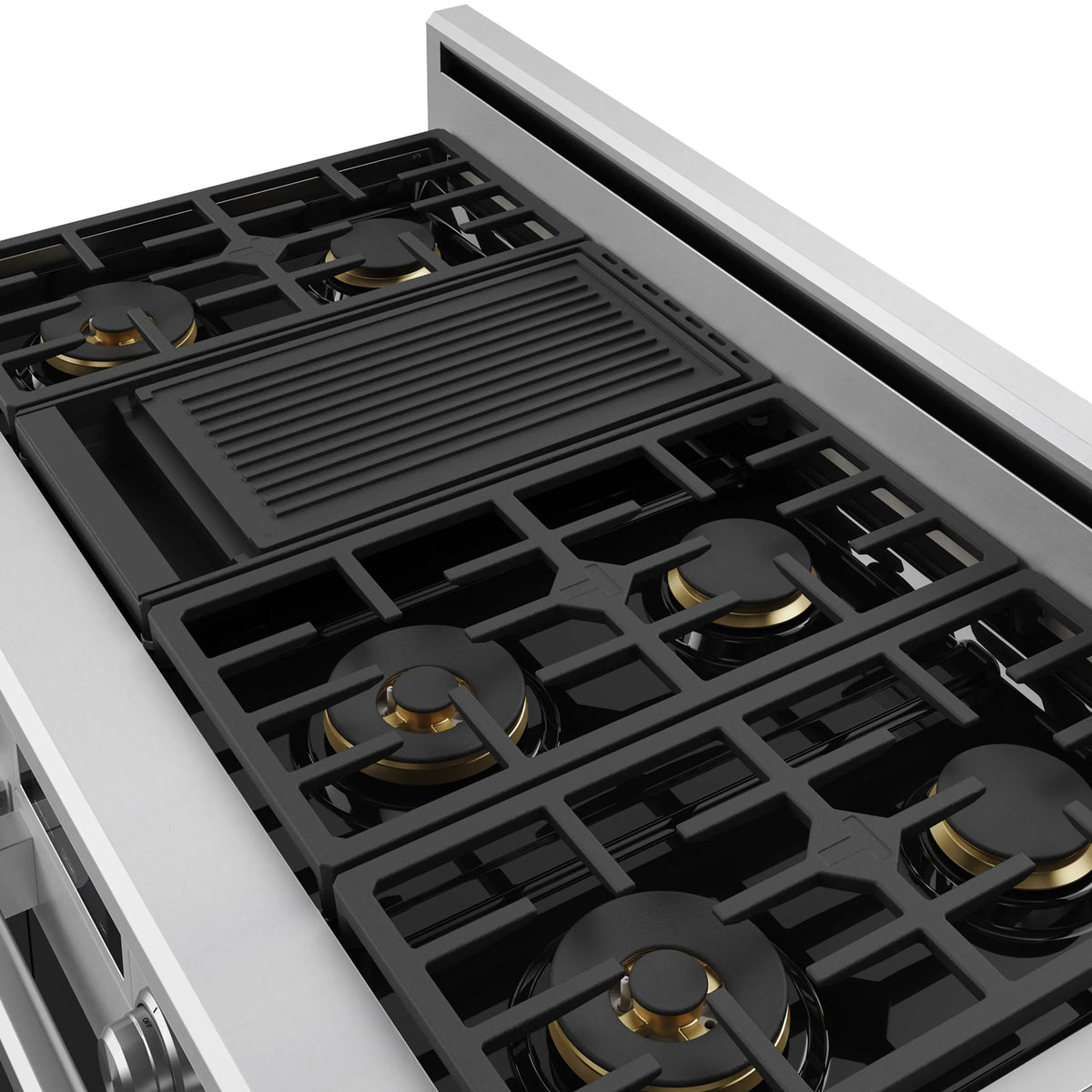

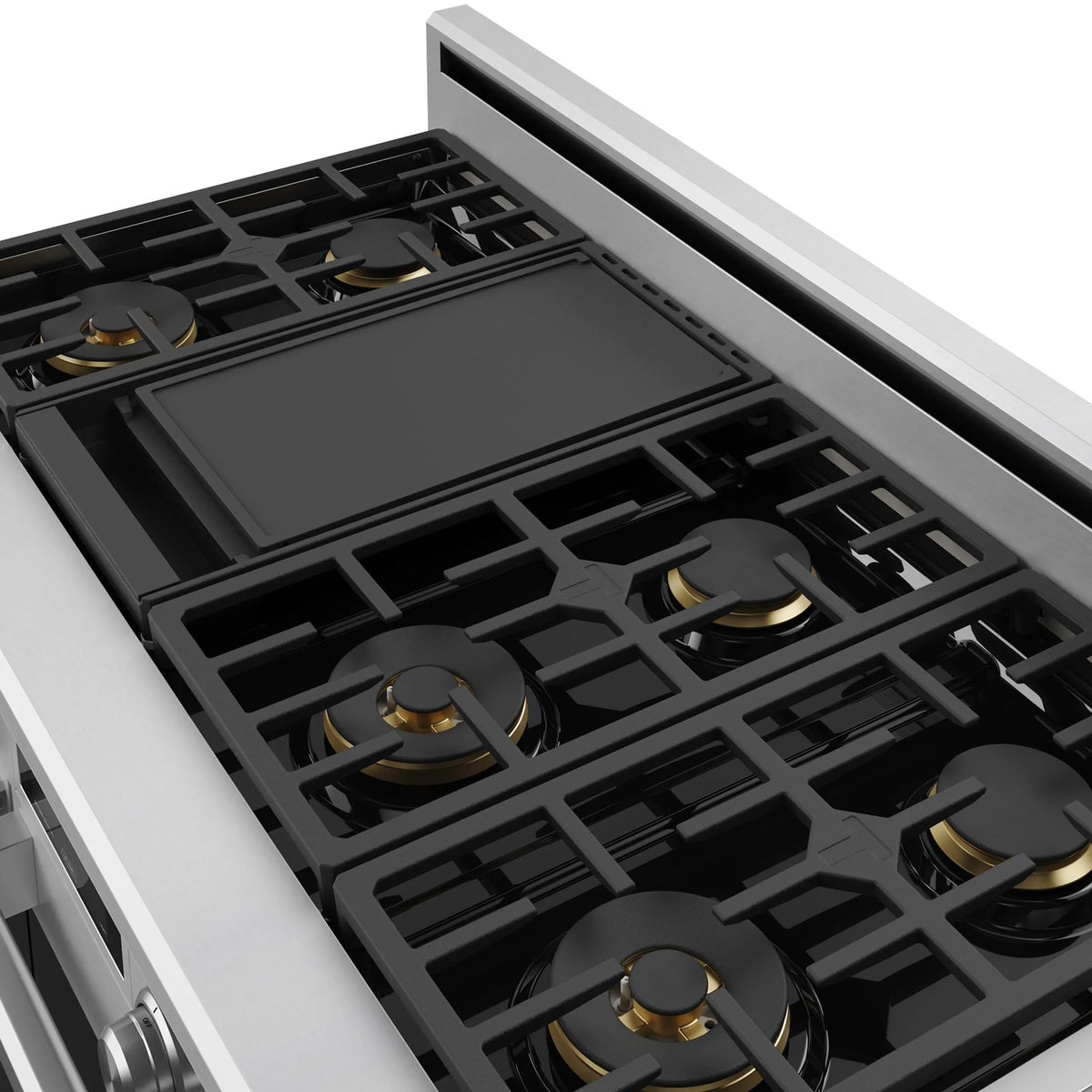

- Italian Brass Burners with 22,000 BTU Dual Burner - Premium Italian brass burners deliver powerful heat up to 22,000 BTUs and gentle simmer control down to 1,000 BTUs.
- Blue LED Illuminated Knobs - Sleek, backlit knobs provide a clear visual cue when burners are in use, enhancing safety and modern style—even visible from across the kitchen.
- Continuous Cast-Iron Grates - Heavy-duty grates provide a seamless surface for easy pan movement and pro-style durability.
- Automatic Re-ignition Feature - Automatic re-ignition feature relights an extinguished flame for safer cooking.
- Brand
- Thor Kitchen
- Product
- 48 INCH PROFESSIONAL DUAL FUEL RANGE
- Model Number
- XRD48ELP
- Fuel Type
- Natural or Liquid Propane + Electric
- Installation Type
- Freestanding
- Required Circuit
- 50 Amps Dedicated Circuit
- Volts (V)
- 240V
- Frequency (Hz)
- 60Hz
- Control Type
- Knob / Touch Screen
- Plug Type
- nema 14-50p
- Power Cord Length (in.)
- Canada only. Not included in USA/Mexico
- Multi-Function Oven
- Offers versatile cooking modes including Bake, Roast, Broil, Keep warm, Proof, Pizza, Self-Clean And Airfry
- Total Number of Cooktop Burners
- 7
- (1) Front Left Burner
- 22000 BTU (Dual) Simmer 1000
- (2) Front Right Burner
- 22000 BTU (Dual) Simmer 1000
- (3) Front Center Burner
- 22000 BTU (Dual) Simmer 1000
- (4) Griddle Burner
- 9000 BTU
- (5) Rear Left Burner
- 15000 BTU
- (6) Rear Right Burner
- 12000 BTU
- (7) Rear Center Burner
- 15000 BTU
- Oven Capacity
- 4.8 cu. ft. and 2.2 cu. ft.
- Oven Control Features
- Oven Light Control, Cook Time, Timer, Delay Start, Self Clean, Control Lock, Sabbath Mode, Temperature Unit
- Cooking Modes
- Bake, Convection Bake, Multi-Rack Bake, Broil, Convection Roast, Warm, Pizza, Air Fry, Proof, Meat
- Oven Internal Width (30" Oven)
- 23-3/4"
- Oven Internal Width (18" Oven)
- 12-5/8"
- Convection
- True Convection Fan
- Oven Rack Material
- Chrome Plated
- Baking Sheet Size (30" Oven)
- Fits Standard Half Sheet Pan
- Baking Sheet Size (18" Oven)
- Fits Standard Quarter Sheet Pan
- Self Clean (Y/N)
- Yes
- Air Fry
- Yes
- Oven Internal Height
- 18"
- Oven Internal Depth
- 19-1/2"
- Product Dimensions (WxDxH) (in.)
- 47-7/8" x 24-3/4" x 36-1/8"
- Product Height (from bottom to top of back splash) (in.)
- 41-3/8"
- Product Height (from bottom to top of side panel) (in.)
- 32-7/8"
- Product Depth (from back panel to bullnose) (in.)
- 28-1/2"
- Product Depth (from back panel to control panel) (in.)
- 27-1/4"
- Product Depth (from back panel to side panel front) (in.)
- 24-3/4"
- Cutout Dimensions (WxDxH) (in.)
- 48" x 24" x 36"
- Adjustable Leg Sizes
- 3"
- Net Weight (lbs.)
- 398
- Gross Weight (lbs.)
- 470
- Package Dimensions (WxDxH) (in.)
- 51-3/8" x 30-1/8" x 49"
- Accessories Included
- 2 LuxGlide™ Telescopic Racks, 1 Broiler Pan, 1 Air Fry basket, 1 Meat Probe, Grill / Griddle Cooking Grate
- Accessories (Optional)
- LP Kit, Island Trim, Power cord is not included in US/Mexico market.
- Warranty
- 2 Years Parts and Labor

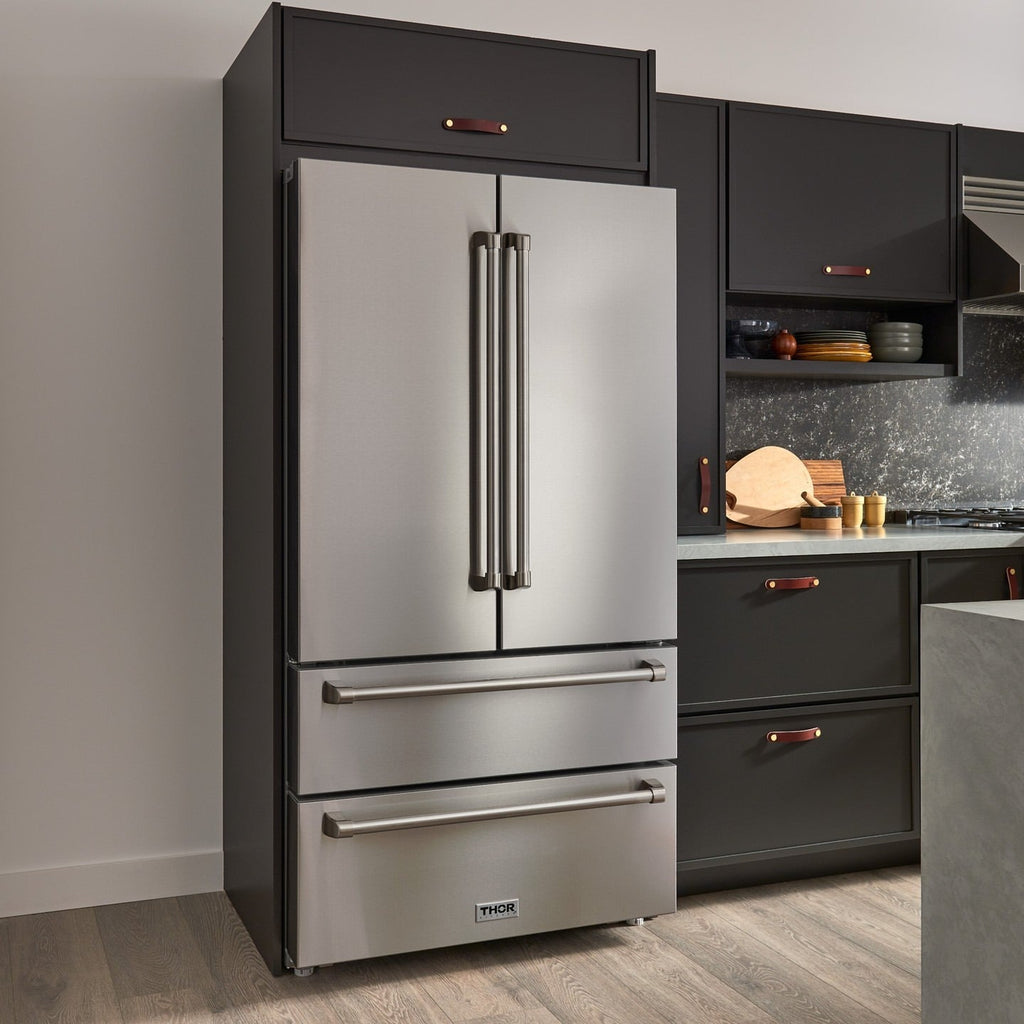

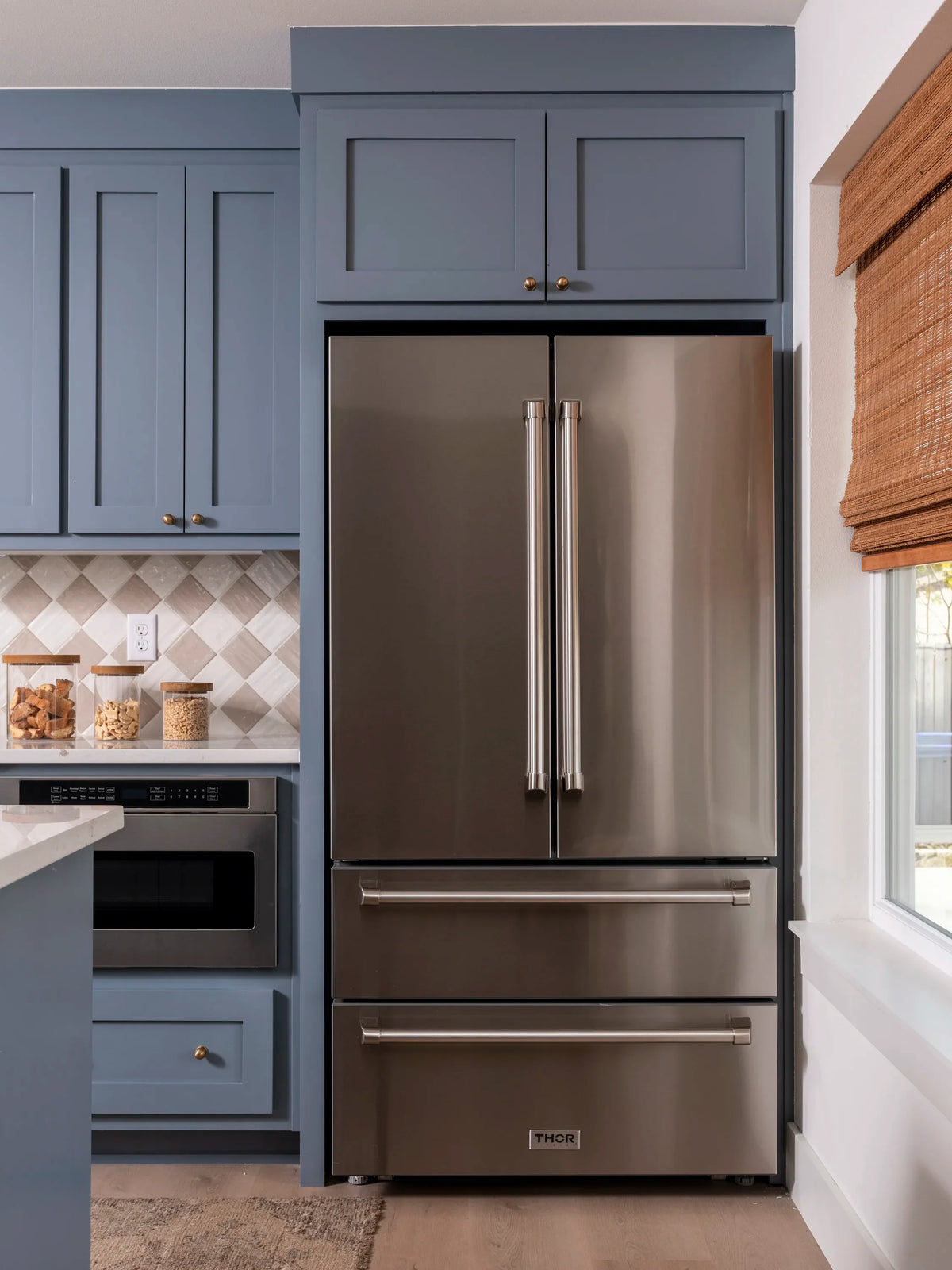

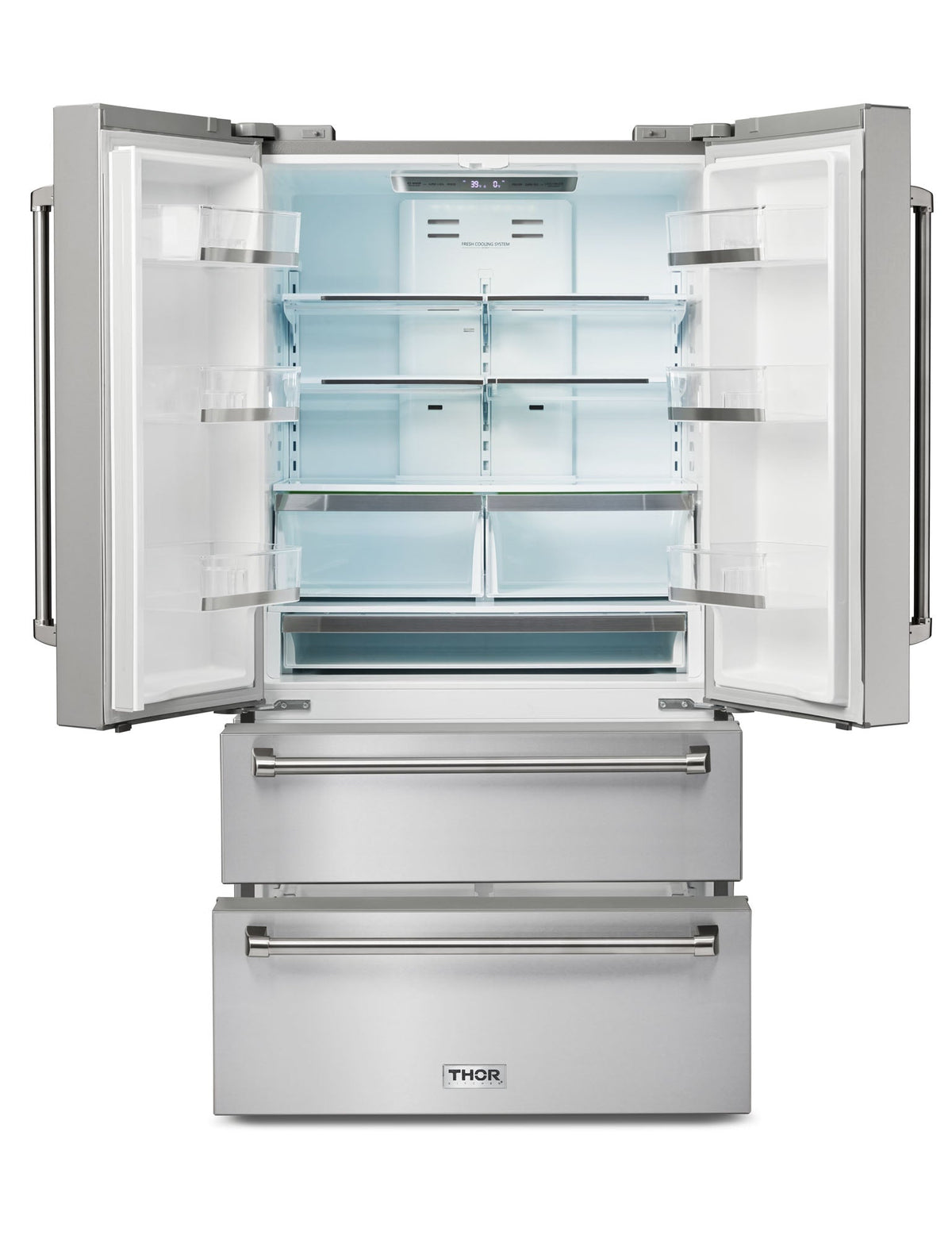

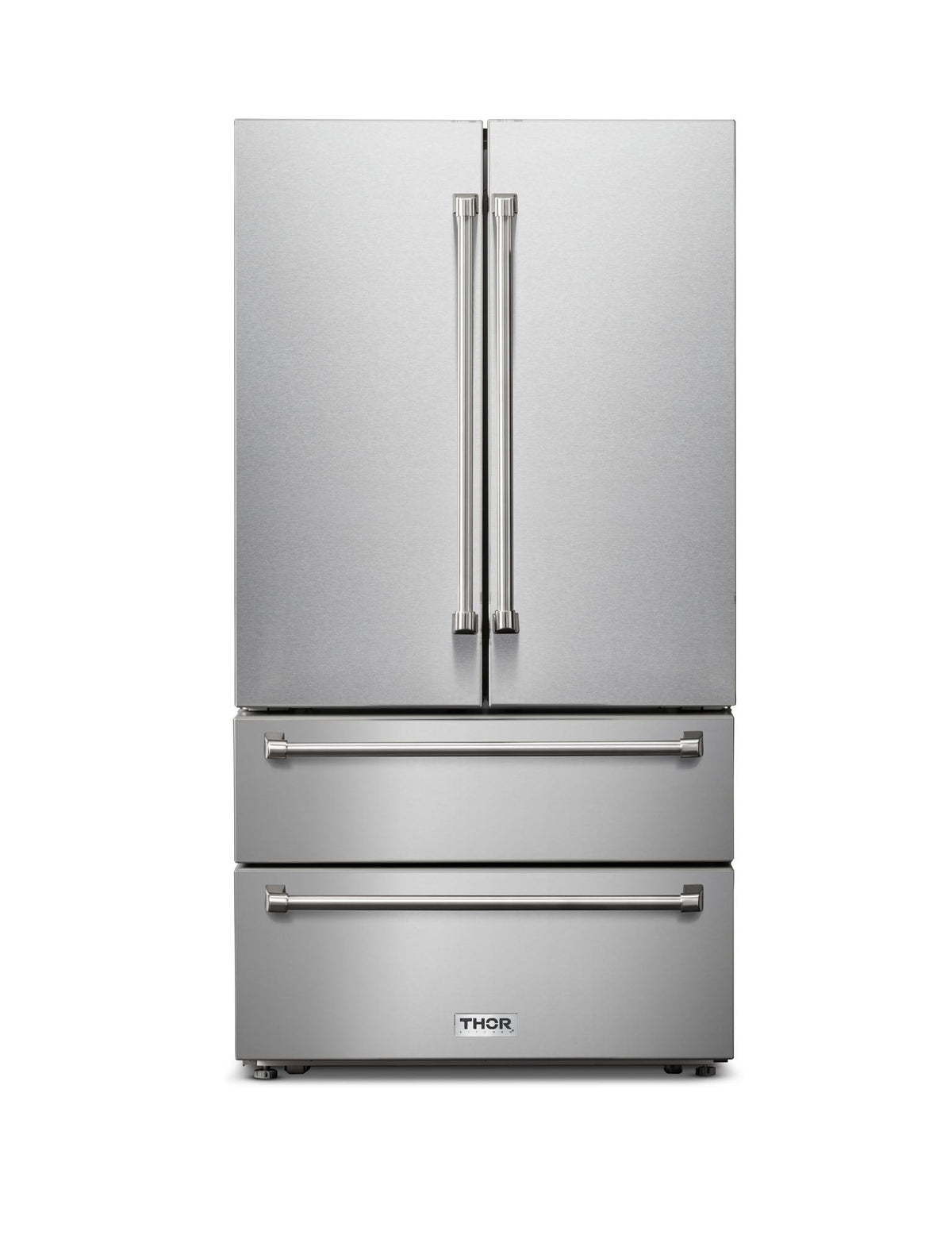

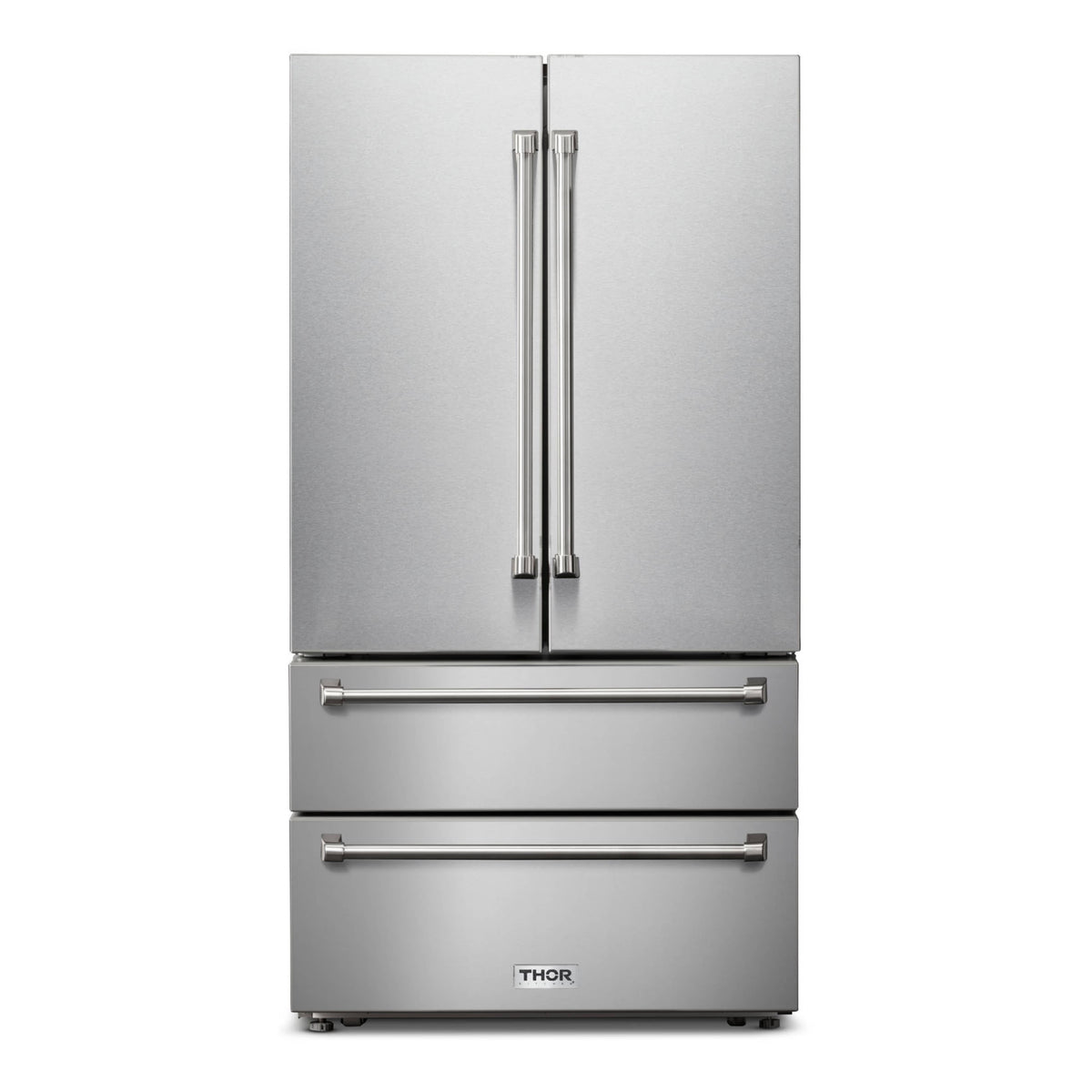

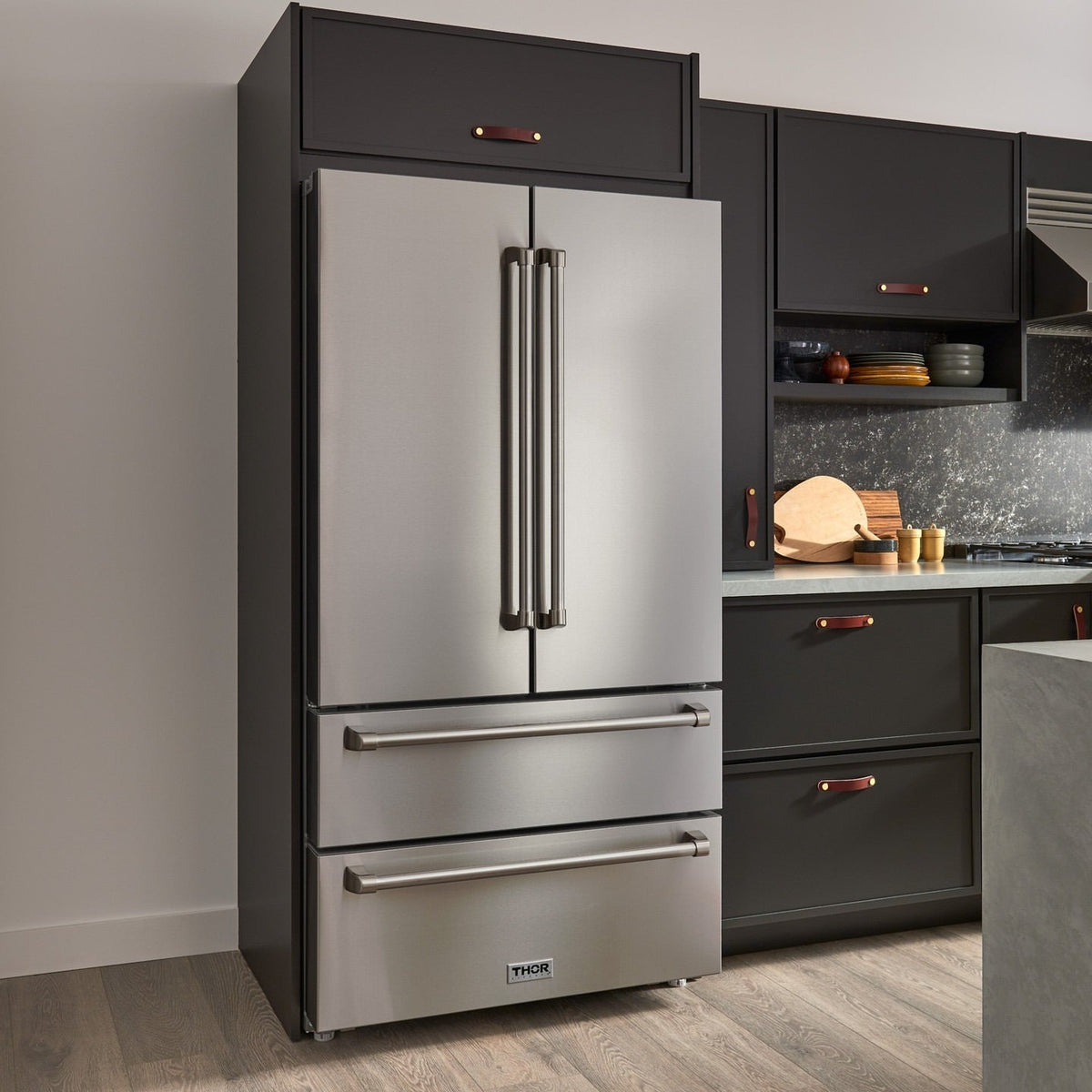

THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. THOR Kitchen's 36 Inch Professional French Door Refrigerator with two separate Freezer Drawers provides ample storage and keeps everything as cool, crisp, cold and/or frozen as the recipe calls for. Moisture, odor transfer and freezer burn? Gone. Compliments on meals? Way, way up.
Features
- Storage Space - Generous 22.5 cu. ft of combined refrigerator and freezer storage.
- Crisper Drawers - Two humidity controlled crisper drawers provide flexible storage space and keep produce fresh longer.
- Door Storage - Six (6) one gallon door storage bins provide extra space for large containers, like milk and juice.
- Cool Zone - Specialized drawer within refrigerator can hold a cooler temperature to properly store your delicious desserts.
- Counter-Depth - Maximize your kitchen space by taking up less room than a standard depth refrigerator and enjoy clean design with a virtually seamless transition with your counter top.

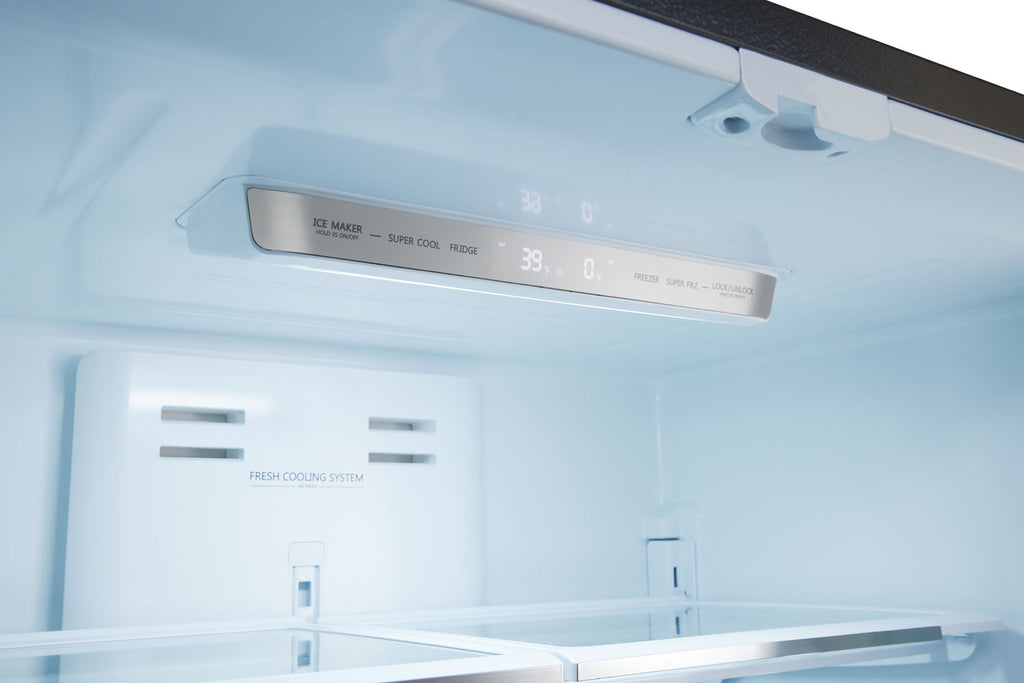

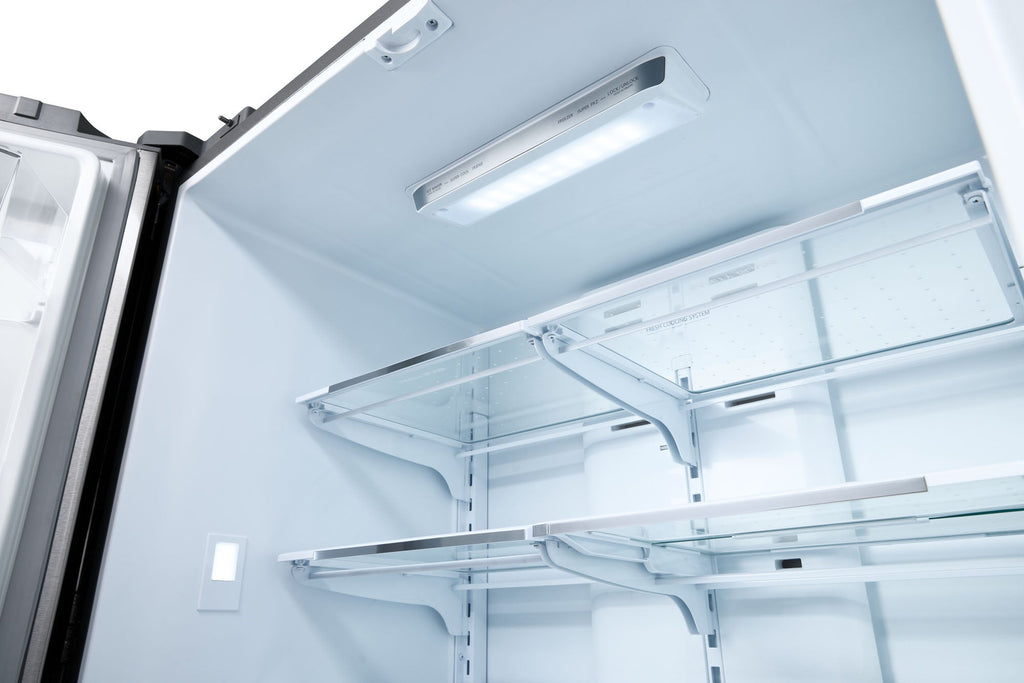

- Showcase LED Lighting - LED lighting positioned throughout the interior for better visibility of food inside the refrigerator.
- Adjustable Shelves - Adjustable shelves are designed to provide a variety of configurations to fit wide and tall items with ease.
- Super Freezing and Cooling Function - Keep food fresh by accelerating the freezing and cooling process of a freshly stocked freezer or refrigerator by dropping temperatures to the coldest settings within 24 hours.

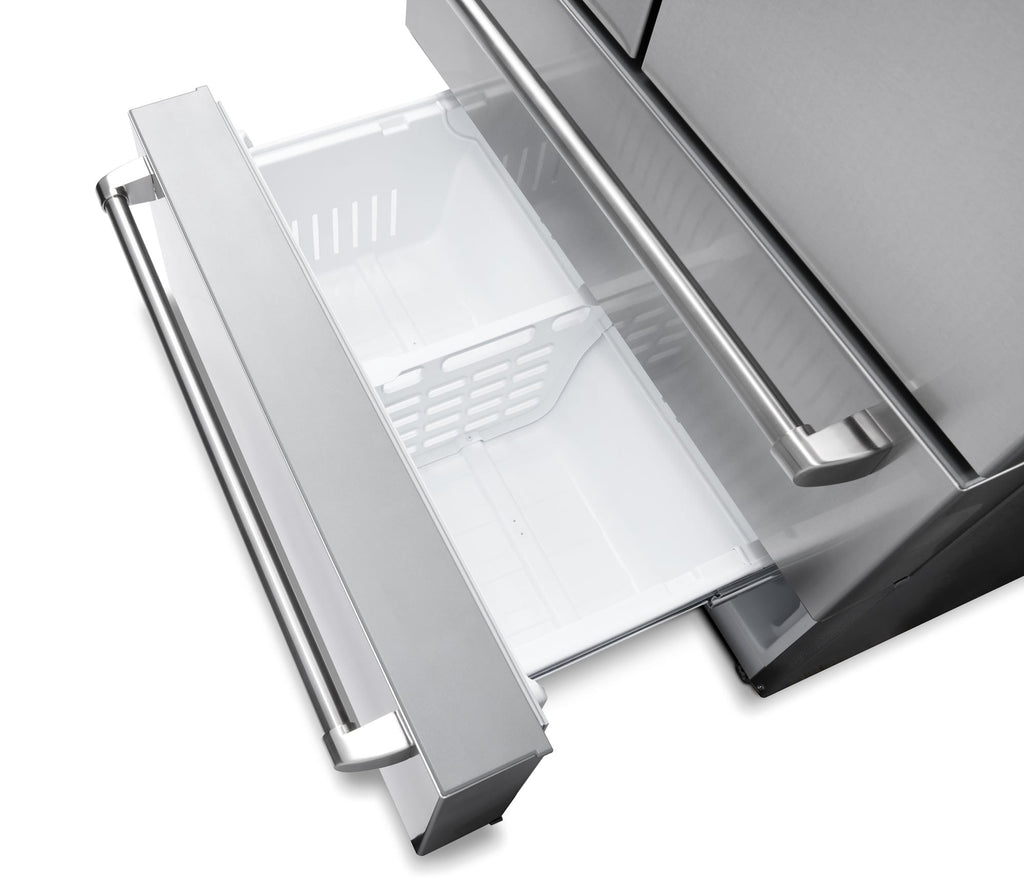

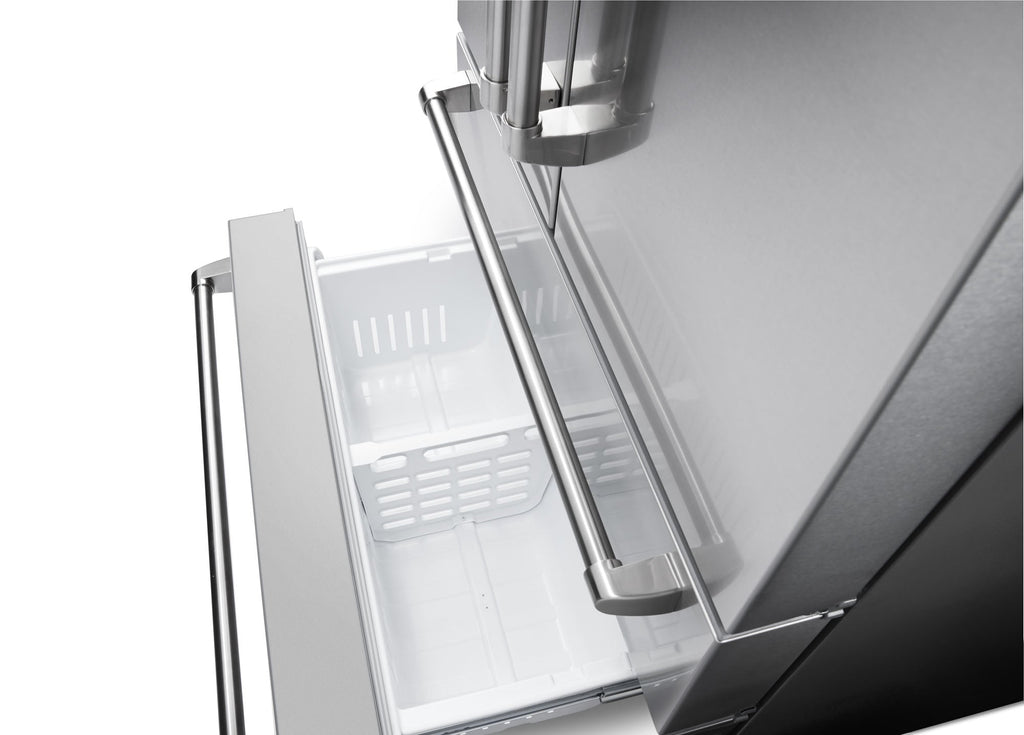

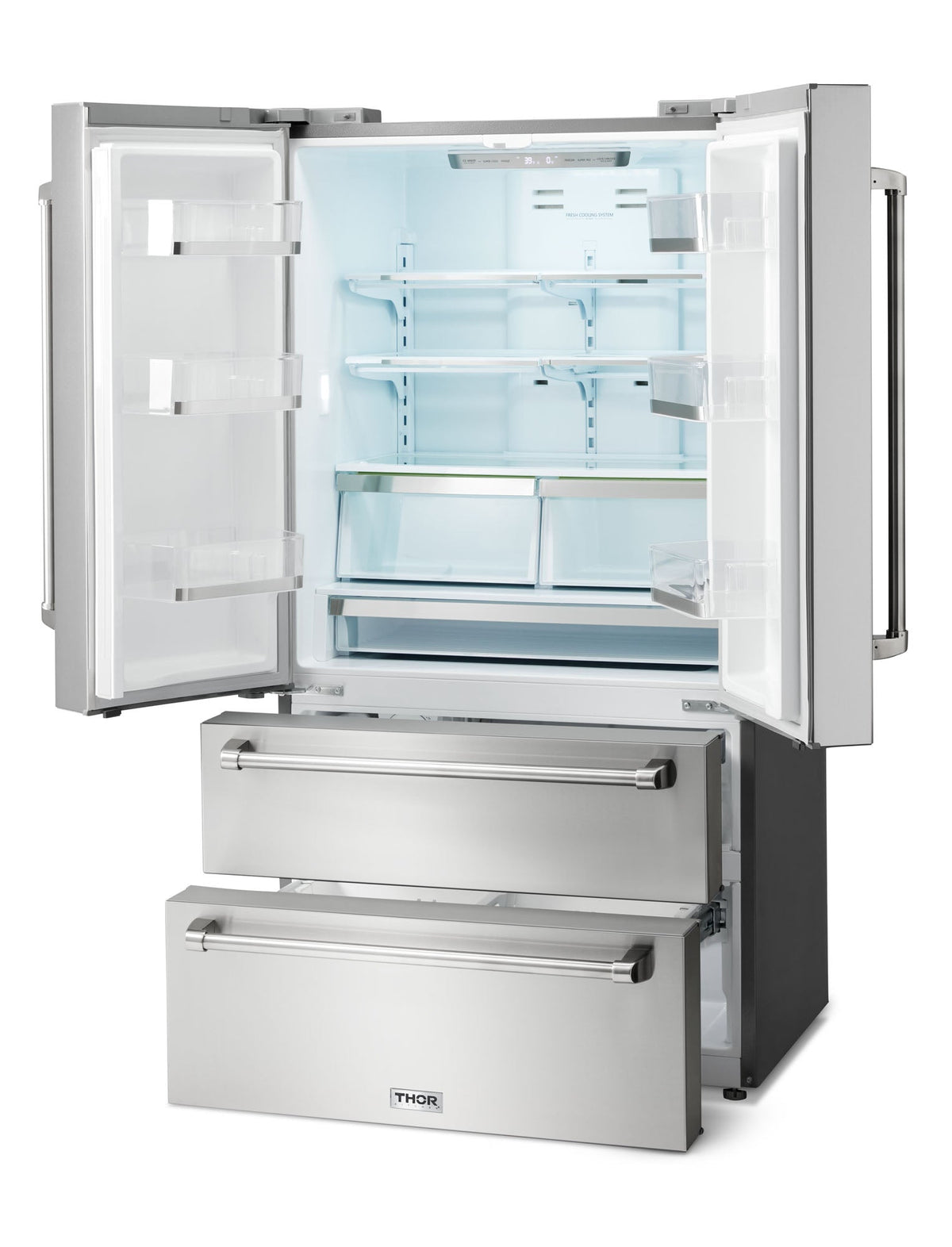

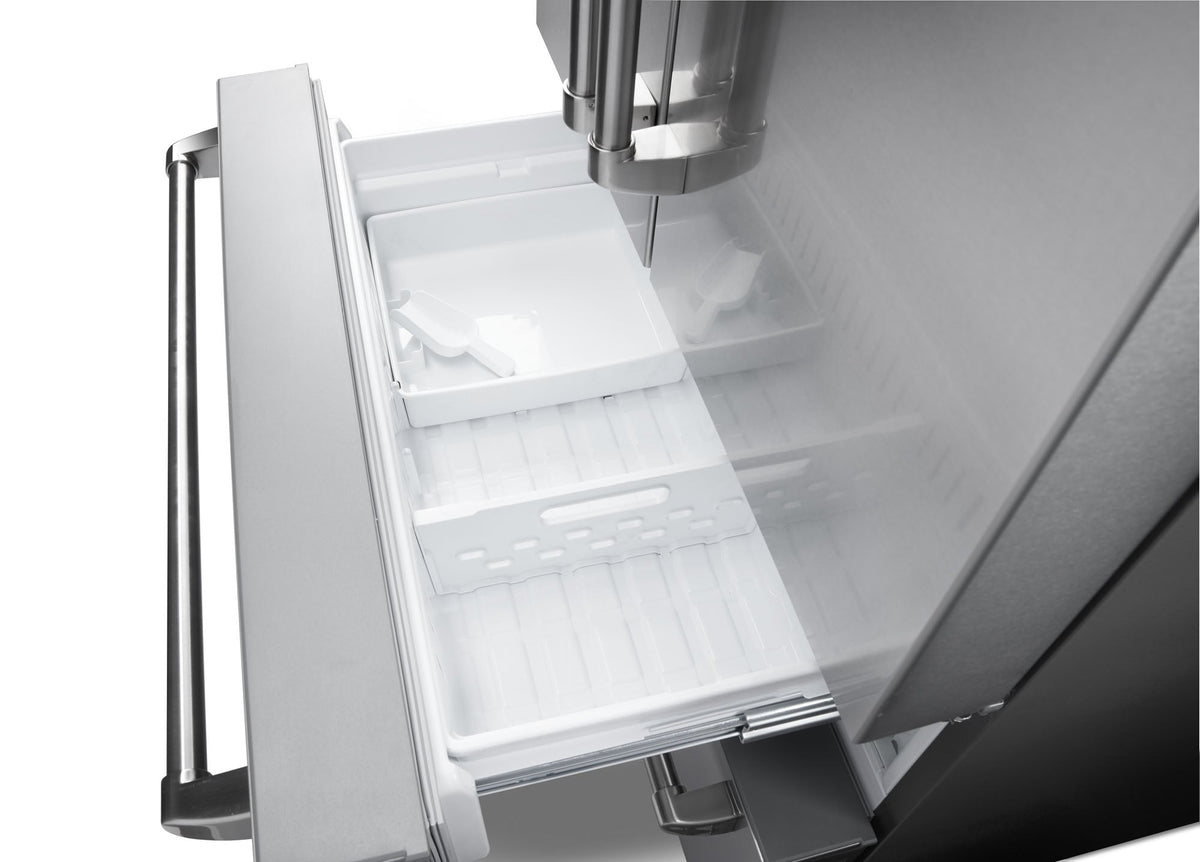

- Freezer Drawers - Two separate slide-out drawers allows for easy and organized access to the things you need.
- Automatic Ice Maker - Top slide-out freezer drawer features and automatic ice maker that produces up to 4 lbs. a day.
- Stainless Steel Finish - Beautiful, easy-to- clean stainless steel finishes are fingerprint and smudge resistant.
- Door Alarm - Refrigerator door alarm notifies you if the door is left ajar for too long.
- Brand
- Thor Kitchen
- Product

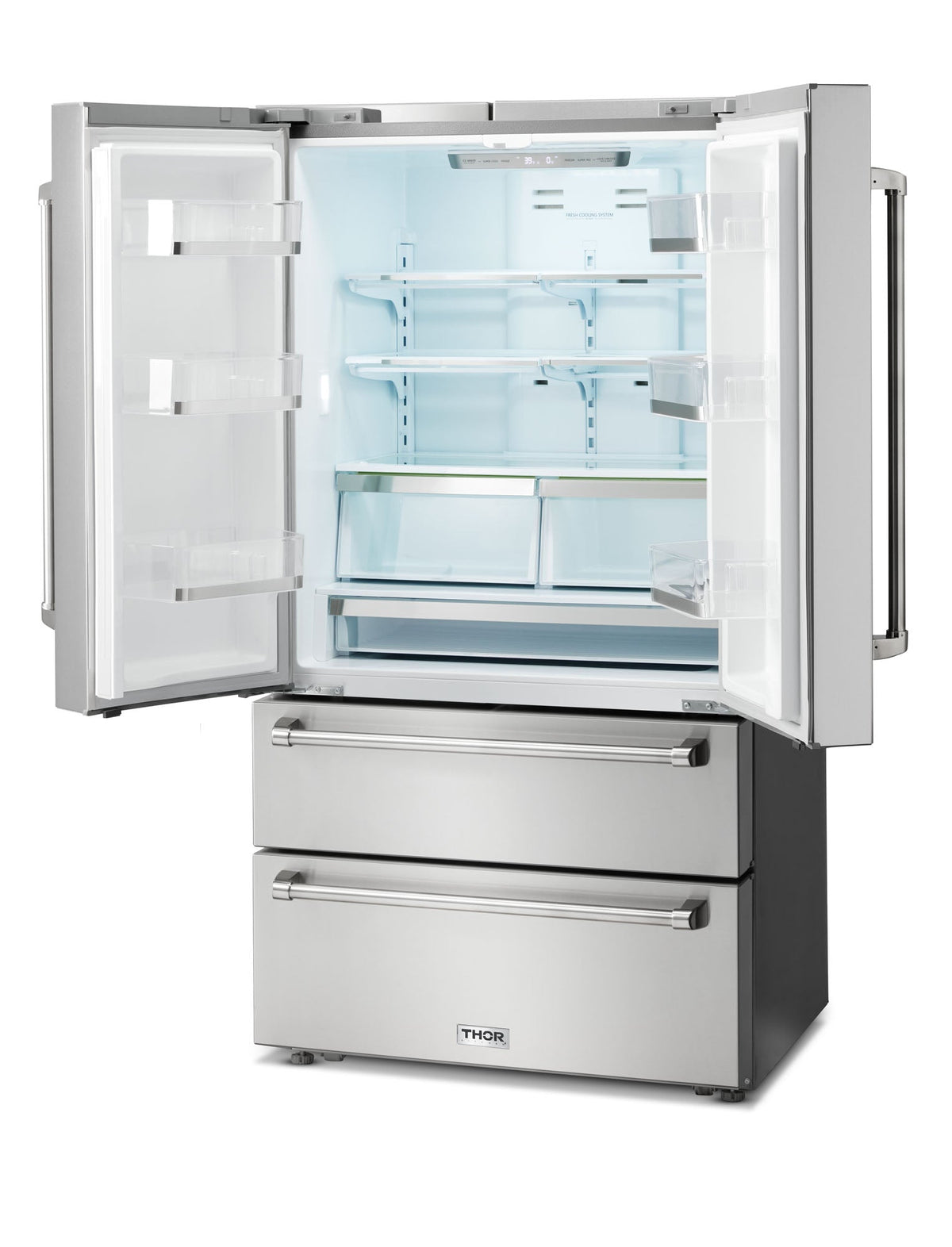

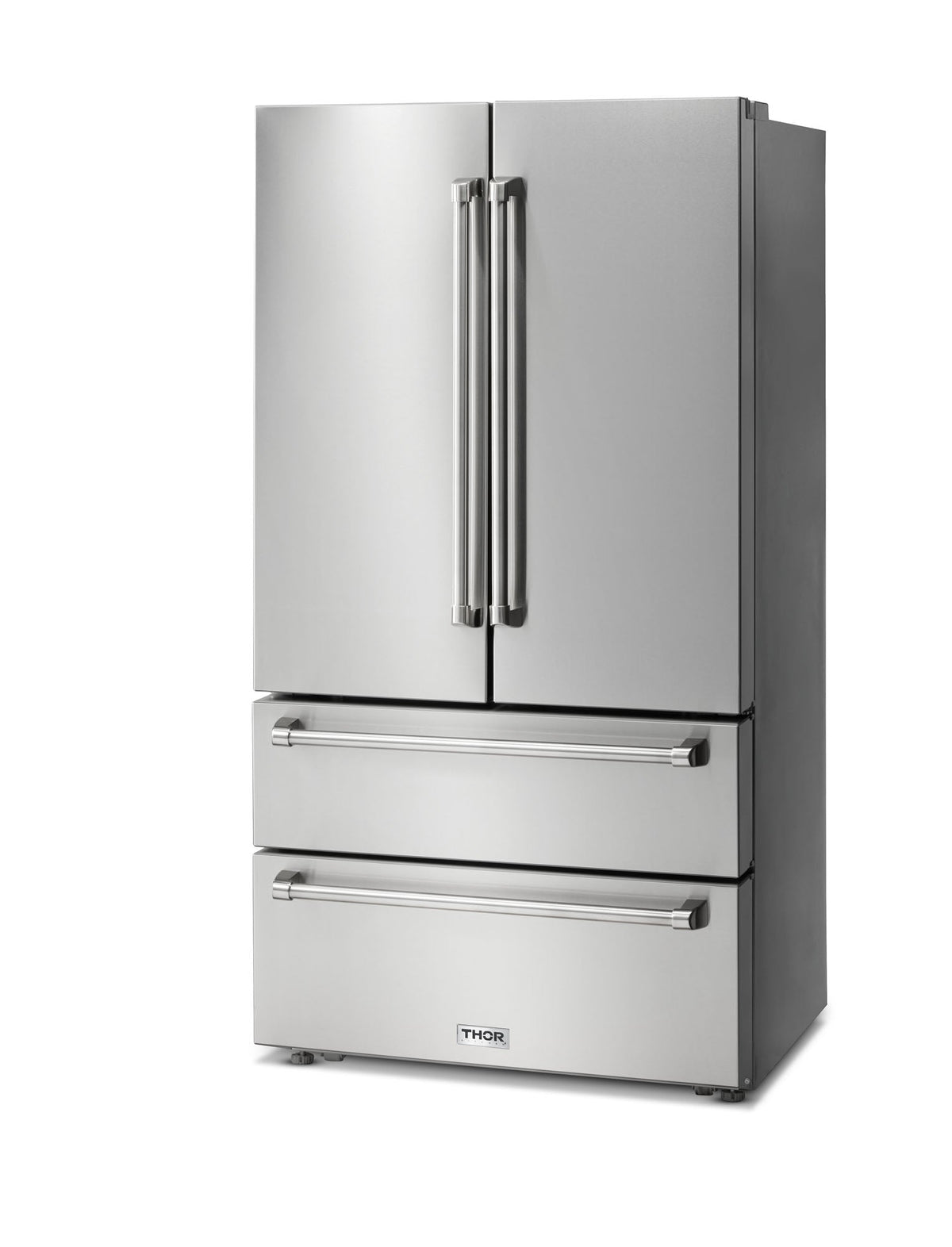

- 36" 4-Door Counter-Depth French Door Refrigerator With Ice Maker
- Model Number
- TRF3602
- Appliance Type
- Refrigerator
- Color/Finish
- Stainless Steel
- Refrigerator Capacity
- 16 cu. ft
- Freezer Capacity
- 6.5 cu.ft
- Gross Weight
- 297.6 lbs.
- Net Weight
- 284.4 lbs.
- [A] Product Height
- 69 7/8"
- Product Height to Top of Door Hinge
- 69 7/8"
- [B] Product Width
- 35 13/16"
- [C2] Depth Without Doors
- 24 7/16"
- [C1] Depth With Handles
- 31 15/16"
- [C] Depth
- 29 3/16"
- [D] Door Open 90 Degrees Depth
- 43 3/8"
- [E] Door Open 90 Degrees Width
- 46"
- [F] Door Open 135 Degrees Depth
- 41 3/8"
- [G] Door Open 135 Degrees Width
- 65 1/2"
- [H] Width
- 35 5/8"
- Warranty
- 2 Years Parts and Labor

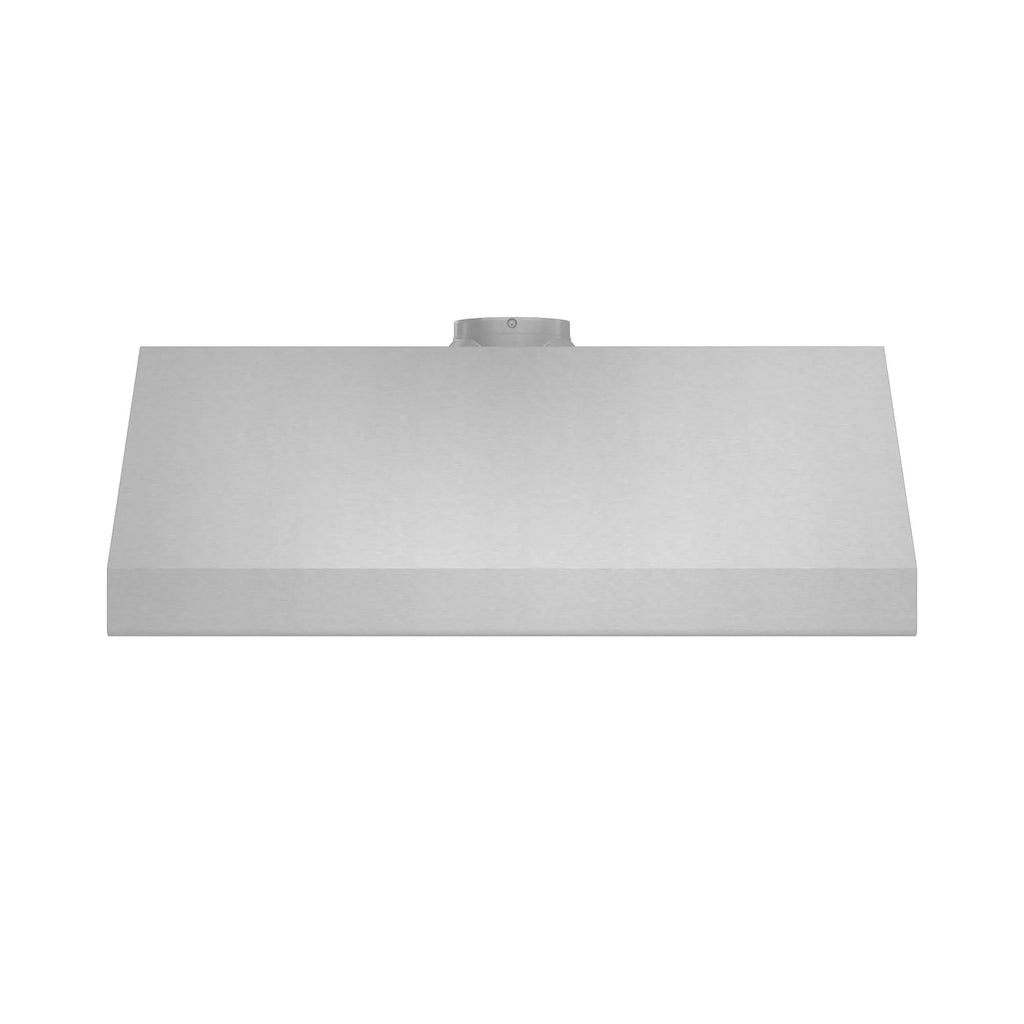

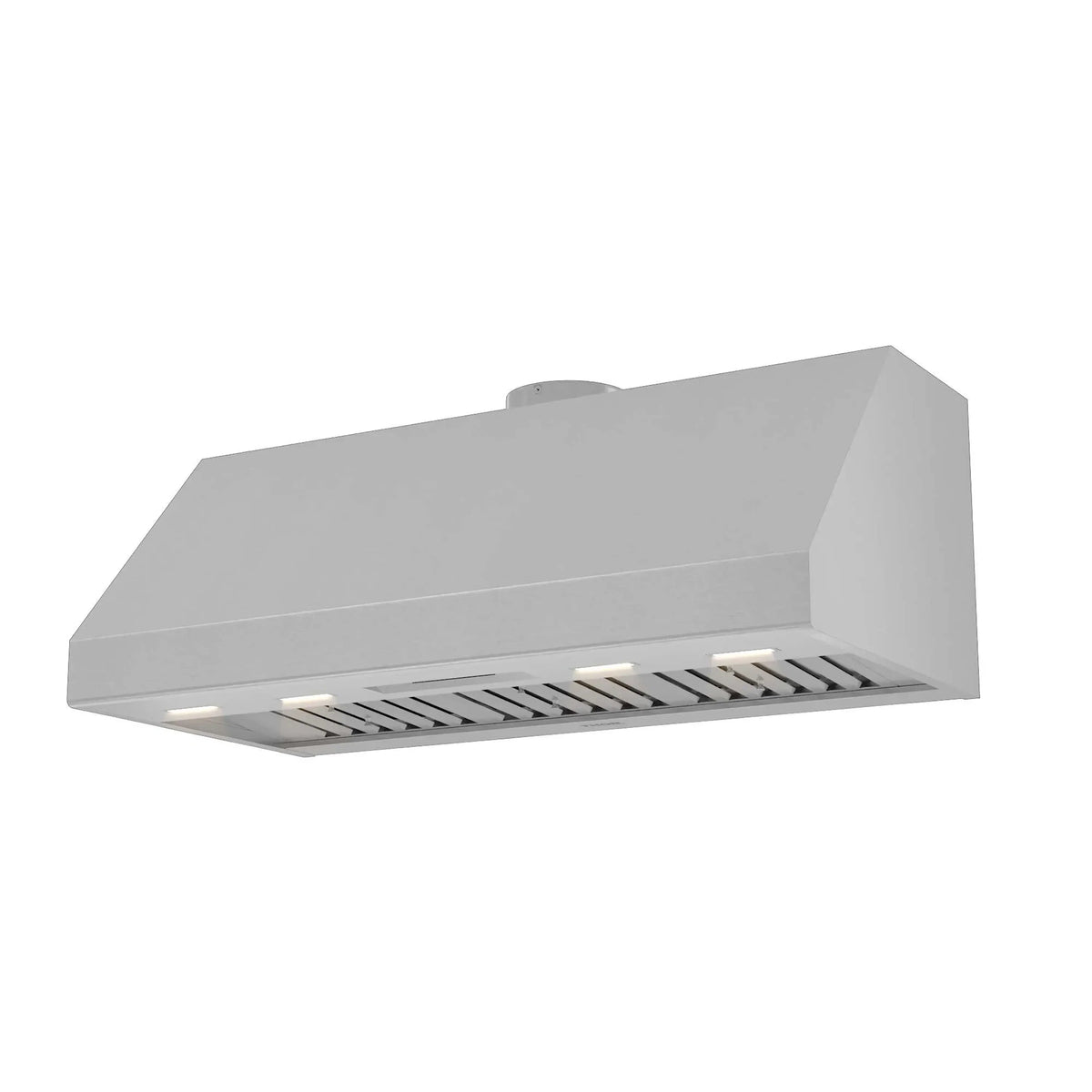

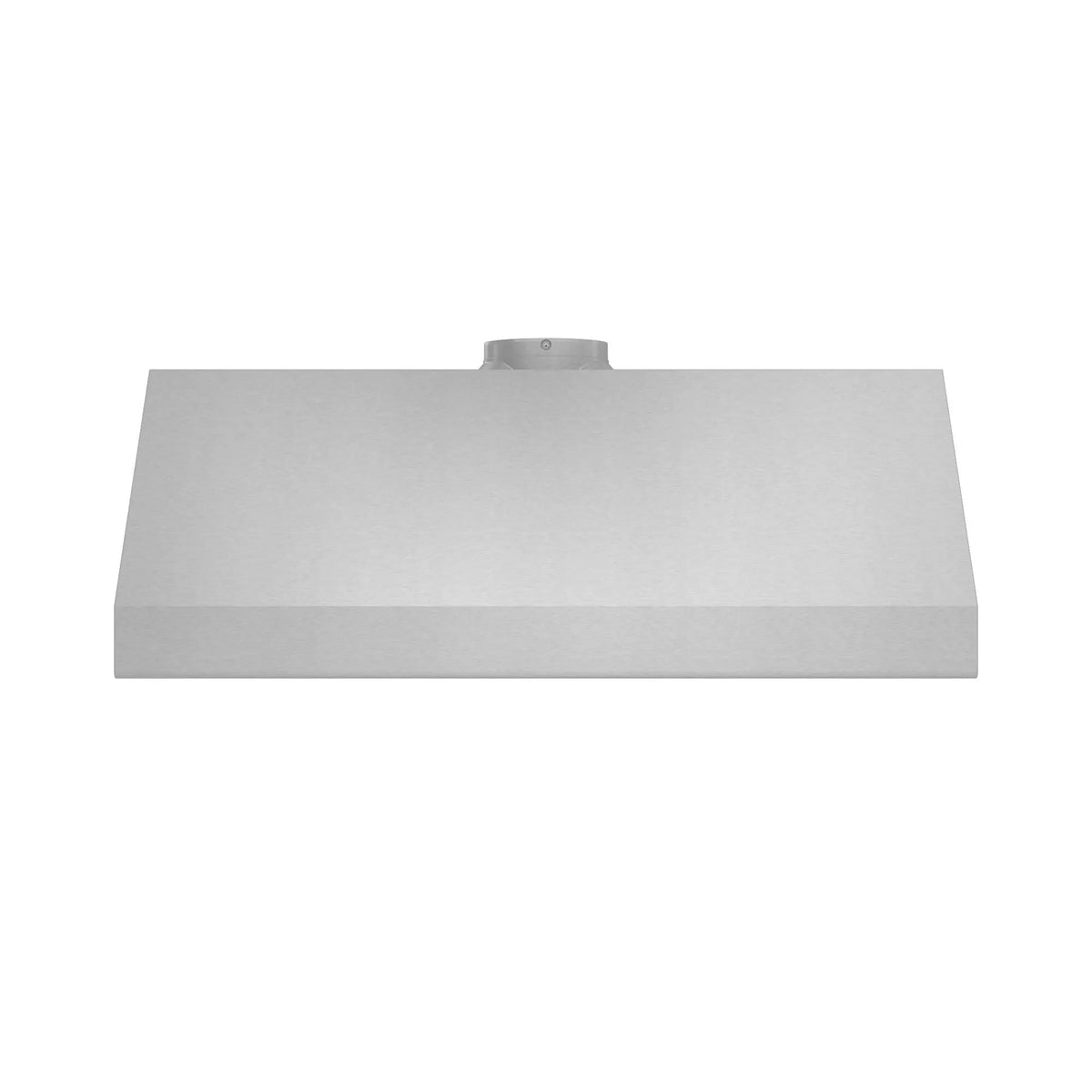

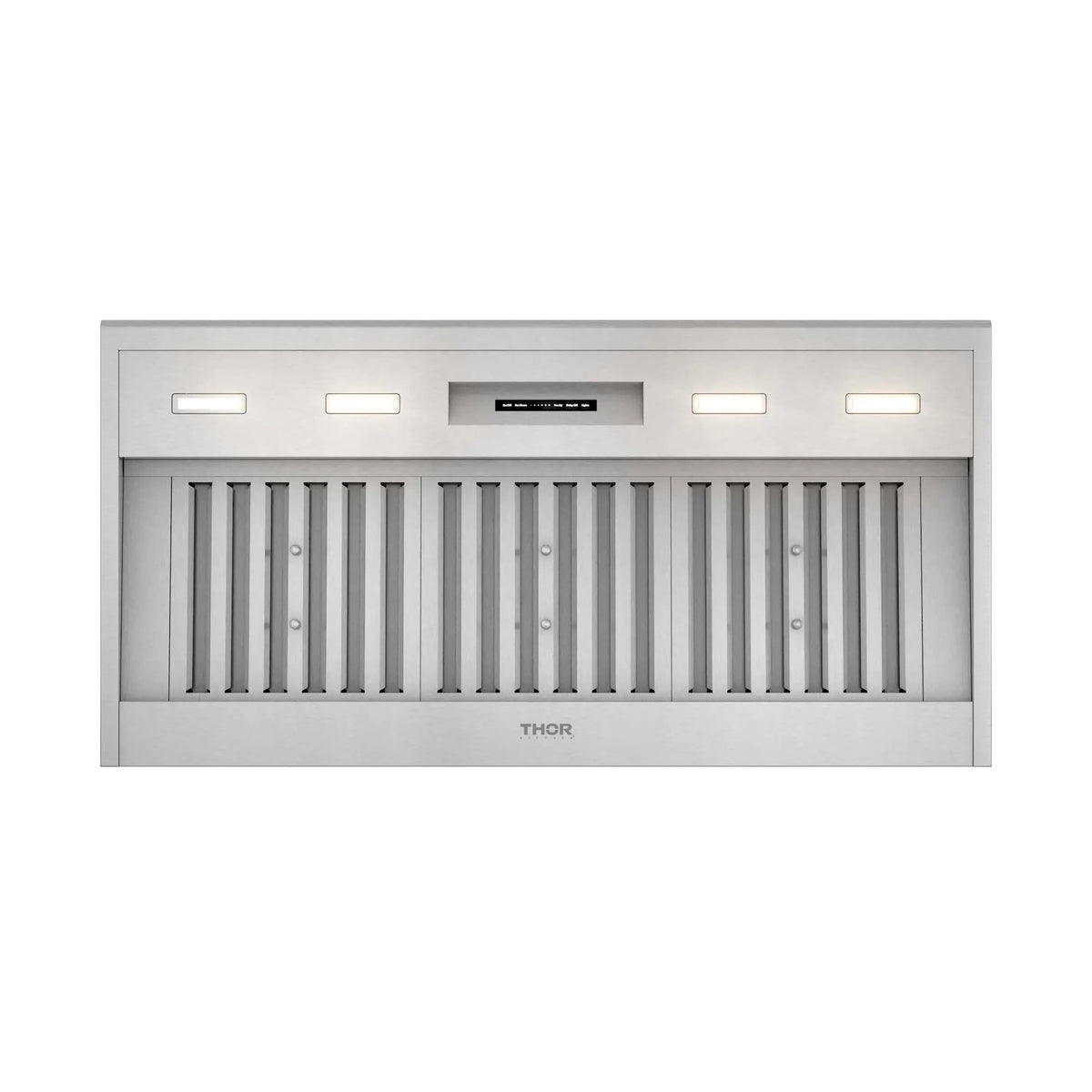

THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. The THOR Kitchen TUCH Series Pro Hoods bring bold performance and sleek design to any kitchen. Offered in 36″ and 48″ configurations, these wall-mounted or under-cabinet hoods provide up to 600 CFM of ventilation power across six speed settings. Gesture controls, dual LED lighting, and touch functionality offer intuitive use, while the built-in heat sensor and delay-off feature add smart efficiency. Stainless steel baffle filters and a clean filter reminder make maintenance a breeze. Designed for ducted or ductless operation, the TUCH Series blends high performance with everyday practicality.
Features
- 600 CFM - Handles all of the odors, smoke, and steam from multiple dishes at once.
- Gesture Controls - Turn on/off and adjust speed with a wave of your hand.
- Built-In Heat Sensor - Automatically activates the hood when temperatures reach 131°F and shuts off at 104°F to maintain optimal performance.
- Delay-Off Function - Set it and forget it. Delays power shut off for up to 12 minutes.

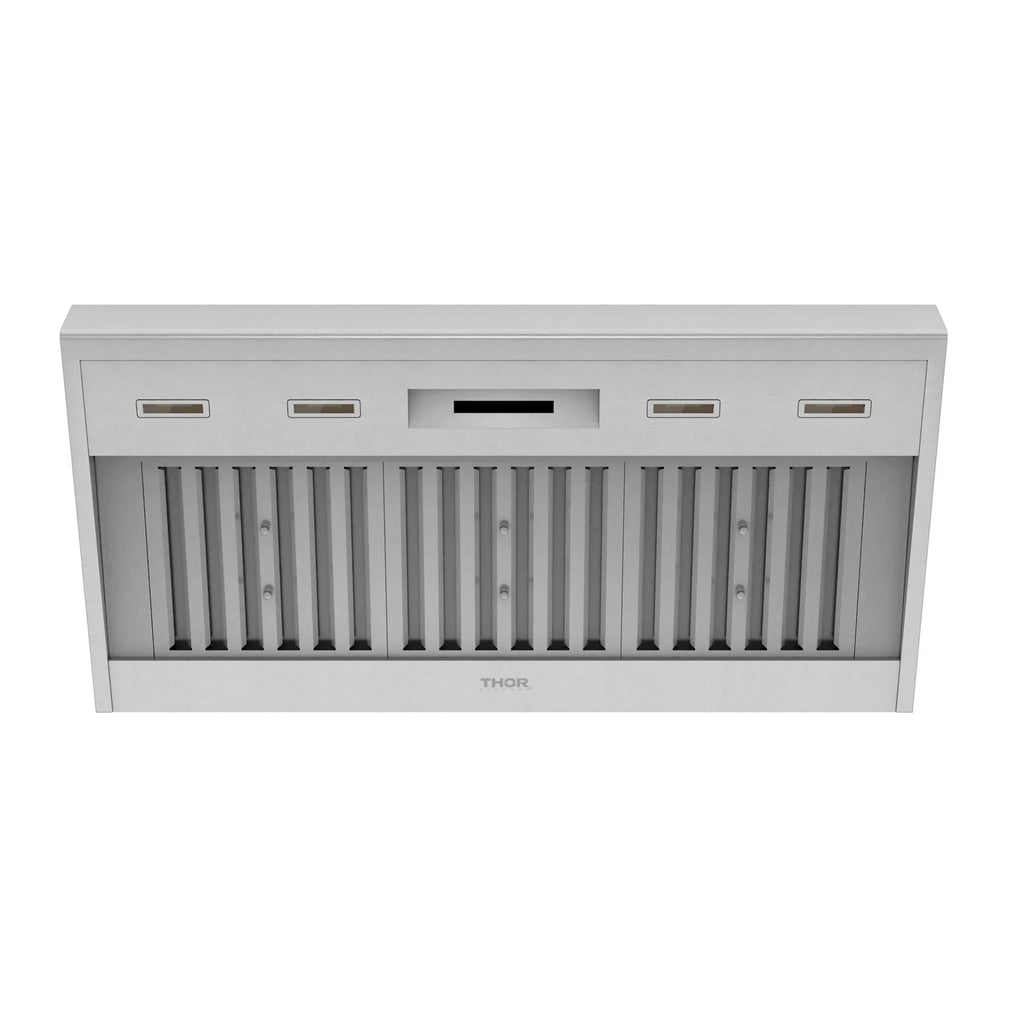

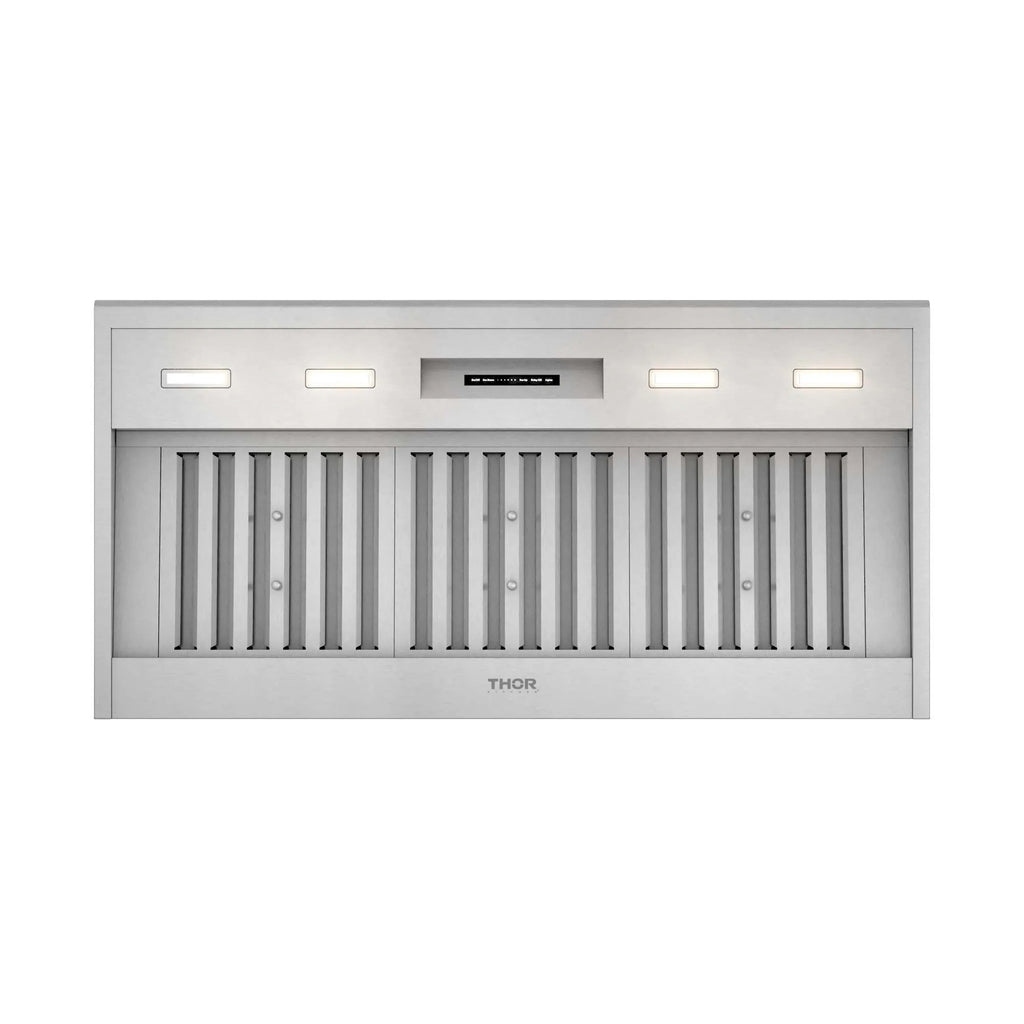

- Sleek Stainless Steel Baffle Filters - Efficiently captures grease and are dishwasher safe for effortless cleaning.
- Dual LED Lighting - Offers adjustable brightness settings for better illumination while cooking.
- Clean Filter Reminder - Never forget to clean your filters again.

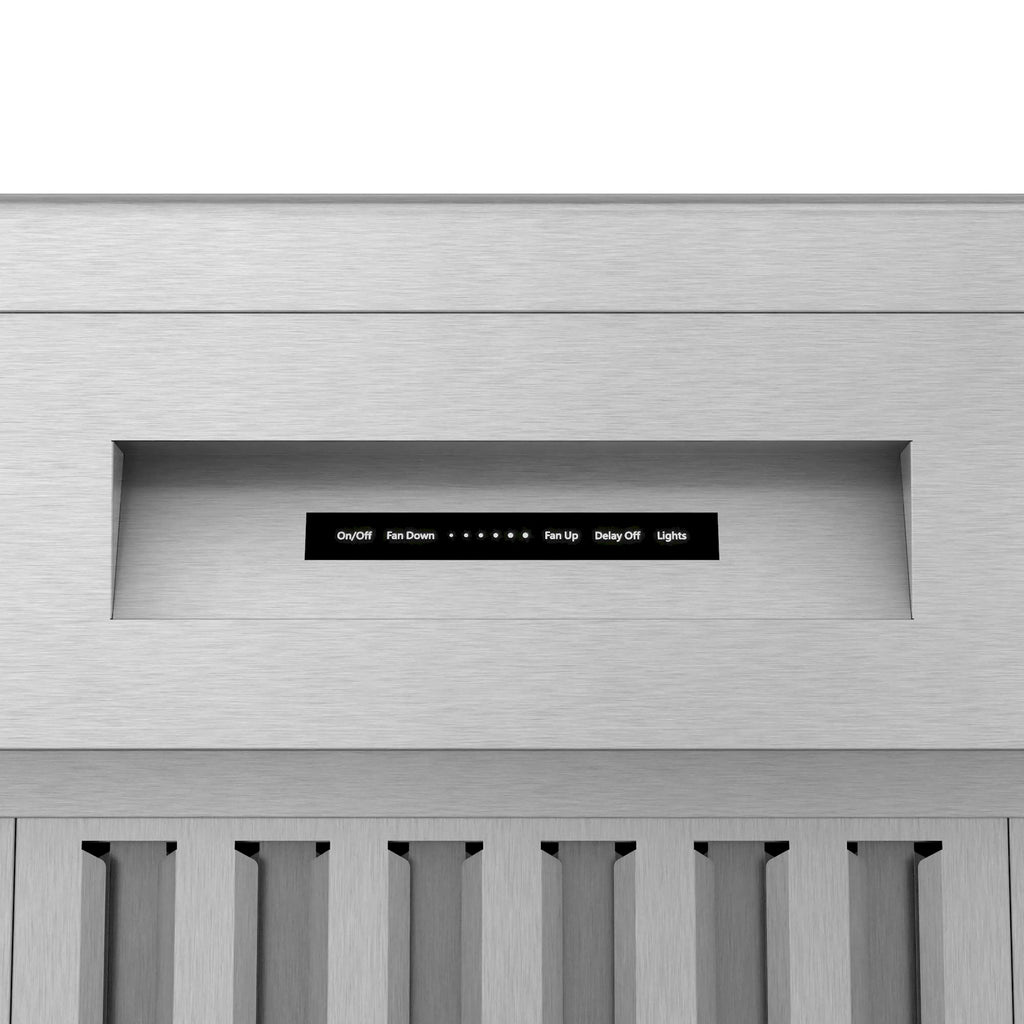

- Touch Control - Control all functions at a touch of the LED display.
- Six-Speed Settings - Adjustable fan speeds for different cooking needs.
- California Ventilation Requirements - Meets applicable California ventilation requirements.
- Product Dimensions (W x D x H)
- 47-7/8" x 24" x 18"
- Carton Dimensions (W x D x H)
- 50-25/64" x 21-21/32" x 26-31/32"
- Net Weight
- 67.2 lbs
- Gross Weight
- 85.3 lbs
- Brand
- Thor Kitchen
- Product

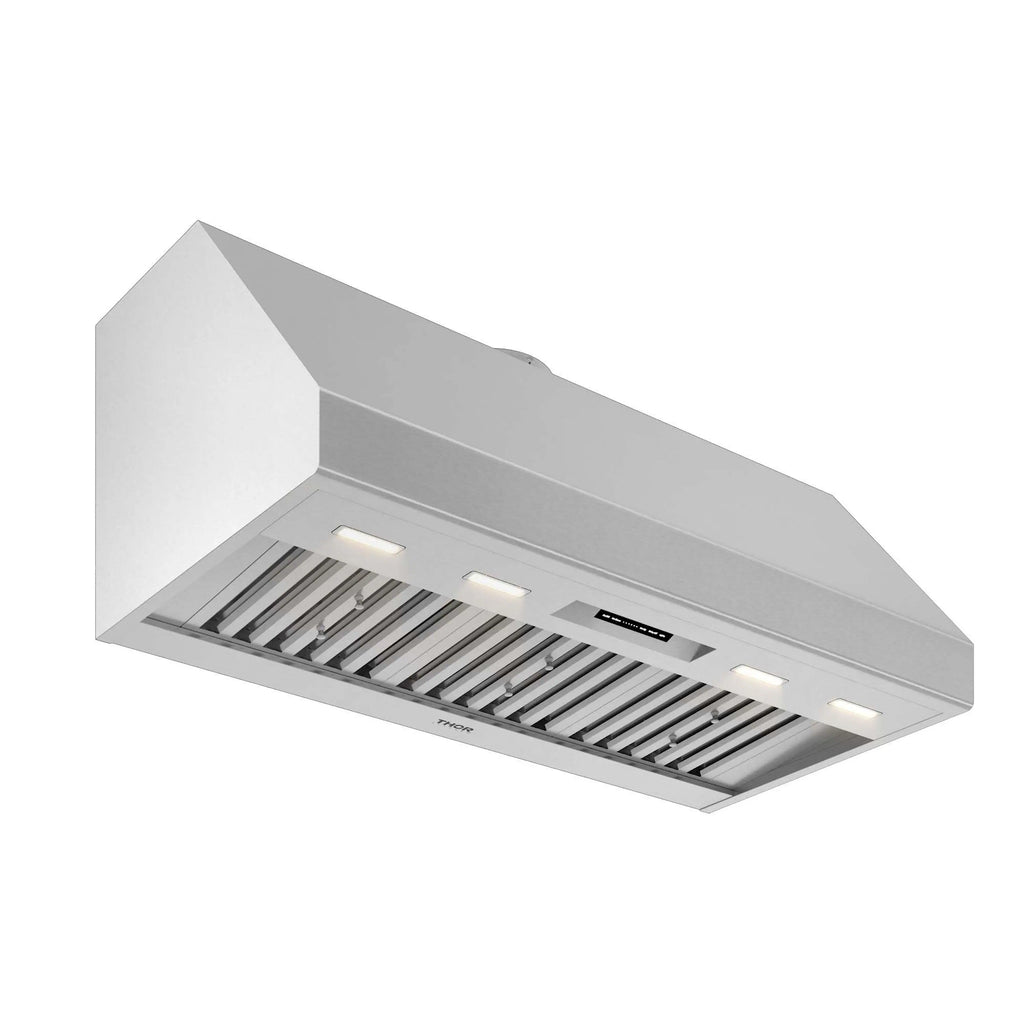

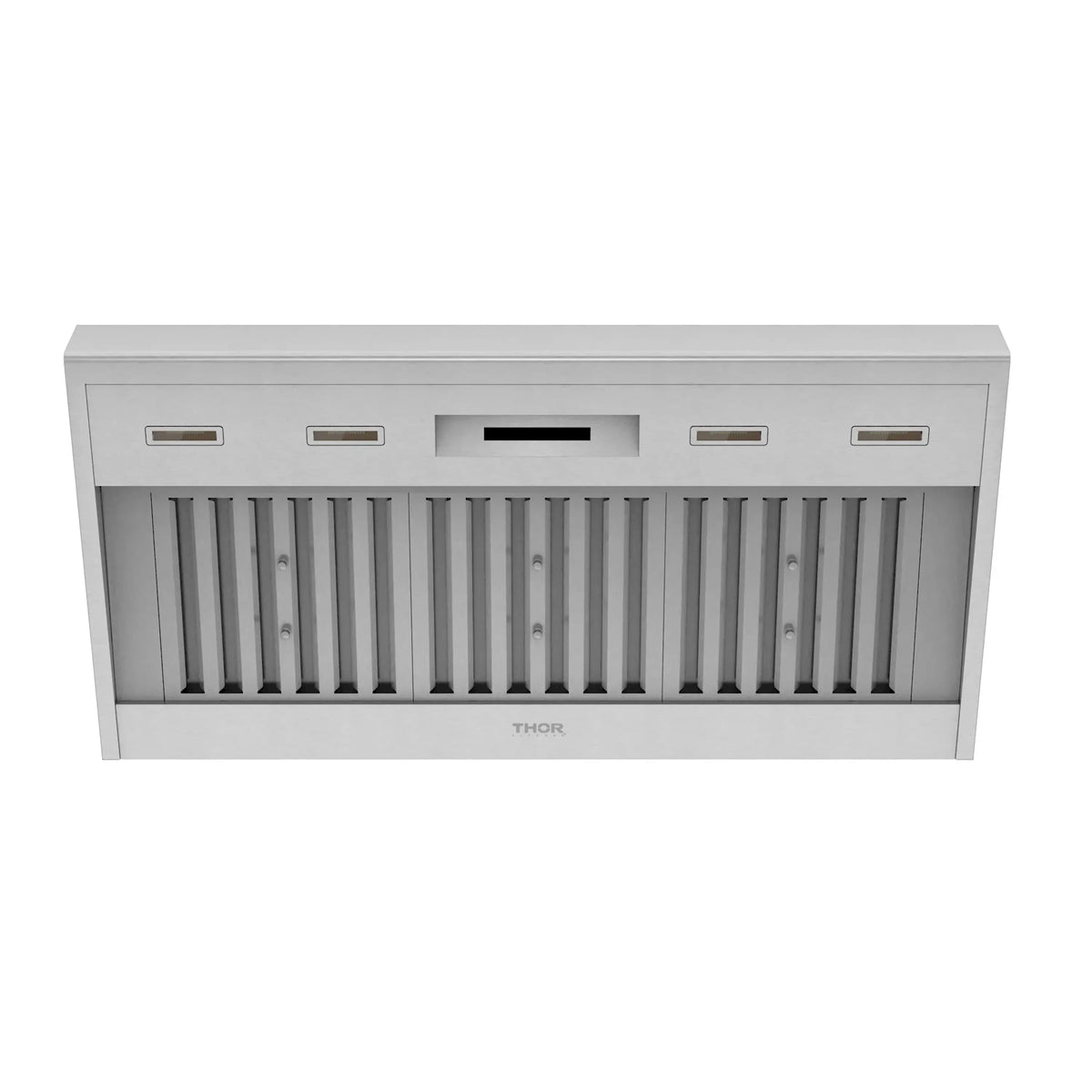

- 48 Inch Pro Hood
- Model Number
- TUCH4818
- Mount Type
- Under Cabinet / Wall Mounted
- Operating Mode
- Ducted or Ductless
- Color / Finish
- Stainless Steel
- Max CFM
- 600 CFM
- CFM (Speeds 1-6)
- 190 / 260 / 350 / 460 / 500 / 600
- Noise Level (dBA, Speeds 1-6)
- 38 / 43 / 50 / 56.5 / 59 / 63
- Number of Speed Settings
- 6
- Number of Lights
- 4
- Bulb Type
- LED Lights
- Control
- Touch / Hand Gesture Control
- Filter Type
- Baffle Filter x 3
- Duct Diameter
- 8"
- Duct Shape
- Round
- Voltage
- 120V
- Frequency
- 60Hz
- Amperage
- 15A (Dedicated) / 7A
- 24" Height Duct Cover
- RHDC48TU24
- Recirculating Kit
- TRC4818
- Charcoal Filter
- FT3648TU
- Warranty
- 2 Years Parts and Labor

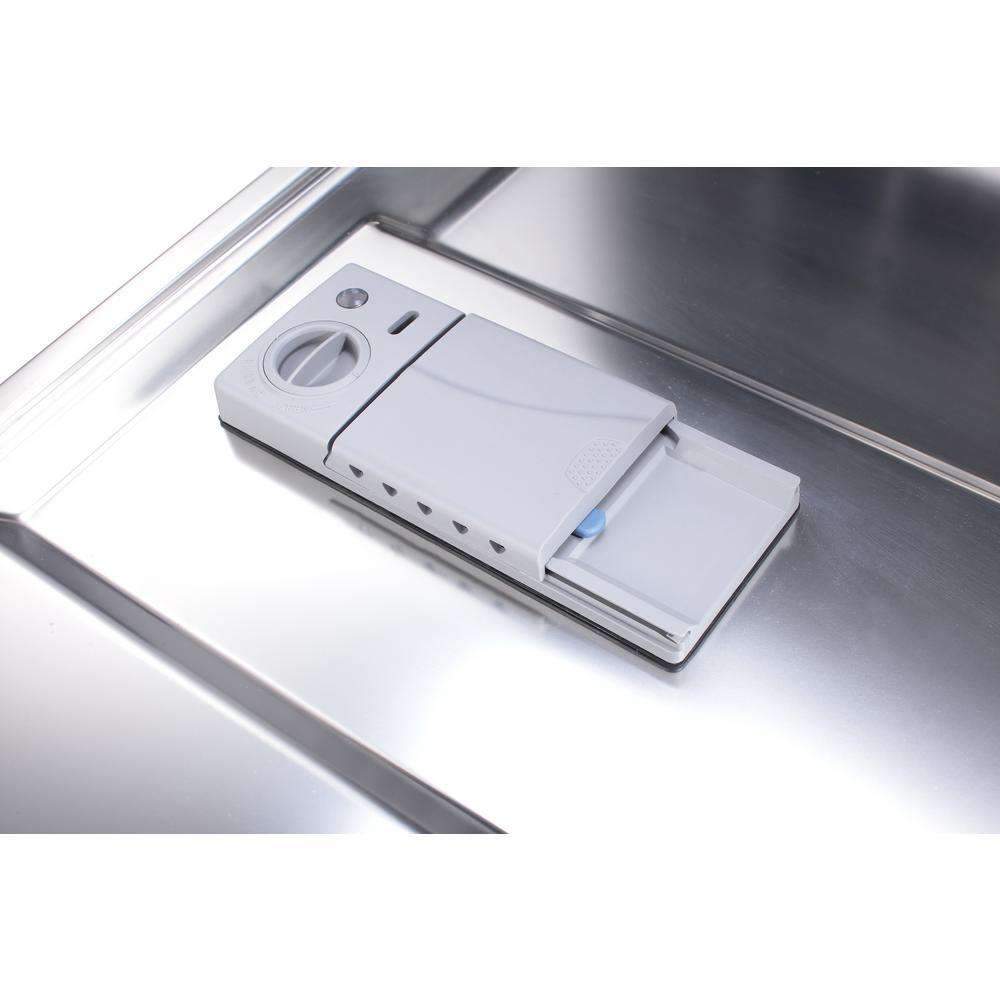

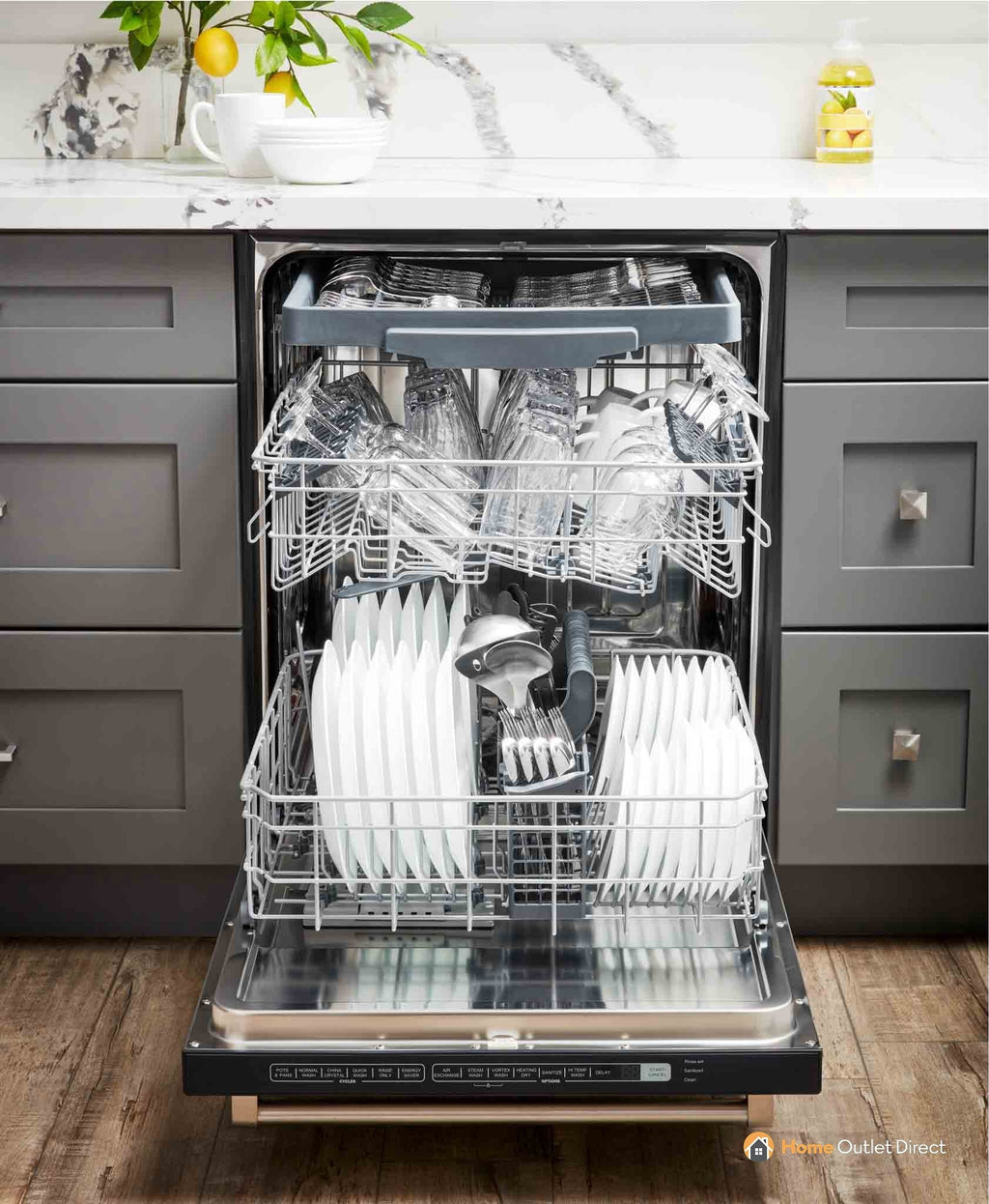

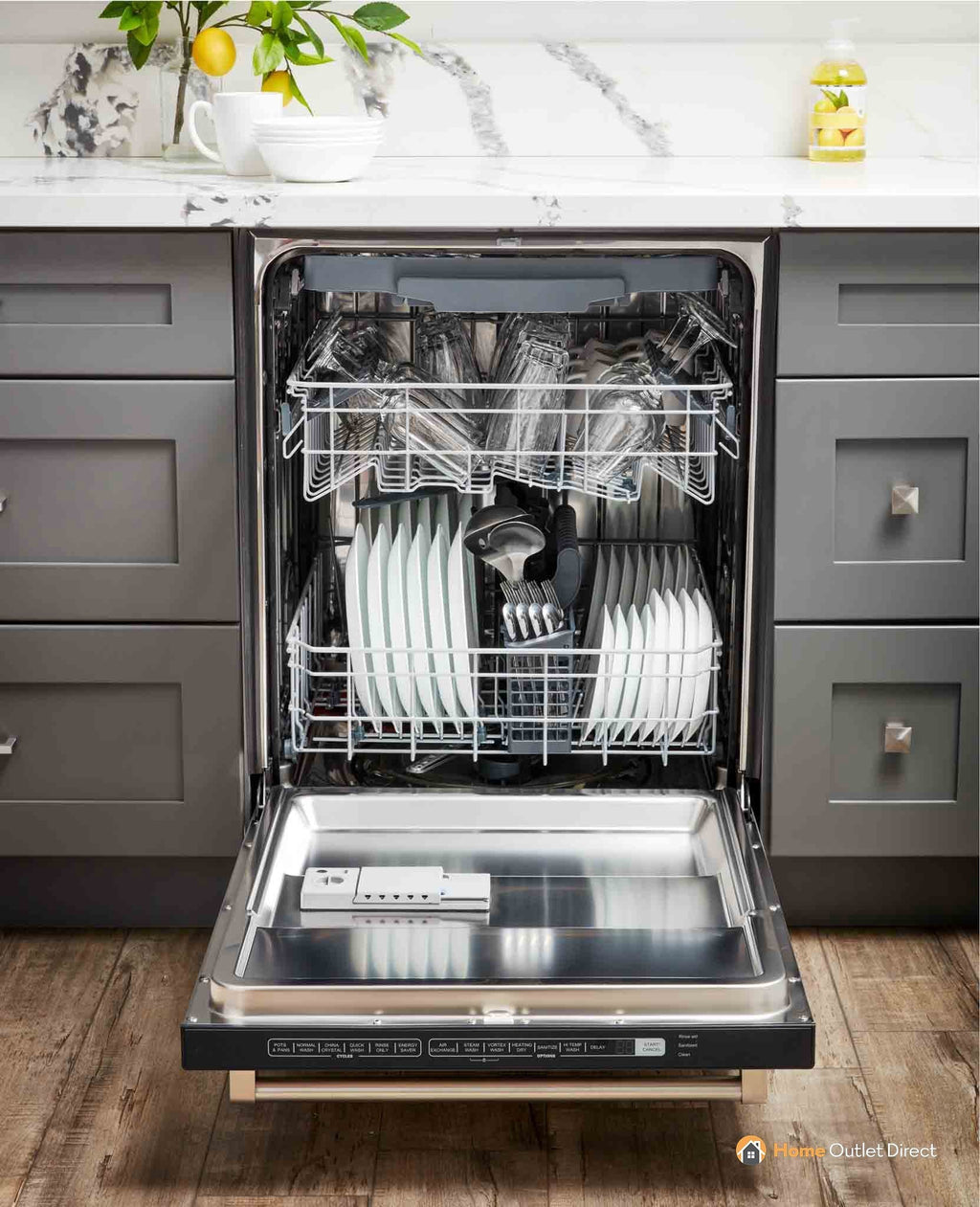

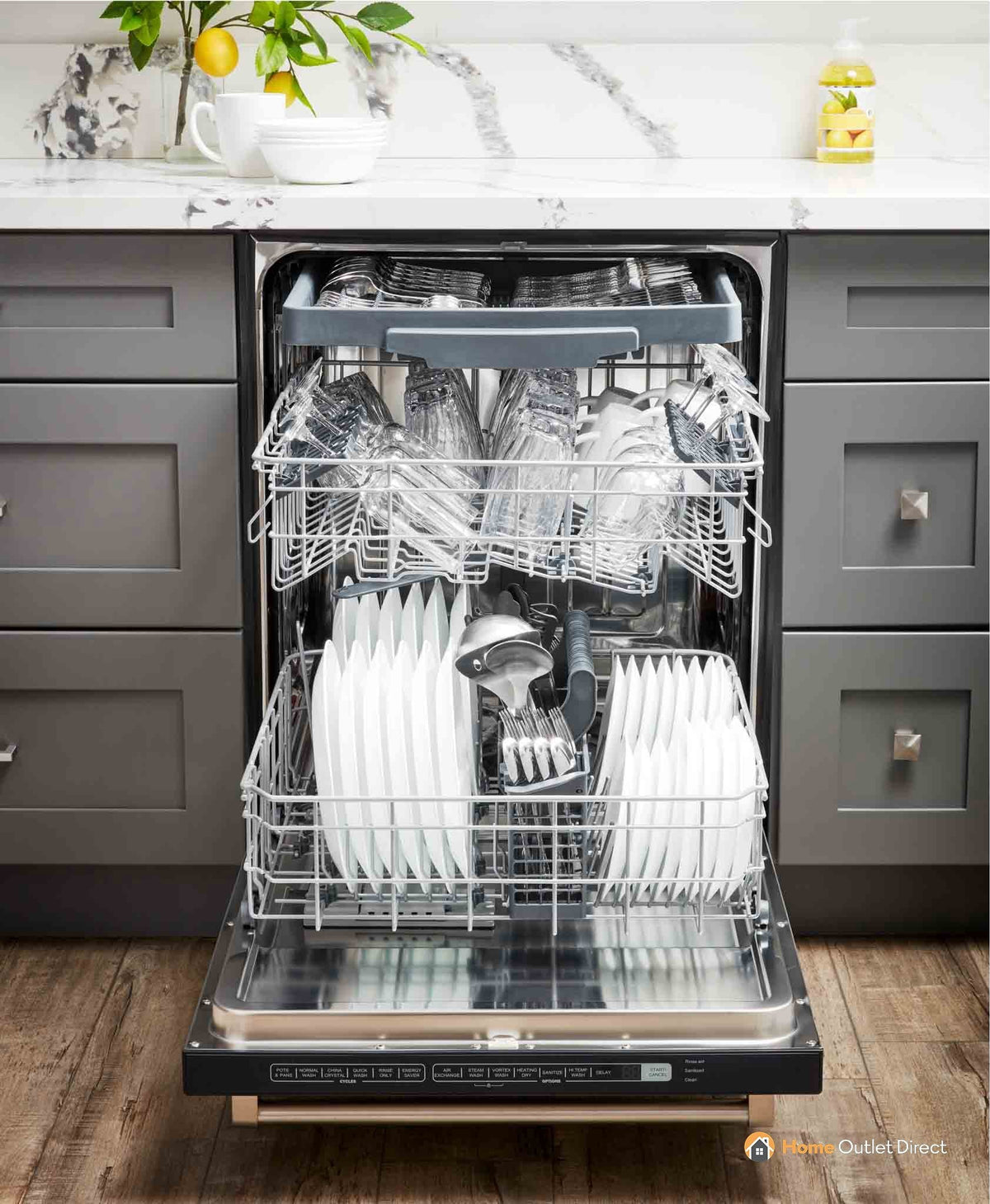

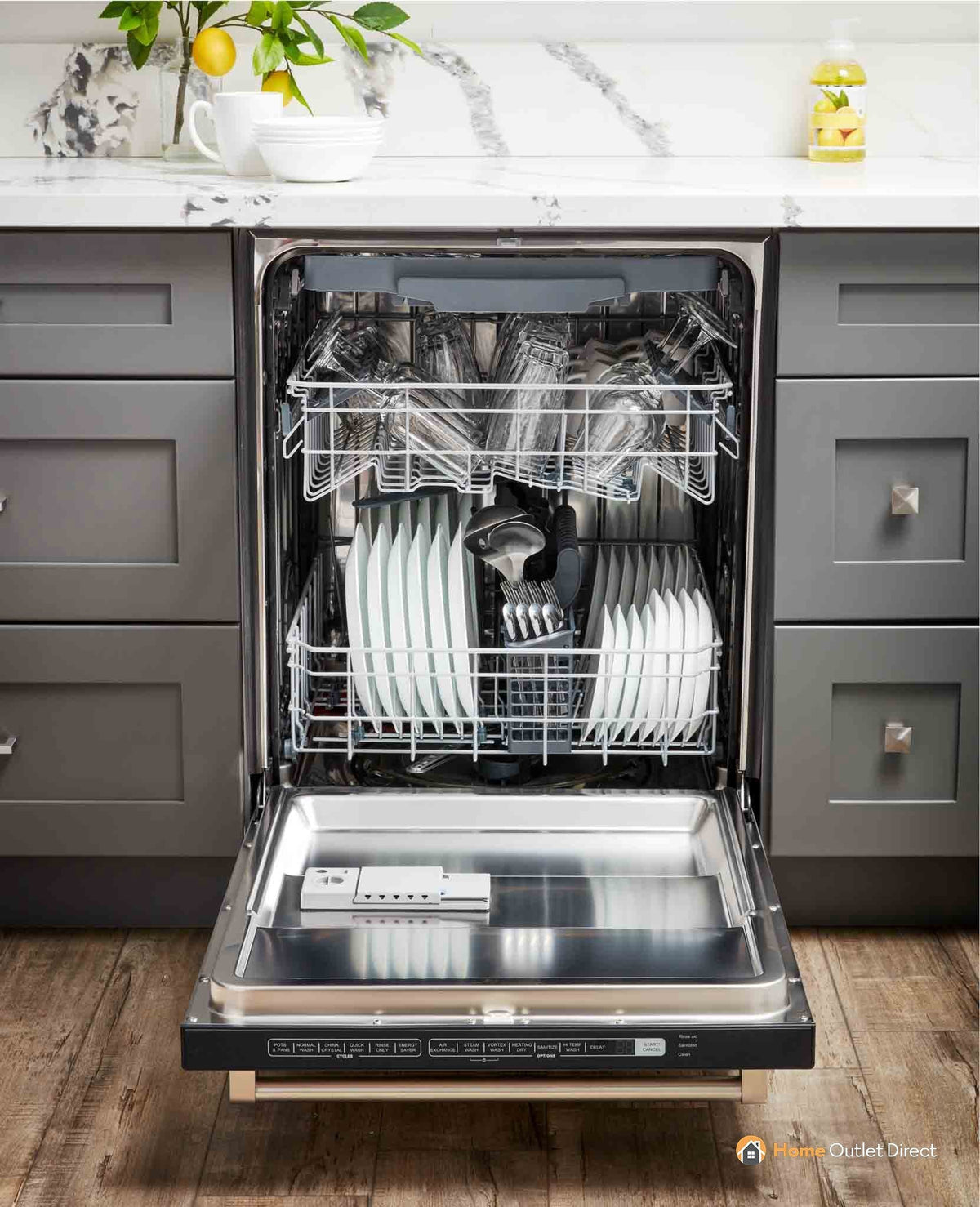

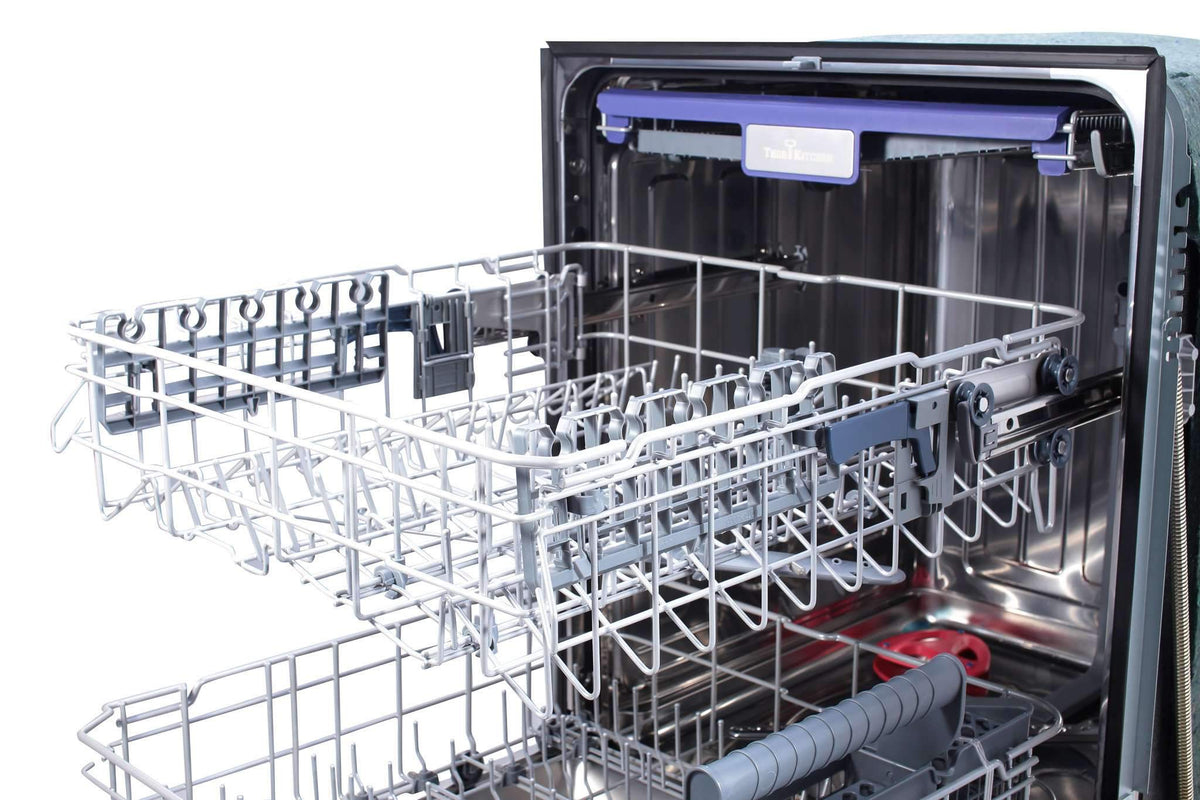

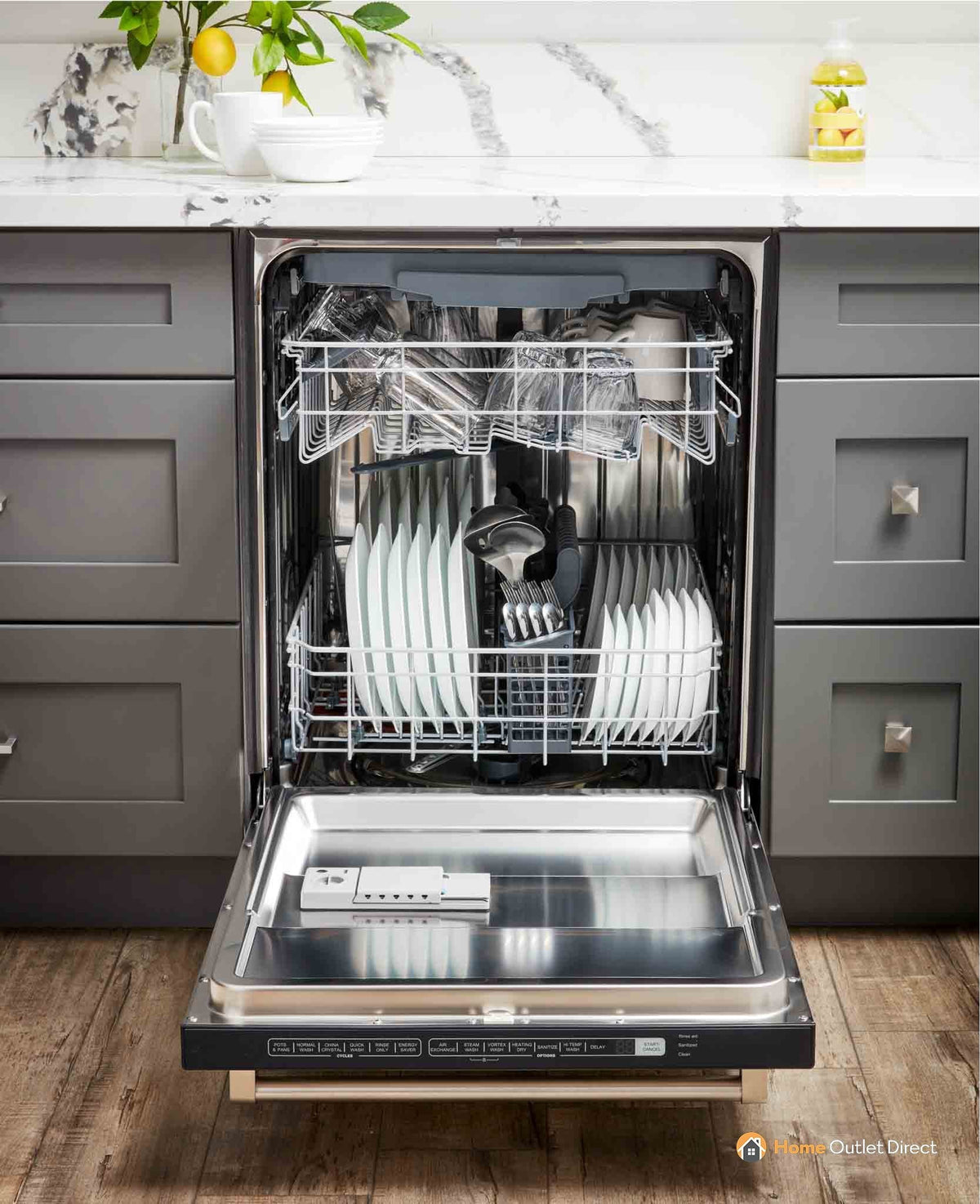

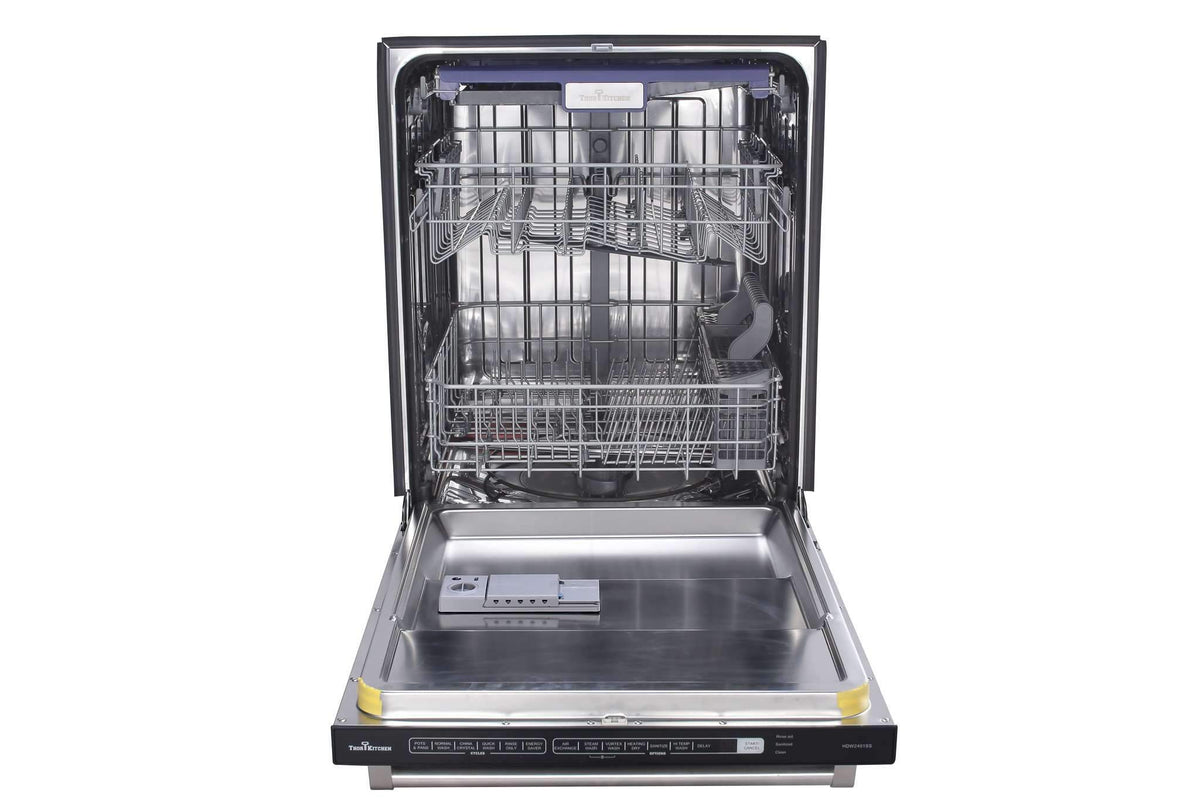

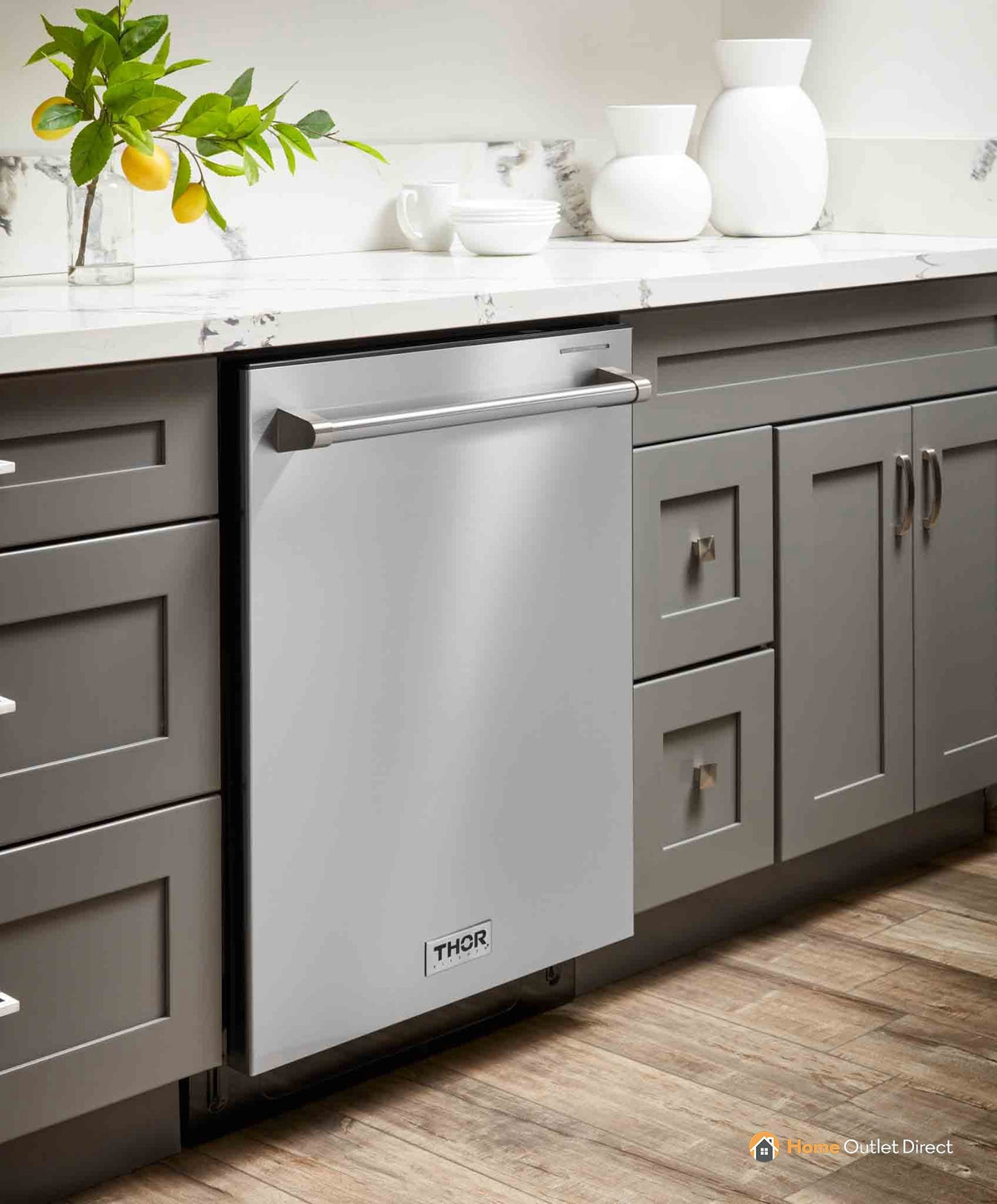

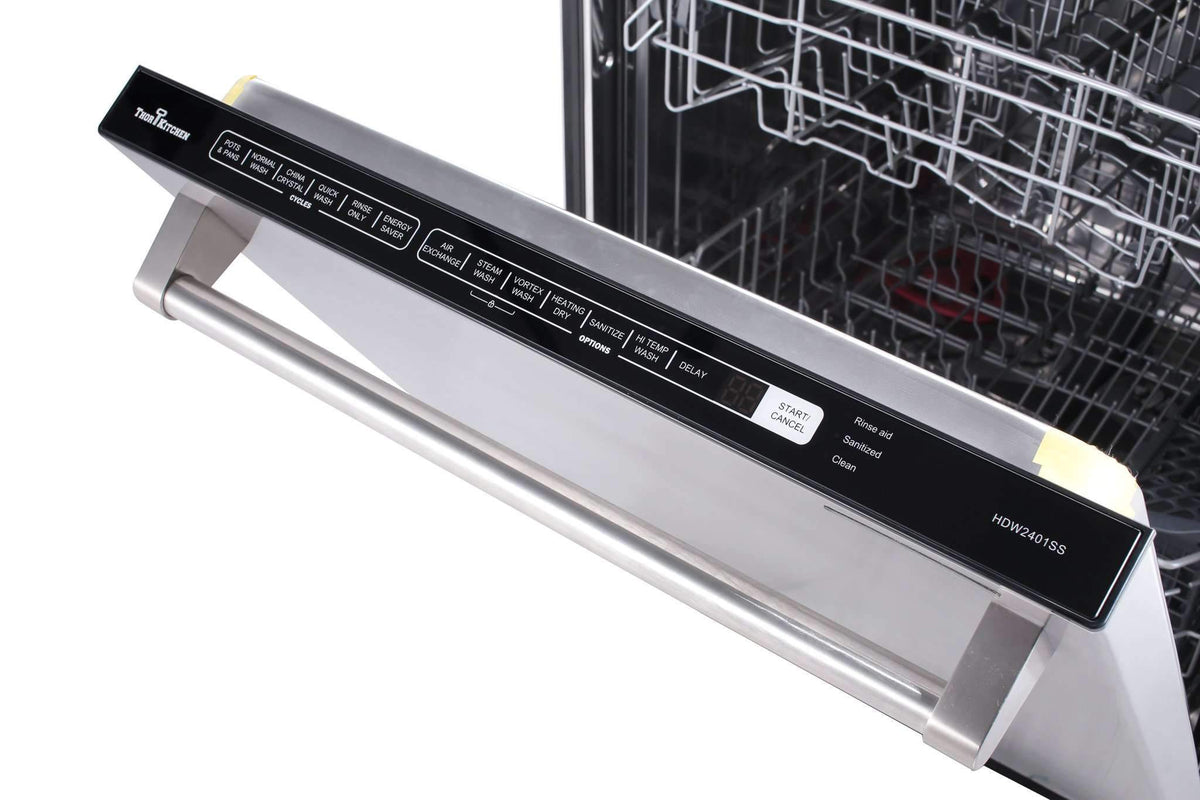

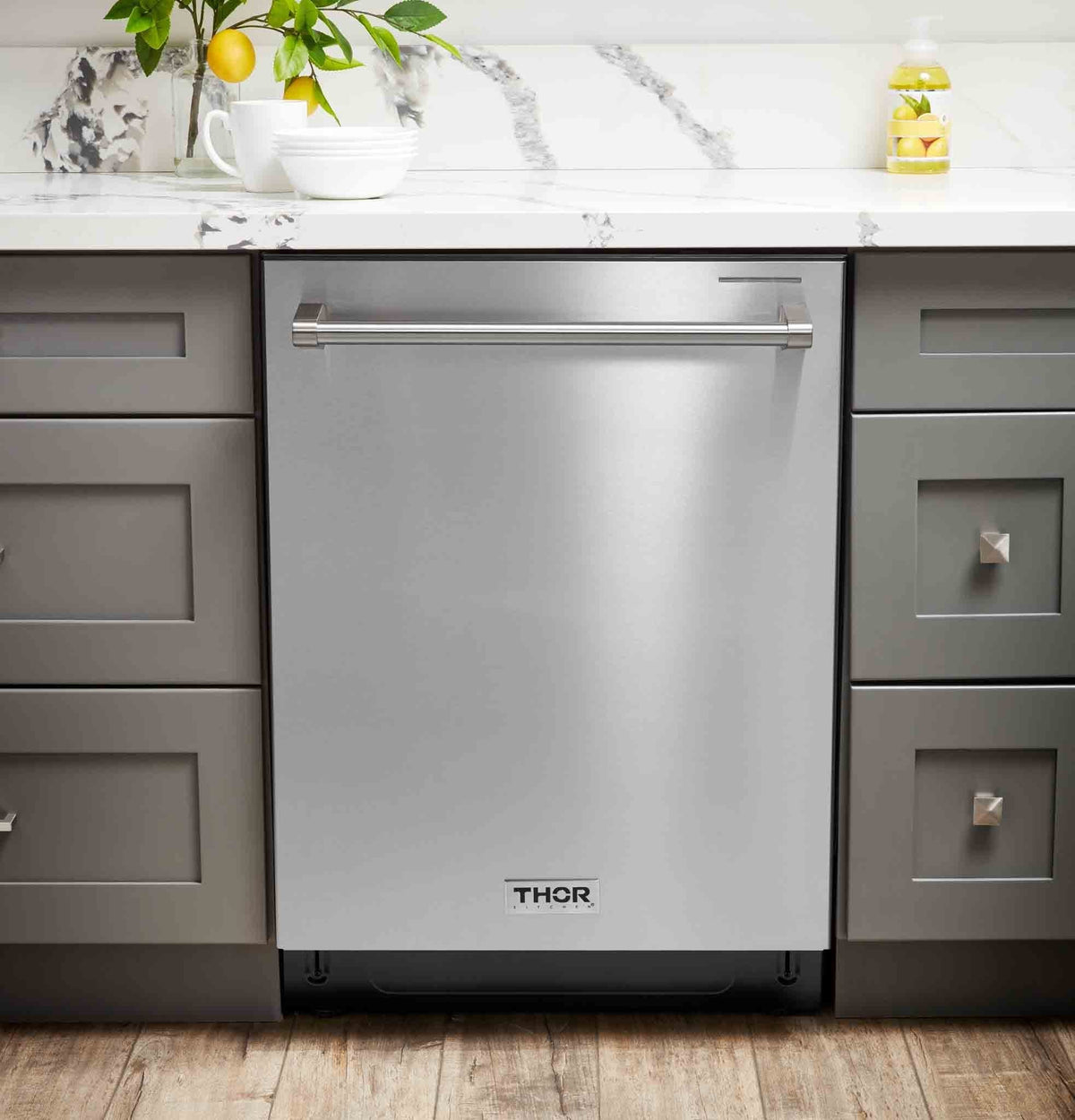

THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. Whether entertaining for one or hosting a full-blown dinner party, things generally get a little messy. That's where a THOR Kitchen dishwasher is a thing of beauty. You'll find useful features like a multiple filtration system for optimal performance using less water and energy, and a Smart Wash System that determines the cycle to use depending on the soil level of the load. Plus four hardworking sprayer arms, delay start and a handy detergent/rinse aid dispenser. It's a well-crafted machine that never met a meal it didn't love. Live clean, my friend, live clean.
Features

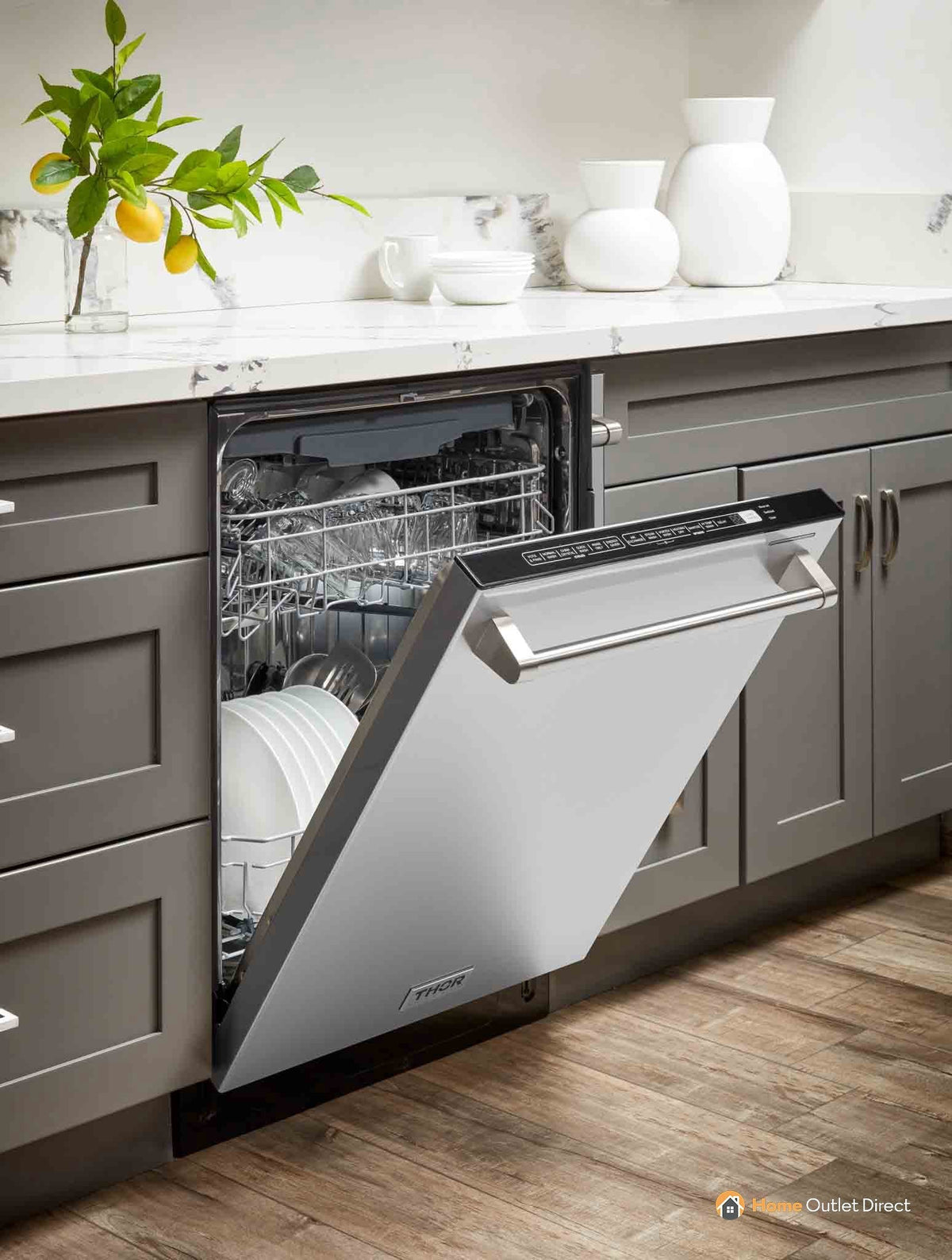

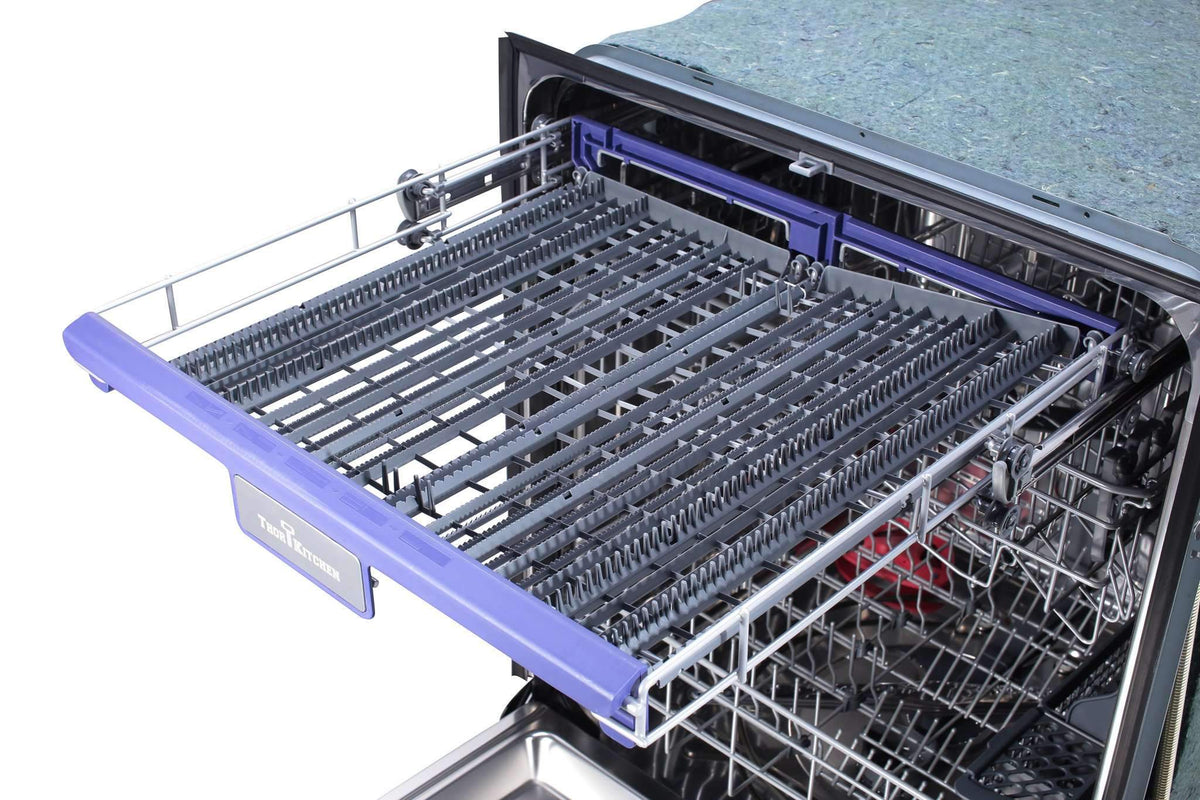

- Adjustable Racks - Adjustable upper rack can be moved to accommodate larger dishes and stemware on the bottom and a third rack is available for larger utensils.
- A Quiet dBAs - 45 decibels means you can operate your dishwasher while you’re in the same room and still have a conversation and watch TV.
- Smart Wash System - Smart wash system uses a soil sensor to determine how dirty the dishes are and adjusts the normal cycle as needed to make sure dishes come out clean.

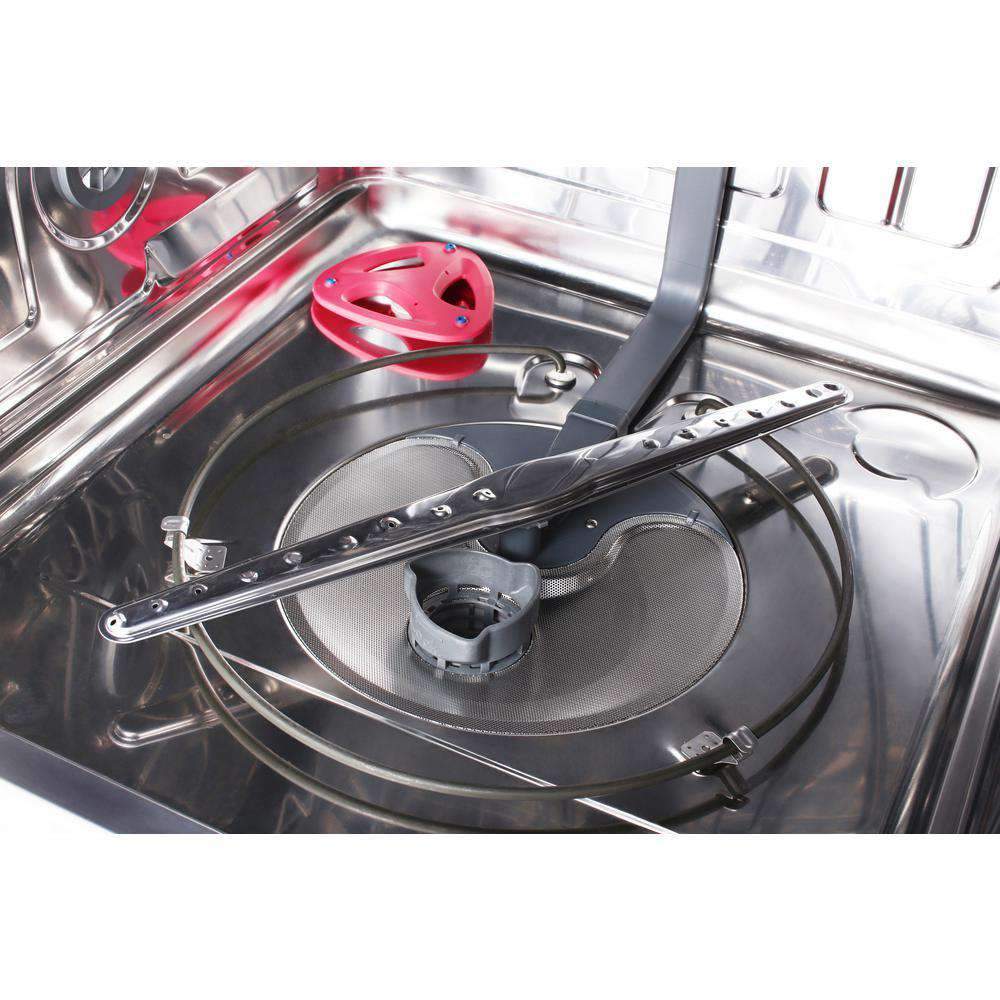

- Powerful Spray Arms - Four powerful spray arms give you better water coverage for a thorough clean every time.

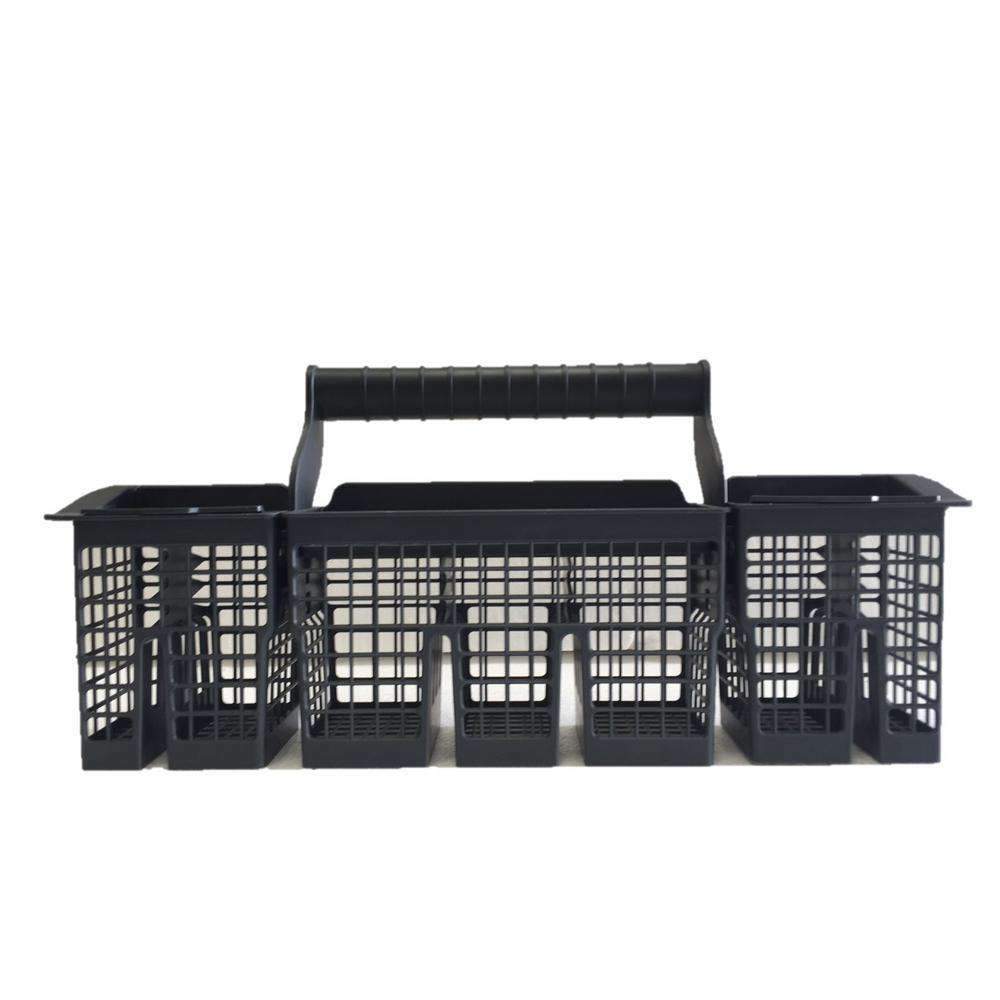

- Removable Utensil Basket - Removable utensil basket makes loading and unloading utensils easy.
- Fingerprint Resistant - Resists fingerprints and smudges with stainless steel that easily wipes clean.
- Water & Energy Efficient - A multiple filtration system for optimal performance using less water and energy.
- Brand
- Thor Kitchen
- Product

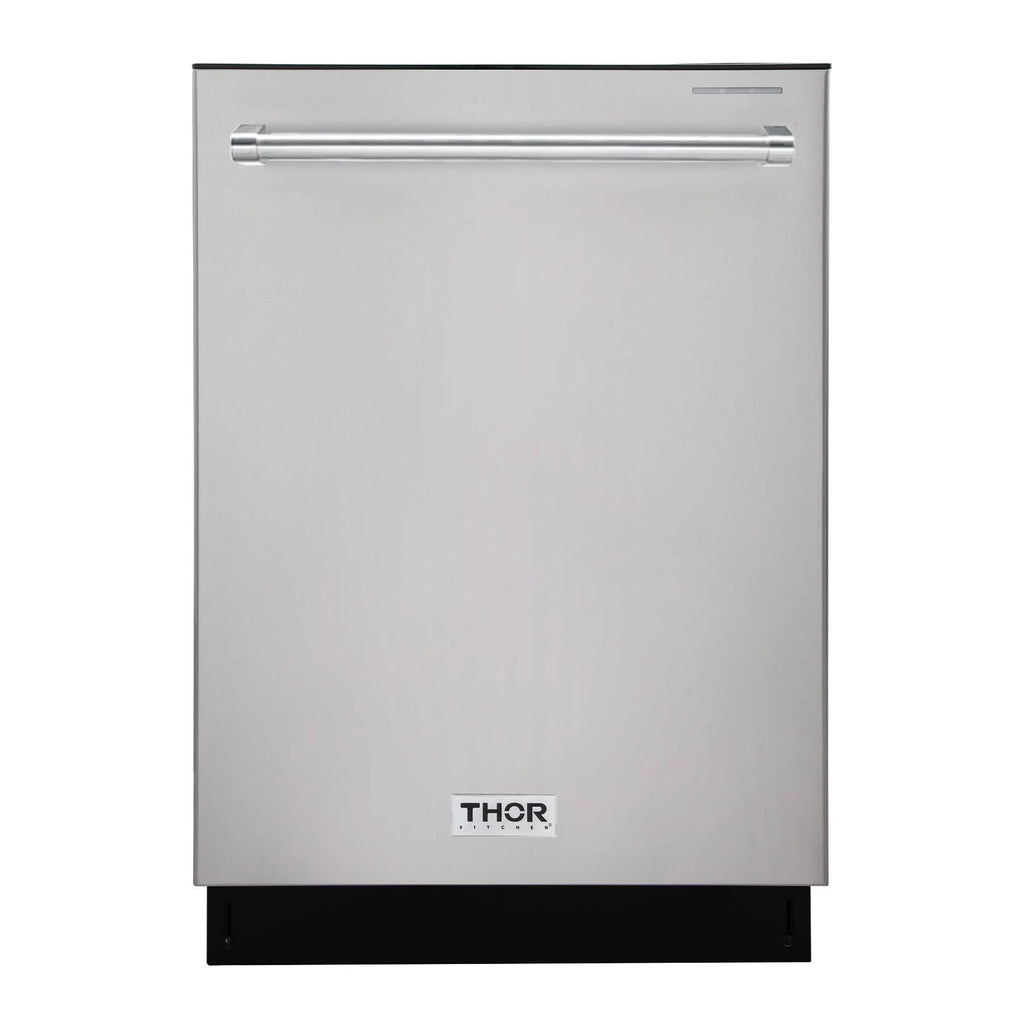

- 24 Inch Built-In Dishwasher
- Model Number
- HDW2401SS
- Power Supply
- 120V / 60Hz
- Rated Power Usage
- Wash Motor 50W Heater 840W
- Power of Heating Element
- 120V / 840W
- Inlet Water Temperature
- Less Than 120°F (49°C)
- Water Feed Pressure
- 20 - 120pis (138 - 828kPa)
- Water Consumption
- 3.5 Gallons (by DOE)
- System Outlet Hose Length
- 2m / 78.47"
- Washing Performance
- 80 Plus Certified
- Water Consumption (2)
- Less Than 22.5L / 5.95ga for Normal
- Product Dimension (WxDxH)
- 23.7/8" x 24 5/8" x 33 3/4" - 35 3/4"
- Product Depth with Handles
- 27 1/8"
- Cut - Out Dimension (WxDxH)
- 24" x 24 5/8" x 34-35"
- Warranty
- 2 Years Parts and Labor

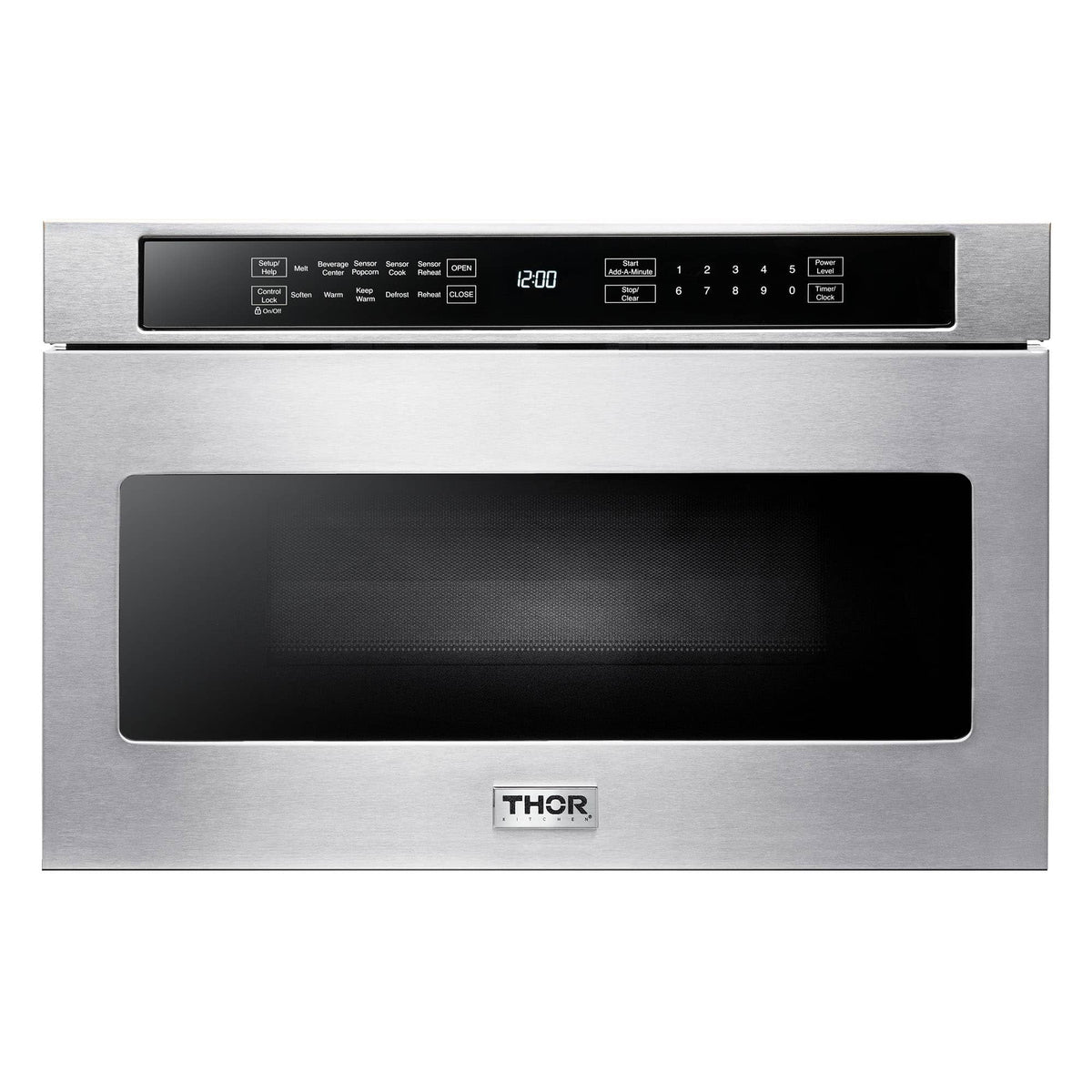

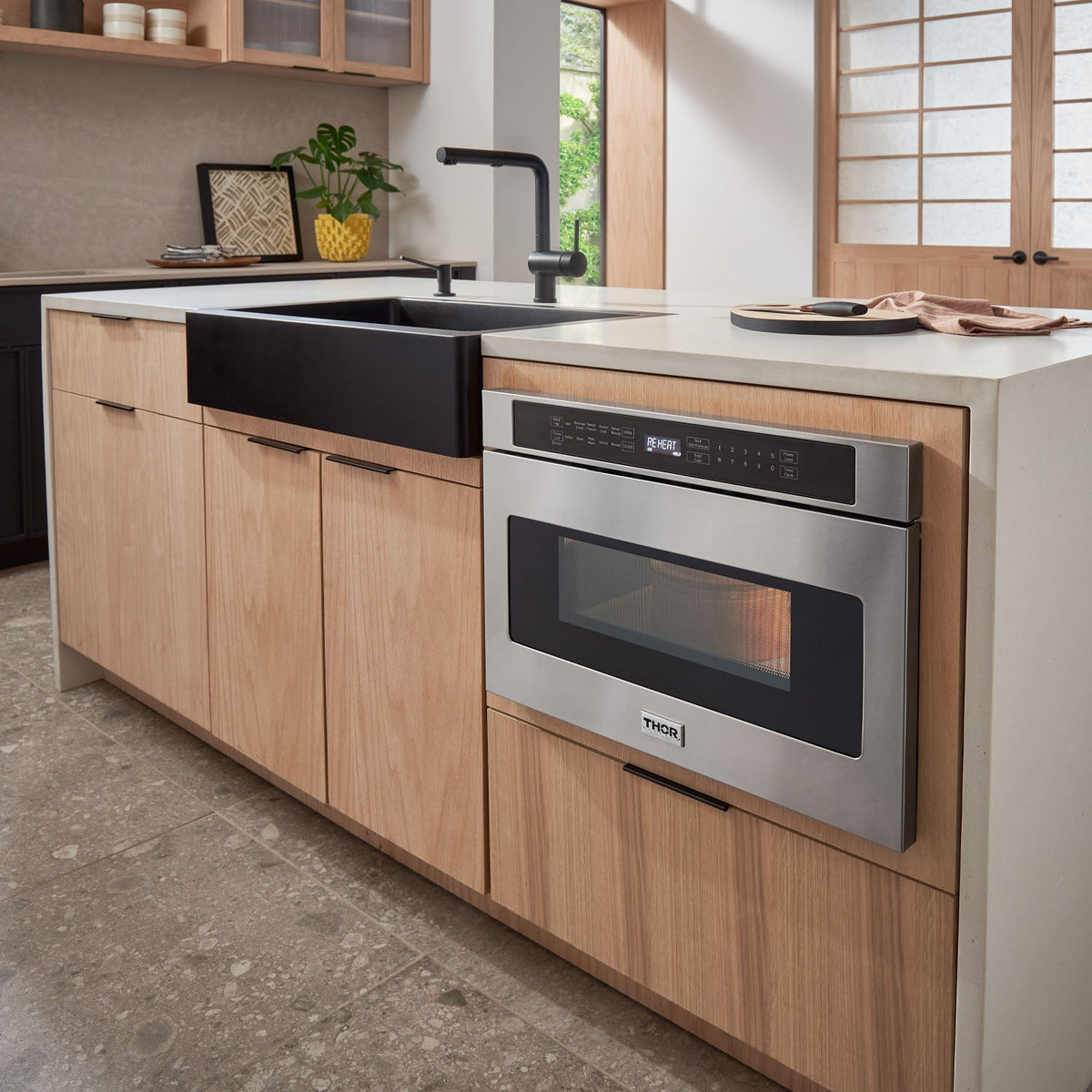

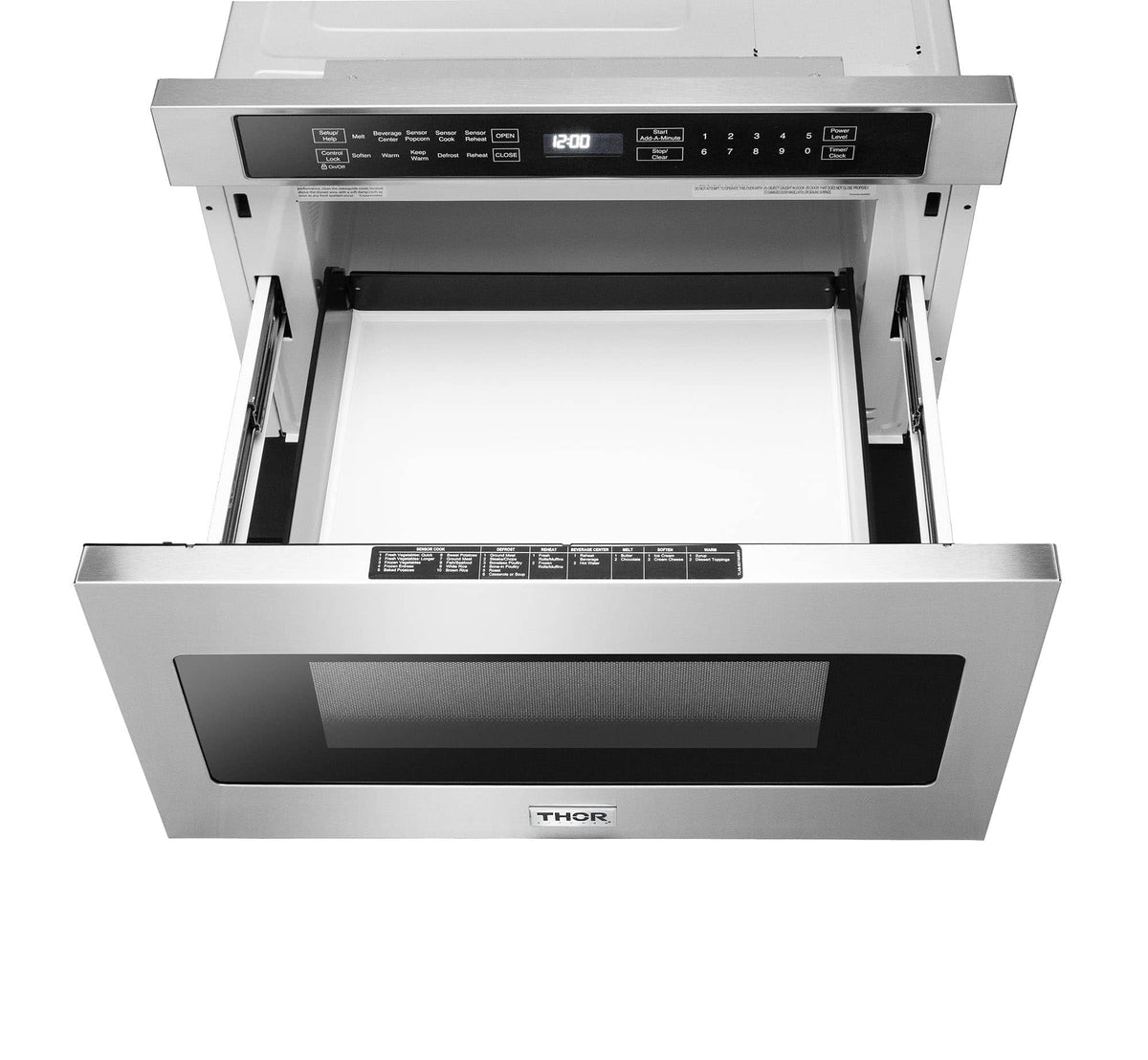

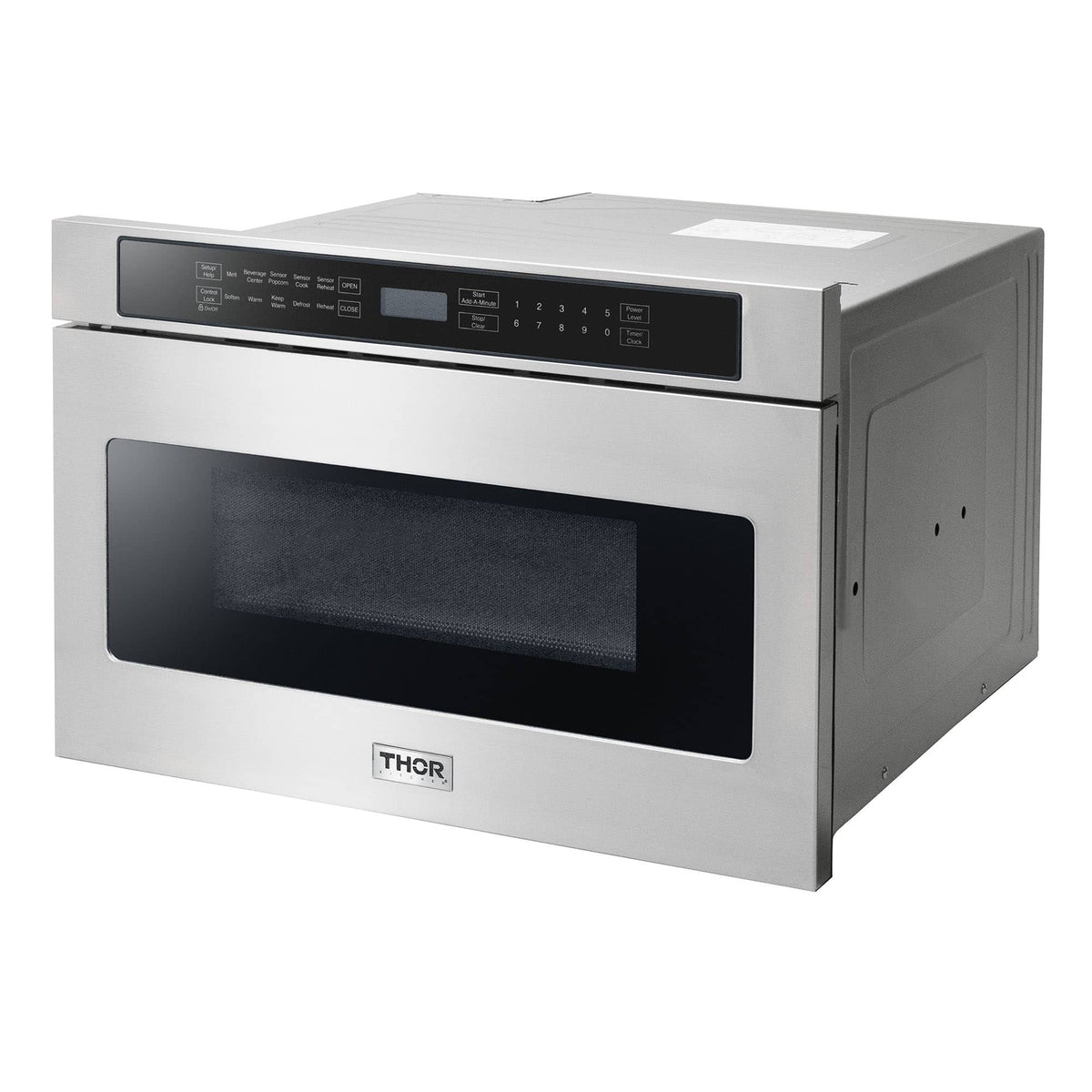

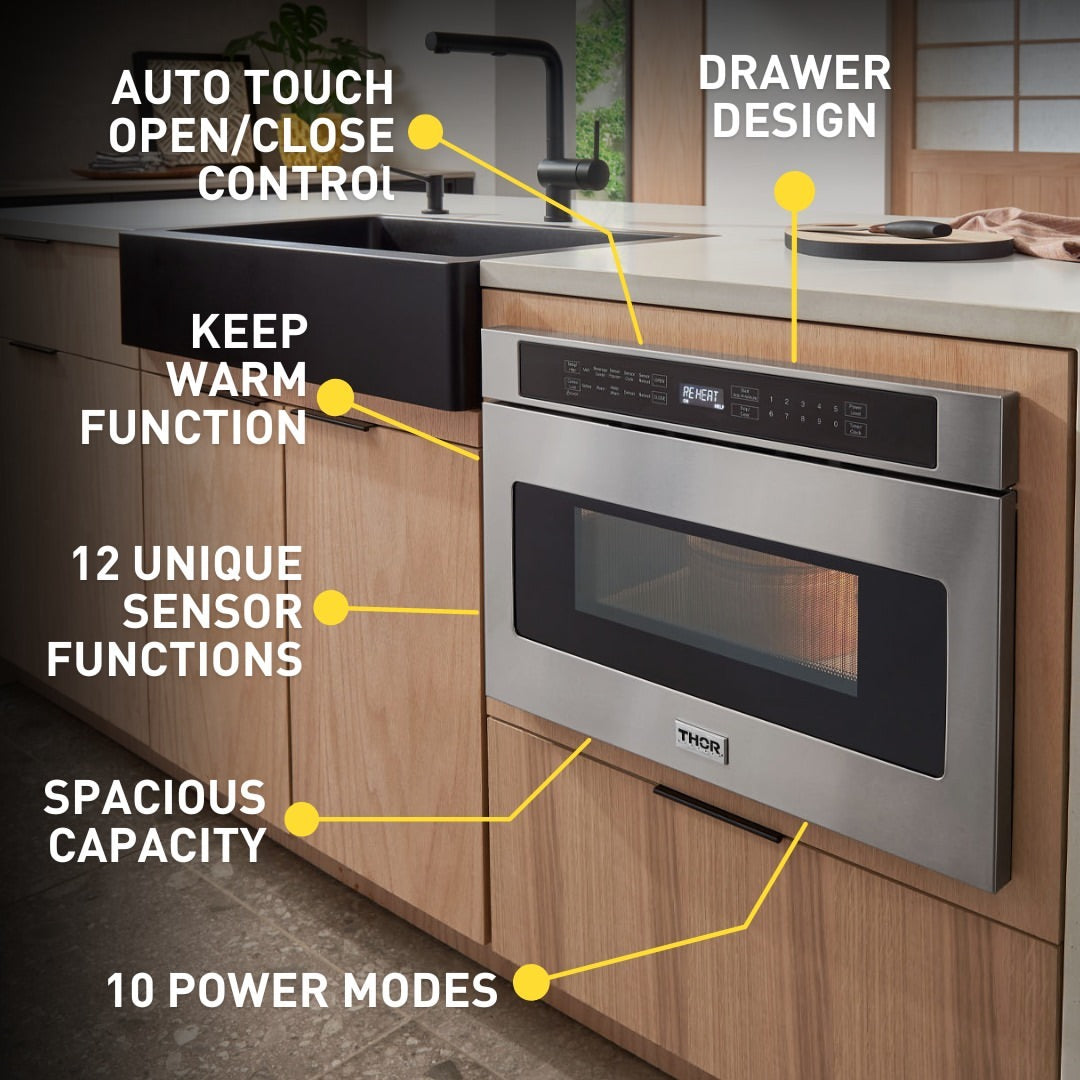

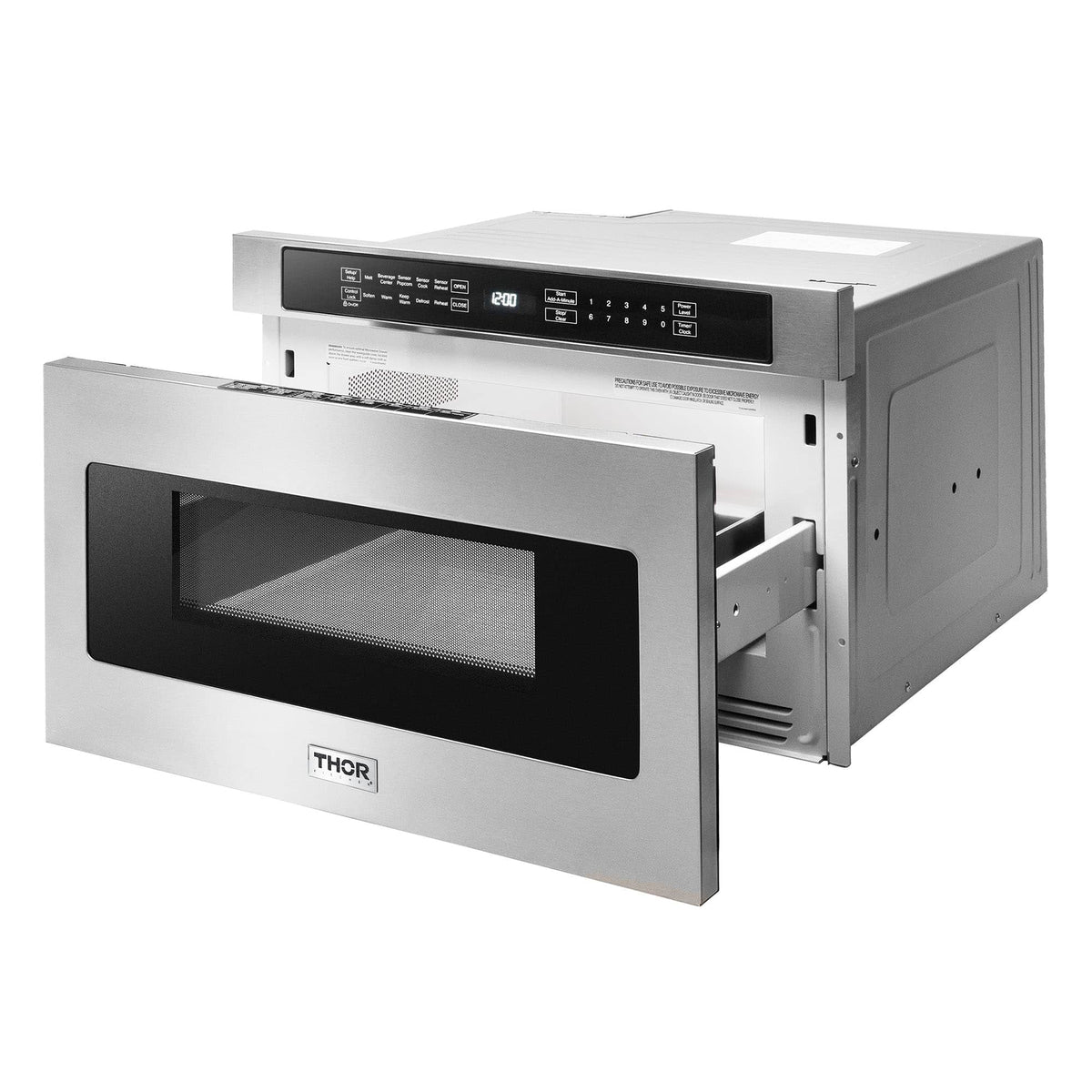

Calling all "microwave chefs," the THOR Kitchen 24-inch Microwave Drawer provides the tools you need to master your next meal. Offering all of the luxury features you'd expect from a premium appliance, the 24-inch Microwave Drawer features 10 power levels for precision heating and 12 unique easy-to-use food prep functions including popcorn, beverage center, melting chocolate and defrost. The 24-inch Microwave Drawer design is ideal for open kitchen designs and islands, freeing up counterspace for ingredients and food prep.
Features
- Drawer Design - The 24-inch Microwave Drawer is flexible to your kitchen design and can be placed below an island, peninsula, or standard cabinetry or can also be installed adjacent to your wall oven.
- 12 Unique Sensor Functions - 12 unique easy-to-use food prep functions include everyday functions like defrost and a beverage center as well as luxury features such as two popcorn settings, melting chocolate, and softening ice cream. Use the "add a minute" feature to top off the perfect cook.
- Multiple Power Modes - Offers 10 power modes for precision heating, from a delicate power mode for melting chocolate to cranking up the power and using 950-watts for cooking and defrosting your favorite foods. The control is at your fingertips.
- Auto Touch Open/Close Control - Allows you to easily open and close the microwave drawer at the touch of a button.
- Spacious Capacity - 1.2 cu.ft. capacity can accommodate a variety of different container shapes and sizes.
- Keep Warm Function - Delivers brief pulses of microwave power to keep your cooked foods warm without overcooking until they’re ready to be served.
- Sleek Design - Stainless steel flush to cabinet design features a white touch LCD display that’s easy to operate and easy to clean.
- Brand
- Thor Kitchen
- Product
- 24 Inch Microwave Drawer in Stainless Steel
- Model Number
- TMD2401
- Installation Type
- Built-In
- Color/Finish
- Stainless Steel
- Capacity
- 1.2 cu. ft.
- Output Power
- 950W
- Microwave Drawer Open
- Auto Open Button/Hand Assist
- Sensor Cook, Reheat and Popcorn
- 12 Settings
- Light, Number, and Type
- Incandescent
- Timer/Clock
- Yes
- Interior Oven Light
- Yes
- Control Lock/ Demo Mode
- Yes
- Amperage
- 15 A (Dedicated)
- Volts
- 120 V
- Frequency
- 60Hz
- Power Connection
- 3 - Prong Grounding Plug
- Location
- Center/Top
- Display Type
- LCD
- Color (Front/Background)
- White on Black
- Product Dimensions (W x D x H)
- 23-7/8" x 23-1/64" x 15-7/8"
- Cutout Dimensions (W x D x H)
- 22-1/8" x 23-1/2" x 14-13/16"
- Product Weight
- 74 lbs
- Shipping Weight
- 86 lbs
- Warranty
- 2 Years Parts and Labor

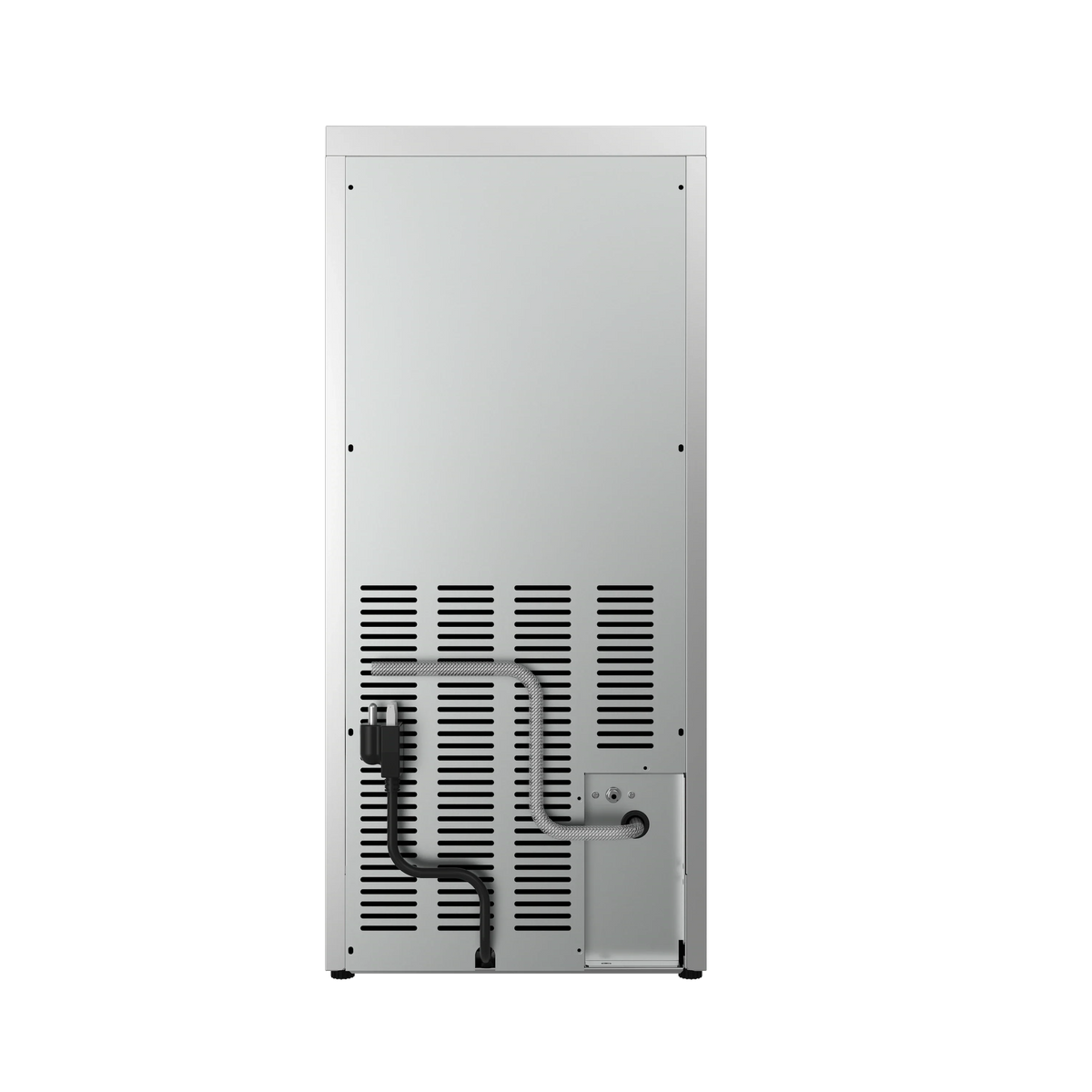

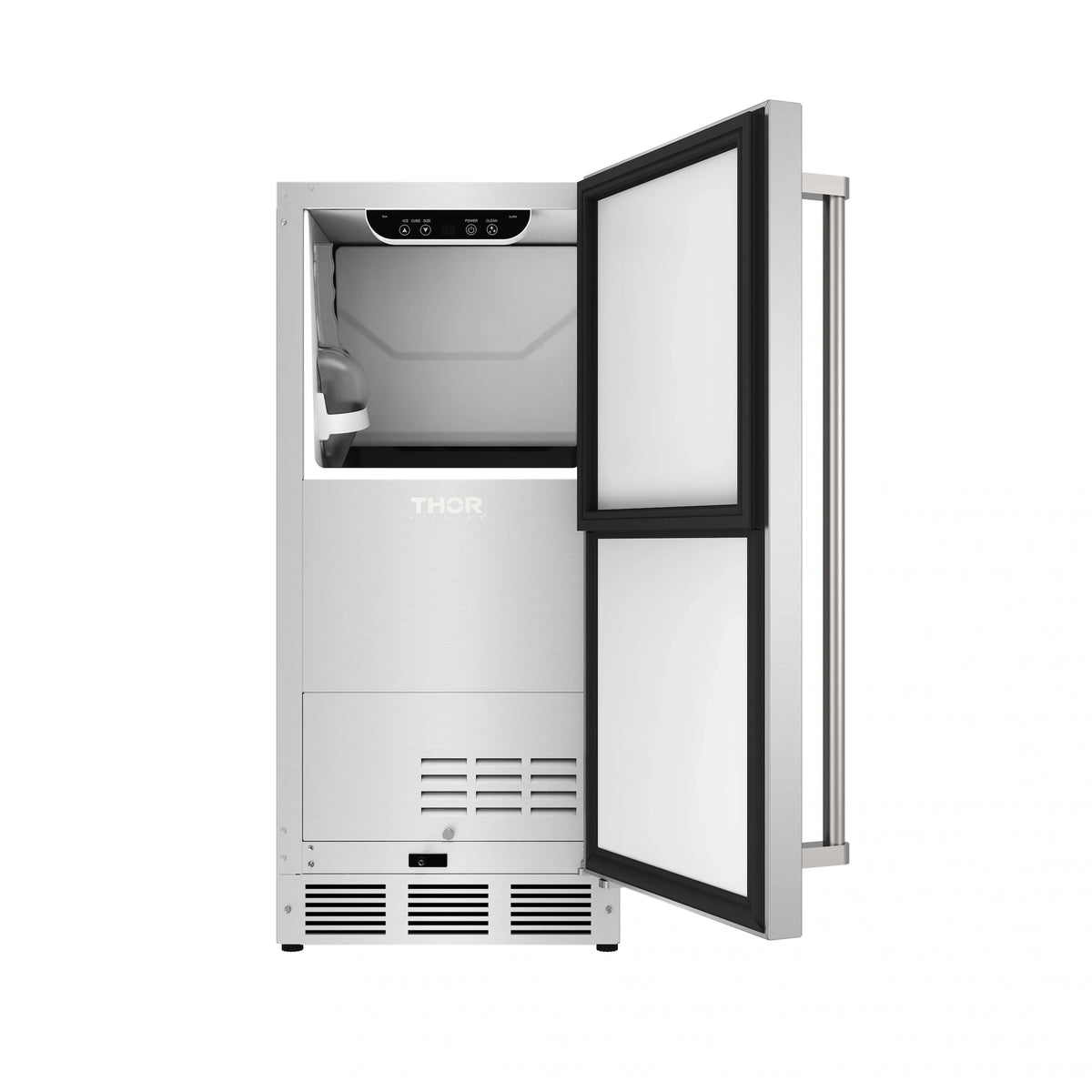

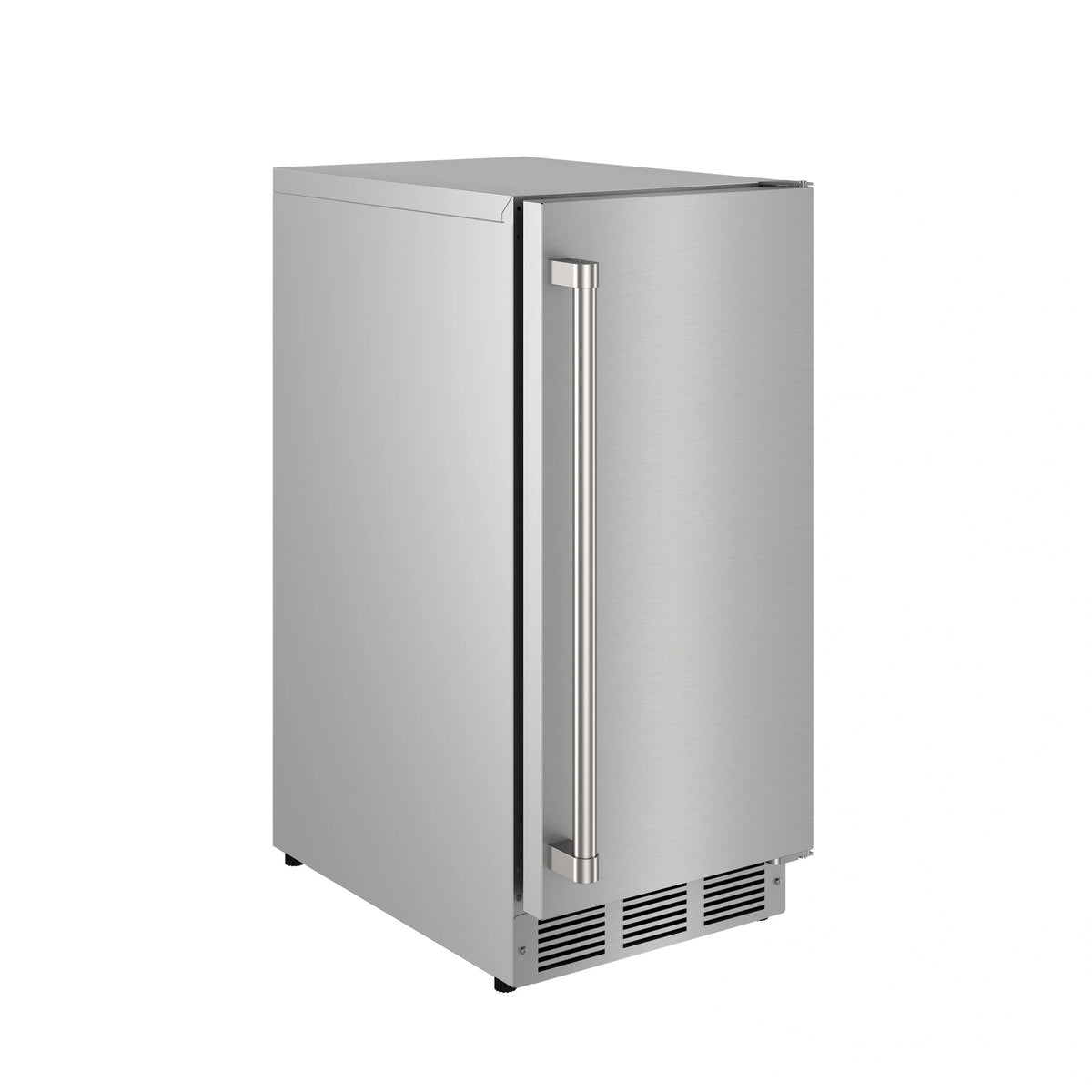

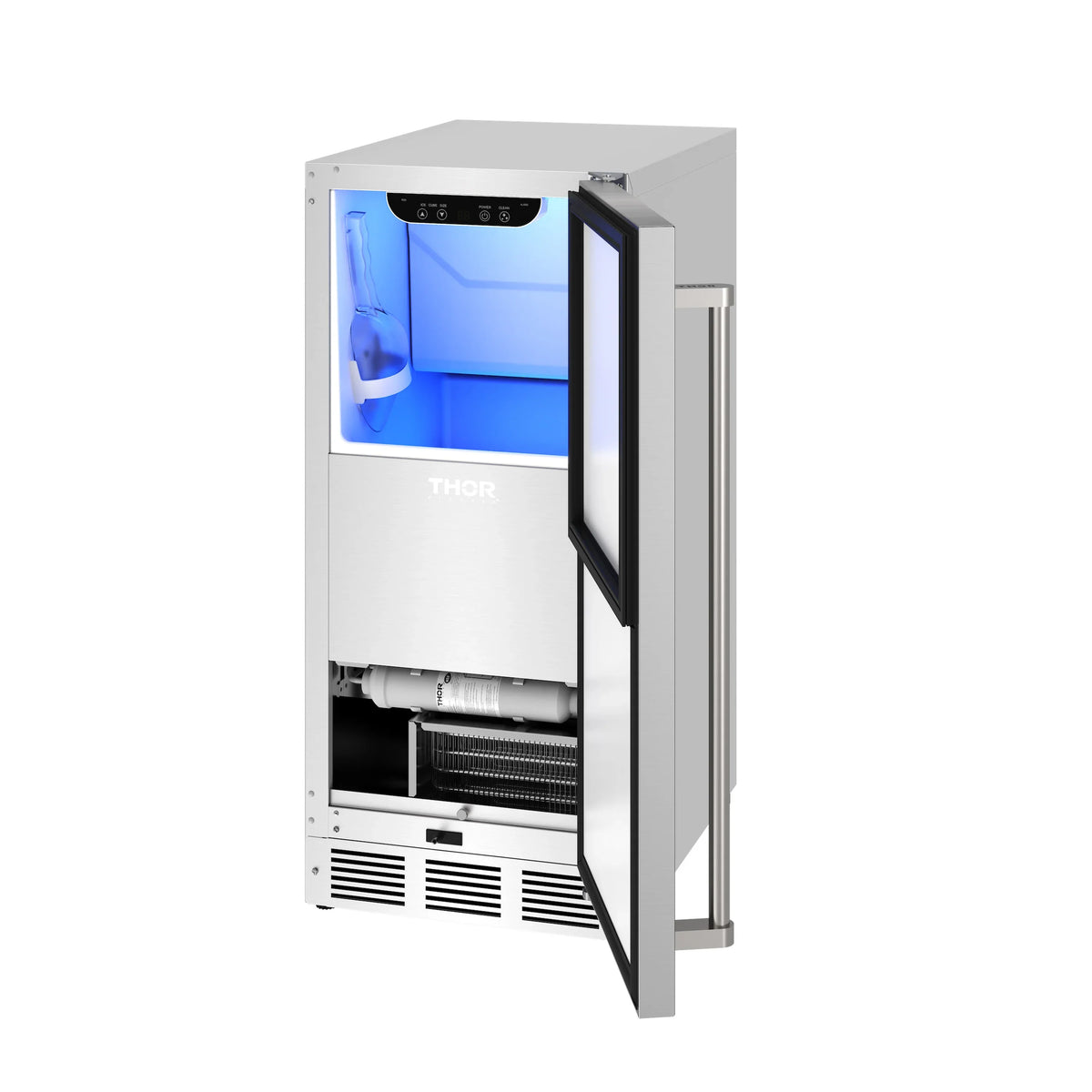

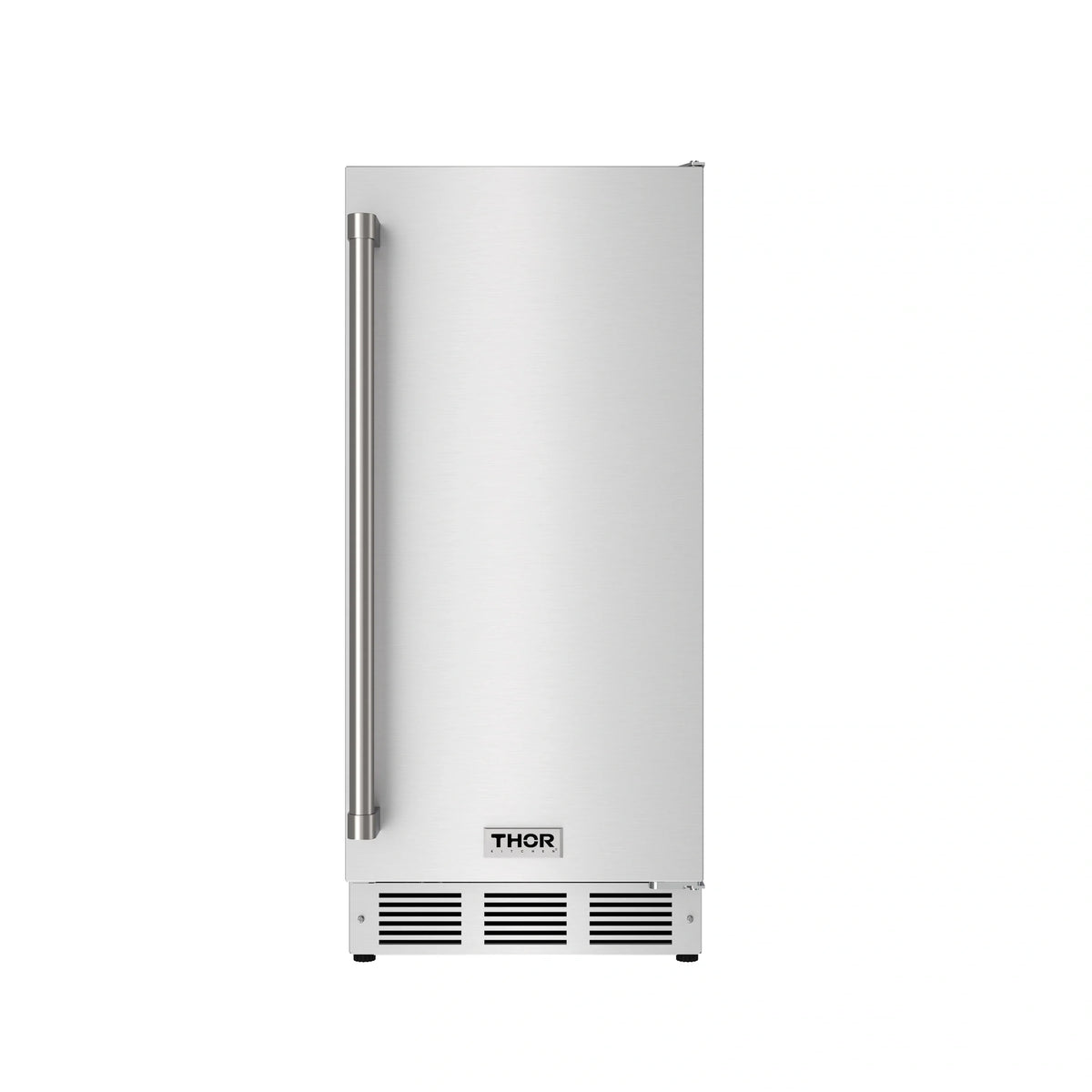

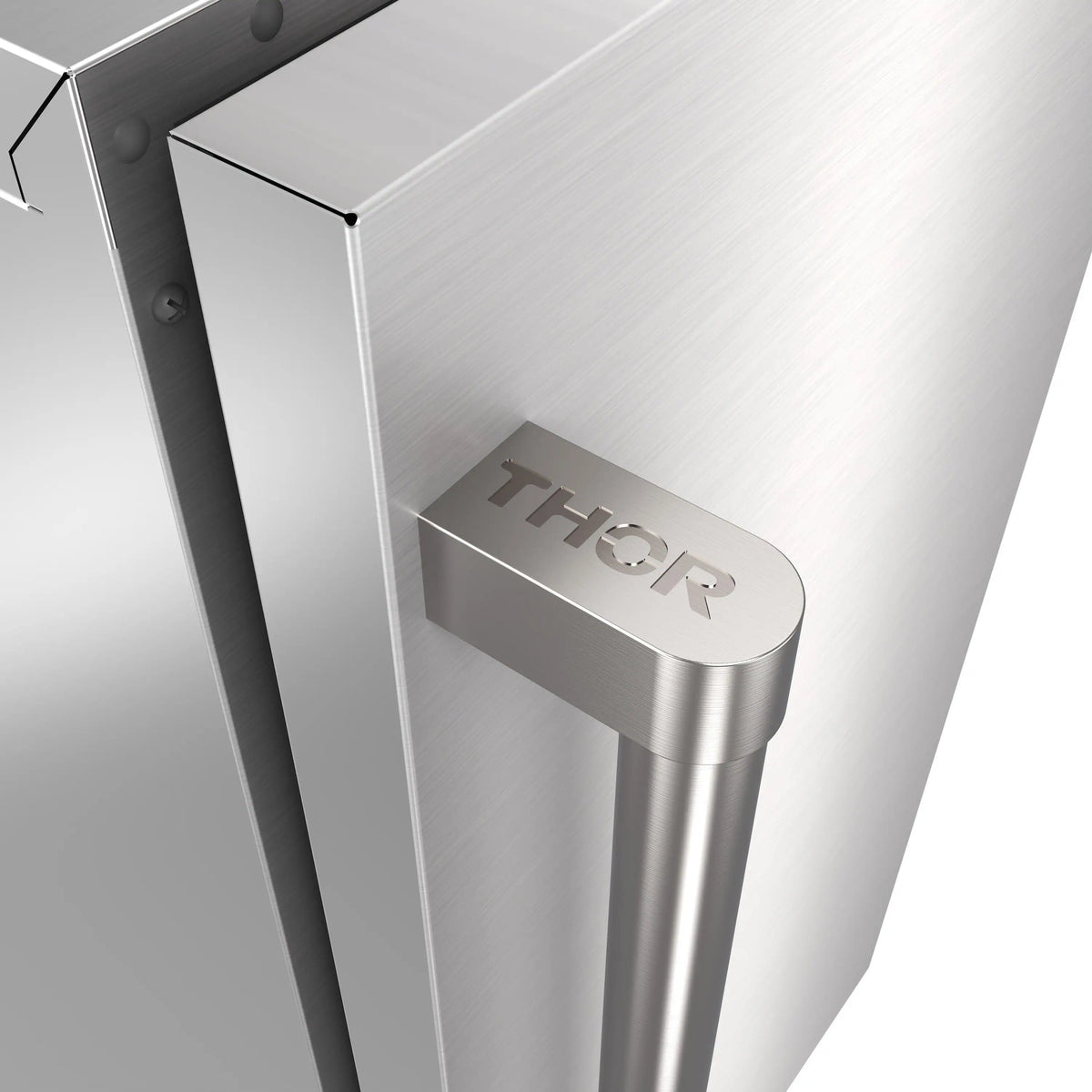

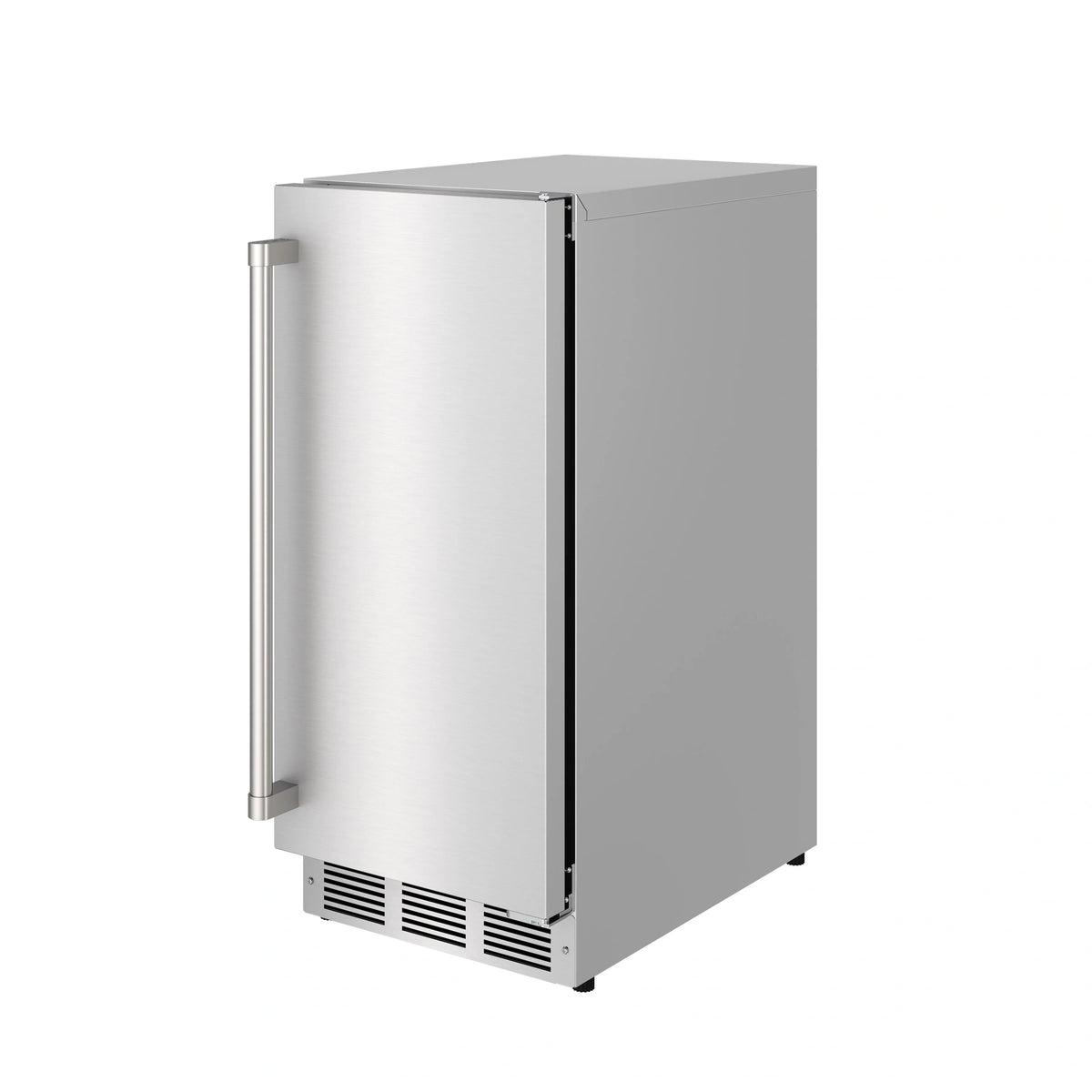

The Thor Kitchen 15-Inch Indoor Outdoor Ice Maker with Drain Pump (TIM1511) is a powerful, versatile solution for both residential and commercial needs. Designed for seamless integration, its zero clearance hinge enhances kitchen aesthetics while the built-in pump offers flexibility in installation, making setup simple in a wide range of locations.
This unit delivers impressive performance with an ice production capacity of up to 68 lbs per day at 70°/50°F (55 lbs at 90°/70°F) and a storage capacity of 26 lbs, ensuring a steady supply of ice at all times. Built for both indoor and outdoor use, it adapts easily to various environments, and the reversible door adds further flexibility to accommodate different layouts. For clean, great-tasting ice, the in-line water filter efficiently removes impurities and includes a convenient 6-month replacement reminder. Additional user-friendly features include Sabbath Mode, which disables lights and alarms for uninterrupted operation, and simple button controls with a clear LED display, allowing you to easily monitor status and alerts.
Features
- Built-in Pump: Built-in pump increases potential installation locations and makes install a breeze.
- Zero Clearance Hinge: Seamlessly integrates with cabinetry for a polished look, enhancing kitchen aesthetics.
- Ice Production Capacity: Produces up to 68 lbs of ice per day at 70°/50°F (55 lbs at 90°/70°F), ensuring a consistent and ample supply for all your needs.

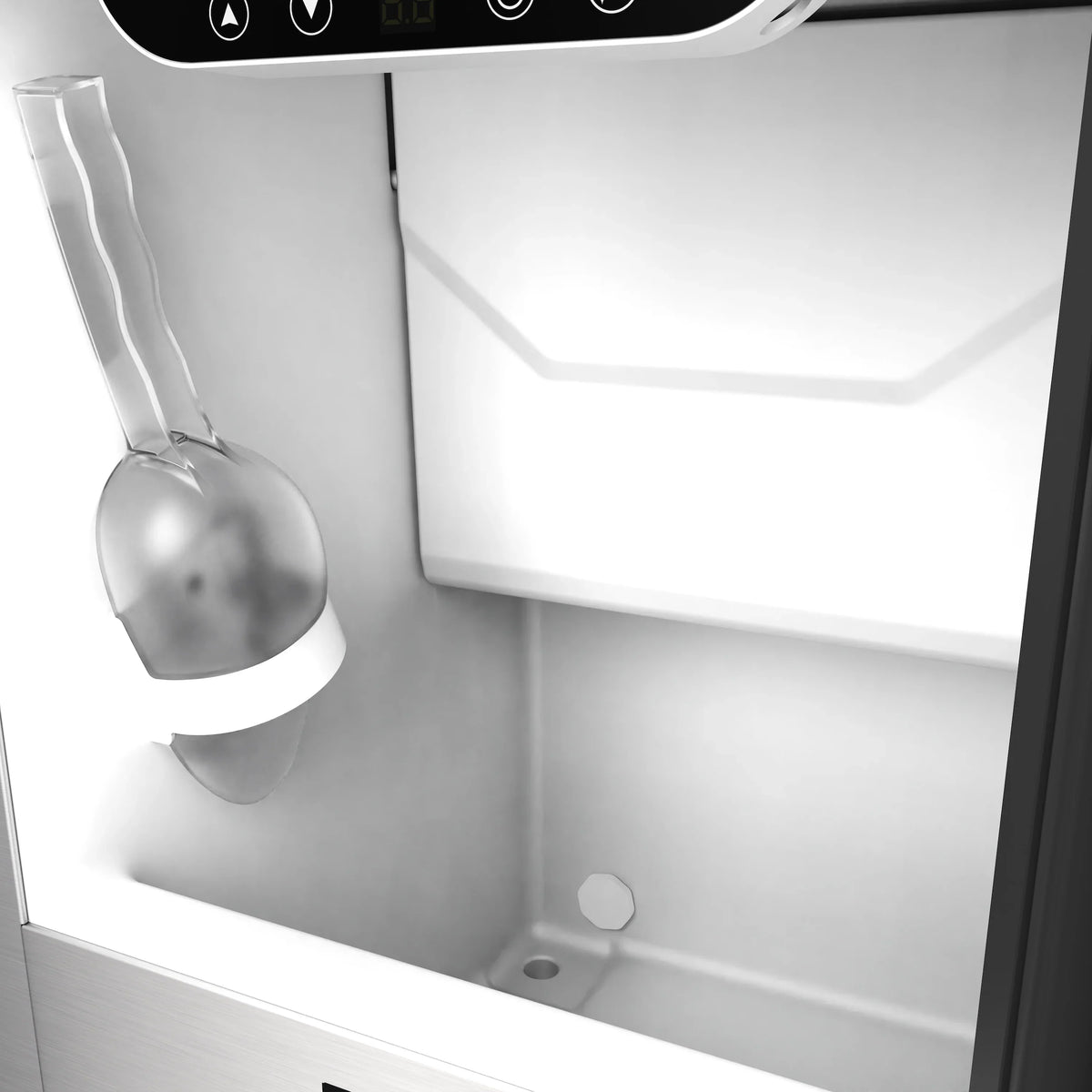

- Storage Capacity: Holds up to 26 lbs of ice, ensuring you always have a generous supply ready to use.
- Indoor & Outdoor Use: Built to perform in both indoor and outdoor environments offering versatility for a variety of settings.
- Reversible Door: Conveniently adjust the door to suit different installation layouts.

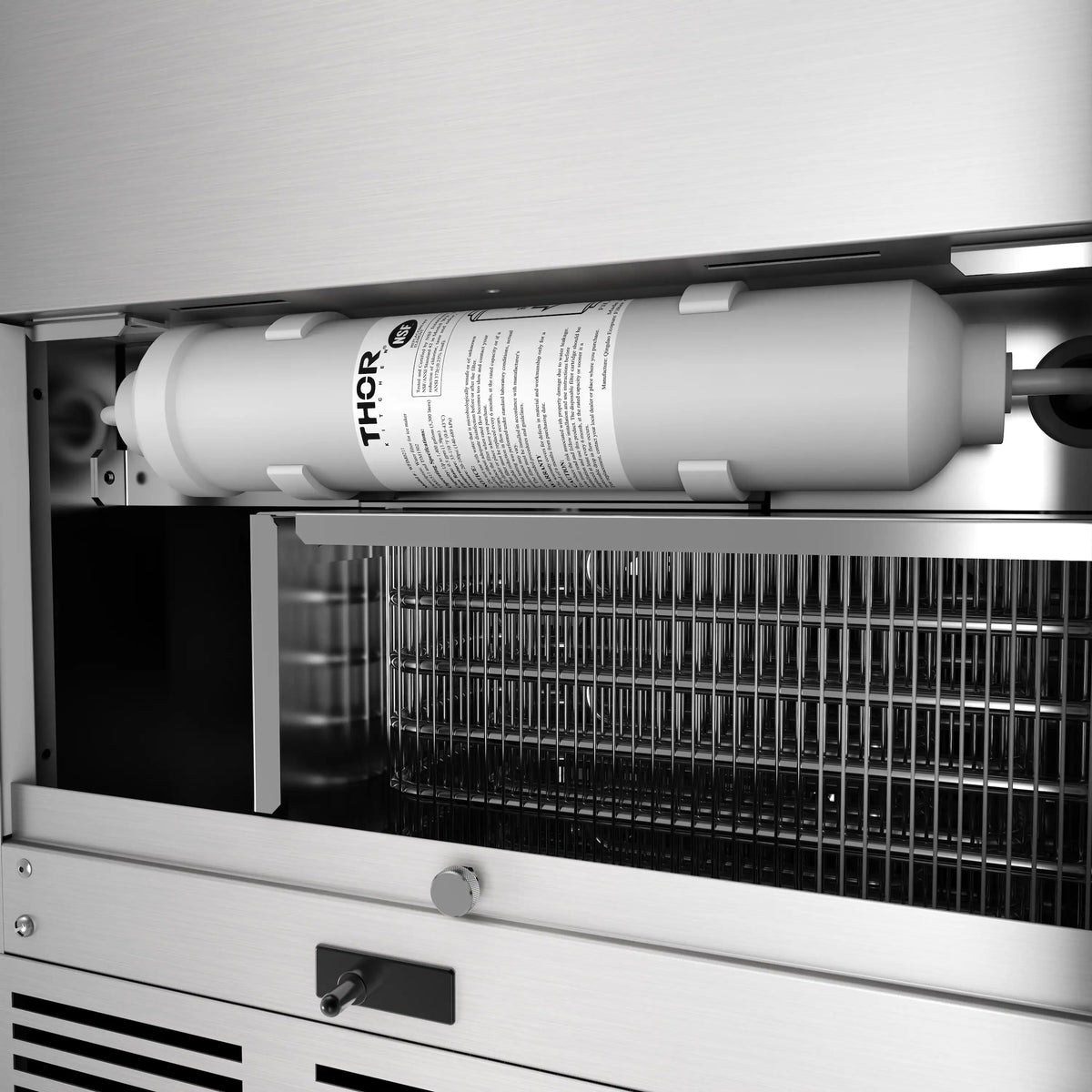

- In-line Water Filter: A sleek, hidden water filter ensures optimal performance and eliminates impurities with a 6 month replacement reminder.
- Sabbath Mode: This feature disables lights and alarms to allow the unit to run without interruption during Sabbath observances.

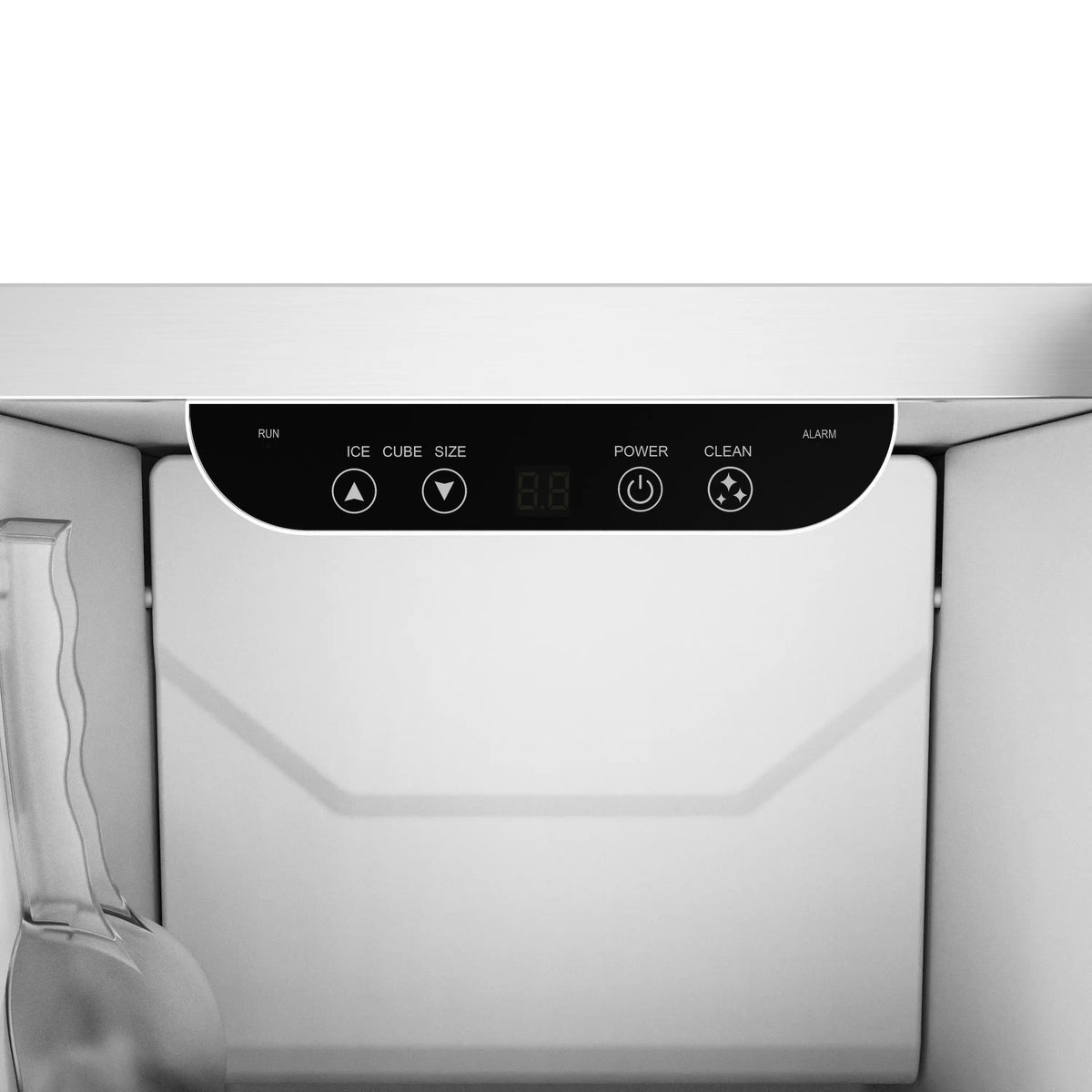

- Button Control with LED Display: Simple button control with an LED display for monitoring status and alarm codes.
- Product Dimensions
- 14-7/8” W x 22-5/8” D x 33-1/2” H
- Product Depth Excluding Handles
- 22-5/8”
- Product Depth Including Handles
- 25-1/8”
- Product Depth Excluding Door
- 20-11/16”
- Product Depth With Door Open 90 Degrees
- 36-1/2”
- Product Extra Width Clearance With Door Open 115 Degrees
- 7-5/8”
- Product Height To Top Of Door Hinge
- 33-1/2”
- Cutout Dimensions
- 15" W x 24”D x 34-1/2" H
- Net Weight
- 98.8 lbs
- Total Capacity
- 26lbs
- Ice Weight (Per Cube)
- 0.4oz (11g) per cube
- Drain Required
- Yes
- Self Clean
- Yes
- Door Ajar Alarm
- Yes
- Clean Reminder
- Yes (Every 6 Months)
- Color/Finish
- 304 Stainless Steel
- Reversible Door
- Yes
- Light
- Blue LED
- Control Type
- Button
- Amperage
- 15A (Dedicated)
- Volts
- 120
- Frequency
- 60Hz
- Plug Type
- NEMA 5-15P

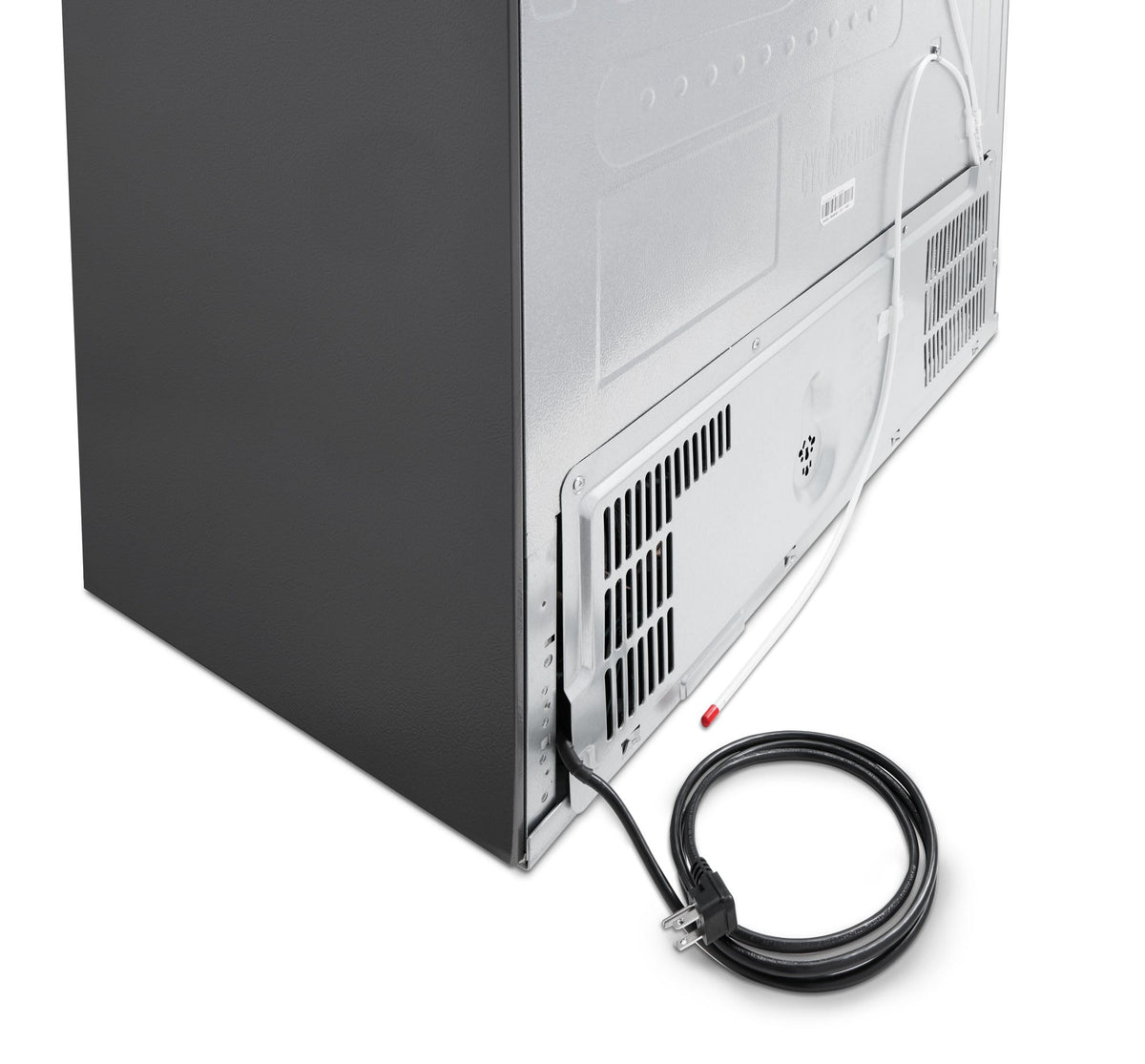

- Power Cord Length
- 6 ft. (1800mm
- Energy Consumption
- 8.57 kWh/100 lbs Ice
- Defrost Type
- Automatic
- Ice Production Capacity ( 70°/50°F)
- 68 lbs
- Ice Production Capacity ( 90°/70°F)
- 55 lbs
- Plumbing Pressure
- Water Pressure Operating Range (PSI) 20~80 (0.14MPa~ 0.55MPa)
- Ice Bin (Fixed)
- Yes
- Water Filter
- Yes
- Ice Type
- Cube
- Ice Size (W×D×H)
- 7/8”×7/8”×7/8"
- Ice Quantity Per Sheet
- 32
- Ice Cube Size Adjustment
- Yes
- Ice Cube Size Adjustable Level
- 6 (Default Size: 3)
- Sabbath
- Yes
- Filter Replace Reminder
- Yes (Every 6 Months)
- 1/ 4” Ice Maker Water Supply Kit
- Not Included (Purchased Separately)
- Energy Star
- Yes
