Description
DIMENSIONS
- Product Dimensions (W x D x H)
- 47-7/8" x 26-1/2" x 37-1/8"
- Product Height (from bottom to top of back splash)
- 37-1/8"
- Product Height (from bottom to top of side panel)
- 36"
- Product Depth (from back panel to bullnose)
- 26-1/2"
- Product Depth (from back panel to control board)
- 26-3/8"
- Product Depth (from back panel to side panel front)
- 24"
- Adjustable Leg Sizes
- 3" Max
- Package Dimensions (W x D x H)
- 51-3/8" x 30-1/8" x 45-2/7"
- Net Weight
- 311 lbs.
- Gross Weight
- 377 lbs.
GENERAL INFORMATION
- Product Type
- Gas Range
- Size
- 48"
- Fuel Type
- Liquid Propane / Gas Convertible
- Installation Type
- Freestanding
- Number of Burners
- 8
- Number of Ovens
- 2
- Oven Capacity
- 4.8 cu. ft. + 2.8 cu. ft.
TECHNICAL DETAILS
- Amperage
- 15A
- Voltage
- 120V
- Frequency (Hz)
- 60Hz

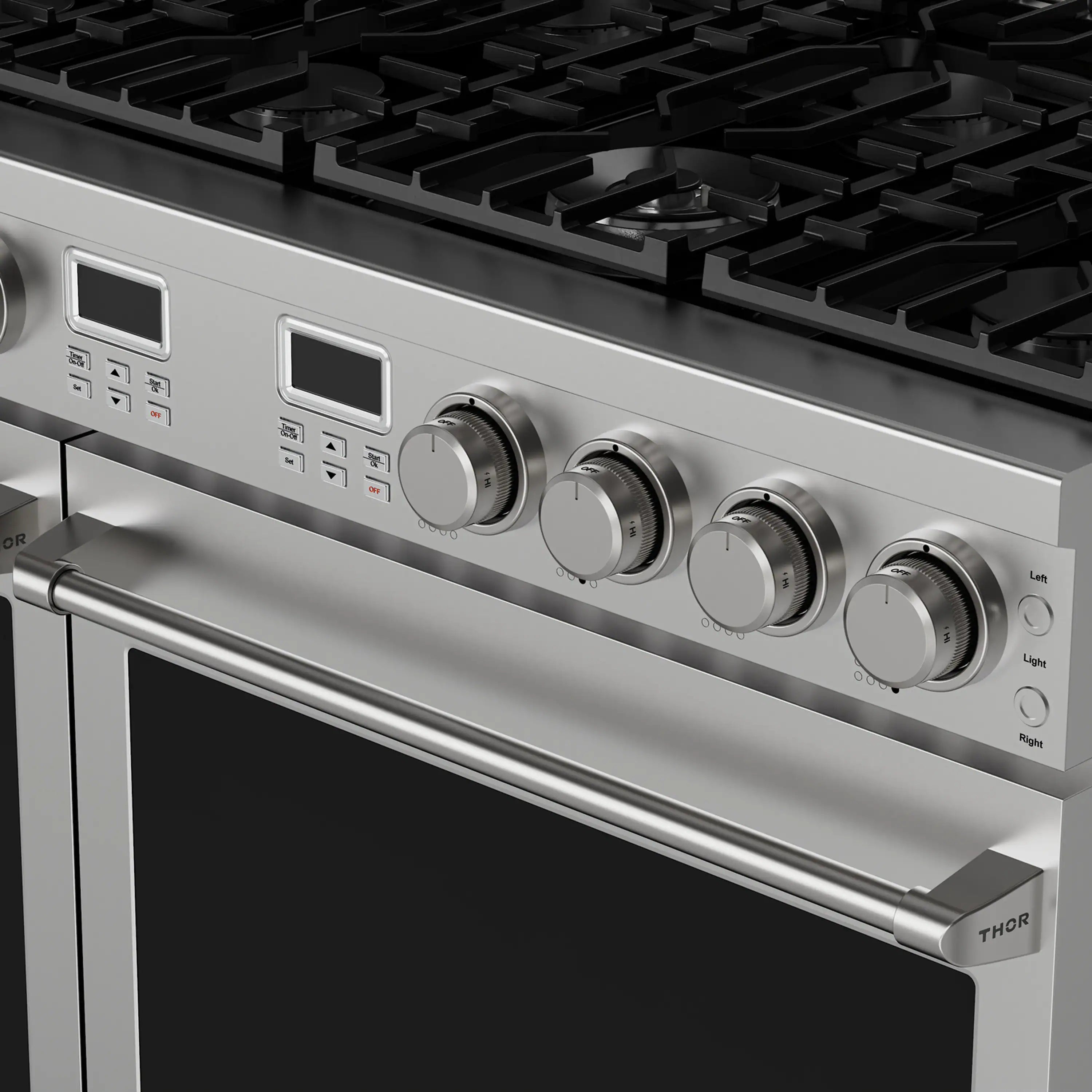

- Control Type
- Knob/Button
- Plug Type
- US 3-prong
- Cord Length
- 59"
COOKTOP FEATURES
- Burner Type
- Sealed Burners
- Type of Grate
- Continuous
- Total Number of Cooktop Burners
- 8

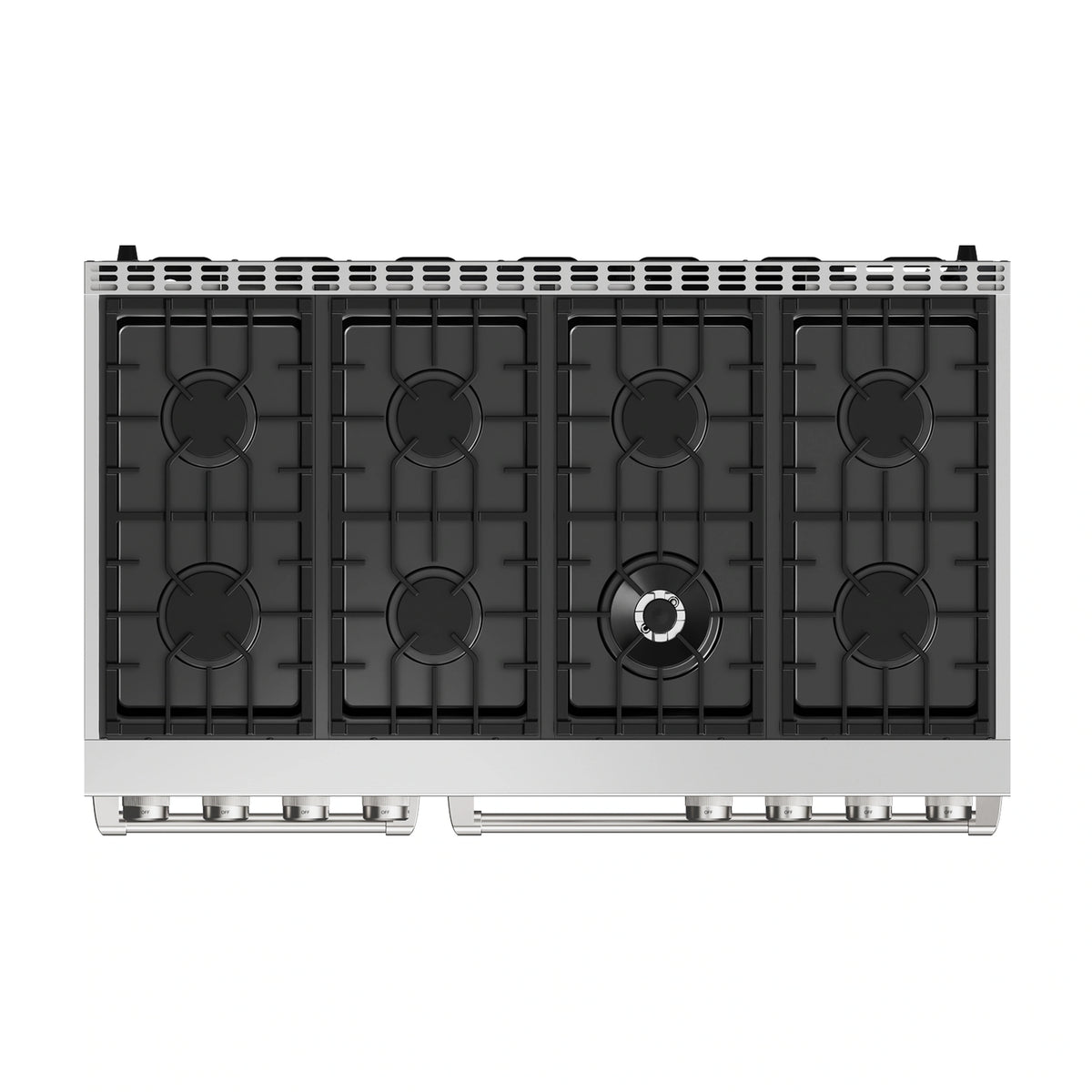

- Burner Outputs
- 1 – Front Left Burner (Single): 18,000 BTU
- 2 – Front Left Center Burner (Single): 12,000 BTU
- 3 – Front Right Center Burner (Dual): 22,000 BTU
- 3 – Front Right Burner (Single): 18,000 BTU
- 4 – Rear Left Burner (Single): 9,500 BTU
- 5 – Rear Left Center Burner (Single): 12,000 BTU
- 6 – Rear Right Center Burner (Single): 12,000 BTU
- 6 – Rear Right Burner (Single): 9,500 BTU
OVEN FEATURES
- Oven Capacity
- 4.8 cu. ft. + 2.8 cu. ft.
- Oven Features
- 30" Oven: Bake, Broil, Conv Bake, Conv Roast, Pizza, Keep Warm
- 18" Oven: Bake, Conv Bake, Pizza, Keep Warm
- Other Features
- Clock, Timer, Adjust Temperature
- Self Clean / Air Fry
- No
- Bake Burner Power
- 30" Oven: 22,000 BTU
- 18" Oven: 14,000 BTU
- Broil Burner Power
- 30" Oven: 13,500 BTU

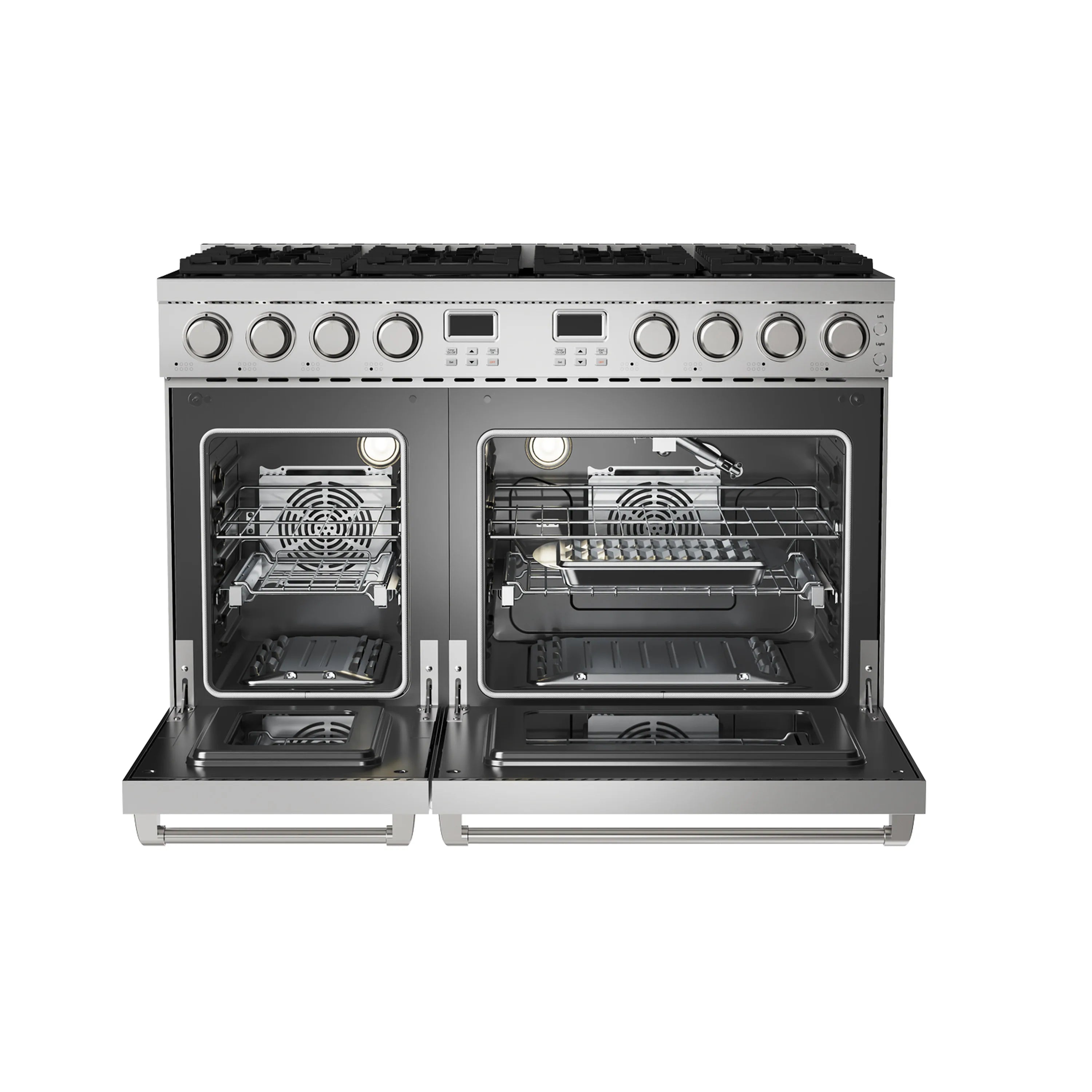

- Convection
- Convection Fan
- Oven Light
- 1 in Each Oven
- Oven Racks
- 30" Oven: 1 Standard, 1 Telescopic
- 18" Oven: 1 Standard, 1 Telescopic
- Baking Sheet Size
- 30" Oven: Fits 29" x 16" Baking Sheet
- 18" Oven: Fits 16" x 12-1/2" Baking Sheet
- Oven Internal Height
- 18"
- Oven Internal Width
- 30" Oven: 23-3/4"
- 18" Oven: 12-5/8"
- Oven Internal Depth
- 19-1/2"
