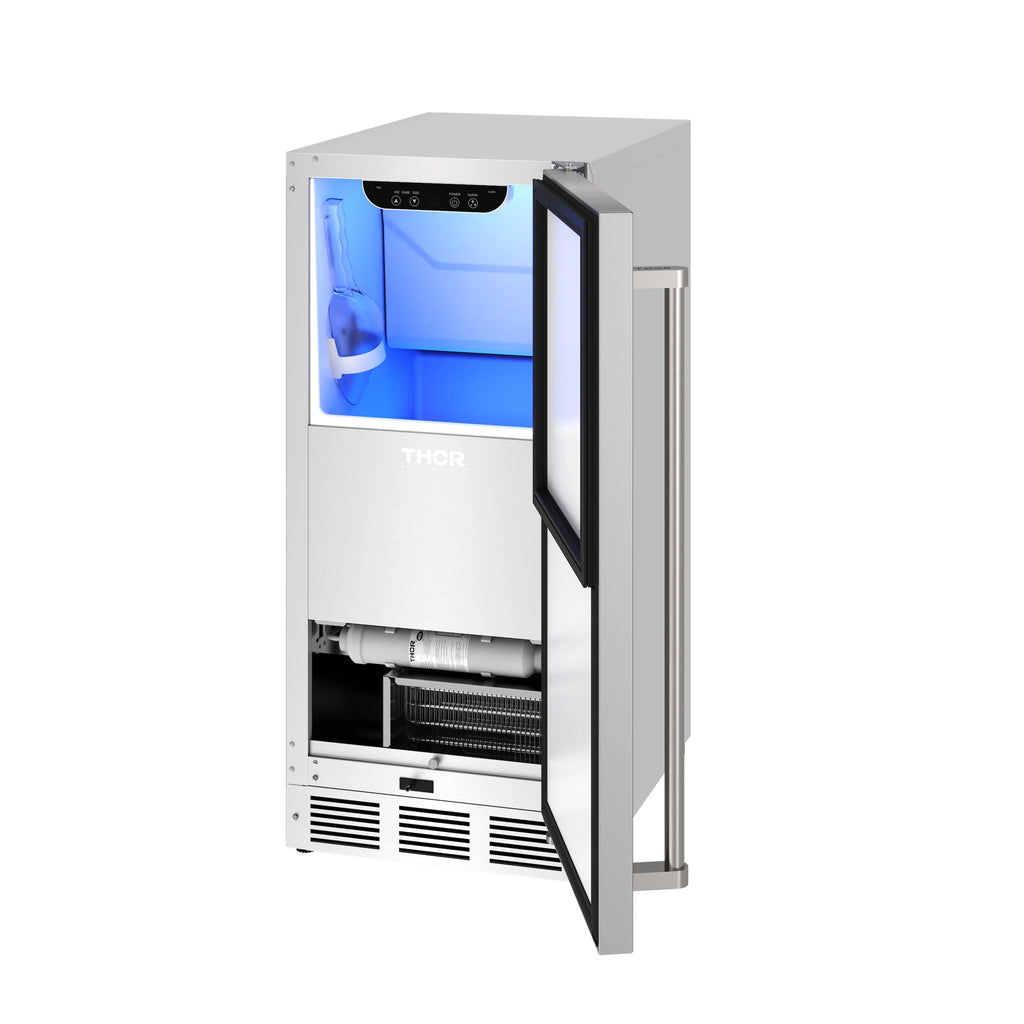

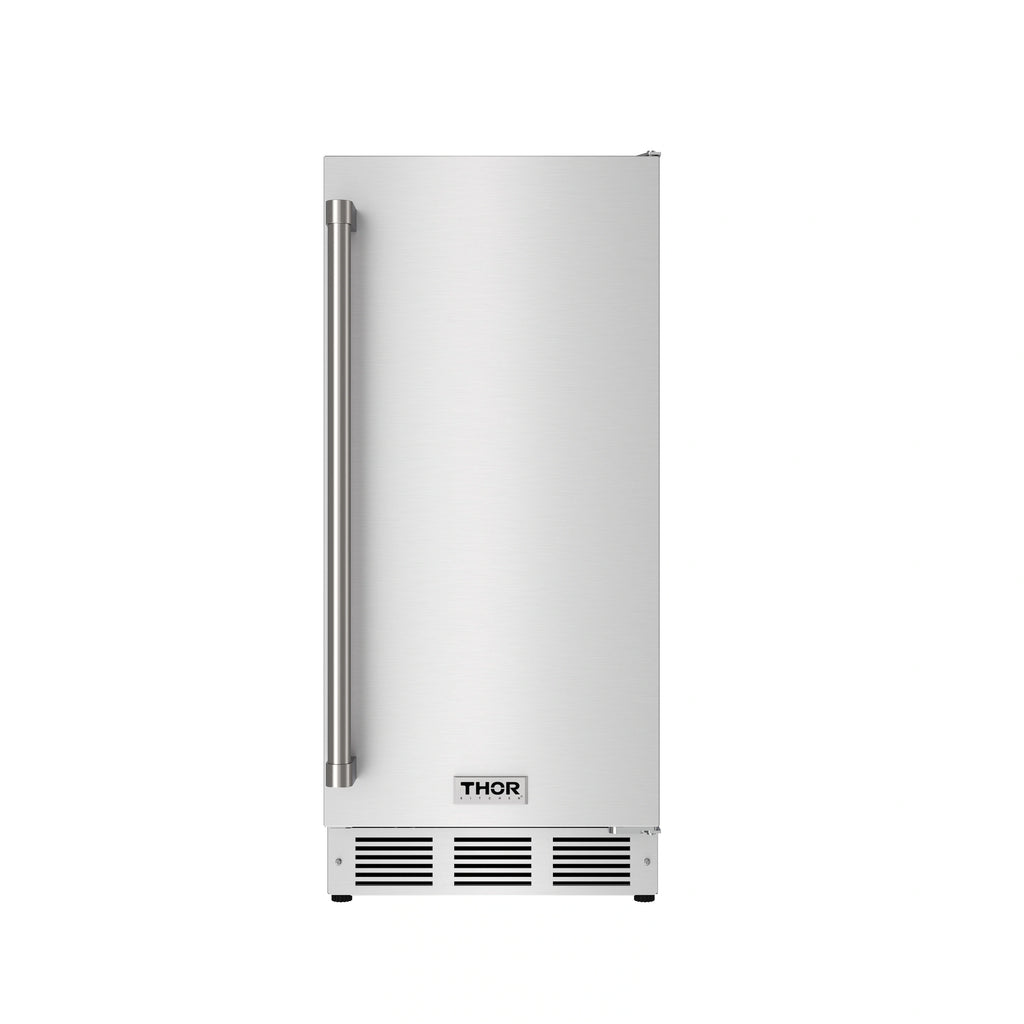

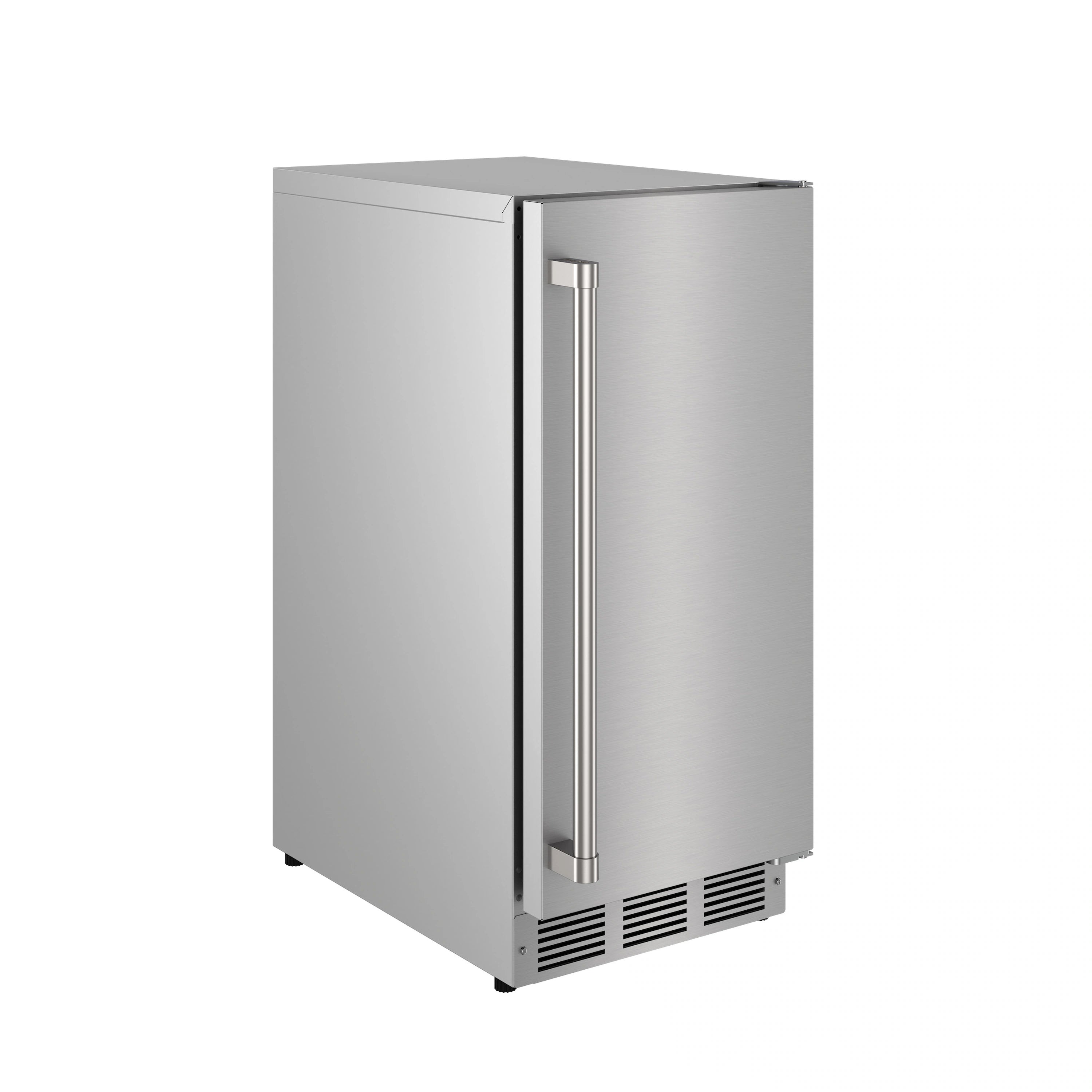

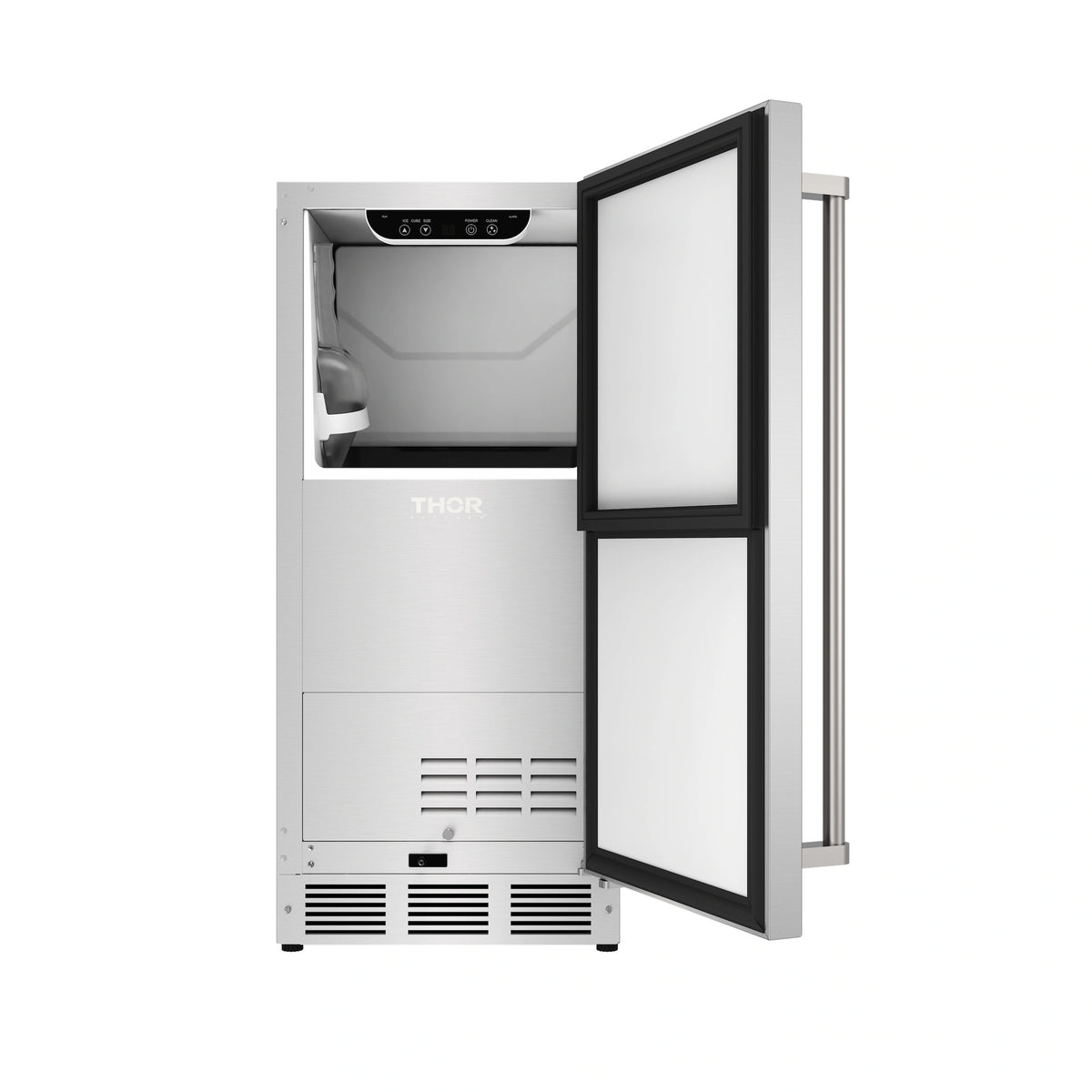

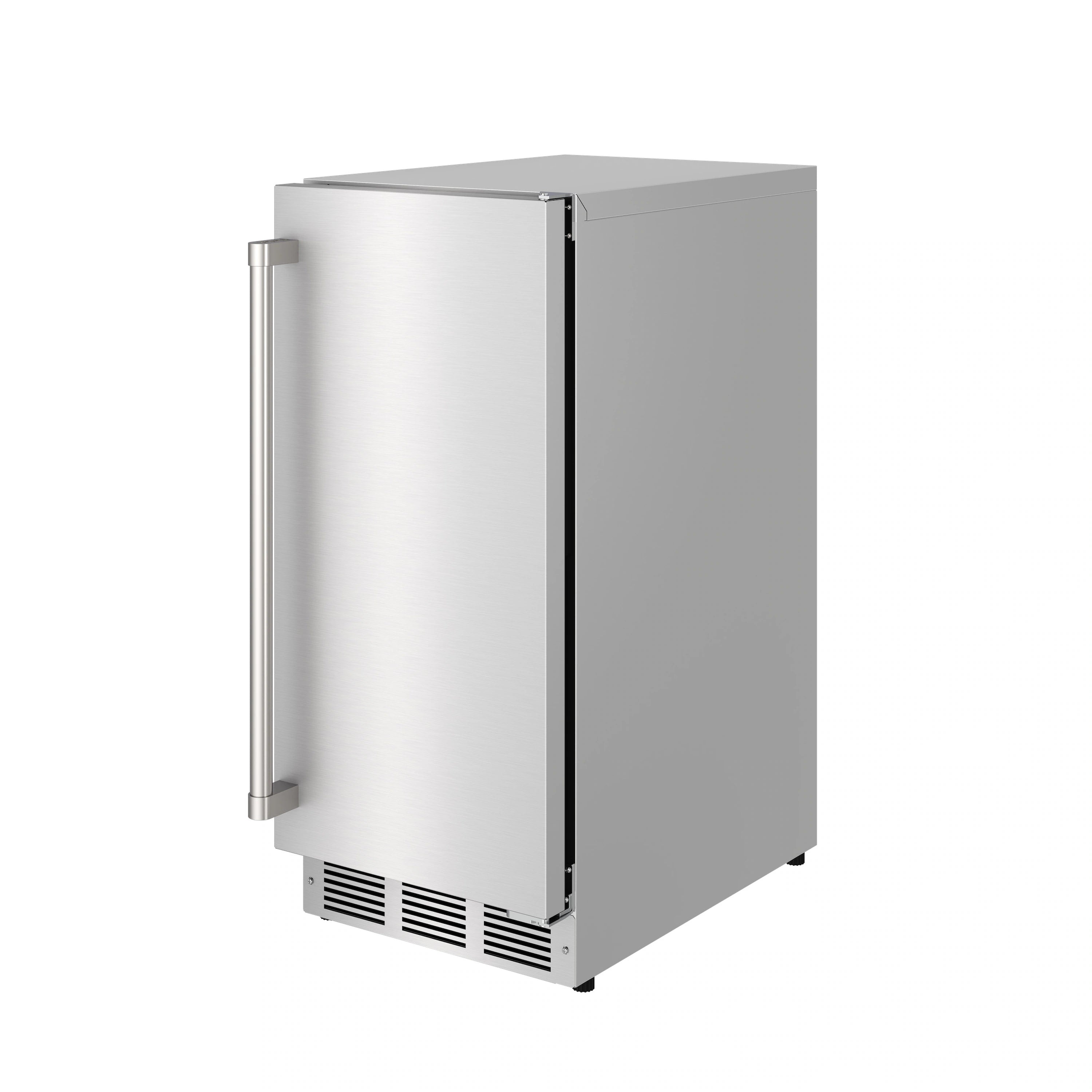

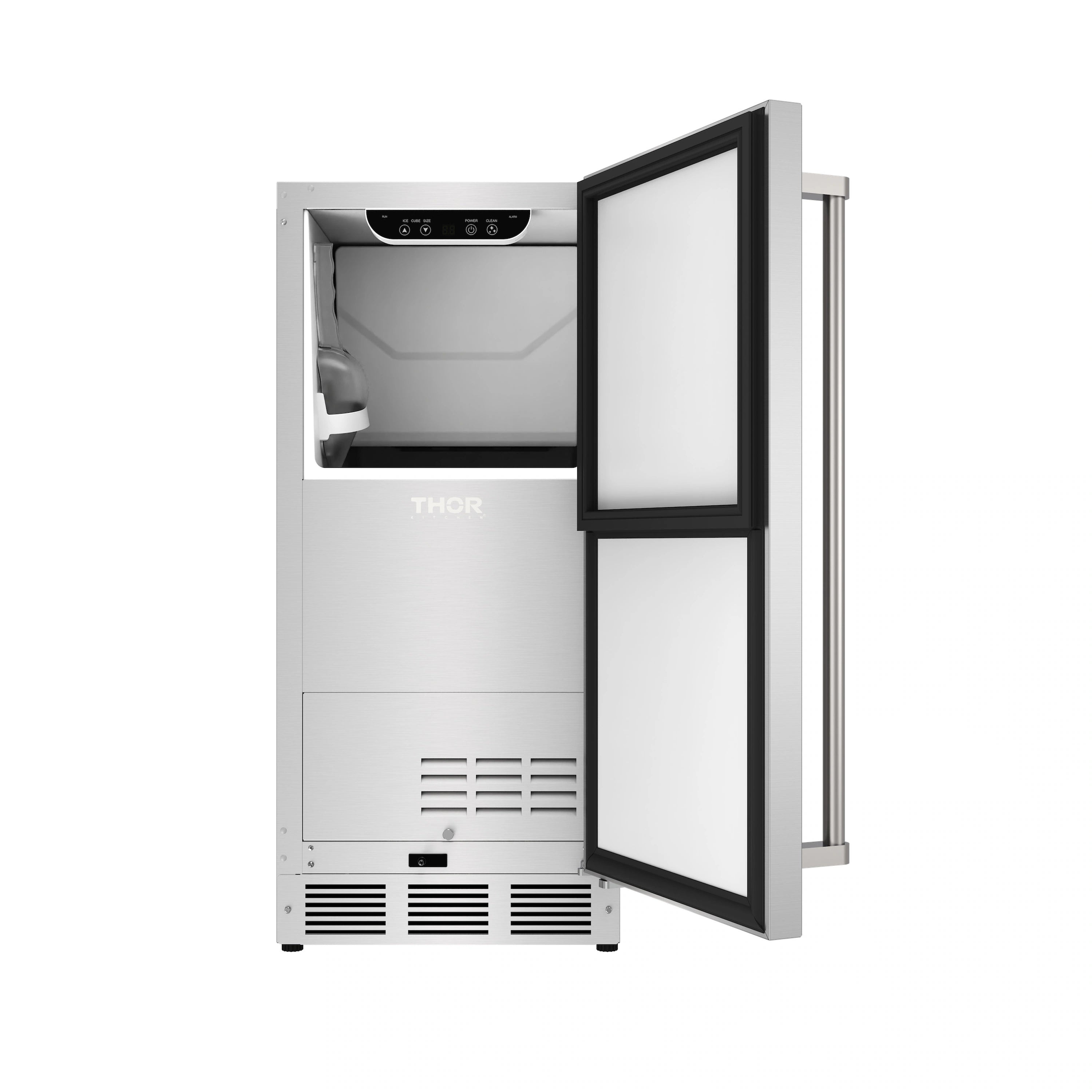

The Thor Kitchen 15-Inch Indoor Outdoor Ice Maker with Drain Pump (TIM1511) is a powerful, versatile solution for both residential and commercial needs. Designed for seamless integration, its zero clearance hinge enhances kitchen aesthetics while the built-in pump offers flexibility in installation, making setup simple in a wide range of locations.

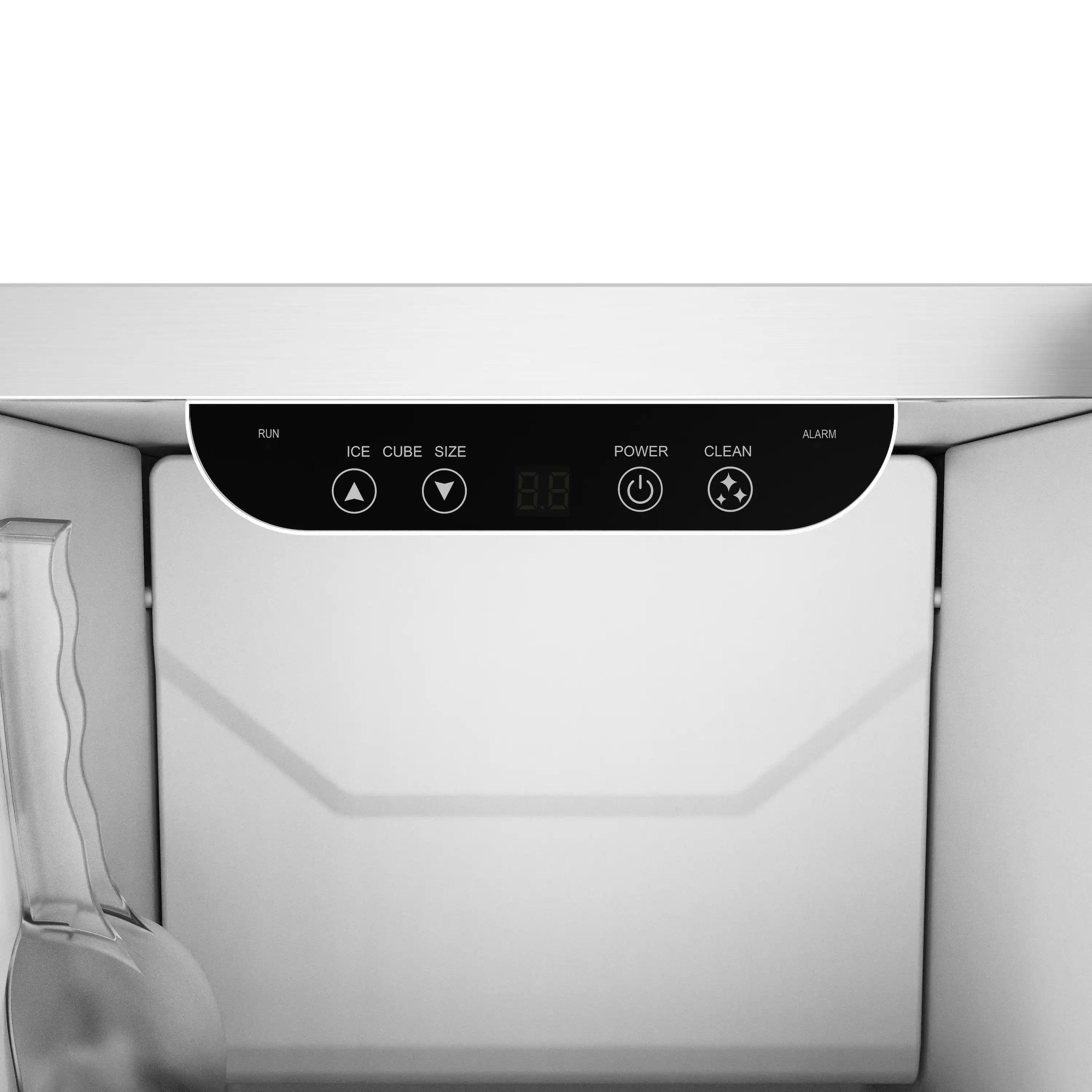

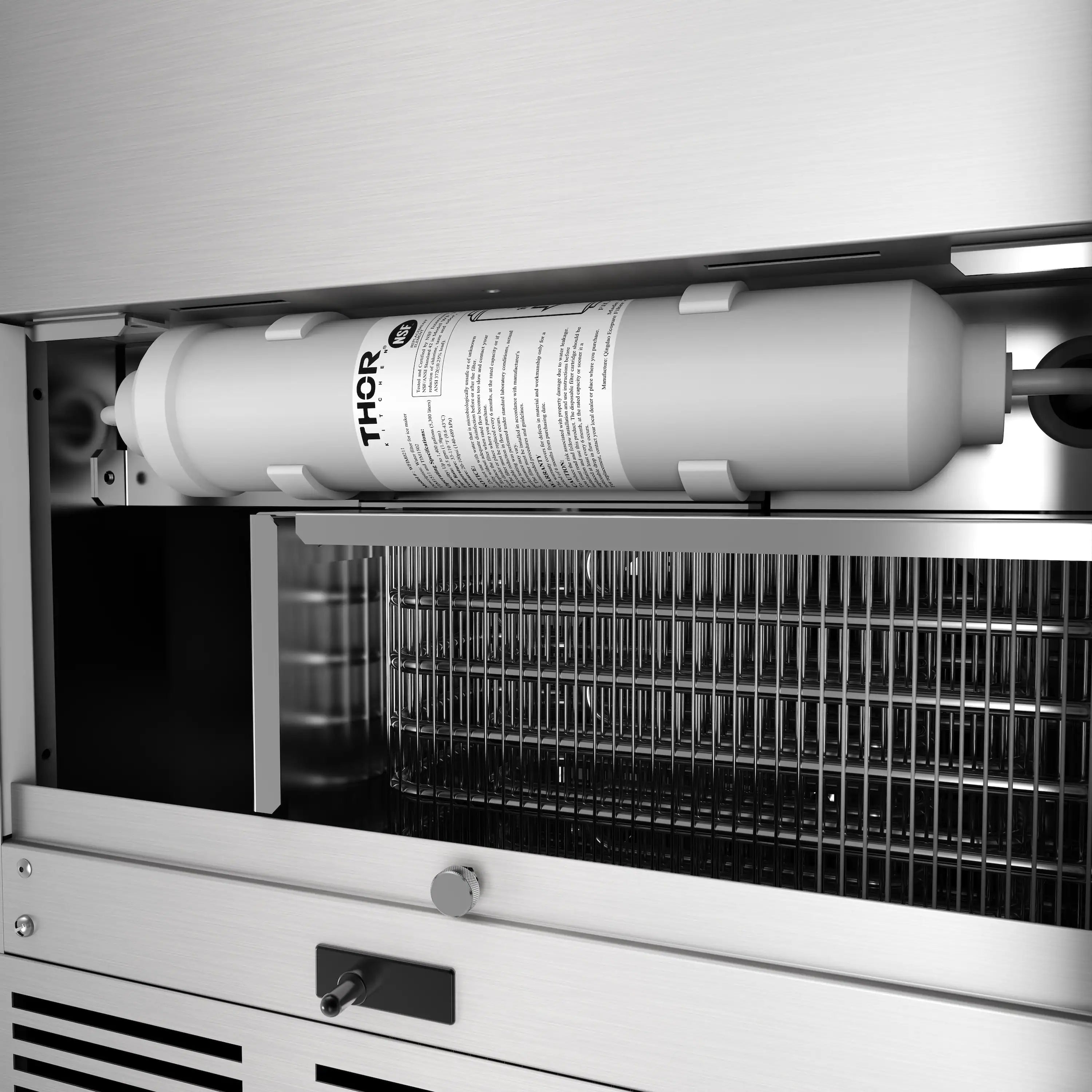

This unit delivers impressive performance with an ice production capacity of up to 68 lbs per day and a storage capacity of 26 lbs, ensuring a steady supply of ice at all times. Built for both indoor and outdoor use, it adapts easily to various environments, and the reversible door adds further flexibility to accommodate different layouts. For clean, great-tasting ice, the in-line water filter efficiently removes impurities and includes a convenient 6-month replacement reminder. Additional user-friendly features include Sabbath Mode, which disables lights and alarms for uninterrupted operation, and simple button controls with a clear LED display, allowing you to easily monitor status and alerts.
| DIMENSIONS | |
|---|---|
| Product Dimensions | 14-7/8” W x 22-5/8” D x 33-1/2” H |
| Product Depth Excluding Handles | 22-5/8” |
| Product Depth Including Handles | 25-1/8” |
| Product Depth Excluding Door | 20-11/16” |
| Product Depth With Door Open 90 Degrees | 36-1/2” |
| Product Extra Width Clearance With Door Open 115 Degrees | 7-5/8” |
| Product Height To Top Of Door Hinge | 33-1/2” |
| Cutout Dimensions | 15" W x 24”D x 34-1/2" H |
| Net Weight | 98.8 lbs |
| Total Capacity | 26lbs |
| Ice Weight (Per Cube) | 0.4oz (11g) per cube |
| GENERAL INFORMATION | |
| Drain Required | Yes |
| Self Clean | Yes |
| Door Ajar Alarm | Yes |
| Clean Reminder | Yes (Every 6 Months) |
| DESIGN & FINISH | |
| Color/Finish | 304 Stainless Steel |
| Reversible Door | Yes |
| Light | Blue LED |
| Control Type | Button |
| TECHNICAL DETAILS | |
| Amperage | 15A (Dedicated) |
| Volts | 120 |
| Frequency | 60Hz |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 6 ft. (1800mm |
| Energy Consumption | 8.57 kWh/100 lbs Ice |
| Defrost Type | Automatic |
| REFRIGERATOR FEATURES | |
| Ice Production Capacity ( 70°/50°F) | 68 lbs |
| Ice Production Capacity ( 90°/70°F) | 55 lbs |
| Plumbing Pressure | Water Pressure Operating Range (PSI) 20~80 (0.14MPa~ 0.55MPa) |

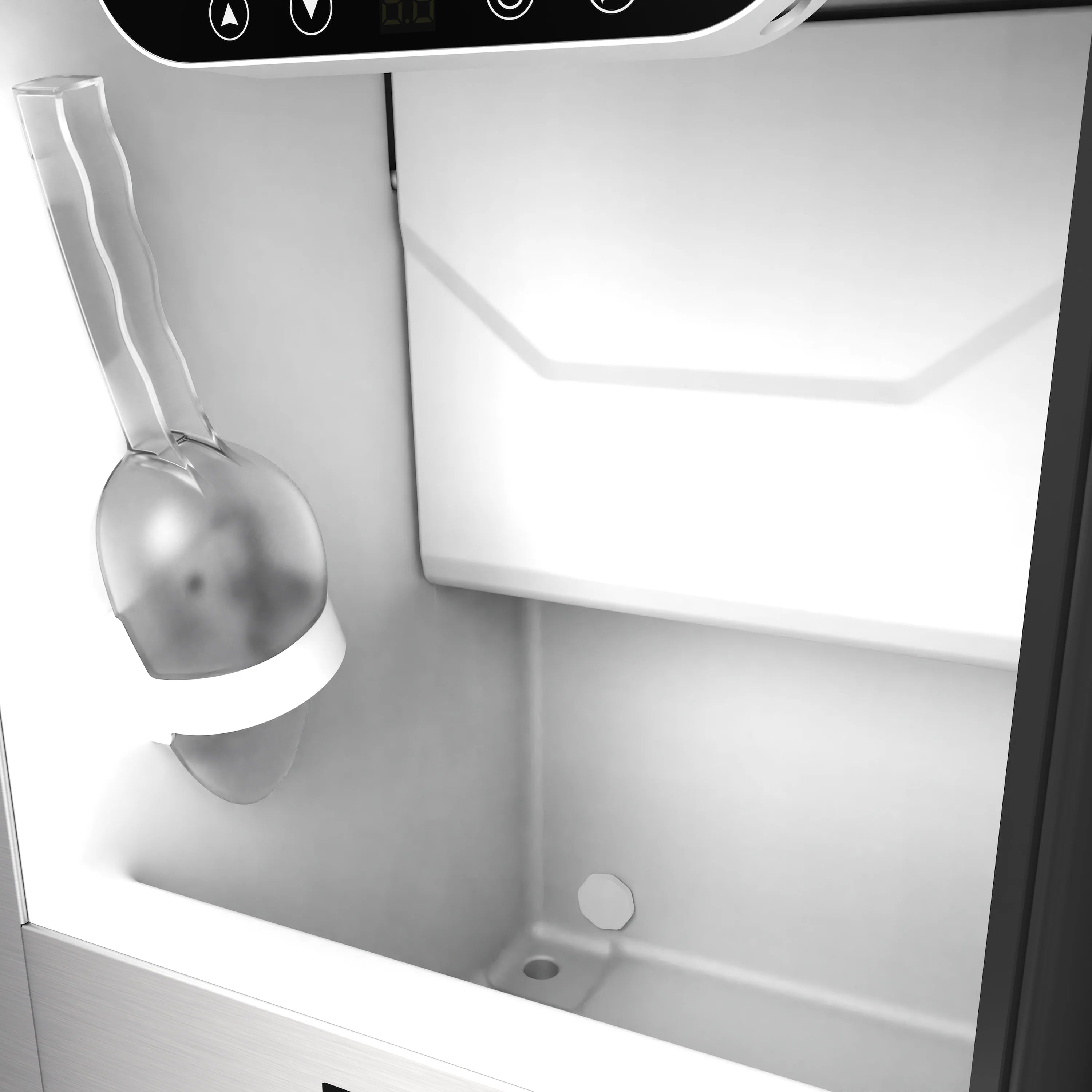

| Ice Bin (Fixed) | Yes |
| Water Filter | Yes |
| Ice Type | Cube |
| Ice Size (W×D×H) | 7/8”×7/8”×7/8" |
| Ice Quantity Per Sheet | 32 |
| Ice Cube Size Adjustment | Yes |
| Ice Cube Size Adjustable Level | 6 (Default Size: 3) |
| Sabbath | Yes |
| Filter Replace Reminder | Yes (Every 6 Months) |
| 1/ 4” Ice Maker Water Supply Kit | Not Included (Purchased Separately) |
| WARRANTY & CERTIFICATIONS | |
| Energy Star | Yes |
