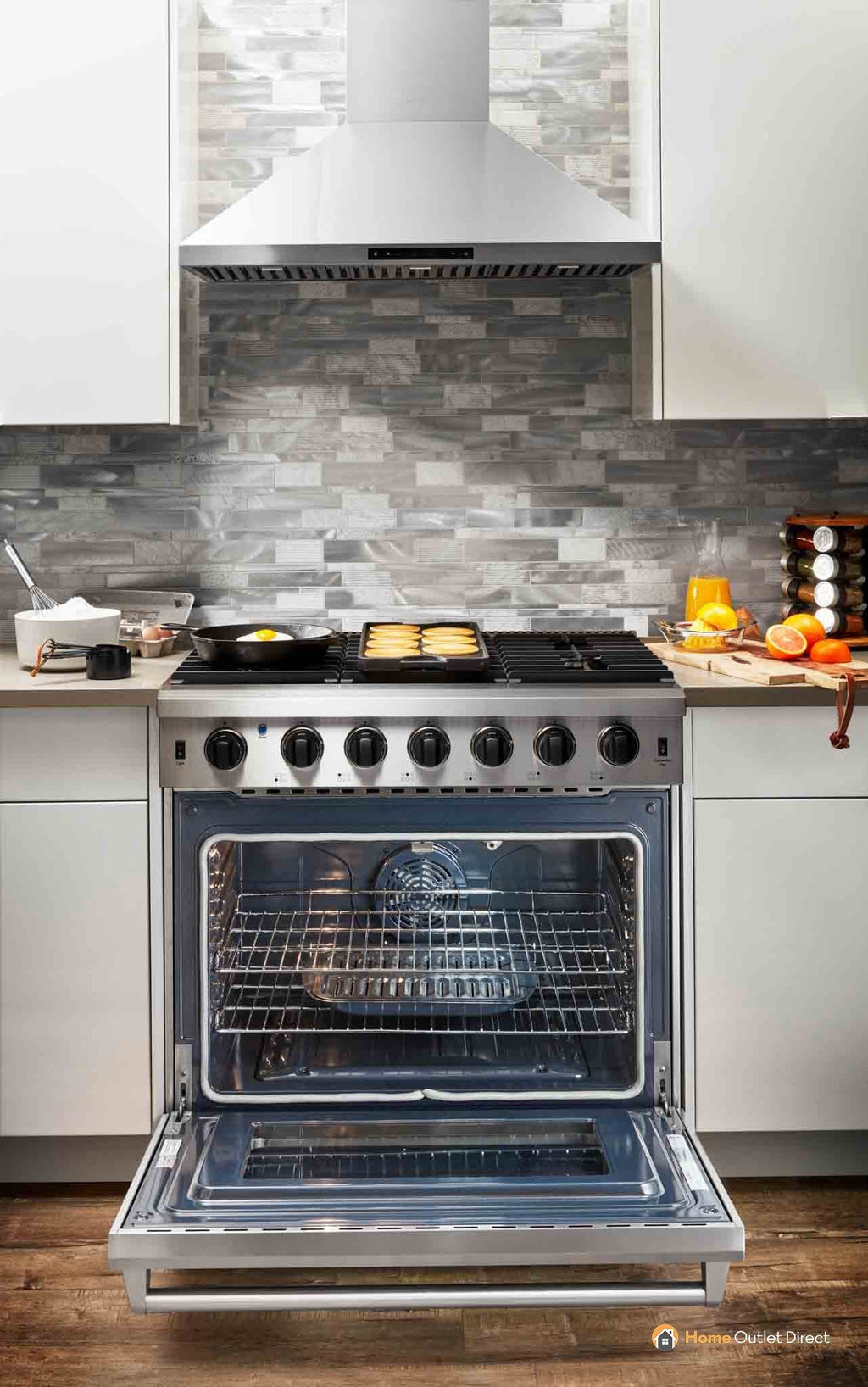

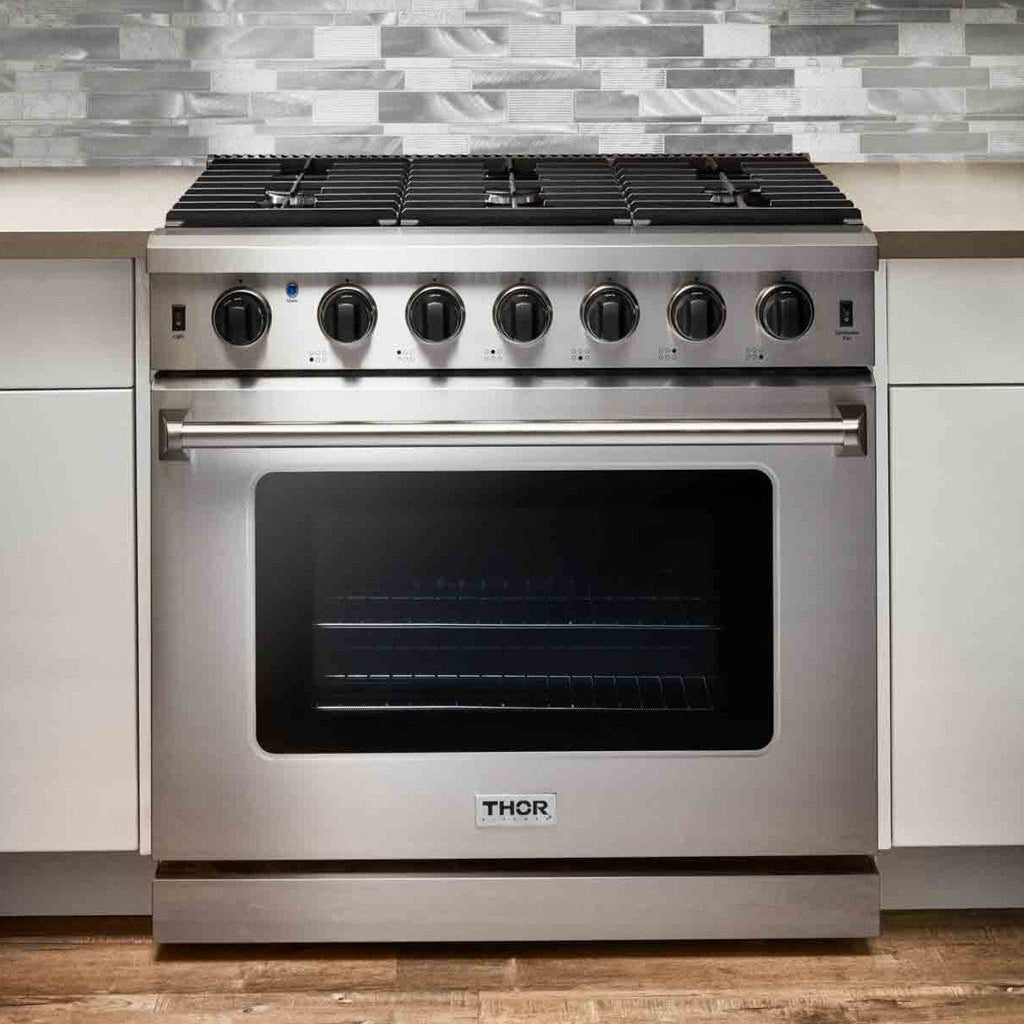

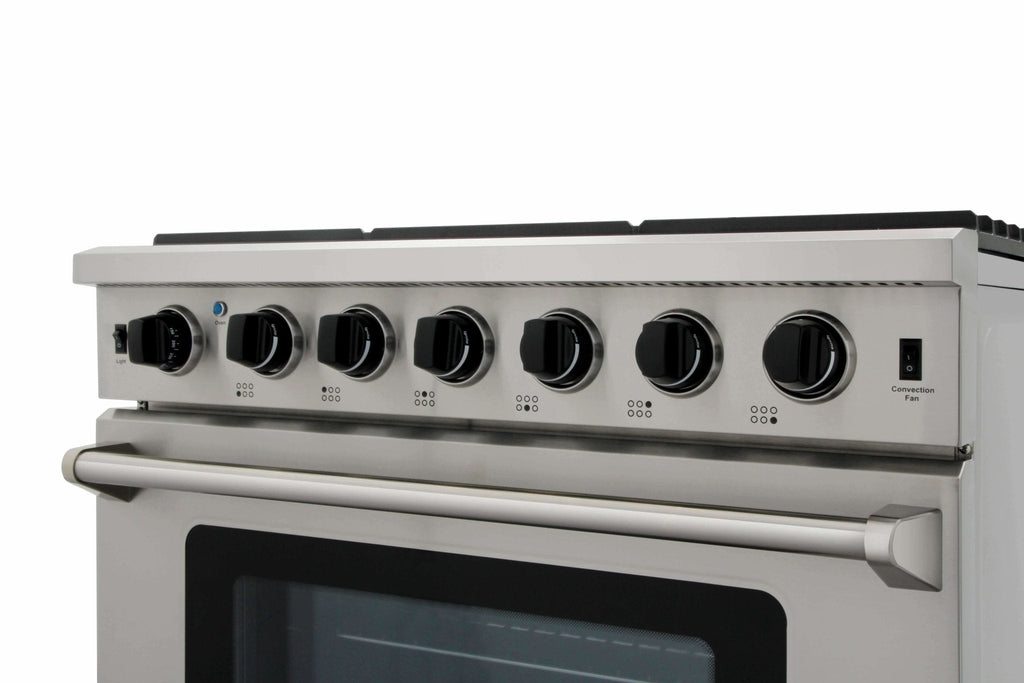

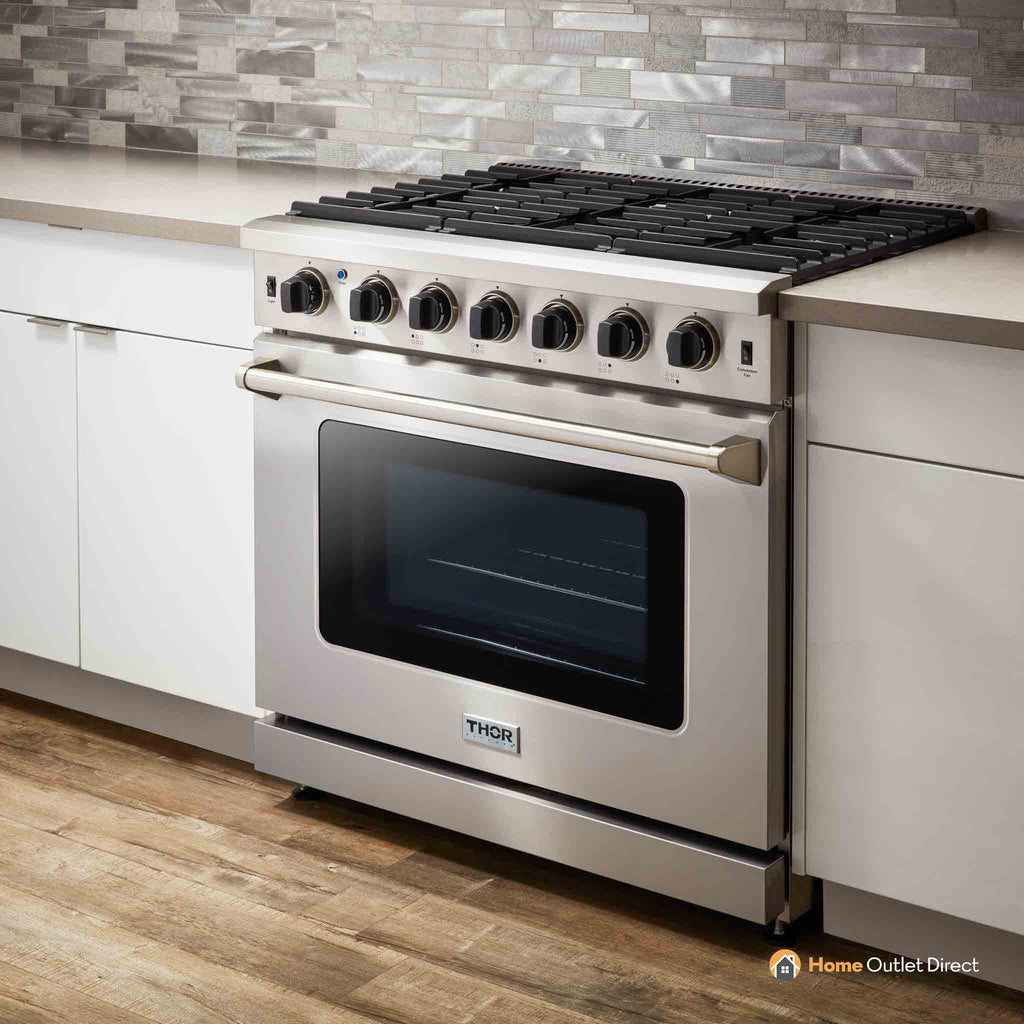

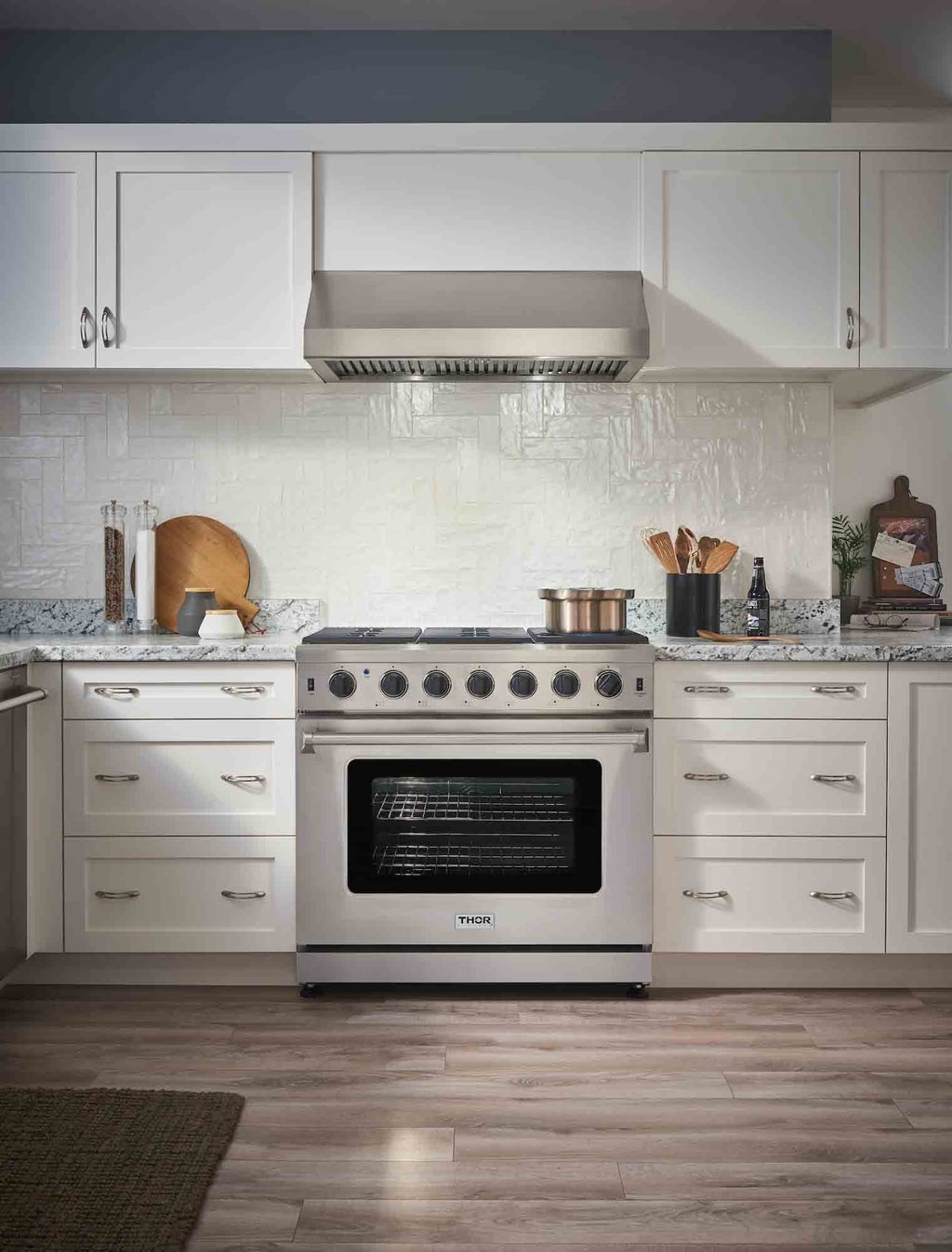

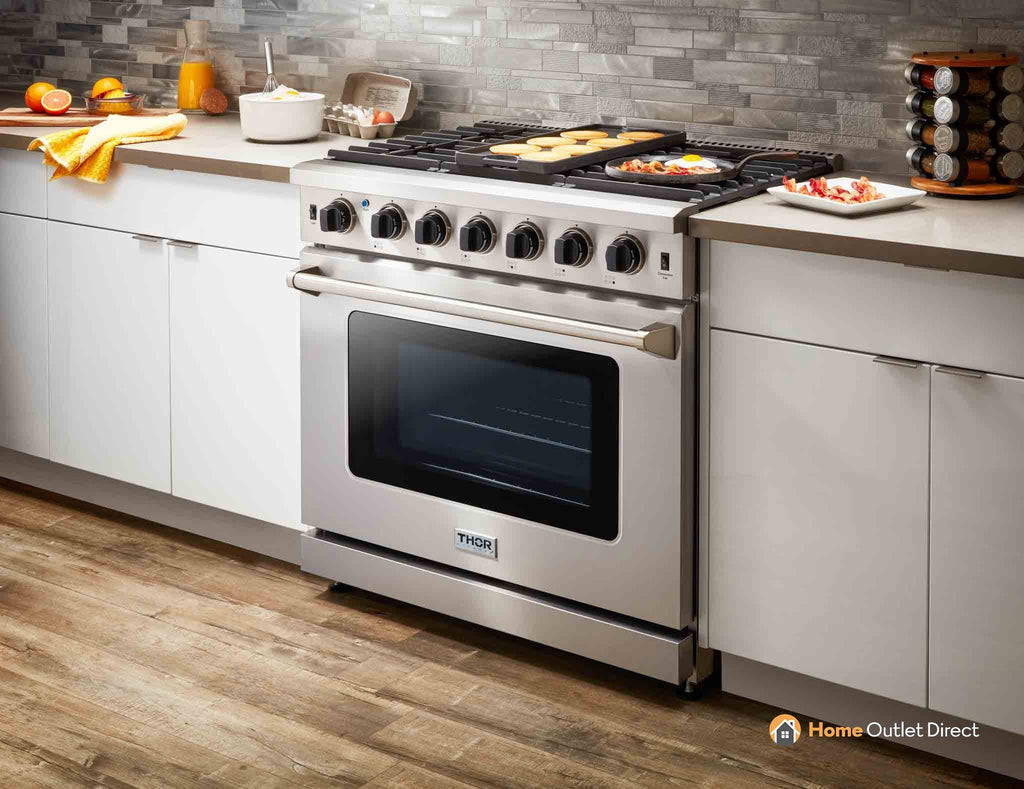

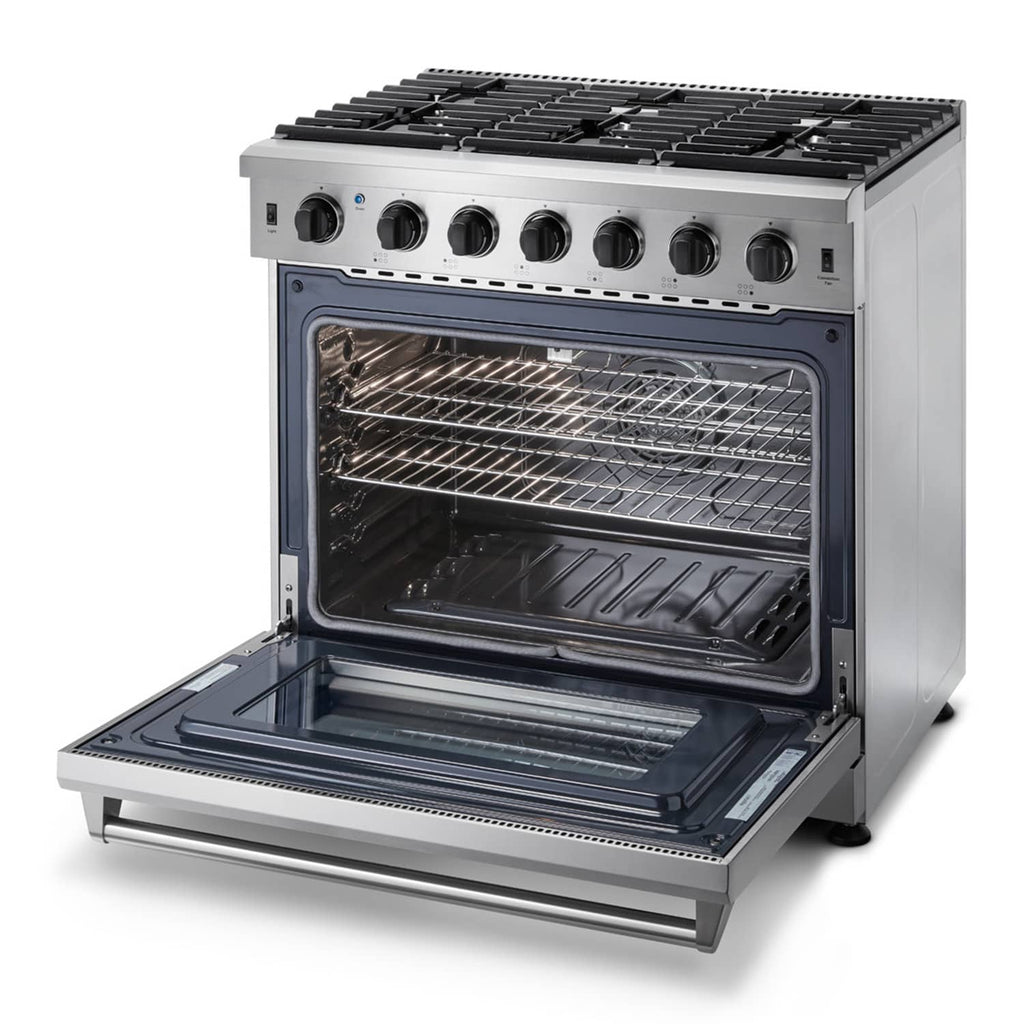

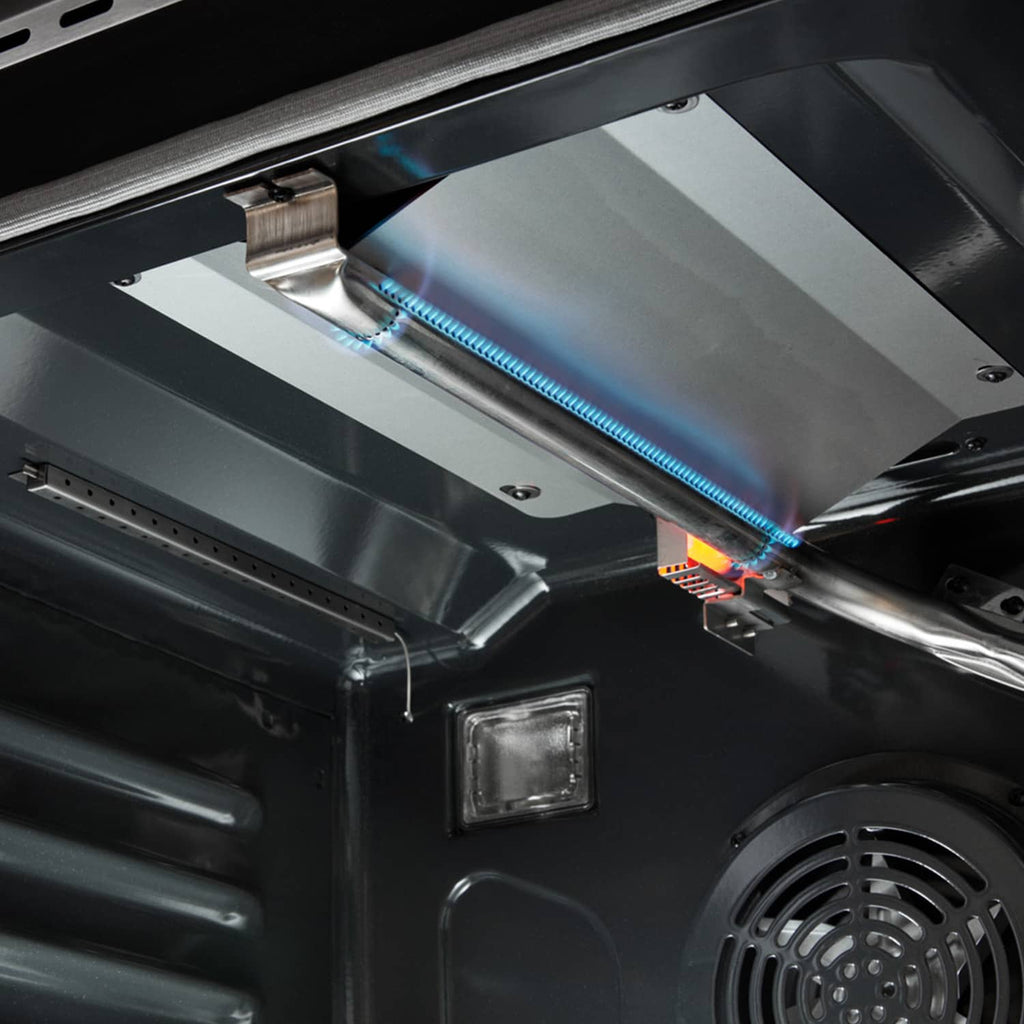

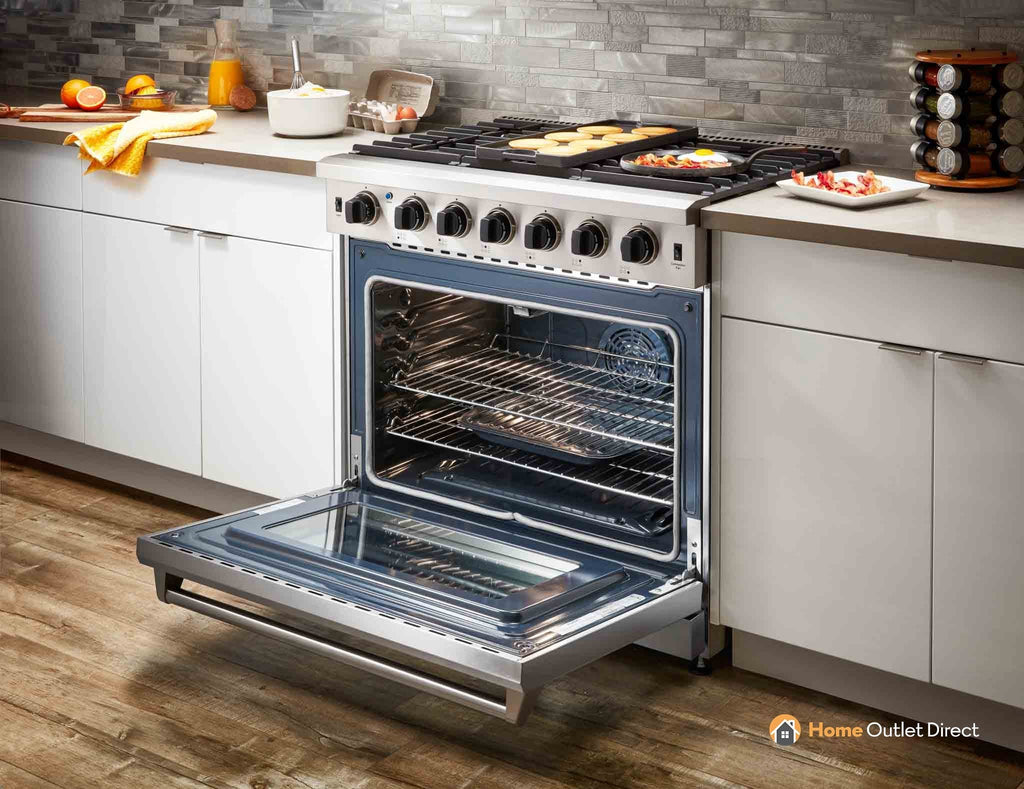

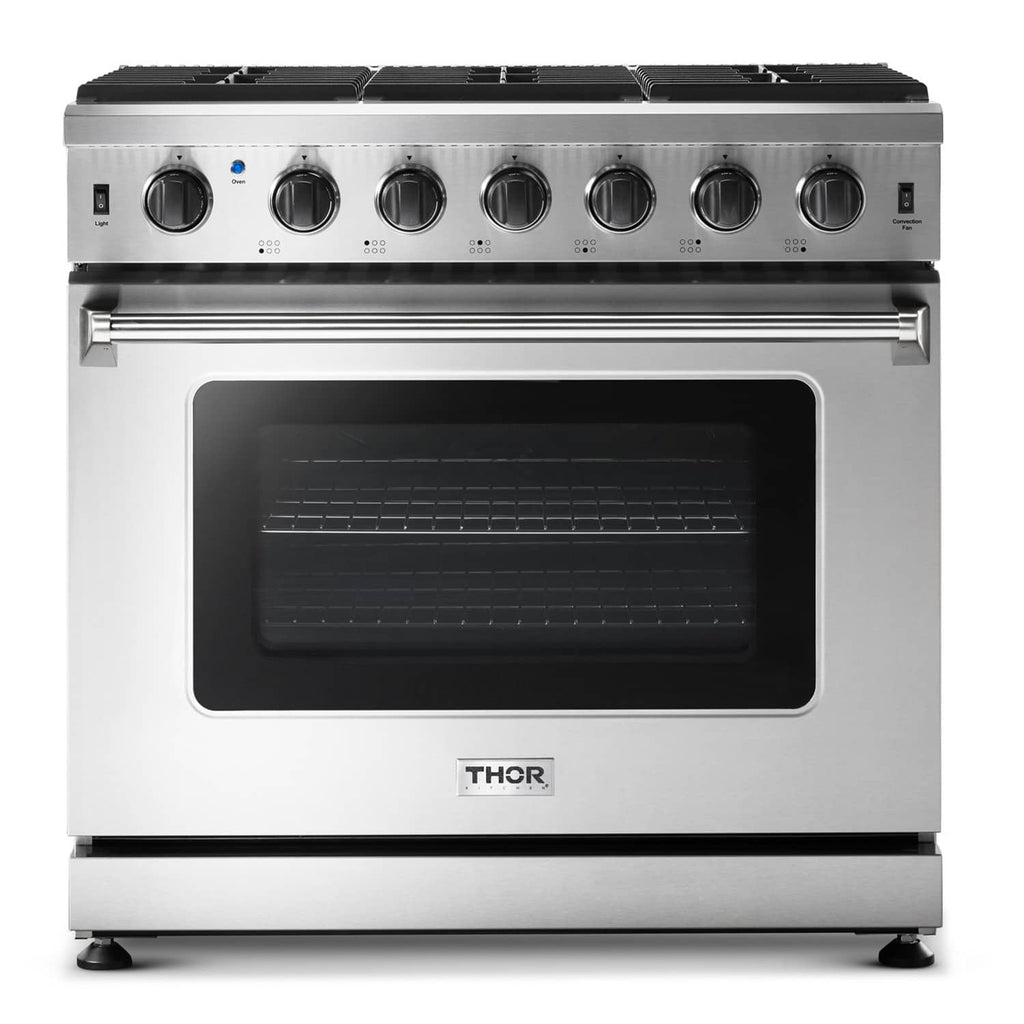

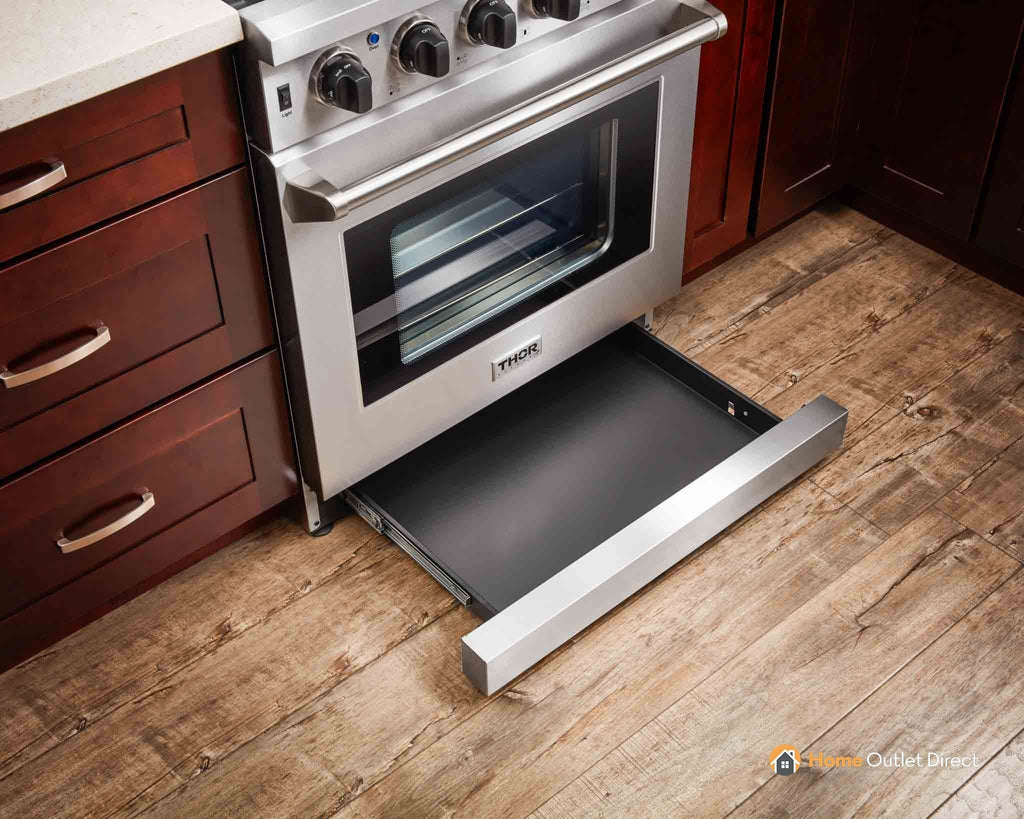

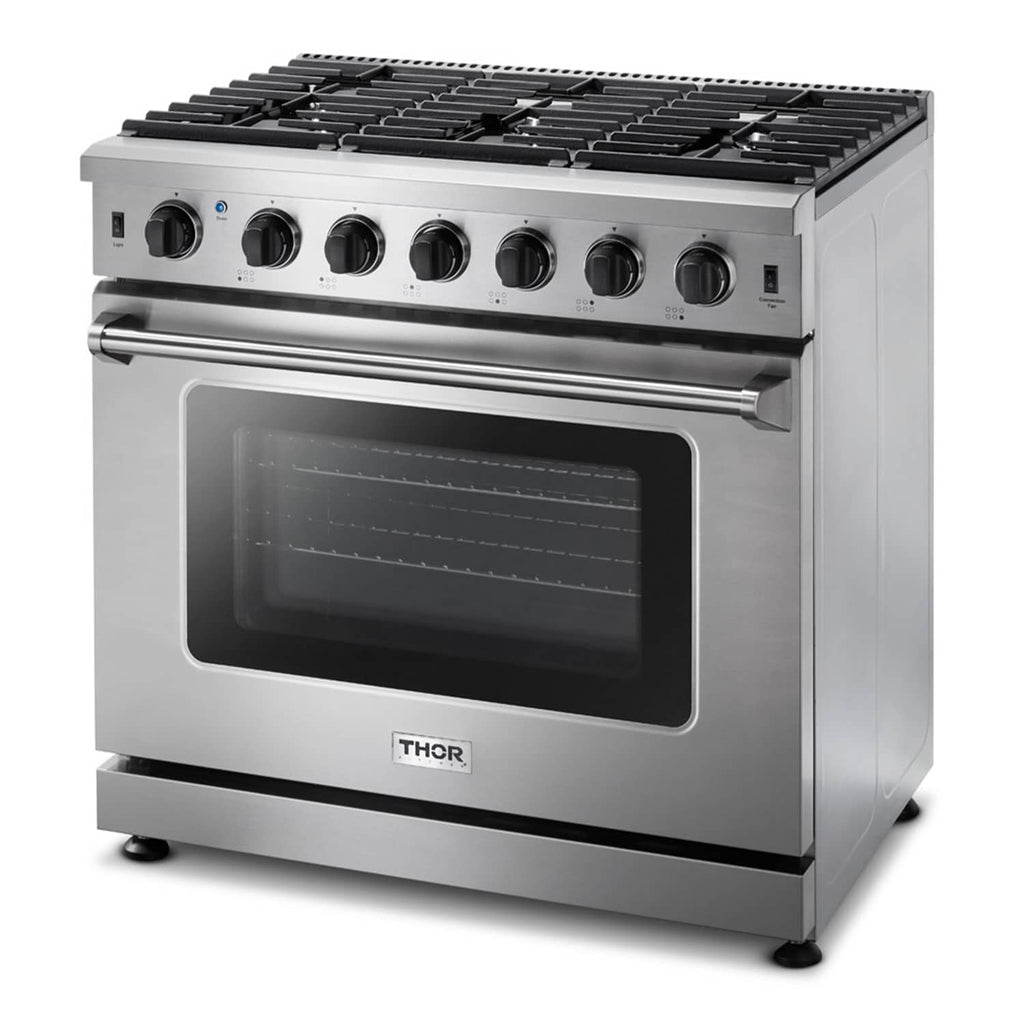

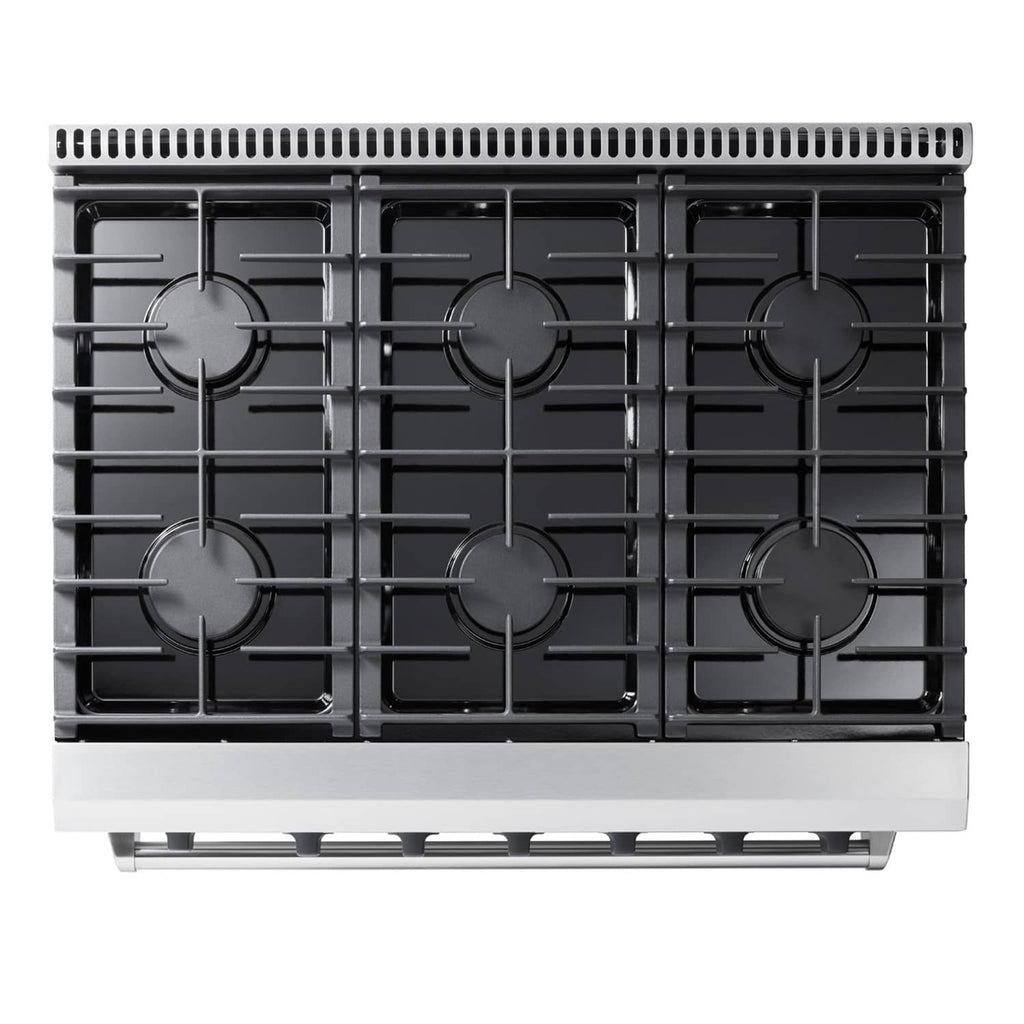

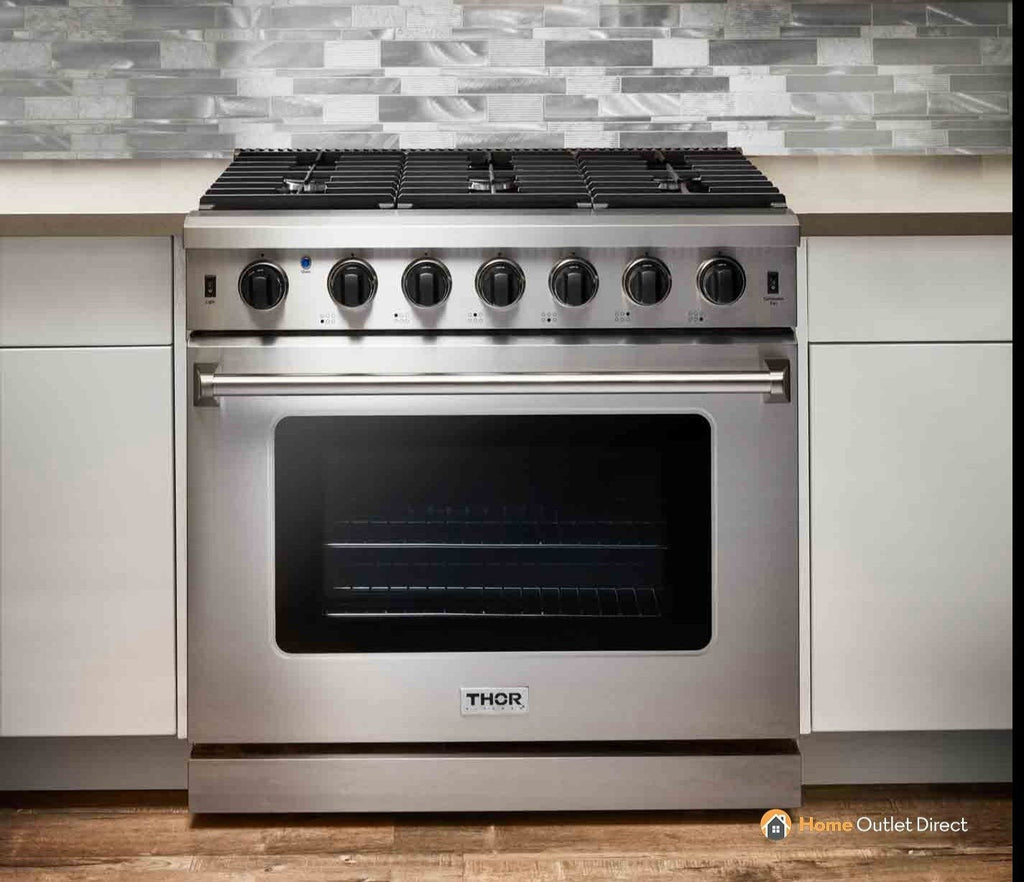

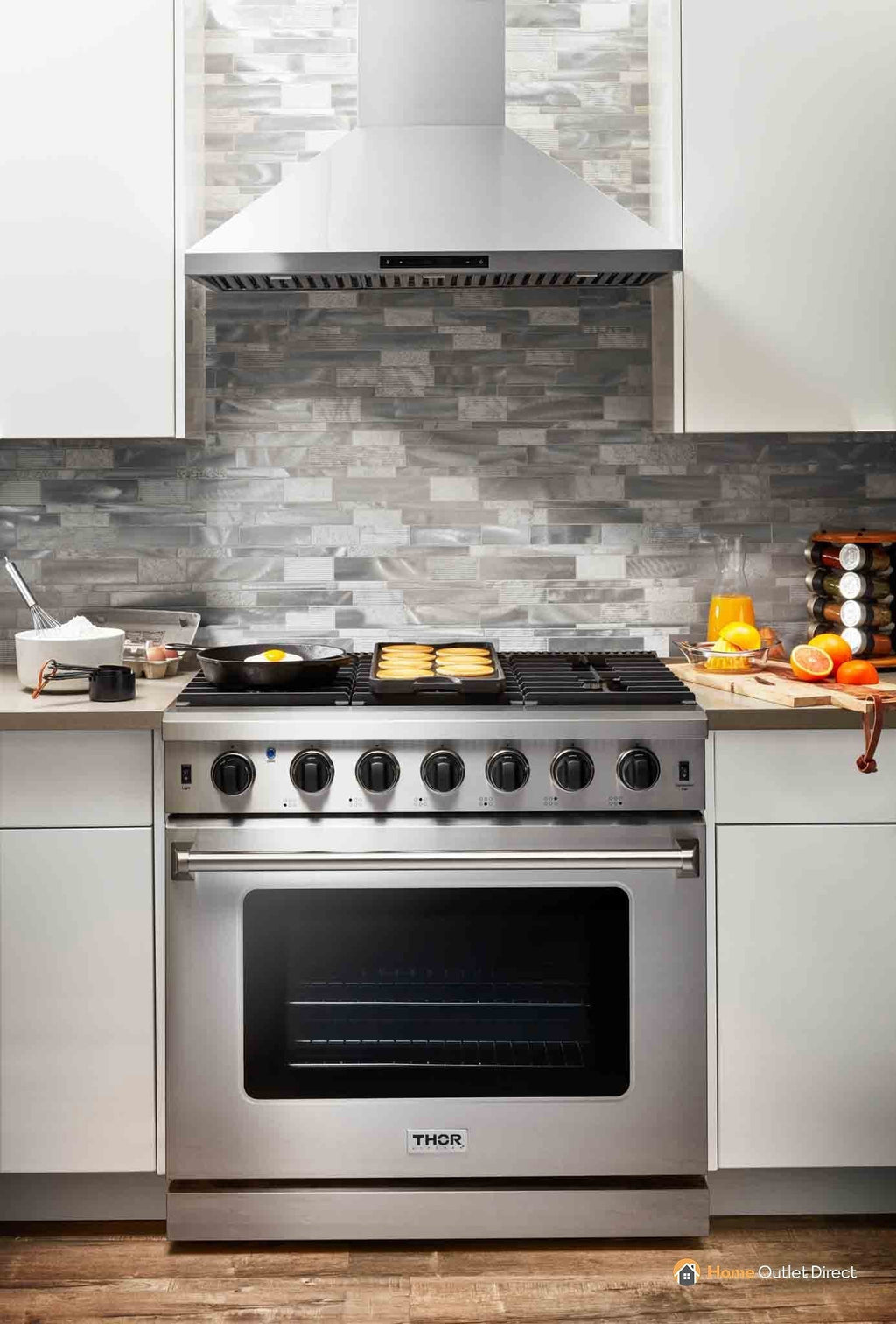

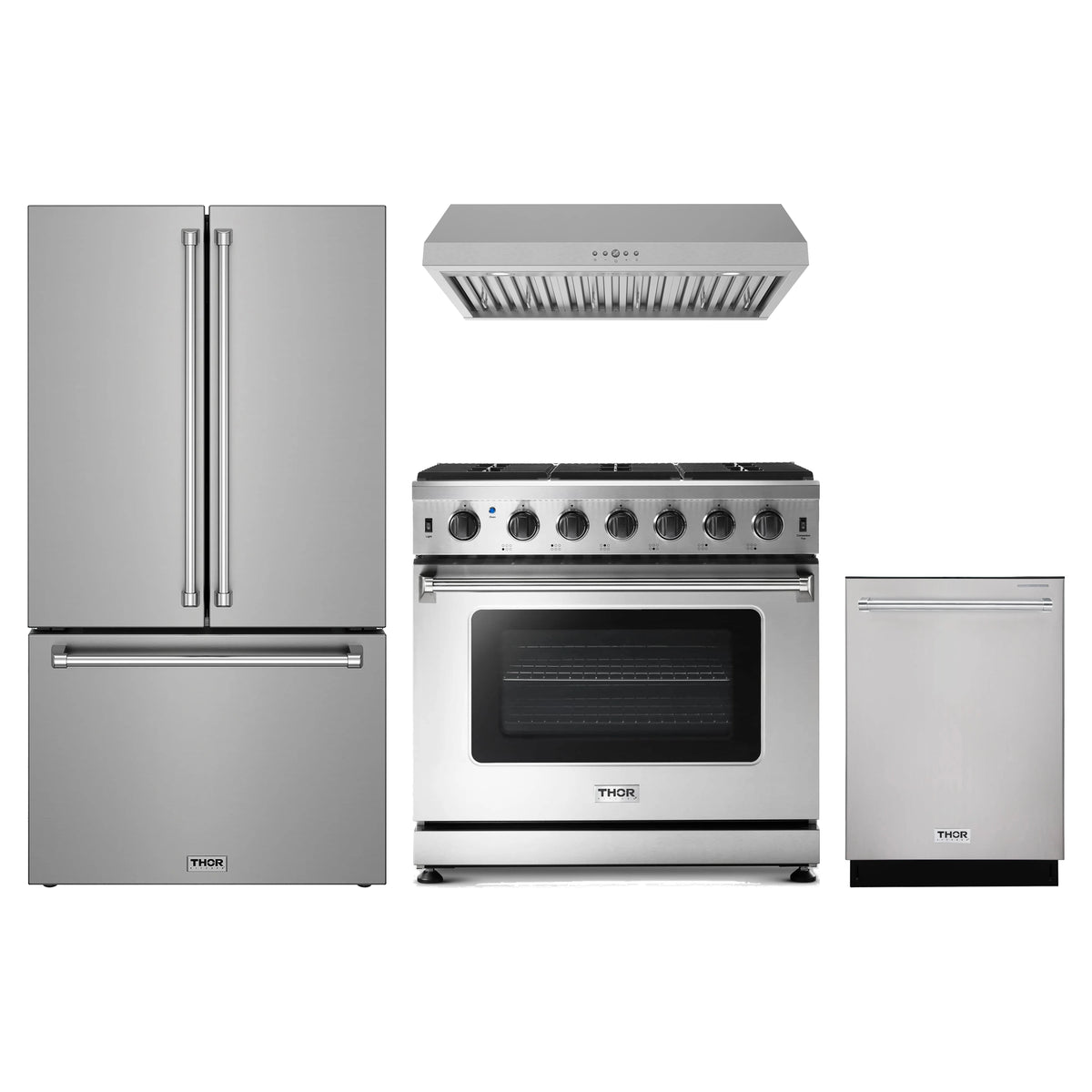

THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. The THOR Kitchen 36 Inch Gas Range is a stainless steel machine designed with professional features and functionality. With powerful burners, continuous grates and a commercial convection fan, this range takes everything from prime rib to snickerdoodles to the next level. #cooklikeagod
Accessories (Not Included)

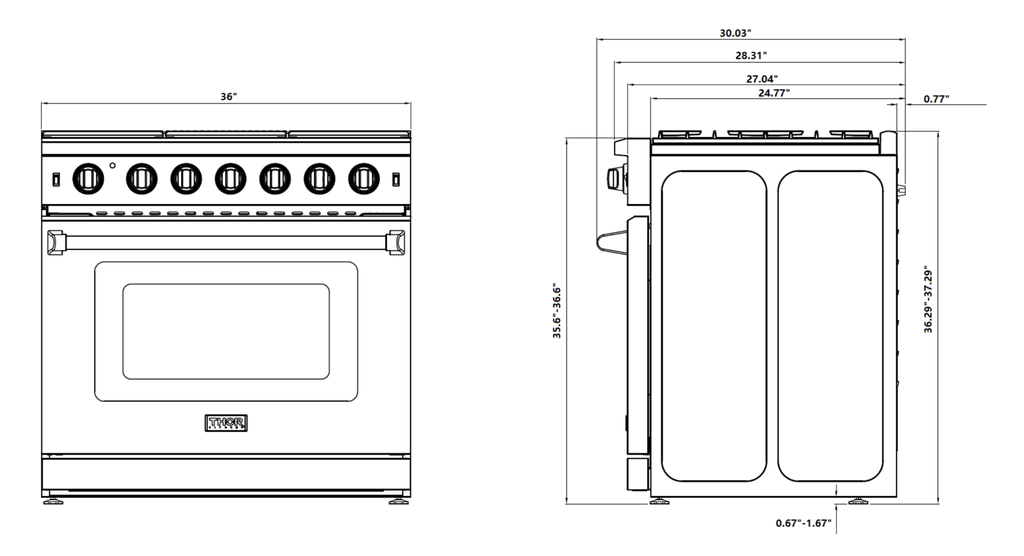

| DIMENSIONS | |
|---|---|
| Dimensions | 36” W x 36 5/16 - 37 5/16” H x 28 5/16” D |
| Product Weight | 250 lbs |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| TECHNICAL DETAILS | |
| Voltage | Requires a minimum of 120V/60Hz/15 or 20A |
| Mount Type | Free Standing |
| Fuel Type |
|

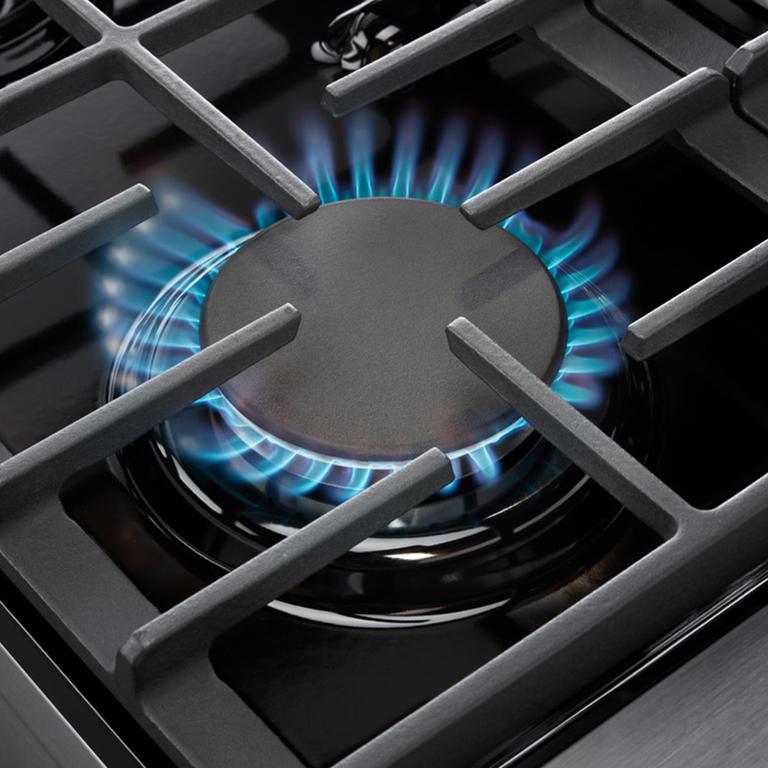

| COOKTOP FEATURES | |
| Cooktop |
|

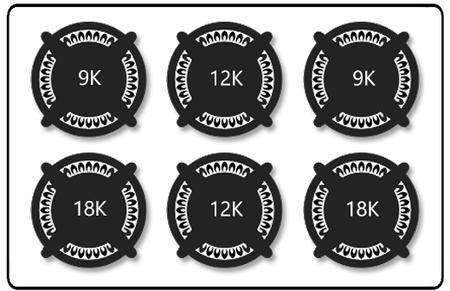

| BTU Ratings |
|
| OVEN FEATURES | |
| Oven |
|
| WARRANTY & CERTIFICATIONS | |
| Warranty | 2 Year Warranty on Parts and Labor |

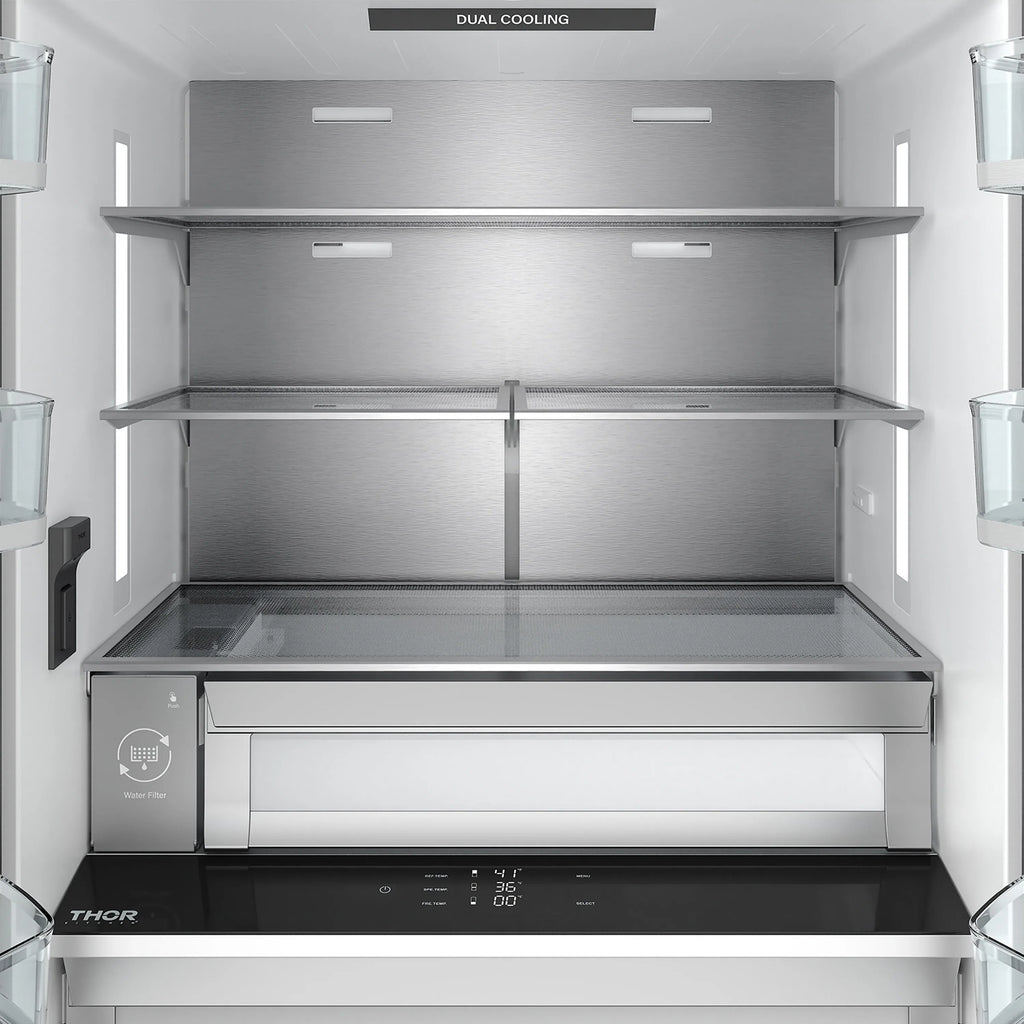

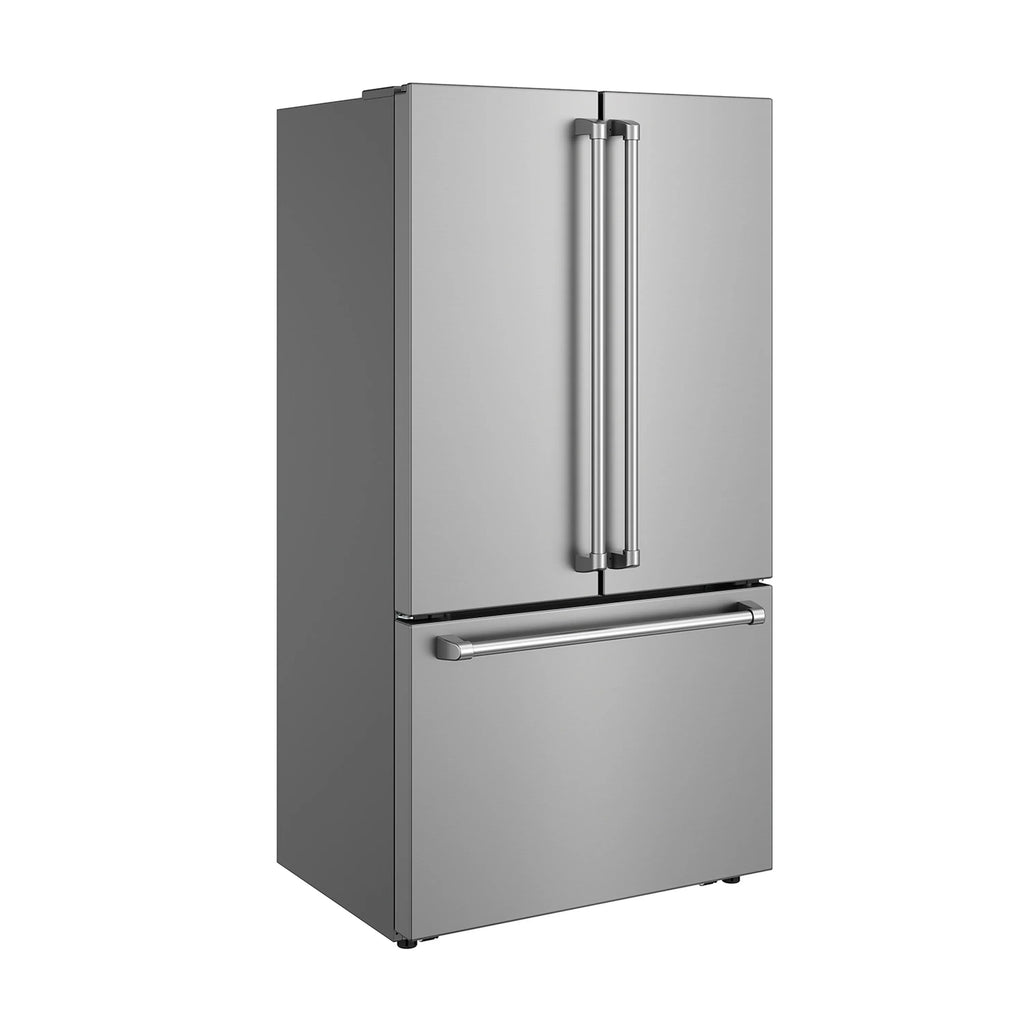

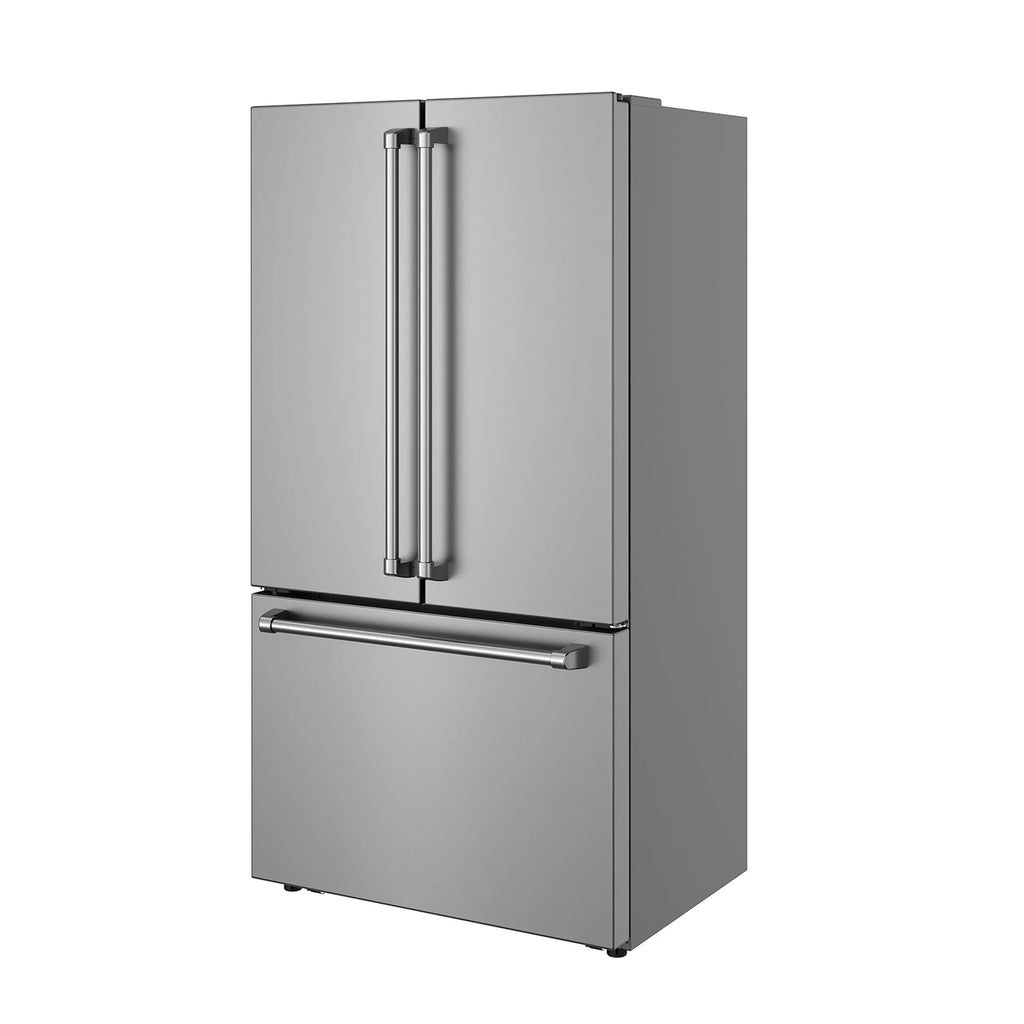

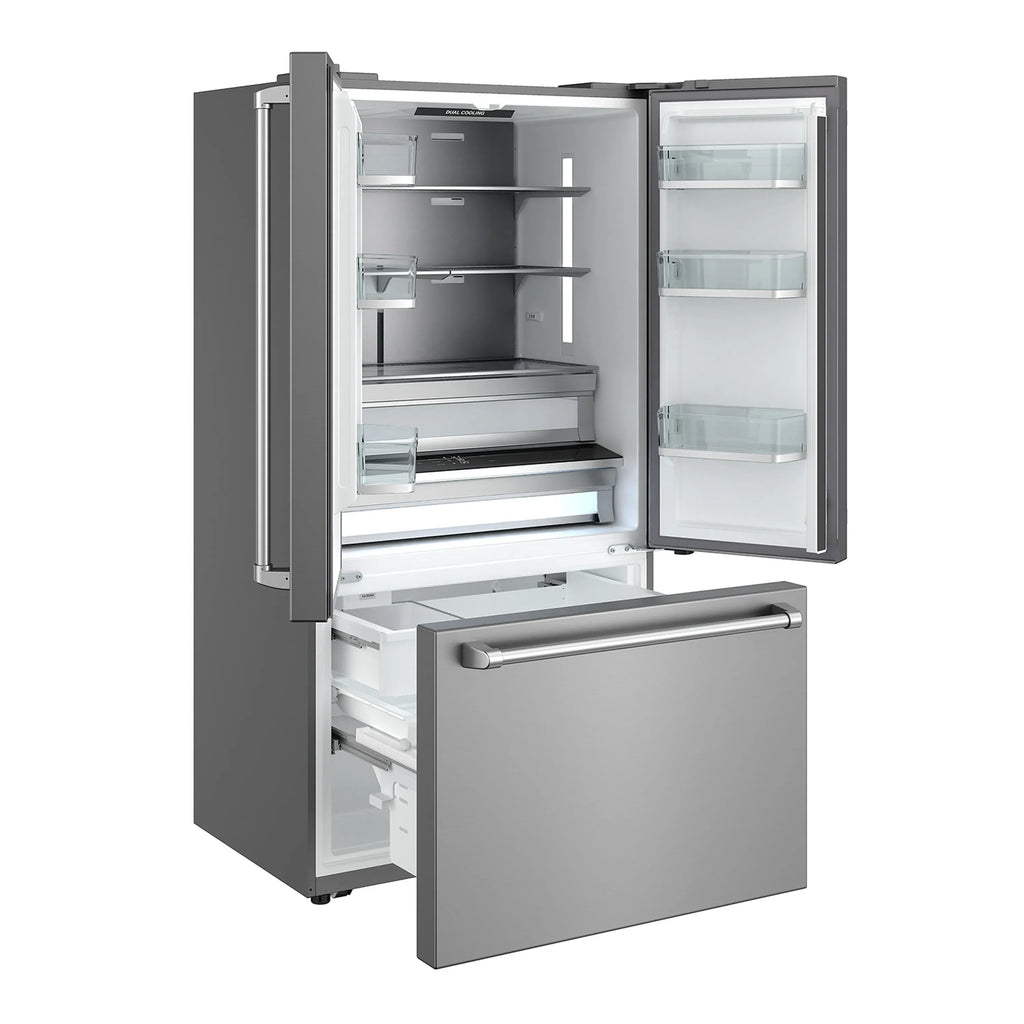

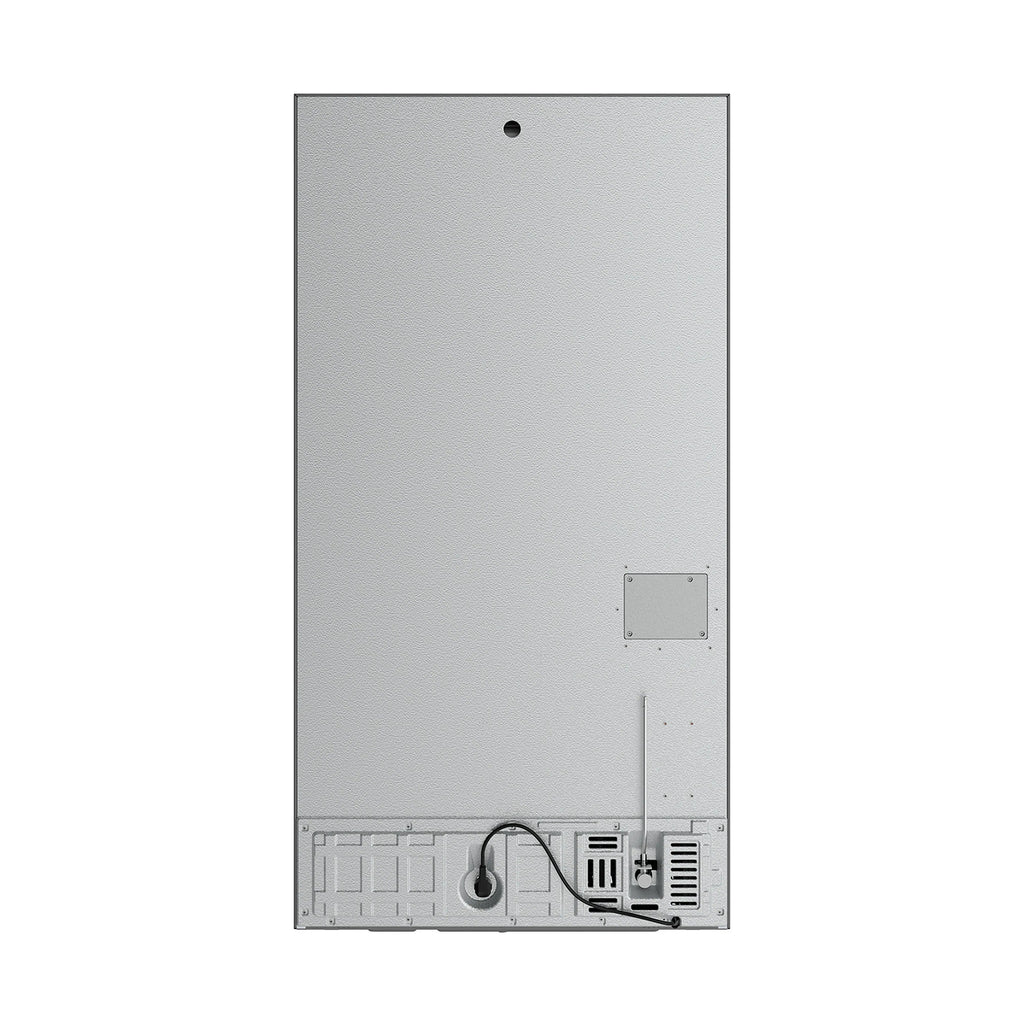

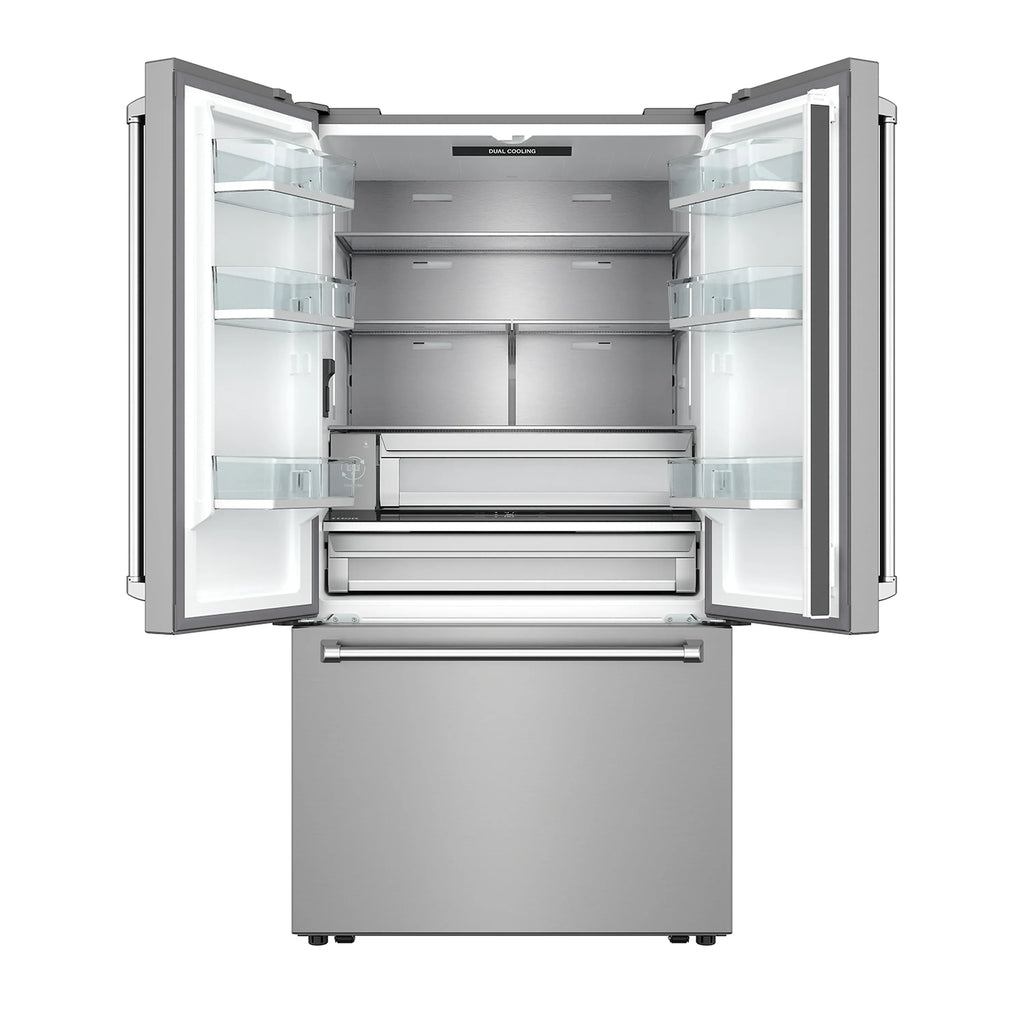

THOR Kitchen’s 36 Inch Counter Depth Freestanding French Door Refrigerator sits flush with your cabinetry for a seamless, built-in aesthetic — no custom installation required. Dual independent evaporators manage humidity and eliminate odor transfer, while a dedicated Precision Chiller Zone keeps every ingredient at its peak.
A panoramic LED interior, touch display, and built-in ice maker bring effortless precision to every detail — because the kitchen you've always wanted starts with the refrigerator you deserve. #IgniteYourCulinaryCreativity
| DIMENSIONS | |
|---|---|
| Total Capacity (cu. ft.) | 20.2 cu. ft. |
| Product Dimensions (WxDxH) (in.) | 35-3/4" x 30-3/8" x 69-13/16" |
| Product Depth (Excluding Handles) (in.) | 27-7/16" |
| Product Depth (Excluding Door) (in.) | 24-3/16" |
| Product Depth with Door Open 90° (in.) | 44-1/8" |
| Product Height to Top of Door Hinge (in.) | 69-13/16" |
| Product Height to Top of Refrigerator (in.) | 69-3/16" |
| Cutout Dimensions (WxDxH) (in.) | 70-1/8" x 36" x 25" |
| Net Weight (lbs.) | 324 |
| Gross Weight (lbs.) | 364 |
| Package Dimensions (WxDxH) (in.) | 37-13/16" x 29-1/8" x 73-13/16" |
| Half-width Adjustable Shelves | 2 Half-width Height Adjustable Shelf |
| GENERAL INFORMATION | |
| Cooling Technology | Dual cooling |
| Number of Doors | 2 Fridge Door + 1 Freezer Door |
| Soft Closing Door Feature | No |
| Vacation/Economy/Fast Freeze/Quick Cool Mode | Yes |
| Door Open Alarm | Yes |
| DESIGN & FINISH | |
| Door Handle Type | Bar Handle |
| Shelf Material | Transparent Glass with Metal Trims |
| Reversible Door Swing | No |
| Lighting Type | LED |

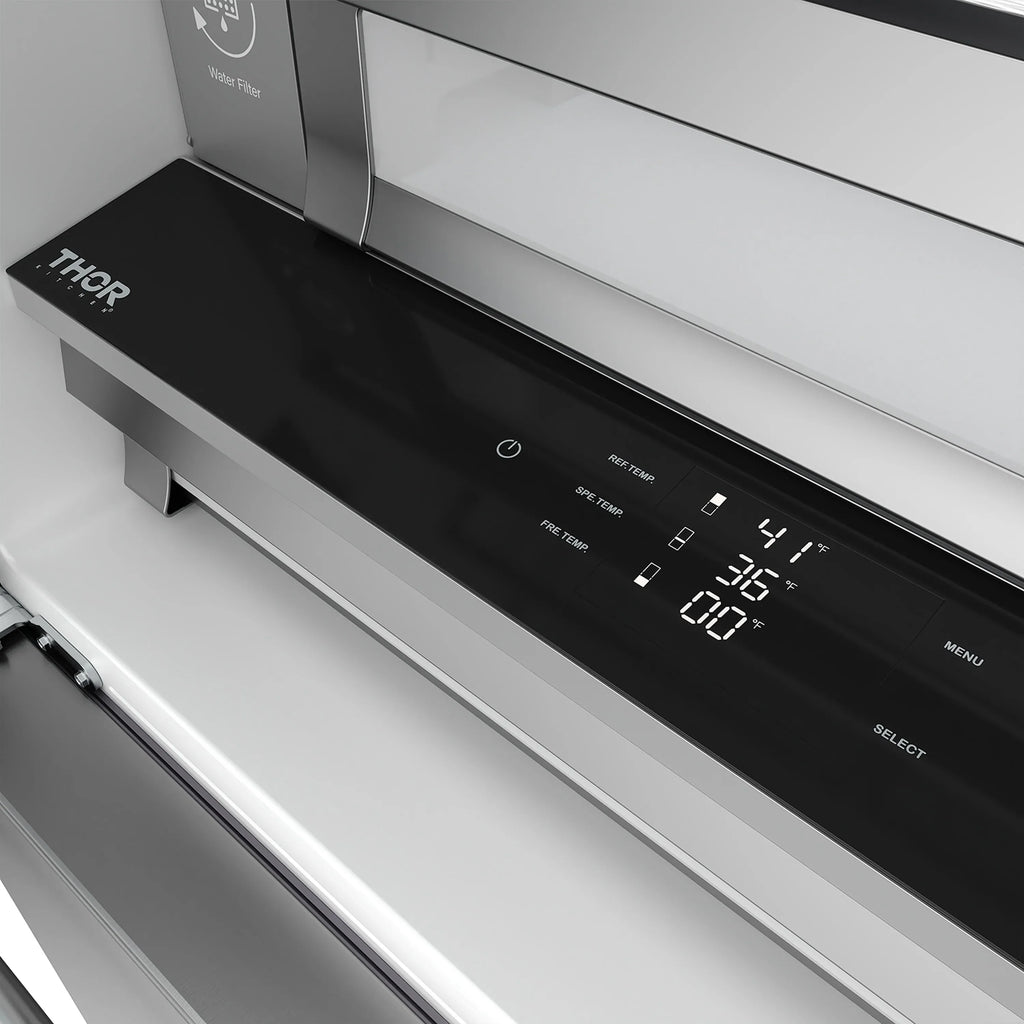

| Control Type | Touch |
| Display Panel | LED |
| Child Lock Feature | Yes |
| TECHNICAL DETAILS | |
| Power (Watts) | 275W (Defrosting input power) |
| Amperage (A) Dedicated | 3A |
| Voltage (V) | 115V |
| Frequency (Hz) | 50-60Hz |
| Plug Type | US 3-Prong |
| Power Cord Length (in.) | 70-7/8" |
| Adjustable Feet / Leveling | 0~1-3/8 |
| Door Swing Clearance | 132° |
| Annual Energy Consumption (kWh/year) | 569 |
| Noise Level (dB) | 39 |
| Water Filter Bypass Plug | Included |
| REFRIGERATOR FEATURES | |
| Refrigerator Capacity (cu. ft.) | 13.7 cu. ft. |
| Refrigerator Temperature Range | 36°F (2°C) ~ 46°F (8°C) |
| Chiller Temperature Range | 30°F (-1°C) ~ 37°F (3°C) |
| Operation Temperature | 77-90°F / 25-32°C |
| Number of Shelves | 2 Full Width Shelve + 2 Half Width Shelves |
| Adjustable & Removable Shelves | 2 Half-width Height Adjustable Shelf & 6 Adjustable Gallon Door Bins |
| Spill-Proof/Spill-Resistant Shelves | Yes |
| Soft Closing Drawer Feature | Yes |
| Water Filter/Replacement Schedule | Yes / 6 months |
| Ice Maker/Water Dispenser | Yes |
| Lighting | Side + Ceiling LED Lighting |
| Door Bins | 6 Adjustable Gallon Door Bins |
| Crisper | Soft Close Metal Crisper |
| Chiller Zone | Extra Chiller Zone |
| Water Dispenser | Yes |
| Ice Scoop | Included |
| Water Filter | Included |
| Water Filter Replacement | WFX200CL |
| FREEZER FEATURES | |
| Freezer Capacity (cu. ft.) | 6.5 cu. ft. |
| Freezer Temperature Range | 5°F (-15°C) ~ 13°F (-25°C) |
| Number of Freezer Baskets | 3 Drawers |
| Defrost | Total No Frost |

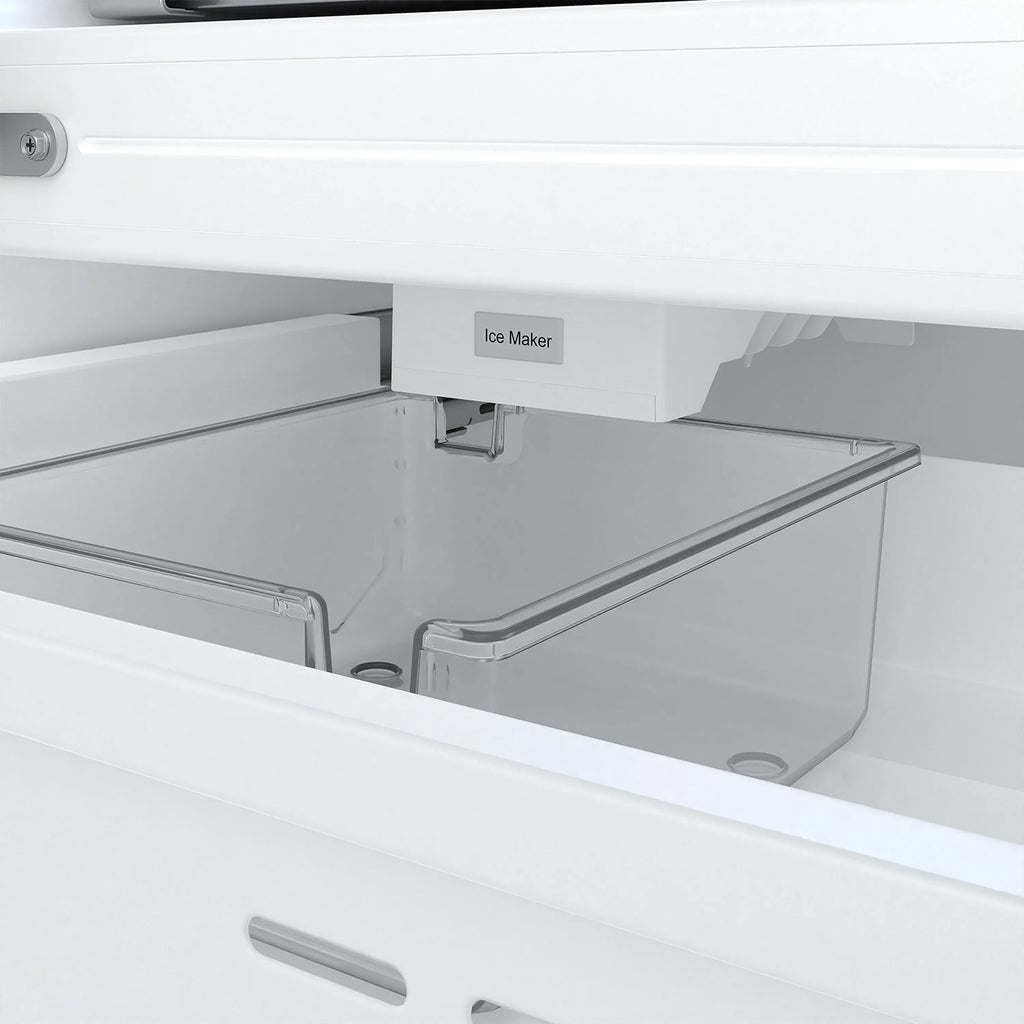

| Ice Maker | Ice Maker and Storage Box: 2 lbs. of Ice Per Day |

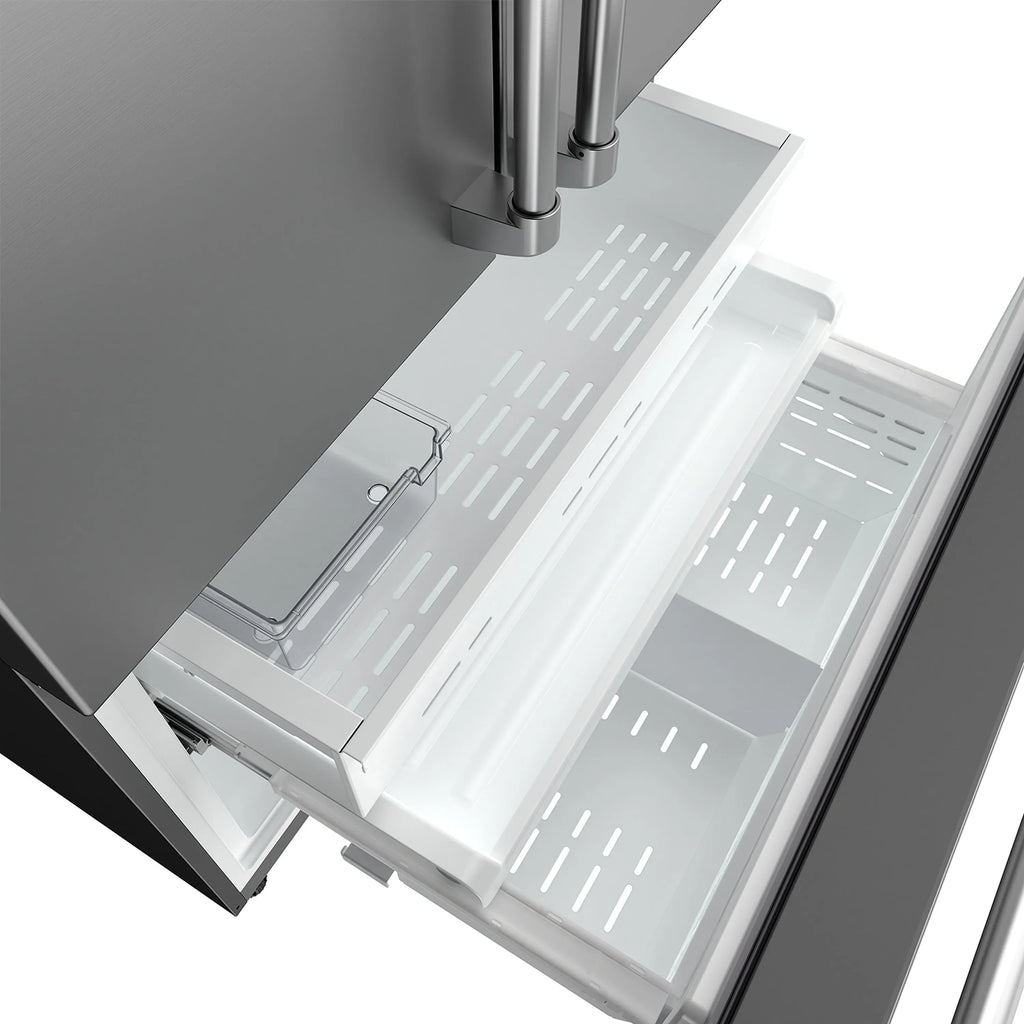

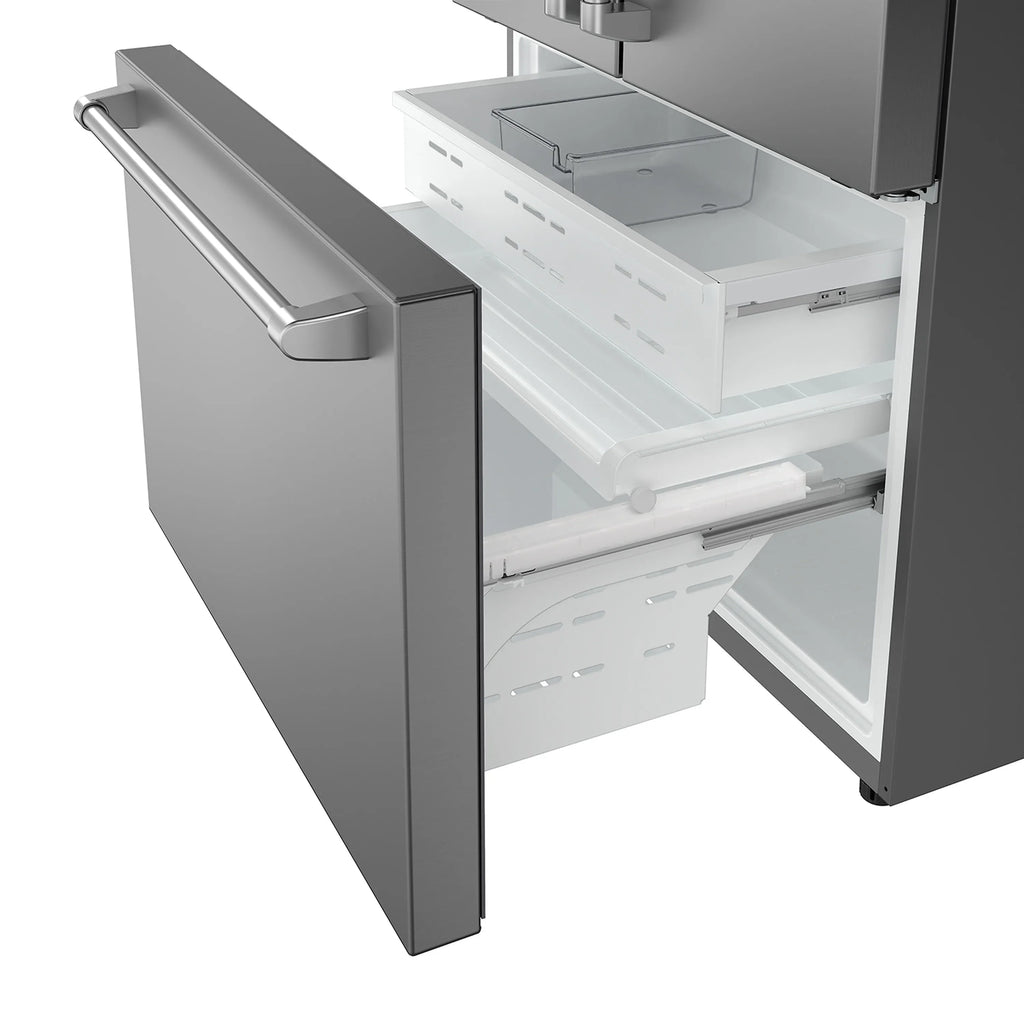

| Freezer Drawers | 2 Metal Freezer Drawers |
| Pizza Freezer Drawer | Yes |
| WARRANTY & CERTIFICATIONS | |
| Parts and Labor | 2 Years |

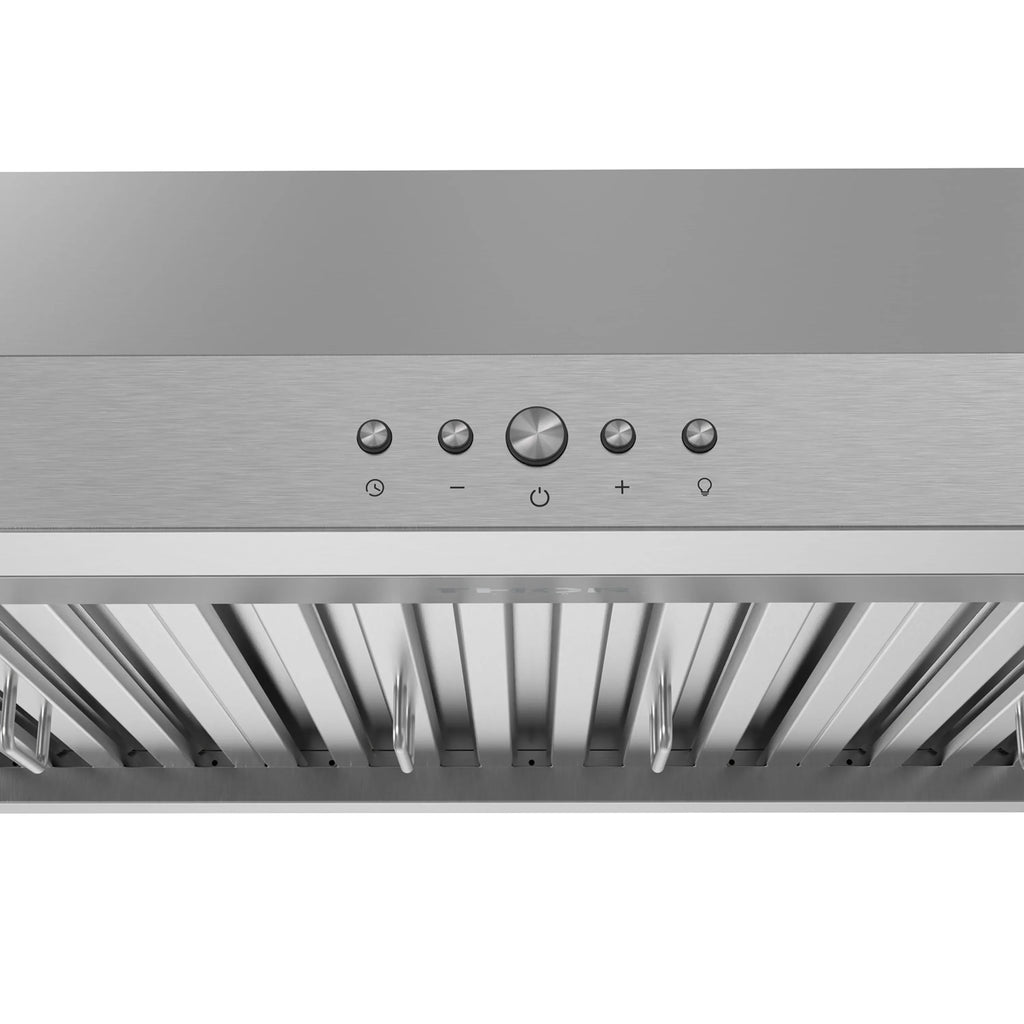

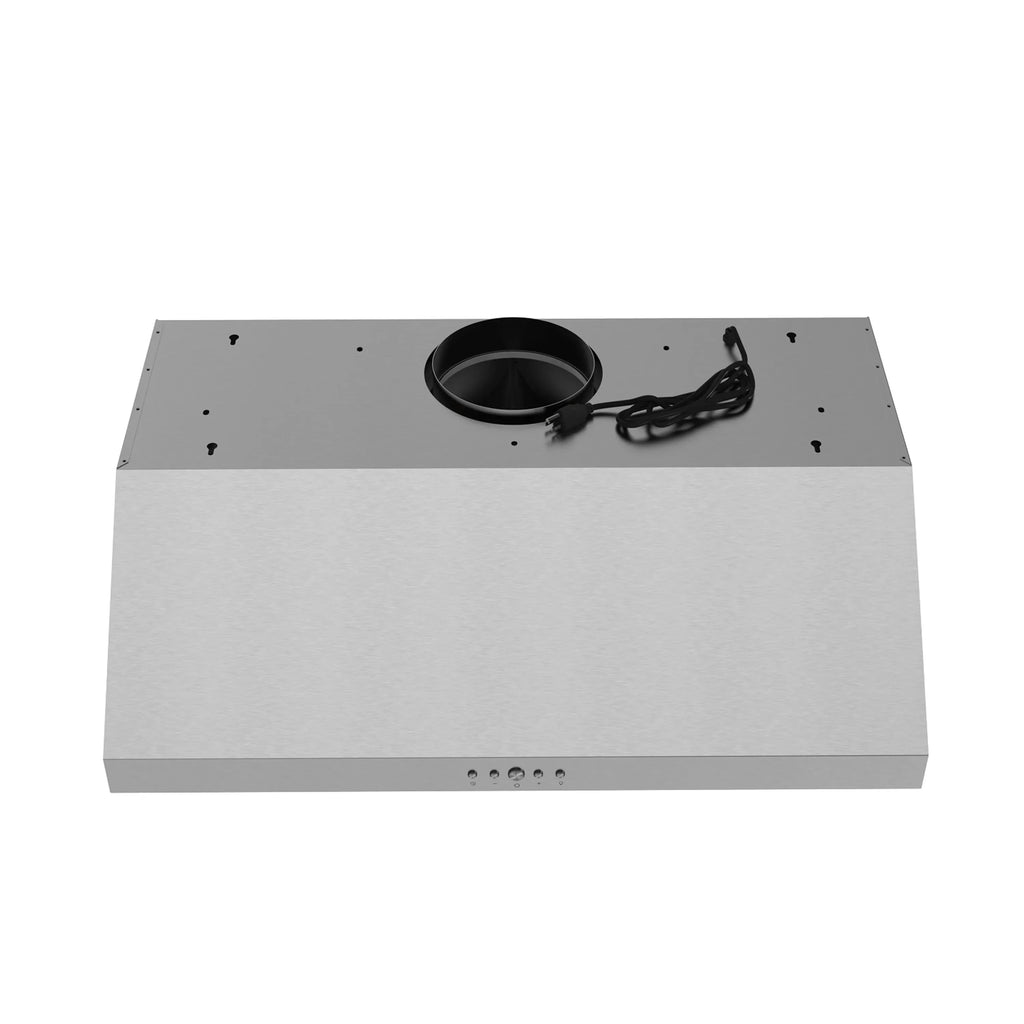

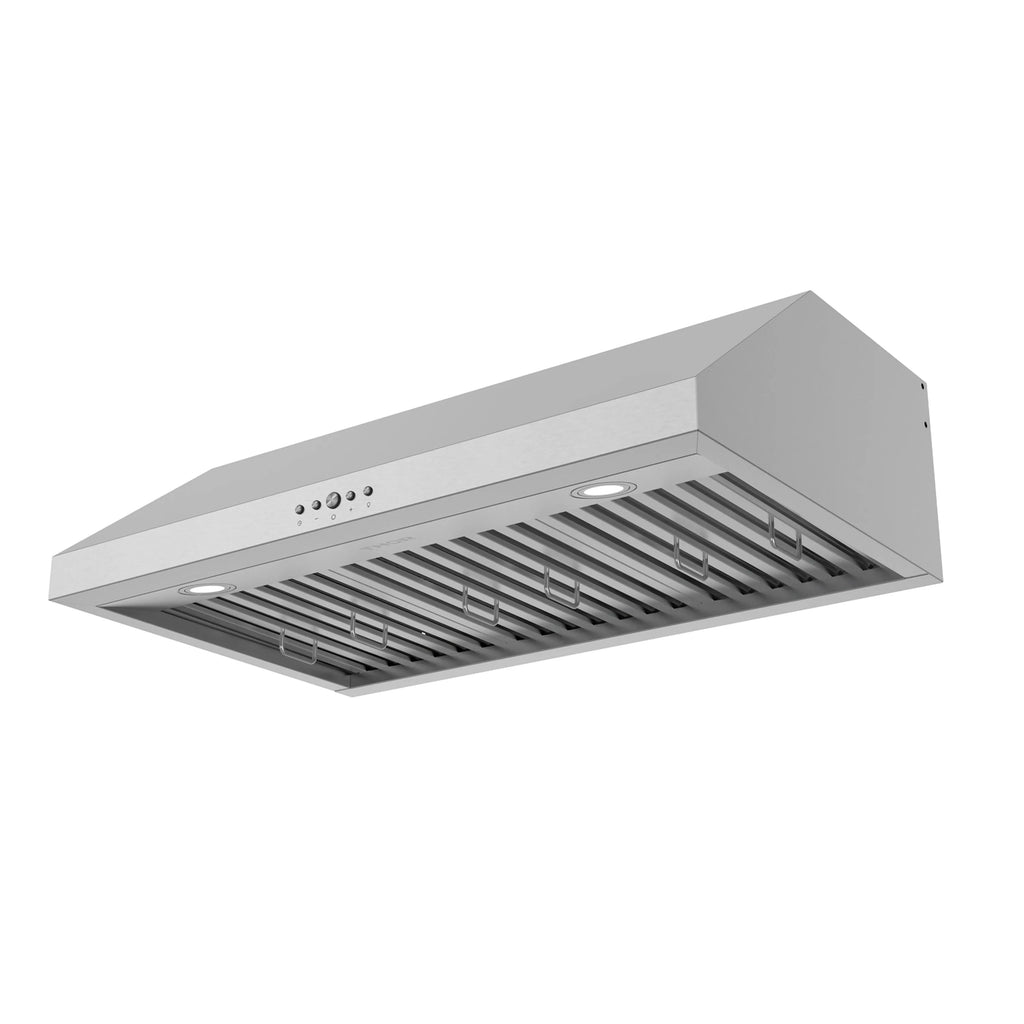

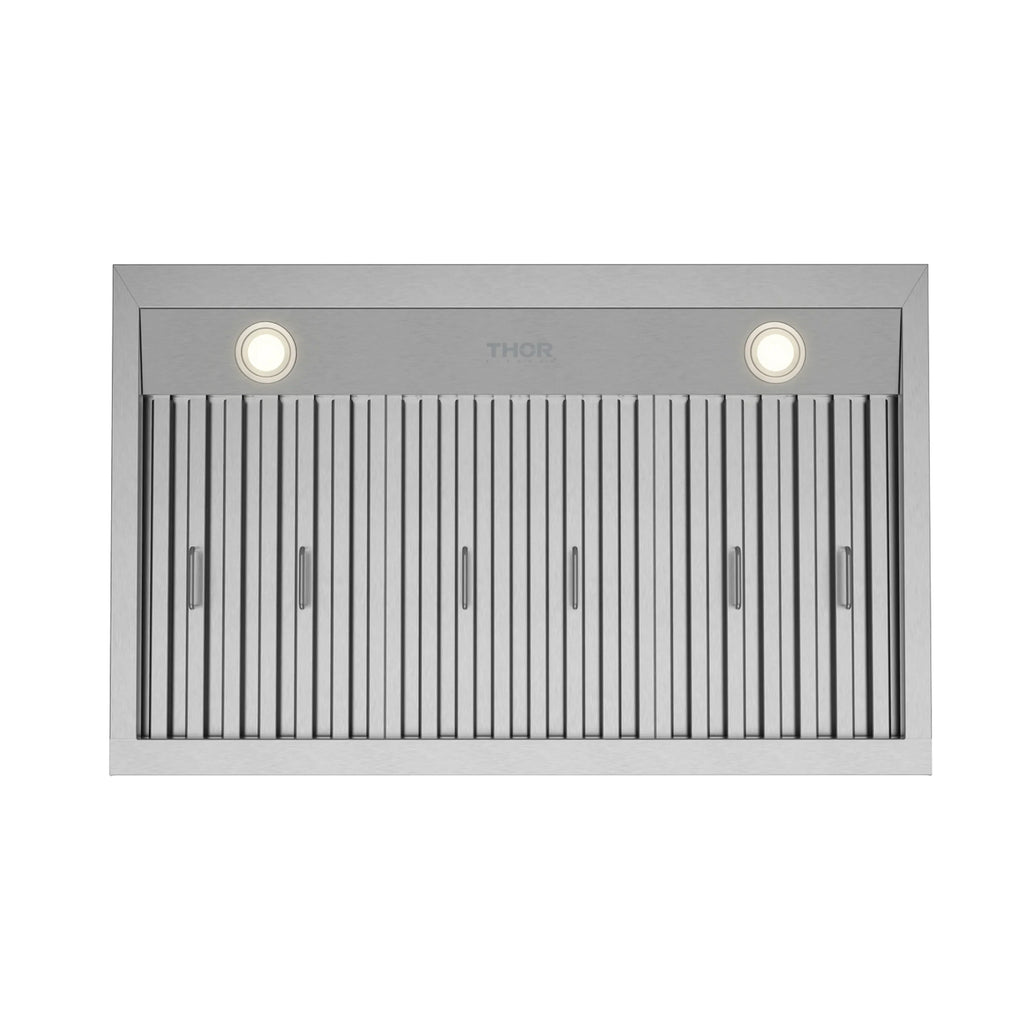

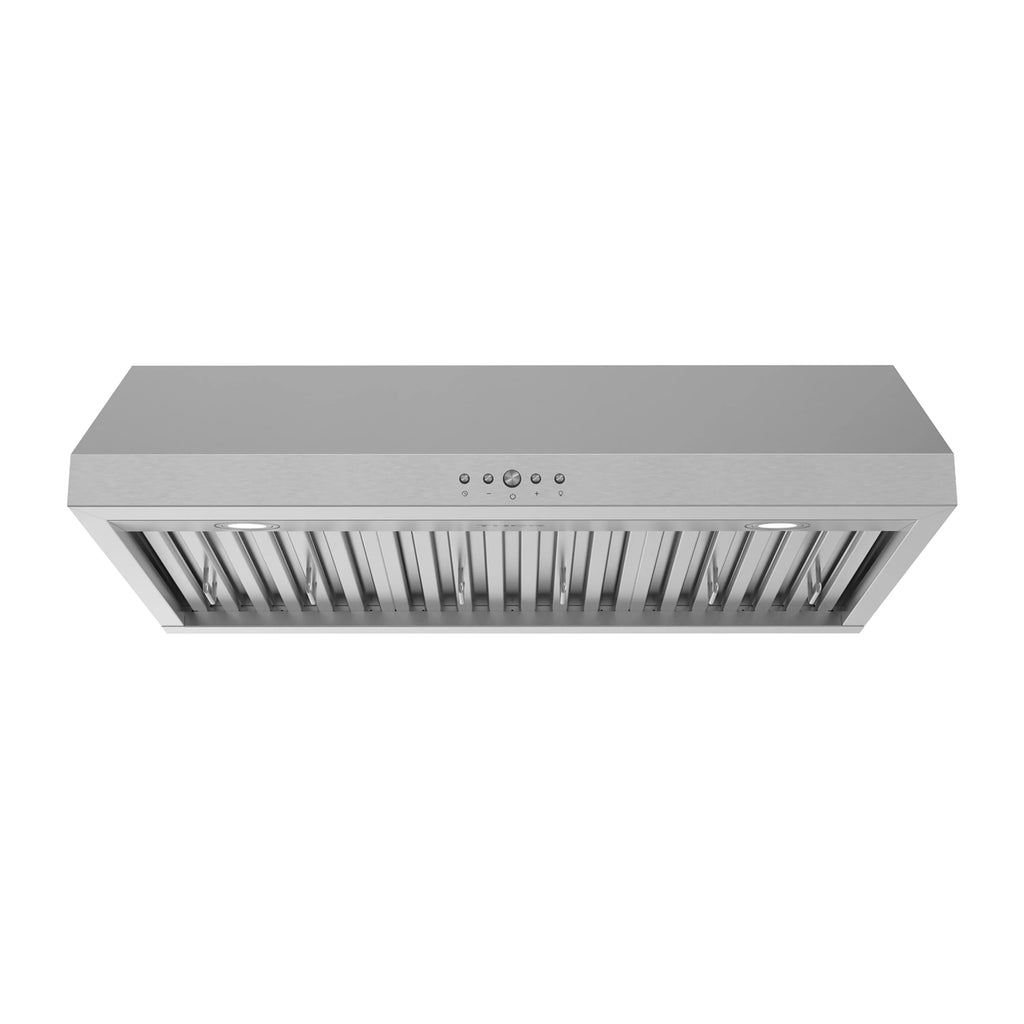

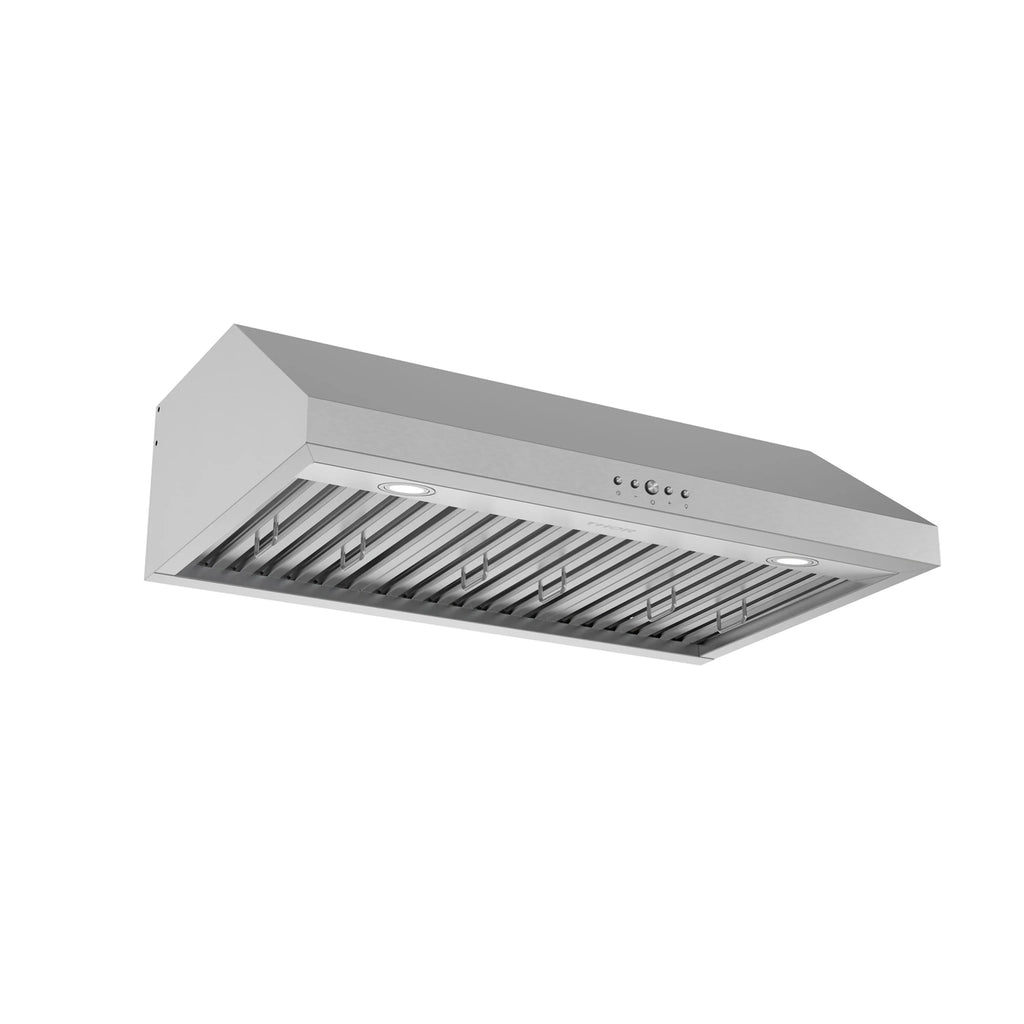

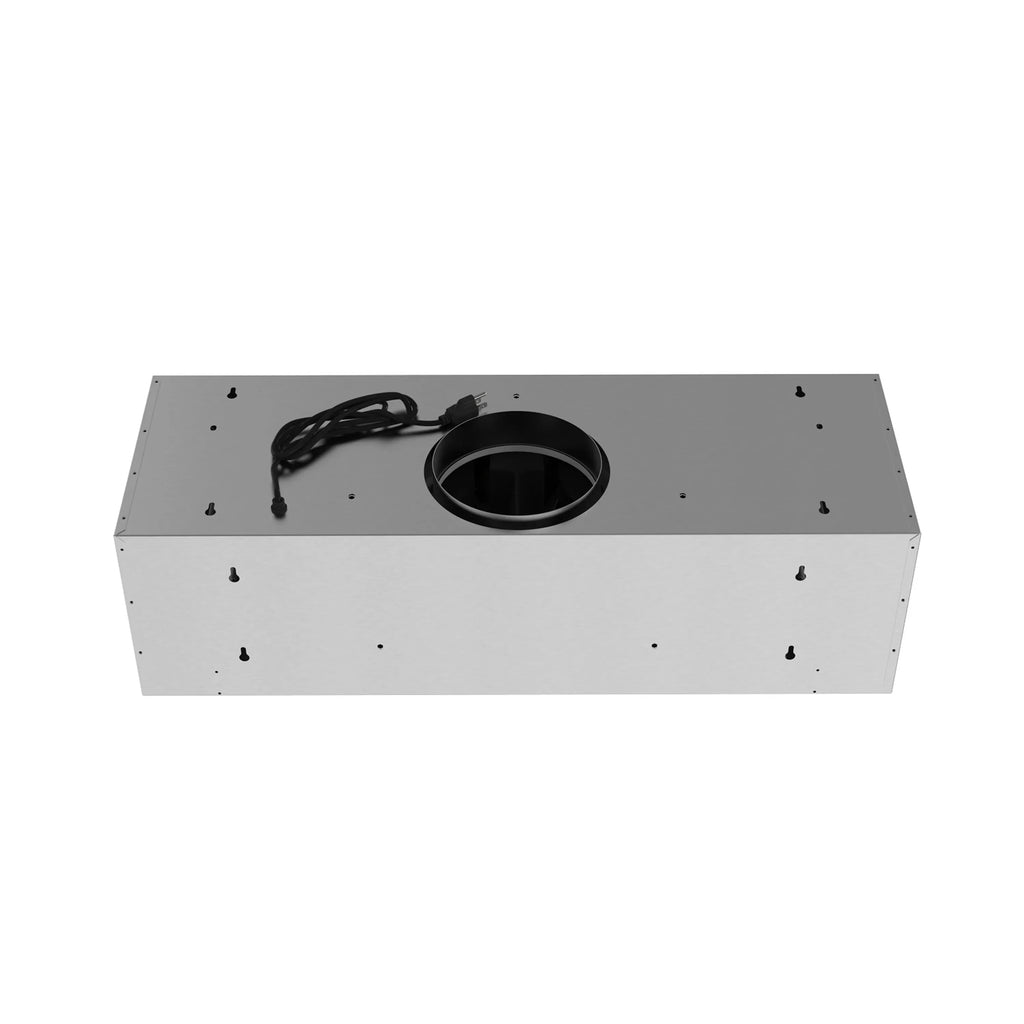

Thor Kitchen 36 Inch Under Mounted Range Hood with powerful 480 CFM ventilation delivers commanding performance and refined style to elevate your everyday cooking. Finished in durable stainless steel, it offers a sleek, modern aesthetic while providing the strength and reliability your kitchen demands.
The robust 480 CFM airflow efficiently eliminates smoke, steam, and lingering odors, and with three adjustable fan speeds, you can tailor ventilation to everything from low simmers to high-heat culinary creations. Designed for versatility, this convertible unit supports both ducted and ductless installation to fit seamlessly into your space. Easy push button controls ensure effortless operation, while bright, energy-saving LED lights cast clear illumination across your cooktop.

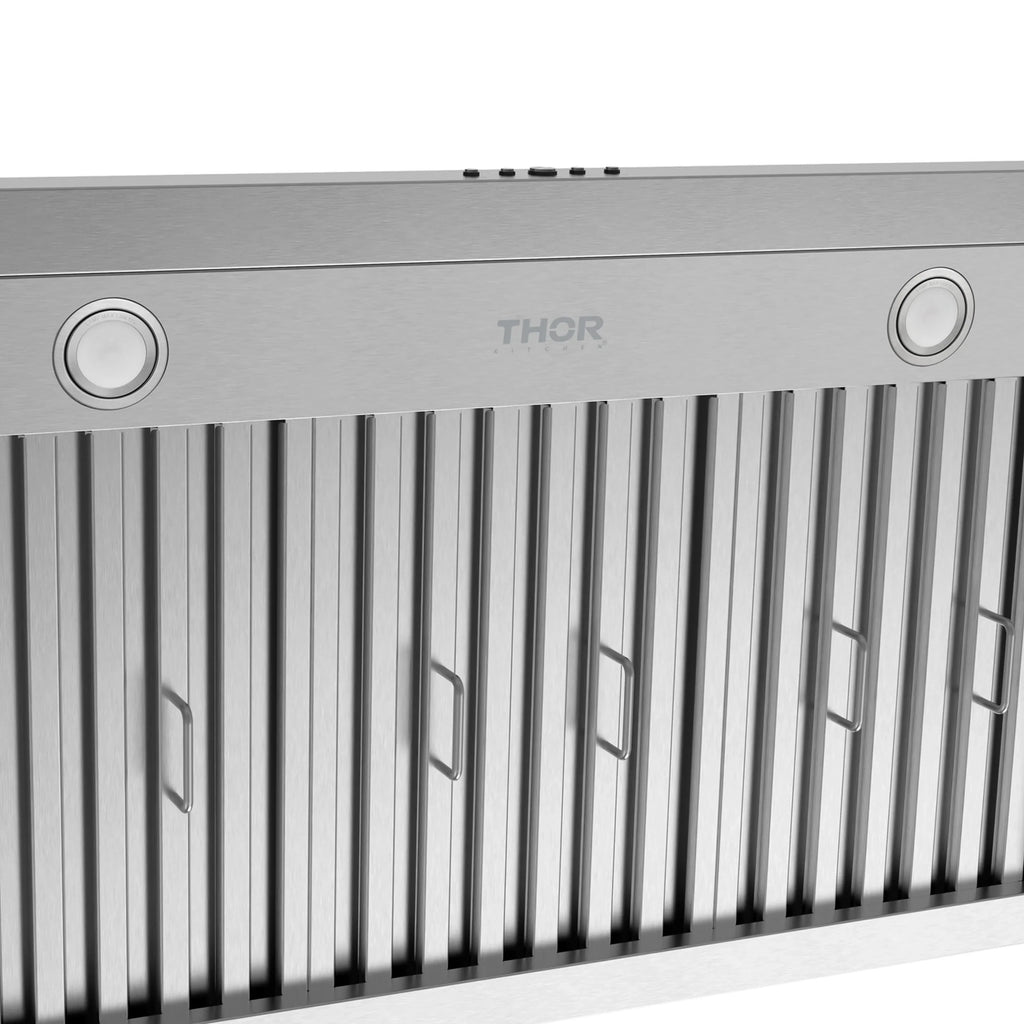

Complete with dishwasher-safe baffle filters for effortless cleaning and enduring performance, this under mounted range hood fuels your passion for bold flavors and fearless creativity in every dish.
| DIMENSIONS | |
|---|---|
| Product Dimensions (WxDxH) (in.) | 35-1/4" × 22-1/16" × 10-1/2" |
| Cutout Dimensions (WxDxH) (in.) | 35-3/8" × 22-1/4" × 10-11/16" |
| Package Dimensions (WxDxH) (in.) | 38-3/16" × 16-1/8" × 26" |
| Net Weight (lbs.) | 51.8 |
| Gross Weight (lbs.) | 59.3 |
| Package Weight (lbs.) | 7.5 |
| GENERAL INFORMATION | |
| Brand | Thor Kitchen |
| Model Number | TUH3648 |
| Shape/Style | Canopy Pro Style |
| Mounting Type | Undercabinet |
| Mounting Brackets | Yes |
| DESIGN & FINISH | |
| Color/Finish | Stainless Steel |
| Control Type | Button |
| Delay Function | Yes (5 mins) |
| TECHNICAL DETAILS | |
| Product Name | 36 Inch Under Mounted Range Hood with 480 CFM |
| Volts (V) | 120V |
| Frequency (Hz) | 60Hz |
| Watts (W) | 263W |
| Amperage (Dedicated) | 15A |
| Plug Type | US 3-Prong Plug |
| Power Cord Length | 39-3/8" |
| Number of Speeds | 3 |
| CFM at Low / Medium / High | 331 / 387 / 480 |
| Noise Level | 3 |
| Noise Rating at Low / Medium / High (dB) | 58 / 61 / 64 |
| Ducted / Recirculating Convertible | Yes |
| Duct Size | 7-11/16" |
| Duct Type | Round |
| FEATURES | |
| Filter Type | Baffle Filter |
| Filter Quantity | 3 |
| Dishwasher Safe | Yes |
| Lighting | 2 × 1.5W Warm White LED |
| Minimum Distance Above Gas Cooking Surface | 30" |
| Minimum Distance Above Electric Cooking Surface | 28" |
| Aluminum Pipe | Sold Separately |
| WARRANTY & CERTIFICATIONS | |
| ETL Listed | Yes (US) |
| Warranty | 2 Years Parts and Labor |

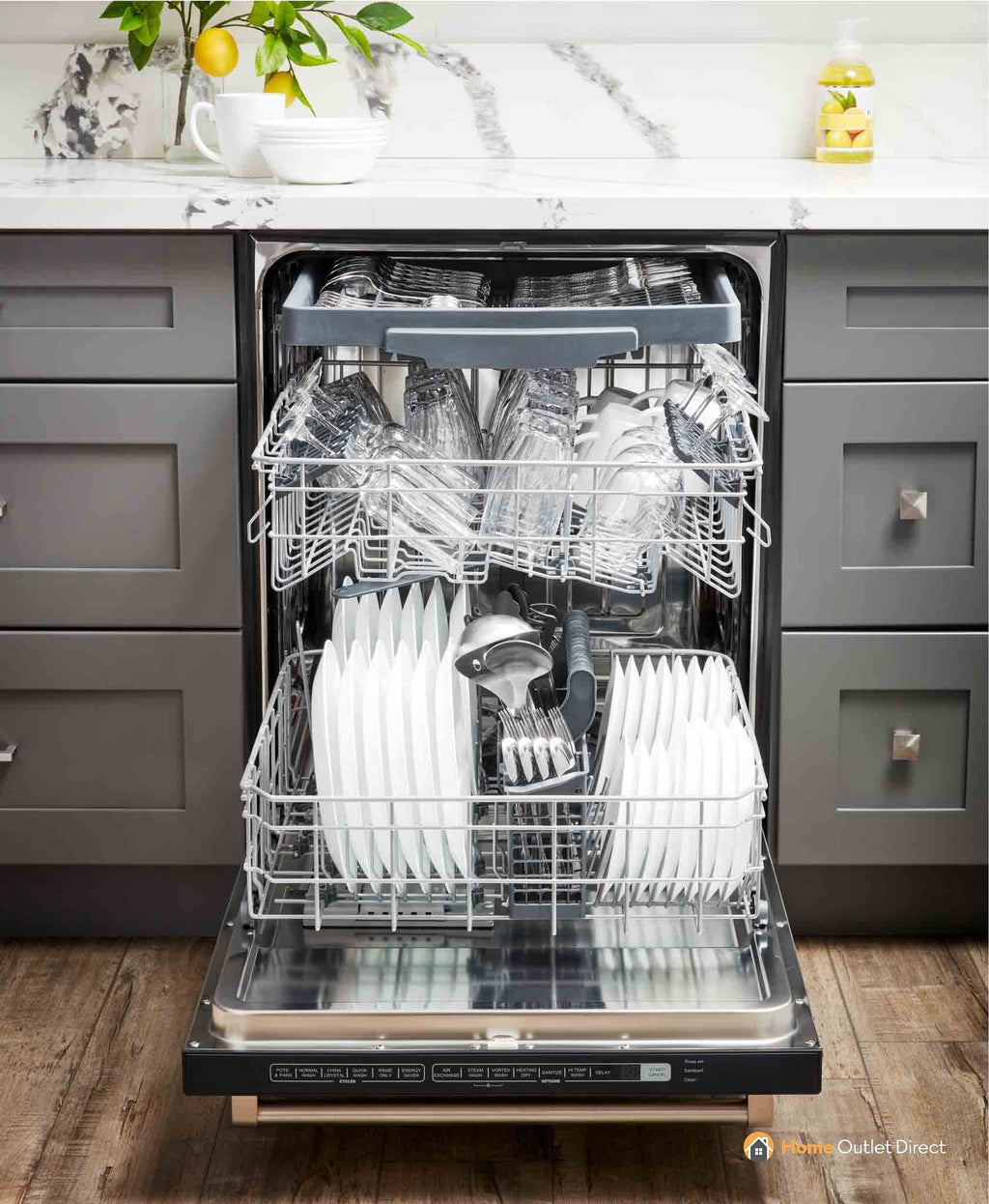

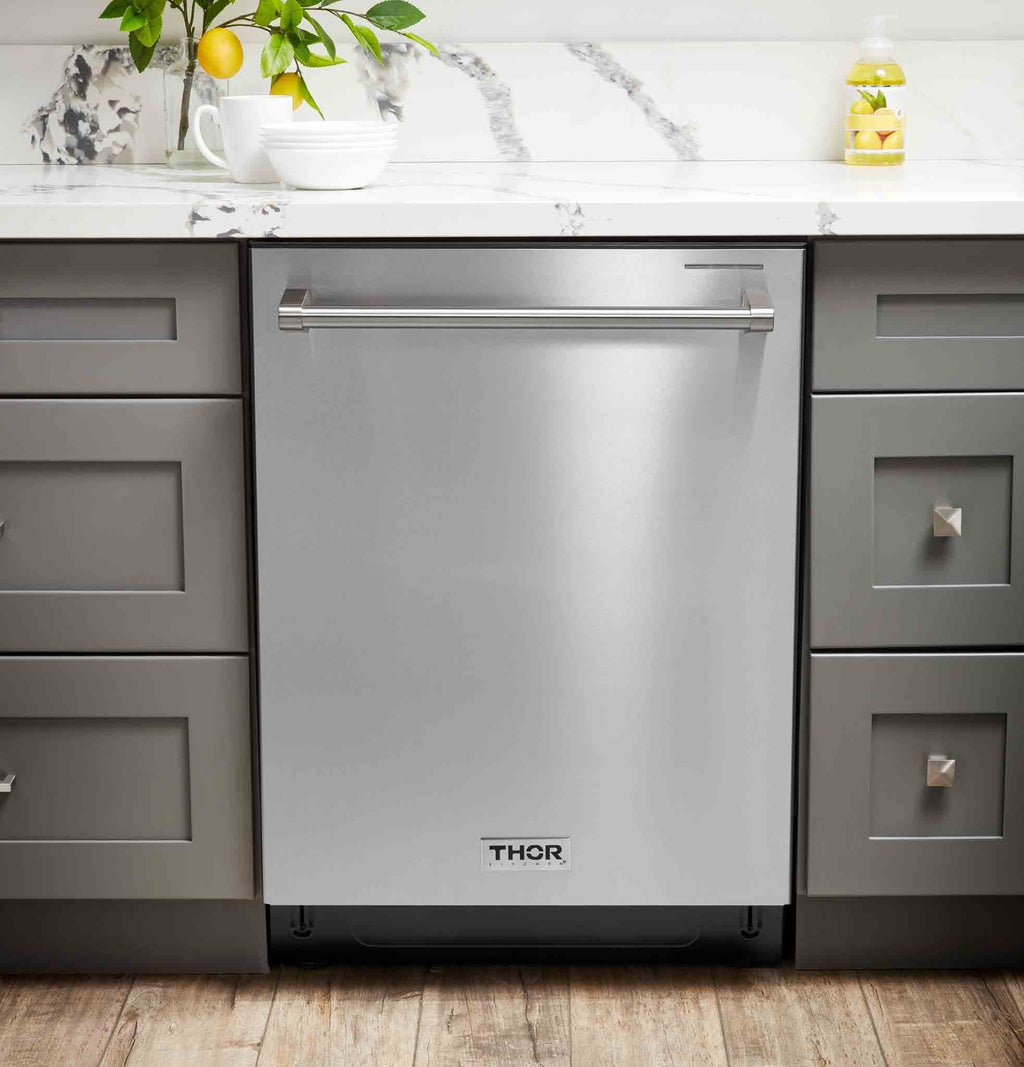

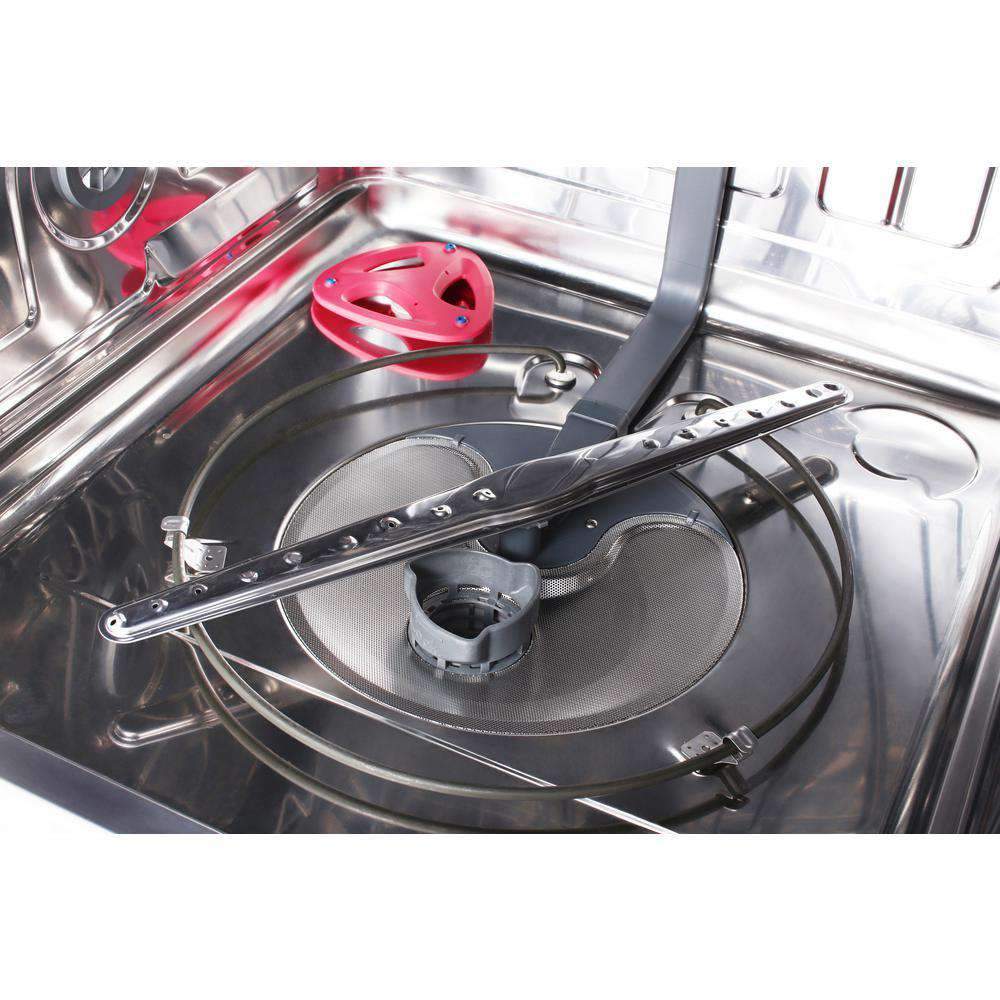

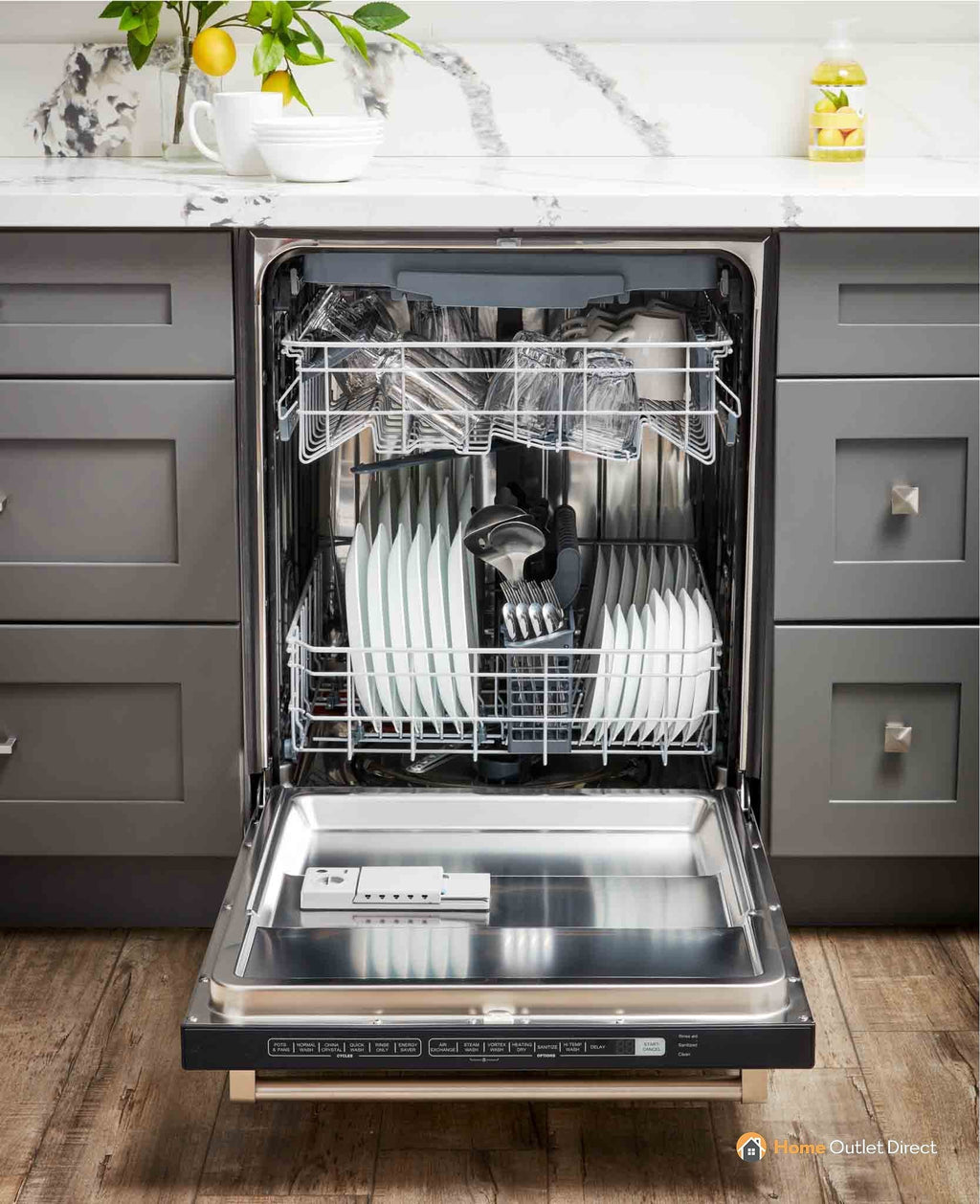

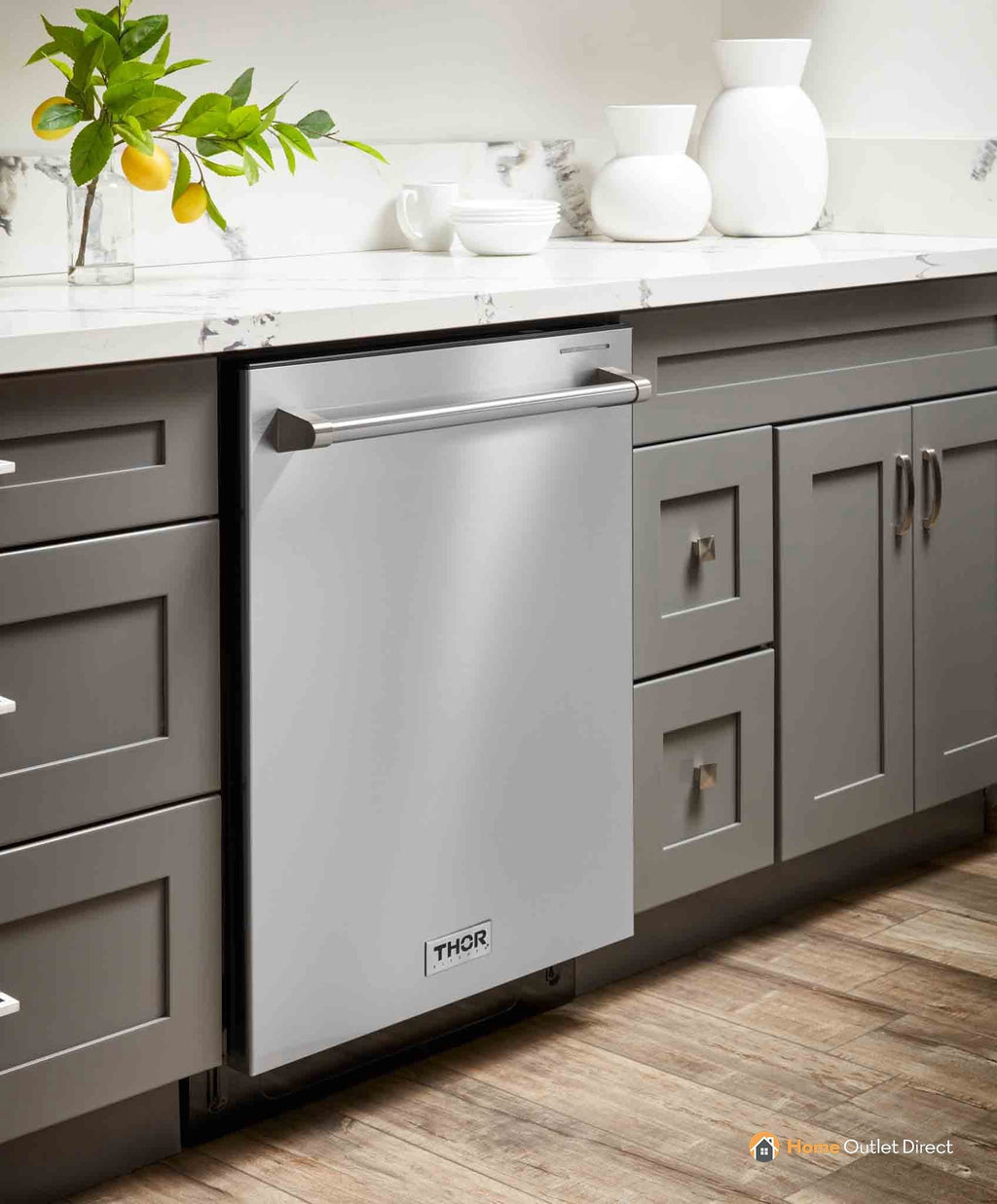

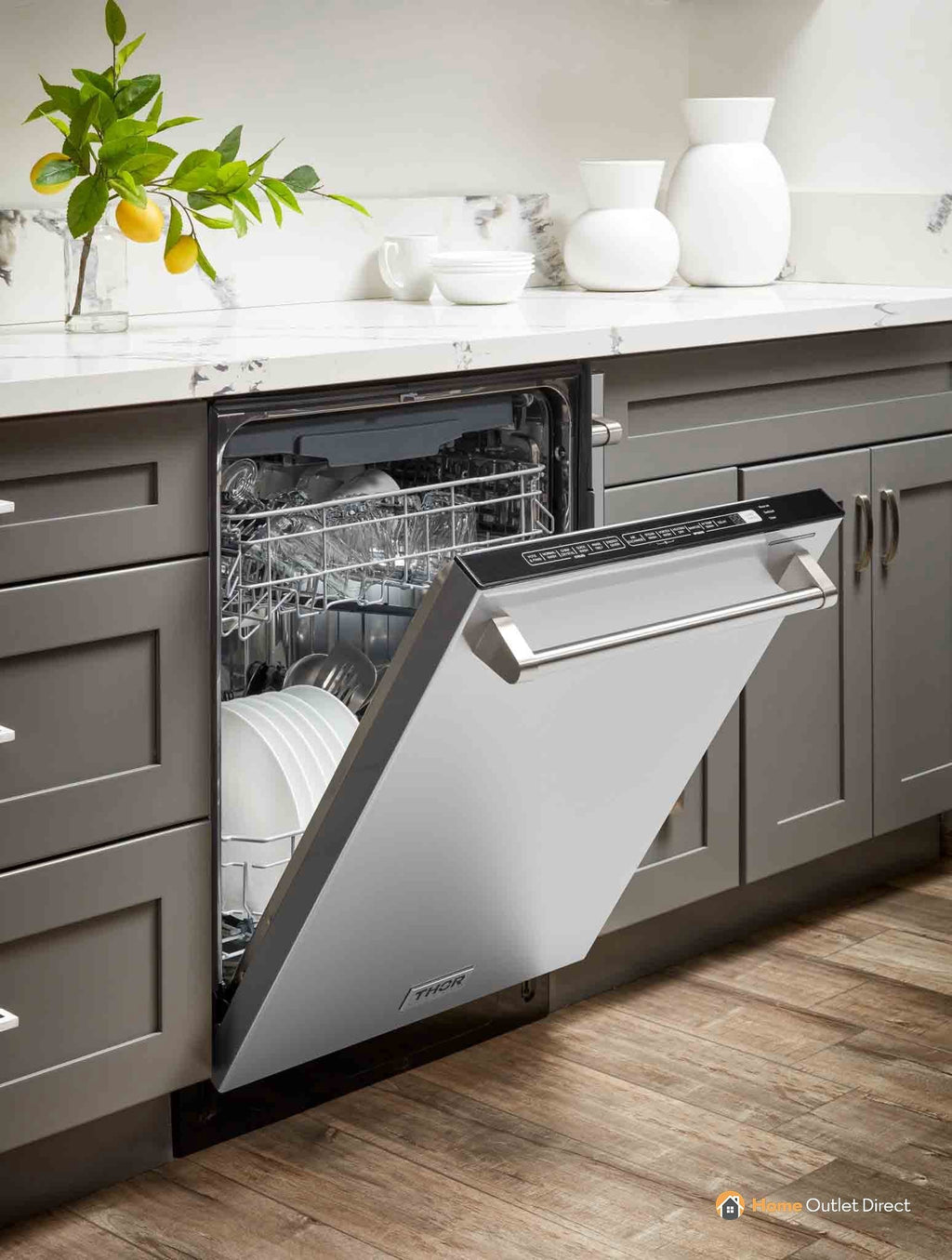

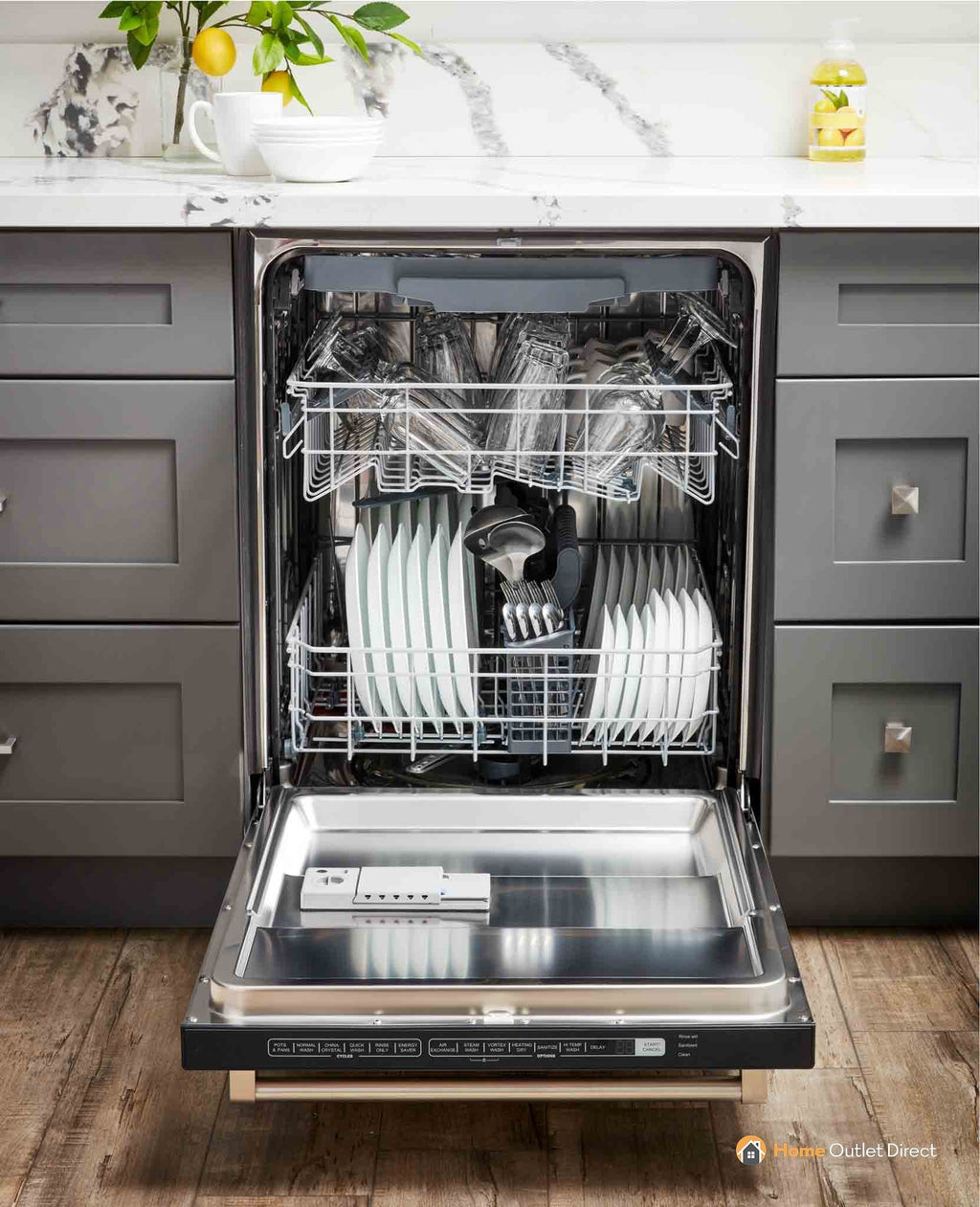

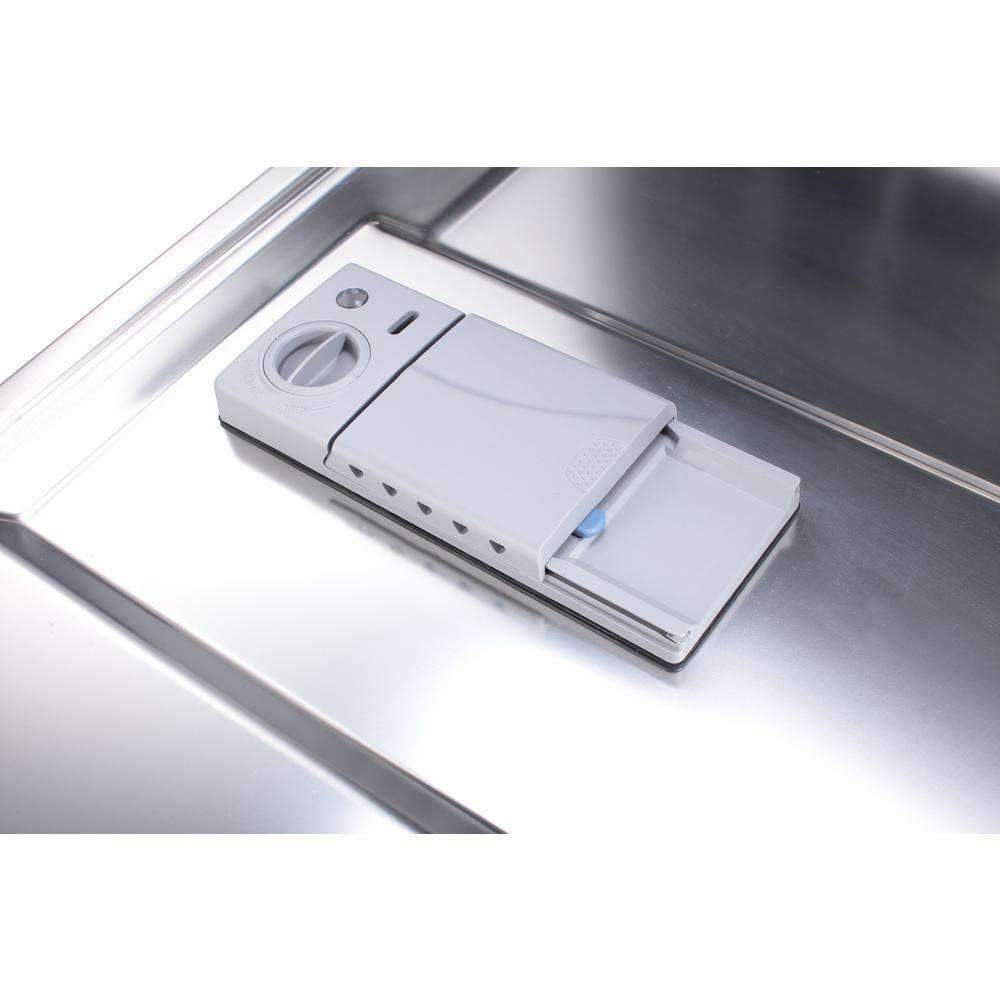

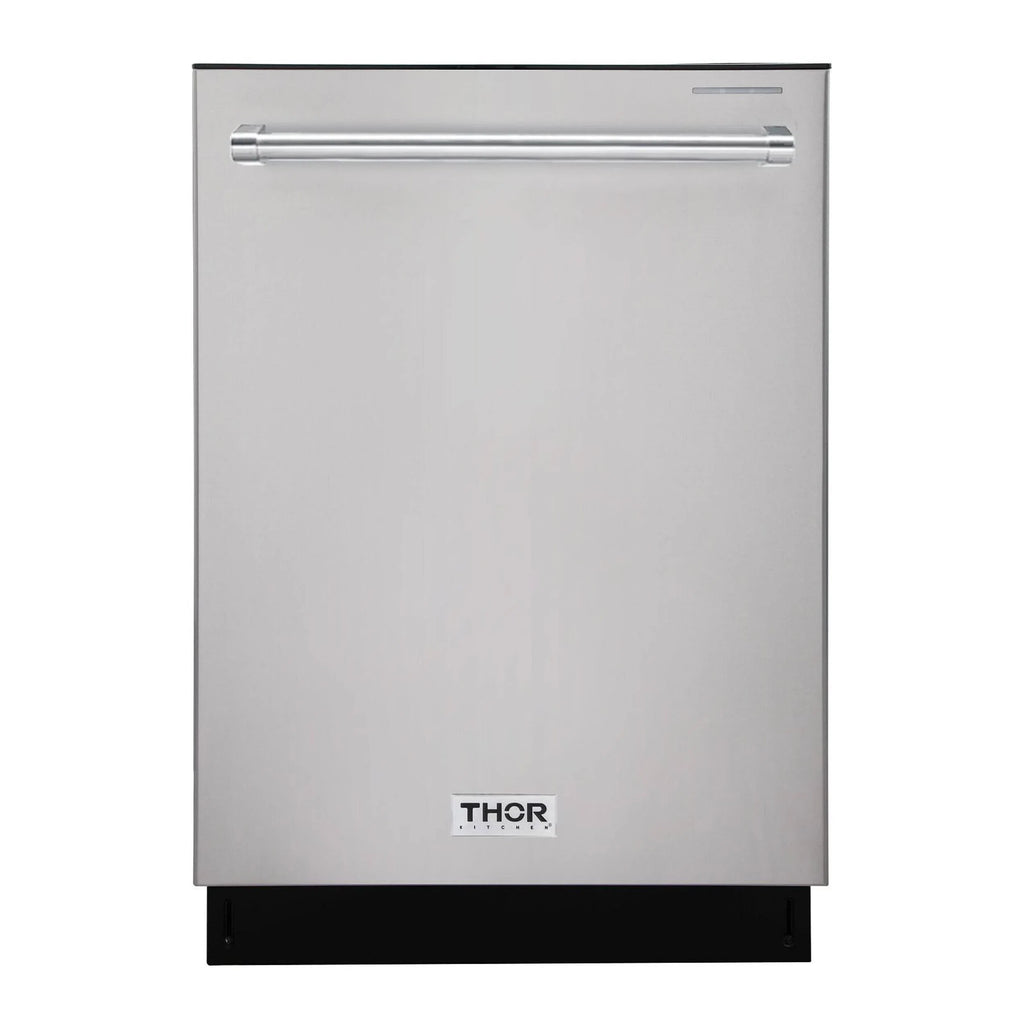

THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. Whether entertaining for one or hosting a full-blown dinner party, things generally get a little messy. That's where a THOR Kitchen dishwasher is a thing of beauty. You'll find useful features like a multiple filtration system for optimal performance using less water and energy, and a Smart Wash System that determines the cycle to use depending on the soil level of the load. Plus four hardworking sprayer arms, delay start and a handy detergent/rinse aid dispenser. It's a well-crafted machine that never met a meal it didn't love. Live clean, my friend, live clean. #cooklikeagod
| DIMENSIONS | |
|---|---|
| Cut-Out Depth (in.) | 24.5 |
| Cut-Out Height (in.) | 35 |
| Cut-Out Width (in.) | 24 |
| Depth - Door Shut (with Handle) (in.) | 24.4 |
| Depth - Door Shut (without Handle) (in.) | 24.4 |
| Depth With Door Open 90 Degrees (In) | 51 |
| Height - Maximum (in) | 35 |
| Height - Minimum (in) | 34 |
| Product Depth (in.) | 24.5 |
| Product Height (in.) | 33.5 |
| Product Width (in.) | 24 |
| Product Weight (lb.) | 97lb |
| GENERAL INFORMATION | |
| Dishwasher Size | 24 In. |
| Appliance Type | Dishwasher |
| Configuration | Single Drawer |
| Custom Door Panel Ready | No |
| DESIGN & FINISH | |
| Color/Finish | Stainless Steel |
| Color/Finish Family | Stainless Steel |

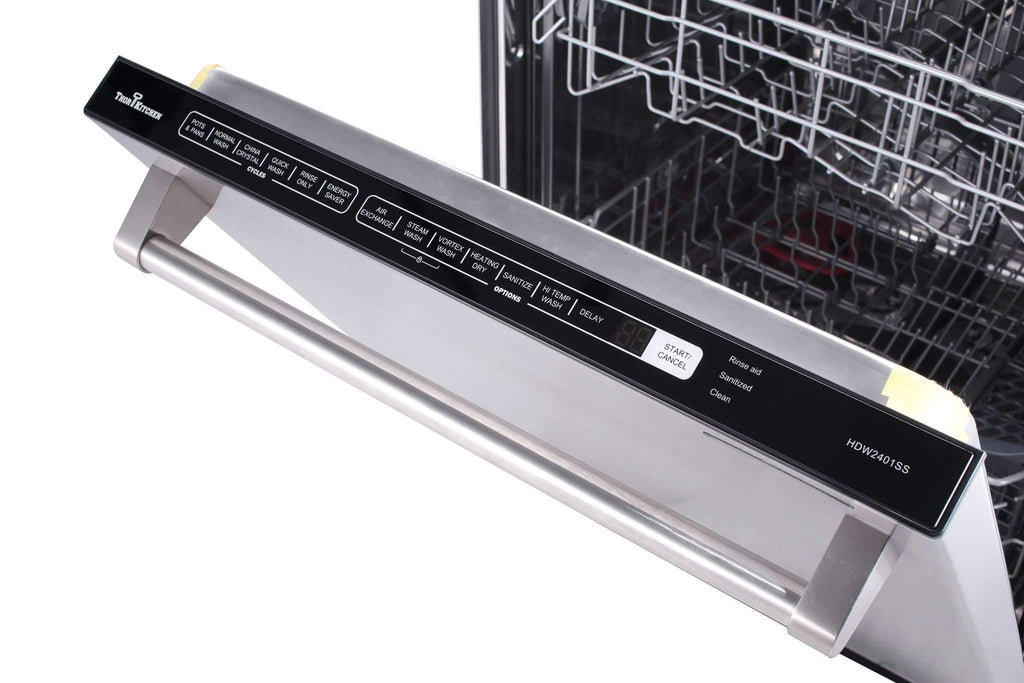

| Control Location | Top Control |
| Control Type | Touch |
| Handle Type | Bar Handle |
| Rack Material | Other |
| Tub Material | Stainless Steel Tub |
| TECHNICAL DETAILS | |
| Amperage (amps) | 20 |
| Decibel (Sound) Rating | 45 dBA |
| Energy Consumption (kWh/year) | 249 |
| Sound Rating Range (Decibels) | Quieter |
| Voltage (volts) | 120 |
| FEATURES | |
| Appliance Category | Dishwasher |
| Dishwasher Cycles | China/Crystal,Pots and Pans,Quick Wash |
| Dishwasher Features |
|

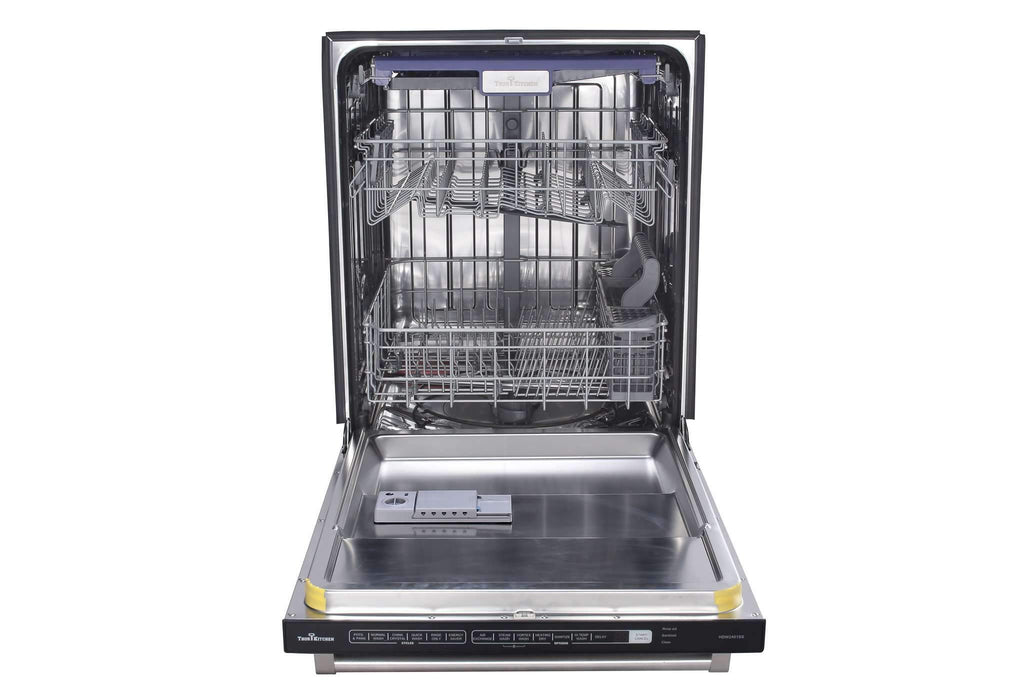

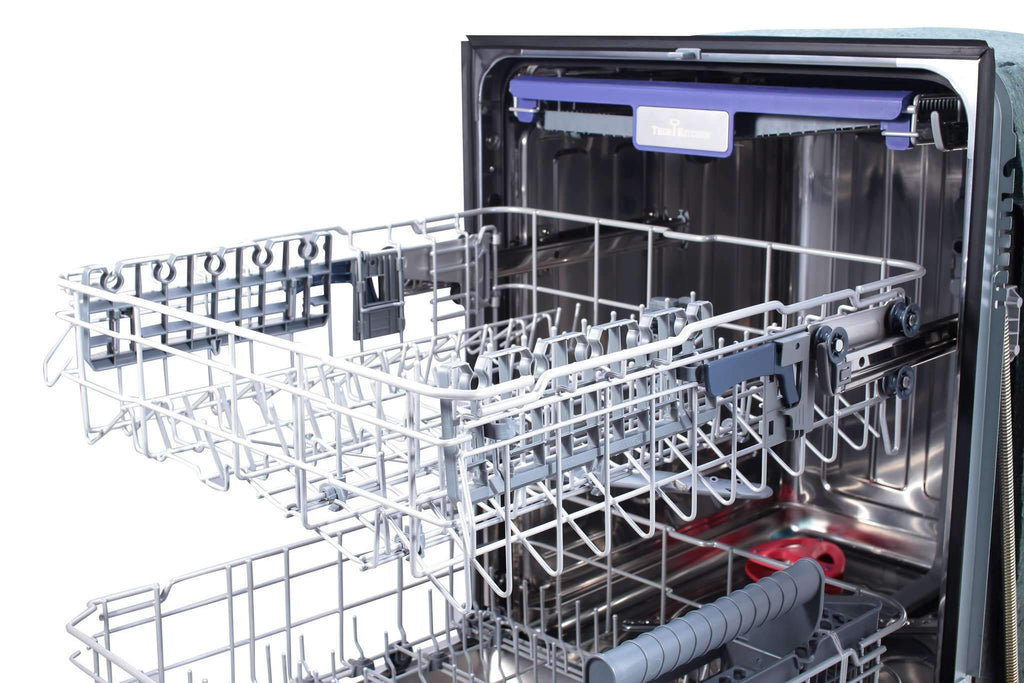

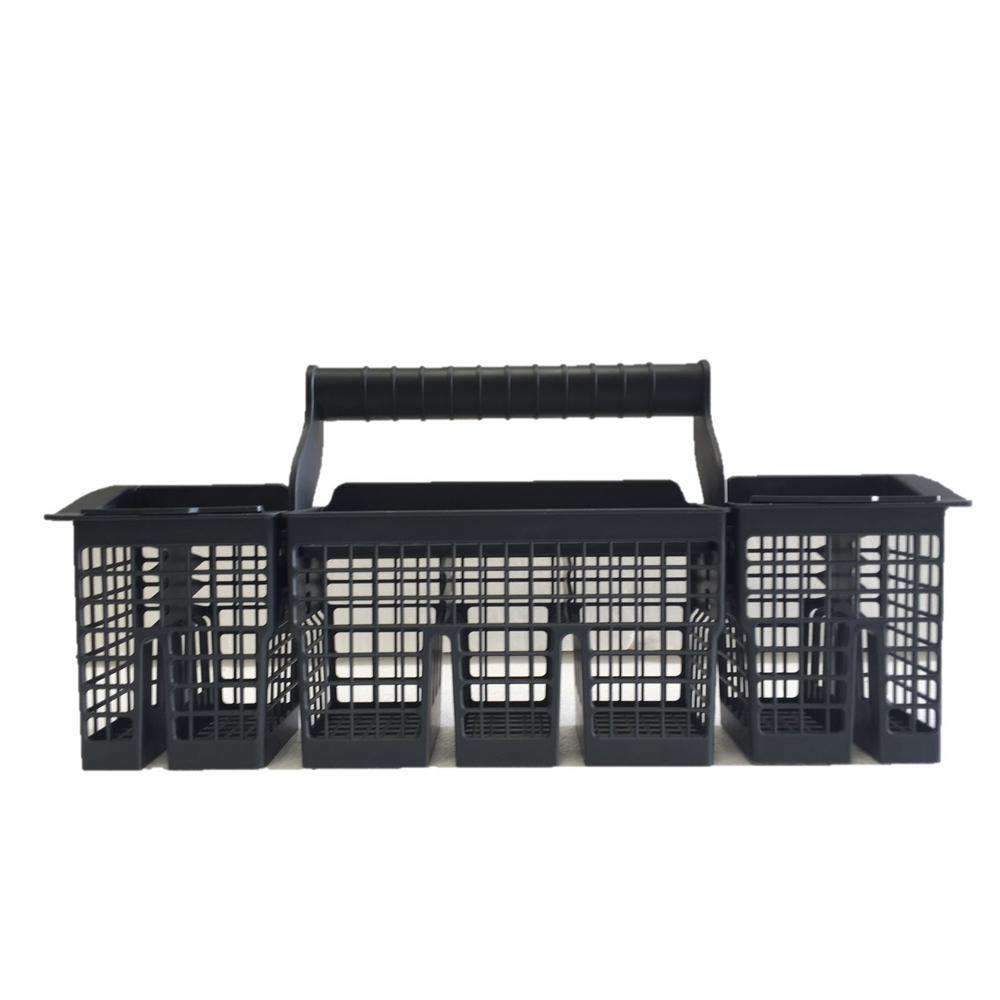

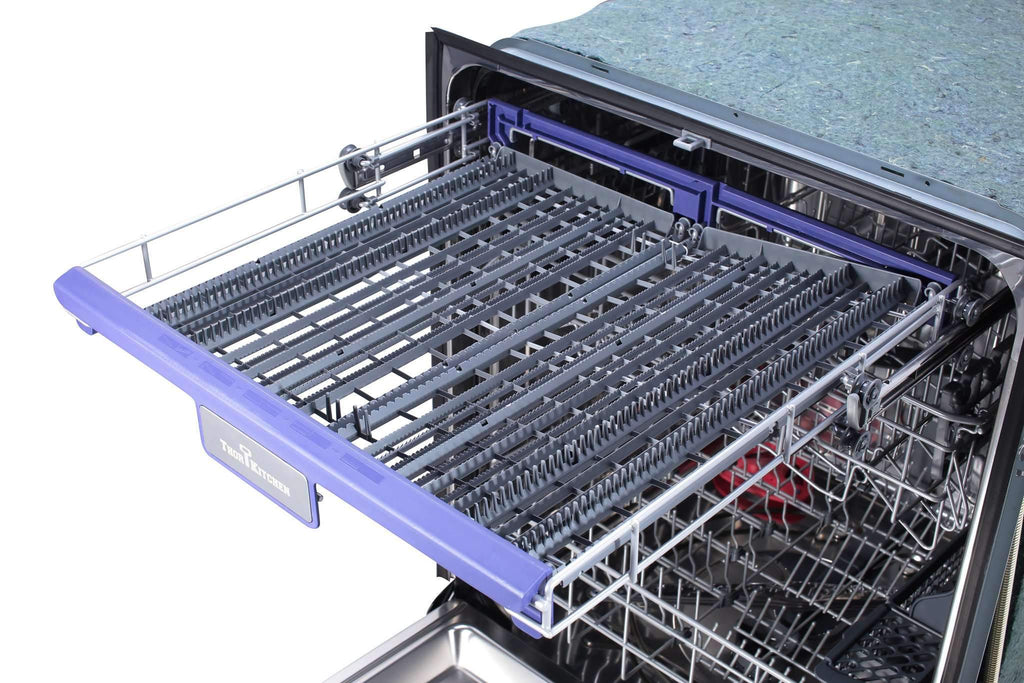

| Dishwasher Rack Configuration | 1st Rack- Fold Down Tines,1st Rack- Removable,1st Rack- Silverware Basket,2nd Rack- Adjustable,2nd Rack- Fold Down Tines,2nd Rack- Removable,Removable Silverware Basket |
| Energy Efficiency Tier Rating | Not CEE rated |
| Number of Cycles | 6 |
| Number of Place Settings | 14 |
| Returnable | 90-Day |
| Silverware Basket Location | In Rack |
| Steam Function | Without Steam |
| Wash/Dry Options | Delay Start, Heated Dry, High-Temperature Wash |
| WARRANTY & CERTIFICATIONS | |
| Certifications and Listings | CSA Certified |
| Manufacturer Warranty | Two Year on Parts |
