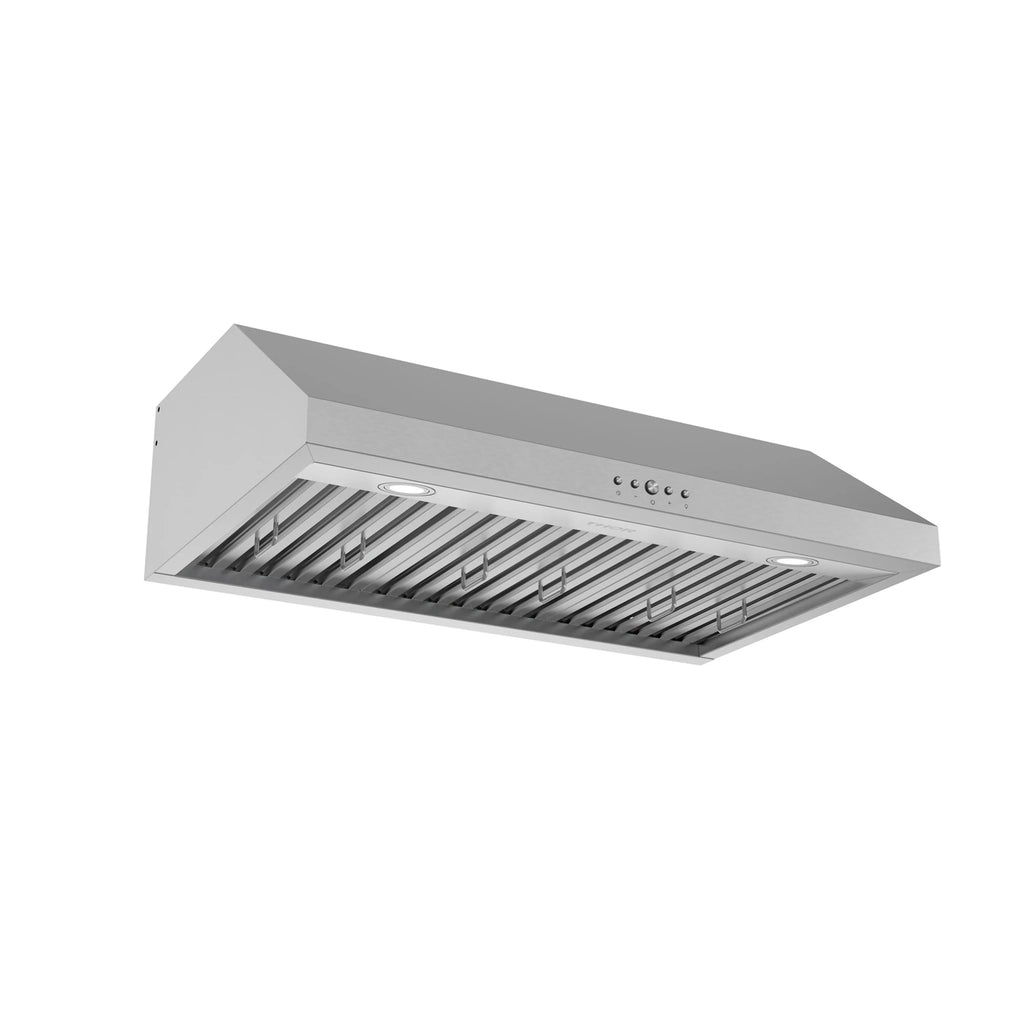

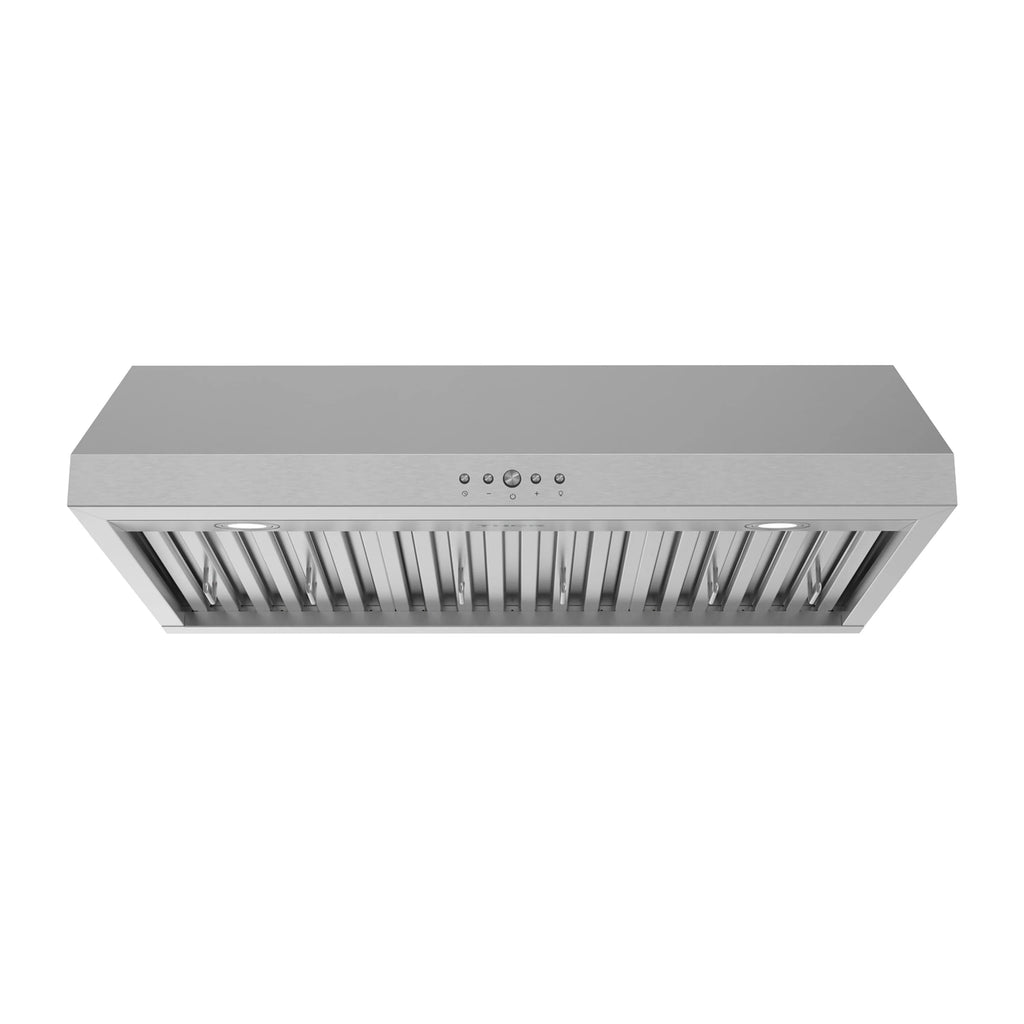

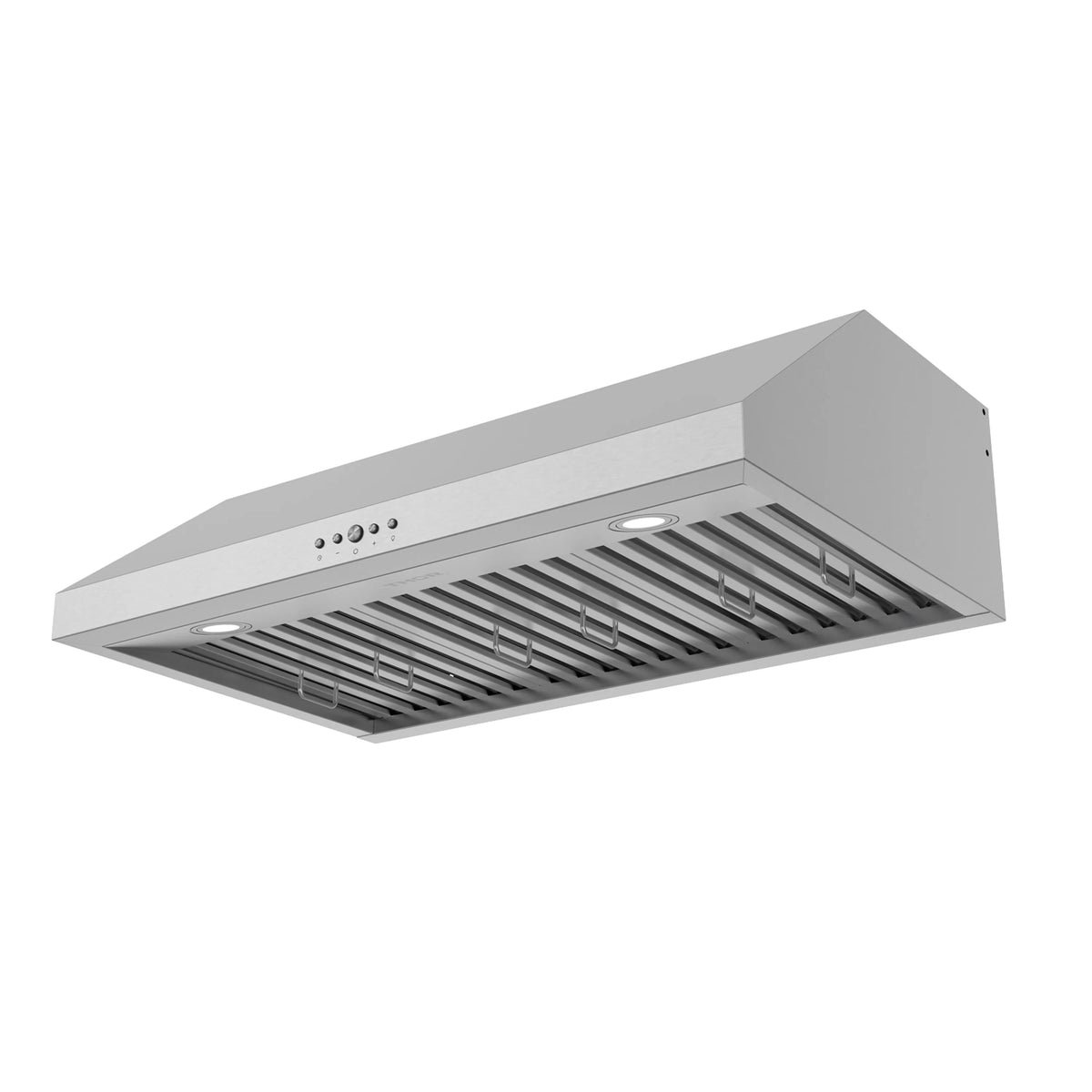

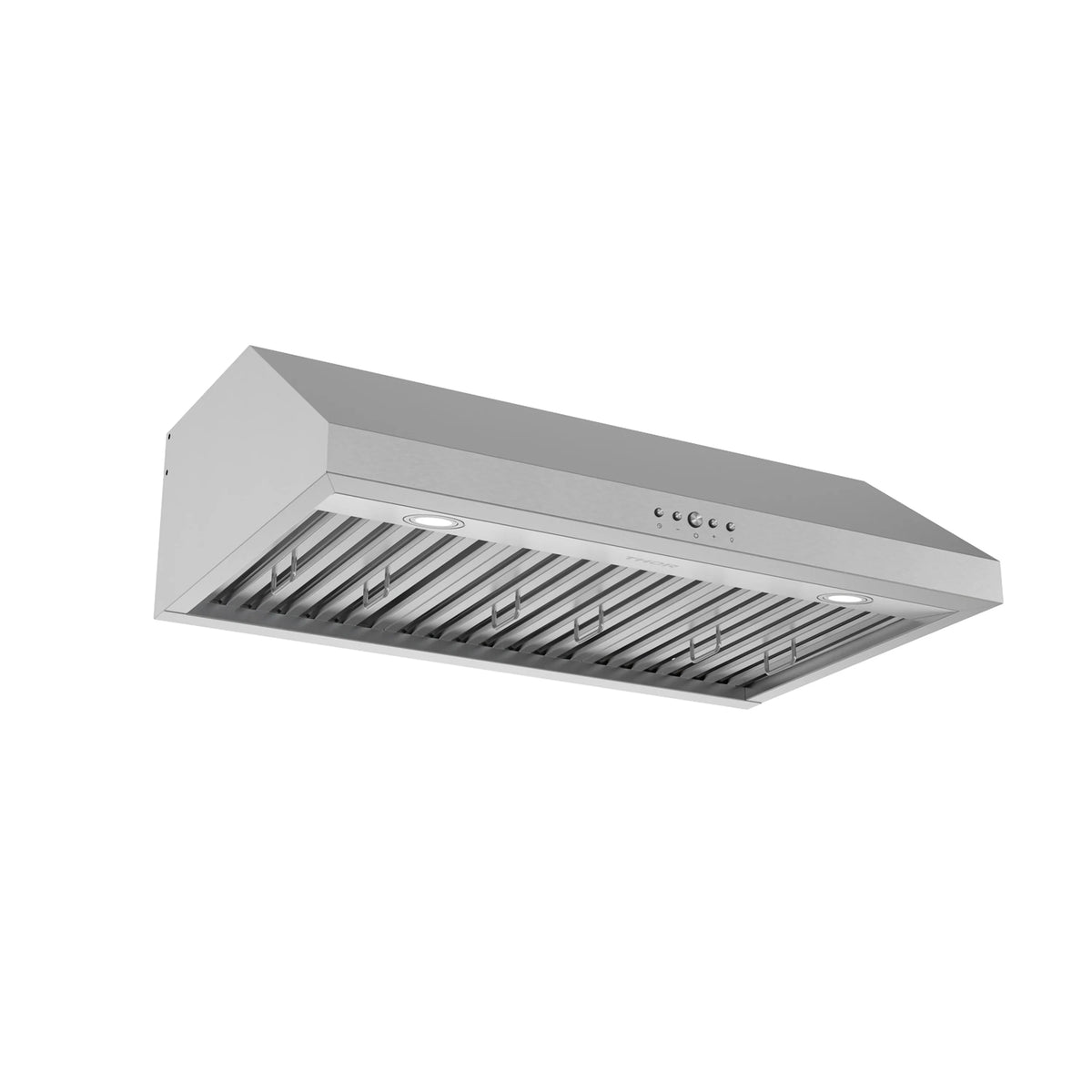

Thor Kitchen 36 Inch Under Mounted Range Hood with powerful 480 CFM ventilation delivers commanding performance and refined style to elevate your everyday cooking. Finished in durable stainless steel, it offers a sleek, modern aesthetic while providing the strength and reliability your kitchen demands.

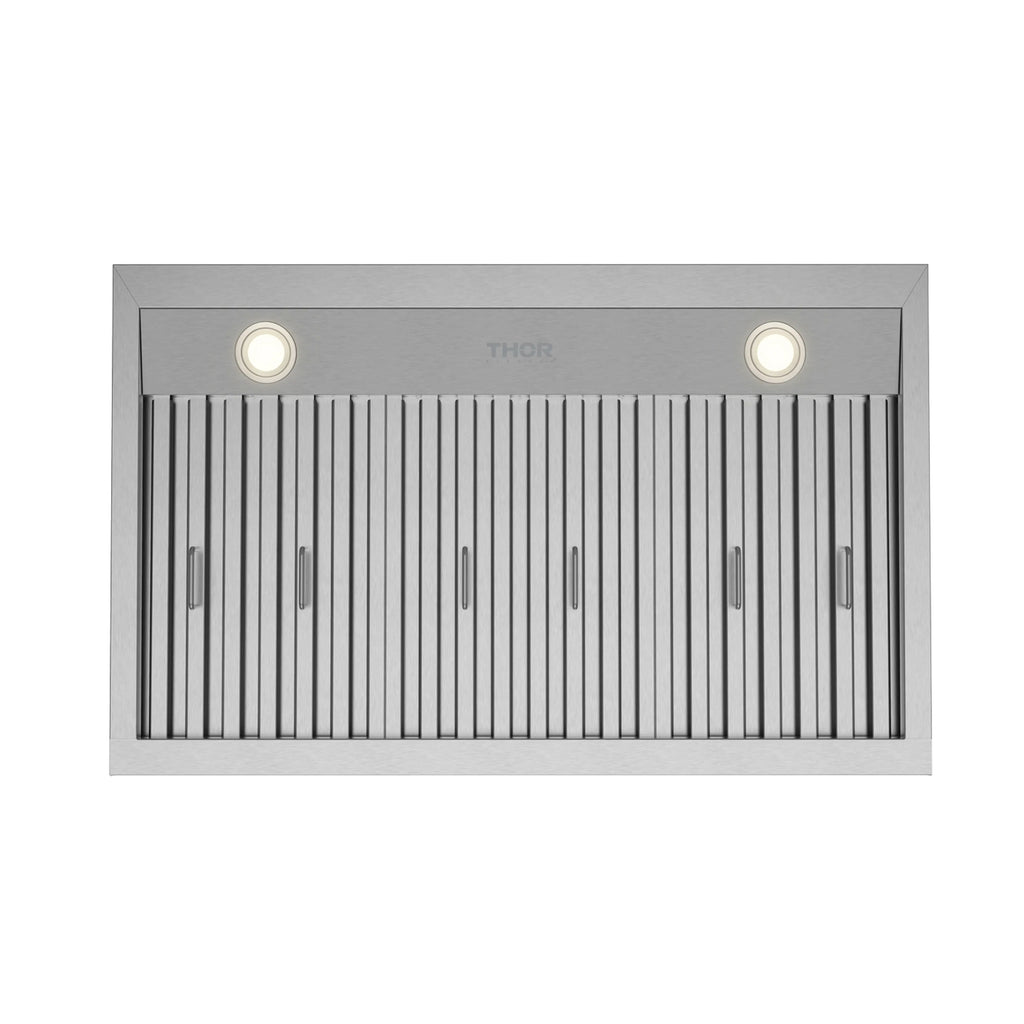

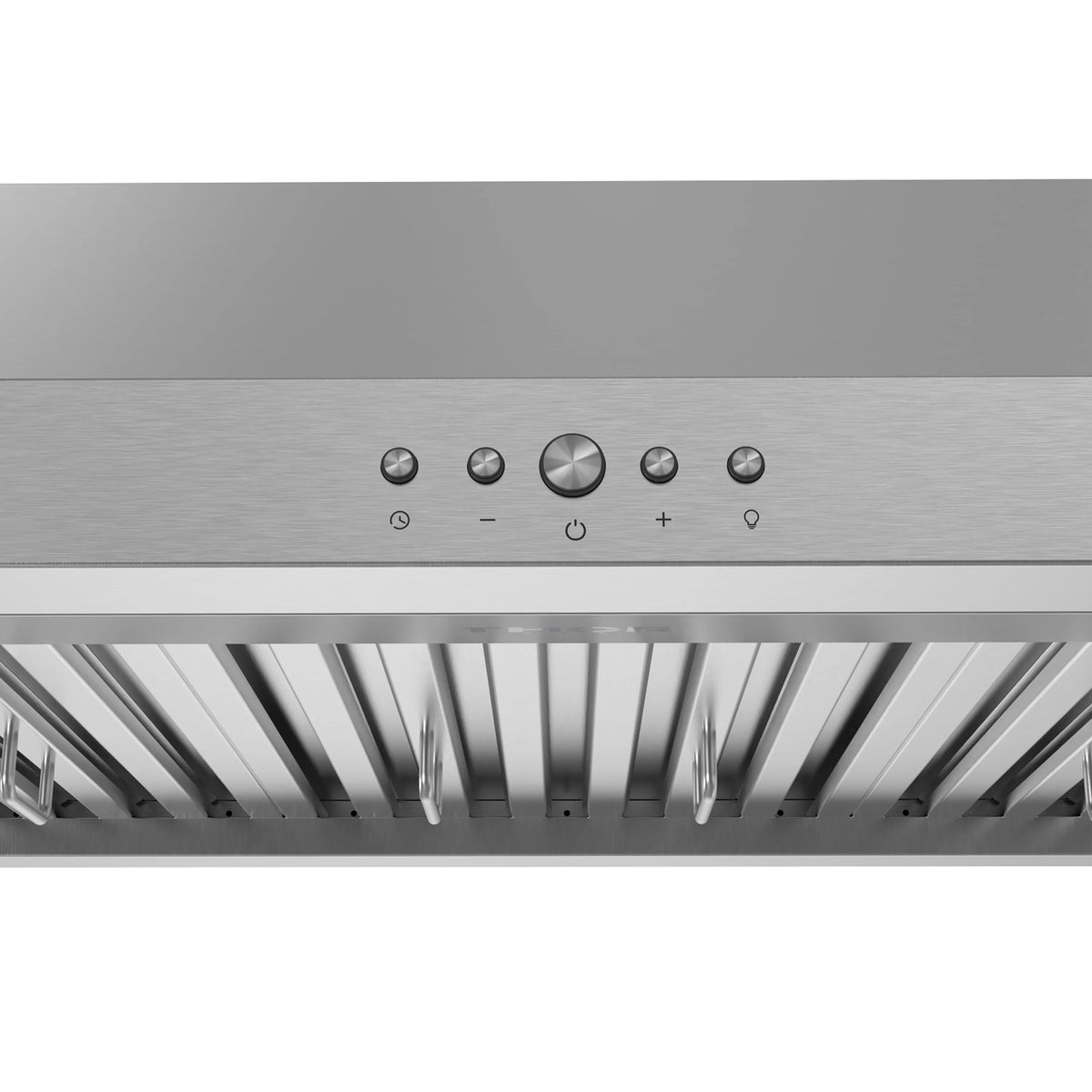

The robust 480 CFM airflow efficiently eliminates smoke, steam, and lingering odors, and with three adjustable fan speeds, you can tailor ventilation to everything from low simmers to high-heat culinary creations. Designed for versatility, this convertible unit supports both ducted and ductless installation to fit seamlessly into your space. Easy push button controls ensure effortless operation, while bright, energy-saving LED lights cast clear illumination across your cooktop.
Complete with dishwasher-safe baffle filters for effortless cleaning and enduring performance, this under mounted range hood fuels your passion for bold flavors and fearless creativity in every dish.
| DIMENSIONS | |
|---|---|
| Product Dimensions (WxDxH) (in.) | 35-1/4" × 22-1/16" × 10-1/2" |
| Cutout Dimensions (WxDxH) (in.) | 35-3/8" × 22-1/4" × 10-11/16" |
| Package Dimensions (WxDxH) (in.) | 38-3/16" × 16-1/8" × 26" |
| Net Weight (lbs.) | 51.8 |
| Gross Weight (lbs.) | 59.3 |
| Package Weight (lbs.) | 7.5 |
| GENERAL INFORMATION | |
| Brand | Thor Kitchen |
| Model Number | TUH3648 |
| Shape/Style | Canopy Pro Style |
| Mounting Type | Undercabinet |
| Mounting Brackets | Yes |
| DESIGN & FINISH | |
| Color/Finish | Stainless Steel |
| Control Type | Button |
| Delay Function | Yes (5 mins) |
| TECHNICAL DETAILS | |
| Product Name | 36 Inch Under Mounted Range Hood with 480 CFM |
| Volts (V) | 120V |
| Frequency (Hz) | 60Hz |
| Watts (W) | 263W |
| Amperage (Dedicated) | 15A |

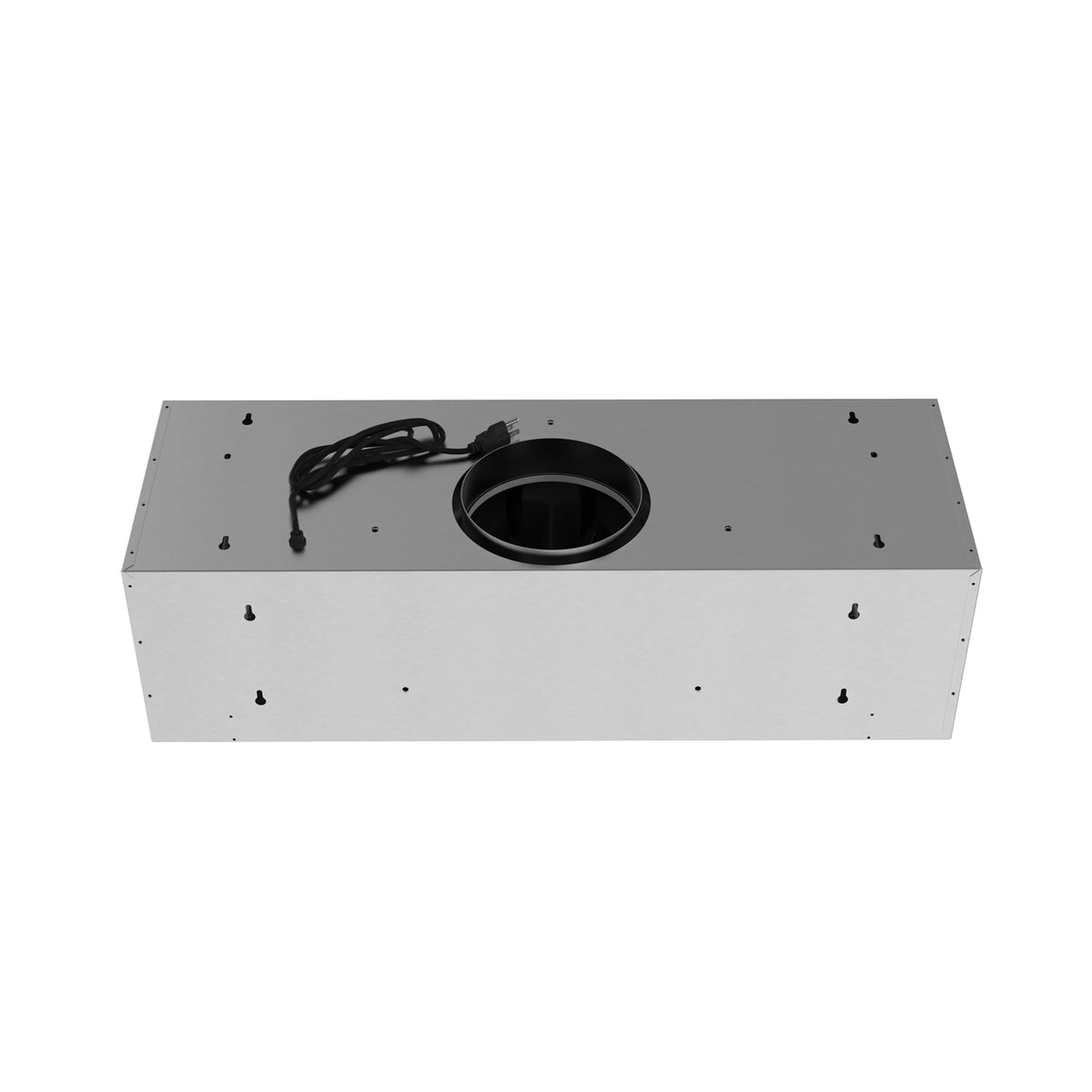

| Plug Type | US 3-Prong Plug |
| Power Cord Length | 39-3/8" |
| Number of Speeds | 3 |
| CFM at Low / Medium / High | 331 / 387 / 480 |
| Noise Level | 3 |
| Noise Rating at Low / Medium / High (dB) | 58 / 61 / 64 |
| Ducted / Recirculating Convertible | Yes |

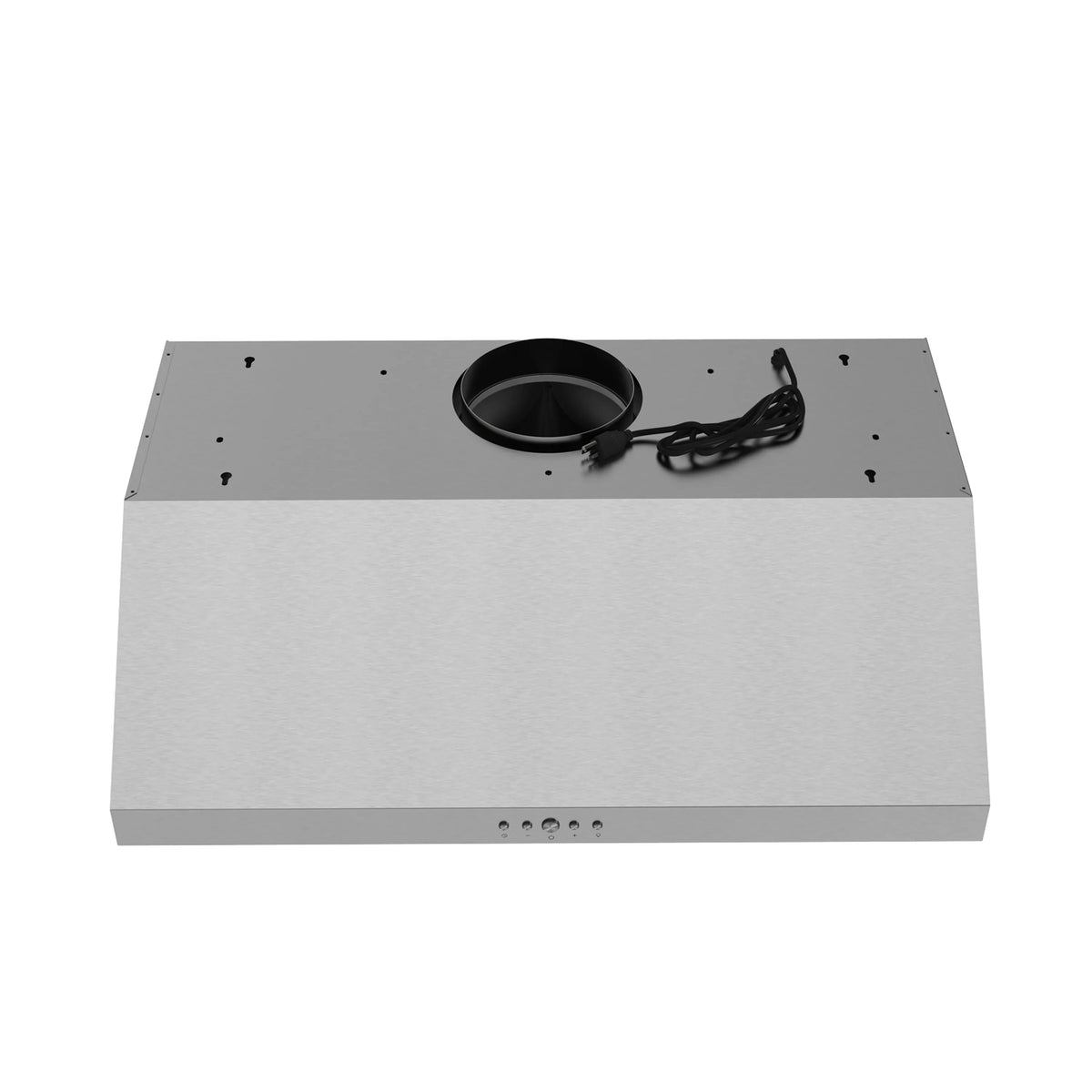

| Duct Size | 7-11/16" |
| Duct Type | Round |
| FEATURES | |
| Filter Type | Baffle Filter |
| Filter Quantity | 3 |
| Dishwasher Safe | Yes |

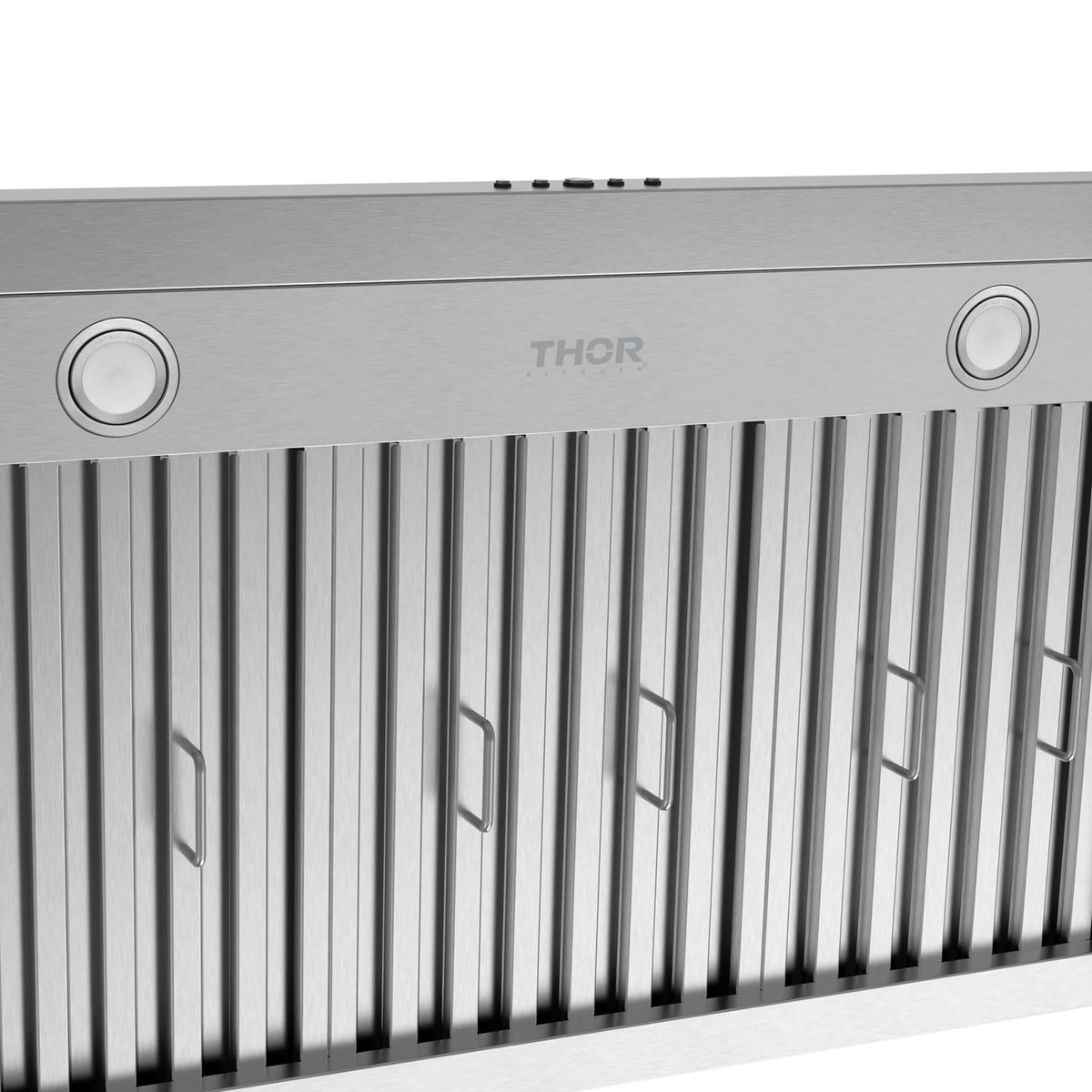

| Lighting | 2 × 1.5W Warm White LED |
| Minimum Distance Above Gas Cooking Surface | 30" |
| Minimum Distance Above Electric Cooking Surface | 28" |
| Aluminum Pipe | Sold Separately |
| WARRANTY & CERTIFICATIONS | |
| ETL Listed | Yes (US) |
| Warranty | 2 Years Parts and Labor |
