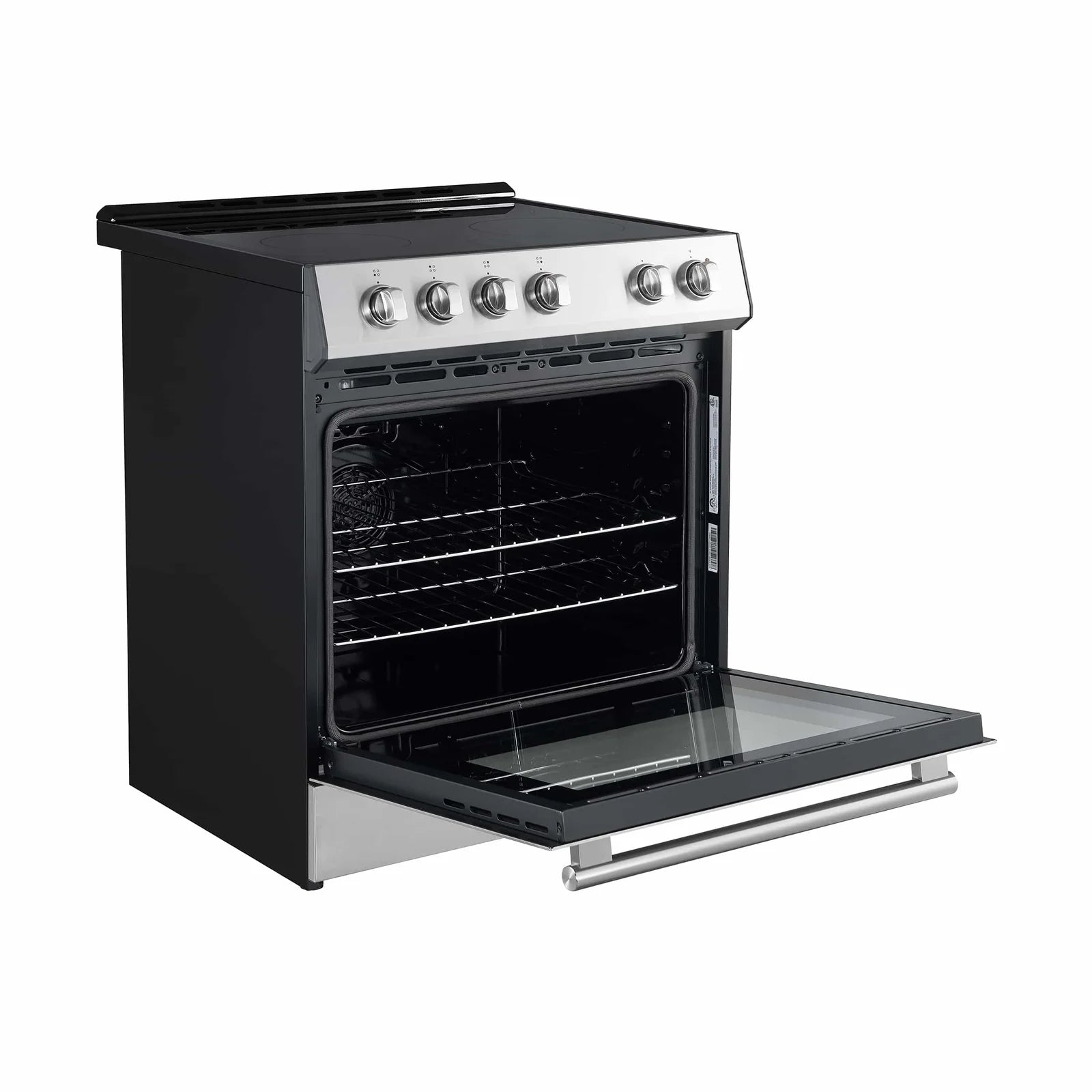

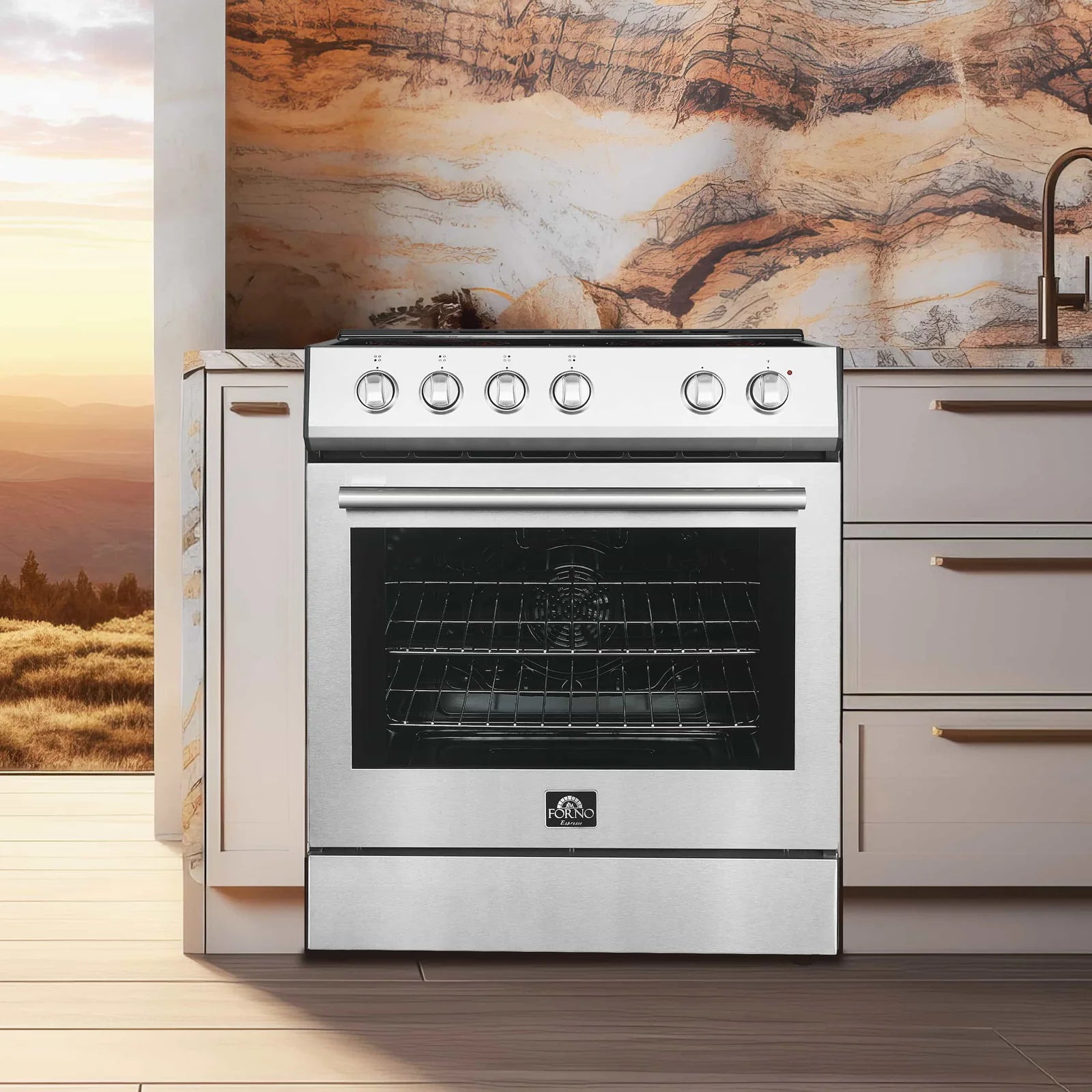

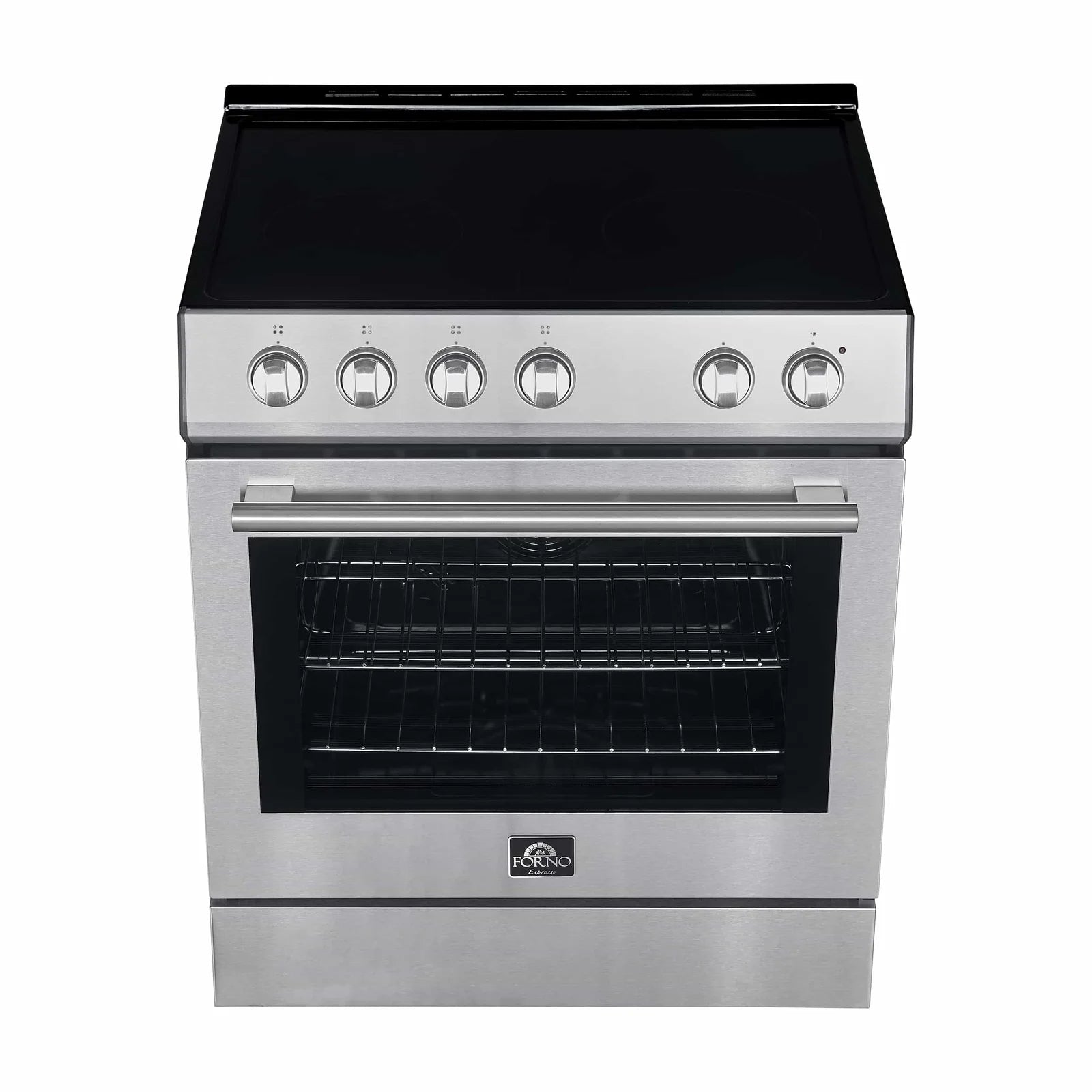

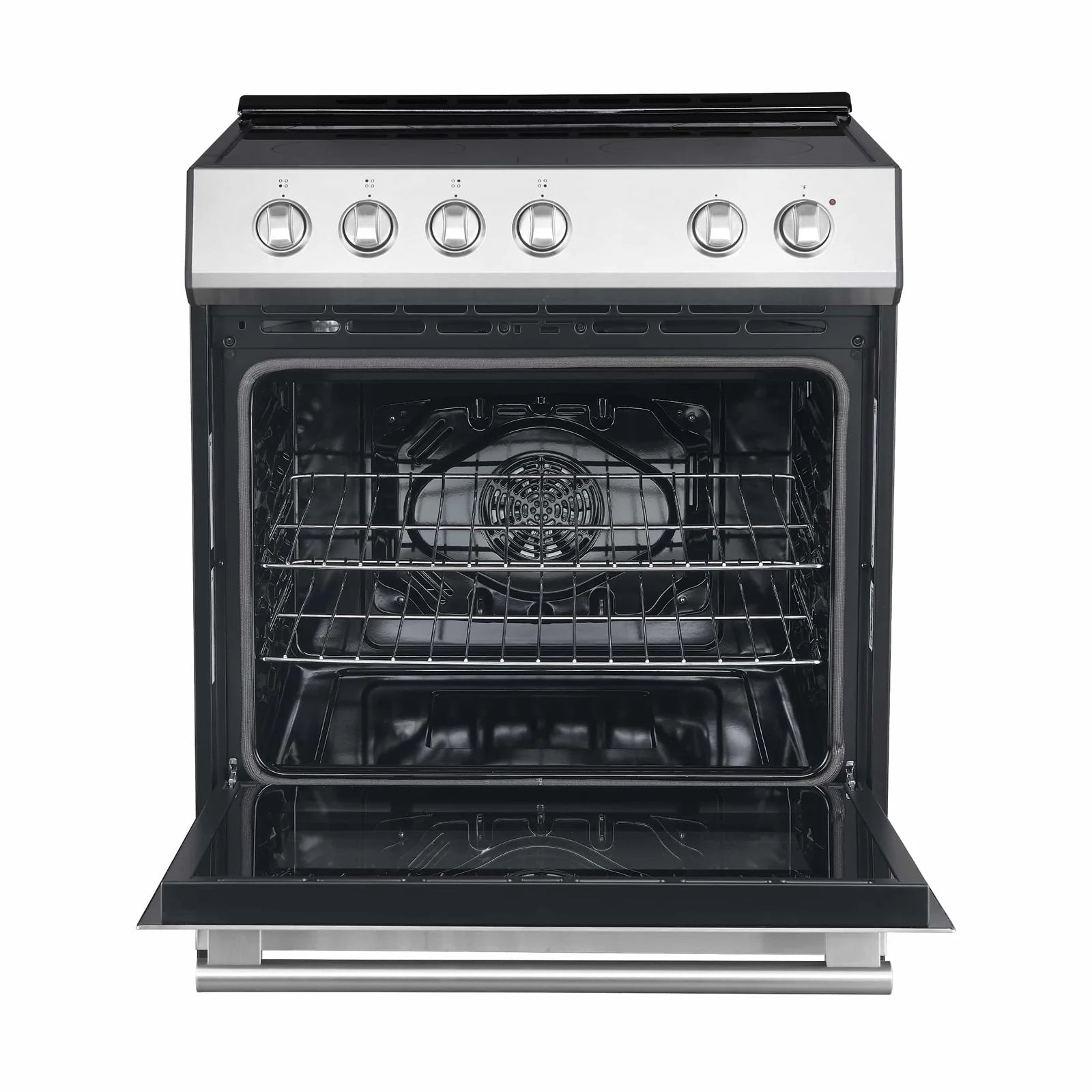

Introducing the Forno Leonardo Espresso 30" 5.0 cu. Ft. Stainless-Steel Electric Range, a kitchen game-changer. With 4 Radiant Elements, and a 5,500-watt Convection Oven, it combines style with top-notch performance. Ceramic Glass ensures even heat distribution. The Hidden Bake Element simplifies maintenance by preventing spills and odors. Elevate your kitchen with this timeless, user-friendly range, marrying durability with sophistication. Cook with confidence, and embrace efficiency and style with every use.
Experience peace of mind with FORNO products, each backed by a comprehensive 2-year warranty covering both labor and parts. Our commitment ensures your satisfaction and confidence in the reliability of our appliances.

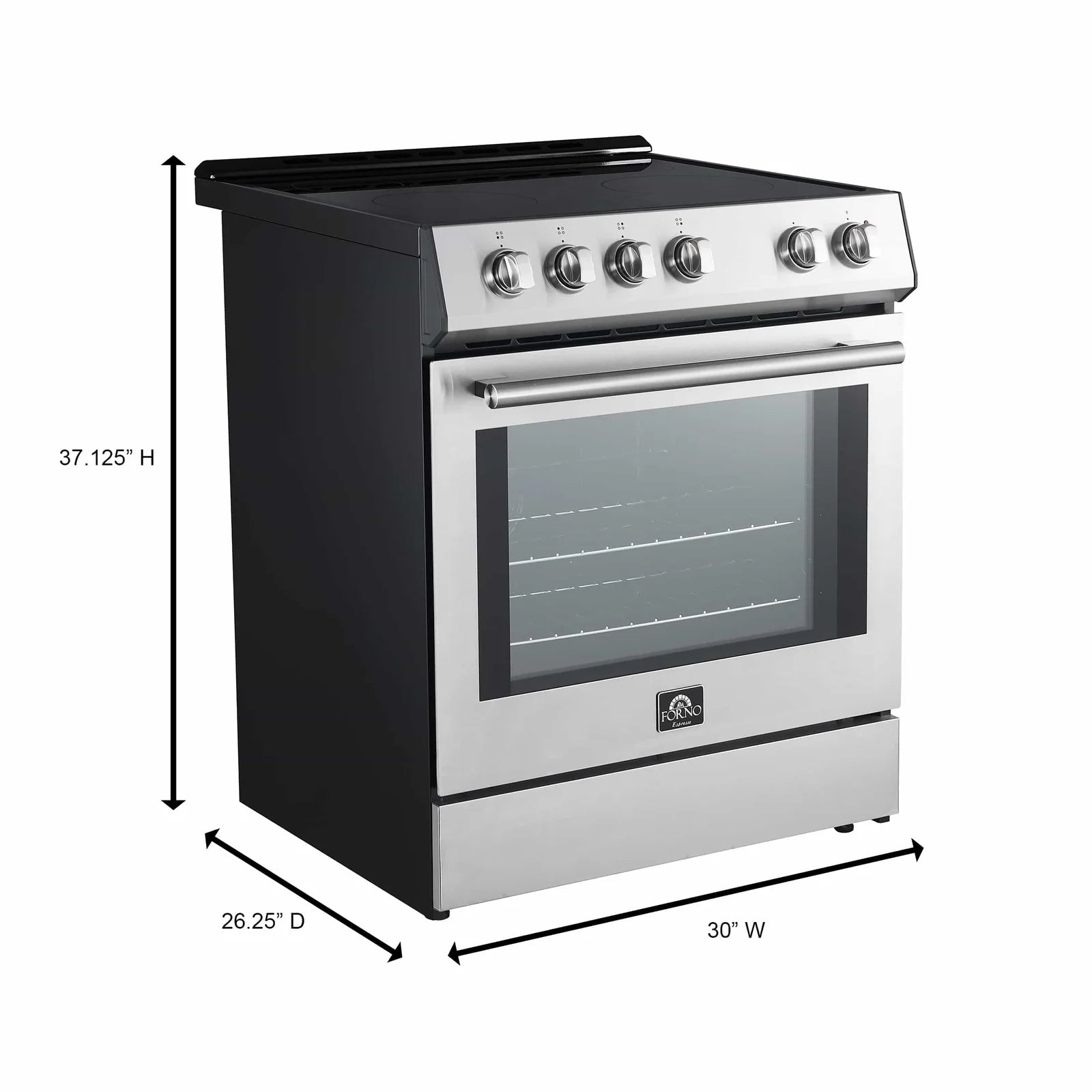

| DIMENSIONS | |
|---|---|
| Minimum Counter Height | 36" |
| Maximum Counter Height | 38" |
| Depth with Oven Door Open 90º | 46.25" |
| Depth without Oven Door Handle | 27.8" |
| Overall Weight | 145.5 lbs |
| Main Oven Interior | 24.6" W x 17.7" D x 19.6" H |
| GENERAL INFORMATION | |
| Product Type | Slide-In |
| Safety Lock | No |
| Supplier Intended and Approved Use | Residential Use |
| Country of Origin | China |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Overall - Biggest Dims Possible (with Handle, Backsplash, etc) | 30" W X 27.95" D X 38" H |
| Color/Finish | Stainless Steel |
| Handle Finish | Stainless Steel |

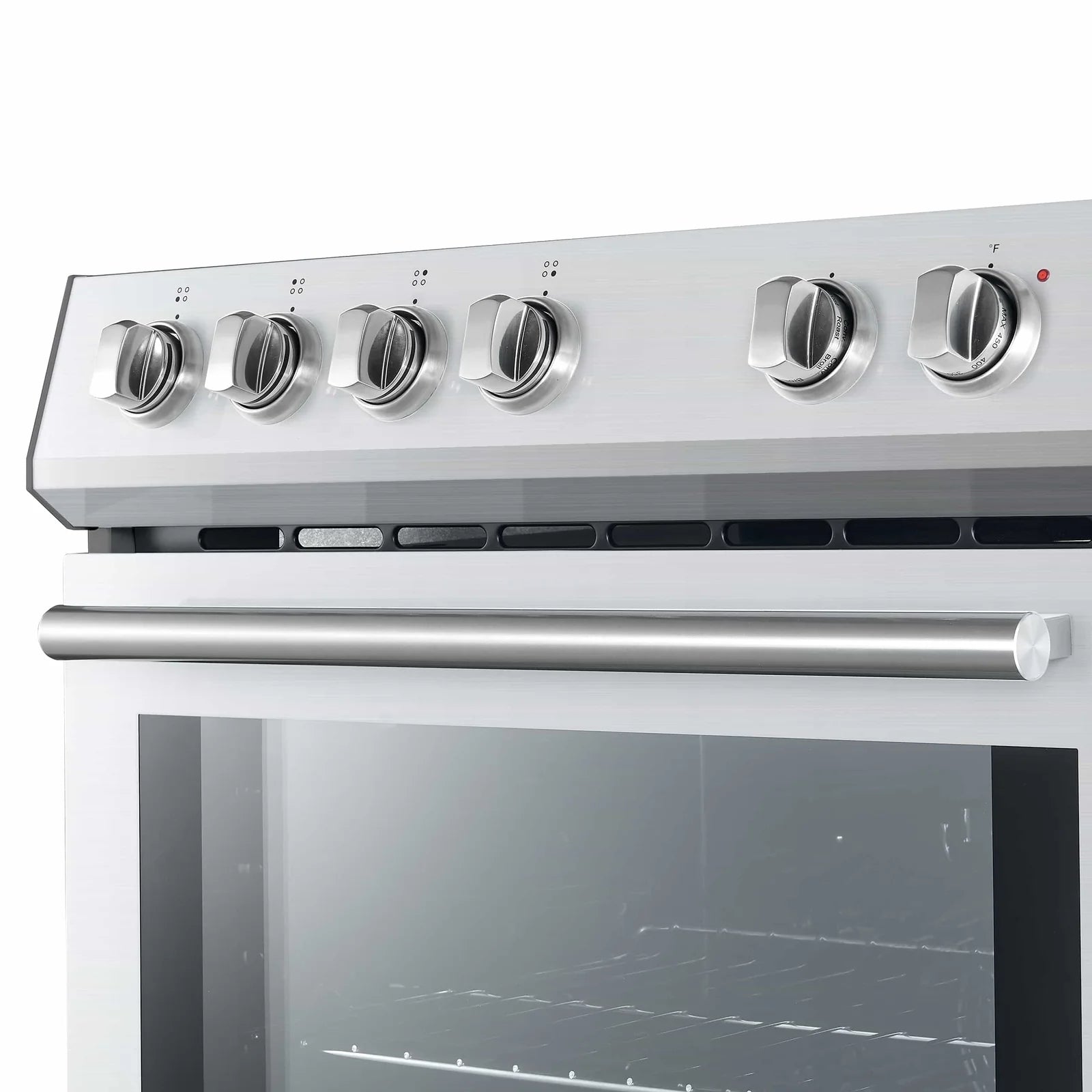

| Control Type | Knob |
| Number of Knobs | 6 |
| Knobs Color/Finish | Stainless Steel |
| Control Location | Front |
| Clock | No |
| Primary Material | Steel |
| Control Panel Material | Stainless Steel |
| Kick Plate Material | Stainless Steel |
| Side Panel Material | Stainless Steel |
| TECHNICAL DETAILS | |
| Fuel Type | Electric |
| Plug-In | No |
| Dedicated Circuit Breaker Amperage | 50 |
| Total Amps Use | 44.25 |
| Volts | 240 |
| Overall Max Power (W) | 10650 |
| Power Cord Included | No |
| COOKTOP FEATURES | |
| Burner Fuel | Electric |

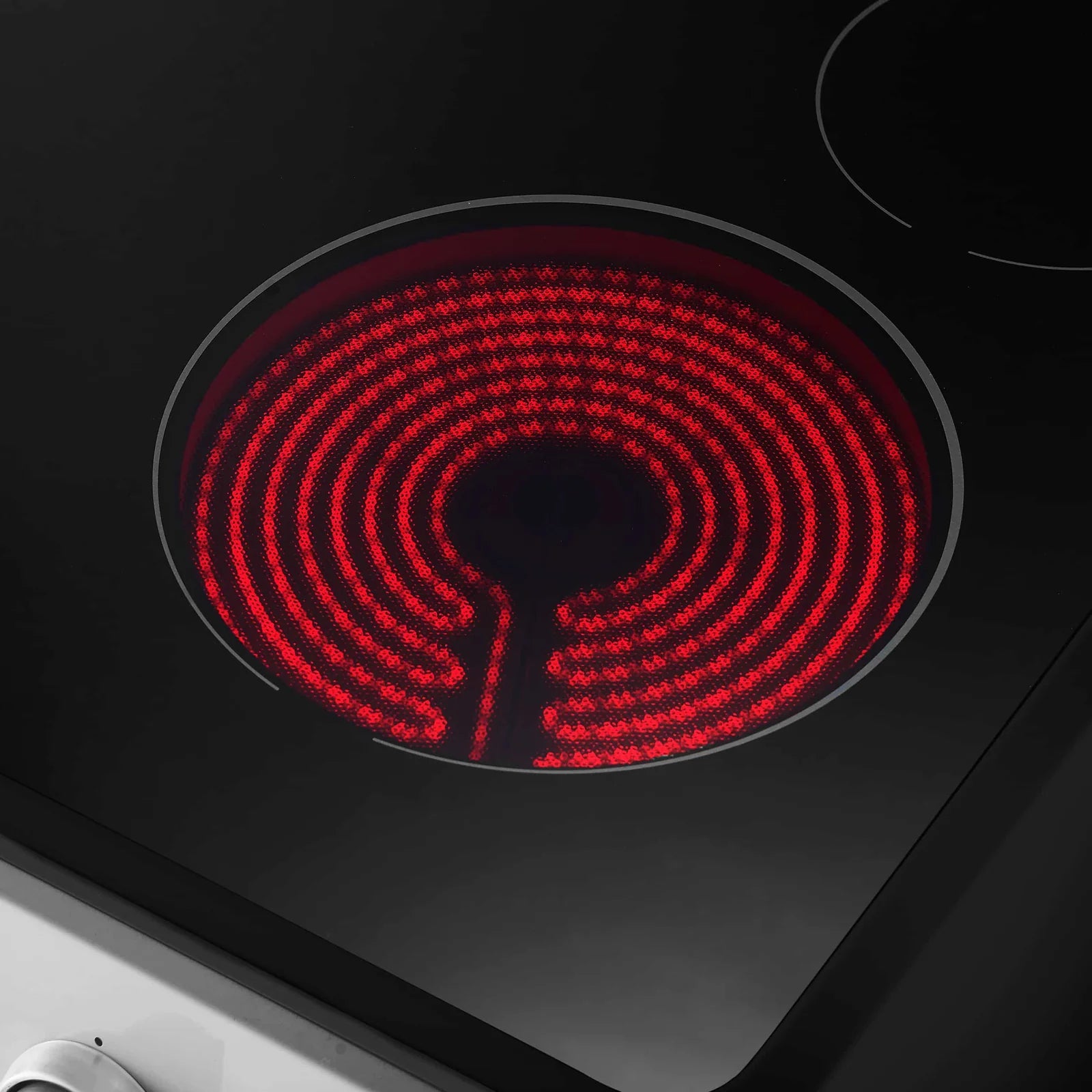

| Electric Heat Configuration (Cooktop) | Radiant |
| Total cooktop Wattage output | 7100 |
| Number of Burners | 4 |
| Double Ring Burner | No |
| Warmer Burner | No |
| Bridge Element | No |
| Cooktop Surface Color | Black |
| Cooktop Surface Materiel | Ceramic Glass |
| Cooktop Surface Structure | Smoothtop |
| Cooking Surface Control Type | Push & Turn |
| Broiler Element Type | Single Element |
| Bake Element | Yes |
| Hidden Bake Element | Hidden |
| Cooktop Hot Surface Indicator | Yes |
| Front Right Burner Watts | 2500 |
| Front Left Burner Watts | 2200 |
| Rear Right Burner Watts | 1200 |
| Rear Left Burner Watts | 1200 |
| Cooktop Max Power (W) | 7100 |

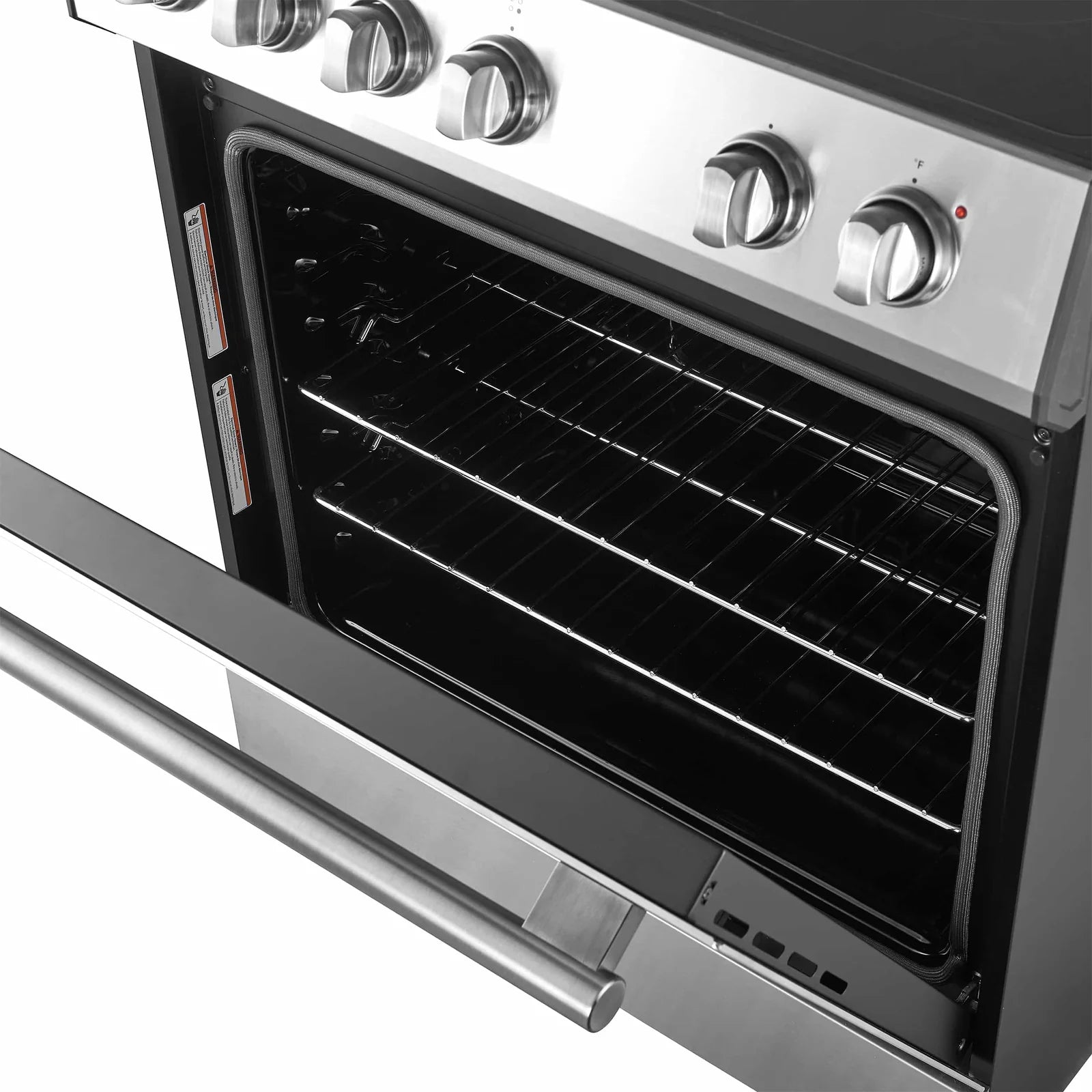

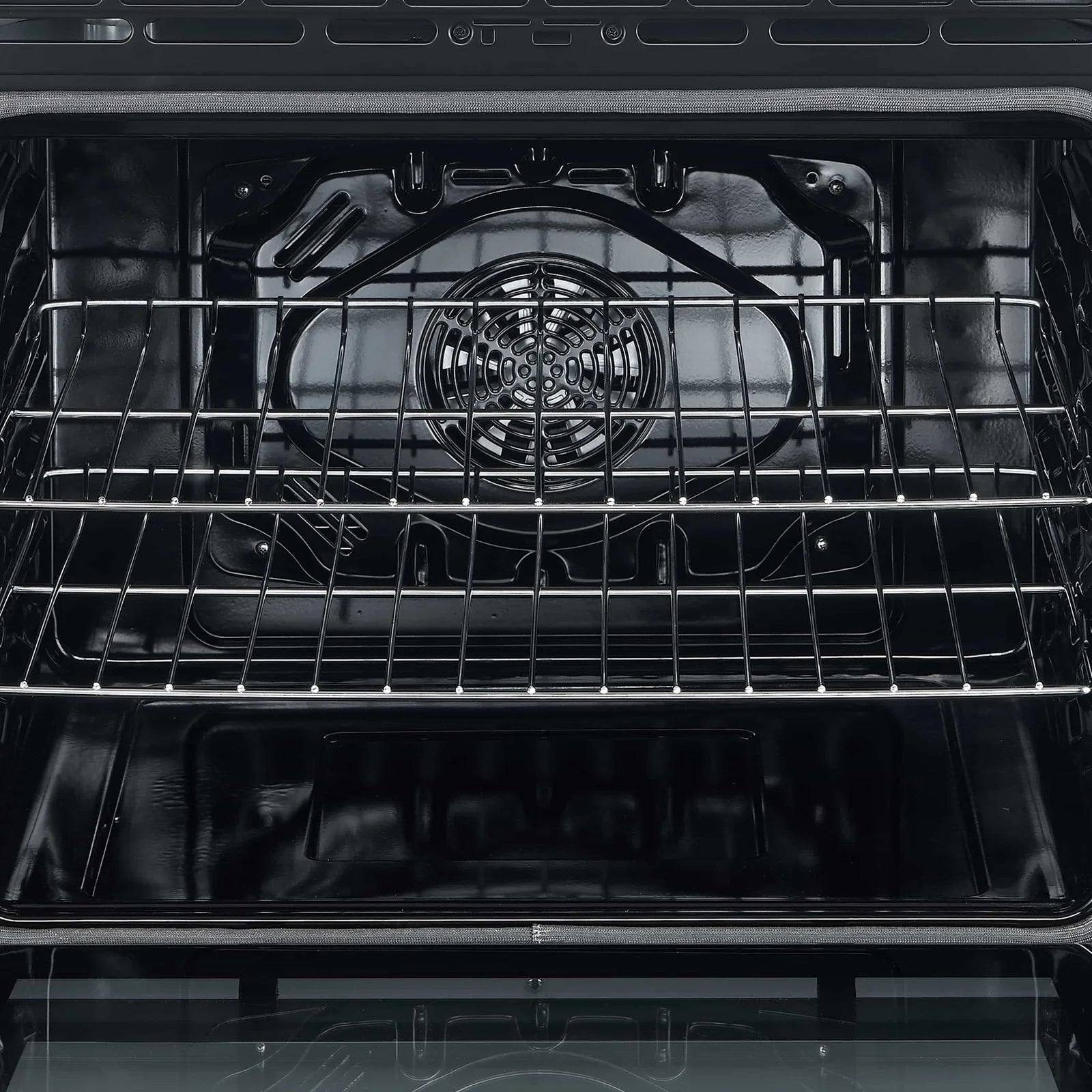

| OVEN FEATURES | |
| Oven Fuel | Electric |
| Number of Ovens | 1 |
| Overall Oven Capacity (cubic feet) | 5 |
| Oven Interior Finish | Black Enamel |
| Oven Racks Type | Standard |
| Number of Racks | 2 |
| Racks Material | Chrome-Plated |
| Number of Rack Positions | 6 |
| Broiler | Yes |
| Overall Broiler Wattage | 2000 |
| Broiler Location | Oven |
| Overall Bake Wattage | 1500 |
| Convection Oven | Yes |
| Convection Type | Standard Convection |
| Cooking Process |
|
| Cleaning Type | Standard |
| Rack position | Yes |
| Oven Preheating Indicator | Yes |
| Temperature Gauge | No |
| Timer | No |
| Storage Drawer | No |
| Door Panel Material | Stainless Steel |
| Main Oven Capacity (cubic feet) | 5 |
| Main Oven Rack Size W x D (in) | 24.6 x 15.9 |
| Main Oven Broil Wattage | 2000 |
| Main Oven Bake Wattage | 1500 |
| Main Convection Fan | Yes |
| Main Oven Convection Fan Wattage | 50 |
| Oven Max Power | 3550 |
| WARRANTY & CERTIFICATIONS | |
| Certification | ETL Listed |
| Commercial Warranty | No |
| Warranty Type | Limited |
| Warranty Length | 2 Years |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |

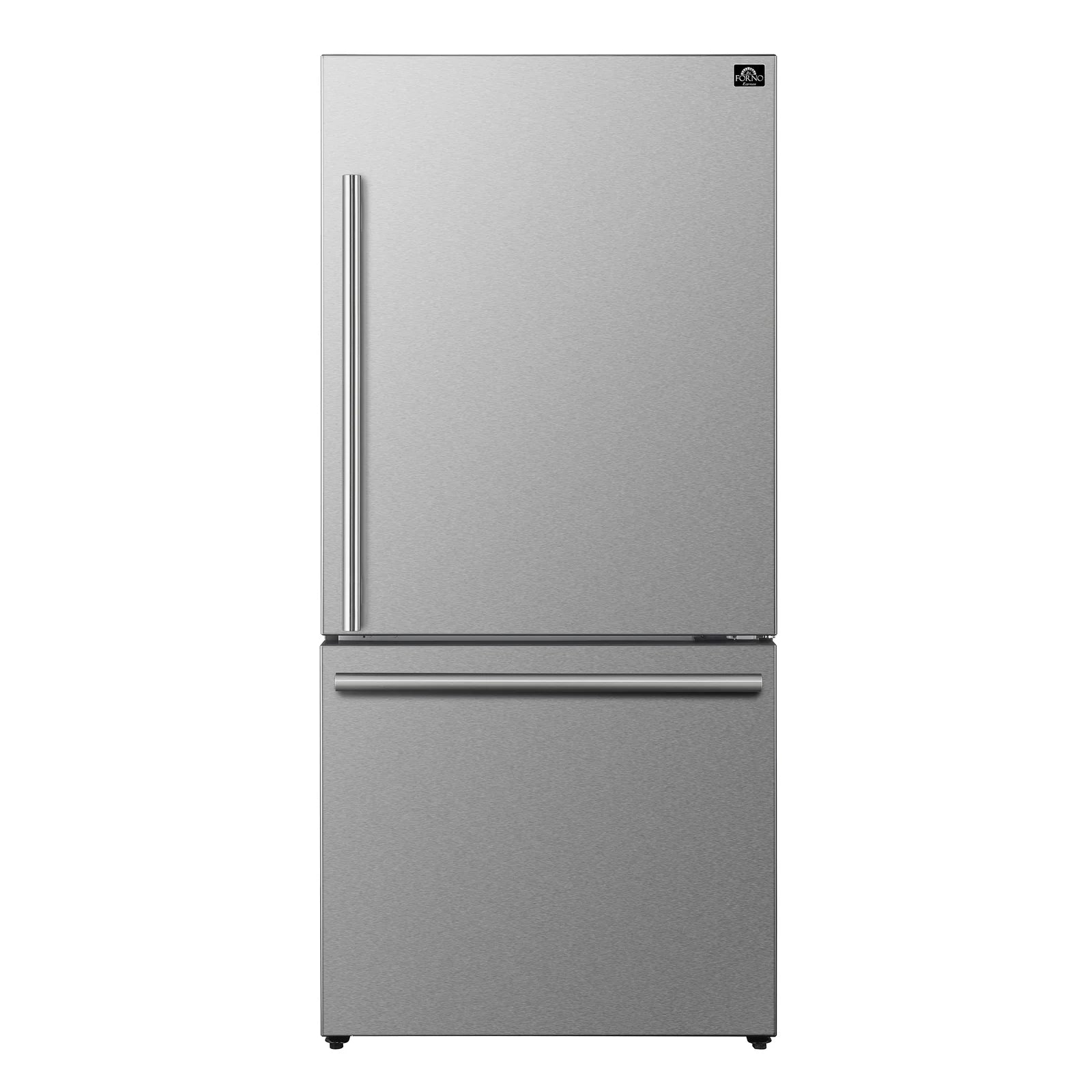

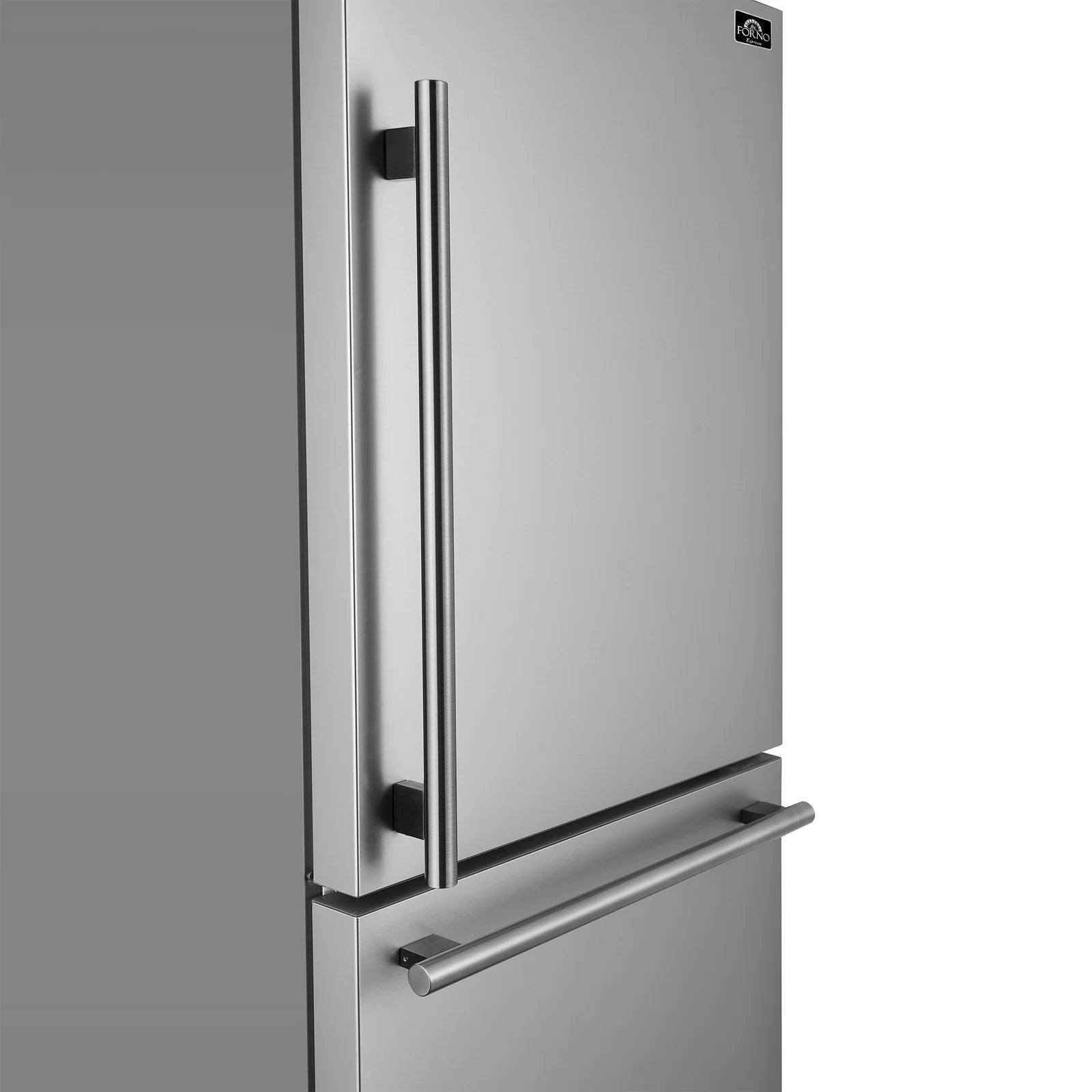

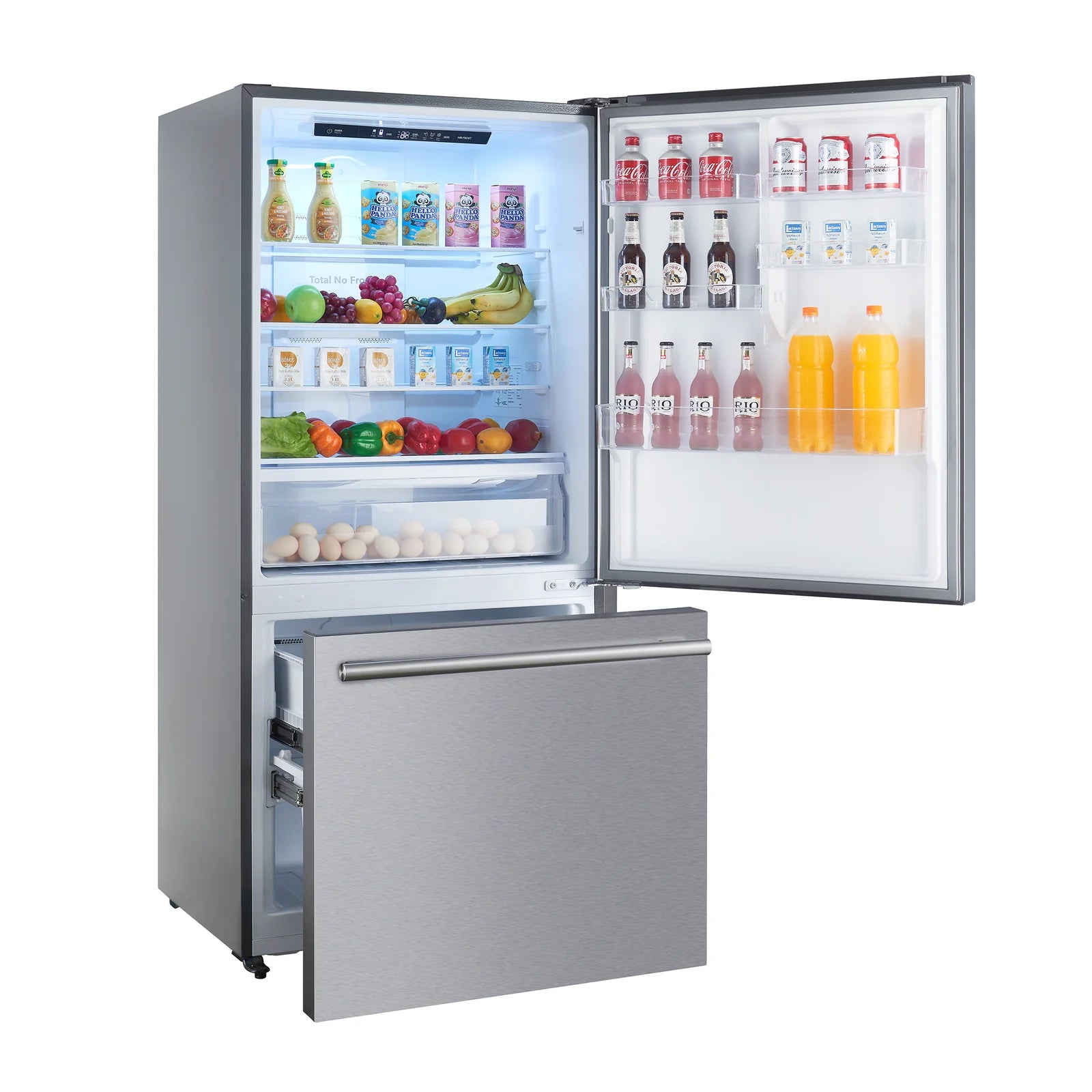

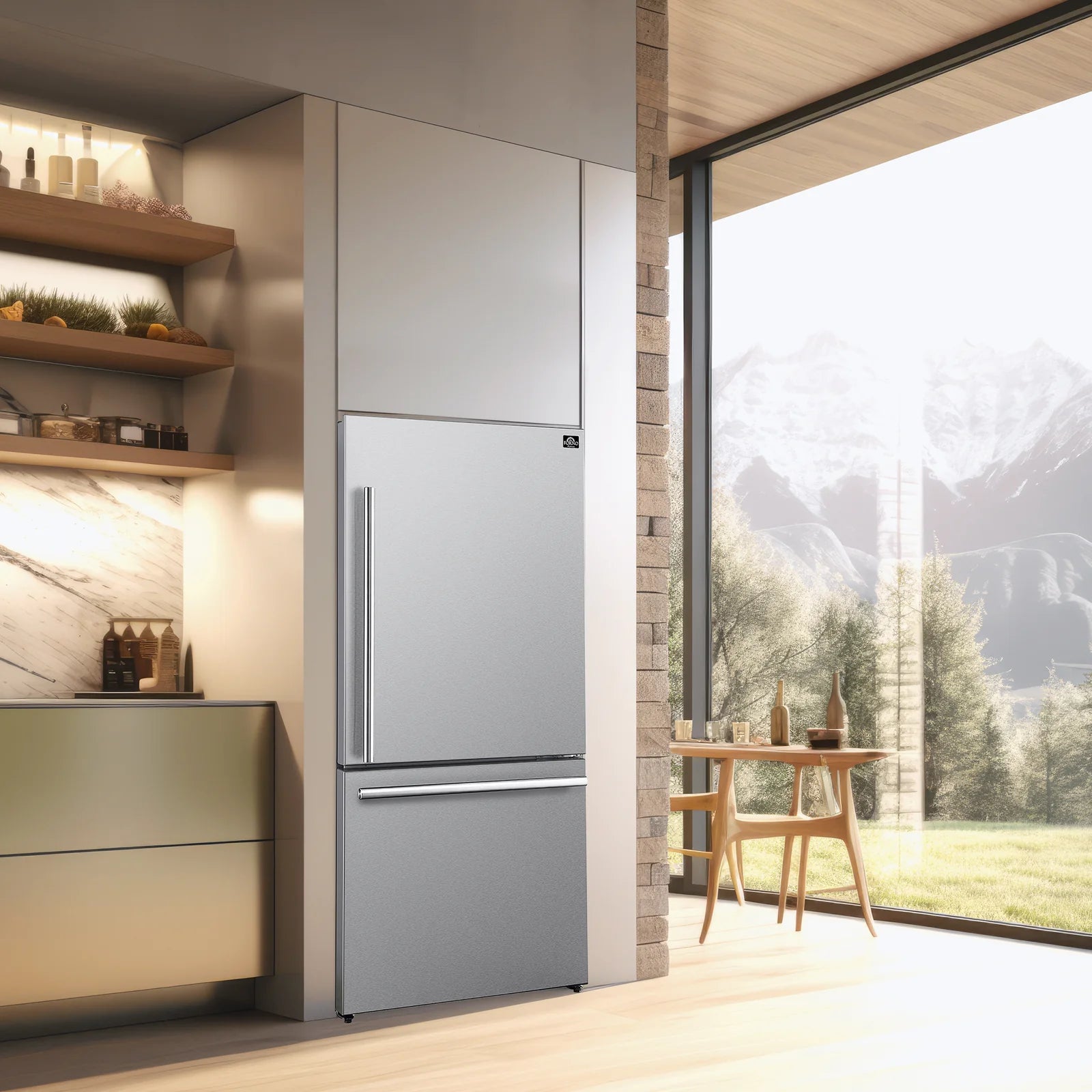

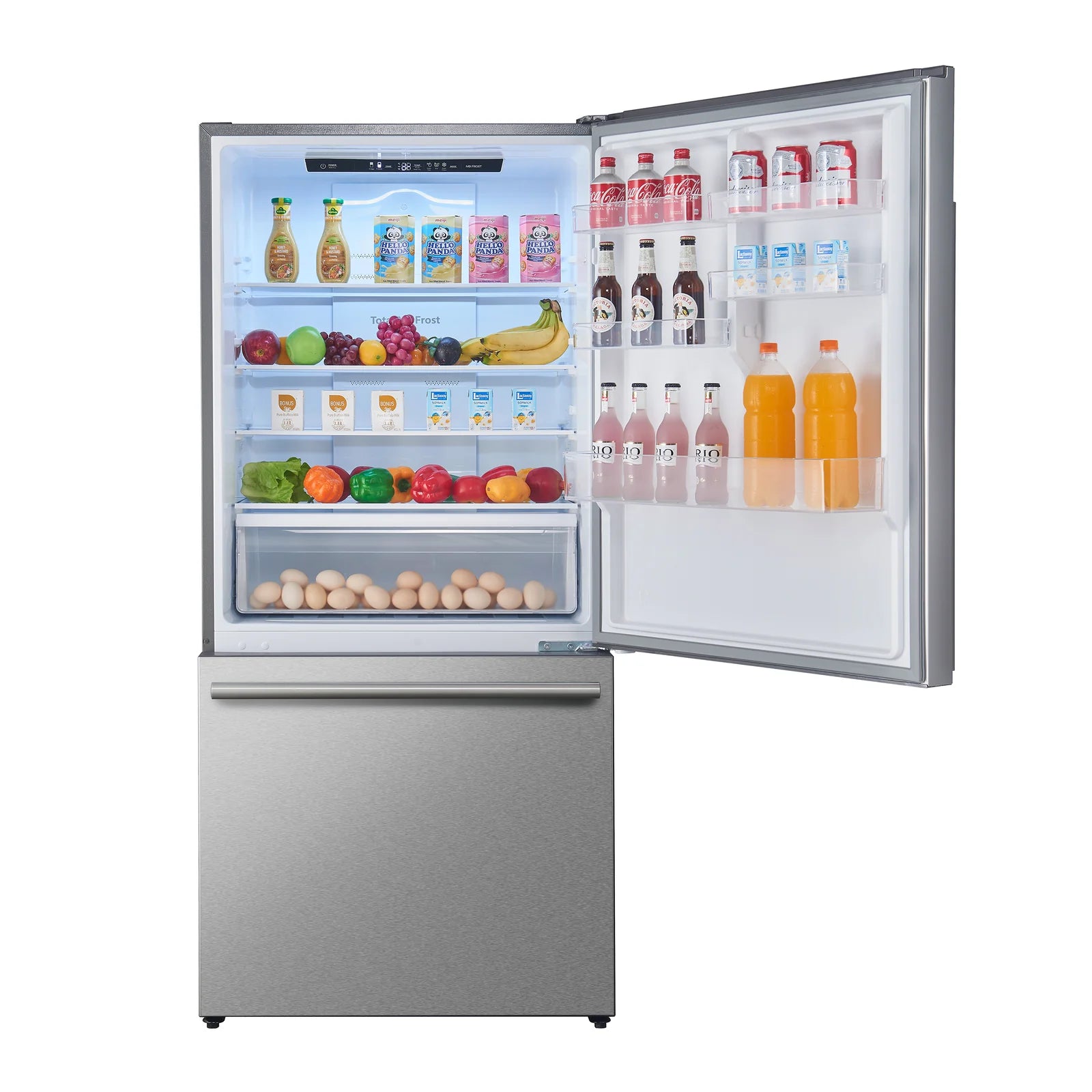

Introducing the FORNO 31" Milano Espresso Bottom Freezer Refrigerator that blends style and functionality seamlessly. Its compact 31" size and 17.2 cu ft capacity offer ample storage without compromising aesthetics. Two full-width freezer drawers optimize organization, while digital touch control ensures precise temperature settings and real-time monitoring. The fingerprint-resistant VCM door maintains a modern look effortlessly. Swift temperature adjustment with Super Cool and Super Freeze safeguards your groceries' quality. ENERGY STAR Certified for efficiency, and high-efficiency LED lighting reduces food spoilage. Adjustable features, including shelves, door bins, and a full-width crisper drawer, enhance user-friendliness. Upgrade your kitchen with style, convenience, and freshness!
|

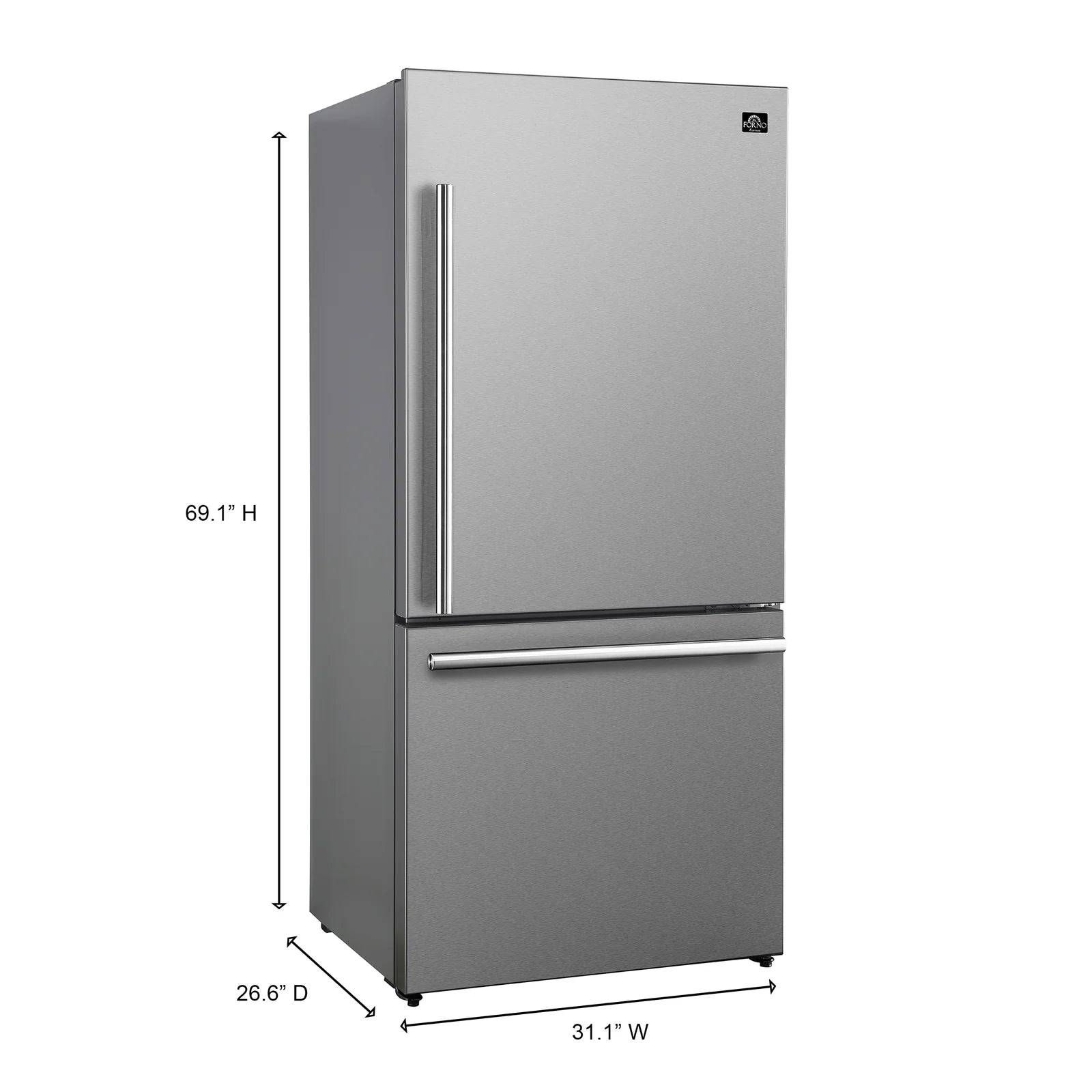

Overall Dimensions (IN) W X D X H |
31.1 X 29.2 X 69.1 |
|
Width Door(s) Open 130° (inches) |
52 |
|
Cabinet Depth (no Door) |
23.6 |
|
Depth without Handle (IN) |
26.6 |
|
Depth Door(s) Open 90° (inches) |
56.3 |
|
Depth Drawer(s) Open (inches) |
43.4 |
|
Height Top of the Cabinet (inches) |
68.5 |
|
Sides Clearance (IN) |
1" on the left 1.6" on the right for door opening if next to fixed wall |
|
Minimum Back Clearance (IN) |
2 |
|
Minimum Top Clearance (IN) |
1 |
|
Cutout Dimensions (IN) W X D X H |
33.7 x 31.2 x 70.1 |
|
Energy Star |
Yes |
|
ISTA 6A Certified |
Yes |
| UL Listed | Yes |
| Contain Gases | R600A |
|
Commercial Warranty |
No |
|
Warranty Type |
Limited |
|
Warranty Length |
2 |
|
Warranty on Parts |
2 |
|
Warranty on Labor |
2 |
|
Overall Weight (LBS) |
196 |
|
Product Type |
Bottom Freezer |
|
Color/Finish |
Stainless Steel VCM |
|
Installation Type |
Freestanding |
|
Panel Ready |
No |
|
Overall Capacity Cu. Ft. |
17.2 |
|
Door Orientation |
Right Swing |
|
Reversible Door |
No |
|
Ice Maker |
No |
|
Water Dispenser |
No |
|
External Dispenser |
No |
|
Interior Light |
Yes |
|
Interior Light Type |
LED |
|
Defrost Type |
Automatic |
|

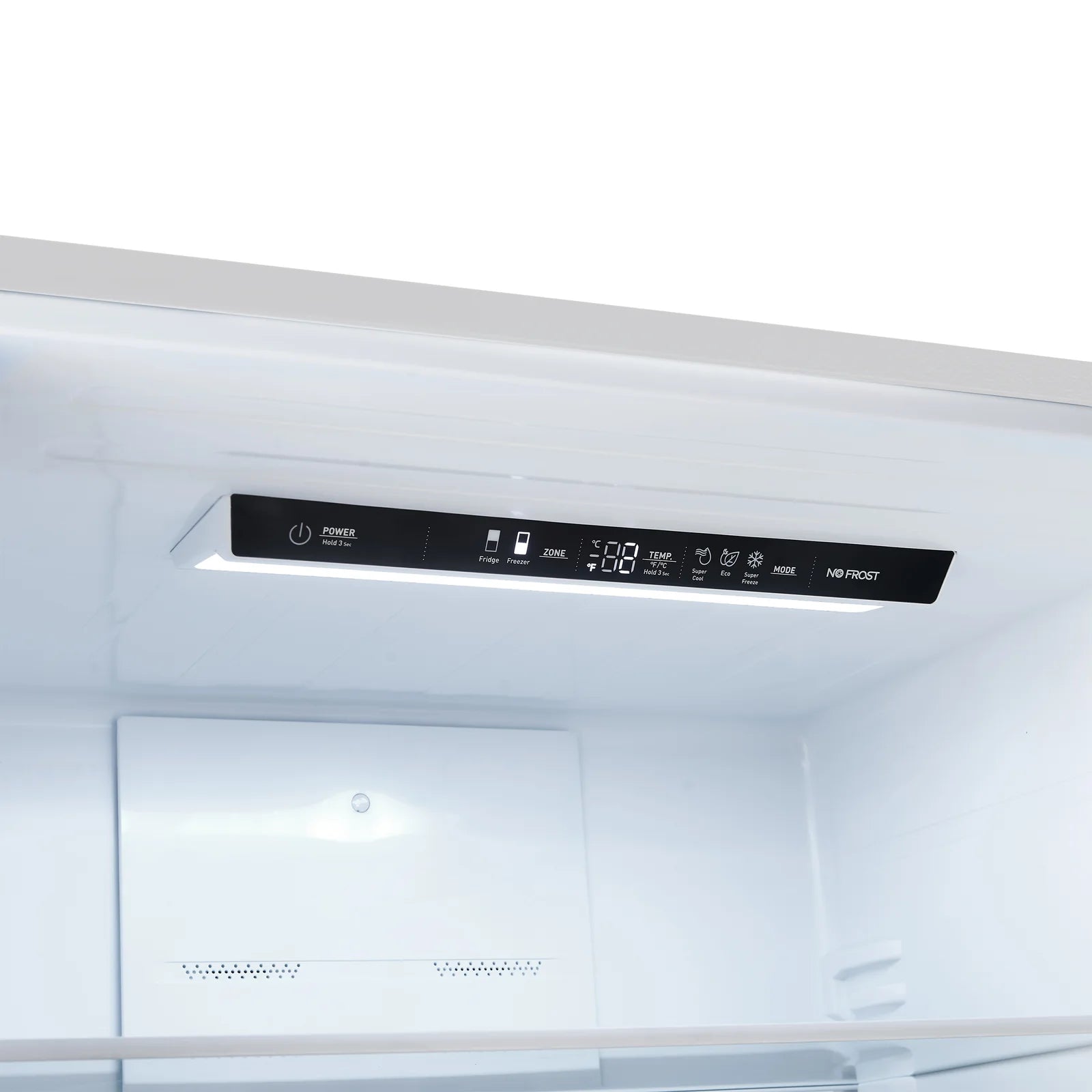

Control Type |
Touch Control |
|
Control Location |
Internal |
|
Temperature Range Refrigerator (°F) |
34°F to 44°F |
|
Temperature Range Freezer (°F) |
-11°F to 7°F |
|
Temperature Range Refrigerator (°C) |
1°C to 7°C |
|
Temperature Range Freezer (°C) |
-24°C to-14°C |
|
Adjustable Shelves |
3 |
|
Spill-Proof Shelves |
No |
|
Auto Door Closer |
No |
|
Counter Depth |
Yes |
|
Leveling Legs |
Yes |
|
Primary Material |
Metal |
|
Cooling System |
Multi Air Flow |
|
Compressor Type |
Constant Frequency Compressor |
|
Door Ajarm Alarm |
Yes |
|
Garage Ready |
No |
|
Finger Print Resistant |
Yes |
|
Smudge Resistant |
No |
|
Filtration System |
No |
|
Safety Lock |
No |
|
Display Screen |
Yes |
|
Sabbath Mode |
No |
|
Vacation Mode |
No |
|
Energy Saver Mode |
Yes |
|
Fast Freeze/Cool Mode |
Yes |
|
Quiet Operation |
Yes |
|
Noise Level (dBA) |
43 |
|
Power Cord |
3-Prong NEMA 5-15 |
|
Supplier Intended and Approved Use |
Residential |
|
Fresh Food Capacity Cu. Ft. |
12.09 |
|
Interior Fresh Food Dimensions W x D x H |
W:26.81” x D:21.08” x H:35.91” |
|

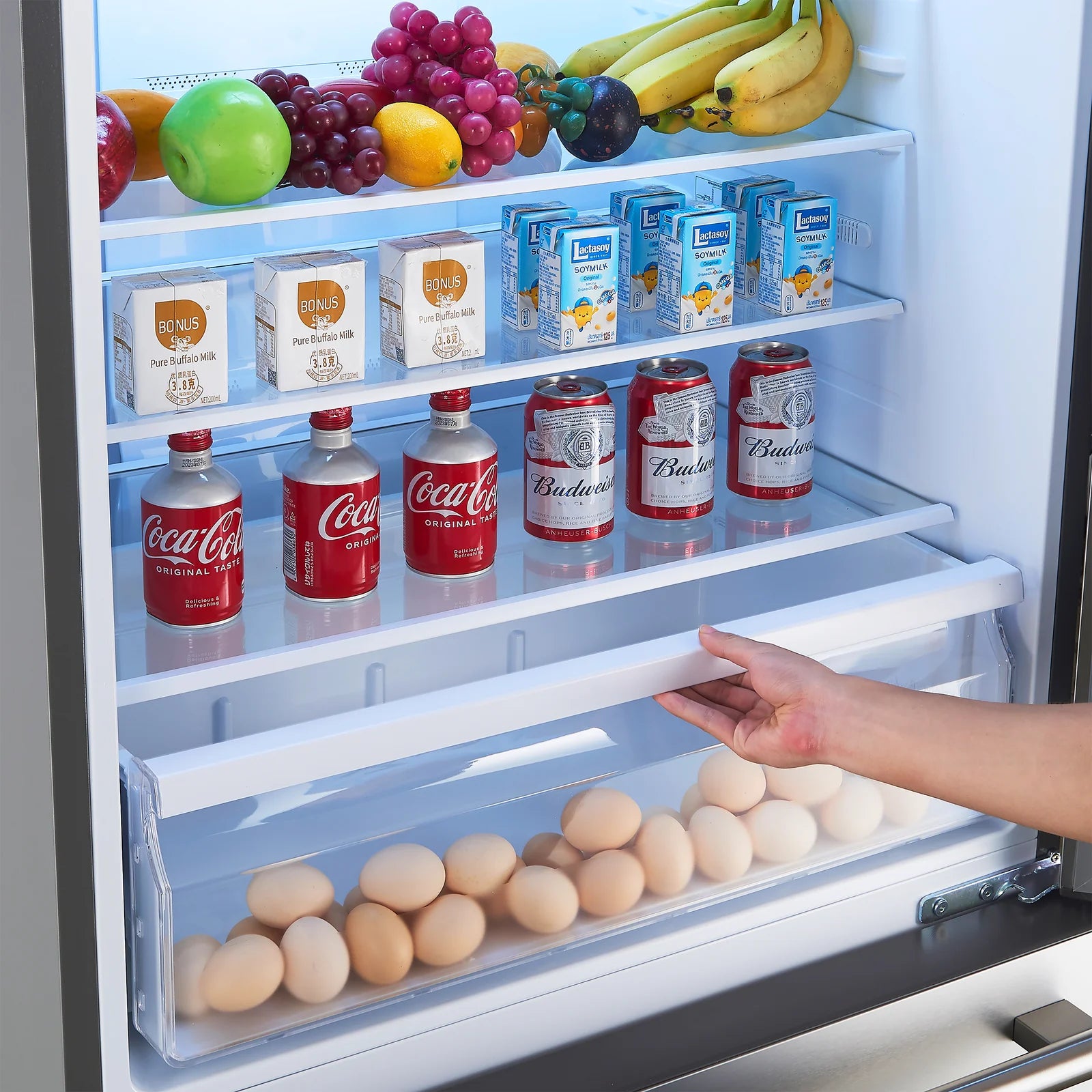

Fresh Food drawers |
1 |
|
Fresh Food Drawer(s) Size W x D x H (inches) |
26.6 x 15.7 x 7.8 |
|
Fresh Food Door Type |
Right Swing |
|
Fresh Food Shelves |
4 |
|
Fresh Food Shelve(s) Size W x D x H (inches) |
26.7 x 14.3 x 0.37 |
|

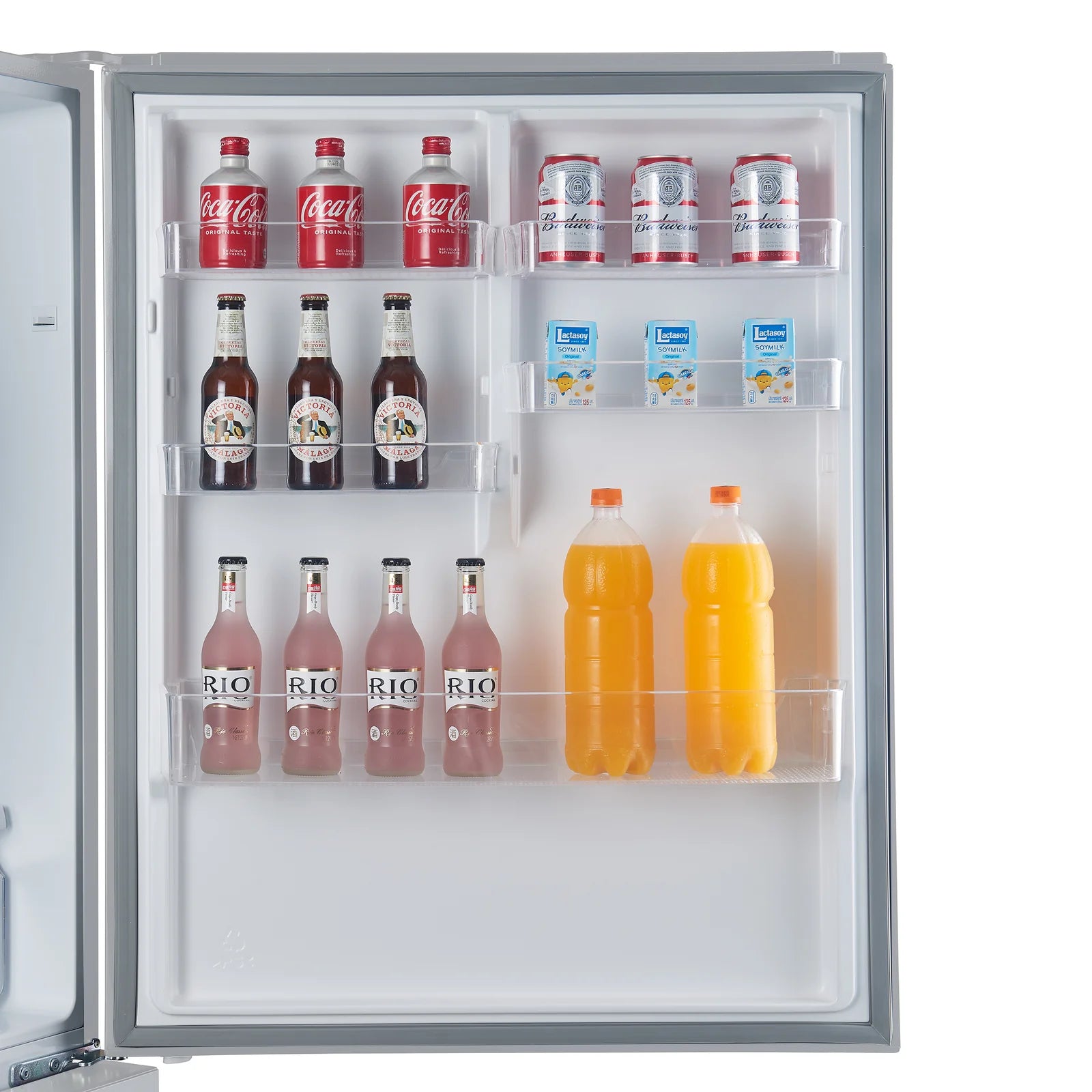

Gallon Door Bins |
1 |
|
Gallon (4 Liters) Door Bin(s) Size W x D x H (inches) |
26.8 x 5.6 x 3.5 |
|
Half (2 Liters) Gallon Door Bins |
4 |
|
Half (2 Liters) Gallon Door Bins Size W x D x H (inches) |
13.3 x 5.59 x 1.97 |
|
Standard Door Bins |
No |
|
Door Bins Color |
Transparent |
|
Freezer Capacity |
5.14 |
|
Interior Freezer Dimensions |
24.45” x D:16.00” x H:22.68” |
|

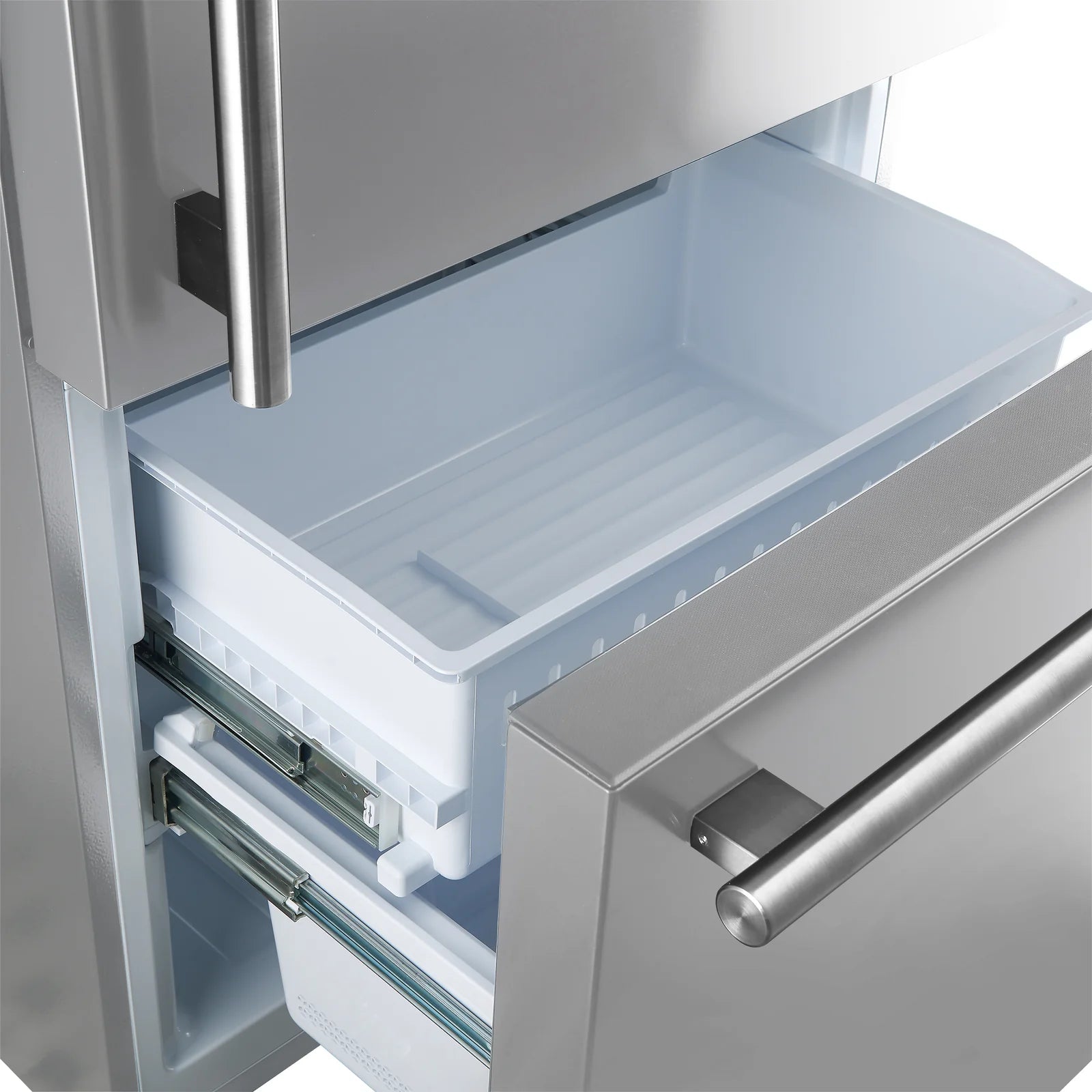

Freezer drawers |
2 |
|
Freezer Drawer(s) Size W x D x H (inches) |
25.7 x 14.78 x 11.38 |
|
Freezer Door Style |
Pull Out Drawer |
|
Freezer Shelves |
No |
|
Amperage (AMP) |
15 |
|
Running Amperage (AMP) |
1.25 |
|
Volts (V) |
120 |
|
Frequency (Hz) |
60 |
|
Power Consumption Cooling Wattage (W) |
80 |
|
Power Consumption Defrost Wattage (W) |
220 |
|
Energy Consumption (kWh/yr) |
453 |
|
Estimated Annual Operating Cost (USD) |
63 USD |
|
Power Cord Length without Plug |
5.58 Feet |
|
Power Cord Length with Plug |
5.8 Feet |
|
Receptacle Type |
3-Prong Grounded NEMA 5-15 |
