Description

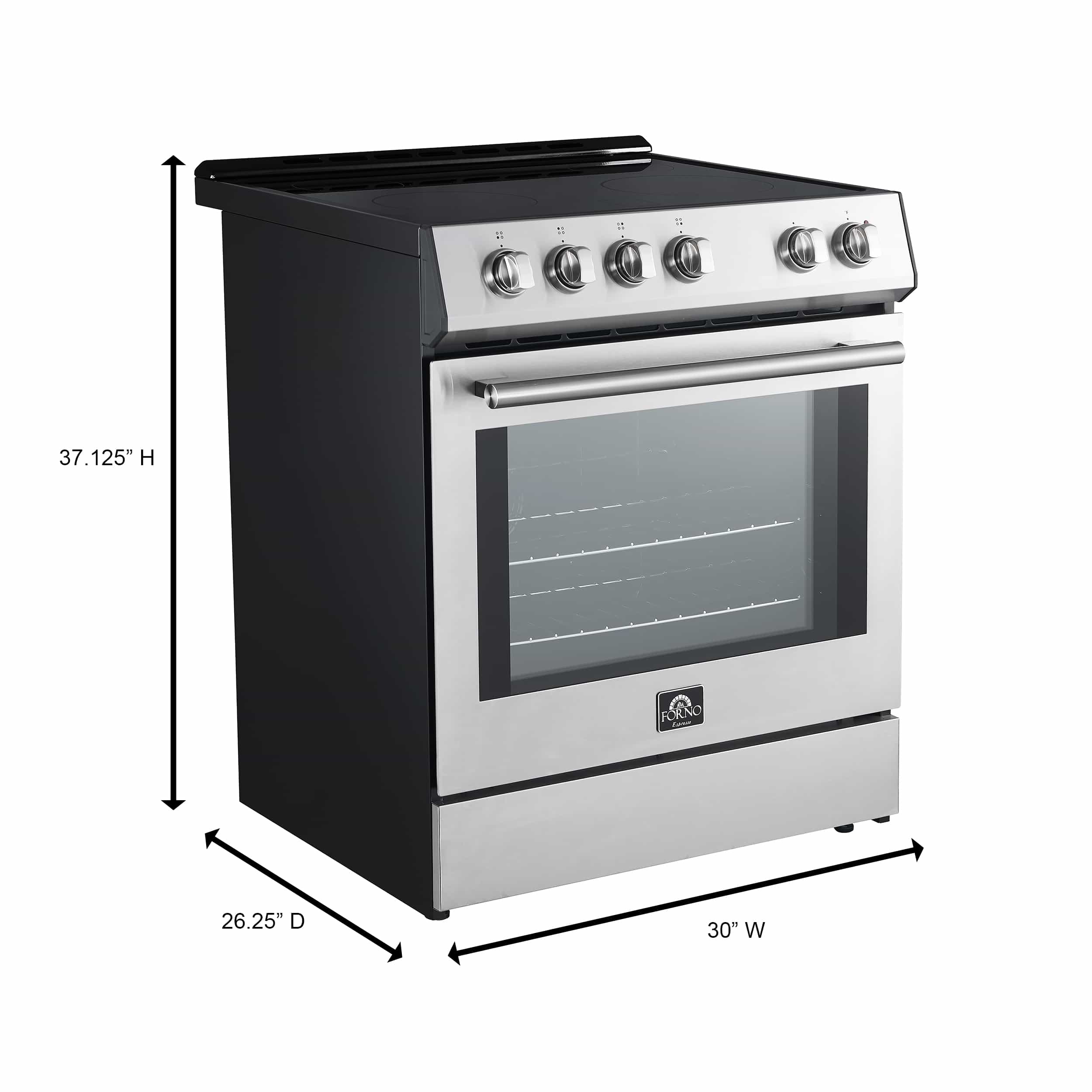

DIMENSIONS
- Minimum Counter Height
- 36"
- Maximum Counter Height
- 38"

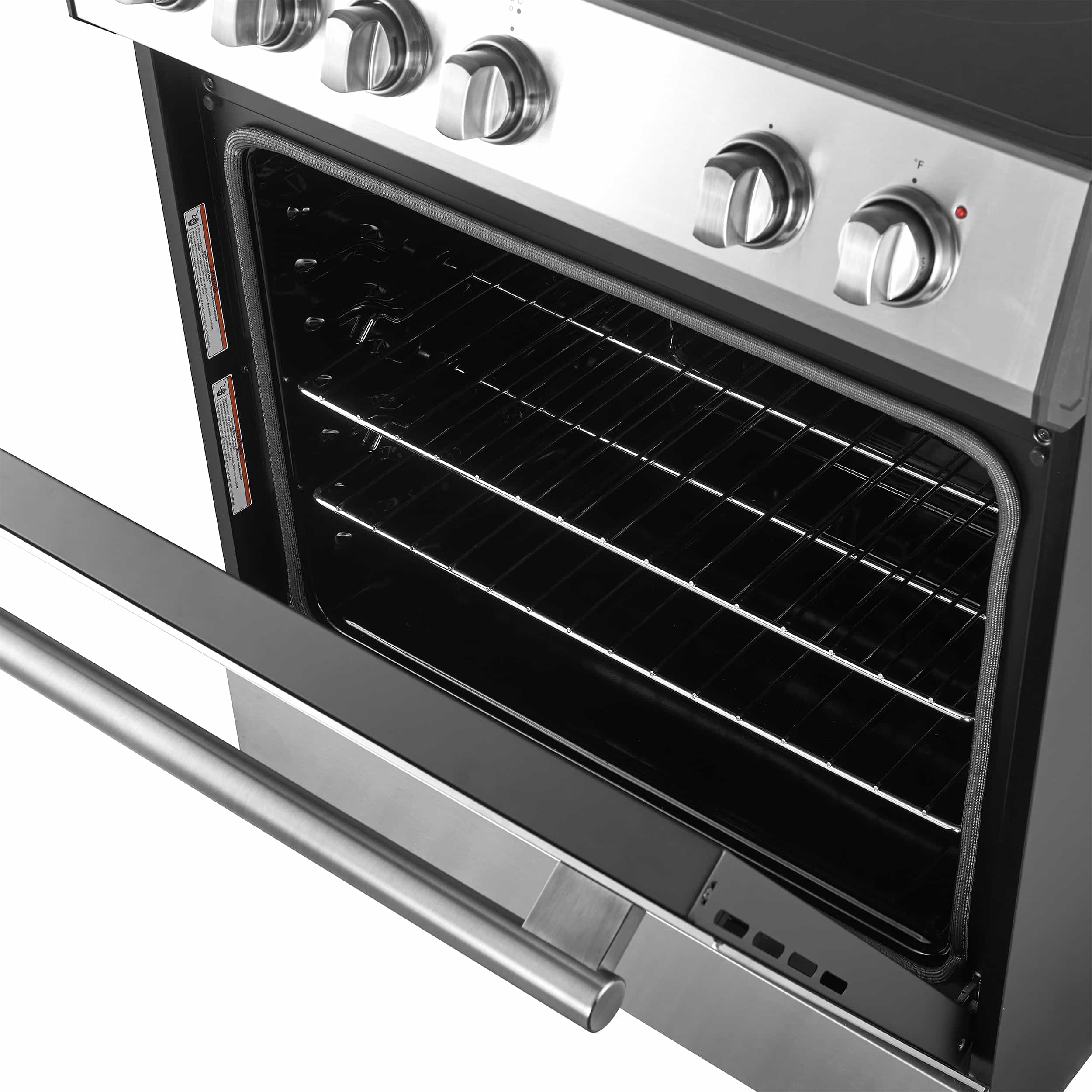

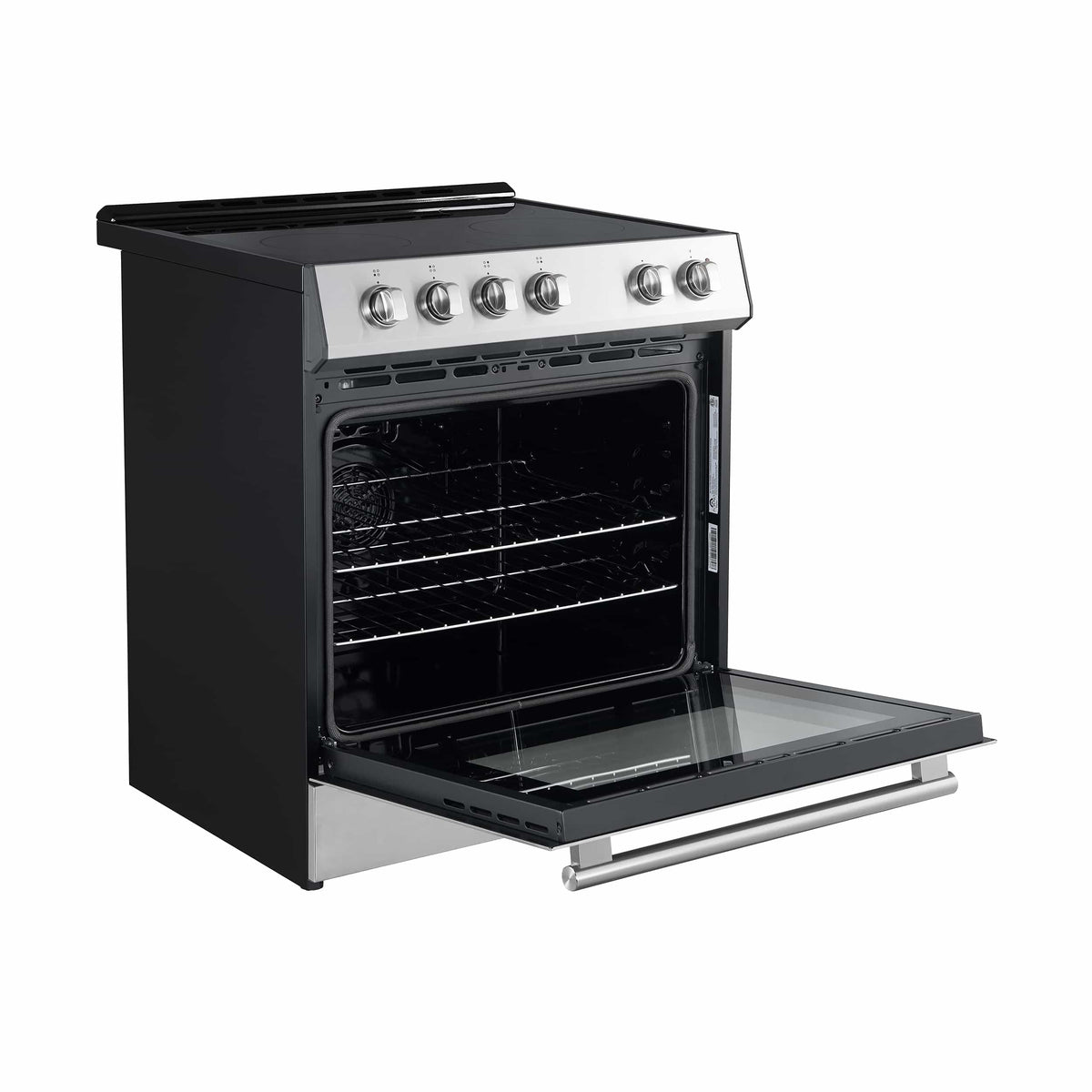

- Depth with Oven Door Open 90º
- 46.25"
- Depth without Oven Door Handle
- 27.8"
- Overall Weight
- 145.5 lbs
- Main Oven Interior
- 24.6" W x 17.7" D x 19.6" H
GENERAL INFORMATION
- Product Type
- Slide-In
- Safety Lock
- No
- Supplier Intended and Approved Use
- Residential Use
- Country of Origin
- China
DESIGN & FINISH
- Color
- Silver
- Finish
- Stainless Steel
- Overall - Biggest Dims Possible (with Handle, Backsplash, etc)
- 30" W X 27.95" D X 38" H
- Color/Finish
- Stainless Steel
- Handle Finish
- Stainless Steel

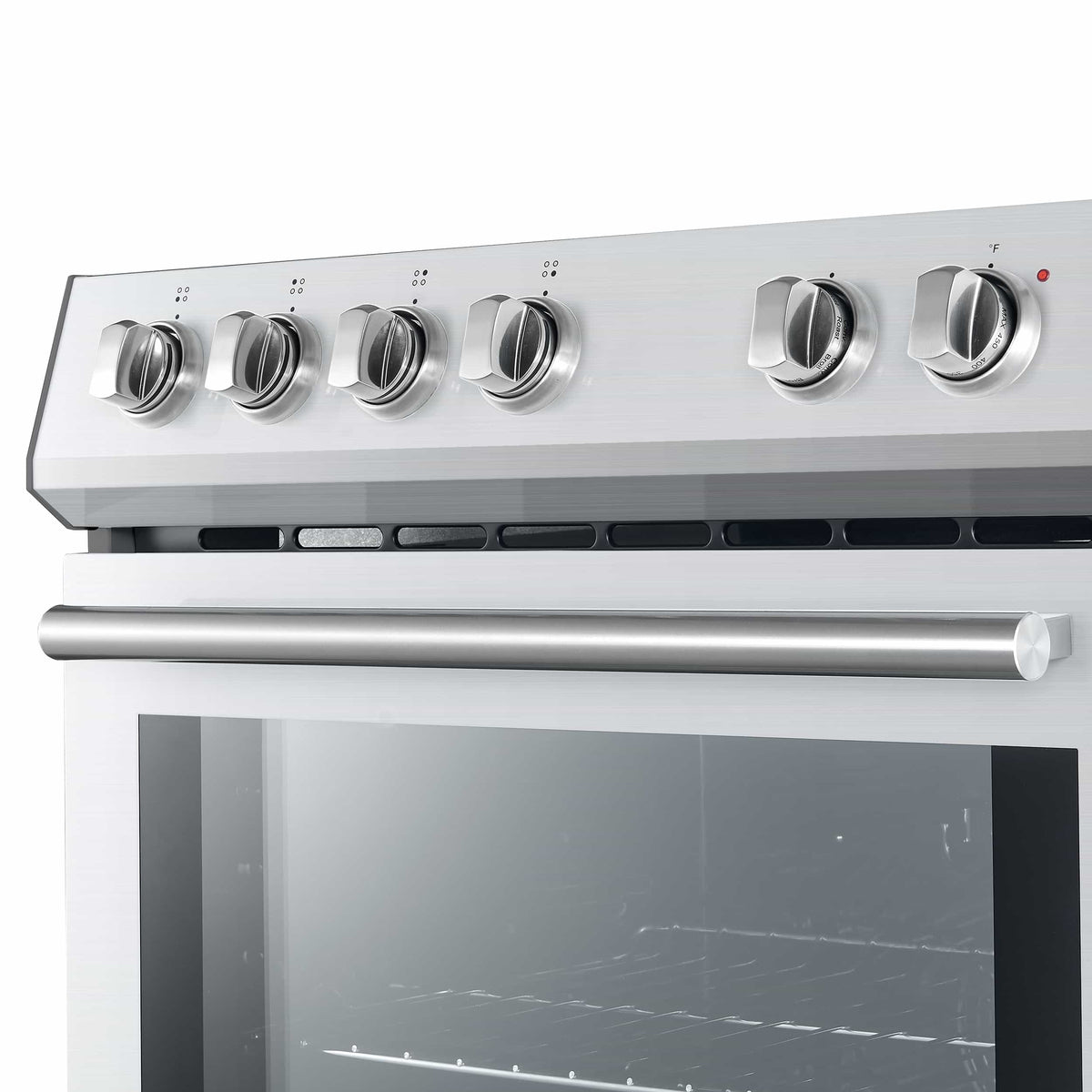

- Control Type
- Knob
- Number of Knobs
- 6
- Knobs Color/Finish
- Stainless Steel
- Control Location
- Front
- Clock
- No
- Primary Material
- Steel
- Control Panel Material
- Stainless Steel
- Kick Plate Material
- Stainless Steel
- Side Panel Material
- Stainless Steel
TECHNICAL DETAILS
- Fuel Type
- Electric
- Plug-In
- No
- Dedicated Circuit Breaker Amperage
- 50
- Total Amps Use
- 44.25
- Volts
- 240
- Overall Max Power (W)
- 10650
- Power Cord Included
- No

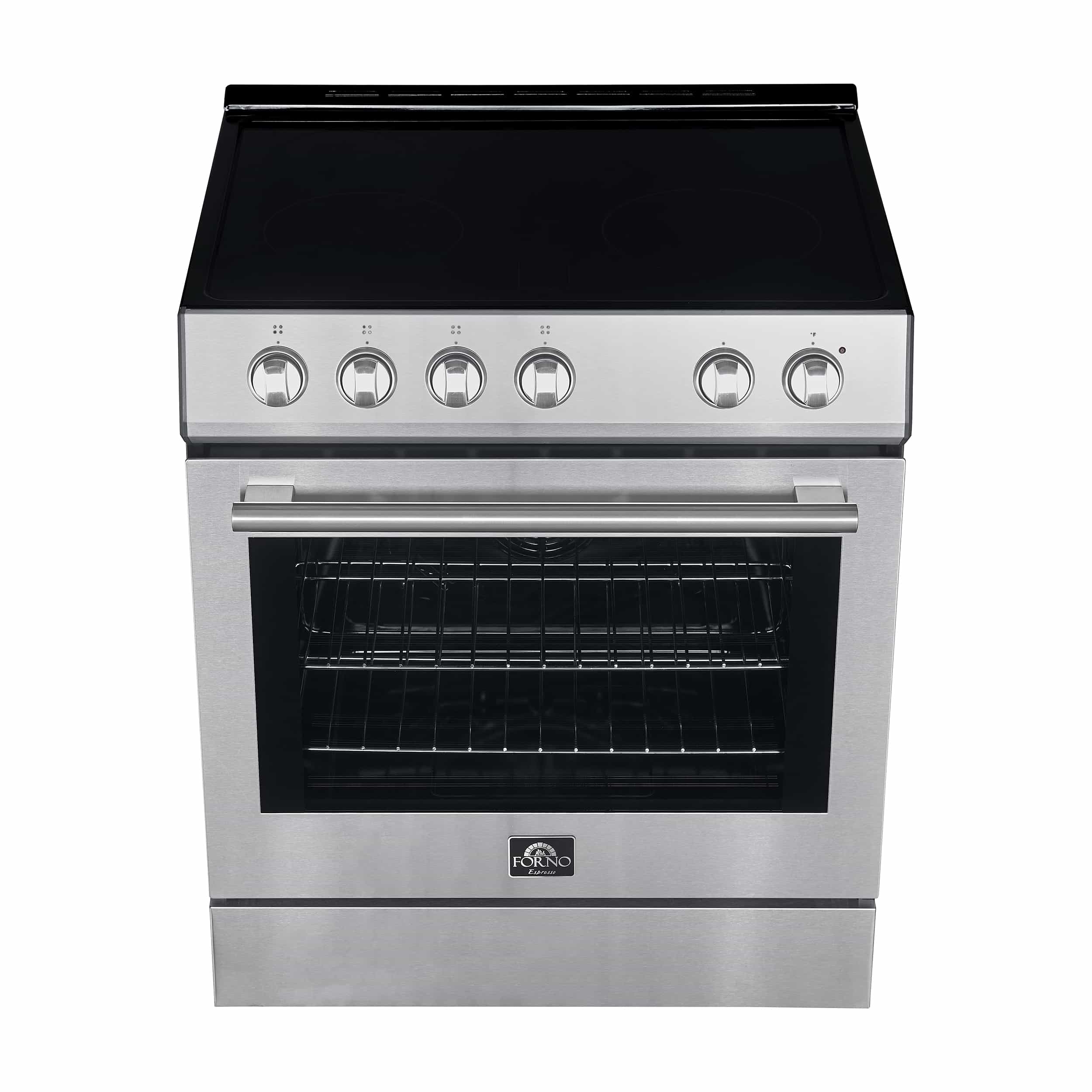

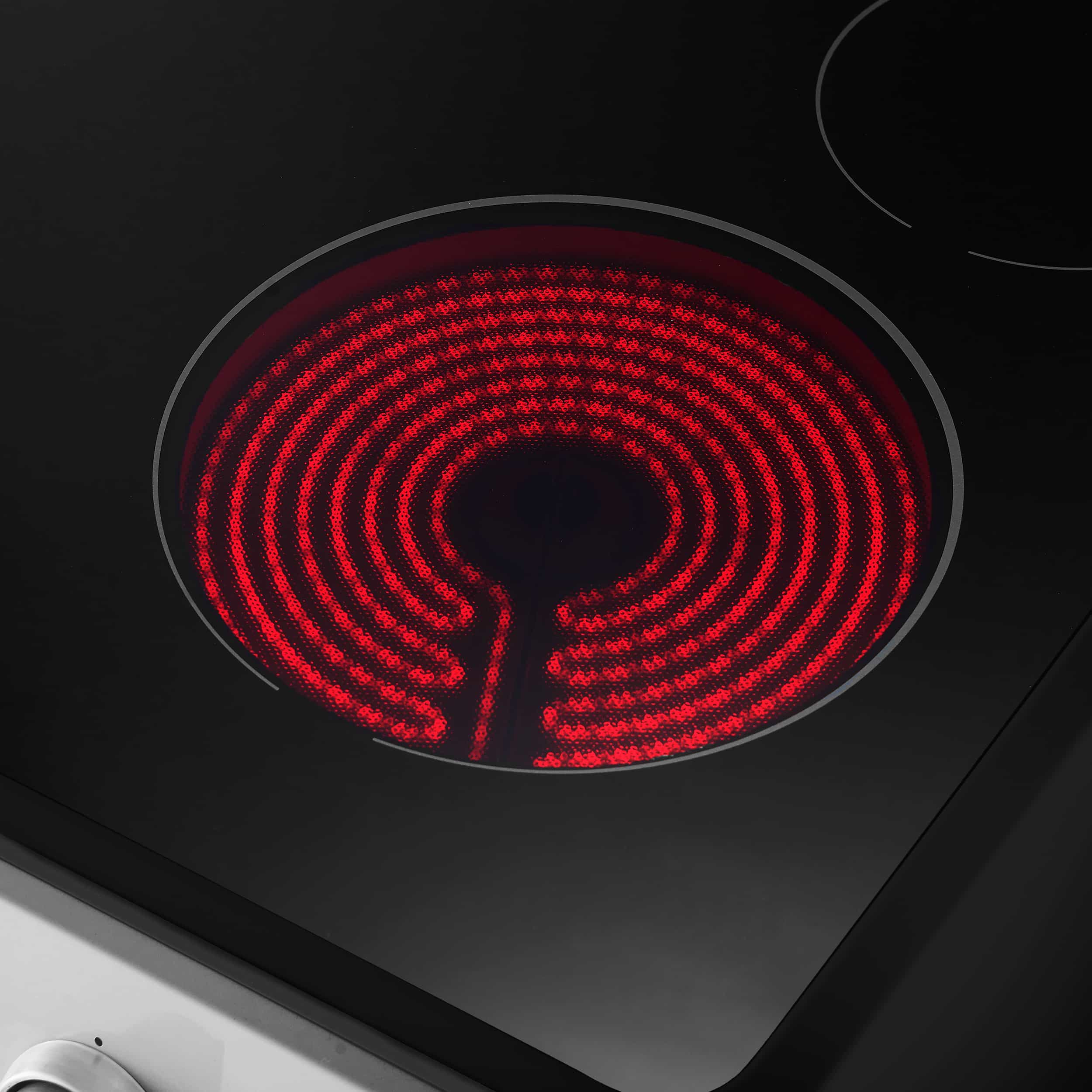

COOKTOP FEATURES
- Burner Fuel
- Electric
- Electric Heat Configuration (Cooktop)
- Radiant
- Total cooktop Wattage output
- 7100
- Number of Burners
- 4
- Double Ring Burner
- No
- Warmer Burner
- No
- Bridge Element
- No
- Cooktop Surface Color
- Black
- Cooktop Surface Materiel
- Ceramic Glass
- Cooktop Surface Structure
- Smoothtop
- Cooking Surface Control Type
- Push & Turn
- Broiler Element Type
- Single Element
- Bake Element
- Yes
- Hidden Bake Element
- Hidden
- Cooktop Hot Surface Indicator
- Yes
- Front Right Burner Watts
- 2500
- Front Left Burner Watts
- 2200
- Rear Right Burner Watts
- 1200
- Rear Left Burner Watts
- 1200
- Cooktop Max Power (W)
- 7100

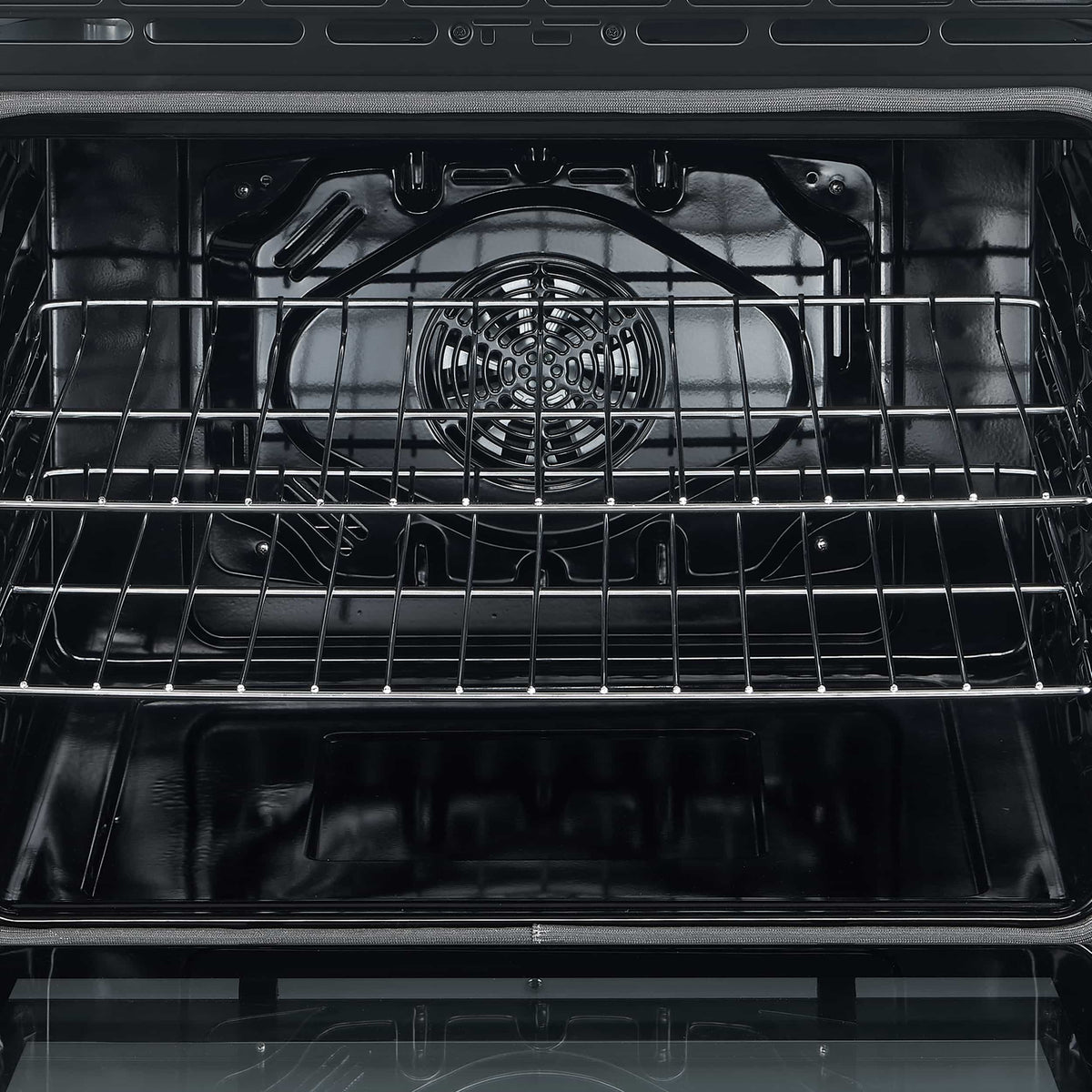

OVEN FEATURES
- Oven Fuel
- Electric
- Number of Ovens
- 1
- Overall Oven Capacity (cubic feet)
- 5
- Oven Interior Finish
- Black Enamel
- Oven Racks Type
- Standard
- Number of Racks
- 2
- Racks Material
- Chrome-Plated
- Number of Rack Positions
- 6
- Broiler
- Yes
- Overall Broiler Wattage
- 2000
- Broiler Location
- Oven
- Overall Bake Wattage
- 1500
- Convection Oven
- Yes
- Convection Type
- Standard Convection
- Cooking Process
- Bake
- Convection Bake
- Broil
- Convection Broil
- Convection Roast
- Defrost
- Cleaning Type
- Standard
- Rack position
- Yes
- Oven Preheating Indicator
- Yes
- Temperature Gauge
- No
- Timer
- No
- Storage Drawer
- No
- Door Panel Material
- Stainless Steel
- Main Oven Capacity (cubic feet)
- 5
- Main Oven Rack Size W x D (in)
- 24.6 x 15.9
- Main Oven Broil Wattage
- 2000
- Main Oven Bake Wattage
- 1500
- Main Convection Fan
- Yes
- Main Oven Convection Fan Wattage
- 50
- Oven Max Power
- 3550
WARRANTY & CERTIFICATIONS
- Certification
- ETL Listed
- Commercial Warranty
- No
- Warranty Type
- Limited
- Warranty Length
- 2 Years
- Warranty on Parts
- 2 Years
- Warranty on Labor
- 2 Years
