Weight and Dimensions |
|
Overall Dimensions
|
48” W x 28” D x 38” H |
Oven Door Open 90º
|
44.25" D |

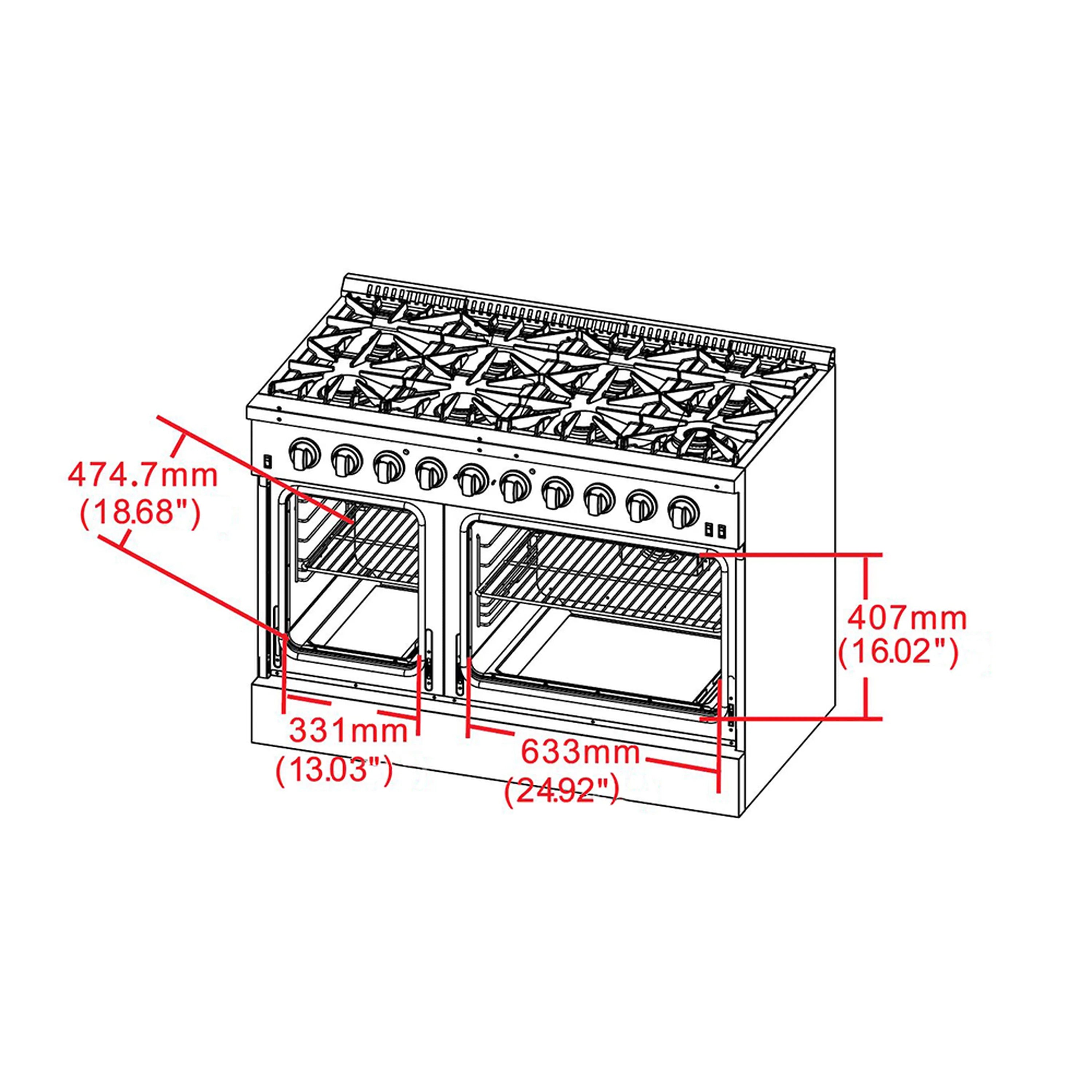

Right Oven Interior Dimensions
|
24.92'' W x 18.7" D x 16'' H |
Left Oven Interior Dimensions
|
13.03” W x 18.7” D x 16” H |
Overall Weight
|
389 lbs |
Electrical |
|
Amperage
|
15 A |
Volts
|
120 V |
Power Cord Length
|
5' |
Receptacle Type
|
3-Prong Grounded |

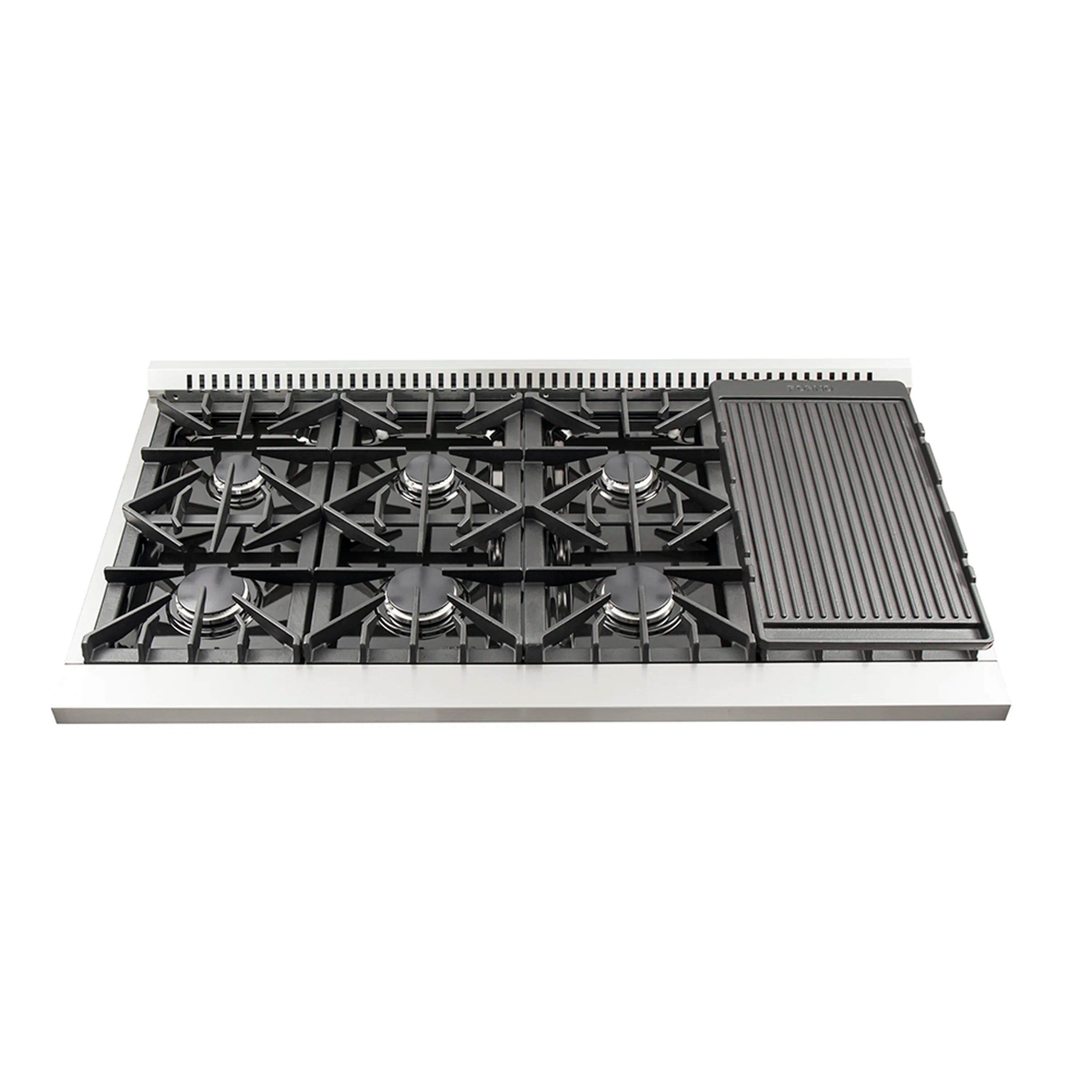

Cooktop |
|
Overall Burners BTU | 107,000 |
Front Right Burner BTU | 1,000 to 20,000 |
Front Right Center Burner BTU | 15,000 |
Front Left Center BTU | 15,000 |
Front Left Burner BTU | 15,000 |
Rear Right Burner BTU | 15,000 |
Rear Right Center Burner BTU | 9,000 |
Rear Left Center Burner BTU | 9,000 |
Rear Left Burner BTU | 9,000 |

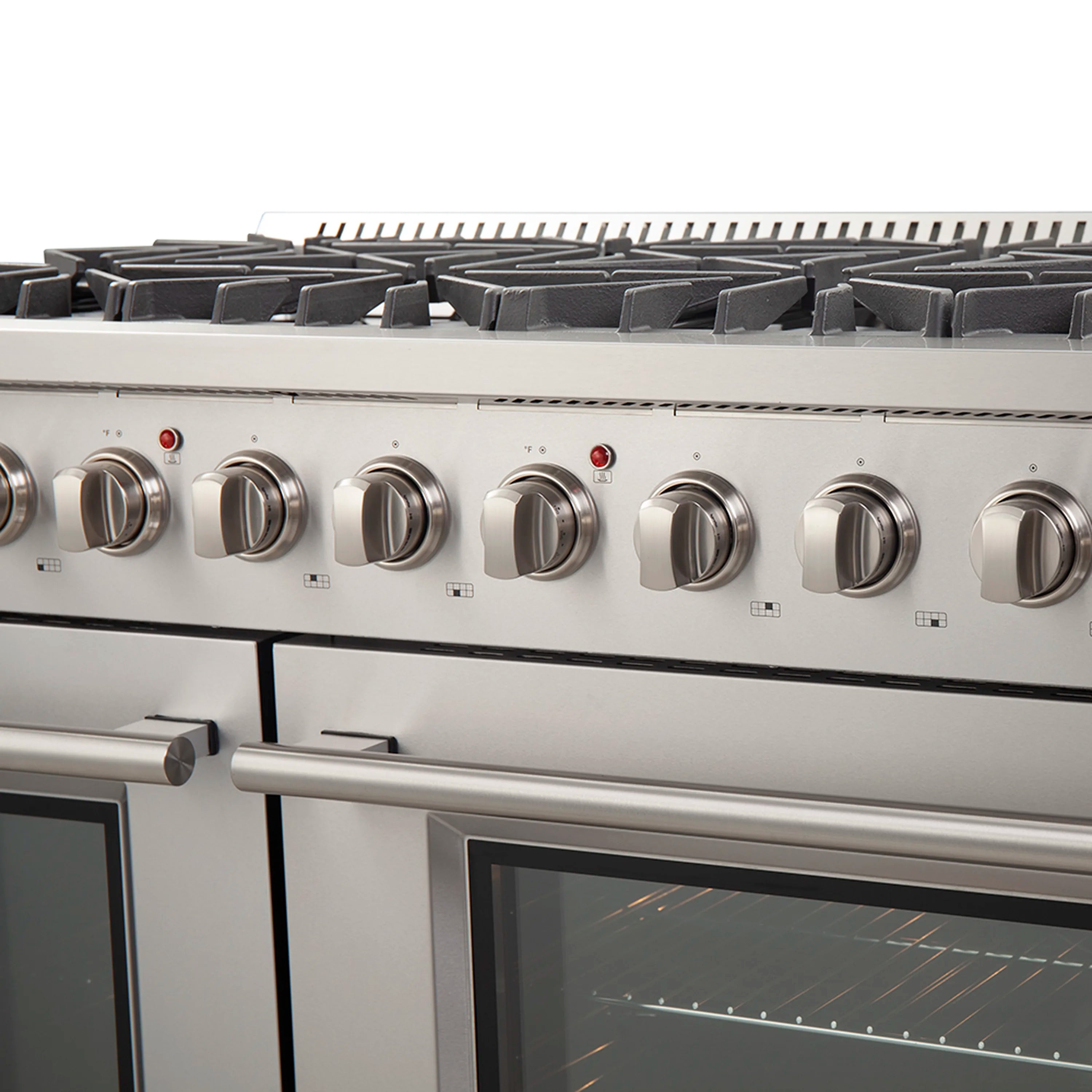

Number of Knob |
10 |
Switches |
1 + 2 |
Oven |
|
Overall Oven Capacity |
6.58 Cubic Feet |
Broil Top BTU | 10,000 |
Bottom BTU | 34,000 |
Right Oven Capacity |
4.32 Cubic Feet |
Right Broil Top BTU | 10,000 |
Right Bottom BTU | 20,000 |
Left Oven Capacity | 2.26 Cubic Feet |
Left Bottom BTU | 14, 000 |

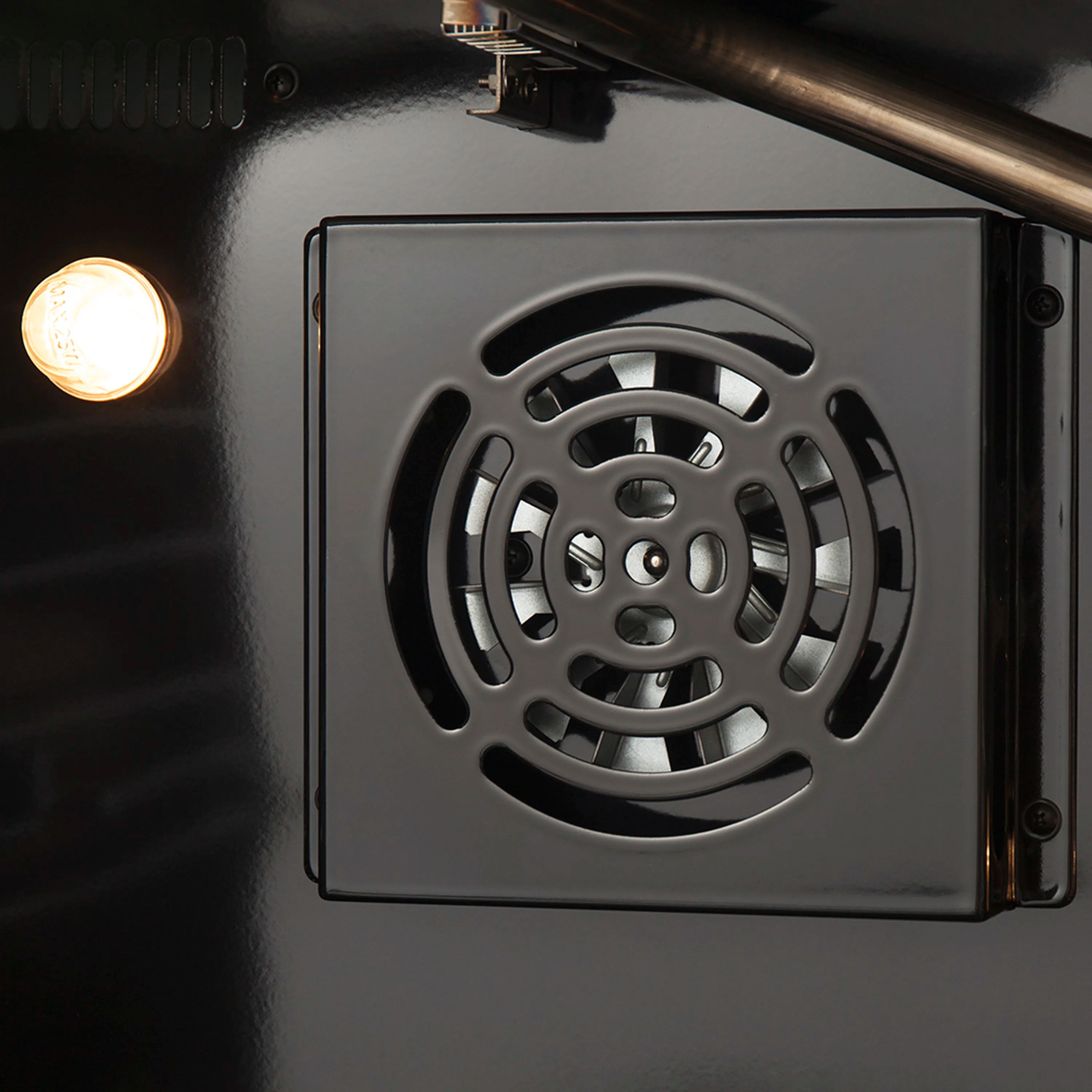

Convection Fan | Yes |
Certifications |
|
ETL Listed | Yes |
Details |
|
Product Type | Freestanding |
Color/Finish | Stainless Steel |
Fuel Type | Gas |
Gas Type | Natural Gas |
Gas Heat Configuration | Sealed Burner |
Number of Burners | 8 |

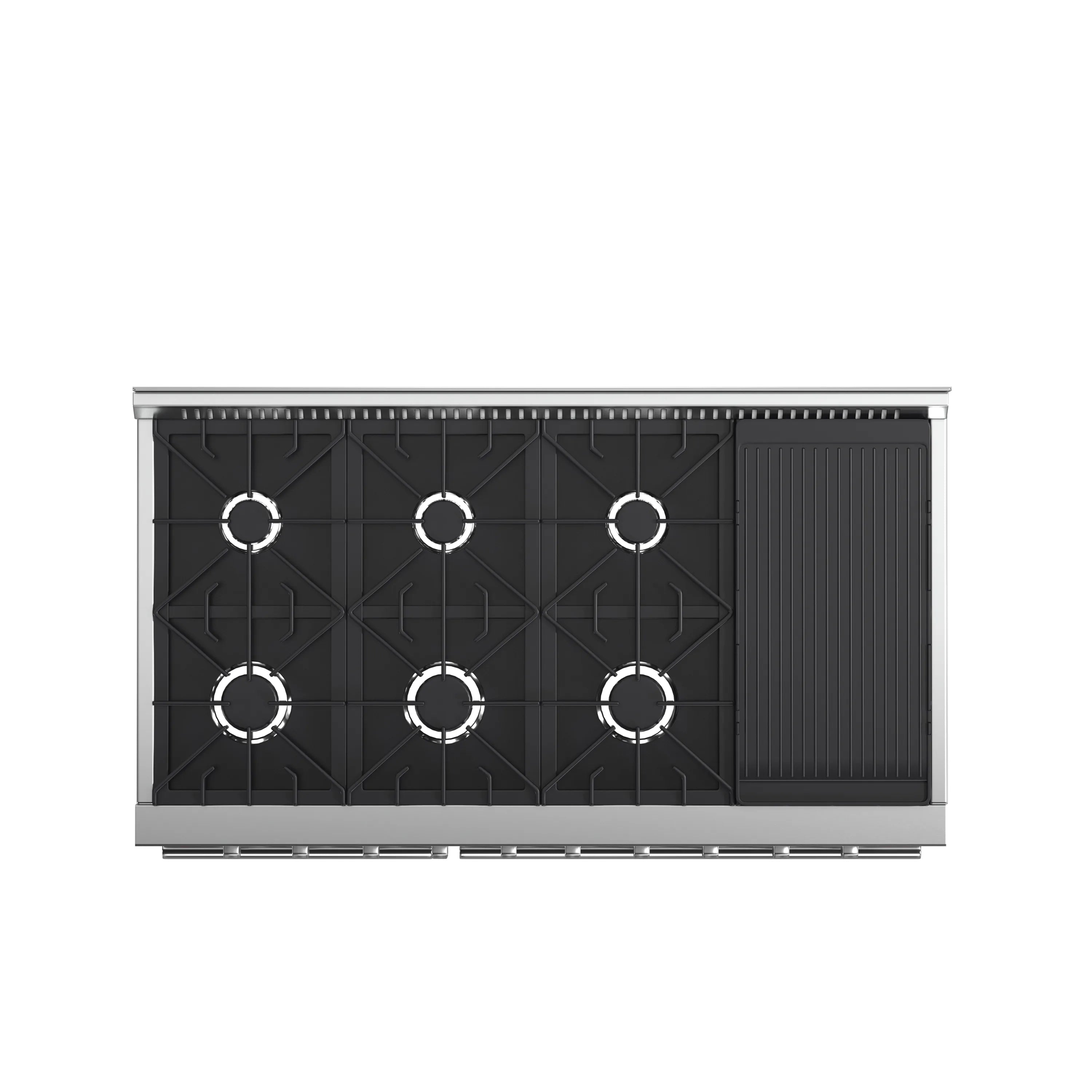

Cooktop Surface | Continuous Cast Iron Grates |
Cooktop Cavity |
Recessed Enamel |
Number of Ovens | 2 |
Number of Racks | 4 |
Number of Rack Positions |
2 x 6 |
Broiler | Gas |
Bake Element | Gas |
Cleaning Type | Manual |
Cooking Process | Convection |
Interior Light | 2 |

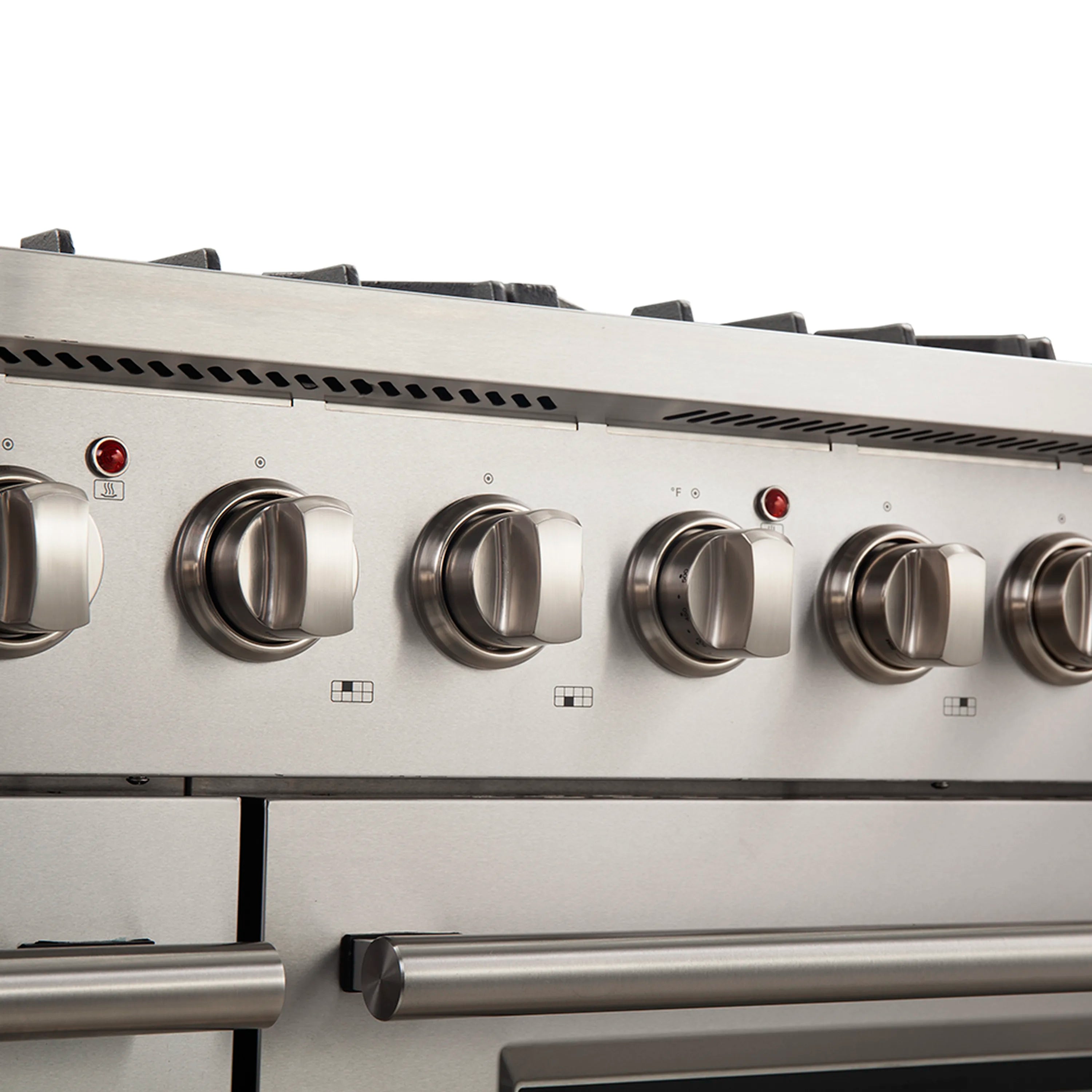

Control Type | Knob |
Control Location | Front |
LP Gas Convertible | Yes |
Black Enamel Oven Interior | Yes |
LP Conversion Kit Included | Yes |
Temperature Gauge | No |
Timer | No |
Clock | No |
Primary Material | Metal |
Door Panel Material | Stainless Steel |
Control Panel Material |
Stainless Steel |
Kick Plate Material | Stainless Steel |
Side Panel Material | Stainless Steel |
Supplier Intended and Approved Use | Residential Use |
Country of Origin | China |
Warranty Type |
Limited |
Warranty Length |
2 Years |
Warranty on Parts |
2 Years |
Warranty on Labor |
2 Years |
