Description
DIMENSIONS
- Overall Dimensions (IN) W X D X H
- 31.1 X 29.2 X 69.1
- Width Door(s) Open 130° (inches)
- 52
- Cabinet Depth (no Door)
- 23.6
- Depth without Handle (IN)
- 26.6
- Depth Door(s) Open 90° (inches)
- 56.3
- Depth Drawer(s) Open (inches)
- 43.4
- Height Top of the Cabinet (inches)
- 68.5
- Sides Clearance (IN)
- 1" on the left 1.6" on the right for door opening if next to fixed wall
- Minimum Back Clearance (IN)
- 2
- Minimum Top Clearance (IN)
- 1
- Cutout Dimensions (IN) W X D X H
- 33.7 x 31.2 x 70.1
- Overall Weight (LBS)
- 196
- Overall Capacity Cu. Ft.
- 17.2
- Counter Depth
- Yes
GENERAL INFORMATION
- UL Listed
- Yes
- Contain Gases
- R600A
- Product Type
- Bottom Freezer
- Installation Type
- Freestanding
- Door Orientation
- Right Swing
- Auto Door Closer
- No
- Leveling Legs
- Yes
- Door Ajarm Alarm
- Yes
- Garage Ready
- No
- Finger Print Resistant
- Yes
- Smudge Resistant
- No
- Filtration System
- No
- Vacation Mode
- No
- Energy Saver Mode
- Yes
- Fast Freeze/Cool Mode
- Yes
- Quiet Operation
- Yes
- Supplier Intended and Approved Use
- Residential
- Estimated Annual Operating Cost (USD)
- 63 USD
- Receptacle Type
- 3-Prong Grounded NEMA 5-15
DESIGN & FINISH
- Color/Finish
- Stainless Steel VCM
- Panel Ready
- No
- Reversible Door
- No
- Interior Light
- Yes
- Interior Light Type
- LED

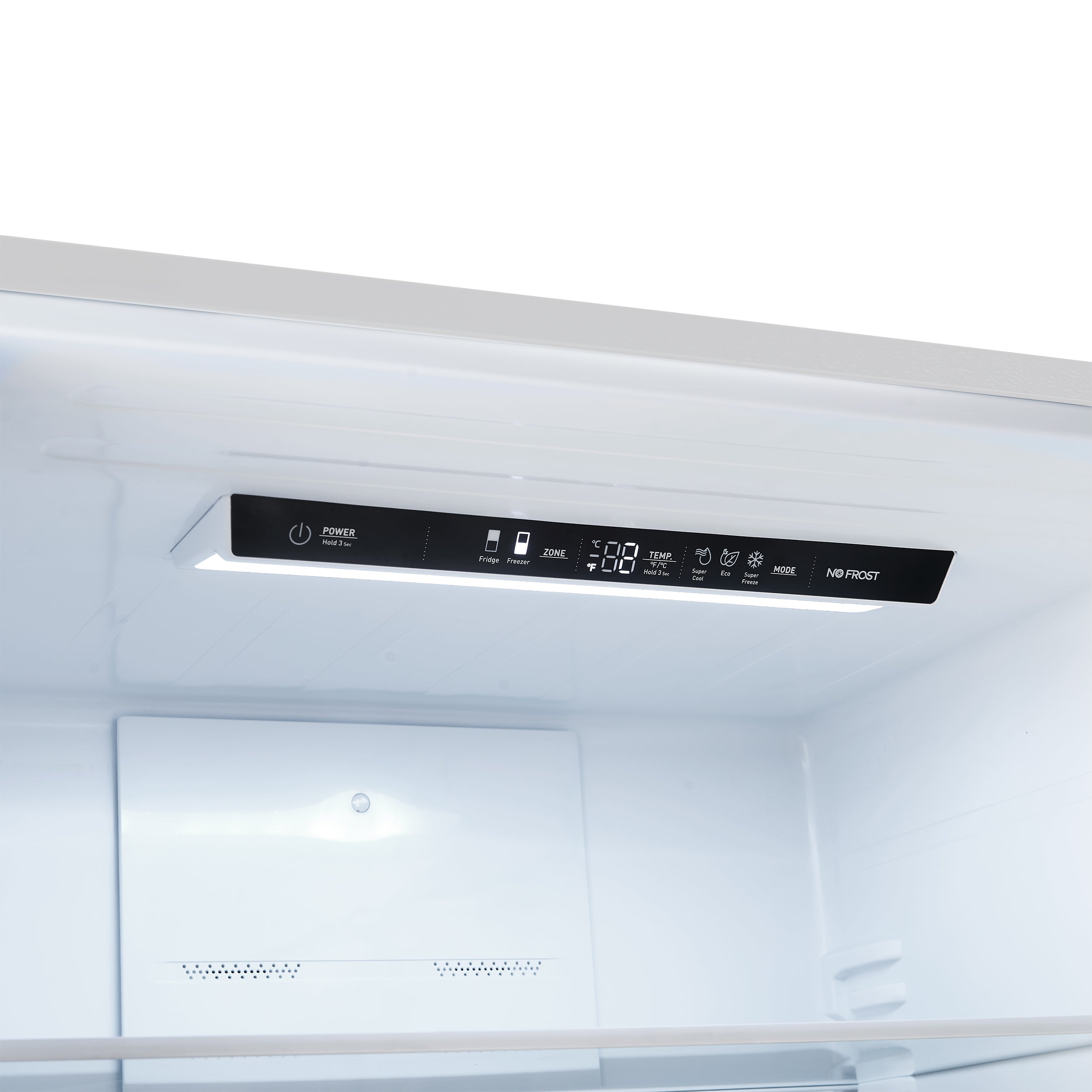

- Control Type
- Touch Control
- Control Location
- Internal
- Primary Material
- Metal
- Safety Lock
- No
- Display Screen
- Yes
TECHNICAL DETAILS
- Defrost Type
- Automatic
- Cooling System
- Multi Air Flow
- Compressor Type
- Constant Frequency Compressor
- Noise Level (dBA)
- 43
- Power Cord
- 3-Prong NEMA 5-15
- Amperage (AMP)
- 15
- Running Amperage (AMP)
- 1.25
- Volts (V)
- 120
- Frequency (Hz)
- 60
- Power Consumption Cooling Wattage (W)
- 80
- Power Consumption Defrost Wattage (W)
- 220
- Energy Consumption (kWh/yr)
- 453
- Power Cord Length without Plug
- 5.58 Feet
- Power Cord Length with Plug
- 5.8 Feet

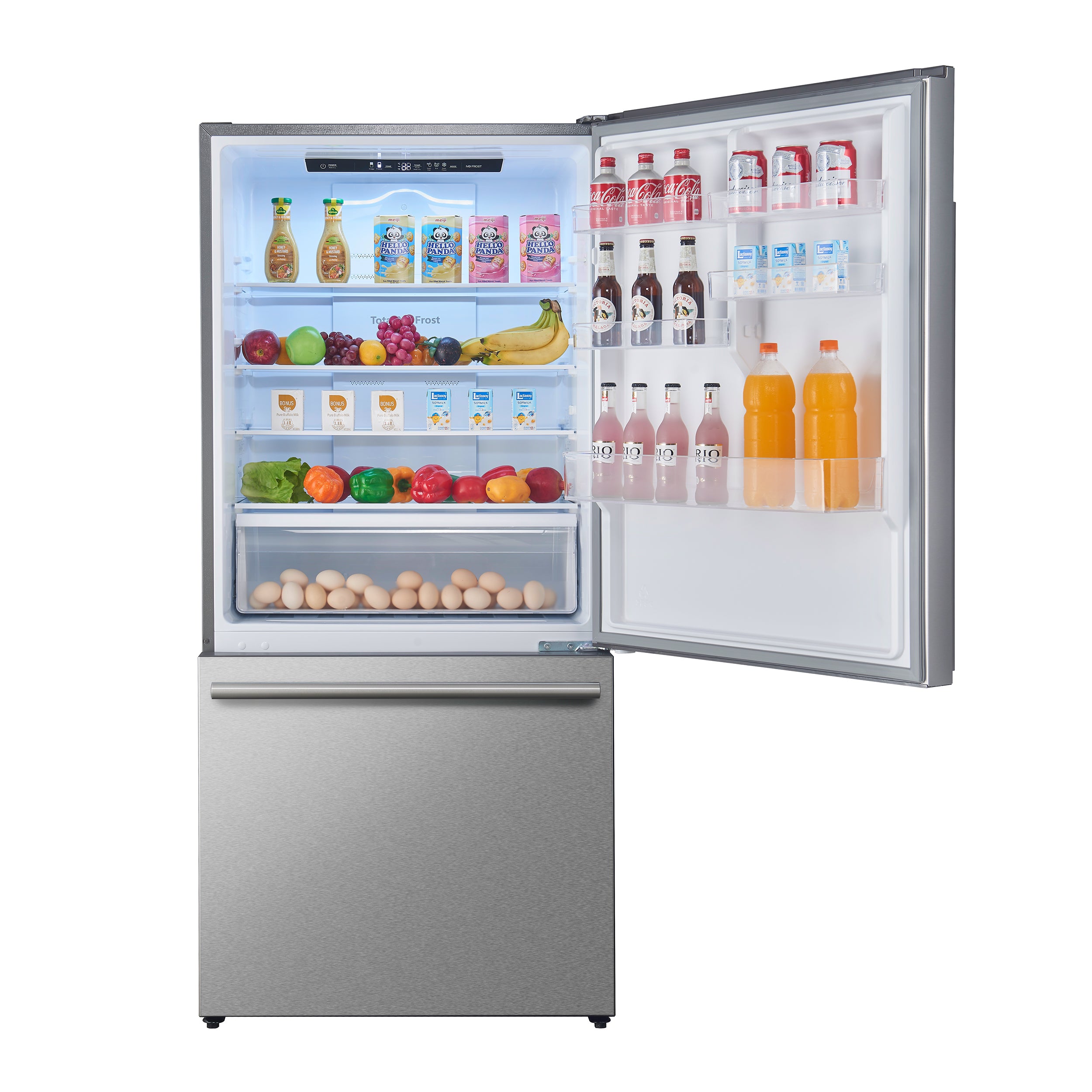

REFRIGERATOR FEATURES
- Ice Maker
- No
- Water Dispenser
- No
- External Dispenser
- No
- Temperature Range Refrigerator (°F)
- 34°F to 44°F
- Temperature Range Refrigerator (°C)
- 1°C to 7°C

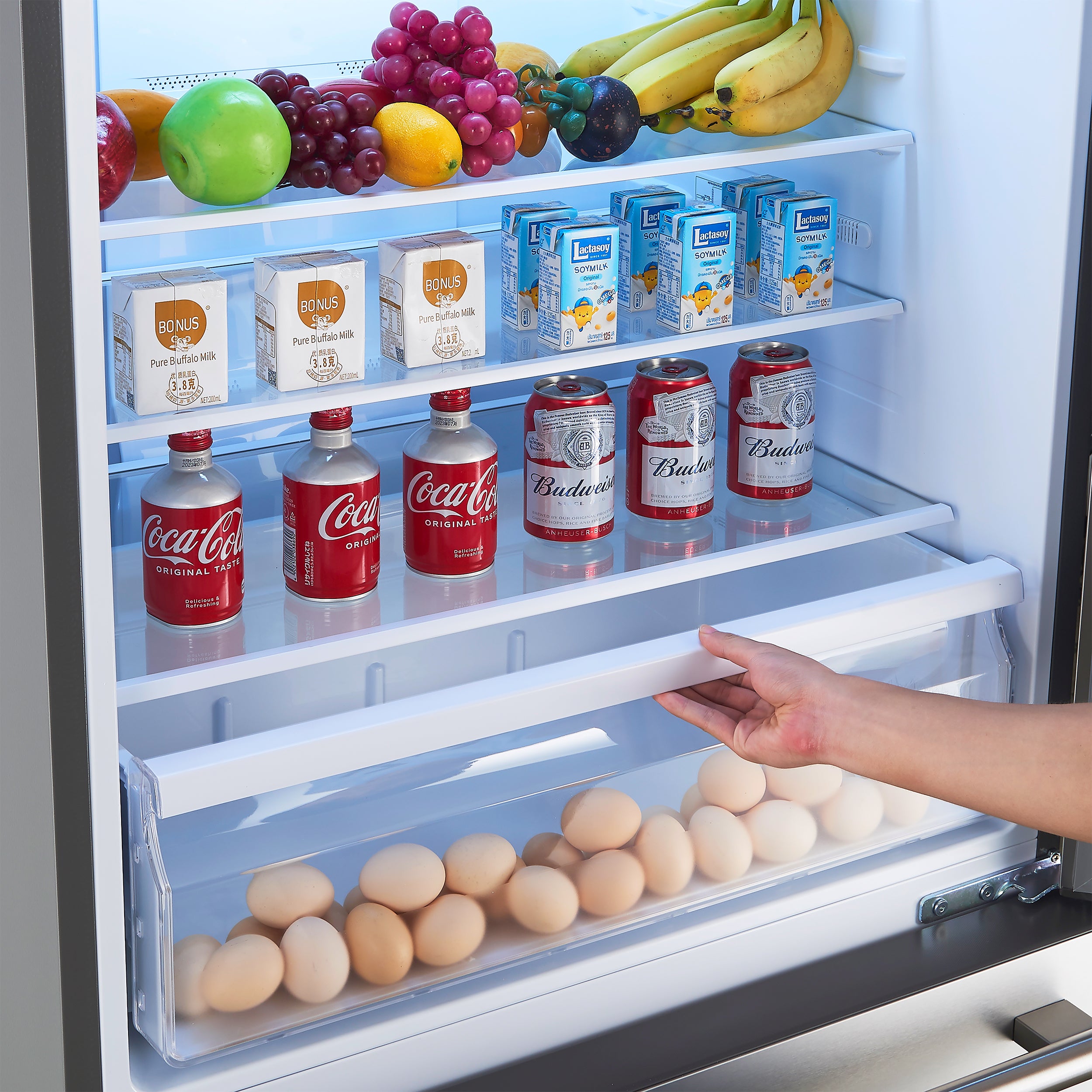

- Adjustable Shelves
- 3
- Spill-Proof Shelves
- No
- Sabbath Mode
- No
- Fresh Food Capacity Cu. Ft.
- 12.09
- Interior Fresh Food Dimensions W x D x H
- W:26.81” x D:21.08” x H:35.91”
- Fresh Food drawers
- 1
- Fresh Food Drawer(s) Size W x D x H (inches)
- 26.6 x 15.7 x 7.8
- Fresh Food Door Type
- Right Swing
- Fresh Food Shelves
- 4
- Fresh Food Shelve(s) Size W x D x H (inches)
- 26.7 x 14.3 x 0.37

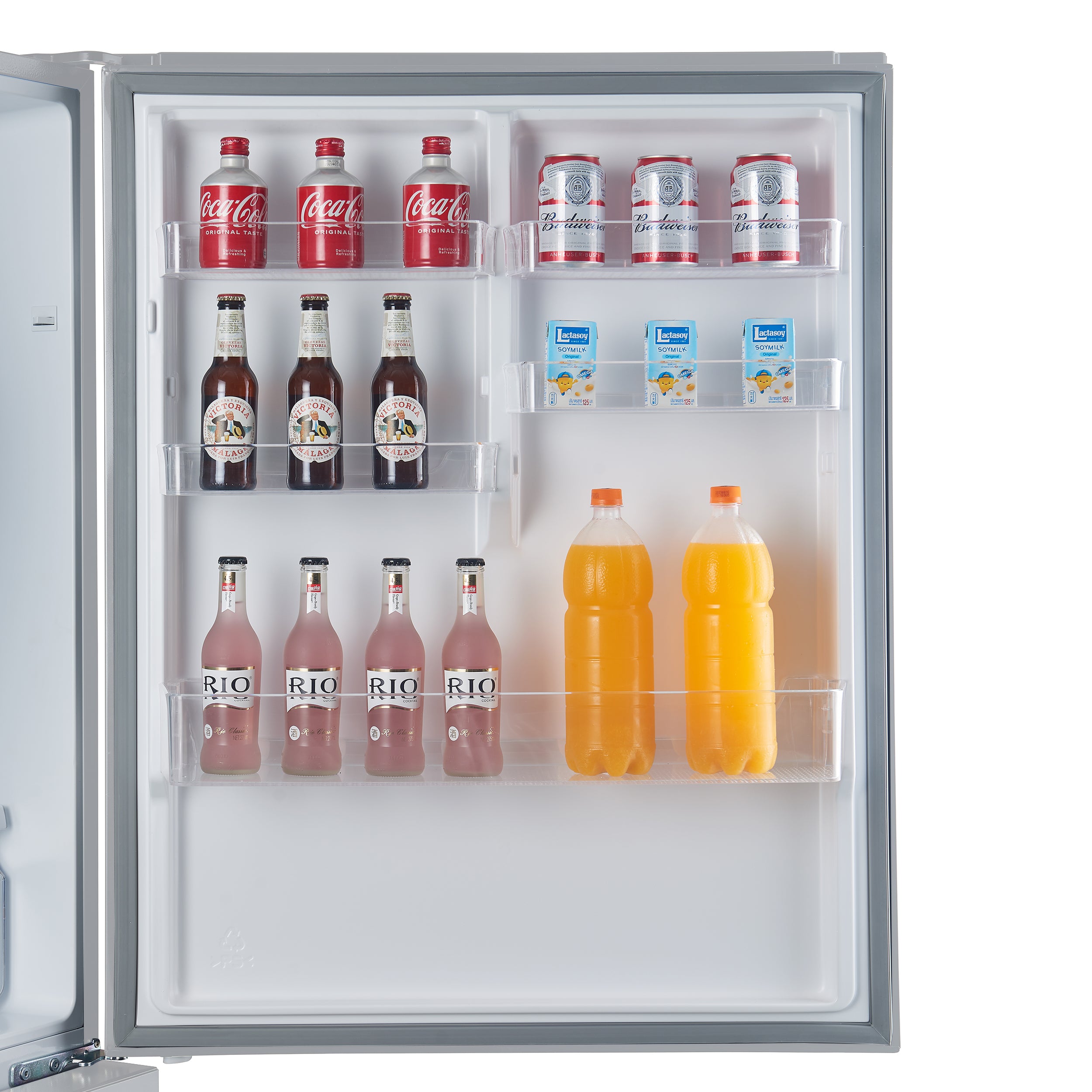

- Gallon Door Bins
- 1
- Gallon (4 Liters) Door Bin(s) Size W x D x H (inches)
- 26.8 x 5.6 x 3.5
- Half (2 Liters) Gallon Door Bins
- 4
- Half (2 Liters) Gallon Door Bins Size W x D x H (inches)
- 13.3 x 5.59 x 1.97
- Standard Door Bins
- No
- Door Bins Color
- Transparent

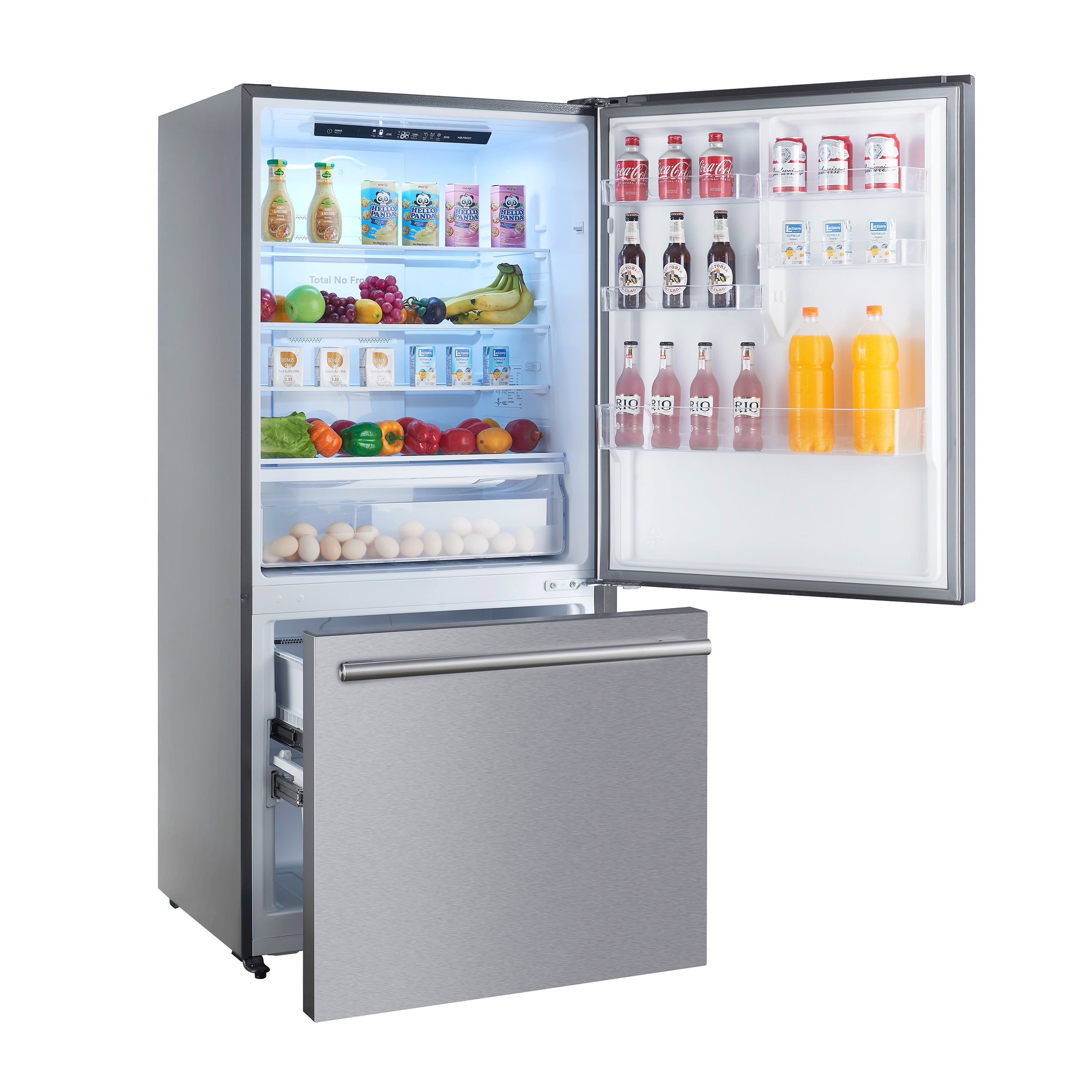

FREEZER FEATURES
- Temperature Range Freezer (°F)
- -11°F to 7°F
- Temperature Range Freezer (°C)
- -24°C to-14°C
- Freezer Capacity
- 5.14
- Interior Freezer Dimensions
- 24.45” x D:16.00” x H:22.68”

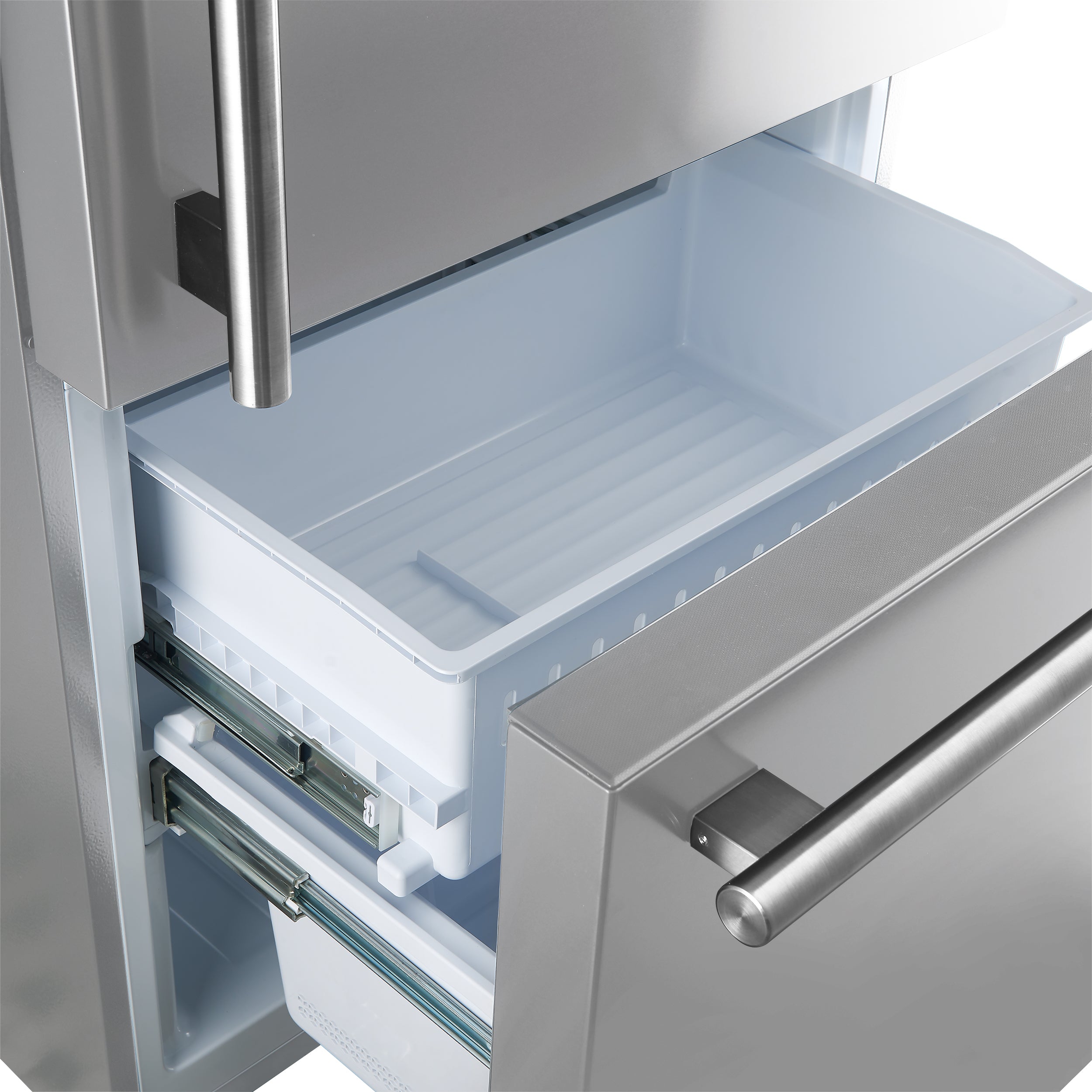

- Freezer drawers
- 2
- Freezer Drawer(s) Size W x D x H (inches)
- 25.7 x 14.78 x 11.38
- Freezer Door Style
- Pull Out Drawer
- Freezer Shelves
- No
WARRANTY & CERTIFICATIONS
- Energy Star
- Yes
- ISTA 6A Certified
- Yes
- Commercial Warranty
- No
- Warranty Type
- Limited
- Warranty Length
- 2
- Warranty on Parts
- 2
- Warranty on Labor
- 2
