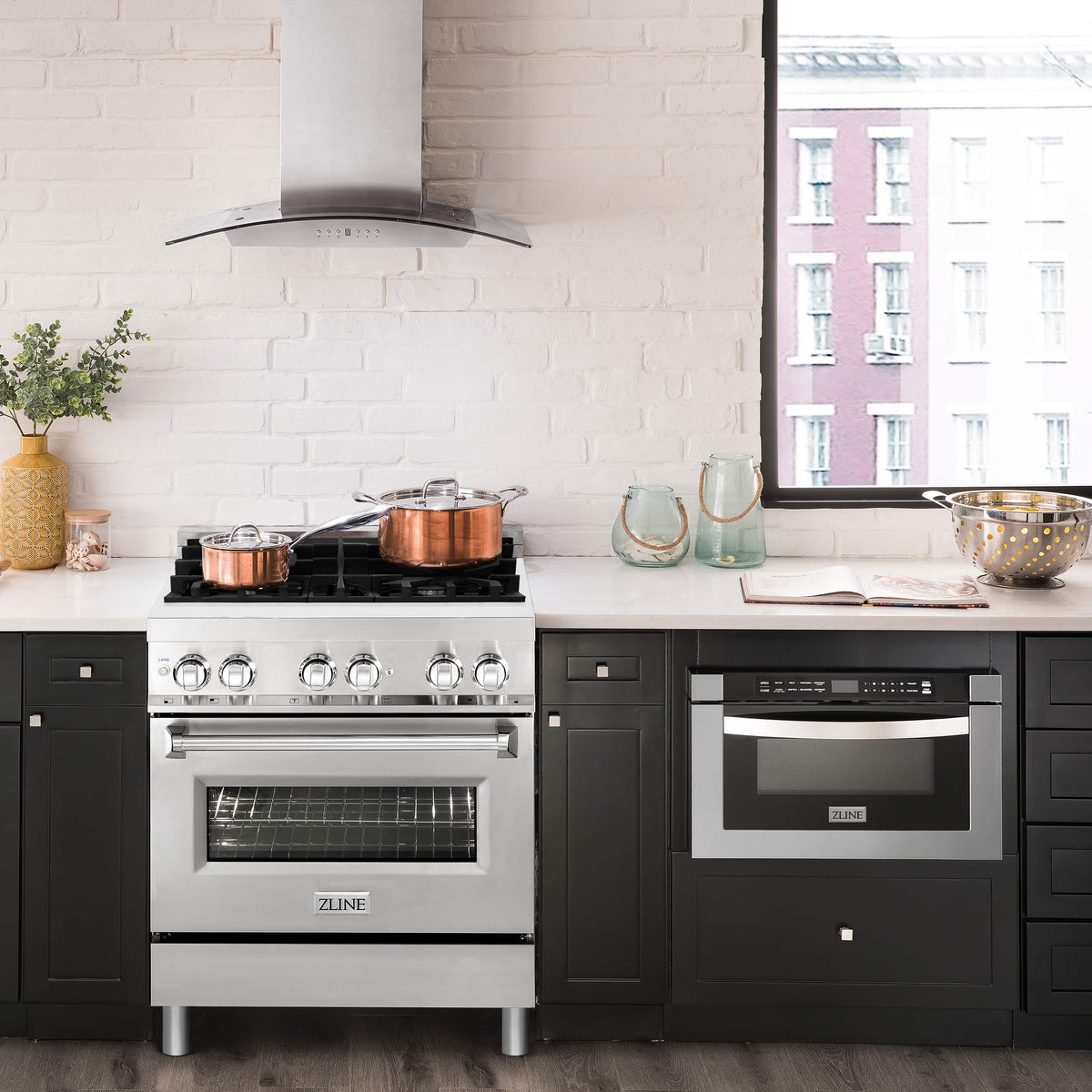

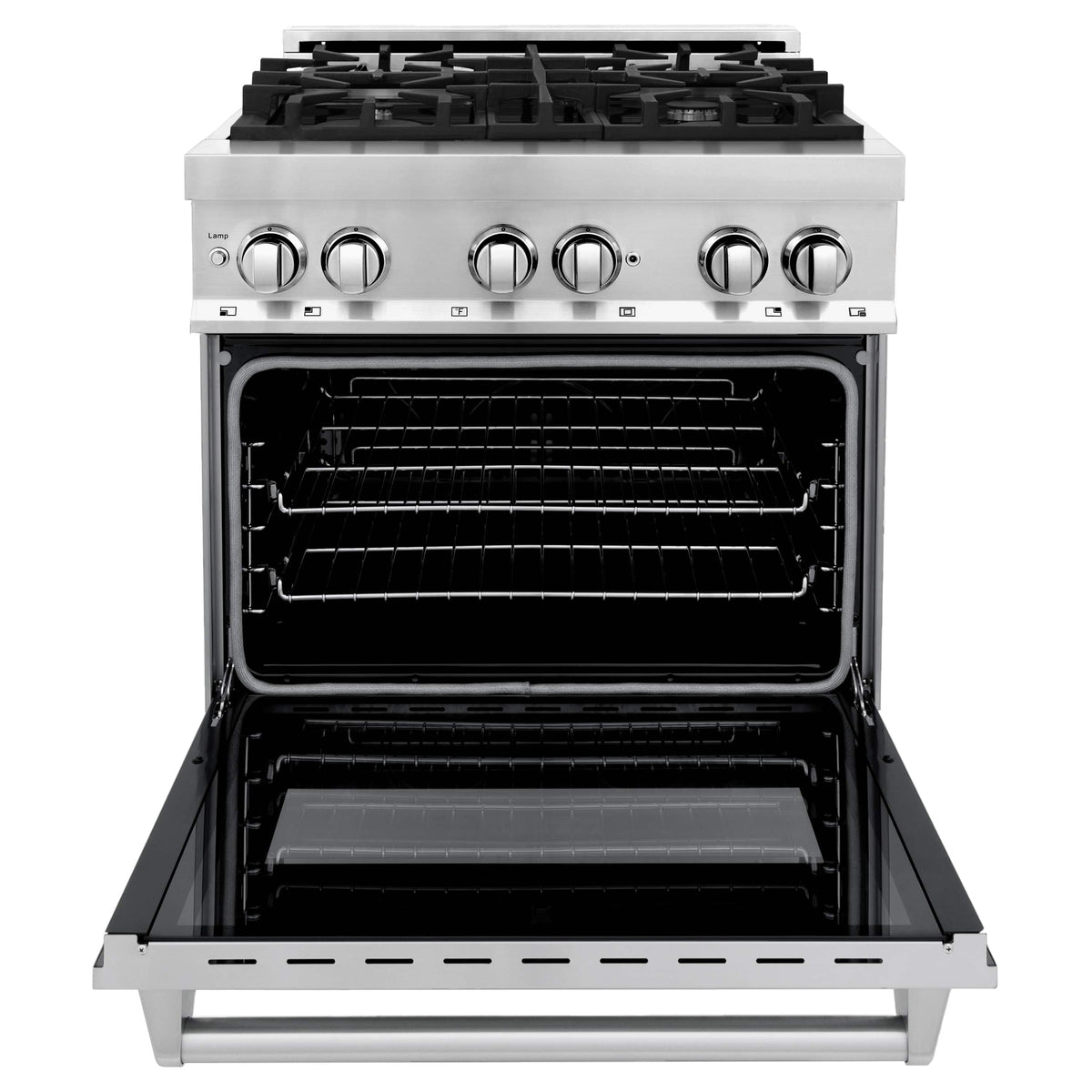

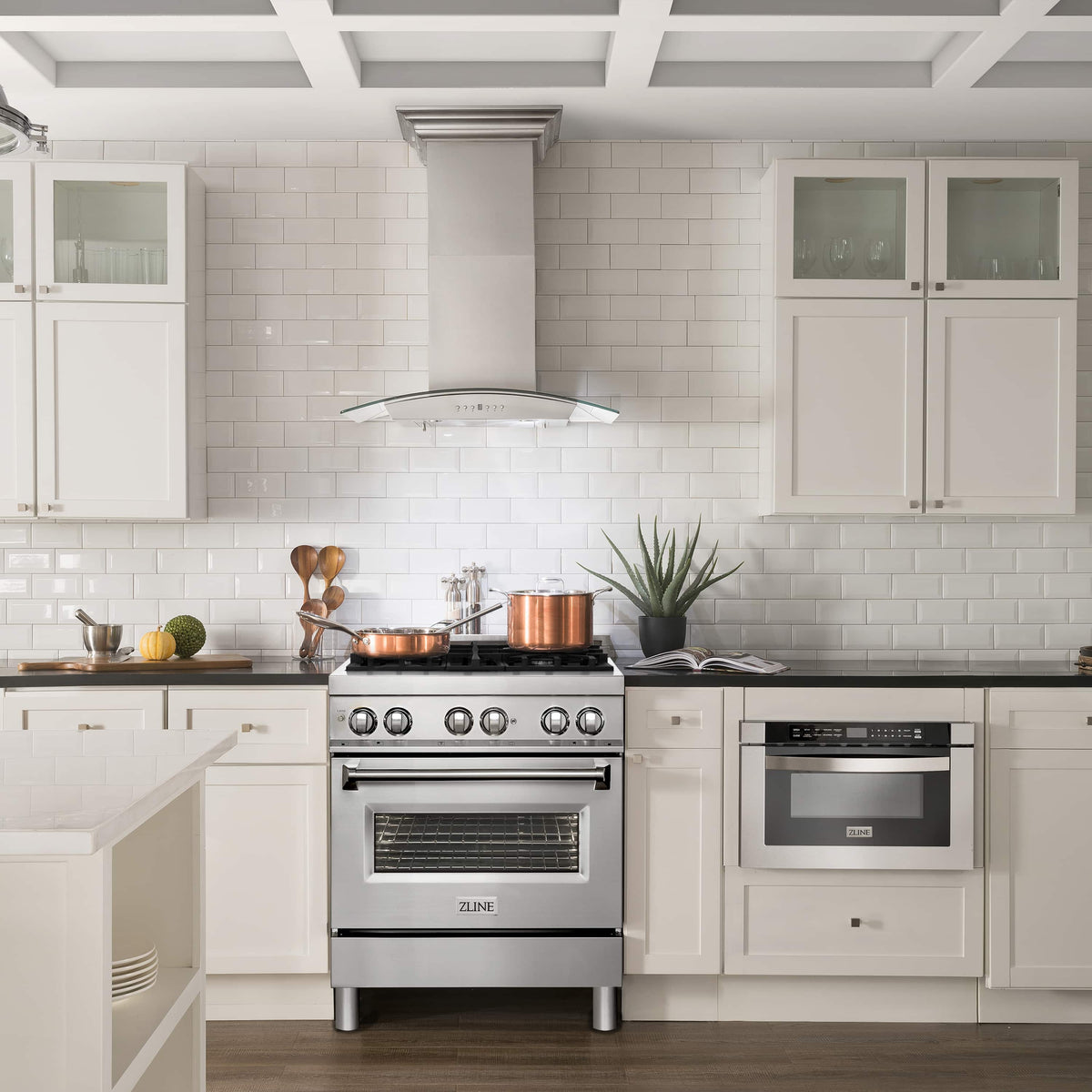

Luxury isn’t meant to be desired - it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 30" 4.0 cu. ft. Dual Fuel Range with Gas Stove and Electric Oven in Stainless Steel (RA30) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury excellence with innovative features designed to enhance your kitchen’s capability.

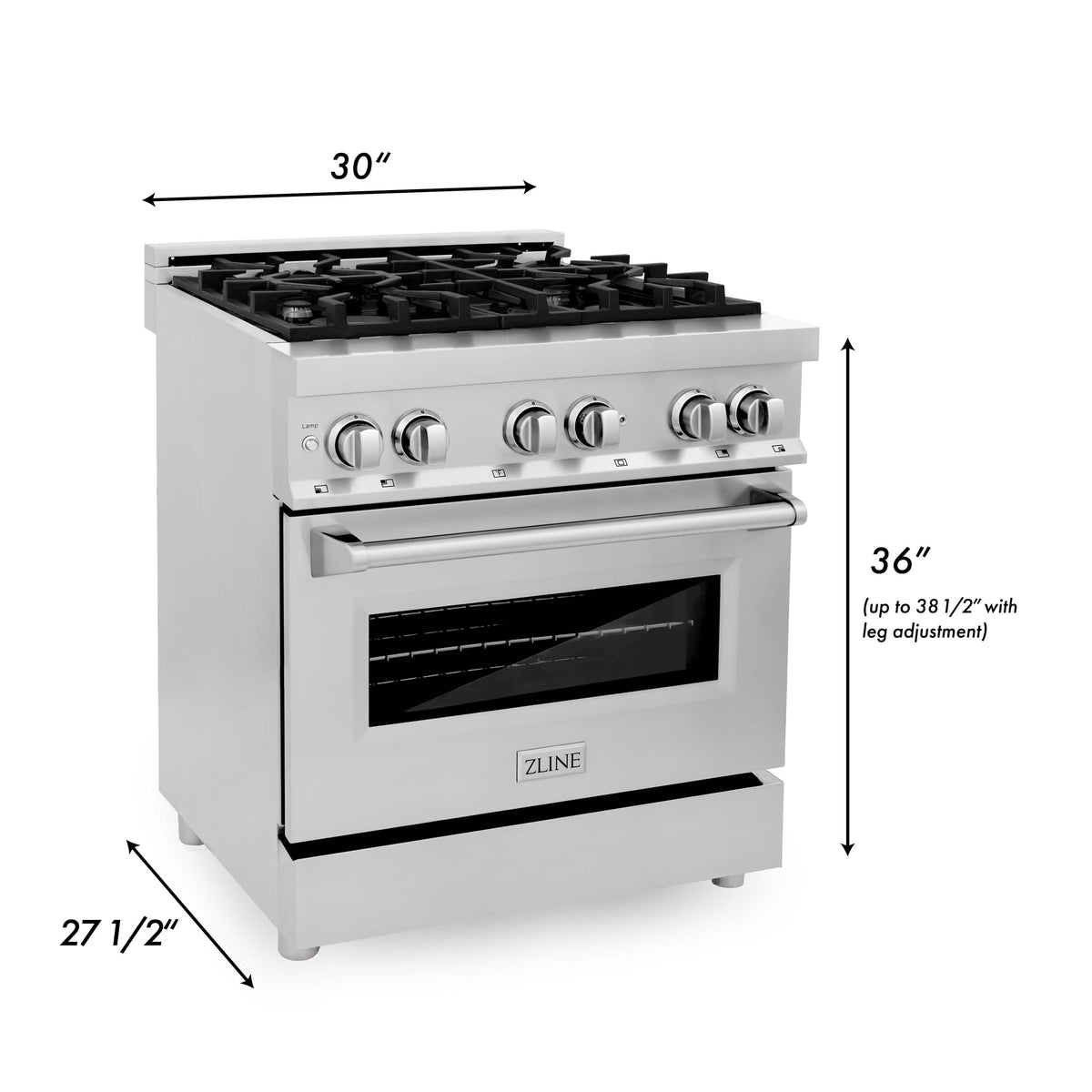

| Dimension: | 29.75" W x 27.5" D x 36.13" |
| Dimensions with Handle: | 29.75" W x 29.63" D x 36.13" |
| Open Door Depth: | 41.8" |
|
Dimension:
|
30" W x 27.38" D (29" with handle) x 36" H
|
| Lighting: | Dual Lighting, controlled by light switch on front control panel |
|
Voltage:
|
Requires a minimum of 220V-240V/60HZ/50A
|
|
Mount Type:
|
Free Standing
|
|

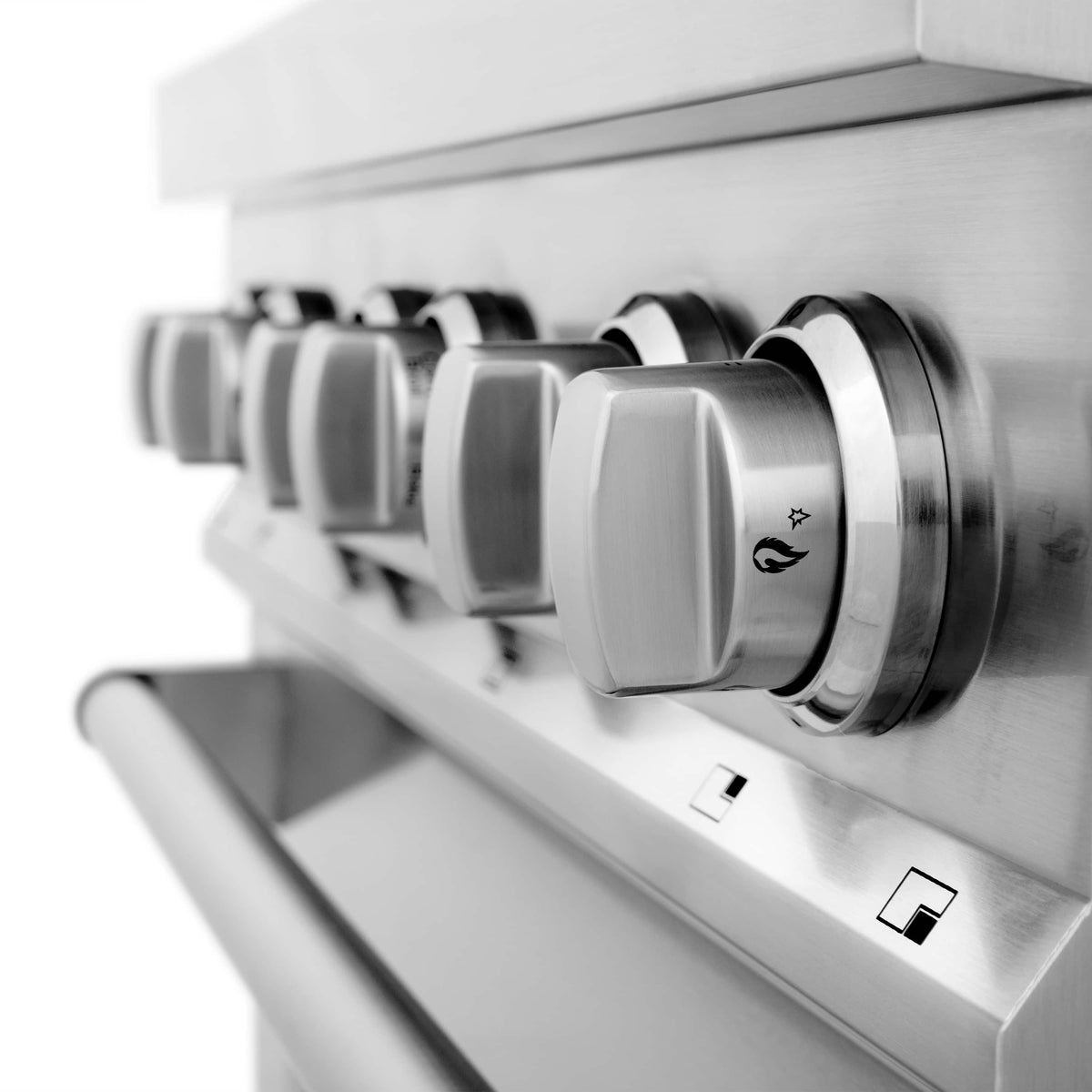

Control Type:
|
Durable Front Control
|
|
Material:
|
Stainless Steel frame with 1 Piece Enamel Top- Italian made hinges and burners
|
|
Warranty:
|
1 Year Warranty
|
|
Features
|
Manufactured by ZLINE Kitchen and Bath
Model No. RA30 ETL and UL Listed CSA Approved |
|
Product Weight:
|
230lbs
|
|
Cooktop:
|

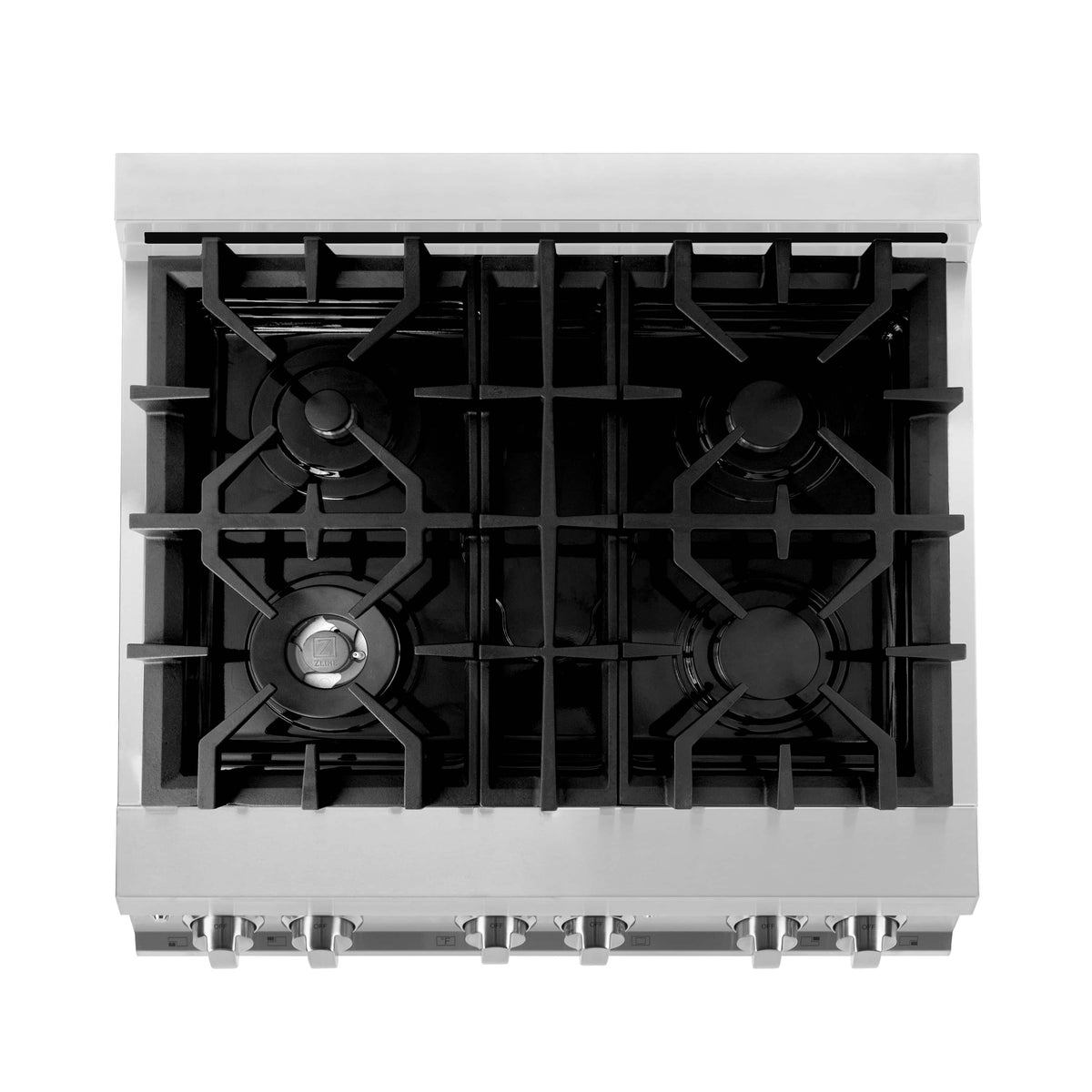

(4) Burners with Enamel Cook Top with electronic spark ignition for all burners
|
| Gas Type: | Natural Gas or Liquid Propane via conversion kit |
| Liquid Propane | LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional |

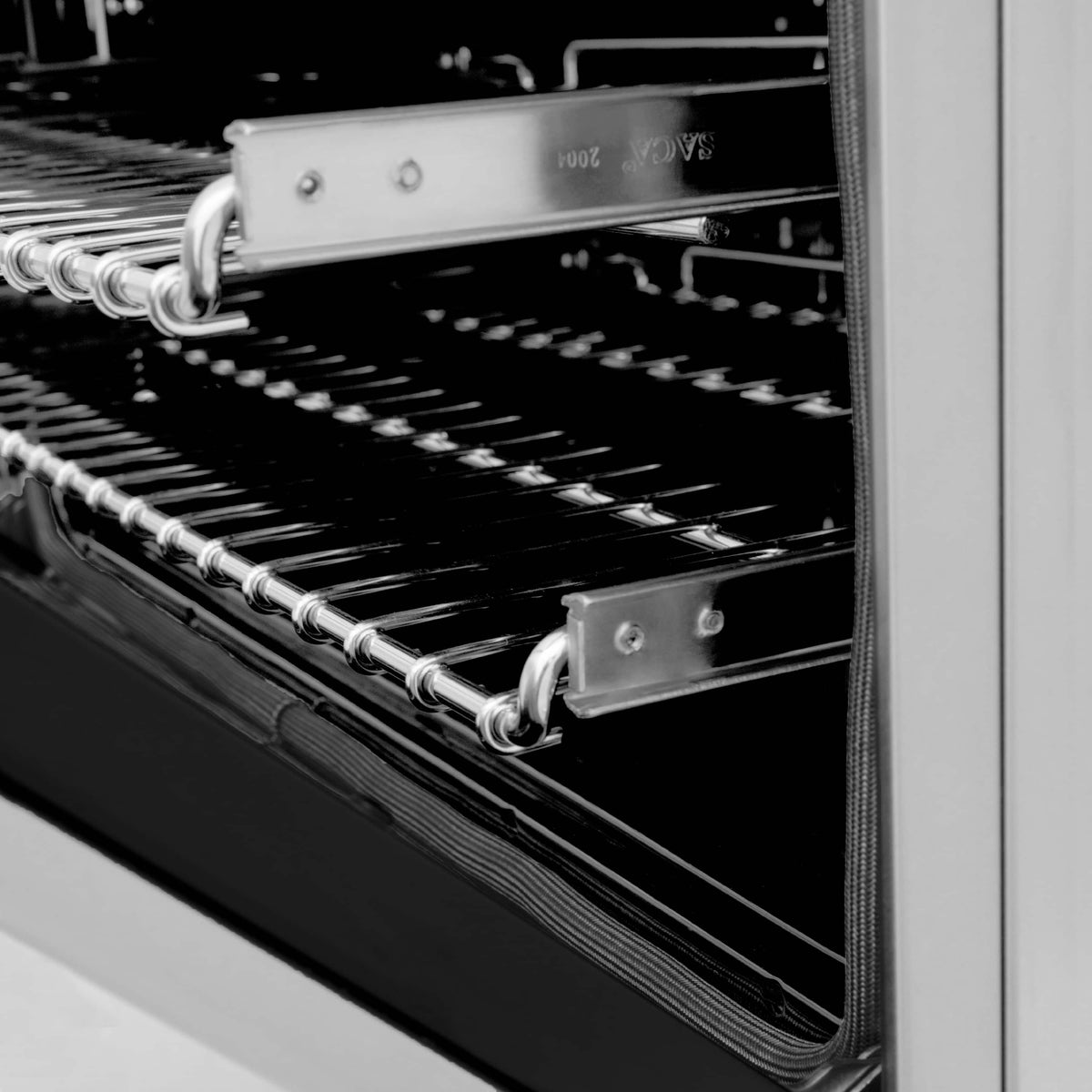

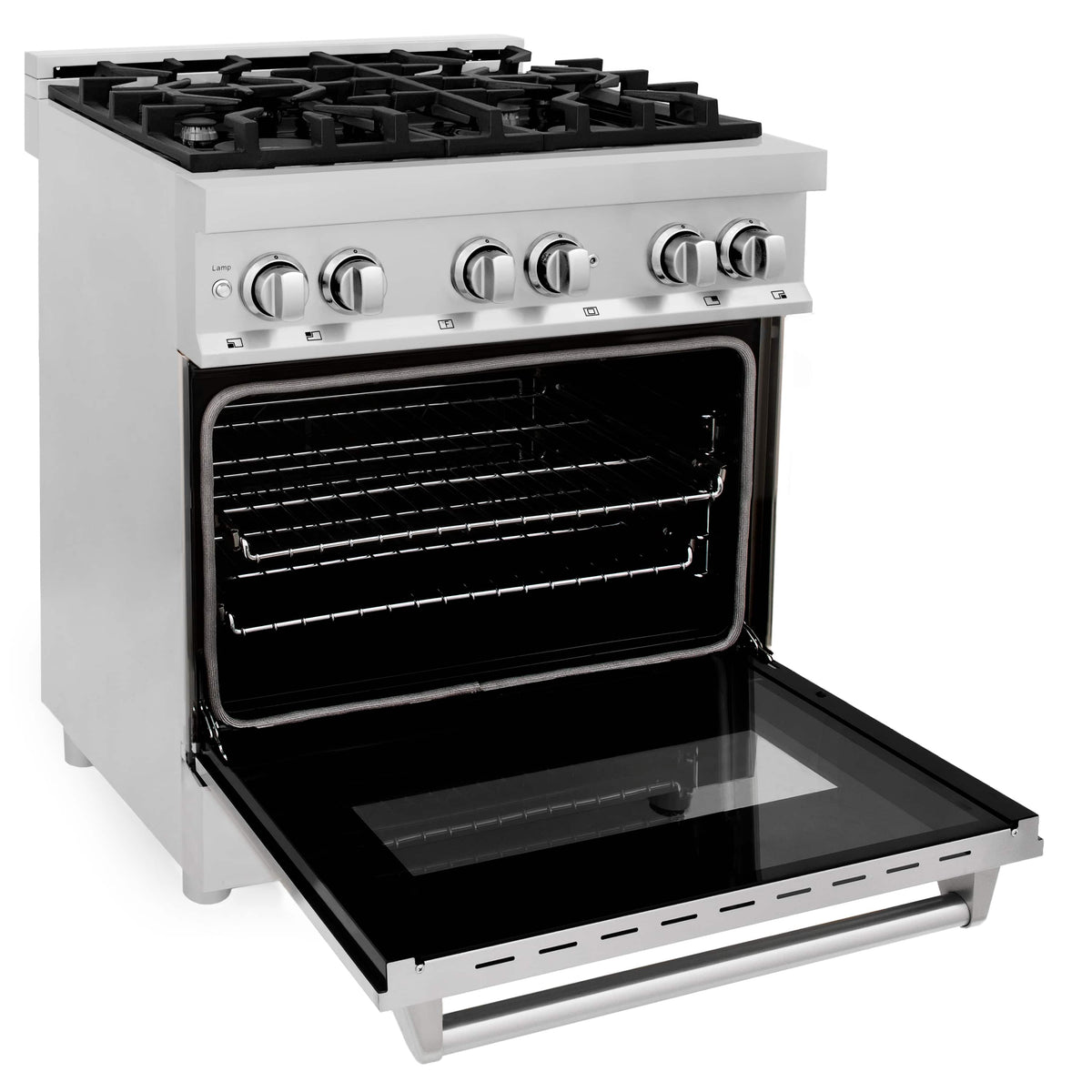

| Oven: | Manual Clean - Convection Electric - 4.6 cu.ft. deep oven - Triple Glass Window - Dual Lighting - Professional Aluminum Mesh Seal |
|
BTU Rating:
|
Dual Burner - 18,000 BTU
Rapid Burner - 13,000 BTU Semi-Rapid Burner - 8,500 BTU Auxiliary Burner - 4,200 BTU |
| Fuel | All ZLINE Ranges come set to work with natural gas by default. All Ranges can also work with liquid propane. Every range comes equipped with an LP conversion kit to convert from natural gas to propane; this conversion process must be done by a professional |
|
Fuel Type:
|
Convection Electric Oven - Gas Cooktop
|

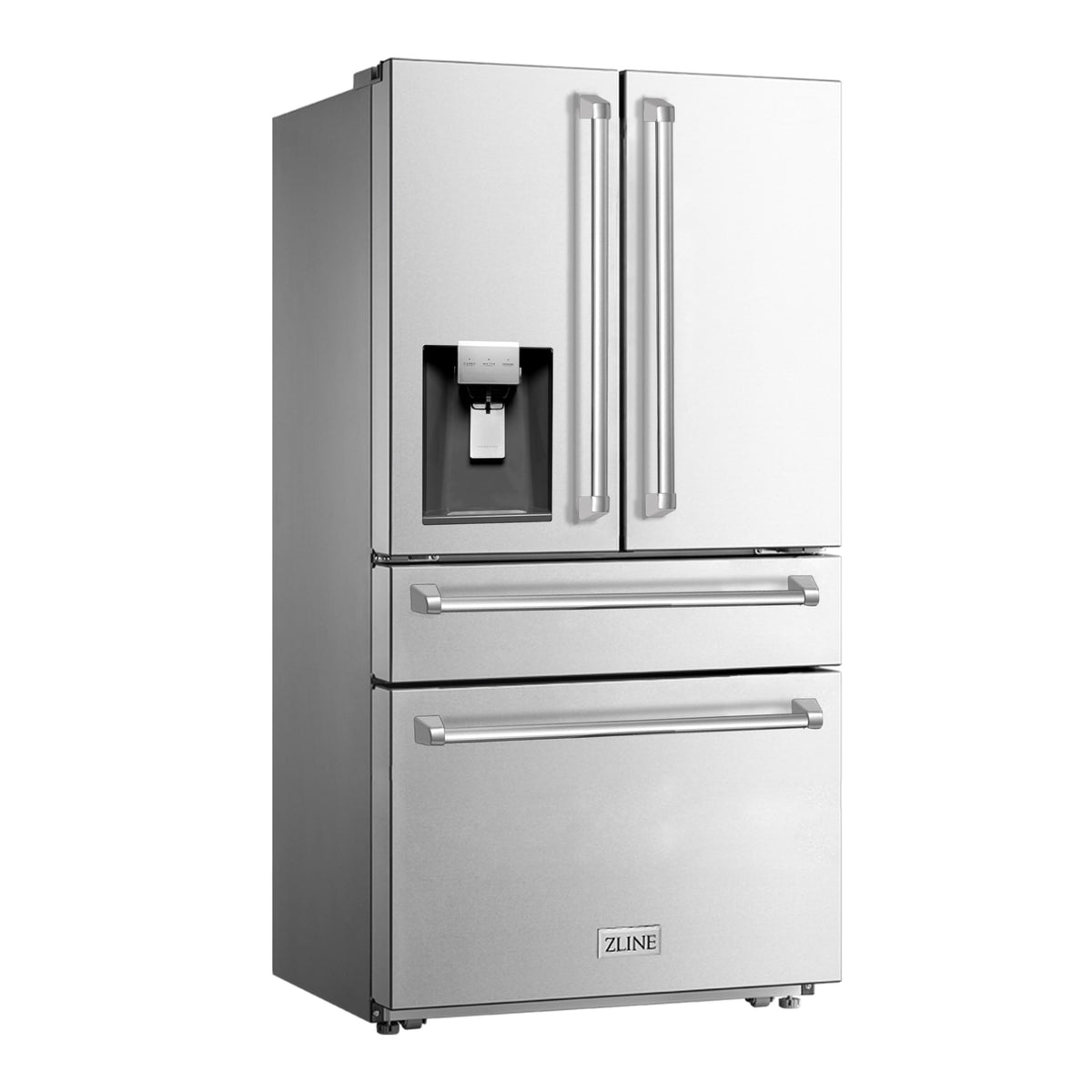

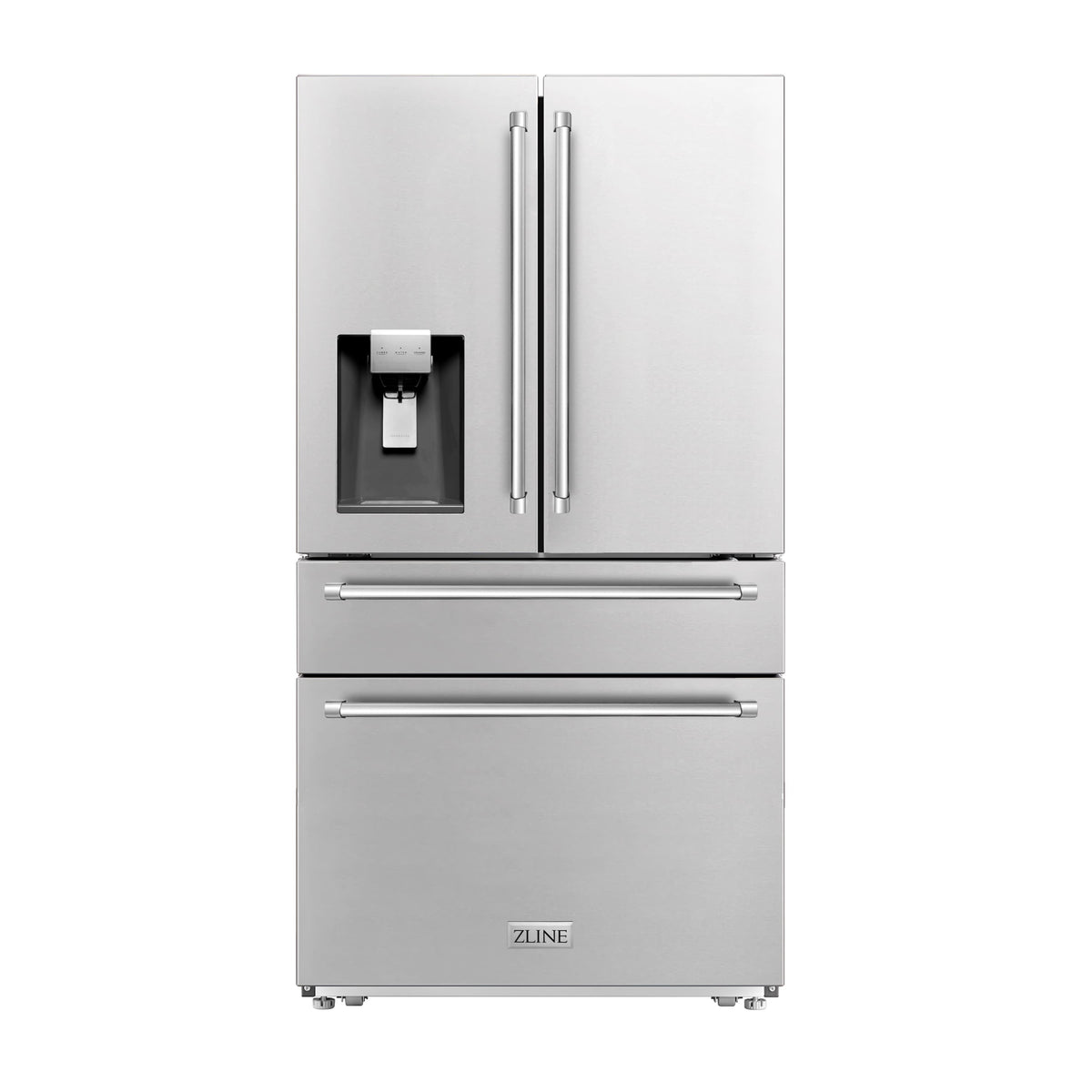

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE 36 in. 21.6 cu. ft. Counter-Depth French Door Refrigerator with Water and Ice Dispenser in Fingerprint-Resistant Stainless Steel (RFM-W-36) delivers an elevated experience by pairing innovative dual cooling technology with a spacious counter-depth design and an external water dispenser and ice maker. Achieve ZLINE Attainable Luxury® excellence with timeless features designed to enhance your kitchen’s capability.
| Dimensions: | 35.75 in. W x 28.8125 in. D x 69.6875 in. H |
| Total Capacity: | 21.6 cu. ft |
| Fridge Capacity: | 15.04 cu. ft |
| Freezer Capacity: | 6.6 cu. ft |
| Flex Drawer Capacity: | 2.6 |
| Flex Drawer Temp Controls: | Meat (30 degrees), Beverage (34 degrees), Deli (37 degrees), and Wine (41 degrees) |
| Installation Depth: | 29 in. D |
| Depth with Door Open: | 43 in. |
| Ice Maker: | Yes |
| Ice Maker Types: | Single Ice Maker |
| Ice Amount Per Day: | 4.85 lbs |
| Ice Tray Storage: | N/A |

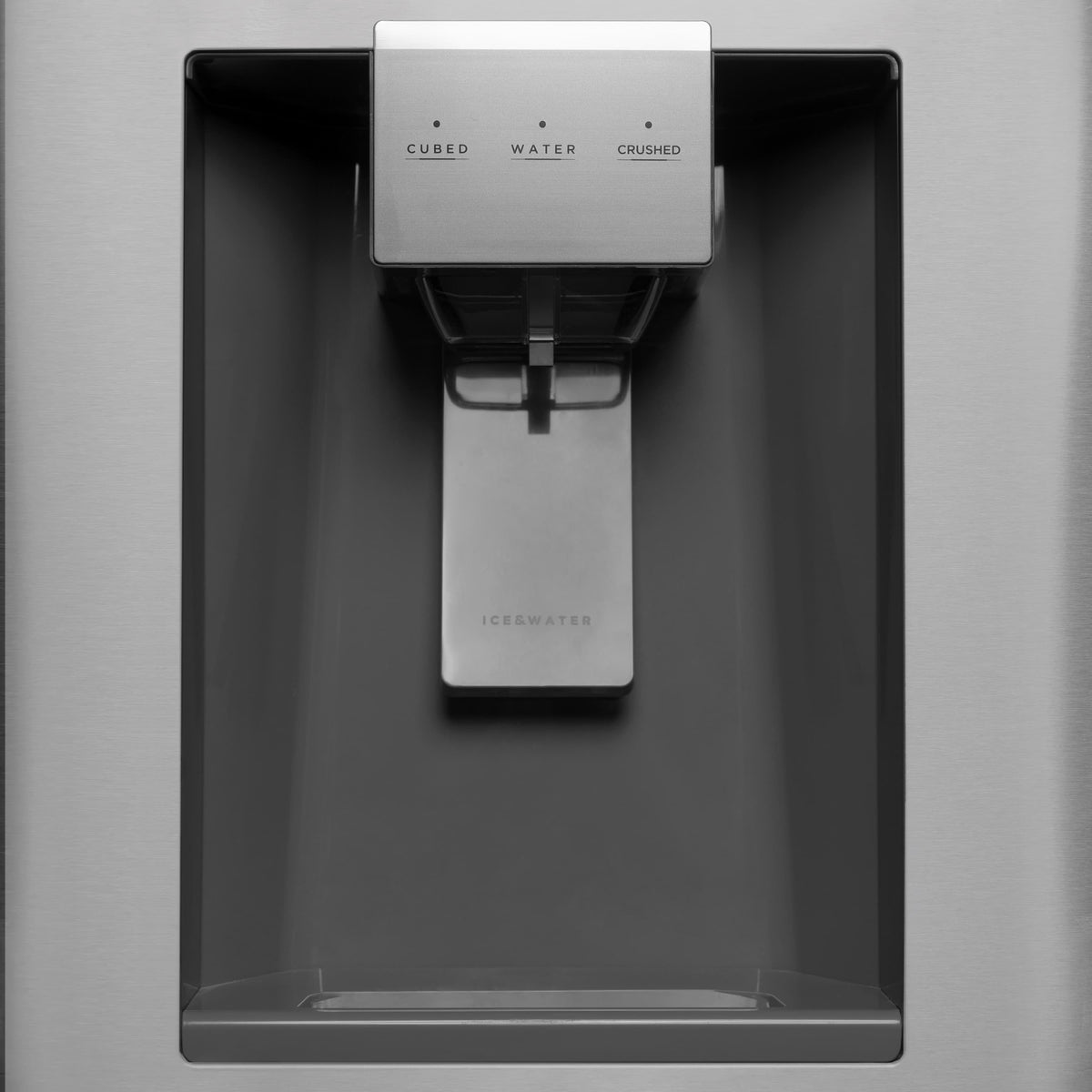

| Water Dispenser: | Yes |
| Flow rate for Water Dispenser: | .5 GPM |
| Fridge Lights: | 4 |
|
Energy Star: |
Yes |
| Energy Consumption (kWh/year) | 658 |
| Voltage: | 120V/60Hz |
| Amps: | 3 |
| Noise Level: | 43 Decibels |
| Humidity-Controlled Crispers: | 2 |
| Freezer Drawer Bins: | 2- Pull Out Drawers |
| Door Shelves: | 4 |
| Number of Fridge Shelves: | 4 |
| Mount Type: | Freestanding |
| Certifications: | ETL Listed, ENERGY STAR certified |
| Material: | Stainless Steel |
| Warranty |
1-Year Parts and Labor Warranty 5-year parts-only for Sealed System |
| Weight | 284.4 lbs |
Luxury isn’t meant to be desired - it’s meant to be attainable.

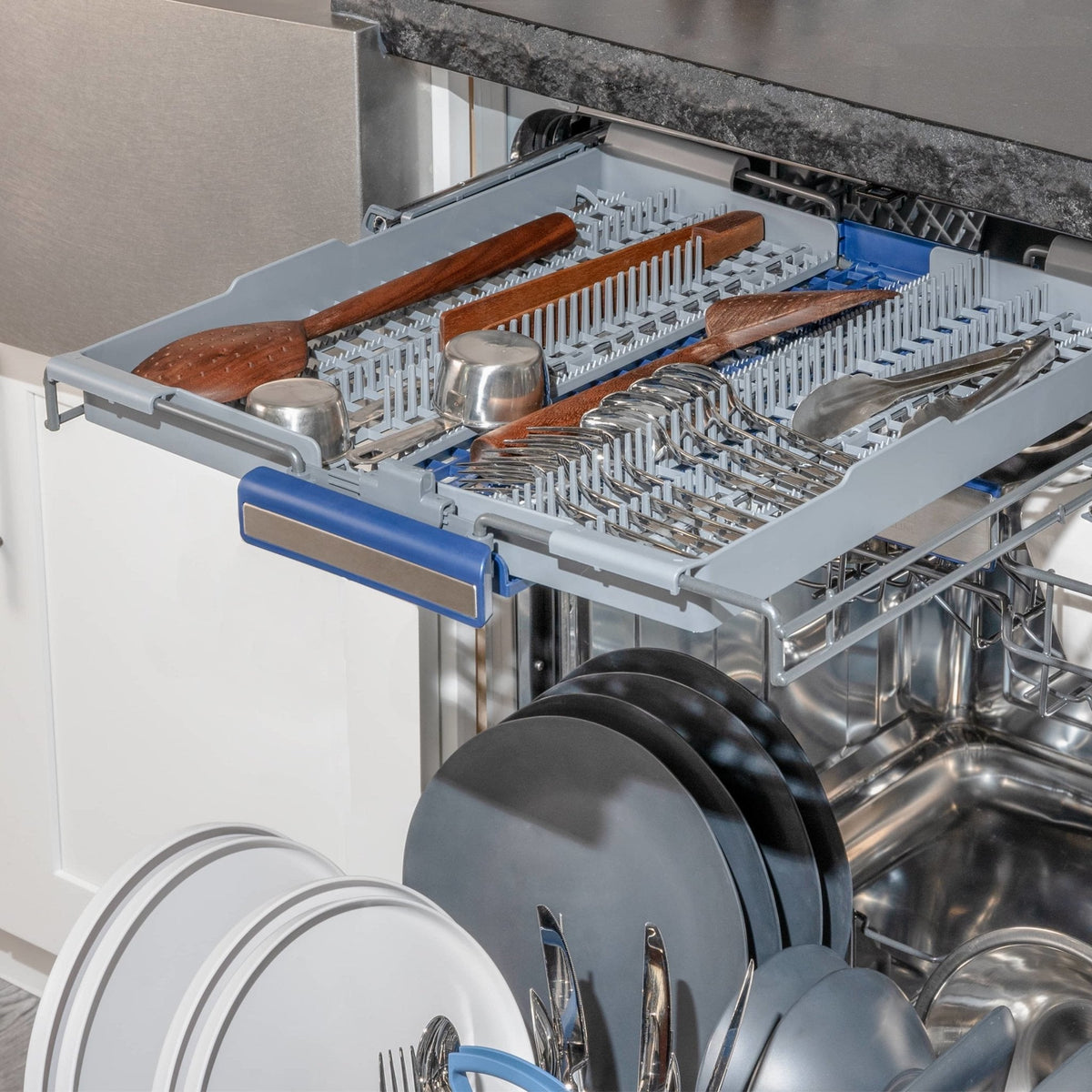

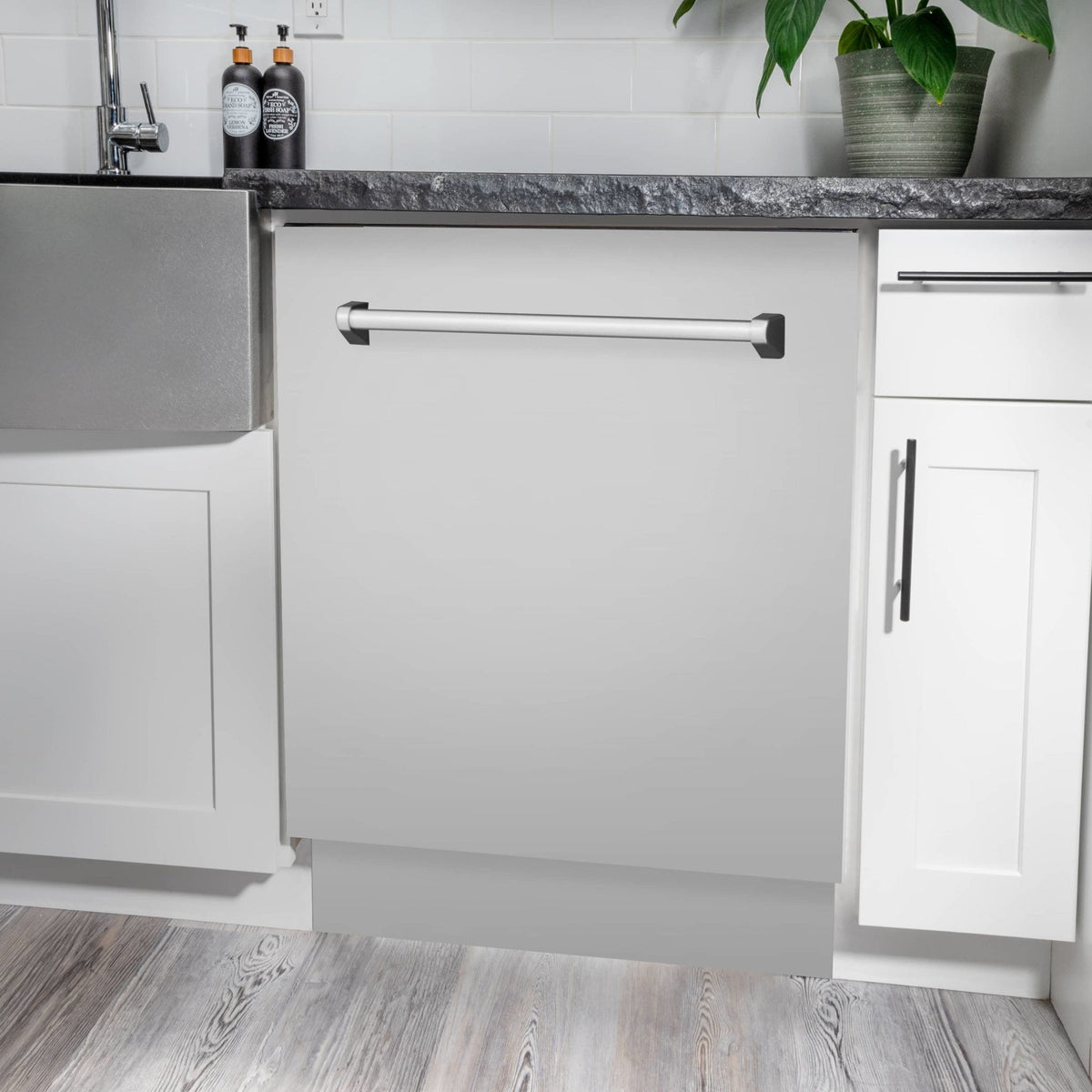

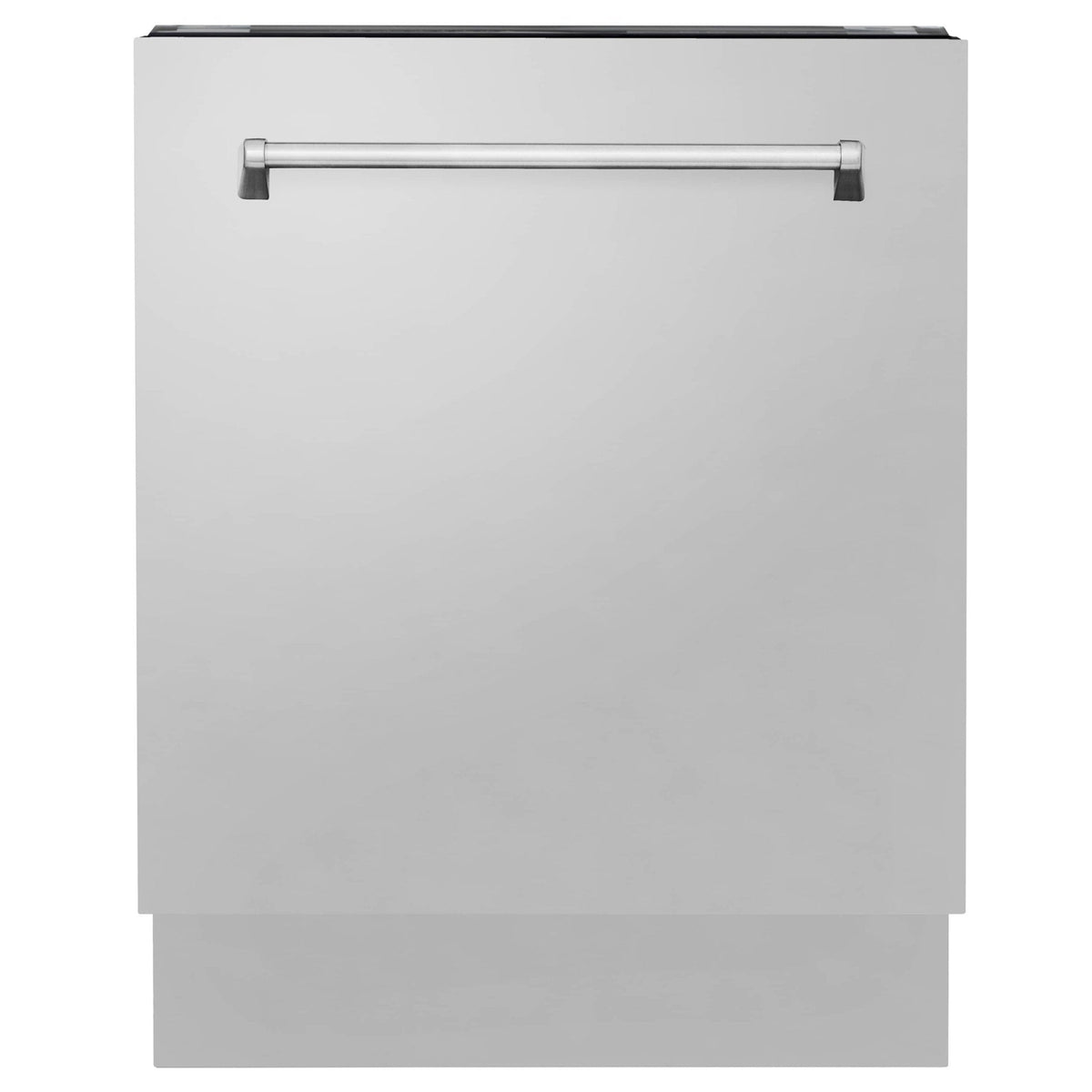

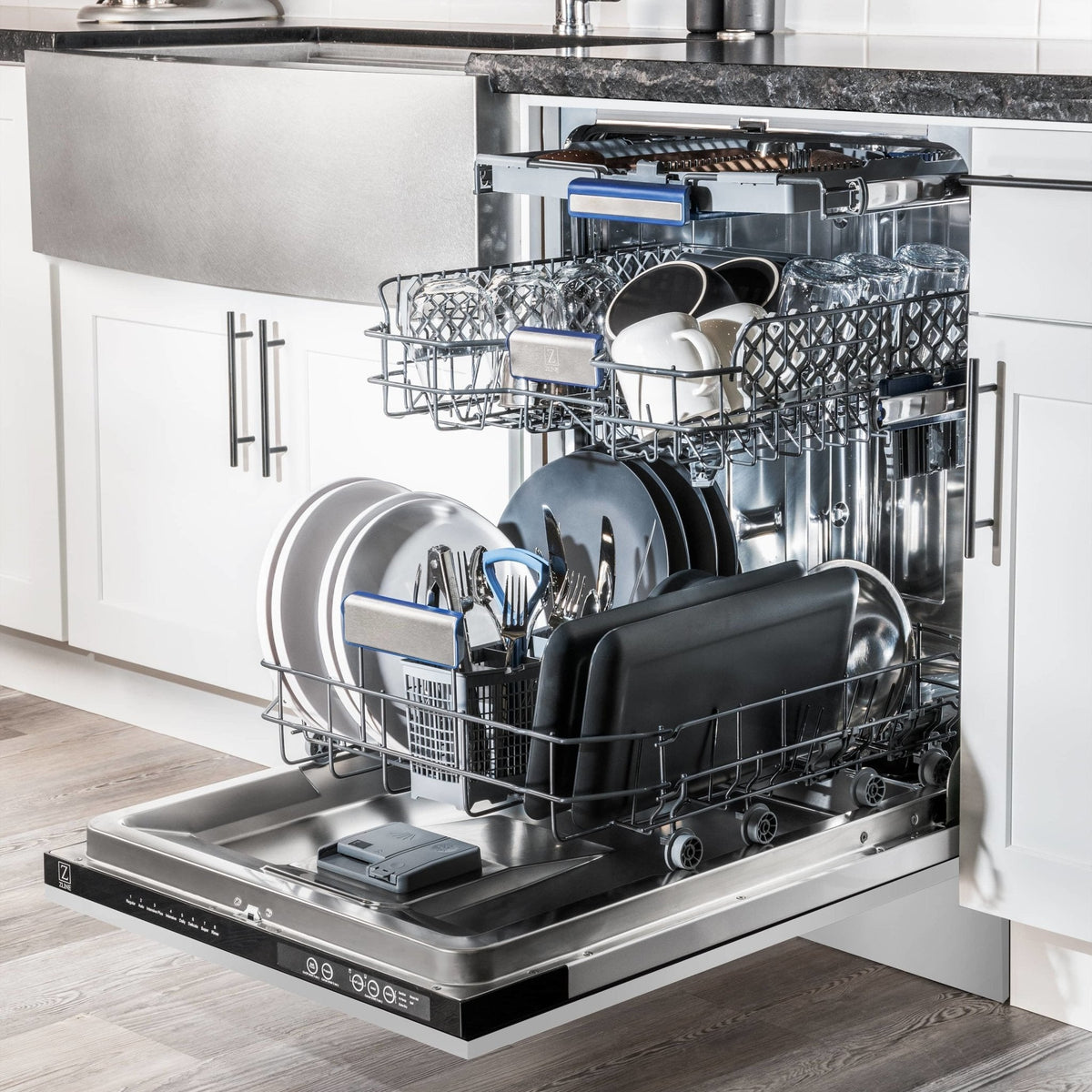

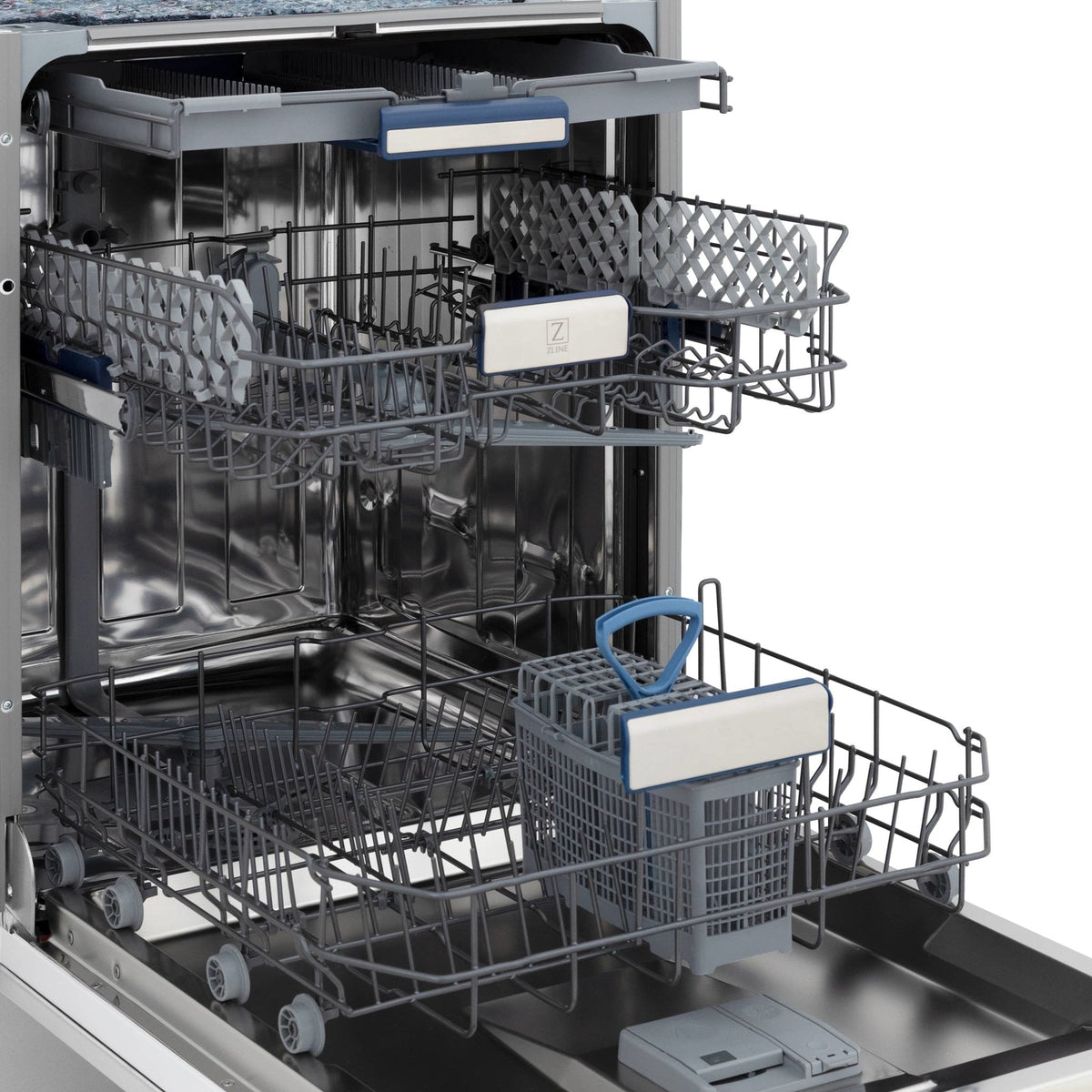

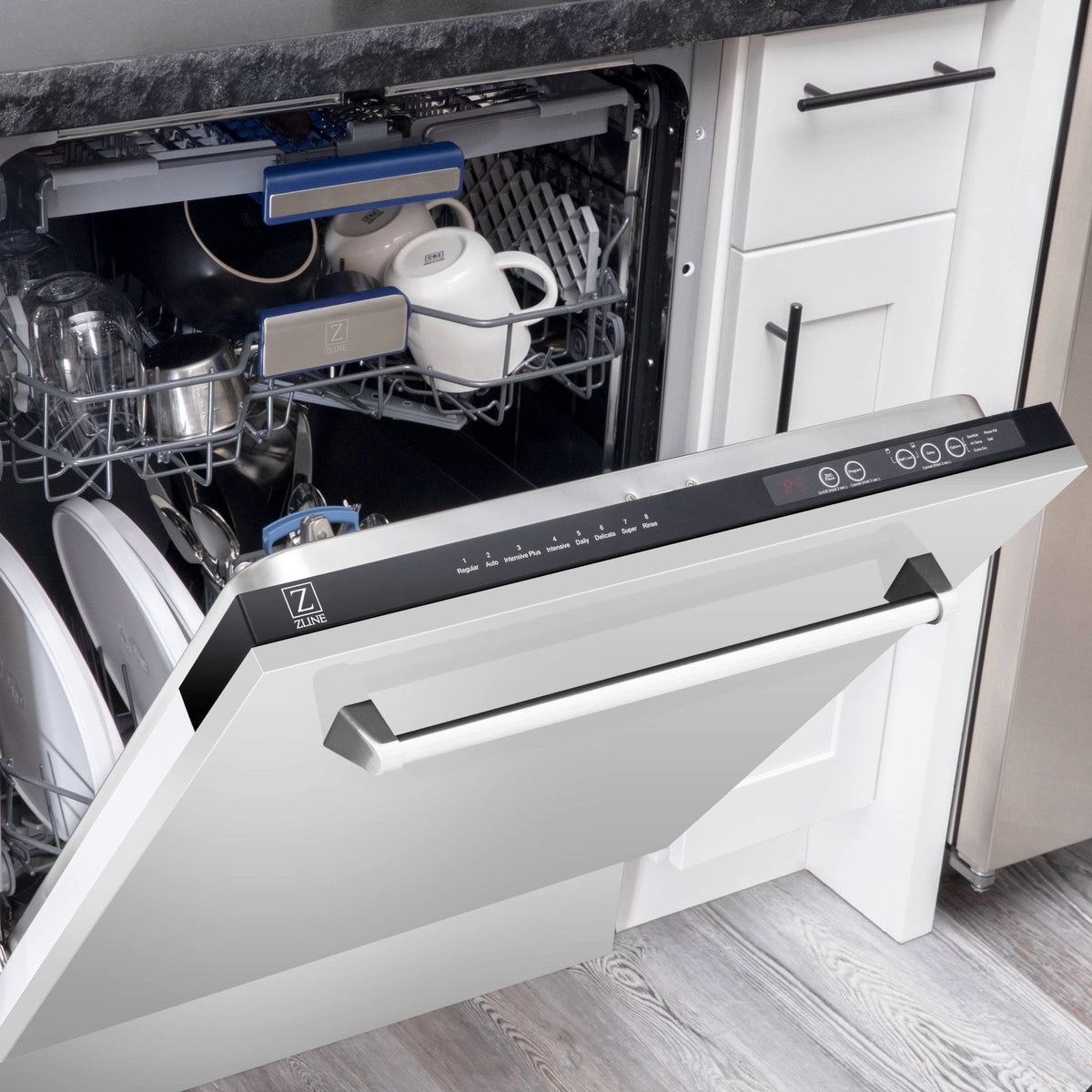

Designed in Lake Tahoe, USA, the ZLINE 24" Tallac Series 3rd Rack Tall Tub Dishwasher in Stainless Steel, 51dBa provides a professional culinary experience by pairing unmatched performance with timeless style.
Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability.
| Brand |
ZLINE Kitchen and Bath
|
| Product Type |
Tall Tub Style Dishwasher
|
|

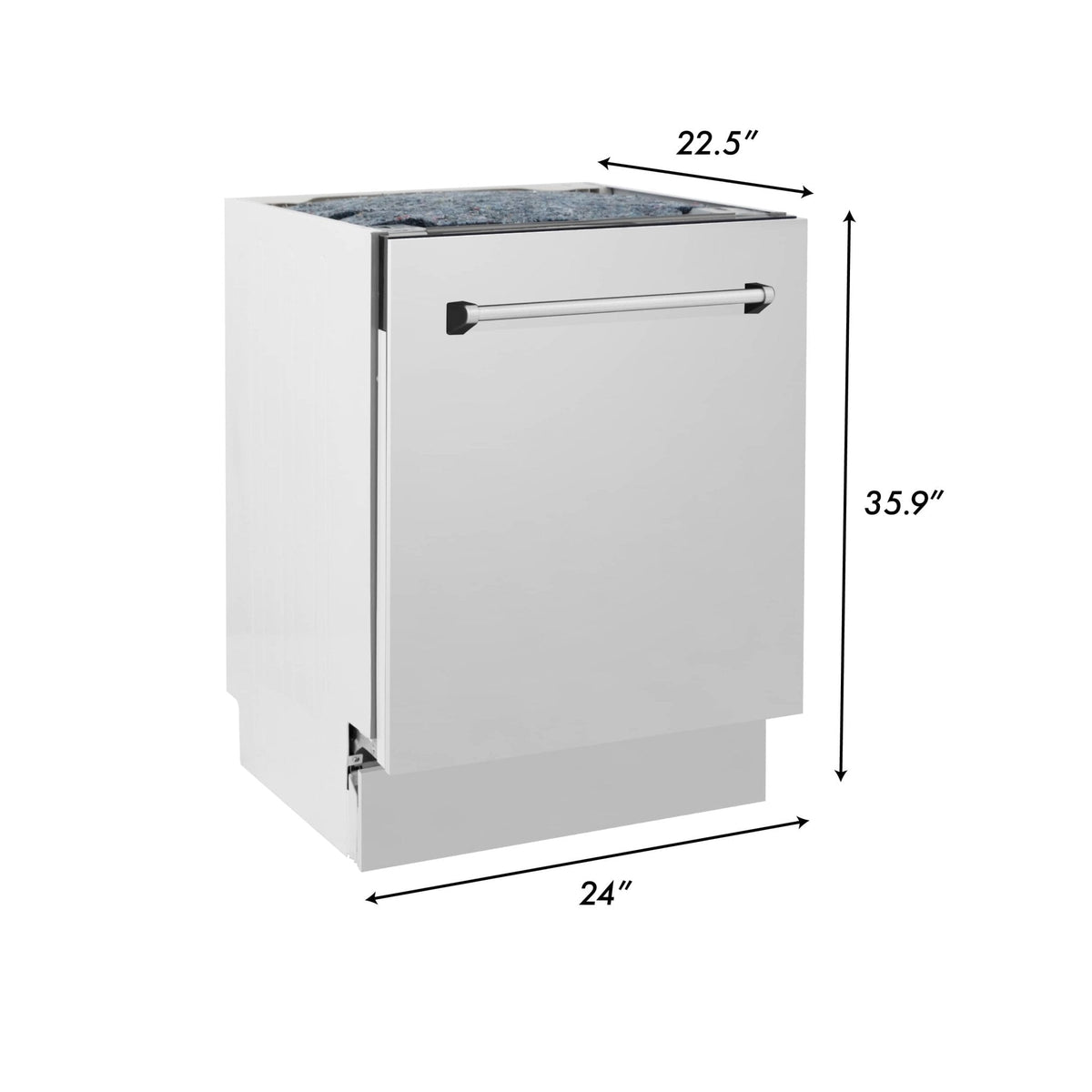

Product Dimensions Minimum Height |
23.5 in. W x24.25 in. D x 33.75 in. H |
| Product Dimensions Maximum Height | 23.5 in. W x24.25 in. D x 35.75 in. H |
|
Cut Out Dimensions
|
23.63 in. W x 24 in. D x 34 in. H |
|
Interior Dimensions (in.)
|
20.95" W x 20.5" D x 24.17"H
|
| Weight | 116.4 lbs |
|
Voltage
|
120vac
|
| Frequency (Hz) | 60Hz |
| Dedicated Circuit | 15A |
| Rated Current (Amps) | 12A |
|
Motor Wattage
|
108
|
|
Heater Wattage
|
1200
|
| Motor Amperage |
0.9A
|
| Heater Amperage |
10A
|
| Energy Consumption Per Year (kWh) |
260
|
| Water Consumption Per Cycle (Liters/Cycle) |
12.9
|
| Water Consumption Per Cycle (Gallons) |
3.4
|
| Hose Length (in.) |
56
|
| Panel Ready? Y/N | N |
| Panel Finish | 304 Grade Stainless Steel |
| Handle Finish | Stainless Steel |
| Drying System | Turbo Fan Drying |
| Control Location | Top Control |
| Control Type | Button Control |
| Decibels | 51 |
| Power Cord | Power Cord Included |
| Installation Type | Plug In - 3 Prong - Nema5-15 |
| Handle Type | Bar Handle- Traditional Style |
| Number of Cycles | 8 |
| Number of Place Settings | 15 |
| Max Plate Height (in.) | 13 |
| Rack Material | Nylon |
| Silverware Basket Location | Bottom Rack Center |
| Steam Function | Without Steam |
| Tub Material | Stainless Steel Tub |
| Certifications | Energy Star, CEC, UL |

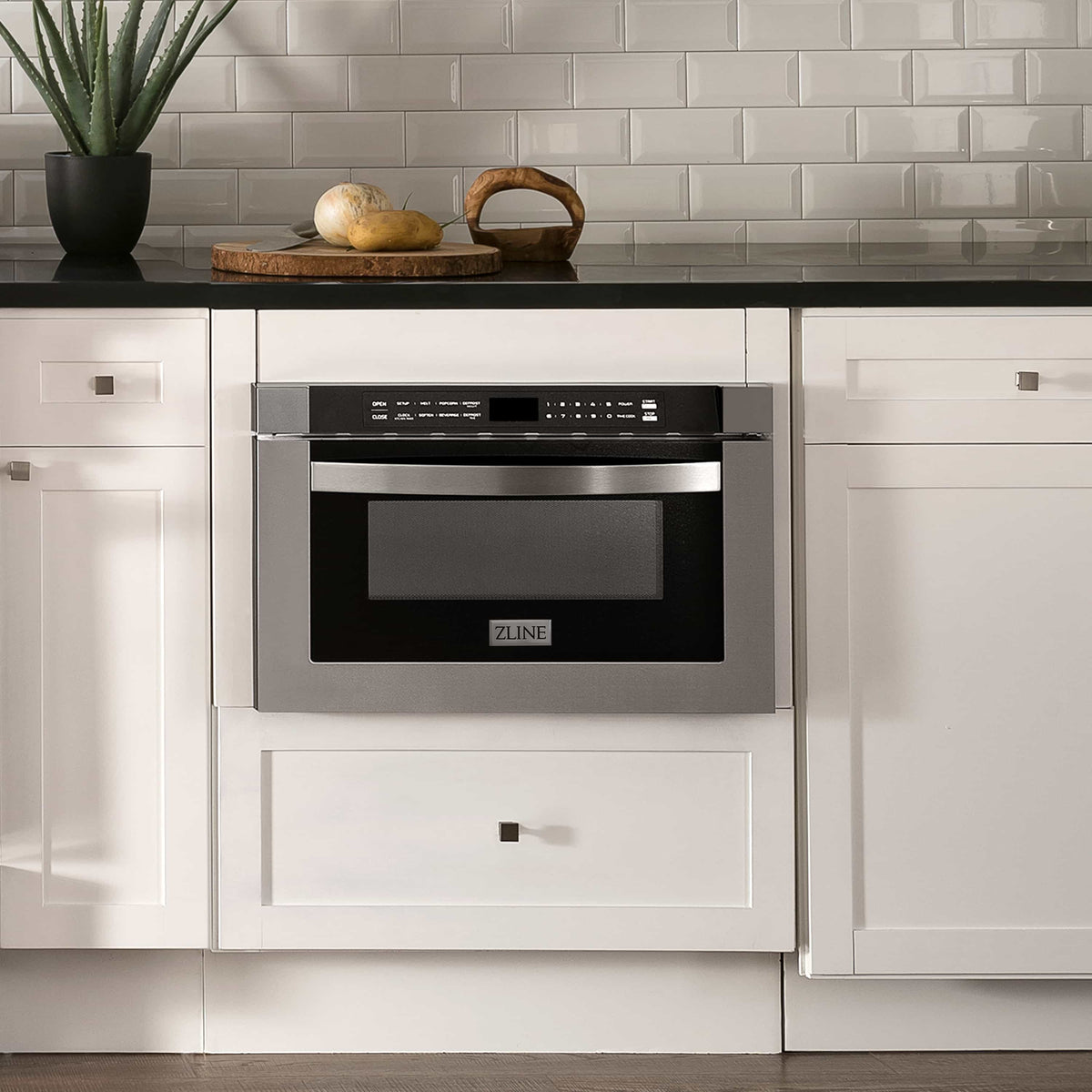

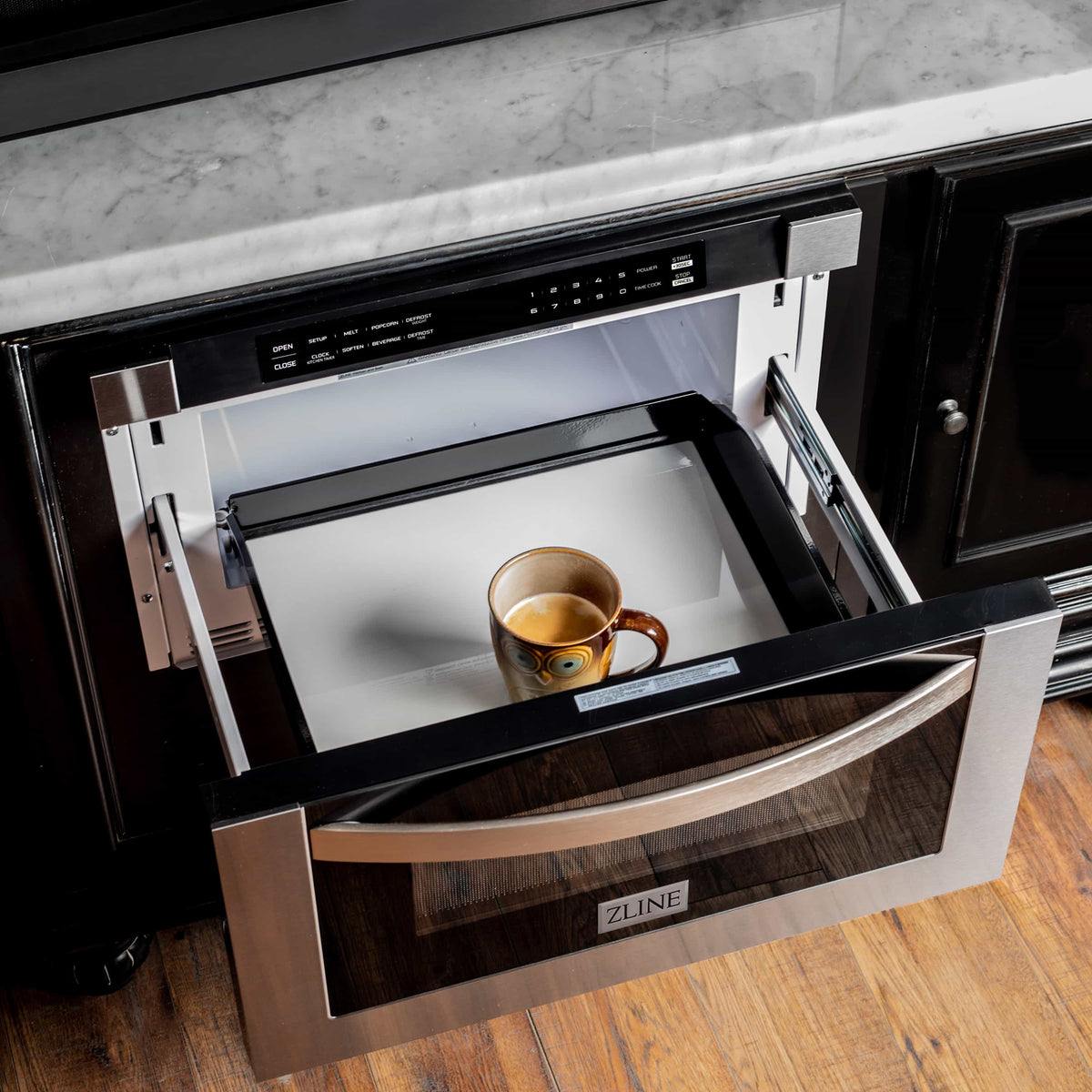

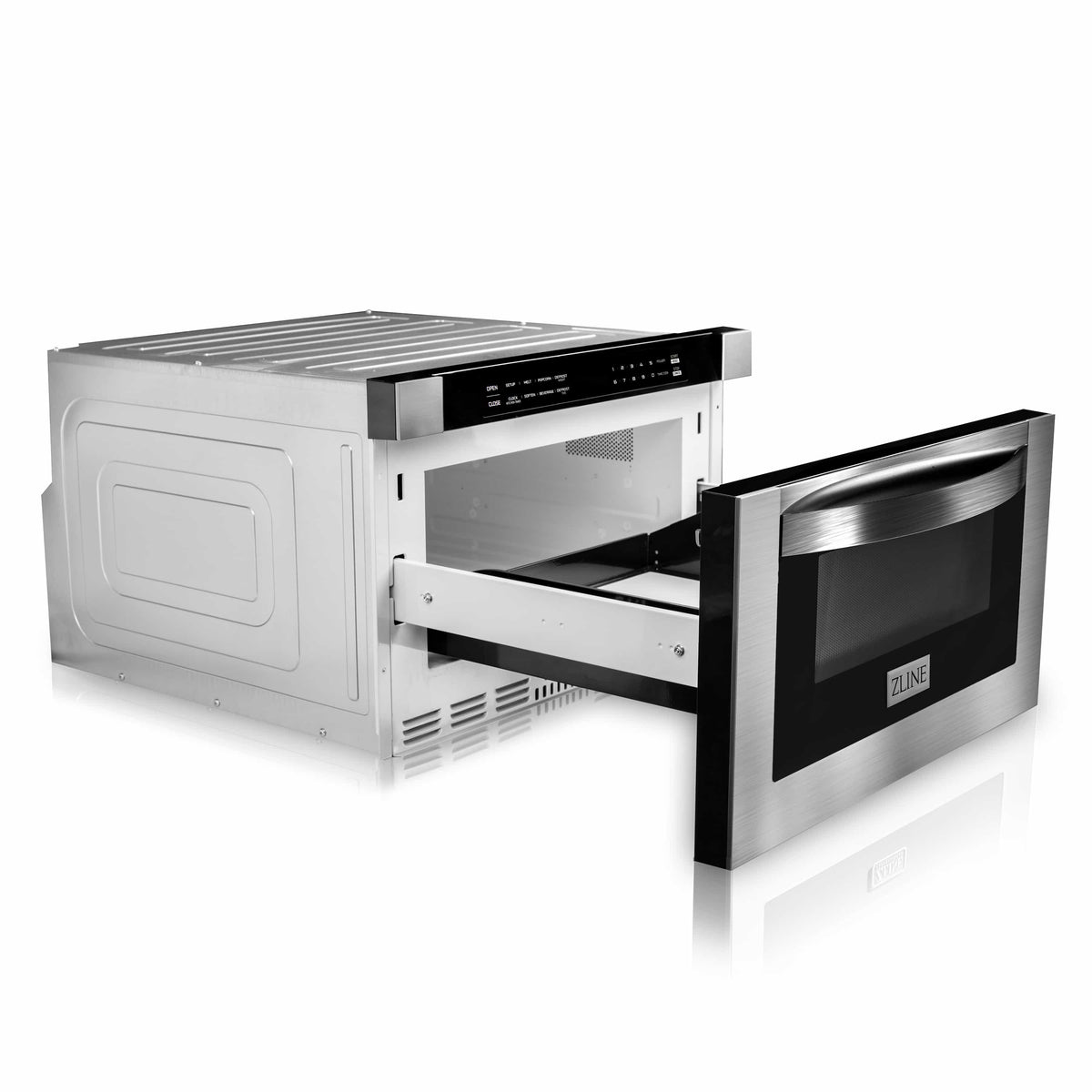

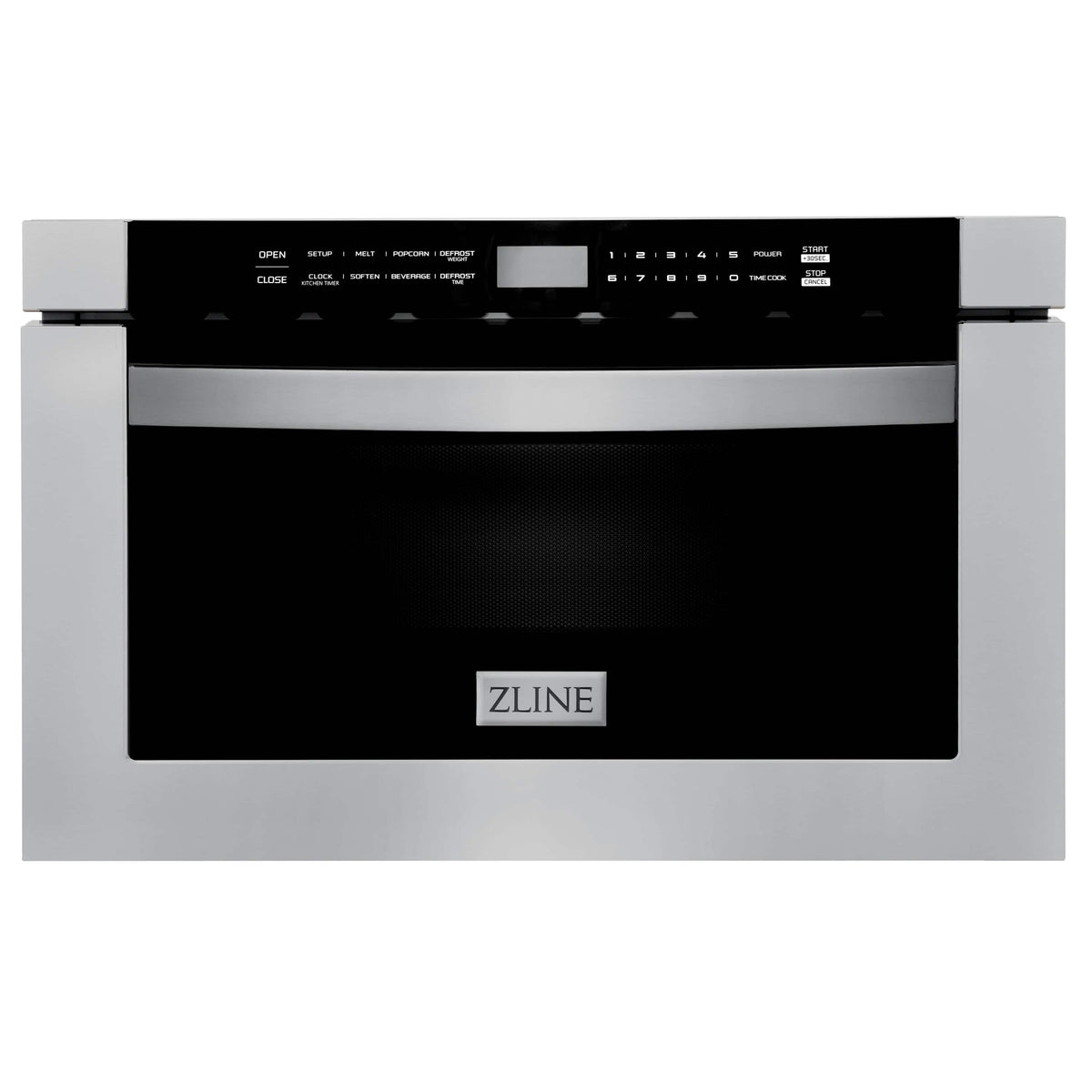

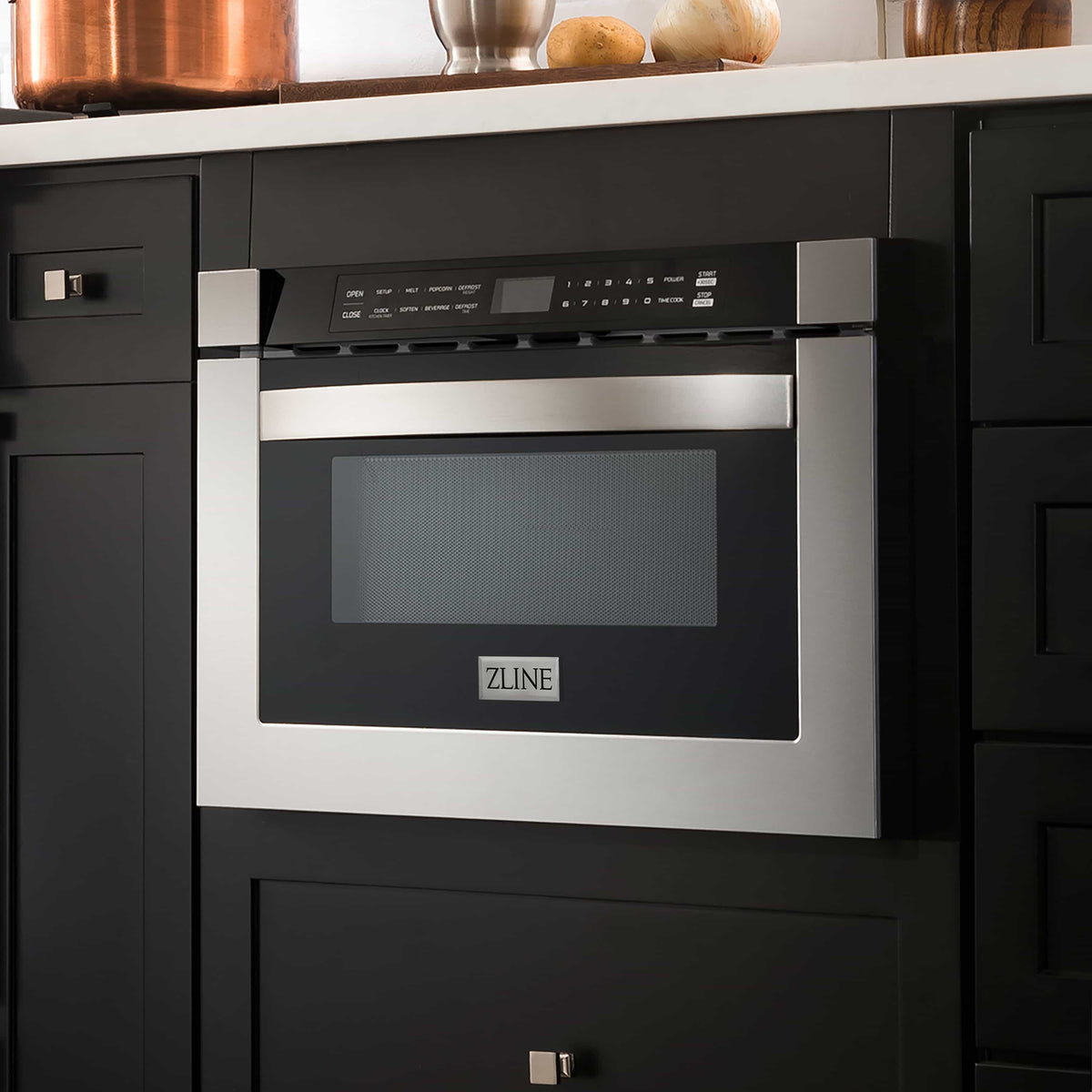

Luxury isn't meant to be desired - it's meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 24" 1.2 cu. ft. Built-in Microwave Drawer in Stainless Steel (MWD-1) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen's capability.

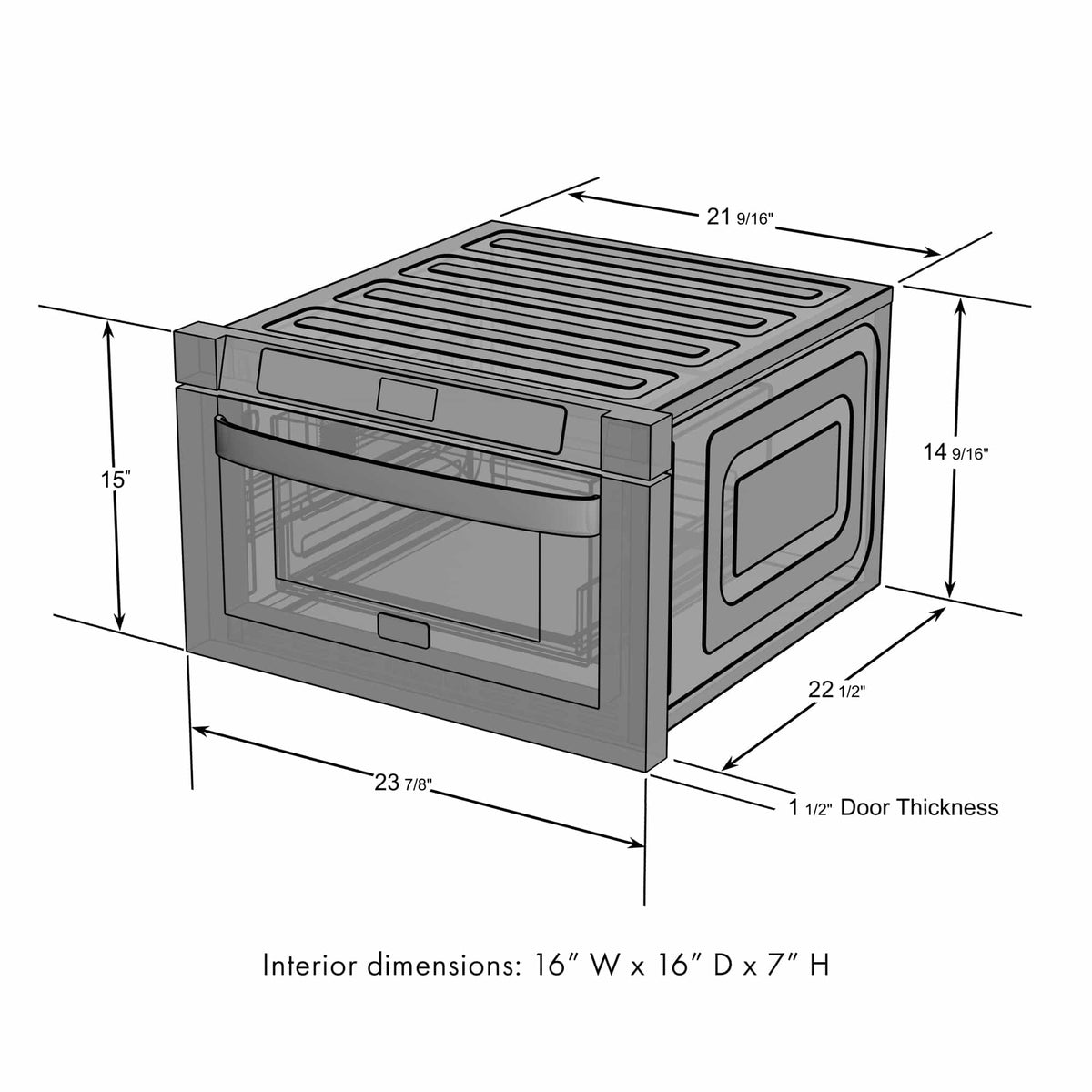

| Dimensions: | 23.5 in W x 23.31 in D x 14.88 in H |
| Cut Out Dimensions: | 22.13 in W x 23.5 in D x 15 in H |
| Nominal Width: | 25 |
| Power Specs: | Amperage 13 / Frequency 60 / Voltage 120 Watts |
| Certification: | ADA / Not Approved for Commercial use / UL Listed: yes |
| Control Type | Touch Screen |
| Voltage: | 120V/ 60HZ/13A |
| Motor | 1,000 Watts |
| Exhaust fan speed: | 1 |
| Auto Shut Off: | No |
| Product weight: | 69.9 lbs |
| Number of racks: | 1 |

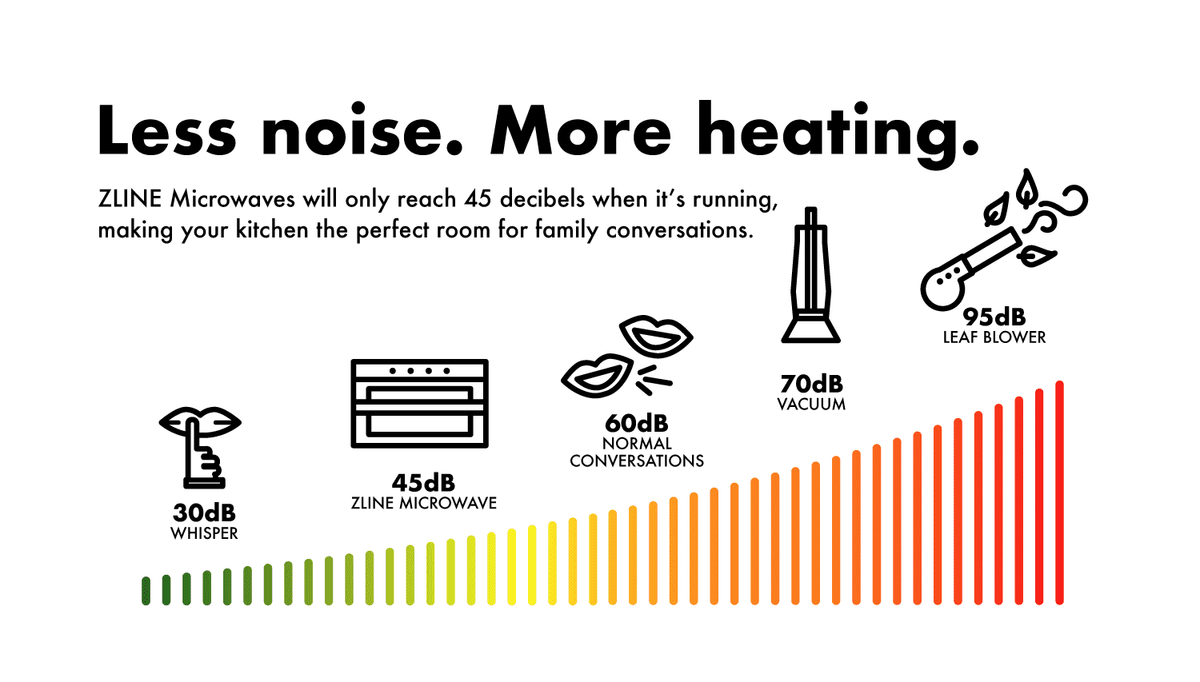

| Noise Level | 45 dB Max |
| Temperature settings: | 11 |
| Features | ADA Compliant |
| Total capacity: | 1.20 |
| Warranty | 2 Year Parts |

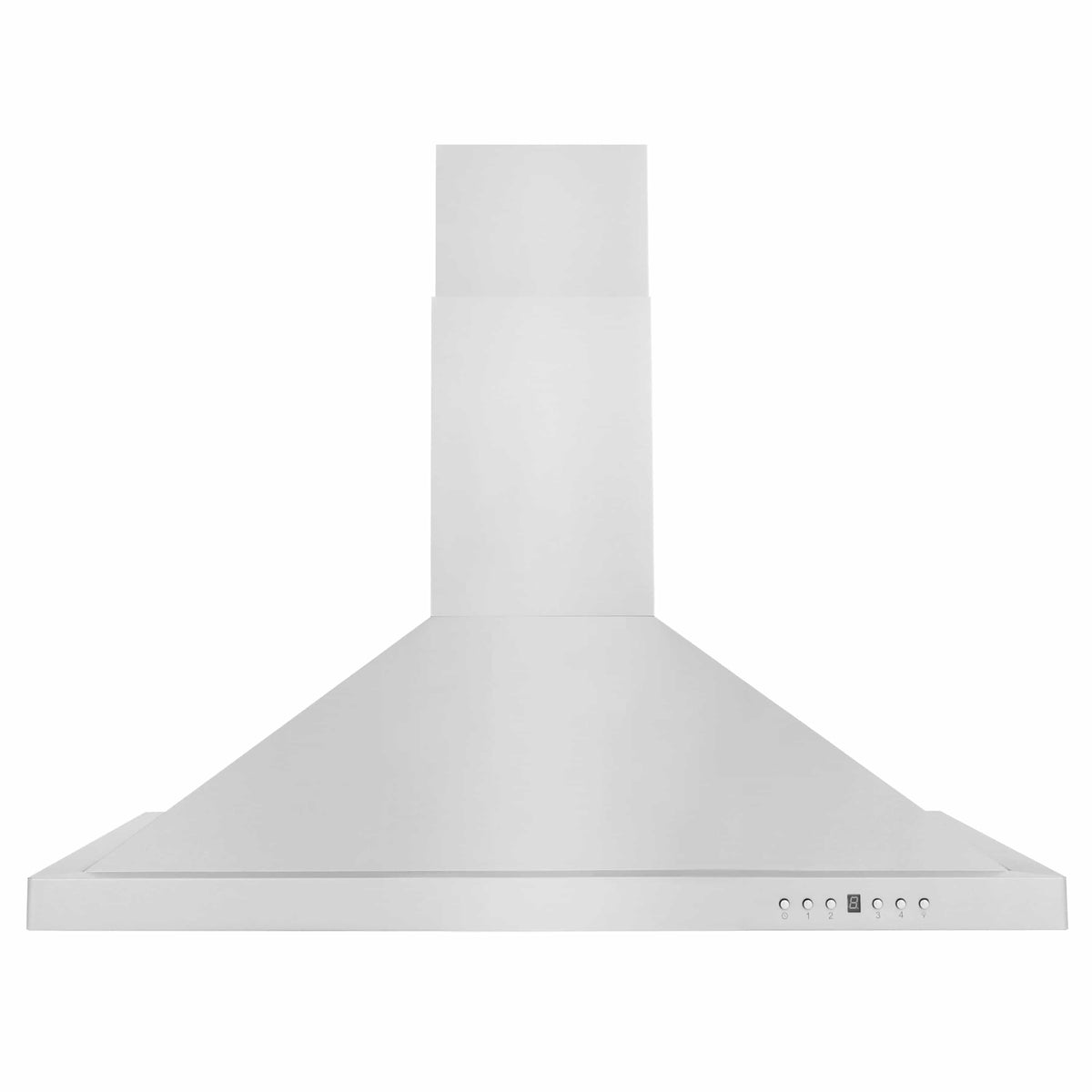

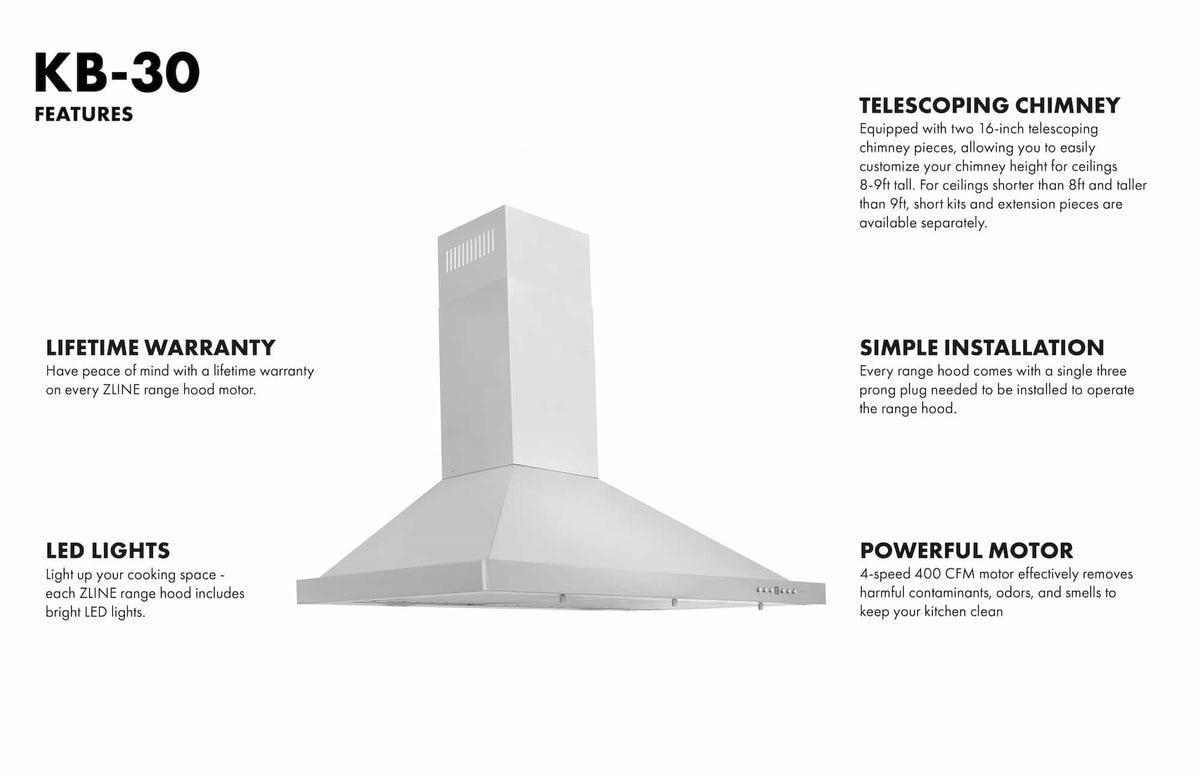

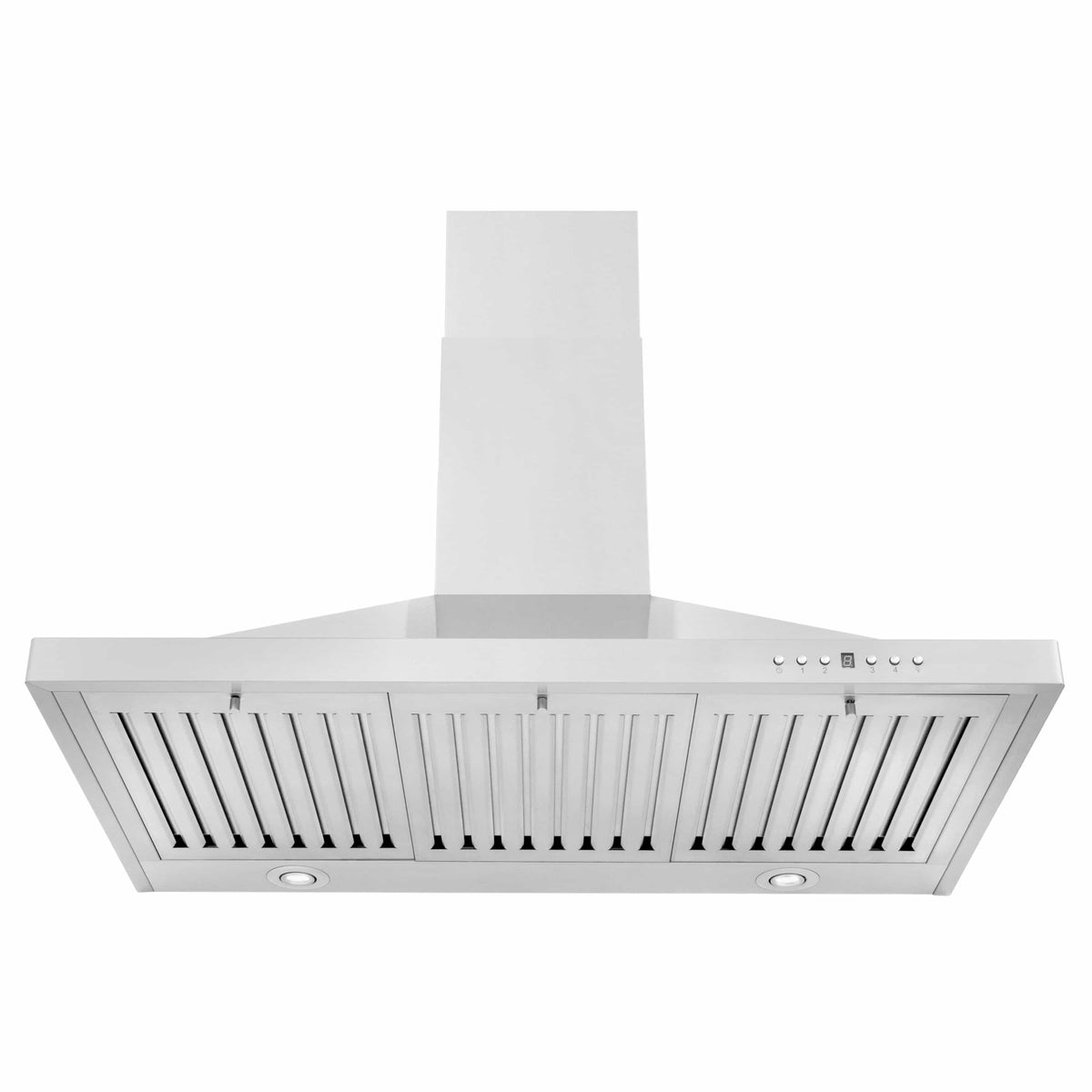

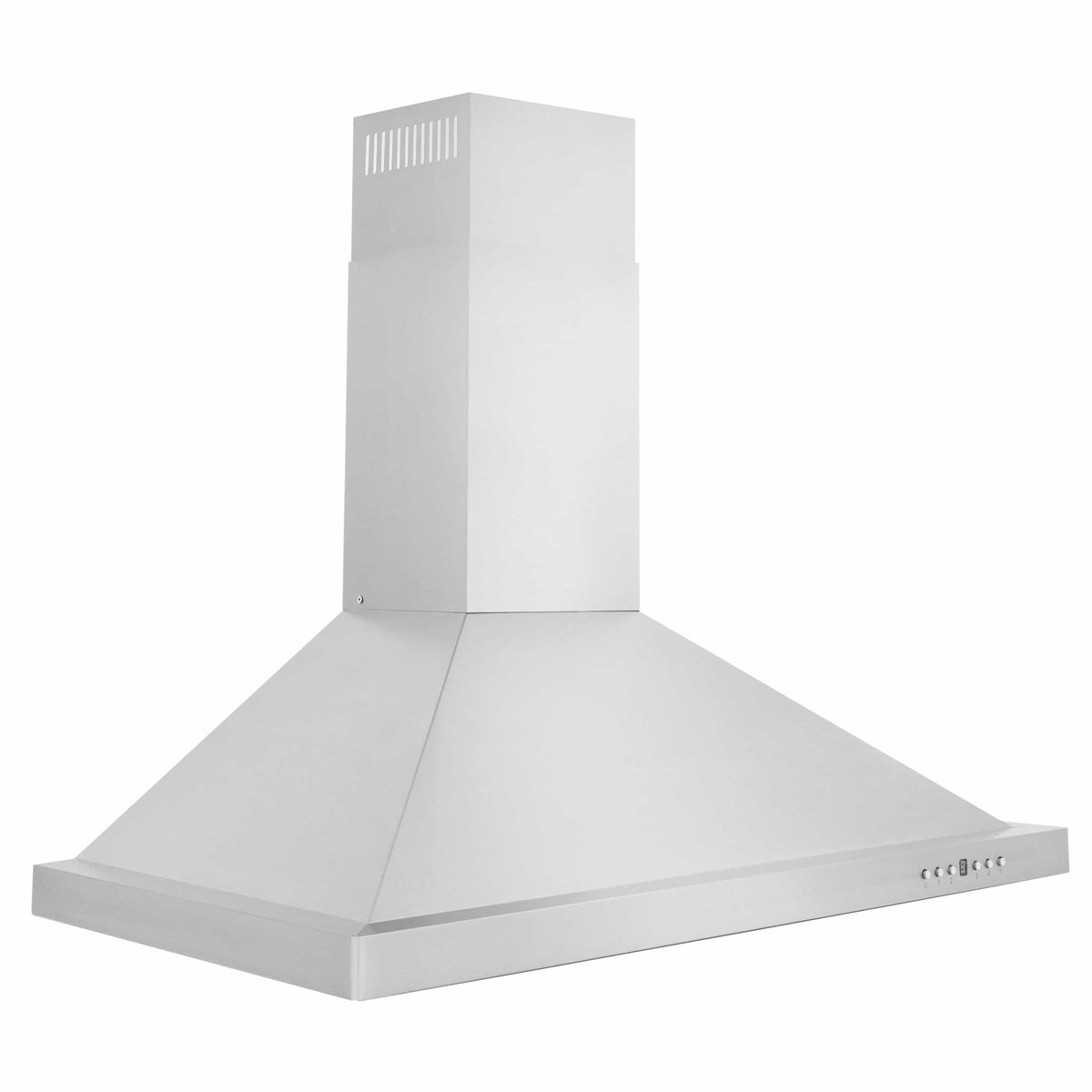

The ZLINE KB-30 is a 30-inch professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made of 430-grade stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.
This hood contains many unique features, such as:

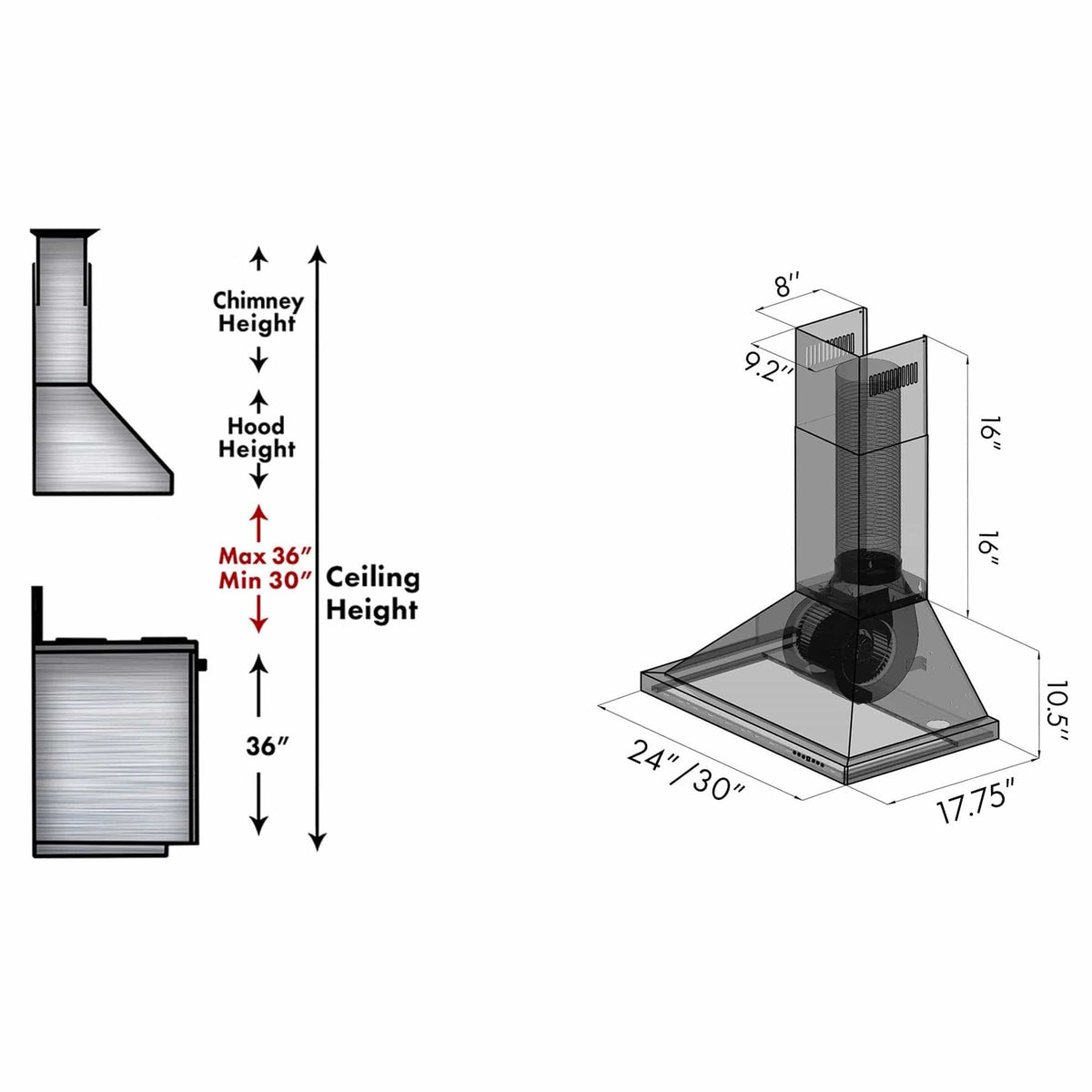

All ZLINE range hoods come equipped with everything needed to easily install and use, including two 16-inch telescoping chimneypieces, allowing a fit for most ceilings between 8 and 9 feet. For ceilings shorter than 8 feet, or taller than 9 feet, see table below for detailed options.
ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods. The KB-30 ships next business day when in stock.
| Dimension: |
30" W x 17.7" D x 10.5" H
|
| Chimney (Dimension): |
9.2" W x 8" D x 16" H (x2) (Telescoping)
|
| Venting Size: |
6" Outlet (Transition piece with backdraft damper to round ducting included)
Charcoal Filters (not included) available for ductless/recirculating option. |
| Airflow (Q/L/M/H): |
120/240/320/400
|
| Lighting: |
2 Directional LED Lights (3-Watt)
|
| Noise Level: |
20/29/34/41
|
| Voltage: |
110V/60HZ
|
| Motor: |
High Performance 400 CFM/4-Speed Motor
|
| Mount Type: |
Wall Mounted
|
| Speeds: |
4 Speeds
|
| Control Type: |

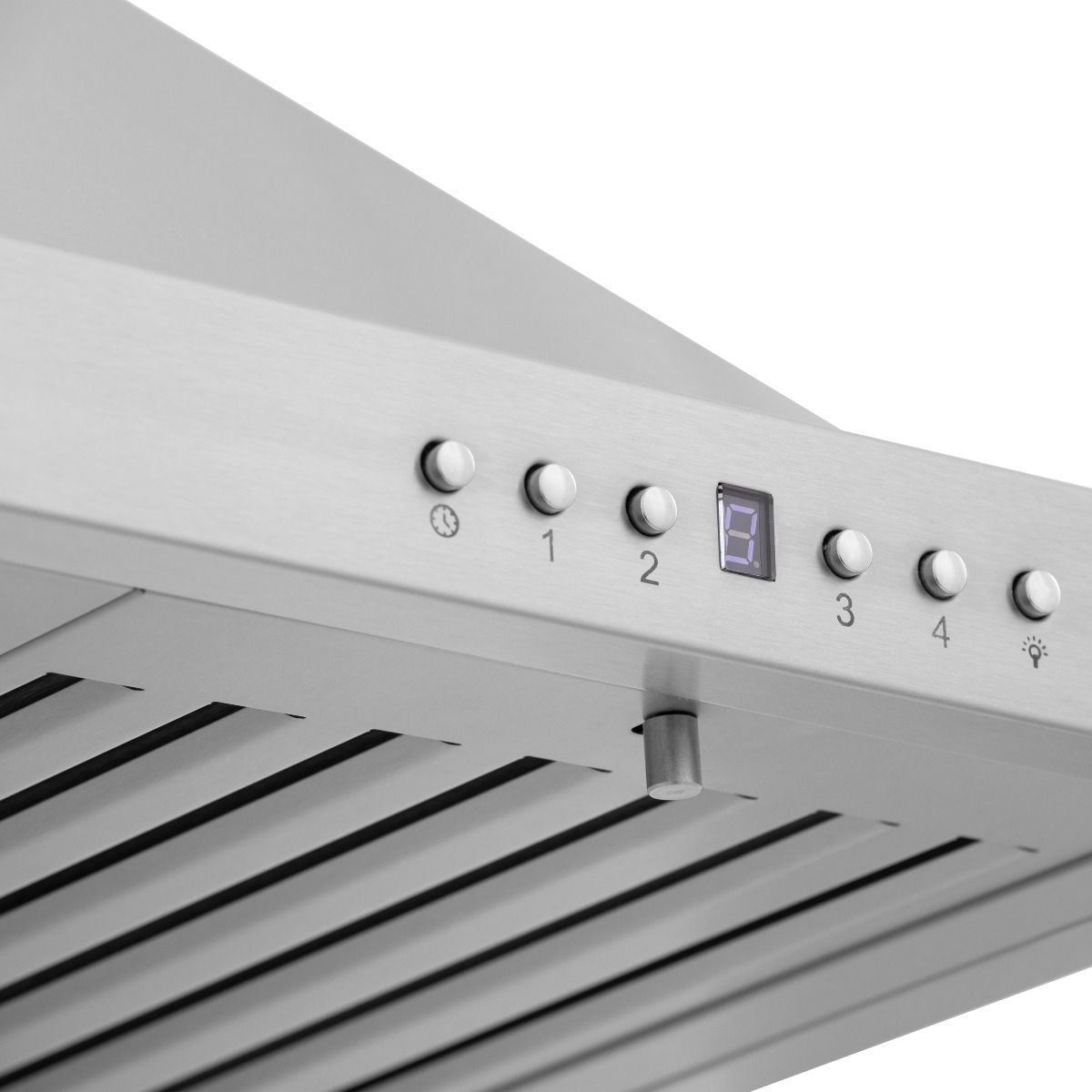

Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
|
| Filters: |
Stainless Steel Baffle Filters (Dishwasher Safe)
|
| Material: |
21g #430 Stainless Steel
|
| Warranty: |
3 Year Parts Warranty
|
| Features: |
Model No. KB-30 (ETL Listed) |
| Certifications: |
ETL Certified
|
