Description

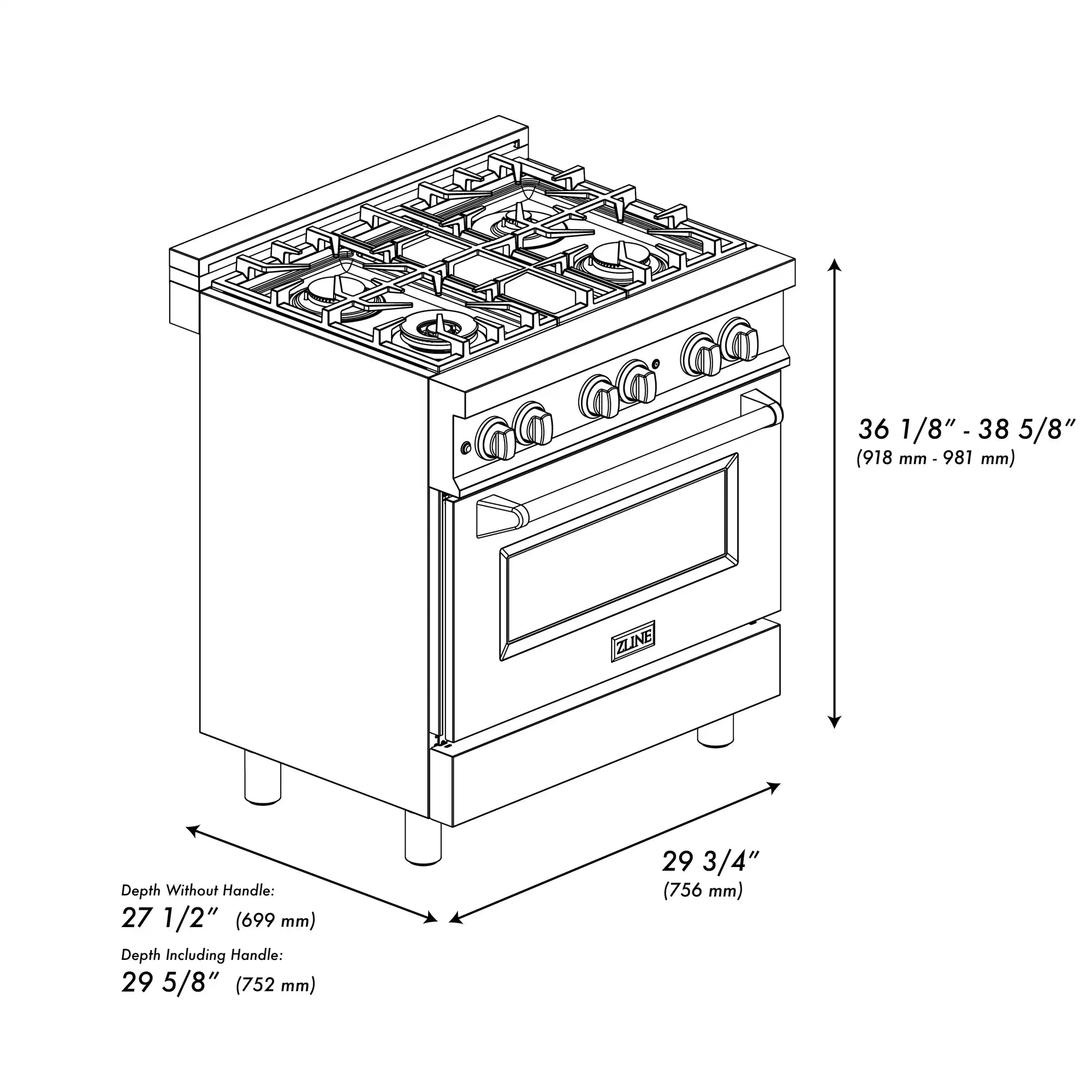

DIMENSIONS
- Dimension
- 30" W x 27.38" D (29" with handle) x 36" H Oven Dimensions: 26.5" W x 18.5" D x 14" H
- Dimensions with Handle
- 29.75" W x 29.63 " D x 36.13"

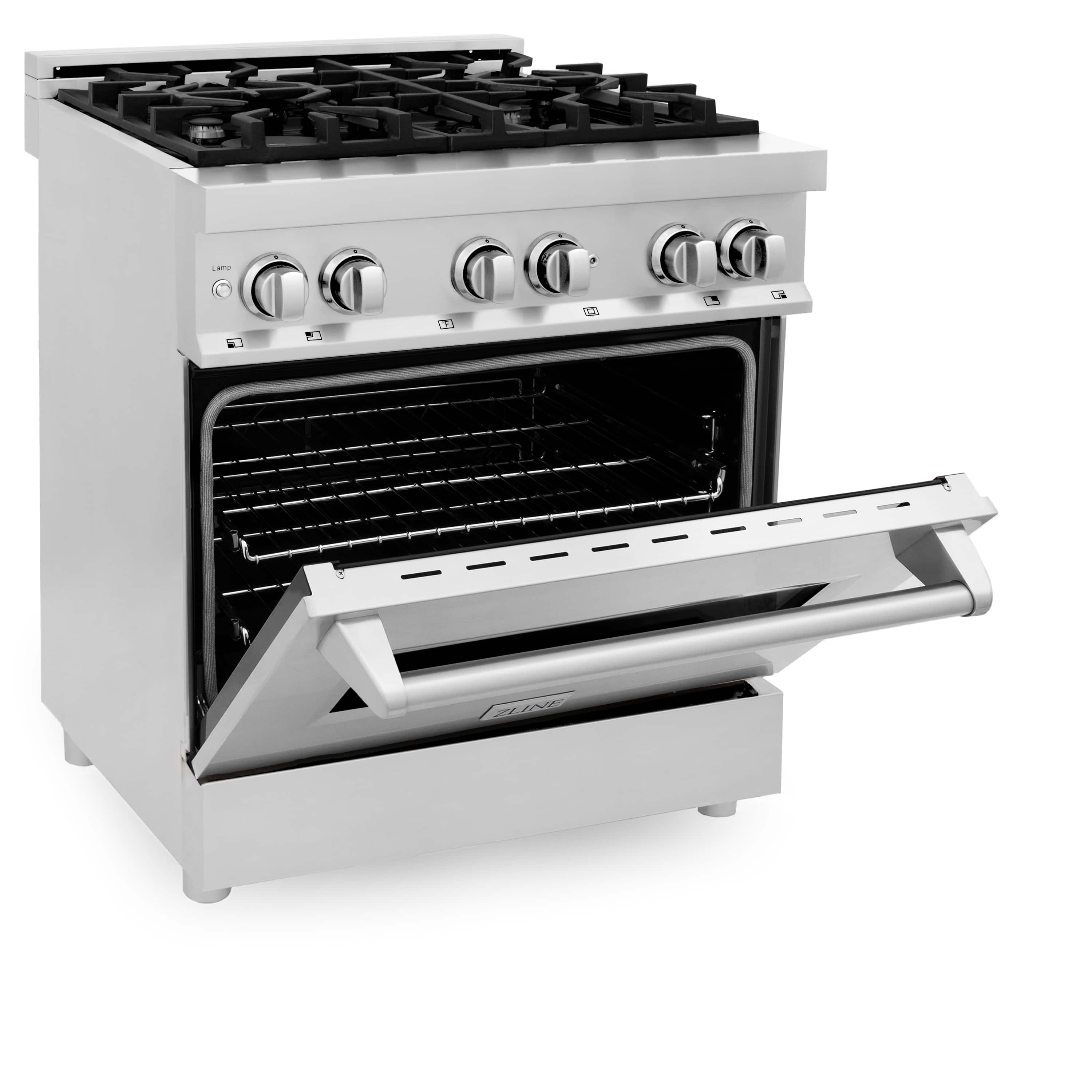

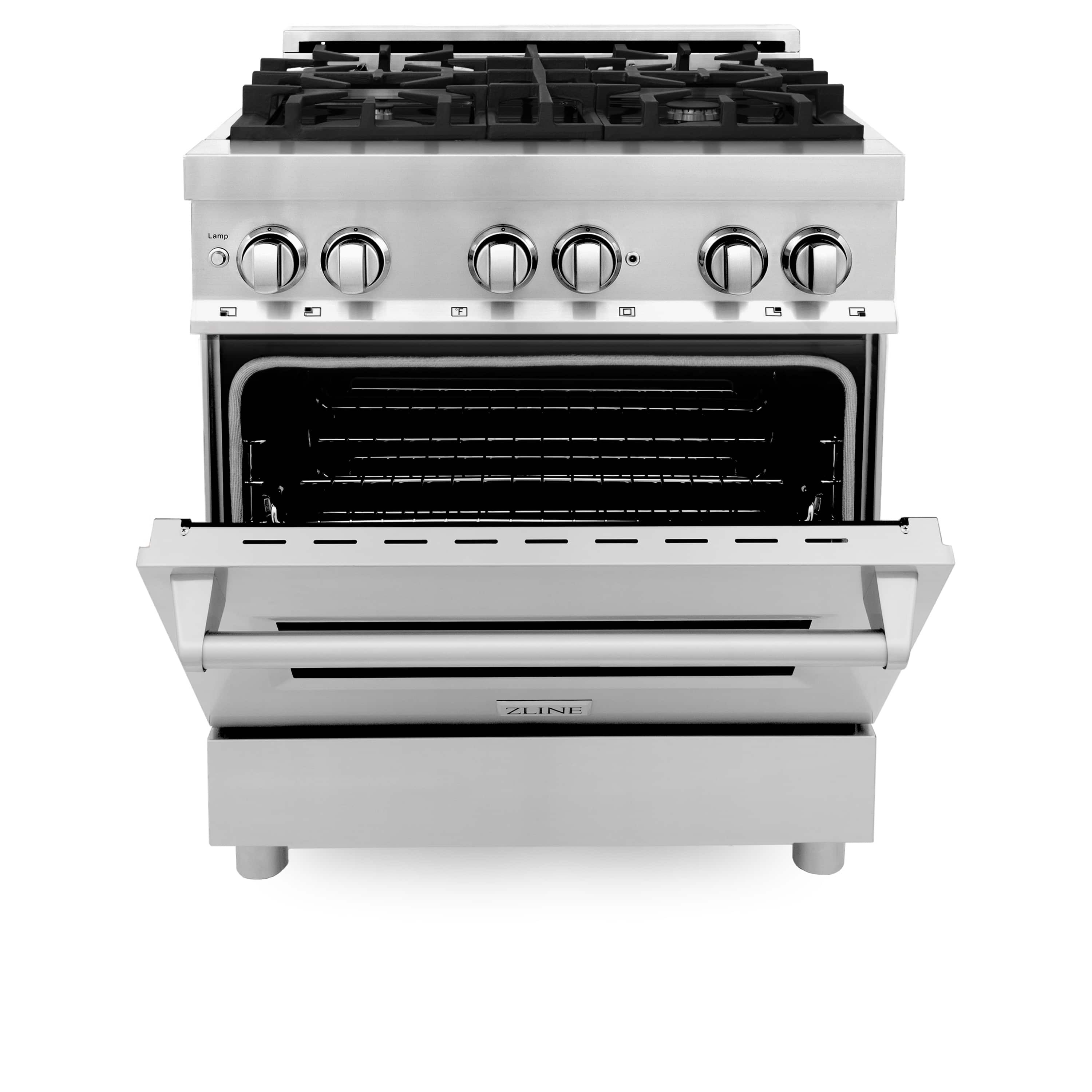

- Open Door Depth
- 41.8"
- Product Weight
- 230lbs
GENERAL INFORMATION
- Features

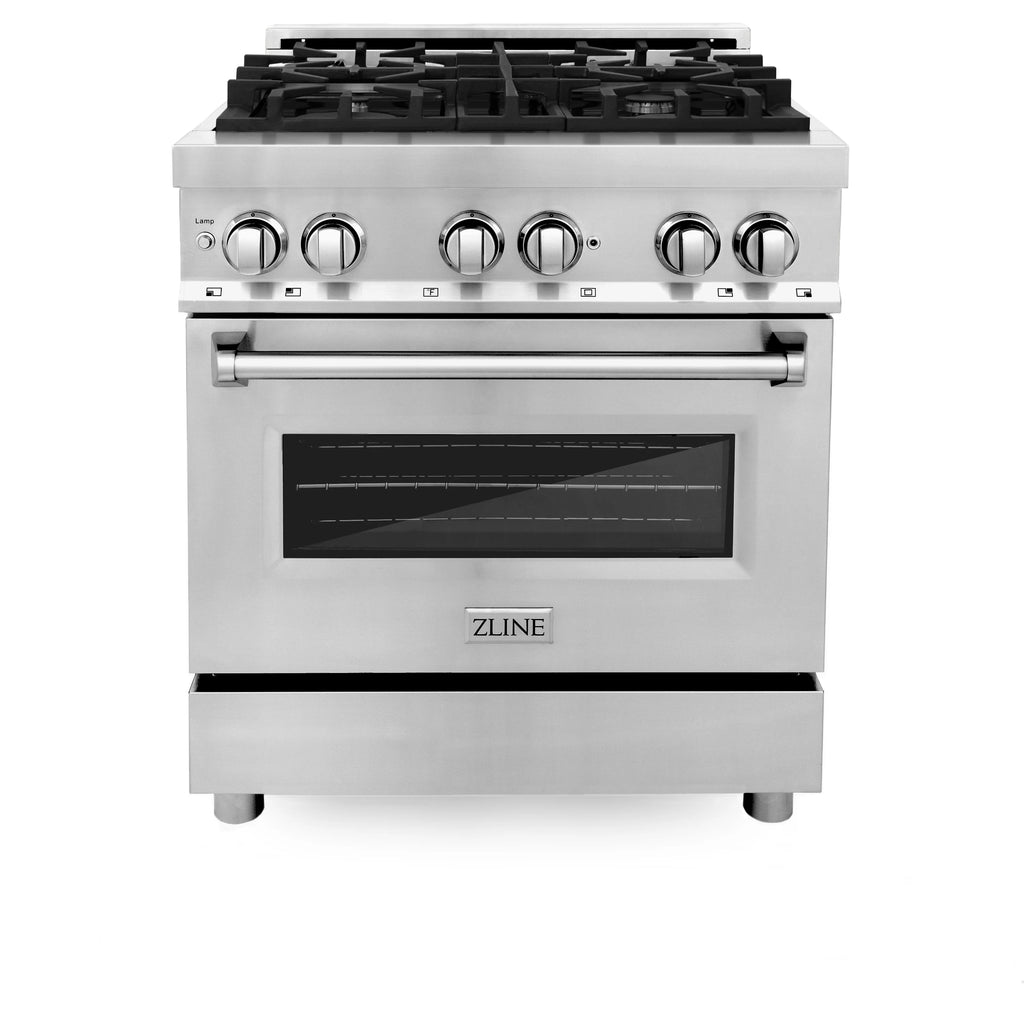

- Manufactured by ZLINE Kitchen and Bath Model No. RA30 ETL and UL Listed CSA Approved
DESIGN & FINISH
- Color
- Silver
- Finish
- Stainless Steel
- Lighting
- Dual Lighting, controlled by light switch on front control panel

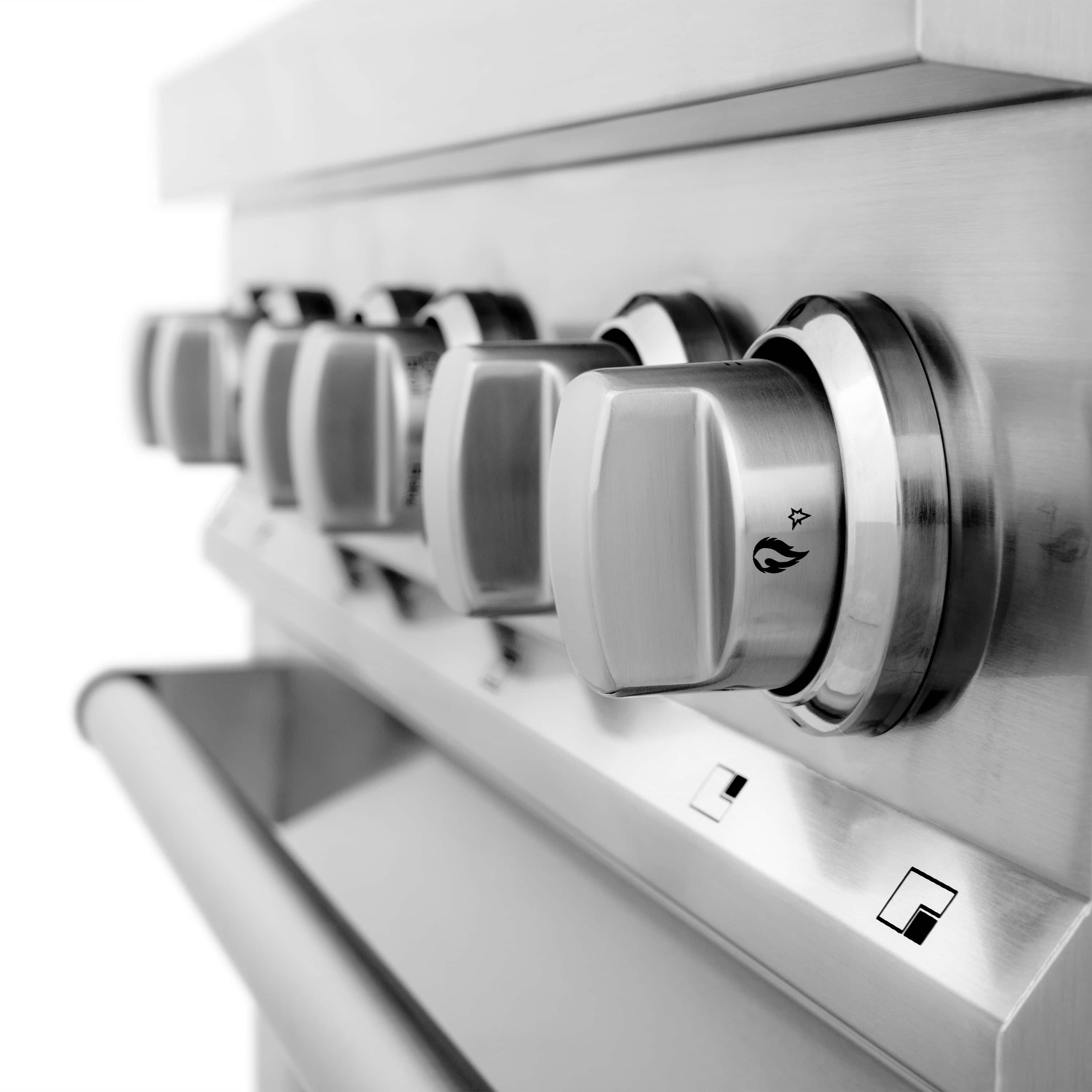

- Control Type
- Durable Front Control
- Material
- Stainless Steel frame with 1 Piece Enamel Top
- Italian made hinges and burners
TECHNICAL DETAILS
- Voltage
- Requires a minimum of 220V-240V/60HZ/50A
- Mount Type
- Free Standing
- Gas Type
- Natural Gas or Liquid Propane via conversion kit
- Liquid Propane
- LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional
- Fuel
- All ZLINE Ranges come set to work with natural gas by default. All Ranges can also work with liquid propane. Every range comes equipped with an LP conversion kit to convert from natural gas to propane; this conversion process must be done by a professional
- Fuel Type
- Convection Electric Oven - Gas Cooktop
COOKTOP FEATURES

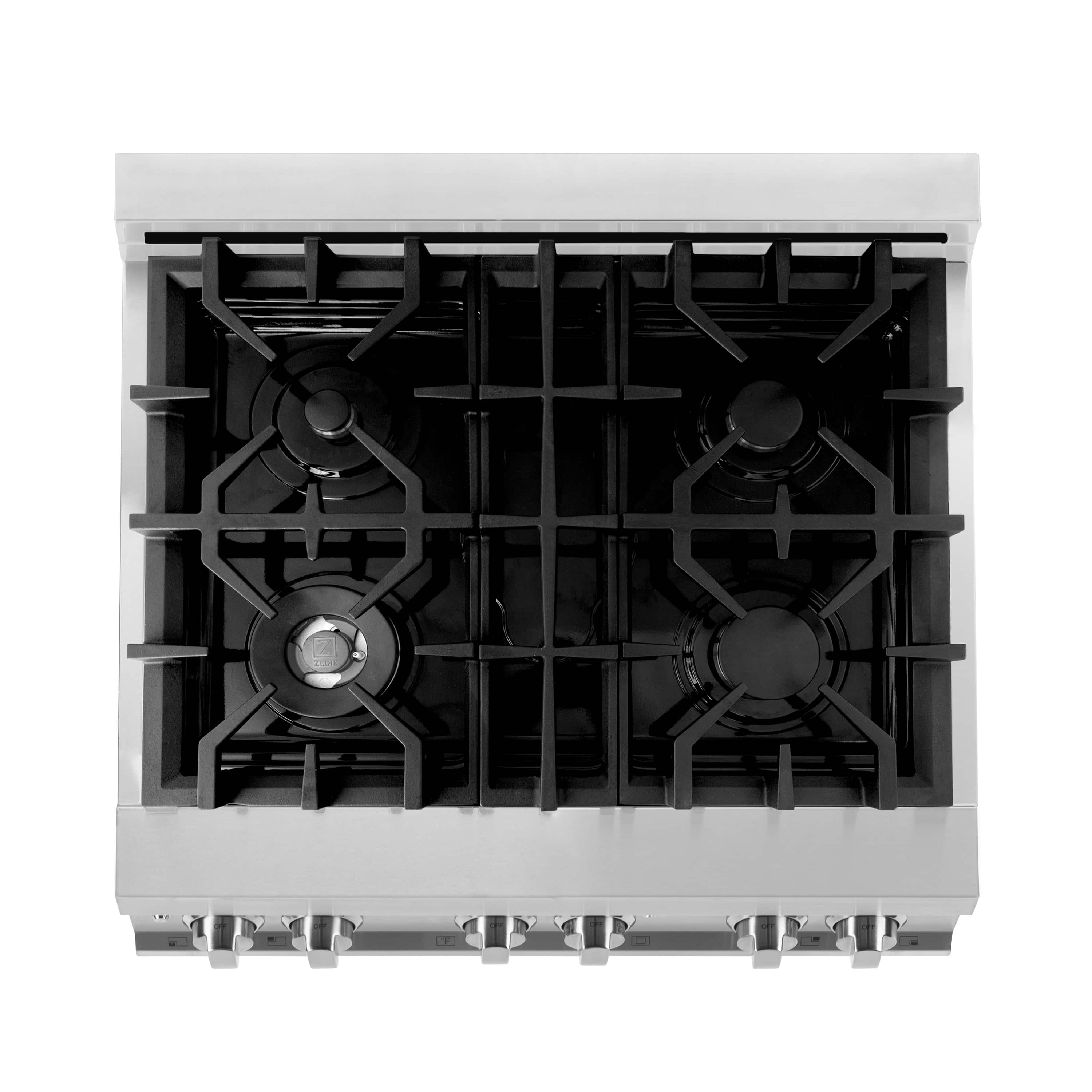

- Cooktop

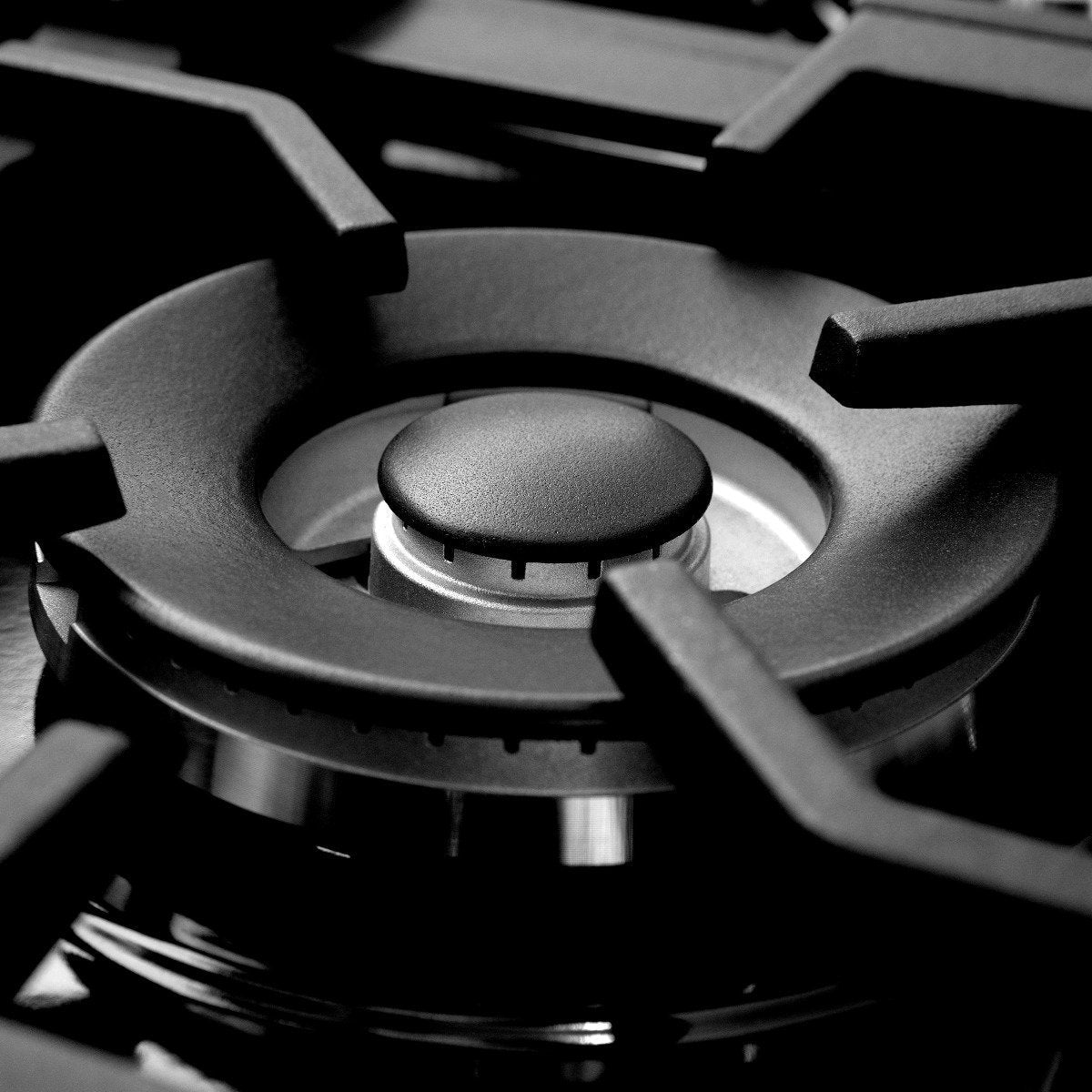

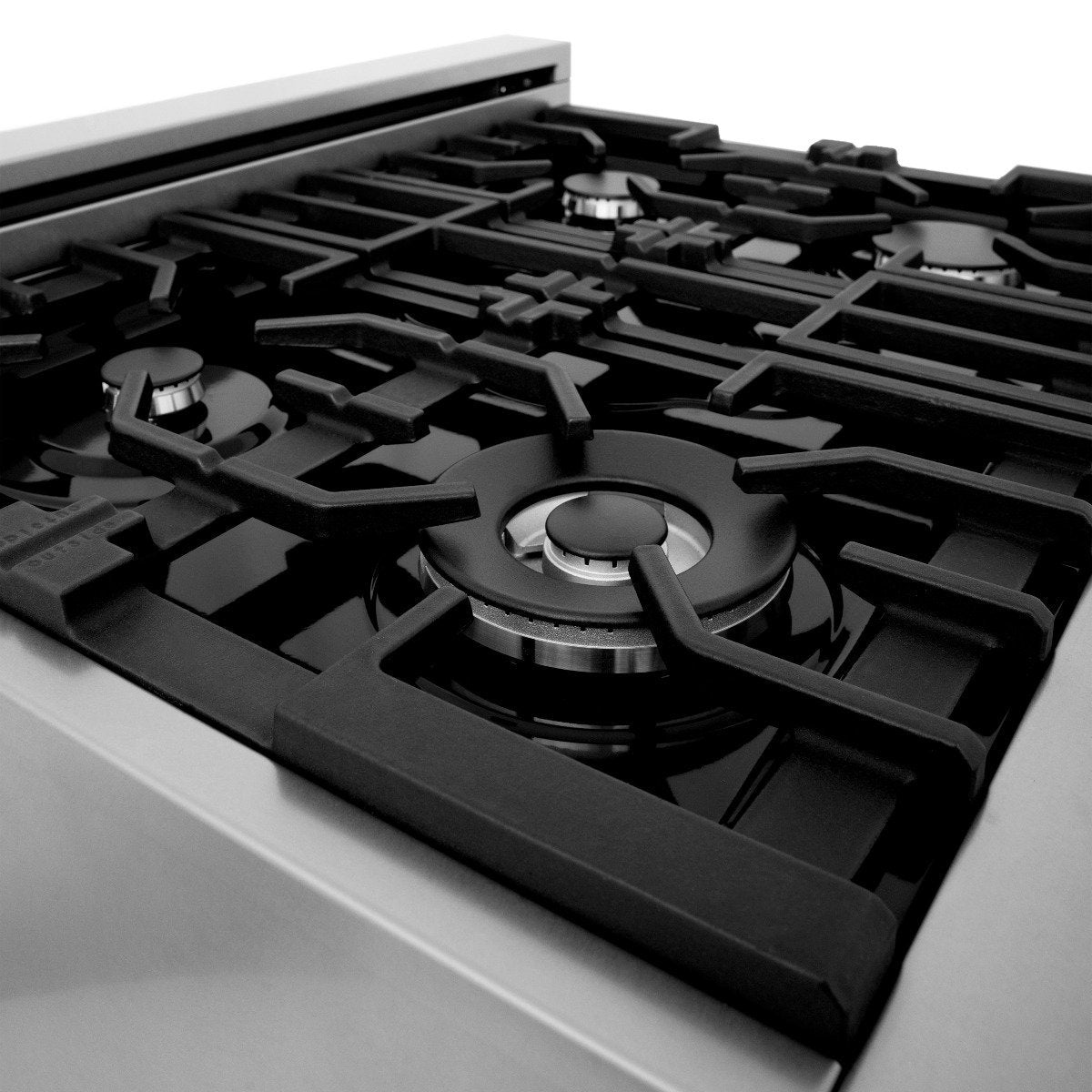

- (4) Burners with Enamel Cook Top with electronic spark ignition for all burners
- BTU Rating
- Dual Burner - 18,000 BTU Rapid Burner - 13,000 BTU Semi-Rapid Burner - 8,500 BTU Auxiliary Burner - 4,200 BTU
OVEN FEATURES

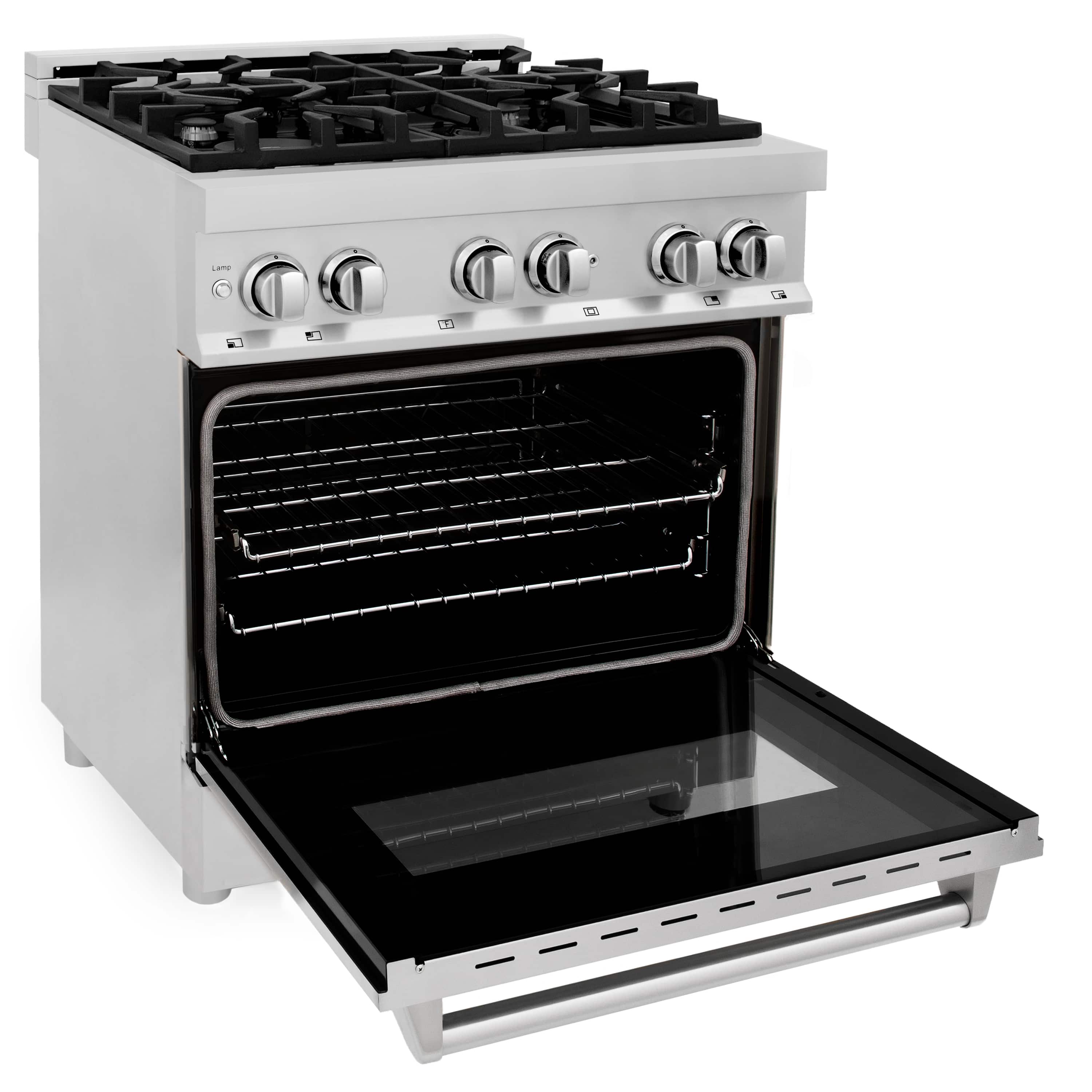

- Oven

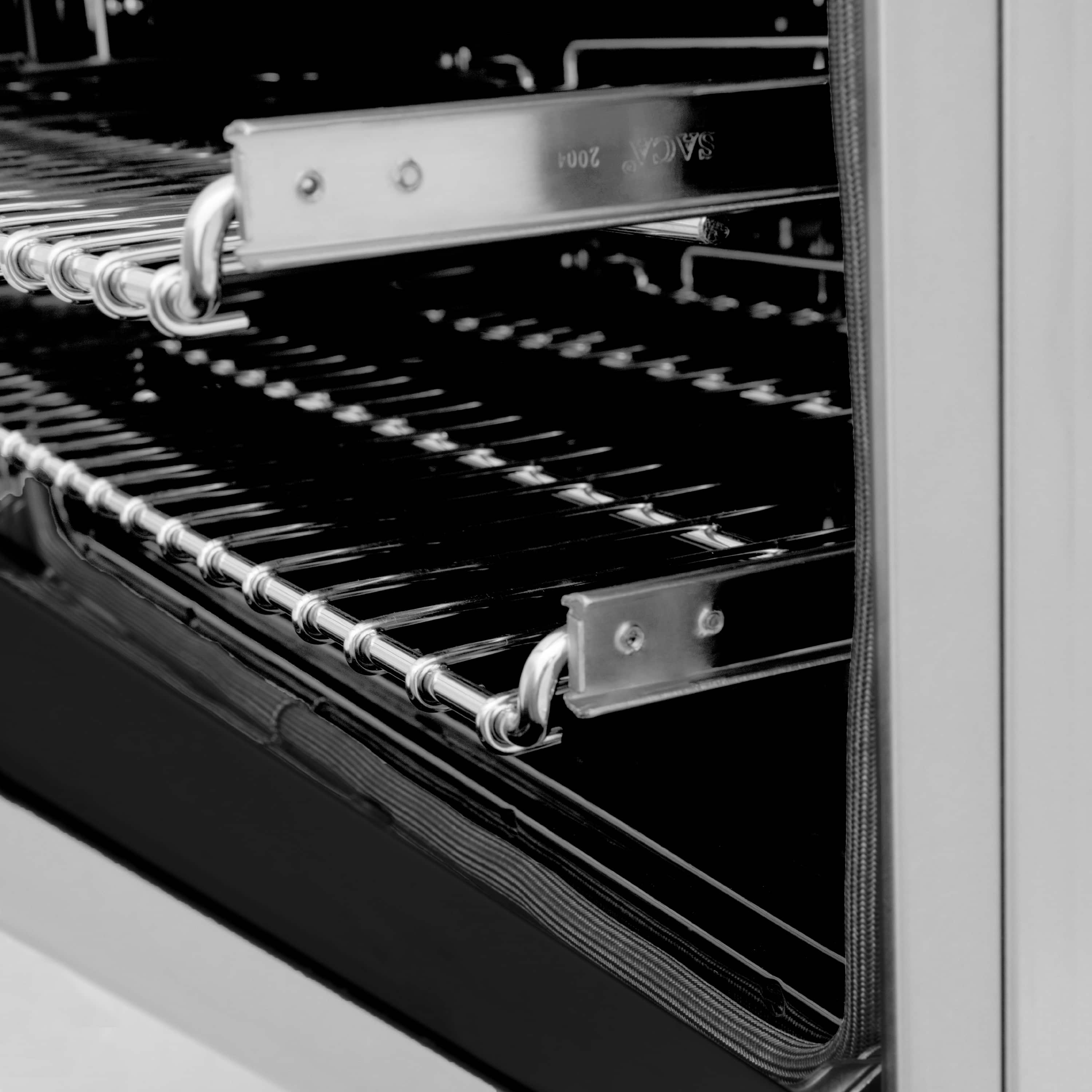

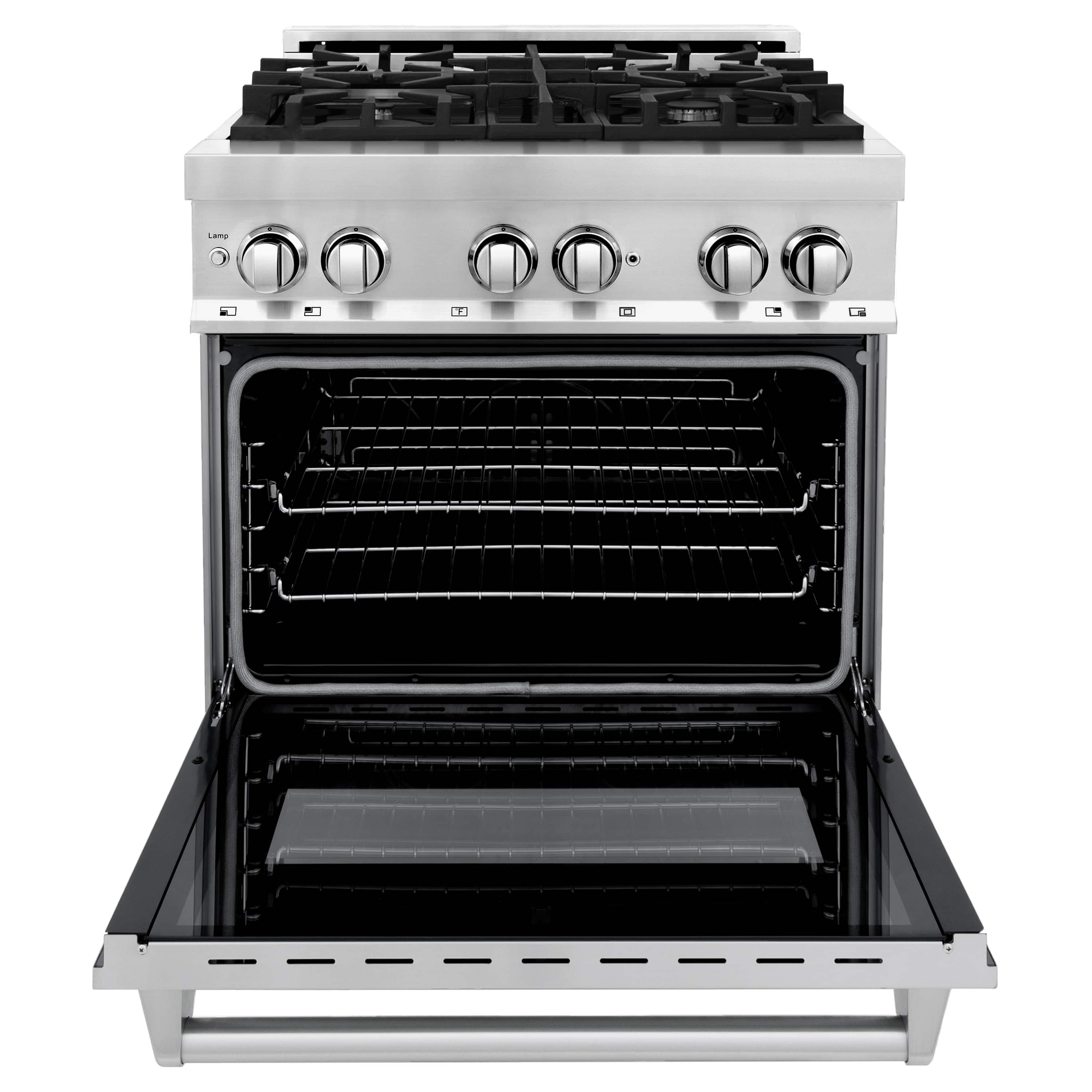

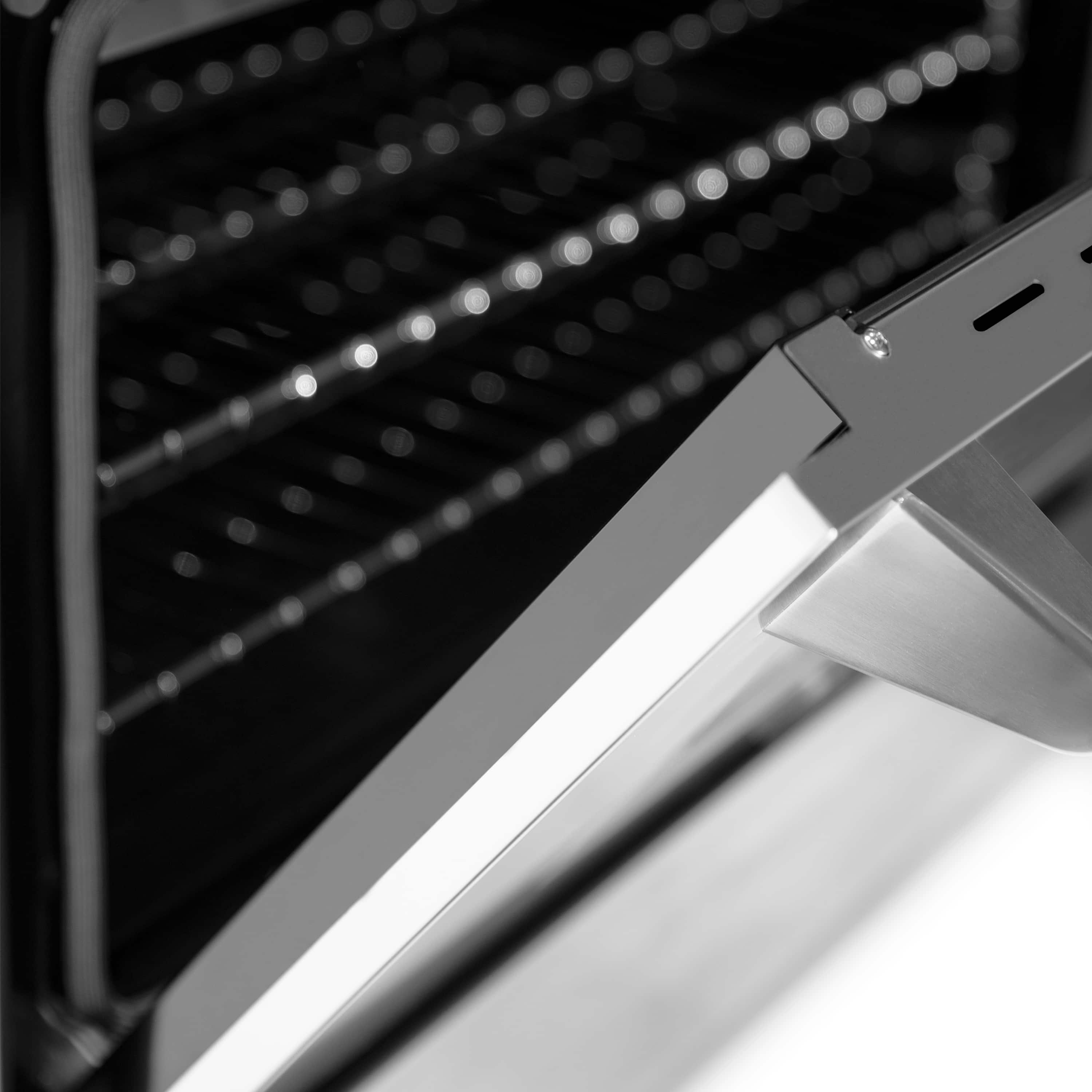

- Manual Clean - Convection Electric - 4.6 cu.ft. deep oven - Triple Glass Window - Dual Lighting - Professional Aluminum Mesh Seal
WARRANTY & CERTIFICATIONS
- Warranty
- 1 Year Warranty
