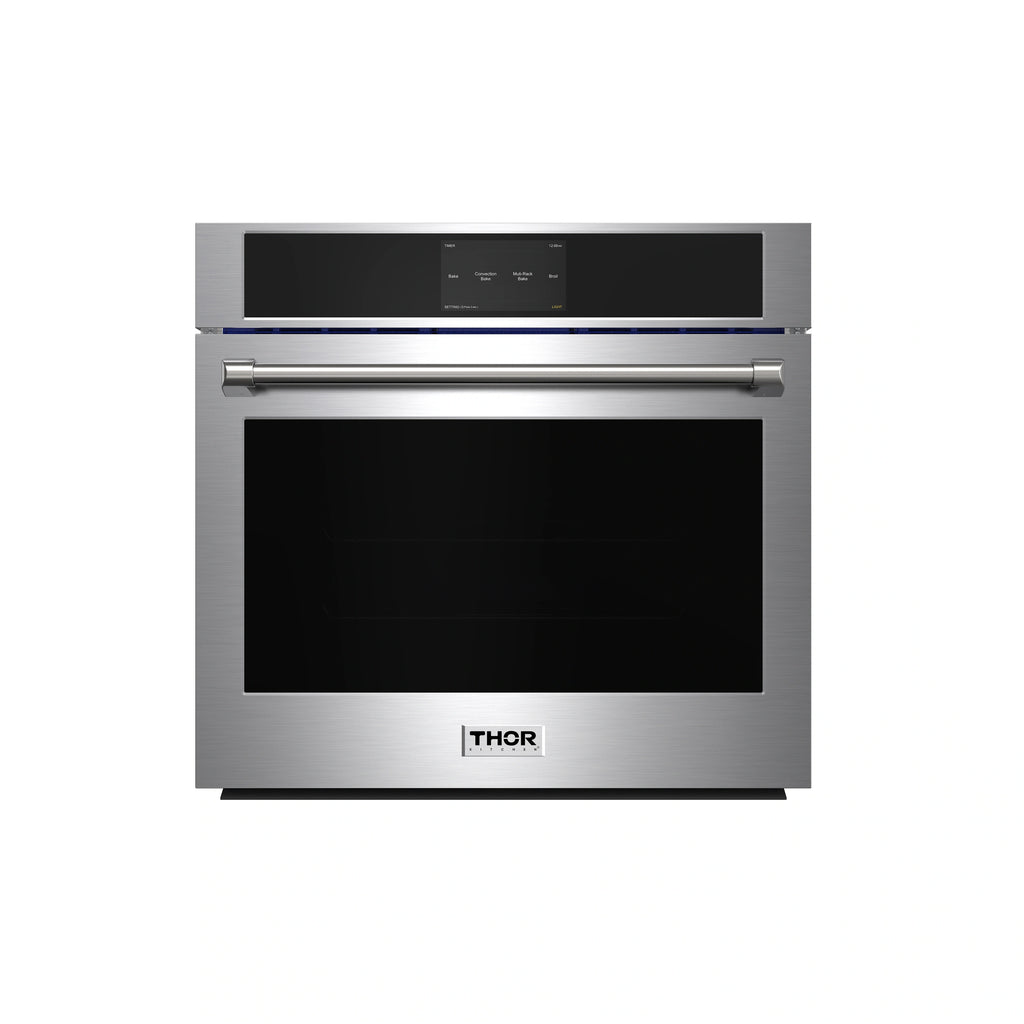

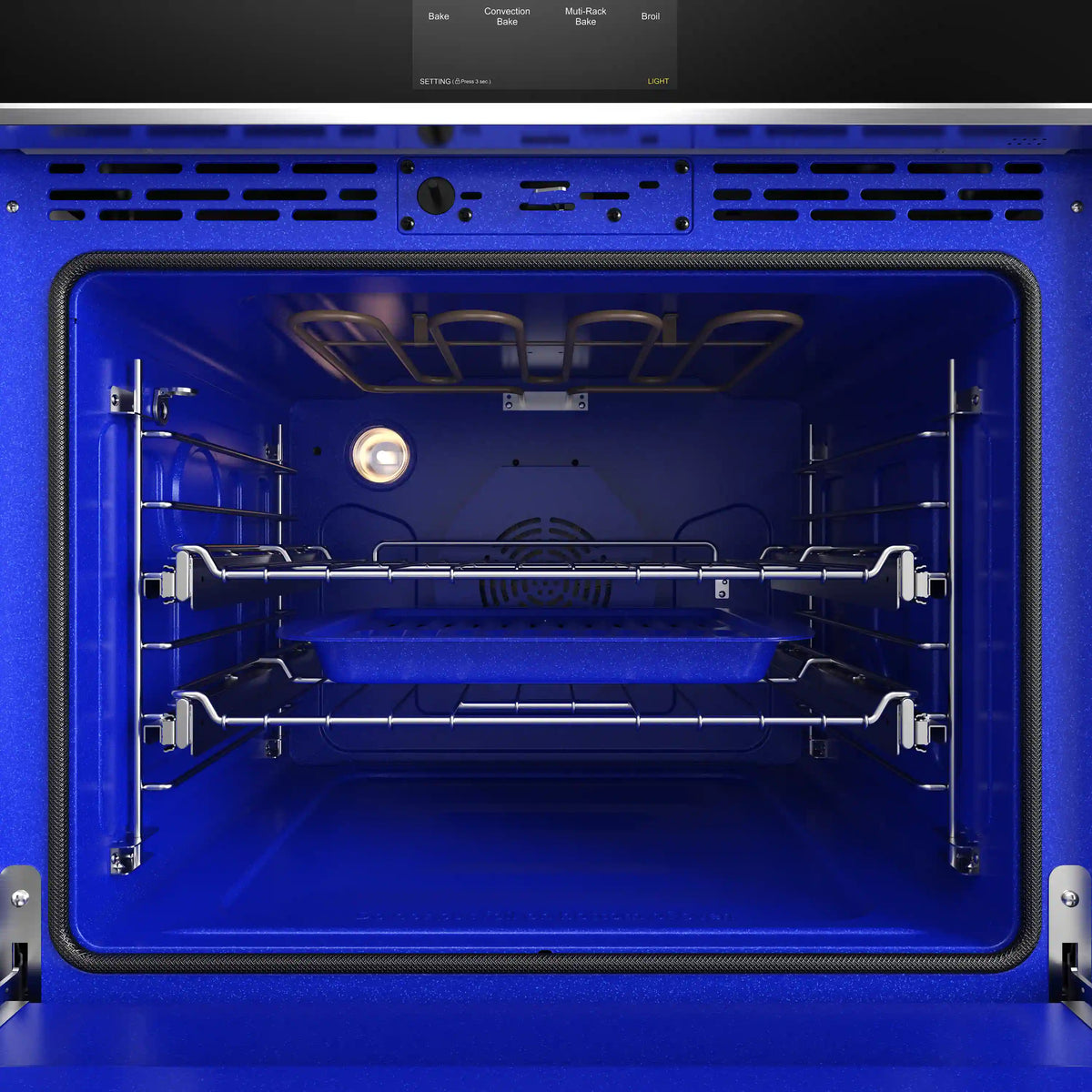

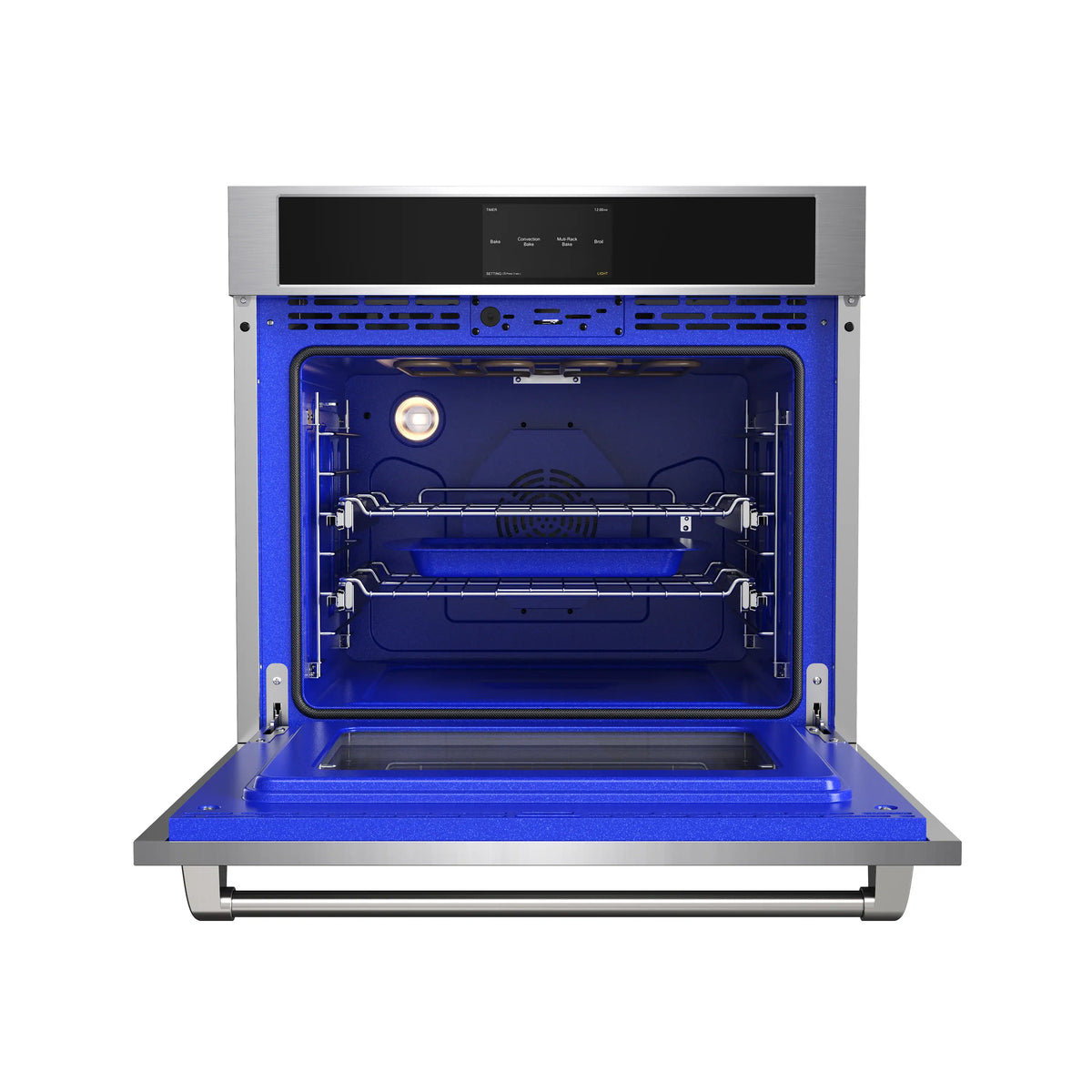

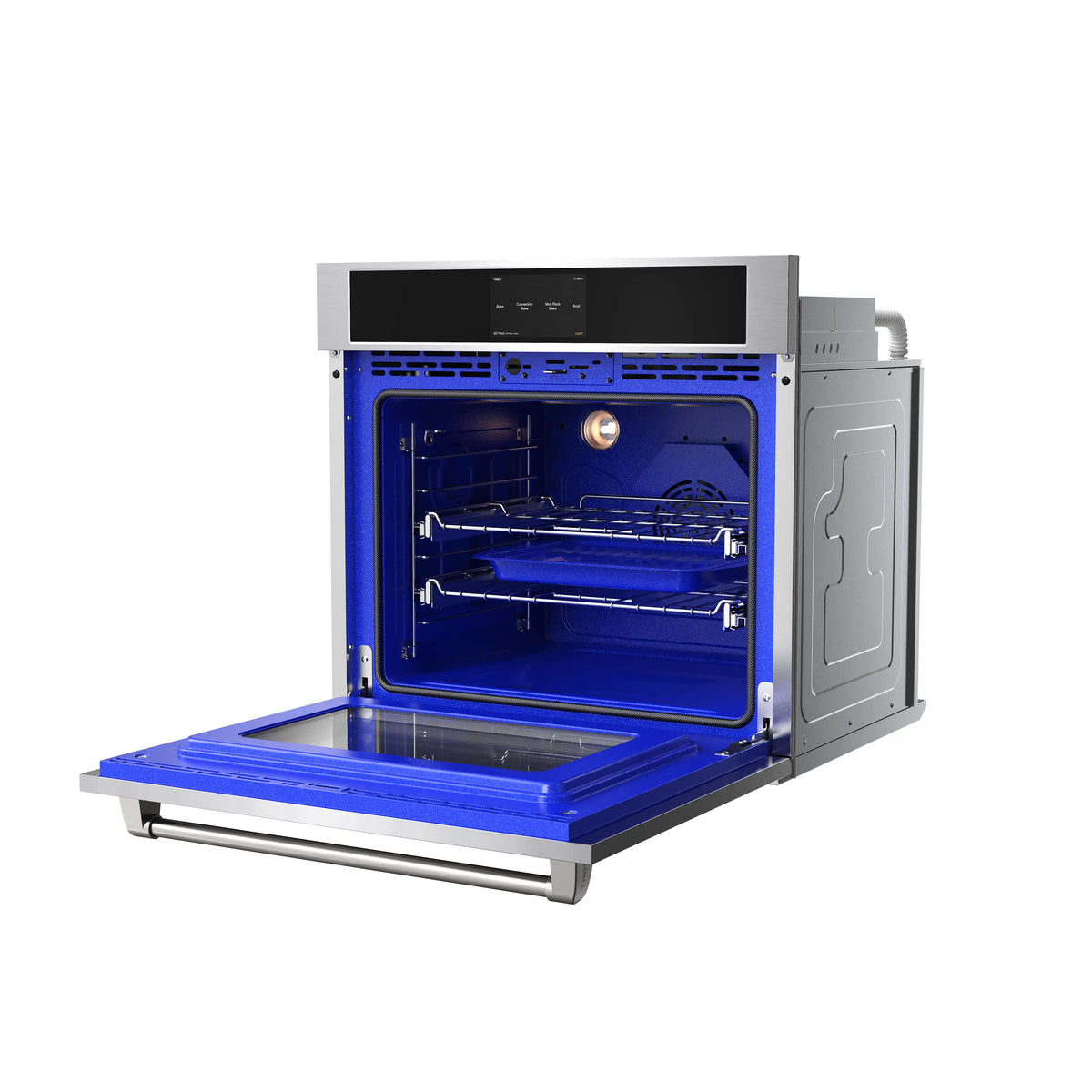

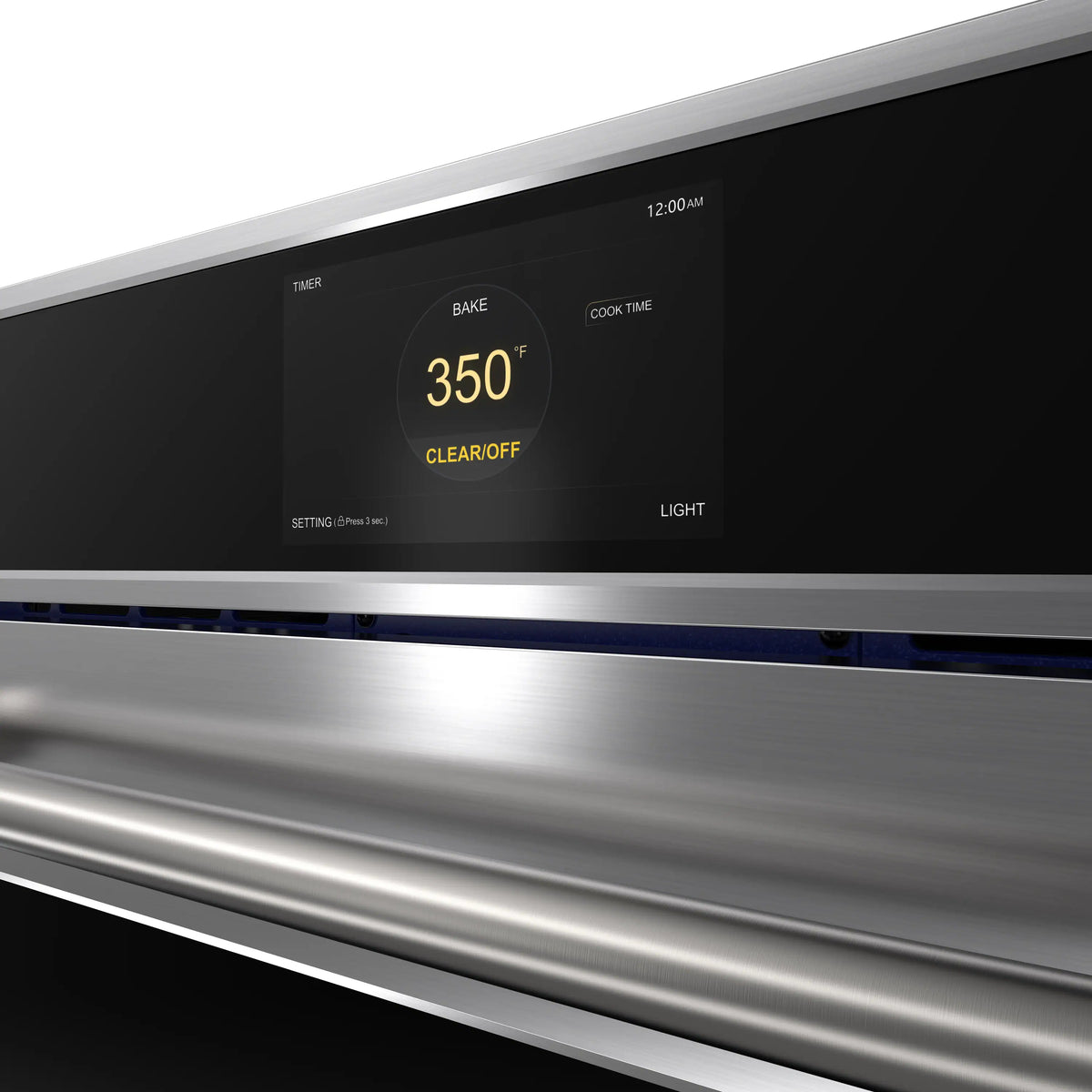

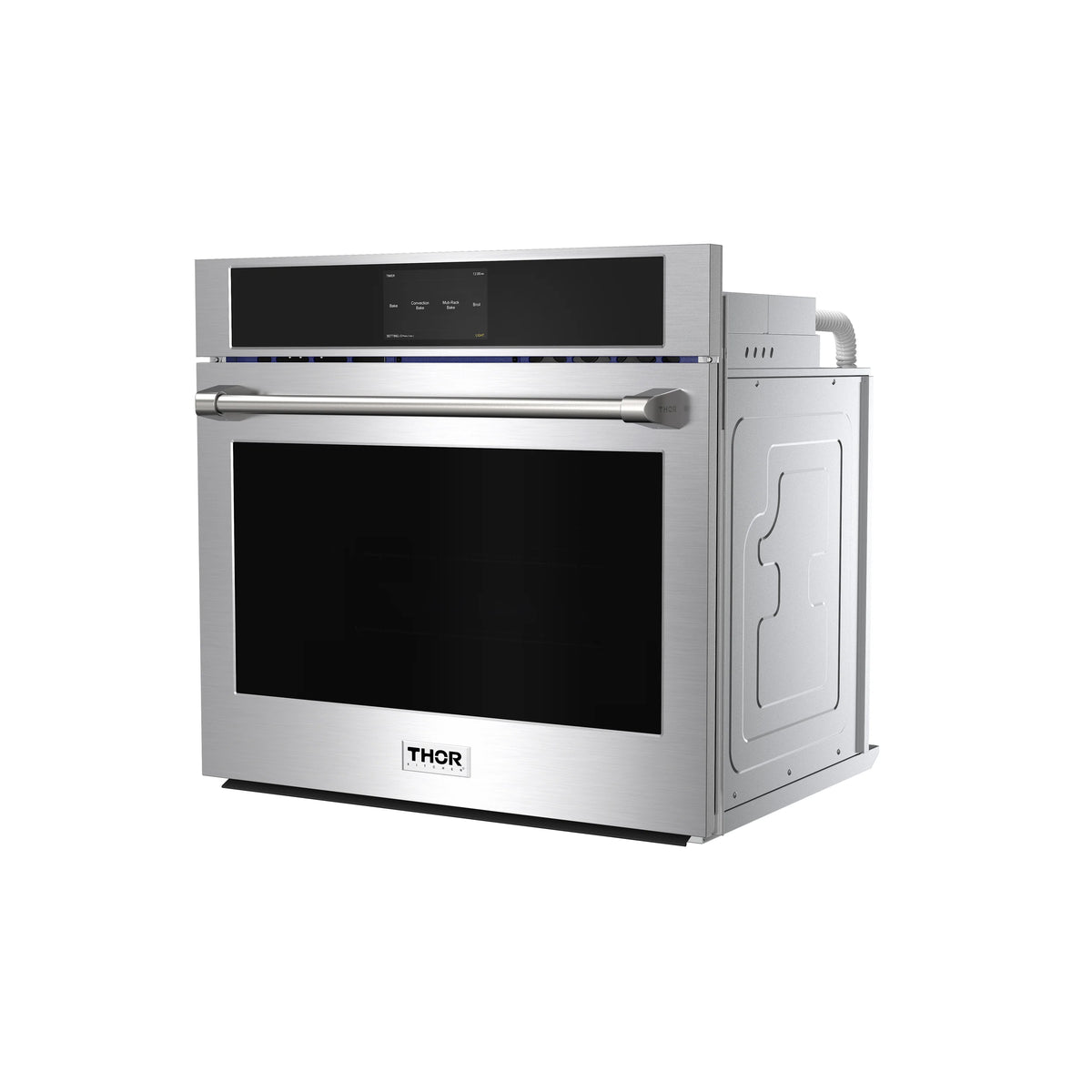

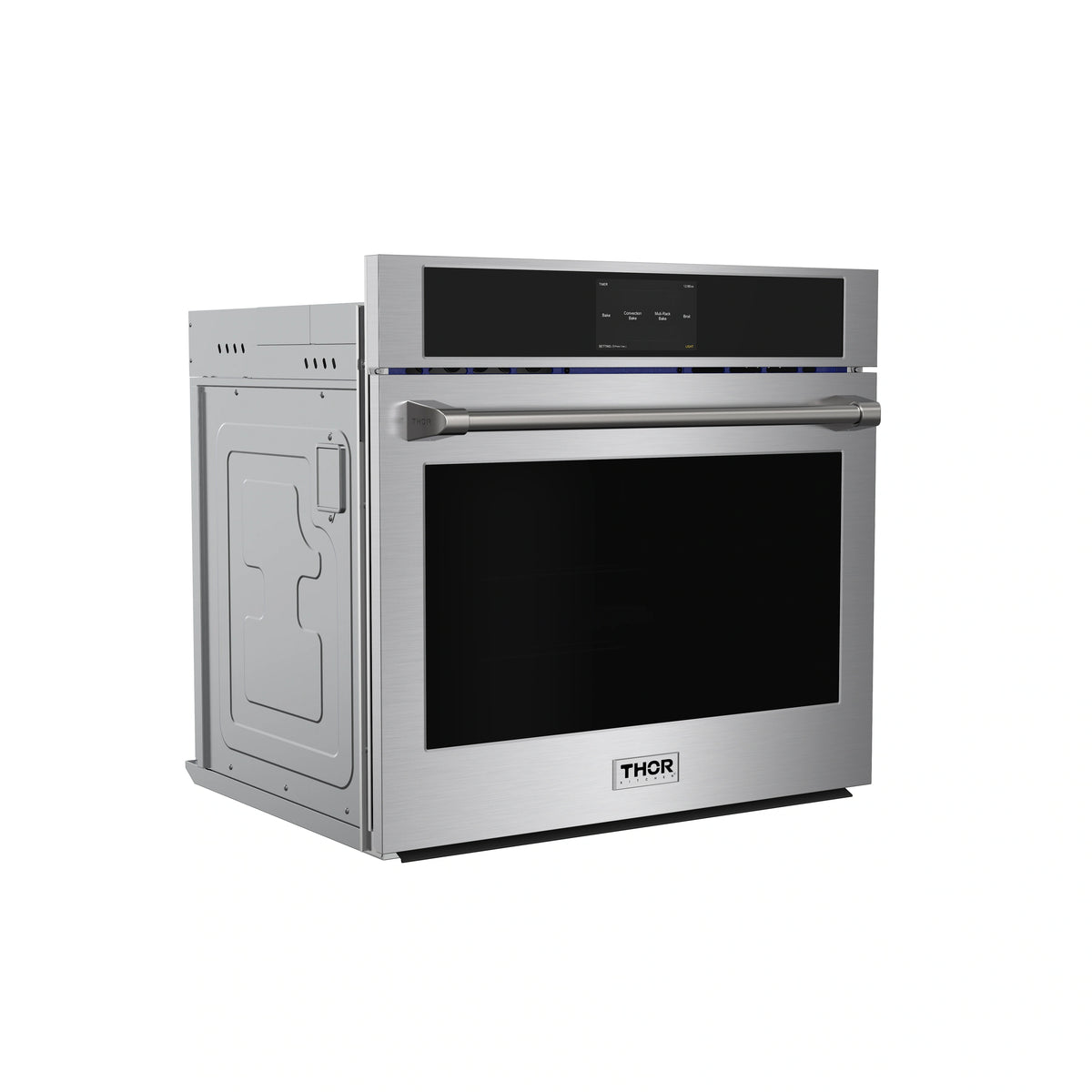

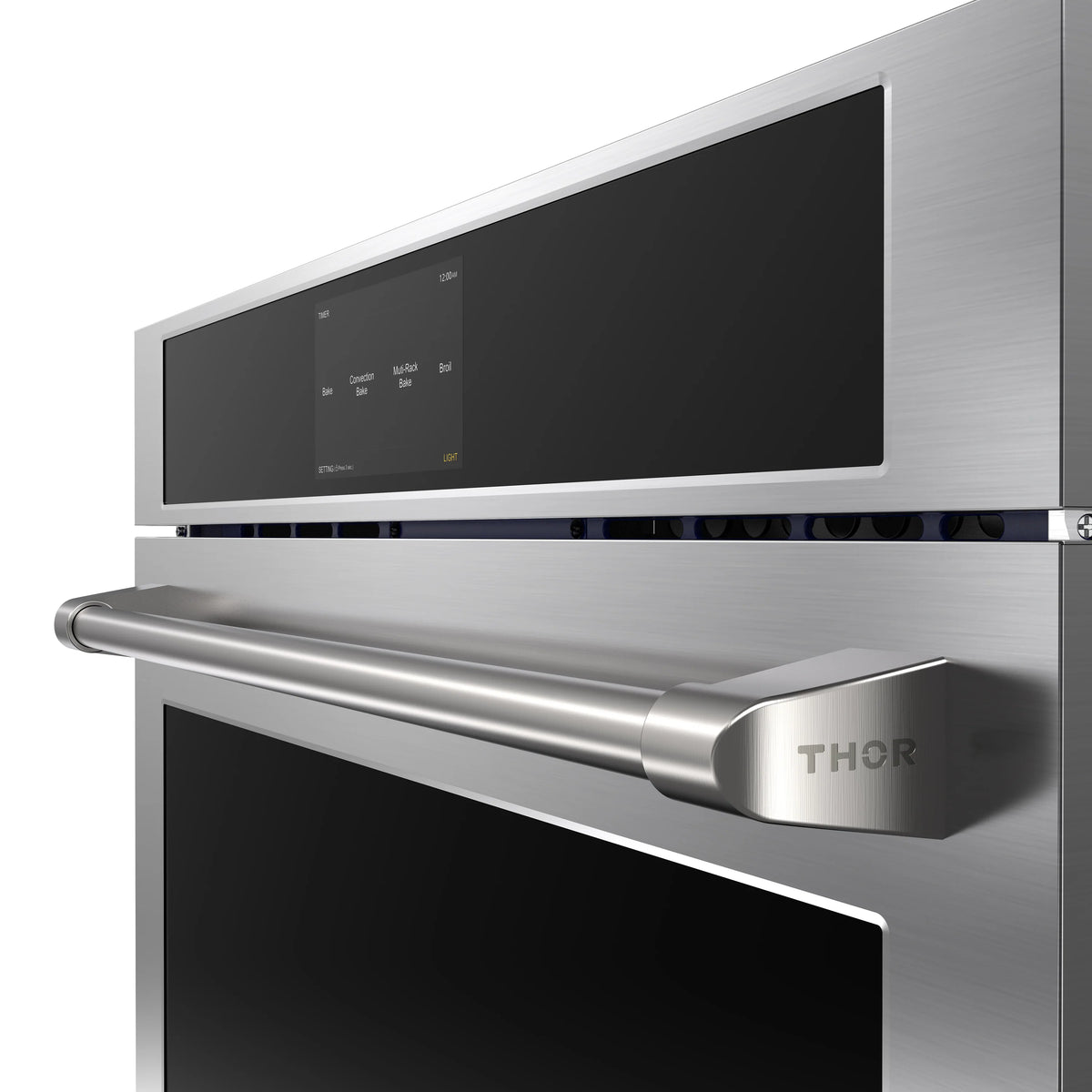

The THOR Kitchen 30" Professional Electric Single Wall Oven with Air Fry and Self-Clean brings professional-grade cooking power and modern convenience to your kitchen. With a spacious 4.8 cu. ft. capacity, advanced cooking modes, and premium features like telescopic racks, touch controls, and a self-cleaning function, this oven makes it easy to prepare everything from weeknight meals to holiday feasts with precision and style.
| DIMENSIONS | |
|---|---|
| Product Dimensions (HxWxD) (in.) | 28-1/2x30x25-1/8 |
| Product Height (from bottom to top of back splash) (in.) | 26-1/2 |
| Product Height (from bottom to top of side panel) (in.) | 26-1/2 |
| Product Depth (from back panel to bullnose) (in.) | / |
| Product Depth (from back panel to control panel) (in.) | 25-1/8 |
| Product Depth (from back panel to side panel front) (in.) | 23 7/8 |
| Cutout Dimensions (WDH) (in.) | 28-1/2x24x27-5/8 |
| Adjustable Leg Sizes | / |
| Net Weight (lbs.) | 163 |
| Gross Weight (lbs.) | 183 |
| Package Dimensions (WDH) (in.) | 34-1/4 x 30 x 32-1/4 |
| GENERAL INFORMATION | |
| Fuel Type | Electric |
| Installation Type | Built-in |
| DESIGN & FINISH | |
| Control Type | Touch Screen |
| TECHNICAL DETAILS | |
| Required Circuit (A) | 30 amps |
| Voltage (V) | 240V |
| Frequency (Hz) | 60Hz |

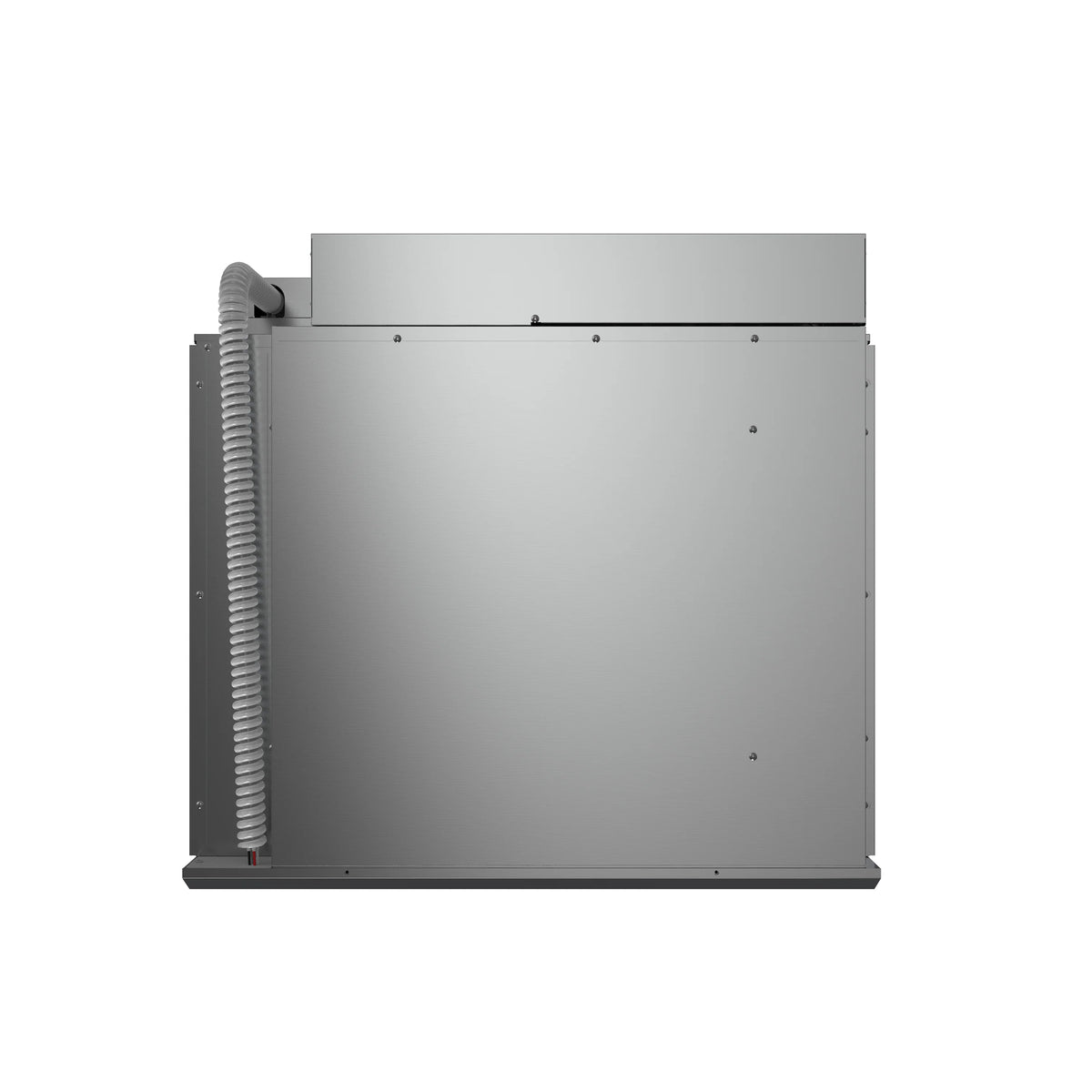

| Power Cord Length (in.) | 47in (hard wire) |
| FEATURES | |
| Total Output Watts (A) | 4900 Watt |
| Oven Capacity (cu. Ft.) | 4.8 cu ft |
| Oven Control Features | Oven Light Control, Cook Time, Timer, Delay Start, Self Clean, Control Lock, Sabbath Mode, Temperature Unit |
| Cooking Modes | Bake, Convection Bake, Multi-Rack Bake, Broil, Convection Roast, Warm, Pizza, Air Fry, Proof, Meat Probe |
| Bake Burner Power | 3000 Watt |
| Broil Burner Power | 3500 Watt |
| Convection | True Convection |
| Convection Element Power | 800 Watt |
| Oven Lights | YES |

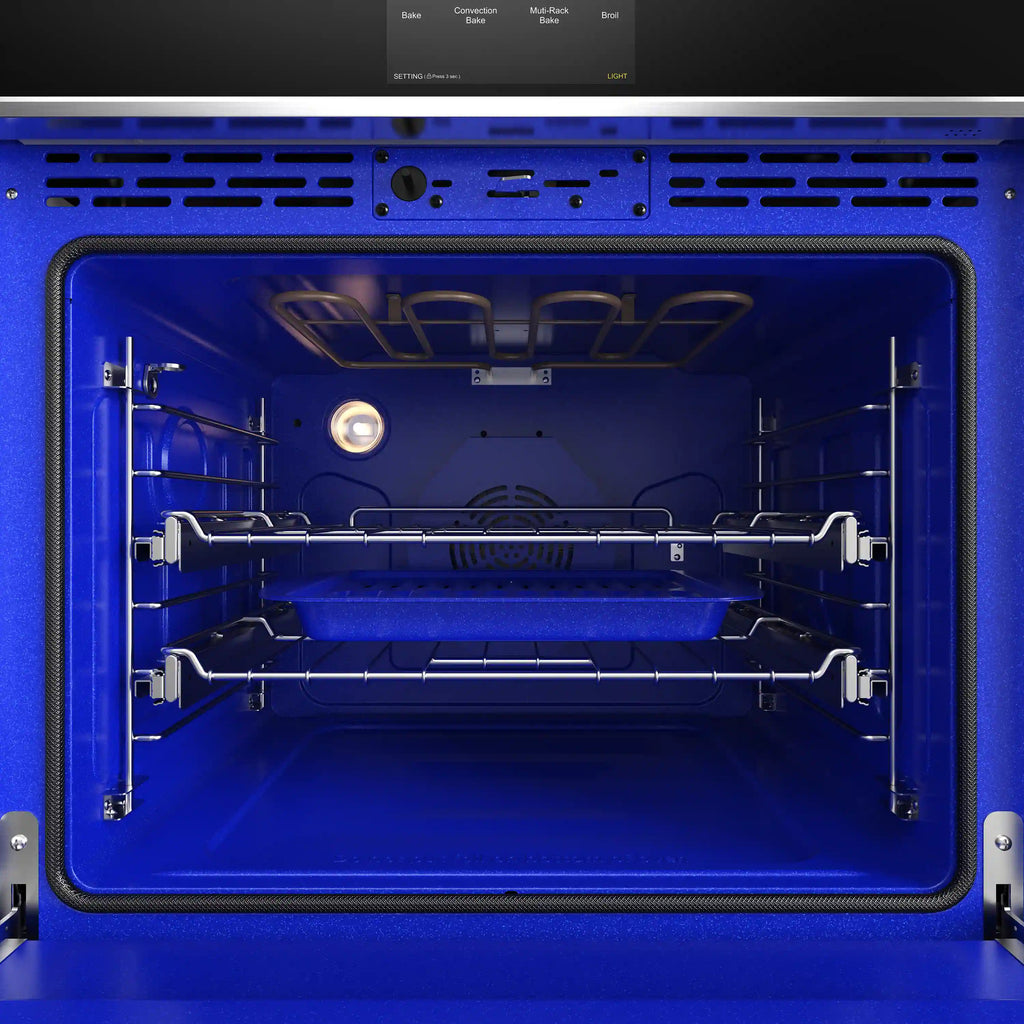

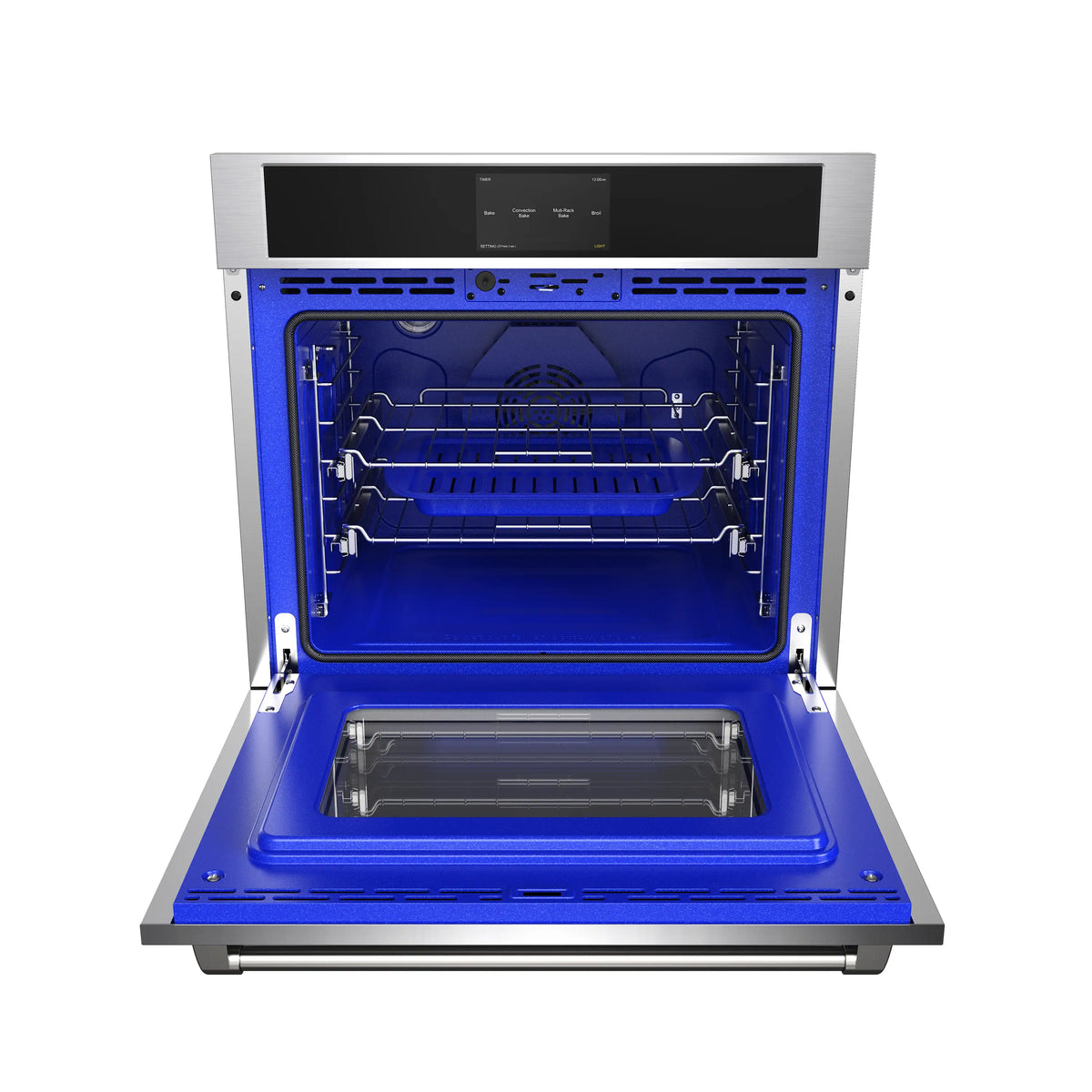

| Oven Racks | Telescopic Racks x2 |
| Oven Rack Material | Chrome Plated |
| Baking Sheet Size | Fits Standard Half Sheet Pan |
| Self Clean (Y/N) | YES |
| Air Fry | YES |
| Oven Internal Height | 18'' |
| Oven Internal Width | 23-3/4'' |
| Oven Internal Depth | 19-1/2'' |
| Accessories Included | "2 LuxGlide™ 1 Broiler Pan 1 Air fry Basket" |
| Accessories (Required) (Sold separately) | Power Plug (only hardware power cord is provided) |
| Accessories (Optional) | / |

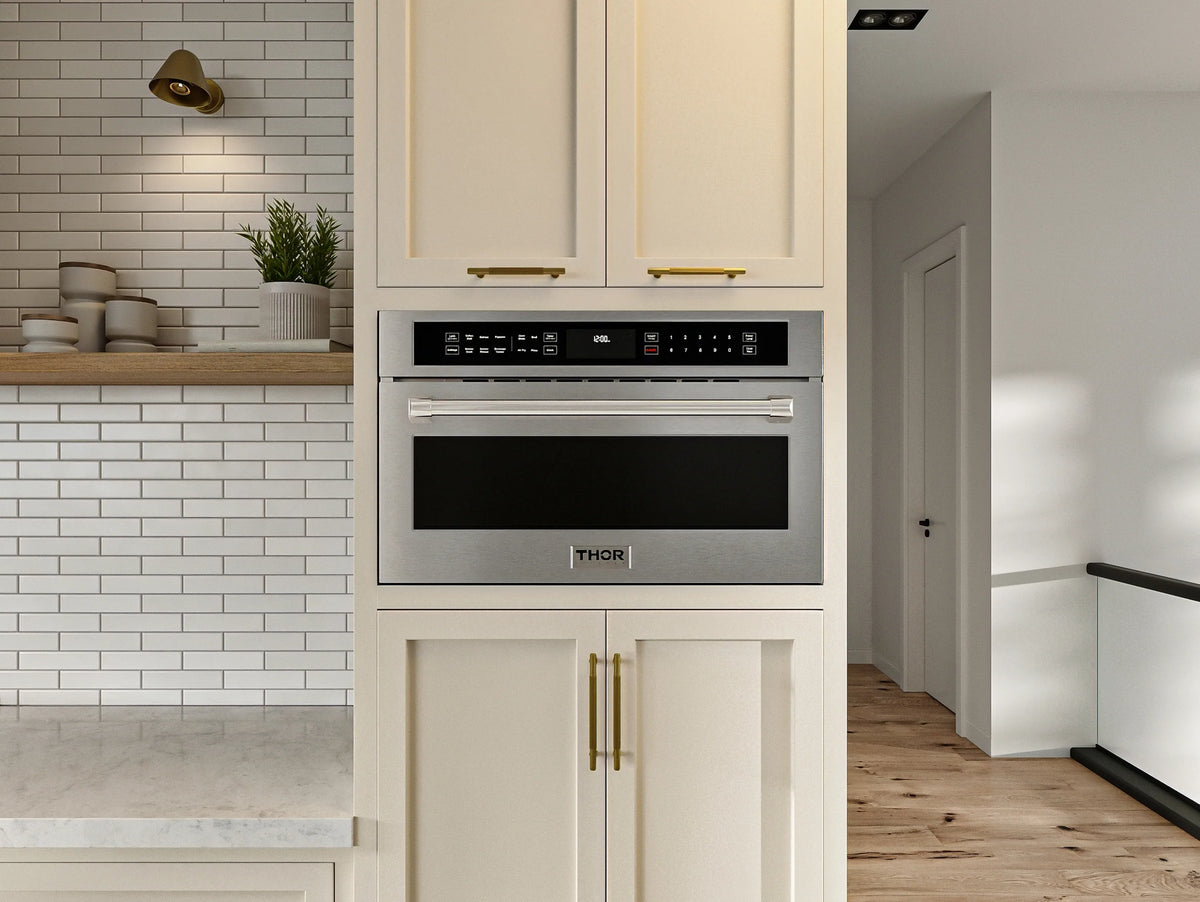

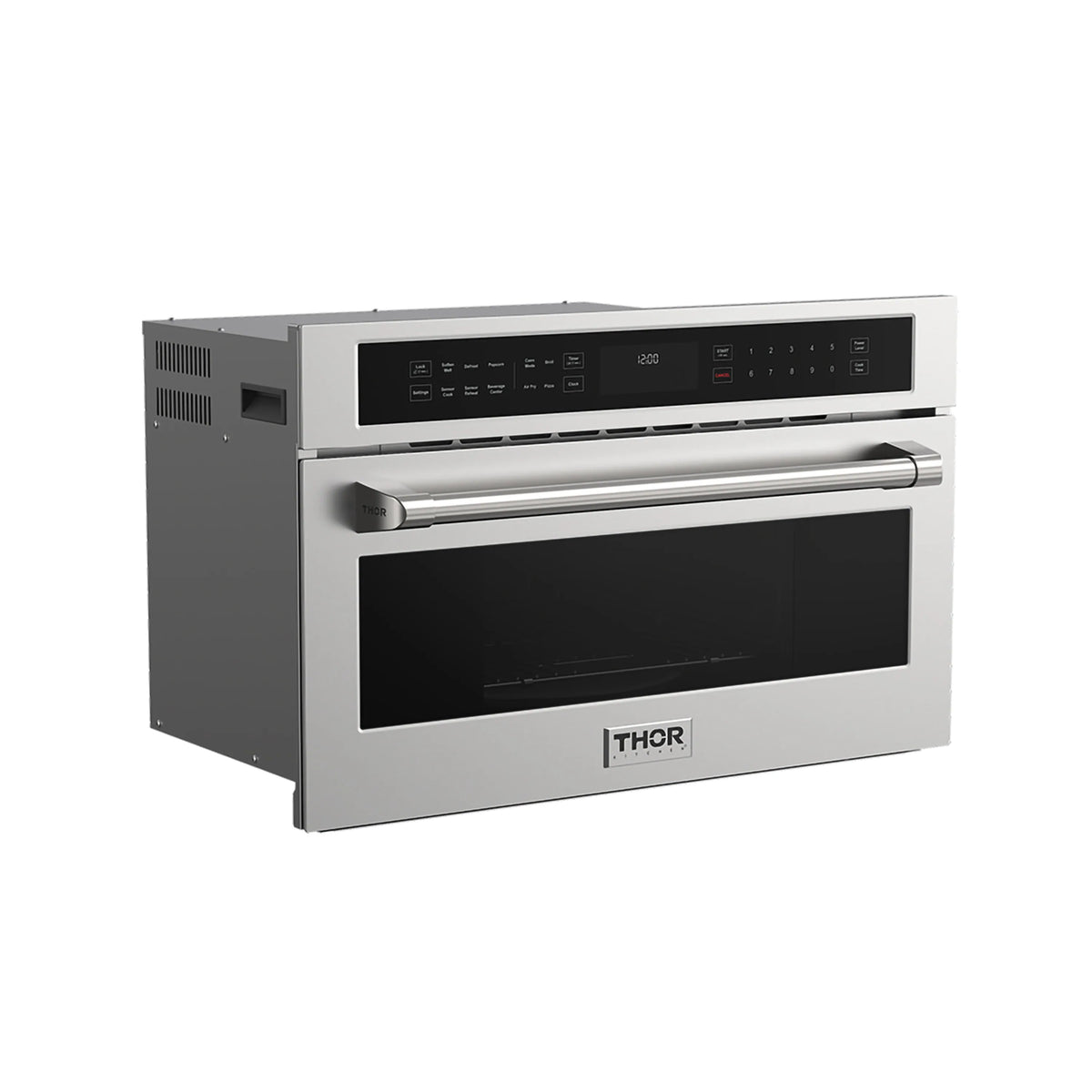

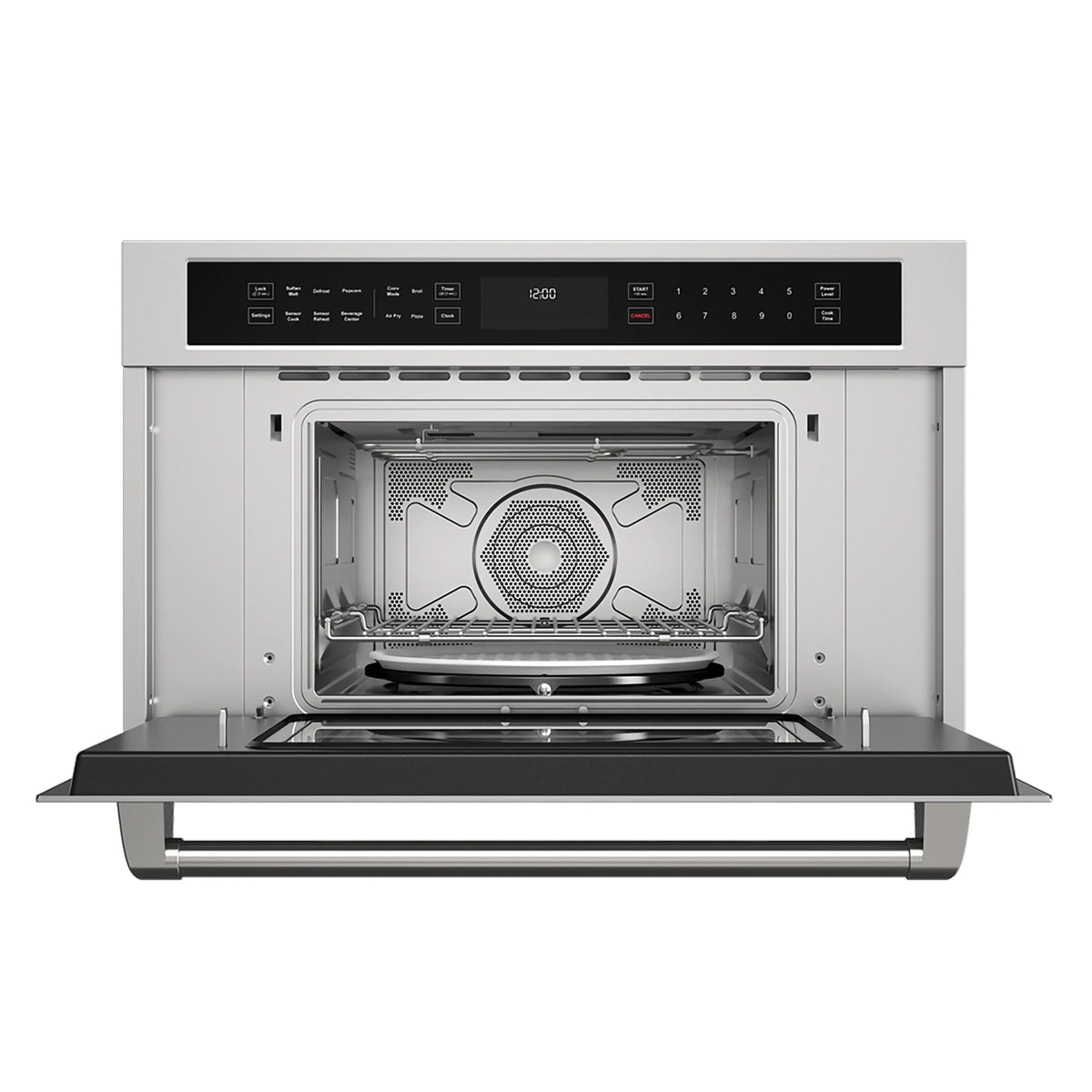

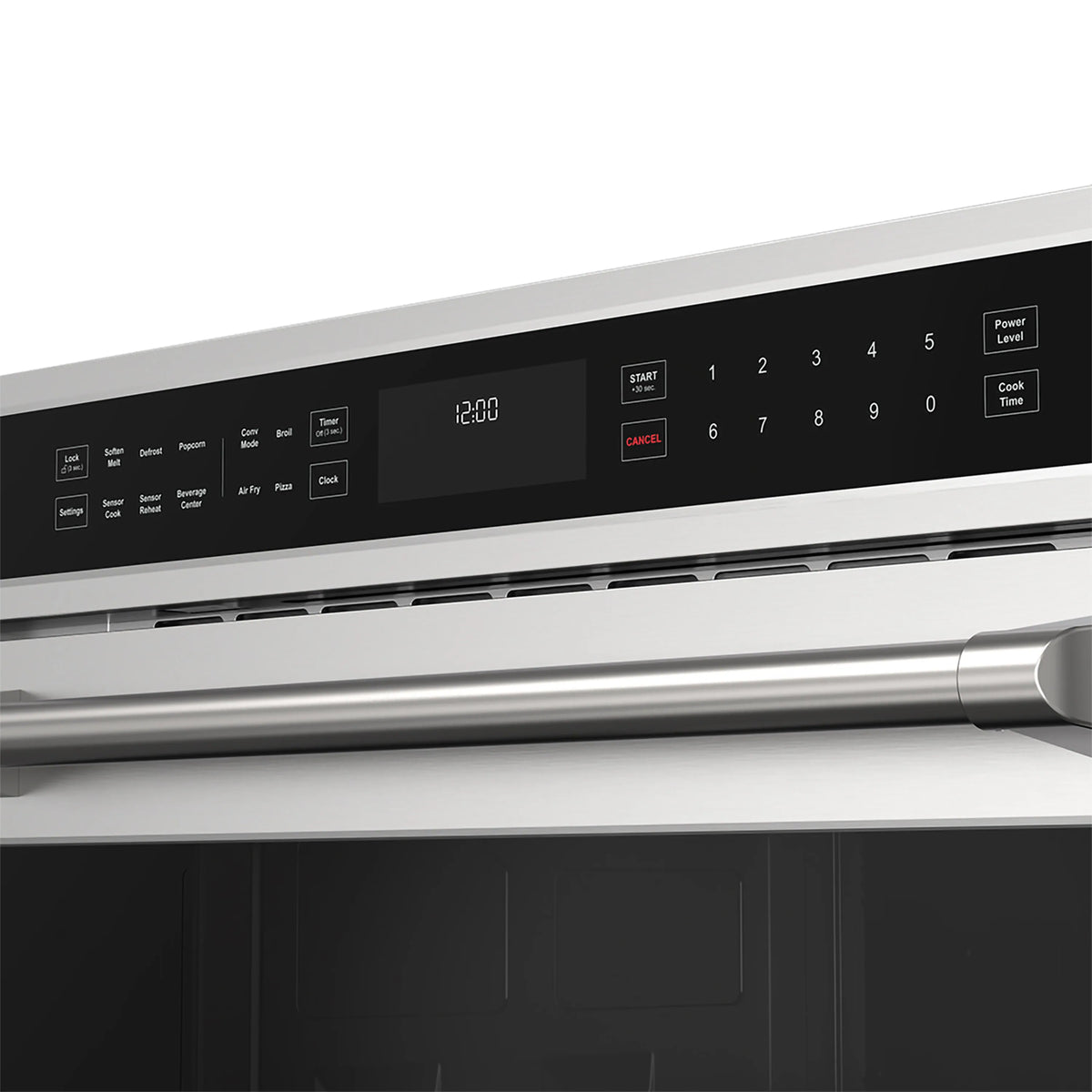

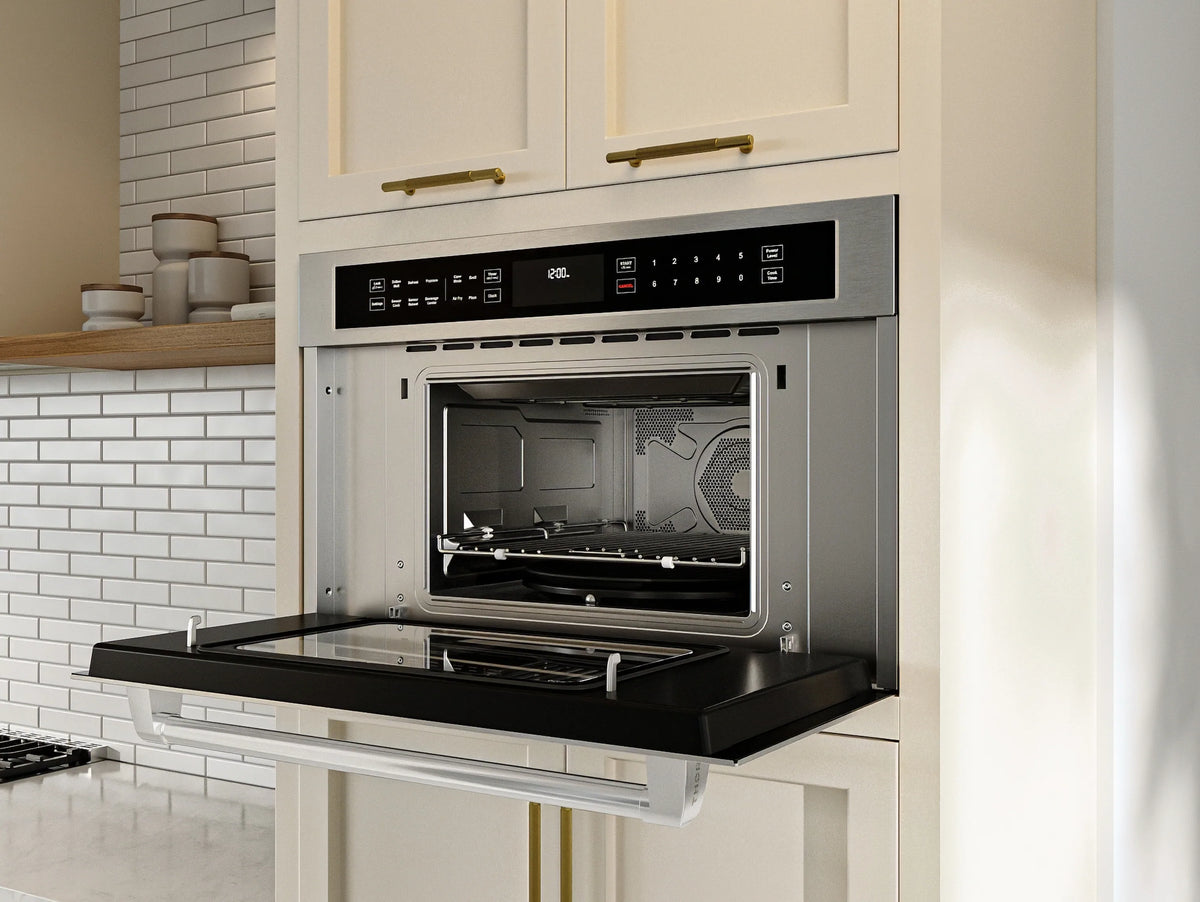

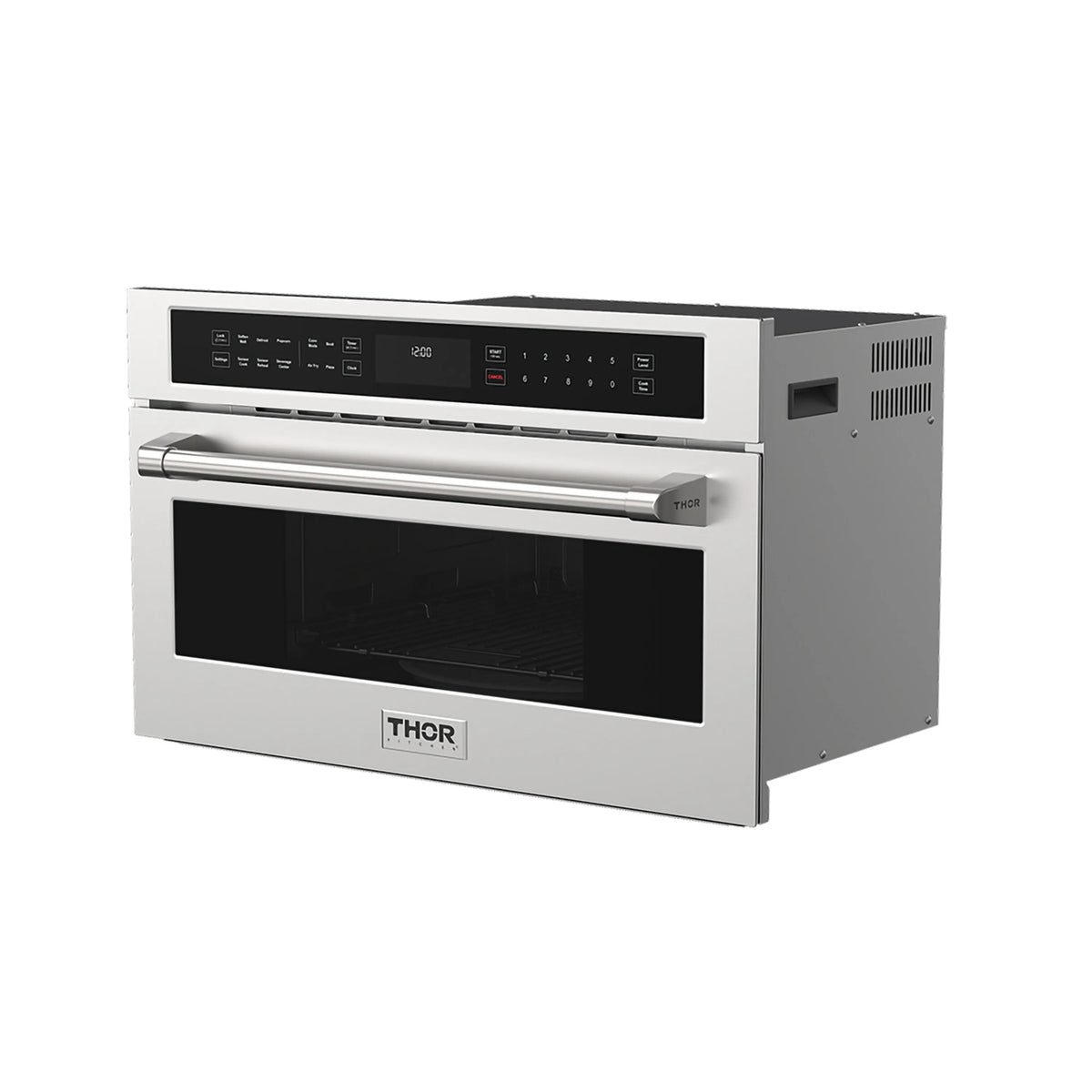

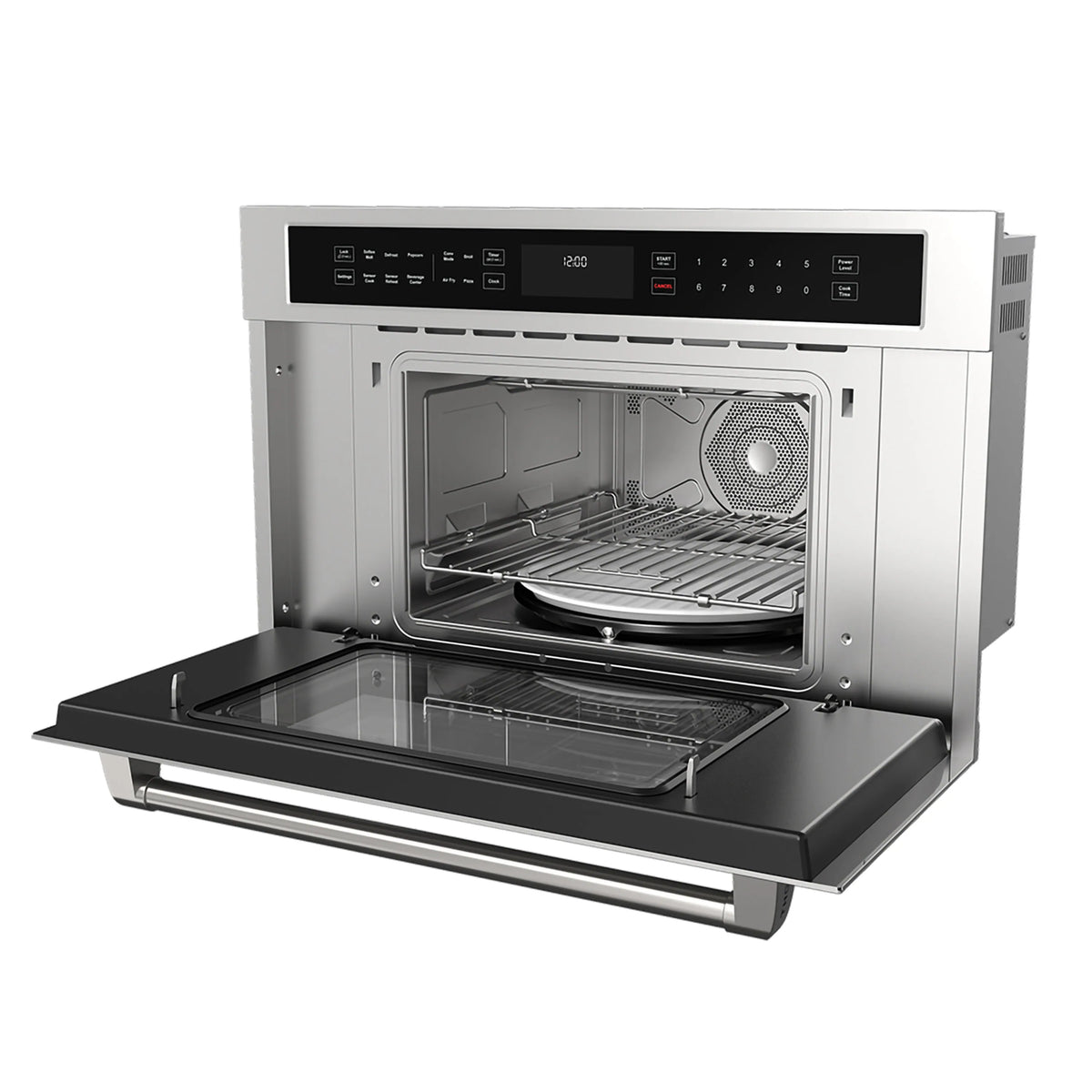

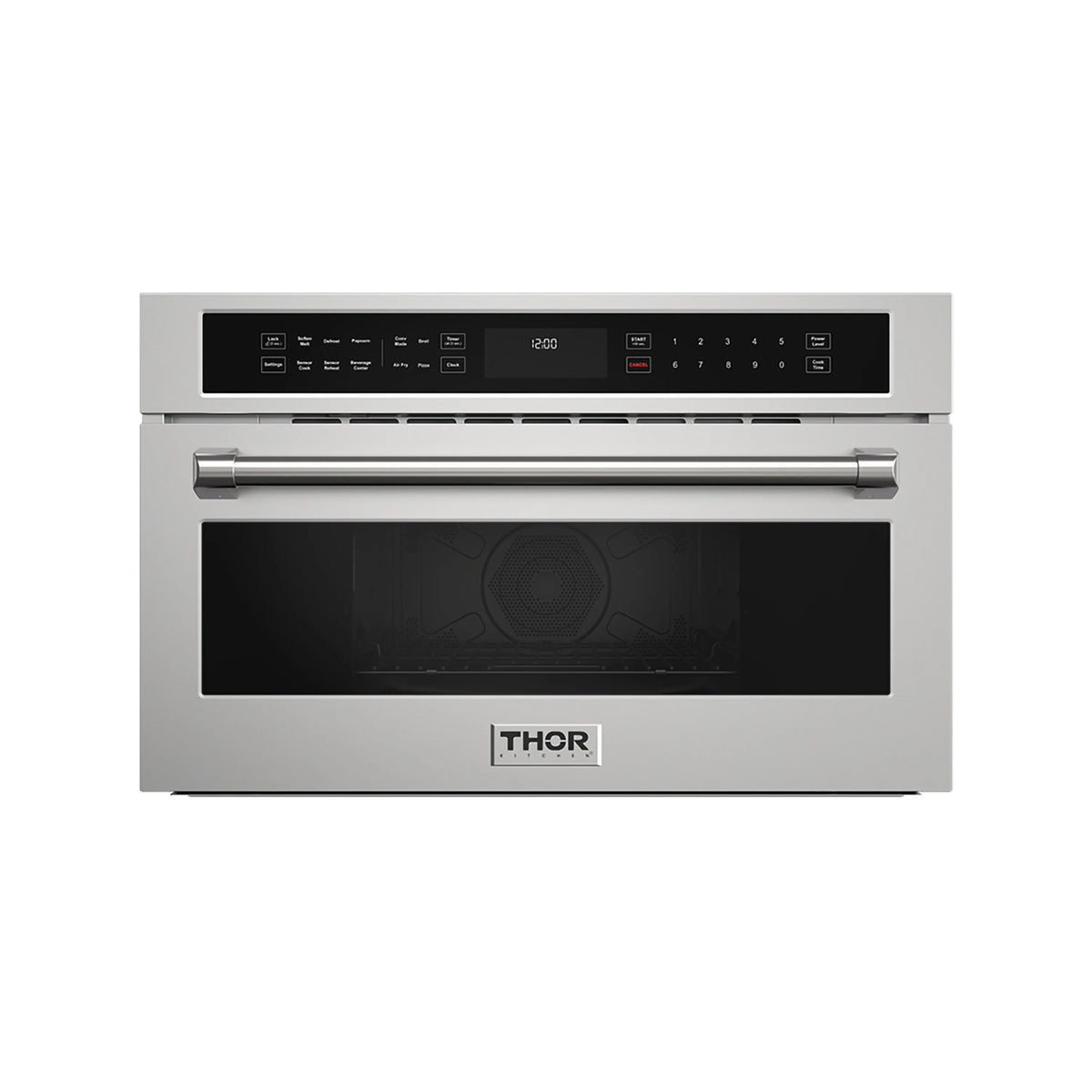

Thor Kitchen 30-Inch Built-In Air Fry Microwave Oven (TMO30H) combines versatility and innovation with sensor cooking for precise results, multiple cooking modes like air fry and broil, and True Convection for even heat distribution. A 1.6 cu. ft. interior handles family-sized meals, while the intuitive touch LCD display simplifies control. Enjoy added safety with a control panel lock, and Sabbath Mode for extended traditional baking without alerts or lights.
| DIMENSIONS | |
|---|---|
| Product Dimensions (WxDxH | 29-13/16" x 22" x 18-5/8" |
| Cutout Dimensions (WxDxH) | Standard: 28-3/4" x 23-1/4" x 17-13/16" Flush: 30" x 24" x 18-3/4" |
| Package Dimensions (WxDxH) | 33-11/16" x 26" x 22-1/16" |
| Net Weight | 97 lbs |
| Gross Weight | 113 lbs |
| Cavity Capacity | 1.6 cu. ft. |
| GENERAL INFORMATION | |
| Installation Type | Built-In |
| DESIGN & FINISH | |
| Color | Stainless Steel |
| Control Lock | Yes |
| TECHNICAL DETAILS | |
| Circuit Breaker | 20 A (Dedicated) |
| Volts | 120 V |
| Frequency | 60 Hz |
| Plug Type | NEMA 5-20p - 3 Prong |
| Power Cord Length | 61" |
| FEATURES | |
| Turnable Diameter | 14-5/16" |
| Microwave Interior Light | LED |
| Door Opening Direction Drop | Down |
| Microwave Power | 950 W |
| Convection Element | 1700 W |
| Broil Element | 1700 W |
| Bake Element | 600 W |
| Sensor Cook | Yes |
| Defrost | Yes |
| Child Safety Lock | Yes |
| Power Levels | 10 |
| 10 Cooking Modes | Microwave: Soften/Melt, Defrost, Popcorn,Sensor Cook, Sensor Reheat, Beverage Center Oven : Convection, Broil, Air Fry, Pizza |
| Audible Signal Elimination | Yes |
| Sound On/Off | Yes |
| Memory/Kitchen Timer | Yes |
| Start/Add-30Sec | Yes |
| Timer/Clock | Yes |
| Accesories (Included) | Turntable Baking Rack 14" White Ceramic Plate |

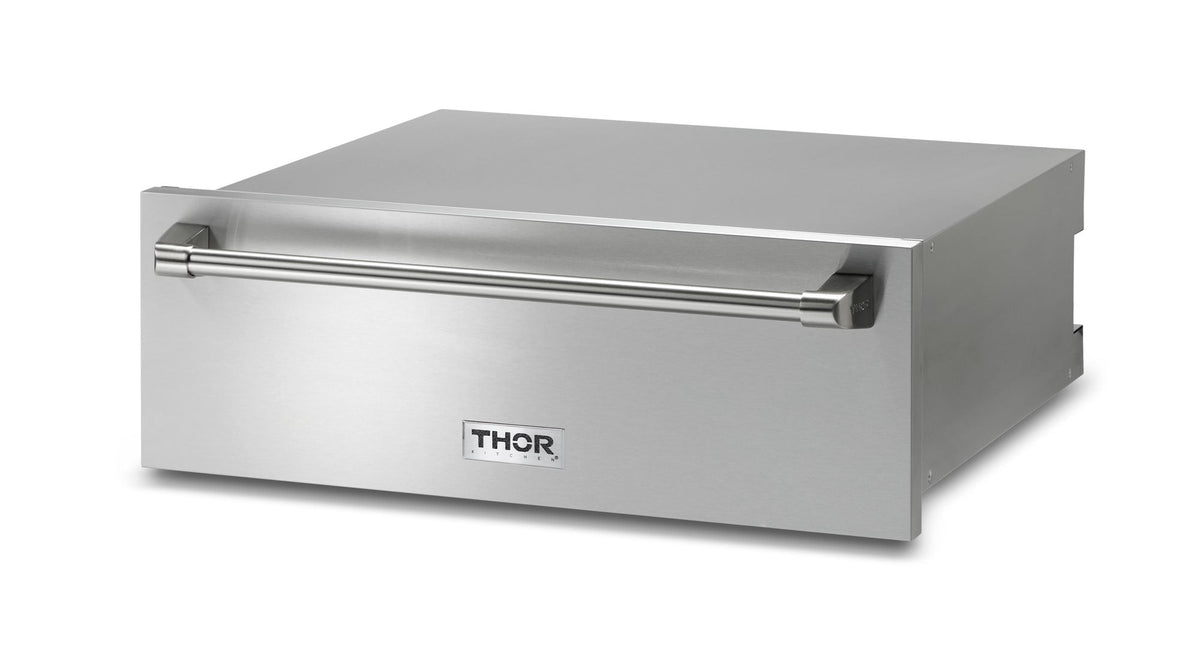

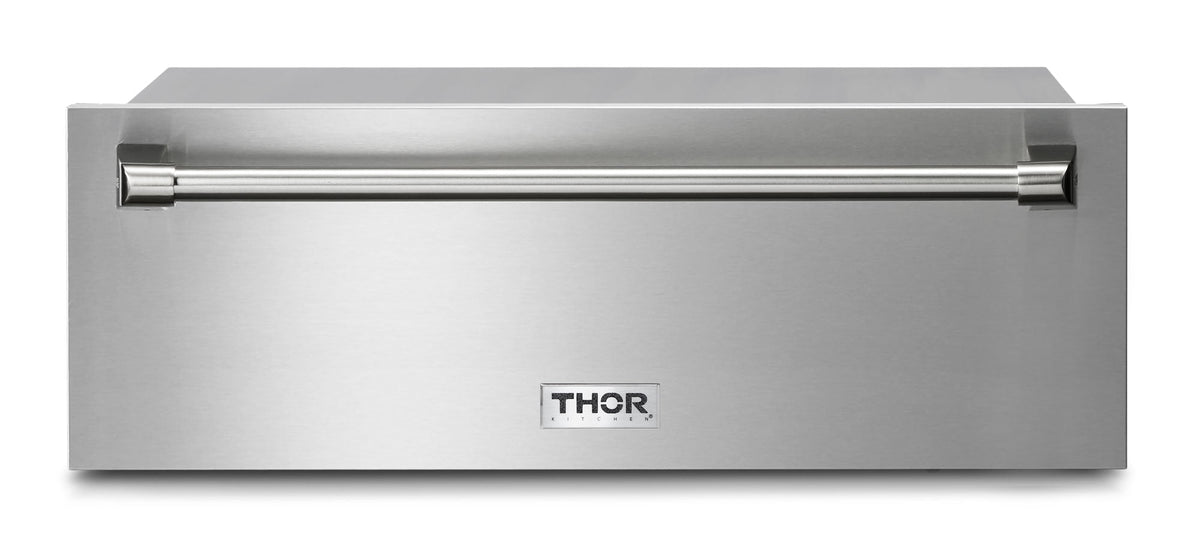

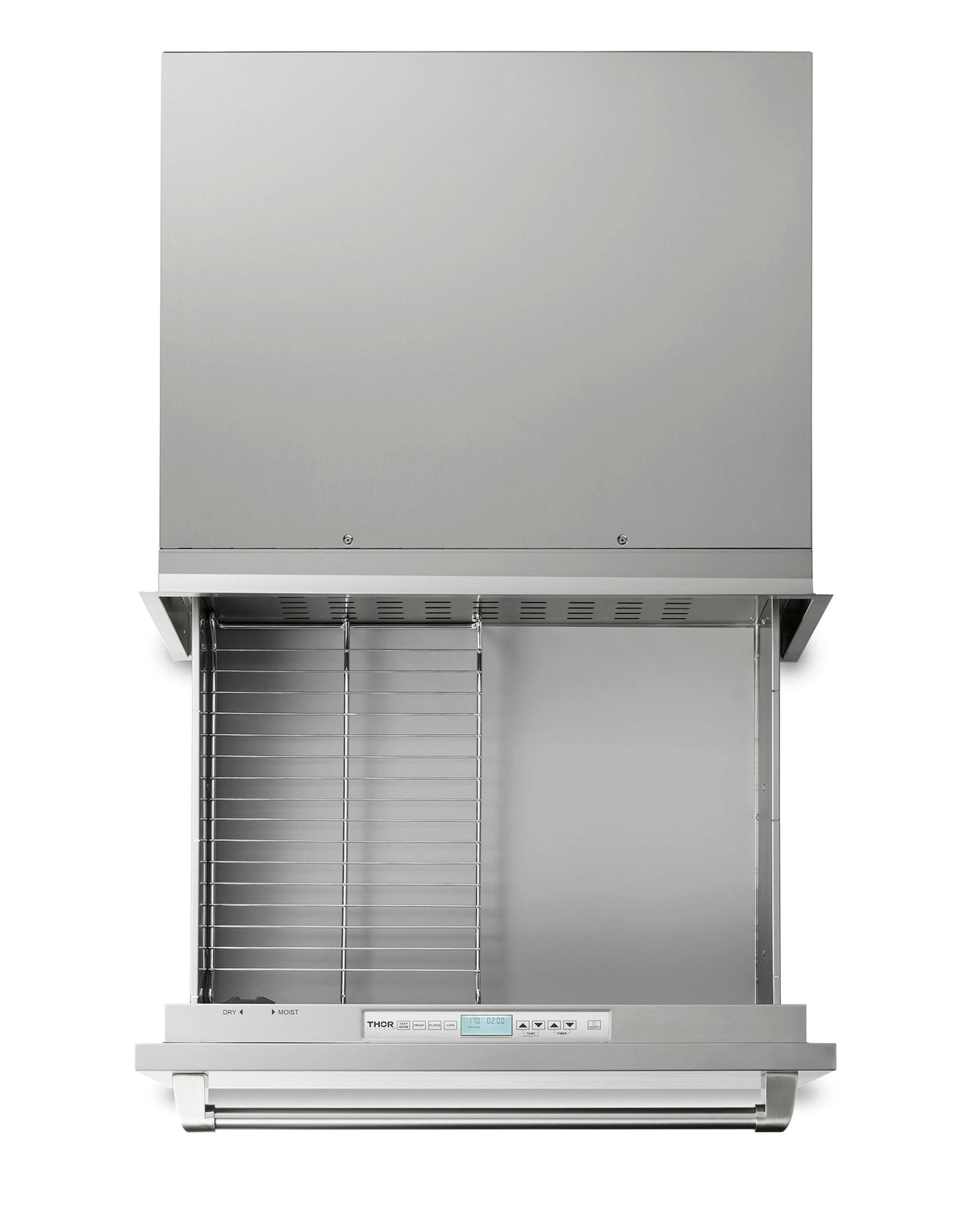

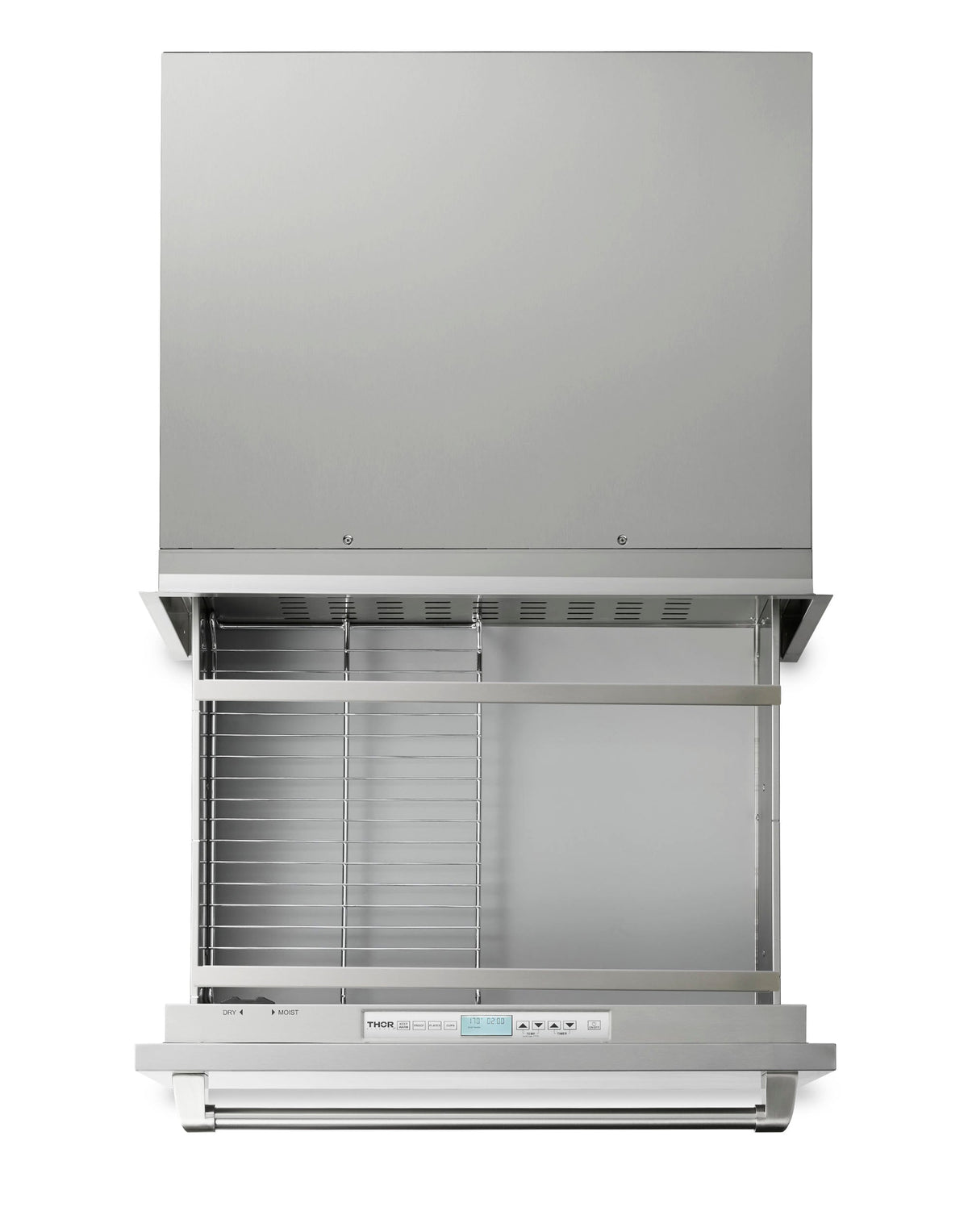

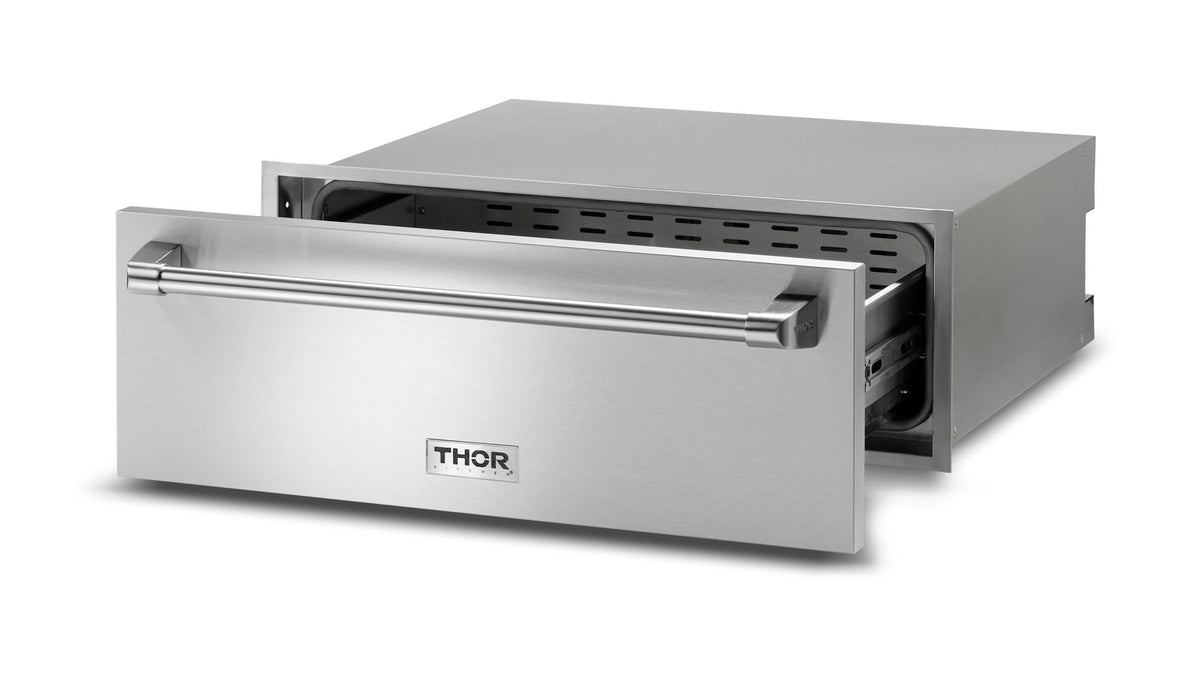

THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. With multiple functions and varying temperature ranges, THOR Kitchen's 30 Inch warming drawer keeps dishes warm and ready to serve at a moments notice. #cooklikeagod
FLEXIBLE TEMPERATURE CONTROL. Temperature settings from 86 to 185 degrees address all your heating needs
MULTIPLE MODES. Keep plates, cups and dishes warm or operate at a consistently low temperature to activate yeast and prepare dough for baking with the proof function
SLEEK DESIGN. The sleek stainless steel design fits seamlessly in any kitchen
HUMIDITY CONTROL. Maintain proper food textures with the hidden humidity control valve
HIDDEN LCD DISPLAY AND CONTROLS. Easily change functions, temperatures and adjust the timer with the hidden controls and LCD display
SOFT CLOSE DRAWER. The full-extension drawer closes silently and smoothly so you can sneak a taste without anyone knowing
| DIMENSIONS | |
|---|---|
| Dimensions | 30” W x 10 1/4” H x 24 11/16” D |
| Net Weight | 61.8 lbs |
| Gross Weight | 77.2 lbs |
| TECHNICAL DETAILS | |
| Voltage/frequency | 120V/60Hz |
| FEATURES | |
| Loading Quantity 40HQ | 279 pcs |
| Power | 500W |
| Current | 4A |
| Drawer Function | Full-extension, ball-bearing drawers soft closing slides |
| 2” | Removable serving pan rails |
| Includes | 1 1/2” serving pan and 2 1/3” serving pans |
| WARRANTY & CERTIFICATIONS | |
| Manufacturer Warranty | 2 Year Parts and Labor |
