Description
DIMENSIONS
- Product Dimensions (W x D x H)
- 30" x 25-1/8" x 28-1/2"
- Product Height (bottom to top of back splash)
- 26-1/2"
- Product Height (bottom to top of side panel)
- 26-1/2"
- Product Depth (back panel to control panel)
- 25-1/8"
- Product Depth (back panel to side panel front)
- 23-7/8"
- Cutout Dimensions (W x D x H)
- 28-1/2" x 24" x 27-5/8"
- Net Weight
- 163 lbs
- Gross Weight
- 183 lbs
- Package Dimensions (W x D x H)
- 34-1/4" x 30" x 32-1/4"
GENERAL INFORMATION
- Brand
- Thor Kitchen
- Product

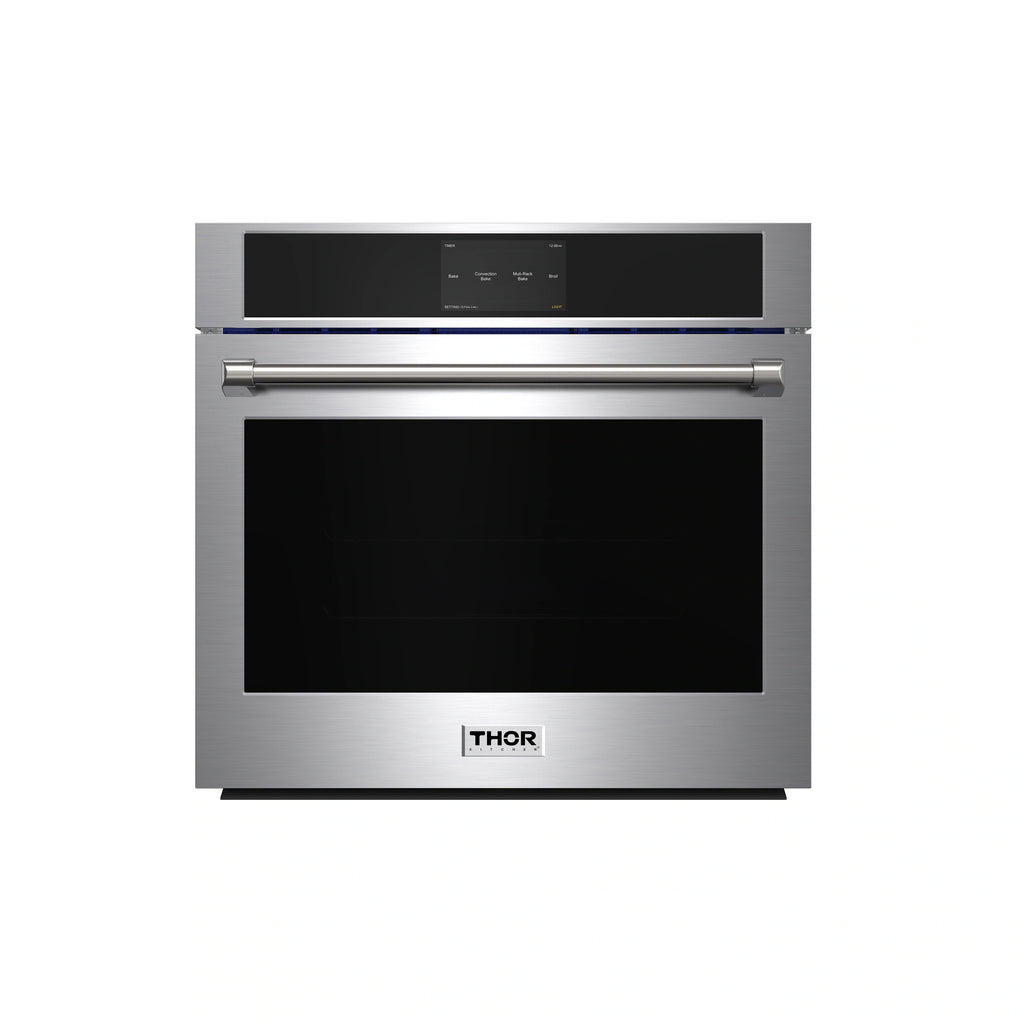

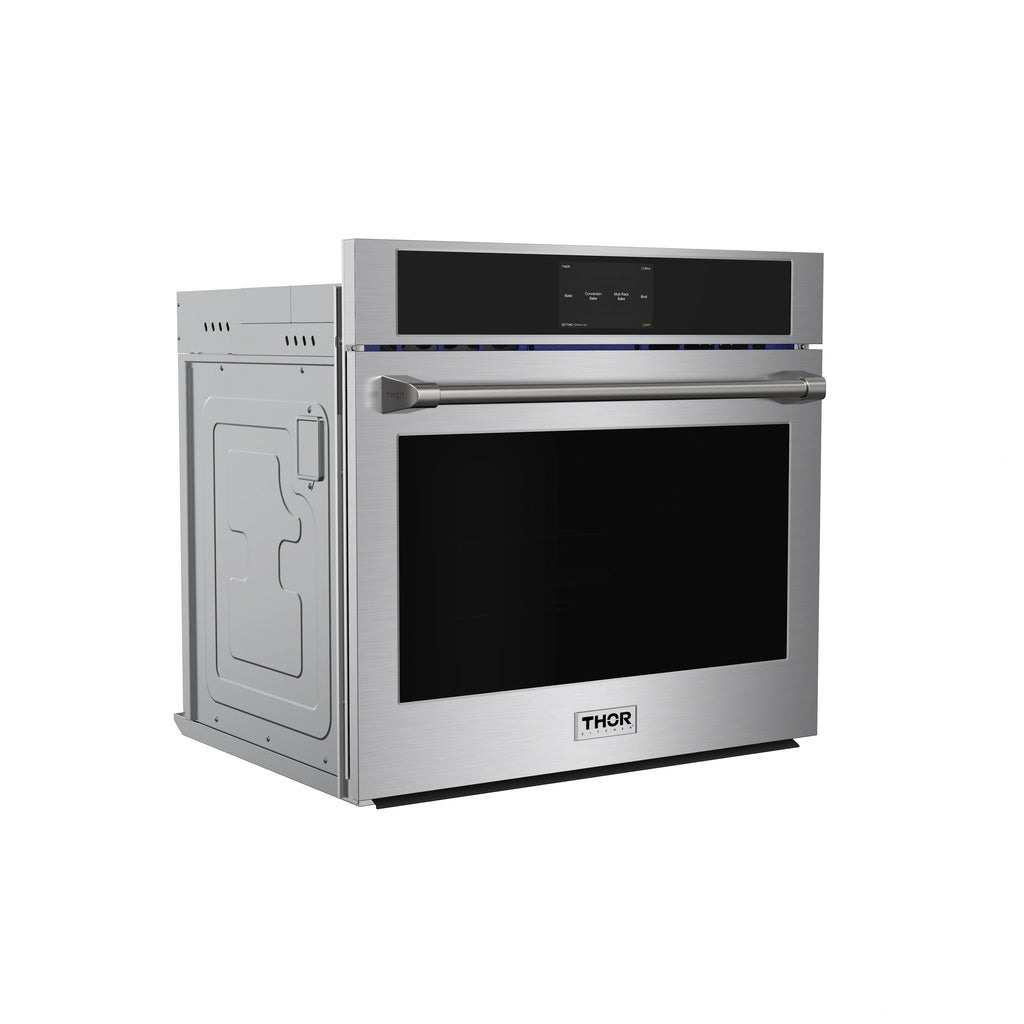

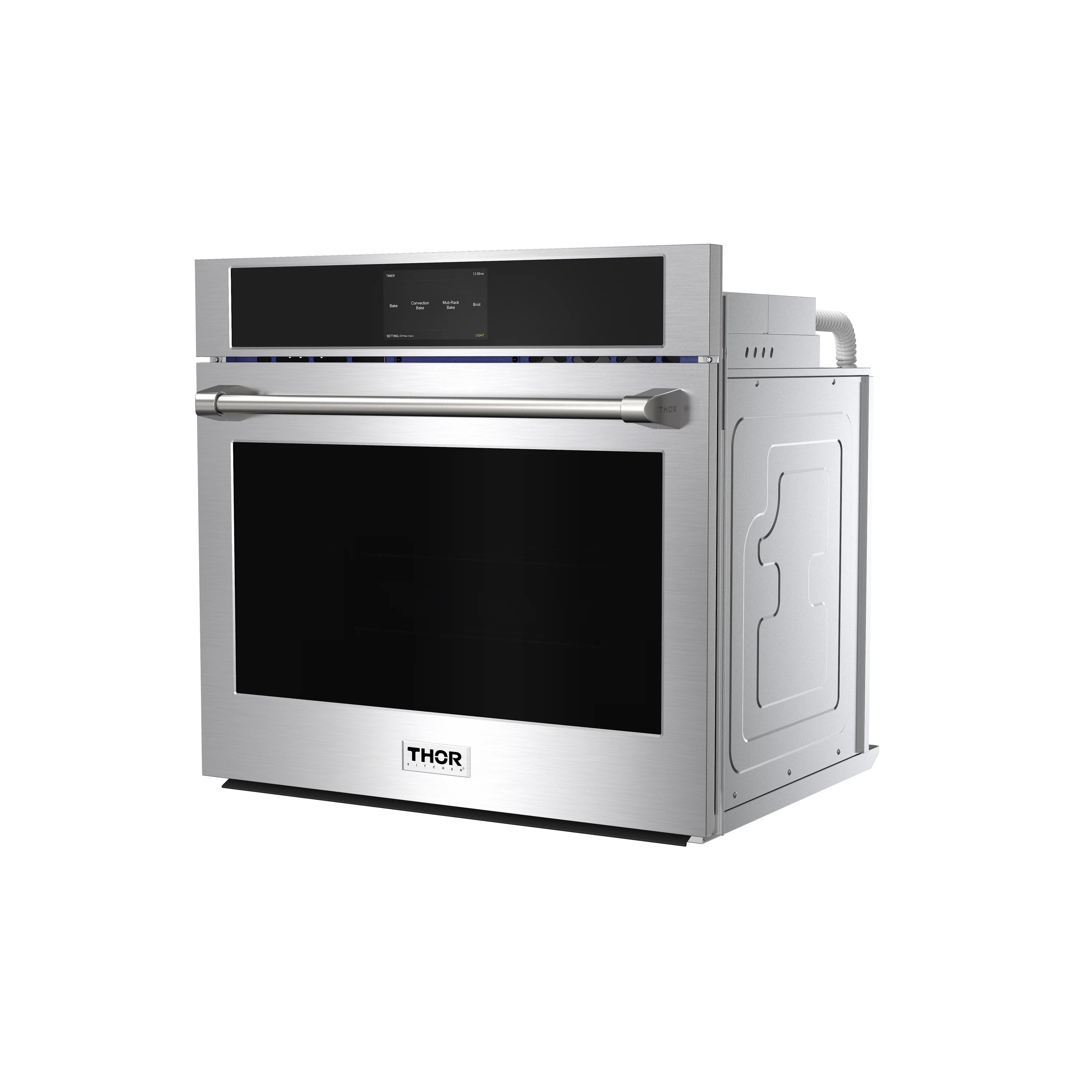

- 30 Inch Professional Electric Single Wall Oven
- Model Number
- TEW30ES
- Fuel Type
- Electric
- Installation Type
- Built-in
DESIGN & FINISH

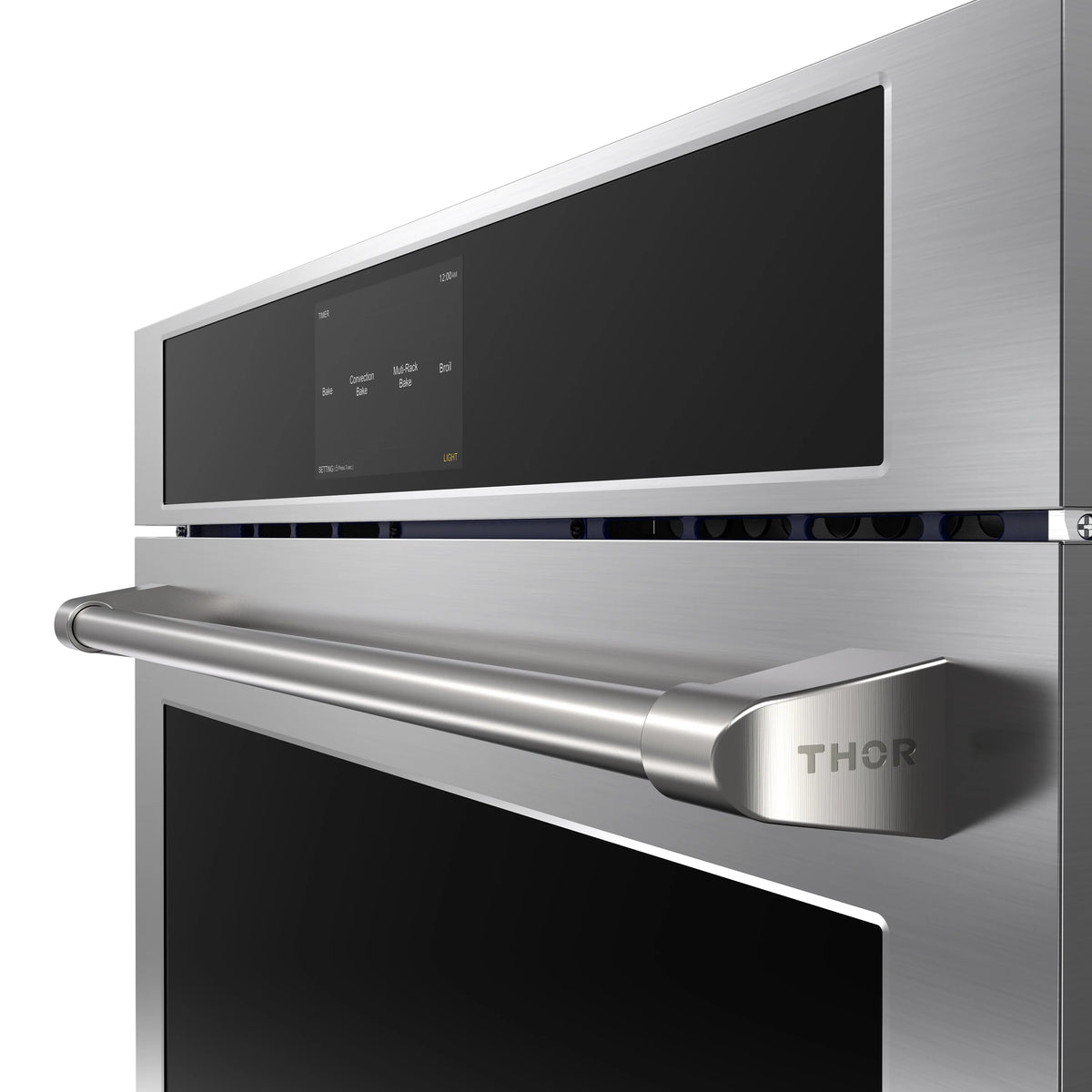

- Finish
- Stainless Steel

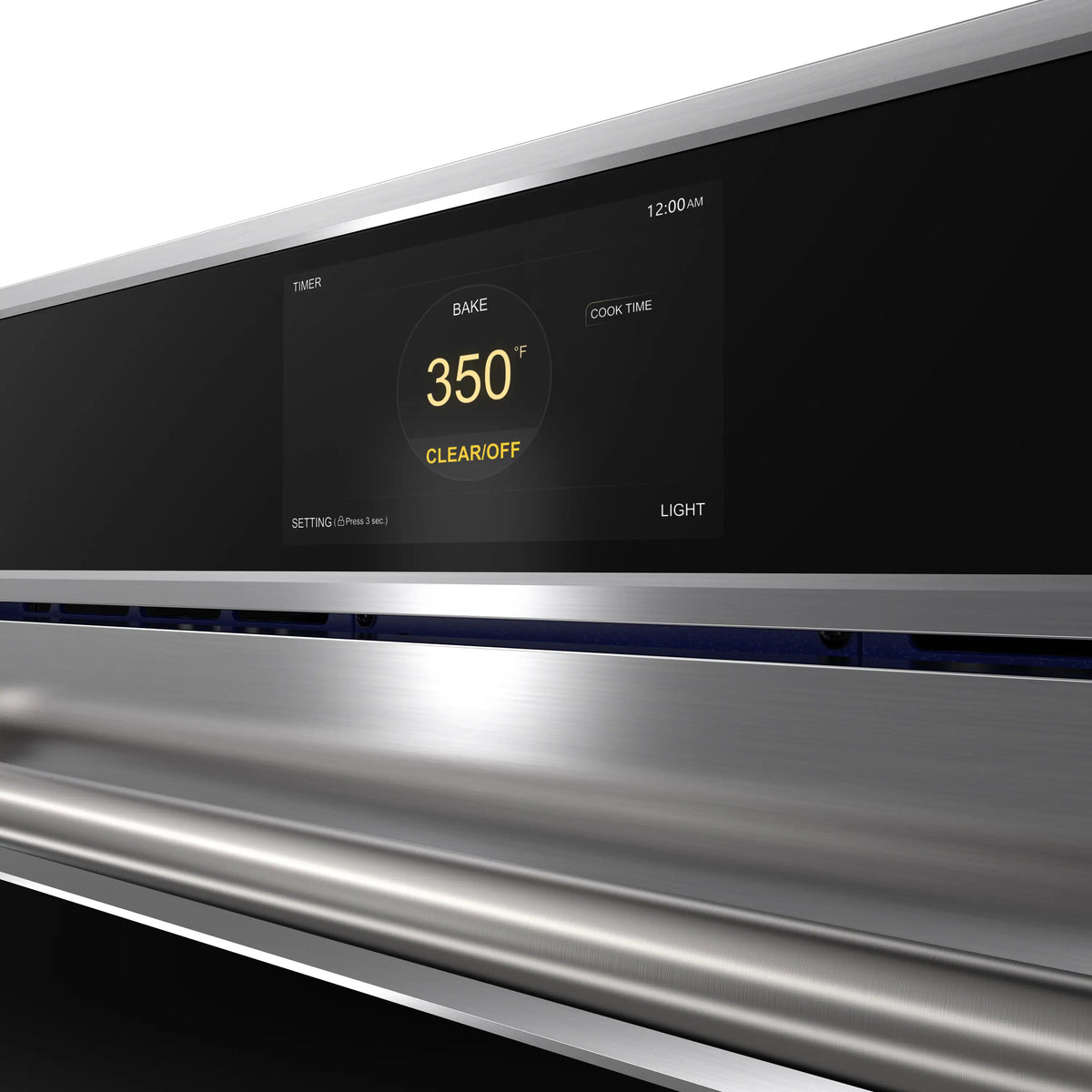

- Control Type
- Touch Screen
OVEN PERFORMANCE
- Oven Capacity
- 4.8 cu. ft.
- Oven Control Features
- Oven Light Control, Cook Time, Timer, Delay Start, Self Clean, Control Lock, Sabbath Mode, Temperature Unit
- Cooking Modes
- Bake, Convection Bake, Multi-Rack Bake, Broil, Convection Roast, Warm, Pizza, Air Fry, Proof, Meat Probe
- Bake Burner Power
- 3000 Watt
- Broil Burner Power
- 3500 Watt
- Convection
- True Convection
- Convection Element Power
- 800 Watt
- Oven Lights
- Yes

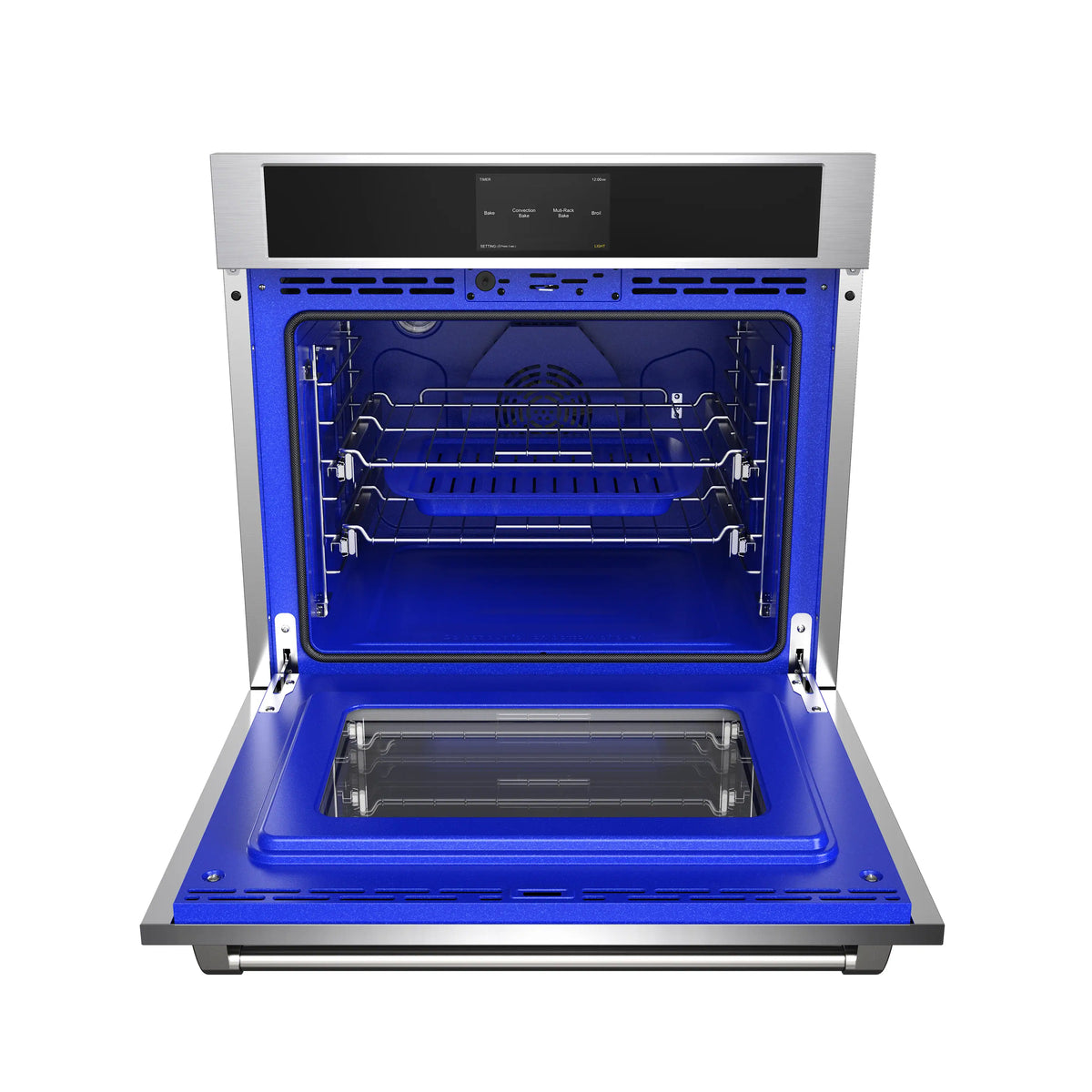

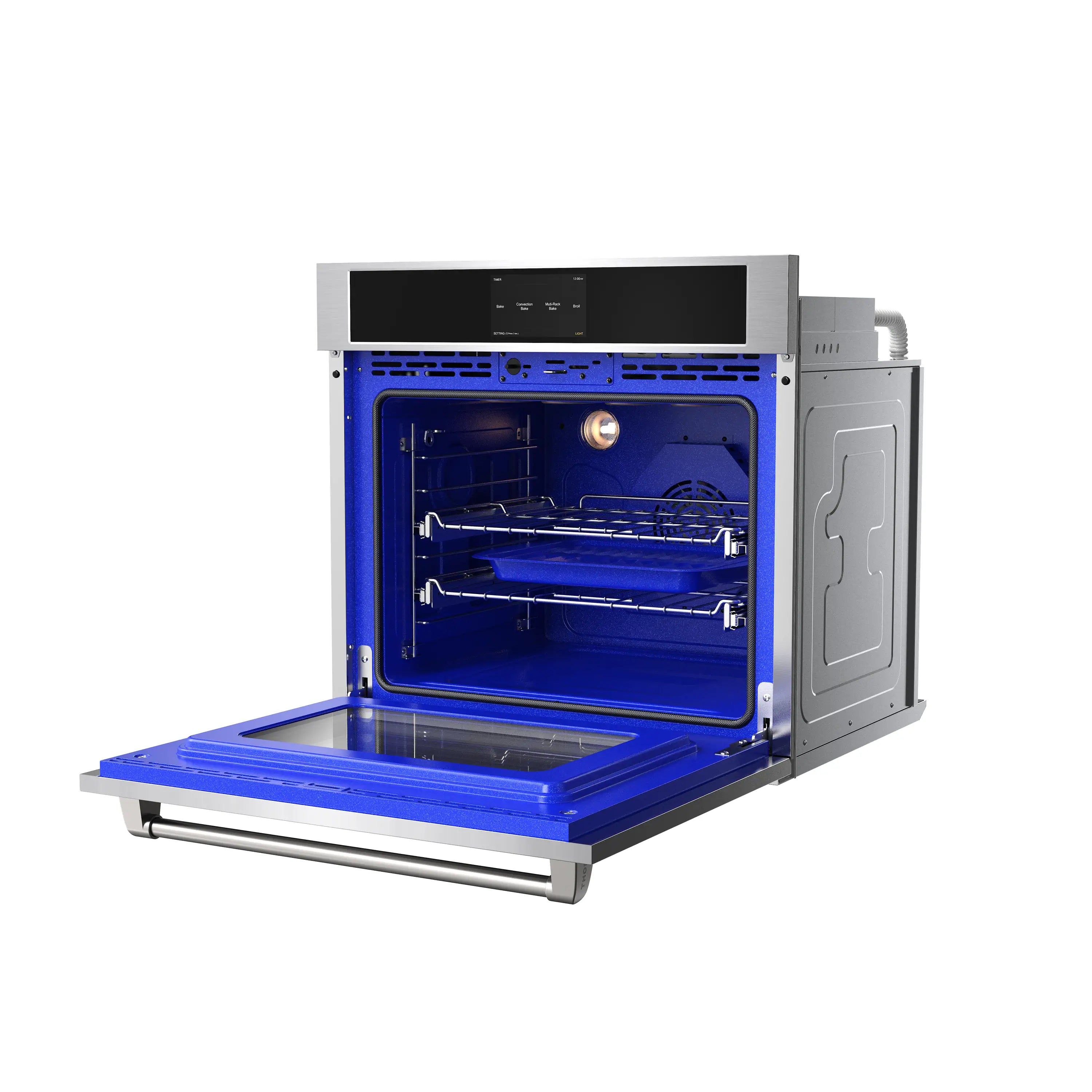

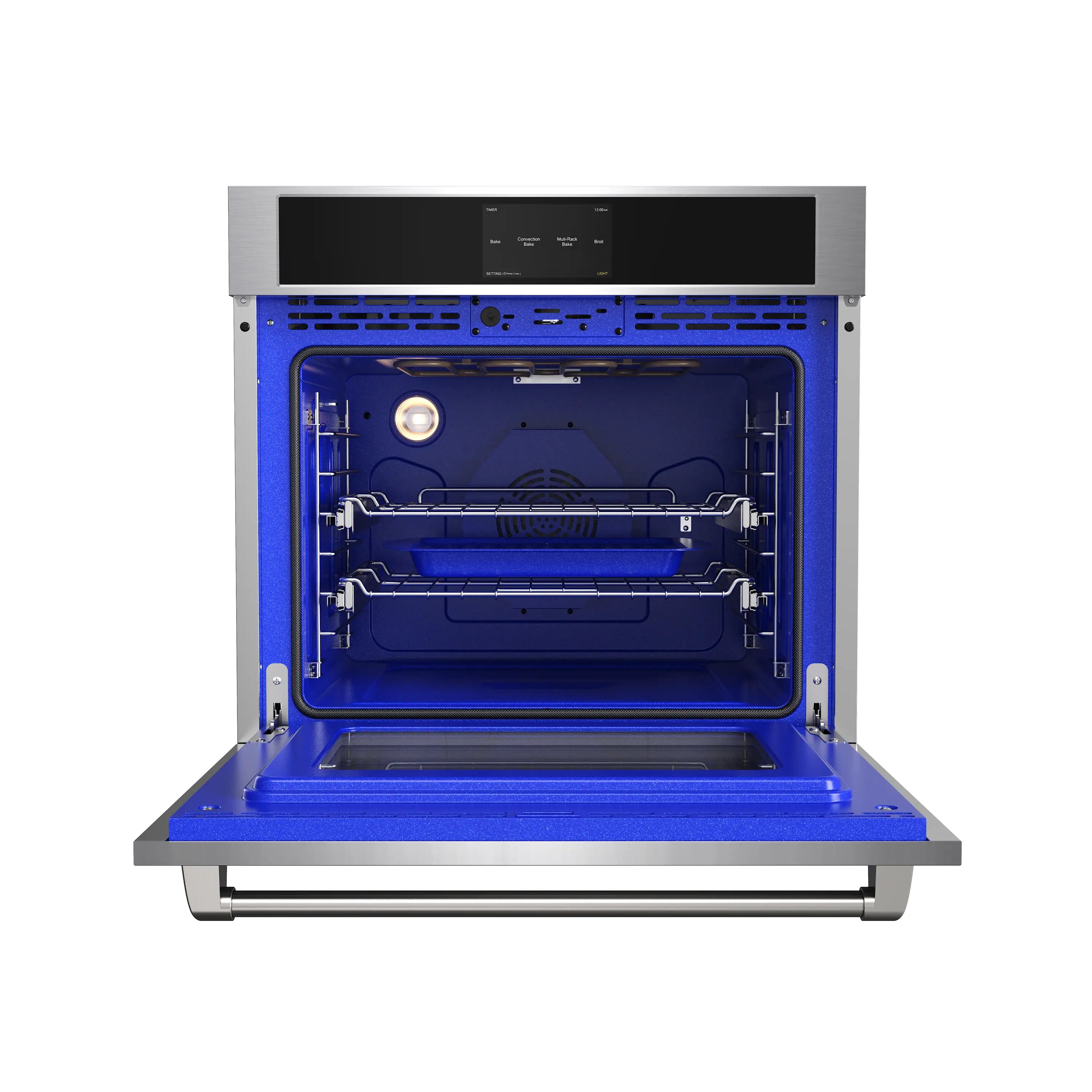

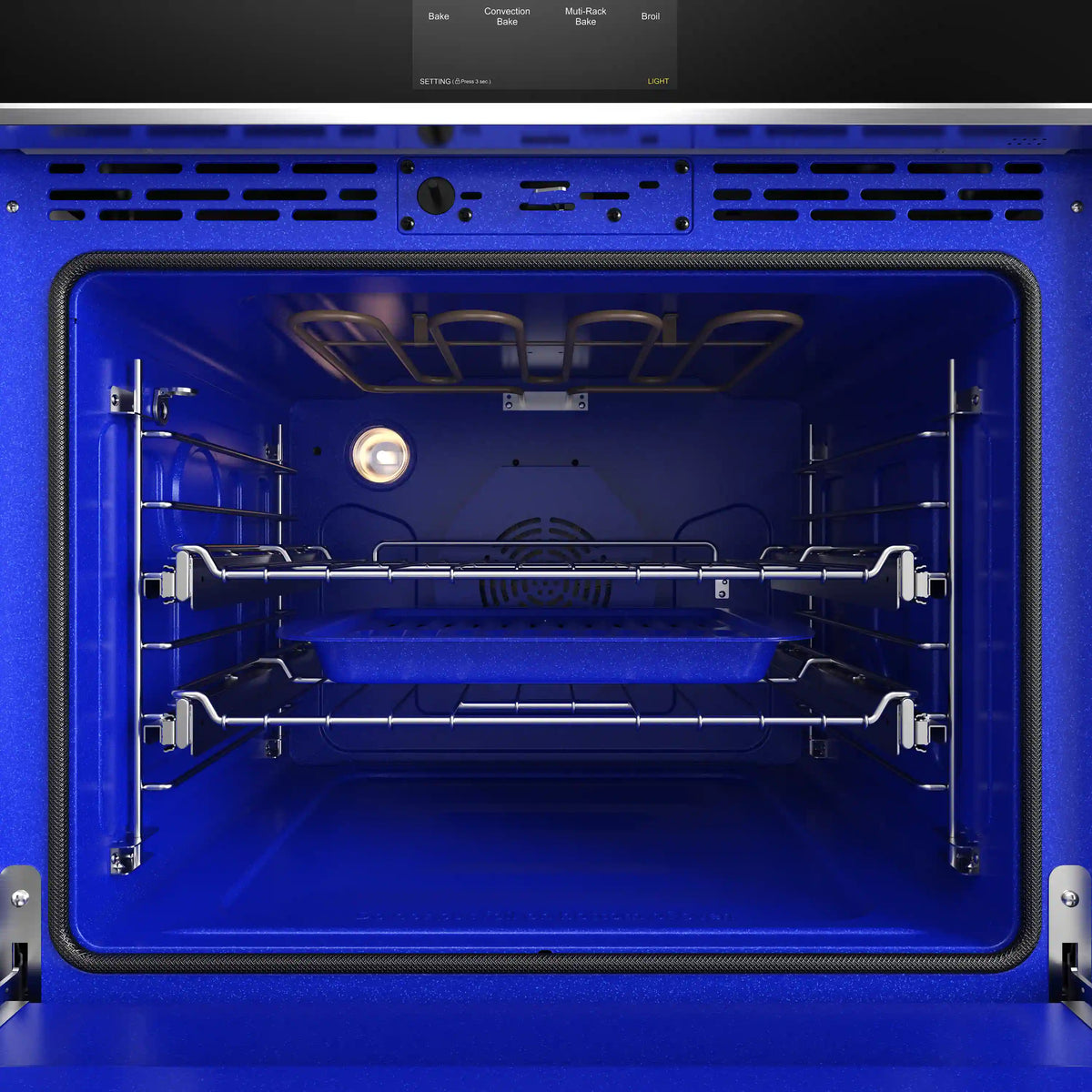

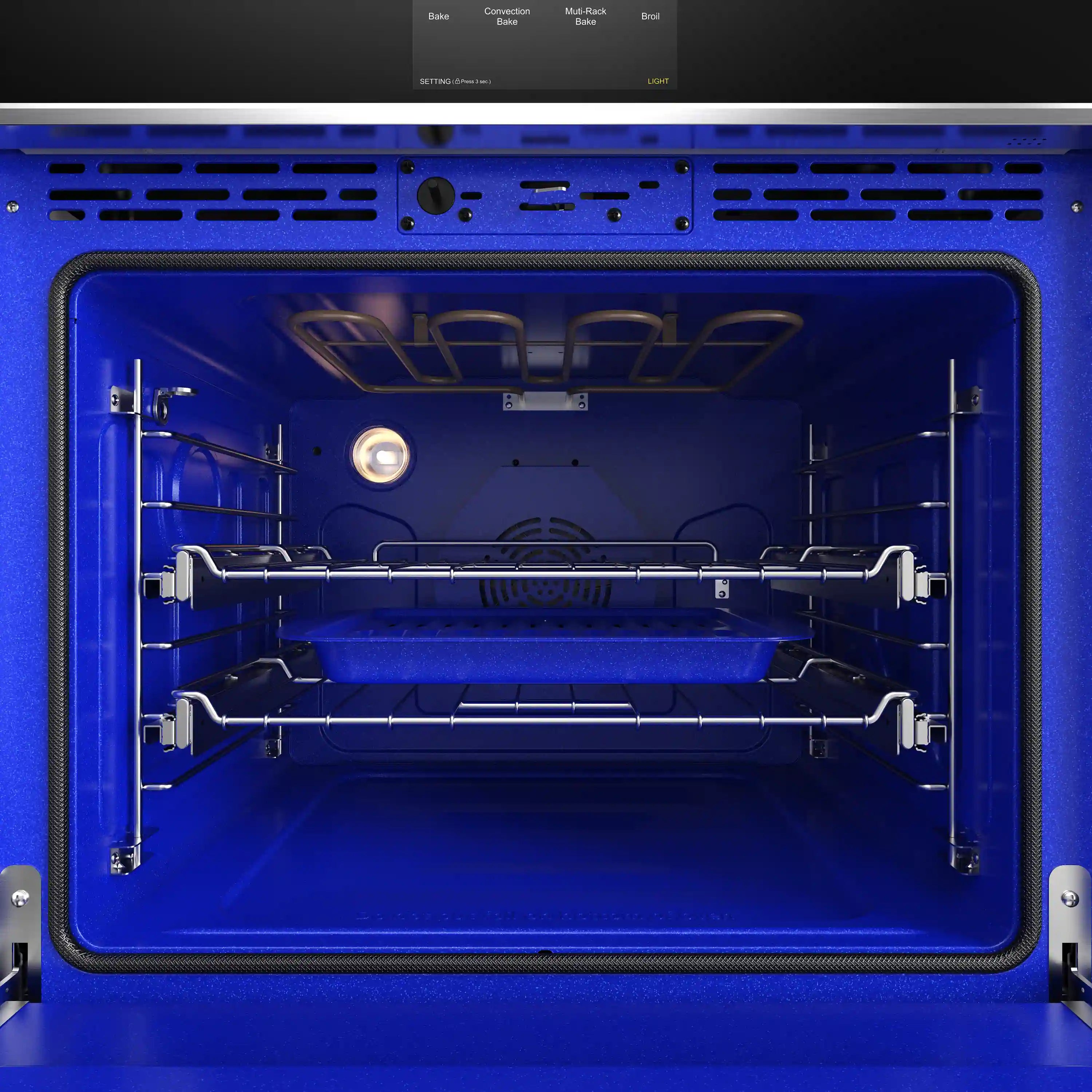

- Oven Racks
- Telescopic Racks x2
- Oven Rack Material
- Chrome Plated
- Baking Sheet Size
- Fits Standard Half Sheet Pan
- Self Clean
- Yes
- Air Fry
- Yes
- Oven Internal Height
- 18"
- Oven Internal Width
- 23-3/4"
- Oven Internal Depth
- 19-1/4"
TECHNICAL DETAILS
- Total Output Watts
- 4900 Watt
- Required Circuit
- 40 amps
- Voltage
- 240V
- Frequency
- 60Hz

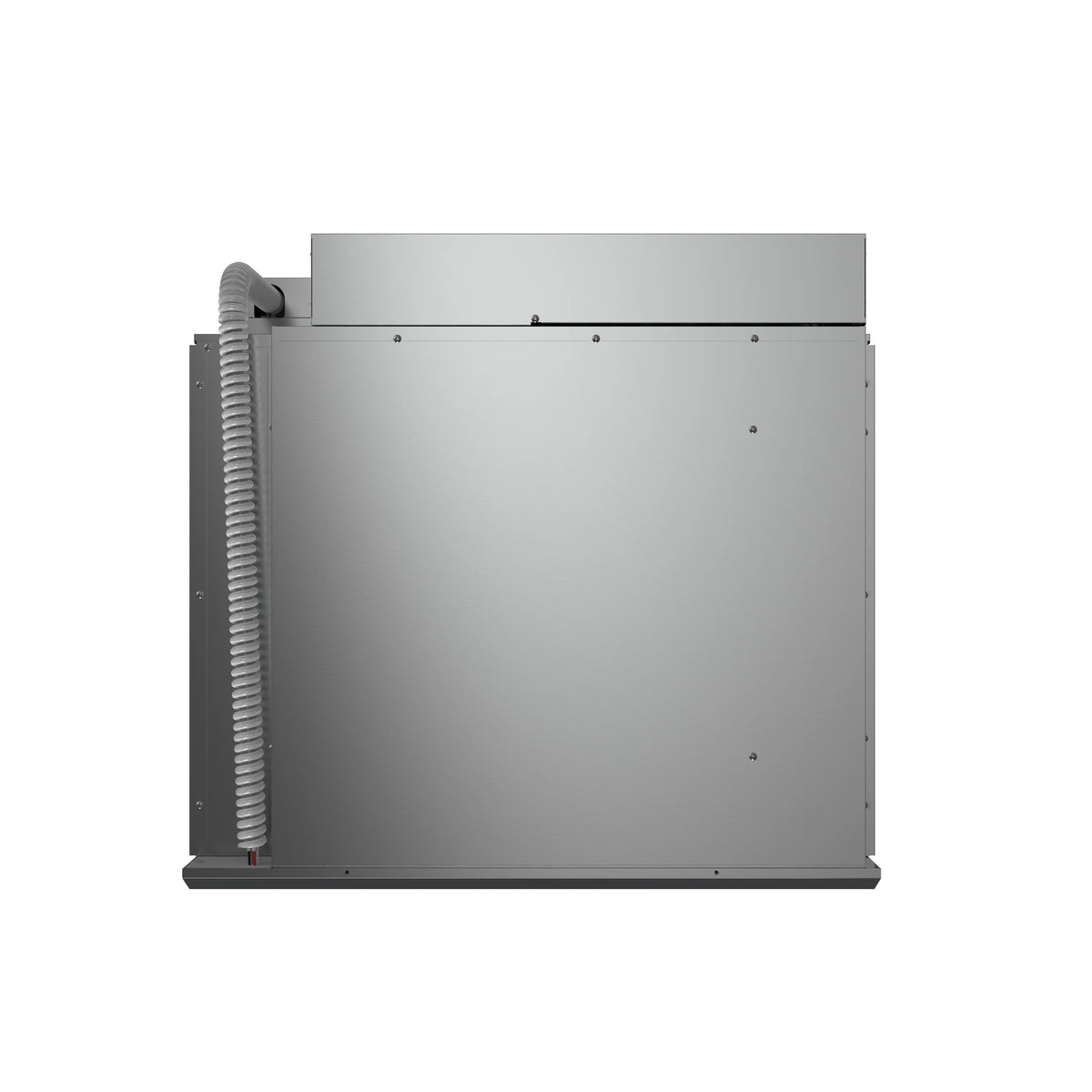

- Power Cord (Hardwired) Length
- 47"
ACCESSORIES
- Included
- 2 LuxGlide™ Telescopic Racks, 1 Broiler Pan, 1 Air Fry Basket
- Not Included
- 14-50R 240V 4-Prong Power Cord
WARRANTY & CERTIFICATIONS
- Warranty
- 2 Years Parts and Labor
