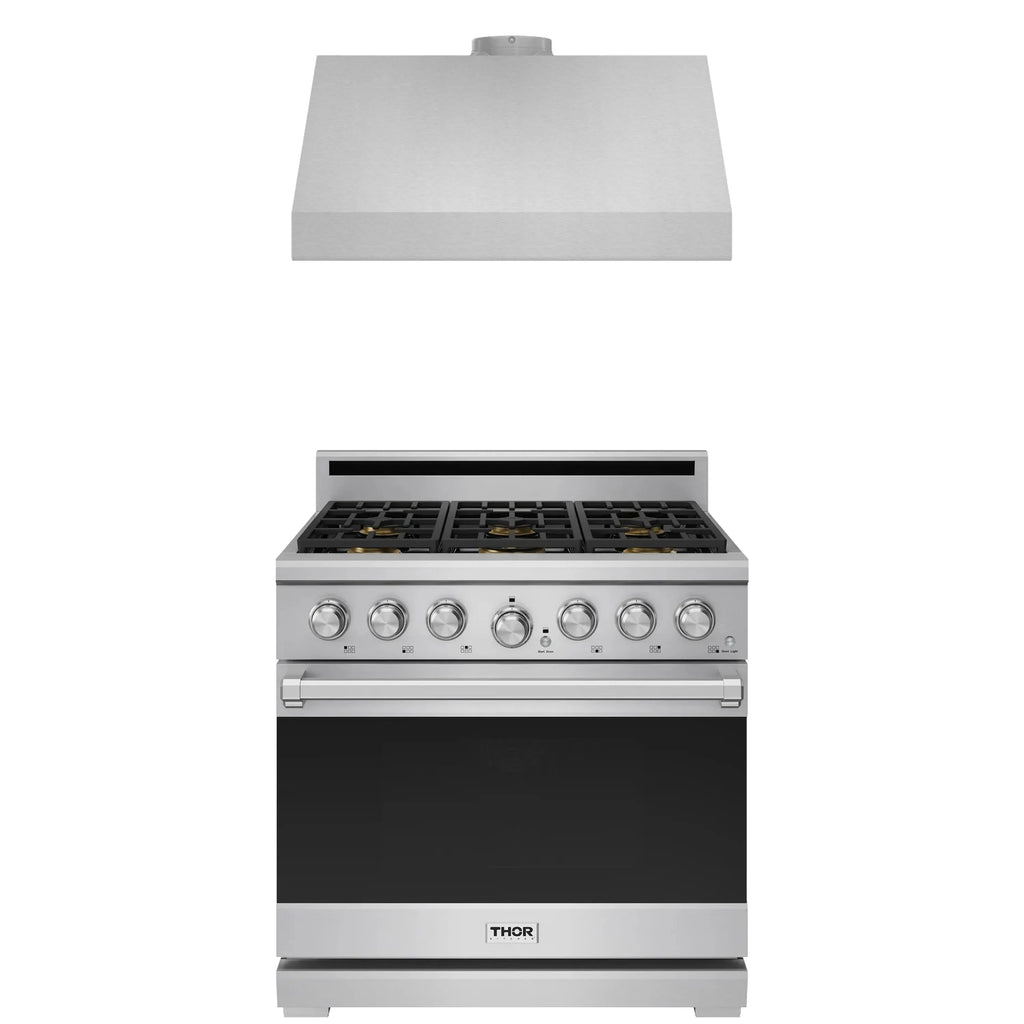

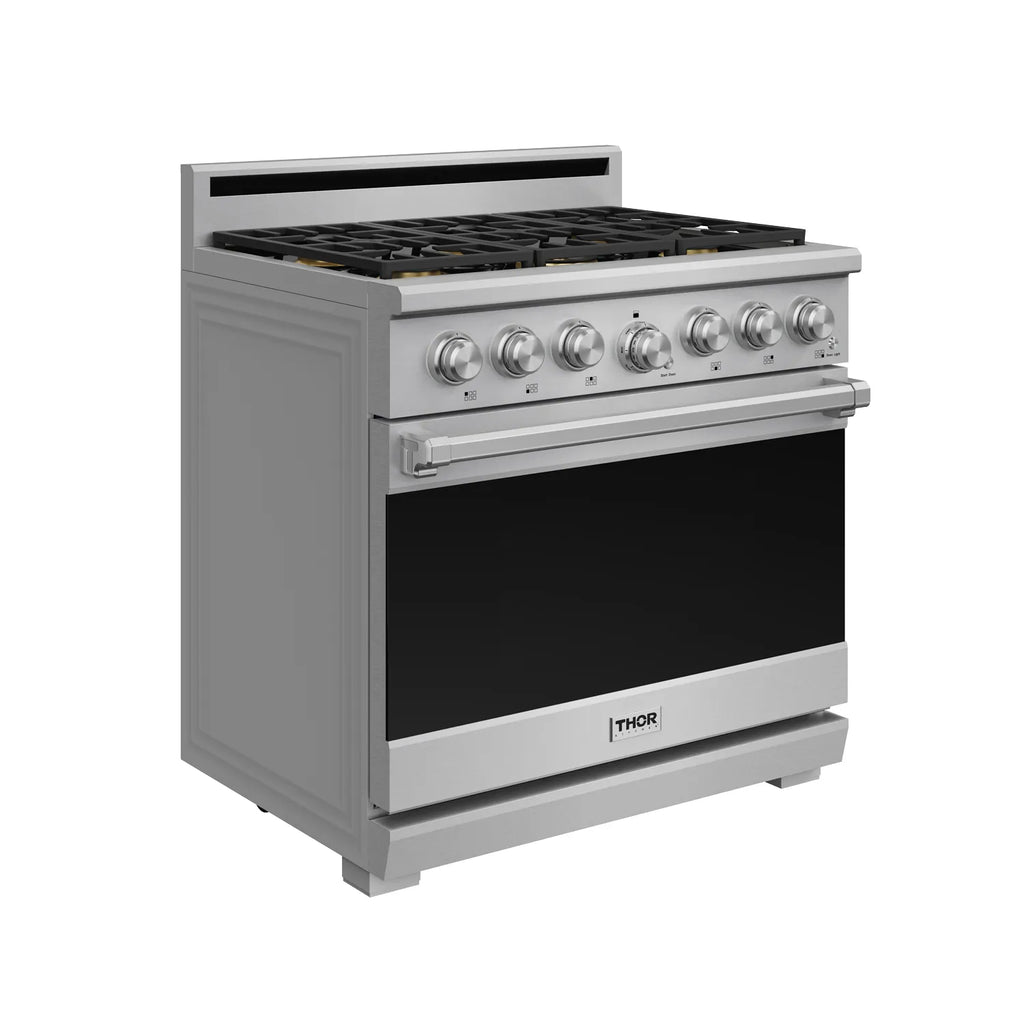

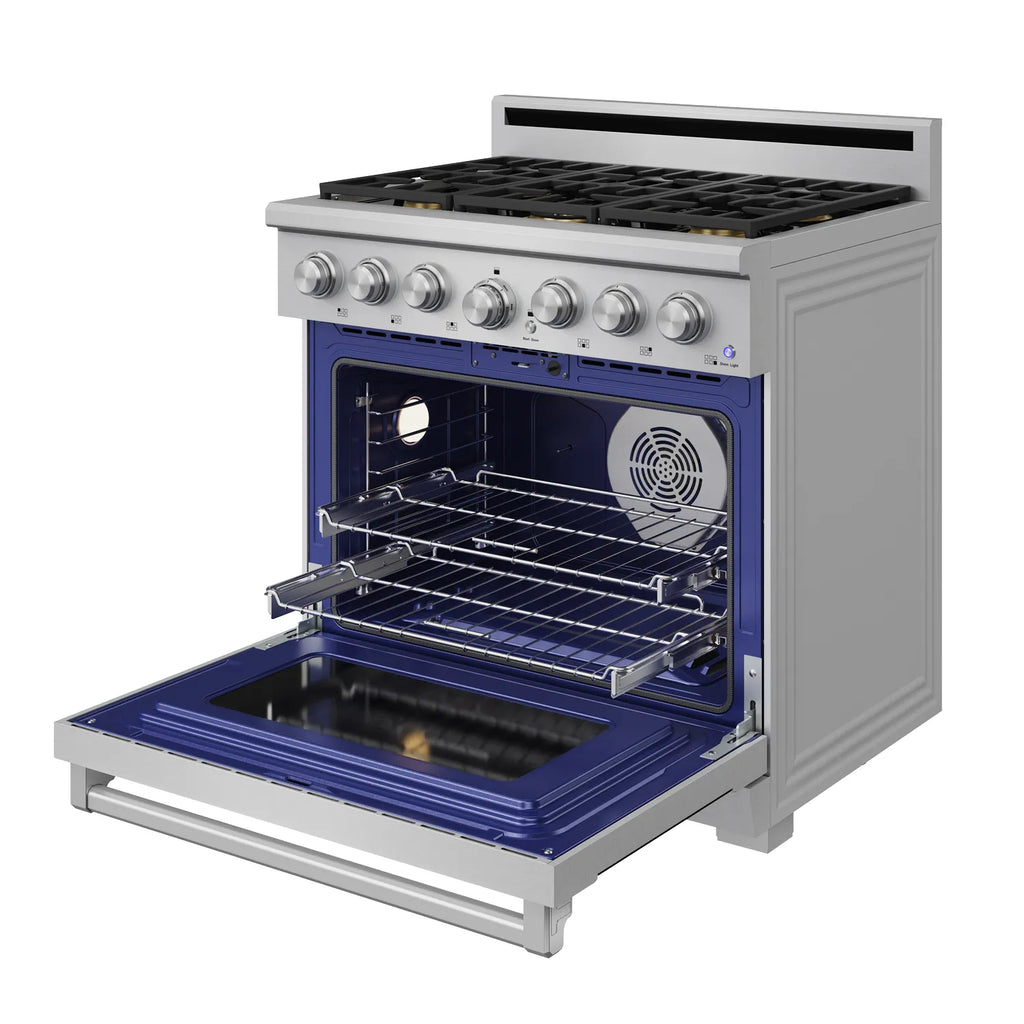

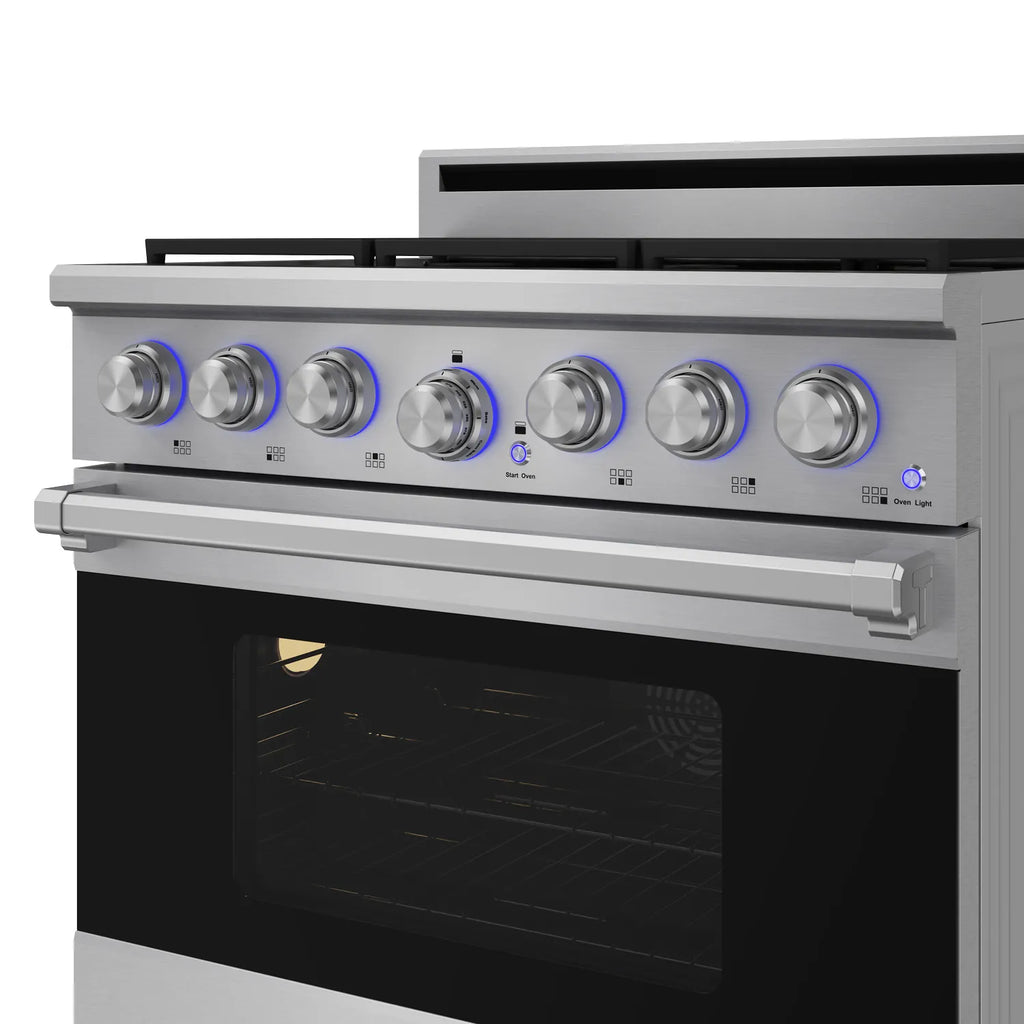

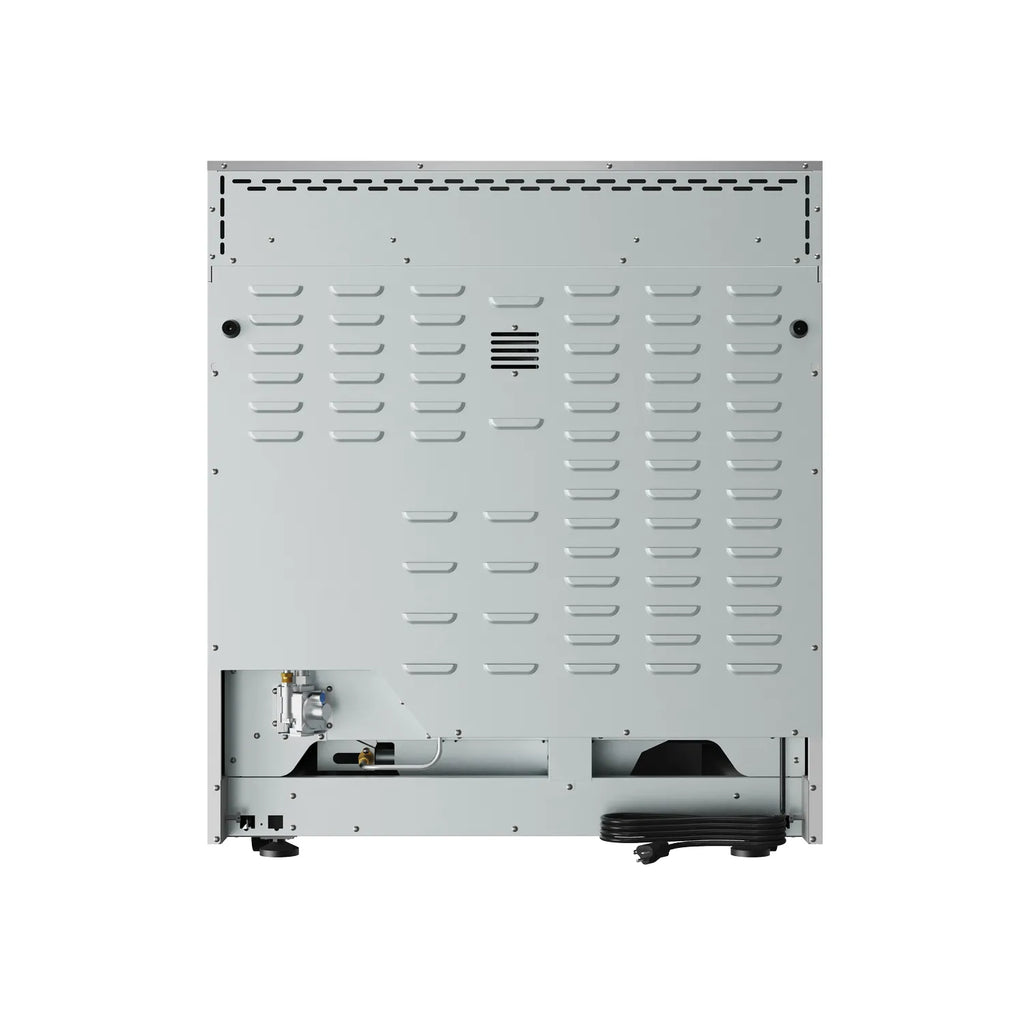

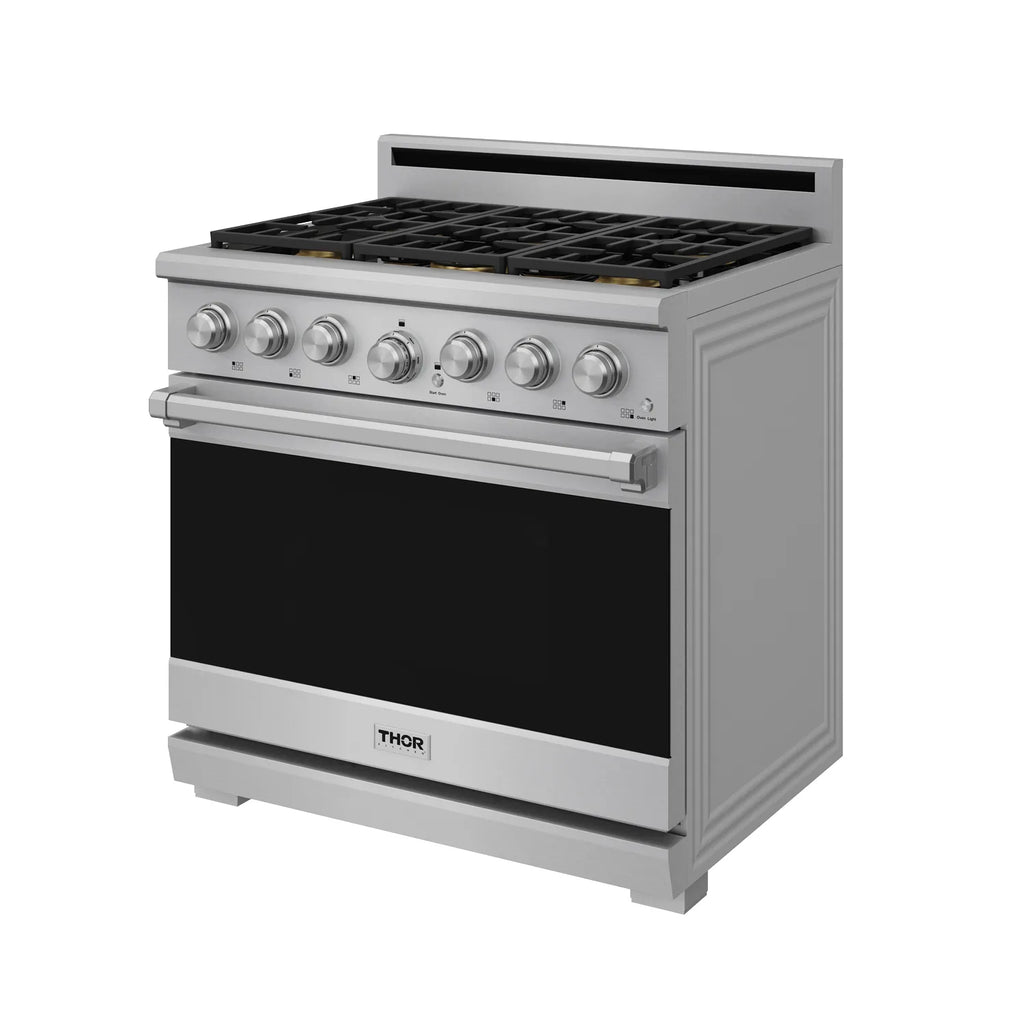

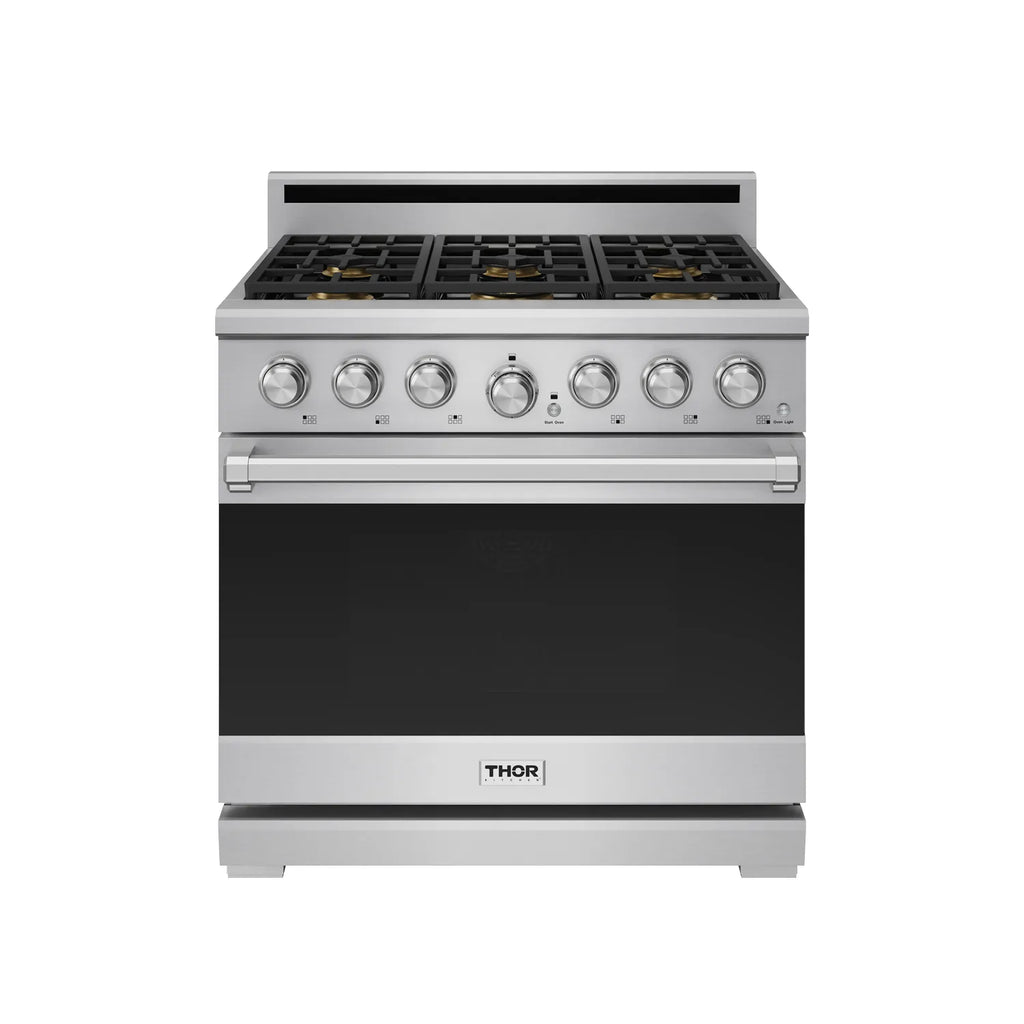

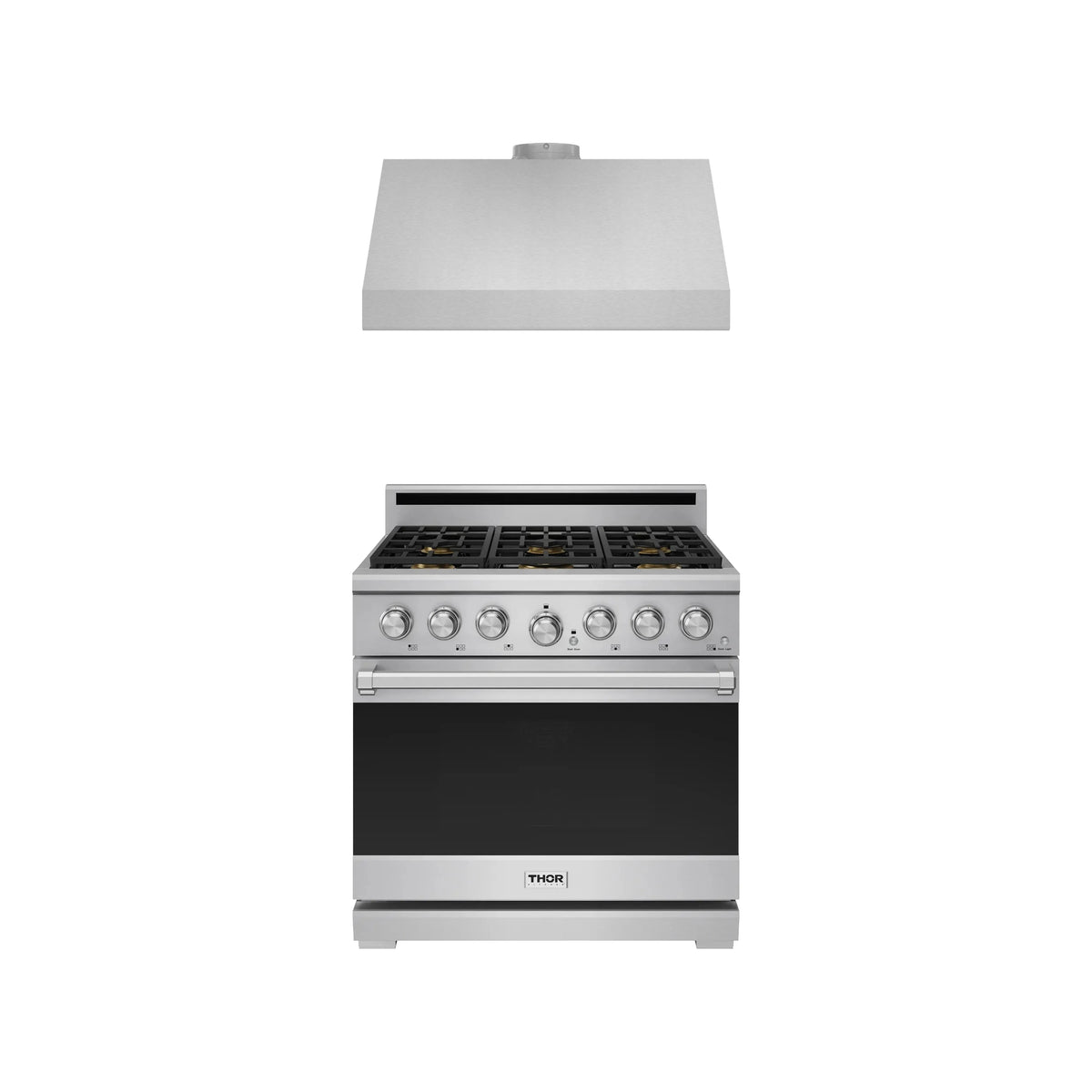

Experience professional power and precision with our 36-inch freestanding gas range. The spacious 6.0 cu. ft. oven and multi-function cooking modes—including Bake, Conv. Bake, Roast, Conv. Roast, High & Low Broil, Keep Warm, Pizza, and Self-Clean—handle everything from everyday meals to gourmet feasts. LuxGlide™ telescopic racks, a soft-close oven door, and tilt panel touch controls make cooking effortless and convenient. Italian brass burners deliver up to 22,000 BTUs of precise heat, while continuous cast-iron grates, an infrared broiler, blue LED illuminated knobs, and automatic re-ignition combine durability, safety, and modern style for a truly elevated cooking experience. Built-in casters and leveling legs ensure easy installation and perfect alignment for any kitchen.
| DIMENSIONS | |
|---|---|
| Product Dimensions (WxDxH) | 35-7/8” x 24-1/2” x 36-1/8” |
| Product Height (from bottom to top of back splash) | 41-1/2” |
| Product Height (from bottom to top of side panel) | 32-7/8” |
| Product Depth (from back panel to bullnose) | 28-1/2” |
| Product Depth (from back panel to control panel) | 27-1/8” |
| Product Depth (from back panel to side panel front | 24-1/2” |
| Cutout Dimensions (WxDxH) | 36”x 24” x 36” |
| Adjustable Leg Height | 3" |
| Net Weight | 280lbs |
| Gross Weight | 340 lbs |
| Plug Type Power Cord Length | 59" |
| Oven Internal (W x D x H) | 29-3/4'' x 19-1/2'' x 18'' |
| GENERAL INFORMATION | |
| Baking Sheet Size | Fits Standard Three-Quarter Sheet Pan |
| Accessories (Included) | 2 Telescopic Racks and 1 Broiler Pan |
| Accessories (Not Included) |
|
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Control Type | Knob |
| TECHNICAL DETAILS | |
| Fuel Type | Natural gas or Liquid Propane |
| Installation Type | Freestanding |
| Required Circuit | 15 Amp Dedicated Circuit |
| Max Current Draw | 6 Amps |
| Volts | 120V |
| Frequency | 60Hz |
| COOKTOP FEATURES | |
| Burner Type | Sealed Burners |

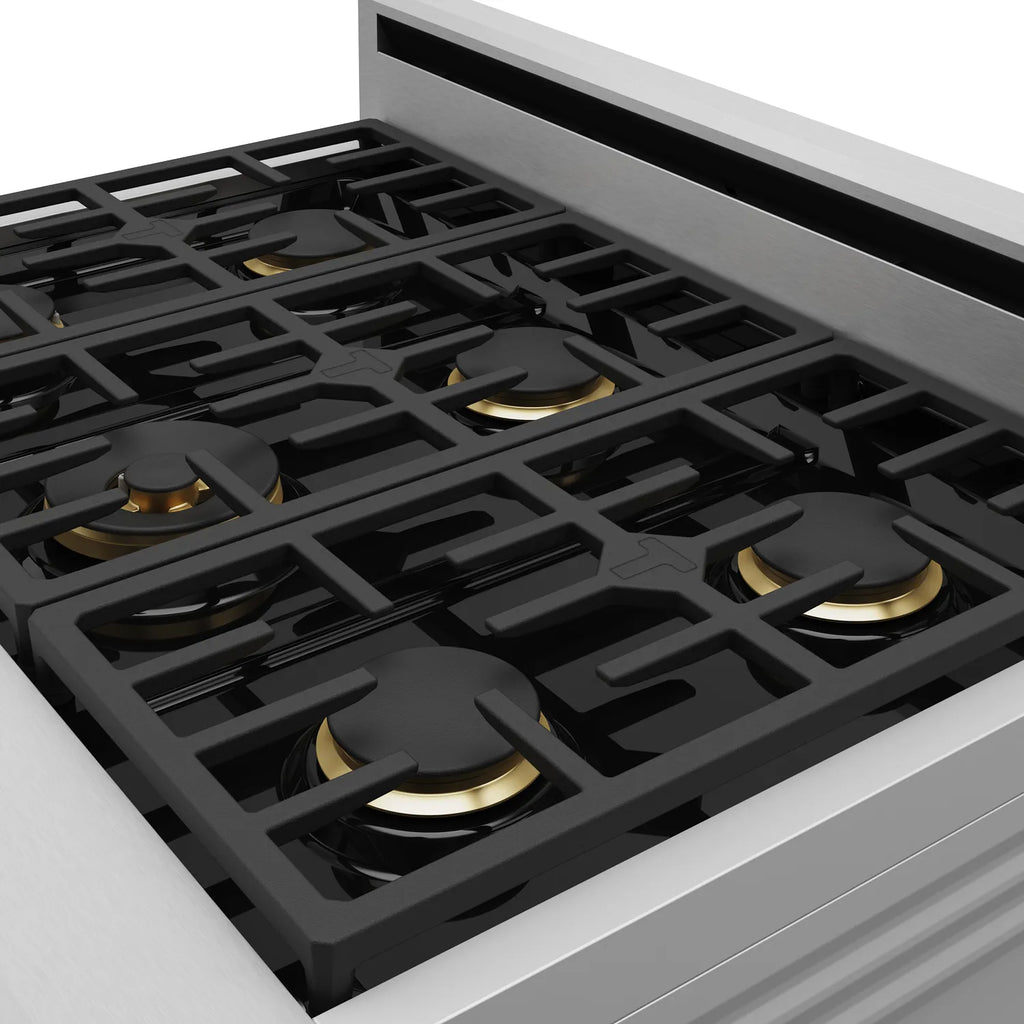

| Type of Grate | Continuous |
| Max BTU | 22000 BTU (Dual) Simmer1000 BTU |

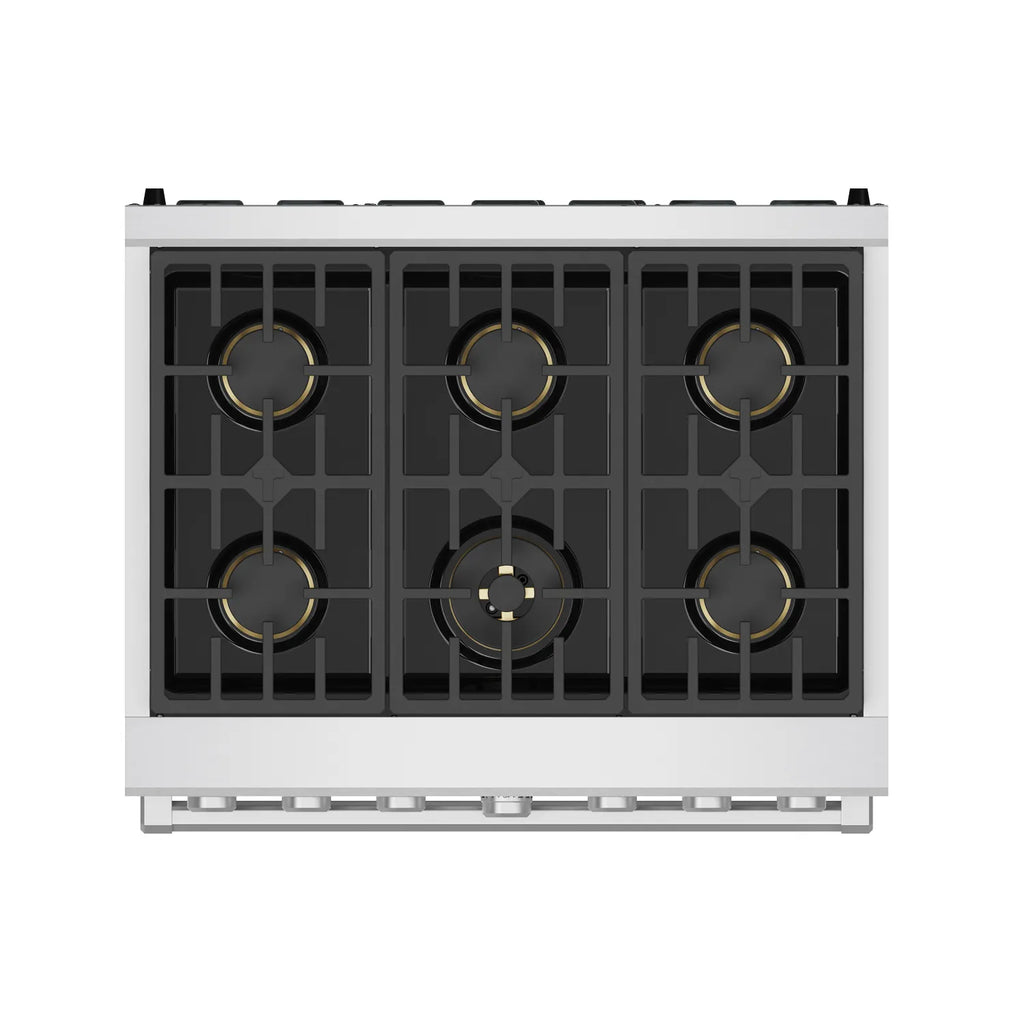

| Total Number Of Cooktop Burners | 6 |
| [1] Front Left Burner | 15000 BTU |
| [2] Rear Left Burner | 12000 BTU |
| [3] Front Center Burner | 22000 BTU (Dual) Simmer 1000 BTU |
| [4] Rear Center Burner | 12000 BTU |
| [5] Front Right Burner | 15000 BTU |
| [6] Rear Right Burner | 12000 BTU |
| Bake Burner Power | 22000 BTU |
| Broil Burner Power | 16500 BTU Infrared Broiler |

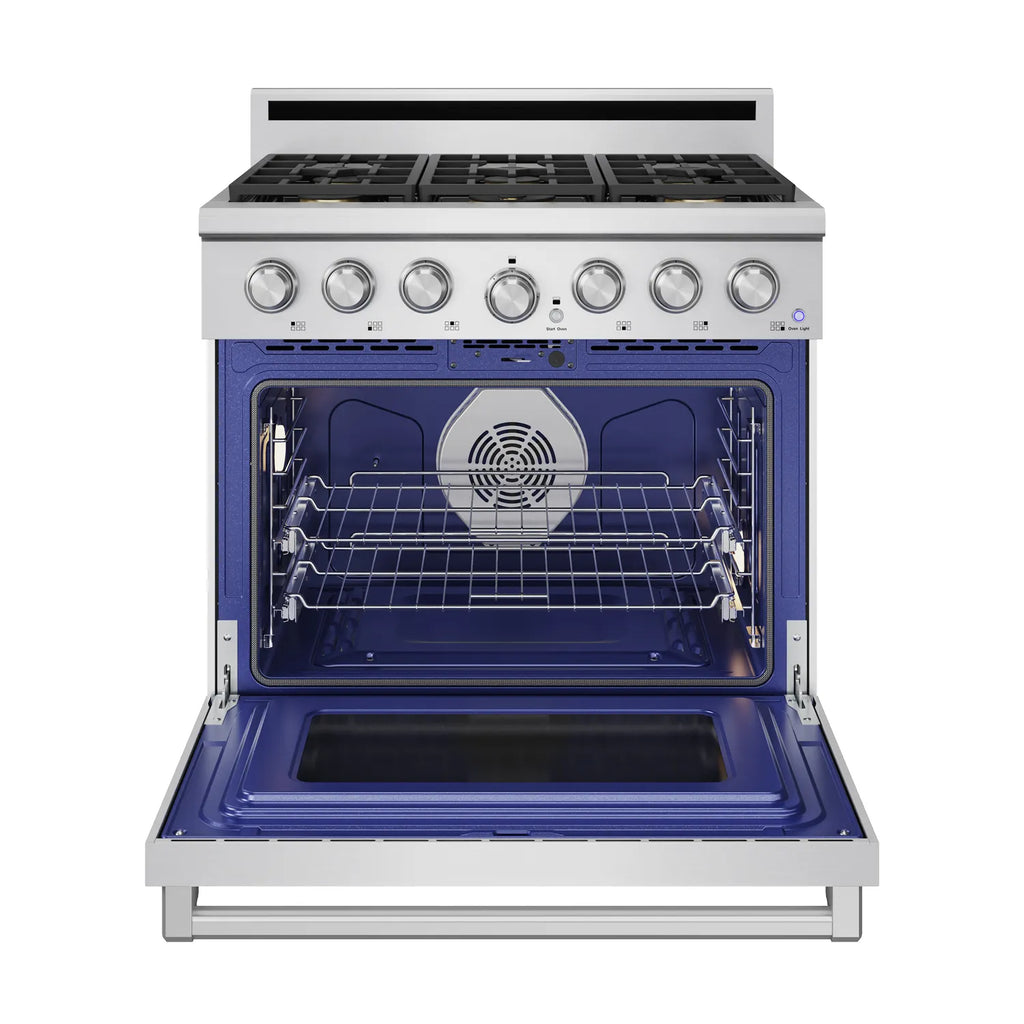

| OVEN FEATURES | |
| Oven Capacity | 6.0 cu. ft. |
| Oven Control Features | Light on/ Off |
| Cooking Modes |
|
| Convection | Standard |
| Oven Lights | 2 (Side) |
| Oven Racks (telescopic) | 2 |
| Oven Rack Material | Chrome Plated |
| Self Clean (Y/N) | YES |

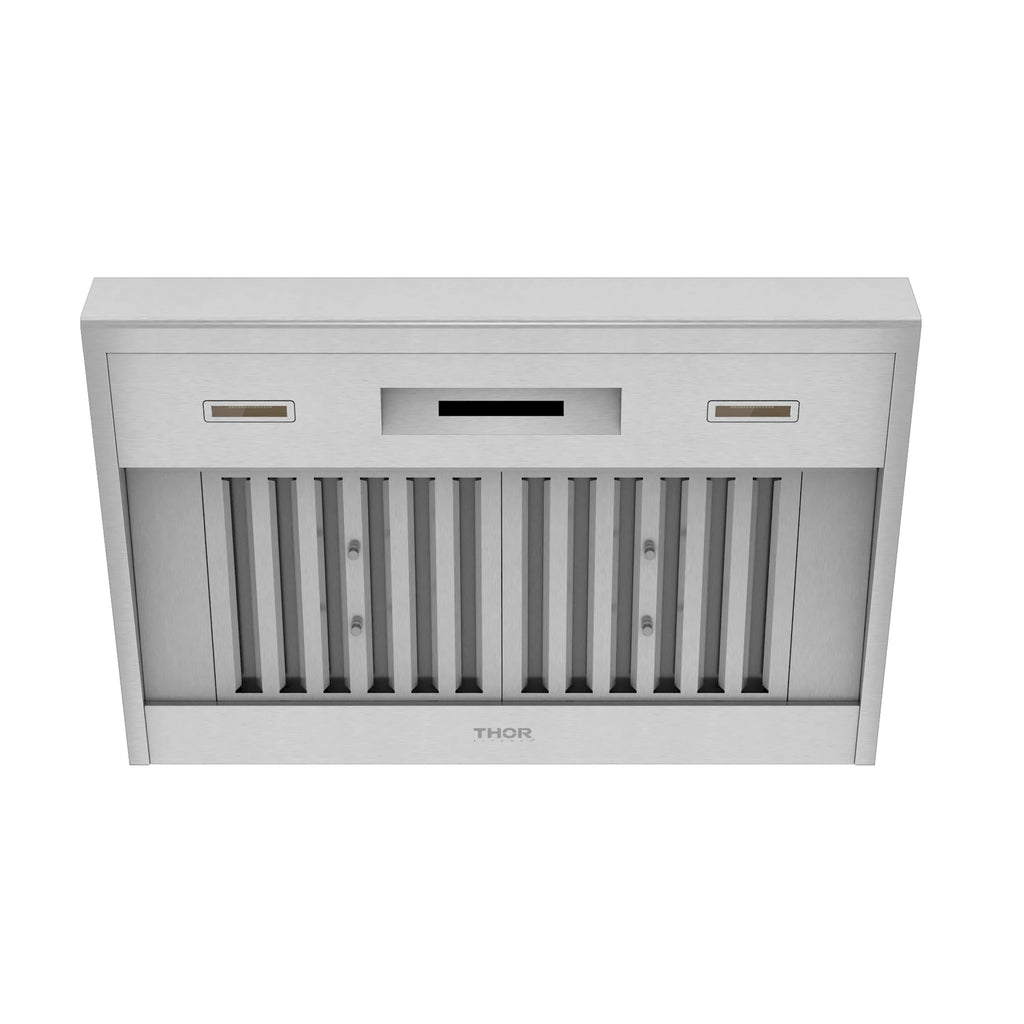

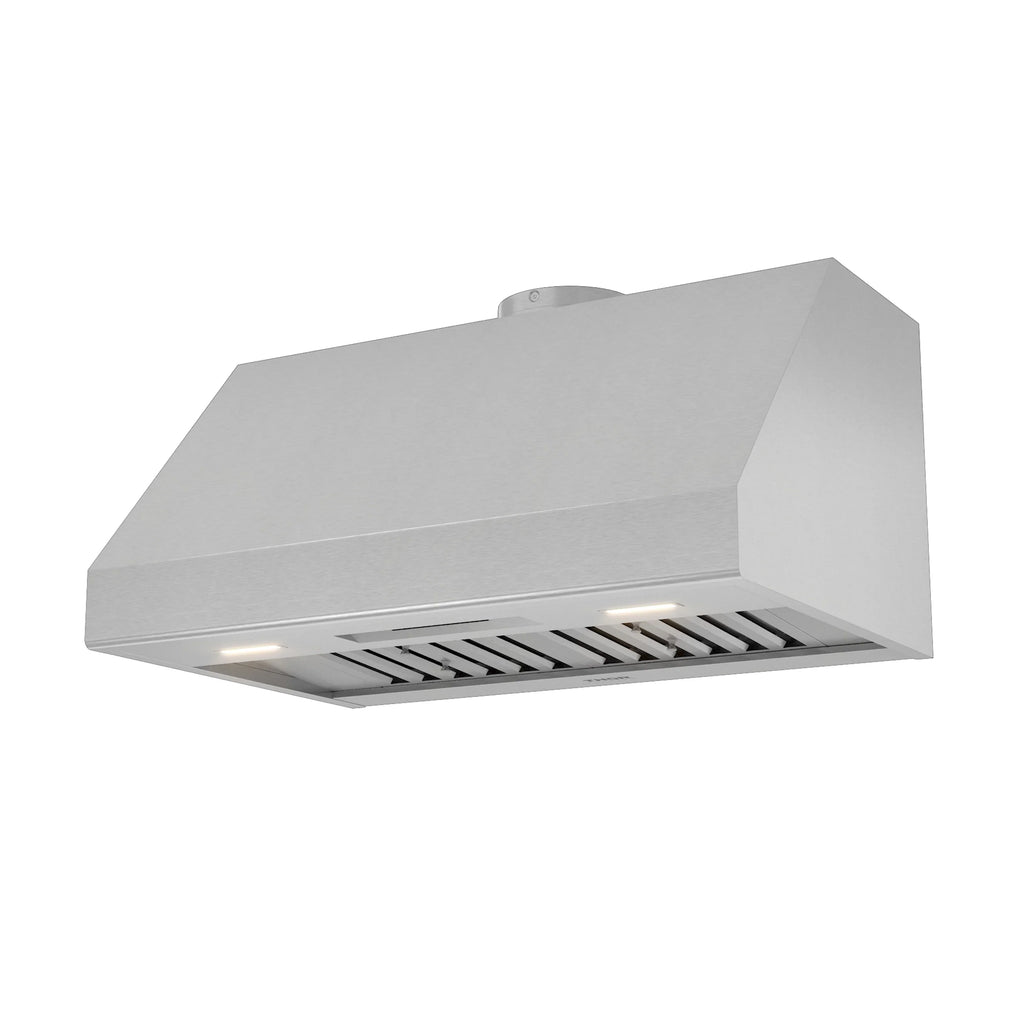

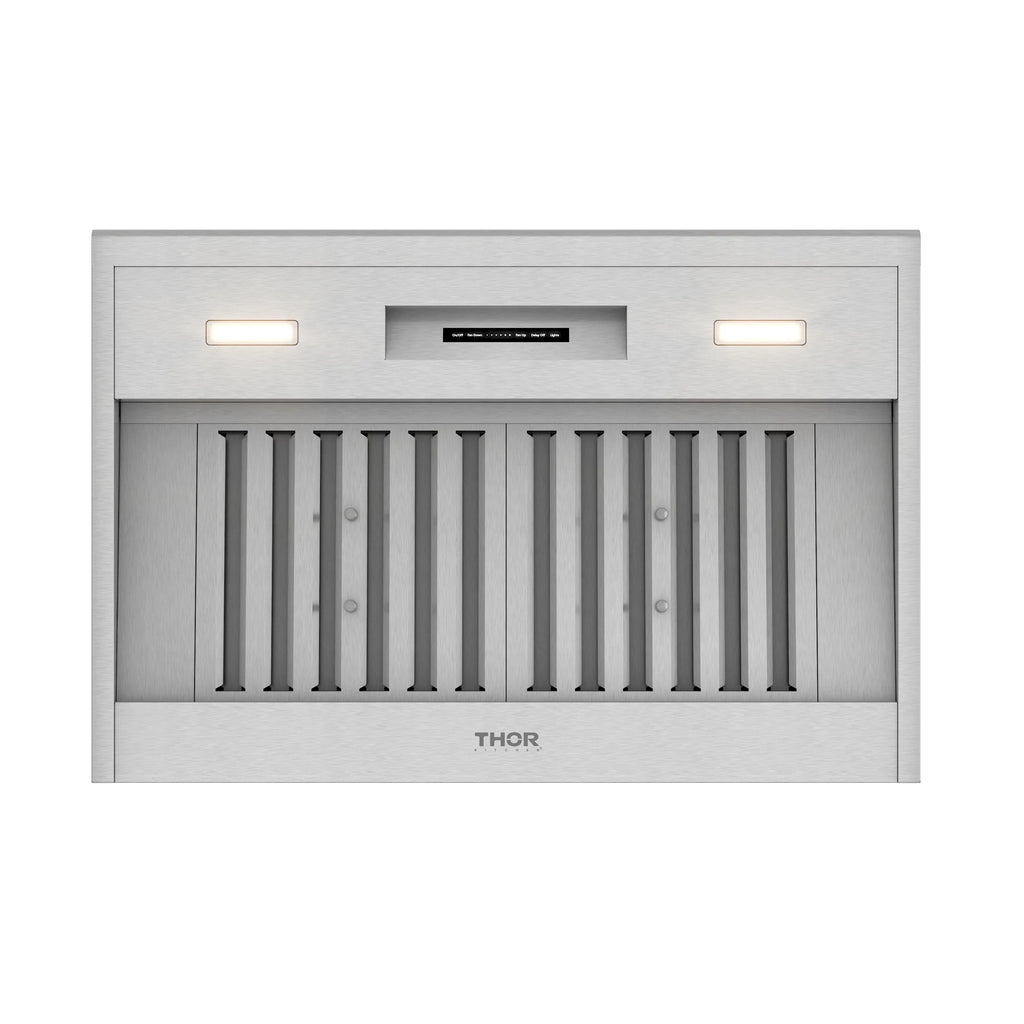

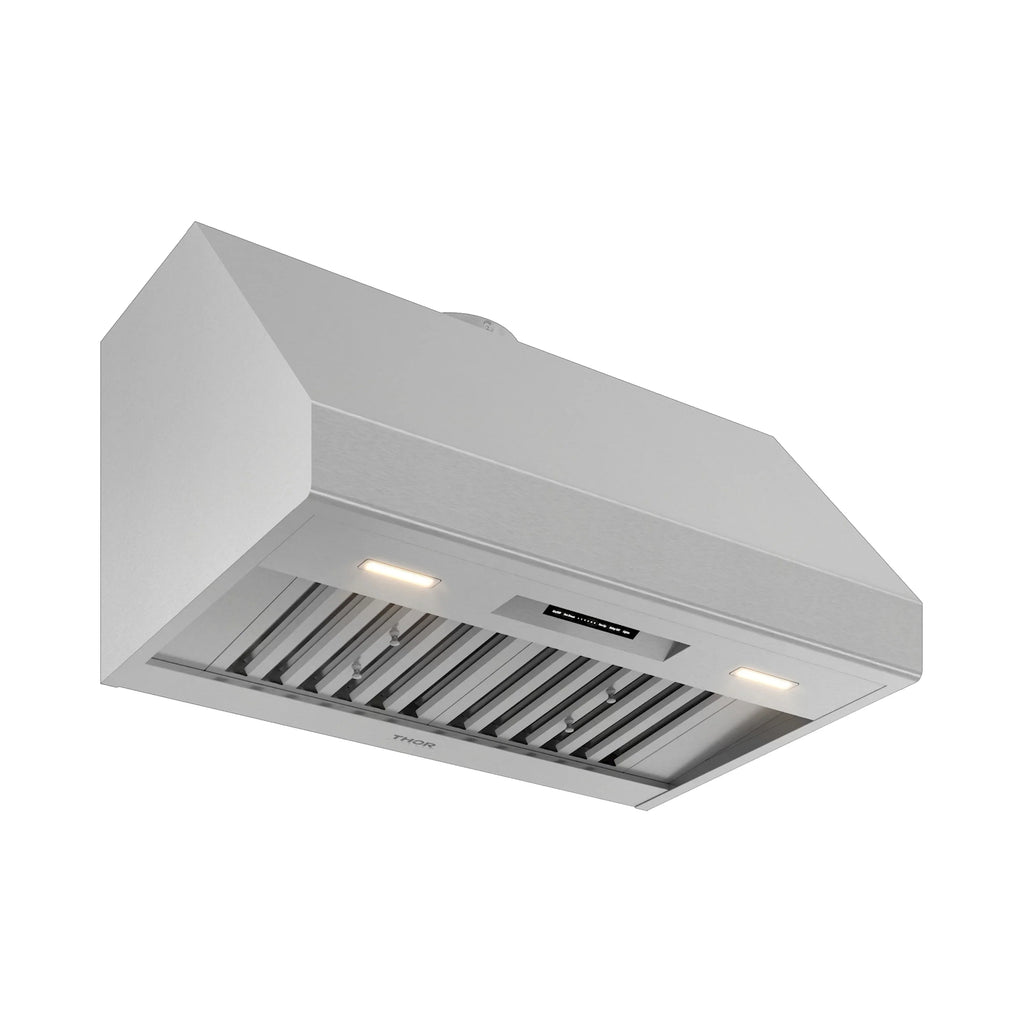

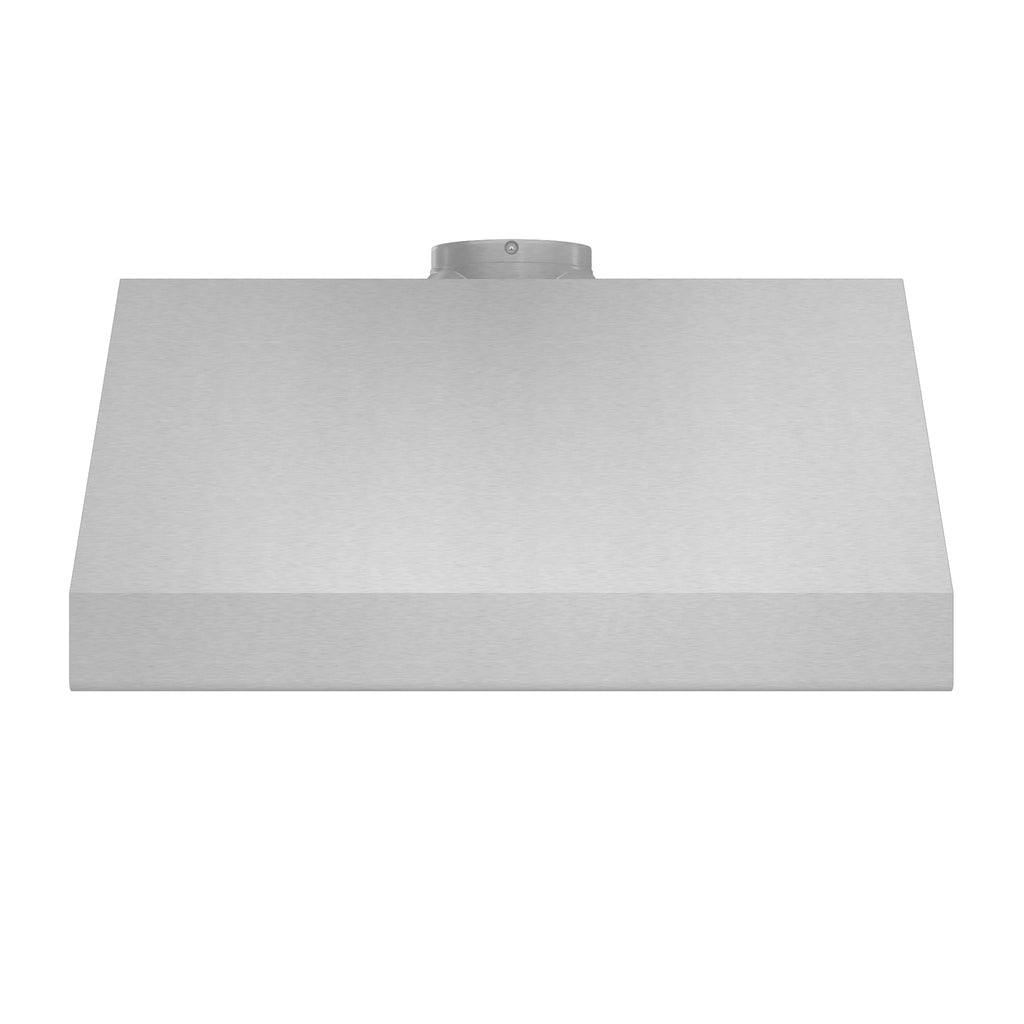

THOR Kitchen 36-Inch 600 CFM Convertible Under Cabinet Range Hood is designed to handle the demands of serious home cooking, this hood combines powerful ventilation, intuitive features, and sleek design to elevate your culinary experience.
| DIMENSIONS | |
|---|---|
| Product Dimensions | 35-7/8" W x 24" D x 18" H |
| GENERAL INFORMATION | |
| Bulb Type | LED Light |
| DESIGN & FINISH | |

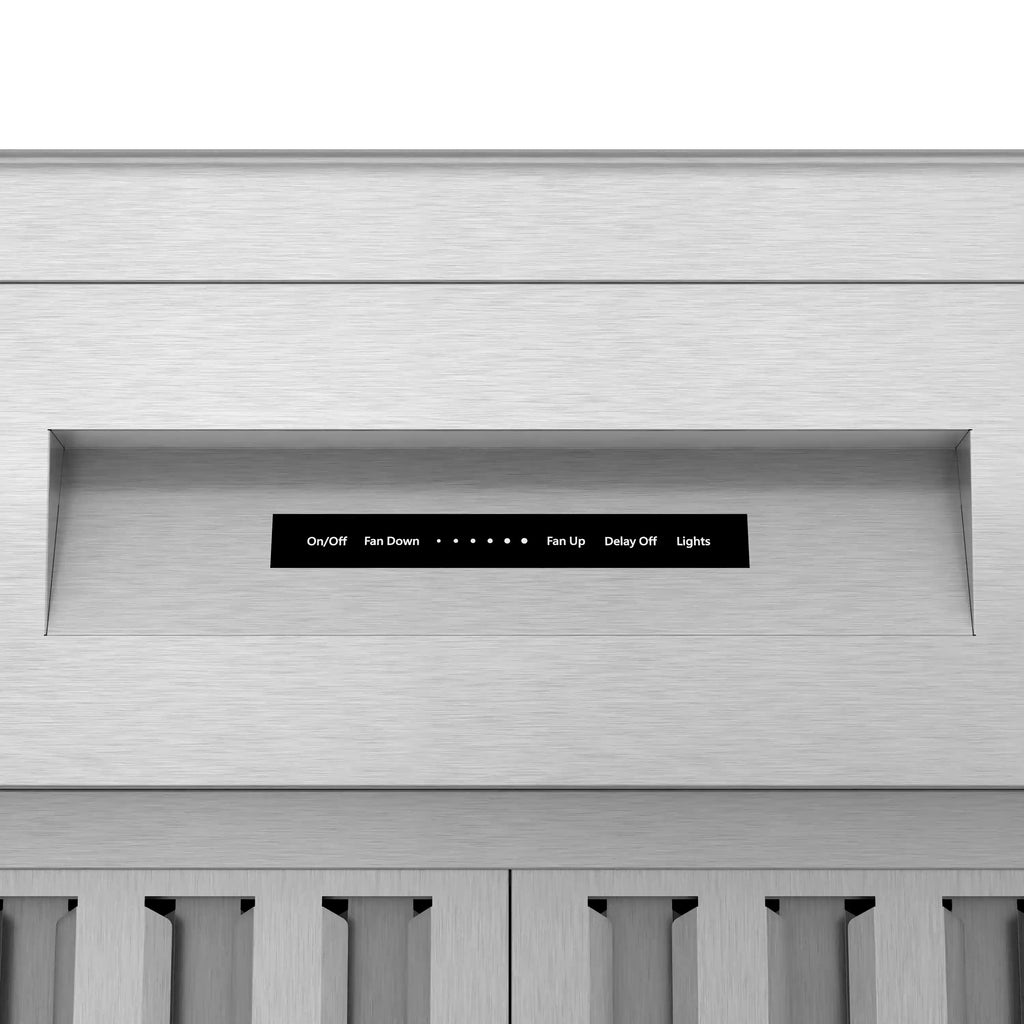

| Control | Touch / Hand Gesture Control |
| TECHNICAL DETAILS | |
| Duct Diameter | 8" |
| Duct Shape | Round |
| Volts | 120V |
| Frequency | 60Hz |
| Amperage | 15A (Dedicated) / 7A |
| Number of Speed Settings | 6 |
| Noise Level | 38 / 43 / 50 / 56.5 / 59 / 63 dBA |
| FEATURES | |
| Operating Mode | Ducted or Ductless |
| Air Flow | 180 / 250 / 340 / 460 / 500 / 600 CFM |
| Number of Lights | 2 |
| Filter Type | Baffle Filter x 2 |
| WARRANTY & CERTIFICATIONS | |
| Certifications | CUL Listed |
| Warranty | 2 Years Parts and Labor |
