Description
DIMENSIONS
- Product Dimensions (WxDxH)
- 35-7/8” x 24-1/2” x 36-1/8”
- Product Height (from bottom to top of back splash)
- 41-1/2”
- Product Height (from bottom to top of side panel)
- 32-7/8”
- Product Depth (from back panel to bullnose)
- 28-1/2”
- Product Depth (from back panel to control panel)
- 27-1/8”
- Product Depth (from back panel to side panel front
- 24-1/2”
- Cutout Dimensions (WxDxH)
- 36”x 24” x 36”
- Adjustable Leg Height
- 3"
- Net Weight
- 280lbs
- Gross Weight
- 340 lbs
- Plug Type Power Cord Length
- 59"
- Oven Internal (W x D x H)
- 29-3/4'' x 19-1/2'' x 18''
GENERAL INFORMATION
- Baking Sheet Size
- Fits Standard Three-Quarter Sheet Pan
- Accessories (Included)
- 2 Telescopic Racks and 1 Broiler Pan
- Accessories (Not Included)
- LP Kit
- Island Trim (RG1022)
DESIGN & FINISH
- Color
- Silver
- Finish
- Stainless Steel

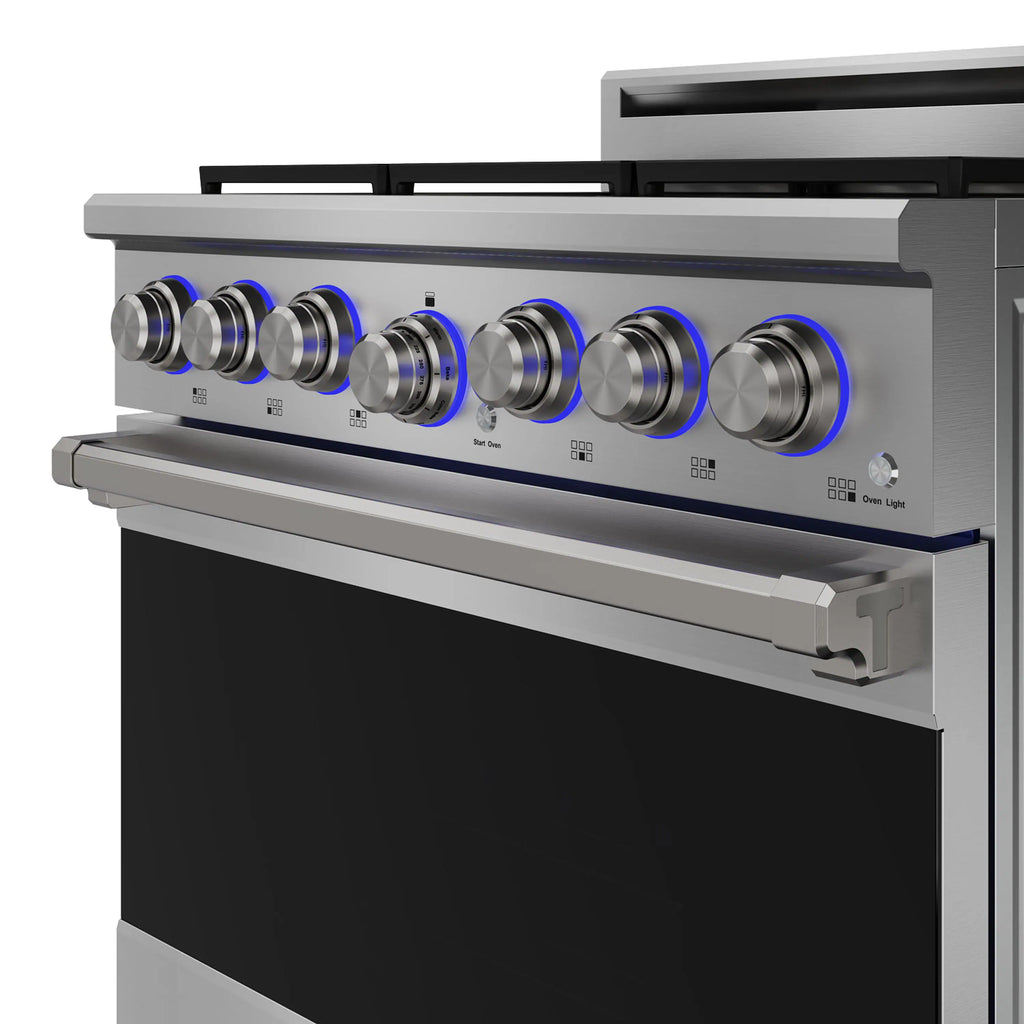

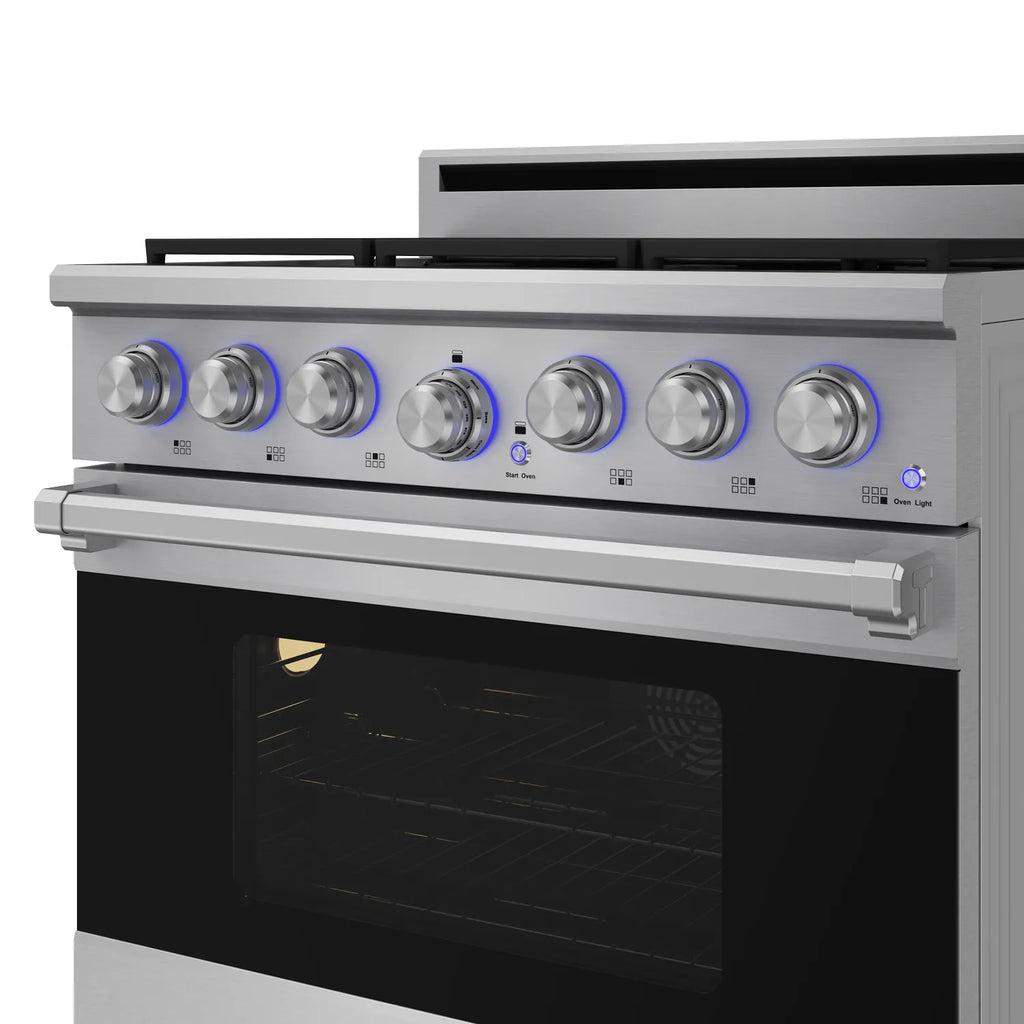

- Control Type
- Knob
TECHNICAL DETAILS
- Fuel Type
- Natural gas or Liquid Propane
- Installation Type
- Freestanding
- Required Circuit
- 15 Amp Dedicated Circuit
- Max Current Draw
- 6 Amps
- Volts
- 120V
- Frequency
- 60Hz

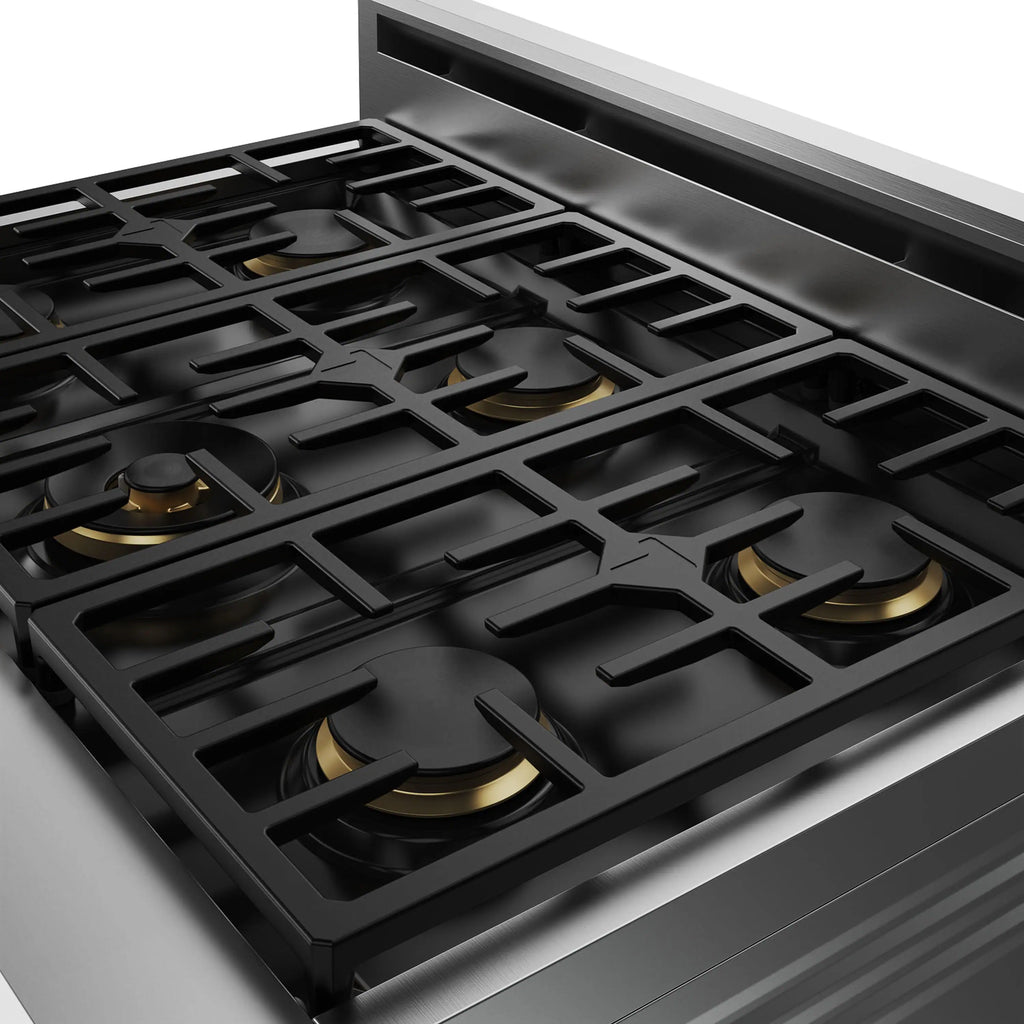

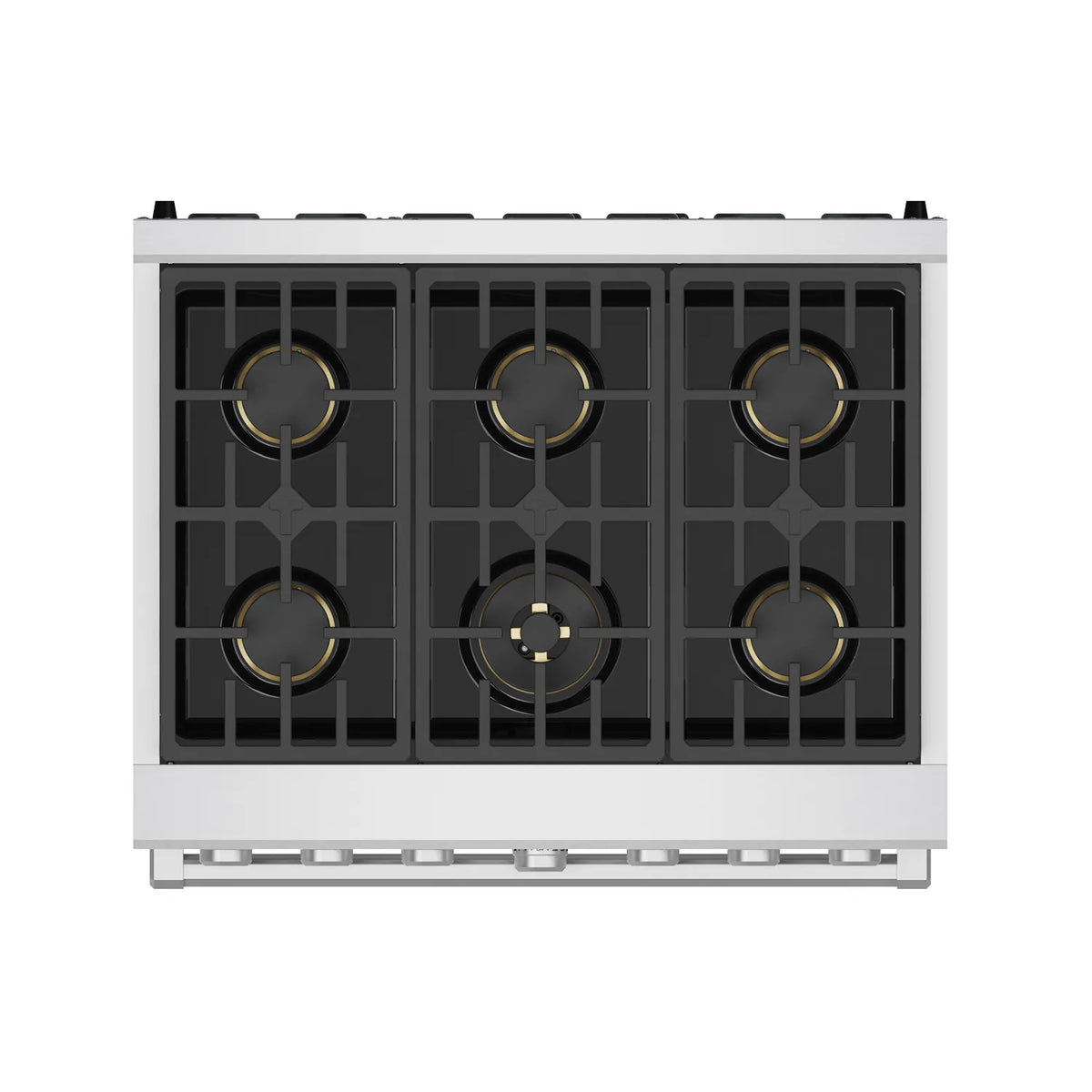

COOKTOP FEATURES
- Burner Type
- Sealed Burners
- Type of Grate
- Continuous
- Max BTU
- 22000 BTU (Dual) Simmer1000 BTU

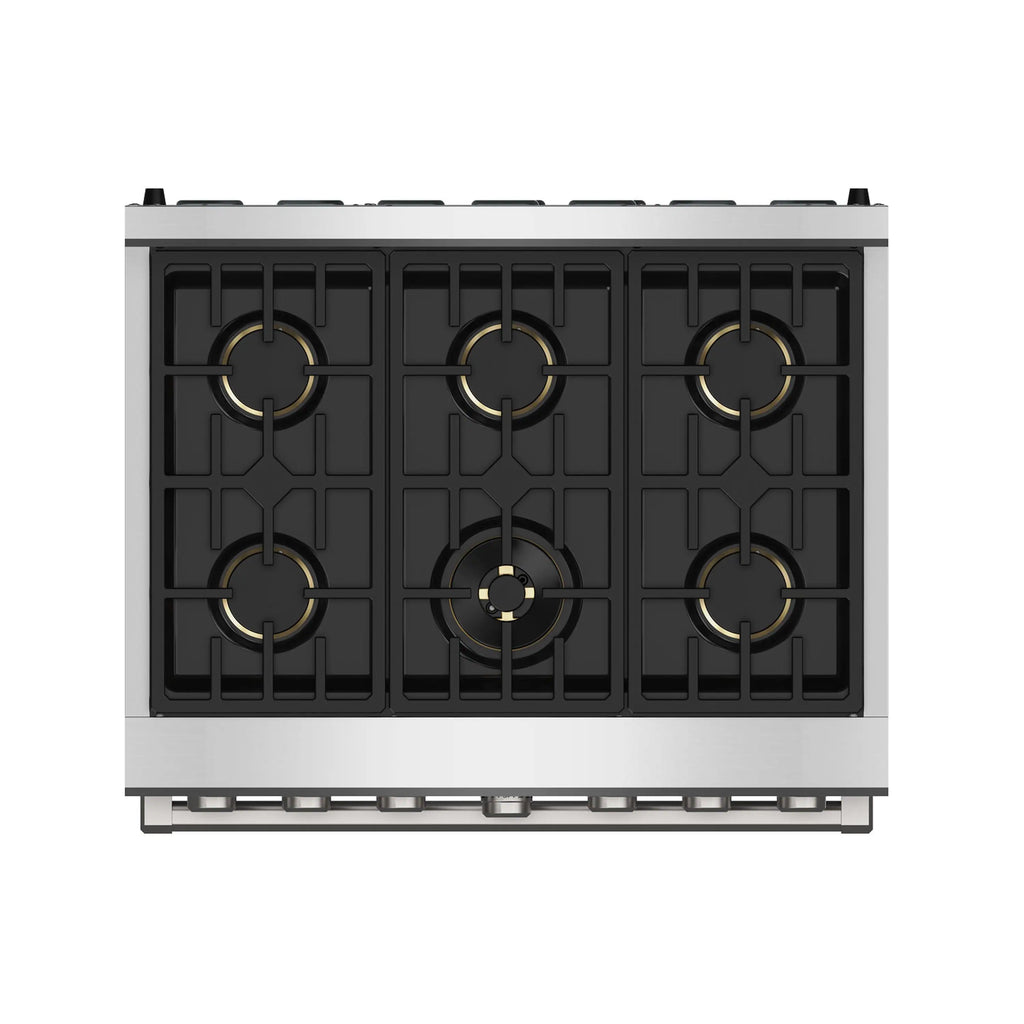

- Total Number Of Cooktop Burners
- 6
- [1] Front Left Burner
- 15000 BTU
- [2] Rear Left Burner
- 12000 BTU
- [3] Front Center Burner
- 22000 BTU (Dual) Simmer 1000 BTU
- [4] Rear Center Burner
- 12000 BTU
- [5] Front Right Burner
- 15000 BTU
- [6] Rear Right Burner
- 12000 BTU
- Bake Burner Power
- 22000 BTU
- Broil Burner Power
- 16500 BTU Infrared Broiler

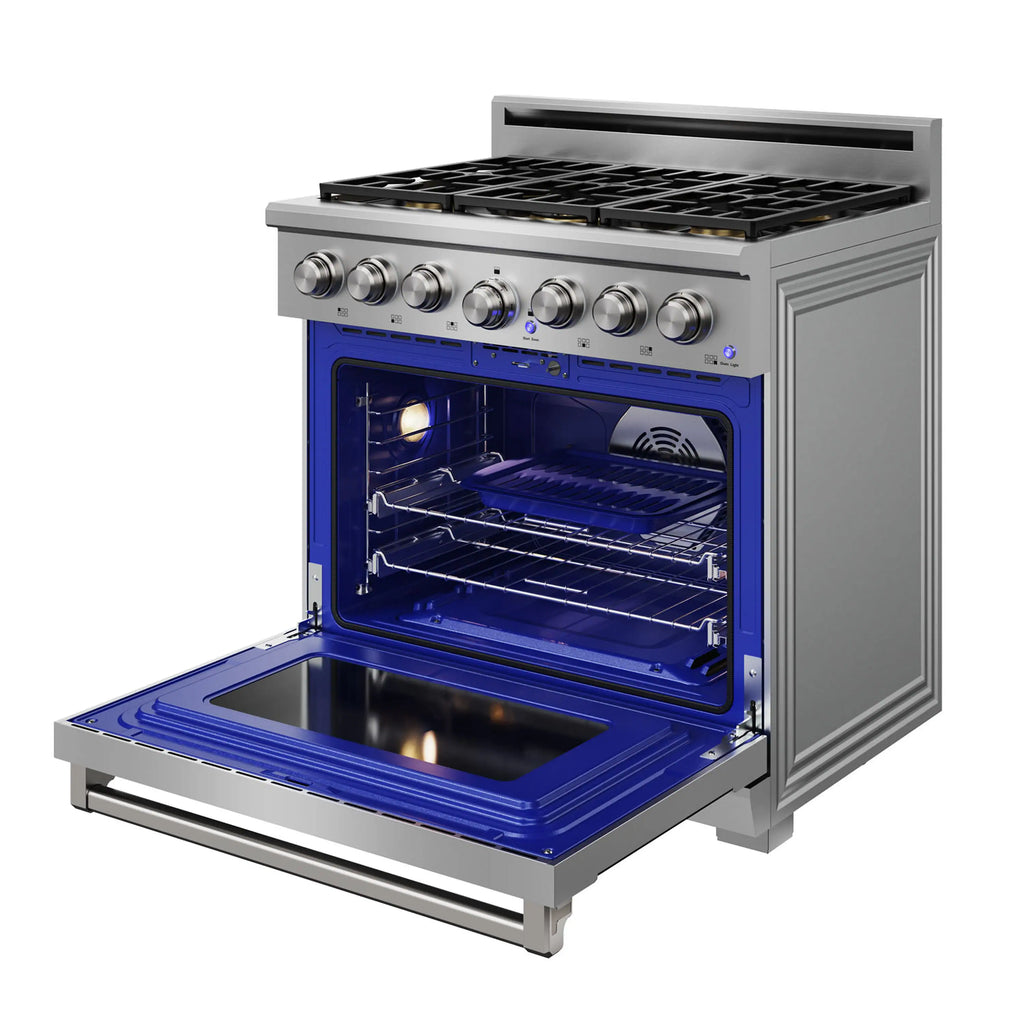

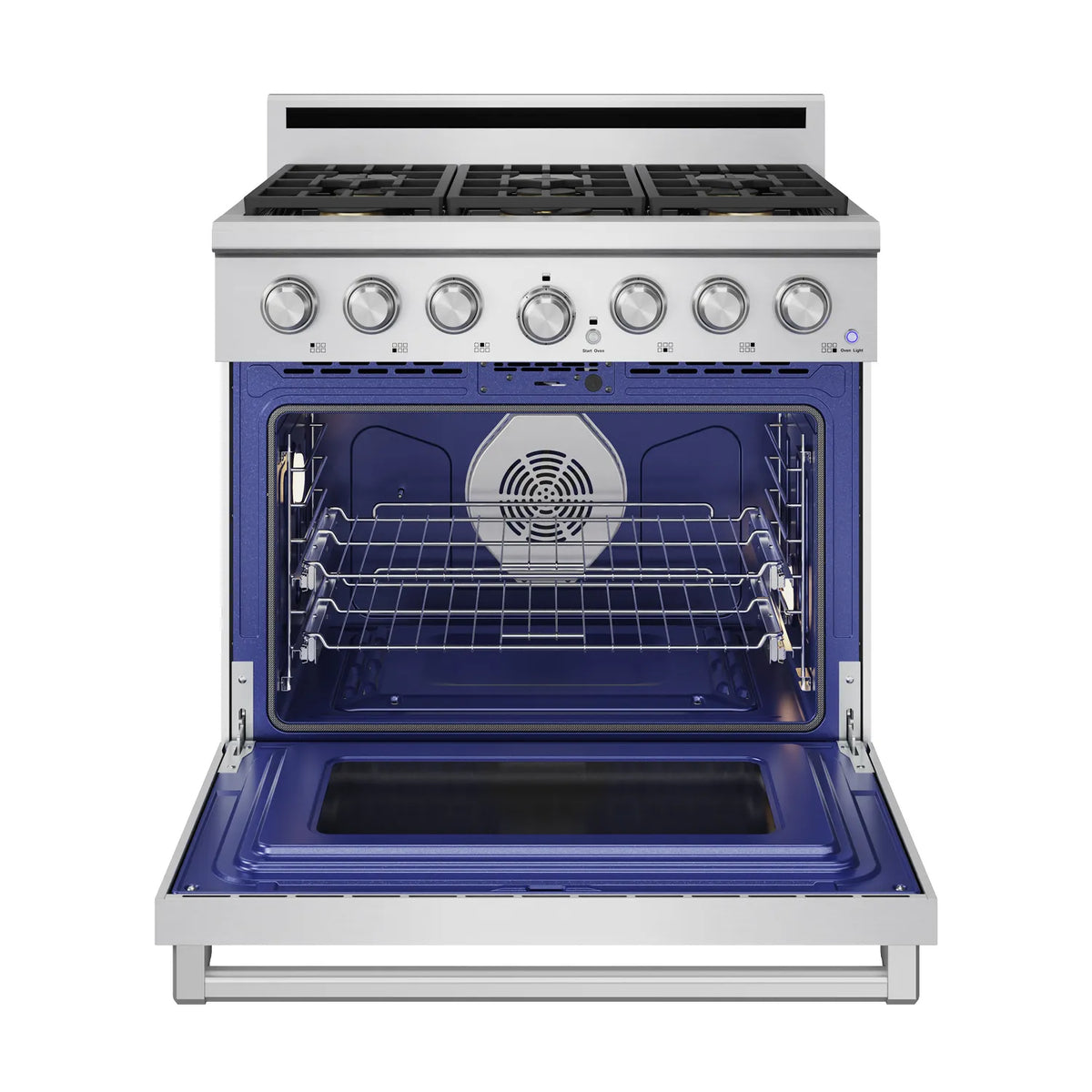

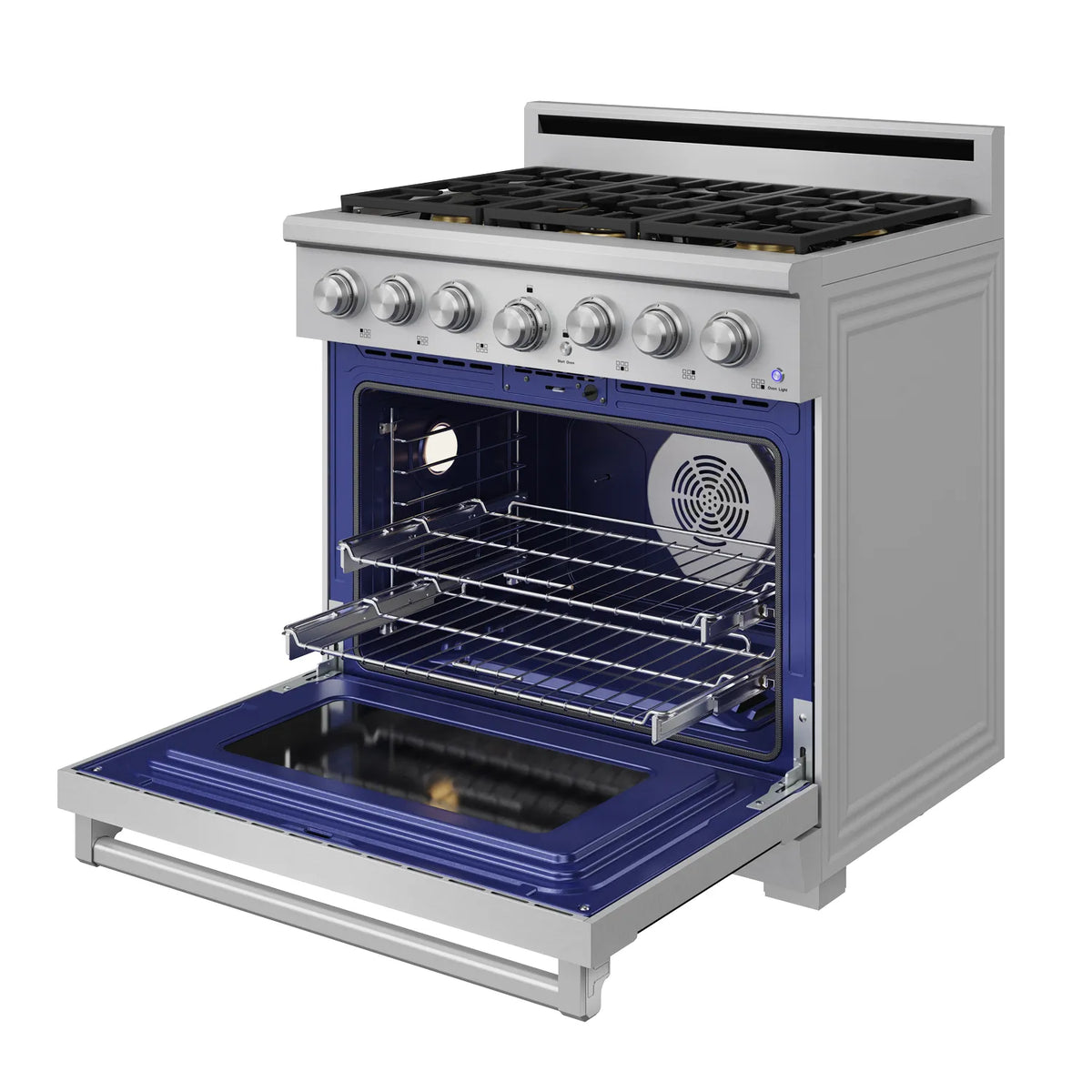

OVEN FEATURES
- Oven Capacity
- 6.0 cu. ft.
- Oven Control Features
- Light on/ Off
- Cooking Modes
- Bake, Conv. Bake, Roast, Conv. Roast, High & Low
- Broil, Keep warm, Pizza, Self-Clean
- Convection
- Standard
- Oven Lights
- 2 (Side)
- Oven Racks (telescopic)
- 2
- Oven Rack Material
- Chrome Plated
- Self Clean (Y/N)
- YES
