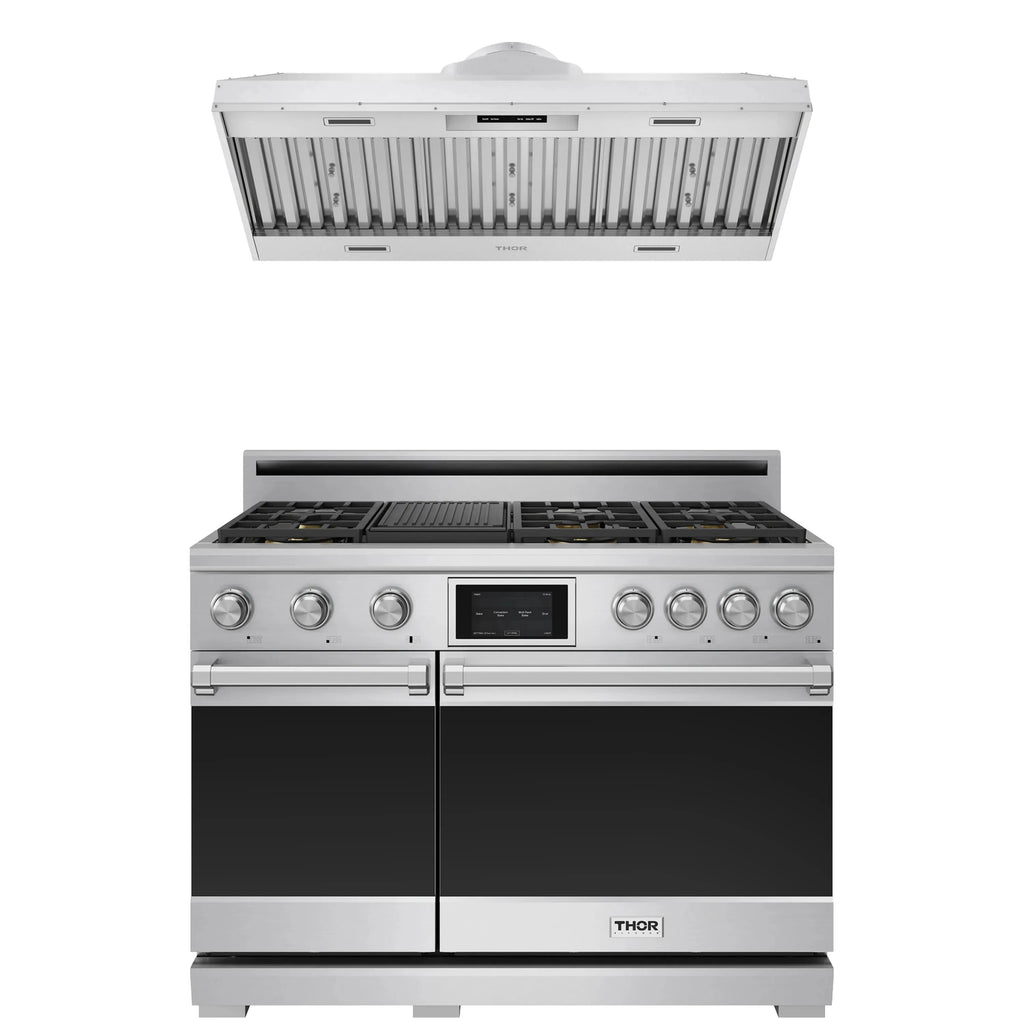

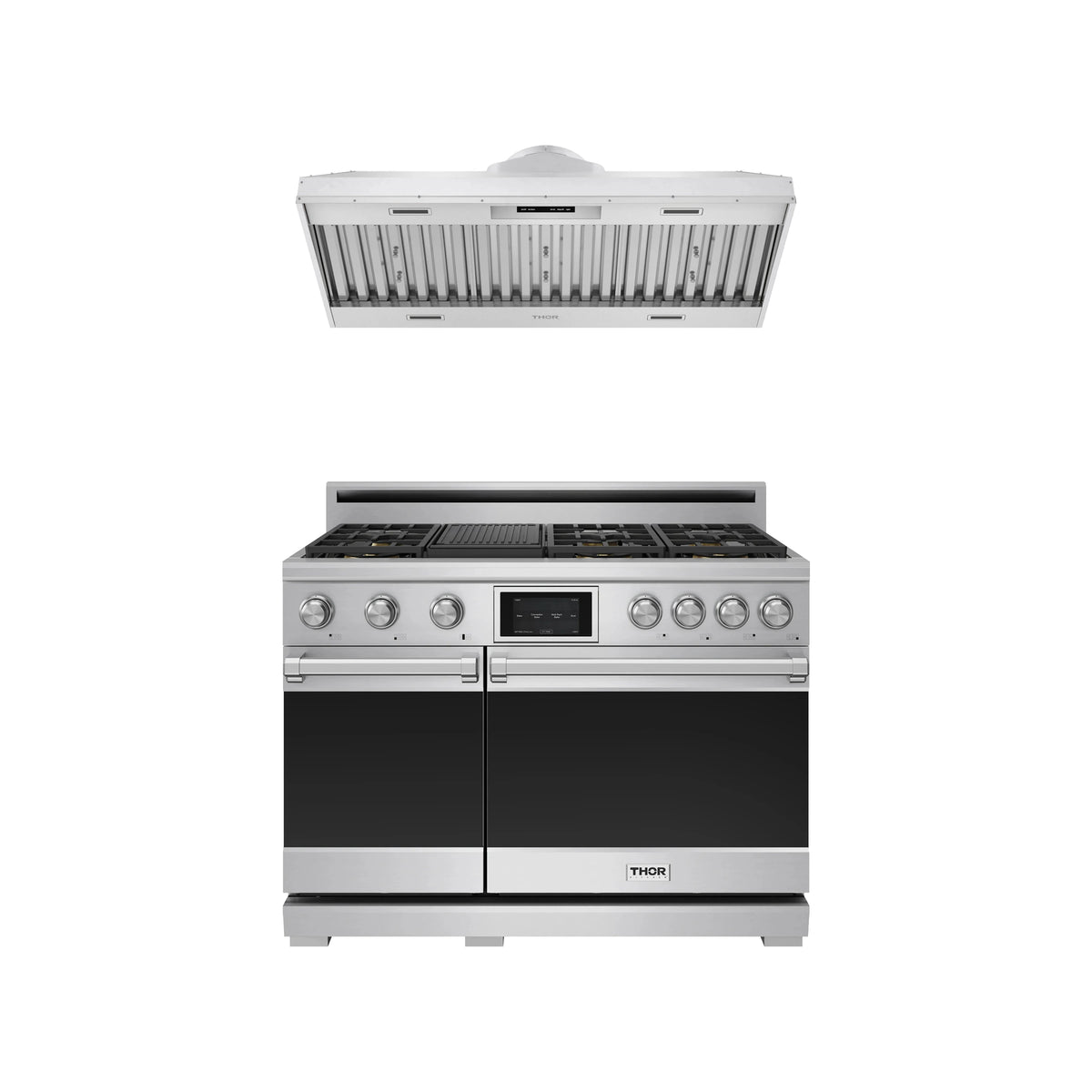

What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

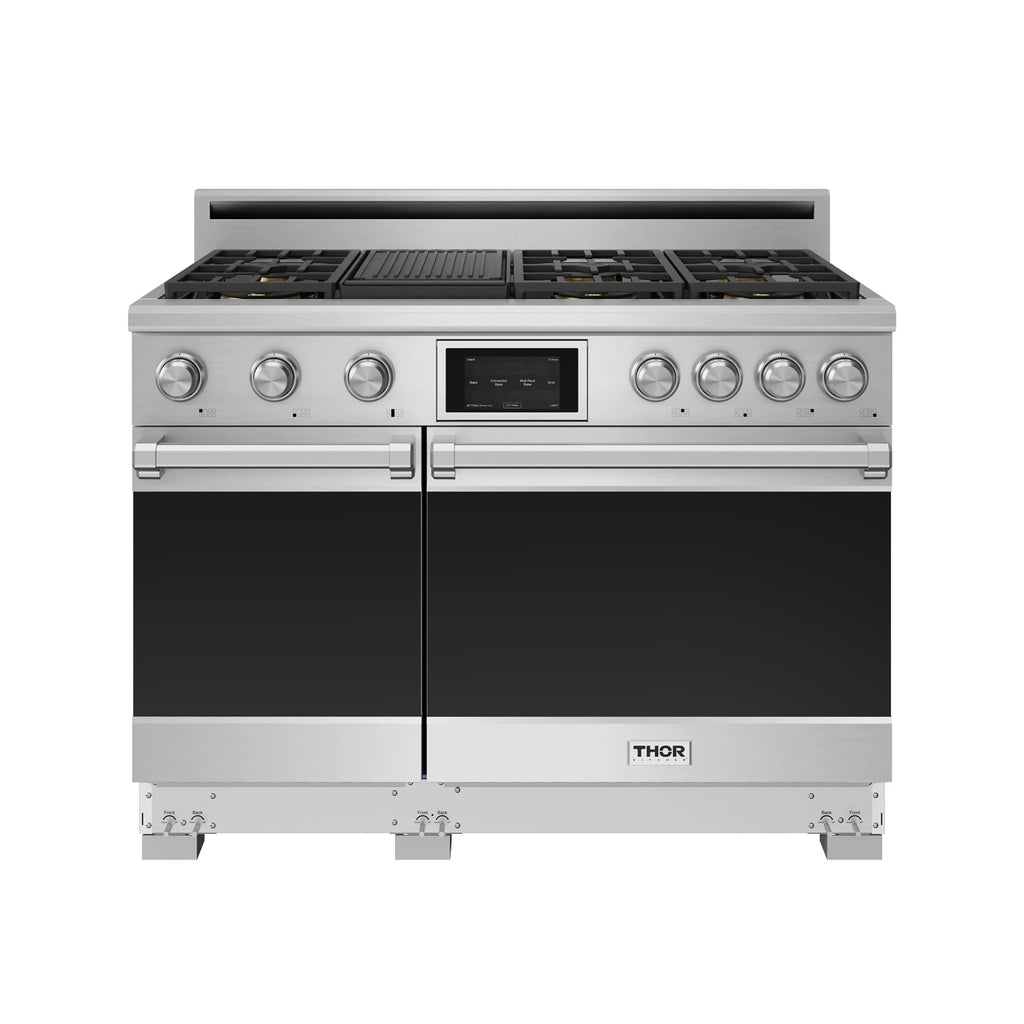

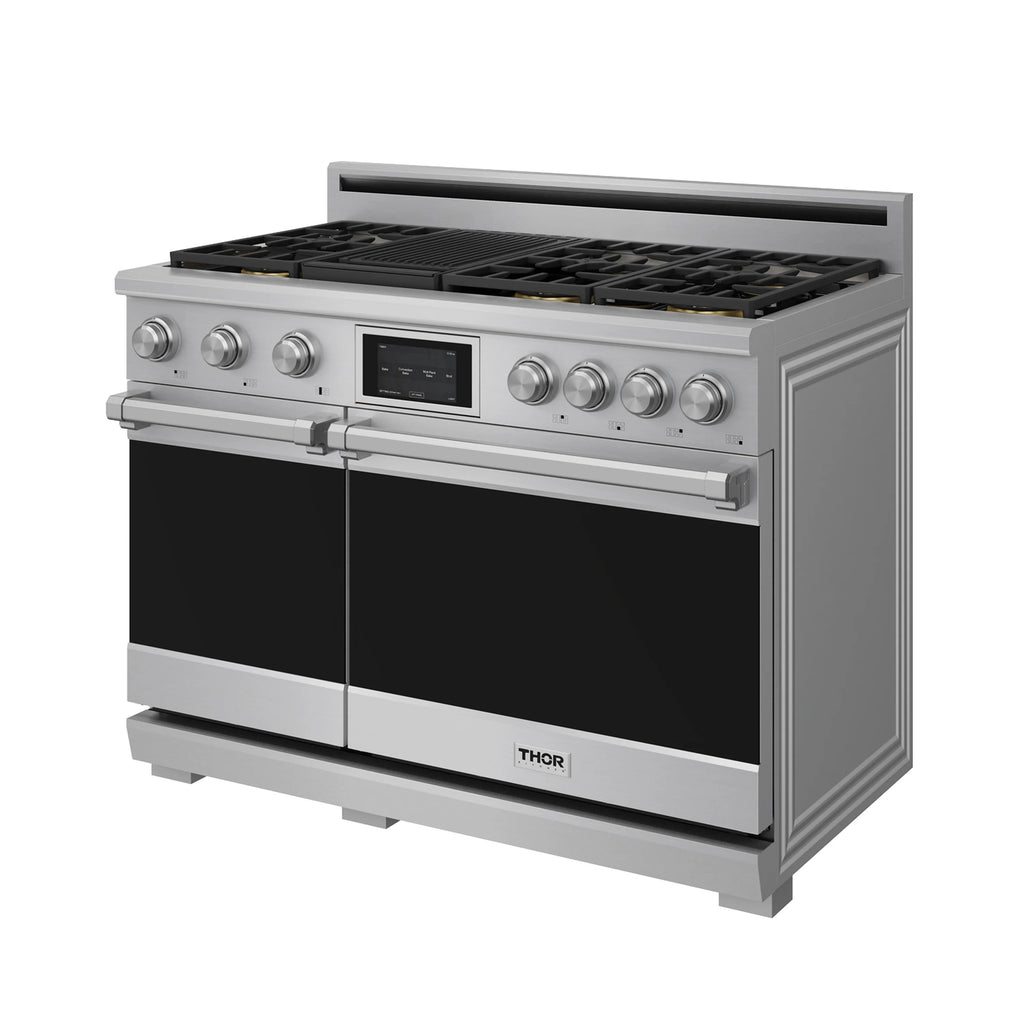

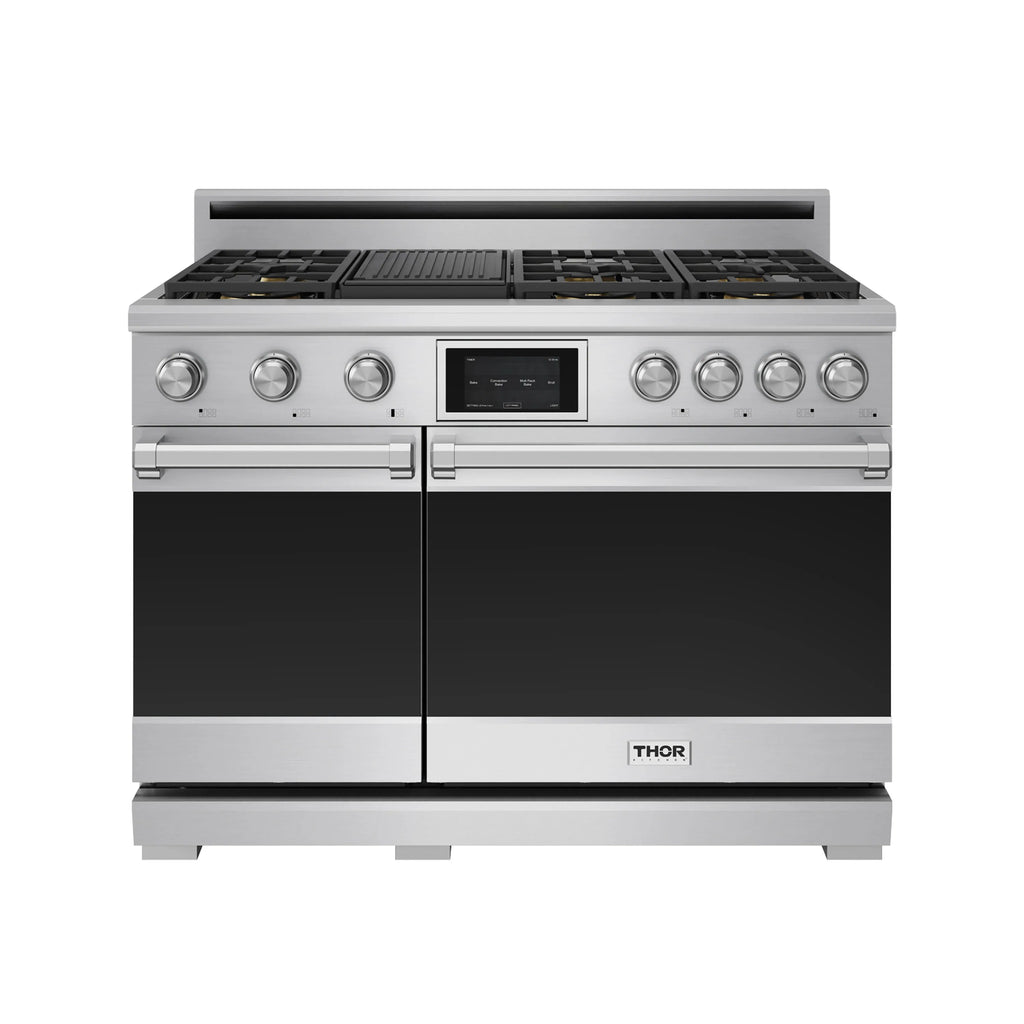

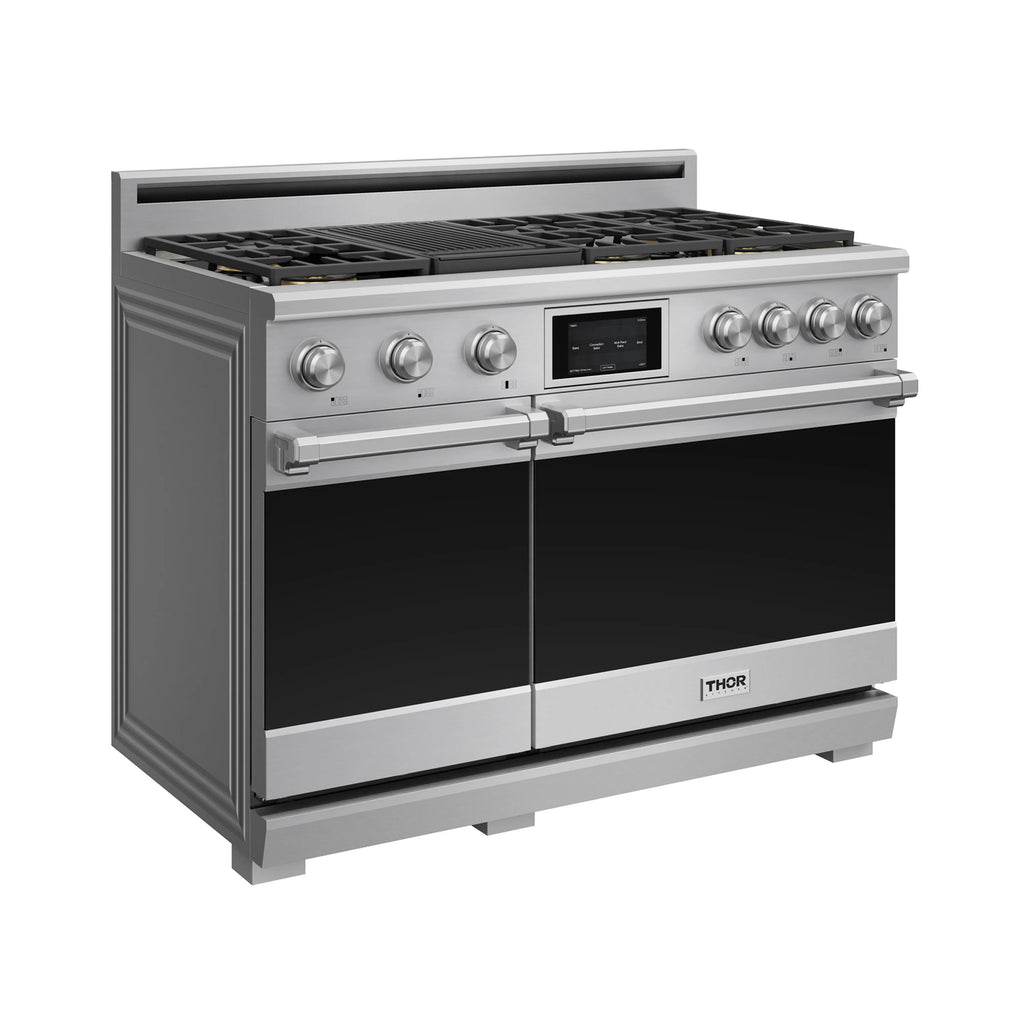

The THOR Kitchen XRD48ELP is a 48‑inch professional dual‑fuel range built for ambitious home chefs, featuring Italian brass burners including three powerful 22,000 BTU dual‑flame burners, a griddle burner, and additional high‑output burners for versatile cooktop performance. It includes a double oven configuration (4.8 cu ft and 2.2 cu ft) with independent temperature controls and a wide range of cooking modes such as Bake, Broil, Convection Bake/Roast, Air Fry, Proof, and Self‑Clean, all managed from a responsive tilt panel touch control. Premium touches like luxurious telescopic racks, soft‑close oven doors, continuous cast‑iron grates, blue LED illuminated knobs, built‑in casters with leveling legs, and automatic re‑ignition enhance functionality and ease of use, while included accessories (broiler pan, air fry basket, meat probe, grill/griddle grate) expand versatility and convenience in the kitchen.
Features
- Tilt Panel Touch Control - A tilt panel touch control is an adjustable control panel that tilts for optimal viewing and ease of use.

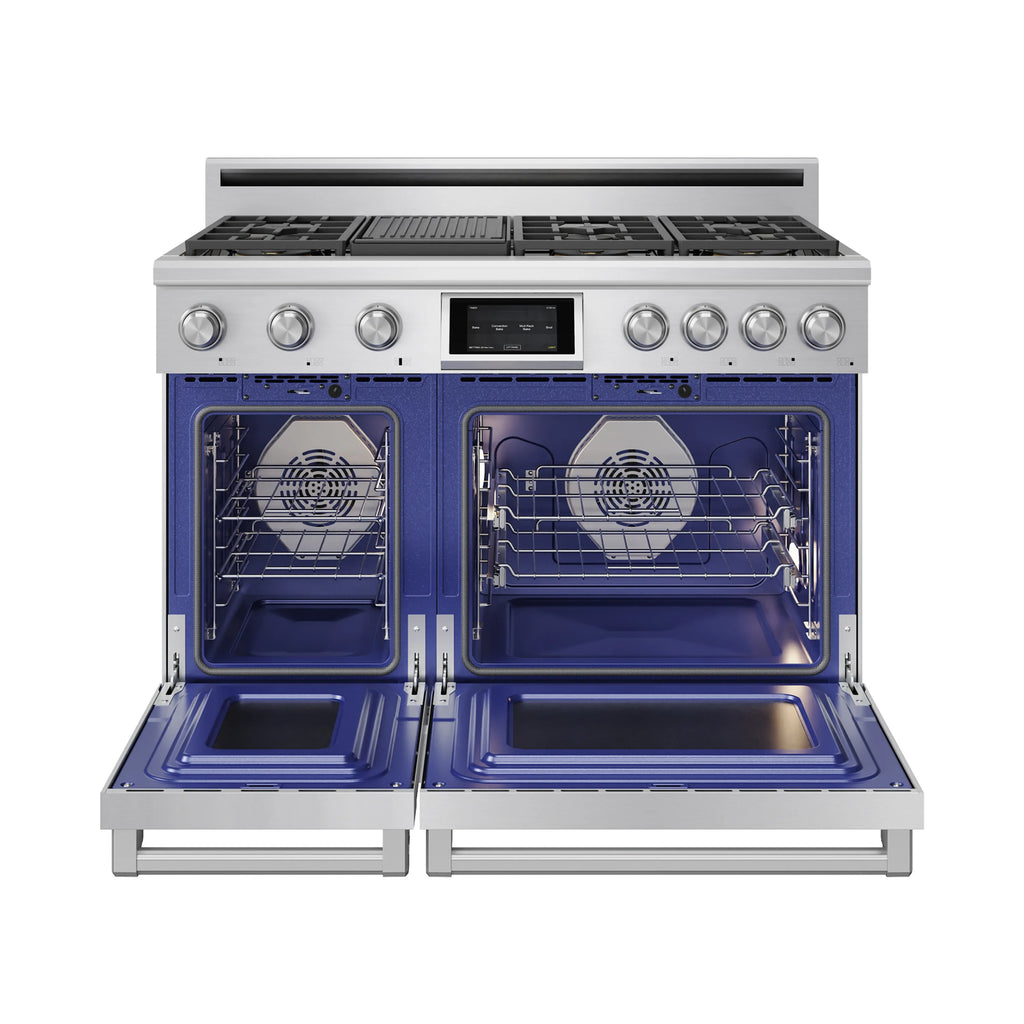

- Double Oven - 4.8 cu. ft. + 2.8 cu. ft. - Cook multiple dishes at once using separate large and small ovens, each with independent temperature control.

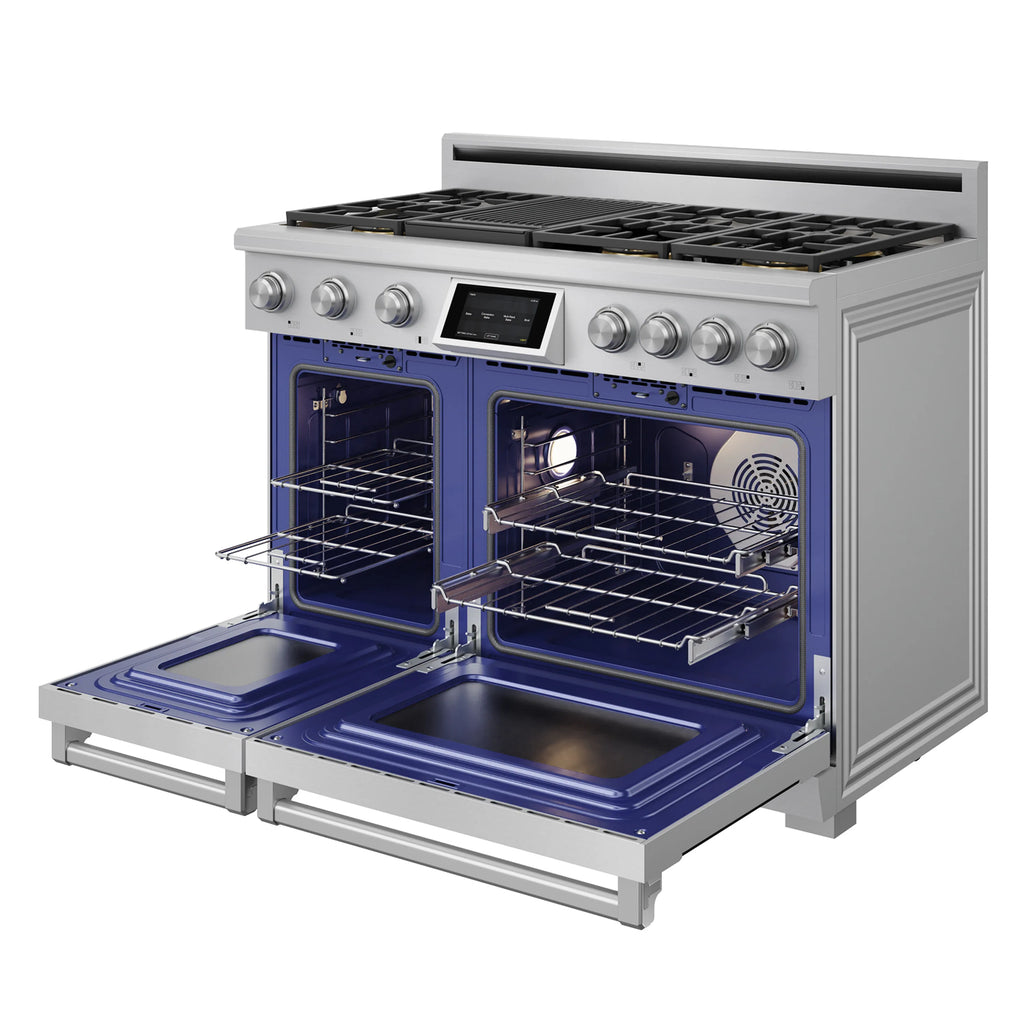

- LuxGlide™ Telescopic Racks - Telescopic racks use ball bearing rack guides for an effortless glide in and out of the oven. This luxury feature allows the rack to extend fully without tipping over for smooth, easy handling of even the heaviest dishes, and adjusts to fit different rack support levels.
- Soft-Close Oven Door - Gently closes for a quieter, more premium cooking experience.
- Built-In Casters and Leveling Legs - Easily reposition the range when needed, then level for a secure fit and seamless countertop alignment.

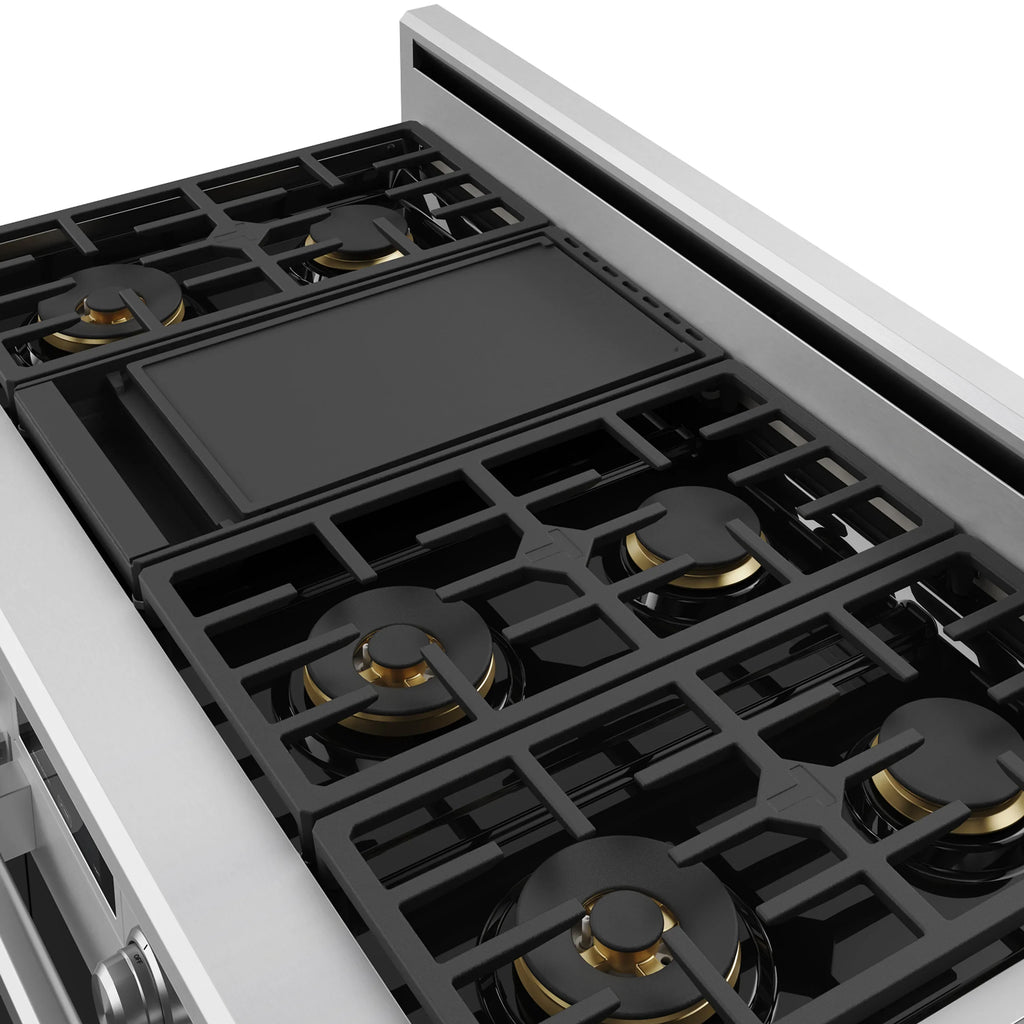

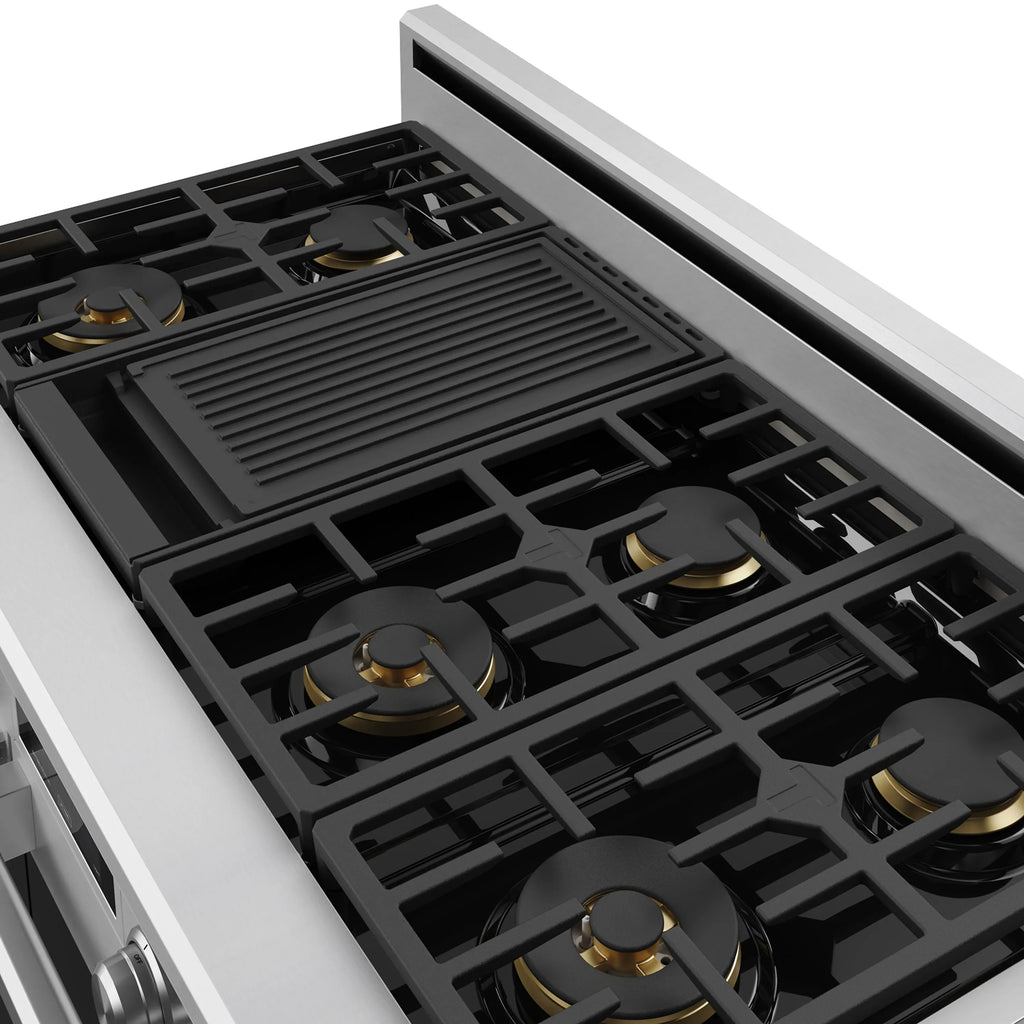

- Italian Brass Burners with 22,000 BTU Dual Burner - Premium Italian brass burners deliver powerful heat up to 22,000 BTUs and gentle simmer control down to 1,000 BTUs.

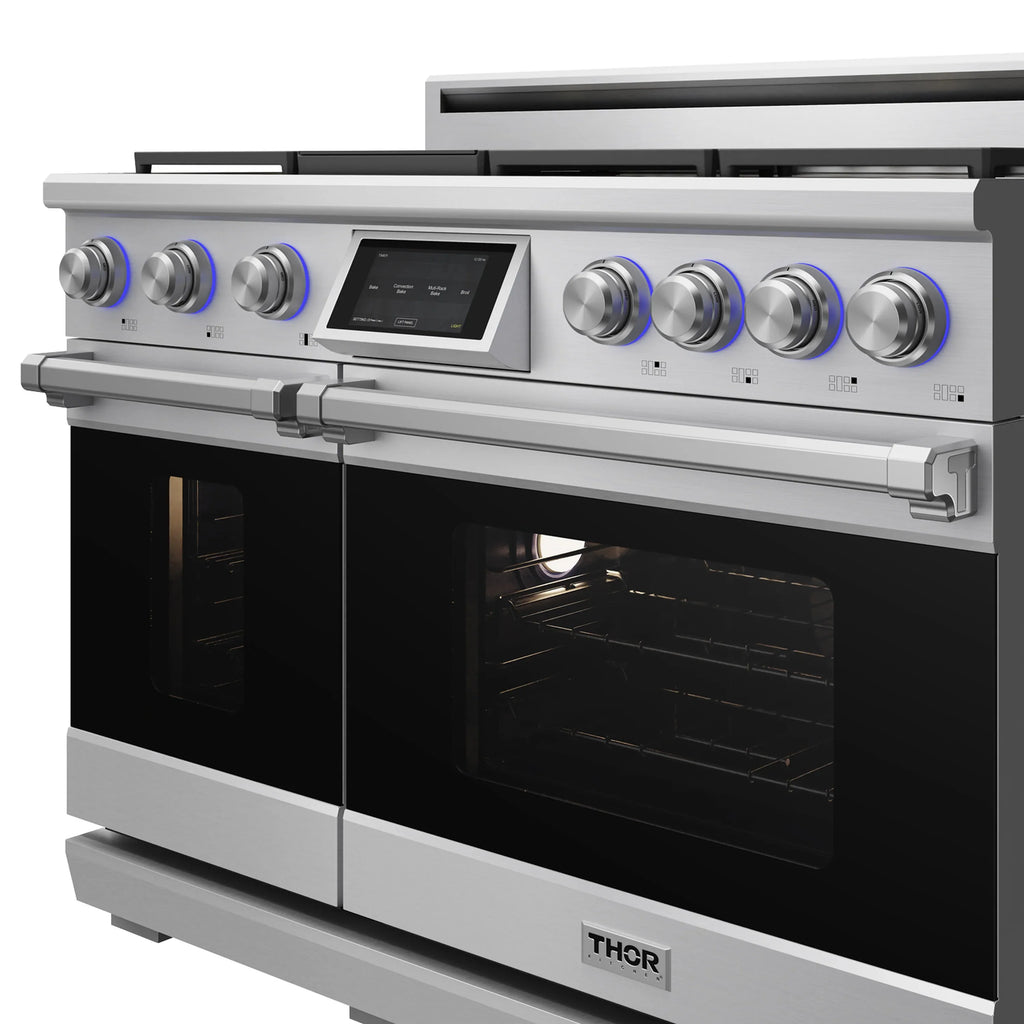

- Blue LED Illuminated Knobs - Sleek, backlit knobs provide a clear visual cue when burners are in use, enhancing safety and modern style—even visible from across the kitchen.
- Continuous Cast-Iron Grates - Heavy-duty grates provide a seamless surface for easy pan movement and pro-style durability.
- Automatic Re-ignition Feature - Automatic re-ignition feature relights an extinguished flame for safer cooking.
- Brand
- Thor Kitchen
- Product
- 48 INCH PROFESSIONAL DUAL FUEL RANGE
- Model Number
- XRD48ELP
- Fuel Type
- Natural or Liquid Propane + Electric
- Installation Type
- Freestanding
- Required Circuit
- 50 Amps Dedicated Circuit
- Volts (V)
- 240V
- Frequency (Hz)
- 60Hz
- Control Type
- Knob / Touch Screen
- Plug Type
- nema 14-50p
- Power Cord Length (in.)
- Canada only. Not included in USA/Mexico
- Multi-Function Oven
- Offers versatile cooking modes including Bake, Roast, Broil, Keep warm, Proof, Pizza, Self-Clean And Airfry

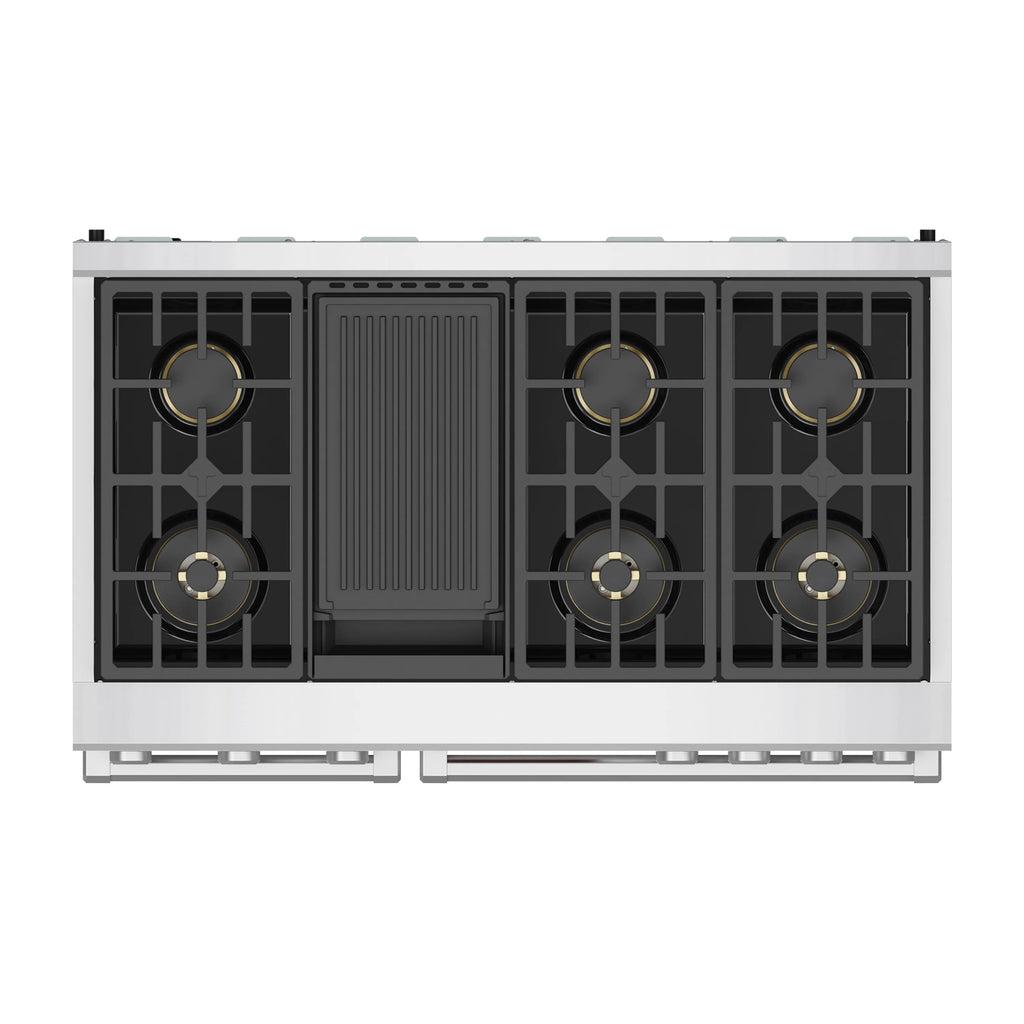

- Total Number of Cooktop Burners
- 7
- (1) Front Left Burner
- 22000 BTU (Dual) Simmer 1000
- (2) Front Right Burner
- 22000 BTU (Dual) Simmer 1000
- (3) Front Center Burner
- 22000 BTU (Dual) Simmer 1000
- (4) Griddle Burner
- 9000 BTU
- (5) Rear Left Burner
- 15000 BTU
- (6) Rear Right Burner
- 12000 BTU
- (7) Rear Center Burner
- 15000 BTU
- Oven Capacity
- 4.8 cu. ft. and 2.2 cu. ft.
- Oven Control Features
- Oven Light Control, Cook Time, Timer, Delay Start, Self Clean, Control Lock, Sabbath Mode, Temperature Unit
- Cooking Modes
- Bake, Convection Bake, Multi-Rack Bake, Broil, Convection Roast, Warm, Pizza, Air Fry, Proof, Meat
- Oven Internal Width (30" Oven)
- 23-3/4"
- Oven Internal Width (18" Oven)
- 12-5/8"
- Convection
- True Convection Fan
- Oven Rack Material
- Chrome Plated
- Baking Sheet Size (30" Oven)
- Fits Standard Half Sheet Pan
- Baking Sheet Size (18" Oven)
- Fits Standard Quarter Sheet Pan
- Self Clean (Y/N)
- Yes
- Air Fry
- Yes
- Oven Internal Height
- 18"
- Oven Internal Depth
- 19-1/2"
- Product Dimensions (WxDxH) (in.)
- 47-7/8" x 24-3/4" x 36-1/8"
- Product Height (from bottom to top of back splash) (in.)
- 41-3/8"
- Product Height (from bottom to top of side panel) (in.)
- 32-7/8"
- Product Depth (from back panel to bullnose) (in.)
- 28-1/2"
- Product Depth (from back panel to control panel) (in.)
- 27-1/4"
- Product Depth (from back panel to side panel front) (in.)
- 24-3/4"
- Cutout Dimensions (WxDxH) (in.)
- 48" x 24" x 36"
- Adjustable Leg Sizes
- 3"
- Net Weight (lbs.)
- 398
- Gross Weight (lbs.)
- 470
- Package Dimensions (WxDxH) (in.)
- 51-3/8" x 30-1/8" x 49"
- Accessories Included
- 2 LuxGlide™ Telescopic Racks, 1 Broiler Pan, 1 Air Fry basket, 1 Meat Probe, Grill / Griddle Cooking Grate
- Accessories (Optional)
- LP Kit, Island Trim, Power cord is not included in US/Mexico market.
- Warranty
- 2 Years Parts and Labor

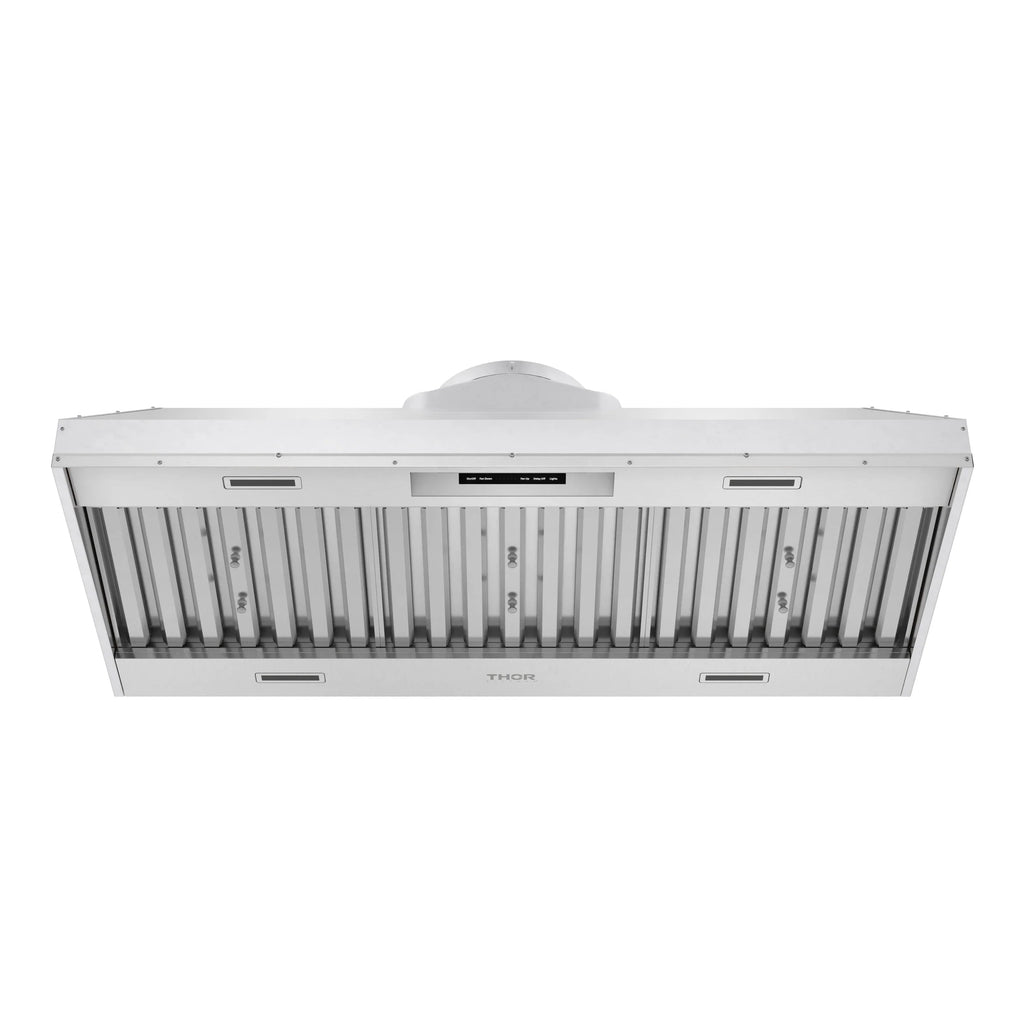

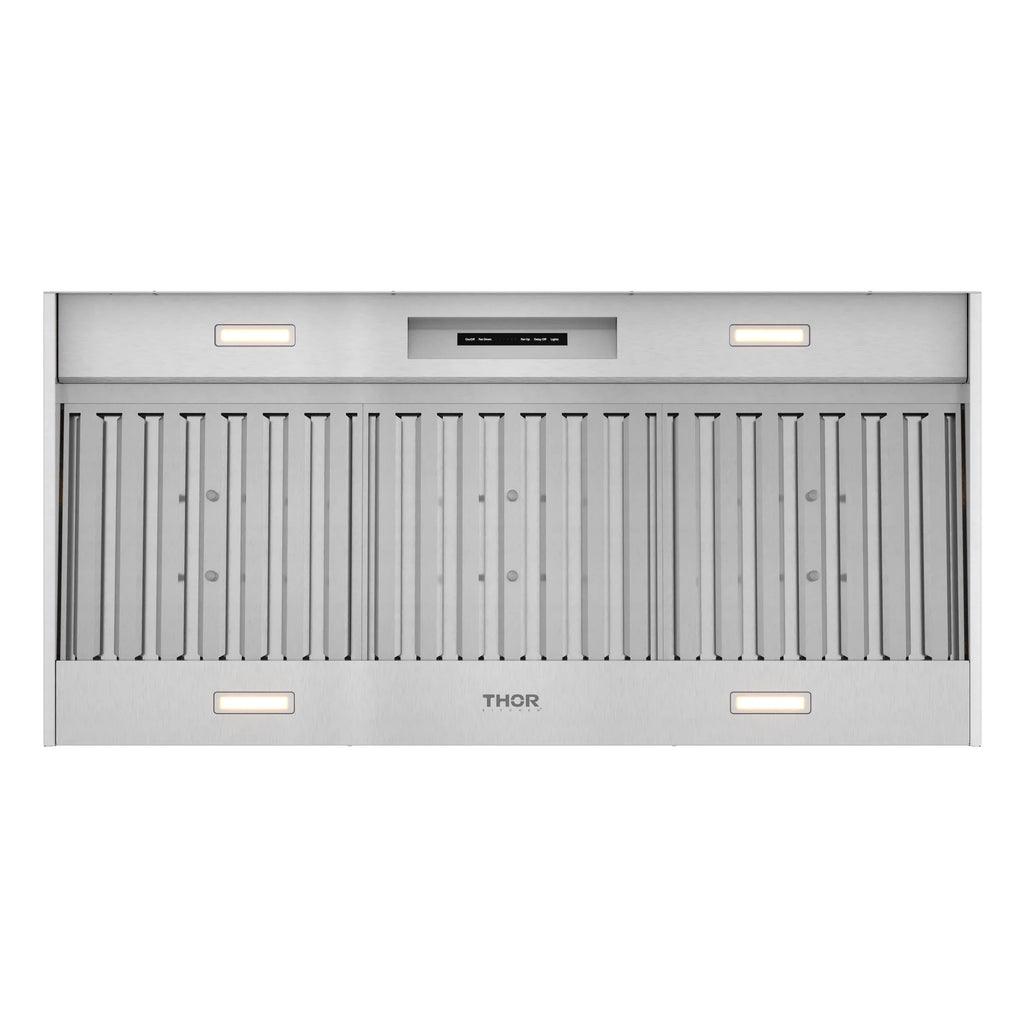

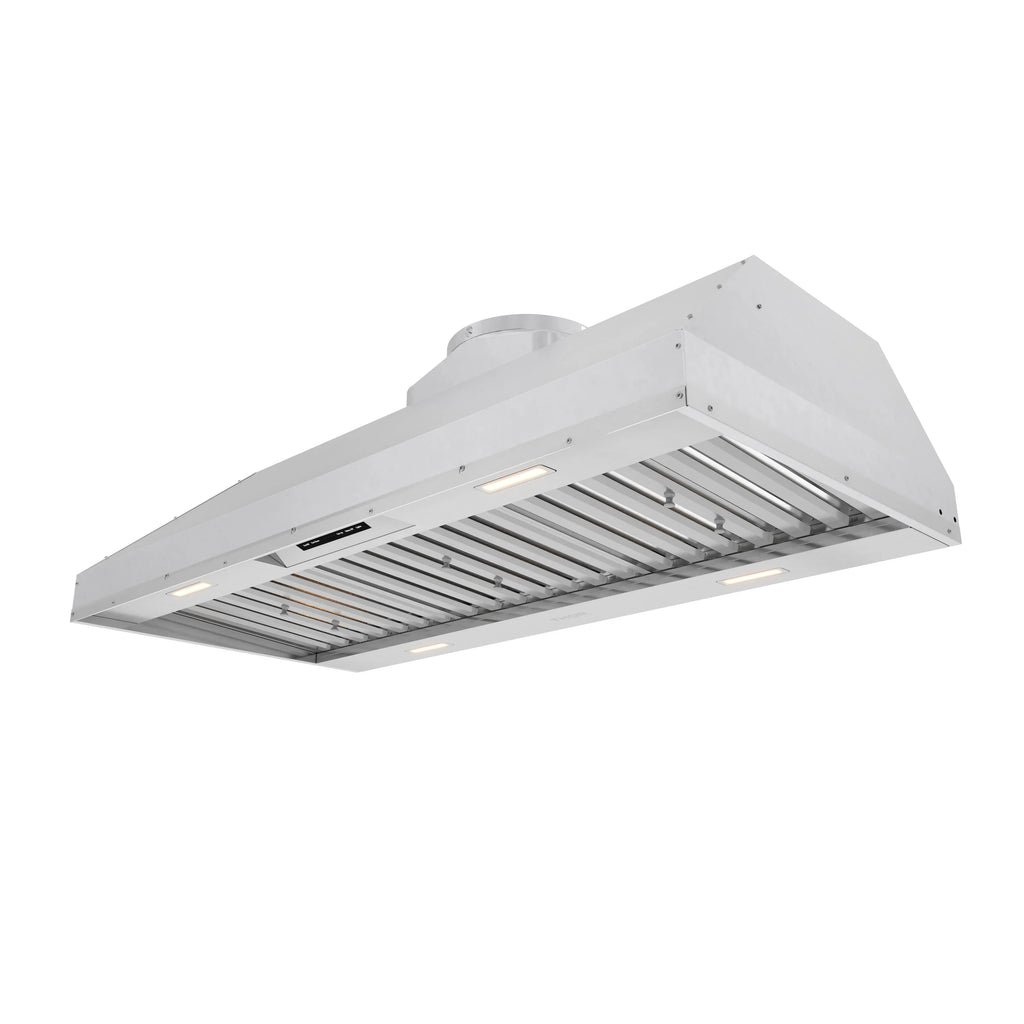

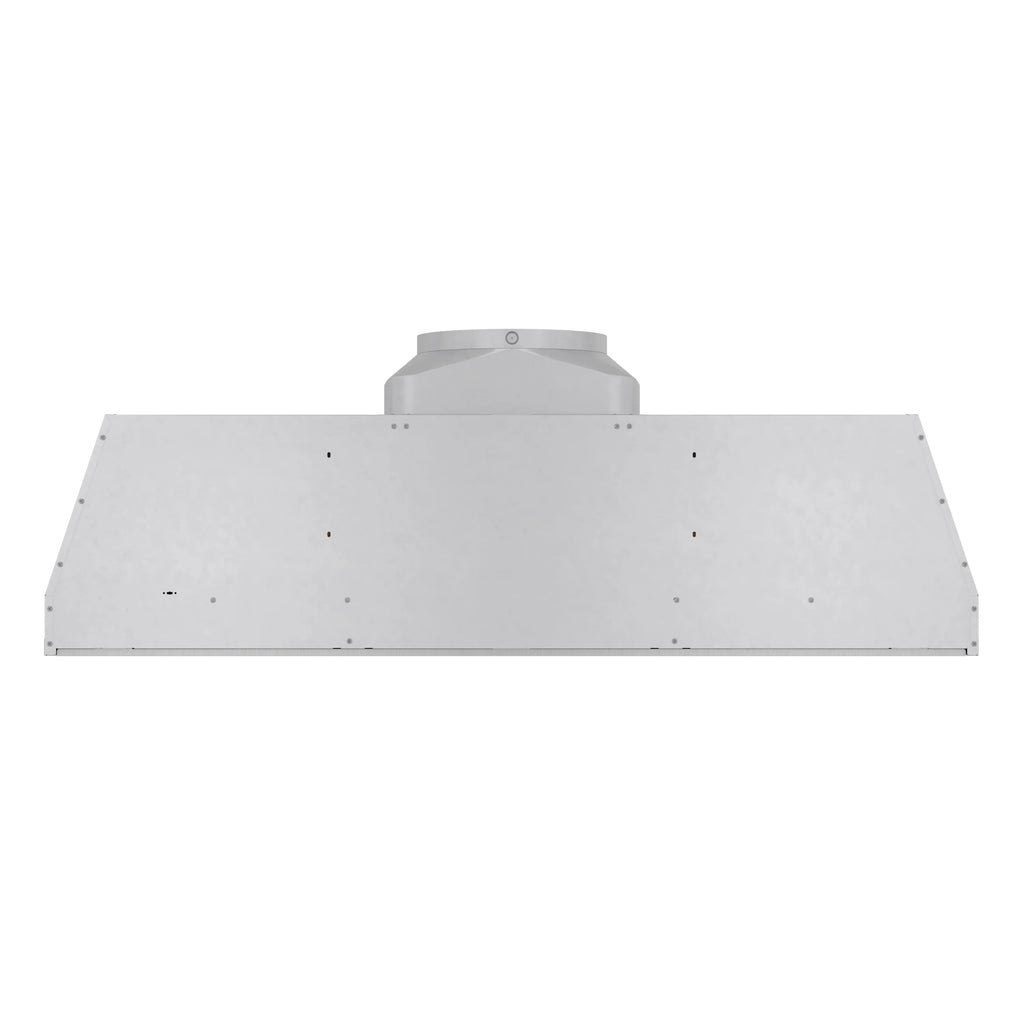

THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. Introducing the 48" Liner Hood, designed to effortlessly handle all your kitchen ventilation needs with its powerful 1200 CFM motor. Perfectly customizable to meet any custom cabinet design, this liner hood integrates seamlessly into your kitchen decor. Wave goodbye to smoke, odors, and steam with intuitive Gesture Controls that let you adjust the speed with just a wave of your hand. The intelligent Heat Sensor activates the hood at 131°F and shuts it off at 104°F, while the Delay-Off feature lets you set a power-off delay for up to 12 minutes. Keep your kitchen grease-free with deep-groove Baffle Filters, which are also dishwasher-safe for easy cleaning. Bright LED Lights illuminate your cooking space, and the Clean Filter Reminder ensures your filters are always maintained. With 6 adjustable fan speeds and a responsive Touch Control panel, you have complete control over your kitchen environment.
Features
- Liner Hood - Integrates seamlessly into any kitchen cabinet design.
- 1200 CFM - Handles all of the odors, smoke, and steam from multiple dishes at once.
- Gesture Controls - Turn on/off and adjust speed with a wave of your hand.
- Delay-Off - Set it and forget it. Delays power shut off for up to 12 minutes.
- Stainless Steel Baffle Filters - Easy to remove and place into the dishwasher for a good cleaning.
- LED Lights - Easily illuminate your cooking space with bright built-in LED lights
- Clean Filter Reminder - Never forget to clean your filters again.
- 6 Speeds - This powerful hood handles all of the odors, smoke, and steam from multiple dishes at once.

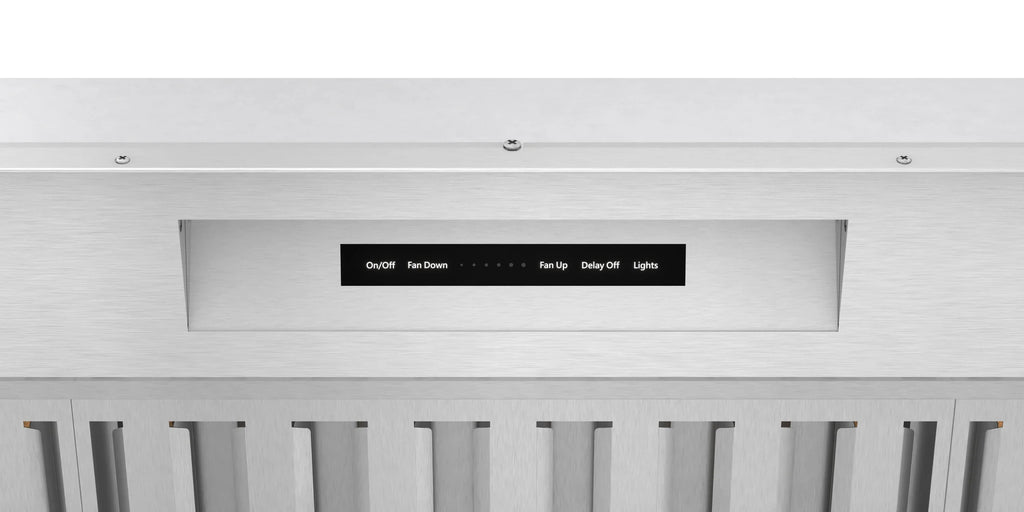

- Touch Control - Control the fan functions at a touch of the LED display.
- Heat Sensor - Equipped with a heat sensor that automatically activates the fan when the temperature reaches 131°F (55°C) and deactivated when it cools down to 104°F (40°C) ensuring energy efficiency and effective heat management.
- Product Dimensions (W x D x H)
- 46-3/8" x 22-1/2" x 12"
- Carton Dimensions (W x D x H)
- 50-25/64" x 16-59/64" x 28-47/64"
- Net Weight
- 63.6 lbs
- Gross Weight
- 79.3 lbs
- Brand
- Thor Kitchen
- Product
- 48 Inch Liner Hood
- Model Number
- XLH48
- Mount Type
- Insert
- Operating Mode
- Ducted
- Color / Finish
- Stainless Steel
- Max CFM
- 1200 CFM
- Blower Ratings (CFM / dBA)
- Min 350 / 48, Max 1200 / 70
- Number of Speed Settings
- 6
- Number of Lights
- 4
- Bulb Type
- LED (Square)
- Control
- Touch
- Filter Type
- Baffle Filter x 3
- Duct Diameter
- 10"
- Duct Shape
- Round
- Voltage
- 120V
- Frequency
- 60Hz
- Amperage
- 7A
- Warranty
- 2 Years Parts and Labor
