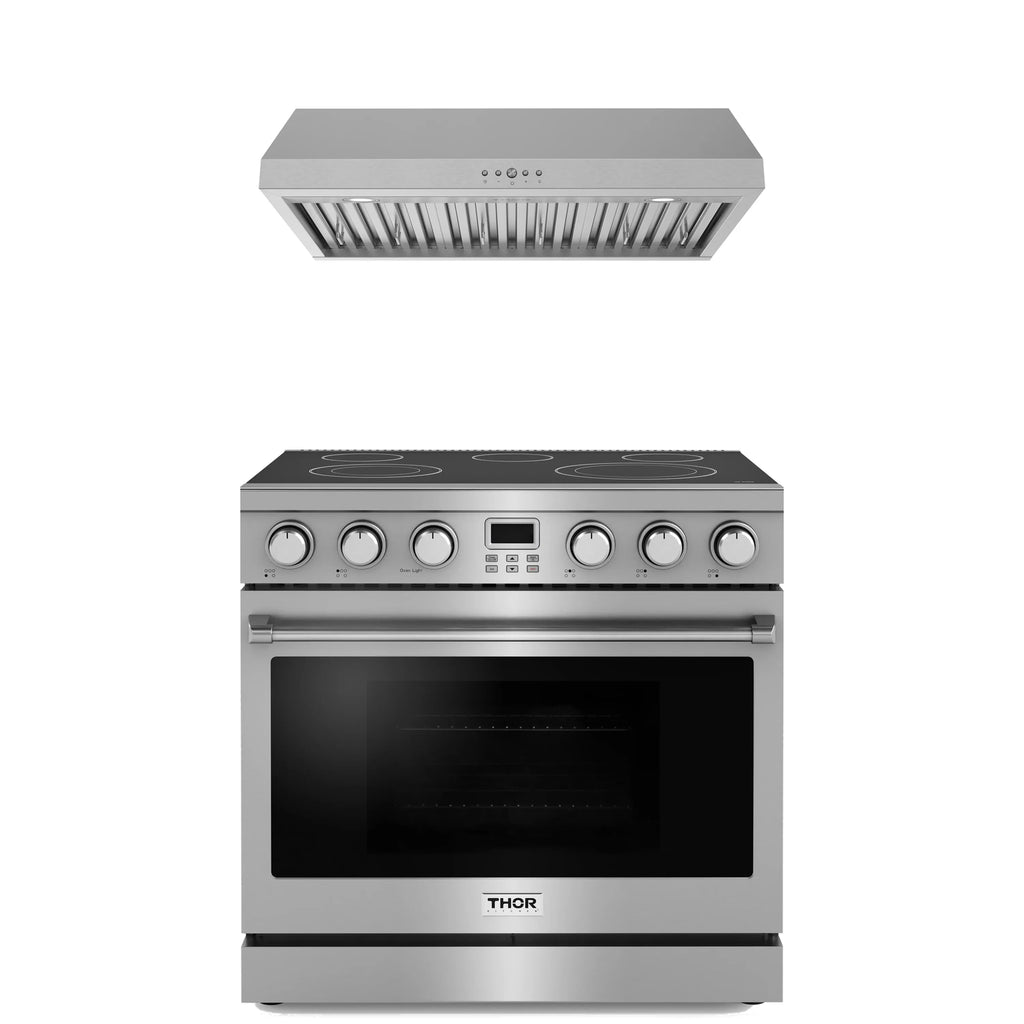

What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.
Features

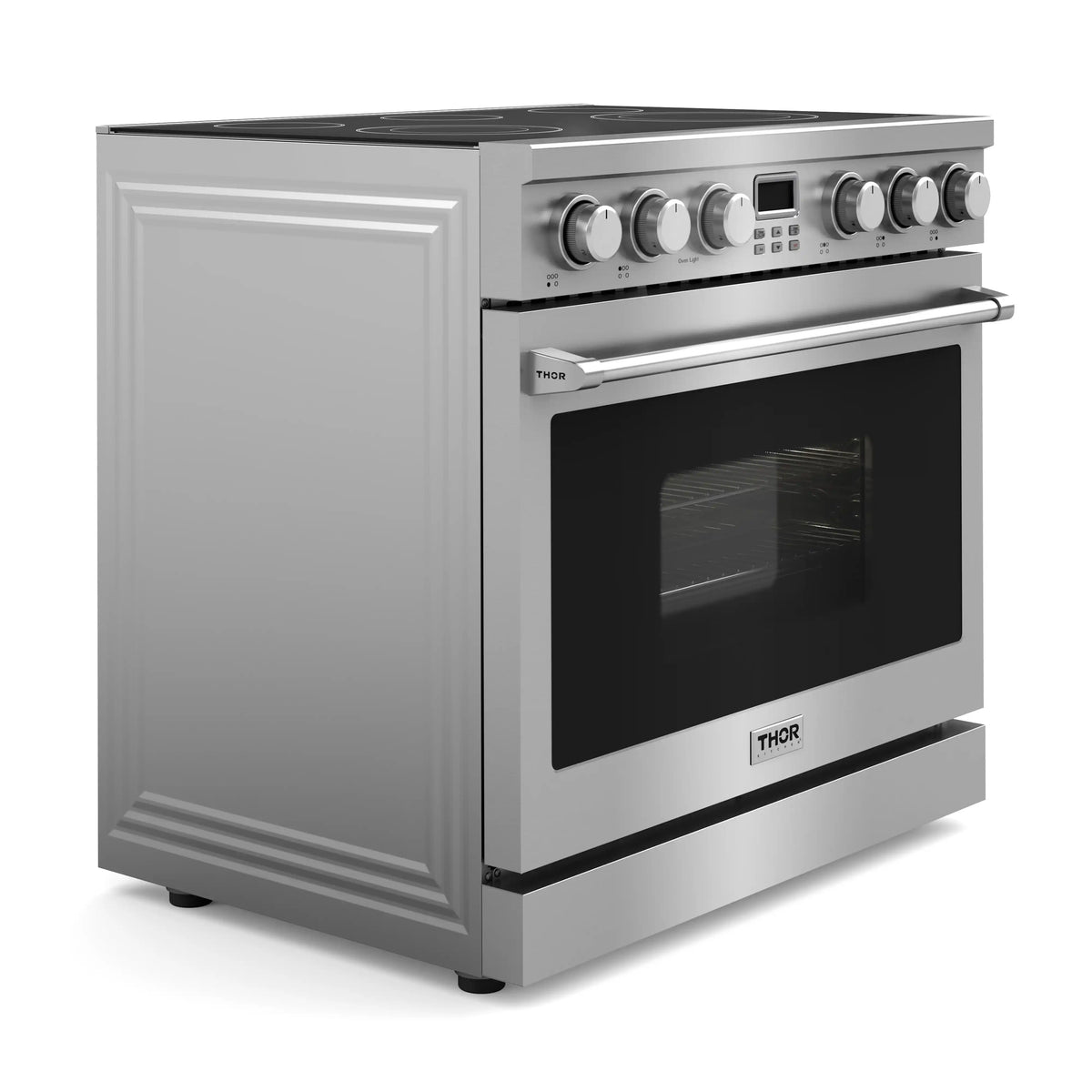

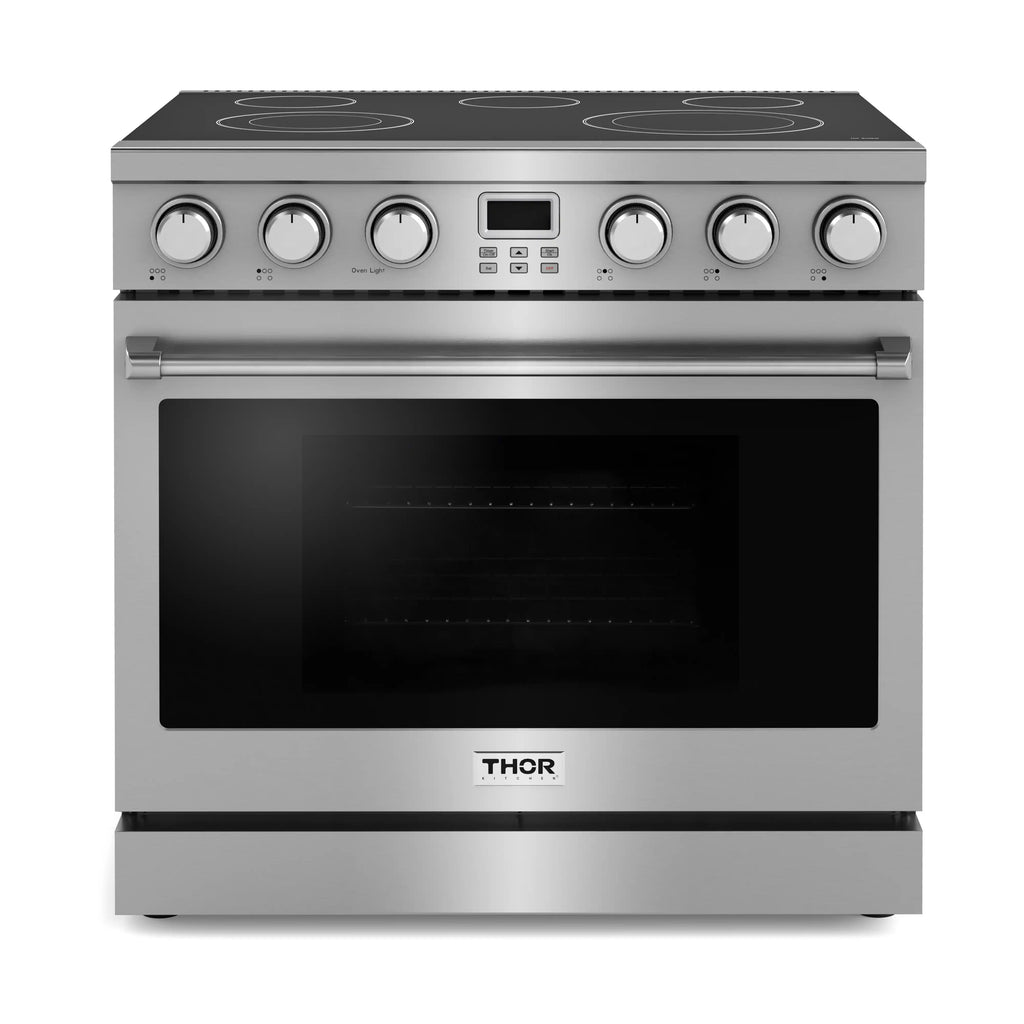

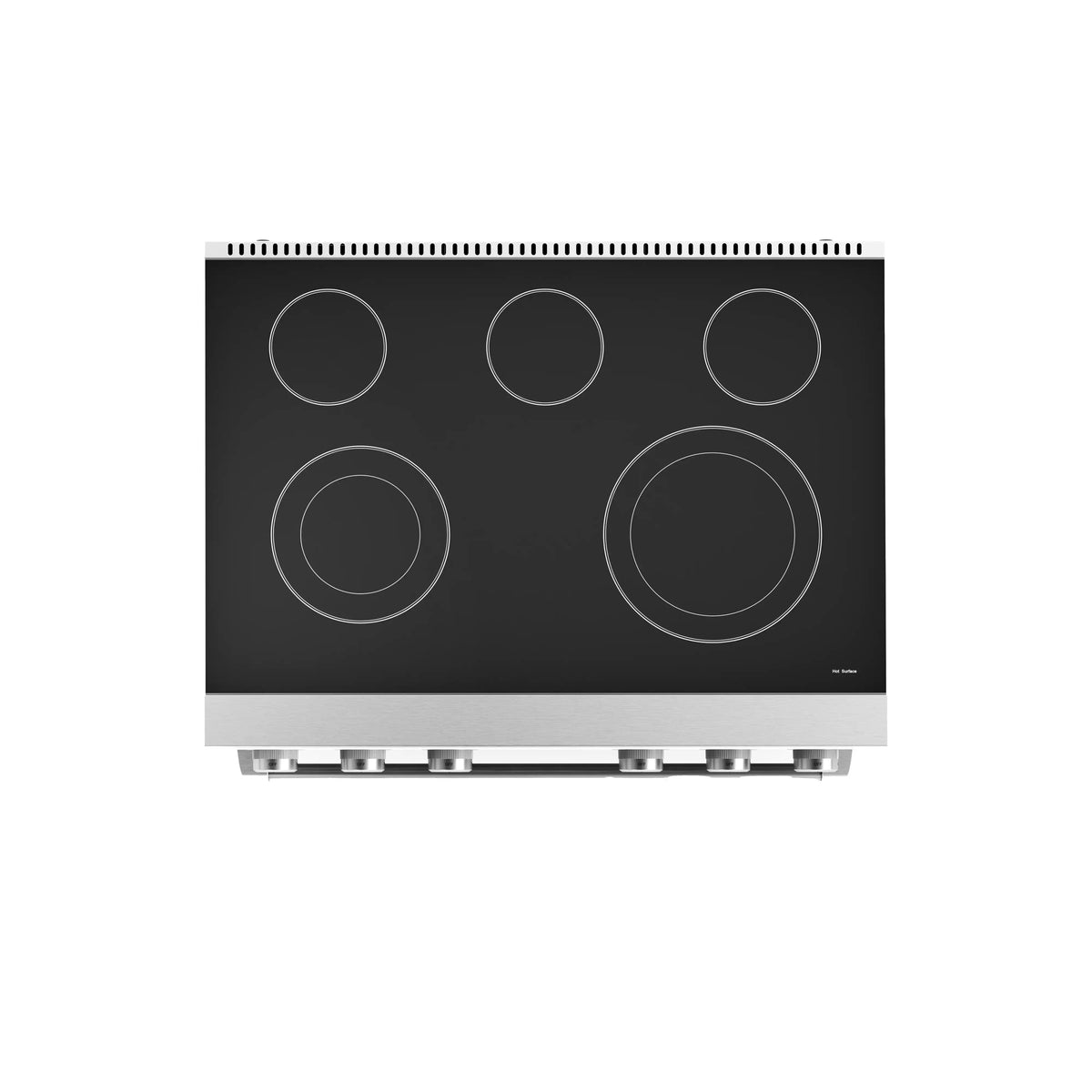

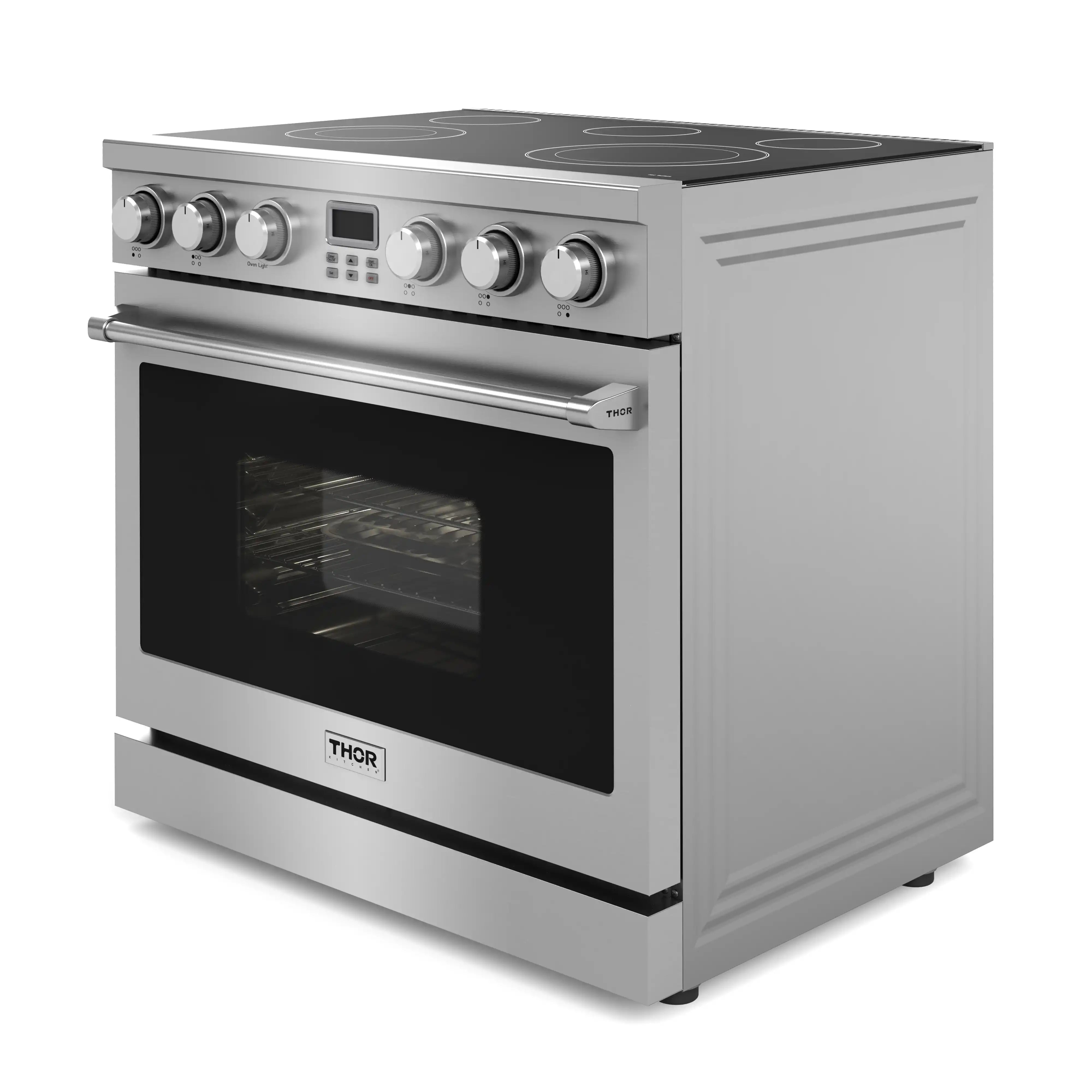

- Five Heating Elements - Five element cooktop gives you the ultimate cooking flexibility with a powerful radiant cooktop. From a 1200W single burner to a high-powered 3,000W dual heating element, this range gives you the power to master any meal.

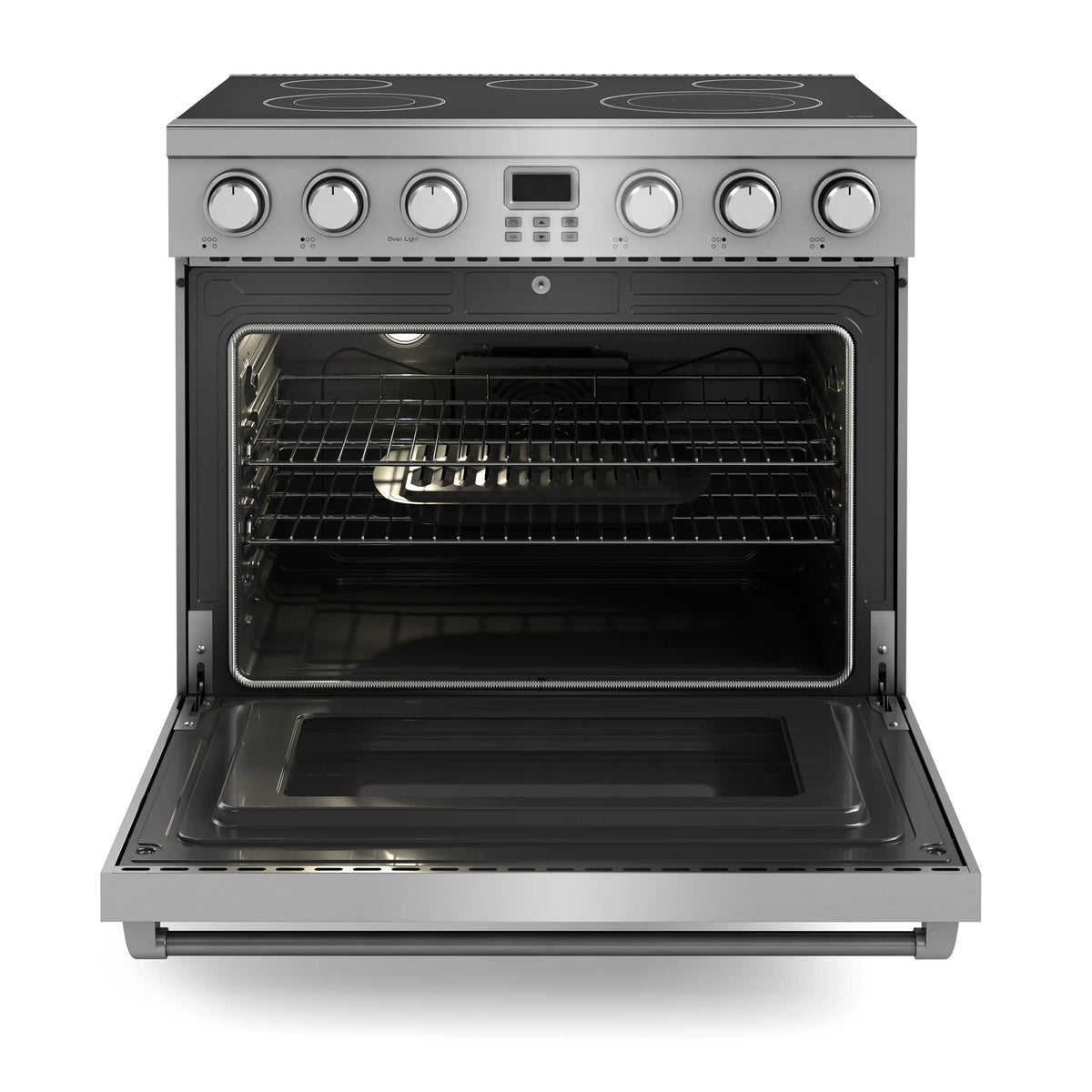

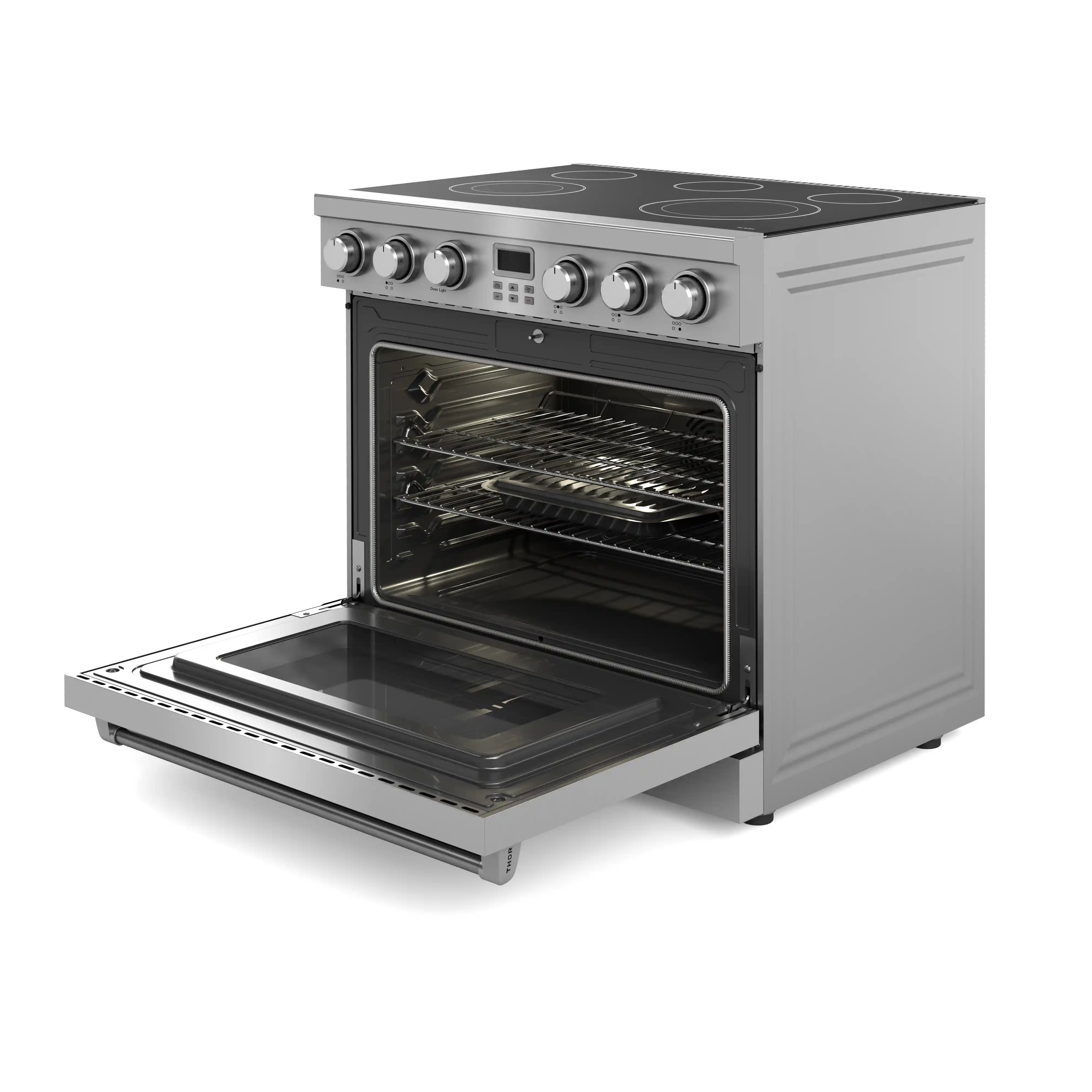

- Large Oven Capacity - 6.0 cu. ft. oven capacity can accommodate multiple dishes for enhanced cooking.
- Black Glass Top - Black glass top catches the mess and makes cleanup easy.
- High speed convection fan - High speed convection fan provides controlled heat distribution for fast and efficient cooking.
- Led Display Screen - LED display screen, oven function button operation.
Want to learn more about Thor?
- Product Width
- 35 7/8 in.
- Product Height (from bottom to top of back splash)
- 36 1/12 - 40 1/12 in.
- Product Height (from bottom to top of side panel)
- 36 - 39 in.
- Product Depth (from back panel to bullnose)
- 26 7/8 in
- Product Depth (from back panel to control board)
- 26 1/4 in.
- Product Depth (from back panel to side panel front)
- 24 in.
- Oven (W x D x H)
- 29.7 in. x 19.4 in. x 18 in.
- Baking Sheet Size
- Fits up to 28" x 14" Sheet
- Color
- Silver
- Finish
- Stainless Steel
- Control Type
- Oven Function Button + LED
- Fuel Type
- Electric
- Installation Type
- Freestanding
- Voltage
- 240V 50A
- Frequency(Hz)
- 60Hz
- Plug Type
- 4-Prong 14-50R (Not Included)
- Lower Heater Power
- 3,000W
- Top Heater Power
- 3,500W
- Hot Surface Indicator Light
- Front Right Corner Of Cooktop w/Temp At 150˚F
- Oven Capacity
- 6.0 cu. ft
- Oven Color
- Black
- Oven Features
- Bake
- Broil
- Conv Bake/Roast
- Pizza
- Keep Warm
- Oven Control Buttons
- Start/Ok, Timer On/Off
- Convection
- Convection Fan
- Oven Light
- 1*40W, Rear
- Oven Racks
- 2
- Rack Positions 6
- 6
- Oven Rack Material
- Chrome Plated

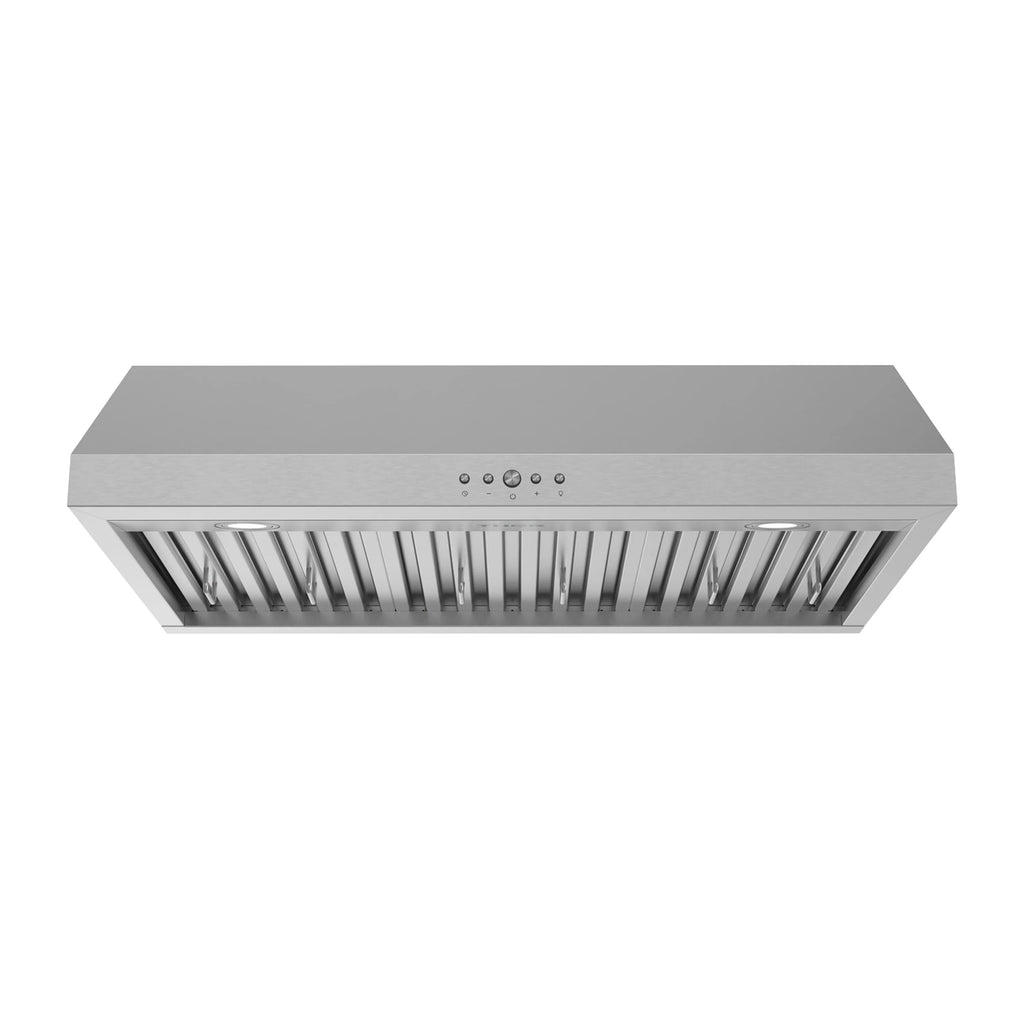

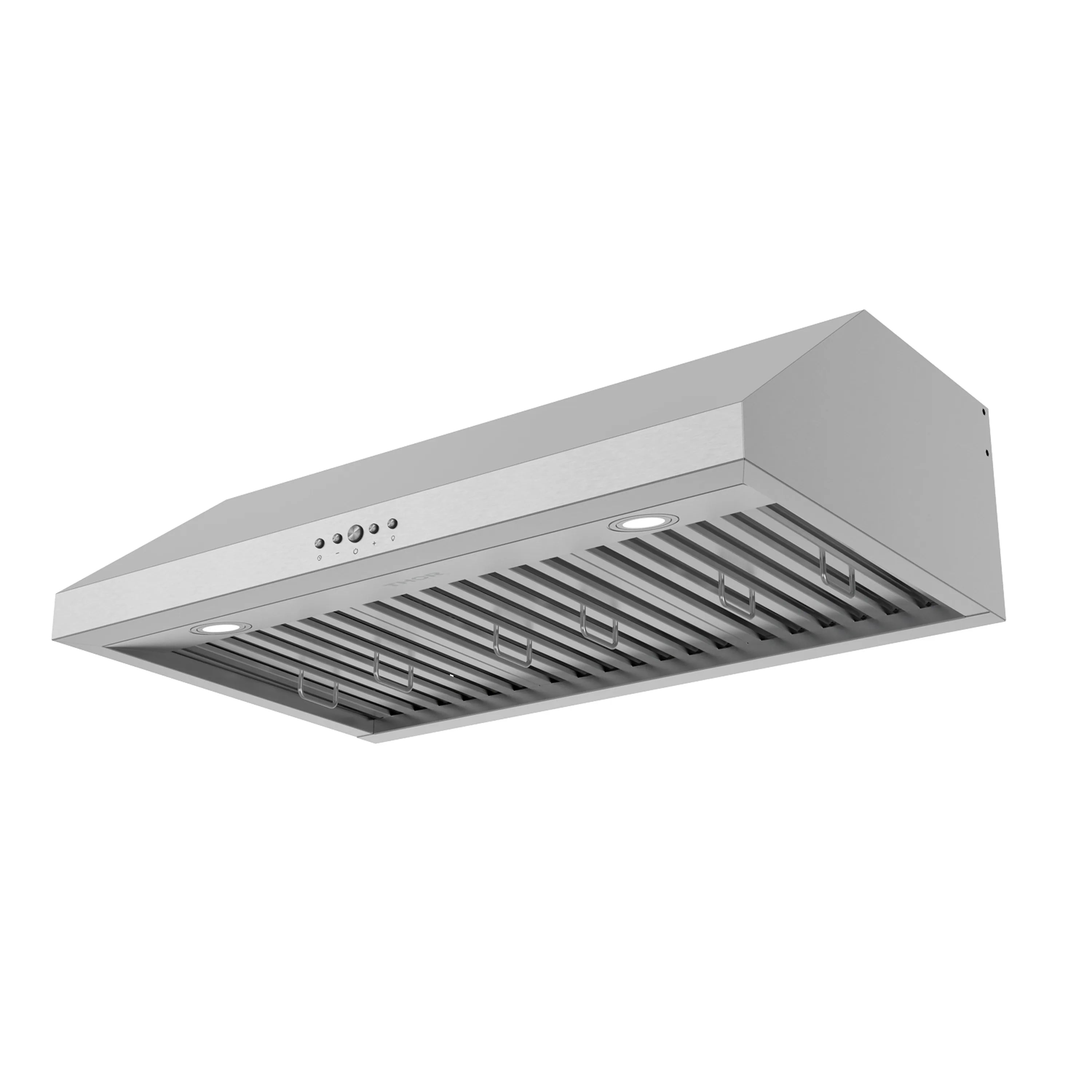

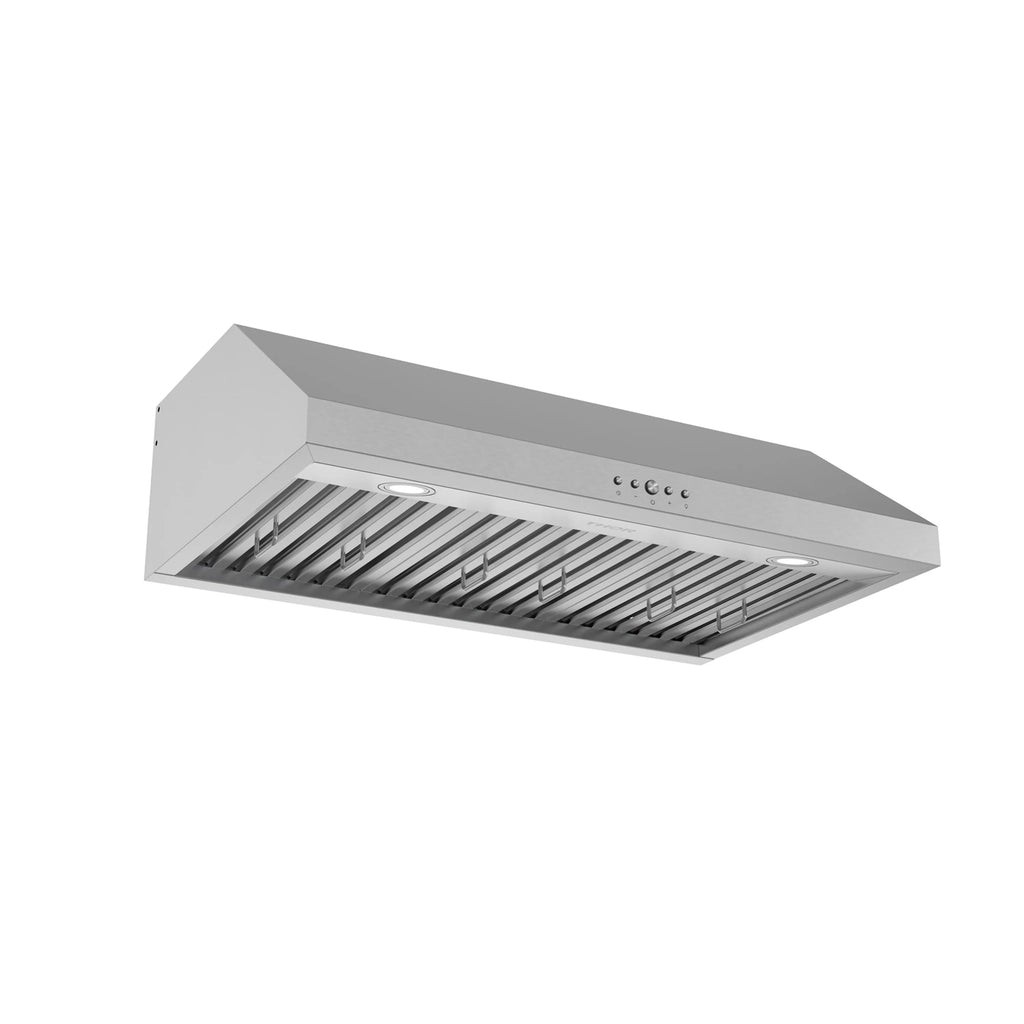

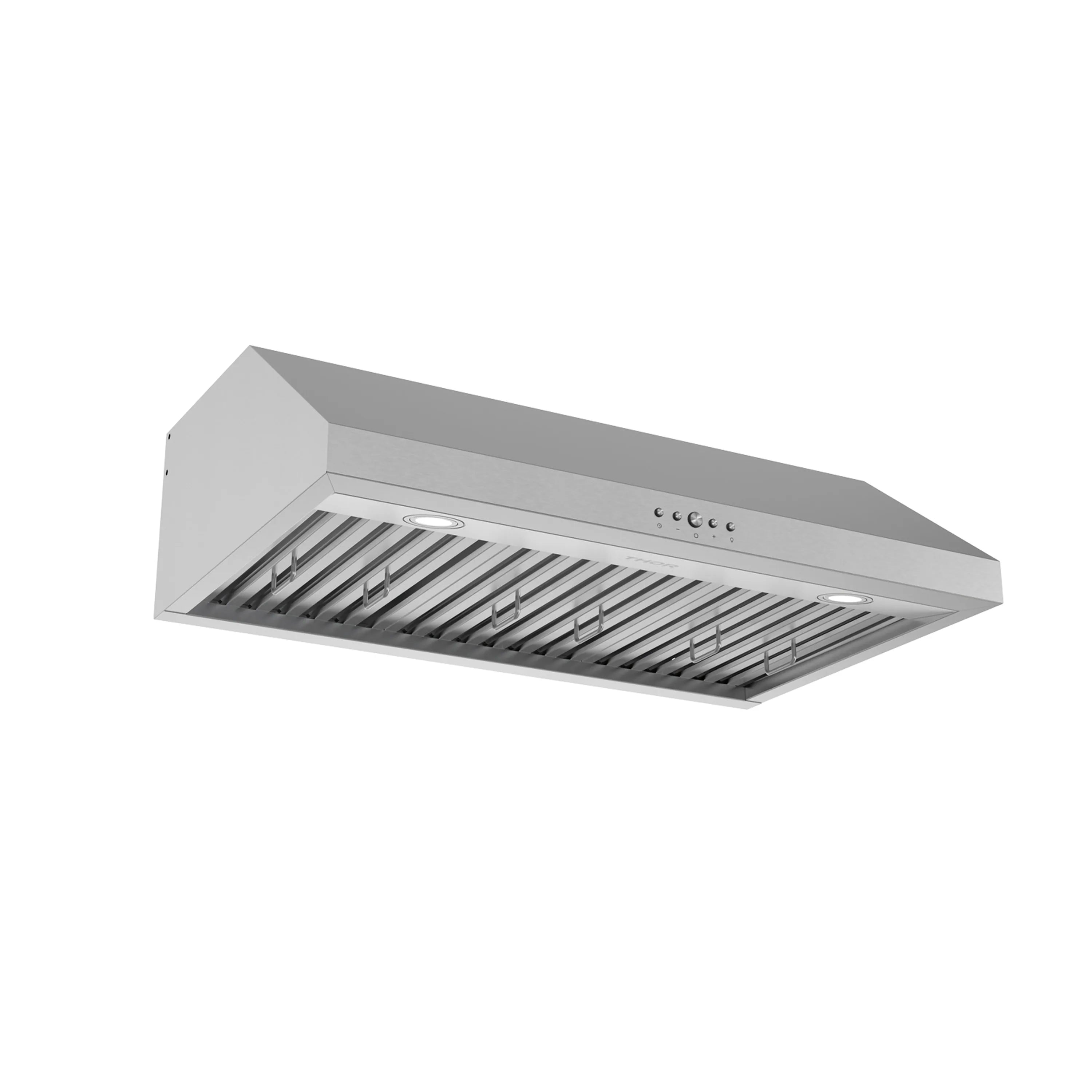

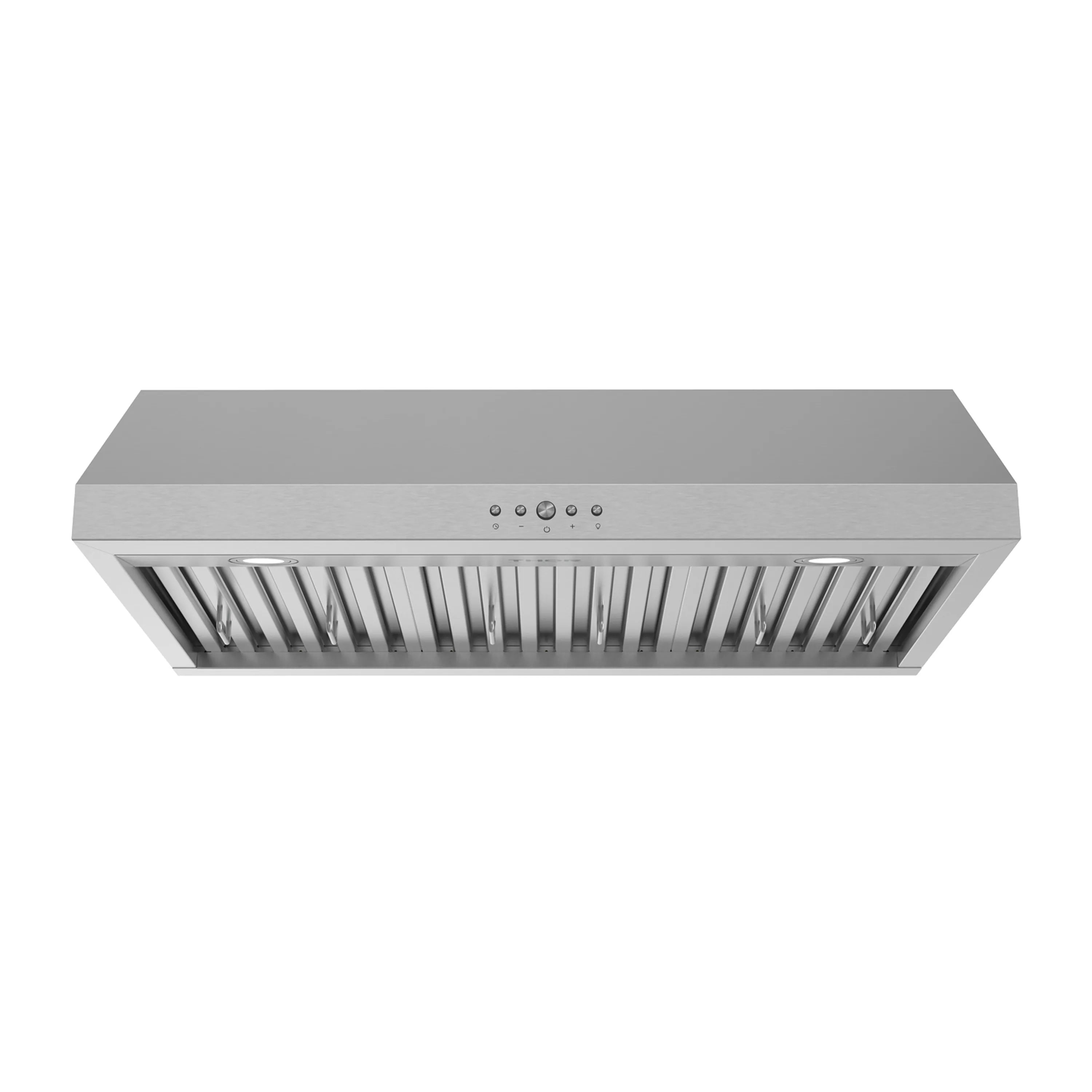

Thor Kitchen 36 Inch Under Mounted Range Hood with powerful 480 CFM ventilation delivers commanding performance and refined style to elevate your everyday cooking. Finished in durable stainless steel, it offers a sleek, modern aesthetic while providing the strength and reliability your kitchen demands.
The robust 480 CFM airflow efficiently eliminates smoke, steam, and lingering odors, and with three adjustable fan speeds, you can tailor ventilation to everything from low simmers to high-heat culinary creations. Designed for versatility, this convertible unit supports both ducted and ductless installation to fit seamlessly into your space. Easy push button controls ensure effortless operation, while bright, energy-saving LED lights cast clear illumination across your cooktop.
Complete with dishwasher-safe baffle filters for effortless cleaning and enduring performance, this under mounted range hood fuels your passion for bold flavors and fearless creativity in every dish.
Features
- Durable Stainless Steel Finish: Provides a sleek, modern look that complements any kitchen style while ensuring long-lasting strength and quality.
- Efficient 480 CFM Ventilation: Provides effective airflow to manage everyday cooking smoke, steam, and odors.
- Dual Installation Options (Ducted or Ductless): Convertible ducted or ductless installation for flexible setup

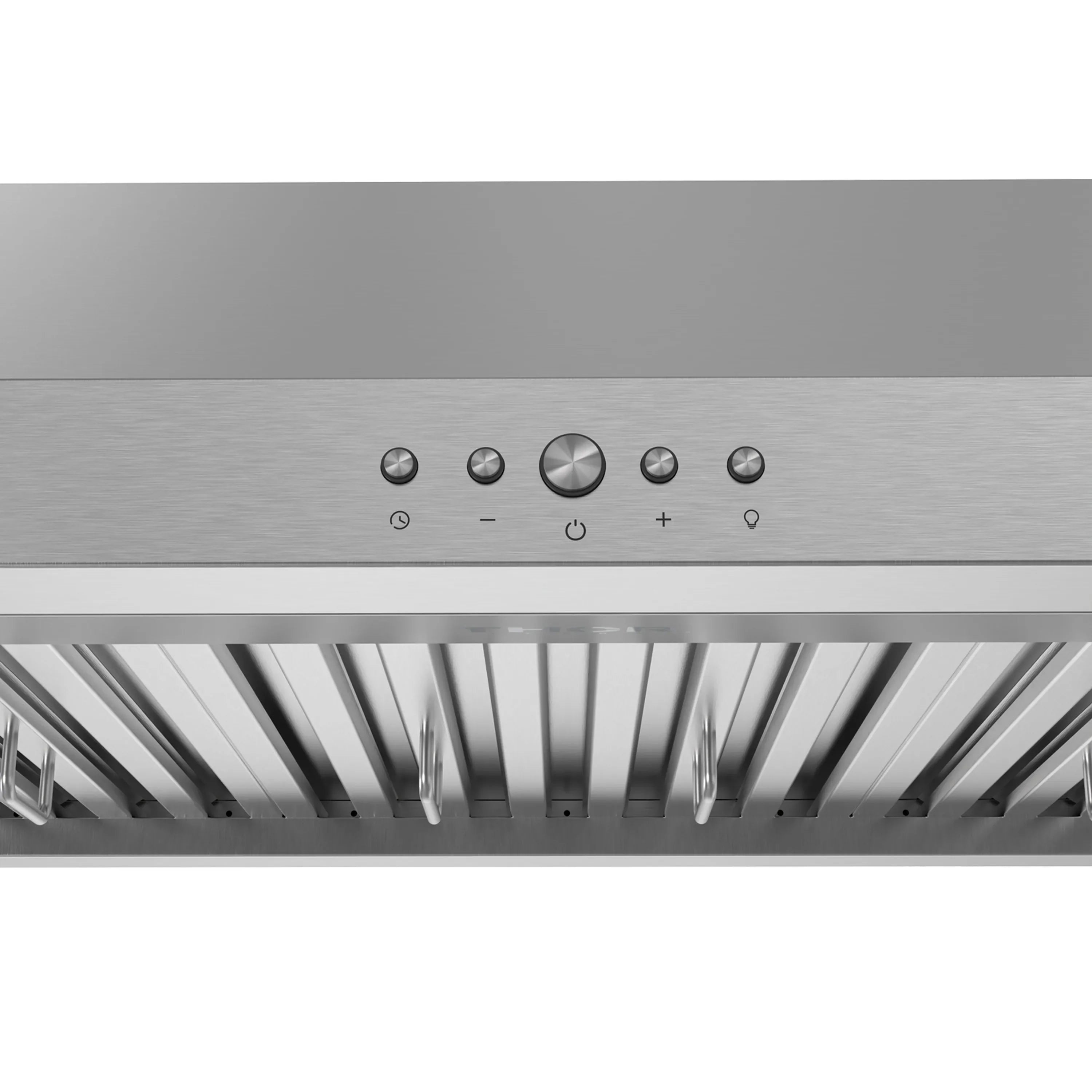

- Easy Push Button Controls: Simple mechanical buttons for hassle free operation

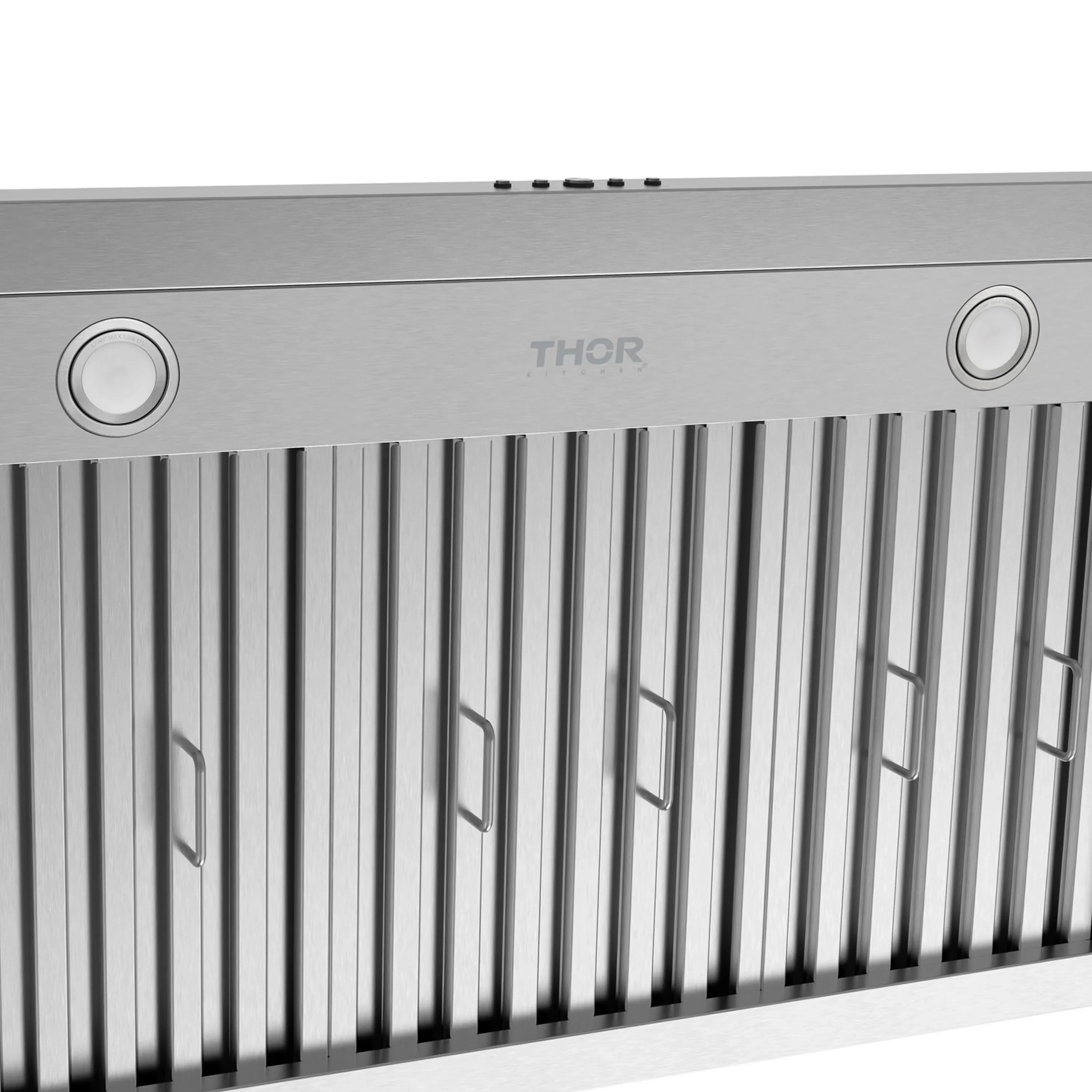

- Bright, Energy-Saving LED Lights: Illuminates the cooking surface clearly while minimizing energy use.

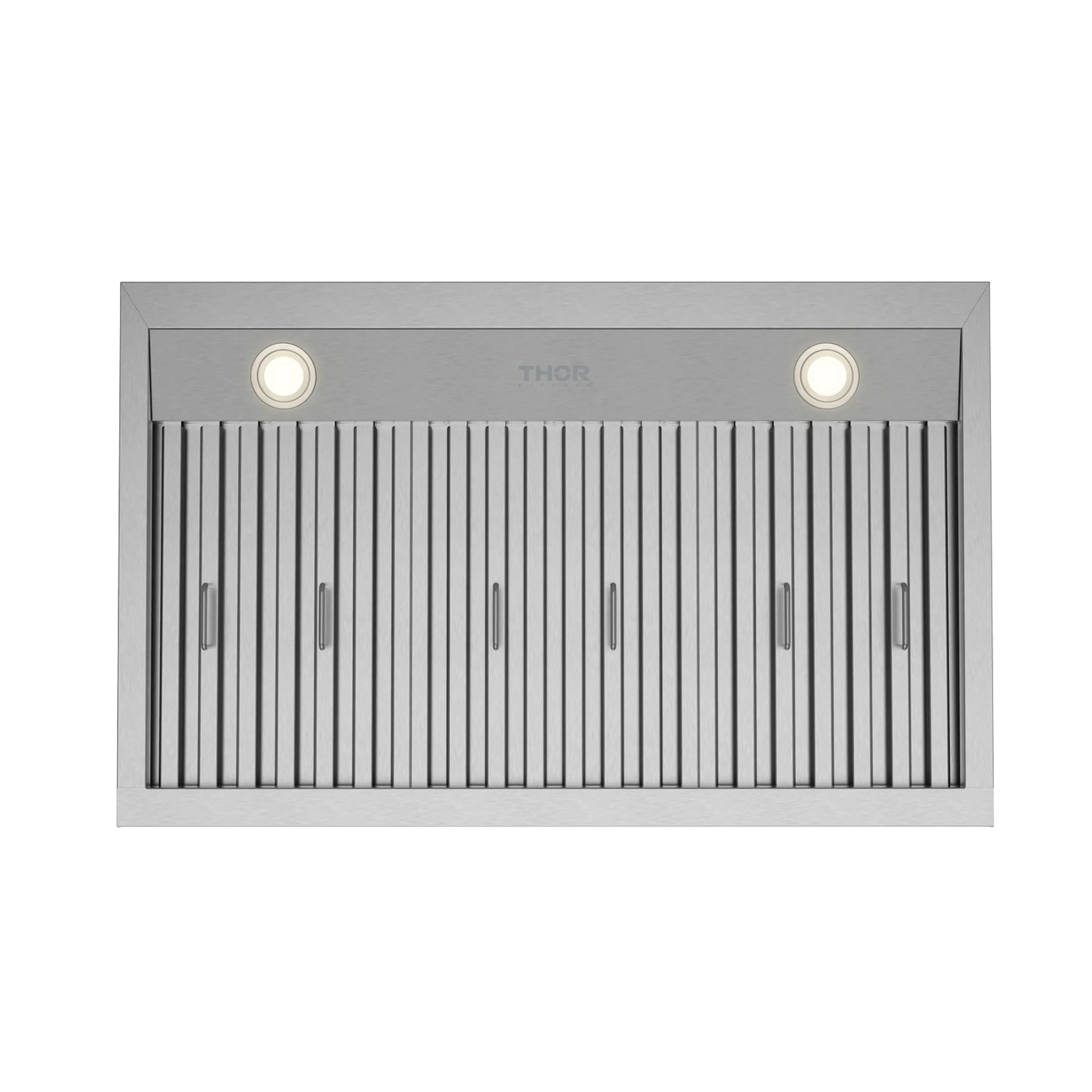

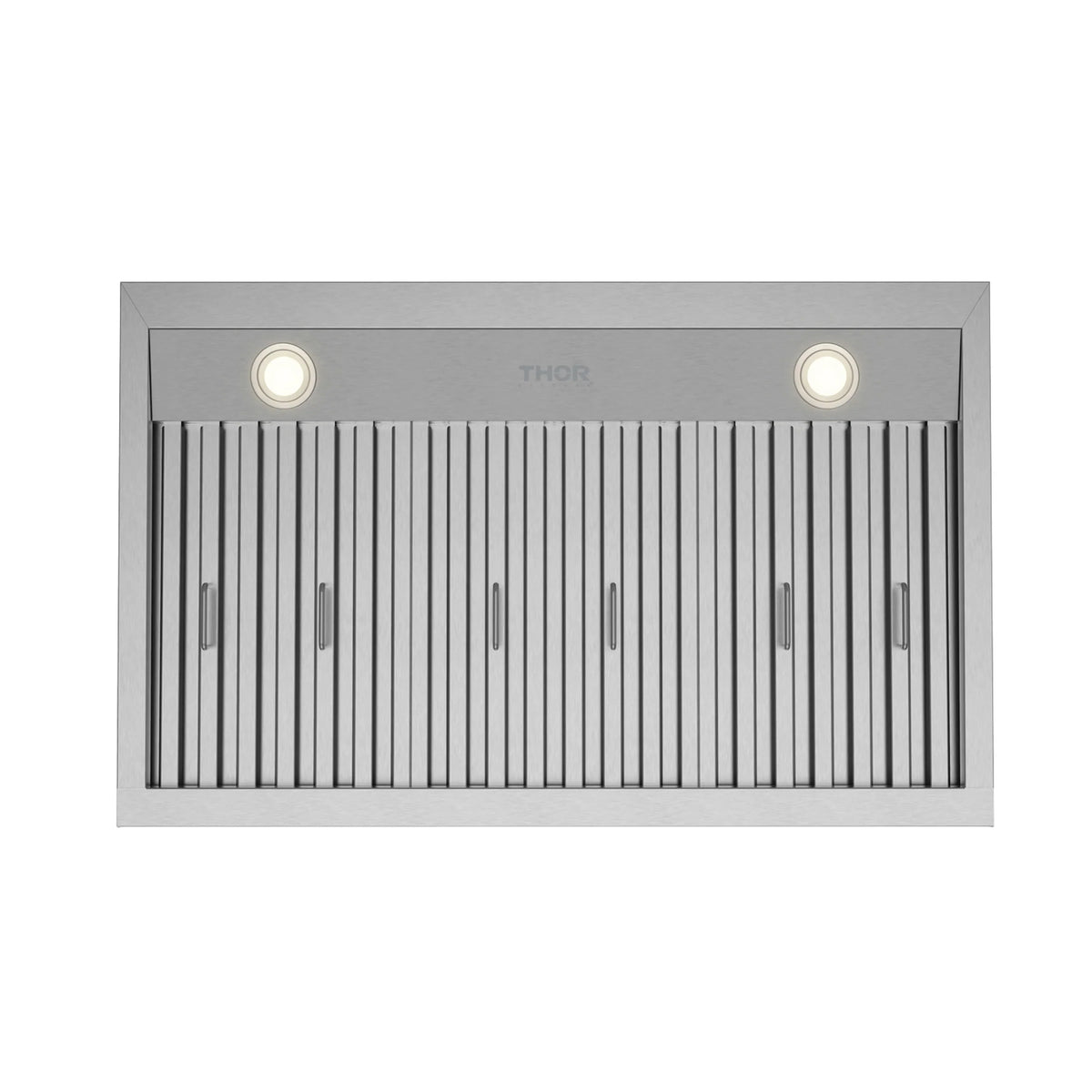

- Dishwasher-safe Baffle Filters: Removable filters trap grease and are easy to clean for long-lasting performance.
-
Three-Speed Fan Settings: Adjustable airflow to suit light simmering
or more intensive cooking.
- Product Dimensions (WxDxH) (in.)
- 35-1/4" × 22-1/16" × 10-1/2"
- Cutout Dimensions (WxDxH) (in.)
- 35-3/8" × 22-1/4" × 10-11/16"
- Package Dimensions (WxDxH) (in.)
- 38-3/16" × 16-1/8" × 26"
- Net Weight (lbs.)
- 51.8
- Gross Weight (lbs.)
- 59.3
- Package Weight (lbs.)
- 7.5
- Brand
- Thor Kitchen
- Model Number
- TUH3648
- Shape/Style
- Canopy Pro Style
- Mounting Type
- Undercabinet
- Mounting Brackets
- Yes
- Color/Finish
- Stainless Steel
- Control Type
- Button
- Delay Function
- Yes (5 mins)
- Product Name
- 36 Inch Under Mounted Range Hood with 480 CFM
- Volts (V)
- 120V
- Frequency (Hz)
- 60Hz
- Watts (W)
- 263W
- Amperage (Dedicated)
- 15A
- Plug Type
- US 3-Prong Plug
- Power Cord Length
- 39-3/8"
- Number of Speeds
- 3
- CFM at Low / Medium / High
- 331 / 387 / 480
- Noise Level
- 3
- Noise Rating at Low / Medium / High (dB)
- 58 / 61 / 64
- Ducted / Recirculating Convertible
- Yes

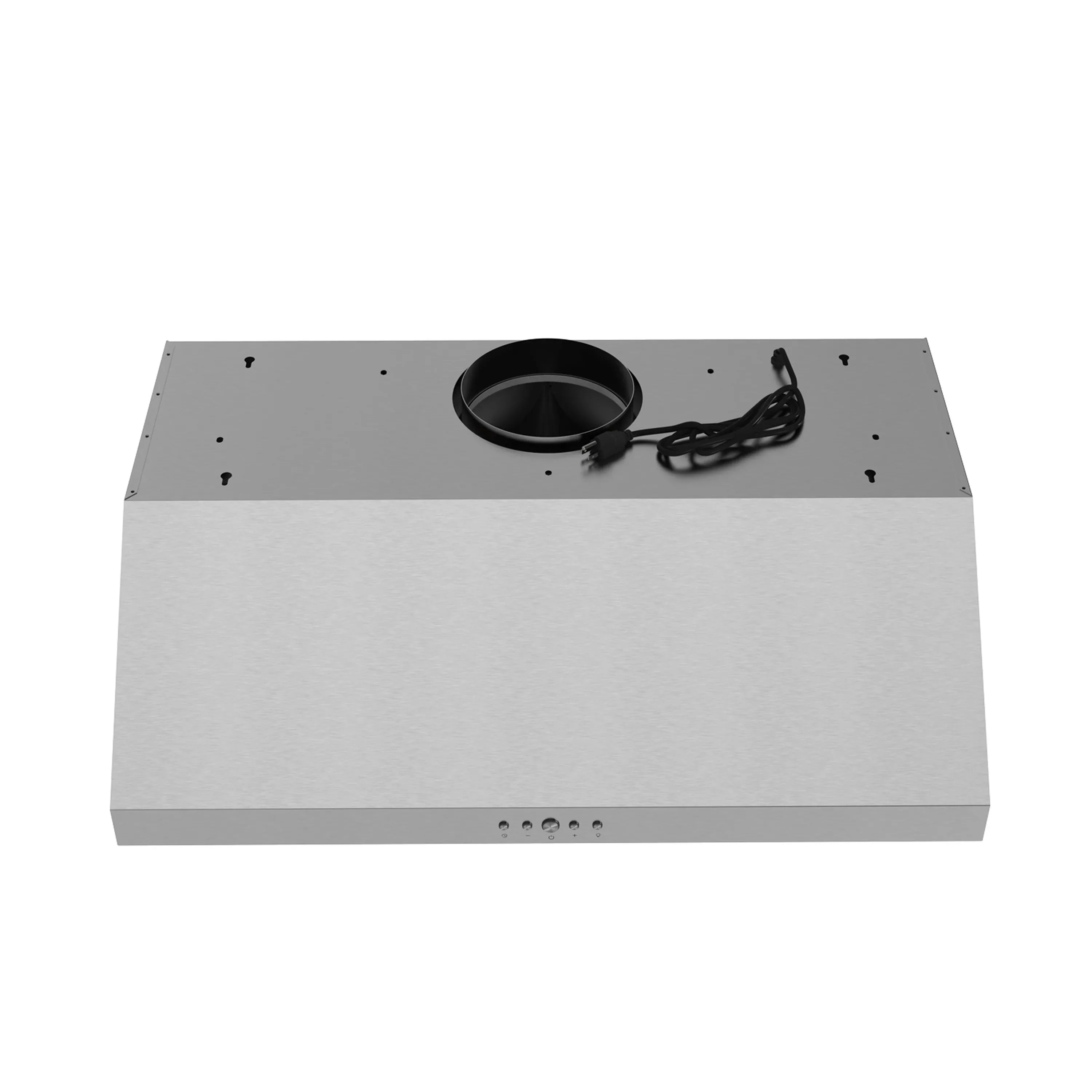

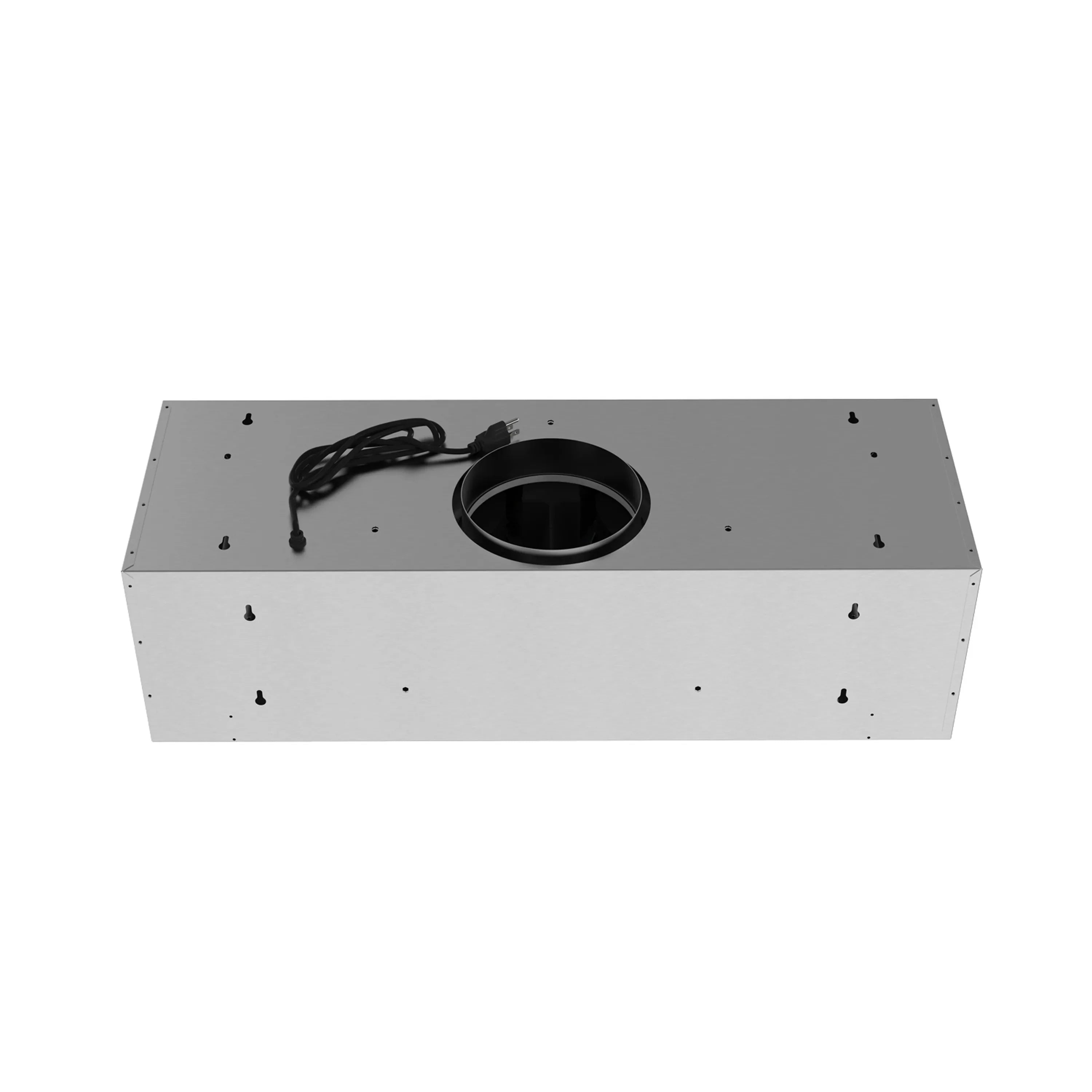

- Duct Size
- 7-11/16"
- Duct Type
- Round
- Filter Type
- Baffle Filter
- Filter Quantity
- 3
- Dishwasher Safe
- Yes

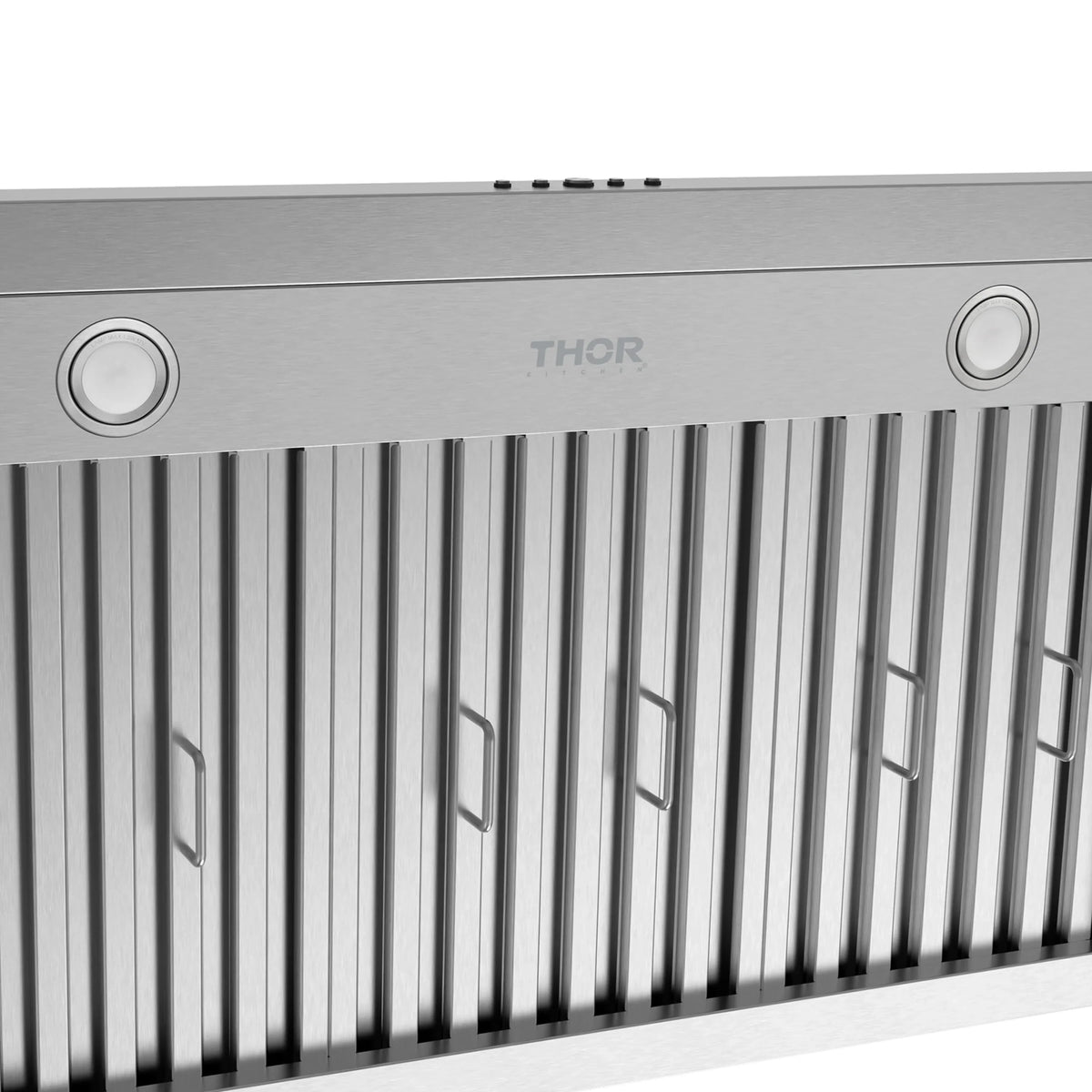

- Lighting
- 2 × 1.5W Warm White LED
- Minimum Distance Above Gas Cooking Surface
- 30"
- Minimum Distance Above Electric Cooking Surface
- 28"
- Aluminum Pipe
- Sold Separately
- ETL Listed
- Yes (US)
- Warranty
- 2 Years Parts and Labor
