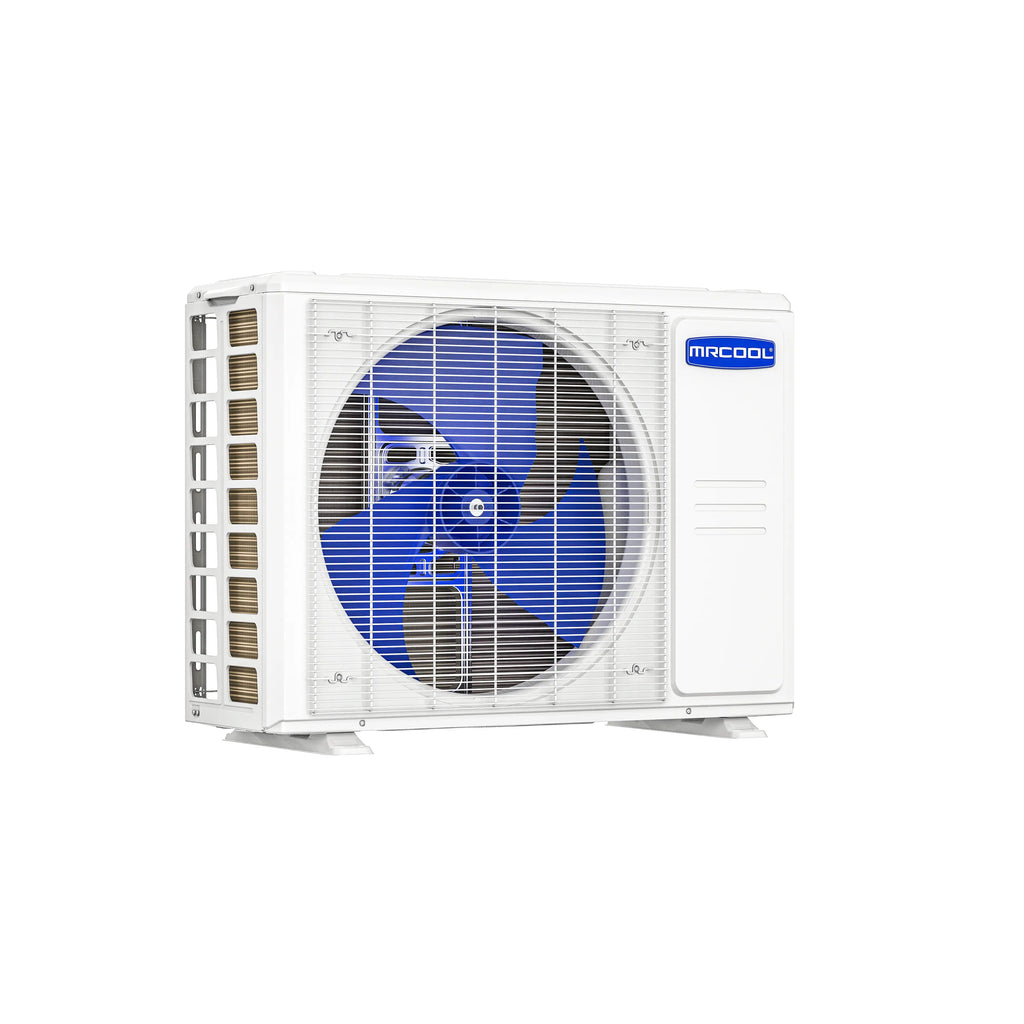

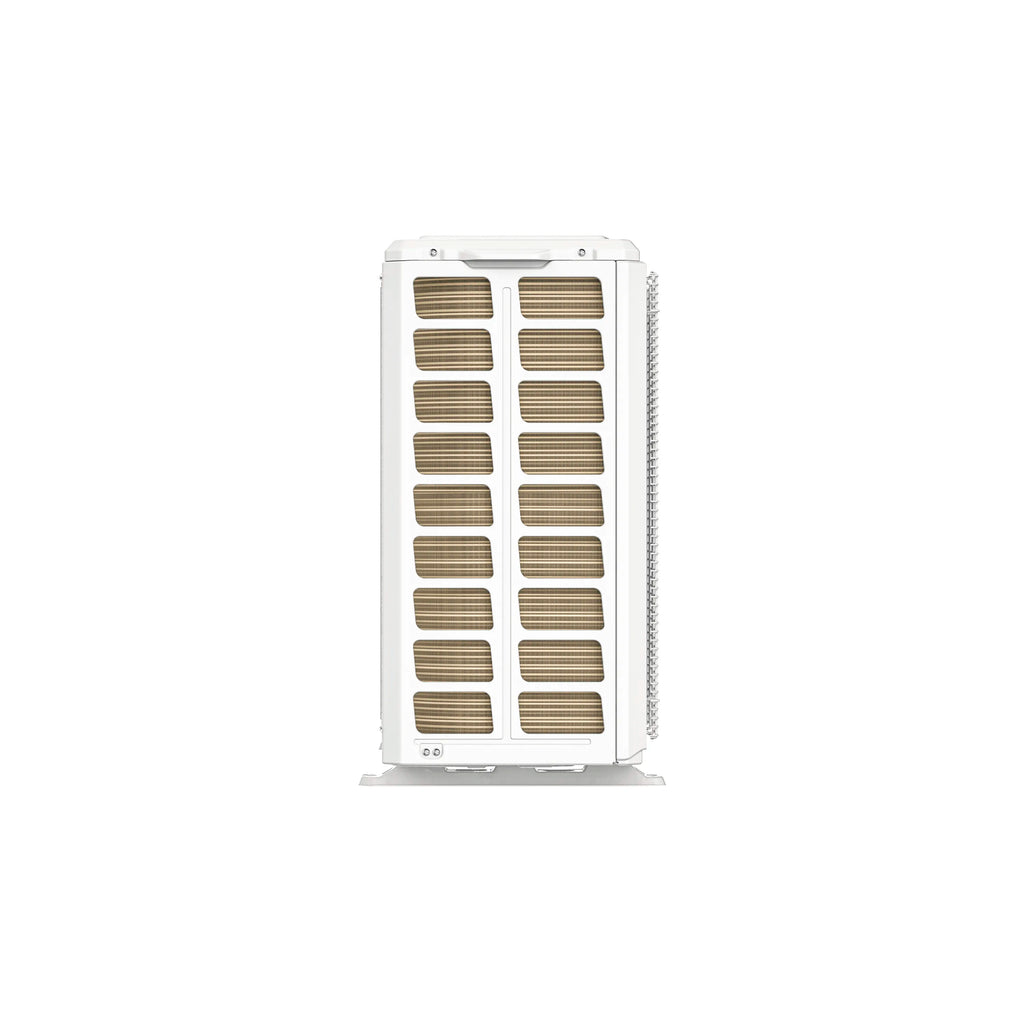

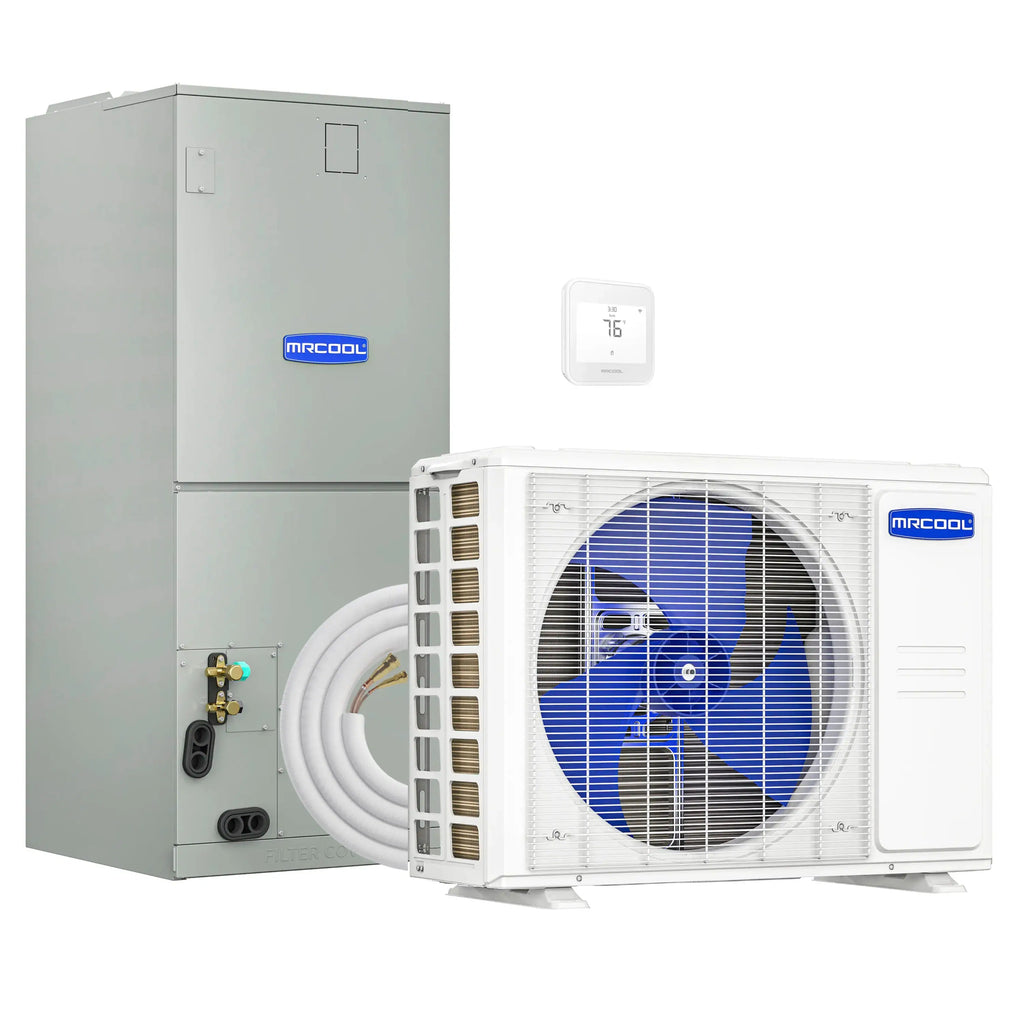

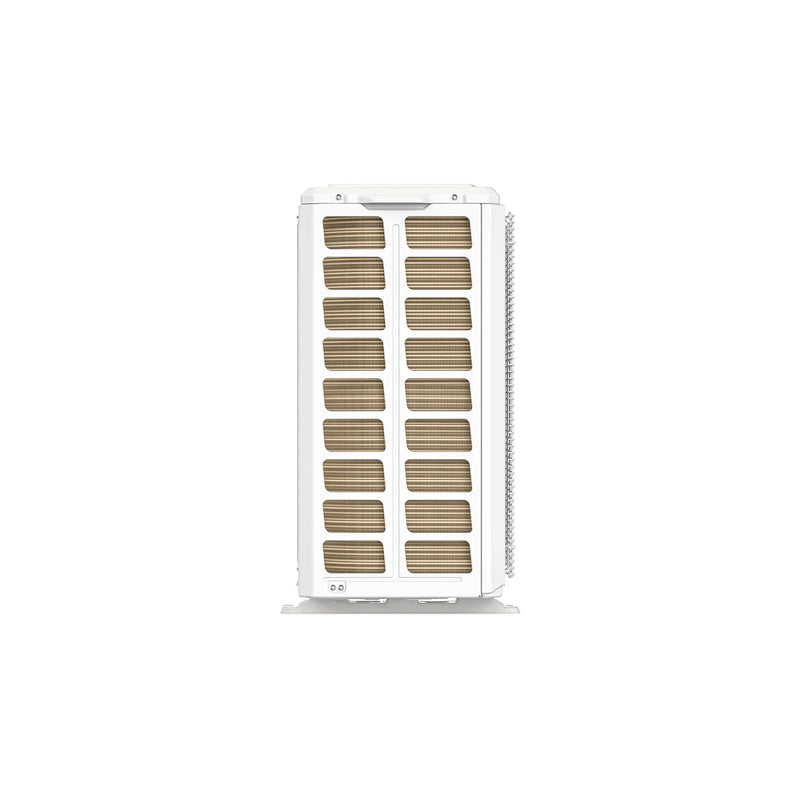

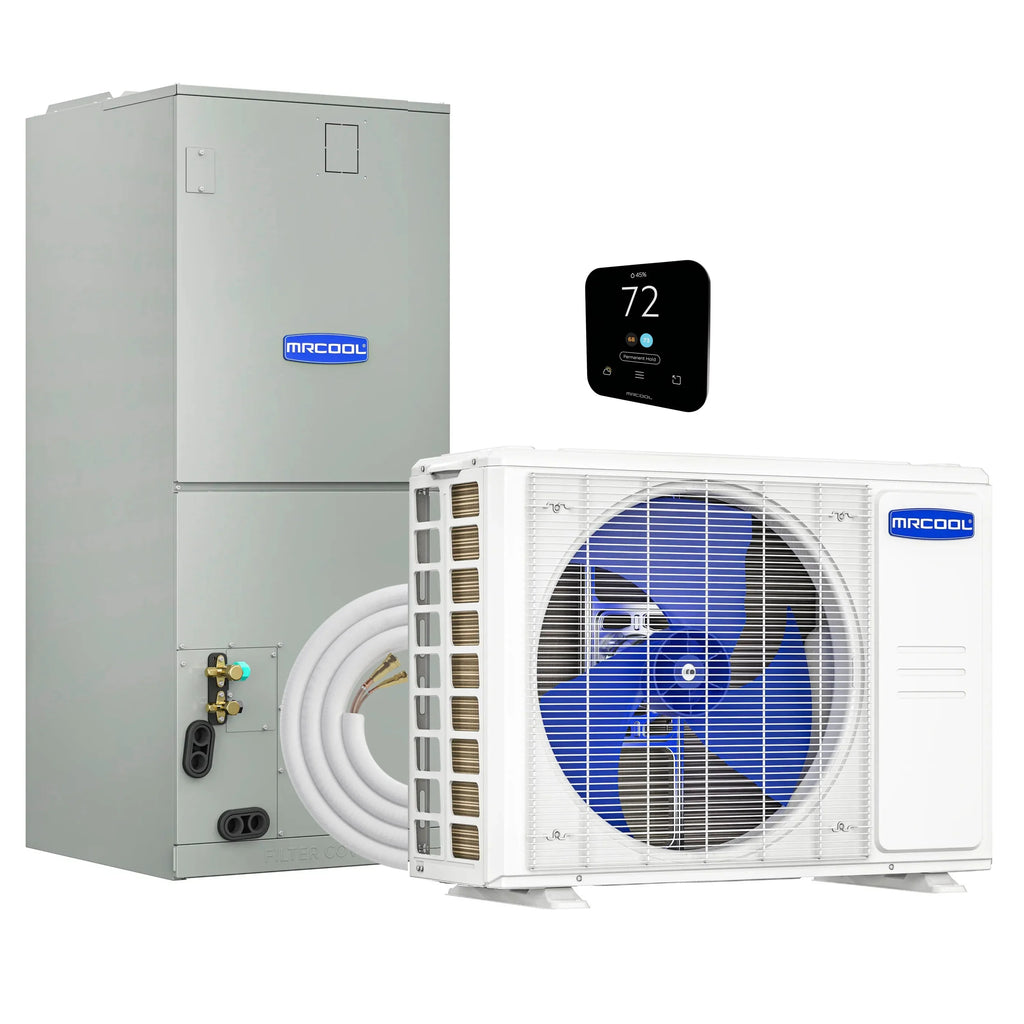

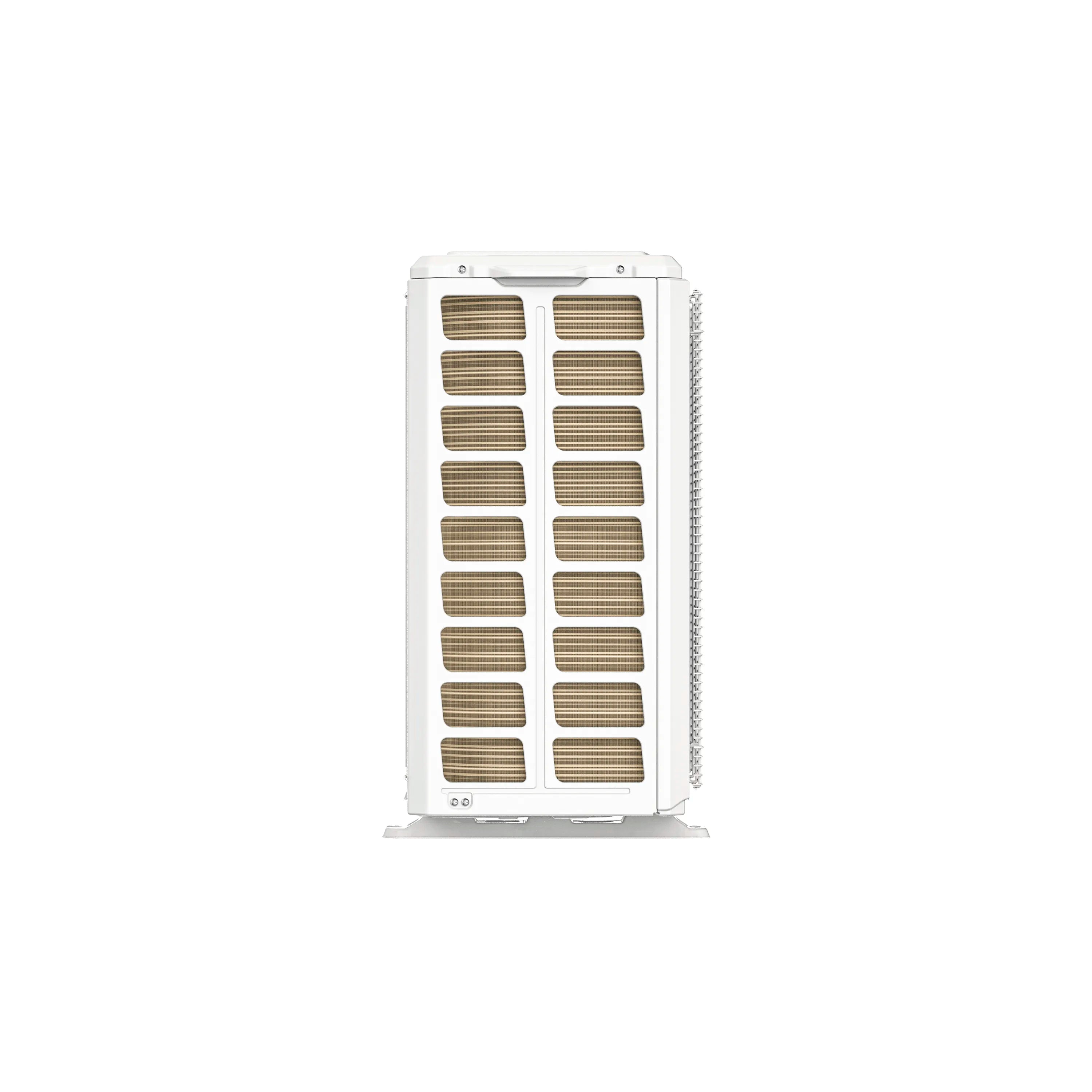

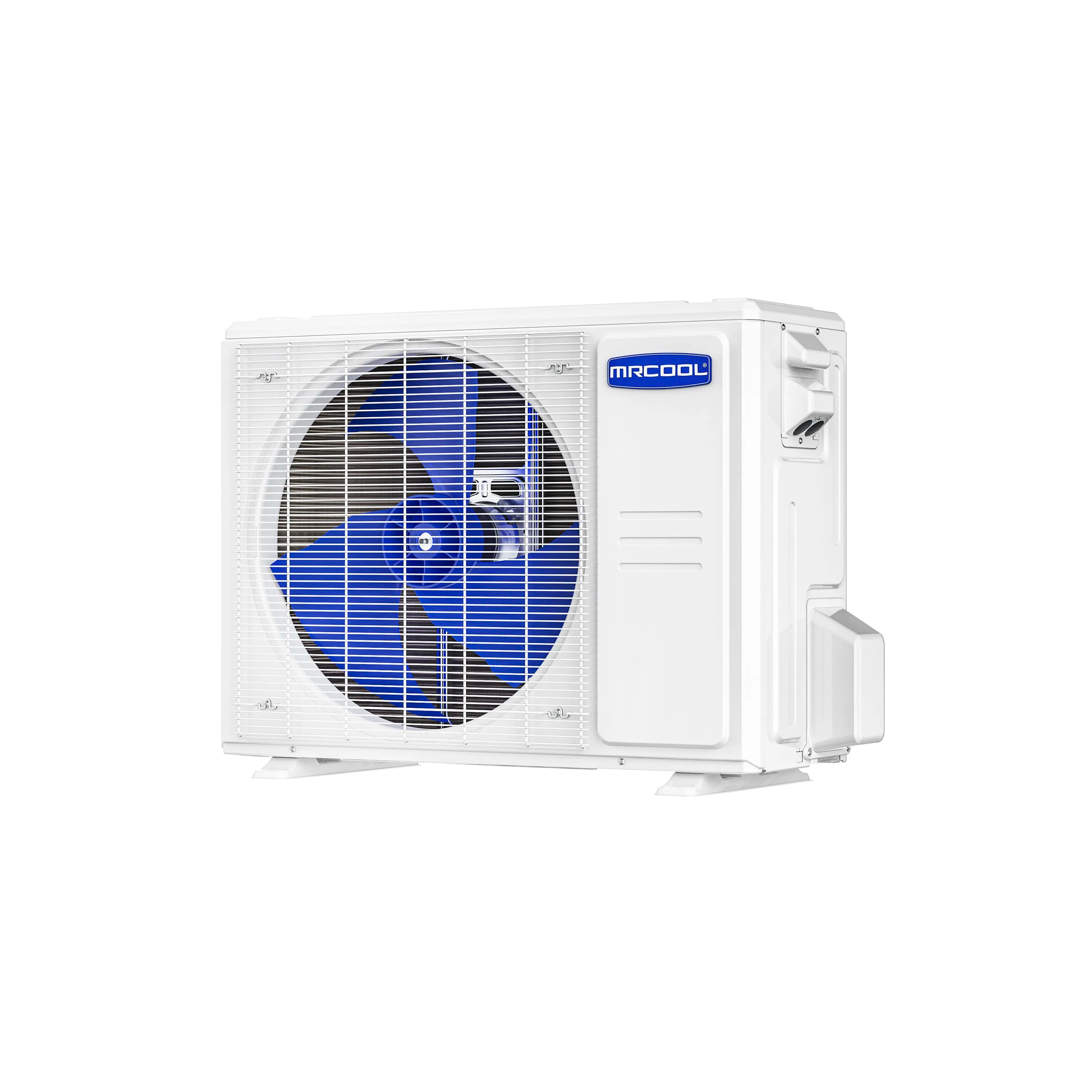

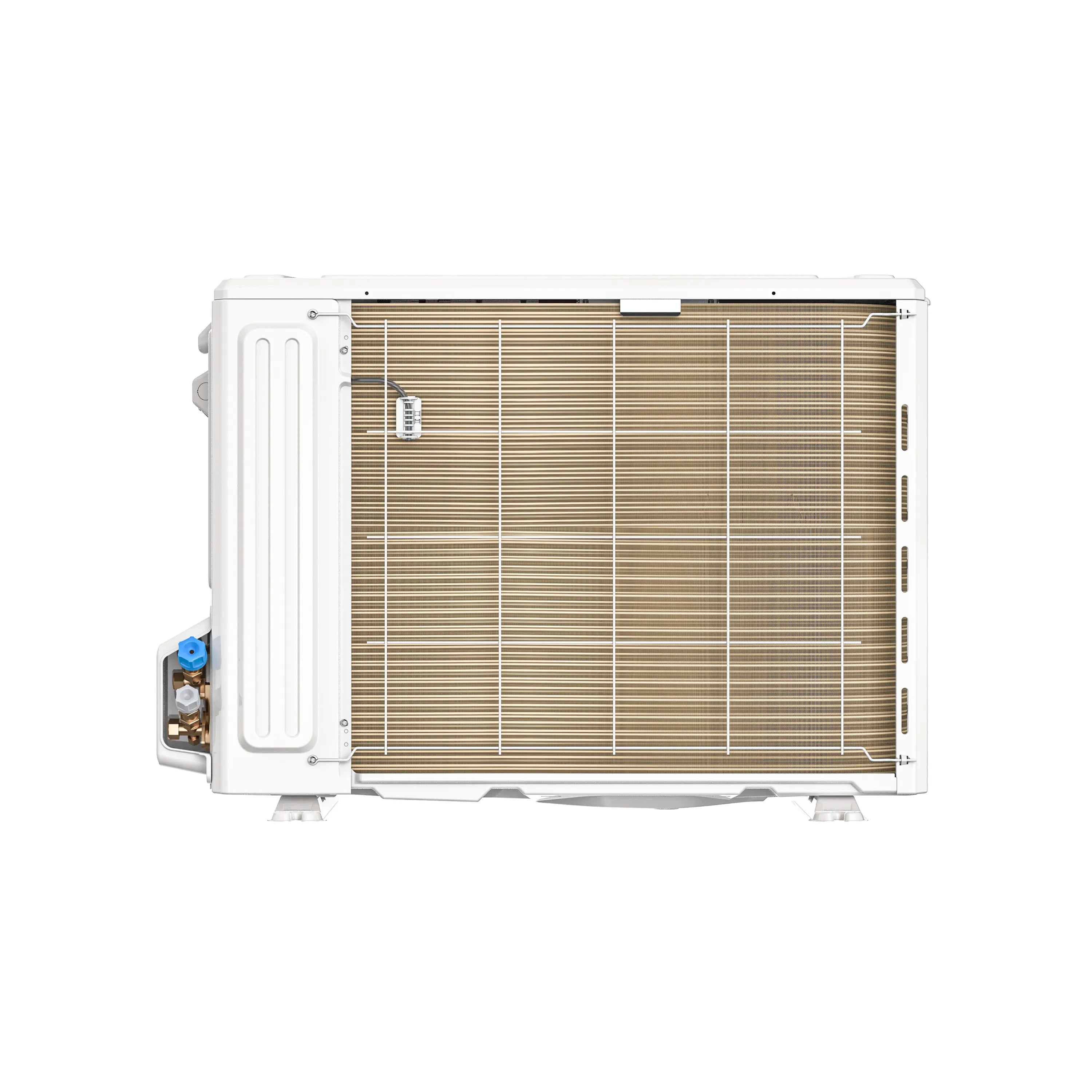

Designed for consistent heating and cooling, the 5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser provides comfort and efficiency throughout every season. This advanced 60k variable-speed unit features a SEER2 rating of 15.2 and an HSPF4 rating of 8.4, delivering reliable heating and cooling without excessive energy use. Paired with the MRCOOL® Central Ducted Air Handler, it forms a high-quality system tailored to your home’s specific needs. The DC inverter technology ensures smooth, quiet operation while helping to control utility costs, making it an ideal upgrade for older systems. With the included MRCOOL® Smart thermostat and wireless remote, you can adjust the temperature effortlessly, right at your fingertips.
The VersaPro® condenser also prioritizes sustainability with its use of eco-friendly R-454B refrigerant. Built to last, it features a durable painted galvanized steel construction and a compact side-discharge design that simplifies installation in smaller spaces. Maintenance is straightforward thanks to integrated self-diagnostics that help quickly identify issues. For added peace of mind, the 5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser is backed by a 10-year warranty covering the compressor and parts. This ensures long-term reliability and protects your investment. Upgrade your HVAC system today and enjoy consistent, dependable comfort in every season.
Designed for consistent heating and cooling, the 5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser provides comfort and efficiency throughout every season. This advanced 60k variable-speed unit features a SEER2 rating of 15.2 and an HSPF4 rating of 8.4, delivering reliable heating and cooling without excessive energy use. Paired with the MRCOOL® VersaPro® Central Ducted Air Handler, it forms a high-quality system tailored to your home’s specific needs. The DC inverter technology ensures smooth, quiet operation while helping to control utility costs, making it an ideal upgrade for older systems. With the included MRCOOL® Smart thermostat, you can adjust the temperature effortlessly, right at your fingertips.
The VersaPro® condenser also prioritizes sustainability with its use of eco-friendly R-454B refrigerant. Built to last, it features a durable painted galvanized steel construction and a compact side-discharge design that simplifies installation in smaller spaces. Maintenance is straightforward thanks to integrated self-diagnostics that help quickly identify issues. For added peace of mind, the 5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser is backed by a 10-year warranty covering the compressor and parts. This ensures long-term reliability and protects your investment. Upgrade your HVAC system today and enjoy consistent, dependable comfort in every season.
|
Dimensions |
16.34" D x 38.39" H x 38.58" W |
|
SEER2 |
15.2 |
|
EER2 |
8.6 |
|
HSPF-4 |
8.4 |
|
HSPF-5 |
6.8 |
|
CFM |
3037.1 |
|
Tonnage |
5 |
|
Cooling Capacity (BTU) |
54000 |
|
Heating Capacity (BTU) |
54000 |
|
Voltage (V) |
208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
40 |
|
Min Circuit Ampacity (A) |
39 |
|
Color |
gray |
|
Refrigerant Type |
R454B |
|
Refrigerant Volume (Oz) |
134.04 |
|
Decibel Rating (Dba) |
65 |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
3/4 |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
ETL Certified |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Base Parts Warranty |
10 Years |
|
Base Compressor Warranty |
10 Years |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Compresed Gas |
Yes |
|
Gross Depth (In) |
19.68 |
|
Gross Height (In) |
42.52 |
|
Gross Width (In) |
45.08 |
|
Gross Weight (Lbs) |
224.21 |

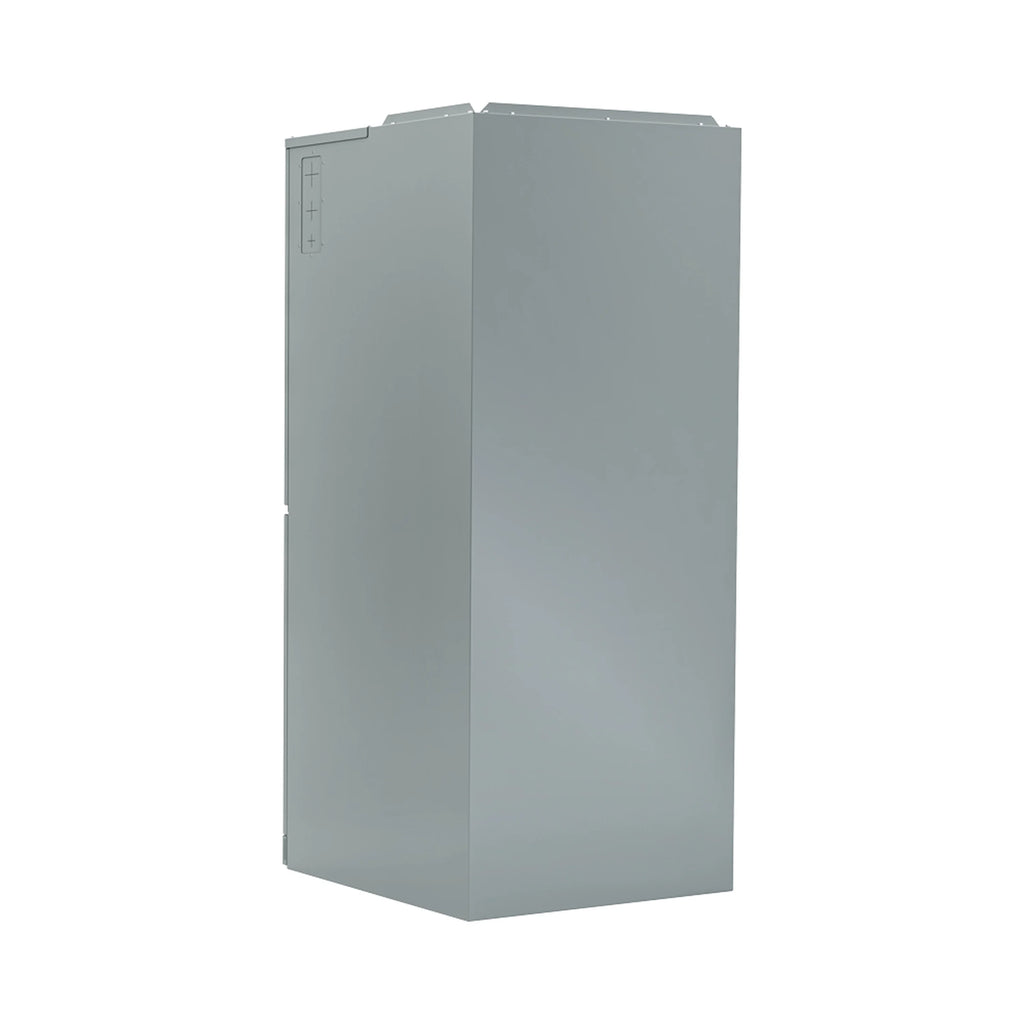

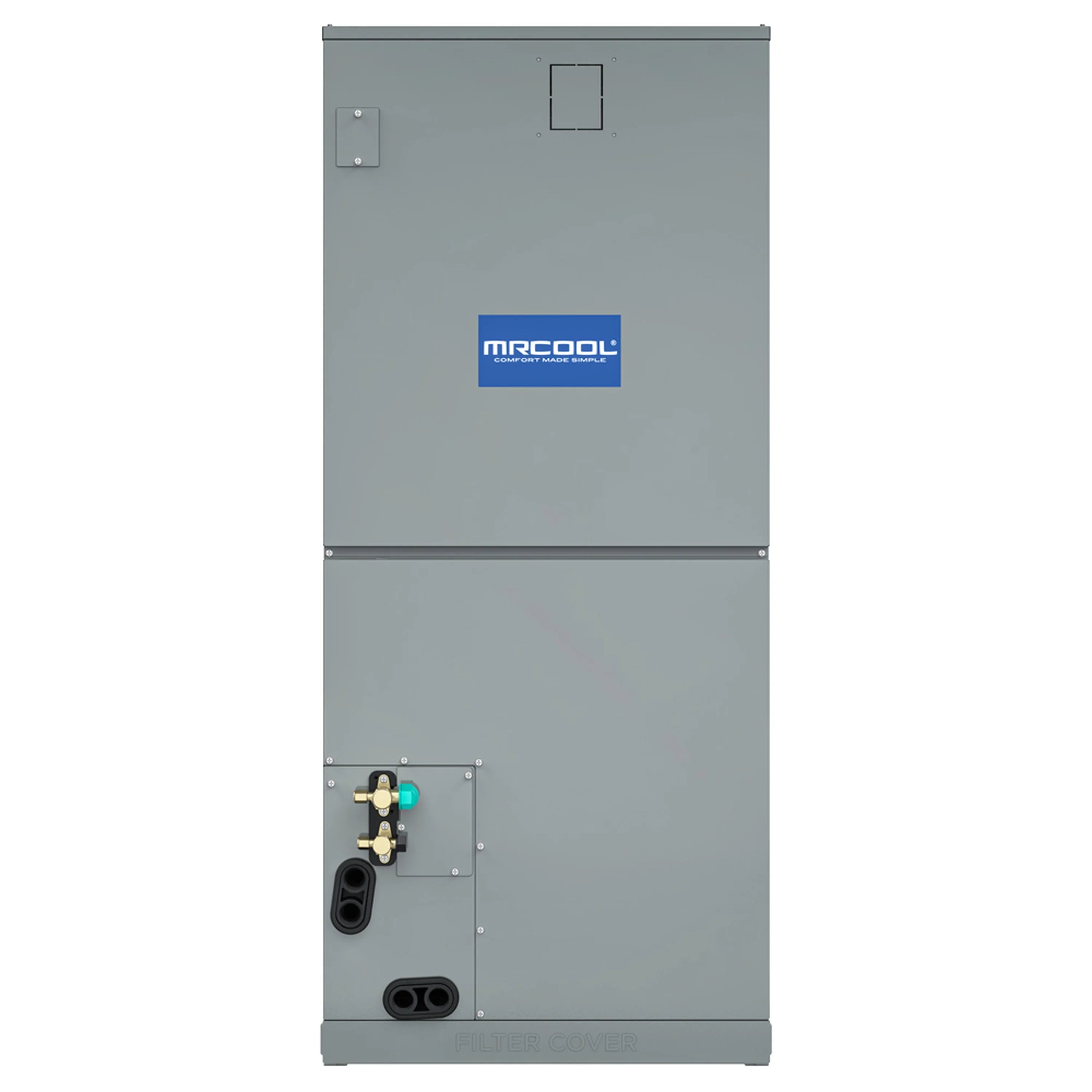

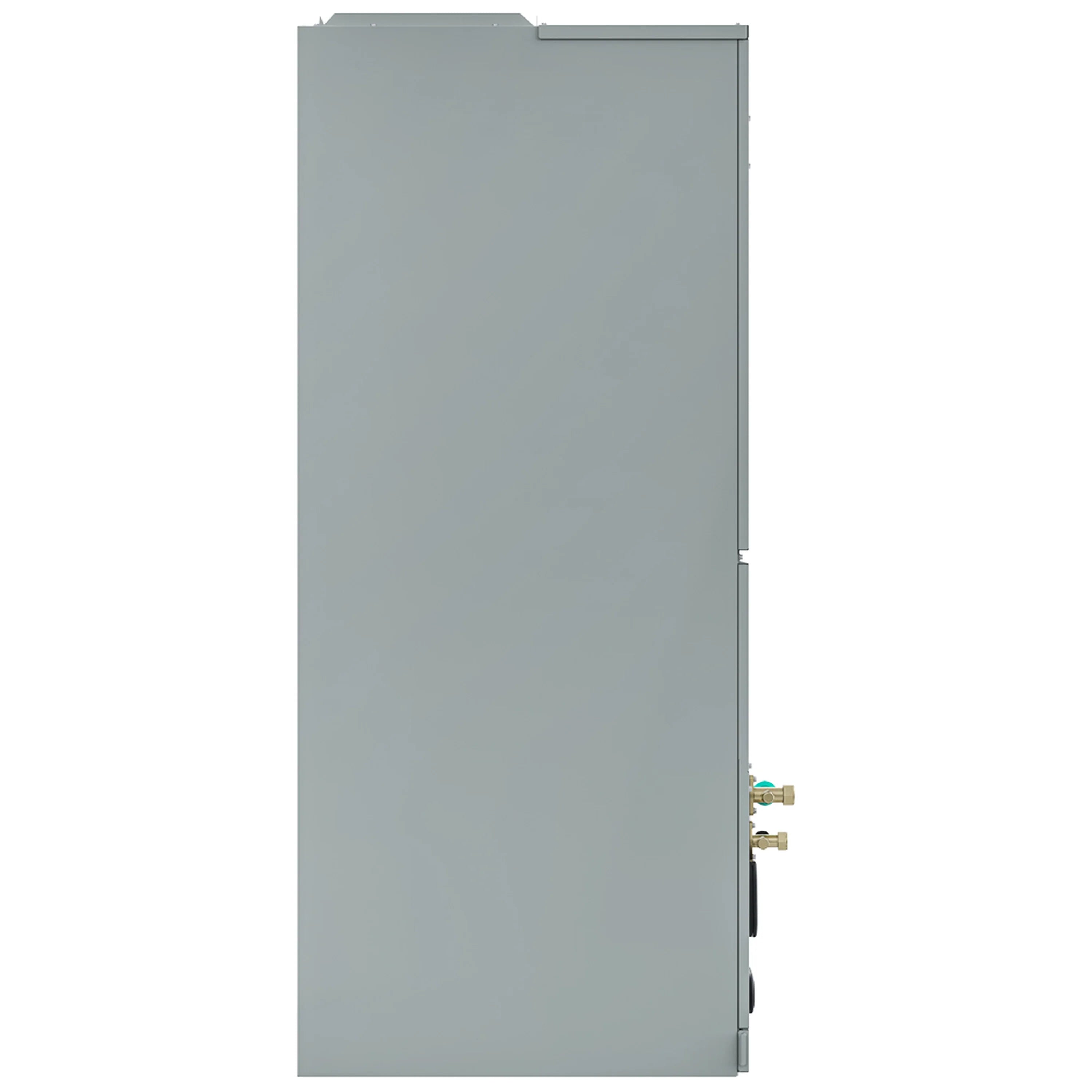

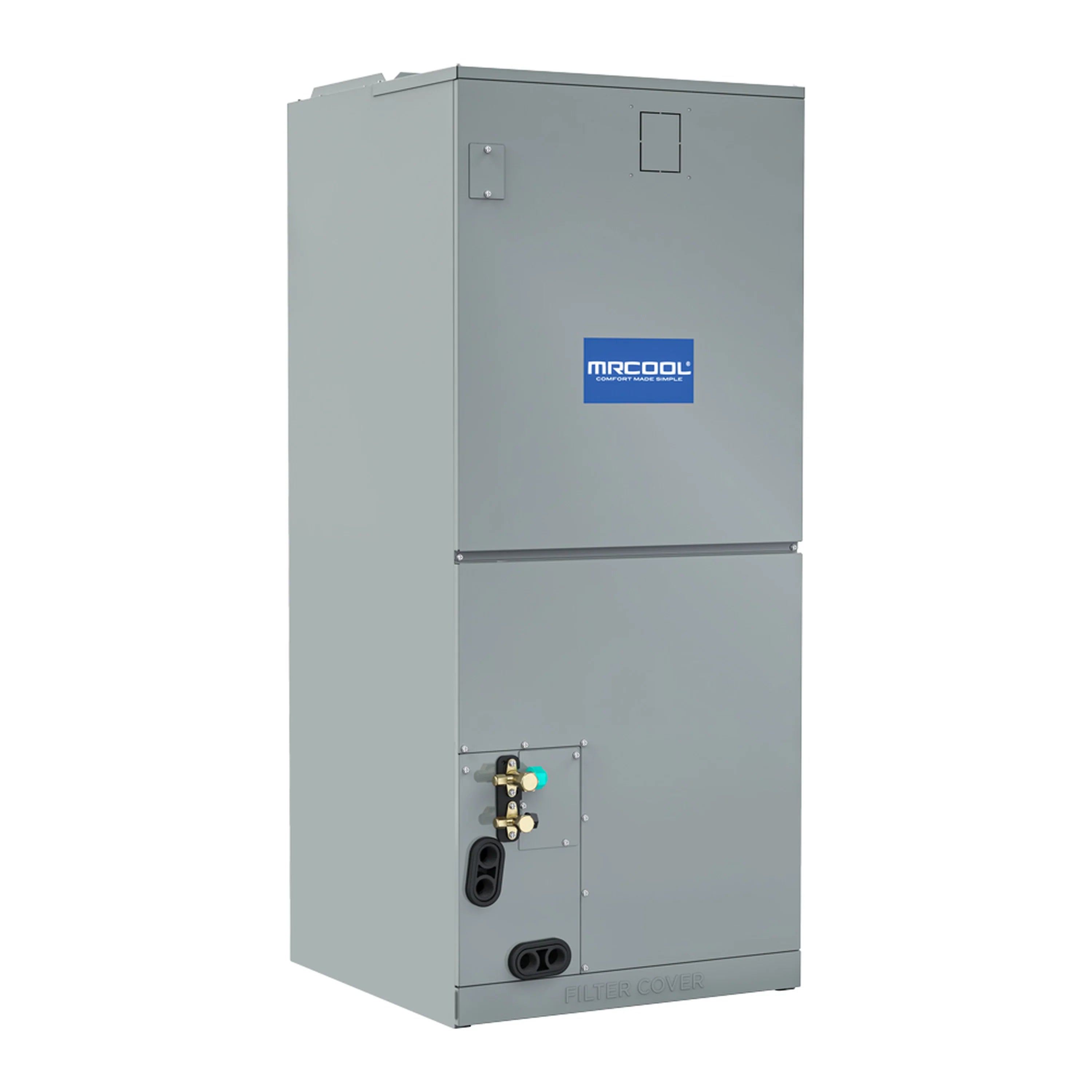

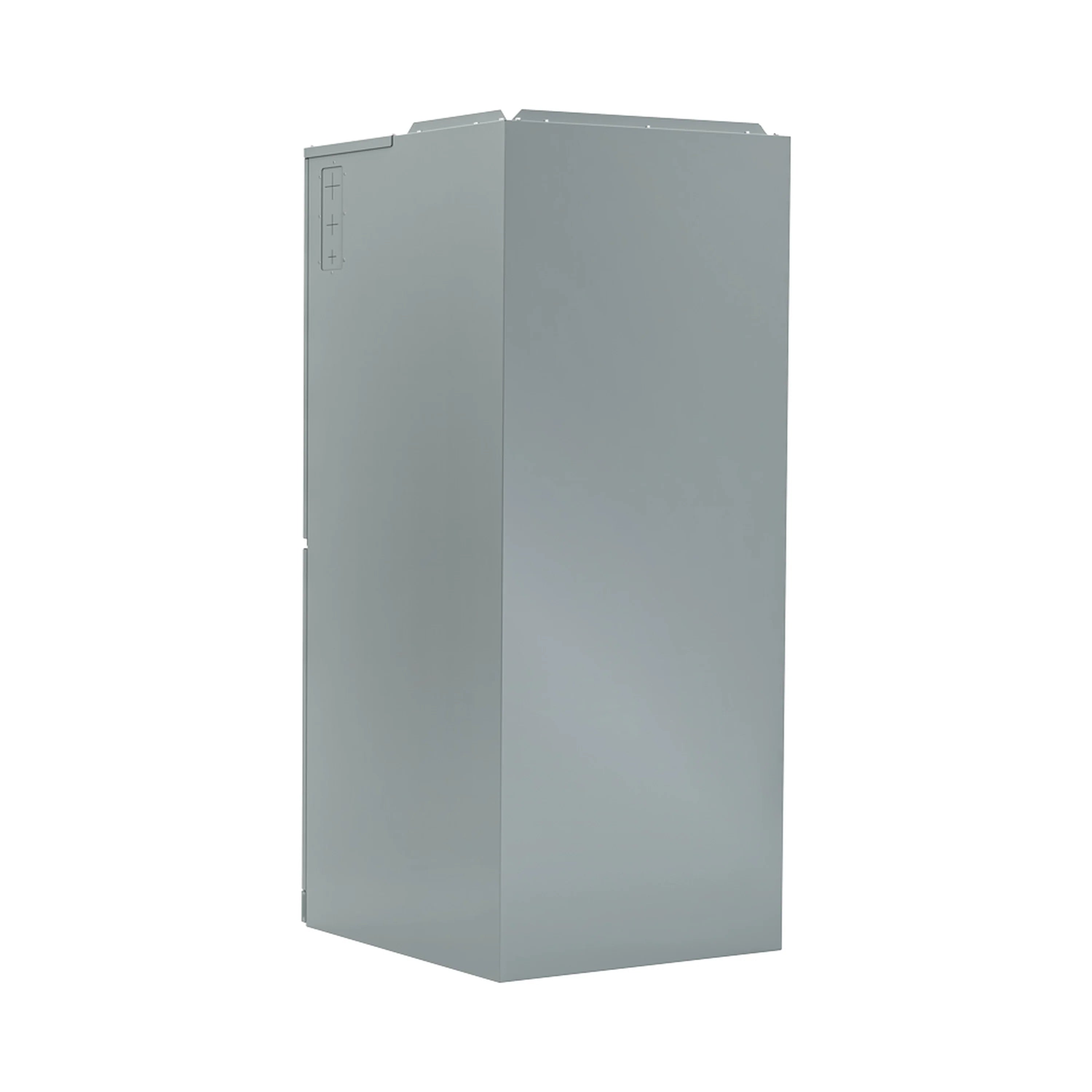

The 5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a reliable and efficient solution for year-round heating and cooling in spaces up to 2,500 square feet. With a SEER2 rating of up to 16, it offers energy-efficient climate control for your home. This air handler is designed to withstand everyday use and is built with durable, painted galvanized steel. It includes a self-diagnostics panel that helps quickly identify and resolve any issues, making maintenance straightforward. This unit provides flexible installation options, including upflow, downflow, and horizontal left or right configurations, ensuring it fits various room layouts. It uses R-454B refrigerant, which is eco-friendly and reduces environmental impact.
For those needing extra warmth, an optional heat kit can be added to expand the unit's capabilities. The included MRCOOL® Smart Thermostat provides accurate and dependable temperature control, ensuring optimal comfort in your home. It is also compatible with the MRCOOL® SmartHVAC app, allowing for convenient remote access and control. This air handler is fully compatible with our Central Ducted Hyper Heat Condenser. With a 10-year warranty, the 5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a dependable and efficient option to enhance your home's comfort. This user-friendly system is built to last and provides effective climate control throughout the year.
|
Dimensions |
24.49" D x 52.99" H x 21.02" w |
|
CFM |
1807.00/1583.33/1359.67/1136.00 |
|
Tonnage |
5 |
|
Cooling Capacity (BTU) |
54000 |
|
Heating Capacity (BTU) |
54000 |
|
Voltage (V) |
115/208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Ma Fuse Breaker (A) |
15 |
|
Min Circuit Ampacity (A) |
14.5/11.0 |
|
Color |
gray |
|
Decibel Rating Low (DBA) |
34.5 |
|
Decibel Rating High (DBA) |
56 |
|
Number of Speeds |
4 |
|
Max Lineset Length (FT) |
246 ft |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
3/4 |
|
Filter Type |
Replaceable |
|
Filter Size |
23x20x1 |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater AVAILABLE |
Yes |
|
Auxiliary Heater Sizes |
10kW/15kW/20kW |
|
Adjustable Thermostat |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
ETL Certified |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Base parts Warranty |
10 Years |
|
Base Compressor Warranty |
10 Years |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Compressed Gas |
Yes |
|
Net Weight (Lbs) |
162.92 |
|
Gross Depth (In) |
26.77 |
|
Gross Height (In) |
56.5 |
|
Gross Width (In) |
27.95 |
|
Gross Weight (Lbs) |
190.92 |

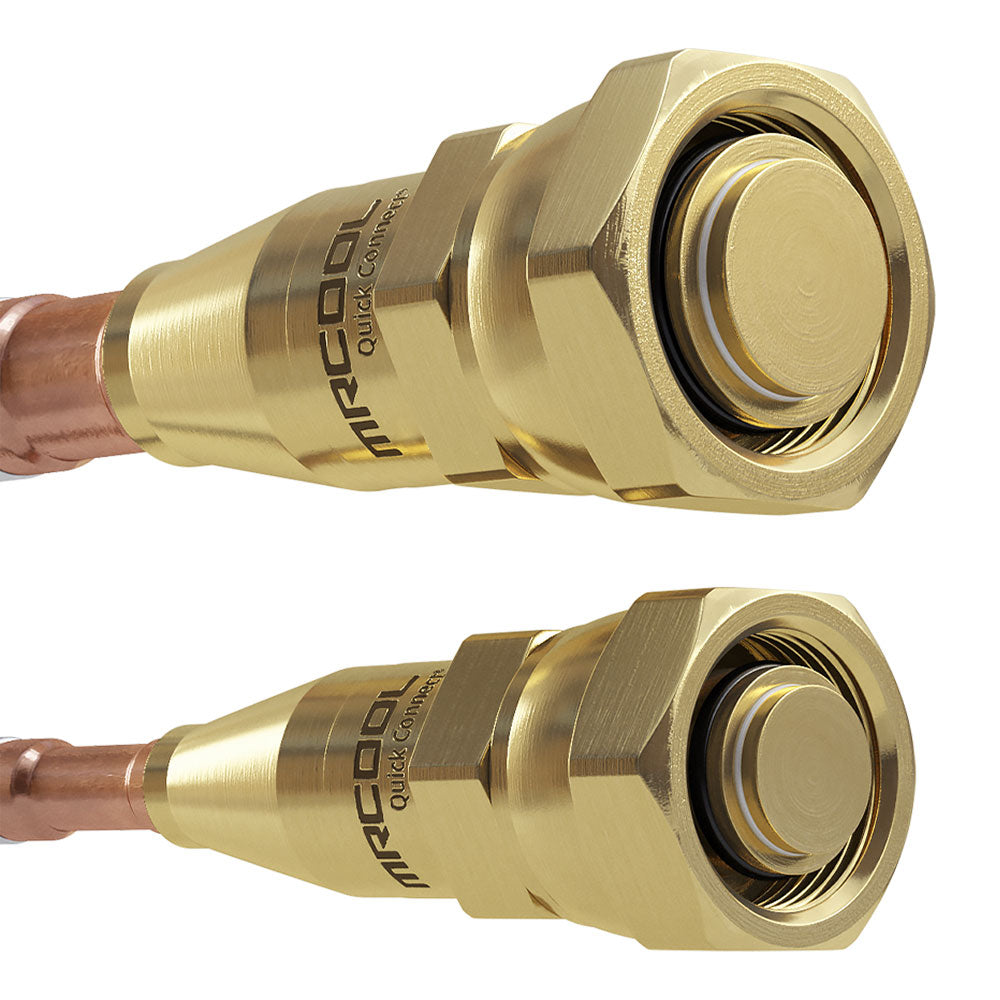

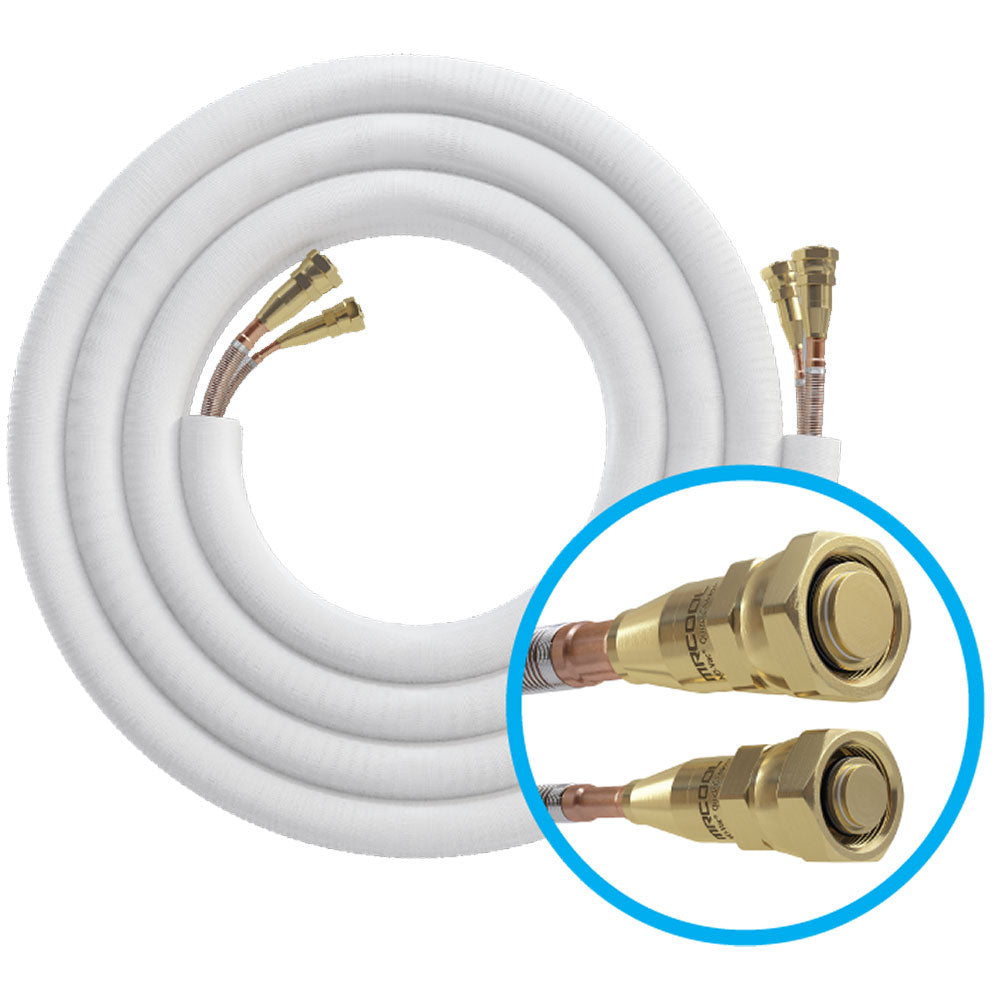

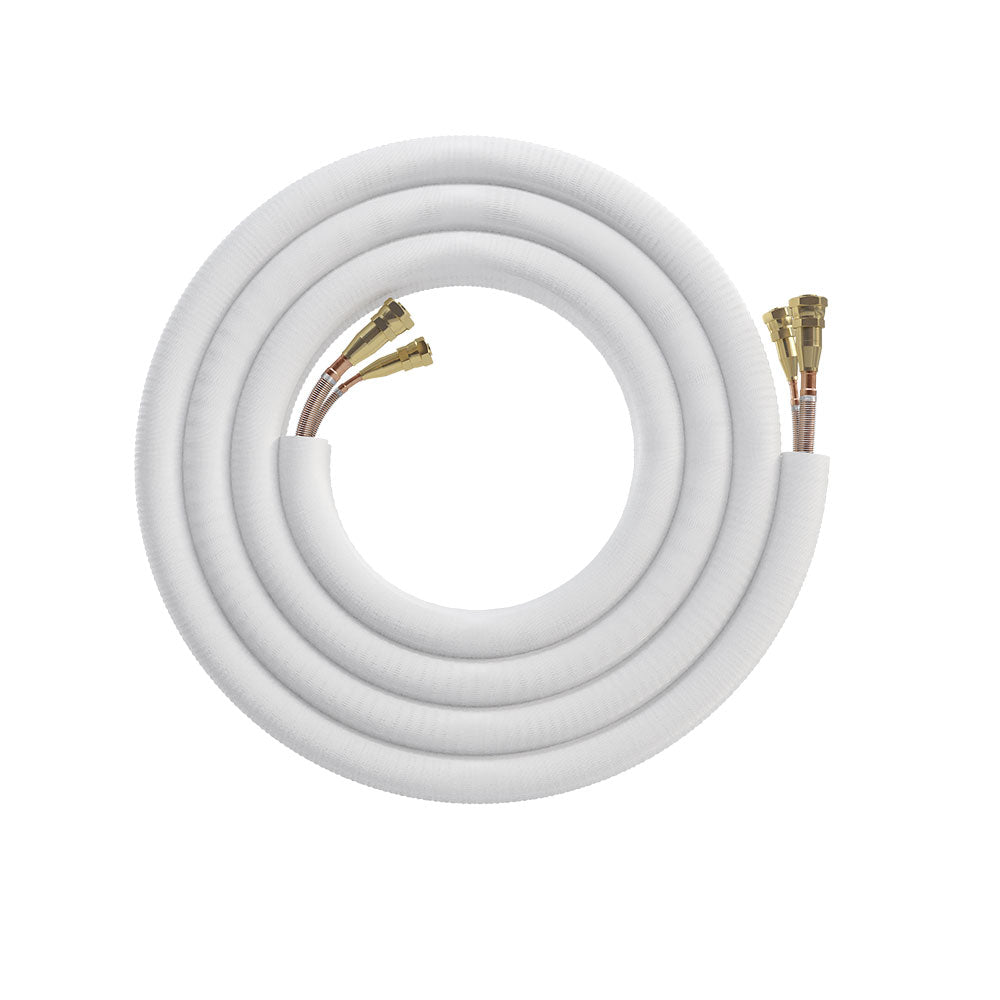

25' R-454B No-Vac Lineset
|
Dimensions |
35" D x 35" H x 5" W |
|
Refrigerant Type |
R-454B |
|
Refrigerant Volume (Oz) |
2.11 |
|
Line Set Length |
25ft |
|
Lineset Fitting Type |
Quick-Connect |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
3/4 |
|
Contains Chemicals |
Yes |
|
Net Weight (Lbs) |
22 |
|
Gross Weight (Lbs) |
27 |

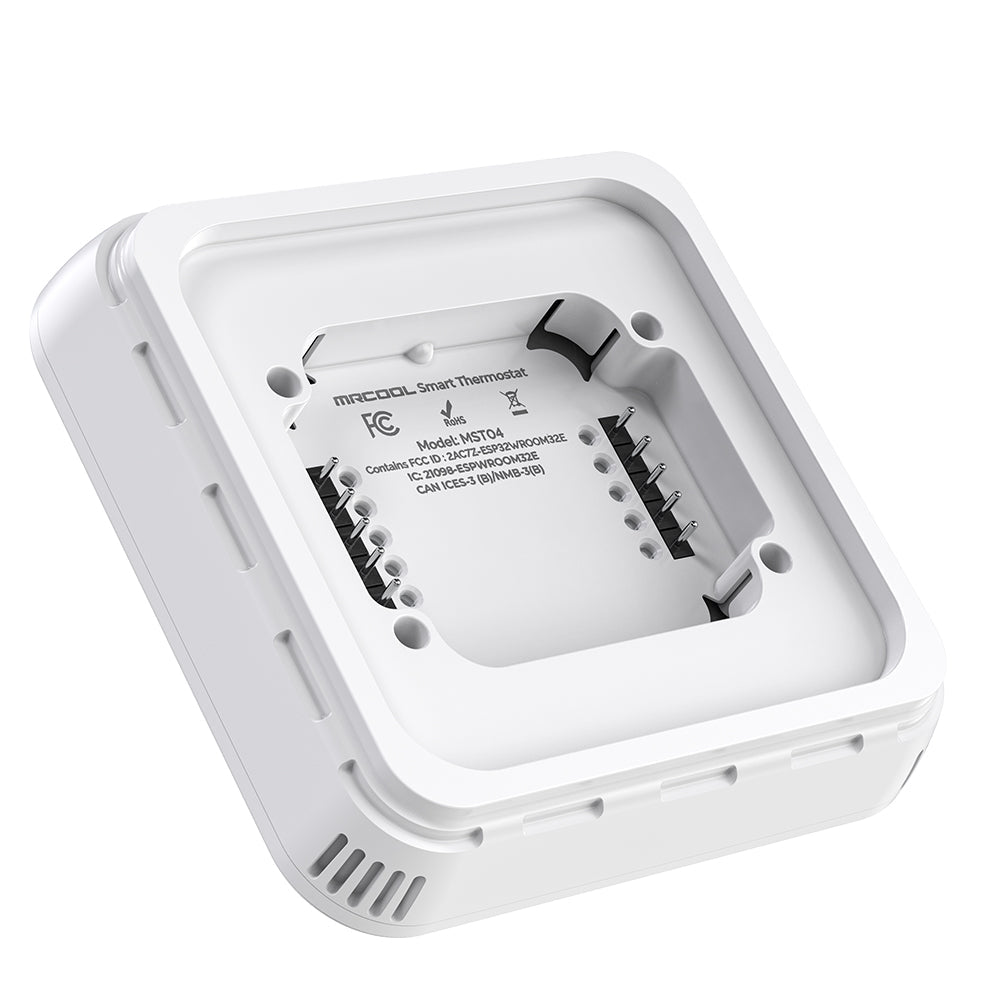

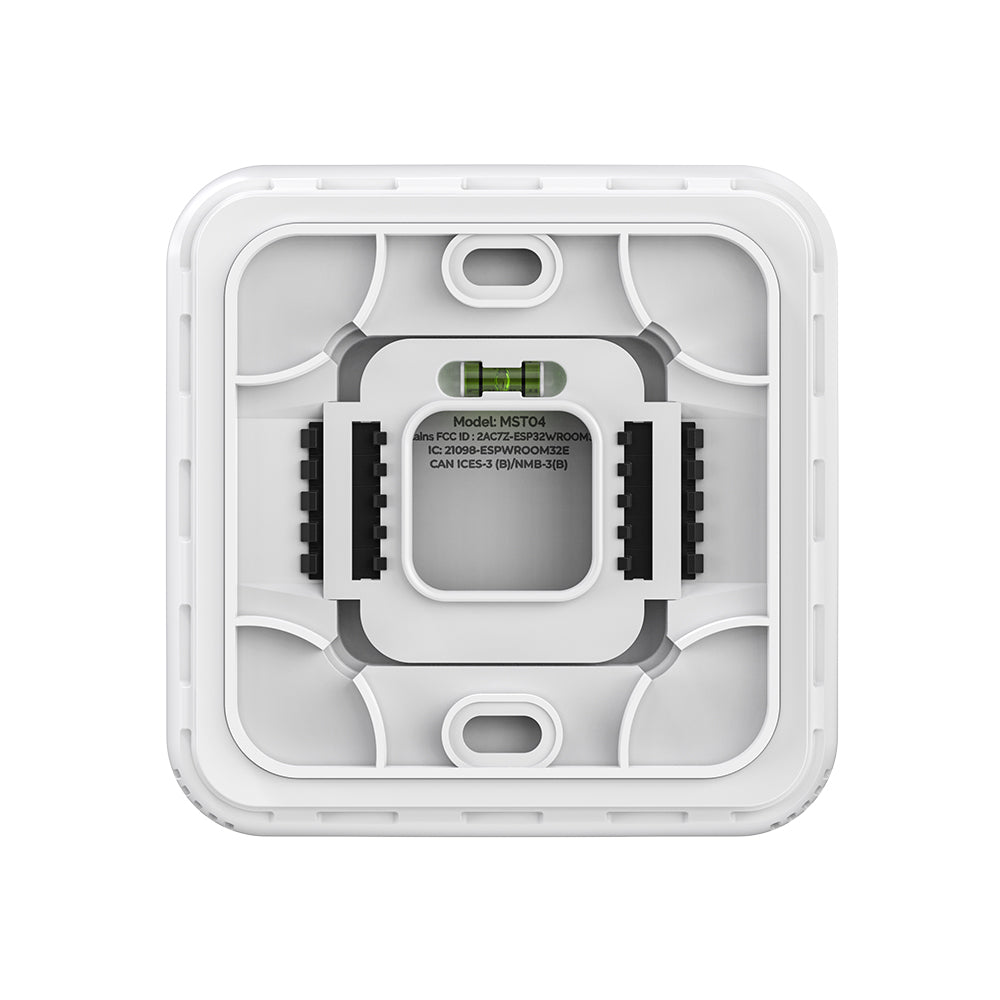

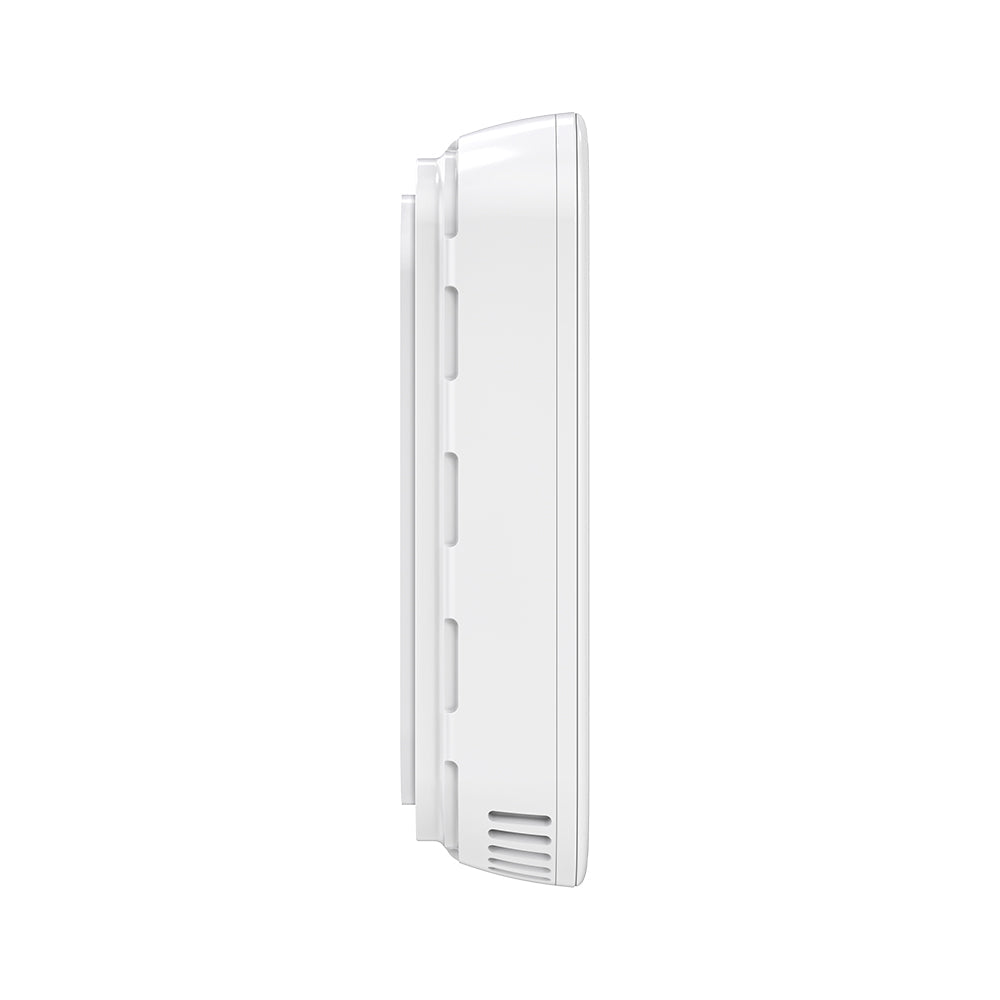

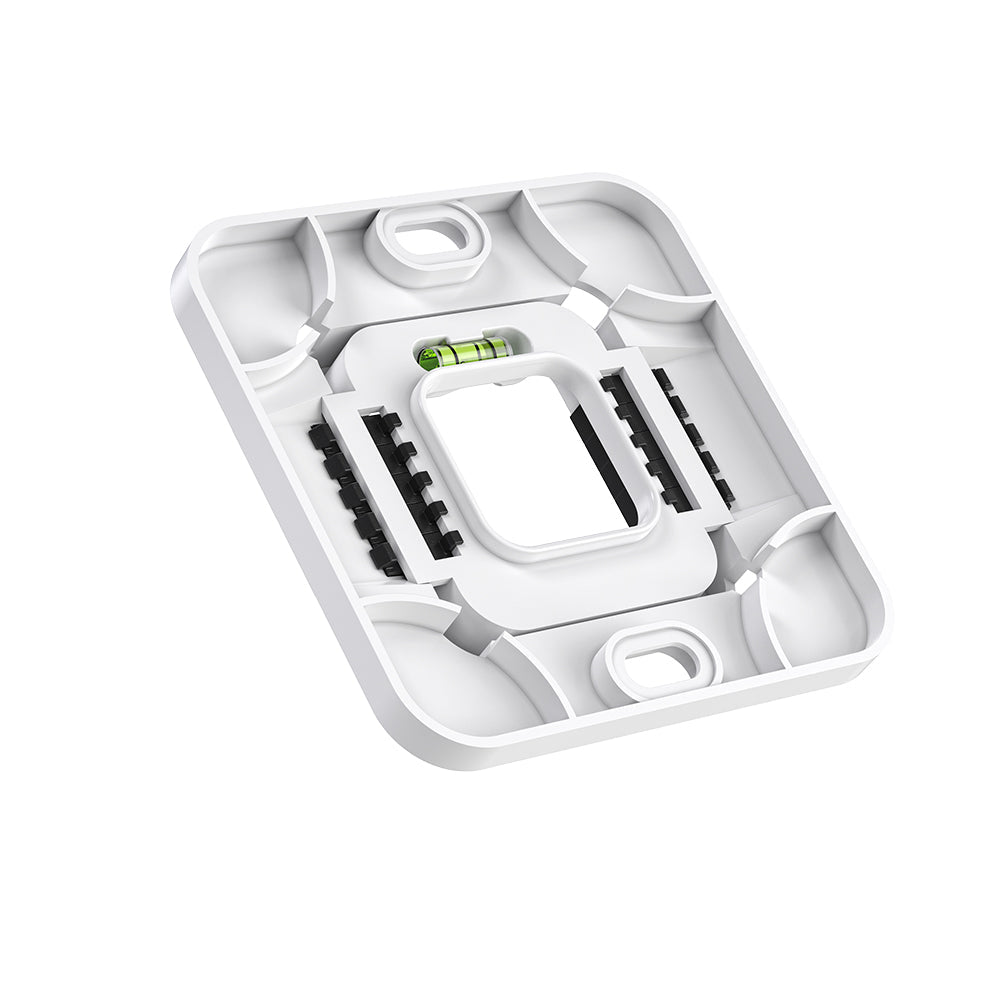

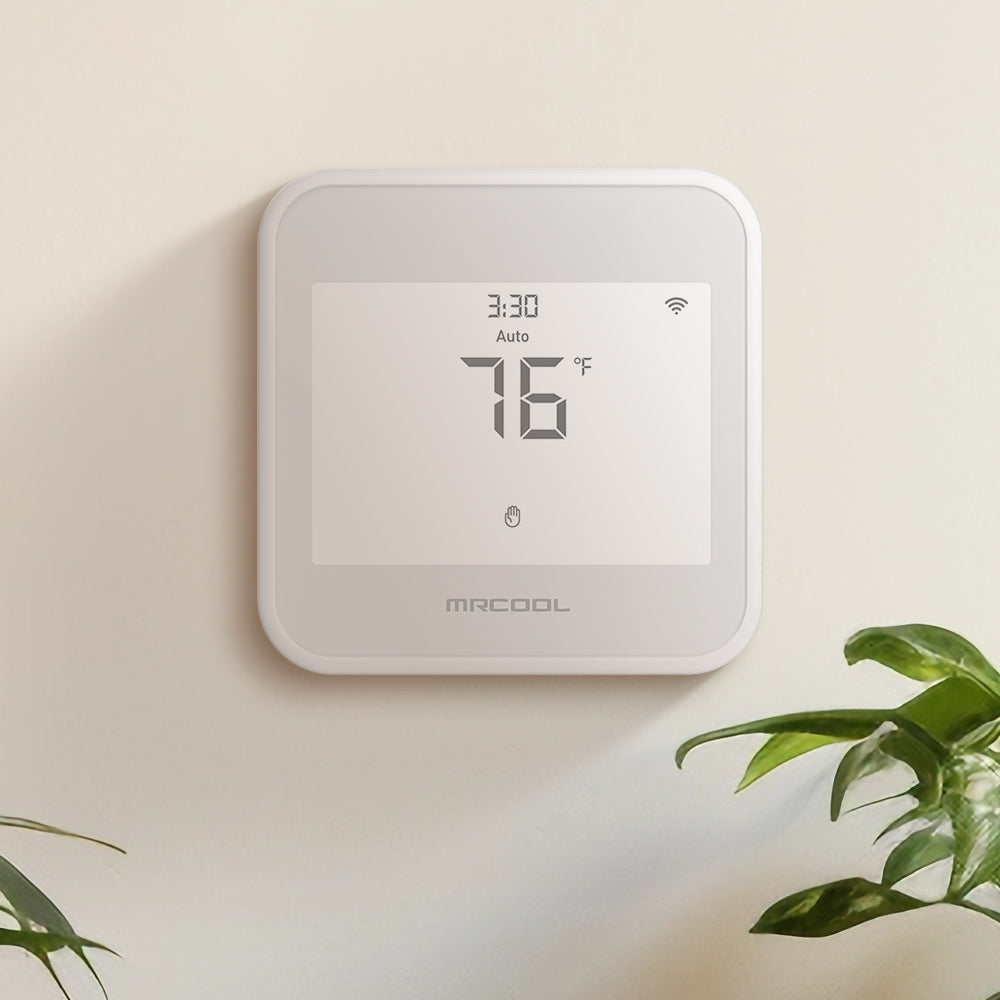

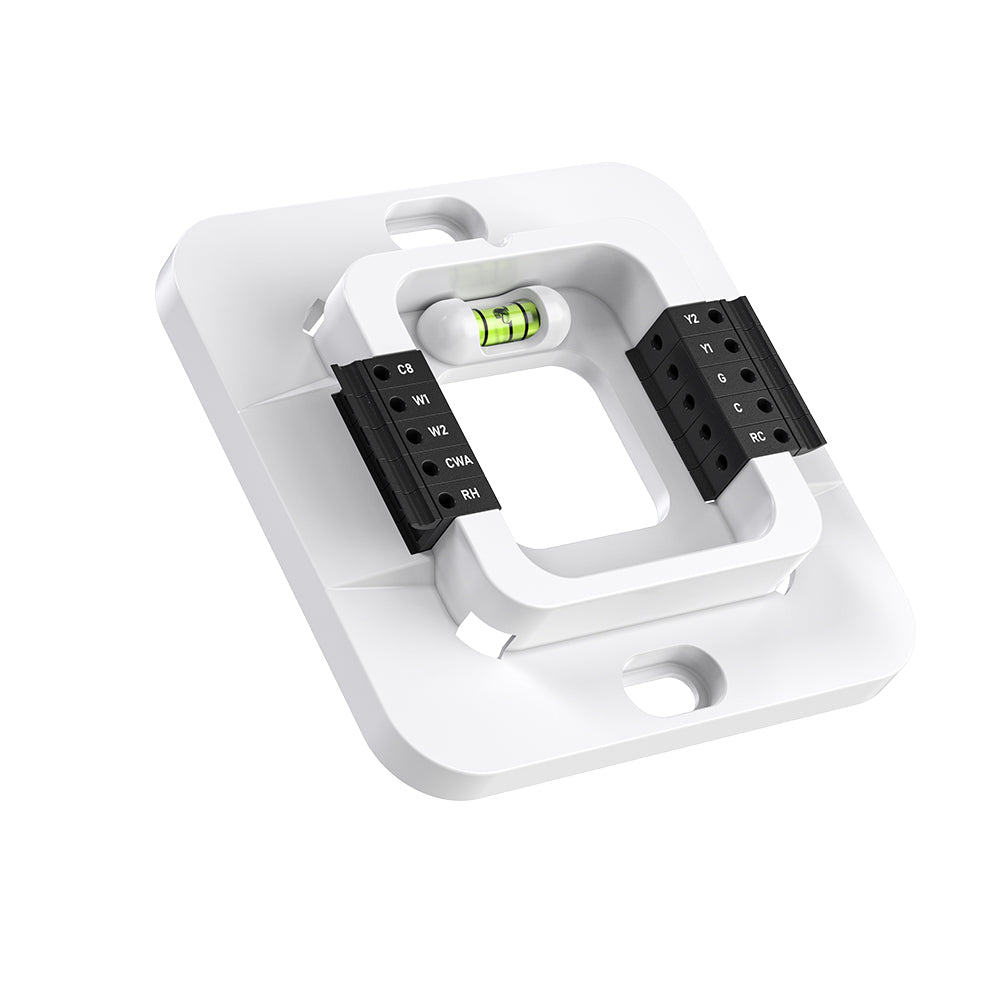

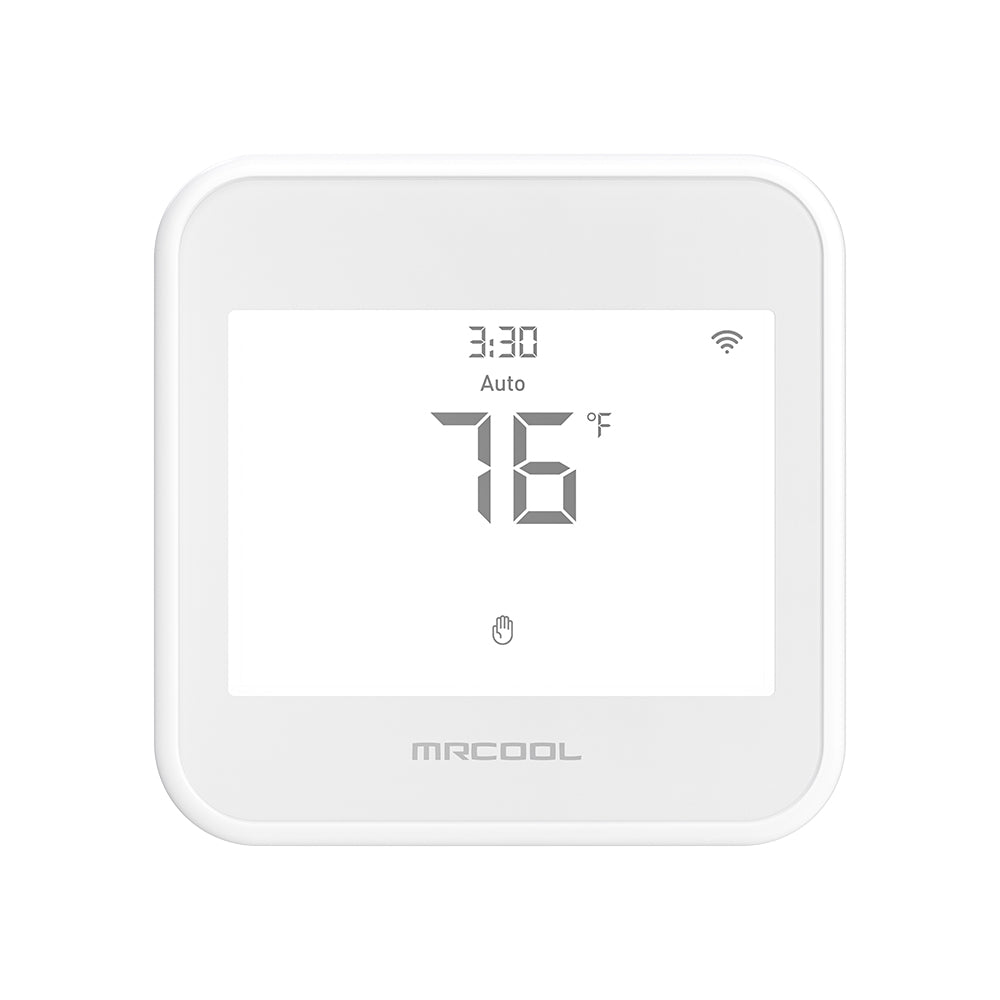

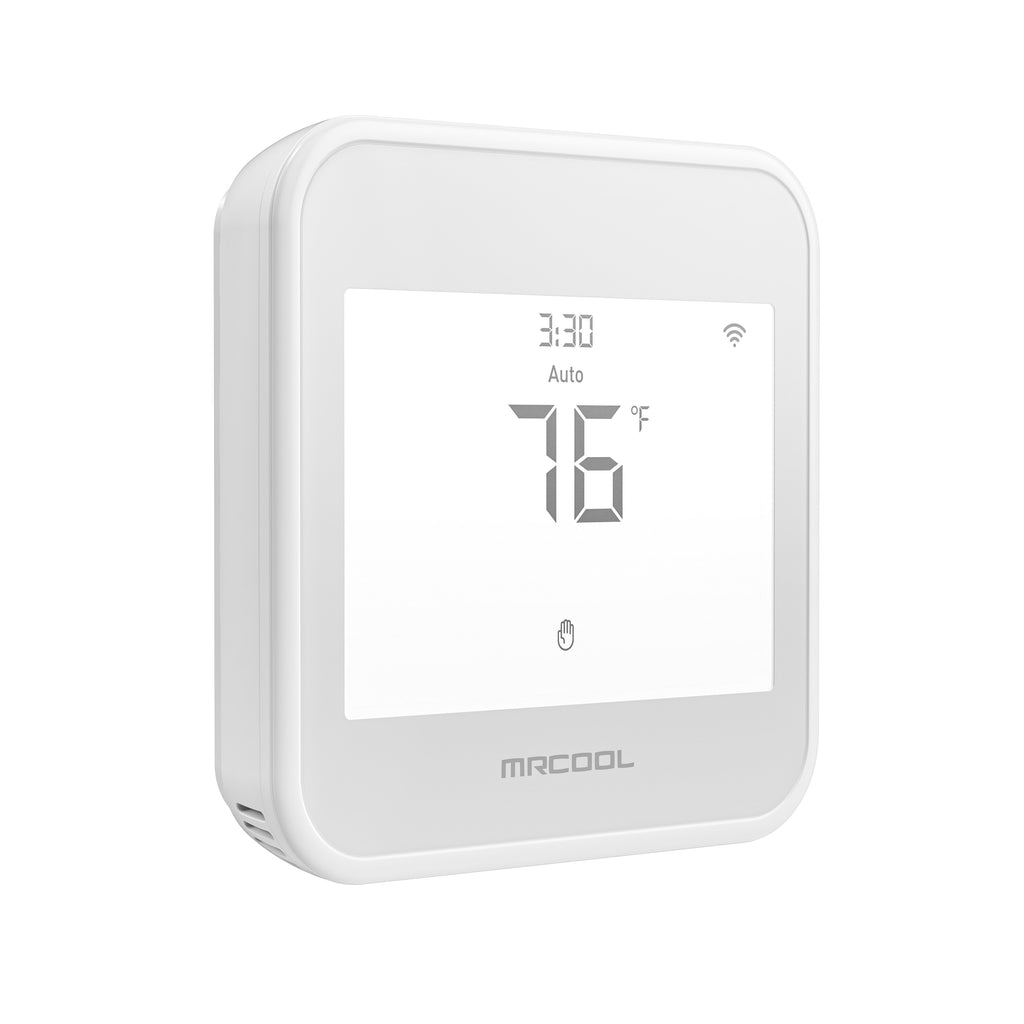

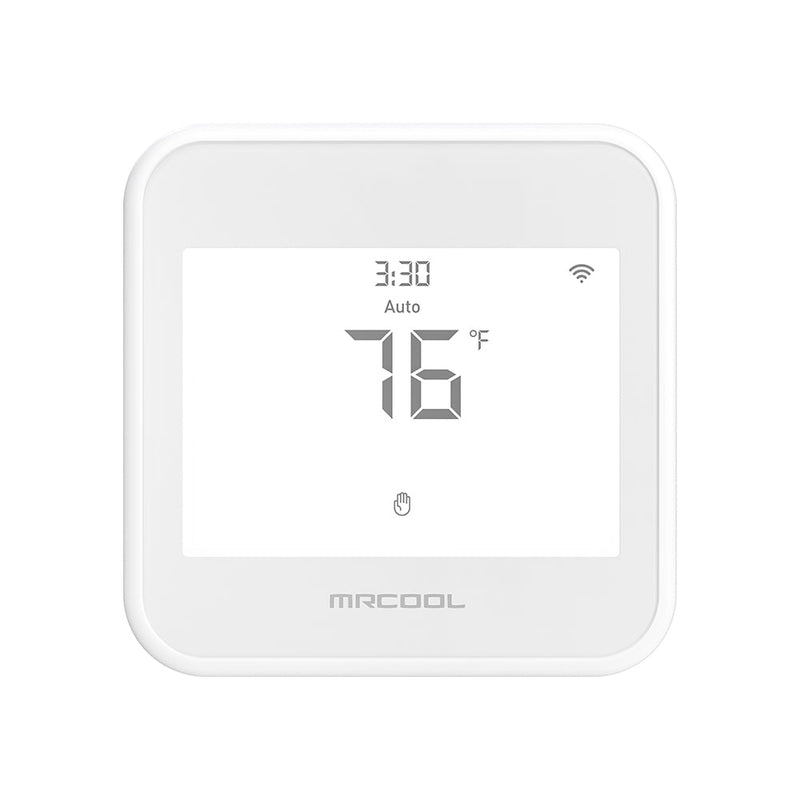

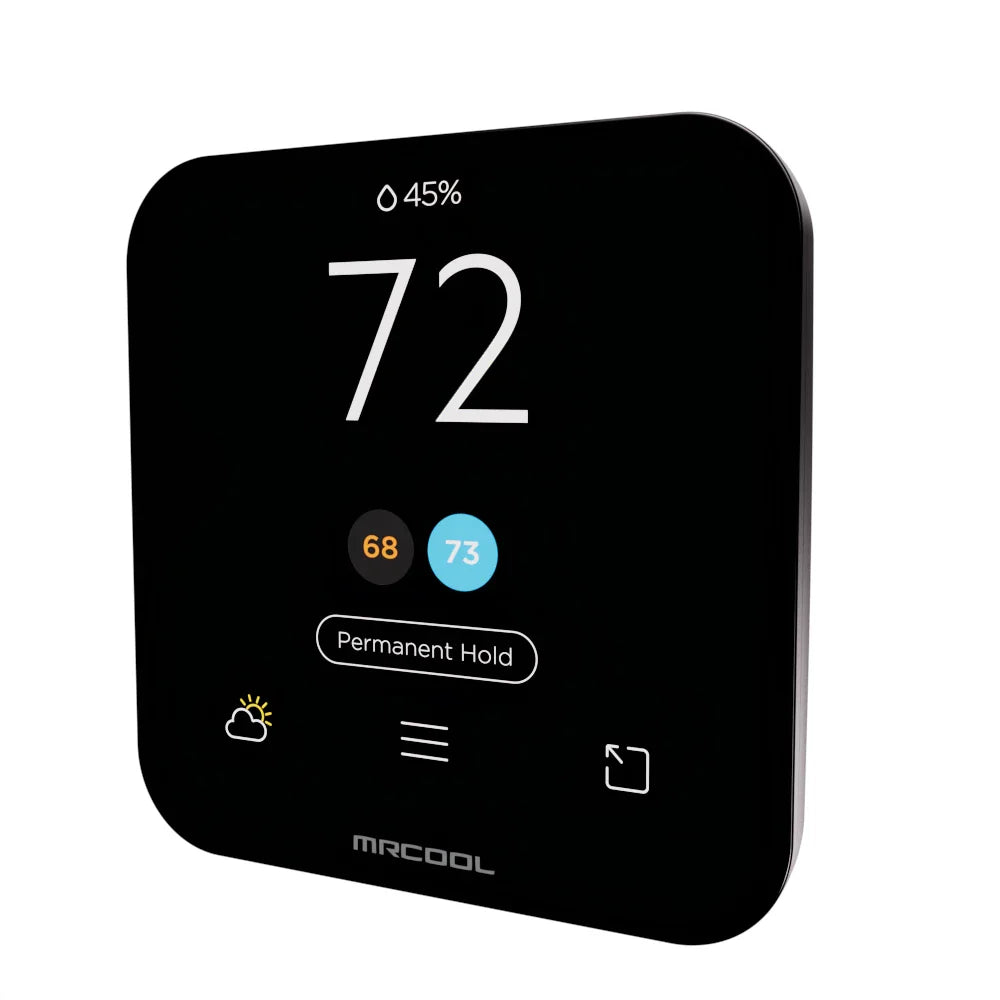

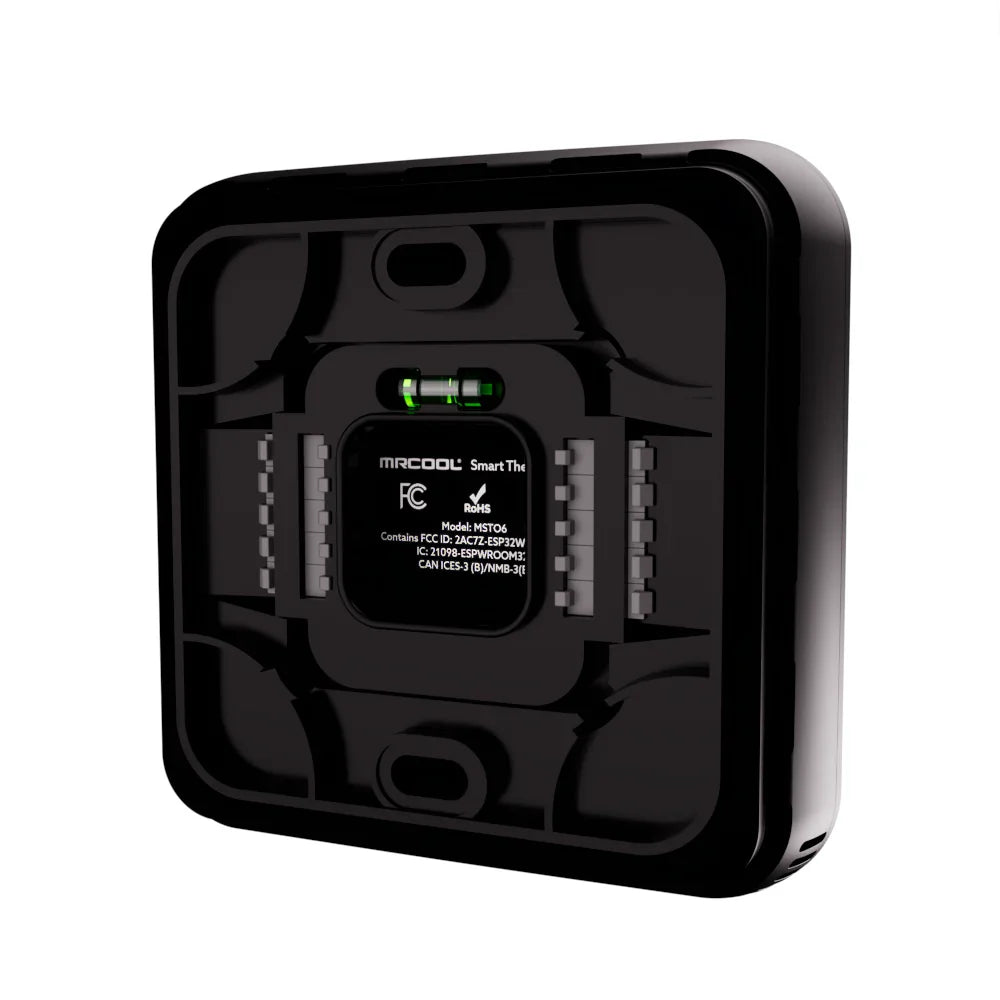

Experience unparalleled comfort and energy efficiency with the MRCOOL Smart Thermostat, which boasts personalized heating and cooling options alongside a straightforward DIY installation process. This thermostat empowers you to customize settings effortlessly, enhancing your comfort while simultaneously reducing energy consumption. Choose from a plethora of modes and options to curate your ideal environment, including the convenient vacation mode, ensuring home safety during your absence without unnecessarily inflating energy bills.
Control lies at the heart of this Smart Thermostat, providing multiple avenues such as the intuitive touch-screen display, voice commands via popular virtual assistants like Google Assistant, Siri, or Amazon Alexa, or the innovative Smart HVAC app. The app offers a range of useful features, from an air filter cleaning monitor to a timeline displaying recent system adjustments, allowing you to track usage levels and fine-tune temperature and fan speed settings.
With its unique location-based services, the thermostat automatically adjusts settings based on your proximity to home, ensuring you always return to the perfect temperature. Even in the event of an internet outage, you can maintain control using the thermostat directly, adjusting temperature and settings as needed. With the added reassurance of a 3-year warranty, the MRCOOL Smart Thermostat provides peace of mind alongside unparalleled technology, comfort, and efficiency.
|
Dimensions |
3.9" D x 1" H x 3.9" W |
|
Voltage (V) |
24 |
| Sleep Mode | Yes |
| Base Parts Warranty | 3 Years |
| Gross Dimensions | 6.5" D x 2.12" H x 5.37" W |
| Gross Weight (lbs) | 0.95 |
