This product only includes a condenser. Click here for our complete central HVAC systems

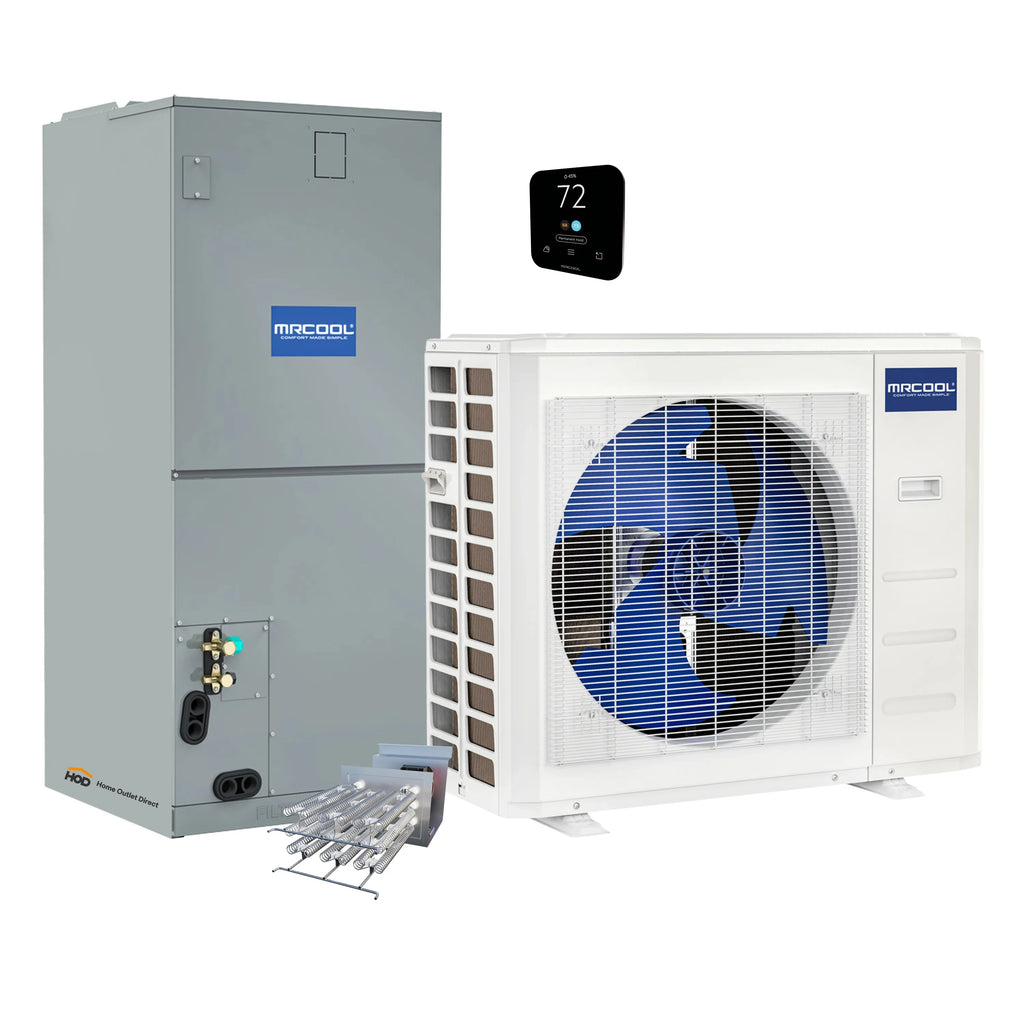

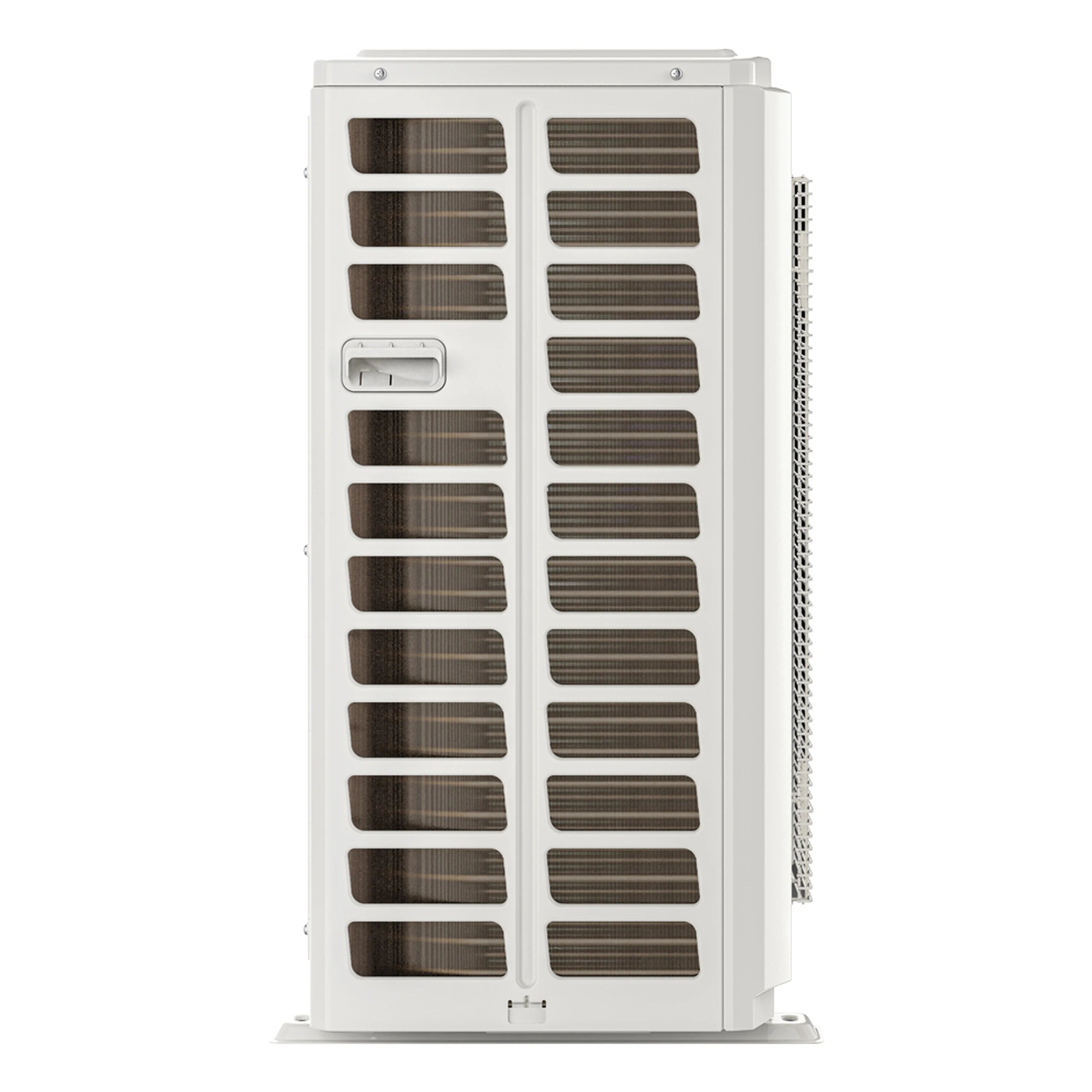

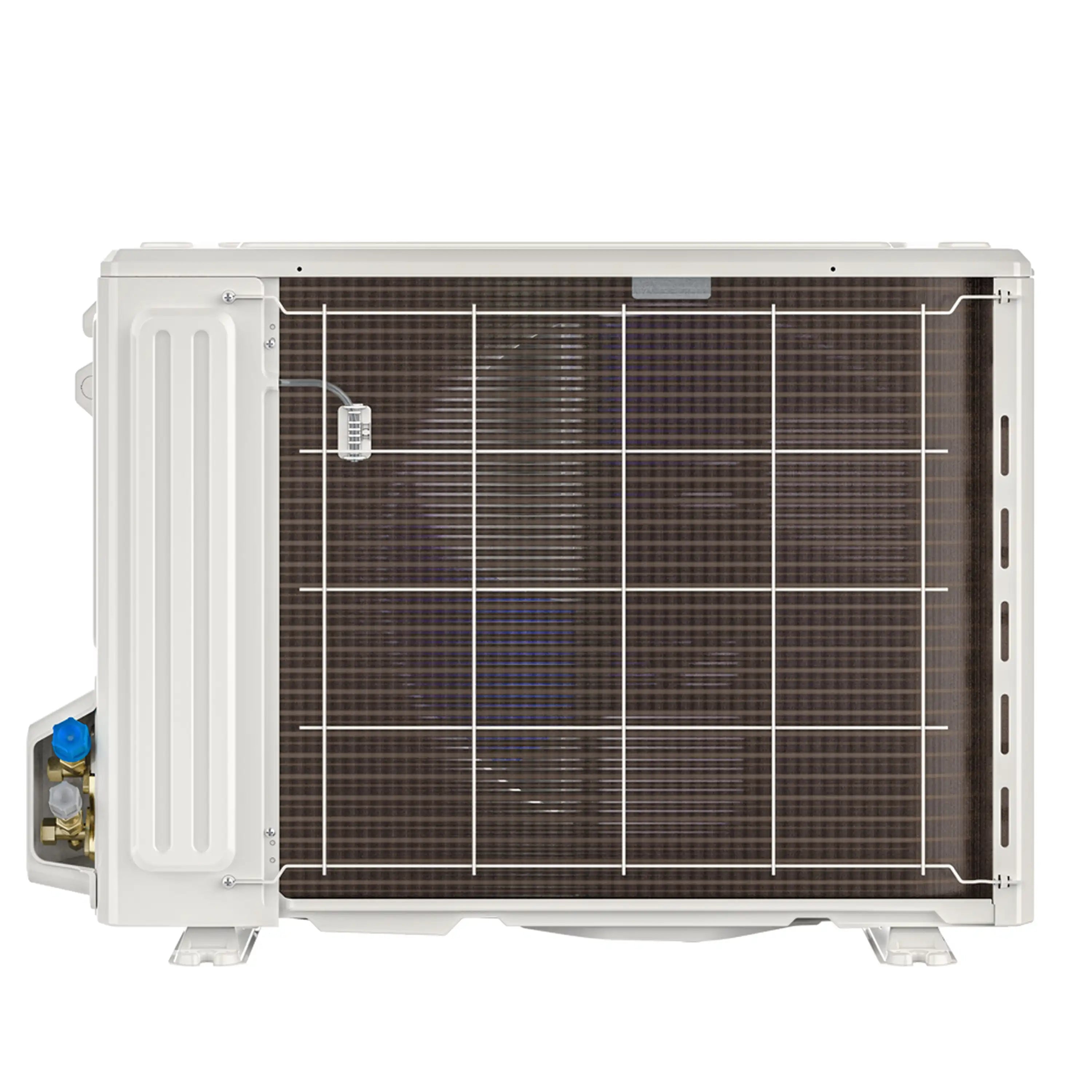

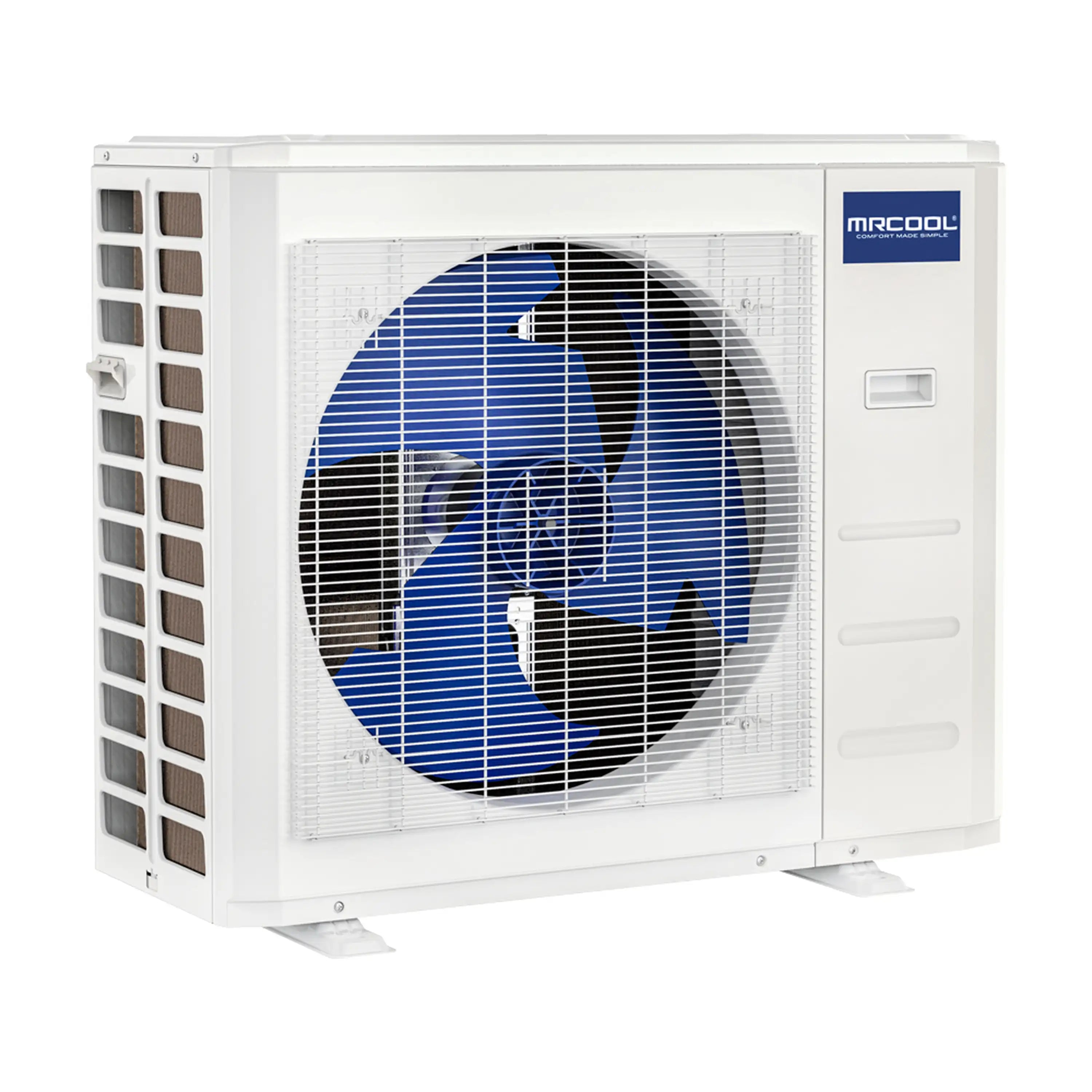

The 3 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser offers a reliable and cost-effective solution for heating and cooling your home throughout the year. This unit is built for durability and efficiency, providing dependable comfort in any season. With a variable-speed 36k capacity, the VersaPro® delivers solid performance with a SEER2 rating of 16.1 and an HSPF4 rating of 8.7. These efficiency levels ensure effective heating and cooling while keeping energy costs manageable. When paired with the MRCOOL® VersaPro® Central Ducted Air Handler, it forms a well-rounded system suited to your home’s needs. DC inverter technology ensures smooth operation and energy savings, making it a great choice for replacing older, less efficient systems. Included with the system is the MRCOOL® Smart thermostat,allowing for effortless temperature adjustments.
The VersaPro® condenser uses R-454B refrigerant, an eco-friendly option that helps reduce its environmental impact. Its durable painted galvanized steel construction is designed to last, while the compact side-discharge design simplifies installation in tighter spaces. The self-diagnostic system makes maintenance easier, helping to reduce the need for service calls. For added peace of mind, the 3 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser comes with a 10-year warranty that covers the compressor and parts. This warranty ensures long-term reliability and protection for your investment.
|
Dimensions |
16.14" D x 31.89" H x 37.24" W |
|
SEER2 |
16.1 |
|
EER2 |
10 |
|
HSPF-4 |
8.7 |
|
HSPF-5 |
7 |
|
CFM |
2413.2 |
|
TONNAGE |
3 |
|
Cooling Capacity (BTU) |
36000 |
|
Heating Capacity (BTU) |
36000 |
|
Voltage (V) |
208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
30 |
|
Min Circuit Ampacity (A) |
24 |
|
Color |
gray |
|
Refrigerant Type |
R454B |
|
Refrigerant Volume (OZ) |
116.4 |
|
Decibel Rating (DBA) |
63 |
| Liquid Line Size | |
|
Suction Line Size |
3/4 |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
ETL Certified |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Base Parts Warranty |
10 Years |
|
Base Compressor Warranty |
10 Years |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Compressed Gas |
Yes |
|
Net Weight (Lbs) |
153.22 |
|
Gross Depth (In) |
19.68 |
|
Gross Height (In) |
34.84 |
|
Gross Width (In) |
42.91 |
|
Gross Weight (Lbs) |
163.58 |

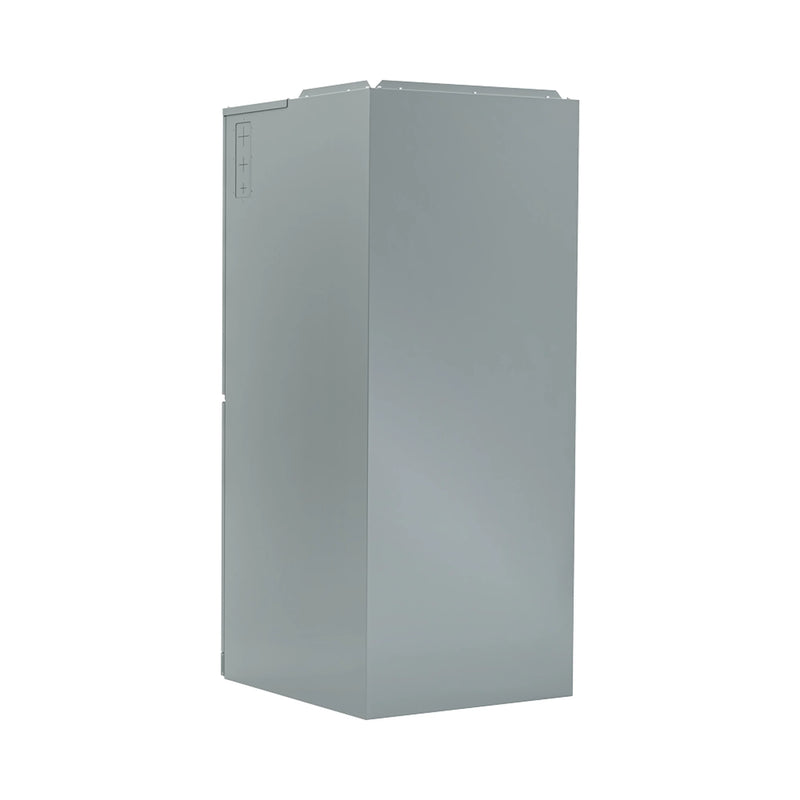

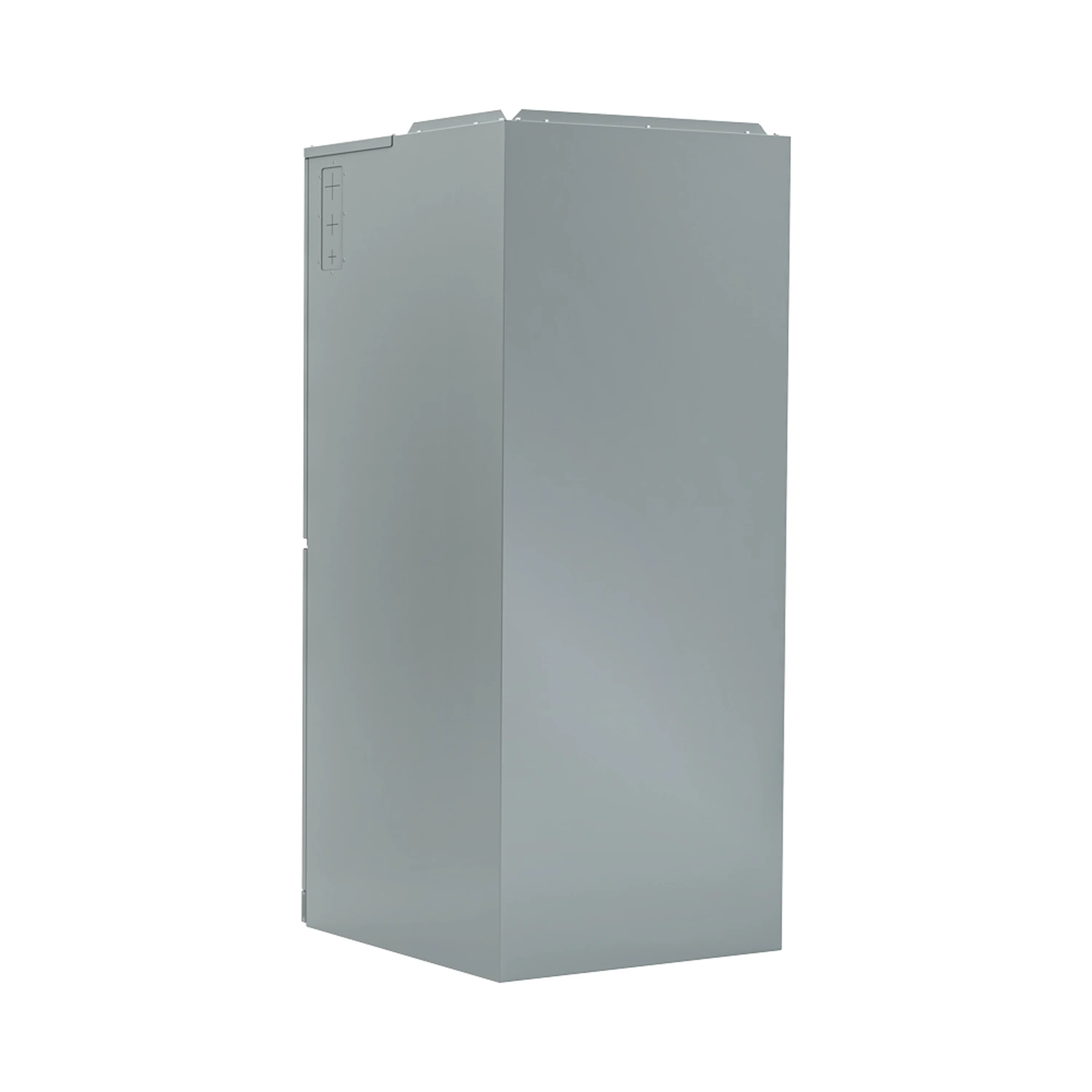

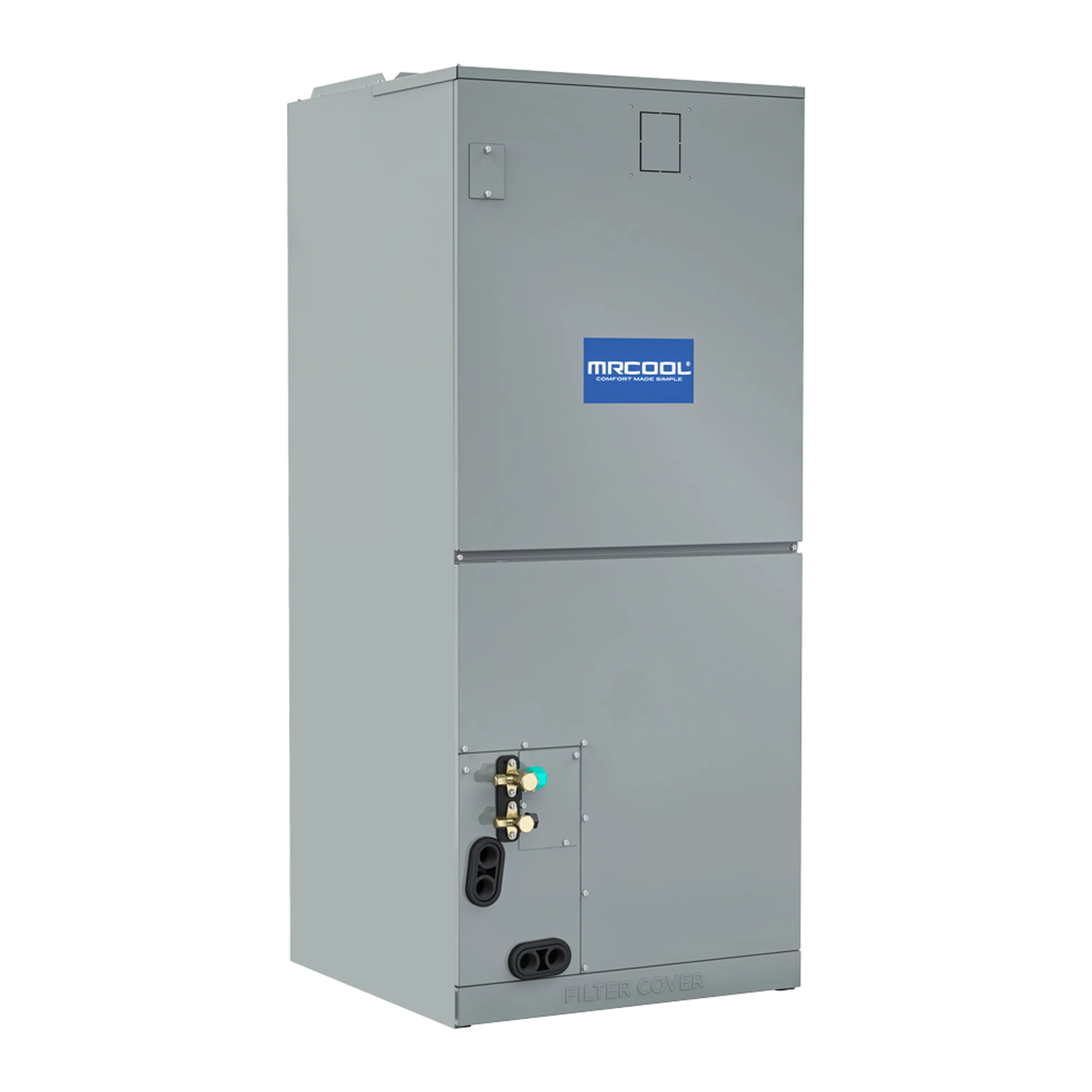

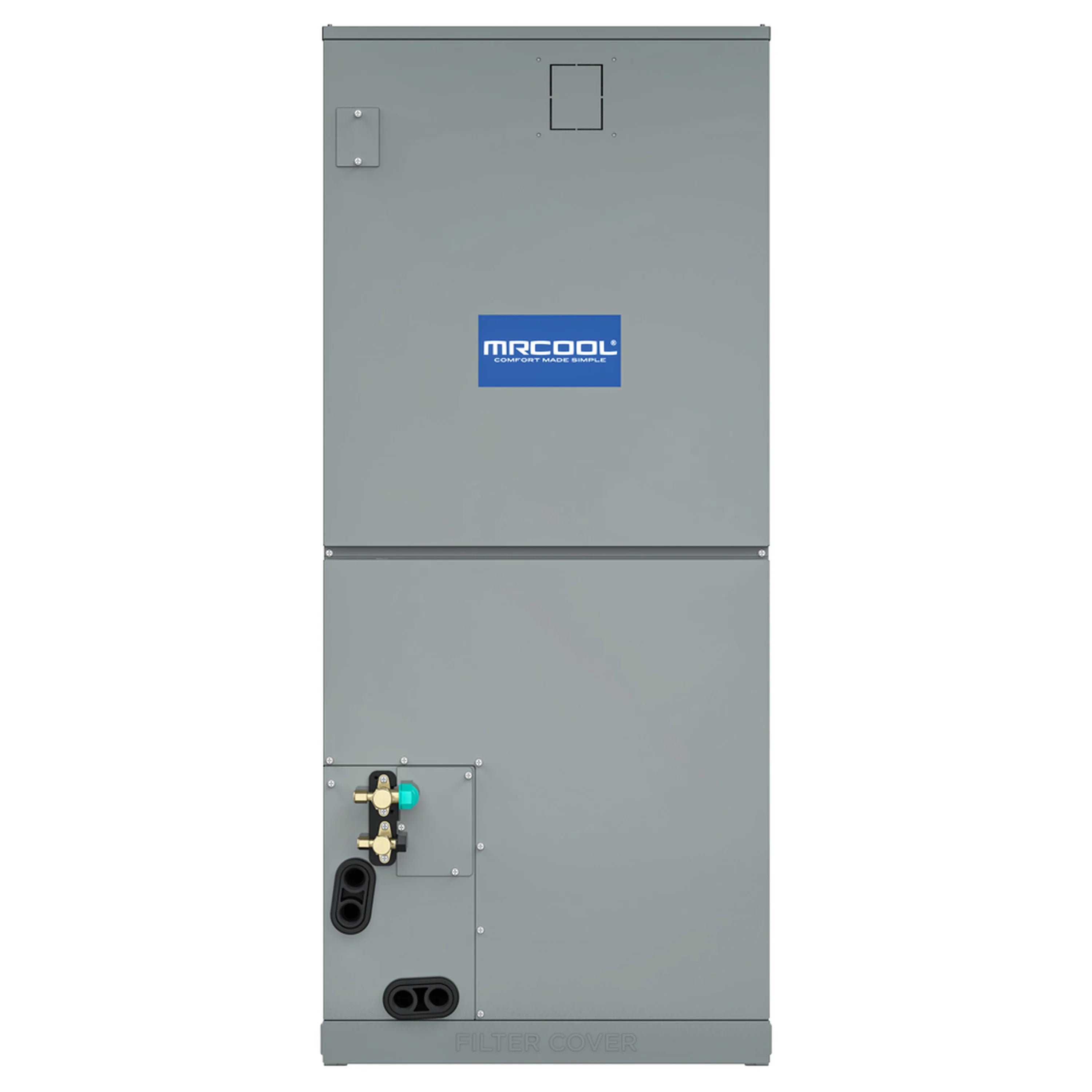

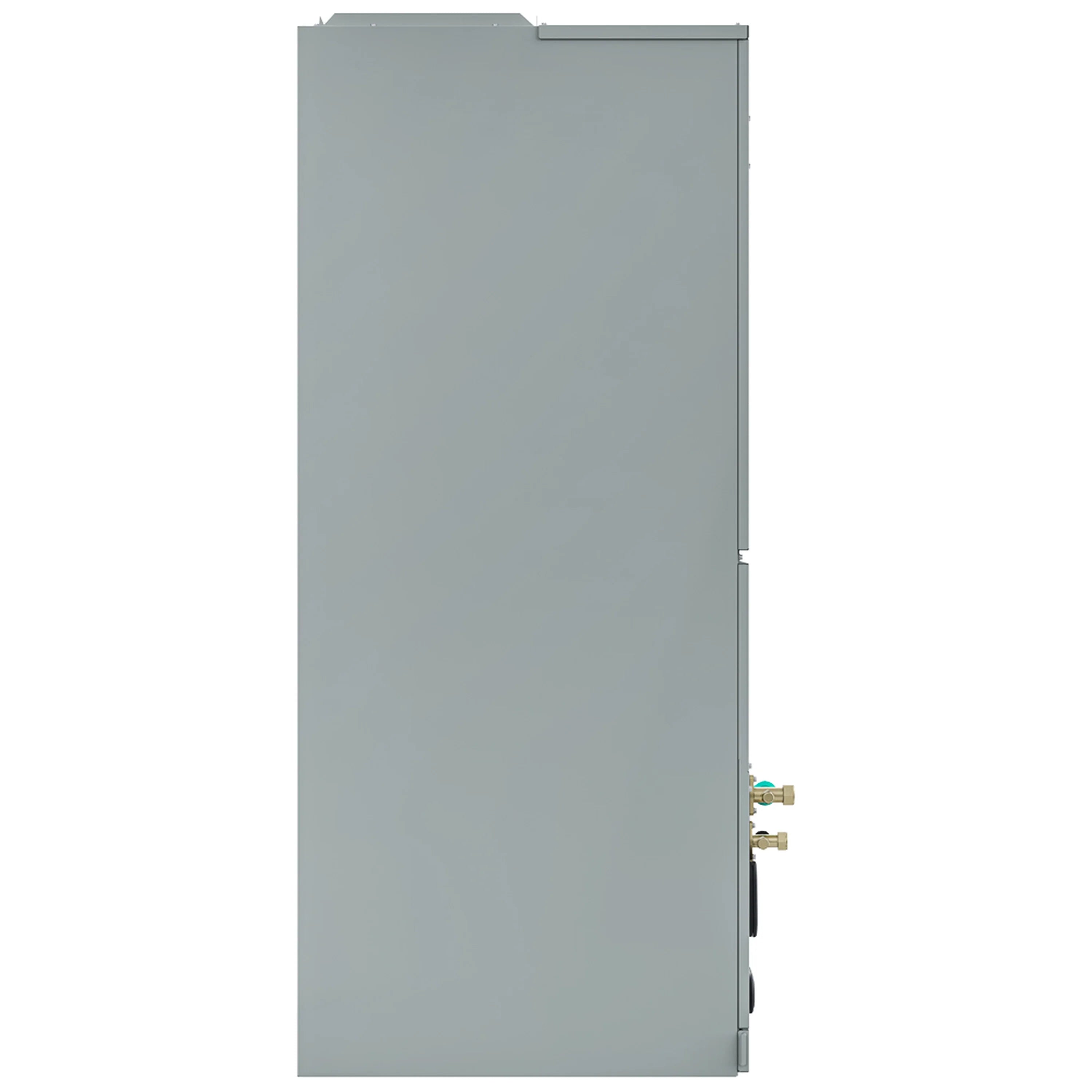

The 3 Ton MRCOOL® VersaPro® Central Ducted Air Handler offers a reliable and efficient solution for heating and cooling your home throughout the year. With a SEER2 rating of up to 17.4, it is designed to cover up to 1,500 square feet, making it an ideal upgrade for older HVAC systems that need improved efficiency. Built for long-term durability, this air handler features a robust painted galvanized steel exterior that withstands everyday wear. Its self-diagnostics panel simplifies maintenance by quickly identifying any issues, minimizing downtime.
This unit is designed for flexible installation, offering options for upflow, downflow, and horizontal left or right configurations to suit various home layouts. It uses eco-friendly R-454B refrigerant to help reduce its environmental impact, and an optional heat kit is available for added functionality.
The included MRCOOL® Smart Thermostat provides easy and precise temperature control for your home, making it simple to set and adjust the temperature to your preferred comfort level. It’s also compatible with the MRCOOL® SmartHVAC app for convenient remote access. Compatible with our Central Ducted Hyper Heat system, this air handler ensures top-tier performance and comfort. Backed by a 10-year warranty, the 3 Ton MRCOOL® VersaPro® Central Ducted Air Handler offers a combination of performance, reliability, and convenience, providing a long-lasting and efficient solution for your home’s climate control.
|
Dimensions |
21.02" D x 49.02" H x 21.02" W |
|
CFM |
1188.97/1083.02/971.19/865.24 |
|
Tonnage |
3 |
|
Cooling Capacity (BTU) |
36000 |
|
Heating Capacity (BTU) |
36000 |
|
Voltage (V) |
115/208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
15 |
|
Min Circuit Ampacity (A) |
8.0/6.0 |
|
Color |
gray |
|
Decibel Rating Low (DBA) |
28 |
|
Decibel Rating High (DBA) |
48 |
|
Number of Speeds |
3 |
|
Max Lineset Length (FT) |
246 ft |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
3/4 |
|
Filter Type |
Replaceable |
|
Filter Size |
19x20x1 |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
Yes |
|
Auxiliary Heater Sizes |
5kW/8kW/10kW/15kW/20kW |
|
Adjustable Thermostat |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
ETL Certified |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Base Parts Warranty |
10 Years |
|
Base Compressor Warranty |
10 Years |
|
Contains Electronics |
Yes |
| Contains Chemicals |
Yes |
|
Contains Compressed gas |
Yes |
|
Net Weight (Lbs) |
129.41 |
|
Gross Depth (In) |
24.41 |
|
Gross Height (In) |
52.56 |
|
Gross Width (In) |
26.57 |
|
Gross Weight (Lbs) |
153.88 |

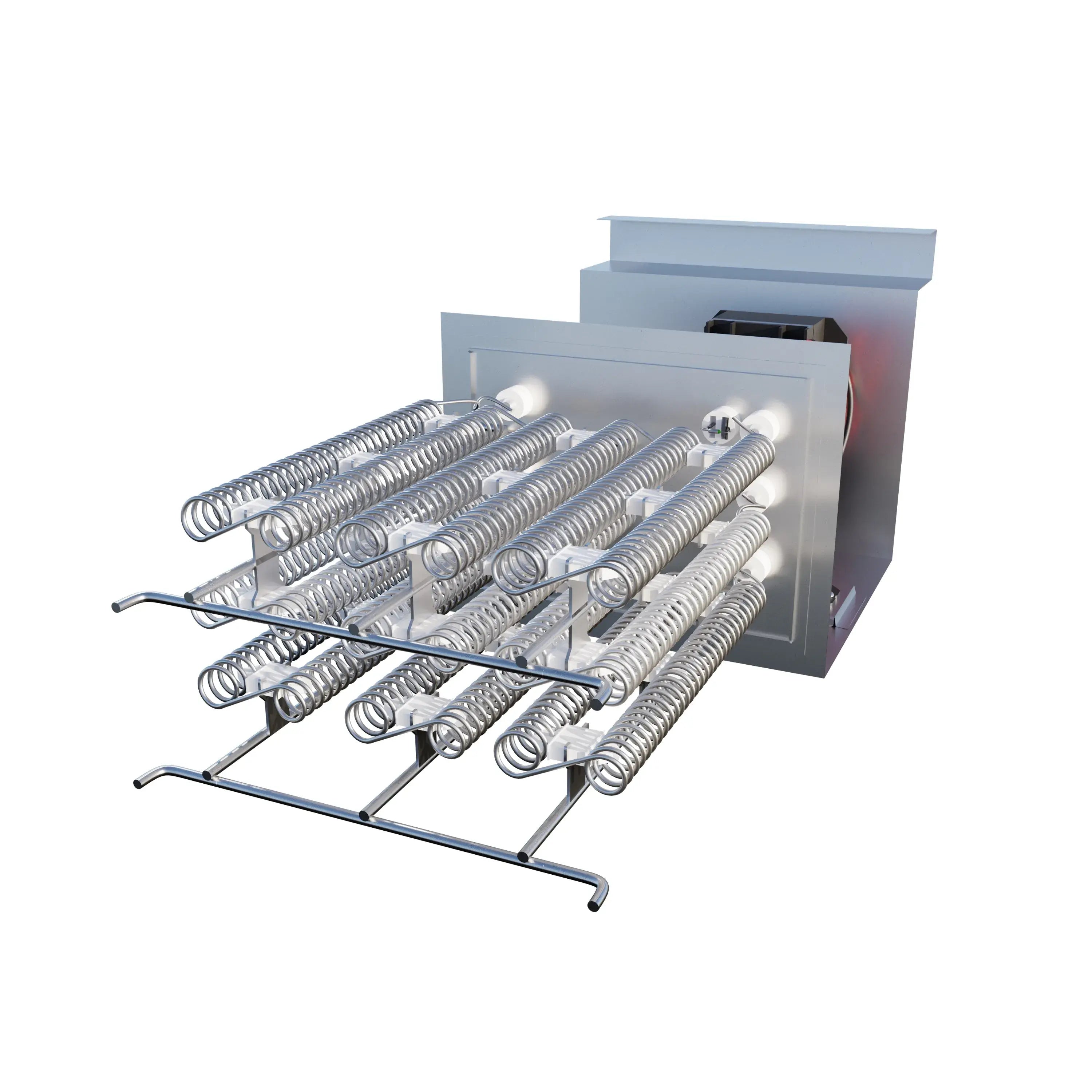

10kW VersaPro & Hyper Heat 2nd Gen 454B Heat Kit
Final Sale: MRCOOL Accessories are non-returnable.
Contact a representative if you need assistance with finding the right HVAC Accessory.
|
Gross Dimensions |
14.5" D x 24" H x 10.25" w |
|
Gross Weight (Lbs) |
12 Lbs |

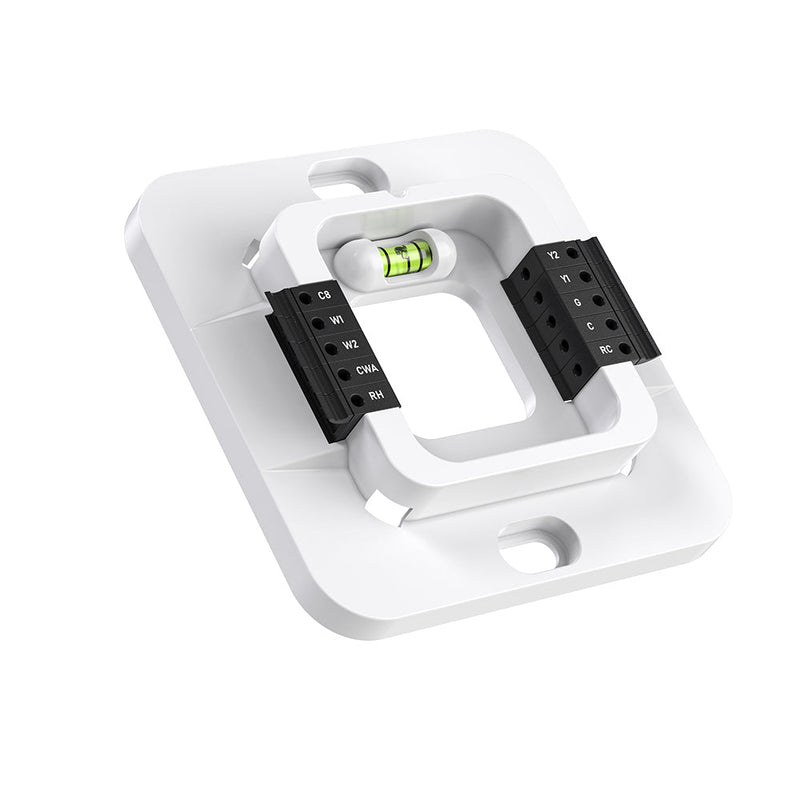

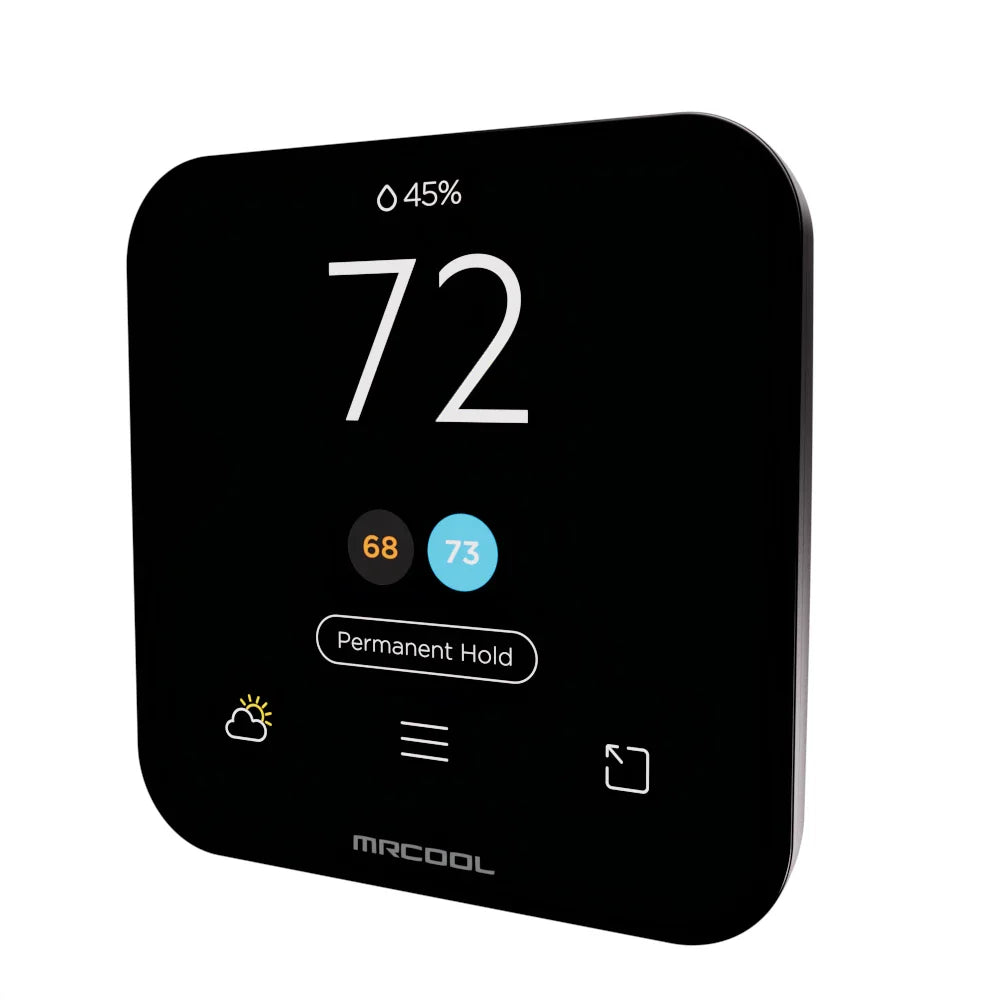

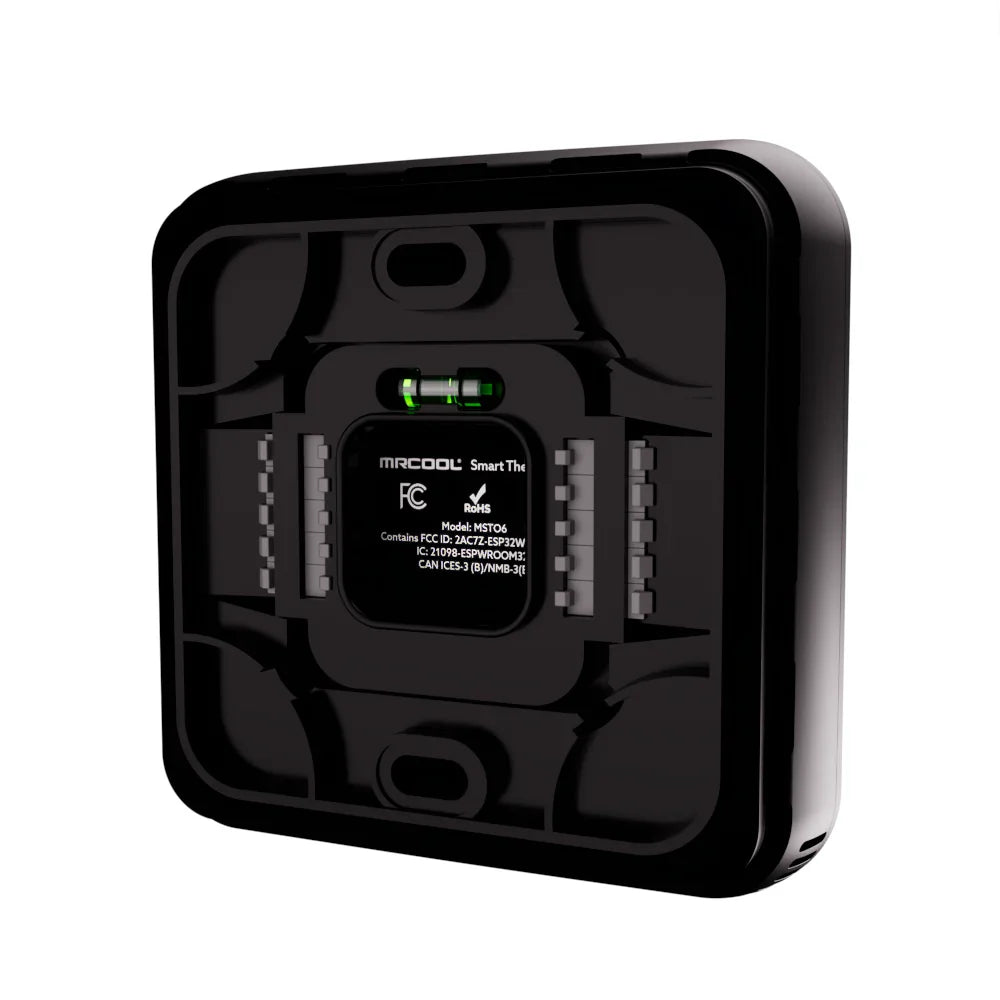

Experience unparalleled comfort and energy efficiency with the MRCOOL Smart Thermostat, which boasts personalized heating and cooling options alongside a straightforward DIY installation process. This thermostat empowers you to customize settings effortlessly, enhancing your comfort while simultaneously reducing energy consumption. Choose from a plethora of modes and options to curate your ideal environment, including the convenient vacation mode, ensuring home safety during your absence without unnecessarily inflating energy bills.
Control lies at the heart of this Smart Thermostat, providing multiple avenues such as the intuitive touch-screen display, voice commands via popular virtual assistants like Google Assistant, Siri, or Amazon Alexa, or the innovative Smart HVAC app. The app offers a range of useful features, from an air filter cleaning monitor to a timeline displaying recent system adjustments, allowing you to track usage levels and fine-tune temperature and fan speed settings.
With its unique location-based services, the thermostat automatically adjusts settings based on your proximity to home, ensuring you always return to the perfect temperature. Even in the event of an internet outage, you can maintain control using the thermostat directly, adjusting temperature and settings as needed. With the added reassurance of a 3-year warranty, the MRCOOL Smart Thermostat provides peace of mind alongside unparalleled technology, comfort, and efficiency.
|
Dimensions |
3.9" D x 1" H x 3.9" W |
|
Voltage (V) |
24 |
| Sleep Mode | Yes |
| Base Parts Warranty | 3 Years |
| Gross Dimensions | 6.5" D x 2.12" H x 5.37" W |
| Gross Weight (lbs) | 0.95 |
