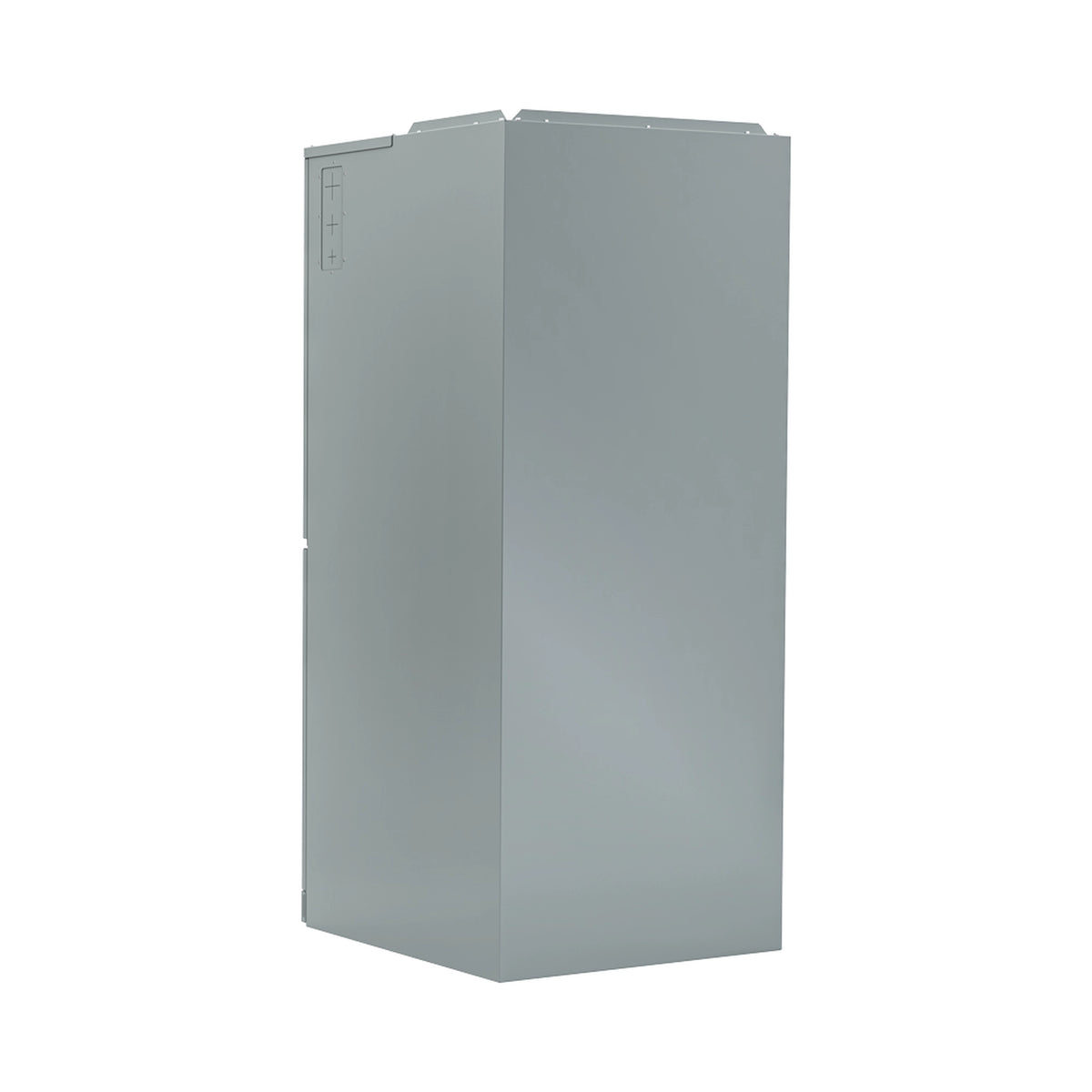

The 3 Ton MRCOOL® VersaPro® Central Ducted Air Handler offers a reliable and efficient solution for heating and cooling your home throughout the year. With a SEER2 rating of up to 17.4, it is designed to cover up to 1,500 square feet, making it an ideal upgrade for older HVAC systems that need improved efficiency. Built for long-term durability, this air handler features a robust painted galvanized steel exterior that withstands everyday wear. Its self-diagnostics panel simplifies maintenance by quickly identifying any issues, minimizing downtime.
This unit is designed for flexible installation, offering options for upflow, downflow, and horizontal left or right configurations to suit various home layouts. It uses eco-friendly R-454B refrigerant to help reduce its environmental impact, and an optional heat kit is available for added functionality.

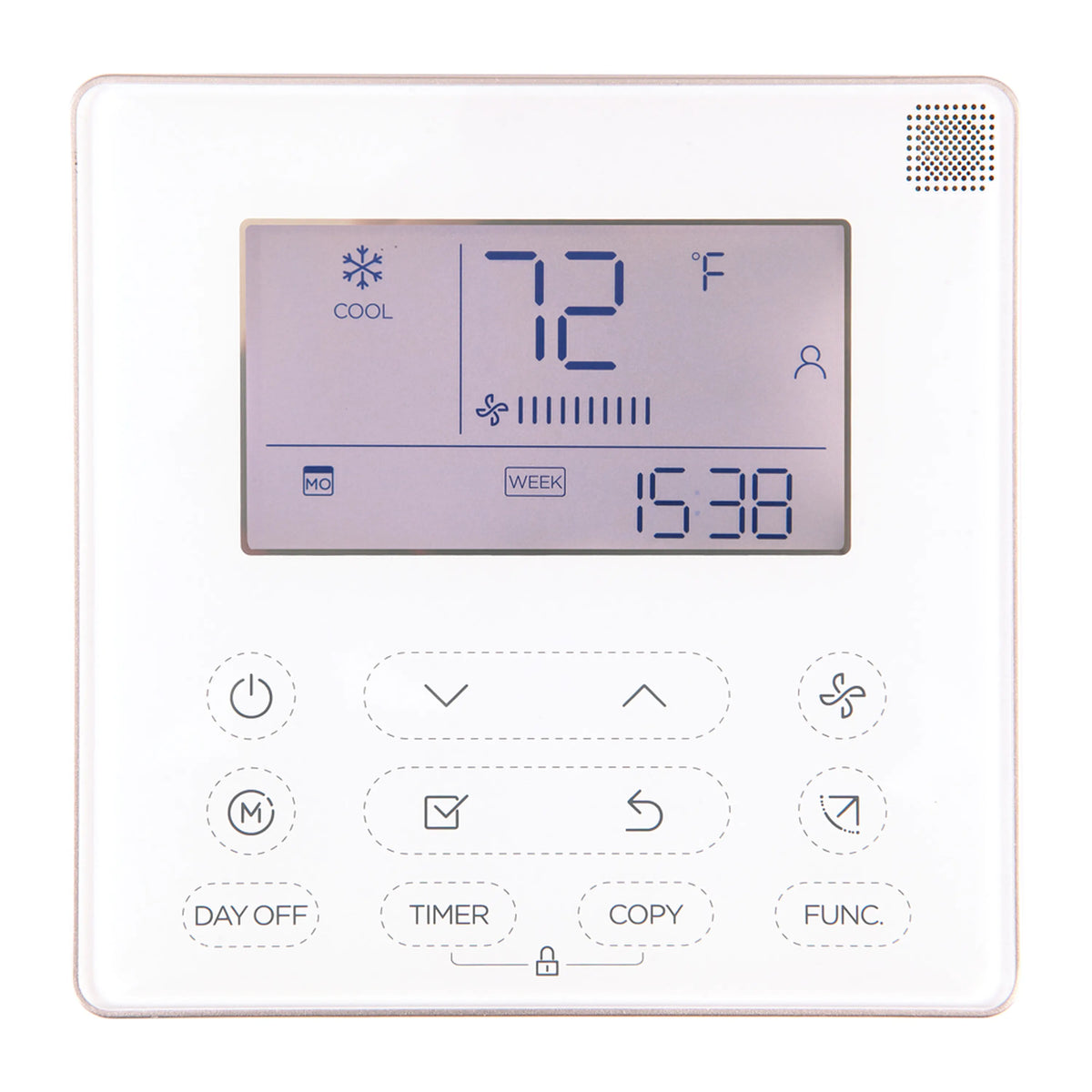

The included MRCOOL® Smart Thermostat provides easy and precise temperature control for your home, making it simple to set and adjust the temperature to your preferred comfort level. It’s also compatible with the MRCOOL® SmartHVAC app for convenient remote access. Compatible with our Central Ducted Hyper Heat system, this air handler ensures top-tier performance and comfort. Backed by a 10-year warranty, the 3 Ton MRCOOL® VersaPro® Central Ducted Air Handler offers a combination of performance, reliability, and convenience, providing a long-lasting and efficient solution for your home’s climate control.
| DIMENSIONS & WEIGHT | |
|---|---|
| Dimensions | 21.02" D x 49.02" H x 21.02" W |
| Net Weight (Lbs) | 129.41 |
| Gross Depth (In) | 24.41 |
| Gross Height (In) | 52.56 |
| Gross Width (In) | 26.57 |
| Gross Weight (Lbs) | 153.88 |
| GENERAL INFORMATION | |
| Color | gray |
| CAPACITY & PERFORMANCE | |
| CFM | 1188.97/1083.02/971.19/865.24 |
| Tonnage | 3 |
| Cooling Capacity (BTU) | 36000 |
| Heating Capacity (BTU) | 36000 |
| Cycle | 60 |
| COMPRESSOR & MOTORS | |
| Number of Speeds | 3 |
| NOISE LEVELS | |
| Decibel Rating Low (DBA) | 28 |
| Decibel Rating High (DBA) | 48 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 115/208-230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 8.0/6.0 |
| REFRIGERANT & PIPING | |
| Max Lineset Length (FT) | 246 ft |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| FILTER & HEATING | |
| Filter Type | Replaceable |
| Filter Size | 19x20x1 |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes | 5kW/8kW/10kW/15kW/20kW |
| CONTROLS & CONNECTIVITY | |
| Adjustable Thermostat | Yes |
| WIFI Compatibility | Yes |
| APP Compatibility | Yes |
| SAFETY | |
| ETL Certified | Yes |
| Energy Star Certified | Yes |
| AHRI Certified | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed gas | Yes |
| WARRANTY | |
| Base Parts Warranty | 10 Years |
| Base Compressor Warranty | 10 Years |
