What's in this package
Every piece below is included in your system price — matched to optimize efficiency, power and compatibility. Tap a piece to see its full description, specs and manuals.

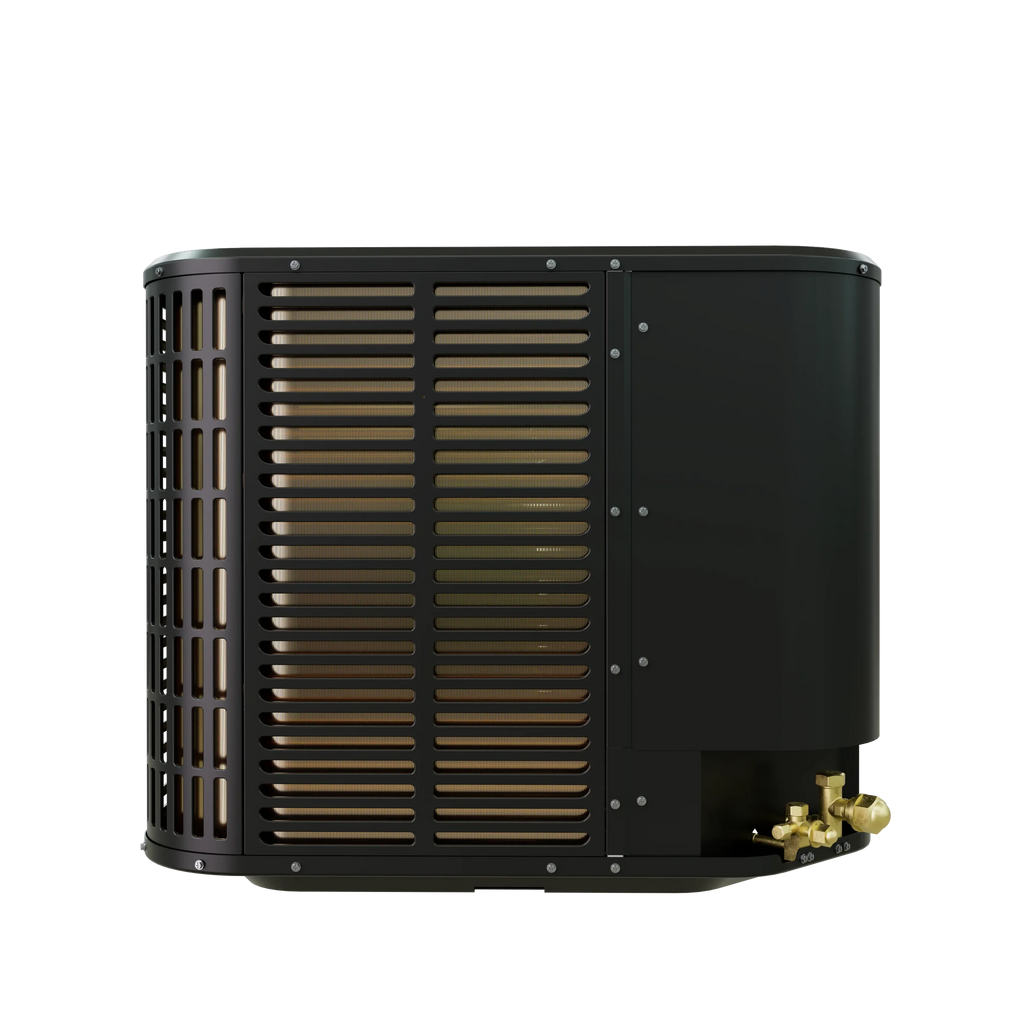

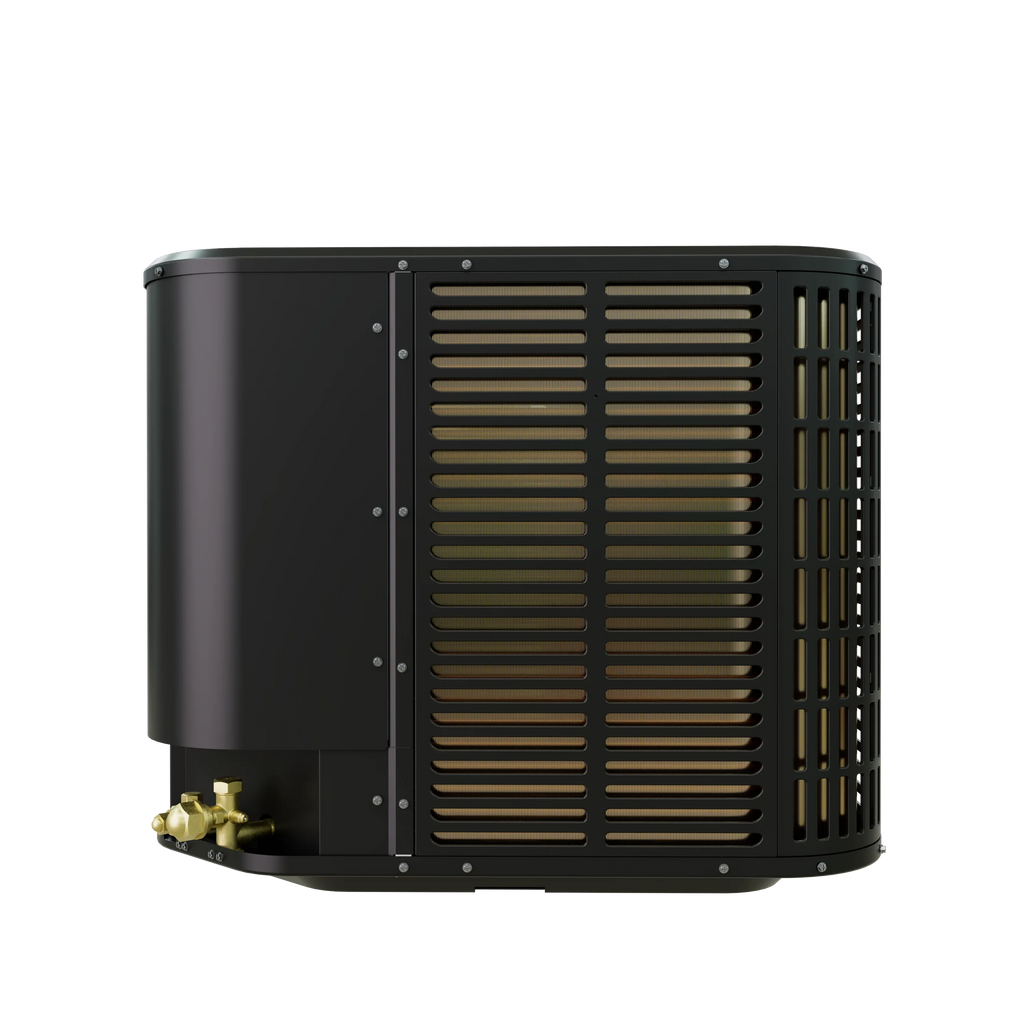

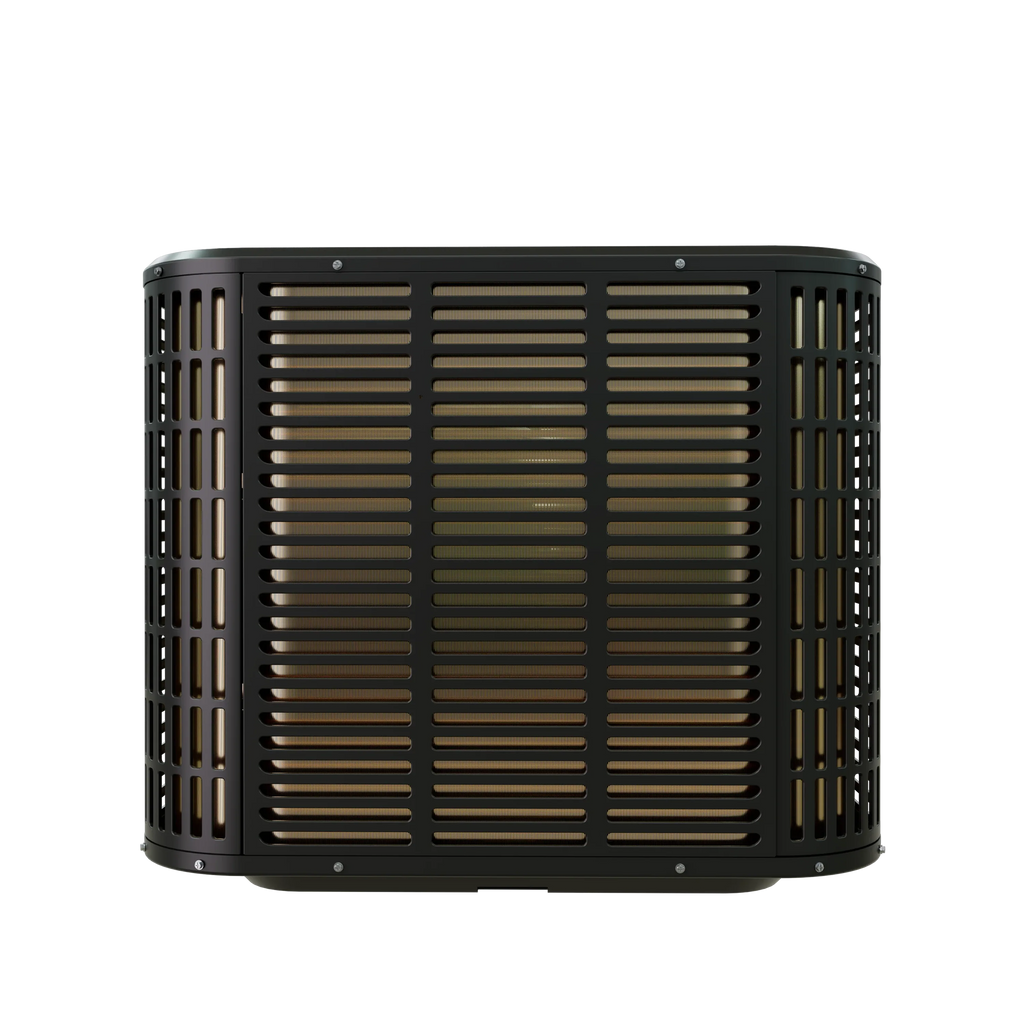

The MRCOOL® Signature Series TruInverter™ 36K Heat Pump Condenser delivers powerful, energy-efficient comfort year-round, making it an ideal solution for homeowners seeking consistent performance, lower energy costs, and long-term reliability. With efficiency ratings of 19 SEER2 for cooling and 9 HSPF2-4 for heating, it maintains precise indoor temperatures while using less electricity than traditional fixed-speed systems. At the core of the system is TruInverter™ variable-speed technology, which continuously adjusts output to match real-time demand.
This eliminates temperature swings, improves humidity control, reduces system wear, and delivers quieter operation—enhancing comfort while extending equipment life. To further streamline the setup process, this unit is designed to work with MRCOOL® No-Vac® Quick Connect® line sets, which are pre-charged and eliminate the need for vacuuming or evacuation.
This specialized compatibility significantly reduces installation time and removes the need for expensive specialized tools, making the process faster and more reliable for both professionals and DIY enthusiasts. The TruInverter™ 36K is factory-charged with R-454B refrigerant, a next-generation, environmentally responsible option that provides excellent heat-transfer performance with significantly lower global warming potential. Factory charging also simplifies installation, reduces labor time, and minimizes refrigerant handling errors.
Designed for quiet operation, the unit runs at just 68 decibels, comparable to a household dishwasher, with a sound-dampening top that reduces noise without restricting airflow. Rugged construction includes a steel louver coil guard and wire fan discharge grille to protect against debris and harsh weather, while a service-friendly layout makes installation and maintenance easier.
For added peace of mind, the system is backed by a 10-year limited parts warranty and a limited lifetime compressor warranty. Combining inverter efficiency, quiet performance, durable construction, and strong warranty protection, the MRCOOL® TruInverter™ 36K is a smart, long-term investment in dependable home comfort.
- Net (W x D x H in)
- 29.215 x 29.125 x 24.94
- Net Weight (lbs)
- 146
- Gross (W x D x H in)
- 30.25 x 30.25 x 31.25
- Gross Weight (lbs)
- 176
- Product Type
- Inverter Heat Pump Condenser
- Tonnage
- 3
- Color
- Gunmetal
- SEER2
- 19
- EER2
- 10
- COP47
- 3.5
- HSPF2-4
- 9
- Cooling Capacity (BTU)
- 34,000
- Heating Capacity (BTU)
- 36,000
- Min Ambient Cool (F)
- 5
- Min Ambient Heat (F)
- -5
- Inverter
- Yes
- Compressor Motor Type
- Variable Rotary
- Condenser Fan Motor Type
- DC
- Decibel Rating (dBA)
- 68
- Voltage (V)
- 208/230
- Phase
- 1
- Cycle
- 60
- Max Fuse Breaker (A)
- 35
- Min Circuit Ampacity (A)
- 22
- Refrigerant Type
- R-454B
- Refrigerant Volume (oz)
- 100.53
- Metering Device
- EEV
- Liquid Line Size
- 3/8"
- Suction Line Size
- 3/4"
- Max Lineset Length (ft)
- 100
- Proposition 65 Warning
- Yes
- Contains Electronics
- Yes
- Contains Chemicals
- Yes
- Contains Compressed Gas
- Yes
- Base Warranty
- 10-Year Parts, Lifetime Compressor
- Base Parts Warranty
- 10 Year
- Base Compressor Warranty
- Lifetime
- AHRI Certified
- Yes
- ENERGY STAR Certified
- No

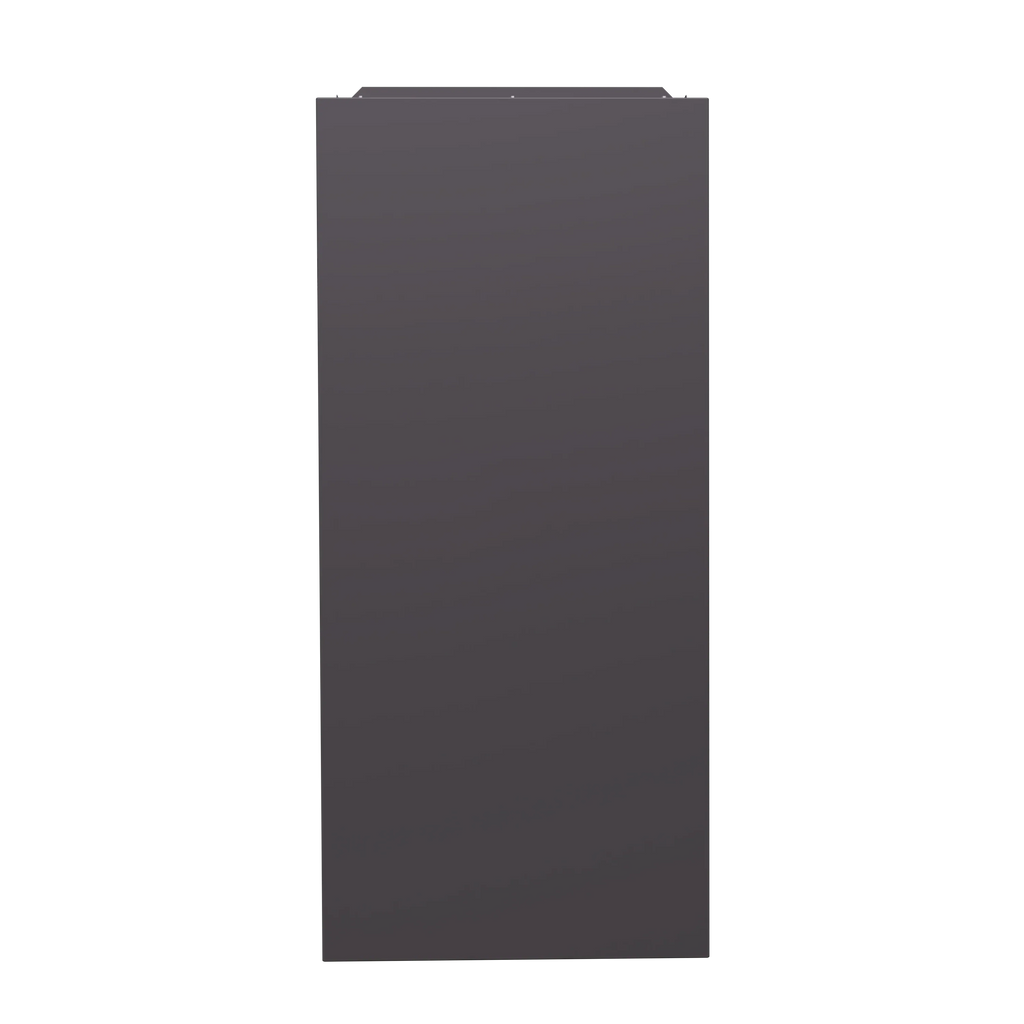

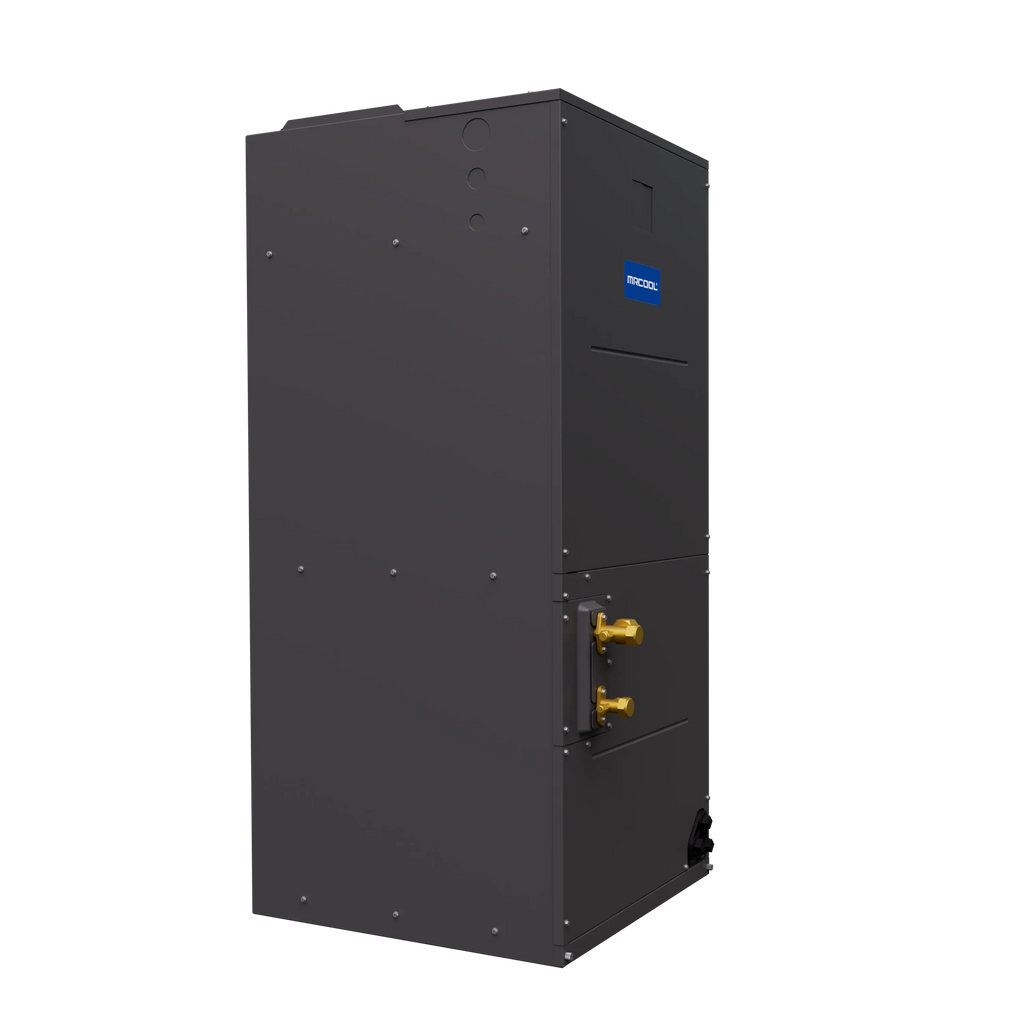

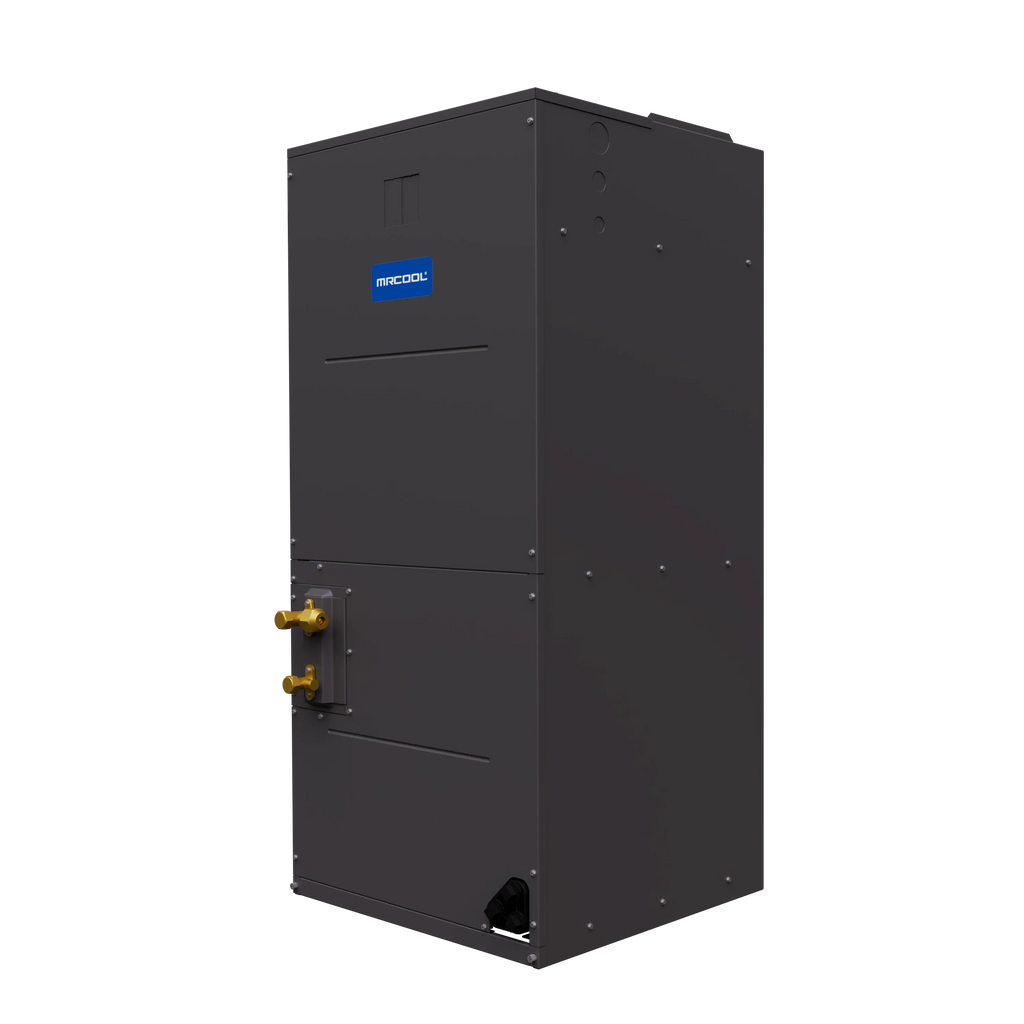

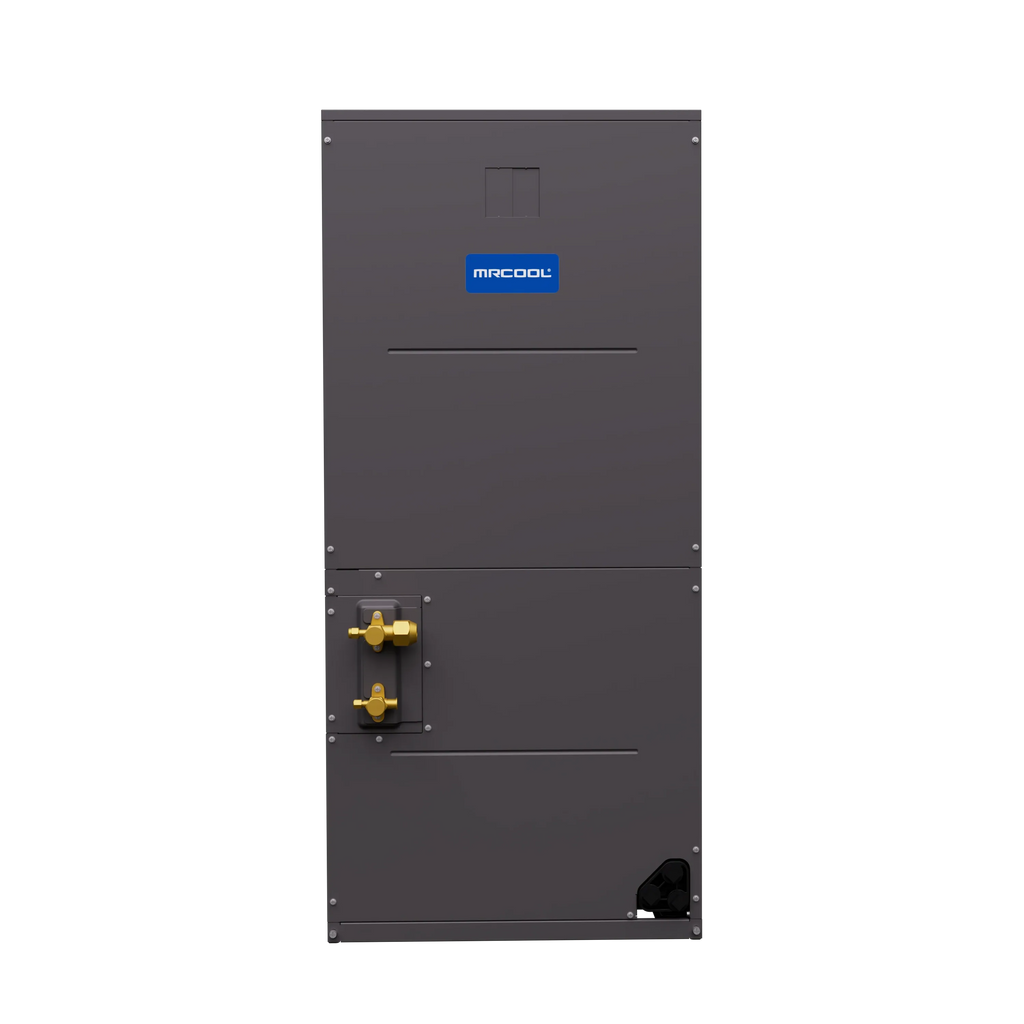

The MRCOOL® Signature Series TruInverter™ 36K BTU 230V Multi-Position Air Handler is designed to deliver powerful, energy-efficient comfort for homes and light-duty applications. Built with advanced TruInverter™ variable-speed technology, this system continuously adjusts output to match real-time demand, maintaining precise indoor temperatures while using significantly less energy than traditional fixed-speed systems. The result is quieter operation, smoother performance, and lower monthly energy costs.
At the core of the system is next-generation R-454B refrigerant, which provides excellent heat transfer while dramatically reducing environmental impact. This modern refrigerant helps lower global warming potential while ensuring compliance with current and future efficiency regulations.
Installation flexibility is a major advantage. The air handler supports upflow, downflow, and horizontal configurations, making it ideal for attics, crawl spaces, closets, and mechanical rooms.
Its slim, compact design fits where bulky air handlers cannot. When paired with a compatible TruInverter™ outdoor heat pump condenser, the system delivers efficient heating and cooling in all seasons.
Setup is faster and cleaner thanks to compatibility with MRCOOL® No-Vac® Quick Connect® line sets, which arrive factory-charged with R-454B refrigerant. This eliminates vacuum pumps, refrigerant handling, and specialized HVAC tools, reducing labor and installation risk.
The air handler works with most third-party smart thermostats, giving you freedom to choose your preferred control platform. Optional TruInverter™ electric heat kits provide added heating support for cold climates or backup operation.
Backed by a limited lifetime compressor warranty and a 10-year parts warranty, the MRCOOL® TruInverter™ 36K delivers efficient, flexible, and long-lasting comfort you can depend on.
- Net (W x D x H in)
- 21 x 21 x 46.5
- Net Weight (lbs)
- 126.8
- Gross (W x D x H in)
- 22.75 x 26.33 x 52.5
- Gross Weight (lbs)
- 162
- Product Type
- Air Handler
- Tonnage
- 3
- Mount Type
- Multi-Position
- Color
- Gunmetal
- Airflow (CFM)
- 1150
- Tonnage
- 3
- Blower Motor Type
- DC
- Blower Motor HP
- 1/2
- Blower Motor Speeds
- 5
- Decibel Rating (dBA)
- 58
- Voltage (V)
- 208/230
- Phase
- 1
- Cycle
- 60
- Max Fuse Breaker (A)
- 15
- Min Circuit Ampacity (A)
- 5
- Refrigerant Type
- R-454B
- Refrigerant Volume (oz)
- 3.52
- Metering Device
- TXV
- Liquid Line Size
- 3/8"
- Suction Line Size
- 3/4"
- Max Lineset Length (ft)
- 100
- Drain Connection Size
- 3/4"
- Auxiliary Heater Included
- No
- Auxiliary Heater Available
- Yes
- Auxiliary Heater Sizes
- 5 kW
- 10 kW
- 15 kW
- Proposition 65 Warning
- Yes
- Contains Electronics
- Yes
- Contains Chemicals
- Yes
- Contains Compressed Gas
- Yes
- Base Warranty
- 10-Year Parts
- Base Parts Warranty
- 10 Year
Customer Reviews
I needed to replace another unit that a previous contractor didn't do any part of that installation correctly, and the condensation line was leaking inside the house, running down the wall since that installation!! The indoor coil was 1-1/2" out of level, the line set wasn't wrapped, the electrical was tapped into the same circuit as the garage light and outlets...it was a mess.
It took me more time to demo the old unit out than to install the one I bought from you.
Thank you.
Very pleased with the price, delivery, ease of installation, and above all during this heatwave it is working excellently.
I ordered a 2 zone unit for the bedrooms in our home. It took a few months to arrive (manufacturer issue, nothing to do with HOD, and we were contacted on more than one occasion with an order update which was much appreciated!), but when it did arrive was very easy to install. Both the heat and AC function work perfectly, and our family is very happy!
I ordered a HVAC system and it arrived in a timely manner and with no apparent issues. I thought the system was defective once installed but it was the installers fault who wired it wrong. My only issue would be the fee (30% I believe) to return a defective item within the 30 day return policy. If it is defective the customer shouldn't have to pay a fee to return an item that is not operating as designed. Other than that this is a good company.
Installed my own central HP system. It was a bit of work but nothing beyond a person with basic mechanical and electrical skills. It took me a while because I had to remove the existing electric forced air furnace from a pretty tight place. Some custom sheet metal work and a bit of custom electrical too. Worked perfectly when powered up and I actually like the thermostat provided, although I wish it was clearer how to set up a temperature set-back schedule. Pre-charged refrigerant piping was something new and I liked that too. The best thing is that my electric utility forked out $4,000 and that paid for the unit!
