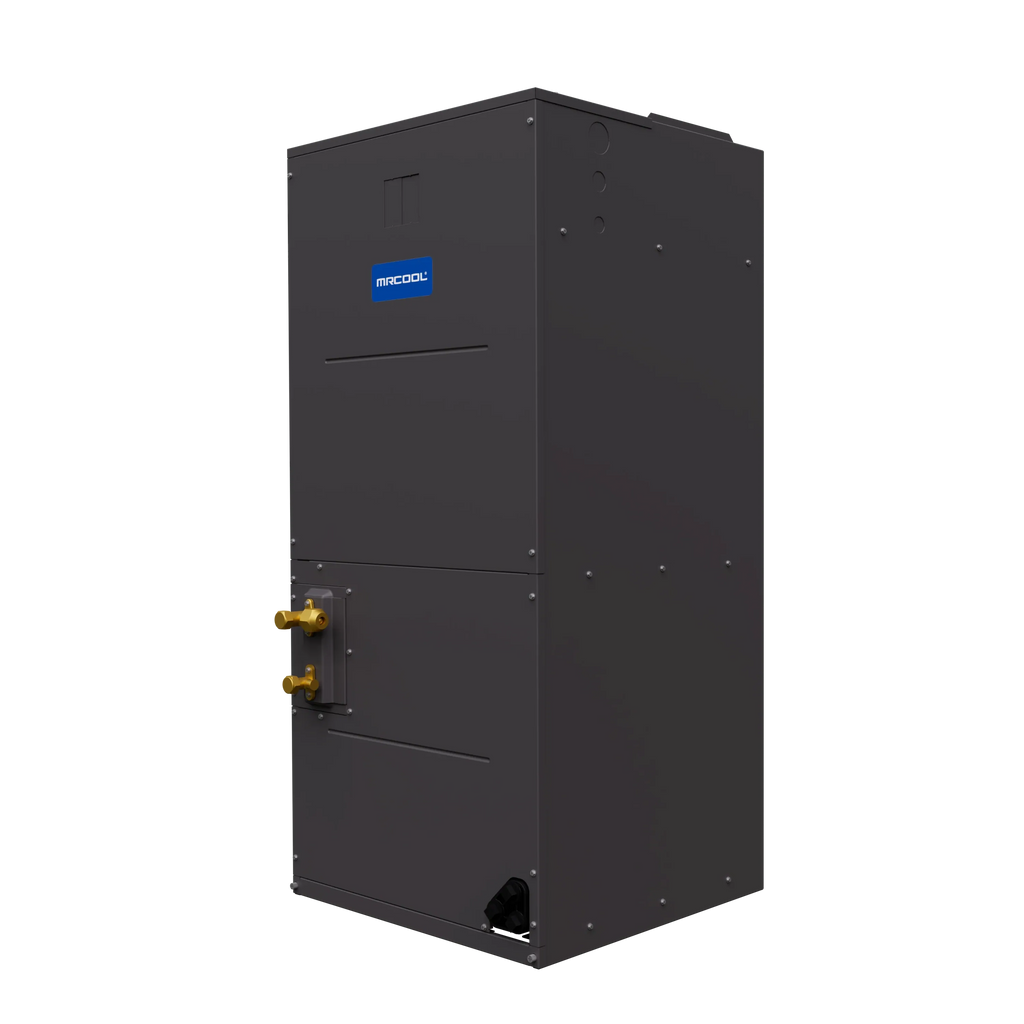

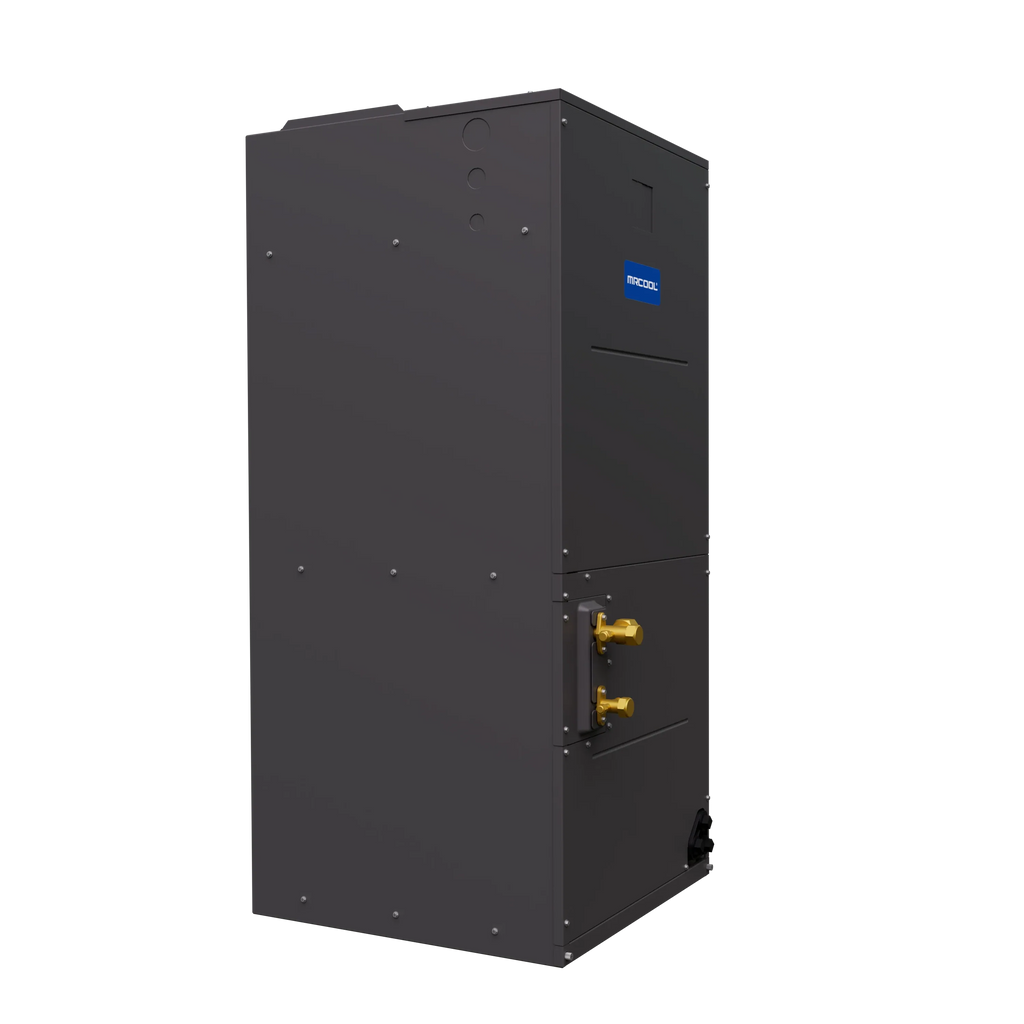

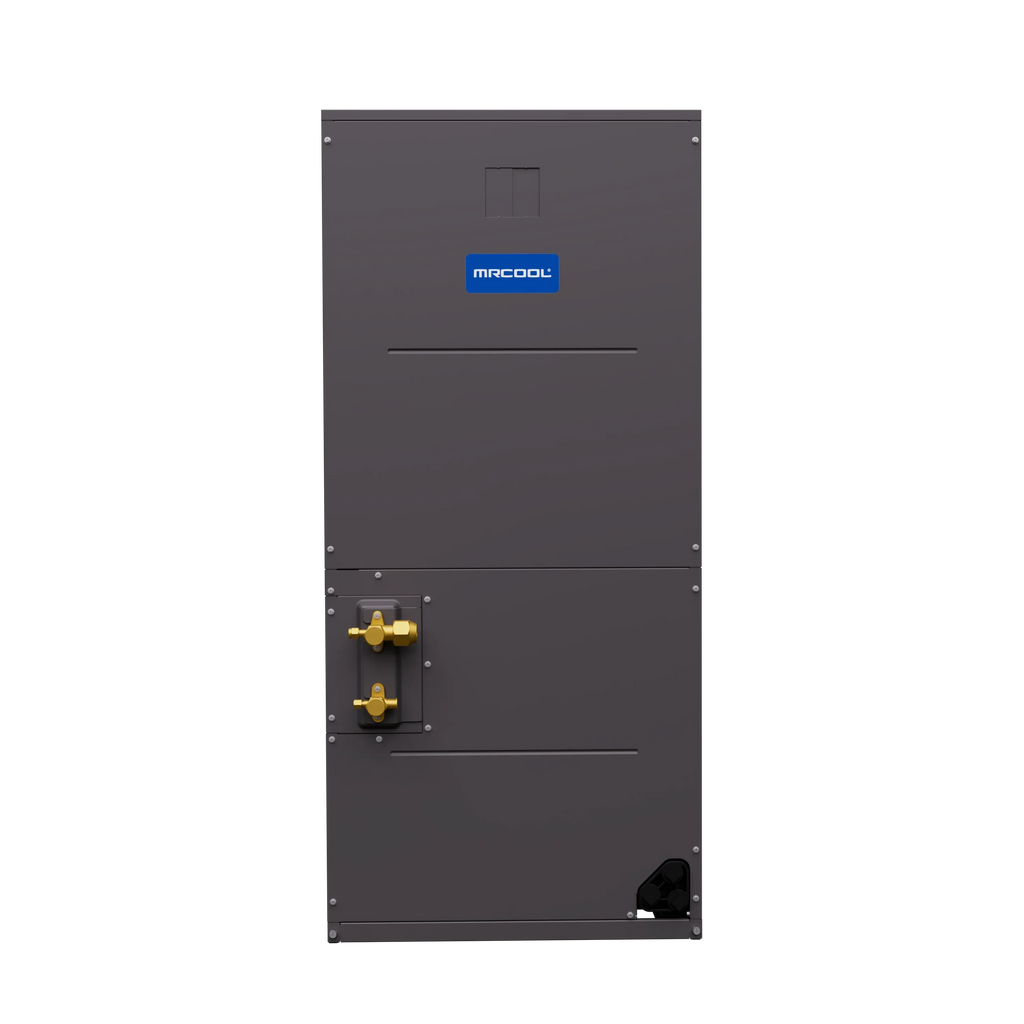

The MRCOOL® Signature Series TruInverter™ 36K BTU 230V Multi-Position Air Handler is designed to deliver powerful, energy-efficient comfort for homes and light-duty applications. Built with advanced TruInverter™ variable-speed technology, this system continuously adjusts output to match real-time demand, maintaining precise indoor temperatures while using significantly less energy than traditional fixed-speed systems. The result is quieter operation, smoother performance, and lower monthly energy costs.
At the core of the system is next-generation R-454B refrigerant, which provides excellent heat transfer while dramatically reducing environmental impact. This modern refrigerant helps lower global warming potential while ensuring compliance with current and future efficiency regulations.
Installation flexibility is a major advantage. The air handler supports upflow, downflow, and horizontal configurations, making it ideal for attics, crawl spaces, closets, and mechanical rooms.
Its slim, compact design fits where bulky air handlers cannot. When paired with a compatible TruInverter™ outdoor heat pump condenser, the system delivers efficient heating and cooling in all seasons.
Setup is faster and cleaner thanks to compatibility with MRCOOL® No-Vac® Quick Connect® line sets, which arrive factory-charged with R-454B refrigerant. This eliminates vacuum pumps, refrigerant handling, and specialized HVAC tools, reducing labor and installation risk.
The air handler works with most third-party smart thermostats, giving you freedom to choose your preferred control platform. Optional TruInverter™ electric heat kits provide added heating support for cold climates or backup operation.
Backed by a limited lifetime compressor warranty and a 10-year parts warranty, the MRCOOL® TruInverter™ 36K delivers efficient, flexible, and long-lasting comfort you can depend on.
| DIMENSIONS & WEIGHT | |
|---|---|
| Net Width | 21in |
| Net Height | 46.5in |
| Net Depth | 21in |
| Net Weight | 126.8 lbs |
| Gross Width | 22.75in |
| Gross Height | 52.5in |
| Gross Depth | 26.33in |
| Gross Weight | 162 lbs |
| GENERAL INFORMATION | |
| Color | Gunmetal |
| Mount Type | Multi-Position |
| Metering Device | TXV |
| CAPACITY & PERFORMANCE | |
| Tonnage | 3 |
| Cycle | 60 Hz |
| CFM | 1,150 |
| COMPRESSOR & MOTORS | |
| Blower Motor Type | DC |
| Blower Motor HP | 1/2 |
| Blower Motor Speeds | 5 |
| NOISE LEVELS | |
| Decibel Rating | 58 dBA |
| ELECTRICAL REQUIREMENTS | |
| Voltage | 208/230V |
| Phase | 1 |
| Max Fuse Breaker | 15A |
| Min Circuit Ampacity | 5A |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Refrigerant Volume | 3.52 oz |
| Liquid Line Size | 3/8in |
| Suction Line Size | 3/4in |
| Max Lineset Length | 100 ft |
| FILTER & HEATING | |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes |
|
| CONTROLS & CONNECTIVITY | |
| Drain Connection Size | 3/4in |
| SAFETY | |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Base Warranty | 10 Year Parts |
| Base Parts Warranty | 10 Year |
