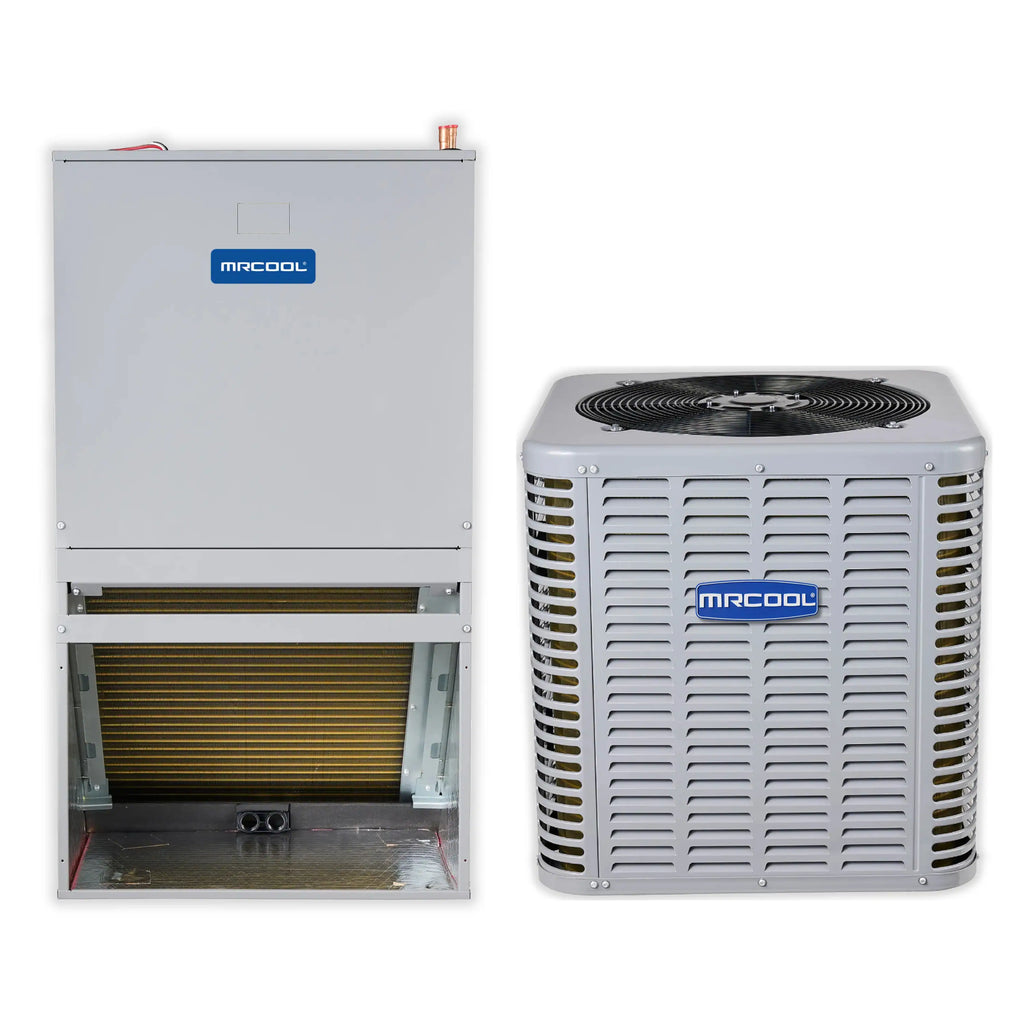

The MRCOOL® Signature Series 30k Heat Pump Condenser delivers reliable, energy-efficient performance year-round. With ratings of 14.3 SEER2 and 11.7 EER2, it offers consistent heating and cooling while helping homeowners manage energy costs in every season. Whether battling intense summer heat or chilly winter air, this system is built to maintain a comfortable indoor environment.
The unit comes pre-charged with R-454B refrigerant, a low-GWP alternative that aligns with current environmental standards. This refrigerant reduces environmental impact without compromising performance. The pre-charged design speeds up installation, reducing both time and labor expenses. At the heart of the system is a rugged single-speed scroll compressor that ensures steady, efficient operation. Inner-groove copper tubing enhances heat transfer, while integrated pressure and temperature sensors protect against extreme conditions.
An intelligent defrost function maintains reliable performance in cold weather by preventing frost buildup. Despite its powerful capabilities, the Signature Series 30k runs quietly at just 63 decibels. A sound-dampening top helps keep operational noise to a minimum, making it suitable for residential areas.
For added durability, the exterior features a steel louver coil guard and wire fan discharge grille for extra protection. With sweat connection service valves and an easy-access gauge port, installation and maintenance are simple. Backed by a 10-year limited parts warranty and a limited lifetime compressor warranty, it’s a dependable investment in long-term home comfort.
| Net Dimensions (In) | 23.6 D x 25 H x 23.6 W |
| Net Weight (Lbs) | 146 |
| Works With | Signature Series Multi-Position or Stud Mount Air Handlers |
| SEER2 | 14.3 |
| EER2 | 11.7 |
| HSPF2 | 7.5 |
| CFM | 2200 |
| Tonnage | 2.5 |
| Cooling Capacity (Btu) | 27500 |
| Heating Capacity (Btu) | 27500 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 30 |
| Min Circuit Ampacity (A) | 18 |
| Color | Grey |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 93.5 |
| Decibel Rating (Dba) | 63 |
| Inverter | No |
| Min Ambient Cool (F) | 59 |
| Min Ambient Heat (F) | 5 |
| Max Lineset Length (Ft) | 100 |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| Compressor Motor Type | Scroll |
| Condenser Fan Motor Type | PSC |
| Condenser Fan Motor Hp | 1/5 |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Base Warranty | 10 Year Parts, Limited Lifetime Compressor Warranty |
| Base Parts Warranty | 10 Year |
| Base Compressor Warranty | Limited Lifetime |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Gross Depth (In) | 24.8 |
| Gross Height (In) | 26.2 |
| Gross Width (In) | 24.8 |
| Gross Weight (Lbs) | 152 |

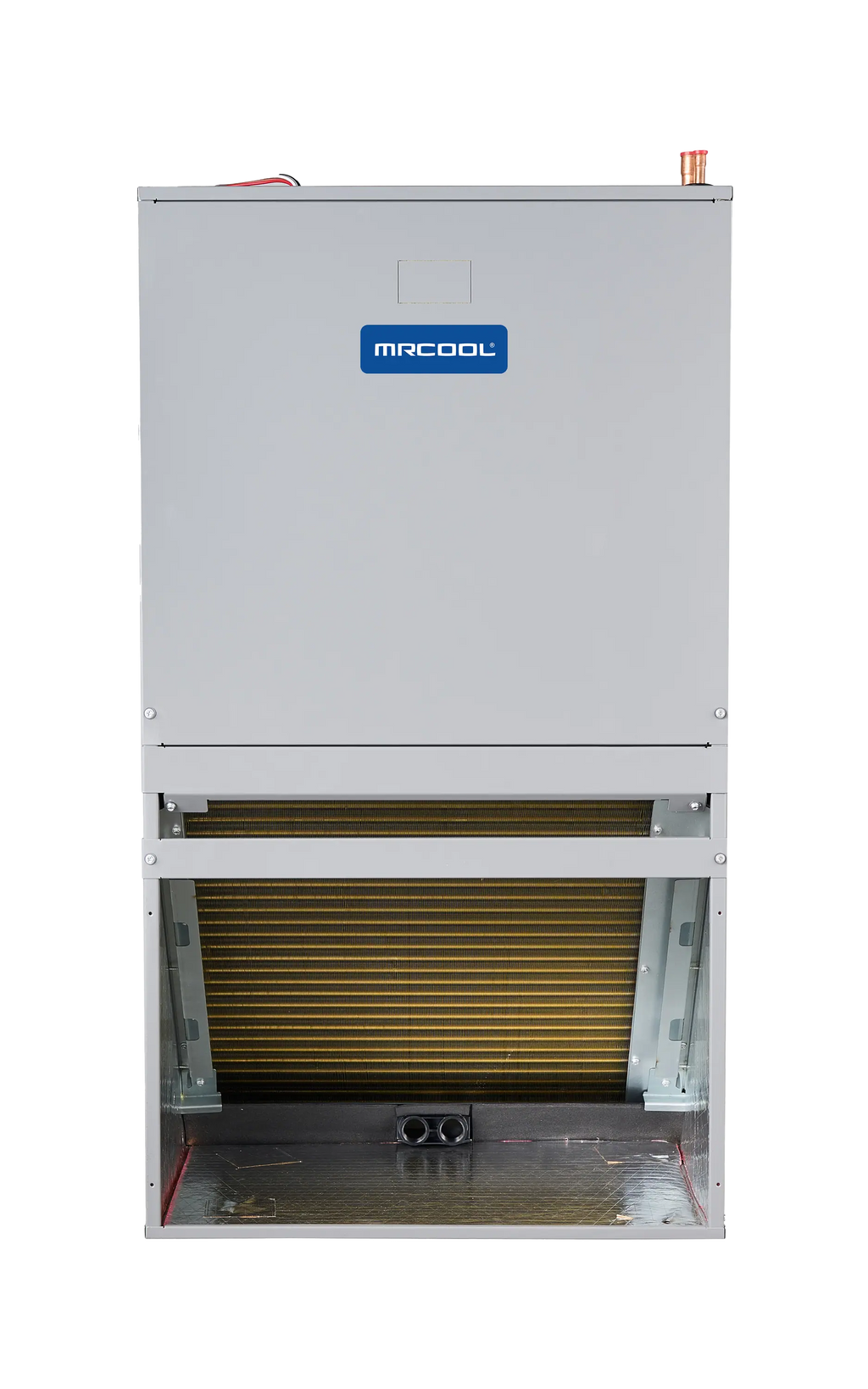

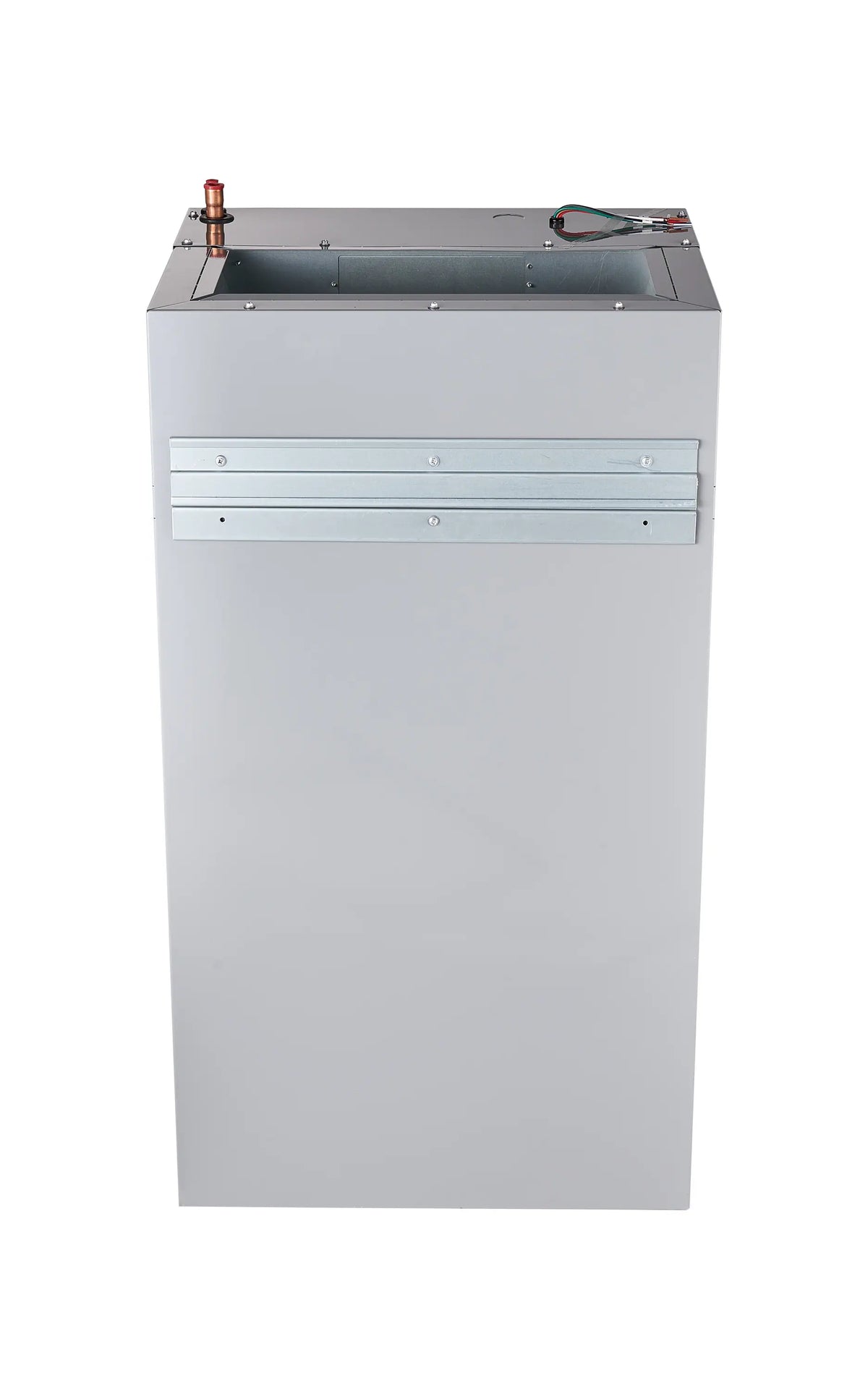

Upgrade your HVAC system with the MRCOOL® Signature Series 30K Stud Mount Air Handler—engineered for superior adaptability, energy efficiency, and straightforward installation. Designed to install neatly between standard wall studs, this compact unit is ideal for tight or unconventional spaces where traditional air handlers aren’t an option, making it a versatile solution for various applications. Despite its space-saving design, this air handler delivers reliable heating and cooling when paired with a compatible heat pump or condenser. It offers flexible airflow configurations with both front and bottom return options to meet the needs of your specific installation.
Constructed from durable galvanized steel, the MRCOOL® Signature Series 30k Stud Mount Air Handler is built for long-term performance. Advanced blower technology ensures quiet, consistent operation, while full cabinet insulation minimizes energy loss and condensation. The high-efficiency ECM motor promotes steady, even airflow and helps reduce energy consumption. Routine maintenance is a breeze thanks to the built-in filter rack, and optional electric heat kits are available to enhance performance in colder climates.
Covered by a 10-year limited parts warranty, this unit offers lasting peace of mind. Whether you're remodeling, replacing old equipment, or adding a new unit, the MRCOOL® Signature Series 30K Stud Mount Air Handler is a dependable, space-efficient solution that delivers comfort without compromise.
| Net Dimensions (In) | 19 D x 39.5 H x 22.125 W |
| Net Weight (Lbs) | 110 |
| Works With | Signature Series Top Discharge Condensers |
| Cfm | 965 |
| Tonnage | 2.5 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 6 |
| Min Circuit Ampacity (A) | 4.5 |
| Mount Type | Stud Mount |
| Color | Grey |
| Refrigerant Type | R-454B |
| Decibel Rating (Dba) | 55 |
| Air Flow Direction | Upflow |
| Drain Connection Size | 3/4 |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| Blower Motor Type | ECM |
| Blower Motor Hp | 1/2 |
| Blower Motor Speeds | 5 |
| Blower Motor Rpm | 960 |
| Filter Type | Replaceable |
| Filter Size | 20 * 20 * 1 |
| Metering Device | Orifice |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes | 5kW, 7.5kW, 10kW |
| Ul Listed | Yes |
| Csa Listed | Yes |
| Etl Listed | Yes |
| Energy Star Certified | No |
| Ahri Certified | Yes |
| Base Warranty | 10 Year Parts, Limited Lifetime Compressor Warranty |
| Base Parts Warranty | 10 Year |
| Base Compressor Warranty | Limited Lifetime |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Gross Depth (In) | 22.25 |
| Gross Height (In) | 42.89 |
| Gross Width (In) | 24.6 |
| Gross Weight (Lbs) | 120 |
