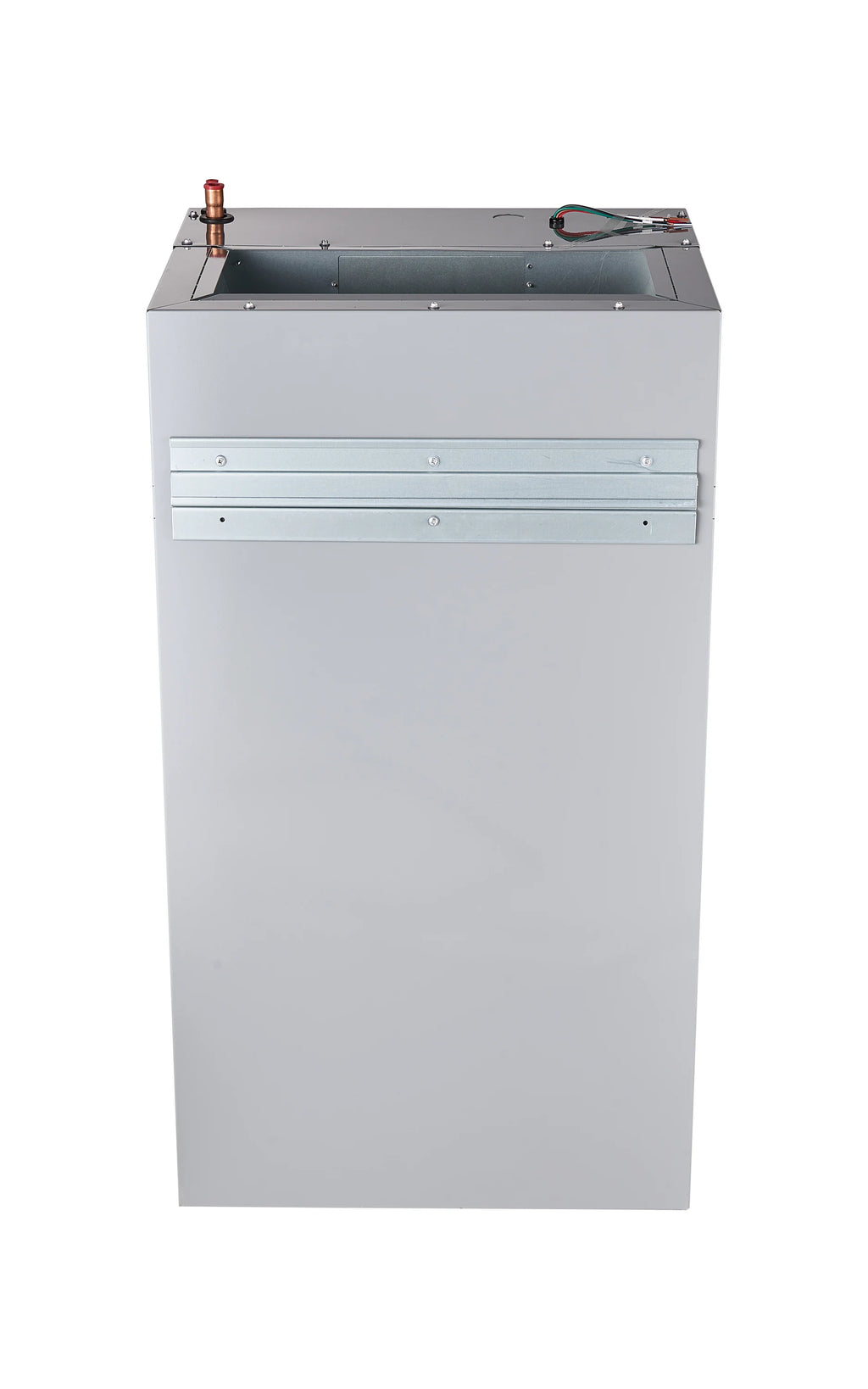

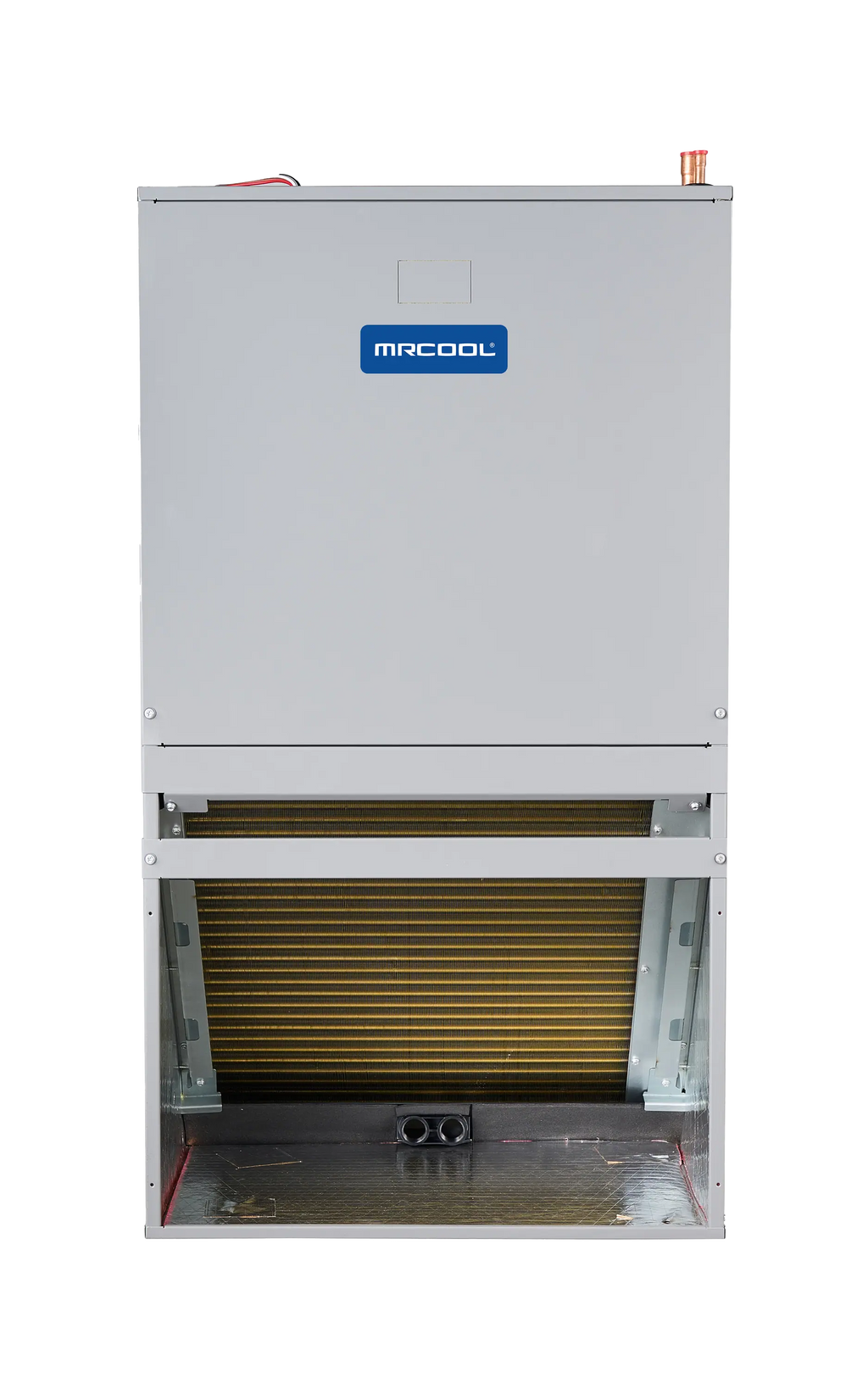

Upgrade your HVAC system with the MRCOOL® Signature Series 30K Stud Mount Air Handler—engineered for superior adaptability, energy efficiency, and straightforward installation. Designed to install neatly between standard wall studs, this compact unit is ideal for tight or unconventional spaces where traditional air handlers aren’t an option, making it a versatile solution for various applications. Despite its space-saving design, this air handler delivers reliable heating and cooling when paired with a compatible heat pump or condenser. It offers flexible airflow configurations with both front and bottom return options to meet the needs of your specific installation.
Constructed from durable galvanized steel, the MRCOOL® Signature Series 30k Stud Mount Air Handler is built for long-term performance. Advanced blower technology ensures quiet, consistent operation, while full cabinet insulation minimizes energy loss and condensation. The high-efficiency ECM motor promotes steady, even airflow and helps reduce energy consumption. Routine maintenance is a breeze thanks to the built-in filter rack, and optional electric heat kits are available to enhance performance in colder climates.
Covered by a 10-year limited parts warranty, this unit offers lasting peace of mind. Whether you're remodeling, replacing old equipment, or adding a new unit, the MRCOOL® Signature Series 30K Stud Mount Air Handler is a dependable, space-efficient solution that delivers comfort without compromise.
| DIMENSIONS & WEIGHT | |
|---|---|
| Net Dimensions (In) | 19 D x 39.5 H x 22.125 W |
| Net Weight (Lbs) | 110 |
| Gross Depth (In) | 22.25 |
| Gross Height (In) | 42.89 |
| Gross Width (In) | 24.6 |
| Gross Weight (Lbs) | 120 |
| GENERAL INFORMATION | |
| Mount Type | Stud Mount |
| Color | Grey |
| Air Flow Direction | Upflow |
| Metering Device | Orifice |
| CAPACITY & PERFORMANCE | |
| Cfm | 965 |
| Tonnage | 2.5 |
| Cycle | 60 |
| COMPRESSOR & MOTORS | |
| Blower Motor Type | ECM |
| Blower Motor Hp | 1/2 |
| Blower Motor Speeds | 5 |
| Blower Motor Rpm | 960 |
| NOISE LEVELS | |
| Decibel Rating (Dba) | 55 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 6 |
| Min Circuit Ampacity (A) | 4.5 |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| FILTER & HEATING | |
| Filter Type | Replaceable |
| Filter Size | 20 * 20 * 1 |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes |
|
| CONTROLS & CONNECTIVITY | |
| Works With | Signature Series Top Discharge Condensers |
| Drain Connection Size | 3/4 |
| SAFETY | |
| Ul Listed | Yes |
| Csa Listed | Yes |
| Etl Listed | Yes |
| Energy Star Certified | No |
| Ahri Certified | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Base Warranty | 10 Year Parts, Limited Lifetime Compressor Warranty |
| Base Parts Warranty | 10 Year |
| Base Compressor Warranty | Limited Lifetime |
