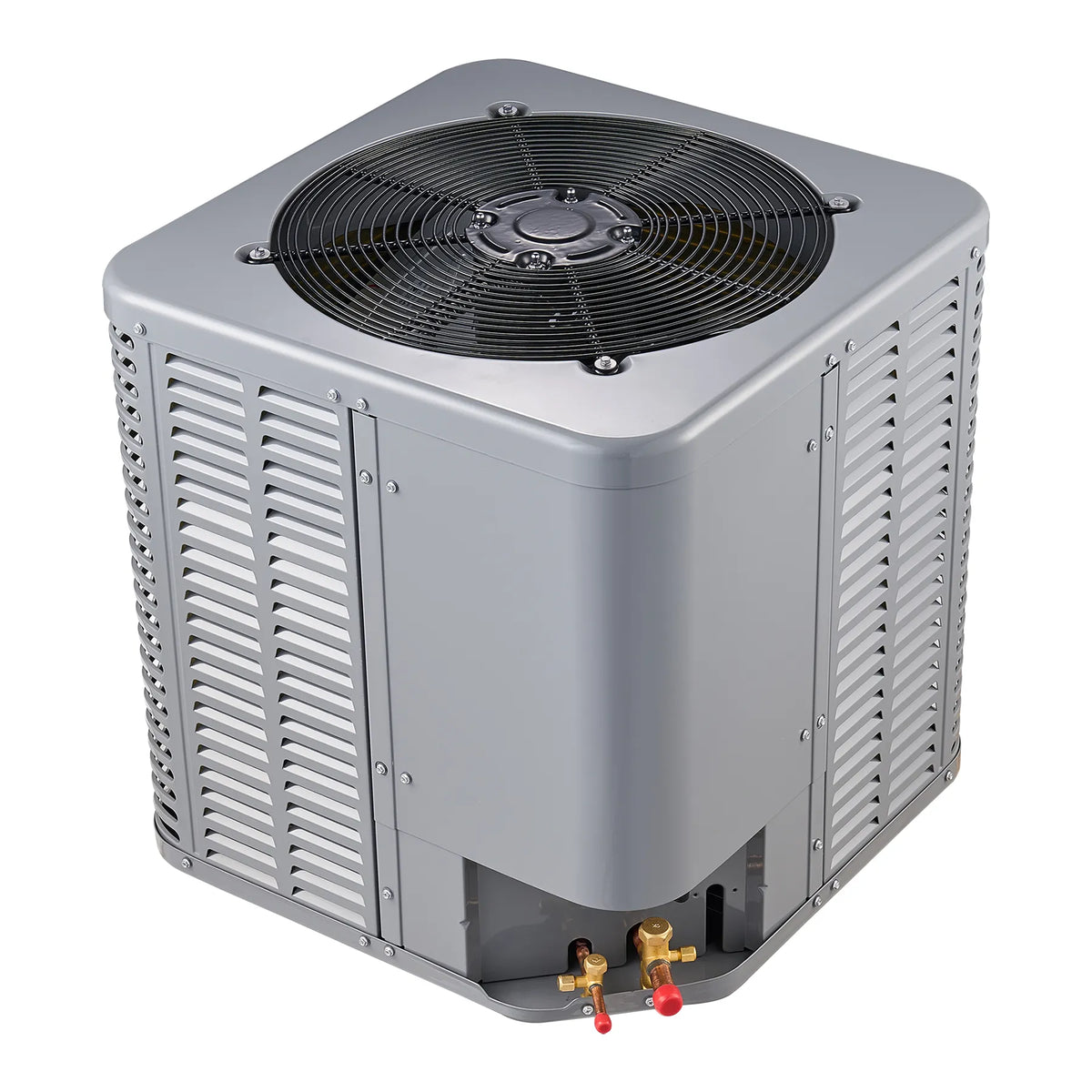

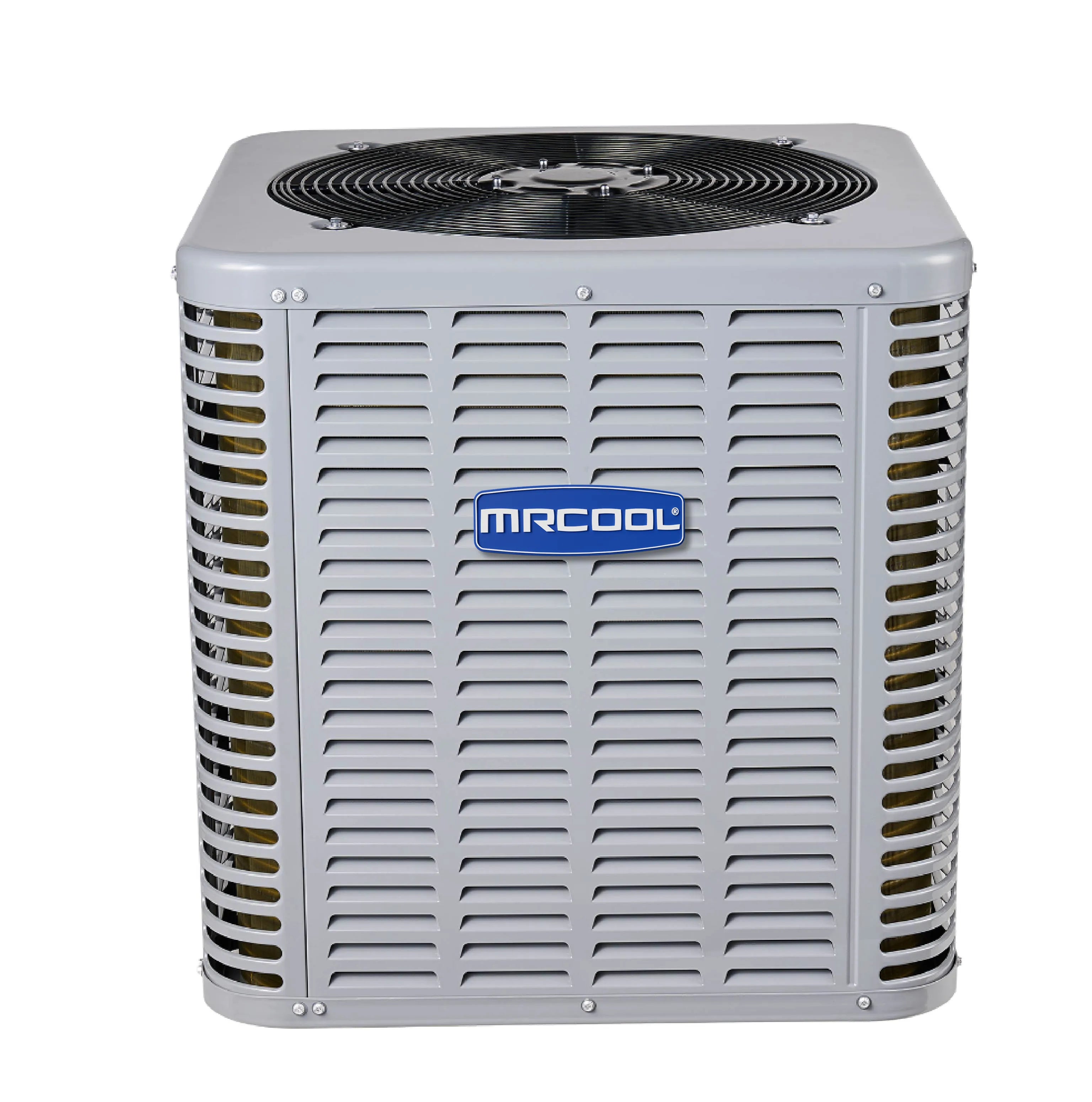

The MRCOOL® Signature Series 24k Heat Pump Condenser is a high-efficiency, all-season solution designed to keep your home comfortable year-round. With a 14.3 SEER2 and 11.7 EER2 rating, it offers dependable climate control and energy savings, making it a smart replacement or upgrade for any home.
Pre-charged with R-454B refrigerant, this unit meets today’s environmental standards while delivering reliable performance. Its pre-charged design also speeds up installation and lowers labor costs. At the heart of the system is a durable single-speed scroll compressor, supported by inner-groove copper tubing for improved heat transfer and fast response.

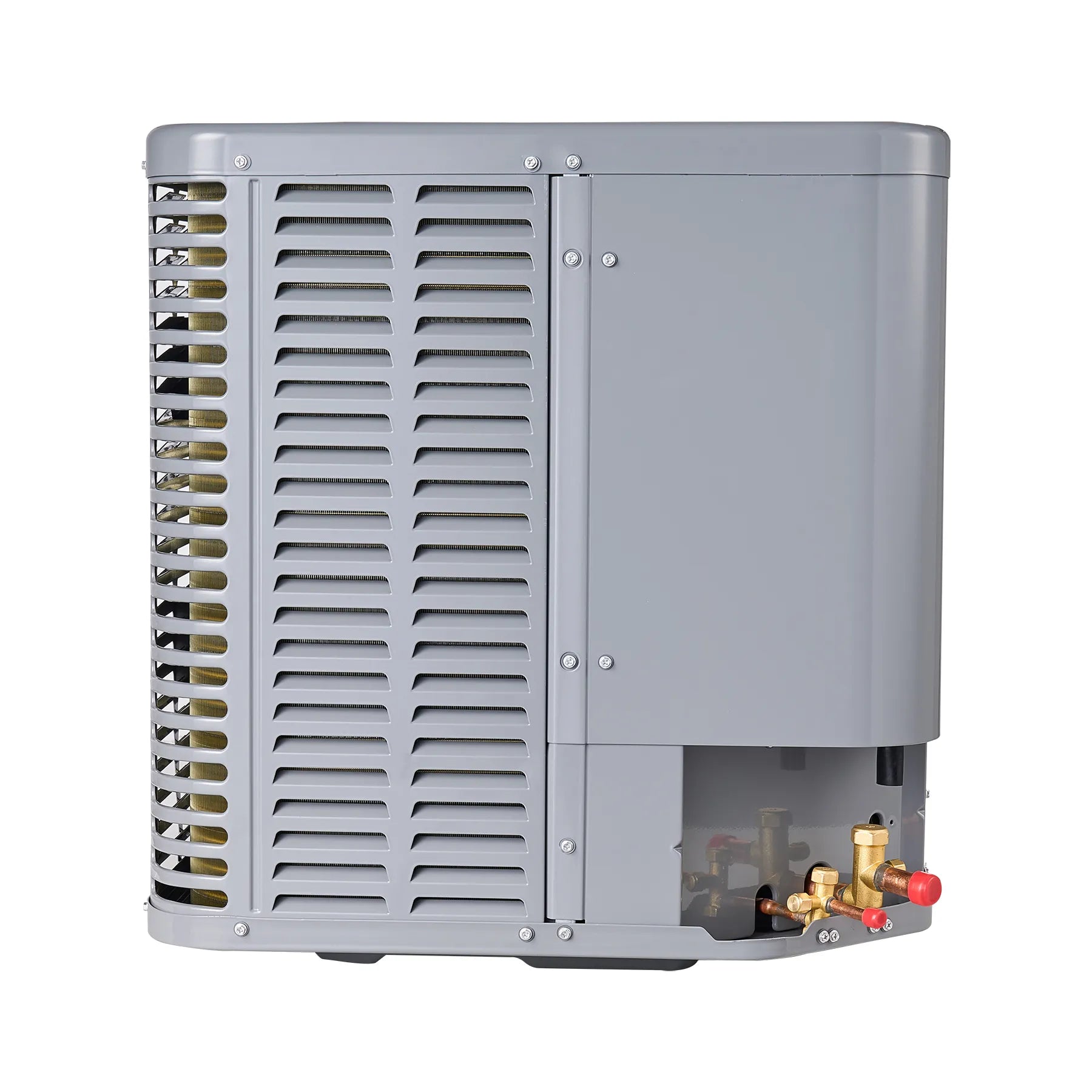

This unit includes temperature and pressure sensors and an intelligent defrost function for reliable performance in extreme weather. It operates quietly at just 60 decibels, with a sound-dampening top ideal for use in residential settings. Built to last, it features a louvered coil guard and wire fan discharge grille for extra protection. Service-friendly features include sweat connection valves and an accessible gauge port, while its compact frame allows for flexible placement.
Homeowners also benefit from a 10-year limited parts warranty and a limited lifetime compressor warranty. For comfort, efficiency, and durability, the MRCOOL® Signature Series 24k Heat Pump delivers long-term value.
| DIMENSIONS & WEIGHT | |
|---|---|
| Net Dimensions (In) | 23.6 D x 25 H x 23.6 W |
| Net Weight (Lbs) | 144 |
| Gross Depth (In) | 24.8 |
| Gross Height (In) | 26.2 |
| Gross Width (In) | 24.8 |
| Gross Weight (Lbs) | 151 |
| GENERAL INFORMATION | |
| Color | Grey |
| Inverter | No |
| CAPACITY & PERFORMANCE | |
| SEER2 | 14.3 |
| EER2 | 11.7 |
| HSPF2 | 7.5 |
| CFM | 1950 |
| Tonnage | 2 |
| Cooling Capacity (Btu) | 22000 |
| Heating Capacity (Btu) | 22000 |
| Cycle | 60 |
| Min Ambient Cool (F) | 59 |
| Min Ambient Heat (F) | 5 |
| COMPRESSOR & MOTORS | |
| Compressor Motor Type | Scroll |
| Condenser Fan Motor Type | PSC |
| Condenser Fan Motor Hp | 1/9 |
| NOISE LEVELS | |
| Decibel Rating (Dba) | 60 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 20 |
| Min Circuit Ampacity (A) | 15.2 |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 91.7 |
| Max Lineset Length (Ft) | 100 |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| CONTROLS & CONNECTIVITY | |
| Works With | Signature Series Multi-Position or Stud Mount Air Handlers |
| SAFETY | |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Base Warranty | 10 Year Parts, Limited Lifetime Compressor Warranty |
| Base Parts Warranty | 10 Year |
| Base Compressor Warranty | Limited Lifetime |

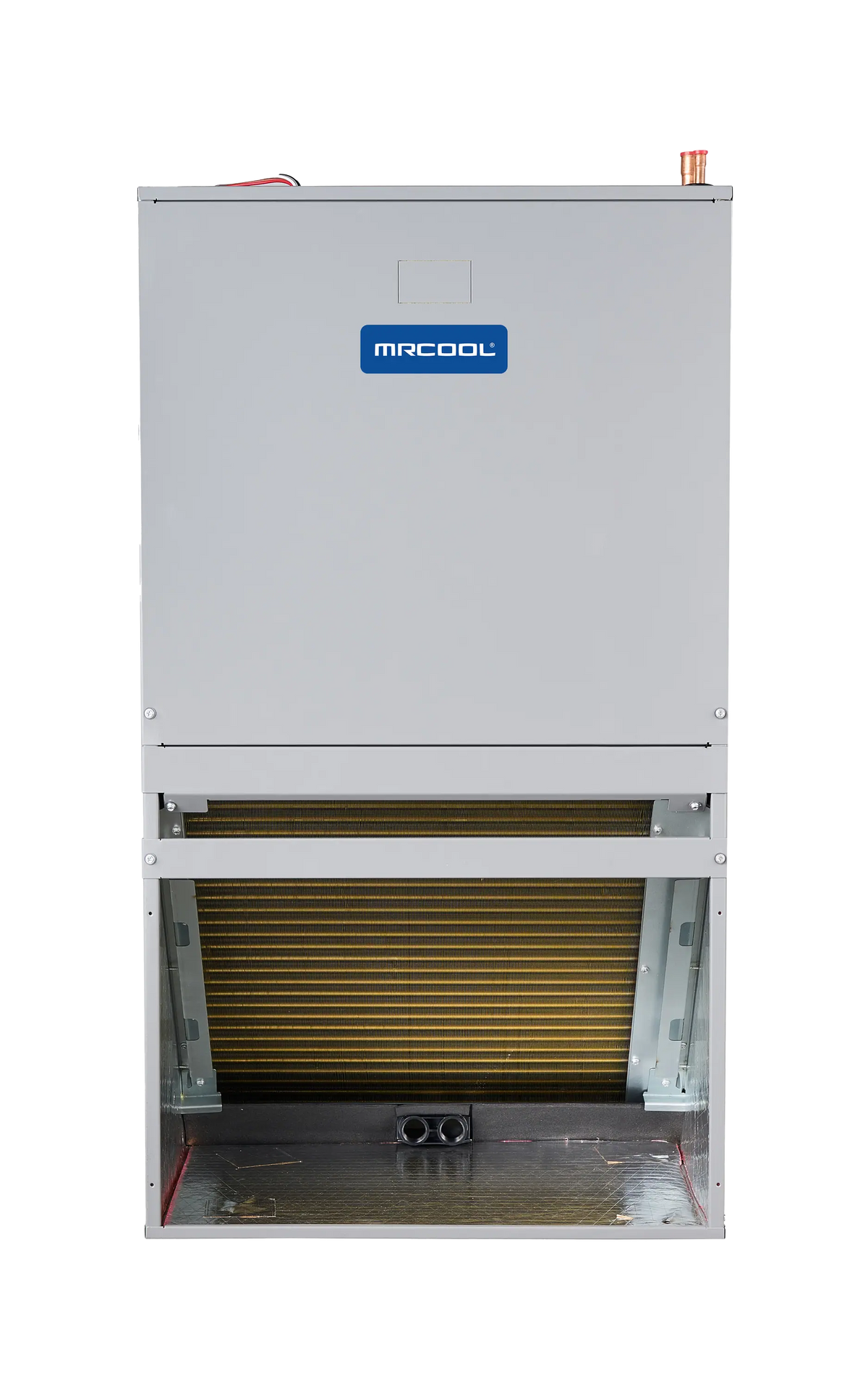

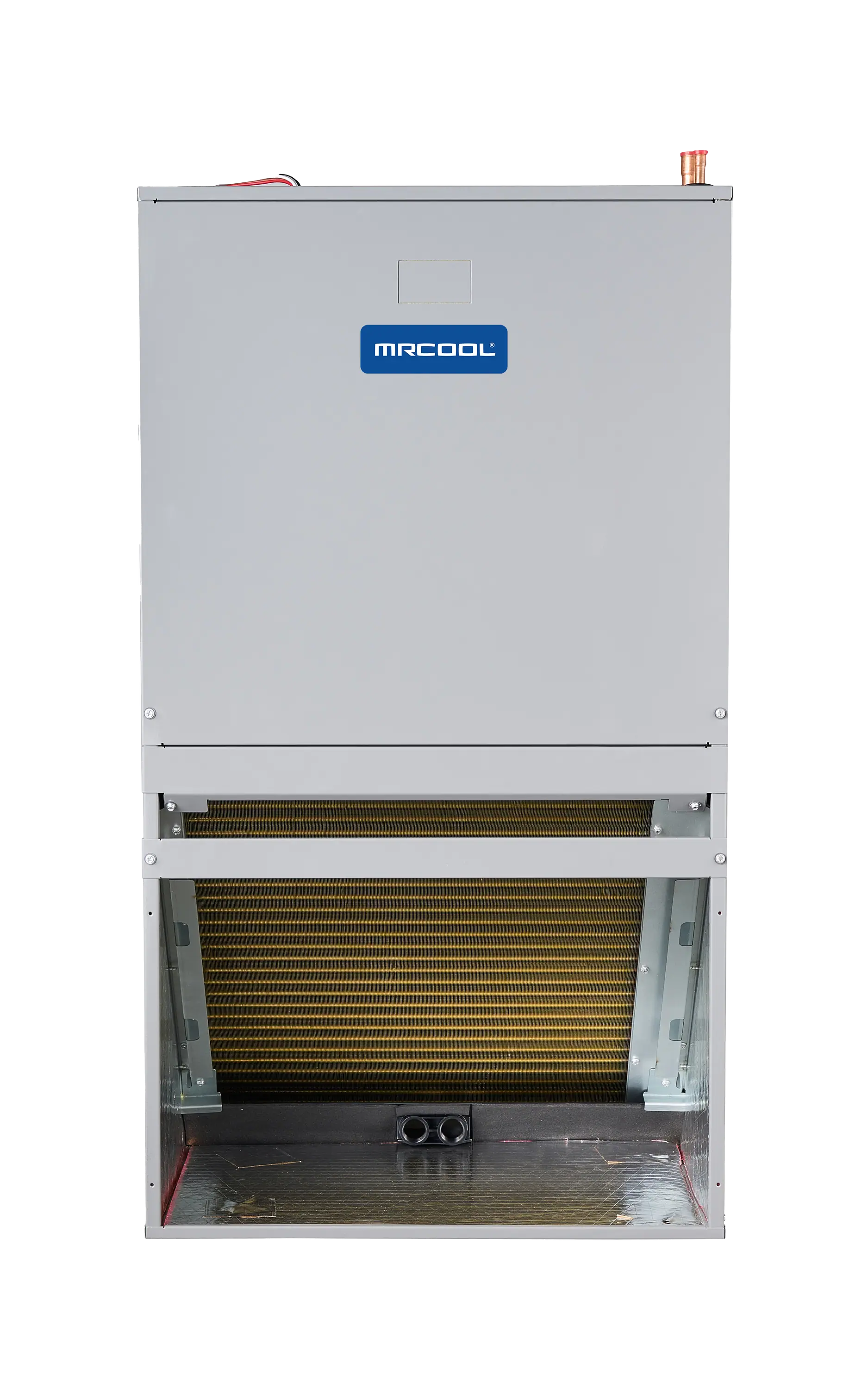

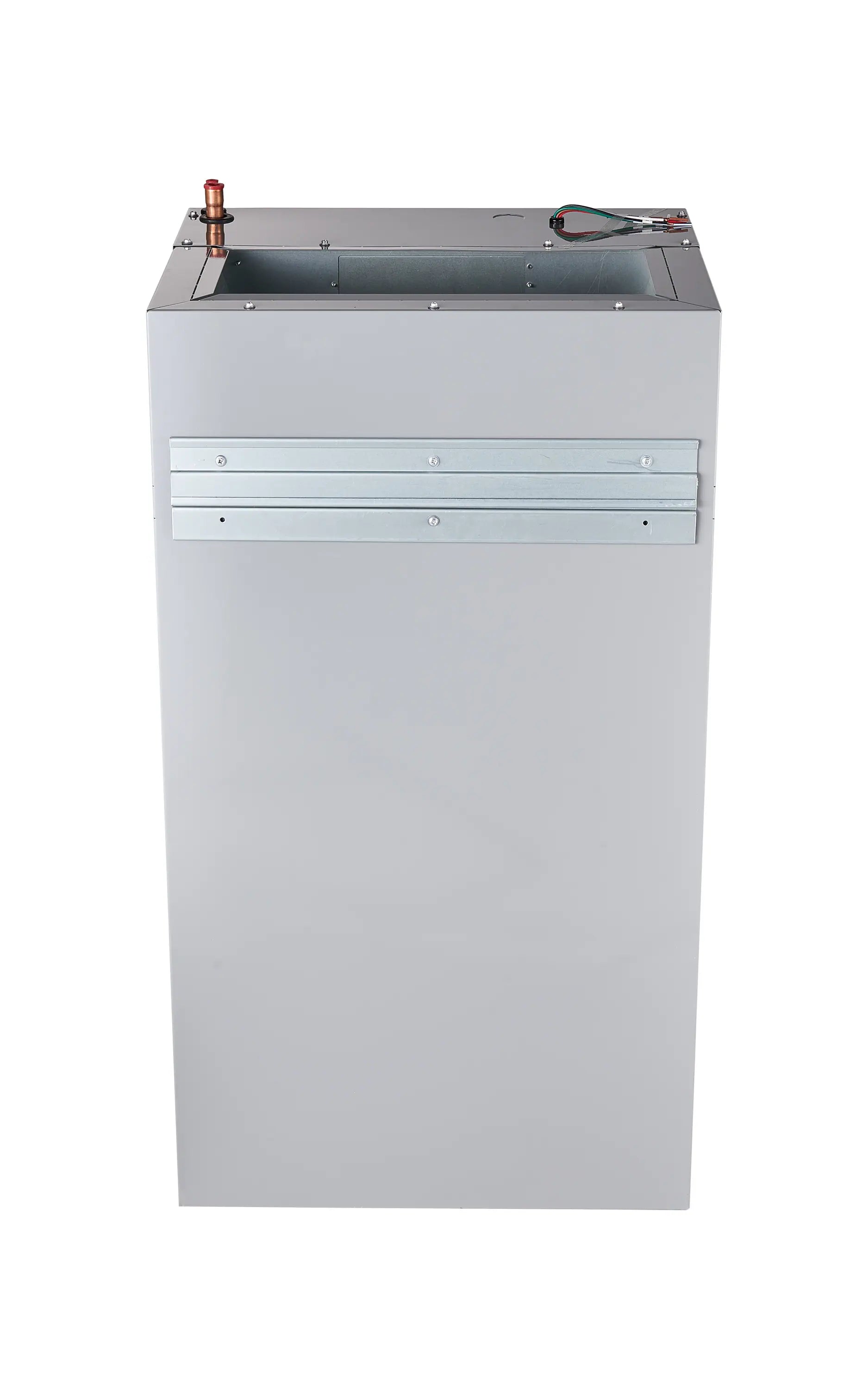

Transform your HVAC system with the MRCOOL® Signature Series 24K Stud Mount Air Handler—crafted for maximum flexibility, energy efficiency, and hassle-free installation. Designed to fit cleanly between standard wall studs, this compact unit is perfect for tight spaces where conventional air handlers just won’t work, making it a smart choice for a wide range of installations. Despite its slim profile, this powerful unit delivers dependable heating and cooling performance when paired with a compatible heat pump or condenser. With both front and bottom return air options, it adapts easily to your layout and airflow requirements.
Built to last, the MRCOOL® Signature Series 24k Stud Mount Air Handler features a tough galvanized steel cabinet and advanced blower technology for quiet, efficient operation. Full insulation throughout the cabinet minimizes energy loss and prevents condensation, while the high-efficiency ECM motor ensures steady airflow and reduced utility bills. Maintenance is simple with an integrated air filter rack for quick filter replacements. For colder climates, optional electric heat kits are available to provide added warmth when needed.
Supported by a 10-year limited parts warranty, this unit offers reliability and peace of mind. Whether you're renovating, upgrading, or building new, the MRCOOL® Signature Series 24K Stud Mount Air Handler delivers compact comfort without compromise.
| DIMENSIONS & WEIGHT | |
|---|---|
| Net Dimensions (In) | 15 D x 36 H x 20.5 W |
| Net Weight (Lbs) | 88 |
| Gross Depth (In) | 18.11 |
| Gross Height (In) | 39.375 |
| Gross Width (In) | 23.22 |
| Gross Weight (Lbs) | 97 |
| GENERAL INFORMATION | |
| Mount Type | Stud Mount |
| Color | Grey |
| Air Flow Direction | Upflow |
| Metering Device | Orifice |
| CAPACITY & PERFORMANCE | |
| Cfm | 797 |
| Tonnage | 2 |
| Cycle | 60 |
| COMPRESSOR & MOTORS | |
| Blower Motor Type | ECM |
| Blower Motor Hp | 1/3 |
| Blower Motor Speeds | 5 |
| Blower Motor Rpm | 1010 |
| NOISE LEVELS | |
| Decibel Rating (Dba) | 54 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 3 |
| Min Circuit Ampacity (A) | 2.5 |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| FILTER & HEATING | |
| Filter Type | Replaceable |
| Filter Size | 15 * 19 *1 |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes |
|
| CONTROLS & CONNECTIVITY | |
| Works With | Signature Series Top Discharge Condensers |
| Drain Connection Size | 3/4 |
| SAFETY | |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Base Warranty | 10 Year Parts, Limited Lifetime Compressor Warranty |
| Base Parts Warranty | 10 Year |
| Base Compressor Warranty | Limited Lifetime |
