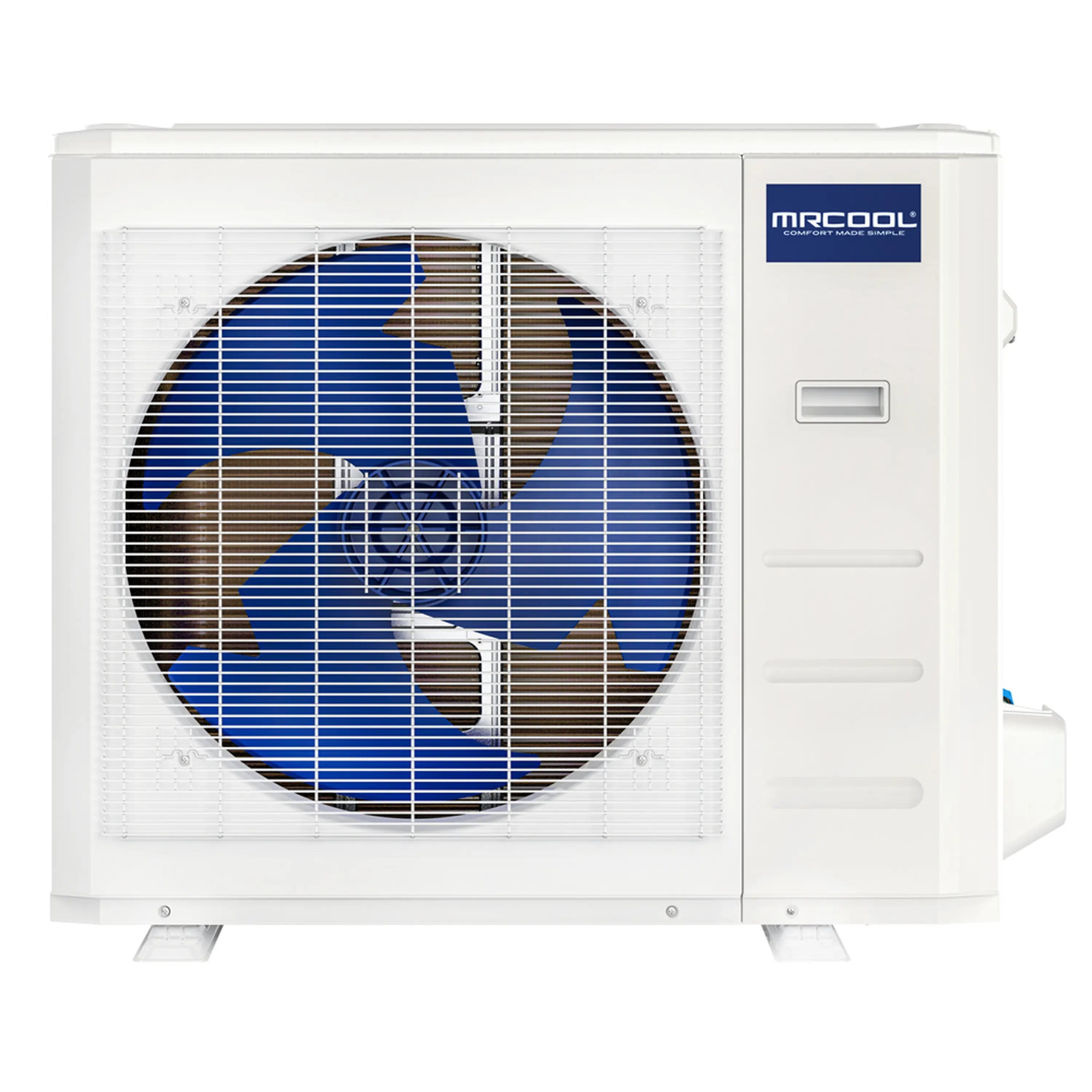

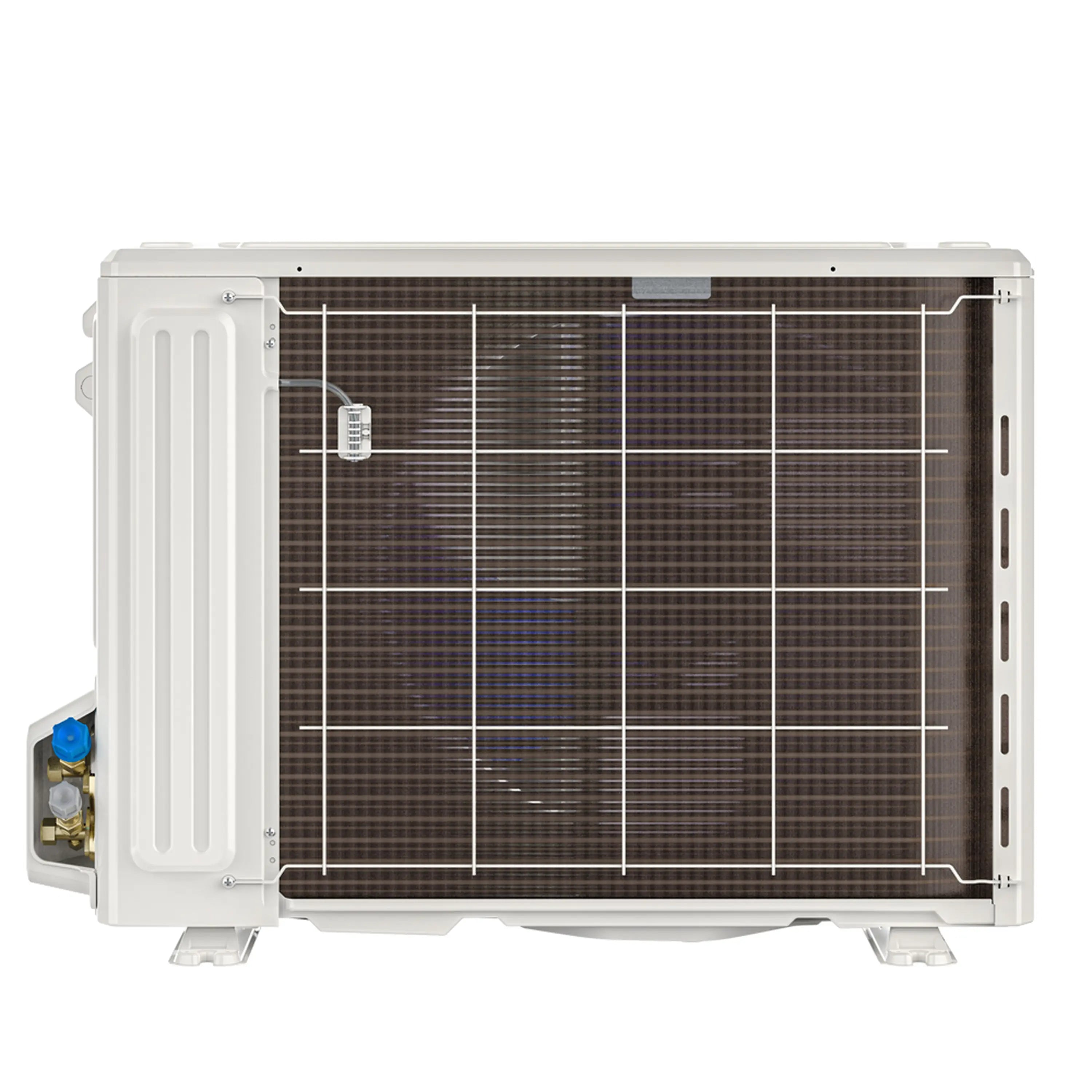

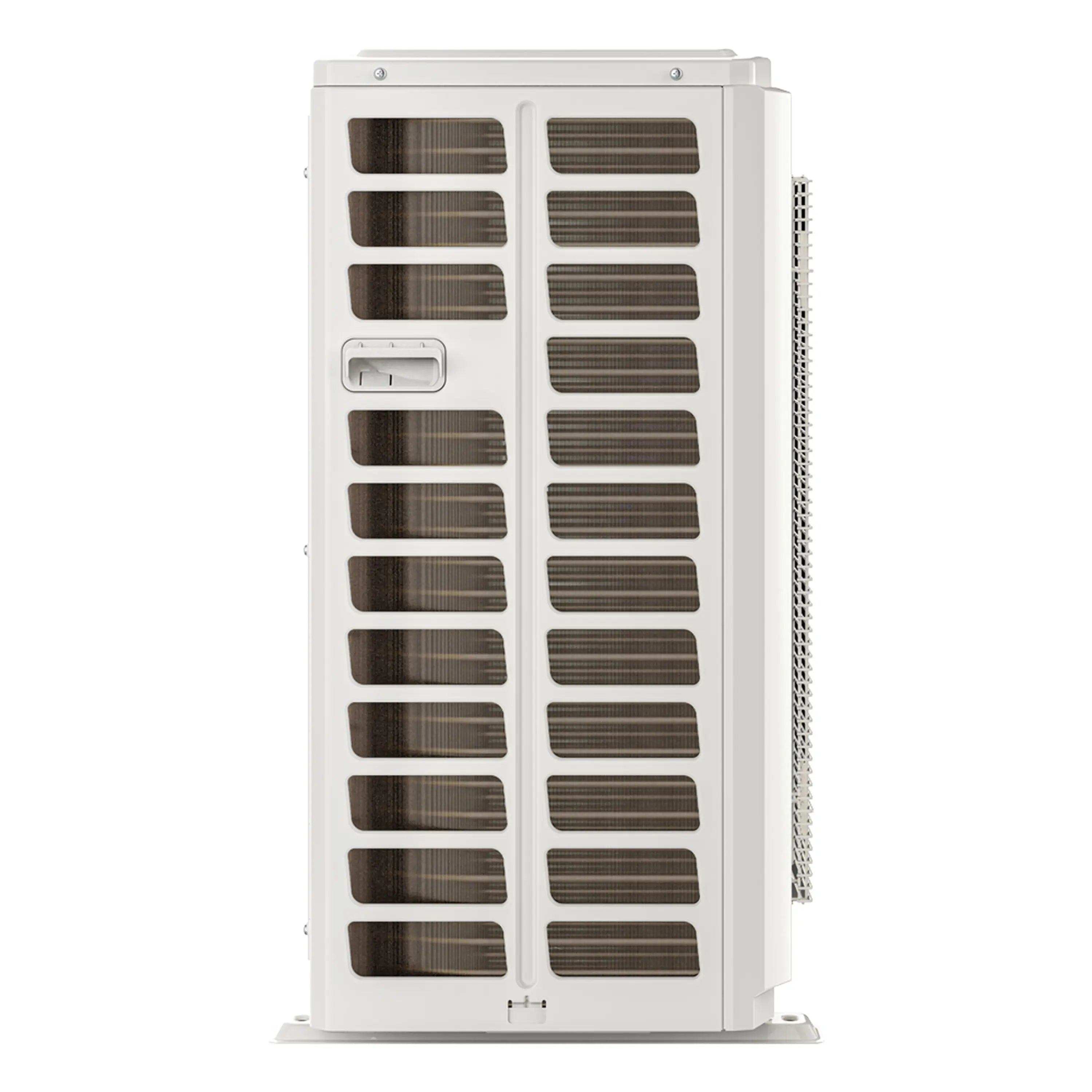

The 36K MRCOOL® Hyper Heat Central Ducted Condenser is specifically designed to deliver exceptional performance in extreme weather conditions, from freezing winters to sweltering summers. This high-performance system is engineered for efficiency, integrating DC Inverter and variable speed technology for reliable operation. With a SEER2 rating of up to 17.4 and an HSPF2-4 rating of up to 10.2, it effectively balances powerful heating and cooling while optimizing energy use. The system comes with the MRCOOL® Smart thermostat, allowing you to control your indoor climate easily.

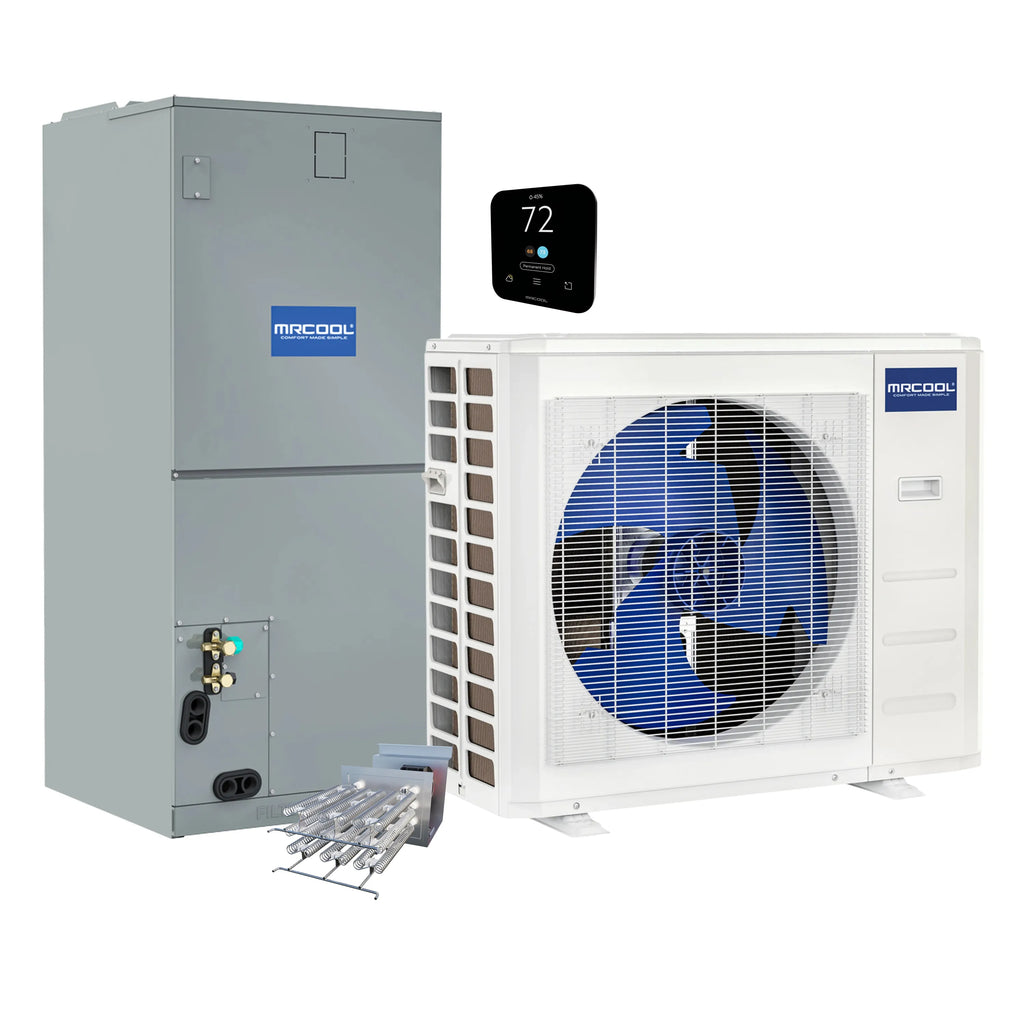

The 36K MRCOOL® Hyper Heat Central Ducted Condenser and the 36K MRCOOL® VersaPro® Central Ducted Air Handler are designed to work together seamlessly. The air handler is versatile, accommodating multiple installation configurations and supports an optional heat kit for enhanced functionality. The system uses R-454B refrigerant to reduce environmental impact, an eco-friendly choice that aligns with sustainable practices. The outdoor condenser is made with a painted galvanized steel exterior, while the air handler boasts a compact design, a slide-out blower, and a self-diagnostic panel for simplified maintenance and troubleshooting.
This system is backed by a comprehensive 10-year warranty covering the compressor, parts, and labor, providing lasting reliability and peace of mind. The labor warranty is automatically activated at the time of installation, eliminating the need for registration. Upgrade your home's heating and cooling system with the dependable and efficient 36K MRCOOL® Hyper Heat Central Ducted Condenser today!
|
Dimensions |
16.34" D x 38.39" H x 38.58" W |
|
SEER2 |
17.4 |
|
EER2 |
11.7 |
|
HSPF-4 |
10.2 |
|
HSPF-5 |
8.6 |
|
CFM |
3001.8 |
|
Tonnage |
3 |
|
Cooling Capacity (BTU) |
36000 |
|
Heating Capacity (BTU) |
37000 |
|
Voltage (V) |
208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
30 |
|
Min Circuit Ampacity (A) |
29 |
|
Color |
gray |
|
Refrigerant Type |
R454B |
|
Refrigerant Volume (OZ) |
126.99 |
|
Decibel Rating (DBA) |
62.5 |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
3/4 |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
ETL Certified |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Base Parts Warranty |
10 Years |
|
Base Compressor Warranty |
10 Years |
|
Base Labor Warranty |
10 Years |
|
Contains Electronics |
Yes |
| Contains Chemicals |
Yes |
|
Contains Compressed Gas |
Yes |
|
Net Weight (Lbs) |
204.15 |
|
Gross Depth (In) |
19.68 |
|
Gross Height (In) |
42.52 |
|
Gross Width (In) |
45.08 |
|
Gross Weight (Lbs) |
253.23 |

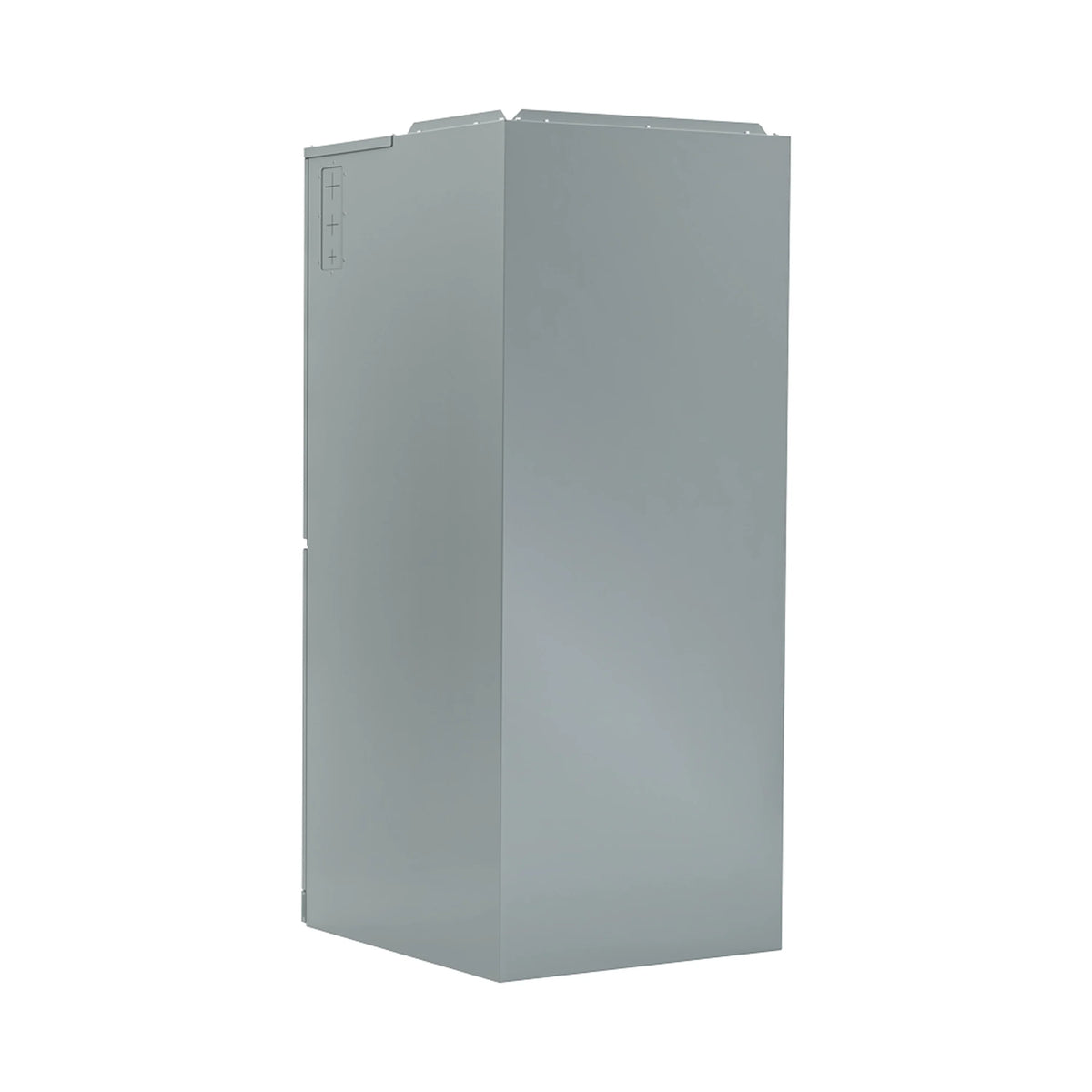

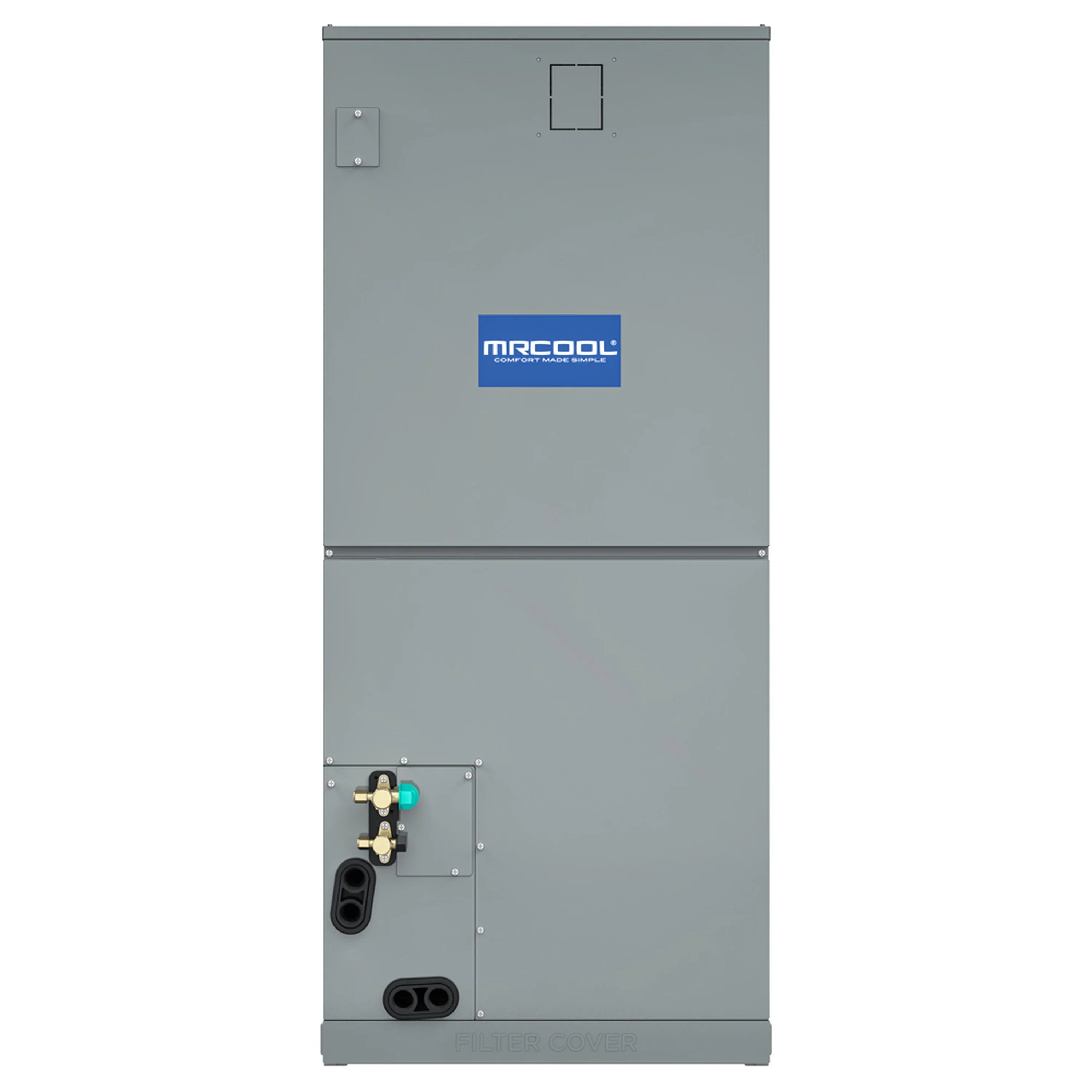

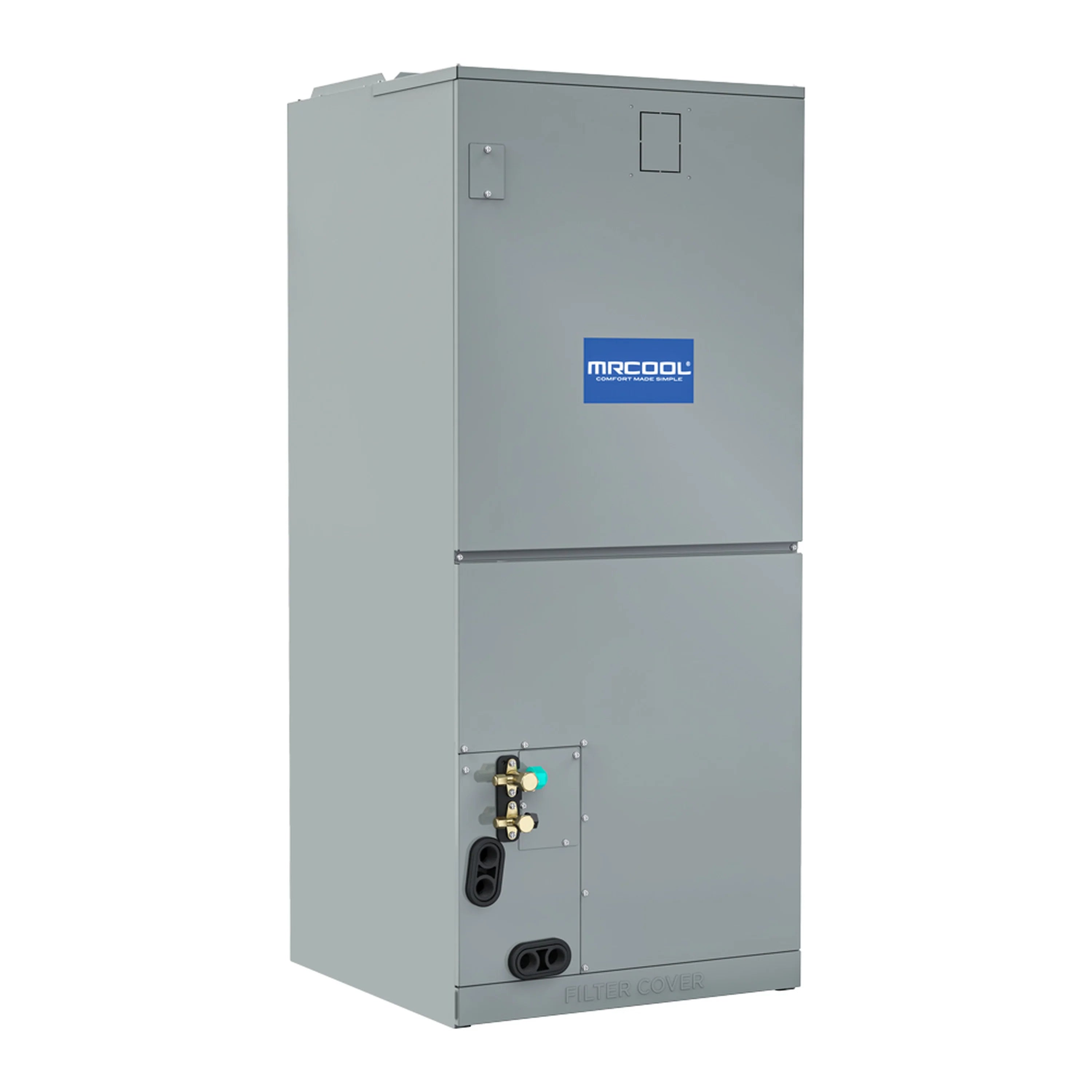

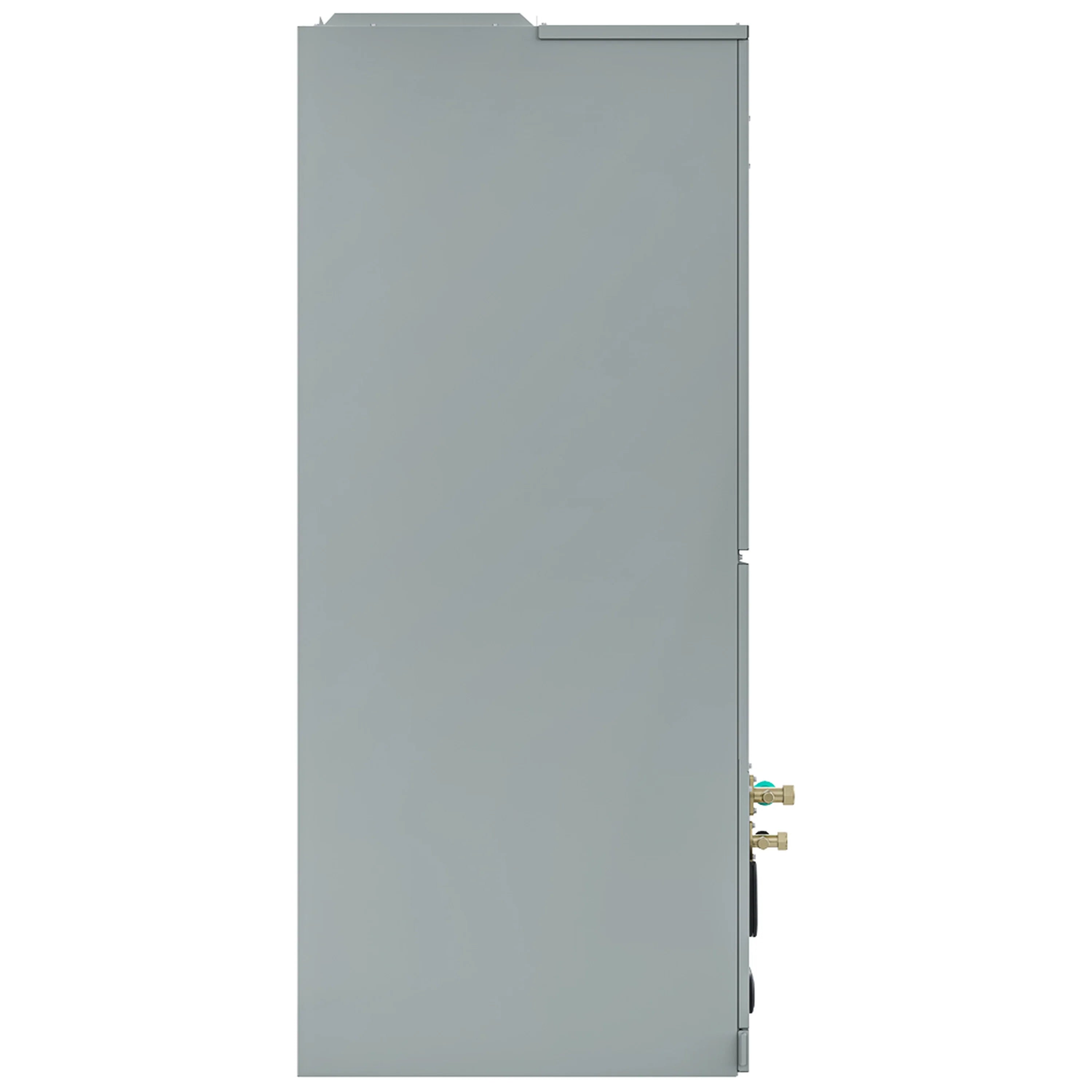

The 3 Ton MRCOOL® VersaPro® Central Ducted Air Handler offers a reliable and efficient solution for heating and cooling your home throughout the year. With a SEER2 rating of up to 17.4, it is designed to cover up to 1,500 square feet, making it an ideal upgrade for older HVAC systems that need improved efficiency. Built for long-term durability, this air handler features a robust painted galvanized steel exterior that withstands everyday wear. Its self-diagnostics panel simplifies maintenance by quickly identifying any issues, minimizing downtime.
This unit is designed for flexible installation, offering options for upflow, downflow, and horizontal left or right configurations to suit various home layouts. It uses eco-friendly R-454B refrigerant to help reduce its environmental impact, and an optional heat kit is available for added functionality.
The included MRCOOL® Smart Thermostat provides easy and precise temperature control for your home, making it simple to set and adjust the temperature to your preferred comfort level. It’s also compatible with the MRCOOL® SmartHVAC app for convenient remote access. Compatible with our Central Ducted Hyper Heat system, this air handler ensures top-tier performance and comfort. Backed by a 10-year warranty, the 3 Ton MRCOOL® VersaPro® Central Ducted Air Handler offers a combination of performance, reliability, and convenience, providing a long-lasting and efficient solution for your home’s climate control.
|
Dimensions |
21.02" D x 49.02" H x 21.02" W |
|
CFM |
1188.97/1083.02/971.19/865.24 |
|
Tonnage |
3 |
|
Cooling Capacity (BTU) |
36000 |
|
Heating Capacity (BTU) |
36000 |
|
Voltage (V) |
115/208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
15 |
|
Min Circuit Ampacity (A) |
8.0/6.0 |
|
Color |
gray |
|
Decibel Rating Low (DBA) |
28 |
|
Decibel Rating High (DBA) |
48 |
|
Number of Speeds |
3 |
|
Max Lineset Length (FT) |
246 ft |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
3/4 |
|
Filter Type |
Replaceable |
|
Filter Size |
19x20x1 |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
Yes |
|
Auxiliary Heater Sizes |
5kW/8kW/10kW/15kW/20kW |
|
Adjustable Thermostat |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
ETL Certified |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Base Parts Warranty |
10 Years |
|
Base Compressor Warranty |
10 Years |
|
Contains Electronics |
Yes |
| Contains Chemicals |
Yes |
|
Contains Compressed gas |
Yes |
|
Net Weight (Lbs) |
129.41 |
|
Gross Depth (In) |
24.41 |
|
Gross Height (In) |
52.56 |
|
Gross Width (In) |
26.57 |
|
Gross Weight (Lbs) |
153.88 |

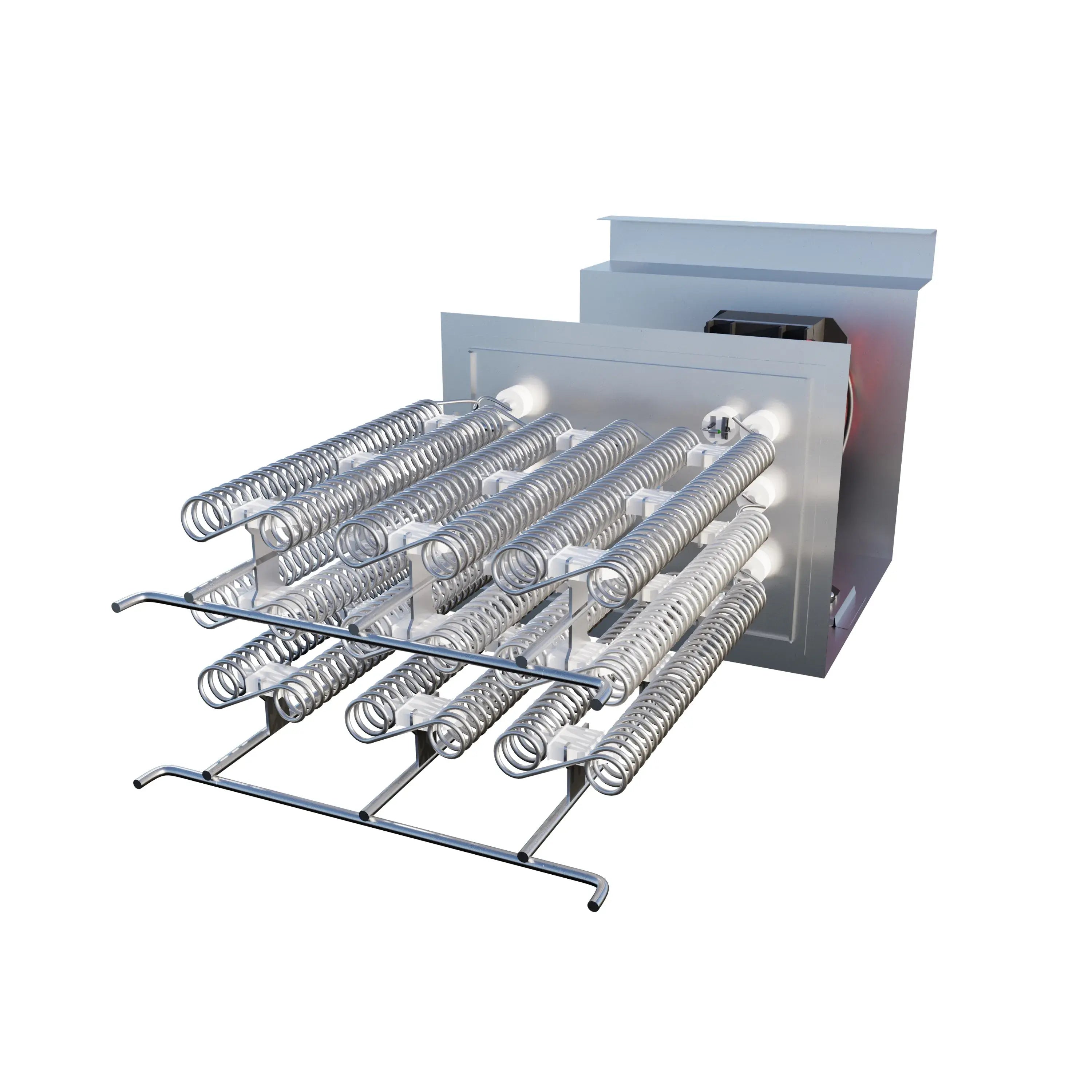

15kW VersaPro & Hyper Heat 2nd Gen 454B Heat Kit
Final Sale: MRCOOL Accessories are non-returnable.
Contact a representative if you need assistance with finding the right HVAC Accessory.
|
Gross Dimensions |
14.5" D x 24" H x 10.25" w |
|
Gross Weight (Lbs) |
15 Lbs |
Experience unparalleled comfort and energy efficiency with the MRCOOL Smart Thermostat, which boasts personalized heating and cooling options alongside a straightforward DIY installation process. This thermostat empowers you to customize settings effortlessly, enhancing your comfort while simultaneously reducing energy consumption. Choose from a plethora of modes and options to curate your ideal environment, including the convenient vacation mode, ensuring home safety during your absence without unnecessarily inflating energy bills.
Control lies at the heart of this Smart Thermostat, providing multiple avenues such as the intuitive touch-screen display, voice commands via popular virtual assistants like Google Assistant, Siri, or Amazon Alexa, or the innovative Smart HVAC app. The app offers a range of useful features, from an air filter cleaning monitor to a timeline displaying recent system adjustments, allowing you to track usage levels and fine-tune temperature and fan speed settings.
With its unique location-based services, the thermostat automatically adjusts settings based on your proximity to home, ensuring you always return to the perfect temperature. Even in the event of an internet outage, you can maintain control using the thermostat directly, adjusting temperature and settings as needed. With the added reassurance of a 3-year warranty, the MRCOOL Smart Thermostat provides peace of mind alongside unparalleled technology, comfort, and efficiency.
|
Dimensions |
3.9" D x 1" H x 3.9" W |
|
Voltage (V) |
24 |
| Sleep Mode | Yes |
| Base Parts Warranty | 3 Years |
| Gross Dimensions | 6.5" D x 2.12" H x 5.37" W |
| Gross Weight (lbs) | 0.95 |
