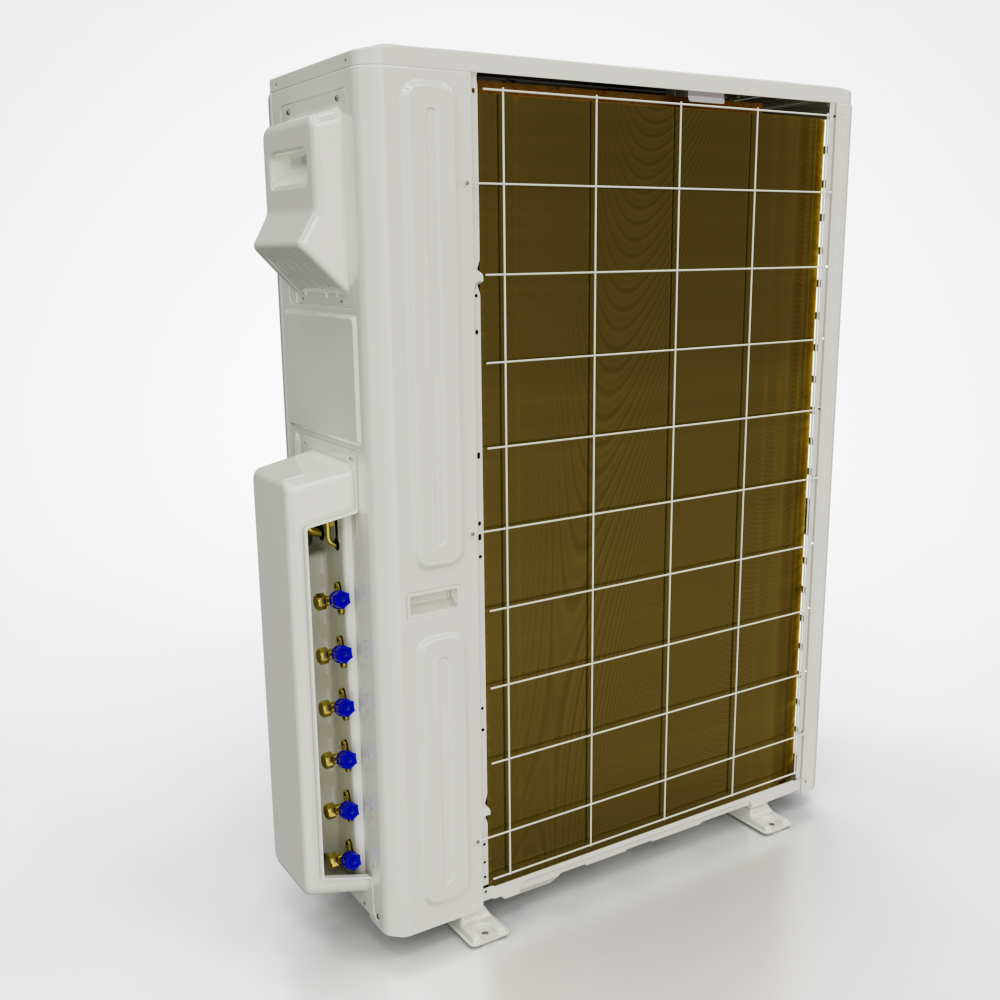

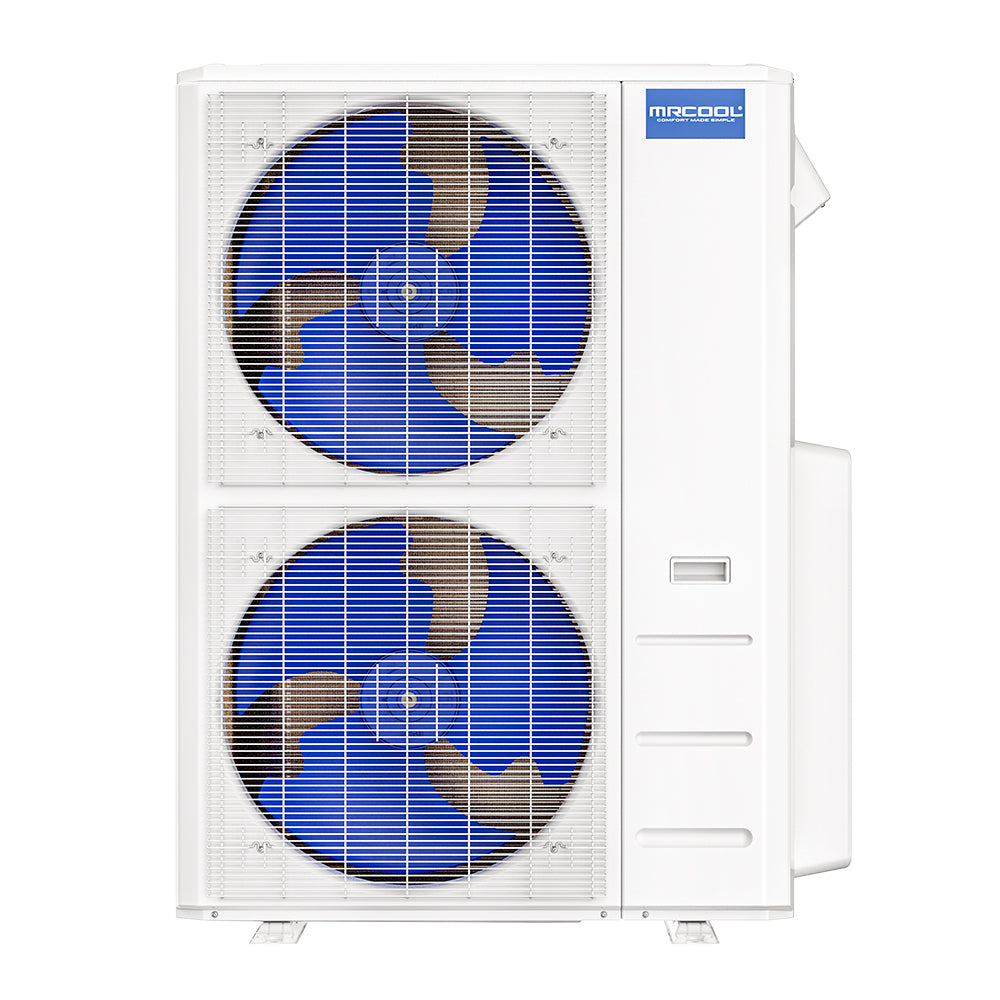

Our new 5th Generation MRCOOL® DIY® 55k BTU Multi-Zone Ductless Mini-Split Condenser is one of the most efficient and innovative units in the industry, and we’re excited to finally share it with you! On top of saving time and money because you won’t need an HVAC professional, this system will give you a good sense of accomplishment because you’ll have installed it yourself! The whole family will be able to enjoy the comfort of this condenser, because it can heat and cool up to 6 different spaces that equal up to 2290 sq. ft., giving you the ability to heat and cool an entire home to your exact specifications using a single MRCOOL® system.

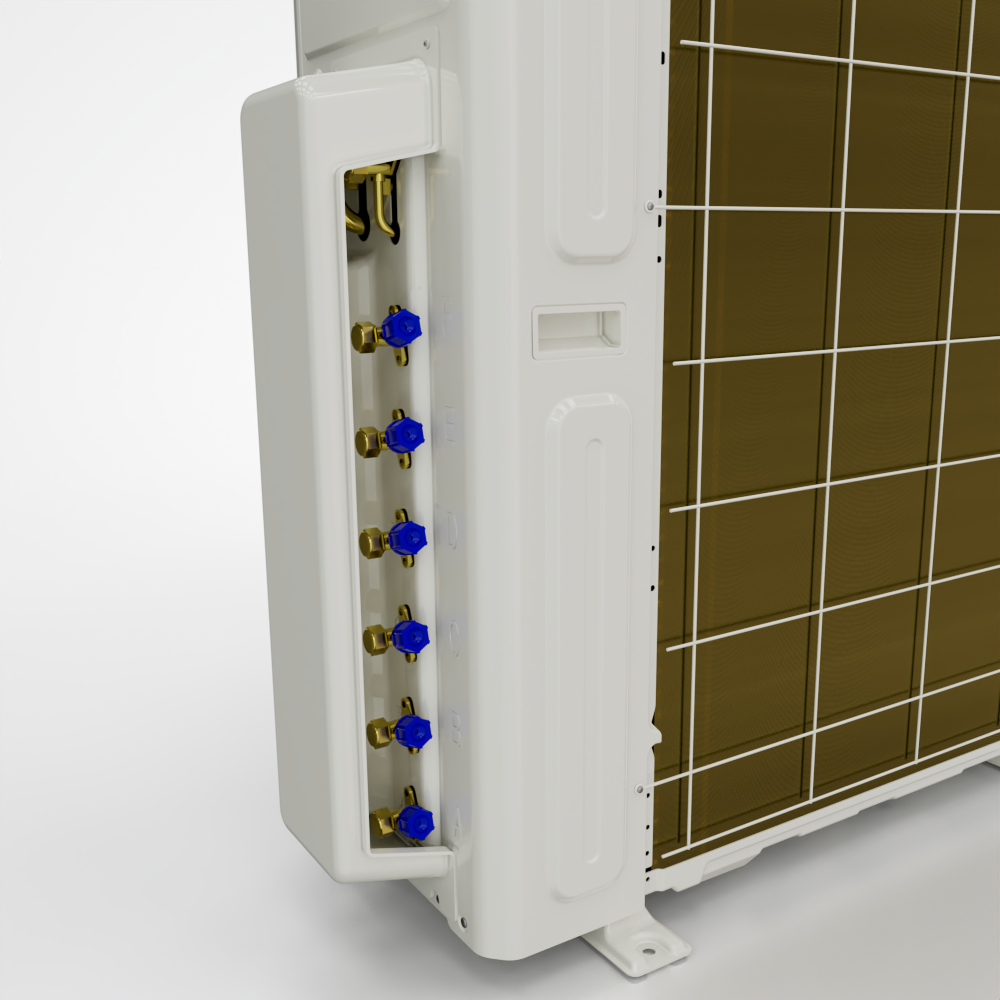

The system’s patented pre-charged Quick-Connect® line sets essentially fast-forward the installation of this system, enabling you to skip the evacuation and charging steps and simplifying the entire process. We utilize new R-454B refrigerant in these line sets, which is a much more environmentally friendly and efficient choice. Features like these assist this unit in achieving its impressive SEER2 of 22, and its HSPF2-4 of 10.6, both of which signify that this system will help you save money throughout the entire time you use it. Once you install this condenser, you’ll be met with a variety of features to help you control your comfort.
One of these features is the Smart HVAC app, available on Apple and Android, that allows you to operate your system from the convenience of your phone. Set schedules, manage different modes, monitor energy consumption, and more all without having to leave the couch! You can also set up voice control through Amazon Alexa or Google Home, meaning you can control your comfort without moving a finger. This system ensures you’ll be enjoying ultimate convenience and superior comfort. The warranty for this unit is one of the best in the industry, and we’re proud to have your back. You can enjoy the peace of mind of a 5 year parts warranty, a 7 year compressor warranty, and, once you enroll in the MRCOOL® Care Program, a Limited Lifetime Replacement warranty. If you need perfect comfort but don’t want to break the bank, this MRCOOL® DIY® condenser is your answer!
| DIMENSIONS & WEIGHT | |
|---|---|
| Dimensions | 16.34" D x 52.48" H x 37.48" W |
| GENERAL INFORMATION | |
| Color | White |
| Inverter | DC |
| Quiet Mode | Yes |
| Contans Chemicals | Yes |
| CAPACITY & PERFORMANCE | |
| SEER2 | 22 |
| EER2 | 12 |
| HSPF2-4 | 10.6 |
| HSPF2-5 | 8.5 |
| Tonnage | 4.6 |
| Cooling Capacity (BTU) | 47000 |
| Heating Capacity (BTU) | 55000 |
| Cycle | 60 |
| Zone Capacity | 6 |
| COMPRESSOR & MOTORS | |
| Compressor Motor Type | Rotary |
| NOISE LEVELS | |
| Decibel Rating (DBA) | 64 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 45 |
| Min Circuit Ampacity (A) | 43 |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Refrigerant Volume (OZ) | 151.68 |
| Line Set Length | 25 |
| Max Lineset Length (FT) | 221.4 |
| Liquid LIne Size | 1/4 |
| Suctio Line Size | (3/8 X4) (1/2 X2) |
| FILTER & HEATING | |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| CONTROLS & CONNECTIVITY | |
| Fan Only Option | Yes |
| Auto Cool | Yes |
| WIFI Compatibility | Yes |
| APP Compatibility | Yes |
| Works with IOS | Yes |
| Works with Android | Yes |
| SAFETY | |
| UL Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | Yes |
| AHRI Certified | Yes |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Aerosol | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Registered Warranty | Extended Limited Lifetime* |
| Base Parts Warranty | 5 |
| Base Compressor Warranty | 7 |

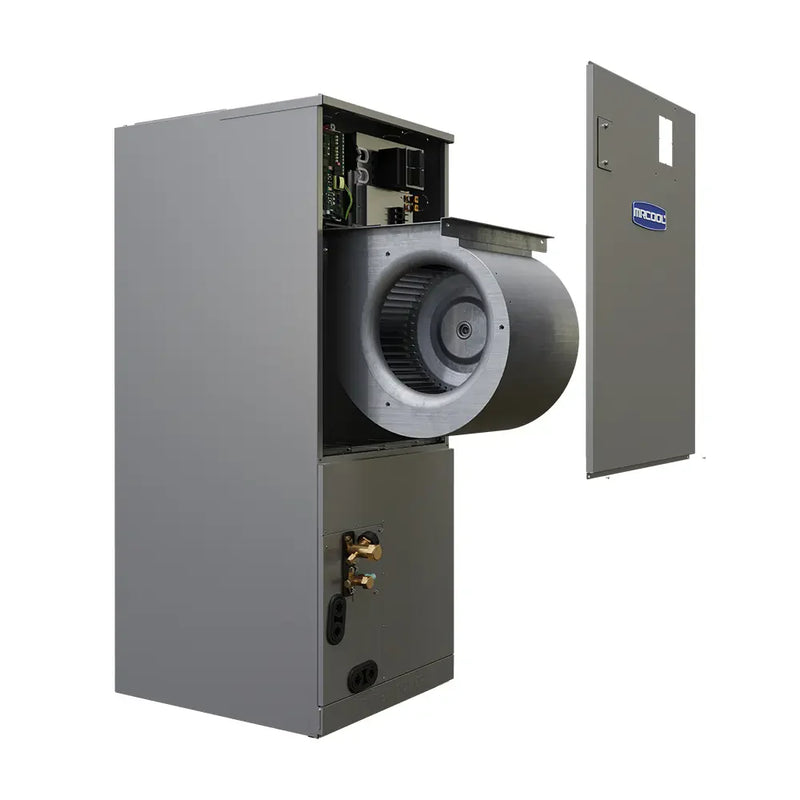

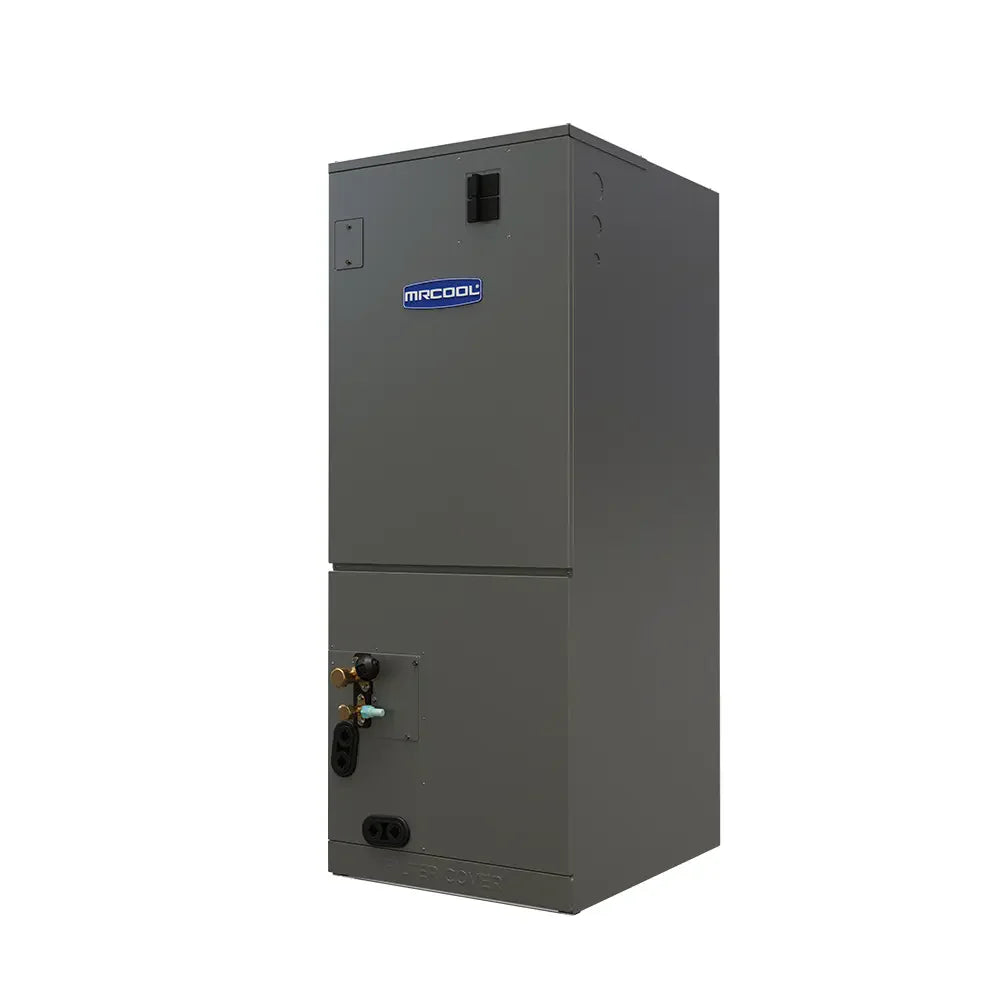

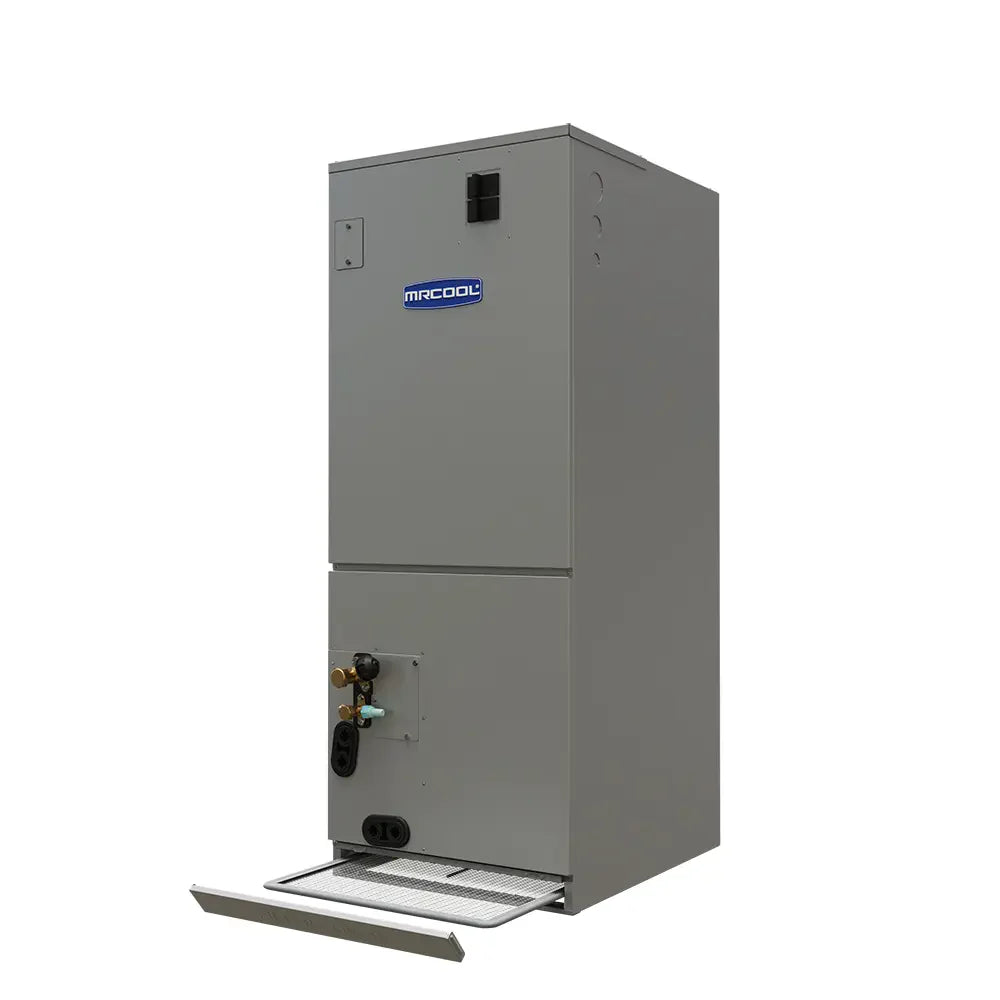

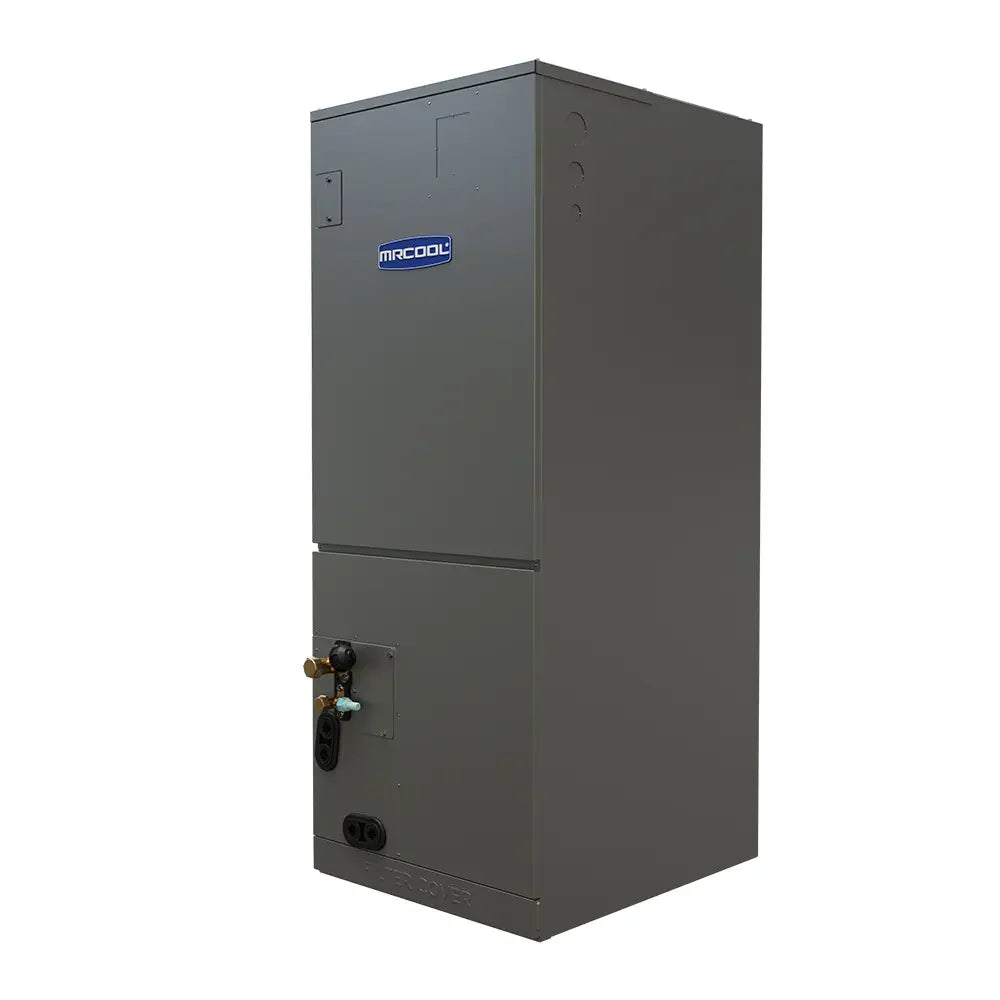

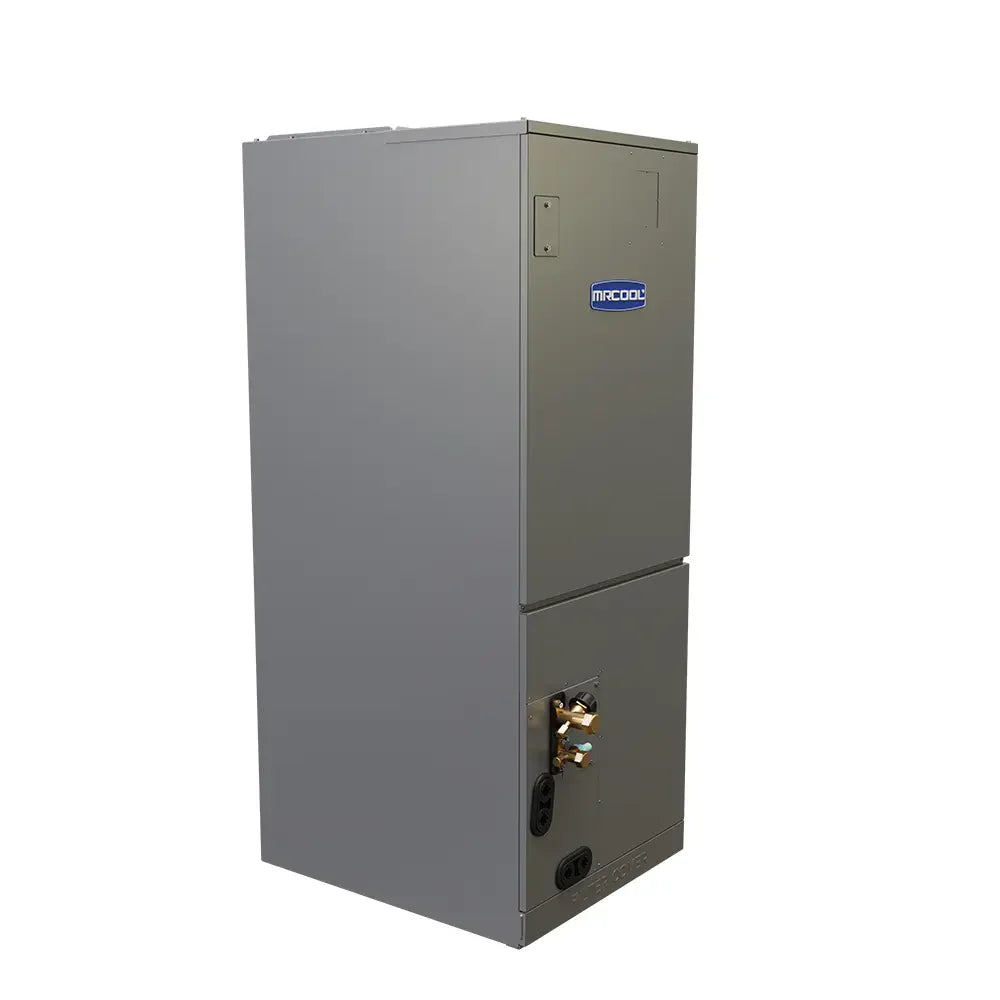

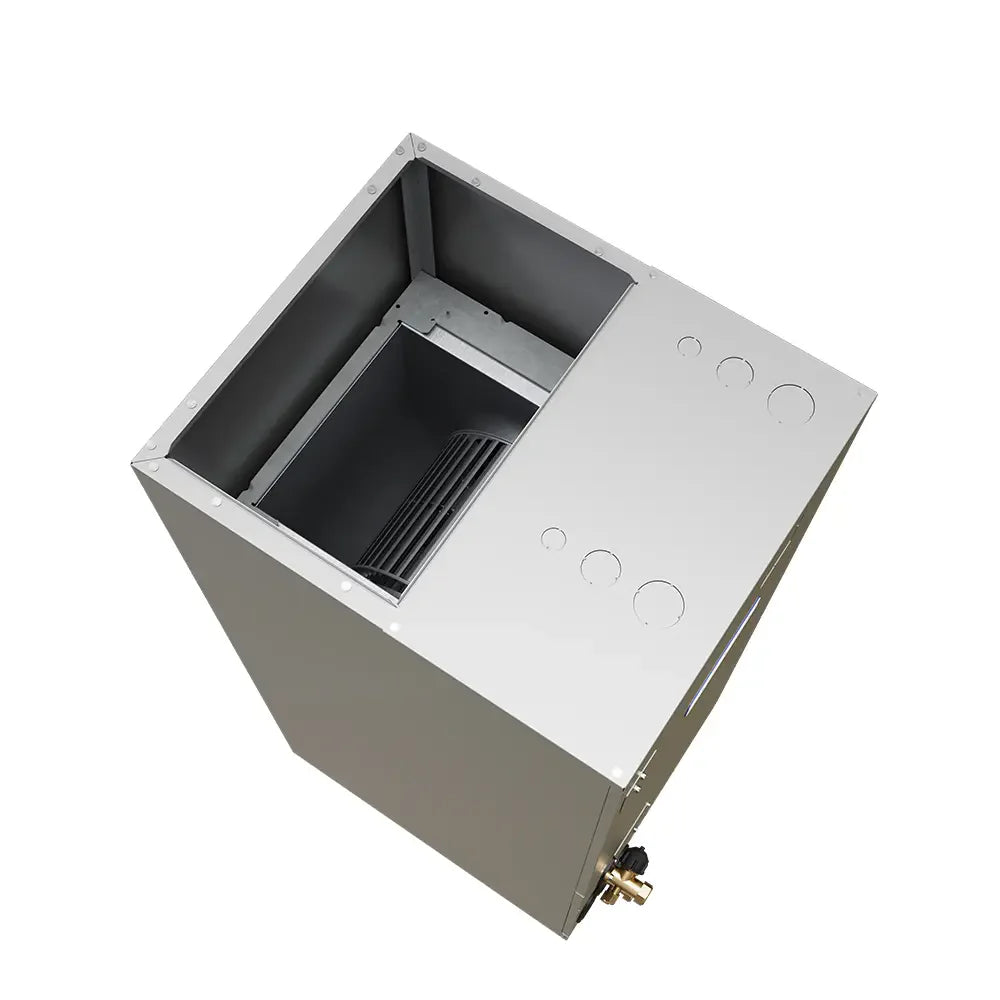

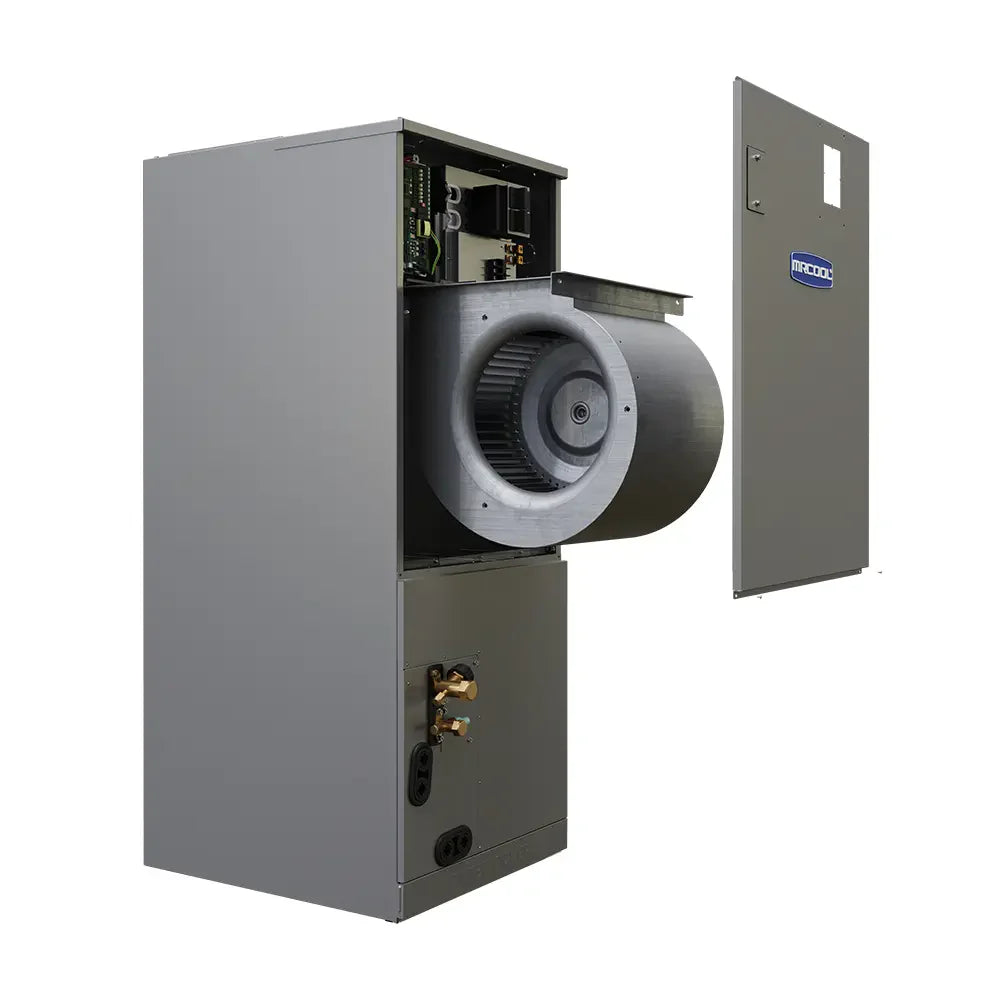

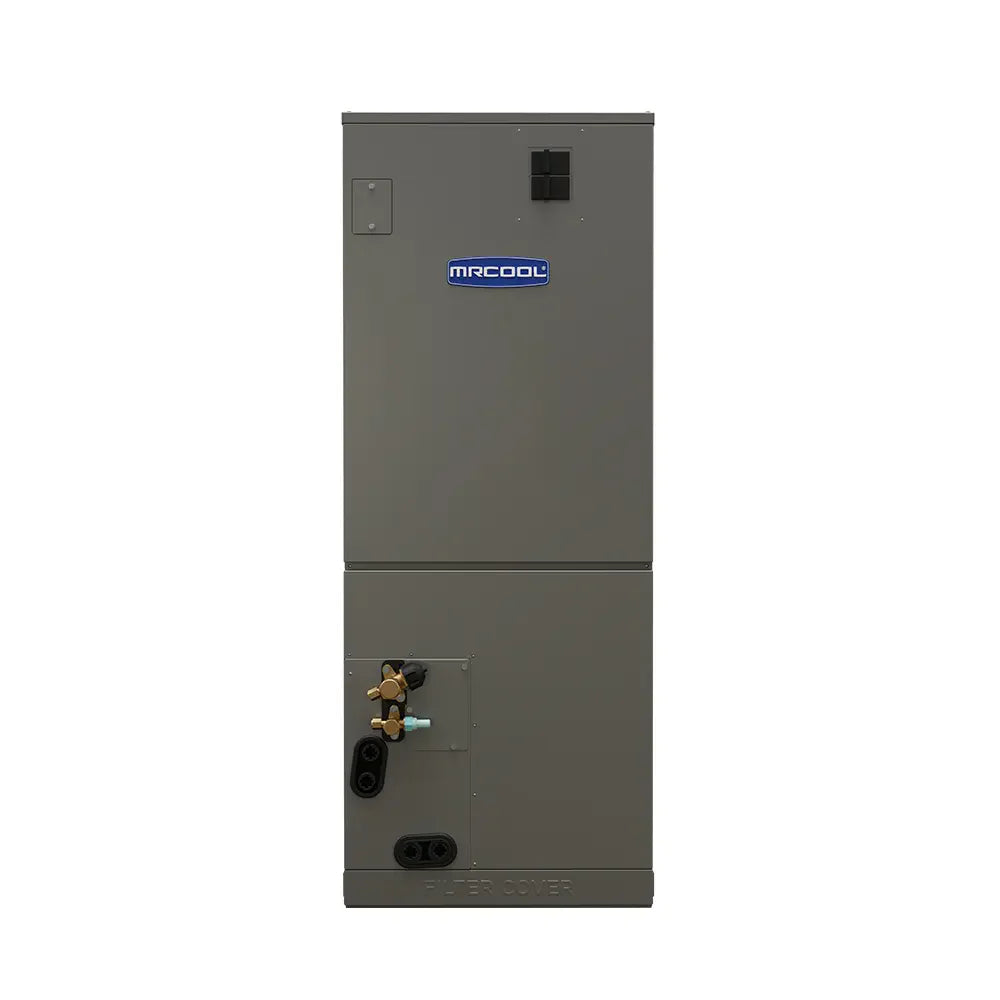

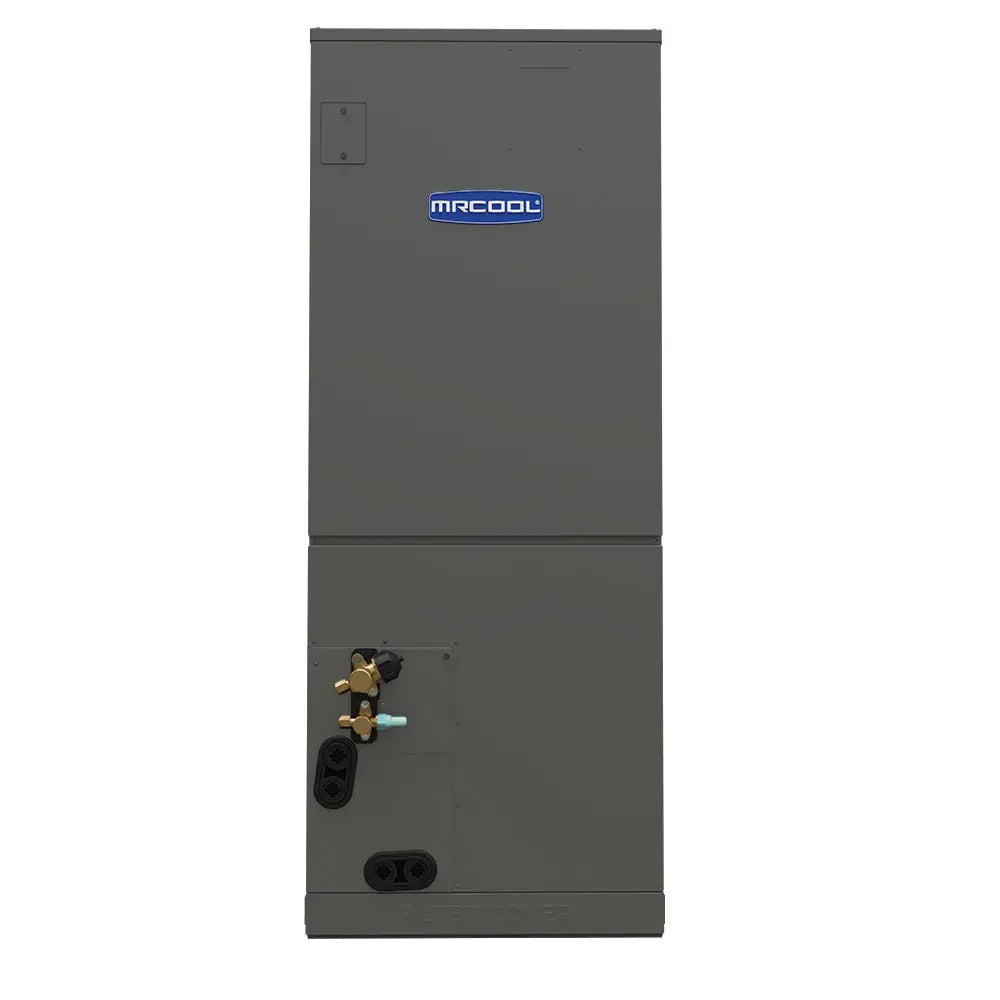

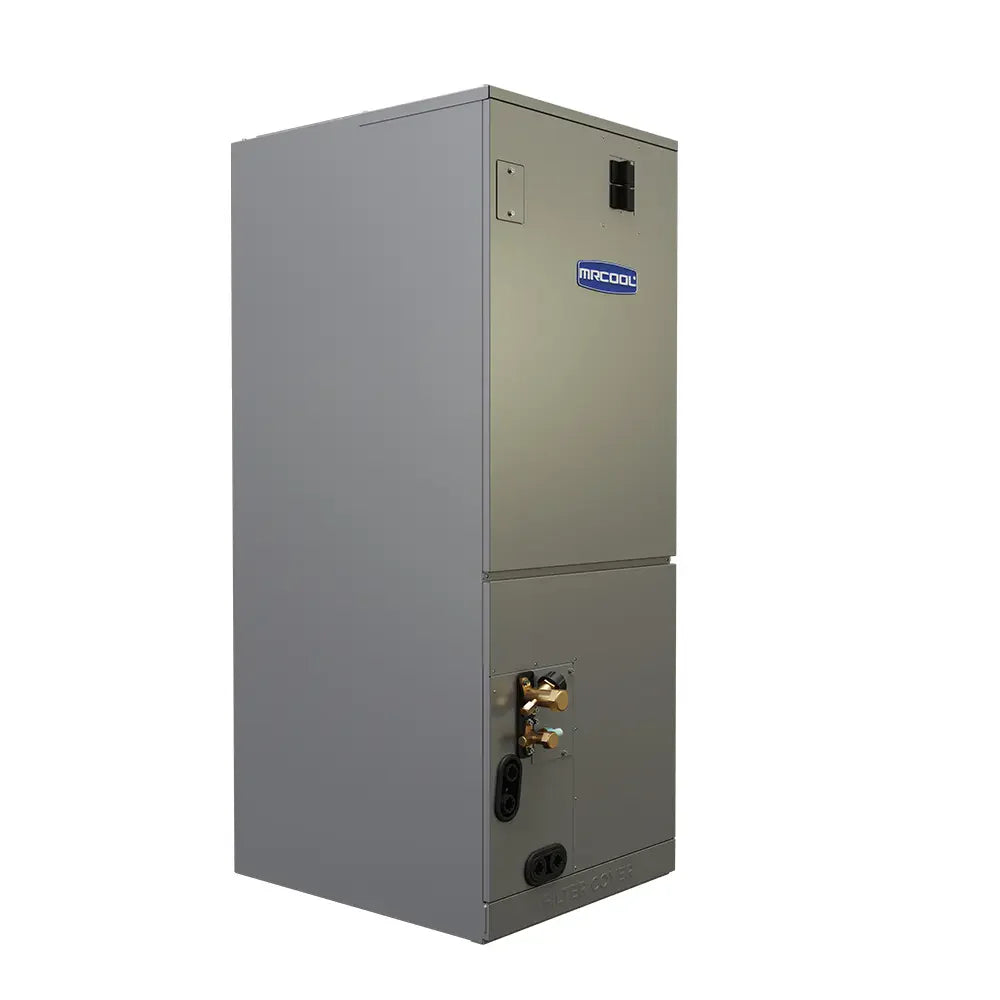

The 36K MRCOOL® DIY Hybrid™ Air Handler offers a powerful and adaptable solution for heating and cooling areas up to 1,500 square feet. Engineered for compatibility with MRCOOL® DIY condensers, this unit is perfect for hassle-free installation without the need for professional help—making it an ideal replacement for outdated or inefficient HVAC systems. Its rugged painted galvanized steel cabinet ensures long-term durability, while the integrated self-diagnostics panel streamlines maintenance by displaying error codes for quick and accurate issue identification.

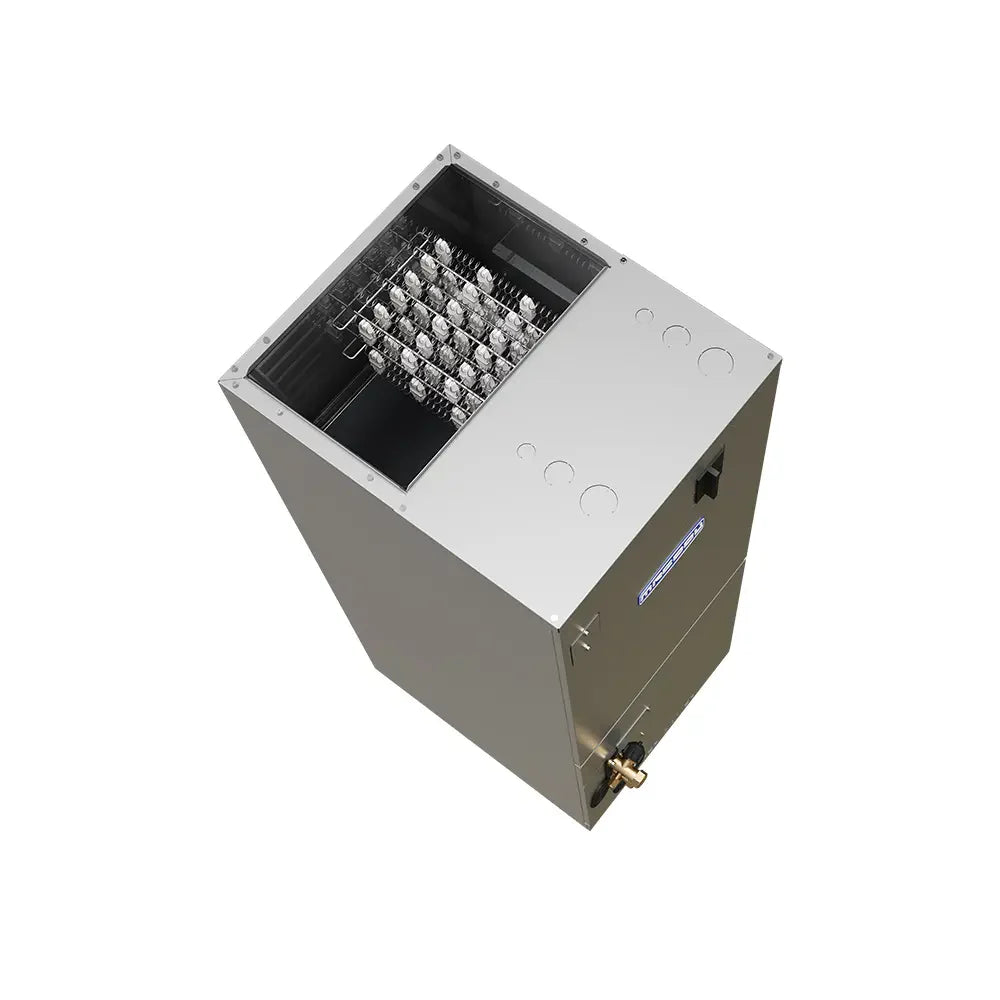

Designed with flexibility in mind, the air handler supports multiple installation styles, including upflow, downflow, and horizontal left or right, allowing it to fit a wide range of home configurations with ease. It uses R-454B refrigerant, a high-performance, eco-friendly option that reduces environmental impact without sacrificing efficiency. For enhanced comfort during colder seasons, an optional electric heat kit can be added to provide reliable supplemental warmth and year-round versatility.
The system also comes equipped with the MRCOOL® Smart Wi-Fi Thermostat, offering intuitive climate control through a user-friendly touchscreen or the MRCOOL® mobile app. Adjusting your home’s temperature is simple and convenient, whether you're relaxing at home or managing settings remotely.
Covered by a 5-year parts warranty, the 36K MRCOOL® DIY Hybrid™ Air Handler delivers energy efficiency, advanced performance, and dependable comfort—making it a smart, cost-effective upgrade for modern homes.
| DIMENSIONS & WEIGHT | |
|---|---|
| Net Dimensions (In) | 21.02 D x 49.02 H x 21.02 W |
| Net Weight (Lbs) | 128.31 |
| Gross Depth (In) | 26.57 |
| Gross Height (In) | 52.56 |
| Gross Width (In) | 24.41 |
| Gross Weight (Lbs) | 153.66 |
| GENERAL INFORMATION | |
| Color | Gray |
| Max Coverage Area | 1550 |
| Metering Device | EEV |
| CAPACITY & PERFORMANCE | |
| CFM | 1189 / 1083 / 971.2 / 865.2 / / |
| Tonnage | 3 |
| Cooling Capacity (Btu) | 36000 |
| Heating Capacity (Btu) | 37000 |
| Cycle | 60 |
| COMPRESSOR & MOTORS | |
| Number Of Speeds | 4 |
| NOISE LEVELS | |
| Decibel Rating (Dba) | 45 |
| Decibel Rating Low (Dba) | 31 |
| Decibel Rating High (Dba) | 48 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 6 |
| Rated Load | 4.5 |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Lineset Included | Yes |
| Max Lineset Length (Ft) | 246 |
| Liquid Line Size | 3/8 |
| Suction Line Size | 5/8 |
| FILTER & HEATING | |
| Filter Type | Replaceable |
| Filter Size | Refer to Installation Manual |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes |
|
| CONTROLS & CONNECTIVITY | |
| Works With | DIY MZ or 36K DIY Condenser |
| Drain Connection Size | 3/4 |
| Adjustable Thermostat | Yes |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Works With Ios | Yes |
| Works With Android | Yes |
| Remote Control Included | No |
| SAFETY | |
| UL Listed | Yes |
| CSA Certified | Yes |
| ETL Certified | Yes |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States |
|
| WARRANTY | |
| Registered Warranty | Extended Limited Lifetime* |
| Base Warranty | 5 Year Parts |
| Base Parts Warranty | 5 Years |

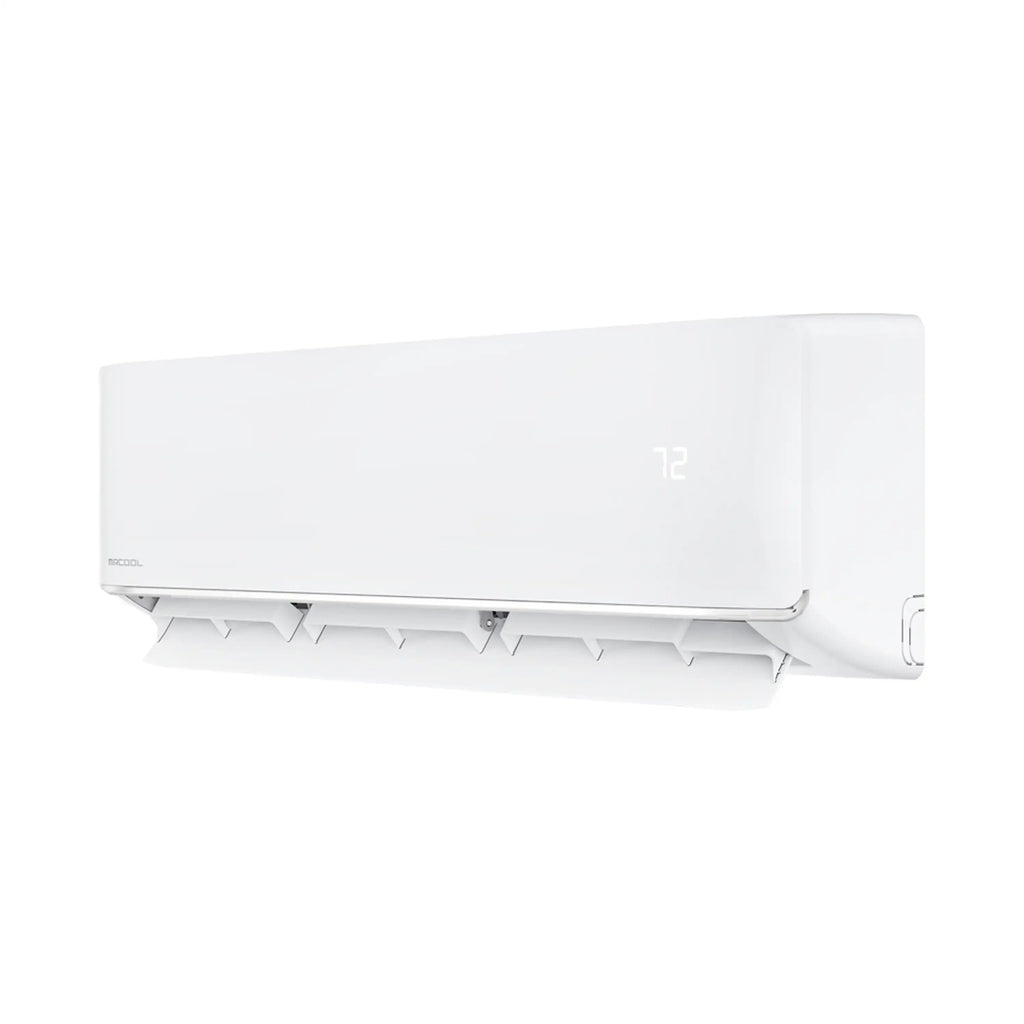

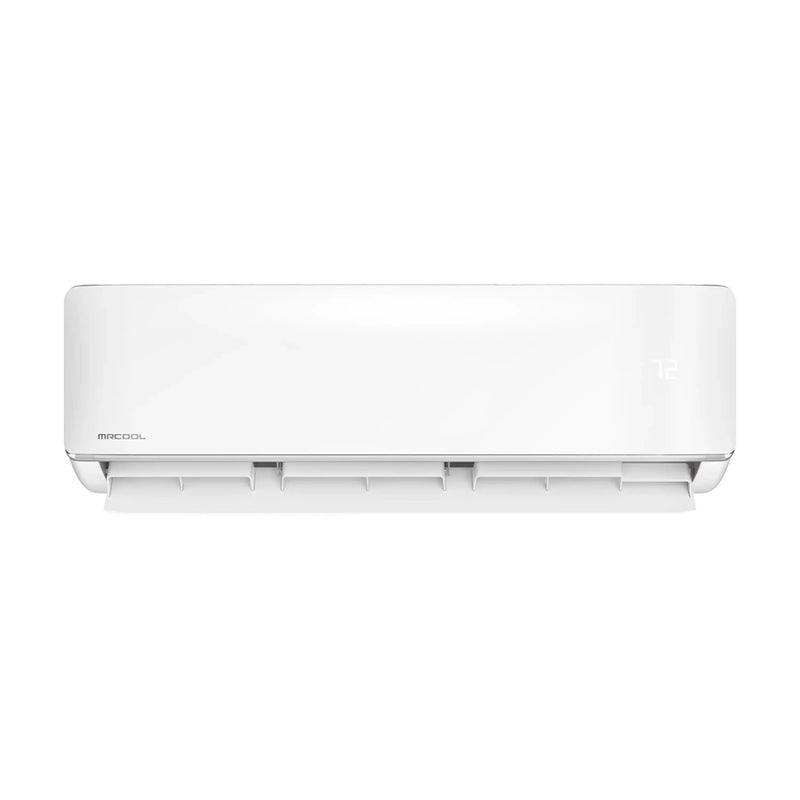

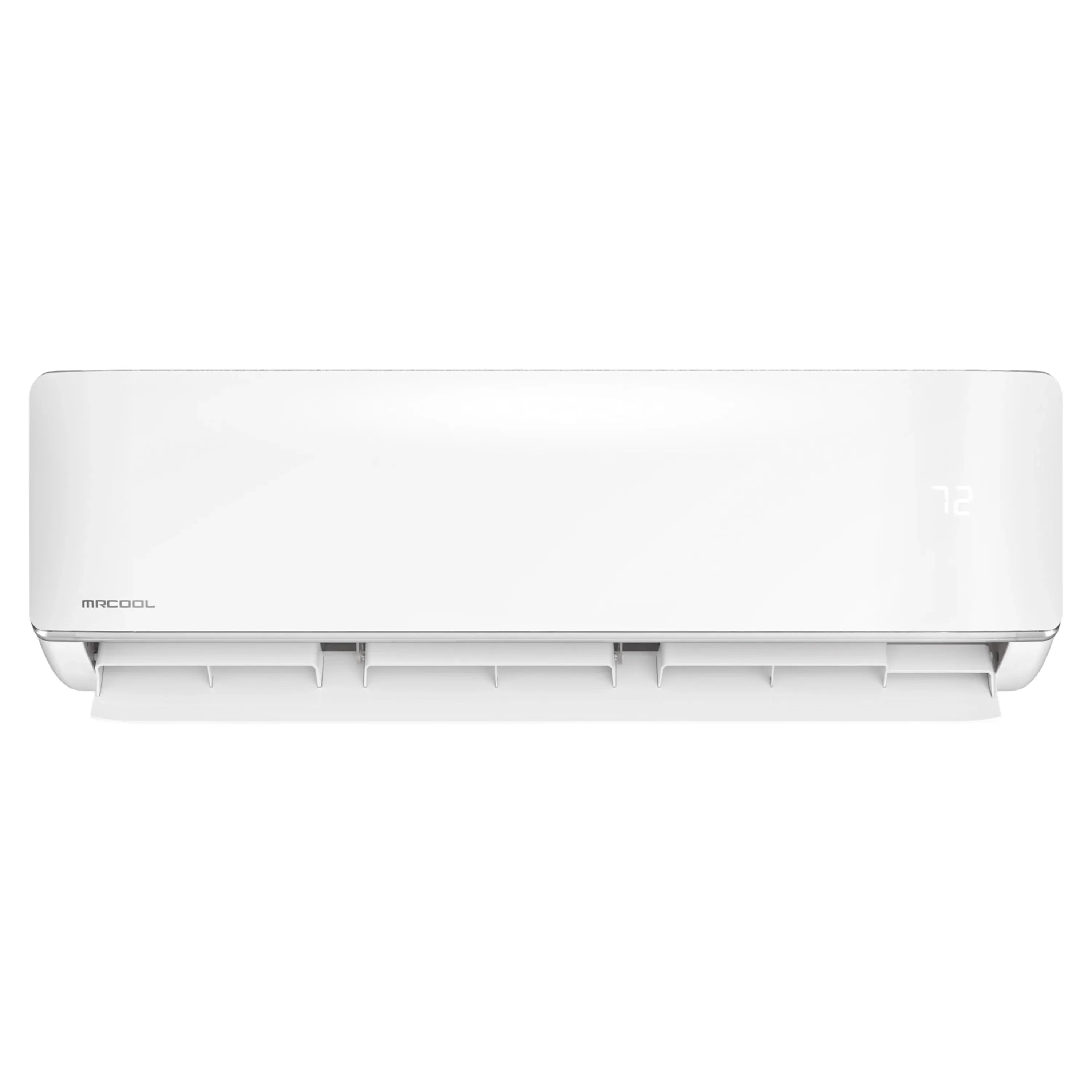

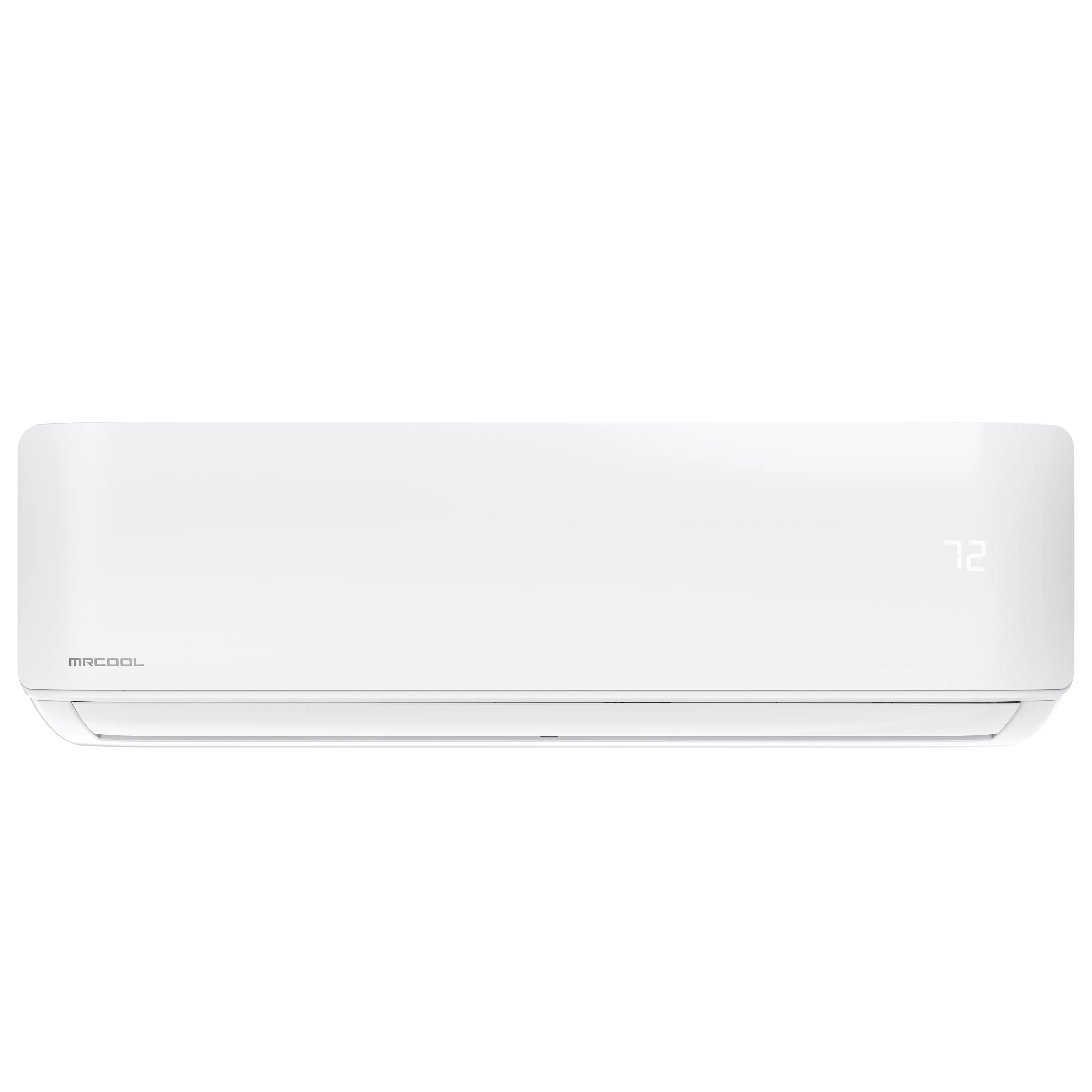

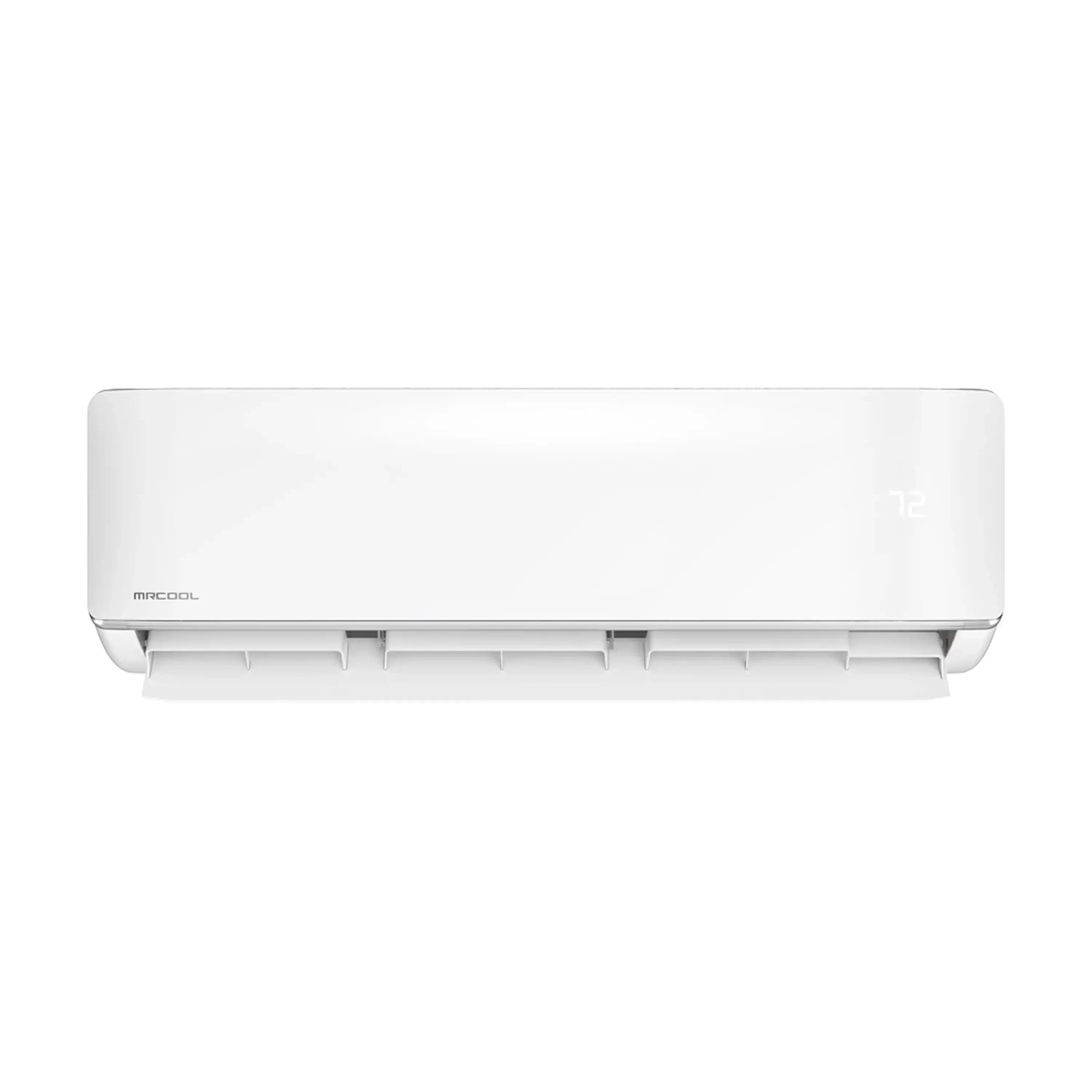

The 5th Generation MRCOOL® DIY® 18k BTU Ductless Heat Pump Single Zone Mini-Split Air Handler delivers powerful, energy-efficient heating and cooling for spaces up to 800 sq. ft. Designed for easy, tool-free installation, this system requires no professional experience, specialized tools, or costly service calls—making it a fast and affordable comfort solution for homeowners.
This model features the rugged DIYPRO® cable, which eliminates the need for traditional electrical conduit while offering added durability and protection against outdoor elements, animals, and harsh weather conditions. Installation is not only simplified but also built to last. You can manage your comfort your way. Use the included wireless remote, connect through the SmartHVAC app available on iOS and Android devices, or control the system using voice commands via Amazon Alexa and Google Assistant. The Gold Fin® condenser coating enhances corrosion resistance, making the unit a great fit for coastal or high-humidity areas.
The system also includes advanced comfort features. Follow Me® technology senses the temperature around the remote and adjusts airflow accordingly, ensuring consistent comfort where you are. Dry Mode reduces humidity for better air quality and comfort. To protect your investment, MRCOOL® offers a strong 7-year compressor and 5-year parts warranty, and is also eligible for the MRCOOL® Care Program. Experience hassle-free installation, advanced features, and reliable year-round comfort with the MRCOOL® DIY® 18k Mini-Split Air Handler.
| DIMENSIONS & WEIGHT | |
|---|---|
| Dimensions | 8.9" D x 13.19" H x 42.52" W |
| Net Weight (Lbs) | 35.49 |
| Gross Depth (In) | 17.68 |
| Gross Height (In) | 14.29 |
| Gross Width (In) | 46.73 |
| Gross Weight (Lbs) | 49.6 |
| GENERAL INFORMATION | |
| Mount Type | Wall |
| Color | White |
| Max Coverage Area | 800 sqft |
| Number of Speeds | 5 |
| Oscillation | Yes |
| Quiet Mode | Yes |
| CAPACITY & PERFORMANCE | |
| Tonnage | 1.5 |
| Cycle | 60 |
| NOISE LEVELS | |
| Decibel Rating Low (DBA) | 19 |
| Decibel Rating High (DBA) | 54.5 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 3 |
| REFRIGERANT & PIPING | |
| Liquid Line Size | 1/4 |
| Suction Line Size | 1/2 |
| FILTER & HEATING | |
| Filter Type | Reusable |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| CONTROLS & CONNECTIVITY | |
| Fan Only Option | Yes |
| Auto Cool | Yes |
| WIFI Compatibility | Yes |
| APP Compatibility | Yes |
| Works with IOS | Yes |
| Remote Control Included | Yes |
| SAFETY | |
| UL Listed | Yes |
| ETL Listed | Yes |
| AHRI Certified | Yes |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Aerosol | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Registered Warranty | Extended Limited Lifetime* |
| Base Parts Warranty | 5 |
| Base Compressor Warranty | 7 |
