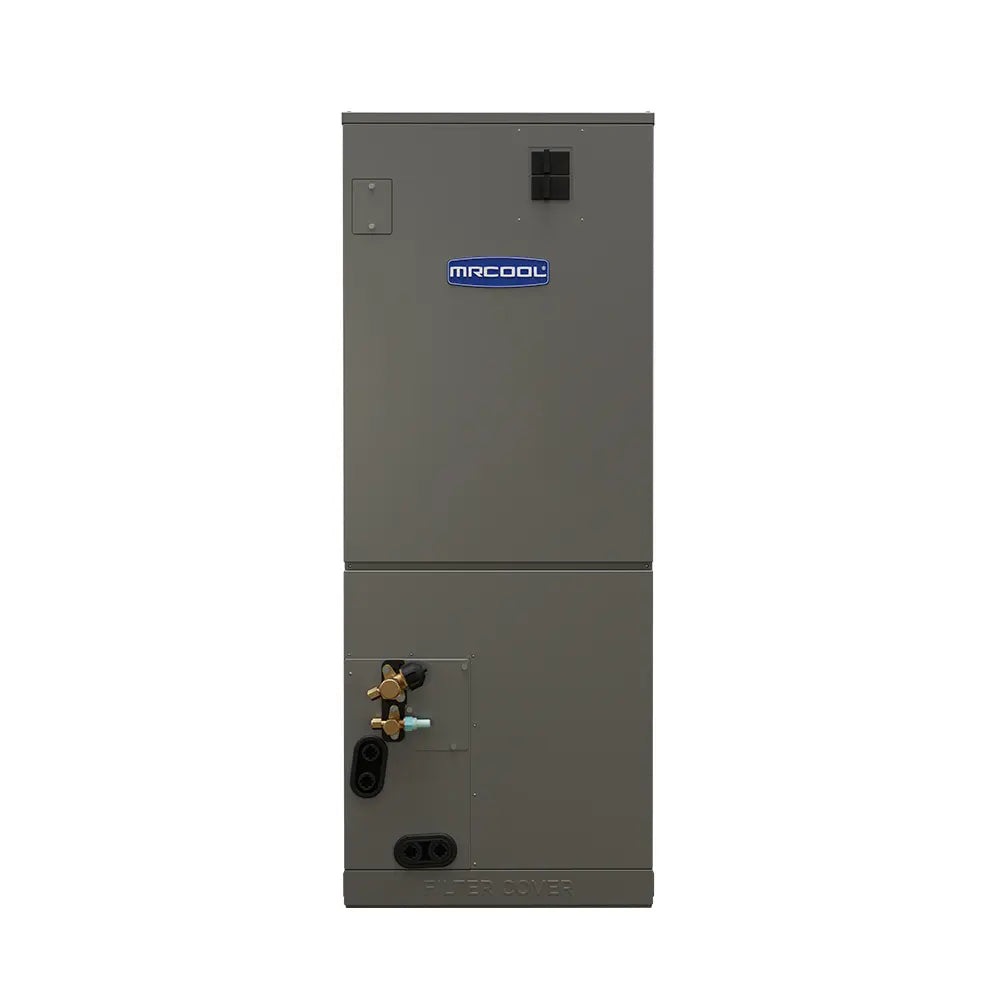

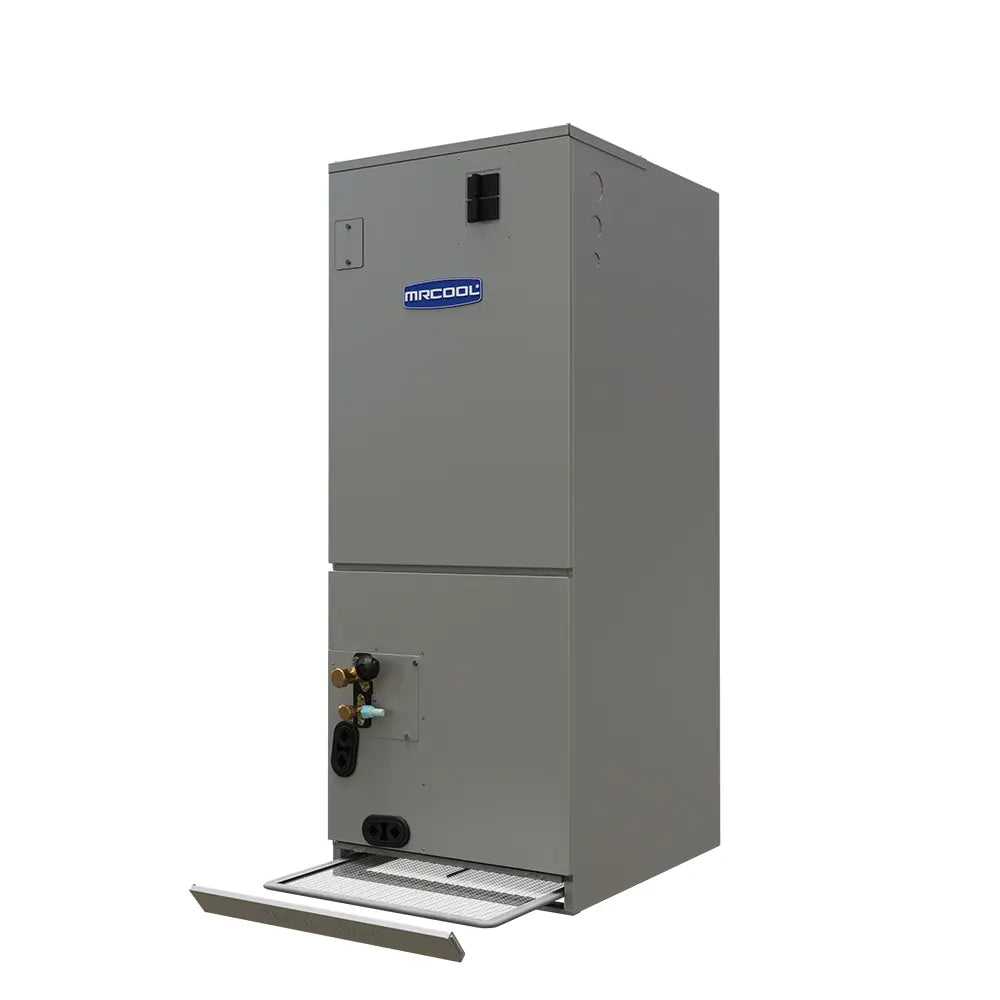

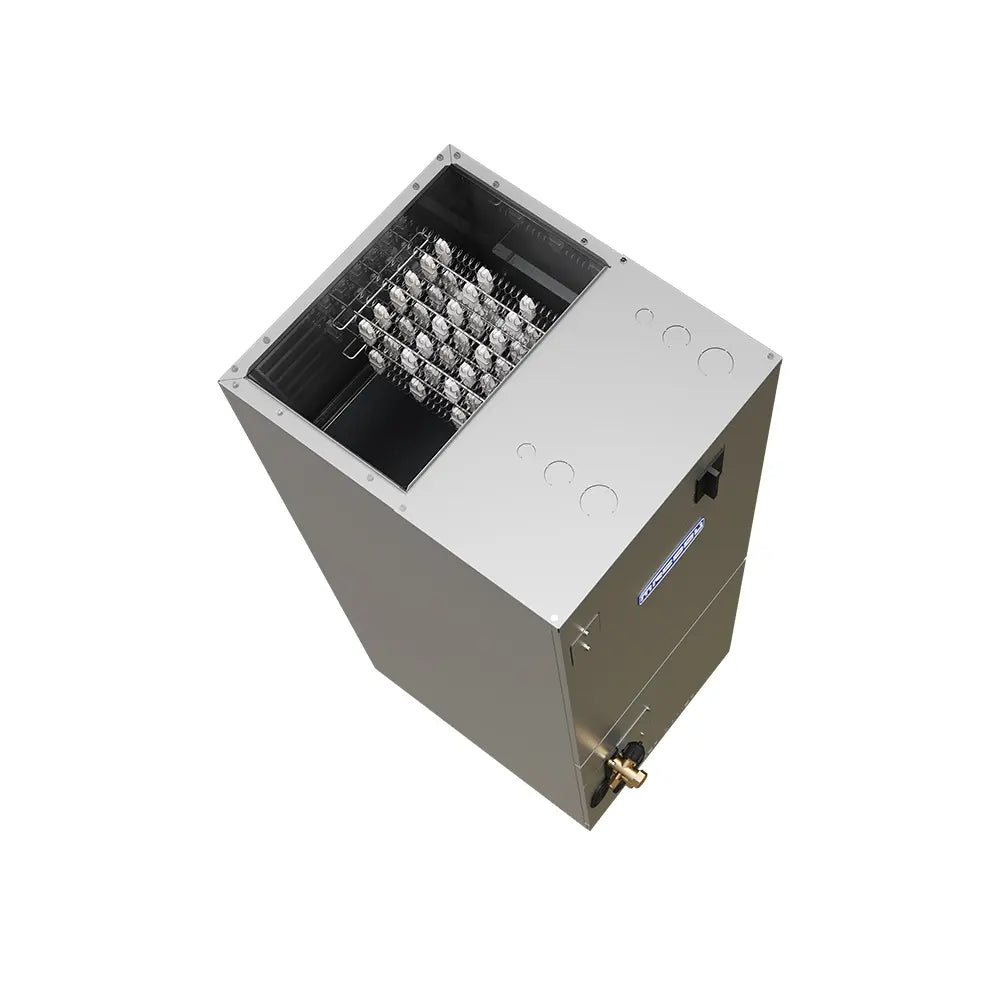

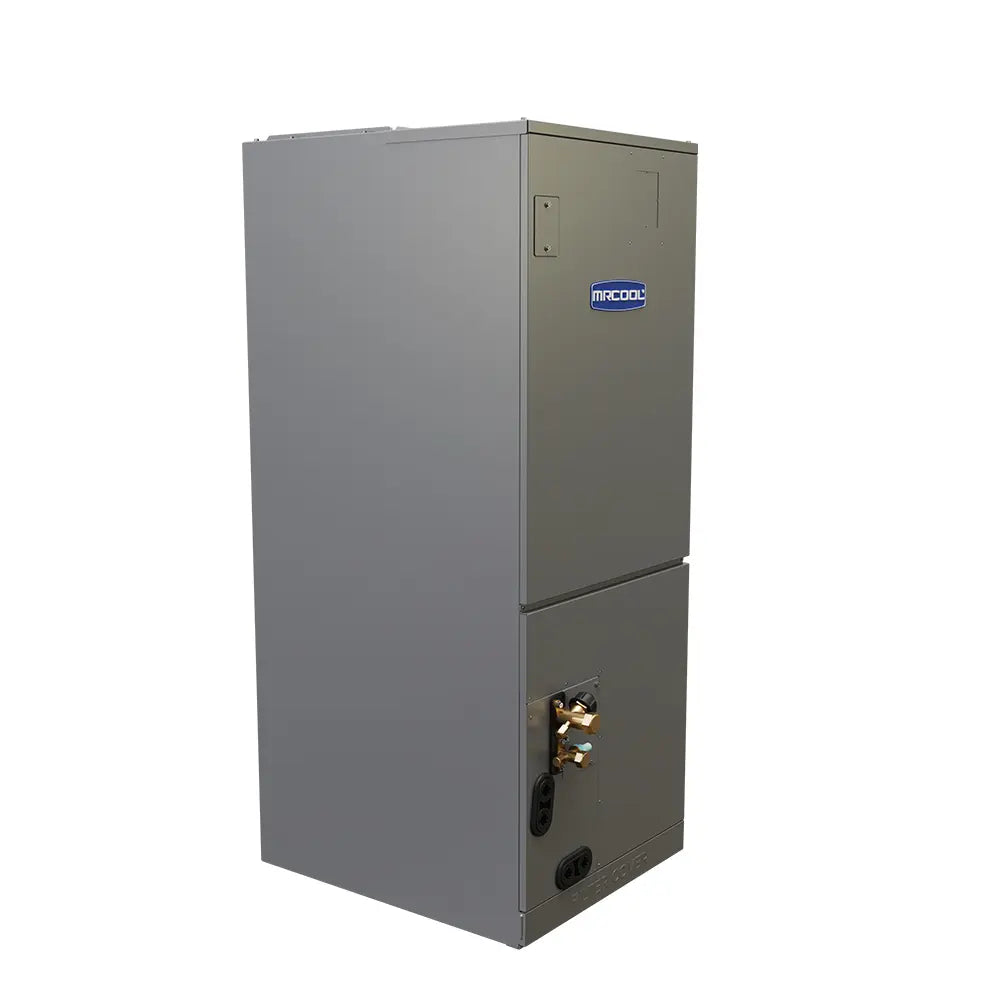

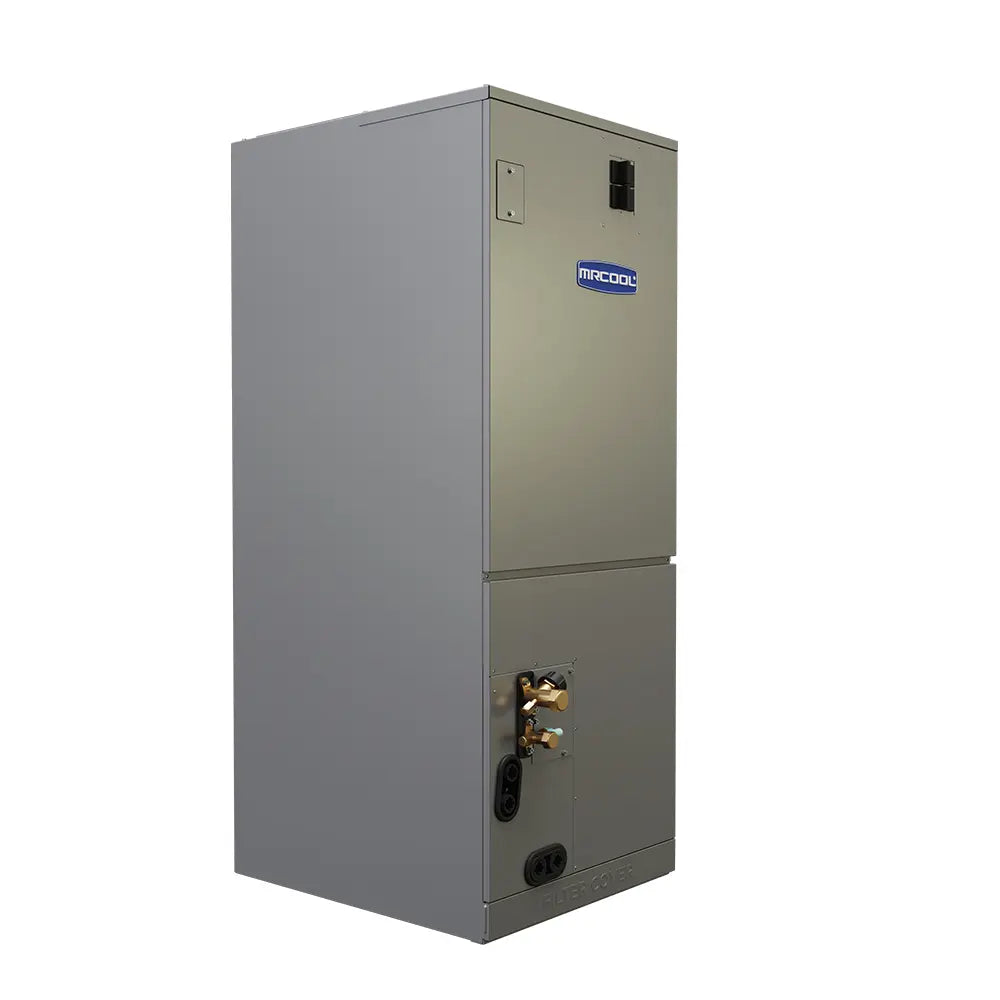

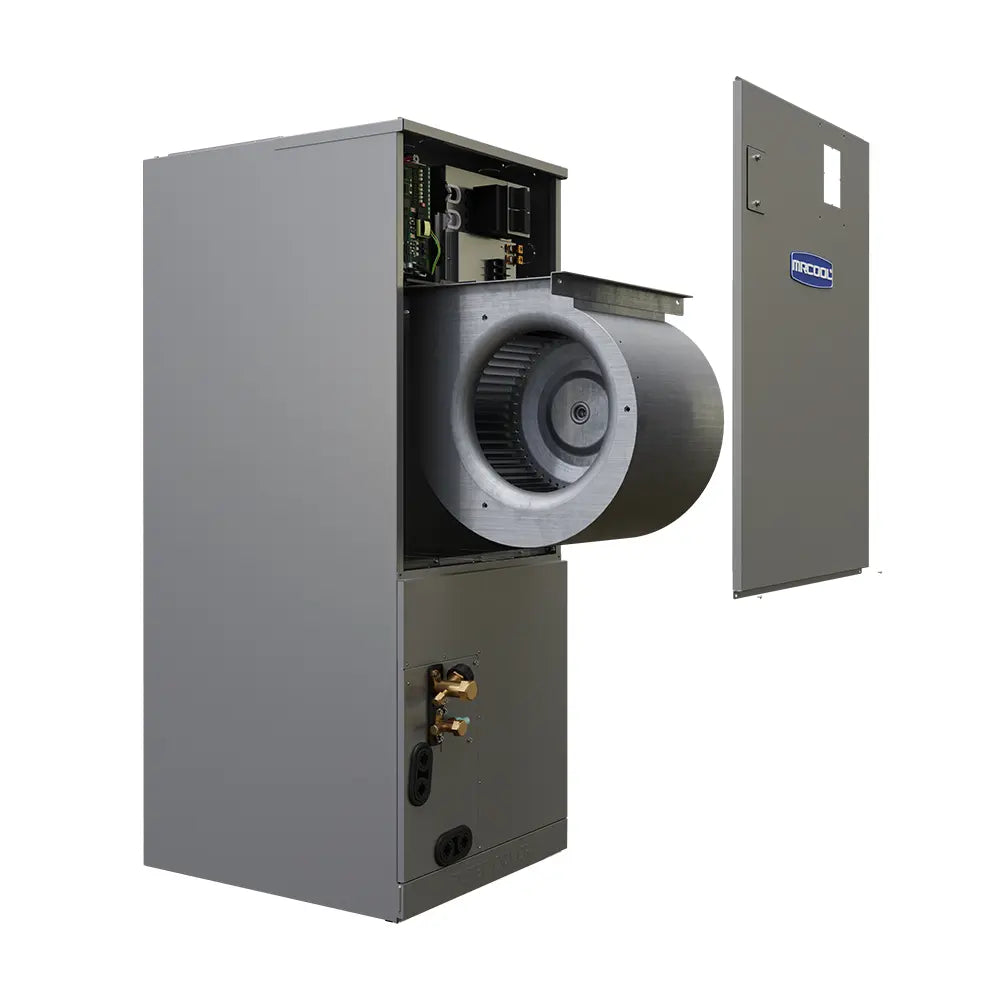

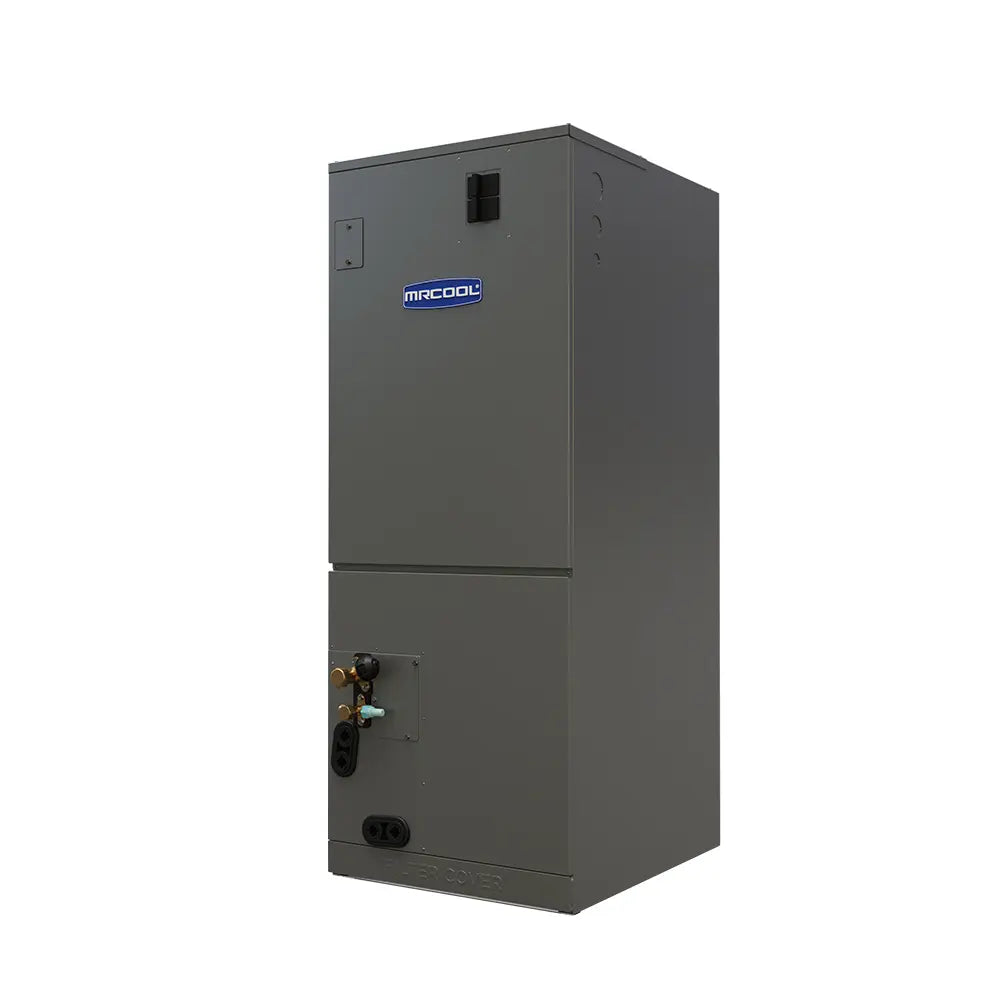

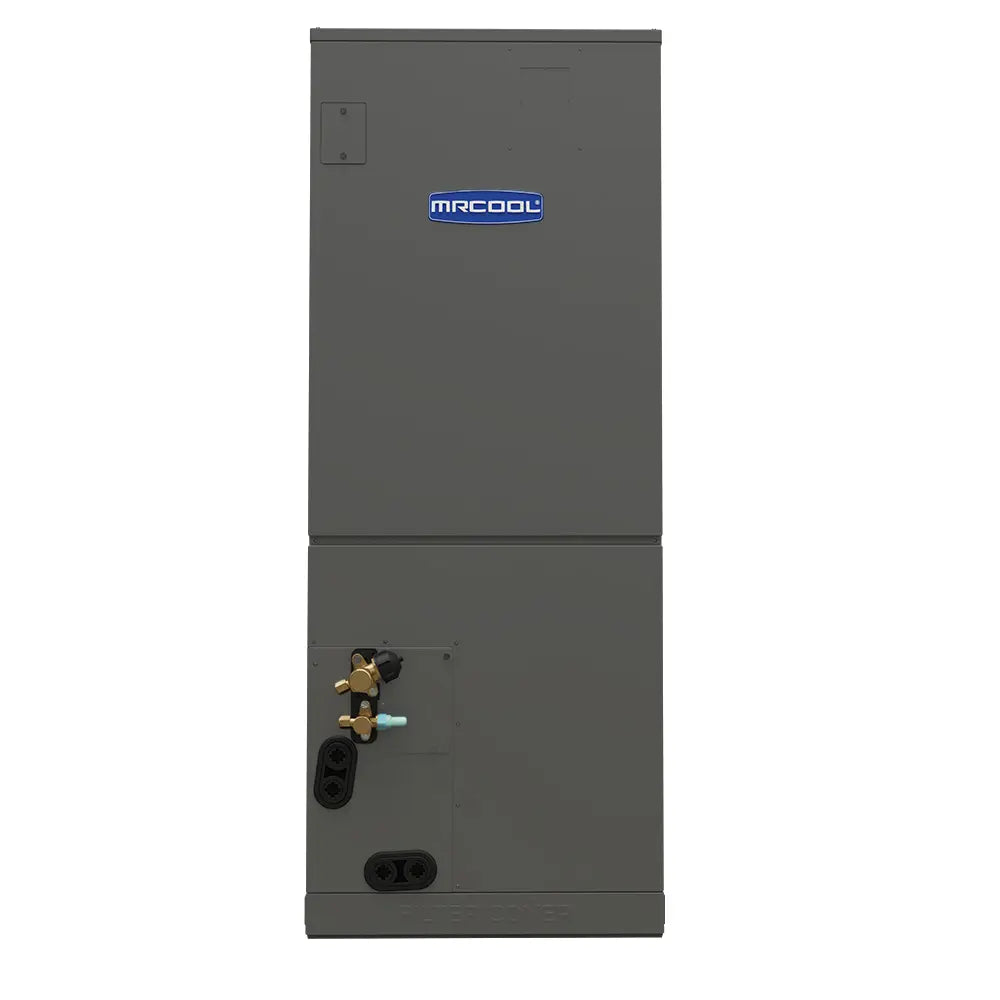

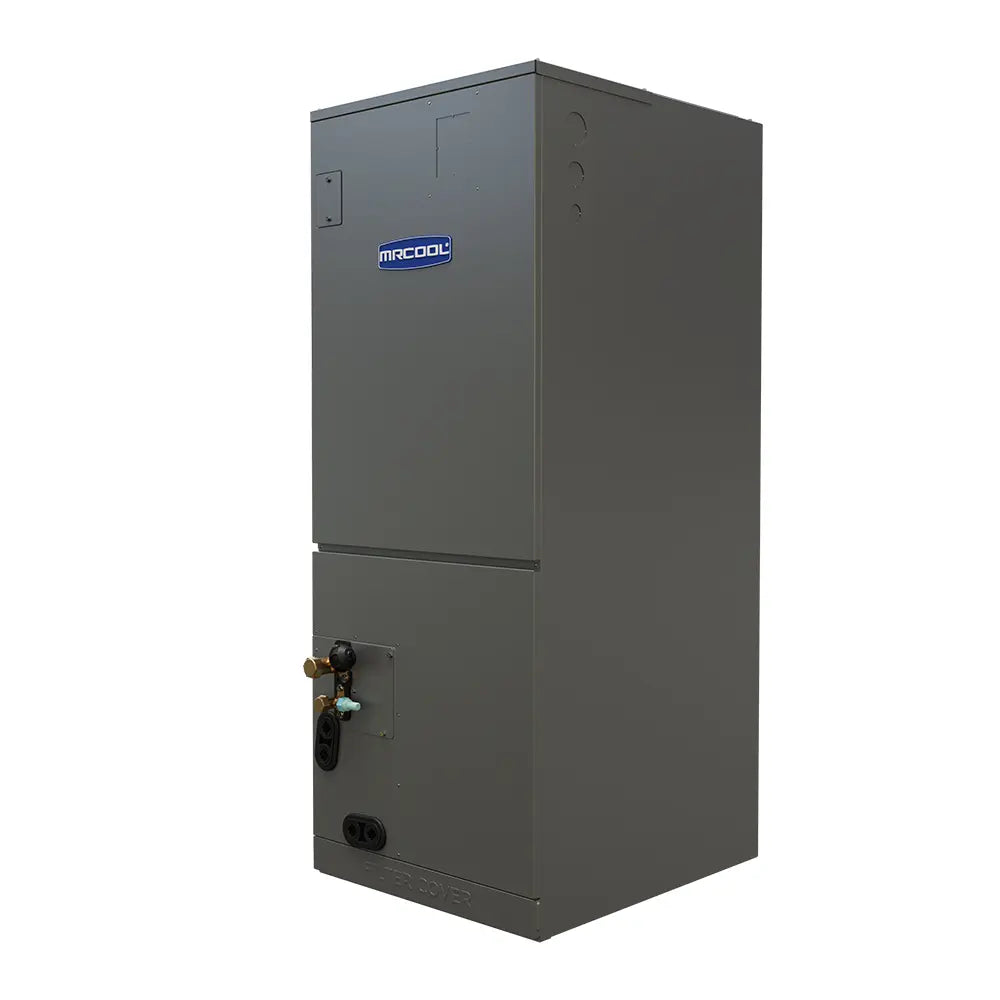

The 36K MRCOOL® DIY Hybrid™ Air Handler offers a powerful and adaptable solution for heating and cooling areas up to 1,500 square feet. Engineered for compatibility with MRCOOL® DIY condensers, this unit is perfect for hassle-free installation without the need for professional help—making it an ideal replacement for outdated or inefficient HVAC systems. Its rugged painted galvanized steel cabinet ensures long-term durability, while the integrated self-diagnostics panel streamlines maintenance by displaying error codes for quick and accurate issue identification. Designed with flexibility in mind, the air handler supports multiple installation styles, including upflow, downflow, and horizontal left or right, allowing it to fit a wide range of home configurations with ease. It uses R-454B refrigerant, a high-performance, eco-friendly option that reduces environmental impact without sacrificing efficiency. For enhanced comfort during colder seasons, an optional electric heat kit can be added to provide reliable supplemental warmth and year-round versatility. The system also comes equipped with the MRCOOL® Smart Wi-Fi Thermostat, offering intuitive climate control through a user-friendly touchscreen or the MRCOOL® mobile app. Adjusting your home’s temperature is simple and convenient, whether you're relaxing at home or managing settings remotely. Covered by a 5-year parts warranty, the 36K MRCOOL® DIY Hybrid™ Air Handler delivers energy efficiency, advanced performance, and dependable comfort—making it a smart, cost-effective upgrade for modern homes.
| Net Dimensions (In) | 21.02 D x 49.02 H x 21.02 W |
| Net Weight (Lbs) | 128.31 |
| Works With | DIY MZ or 36K DIY Condenser |
| CFM | 1189 / 1083 / 971.2 / 865.2 / / |
| Tonnage | 3 |
| Cooling Capacity (Btu) | 36000 |
| Heating Capacity (Btu) | 37000 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 6 |
| Color | Gray |
| Rated Load | 4.5 |
| Max Coverage Area | 1550 |
| Refrigerant Type | R-454B |
| Decibel Rating (Dba) | 45 |
| Decibel Rating Low (Dba) | 31 |
| Decibel Rating High (Dba) | 48 |
| Number Of Speeds | 4 |
| Drain Connection Size | 3/4 |
| Lineset Included | Yes |
| Max Lineset Length (Ft) | 246 |
| Liquid Line Size | 3/8 |
| Suction Line Size | 5/8 |
| Filter Type | Replaceable |
| Filter Size | Refer to Installation Manual |
| Metering Device | EEV |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes | 5kW, 8kW, 10kW, 15kW, 20kW |
| Adjustable Thermostat | Yes |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Works With Ios | Yes |
| Works With Android | Yes |
| Remote Control Included | No |
| UL Listed | Yes |
| CSA Certified | Yes |
| ETL Certified | Yes |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Registered Warranty | Extended Limited Lifetime* |
| Base Warranty | 5 Year Parts |
| Base Parts Warranty | 5 Years |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU;PR;VI |
| Gross Depth (In) | 26.57 |
| Gross Height (In) | 52.56 |
| Gross Width (In) | 24.41 |
| Gross Weight (Lbs) | 153.66 |
