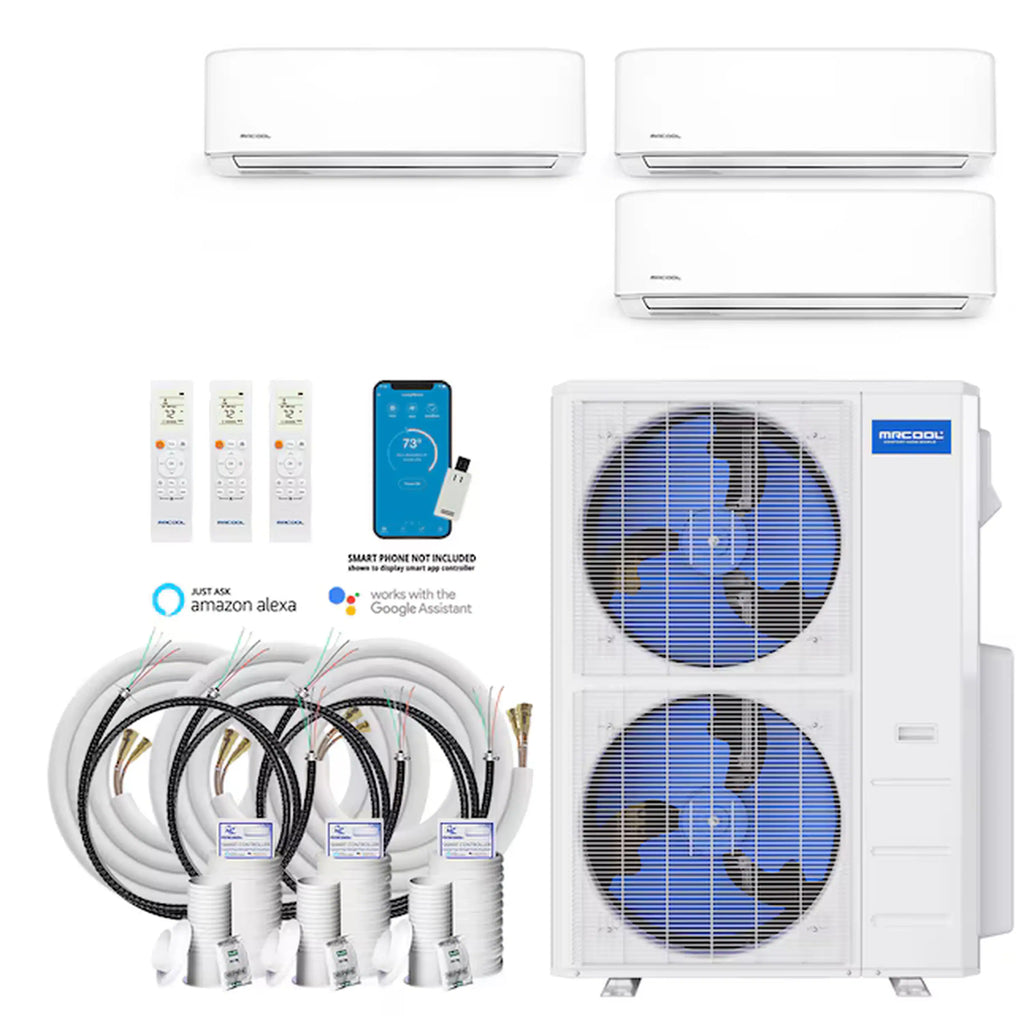

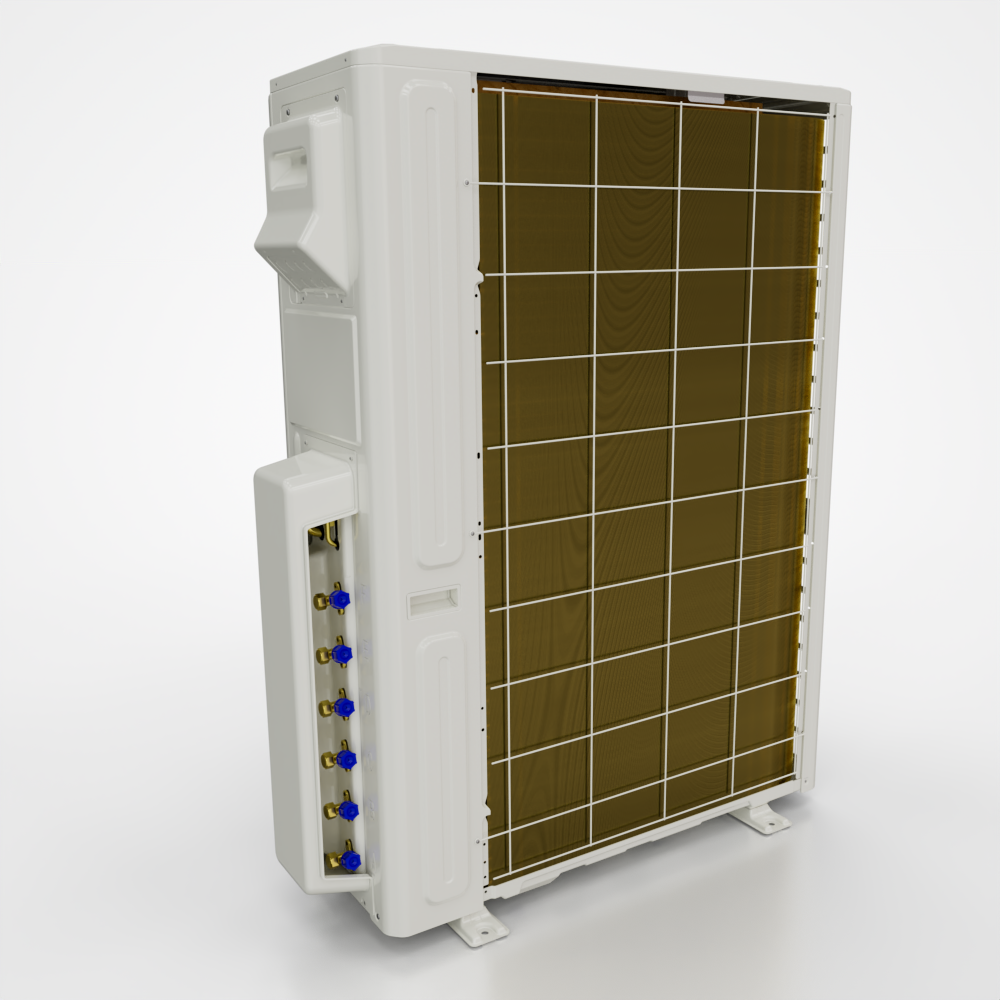

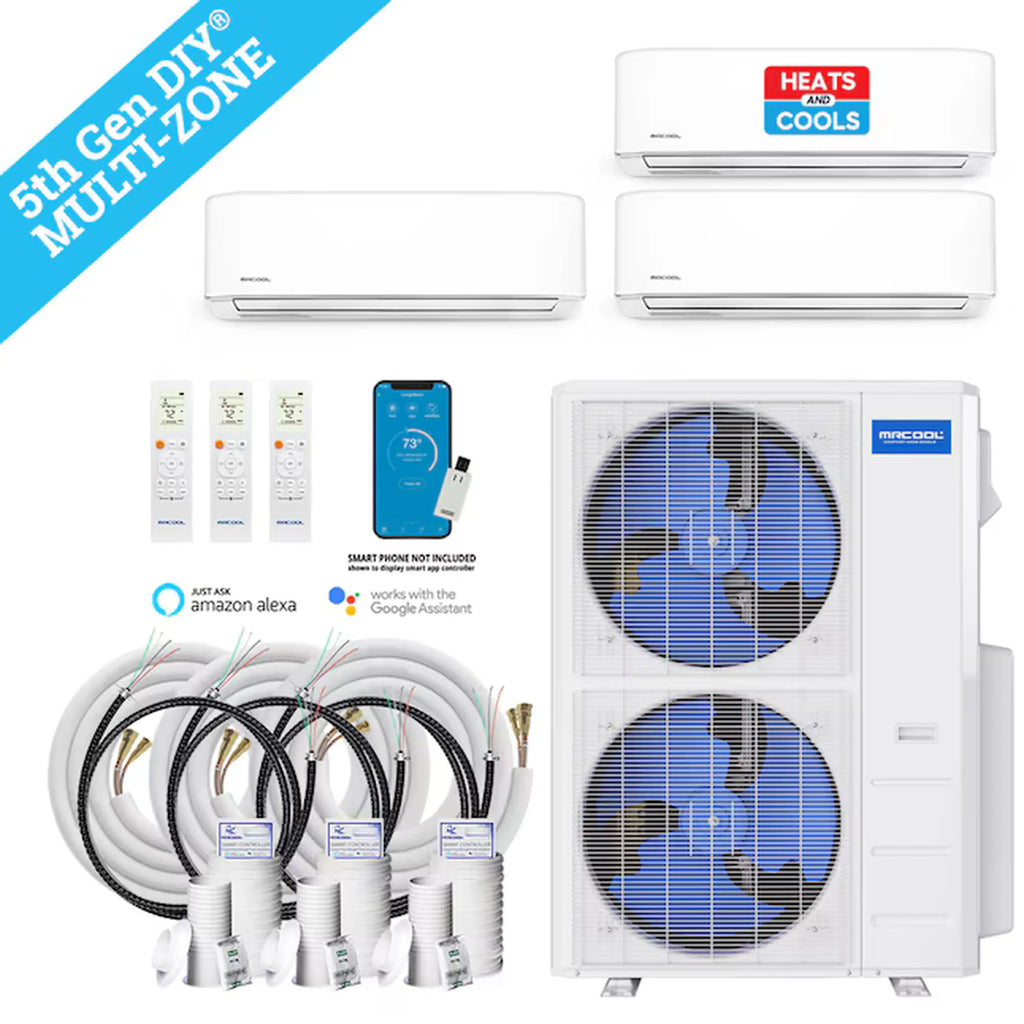

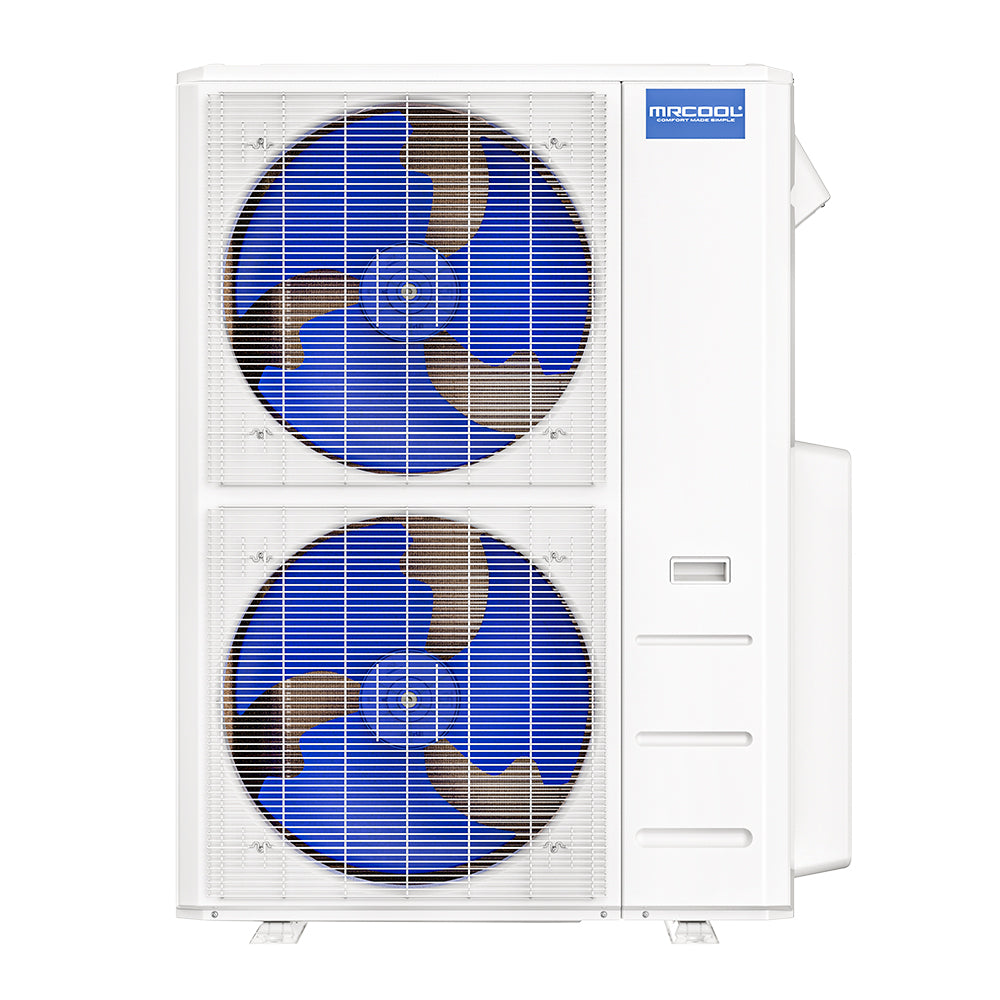

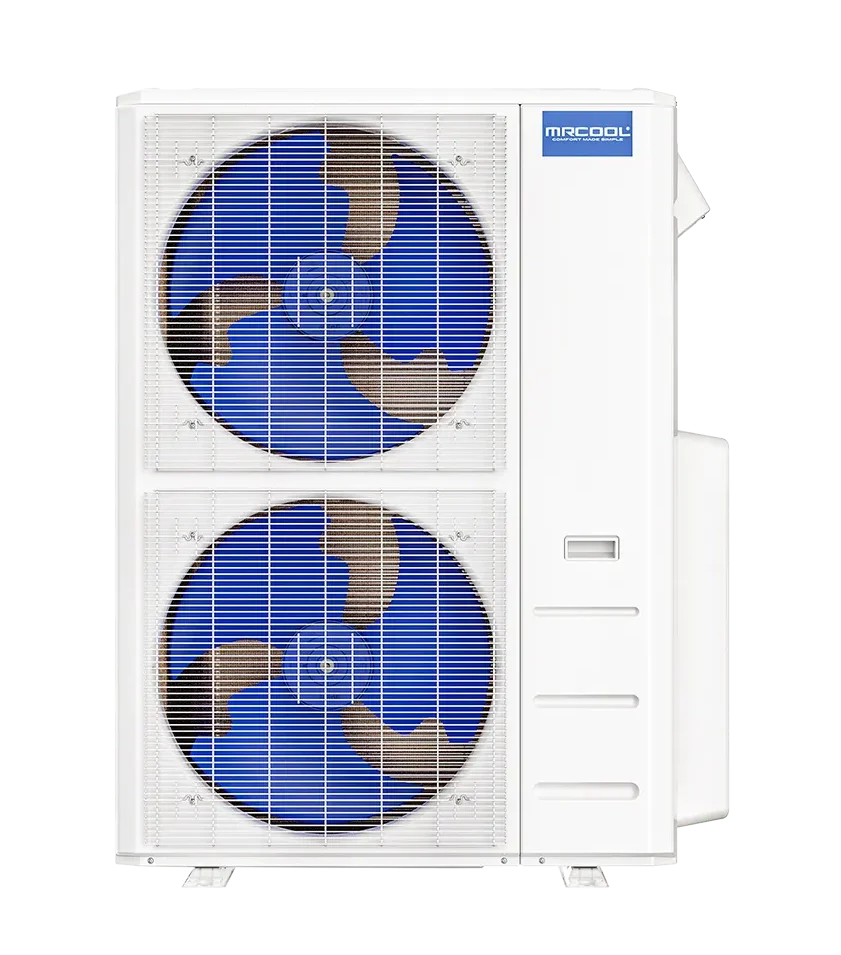

Our new 5th Generation MRCOOL® DIY® 55k BTU Multi-Zone Ductless Mini-Split Condenser is one of the most efficient and innovative units in the industry, and we’re excited to finally share it with you! On top of saving time and money because you won’t need an HVAC professional, this system will give you a good sense of accomplishment because you’ll have installed it yourself! The whole family will be able to enjoy the comfort of this condenser, because it can heat and cool up to 6 different spaces that equal up to 2290 sq. ft., giving you the ability to heat and cool an entire home to your exact specifications using a single MRCOOL® system.

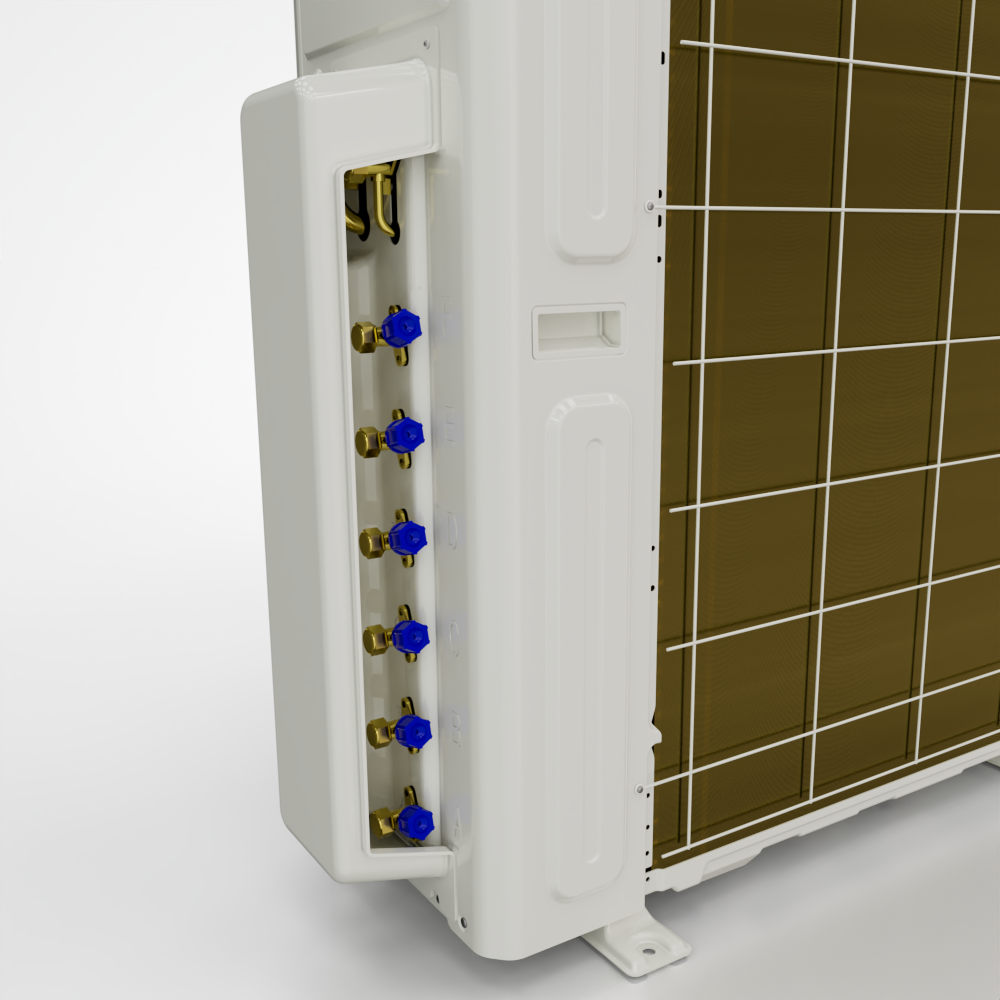

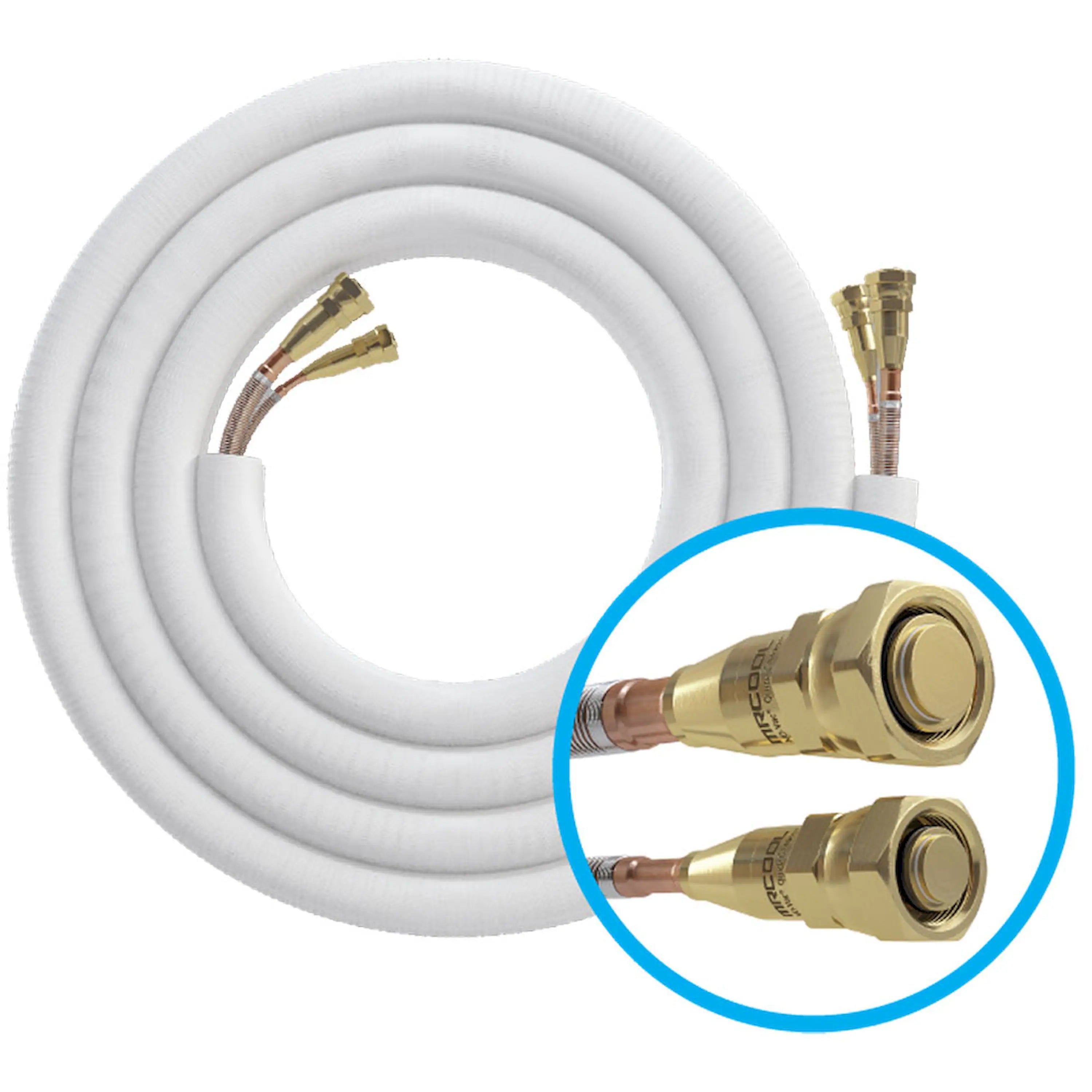

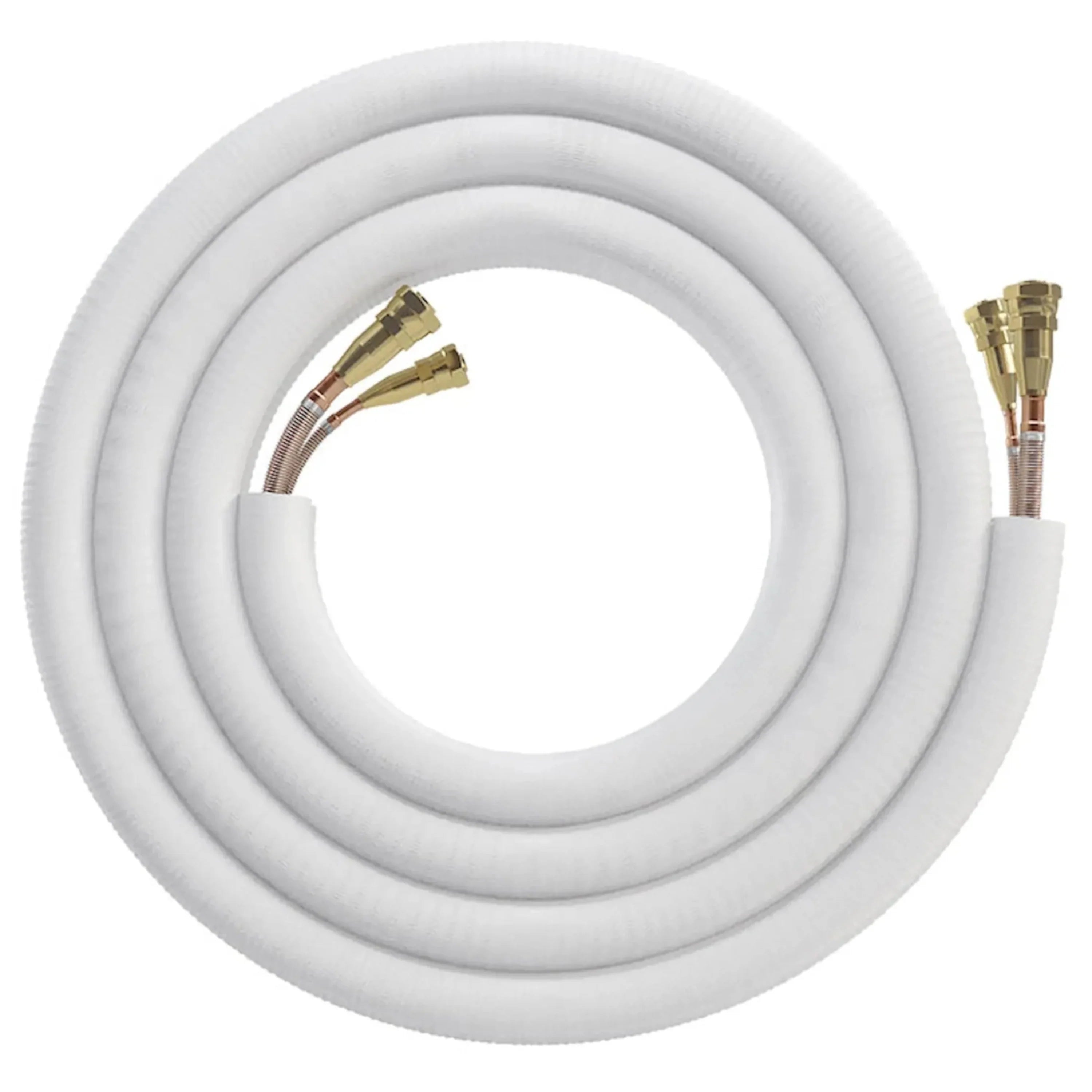

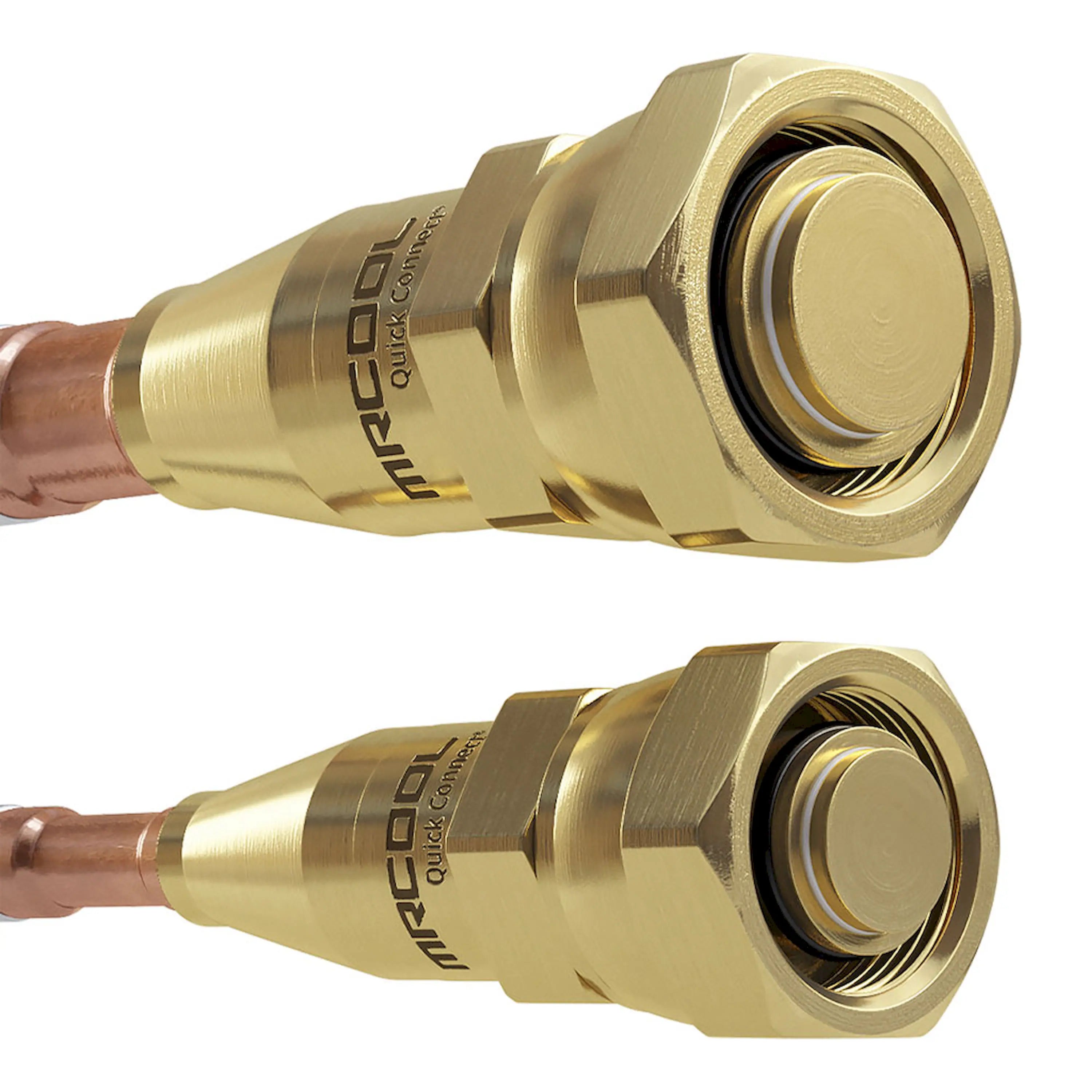

The system’s patented pre-charged Quick-Connect® line sets essentially fast-forward the installation of this system, enabling you to skip the evacuation and charging steps and simplifying the entire process. We utilize new R-454B refrigerant in these line sets, which is a much more environmentally friendly and efficient choice. Features like these assist this unit in achieving its impressive SEER2 of 22, and its HSPF2-4 of 10.6, both of which signify that this system will help you save money throughout the entire time you use it. Once you install this condenser, you’ll be met with a variety of features to help you control your comfort.
One of these features is the Smart HVAC app, available on Apple and Android, that allows you to operate your system from the convenience of your phone. Set schedules, manage different modes, monitor energy consumption, and more all without having to leave the couch! You can also set up voice control through Amazon Alexa or Google Home, meaning you can control your comfort without moving a finger. This system ensures you’ll be enjoying ultimate convenience and superior comfort. The warranty for this unit is one of the best in the industry, and we’re proud to have your back. You can enjoy the peace of mind of a 5 year parts warranty, a 7 year compressor warranty, and, once you enroll in the MRCOOL® Care Program, a Limited Lifetime Replacement warranty. If you need perfect comfort but don’t want to break the bank, this MRCOOL® DIY® condenser is your answer!
| DIMENSIONS & WEIGHT | |
|---|---|
| Dimensions | 16.34" D x 52.48" H x 37.48" W |
| GENERAL INFORMATION | |
| Color | White |
| Inverter | DC |
| Quiet Mode | Yes |
| Contans Chemicals | Yes |
| CAPACITY & PERFORMANCE | |
| SEER2 | 22 |
| EER2 | 12 |
| HSPF2-4 | 10.6 |
| HSPF2-5 | 8.5 |
| Tonnage | 4.6 |
| Cooling Capacity (BTU) | 47000 |
| Heating Capacity (BTU) | 55000 |
| Cycle | 60 |
| Zone Capacity | 6 |
| COMPRESSOR & MOTORS | |
| Compressor Motor Type | Rotary |
| NOISE LEVELS | |
| Decibel Rating (DBA) | 64 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 45 |
| Min Circuit Ampacity (A) | 43 |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Refrigerant Volume (OZ) | 151.68 |
| Line Set Length | 25 |
| Max Lineset Length (FT) | 221.4 |
| Liquid LIne Size | 1/4 |
| Suctio Line Size | (3/8 X4) (1/2 X2) |
| FILTER & HEATING | |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| CONTROLS & CONNECTIVITY | |
| Fan Only Option | Yes |
| Auto Cool | Yes |
| WIFI Compatibility | Yes |
| APP Compatibility | Yes |
| Works with IOS | Yes |
| Works with Android | Yes |
| SAFETY | |
| UL Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | Yes |
| AHRI Certified | Yes |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Aerosol | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Registered Warranty | Extended Limited Lifetime* |
| Base Parts Warranty | 5 |
| Base Compressor Warranty | 7 |

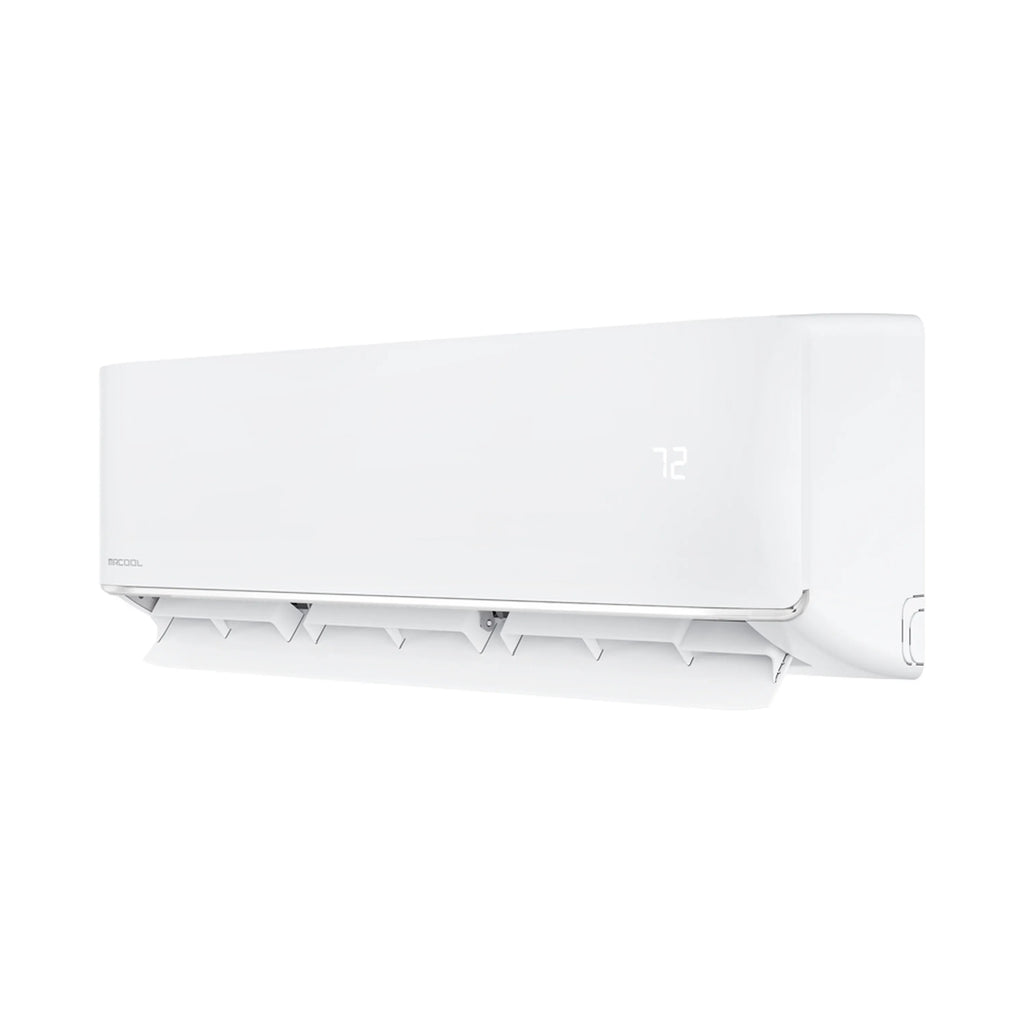

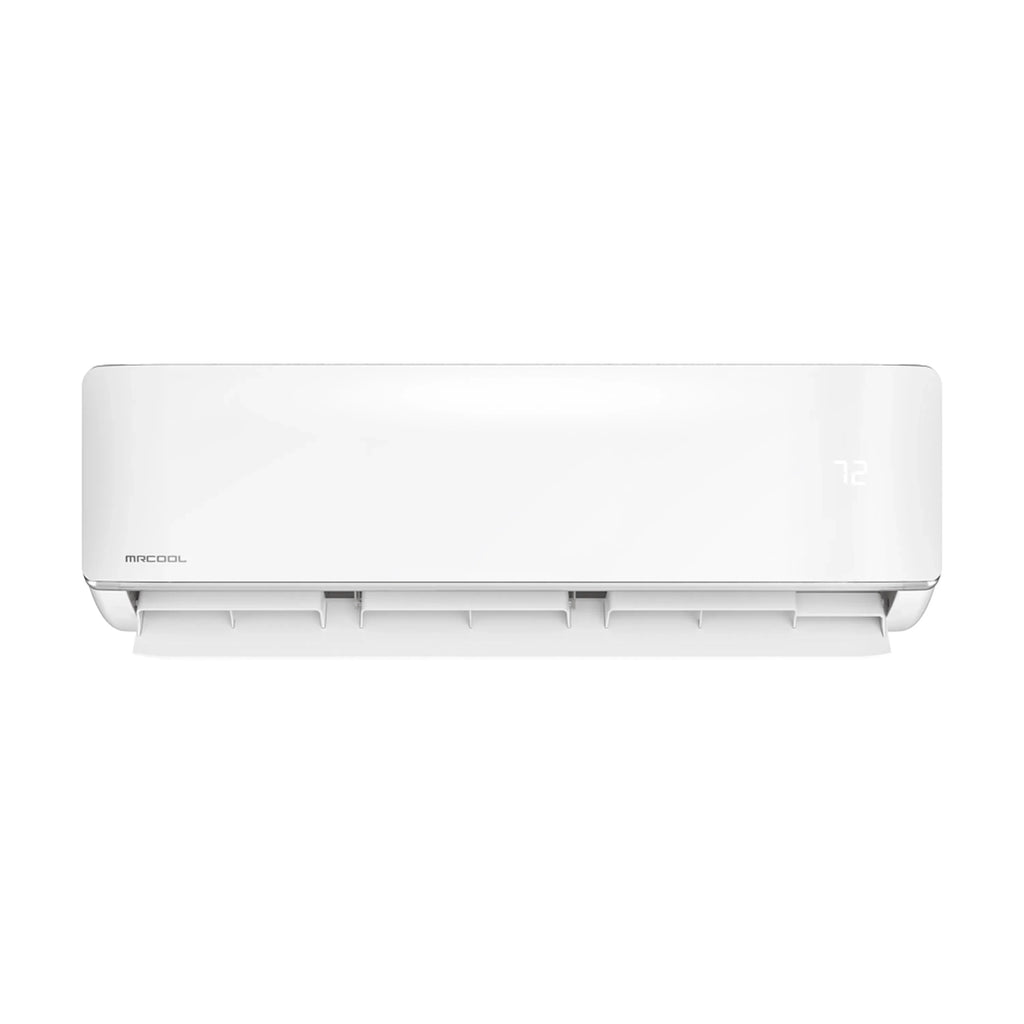

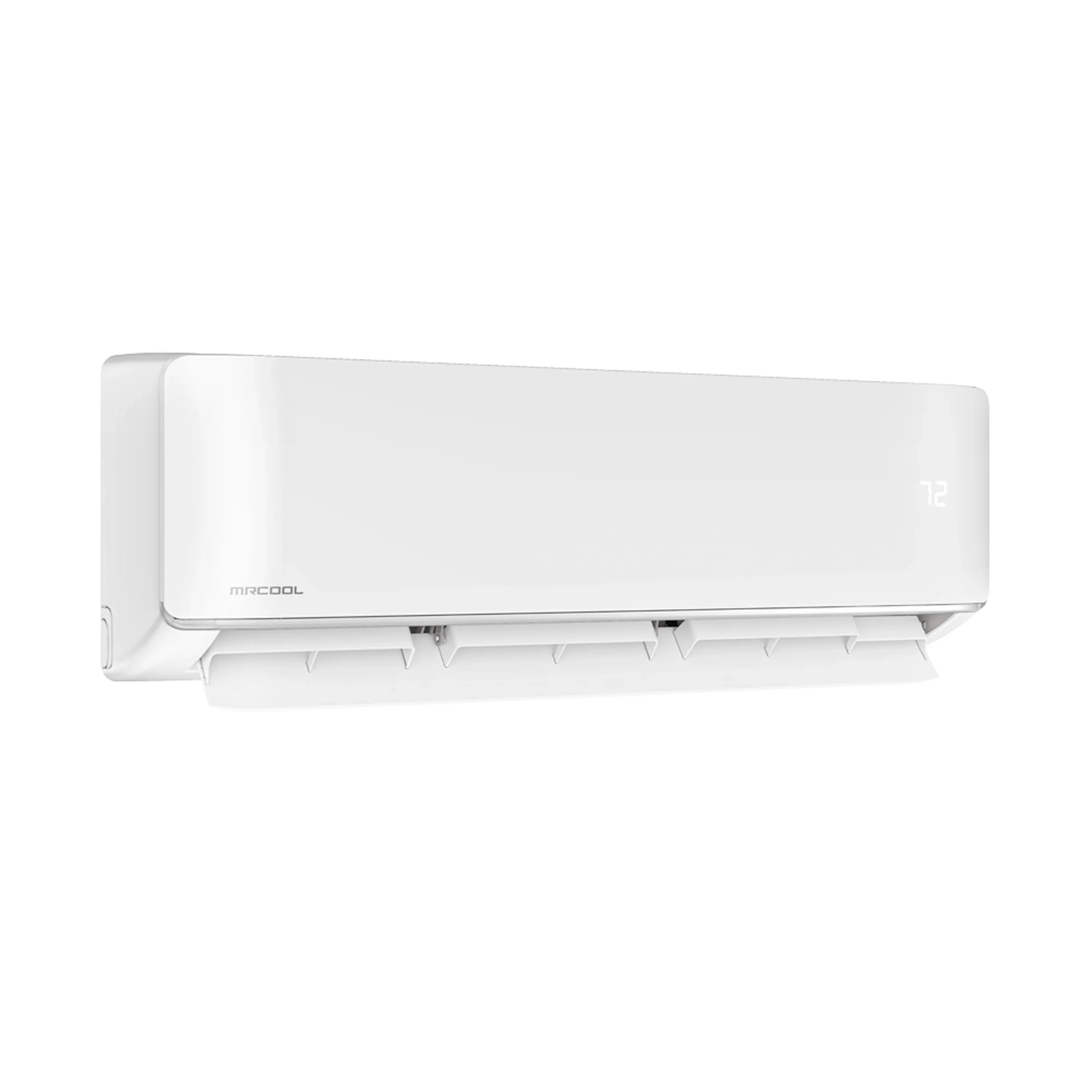

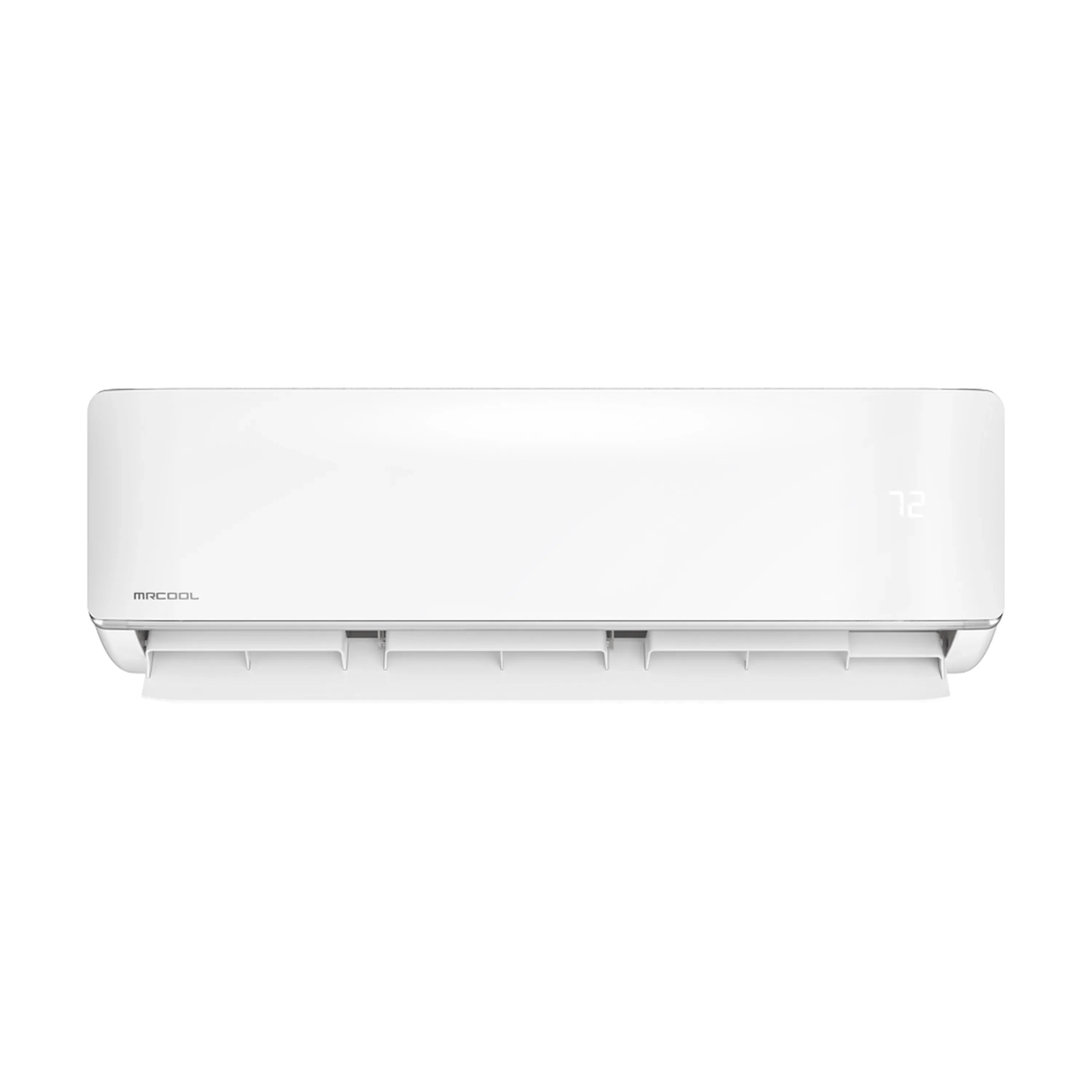

Check out the new 5th Generation MRCOOL® DIY® 6K BTU Ductless Heat Pump Single Zone Mini-Split Air Handler! Designed for an easy and hassle-free installation, this system requires no special tools or prior experience and effectively heats or cools spaces up to 200 sq. ft. The pre-charged 25-foot DIY® QuickConnect® line set, which is pre-charged with R-454B refrigerant, eliminates the need for vacuuming, making installation faster, easier, and more cost-effective.
The included DIYPRO® cable removes the need for electrical conduit, offering added durability against the outdoor elements and wildlife. Control is effortless with multiple options, including the wireless remote, the SmartHVAC app for Apple and Android devices, and hands-free voice commands via Amazon Alexa and Google Assistant. The Gold Fin® Condenser provides superior corrosion resistance for coastal homes, ensuring long-lasting performance in harsh conditions. Designed for both comfort and efficiency, the system's wireless remote features the innovative Follow Me function, which allows the air handler to adjust airflow temperature based on the remote's location, maintaining consistent comfort throughout the room.
Additionally, Dry Mode helps reduce humidity by acting as a dehumidifier, removing excess condensation. Backed by an industry-leading warranty—including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty—the 5th Generation MRCOOL® DIY® 6K BTU Ductless Heat Pump Single Zone Mini-Split Air Handler is built for lasting reliability. Enjoy advanced technology, simple installation, and year-round comfort with confidence.
| DIMENSIONS & WEIGHT | |
|---|---|
| Dimensions | 7.44" D x 11.69" H x 31.57" W |
| GENERAL INFORMATION | |
| Mount Type | Wall |
| Color | White |
| Max Coverage Area | 200 sqft |
| Oscillation | Yes |
| Quiet Mode | Yes |
| CAPACITY & PERFORMANCE | |
| Cycle | 60 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208/230 |
| Phase | 1 |
| FILTER & HEATING | |
| Filter Type | Reusable |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| CONTROLS & CONNECTIVITY | |
| Fan Only Option | Yes |
| Auto Cool | Yes |
| WIFI Compatibility | Yes |
| APP Compatibility | Yes |
| Works with IOS | Yes |
| Works with Android | Yes |
| Remote Control Included | Yes |
| SAFETY | |
| UL Listed | Yes |
| ETL Listed | Yes |
| AHRI Certified | Yes |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Aerosol | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Registered Warranty | Extended Limited Lifetime* |
| Base Parts Warranty | 5 |
| Base Compressor Warranty | 7 |

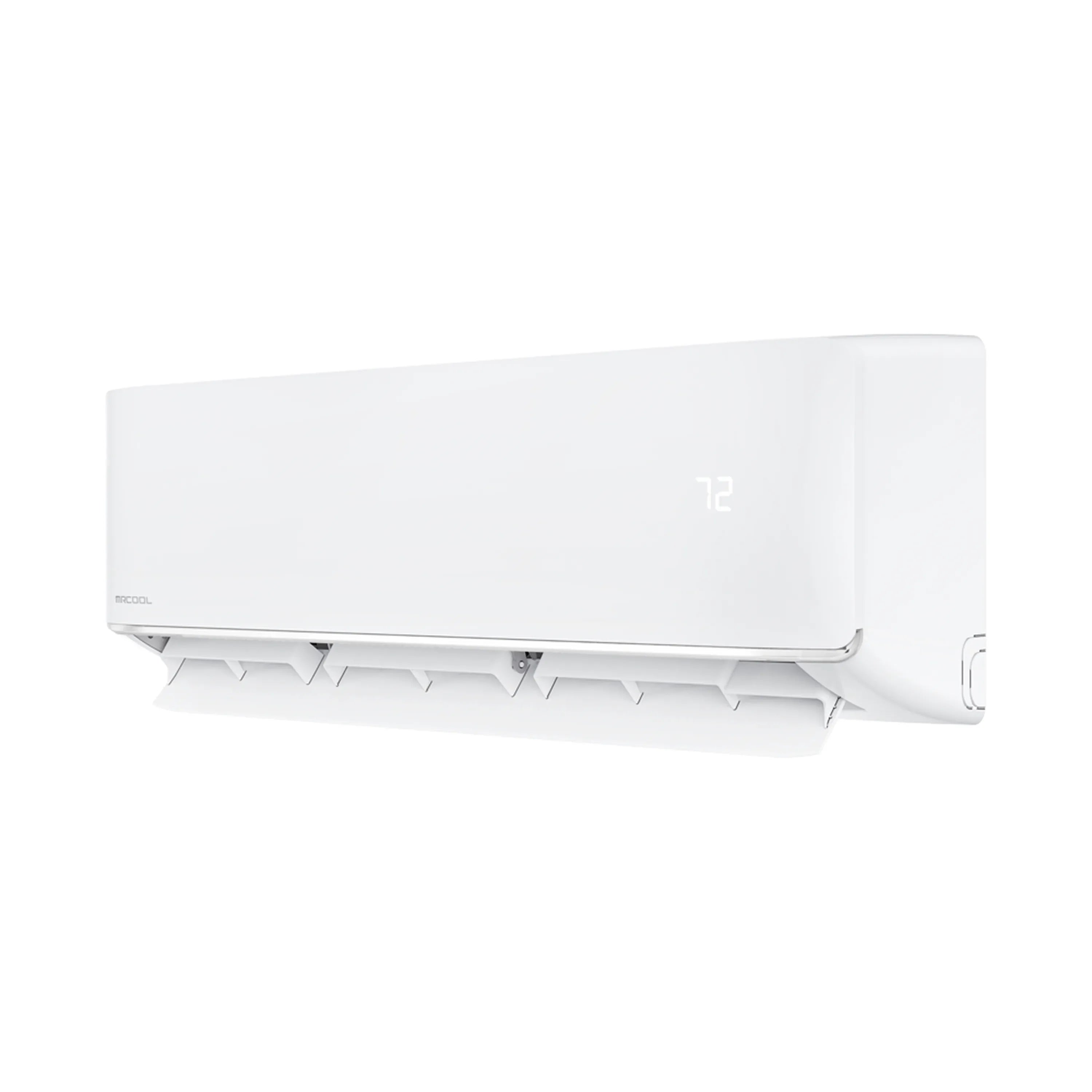

The 5th Generation MRCOOL® DIY® 24k BTU Ductless Mini-Split Heat Pump offers powerful and efficient heating and cooling for areas up to 1,050 sq. ft. Designed for true DIY installation, it requires no specialized tools or professional help, making it a cost-effective and user-friendly solution for homeowners. This system includes the durable DIYPRO® cable, which eliminates the need for electrical conduit while protecting against weather and wildlife damage, simplifying the setup even further. Controlling your comfort is simple and flexible.
Use the included remote, connect via the SmartHVAC app for iOS and Android, or control the system hands-free with Amazon Alexa or Google Assistant. The Follow Me® feature helps maintain consistent comfort by adjusting based on the temperature near the remote. Dry Mode also contributes to a more pleasant indoor environment by reducing excess humidity. The outdoor unit features a Gold Fin® condenser coating that resists corrosion, making it especially suited for coastal or humid climates.
For peace of mind, the system includes a powerful 7-year compressor warranty and a 5-year parts warranty, and is eligible for the MRCOOL® Care Program. With smart features, easy setup, and long-term reliability, this system delivers comfort you can trust.
| DIMENSIONS & WEIGHT | |
|---|---|
| Dimensions | 8.9" D x 13.19" H x 42.52" W |
| GENERAL INFORMATION | |
| Mount Type | Wall |
| Color | White |
| Max Coverage Area | 1050 sqft |
| Number of Speeds | 5 |
| Oscillation | Yes |
| Quiet Mode | Yes |
| CAPACITY & PERFORMANCE | |
| Tonnage | 2 |
| Cycle | 60 |
| NOISE LEVELS | |
| Decibel Rating Low (DBA) | 20 |
| Decibel Rating High (DBA) | 54 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 3 |
| REFRIGERANT & PIPING | |
| Liquid Line Size | 3/8 |
| Suction Line Size | 5/8 |
| FILTER & HEATING | |
| Filter Type | Reusable |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| CONTROLS & CONNECTIVITY | |
| Fan Only Option | Yes |
| Auto Cool | Yes |
| WIFI Compatibility | Yes |
| APP Compatibility | Yes |
| Works with IOS | Yes |
| Works with Android | Yes |
| Remote Control Included | Yes |
| SAFETY | |
| UL Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | Yes |
| AHRI Cetified | Yes |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Aerosol | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Registered Warranty | Extended Limited Lifetime* |
| Base Parts Warranty | 5 |
| Base Compressor Warranty | 7 |
This remote is included with each air handler in MRCOOL's 5th Generation DIY or Advantage Mini Split Systems.
| DIMENSIONS | |
|---|---|
| Dimensions | 2" W x 6" L x 1" H |
| GENERAL INFORMATION | |
| Color | White |
| Works with | MRCOOL DIY 5th Generation Mini Splits |
| Restricted States |
|
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq. Ft.)* |
| 6K |
Up to 200 Sq. Ft.
|
| 9K |
Up to 375 Sq. Ft.
|
| 12K | Up to 500 Sq. Ft. |
| 18K | Up to 750 Sq. Ft. |
| 24k | Up to 1,000 Sq. Ft. |
| 36k | Up to 1,500 Sq. Ft. |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
