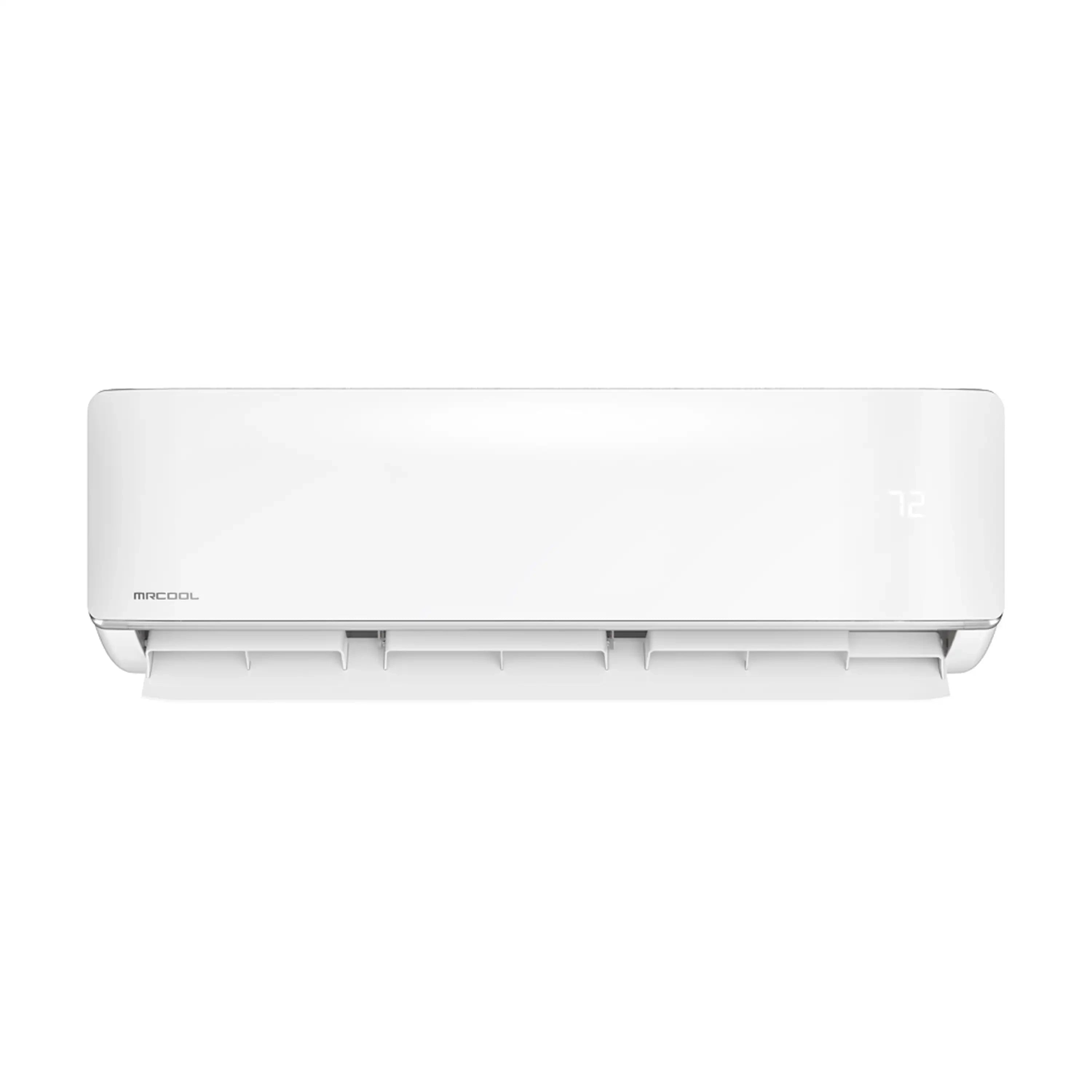

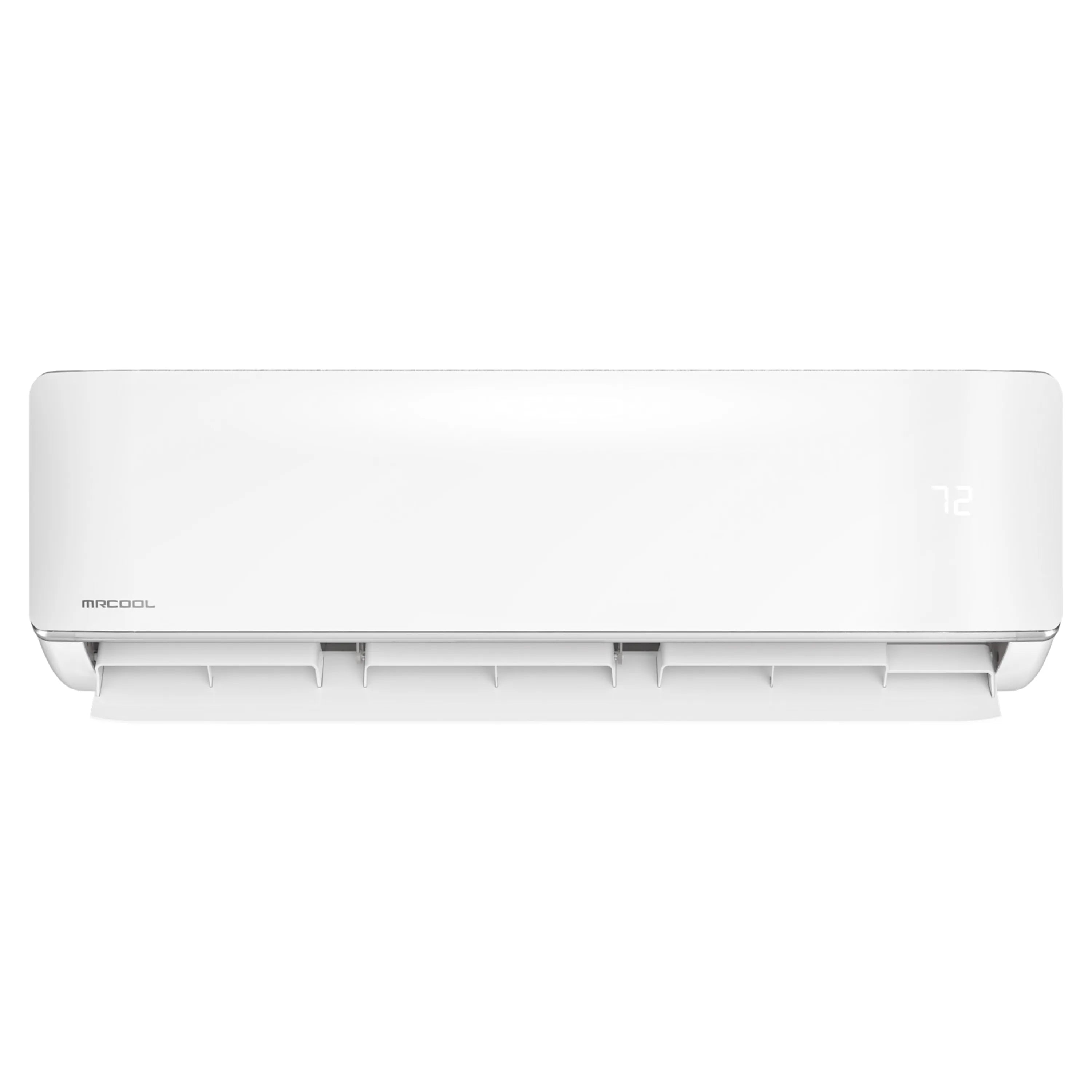

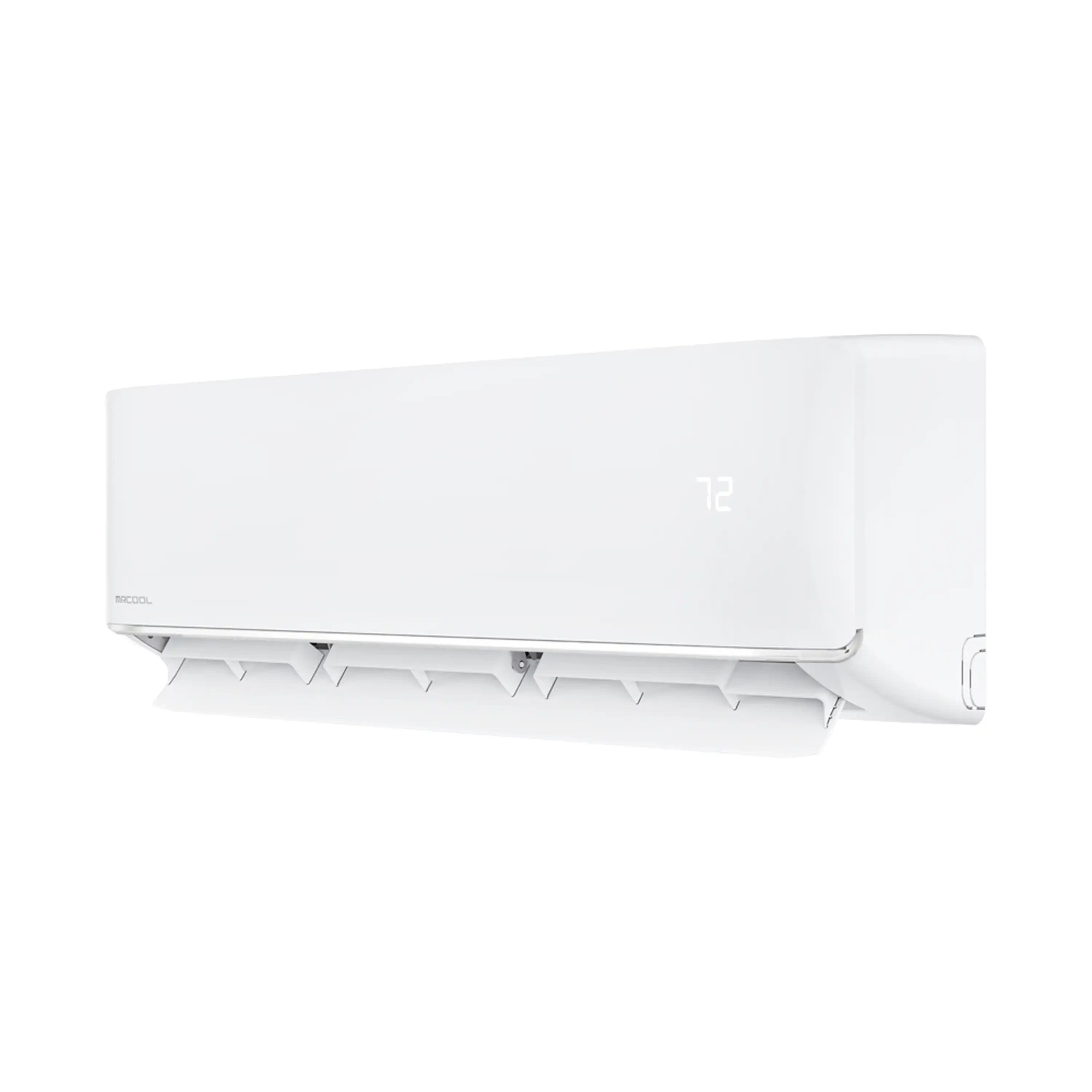

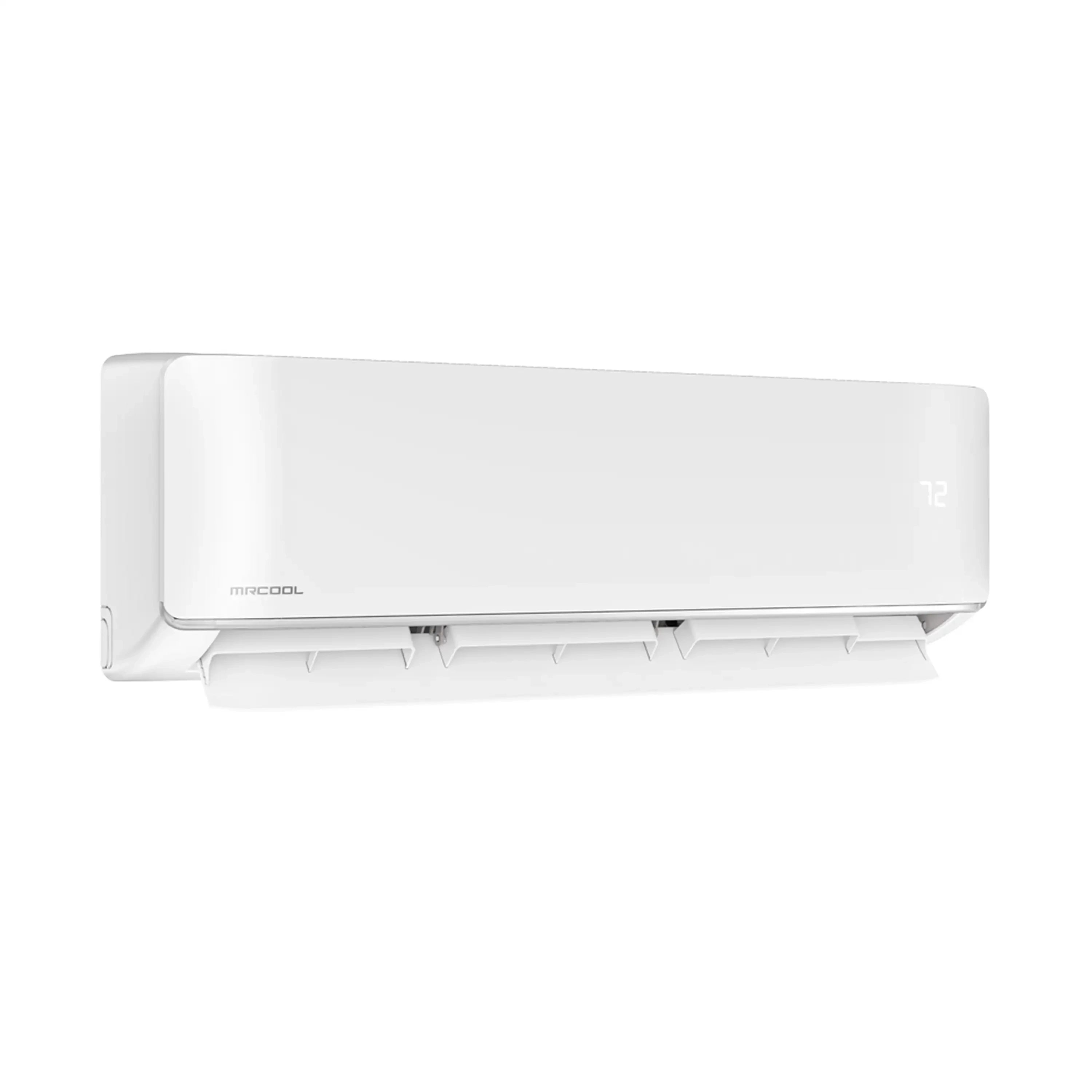

MRCOOL DIY® 5th Gen E Star 24,000 BTU Multi Zone Mini Split Air Handler 230V (DIY-24-HP-WMAH-230D25-O)

Click on image to zoom Click on image to zoom

MRCOOL DIY® 5th Gen E Star 24,000 BTU Multi Zone Mini Split Air Handler 230V (DIY-24-HP-WMAH-230D25-O)

Name: MRCOOL DIY® 5th Gen E Star 24,000 BTU Multi Zone Mini Split Air Handler 230V (DIY-24-HP-WMAH-230D25-O)
Brand: MRCOOL
SKU: DIY-24-HP-WMAH-230D25-O
Price: 965.0 USD
Availability: InStock
Rating: 4.84 (45 reviews)

| Authorized Dealer

SKU: DIY-24-HP-WMAH-230D25-O

$965.00 $1,199.00

BTUs

12K 12K
18K 18K
24K 24K
36K 36K

In Stock Estimated delivery: Jul 4th-13th

Only available for purchase with second MRCOOL product.

Secure Payment

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Free Shipping*
30-Day Return Policy⁺

The 5th Generation MRCOOL® DIY® 24k BTU Ductless Mini-Split Heat Pump offers powerful and efficient heating and cooling for areas up to 1,050 sq. ft. Designed for true DIY installation, it requires no specialized tools or professional help, making it a cost-effective and user-friendly solution for homeowners. This system includes the durable DIYPRO® cable, which eliminates the need for electrical conduit while protecting against weather and wildlife damage, simplifying the setup even further. Controlling your comfort is simple and flexible.

Use the included remote, connect via the SmartHVAC app for iOS and Android, or control the system hands-free with Amazon Alexa or Google Assistant. The Follow Me® feature helps maintain consistent comfort by adjusting based on the temperature near the remote. Dry Mode also contributes to a more pleasant indoor environment by reducing excess humidity. The outdoor unit features a Gold Fin® condenser coating that resists corrosion, making it especially suited for coastal or humid climates.

For peace of mind, the system includes a powerful 7-year compressor warranty and a 5-year parts warranty, and is eligible for the MRCOOL® Care Program. With smart features, easy setup, and long-term reliability, this system delivers comfort you can trust.

Features

NEEP ccASHP Listed
Intertek listed 5031495
Easy DIY installation
Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.

Dimensions	8.9" D x 13.19" H x 42.52" W
Tonnage	2
Voltage (V)	208/230
Phase	1
Cycle	60
Max Fuse Breaker (A)	15
Min Circuit Ampacity (A)	3
Mount Type	Wall
Color	White
Max Coverage Area	1050 sqft
Decibel Rating Low (DBA)	20
Decibel Rating High (DBA)	54
Number of Speeds	5
Oscillation	Yes
Liquid Line Size	3/8
Suction Line Size	5/8
Filter Type	Reusable
Auxiliary Heater Included	No
Auxiliary Heater Available	No
Fan Only Option	Yes
Quiet Mode	Yes
Auto Cool	Yes
WIFI Compatibility	Yes
APP Compatibility	Yes
Works with IOS	Yes
Works with Android	Yes
Remote Control Included	Yes
UL Listed	Yes
ETL Listed	Yes
Energy Star Certified	Yes
AHRI Cetified	Yes
Registered Warranty	Extended Limited Lifetime*
Base Parts Warranty	5
Base Compressor Warranty	7
Has Batteries	Yes
Contains Electronics	Yes
Contains Chemicals	Yes
Contains Aerosol	Yes
Contains Compressed Gas	Yes
Proposition 65 Warning	Yes
