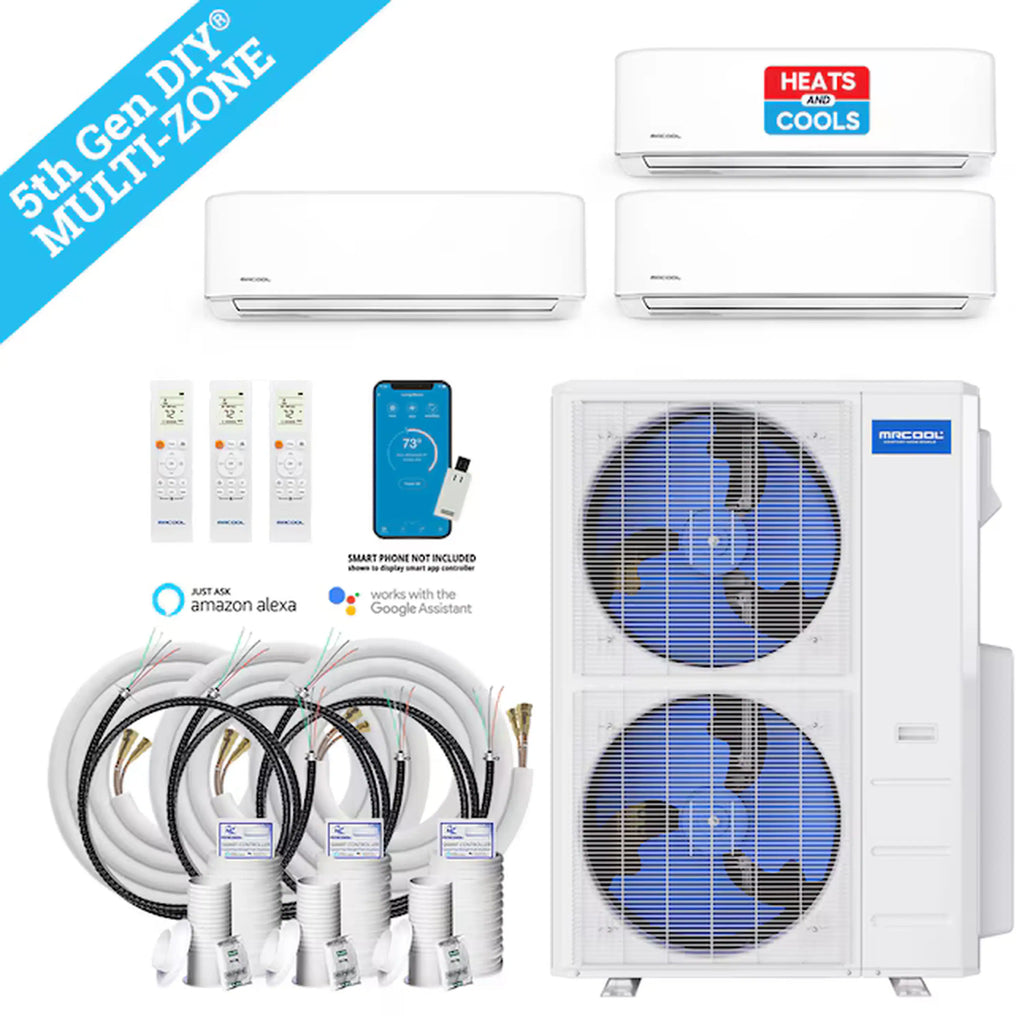

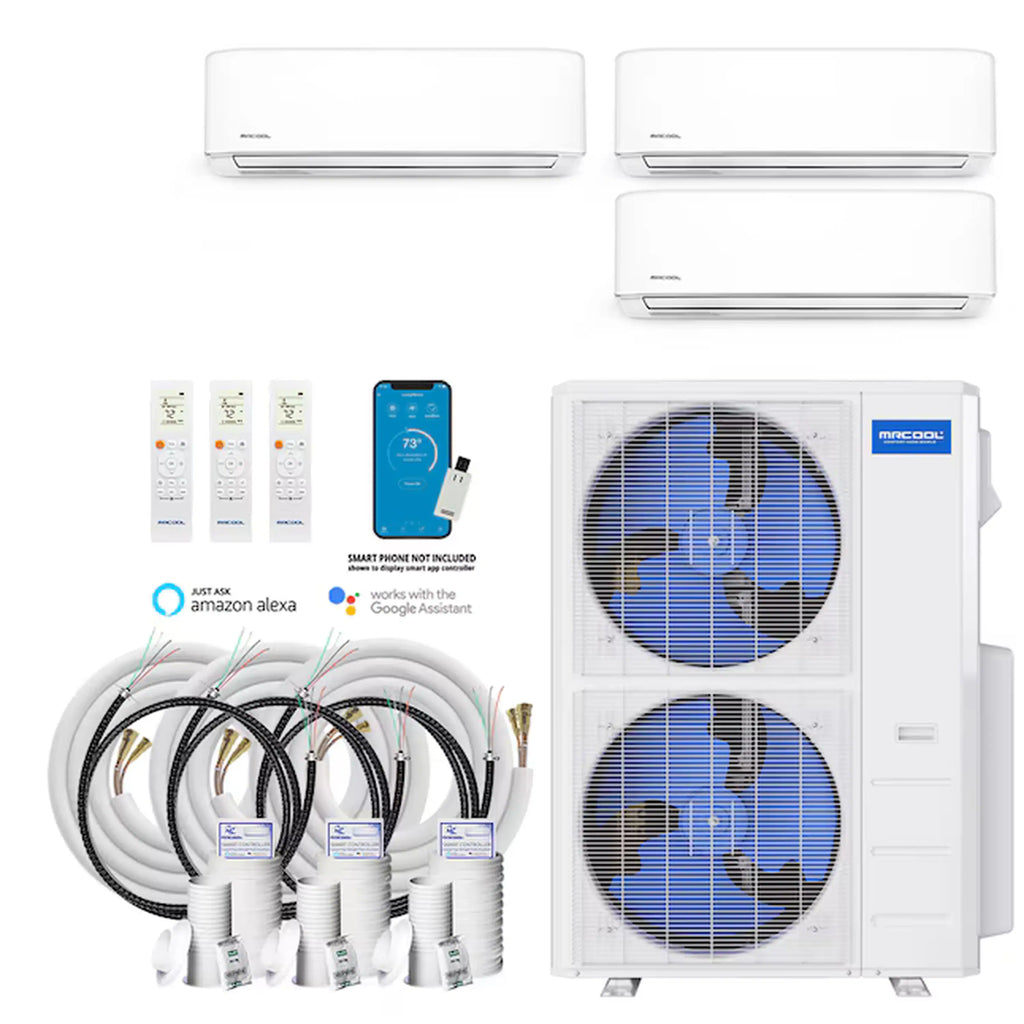

What's in this package
Every piece below is included in your system price — matched to optimize efficiency, power and compatibility. Tap a piece to see its full description, specs and manuals.

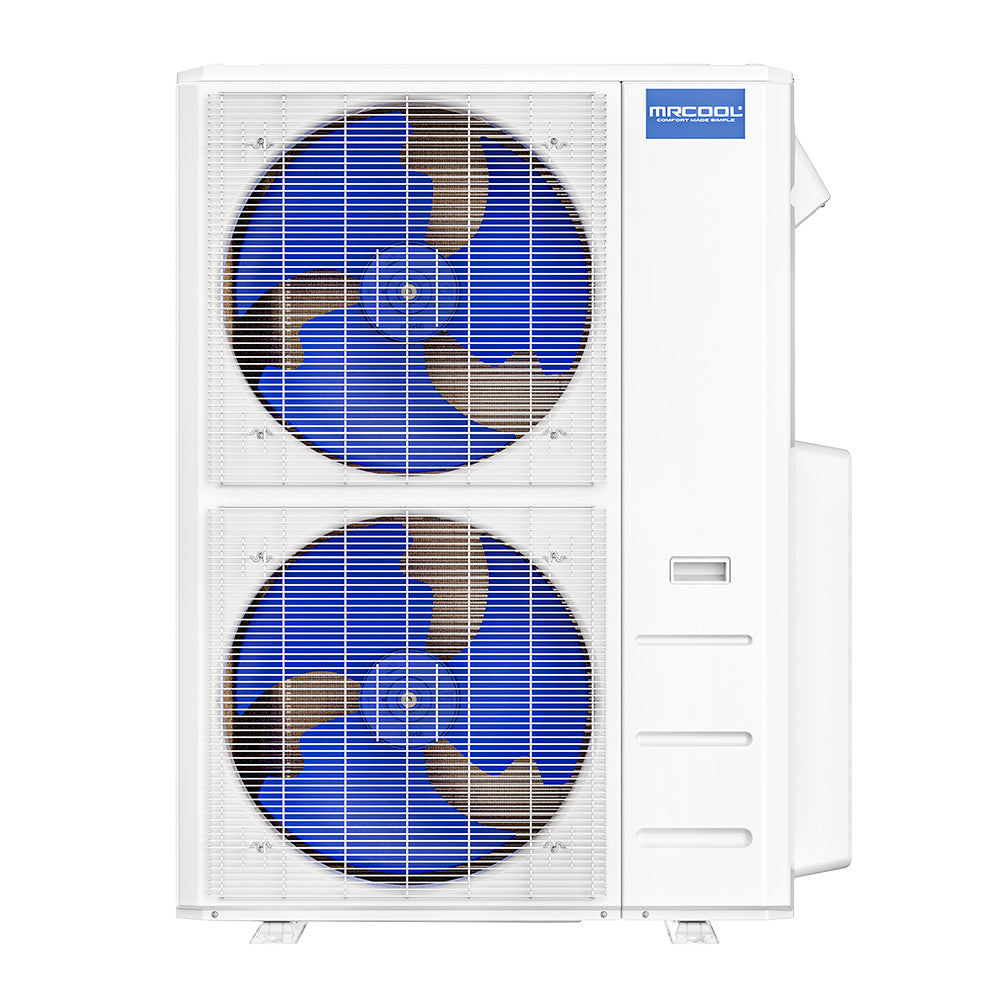

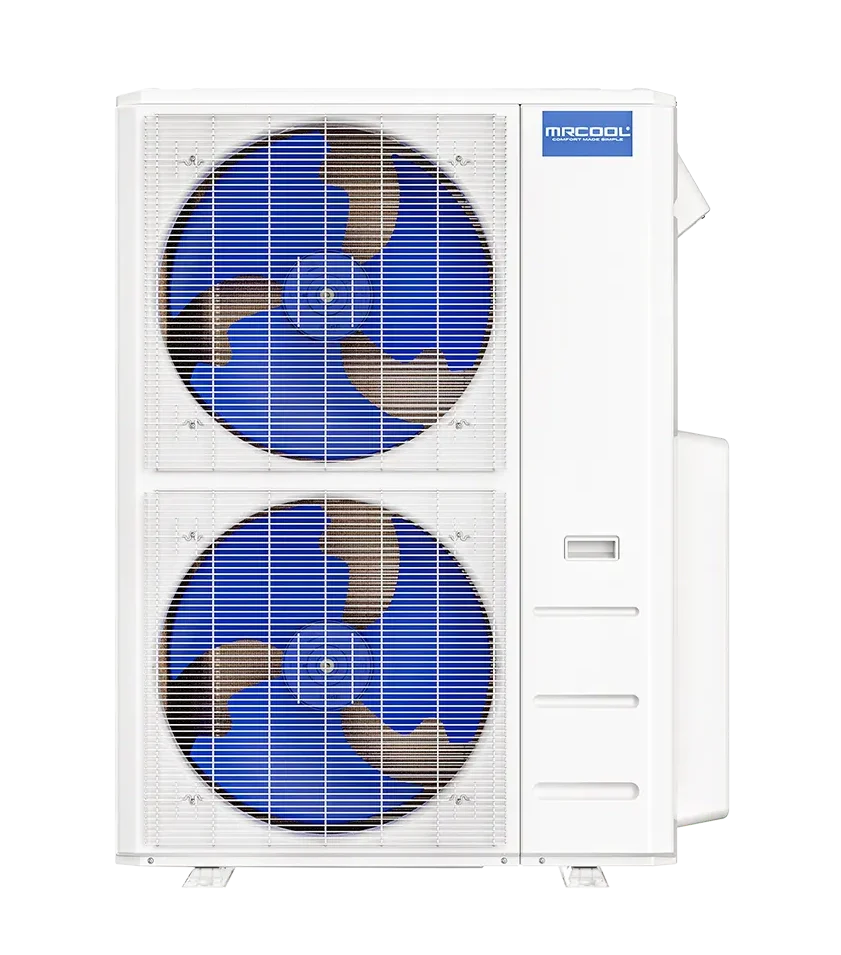

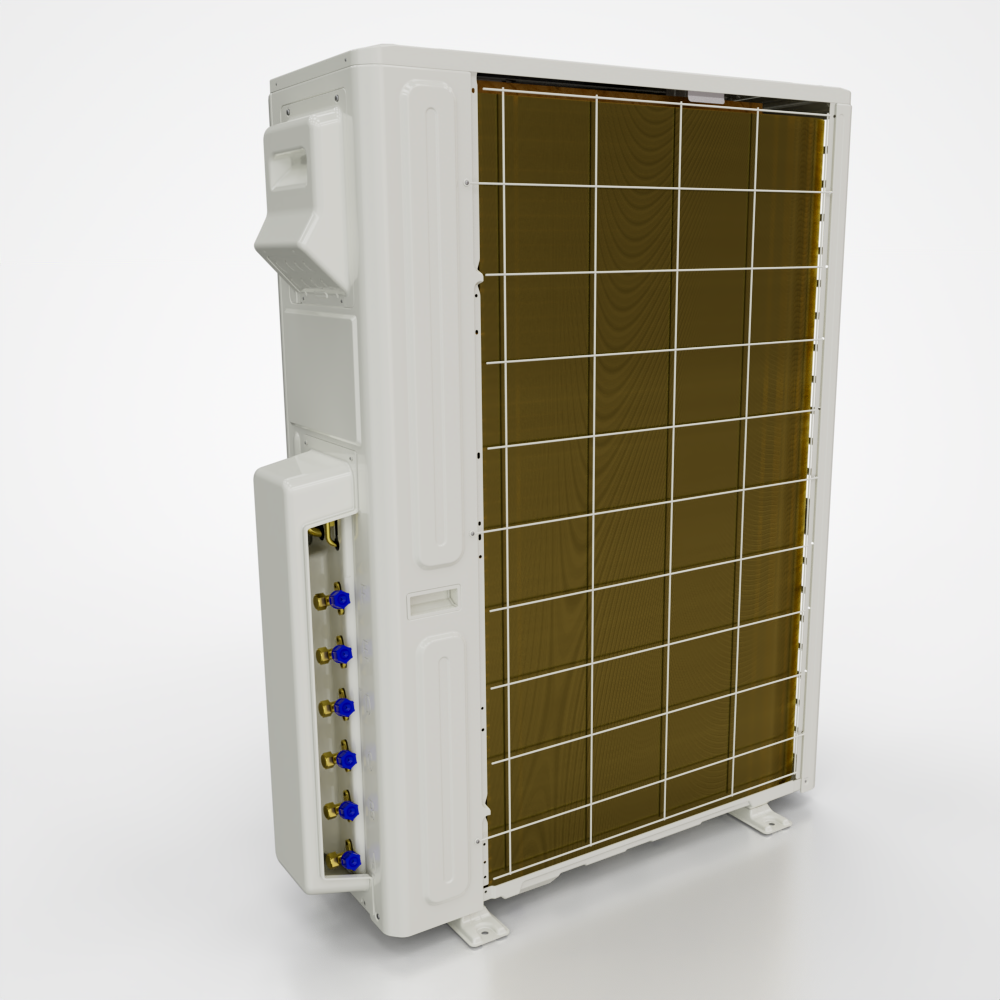

We’re excited to introduce our new 5th Generation MRCOOL® DIY® 48k BTU Multi-Zone Ductless Mini-Split Condenser, because it’s better than its predecessor in nearly every way. You won’t need the services of an HVAC professional when you’re setting this unit up, because you can do it yourself, which saves lots of time and money! This condenser enables you to heat and cool up to 6 separate spaces equalling up to 2,000 sq. ft., meaning you’d be able to cover an entire home in the completely efficient comfort of a single DIY® system.

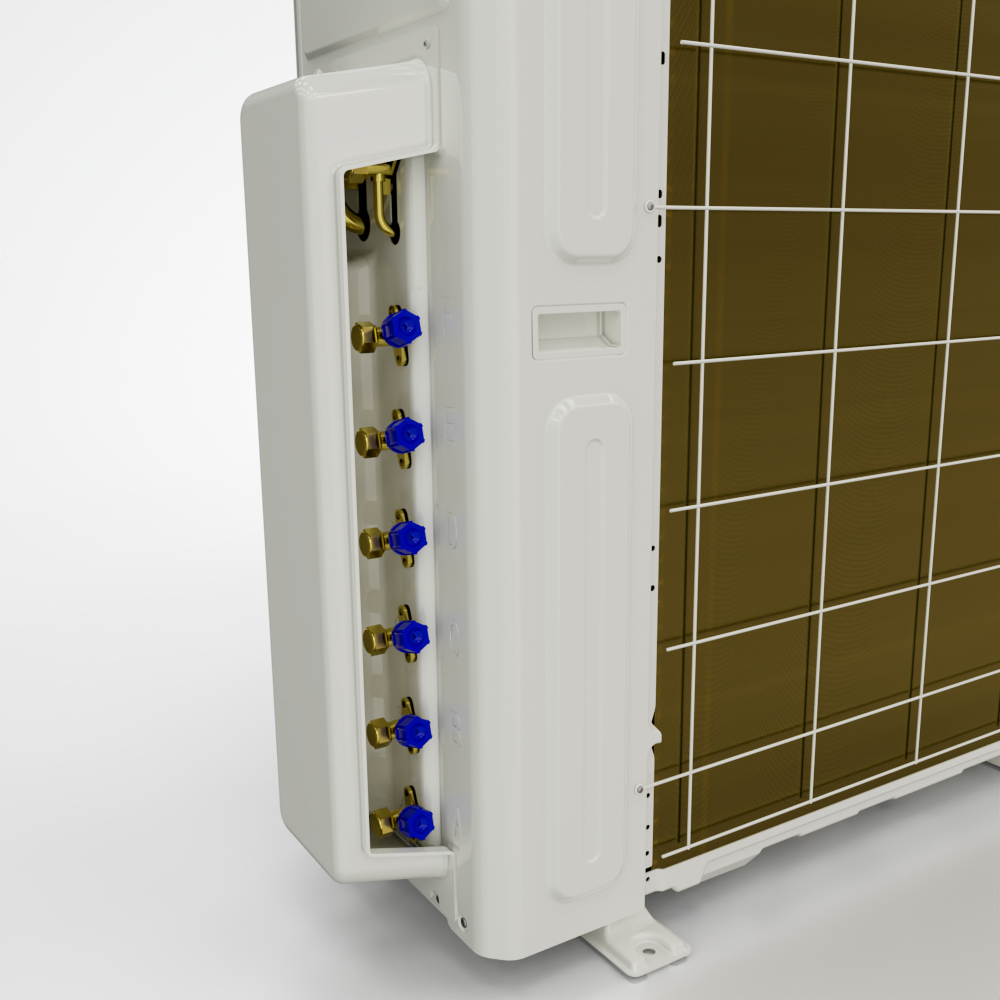

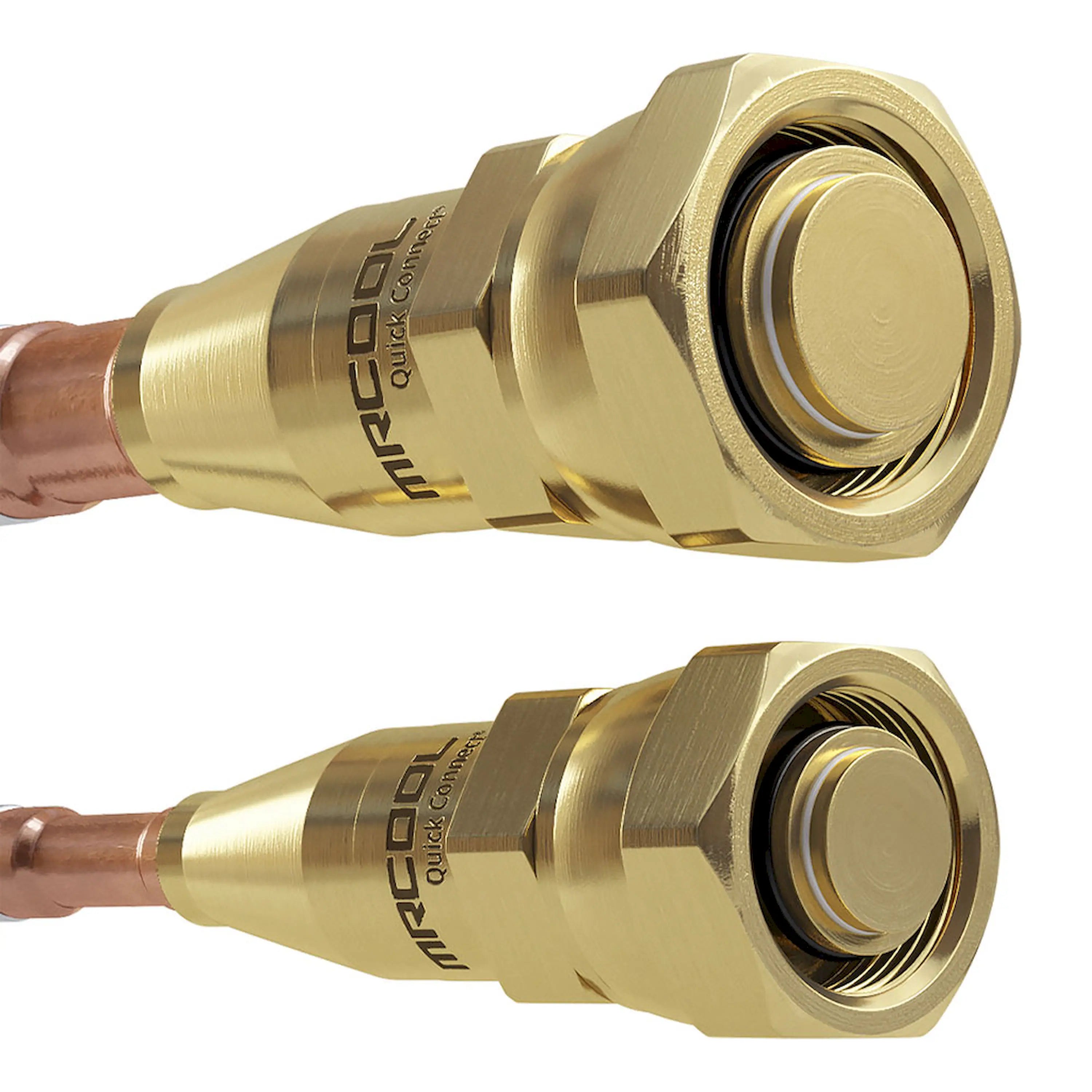

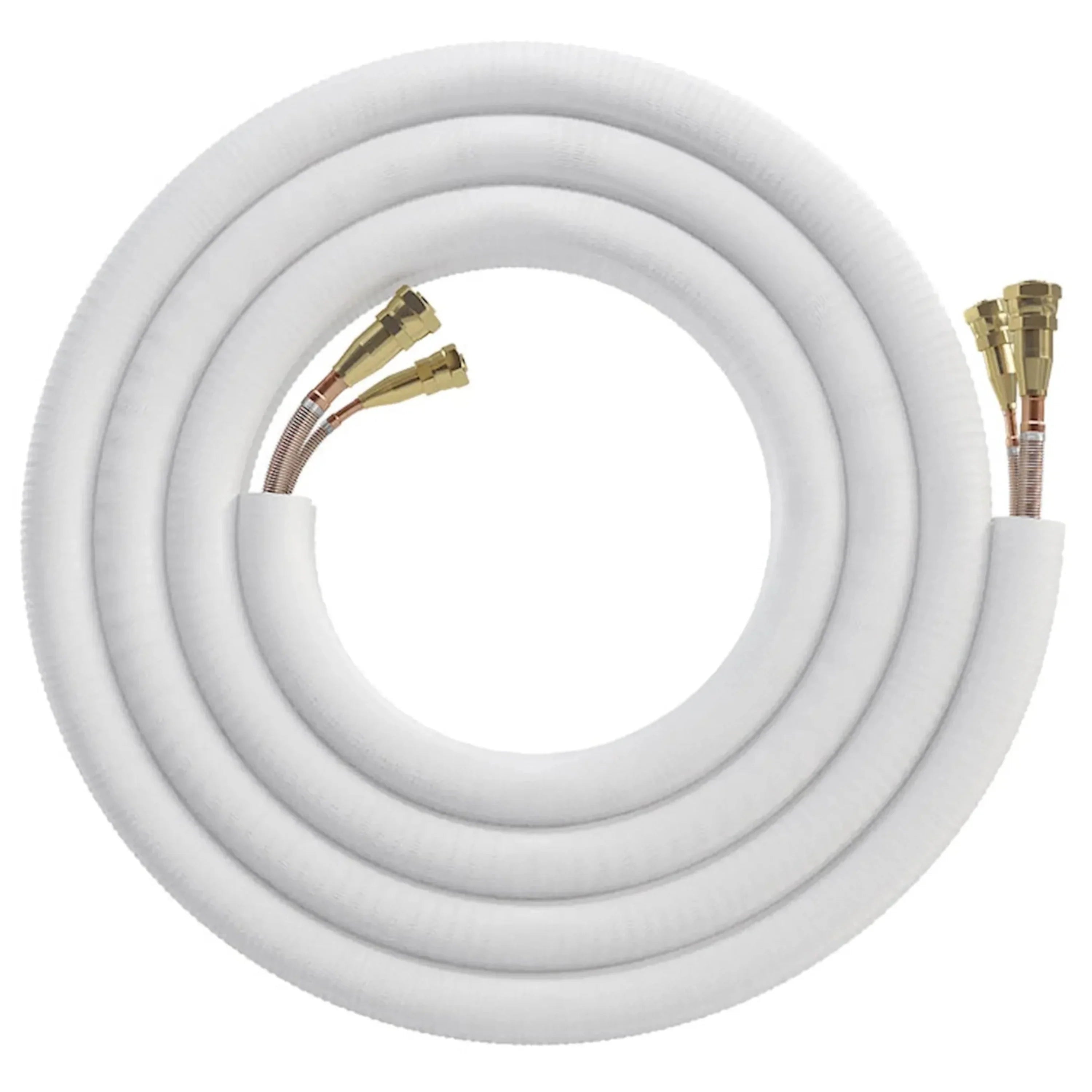

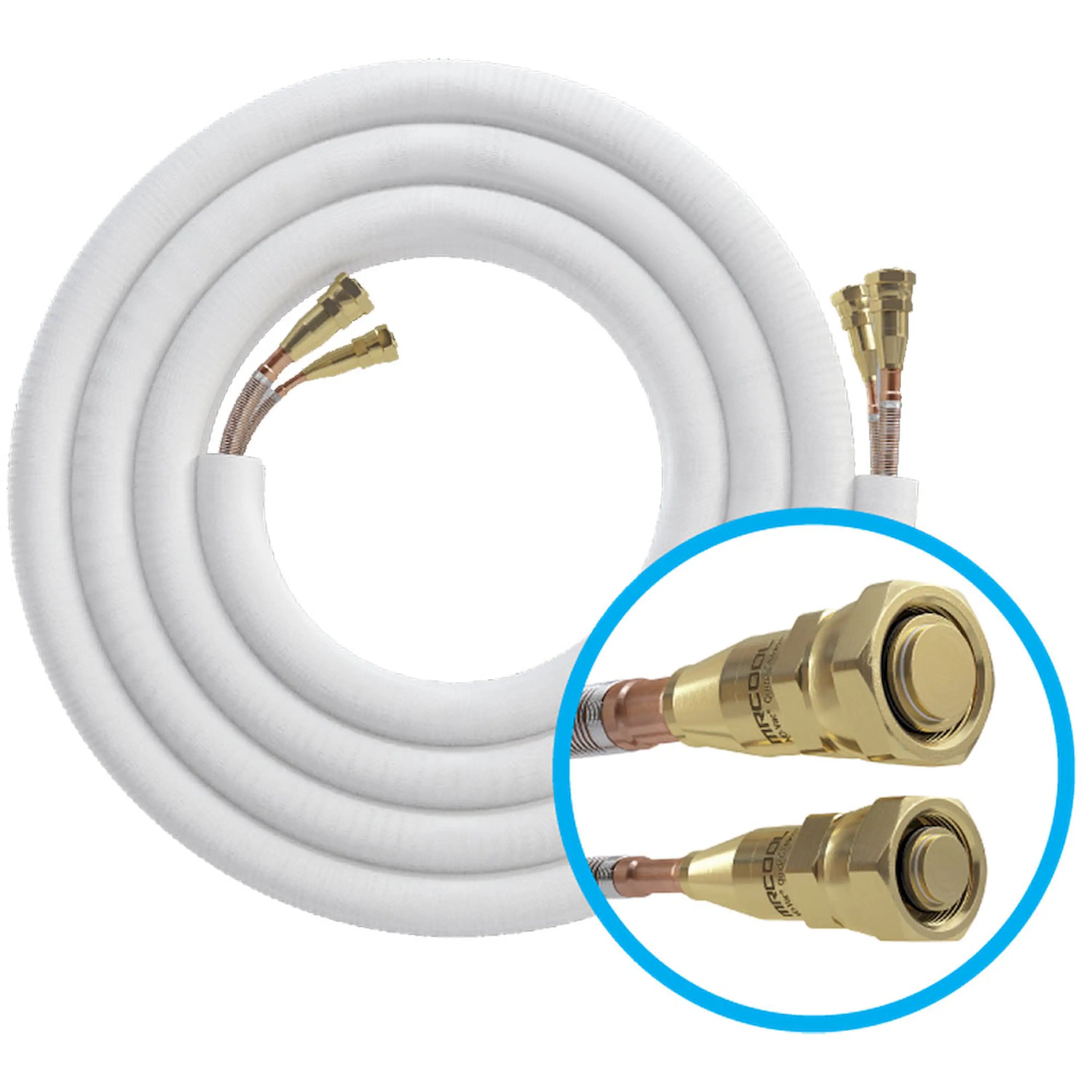

You can install this system on your own because our innovative, patented pre-charged Quick Connect® line sets allow you to skip the lengthy and complicated process of evacuating and charging the system. These line sets are filled with R-454B refrigerant, a much more ecological and proficient upgrade from the previous refrigerant used in the last generation. This switch helps the system achieve impressive efficiency levels, like 21.8 SEER2 and an HSPF2-4 of 10. Once you install your system, you’ll be able to explore the variety of ways you can customize your comfort. For ultimate control, you can integrate system operations with the SmartHVAC app, available for Apple and Android phones, allowing you the ability to set schedules, manage modes of operation, monitor your systems all with the touch of a button.
The app even enables you to set up integration with Amazon Alexa and Google Home, meaning you won’t have to move a finger to make your home more comfortable than ever. We pride ourselves on having one of the best warranties in the industry on this unit! Once you install your condenser, you’re entitled to a 5 year parts warranty, a 7 year compressor warranty, and, if you subscribe to the MRCOOL® Care Program, a Limited Lifetime Replacement warranty. The MRCOOL® DIY® is the right choice if you want fast, efficient comfort that won’t let you down!
Features
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
- Dimensions
- 16.34" D x 52.48" H x 37.48" W
- Color
- White
- Inverter
- DC
- Quiet Mode
- Yes
- Contans Chemicals
- Yes
- SEER2
- 21.8
- EER2
- 12
- HSPF2-4
- 10
- HSPF2-5
- 7.8
- Tonnage
- 4
- Cooling Capacity (BTU)
- 43000
- Heating Capacity (BTU)
- 48000
- Cycle
- 60
- Zone Capacity
- 6
- Compressor Motor Type
- Rotary
- Decibel Rating (DBA)
- 64
- Voltage (V)
- 208/230
- Phase
- 1
- Max Fuse Breaker (A)
- 45
- Min Circuit Ampacity (A)
- 40
- Refrigerant Type
- R-454B
- Refrigerant Volume (OZ)
- 148.15
- Line Set Length
- 25
- Max Lineset Length (FT)
- 221.4
- Liquid LIne Size
- 1/4
- Suctio Line Size
- (3/8 X4) (1/2 X2)
- Auxiliary Heater Included
- No
- Auxiliary Heater Available
- No
- Fan Only Option
- Yes
- Auto Cool
- Yes
- WIFI Compatibility
- Yes
- APP Compatibility
- Yes
- Works with IOS
- Yes
- Works with Android
- Yes
- UL Listed
- Yes
- ETL Listed
- Yes
- Energy Star Certified
- Yes
- AHRI Certified
- Yes
- Has Batteries
- Yes
- Contains Electronics
- Yes
- Contains Aerosol
- Yes
- Contains Compressed Gas
- Yes
- Proposition 65 Warning
- Yes
- Registered Warranty
- Extended Limited Lifetime*
- Base Parts Warranty
- 5
- Base Compressor Warranty
- 7

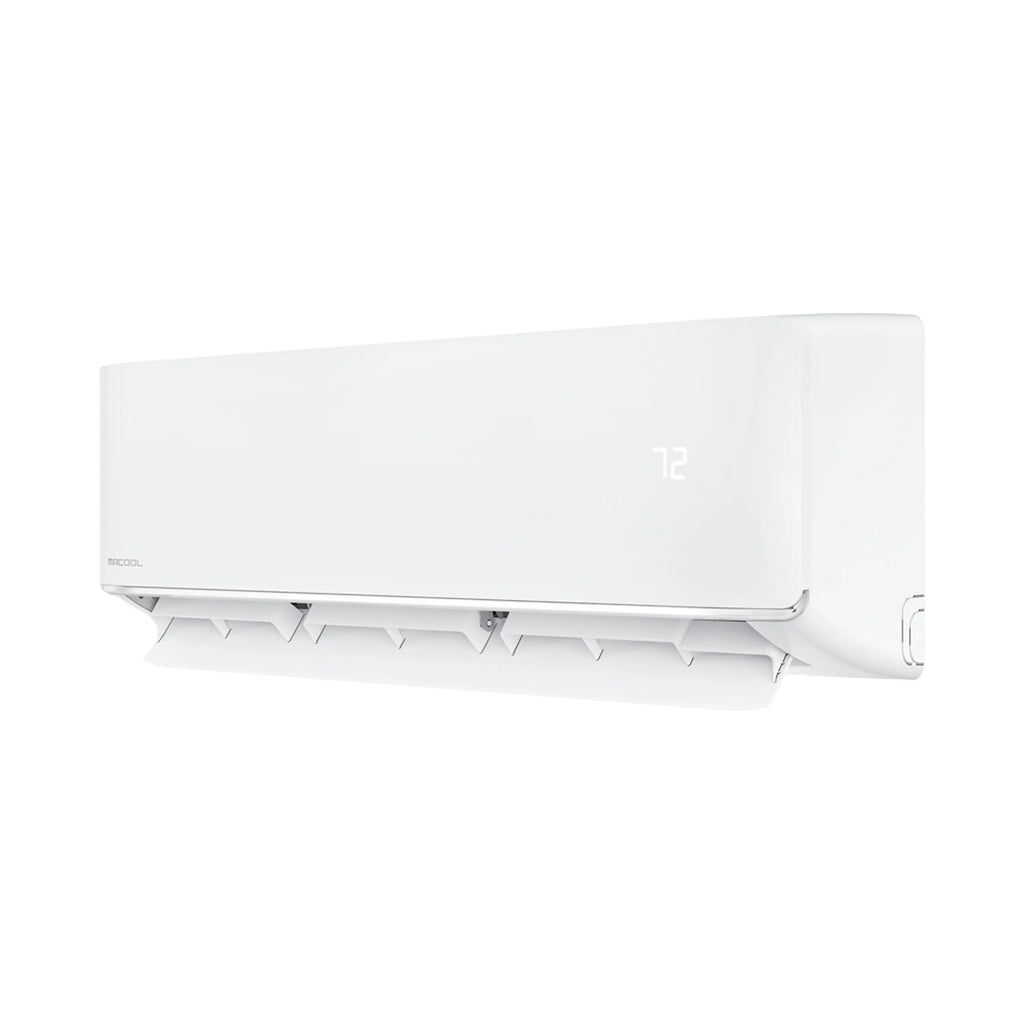

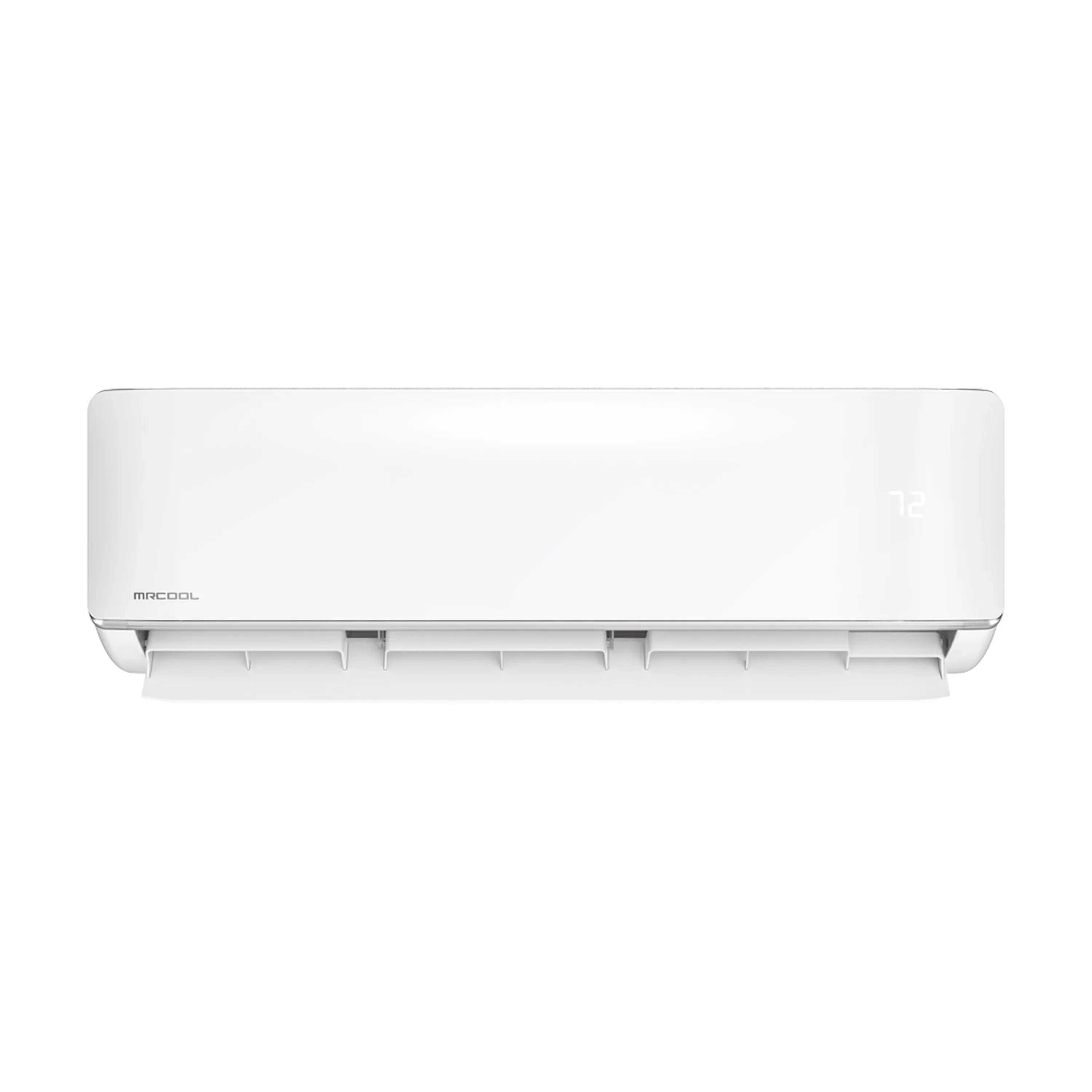

Check out the new 5th Generation MRCOOL® DIY® 6K BTU Ductless Heat Pump Single Zone Mini-Split Air Handler! Designed for an easy and hassle-free installation, this system requires no special tools or prior experience and effectively heats or cools spaces up to 200 sq. ft. The pre-charged 25-foot DIY® QuickConnect® line set, which is pre-charged with R-454B refrigerant, eliminates the need for vacuuming, making installation faster, easier, and more cost-effective.
The included DIYPRO® cable removes the need for electrical conduit, offering added durability against the outdoor elements and wildlife. Control is effortless with multiple options, including the wireless remote, the SmartHVAC app for Apple and Android devices, and hands-free voice commands via Amazon Alexa and Google Assistant. The Gold Fin® Condenser provides superior corrosion resistance for coastal homes, ensuring long-lasting performance in harsh conditions. Designed for both comfort and efficiency, the system's wireless remote features the innovative Follow Me function, which allows the air handler to adjust airflow temperature based on the remote's location, maintaining consistent comfort throughout the room.
Additionally, Dry Mode helps reduce humidity by acting as a dehumidifier, removing excess condensation. Backed by an industry-leading warranty—including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty—the 5th Generation MRCOOL® DIY® 6K BTU Ductless Heat Pump Single Zone Mini-Split Air Handler is built for lasting reliability. Enjoy advanced technology, simple installation, and year-round comfort with confidence.
Features
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
- Dimensions
- 7.44" D x 11.69" H x 31.57" W
- Mount Type
- Wall
- Color
- White
- Max Coverage Area
- 200 sqft
- Oscillation
- Yes
- Quiet Mode
- Yes
- Cycle
- 60
- Voltage (V)
- 208/230
- Phase
- 1
- Filter Type
- Reusable
- Auxiliary Heater Included
- No
- Auxiliary Heater Available
- No
- Fan Only Option
- Yes
- Auto Cool
- Yes
- WIFI Compatibility
- Yes
- APP Compatibility
- Yes
- Works with IOS
- Yes
- Works with Android
- Yes
- Remote Control Included
- Yes
- UL Listed
- Yes
- ETL Listed
- Yes
- AHRI Certified
- Yes
- Has Batteries
- Yes
- Contains Electronics
- Yes
- Contains Chemicals
- Yes
- Contains Aerosol
- Yes
- Contains Compressed Gas
- Yes
- Proposition 65 Warning
- Yes
- Registered Warranty
- Extended Limited Lifetime*
- Base Parts Warranty
- 5
- Base Compressor Warranty
- 7

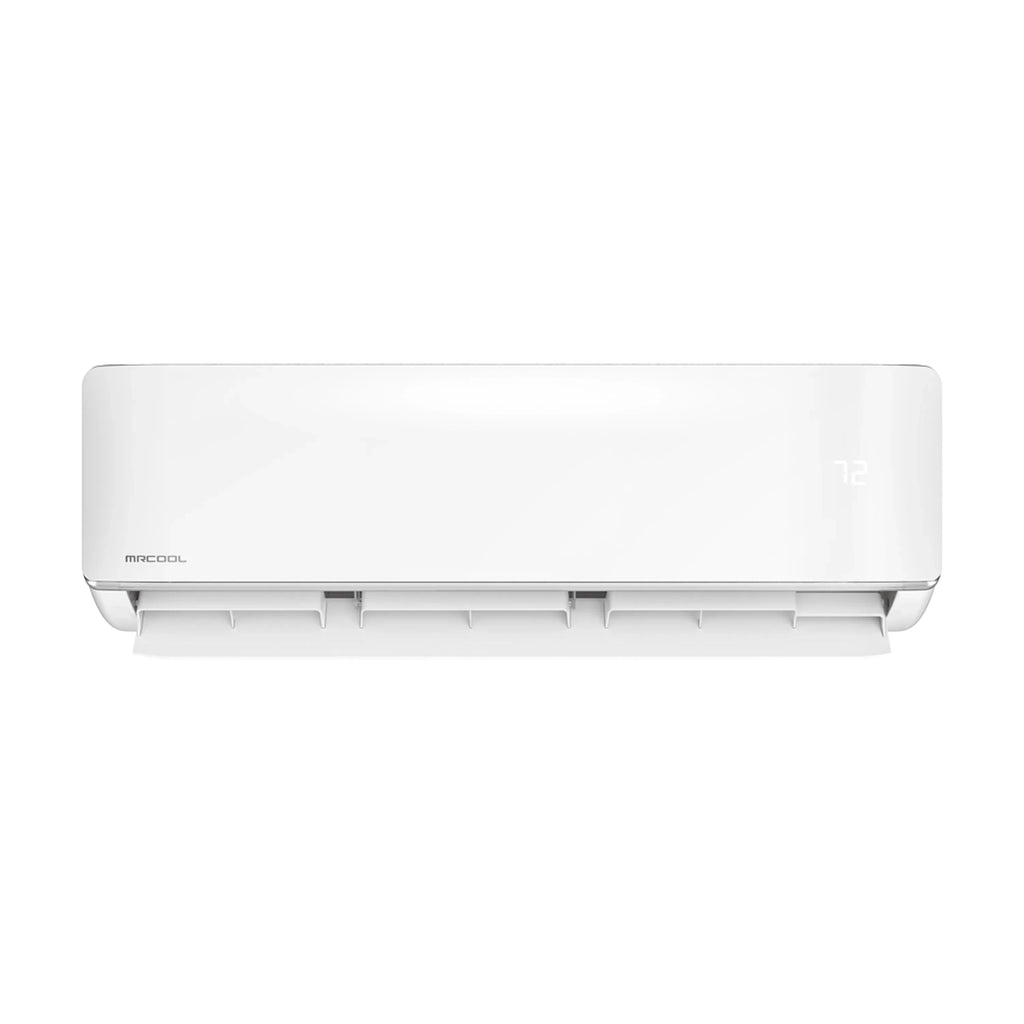

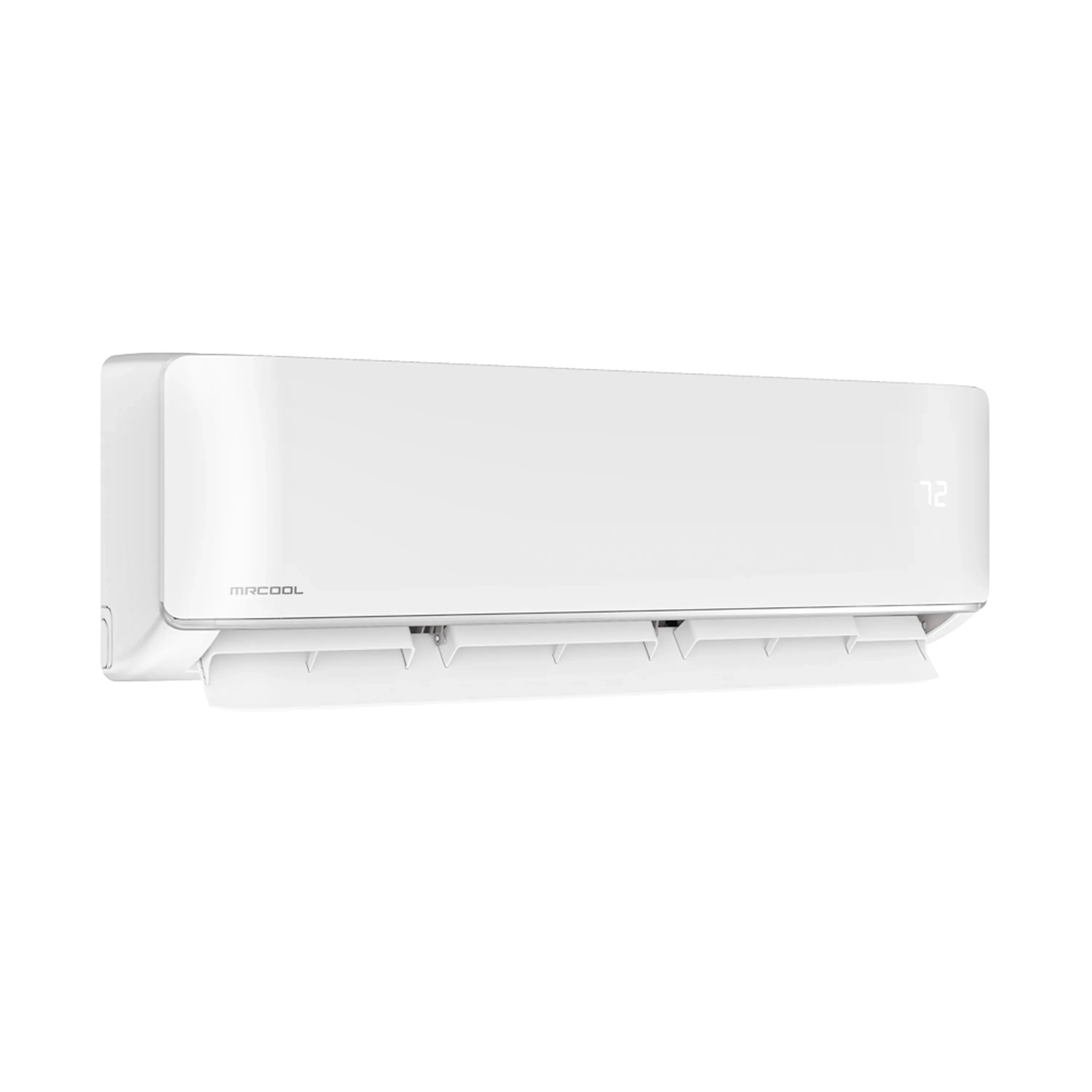

The 5th Generation MRCOOL® DIY® 12K BTU Ductless Mini-Split Heat Pump is an efficient and versatile climate control solution for spaces up to 550 sq. ft. Designed with homeowners in mind, this system offers a true DIY installation process, eliminating the need for specialized tools or professional assistance. This makes setup quick, straightforward, and cost-effective. One of its standout features is the pre-charged 25-foot DIY® QuickConnect® line set, pre-filled with R-454B refrigerant.
This eliminates the need for vacuuming, significantly reducing installation time and expenses. The included DIYPRO® cable further streamlines installation by removing the need for electrical conduit while also offering enhanced durability and protection against the elements. Operating the system is simple and convenient, with multiple control options available. Adjust temperature settings with the wireless remote, the SmartHVAC app for iOS and Android devices, or hands-free voice commands via Amazon Alexa and Google Assistant. For personalized comfort, the Follow Me function ensures consistent temperature regulation by adjusting airflow based on the remote’s location, while Dry Mode helps control excess humidity.
Built for longevity, the Gold Fin® Condenser provides superior corrosion resistance, making it ideal for coastal environments. Supported by industry-leading warranties—including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty—this MRCOOL® DIY® system delivers reliable, year-round comfort with smart features and effortless installation.
Features
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
- Dimensions
- 7.44" D x 11.63" H x 31.57" W
- Mount Type
- Wall
- Color
- White
- Max Coverage Area
- 550 sqft
- Oscillation
- Yes
- Quiet Mode
- Yes
- Cycle
- 60
- Voltage (V)
- 208/230
- Phase
- 1
- Filter Type
- Reusable
- Auxiliary Heater Included
- No
- Auxiliary Heater Available
- No
- Fan Only Option
- Yes
- Auto Cool
- Yes
- WIFI Compatibility
- Yes
- APP Compatibility
- Yes
- Works with IOS
- Yes
- Works with Android
- Yes
- Remote Control Included
- Yes
- UL Listed
- Yes
- ETL Listed
- Yes
- AHRI Certified
- Yes
- Has Batteries
- Yes
- Contains Electronics
- Yes
- Contains Chemicals
- Yes
- Contains Aerosol
- Yes
- Contains Compressed Gas
- Yes
- Proposition 65 Warning
- Yes
- Registered Warranty
- Extended Limited Lifetime*
- Base Parts Warranty
- 5
- Base Compressor Warranty
- 7

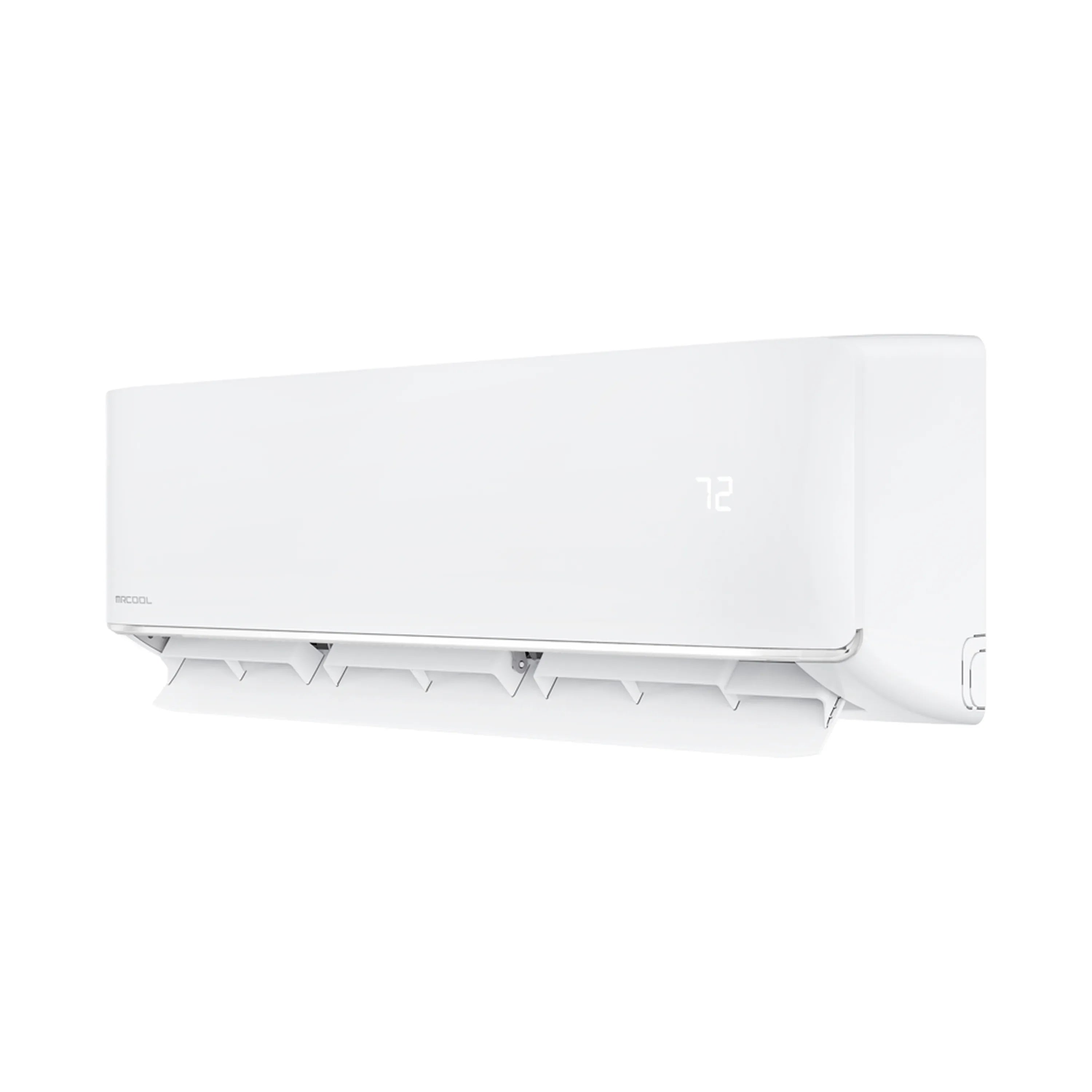

The 5th Generation MRCOOL® DIY® 24k BTU Ductless Mini-Split Heat Pump offers powerful and efficient heating and cooling for areas up to 1,050 sq. ft. Designed for true DIY installation, it requires no specialized tools or professional help, making it a cost-effective and user-friendly solution for homeowners. This system includes the durable DIYPRO® cable, which eliminates the need for electrical conduit while protecting against weather and wildlife damage, simplifying the setup even further. Controlling your comfort is simple and flexible.
Use the included remote, connect via the SmartHVAC app for iOS and Android, or control the system hands-free with Amazon Alexa or Google Assistant. The Follow Me® feature helps maintain consistent comfort by adjusting based on the temperature near the remote. Dry Mode also contributes to a more pleasant indoor environment by reducing excess humidity. The outdoor unit features a Gold Fin® condenser coating that resists corrosion, making it especially suited for coastal or humid climates.
For peace of mind, the system includes a powerful 7-year compressor warranty and a 5-year parts warranty, and is eligible for the MRCOOL® Care Program. With smart features, easy setup, and long-term reliability, this system delivers comfort you can trust.
Features
- NEEP ccASHP Listed
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
- Dimensions
- 8.9" D x 13.19" H x 42.52" W
- Mount Type
- Wall
- Color
- White
- Max Coverage Area
- 1050 sqft
- Number of Speeds
- 5
- Oscillation
- Yes
- Quiet Mode
- Yes
- Tonnage
- 2
- Cycle
- 60
- Decibel Rating Low (DBA)
- 20
- Decibel Rating High (DBA)
- 54
- Voltage (V)
- 208/230
- Phase
- 1
- Max Fuse Breaker (A)
- 15
- Min Circuit Ampacity (A)
- 3
- Liquid Line Size
- 3/8
- Suction Line Size
- 5/8
- Filter Type
- Reusable
- Auxiliary Heater Included
- No
- Auxiliary Heater Available
- No
- Fan Only Option
- Yes
- Auto Cool
- Yes
- WIFI Compatibility
- Yes
- APP Compatibility
- Yes
- Works with IOS
- Yes
- Works with Android
- Yes
- Remote Control Included
- Yes
- UL Listed
- Yes
- ETL Listed
- Yes
- Energy Star Certified
- Yes
- AHRI Cetified
- Yes
- Has Batteries
- Yes
- Contains Electronics
- Yes
- Contains Chemicals
- Yes
- Contains Aerosol
- Yes
- Contains Compressed Gas
- Yes
- Proposition 65 Warning
- Yes
- Registered Warranty
- Extended Limited Lifetime*
- Base Parts Warranty
- 5
- Base Compressor Warranty
- 7
MRCOOL Mini Split BTU Guide
Drawn to scale — 1 square = 2 × 2 ftThis system’s condenser supports up to 48K BTU connected. Toggle zones to see how your mix loads it — MRCOOL allows connecting more than 100% because zones rarely all run at max.
