Description
DIMENSIONS
- Product Dimensions (W x D x H) (in)
- 48 x 29.4 x 38
- Product Weight (lbs)
- 379.19
- Carton Dimensions (W x D x H) (in)
- 52.4 x 32 x 46.4
- Shipping Weight (lbs)
- 511.47
- Power Cord Length (ft)
- 4.5
GENERAL INFORMATION
- Model Type

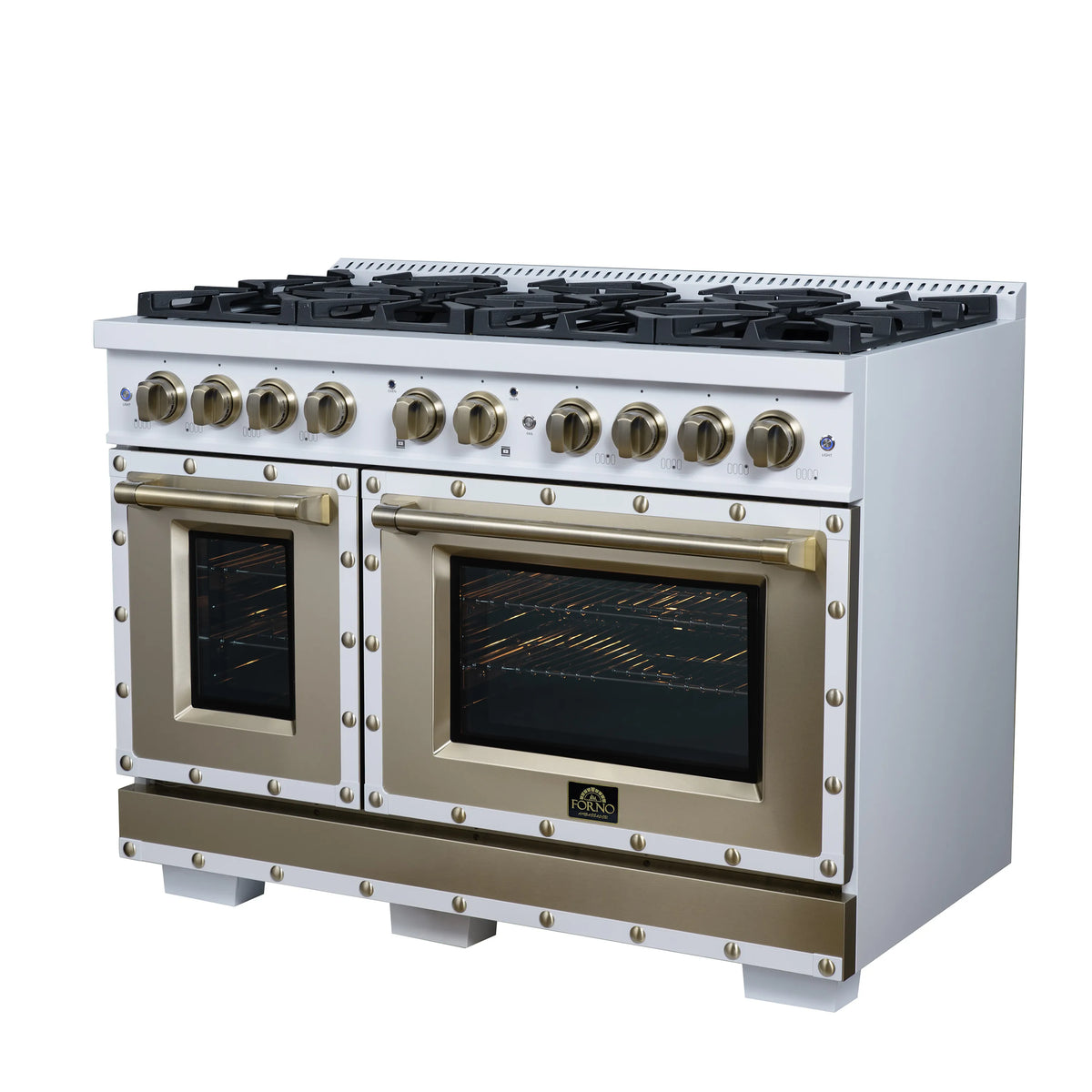

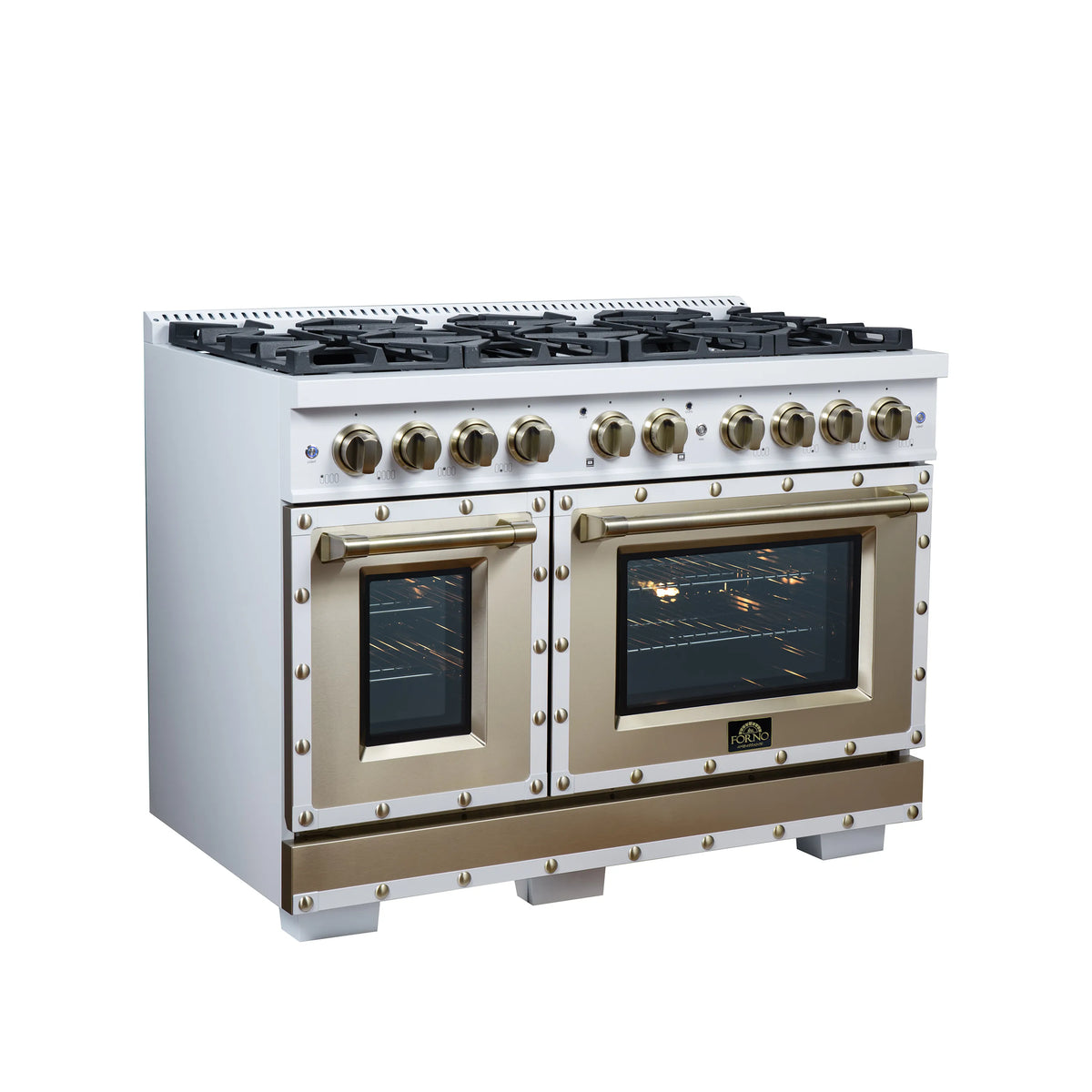

- Gas Range (2 Ovens)
DESIGN & FINISH
- Color
- White
- Finish
- White
- Configuration
- Chef Door
- Handles Color
- Antique Brass
- Knobs Color
- Antique Brass
TECHNICAL DETAILS
- Electrical Specs
- 120 V / 60 Hz / 15 A
- Receptacle Type
- NEMA 5-15P

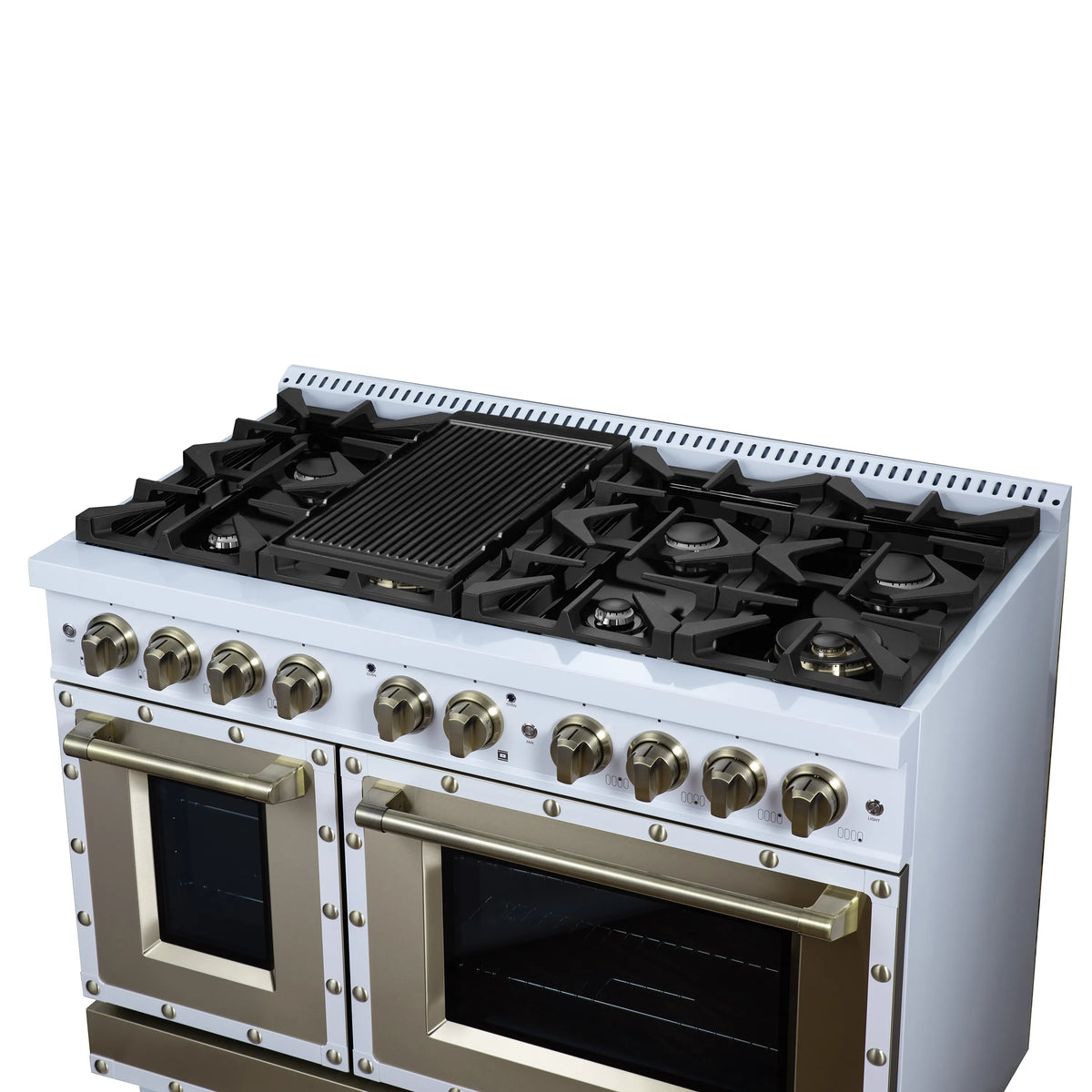

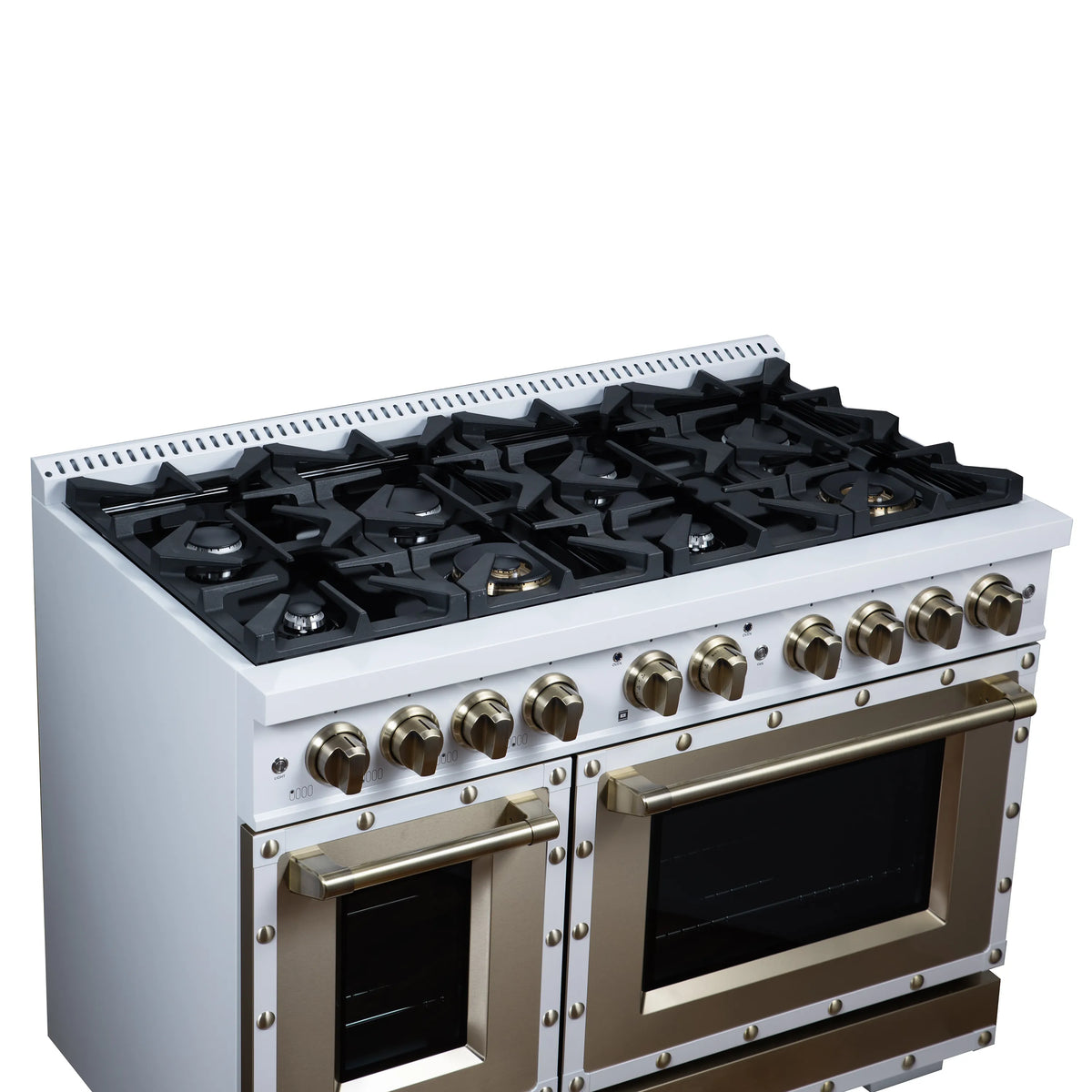

COOKTOP FEATURES
- Cooktop Output
- 94,000 BTU
- Number of Cooking Zones
- 8
- Simmer/Warm Zone
- Yes
- Cooking Zone 1
- 9,000 BTU
- Cooking Zone 2
- 12,000 BTU
- Cooking Zone 3
- 9,000 BTU
- Cooking Zone 4
- 12,000 BTU
- Cooking Zone 5
- 6,000 BTU
- Cooking Zone 6
- 20,000 BTU
- Cooking Zone 7
- 6,000 BTU
- Cooking Zone 8
- 20,000 BTU

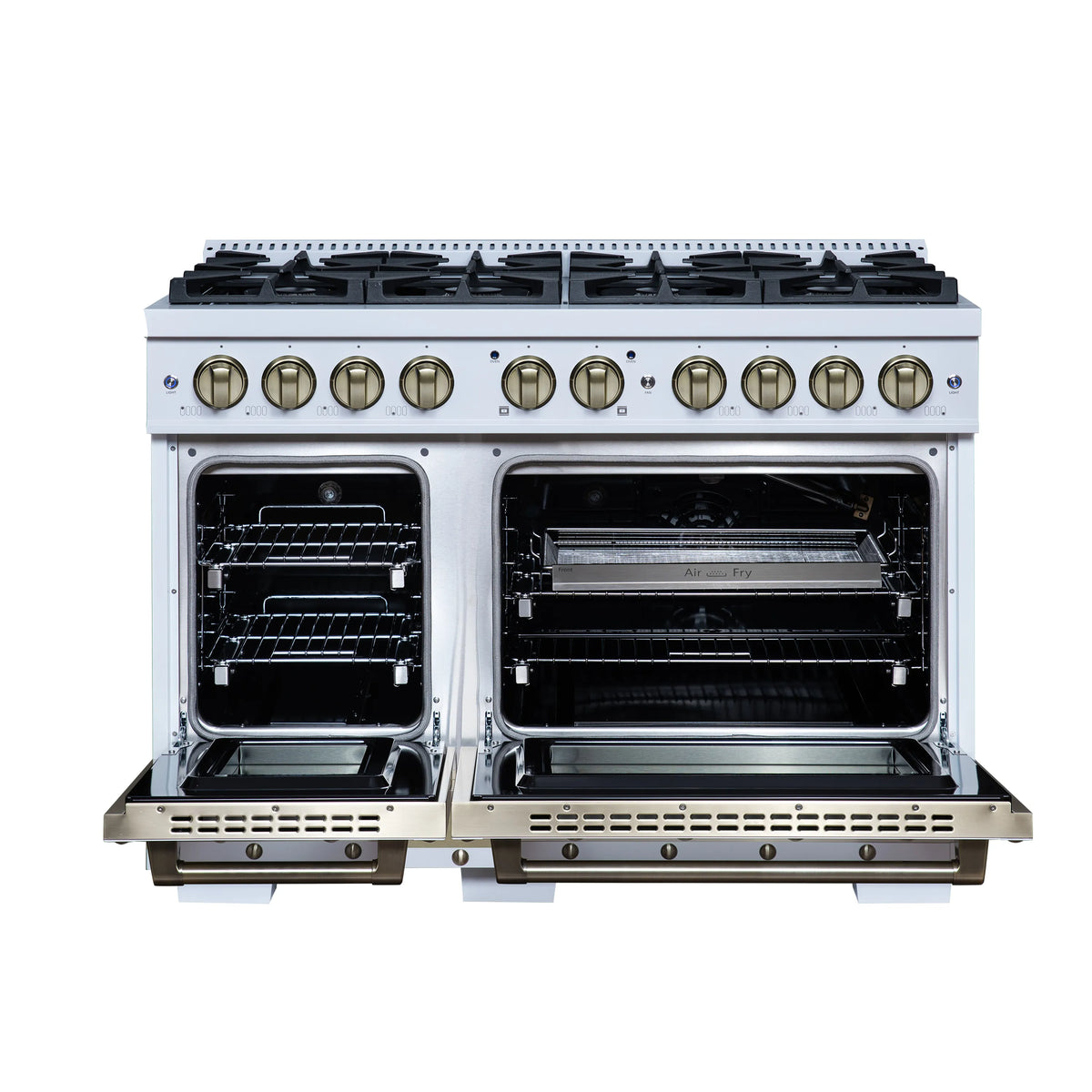

OVEN FEATURES

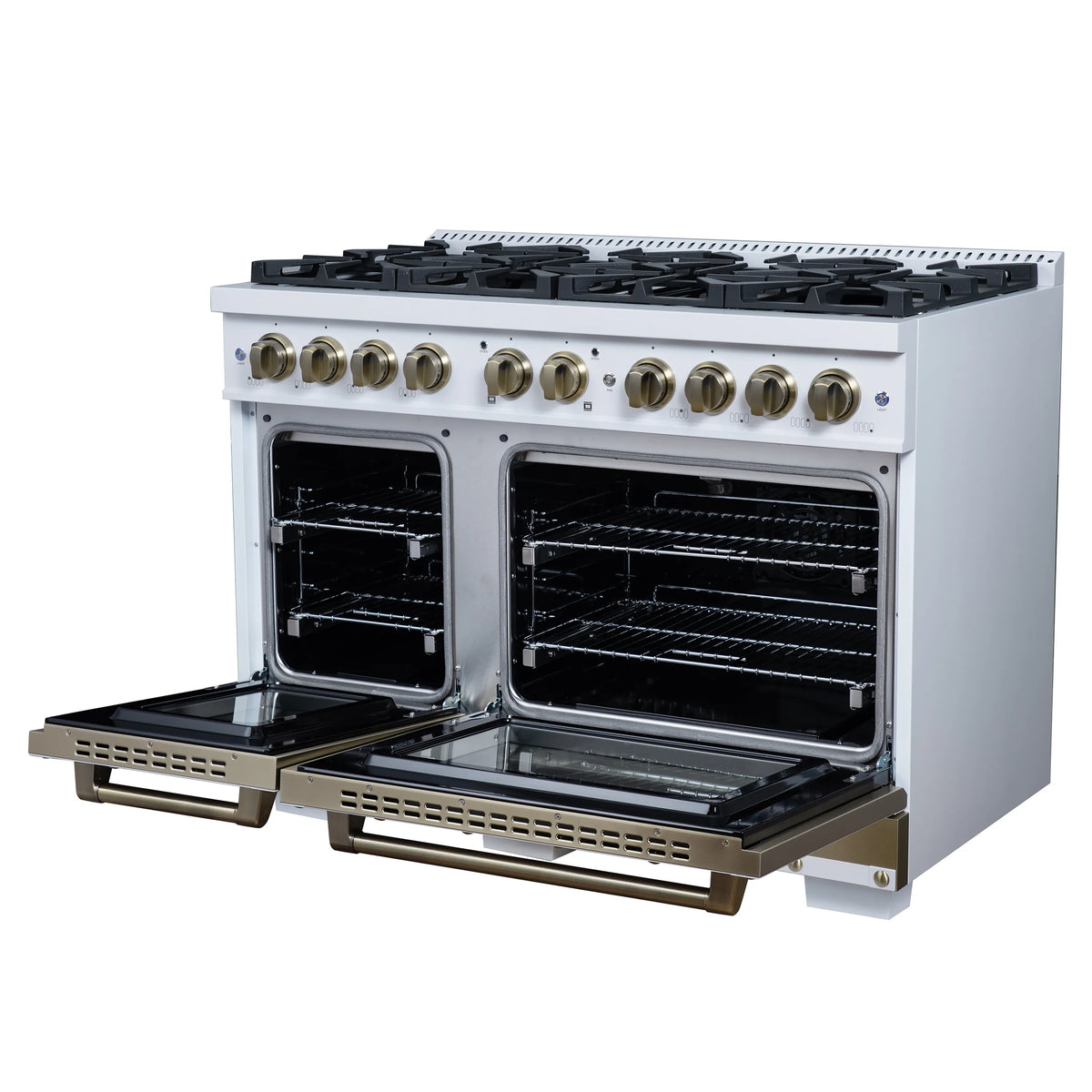

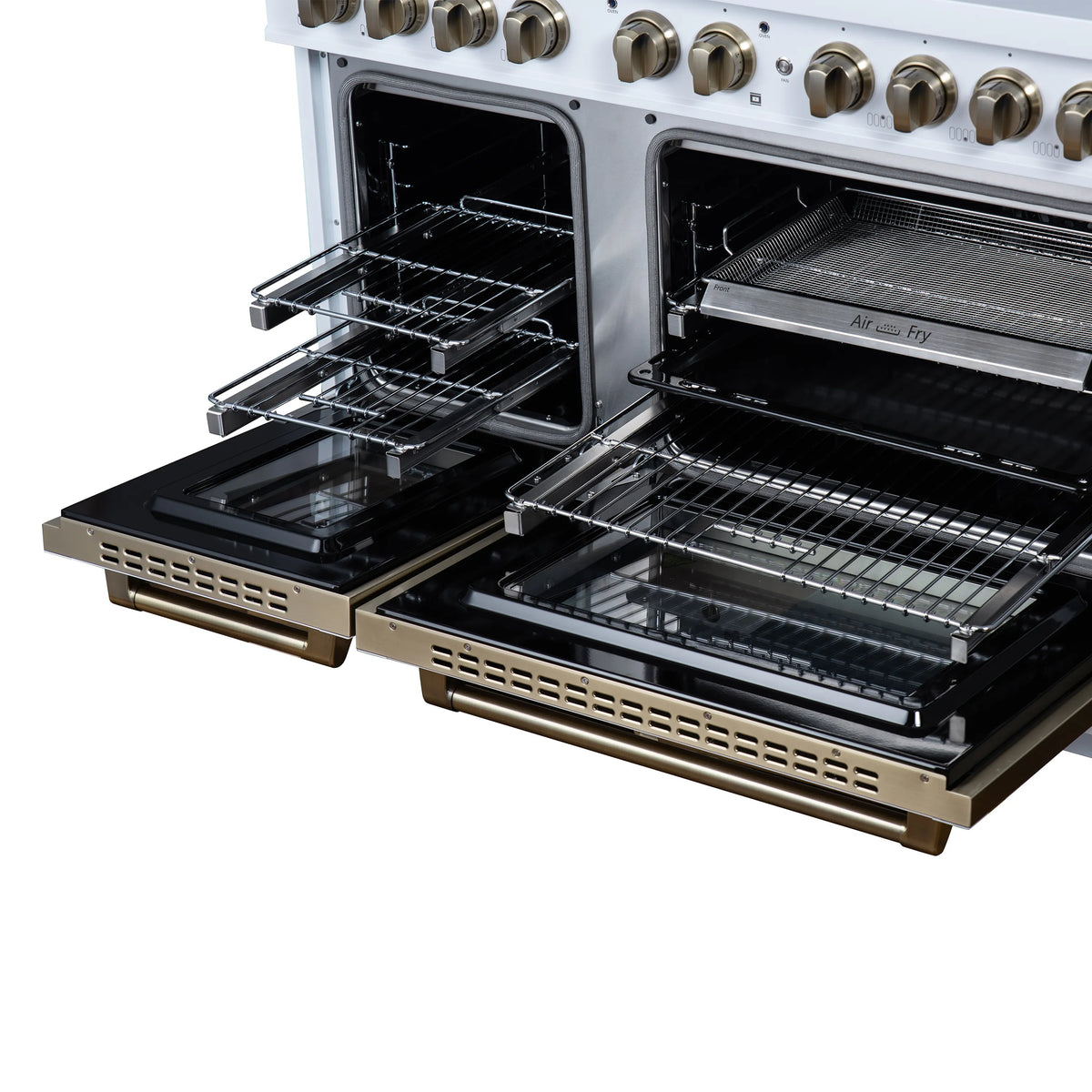

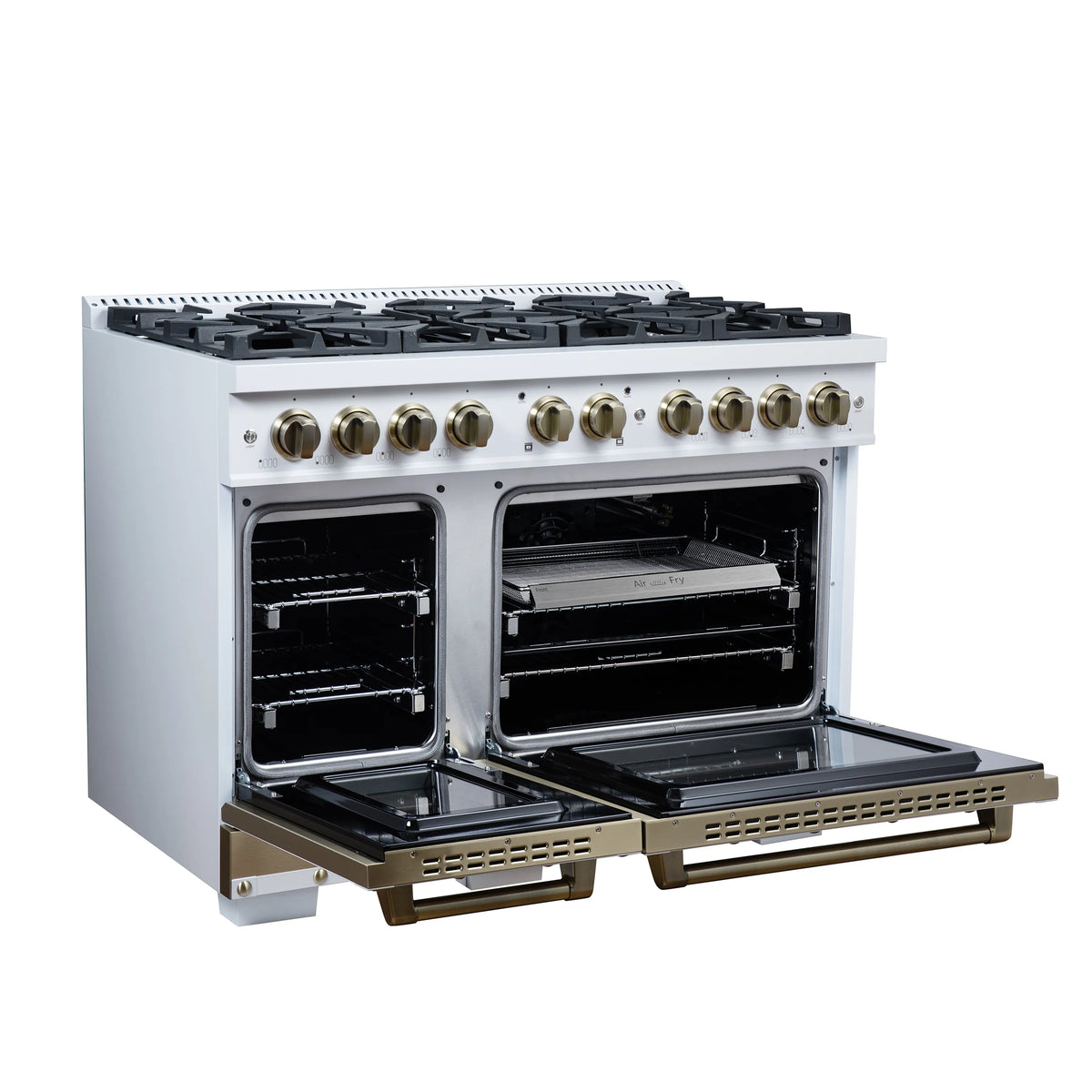

- Main Oven Capacity (cu. ft.)
- 4.2

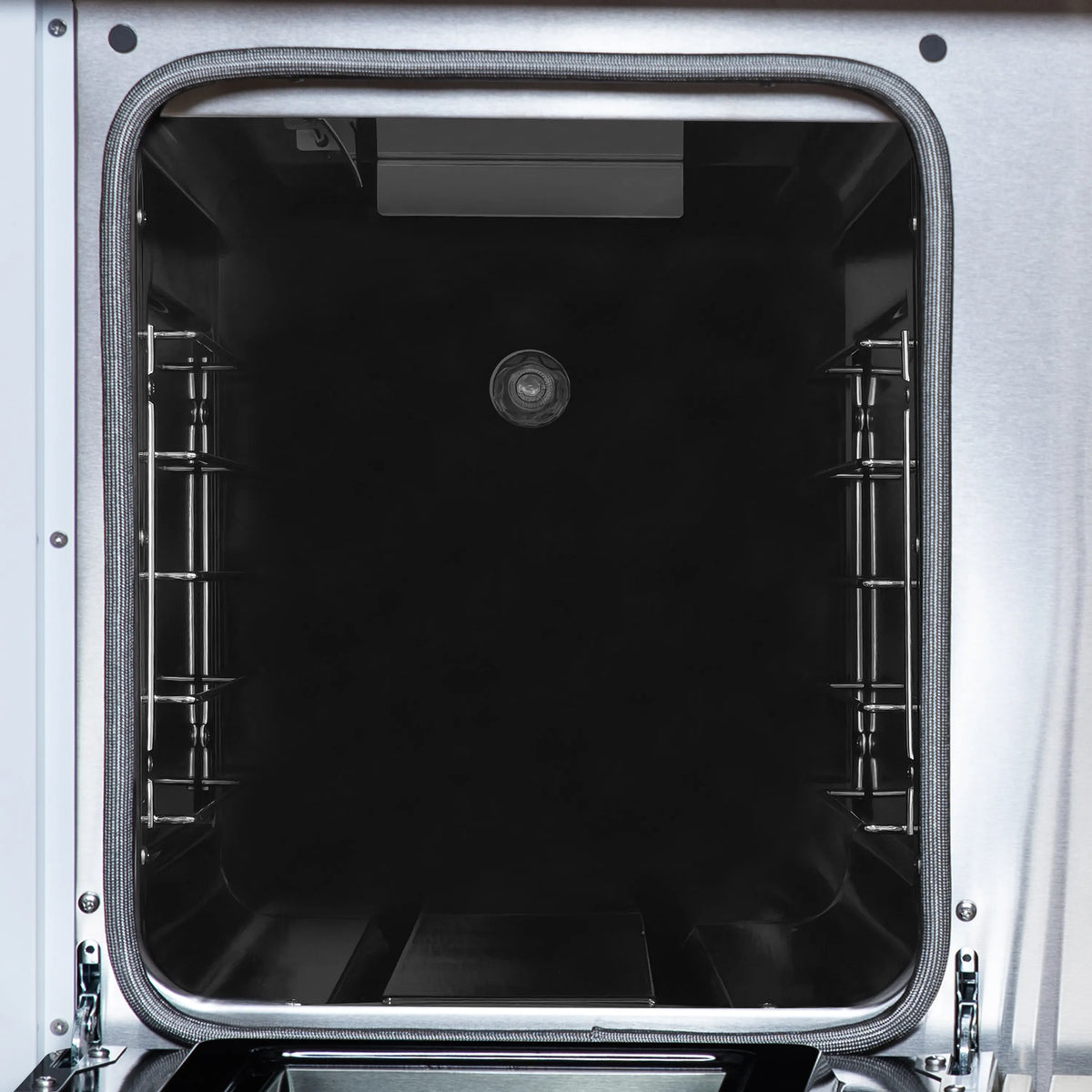

- Second Oven Capacity (cu. ft.)
- 2.5
- Main Oven Functions
- Bake, Broil, Convection Bake, Convection Roast
- Second Oven Functions
- Broil
- Bake Output
- 22,000 BTU (main oven)
- Broil Output
- 10,000 BTU (main) / 14,000 BTU (second)

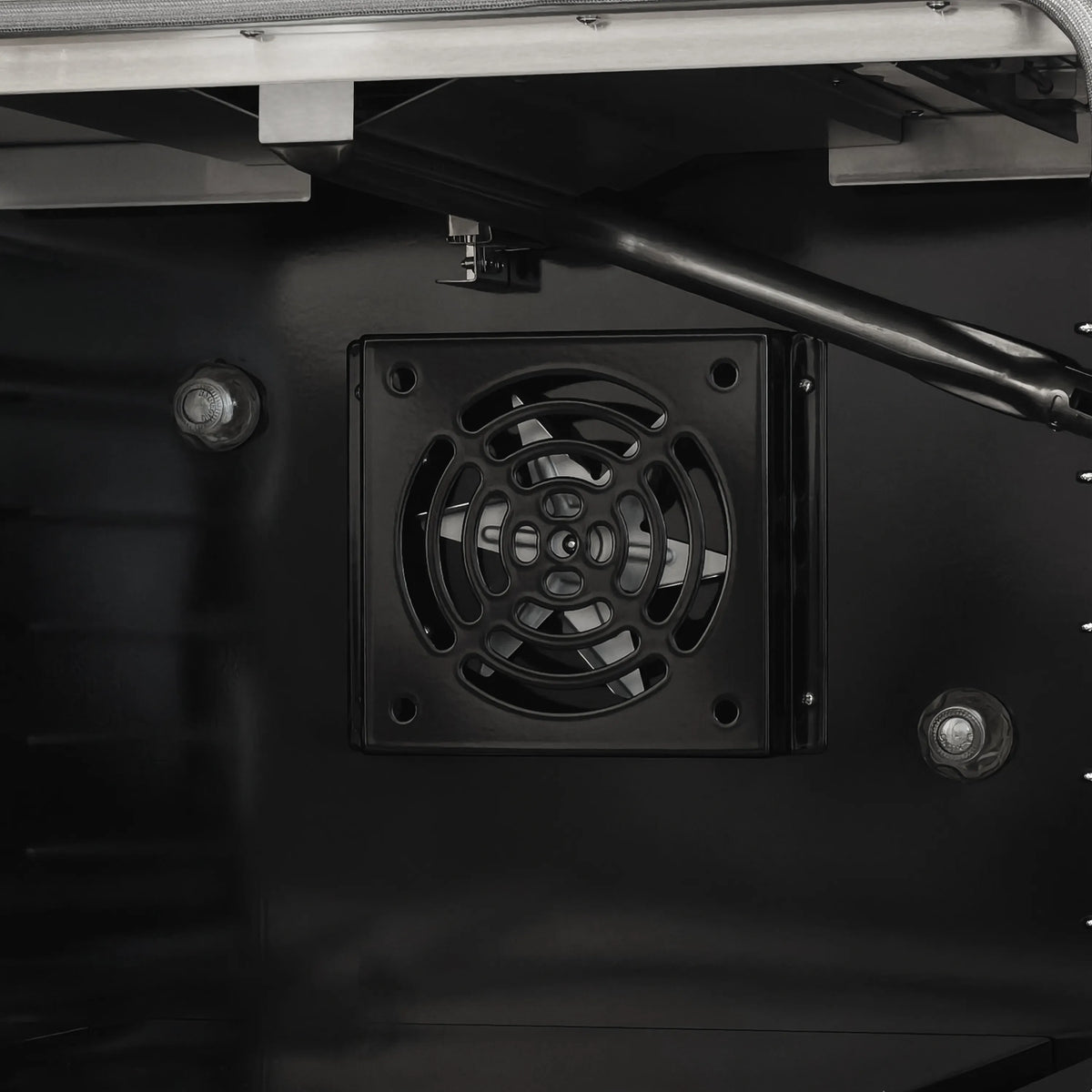

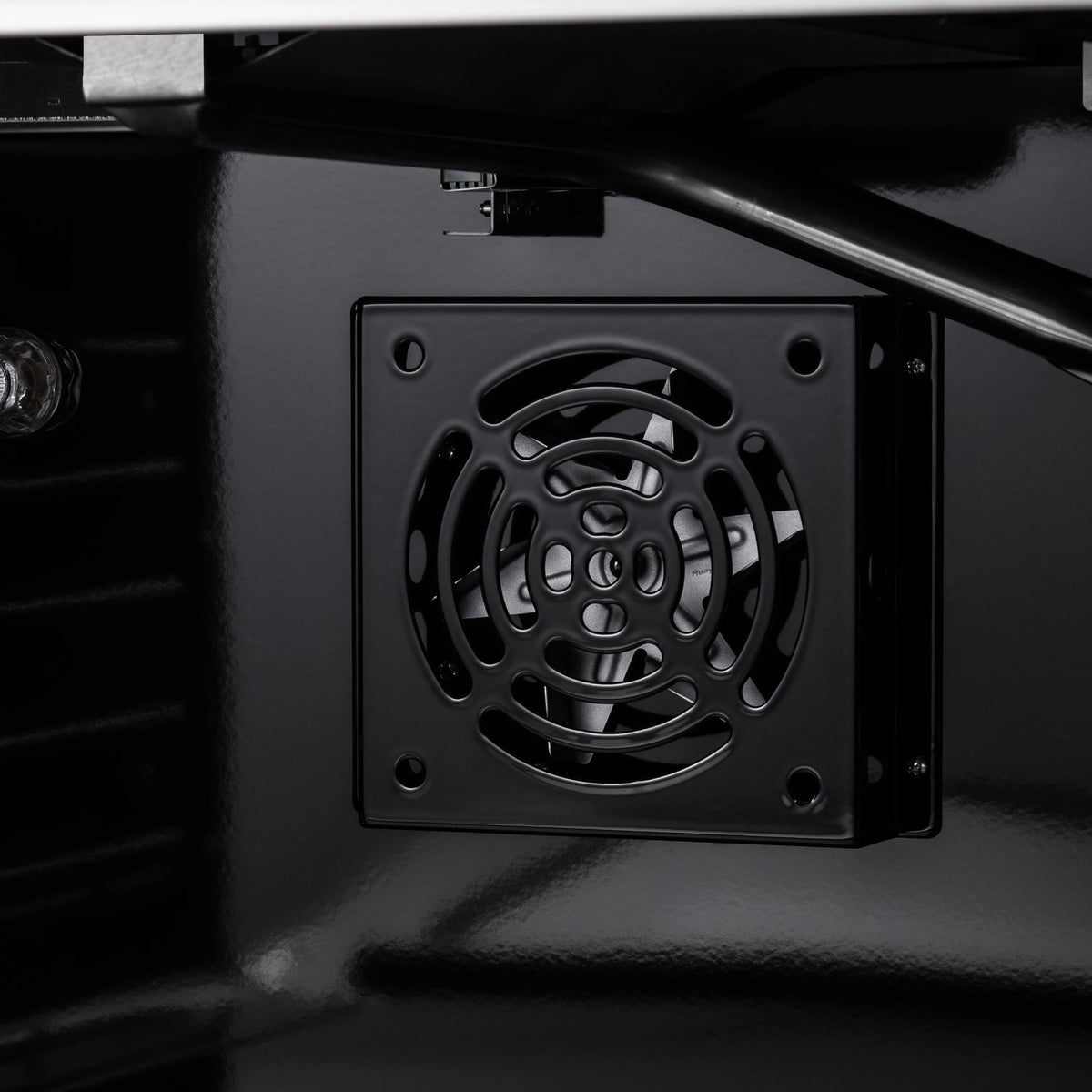

- Convection
- Standard (main oven only)
