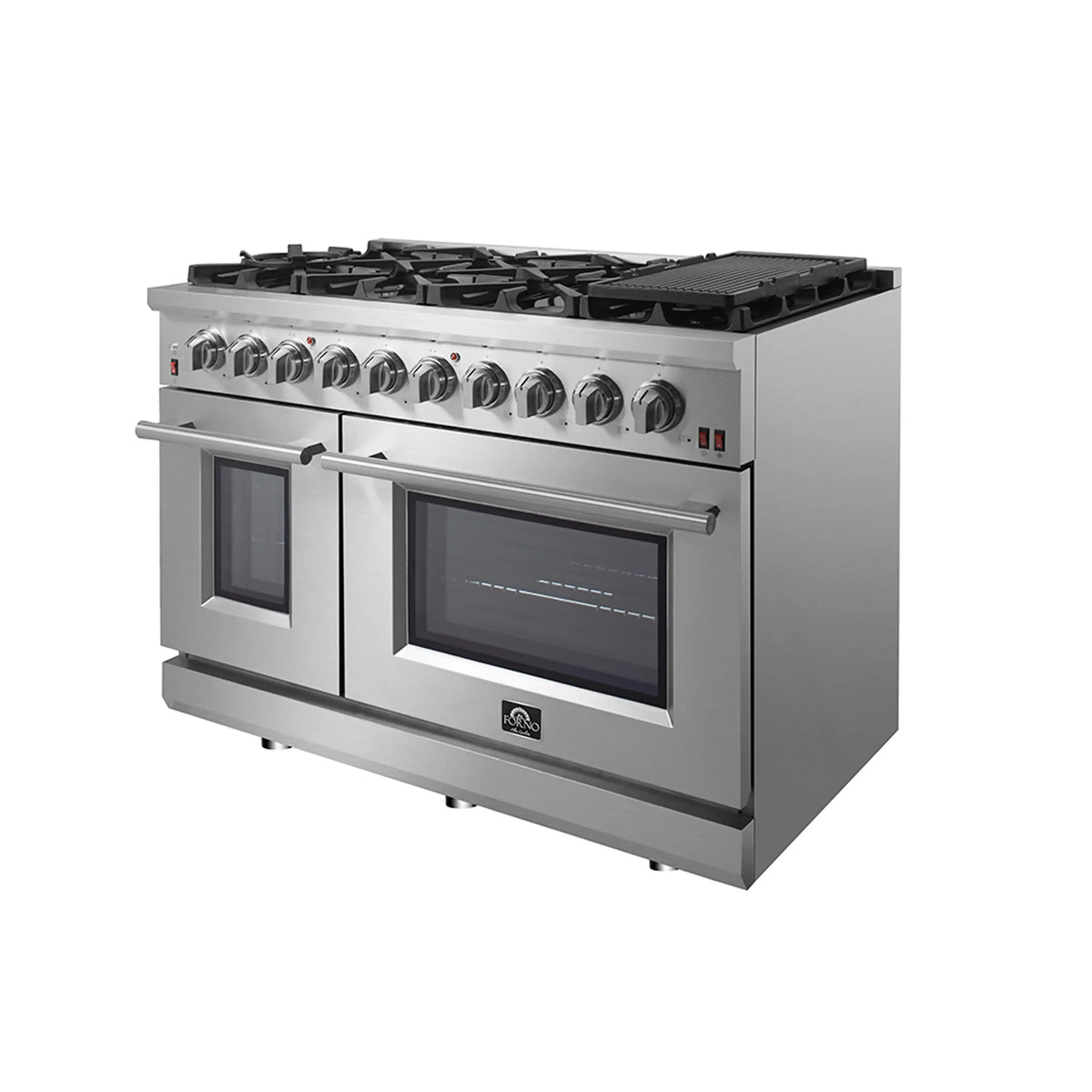

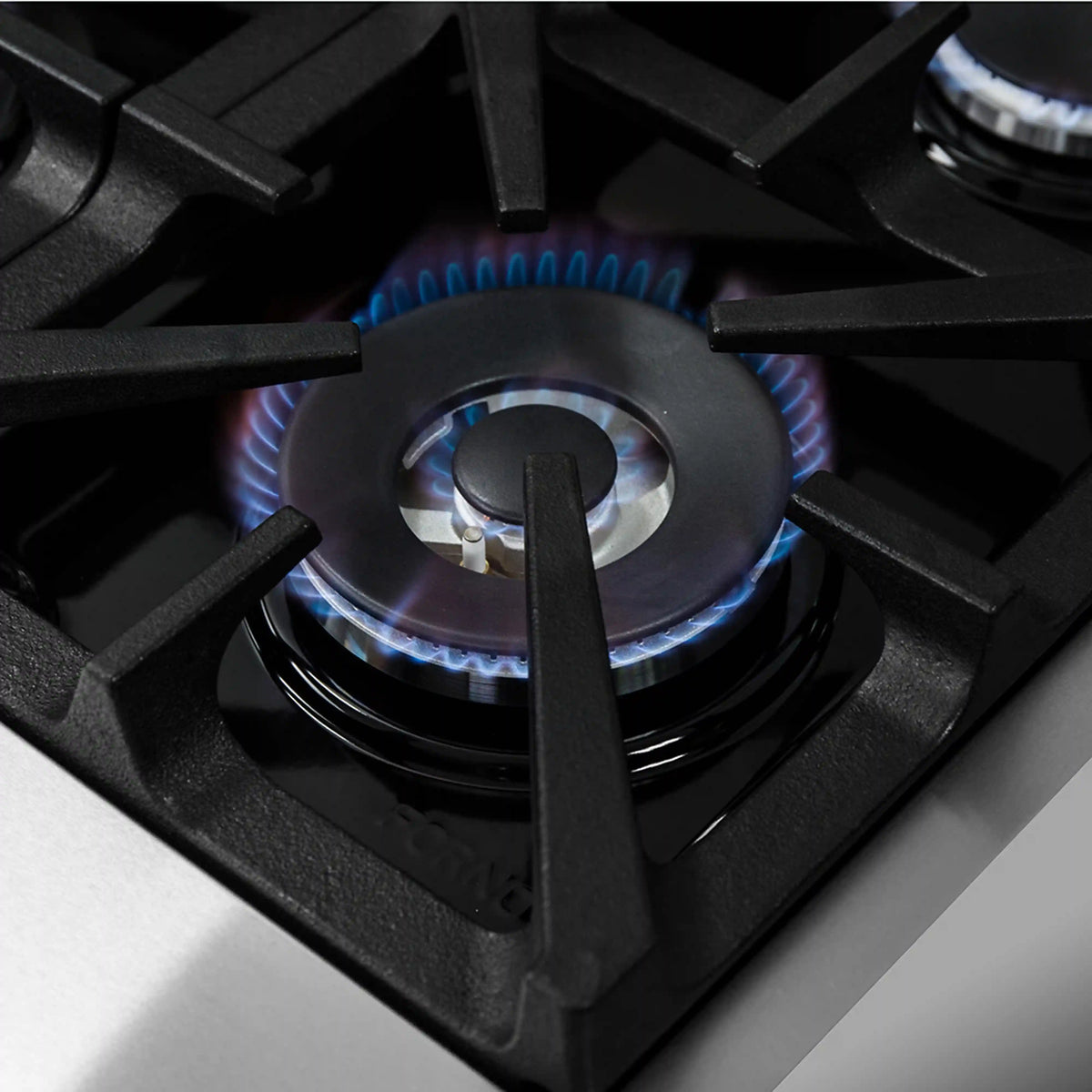

The Forno 48” Massimo Gas Range brings professional styling and quality into your home kitchen with its durable stainless-steel design. Cooktop has 8 sealed burners with a total stove top output of 107,000 BTU including 1 sealed dual-ring burner for simmering delicate tasks like melting chocolate or cooking sauces, giving you the ability to cook up whatever delicious meals you desire.

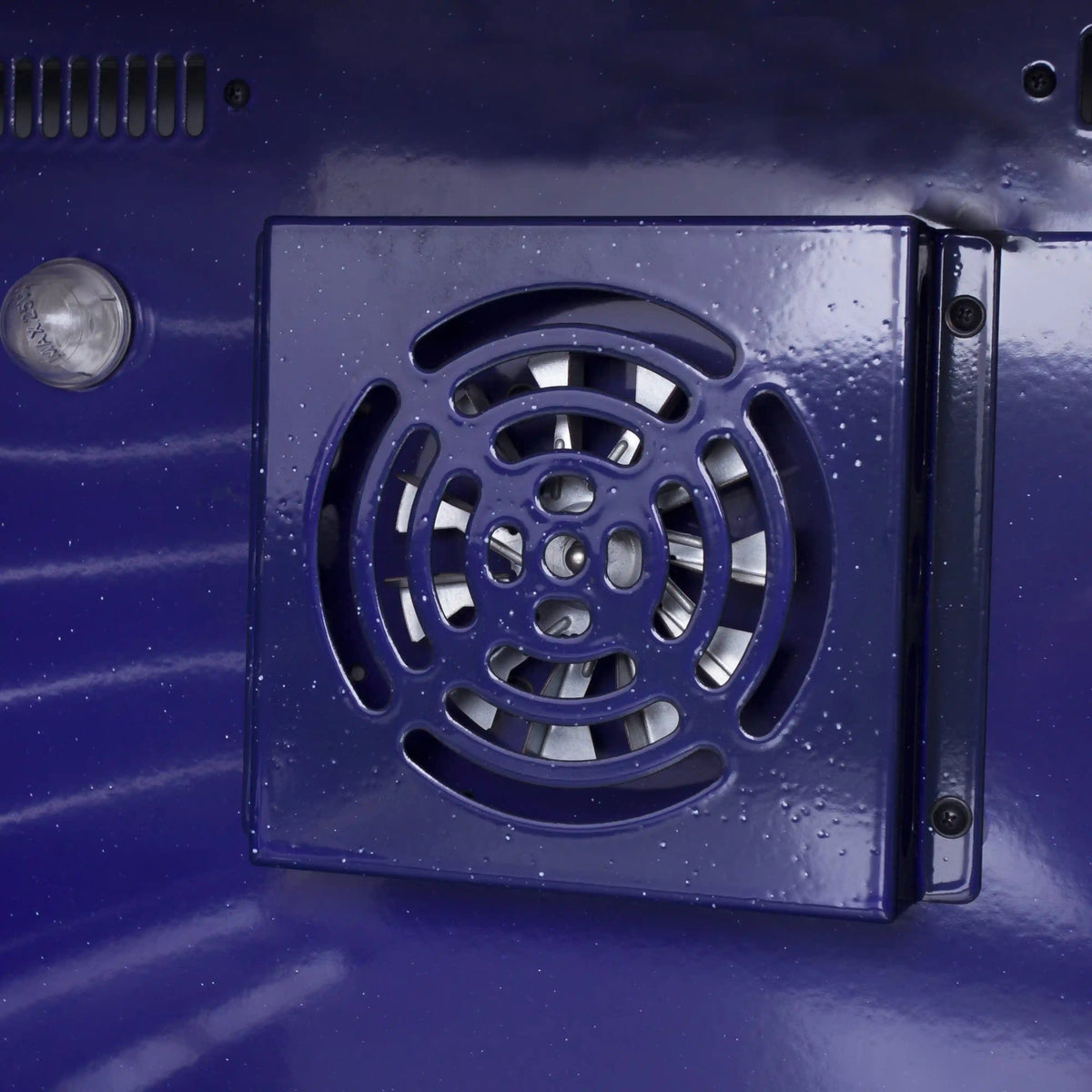

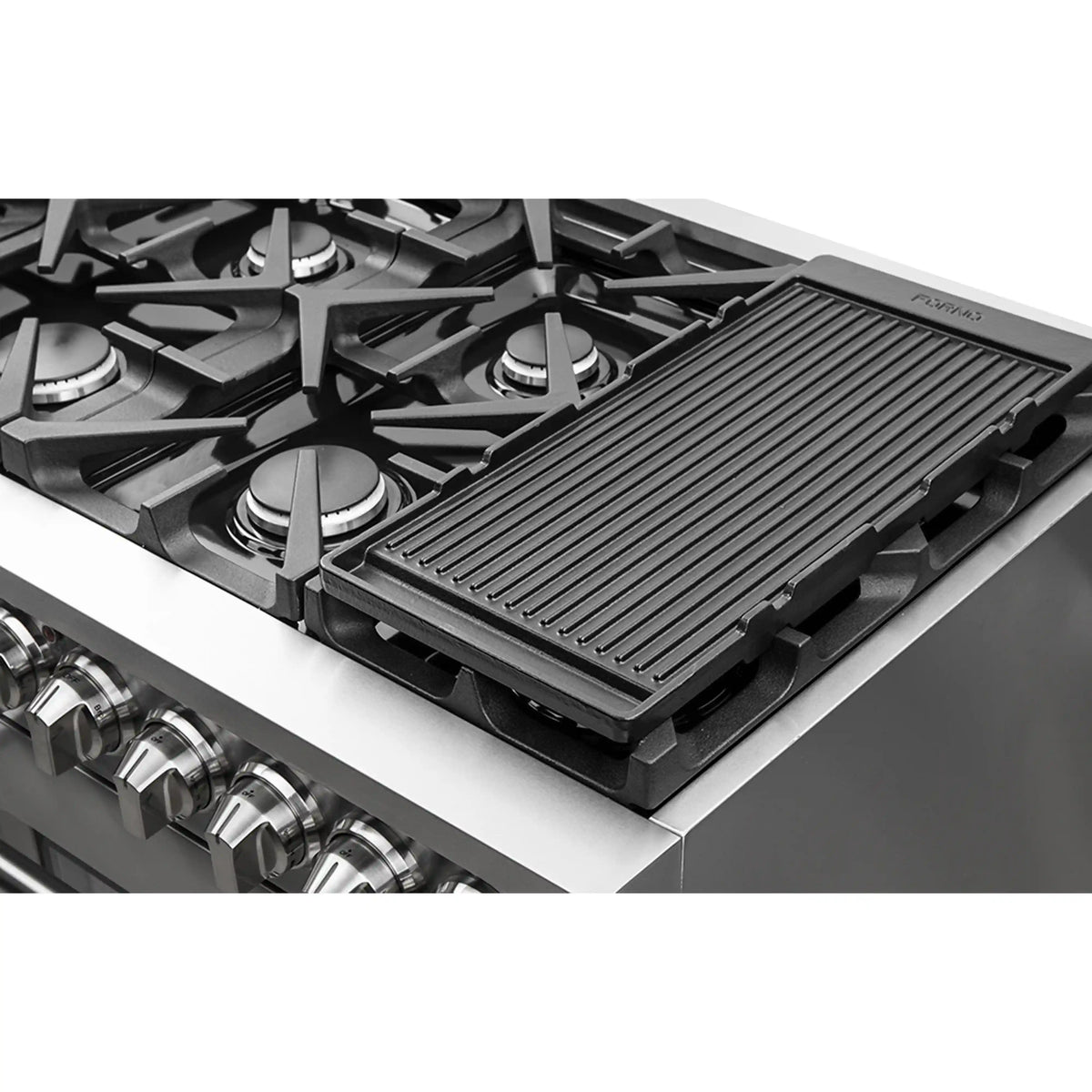

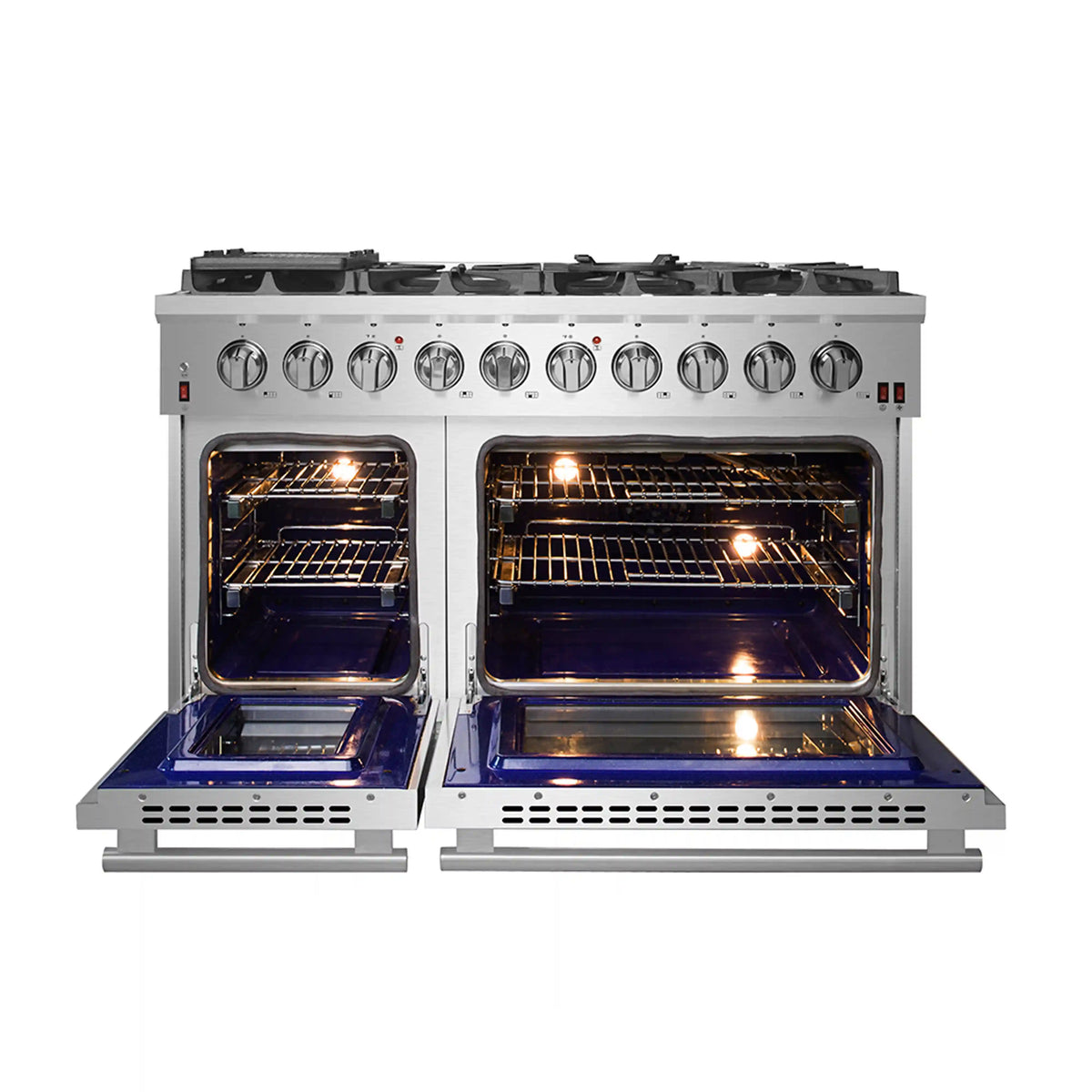

The heavy-duty continuous cast iron grates allow for even heat distribution and maximum stability of cookware mobility over a recessed enamel cooktop cavity which keeps spills and splashes contained and easy to clean. Double gas ovens have a combined 6.58 cu.ft. capacity with a total broil and bake output of 44,000 BTU, encased in blue enamel interiors with insulated oven door and tempered 3-layer glass oven door windows. Right oven convection fan, thermostat and regulator ensures to achieve fast, precision and consistent oven cooking. Included are 4 telescopic oven racks, concave Wok Ring, reversible grill/griddle, Air Fryer basket, rack & drip pan, LP conversion kit and 3-prong power cord. Housed in a high-grade stainless steel body and zinc coated metal knobs with bezels.
This unit sports a stylish look that is built to last. All Forno products are backed by an iron clad 2-year warranty for your satisfaction. Skip the high price tags without sacrificing quality and performance. Lower the cost of living with Forno.
| DIMENSIONS | |
|---|---|
| Product (W x D x H) (In) | 48 x 28 x 38 |
| Minimum Counter Height (In) | 36 |
| Maximum Counter Height (In) | 37 |
| Depth with Oven Door Open 90º (In) | 44.25 |
| Oven Interior (W x D x H) (In) | 24.92 x 18.7 x 16 |
| Left Oven Interior (W x D x H) (In) | 13.03 x 18.7 x 16 |
| Overall Weight (lbs) | 388.01 |
| Power Cord Length | 5 feet |
| GENERAL INFORMATION | |
| Overall WxDxH (In) | 48 x 28 x 38 |
| Product Type | Freestanding |
| Supplier Intended and Approved Use | Residential Use |
| LP Kit Included | Yes |
| Total Stovetop | 107,000 BTU |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Color/Finish | Stainless Steel |
| Gas Heat Configuration | Sealed Burner |
| Control Type | Manual |
| Interior Light | 3 |
| Control Type (2) | Knob |
| Control Location | Front |
| Clock | No |
| Primary Material | Metal |
| Control Panel Material | Stainless Steel |
| Kick Plate Material | Stainless Steel |
| Side Panel Material | Stainless Steel |
| Brass Handle & Knobs | No |
| Number of Knob | 10 |
| TECHNICAL DETAILS | |
| Amperage | 15A |
| Volts | 120V |
| Receptacle Type | 3-Prong Grounded |
| Fuel Type | Gas |
| Gas Type | Natural Gas / LP |
| LP Gas Convertible | Yes |
| COOKTOP FEATURES | |
| Number of Burners | 8 |
| Cooktop Surface | Heavy-Duty Continuous Cast Iron Grates |
| Cooktop Cavity | Recessed Enamel |
| Ignition Type | Push & Turn |
| Reversible Grill/Griddle | Yes |
| Front Right | 1000 BTU to 20,000 BTU |
| Front Right Center | 15,000 BTU |
| Front Left Center | 15,000 BTU |
| Front Left | 15,000 BTU |
| Rear Right | 15,000 BTU |
| Rear Right Center | 9,000 BTU |
| Rear Left Center | 9,000 BTU |
| Rear Left | 9,000 BTU |
| OVEN FEATURES | |
| Number of Ovens | 1 |
| Oven Interior Finish | Blue Enamel |
| Oven Rack Type | Telescopic |
| Number of Racks | 4 |
| Oven Rack Material | Stainless Steel |
| Number of Rack Positions | 2 x 5 |
| Broiler | Gas |
| Bake | Gas |
| Cooking Process | Convection |
| Cleaning Type | Steam |
| Temperature Gauge | No |
| Timer | No |
| Door Panel Material | Stainless Steel |
| Air Fryer Kit | Yes |
| Rotisserie Kit | No |
| Overall Oven Capacity | 6.58 Cubic Feet |
| Overall Broil Top | 10,000 BTU |
| Overall Bake | 34,000 BTU |
| Right Oven Capacity | 4.32 Cubic Feet |
| Right Oven Broil Top | 10,000 BTU |
| Right Oven Bake | 20,000 BTU |
| Left Oven Capacity | 2.26 Cubic Feet |
| Left Oven Bake | 14,000 BTU |
| Convection Fan | Yes |
| WARRANTY & CERTIFICATIONS | |
| ETL Listed | Yes |
| Commercial Warranty | No |
| Warranty Type | Limited |
| Warranty Length | 2 |
| Warranty on Parts | 2 |
| Warranty on Labor | 2 |
