Description
DIMENSIONS
- Overall Dimensions
- 60” W x 28” D x 38” H
- Right Oven Interior Dimensions
- 24.92'' W x 18.7'' D x 16'' H
- Left Oven Interior Dimensions
- 24.92'' W x 18.7'' D x16'' H
- Overall Weight
- 582.24 lbs
- Power Cord Length
- 5'
GENERAL INFORMATION
- Switches
- 2 + 2
- Product Type
- Freestanding
- Supplier Intended and Approved Use
- Residential Use
- Country of Origin
- China
DESIGN & FINISH
- Color
- Silver
- Finish
- Stainless Steel
- Number of Knob
- 14
- Color/Finish
- Stainless Steel
- Gas Heat Configuration
- Sealed Burner
- Interior Light
- 2
- Control Type
- Knob
- Control Location
- Front
- Clock
- No
- Primary Material
- Metal
- Control Panel Material
- Stainless Steel
- Kick Plate Material
- Stainless Steel
- Side Panel Material
- Stainless Steel
TECHNICAL DETAILS
- Amperage
- 40
- Volts
- 240
- Receptacle Type
- 4-Prong Grounded
- Wattage
- 12,600
- Fuel Type
- Gas & Electric
- Gas Type
- Natural Gas
- LP Gas Convertible
- Yes
- LP Conversion Kit Included
- Yes
COOKTOP FEATURES
- Overall Burners BTU
- 142,000
- Front Right Burner BTU
- 1,000 to 20,000
- Front Right Center Burner BTU
- 15,000
- Front Center BTU
- 15,000
- Front Left Center BTU
- 15,000
- Front Left Burner BTU
- 1,000 to 20,000
- Rear Right Burner BTU
- 15,000
- Rear Right Center Burner BTU
- 9,000
- Rear Center BTU
- 9,000
- Rear Left Center Burner BTU
- 9,000
- Rear Left Burner BTU
- 15,000
- Number of Burners
- 10

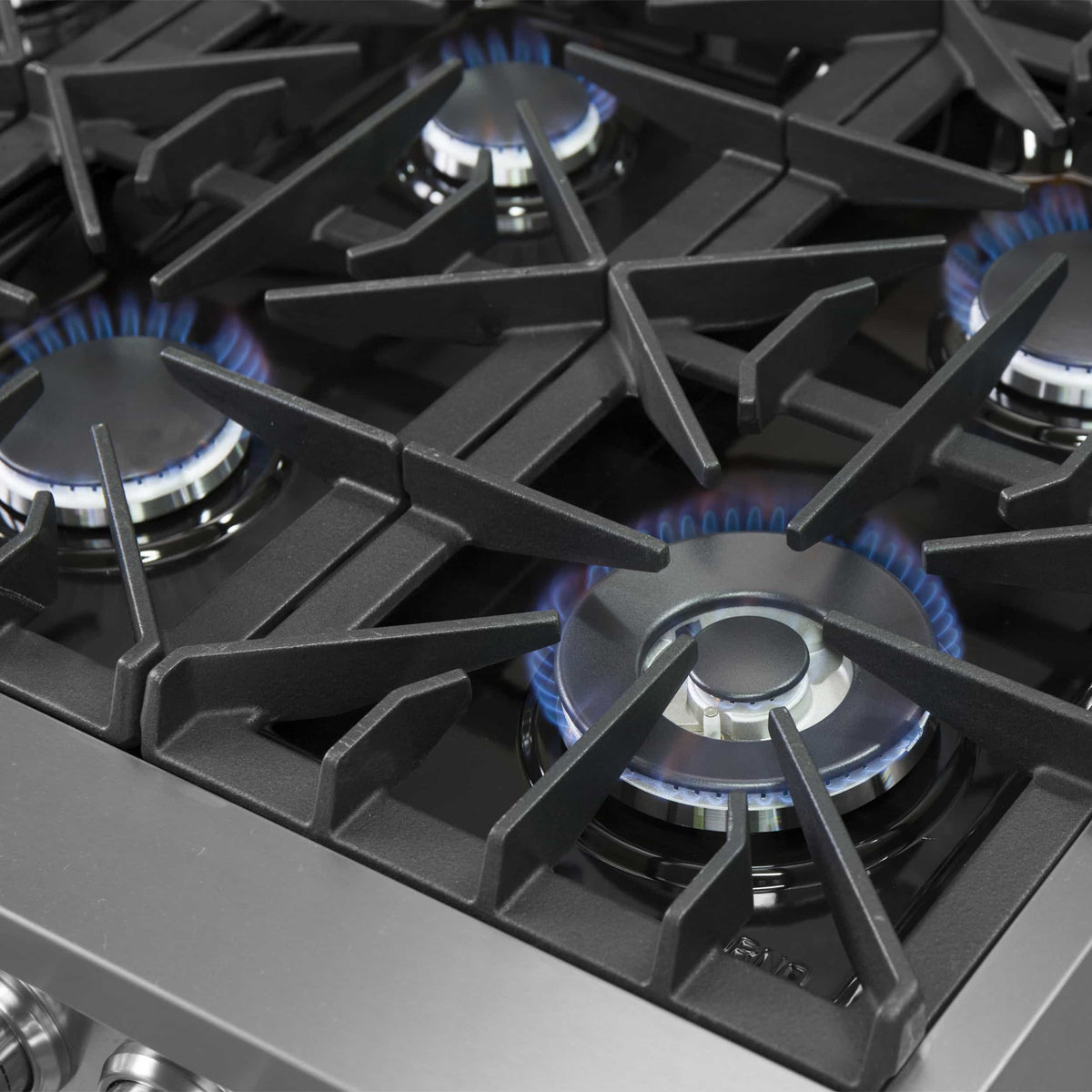

- Cooktop Surface
- Continuous Cast Iron Grates
- Cooktop Cavity
- Recessed Enamel

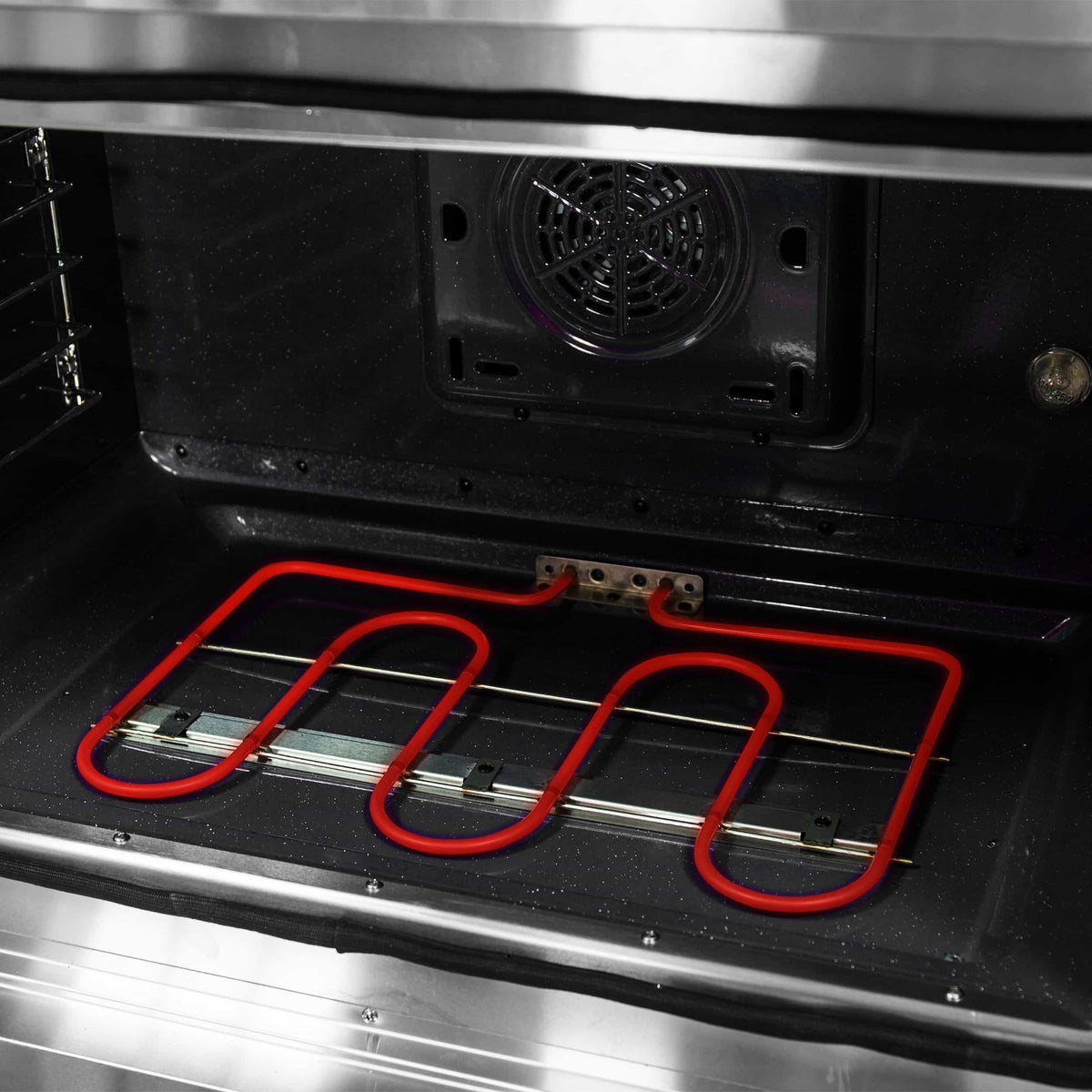

- Bake Element
- Electric
OVEN FEATURES
- Oven Door Open 90º
- 44.25" D

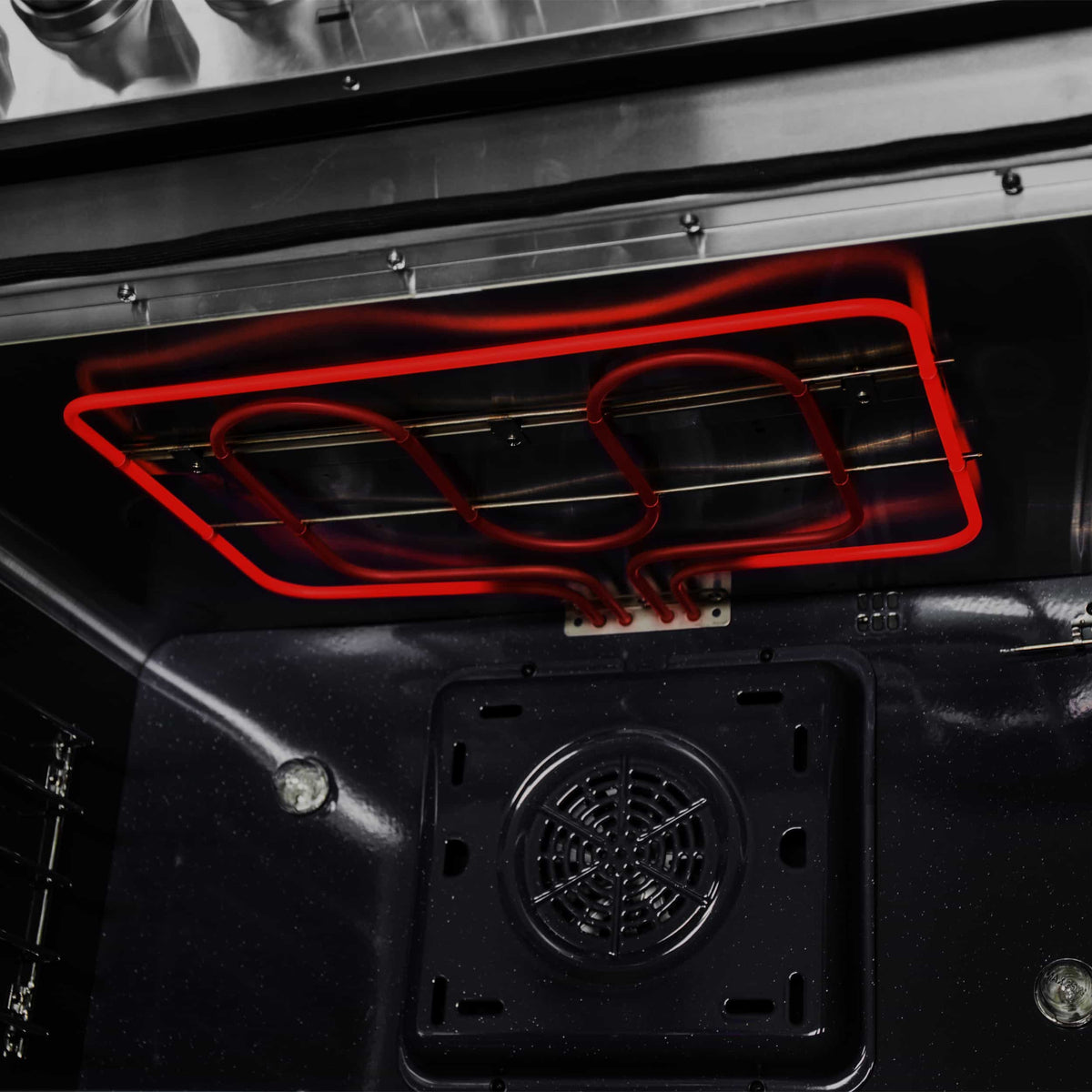

- Oven 1 inside Broil Wattage
- 1000
- Oven 1 Outside Broil Wattage
- 1800
- Oven 1 Bake Wattage
- 2000
- Oven 1 True Convection Wattage
- 1500
- Oven 2 inside Broil Wattage
- 1000
- Oven 2 Outside Broil Wattage
- 1800
- Oven 2 Bake Wattage
- 2000
- Oven 2 Convection Heater Wattage
- 1500
- Overall Oven Capacity
- 8.64 Cubic Feet
- Right Oven Capacity
- 4.32 Cubic Feet
- Left Oven Capacity
- 4.32 Cubic Feet
- Convection Fan
- Yes
- Number of Ovens
- 2

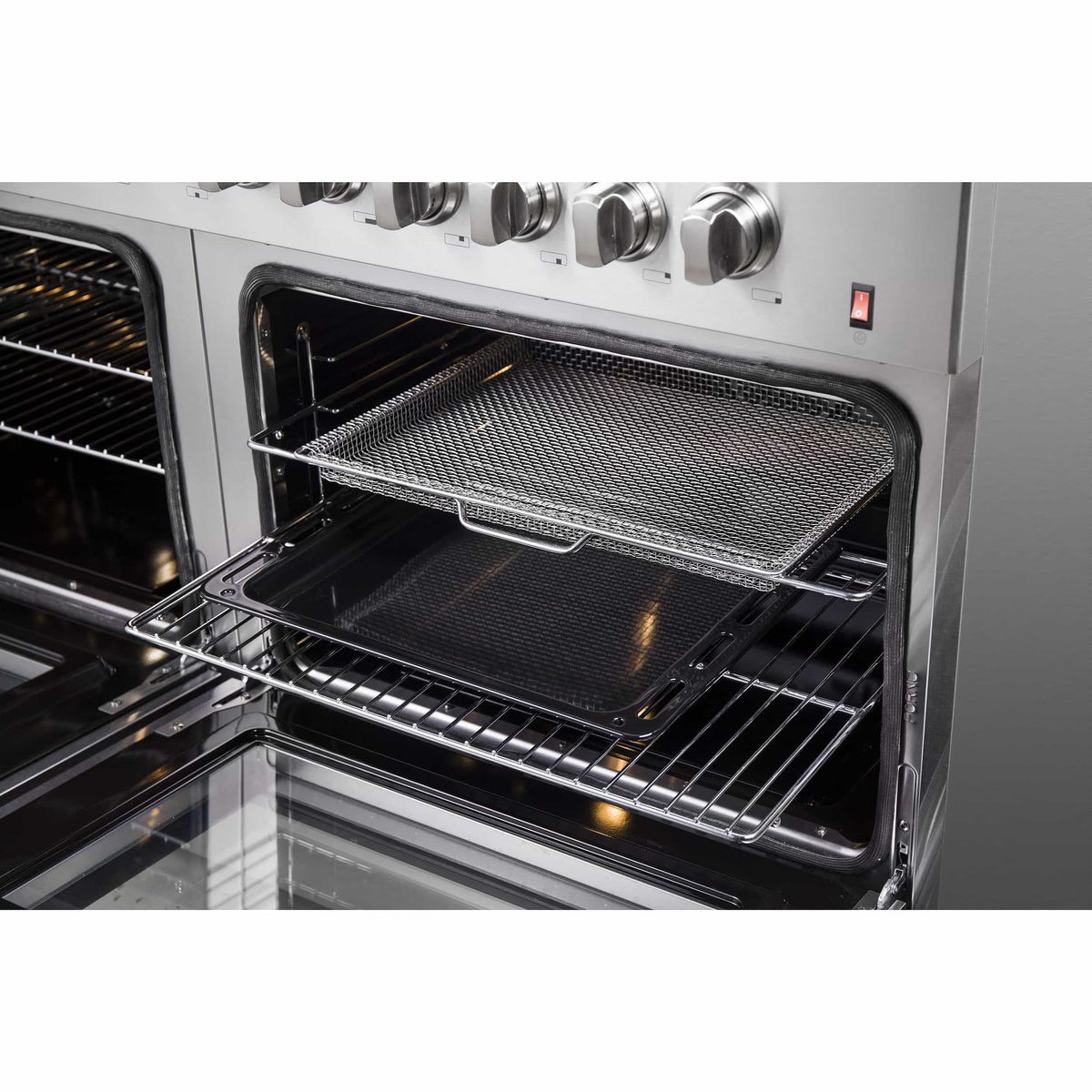

- Number of Racks
- 4
- Number of Rack Positions
- 2 x 6
- Broiler
- Electric
- Cleaning Type
- Manual
- Cooking Process
- True Convection
- Black Enamel Oven Interior
- Yes
- Temperature Gauge
- No
- Timer
- No
- Door Panel Material
- Stainless Steel
WARRANTY & CERTIFICATIONS
- ETL Listed
- Yes
- Warranty Type
- Limited
- Warranty Length
- 2 Years
- Warranty on Parts
- 2 Years
- Warranty on Labor
- 2 Years
