Description
DIMENSIONS
- Overall Dimensions
- 48"W x 28"D x 37.4"H
- Adjustable Counter Height
- 35.5” to 36.5"H
- Depth with Oven Door Open 90º
- 44.25"
- Overall Weight
- 366
- Power Cord Length
- 5 feet
GENERAL INFORMATION
- Product Type
- Gas Ranges 2 Ovens
- Overall Bottom
- 34,000 BTU
- Right Bottom
- 20,000 BTU
- Left Bottom
- 14,000 BTU
- Supplier Intended and Approved Use
- Residential Use
- Country of Origin
- China
- Switches
- 1 + 2
DESIGN & FINISH
- Color
- Silver
- Finish
- Stainless Steel
- Color/Finish
- Stainless Steel
- Gas Heat Configuration
- Sealed Burner

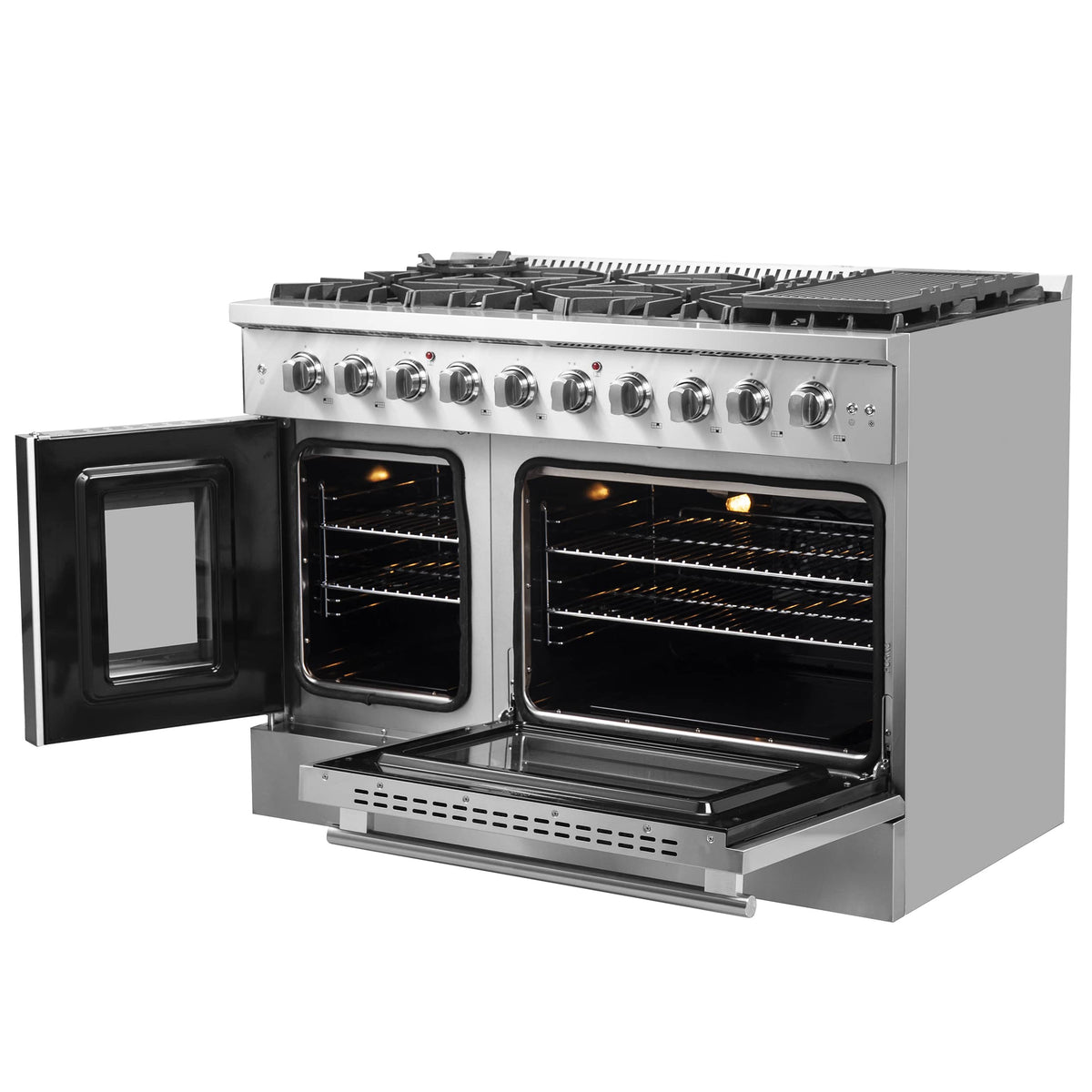

- Interior Light
- 3

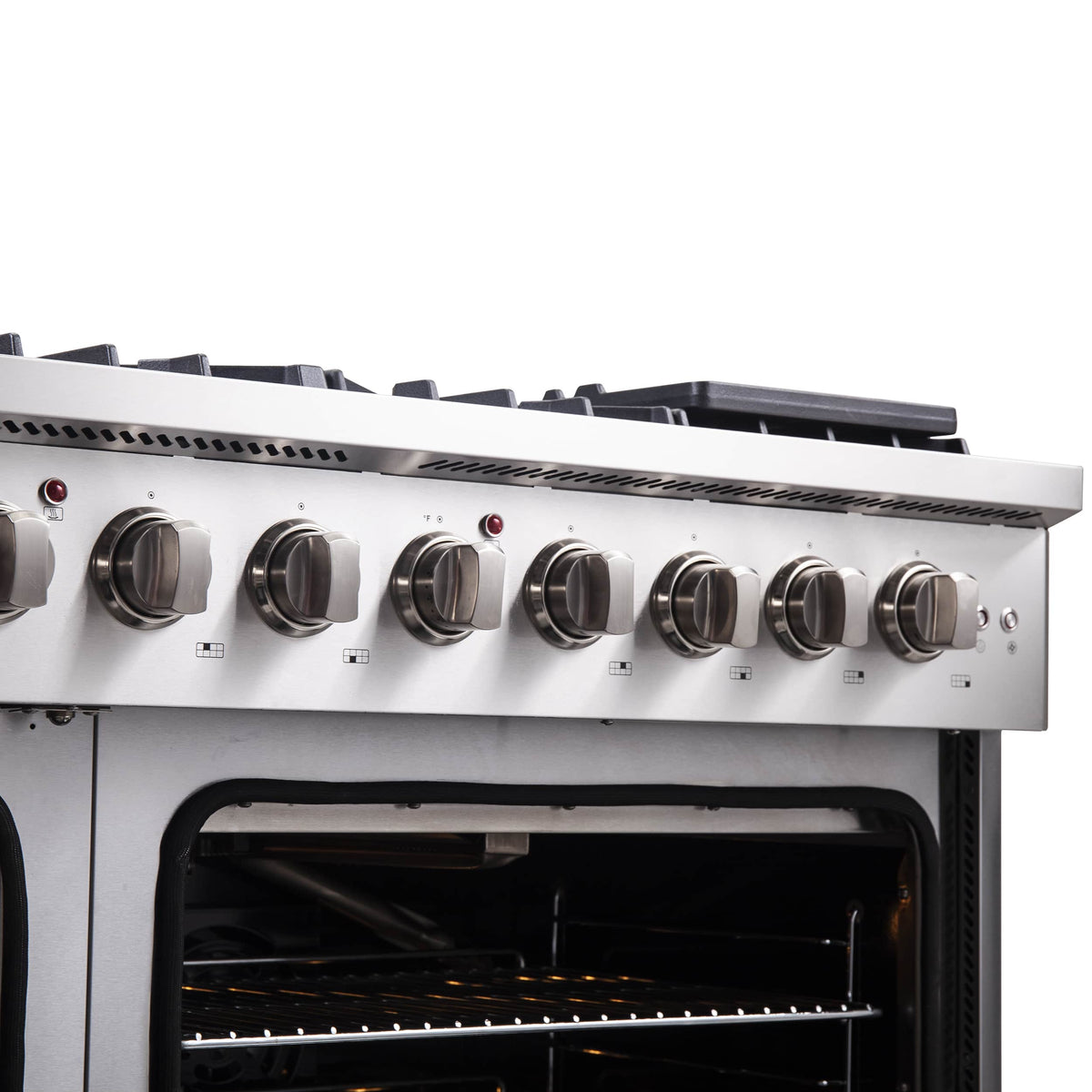

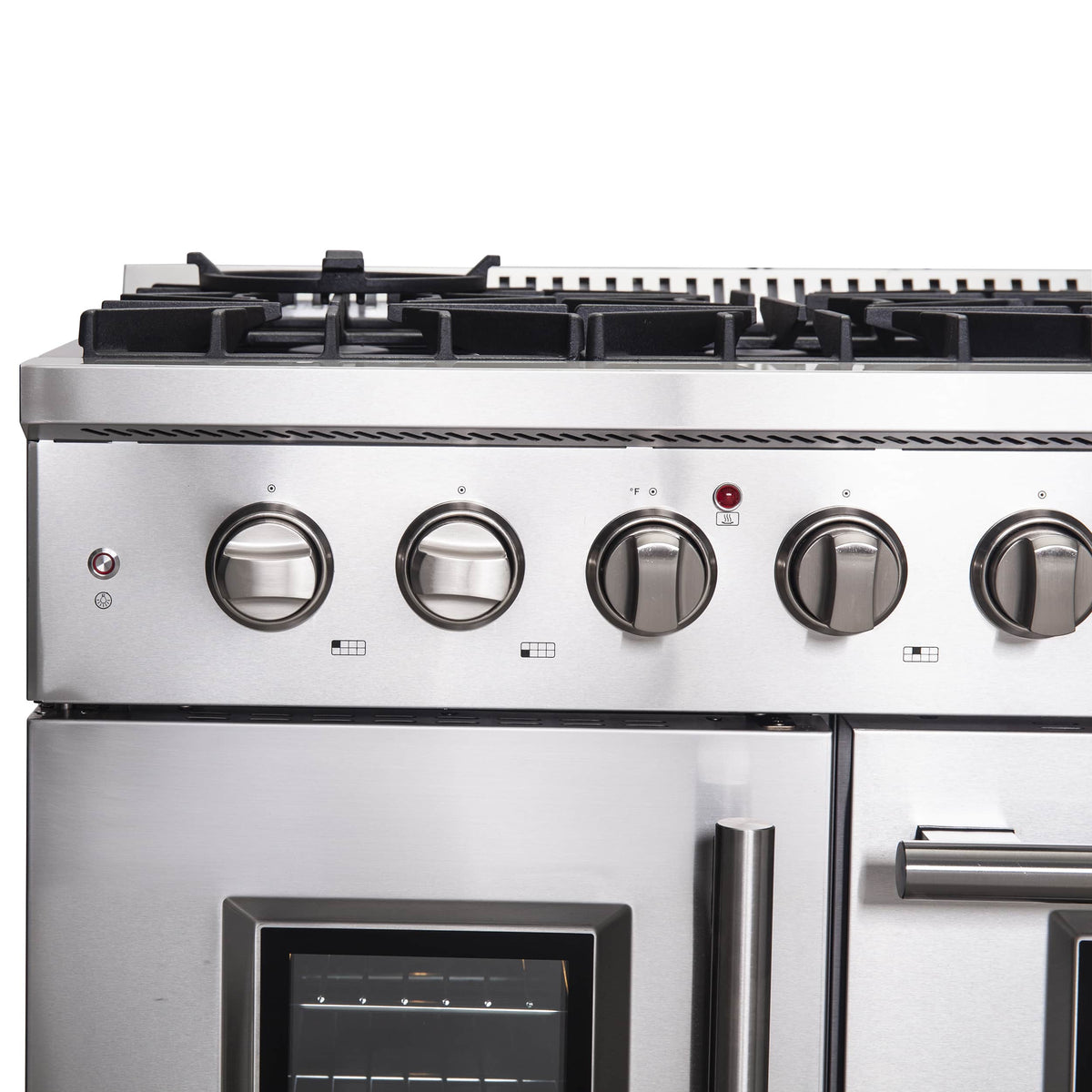

- Control Type
- Knob
- Control Location
- Front
- Clock
- No
- Primary Material
- Metal
- Number of Knob
- 10
TECHNICAL DETAILS
- Amperage
- 15A
- Volts
- 120V
- Receptacle Type
- 3-Prong Grounded
- Fuel Type
- Gas
- Gas Type
- Natural Gas

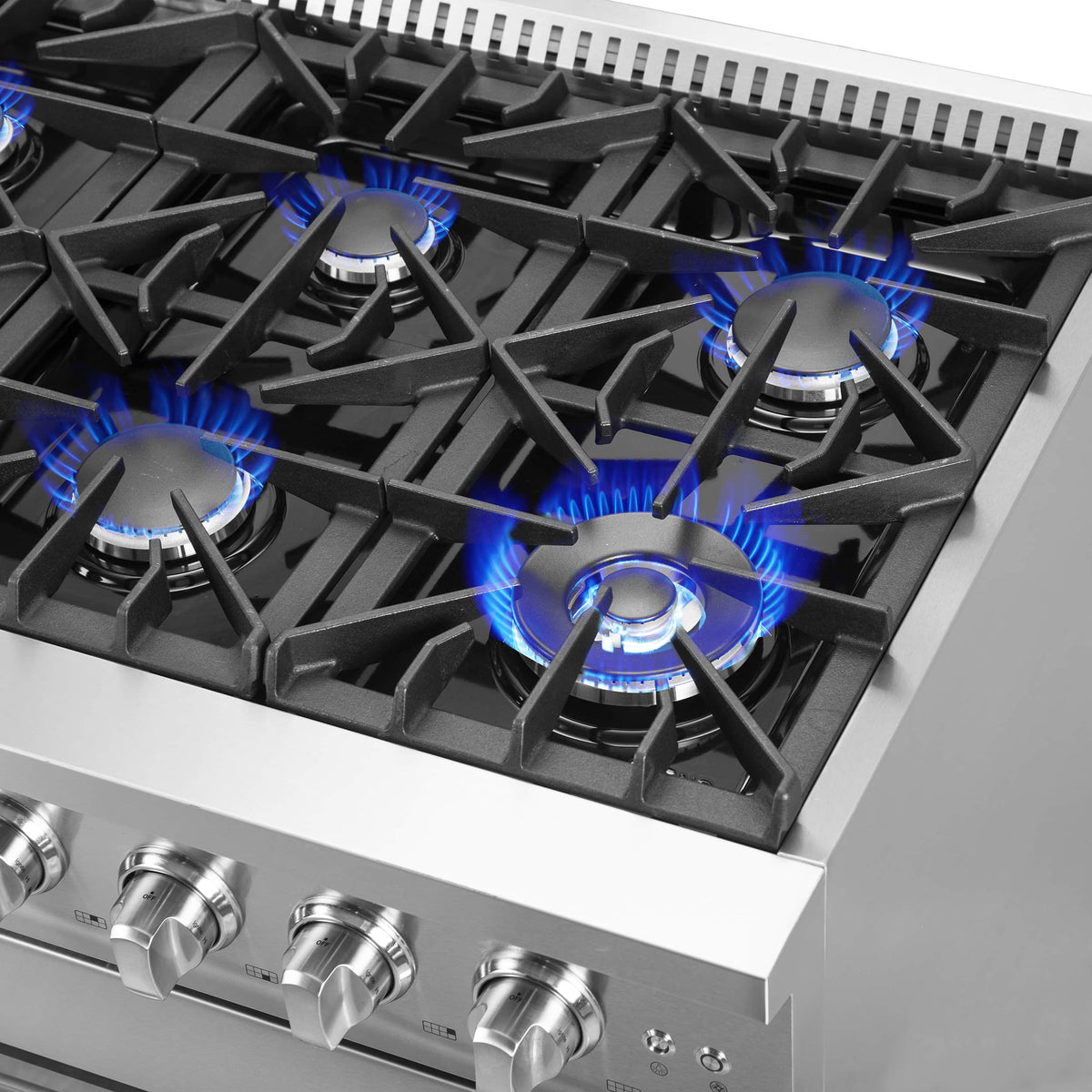

COOKTOP FEATURES
- Number of Burners
- 8
- Total Stovetop BTU / Watts
- 107,000 BTU
- Front Right
- 1000 BTU to 20,000 BTU
- Front Right Center
- 15,000 BTU
- Front Left Center
- 15,000 BTU
- Front Left
- 15,000 BTU
- Rear Right
- 15,000 BTU
- Rear Right Center
- 9,000 BTU
- Rear Left Center
- 9,000 BTU
- Rear Left
- 9,000 BTU

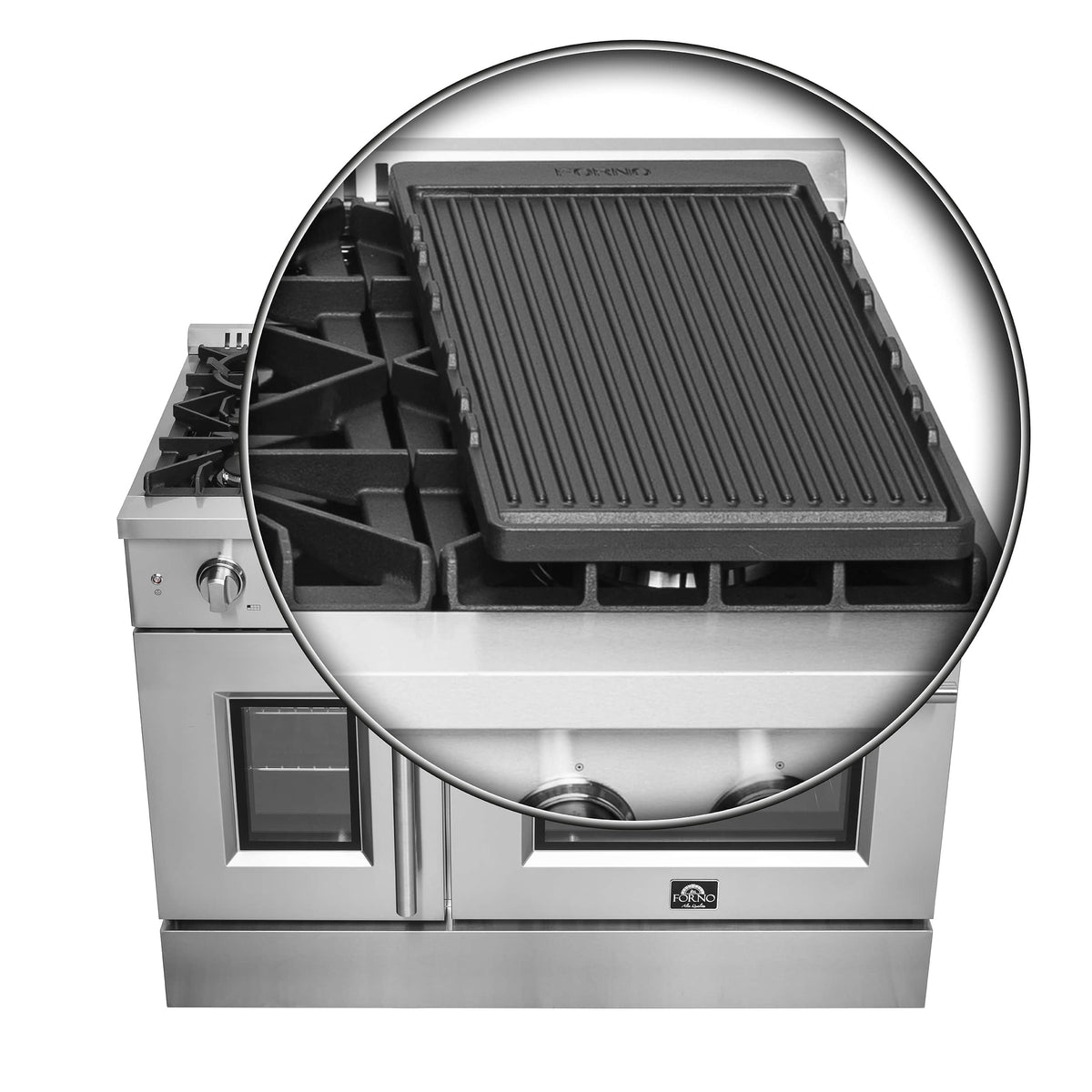

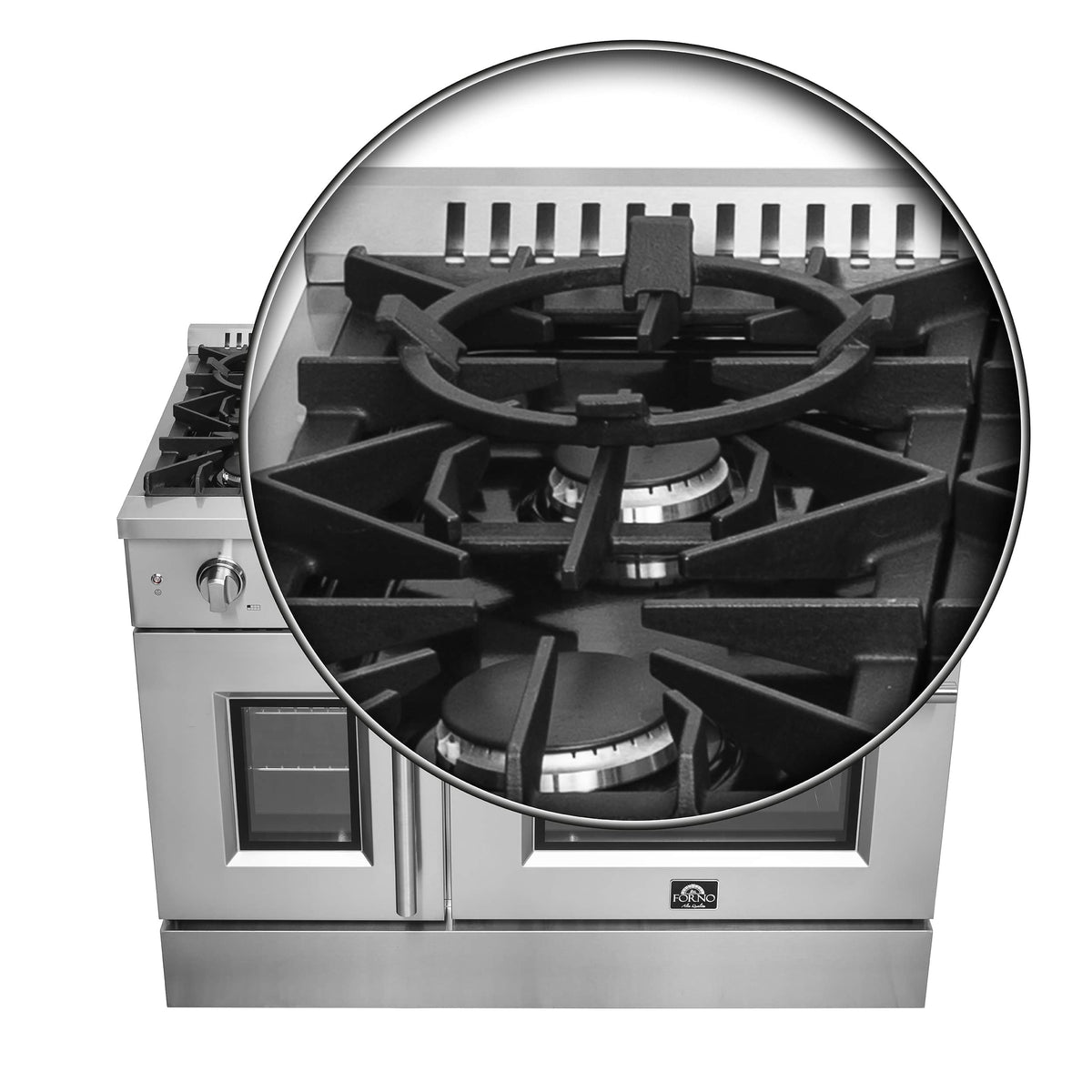

- Cooktop Surface
- Continuous Cast Iron Grates
- Cooktop Cavity
- Recessed Enamel
- Bake Element
- Yes
OVEN FEATURES
- Right Oven Interior
- 24.92''W x 18.7'D 'x16''H
- Left Oven Interior
- 13.03”W x 18.7”D x 16”H
- Overall Oven Capacity
- 6.58 Cubic Feet
- Overall Broil Top
- 10,000 BTU
- Right Oven Capacity
- 4.32 Cubic Feet
- Right Broil Top
- 10,000 BTU
- Left Oven Capacity
- 2.26 Cubic Feet

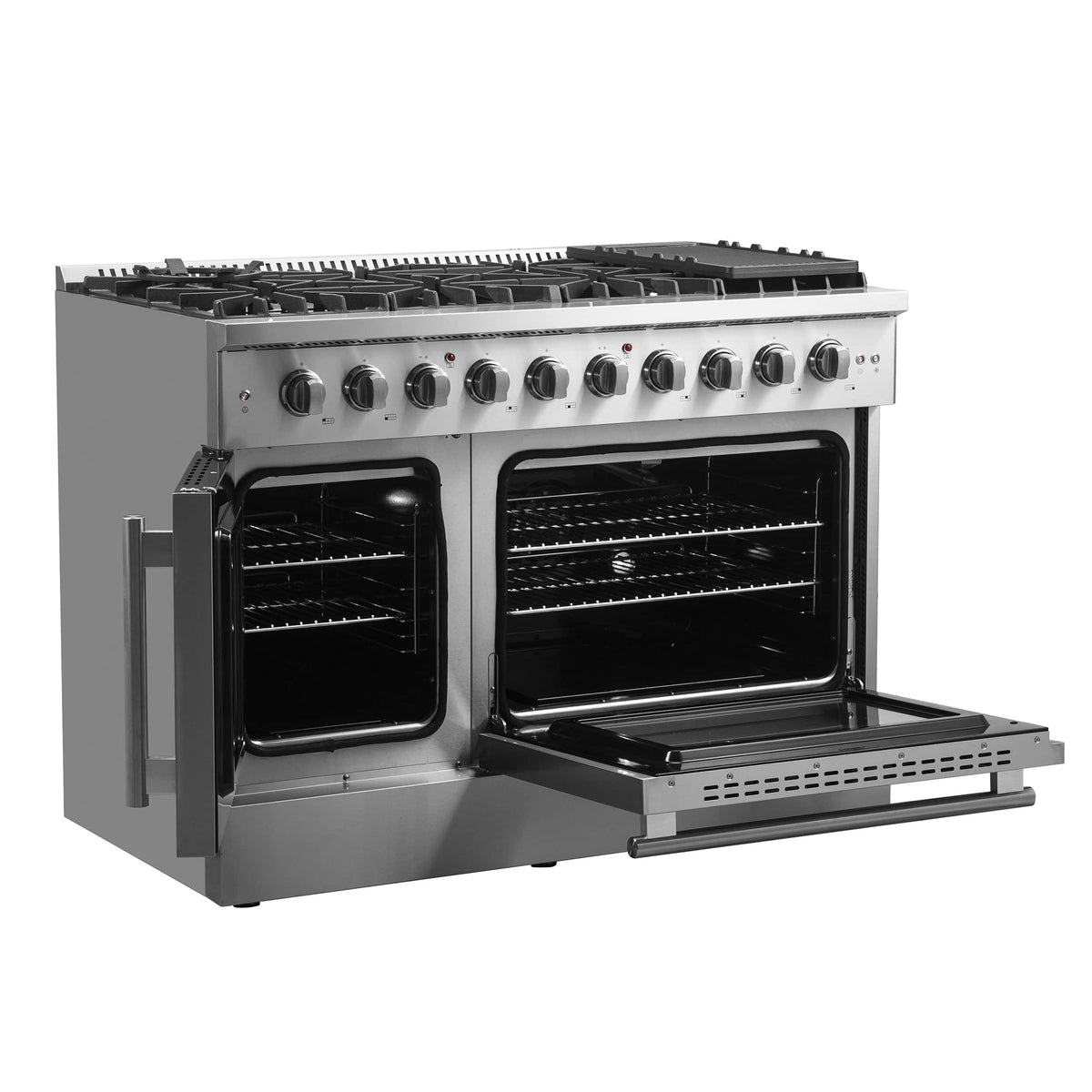

- Number of Ovens
- 2
- Oven Interior Finish
- Black Enamel

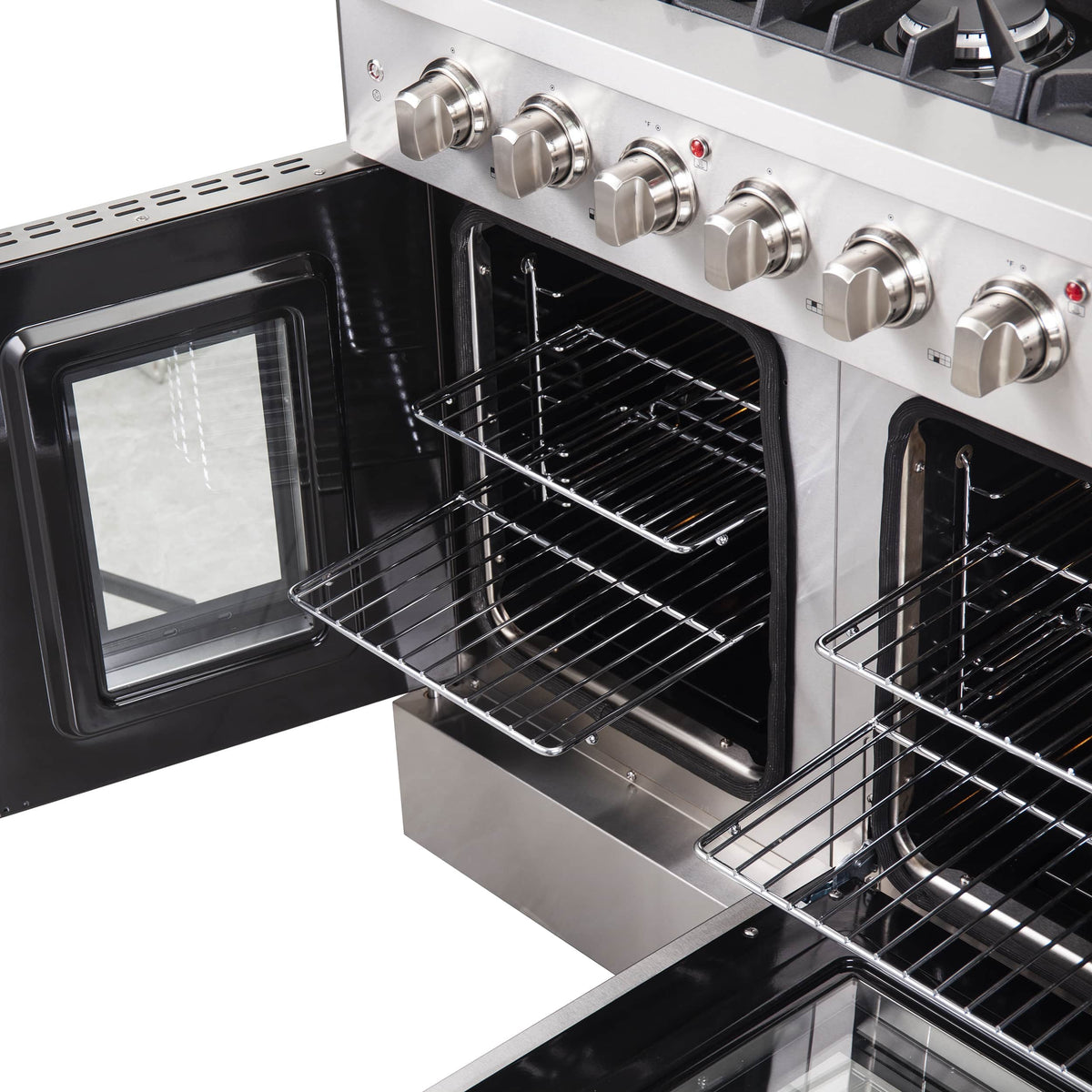

- Number of Racks
- 4
- Number of Rack Positions
- 12
- Broiler
- Gas
- Cooking Process
- Convection
- Cleaning Type
- Manual
- Temperature Gauge
- No
- Timer
- No
- Convection Fan
- Yes
WARRANTY & CERTIFICATIONS
- ETL Listed
- Yes
- Commercial Warranty
- No
- Warranty Type
- Limited
- Warranty Length
- 2 Years
- Warranty on Parts
- 2 Years
- Warranty on Labor
- 2 Years
