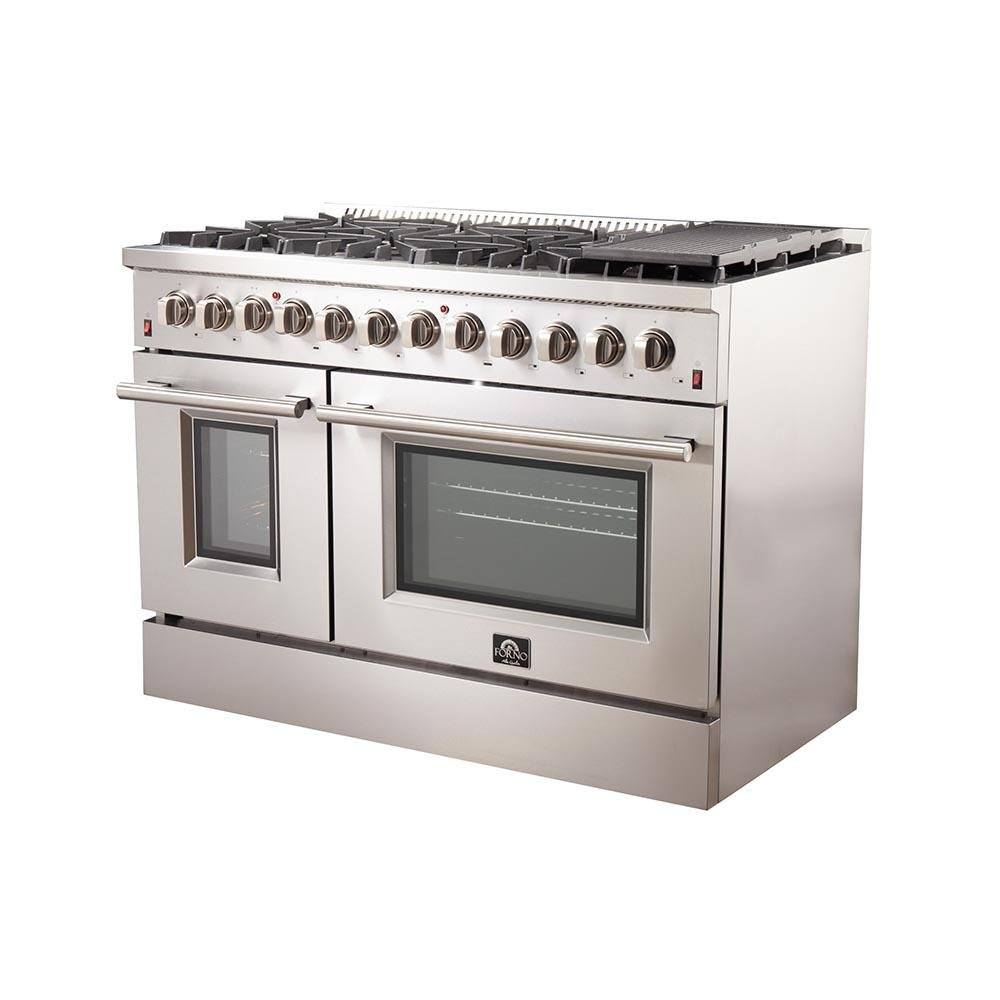

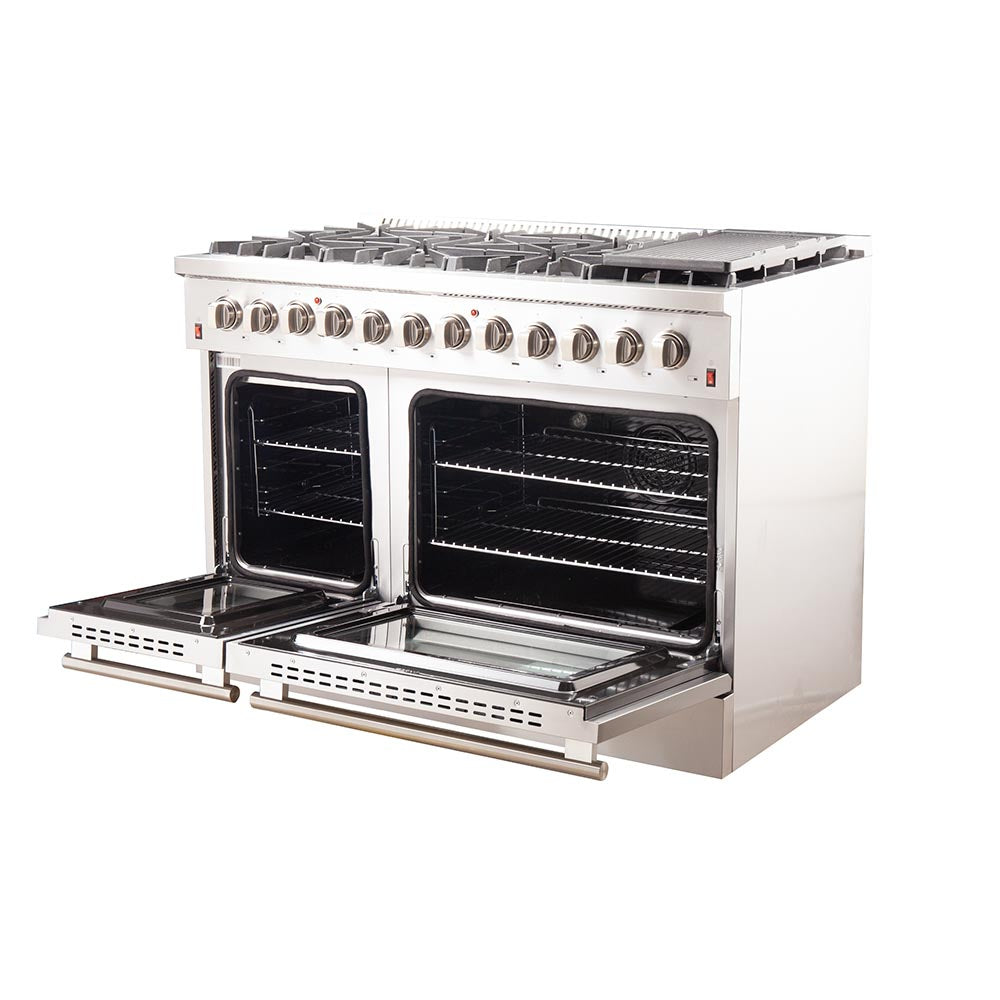

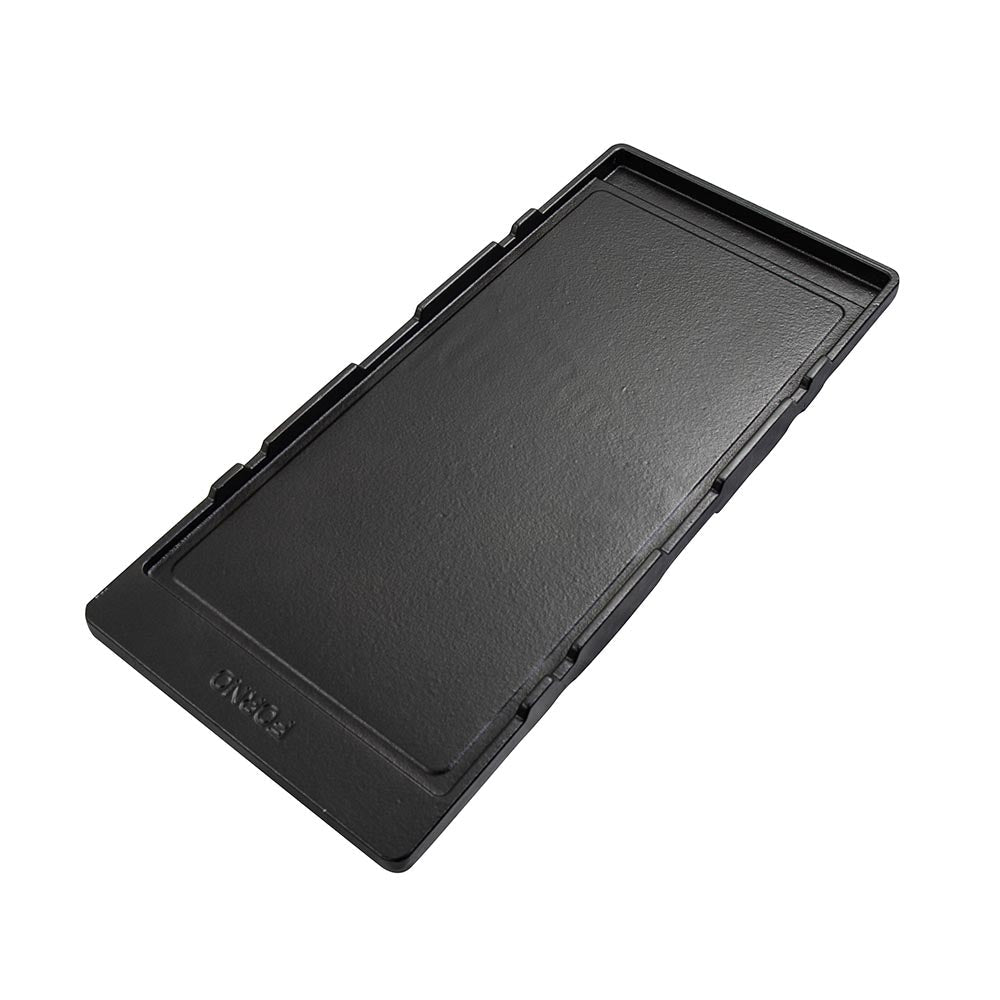

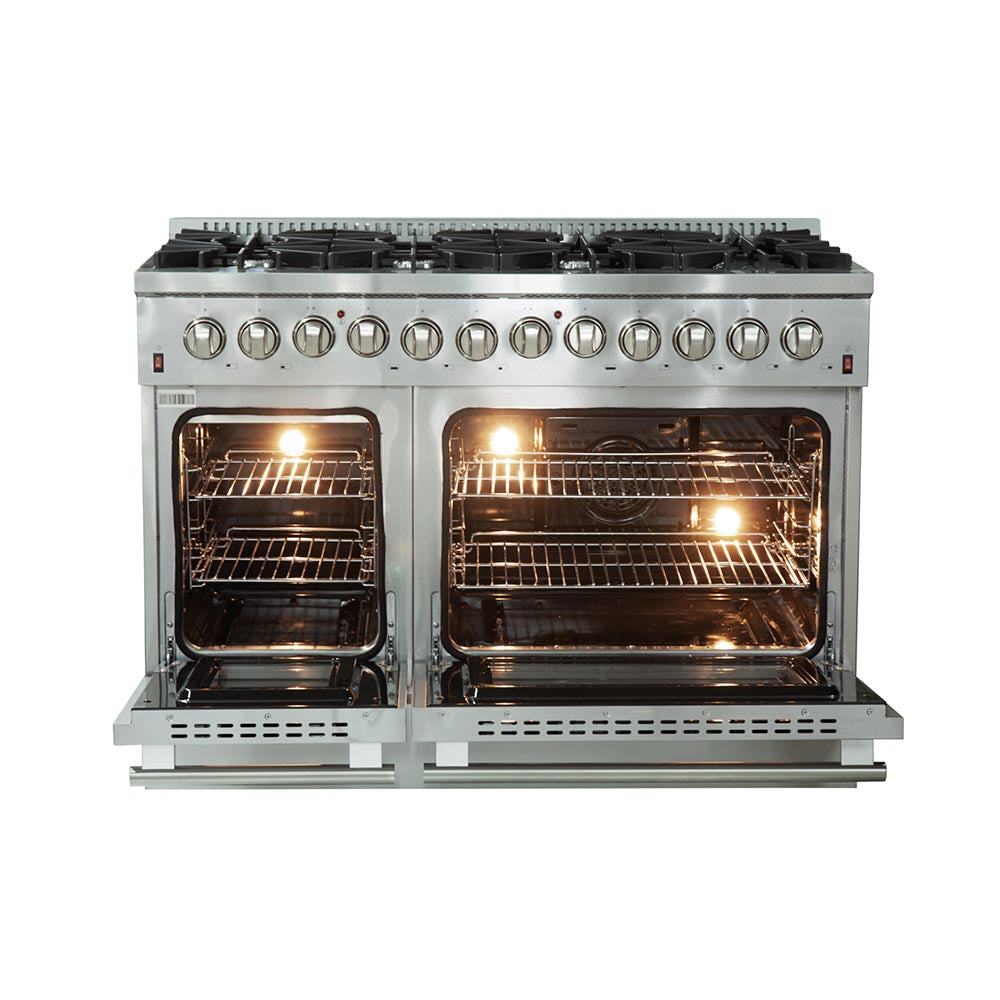

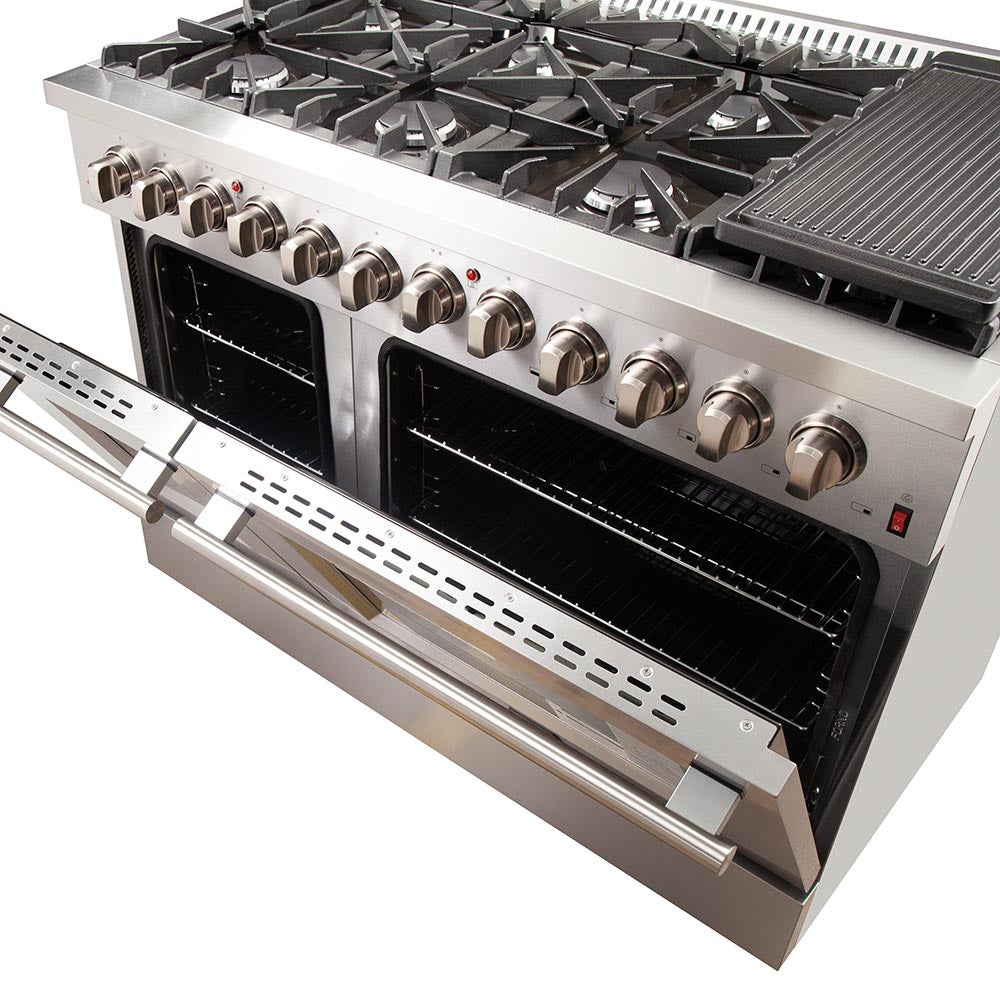

The 48” Galiano Dual Fuel Range brings professional styling and quality into your home kitchen with its durable stainless-steel design. Cooktop has 8 sealed burners with a total stove top output of 107,000 BTU. This unit is ready to handle all your pots and pans with ease over it’s continuous cast-iron grate design. The cumulative capacity 6.58 cu. ft. double ovens with a total output of 9,800 Watts are encased in a black enameled interiors. Right oven is fitted with a true convection fan. Thermostat and regulator ensures to achieve fast, precision and consistent oven cooking along for easy viewing are 3-layer glass oven door windows on both ovens, Included are 4 electroplated oven racks, reversible griddle, and LP conversion kit. Housed in a high-grade stainless steel body and zinc coated metal knobs and bezels, this unit sports a stylish look that is built to last. All Forno products are backed by an iron clad 2-year warranty for your satisfaction. Skip the high price tags without sacrificing quality and performance. Lower the cost of living with Forno.
| Weight and Dimensions |
|
|

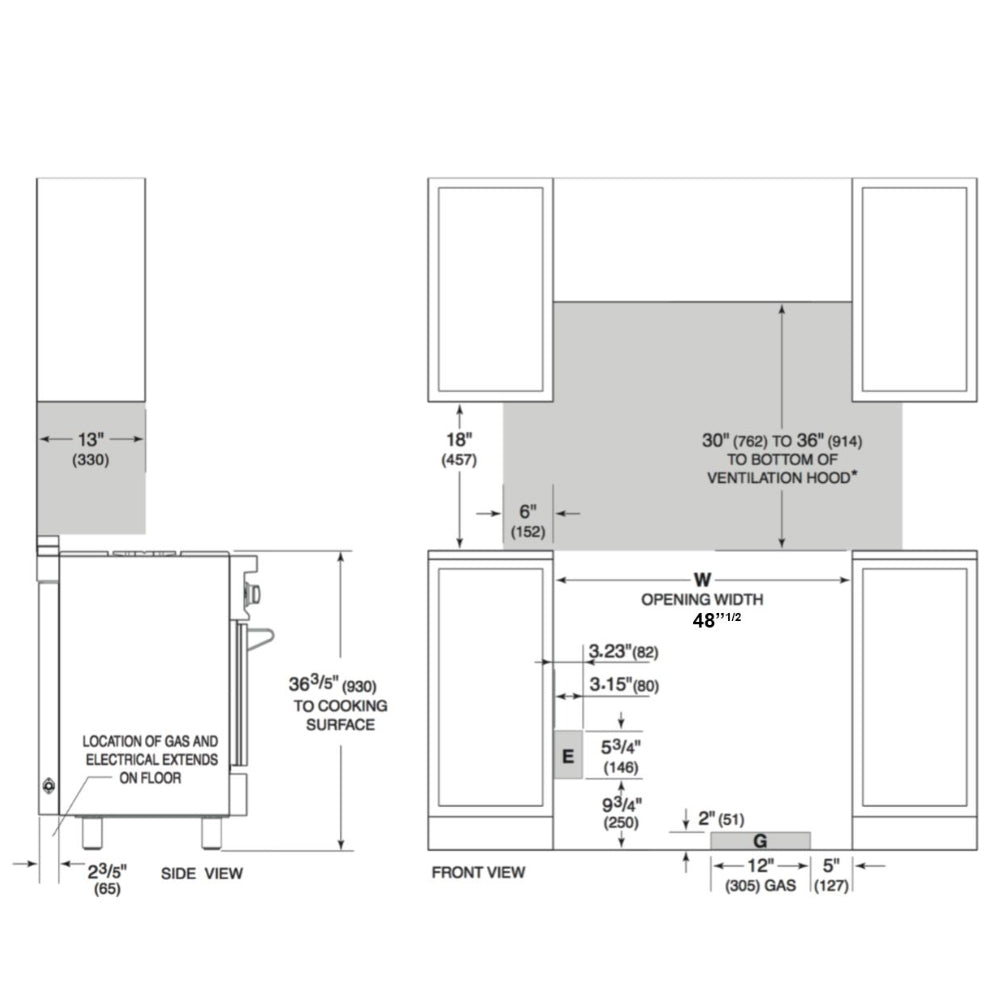

Overall Dimensions
|
48” W x 28” D x 38” H |
|
Oven Door Open 90º
|
|
|
Right Oven Interior Dimensions
|
24.92'' W x 18.7" D x16'' H |
|
Left Oven Interior Dimensions
|
13.03” W x 18.7” D x 16” H |
|
Overall Weight
|
388 lbs |
|
Depth with Oven Door Open 90º
|
44.25" |
|
Electrical |
|
|
Amperage
|
30 A |
|
Volts
|
240 V |
|
Wattage
|
9700 W |
|
Oven 1 inside Broil Wattage
|
1,000 W |
|
Oven 1 Outside Broil Wattage
|
1800 W |
|
Oven 1 Bake Wattage
|
2000 W |
|
Oven 1 True Convection Wattage
|
1500 W |
| Oven 2 Outside Broil Wattage | 1700 W |
| Oven 2 Bake Wattage | 1700 W |
|
Power Cord Length
|
5' |
|

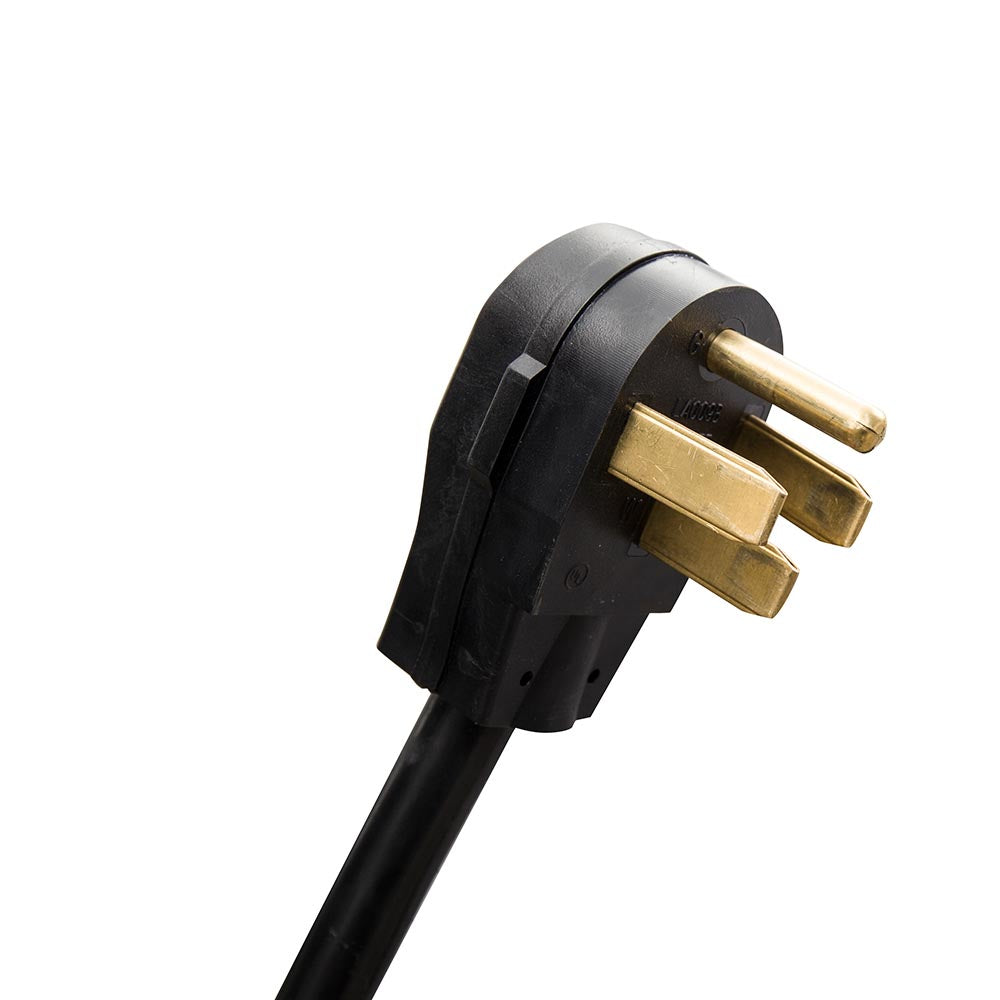

Receptacle Type
|
4-Prong Grounded |
|

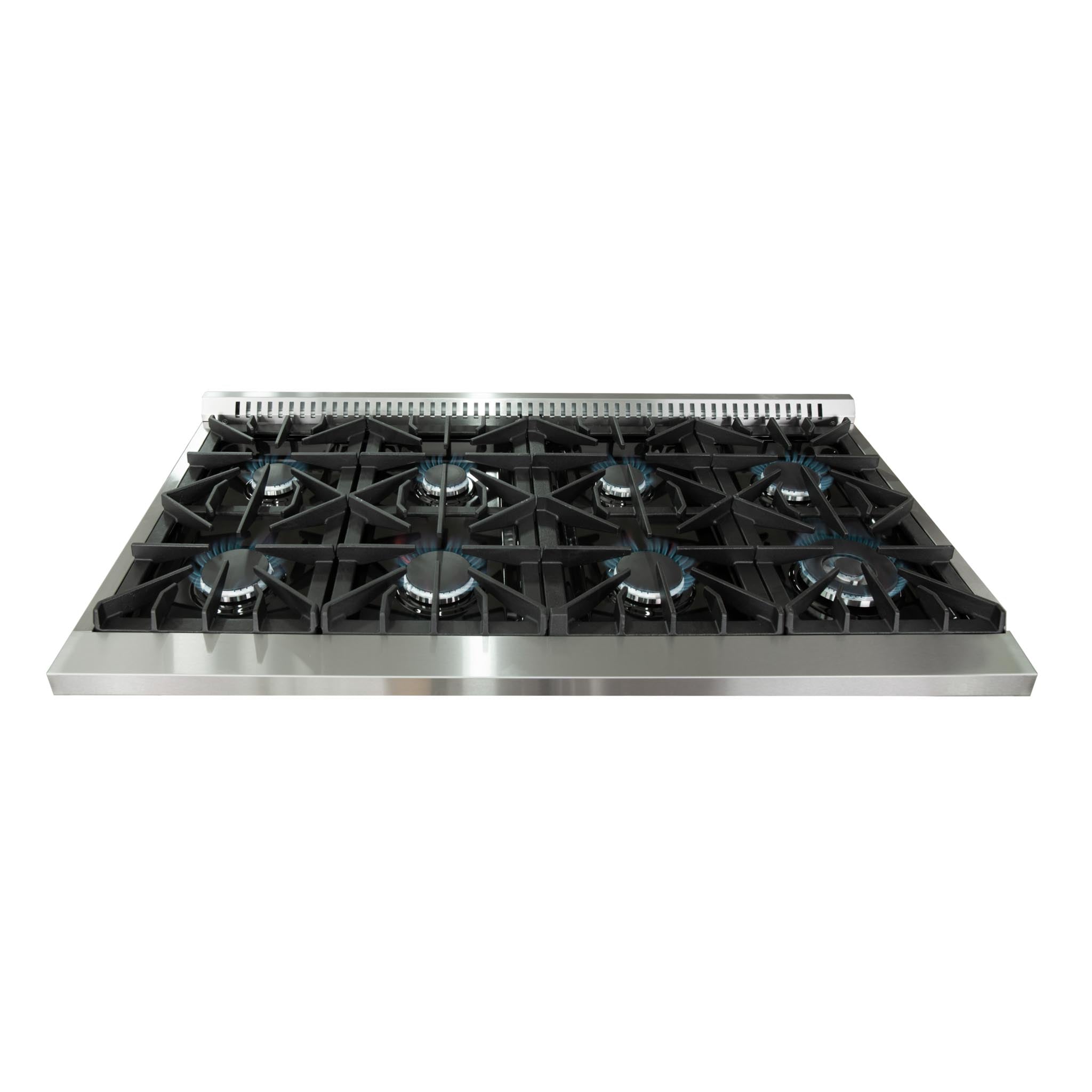

Cooktop |
|
| Overall Burners BTU | 107,000 |
| Front Right Burner BTU | 1000 to 20,000 |
| Front Right Center Burner BTU | 15,000 |
| Front Left Center BTU | 15,000 |
| Front Left Burner BTU | 15,000 |
| Rear Right Burner BTU | 15,000 |
| Rear Right Center Burner BTU | 9,000 |
| Rear Left Center Burner BTU | 9,000 |
| Rear Left Burner BTU | 9,000 |
| Number of Knob |
12 |
| Switches |
1 + 1 |
|
Oven |
|
| Overall Oven Capacity | 6.58 Cubic Feet |
|
Right Oven Capacity |
4.32 Cubic Feet |
| Left Oven Capacity | Left Oven Capacity |

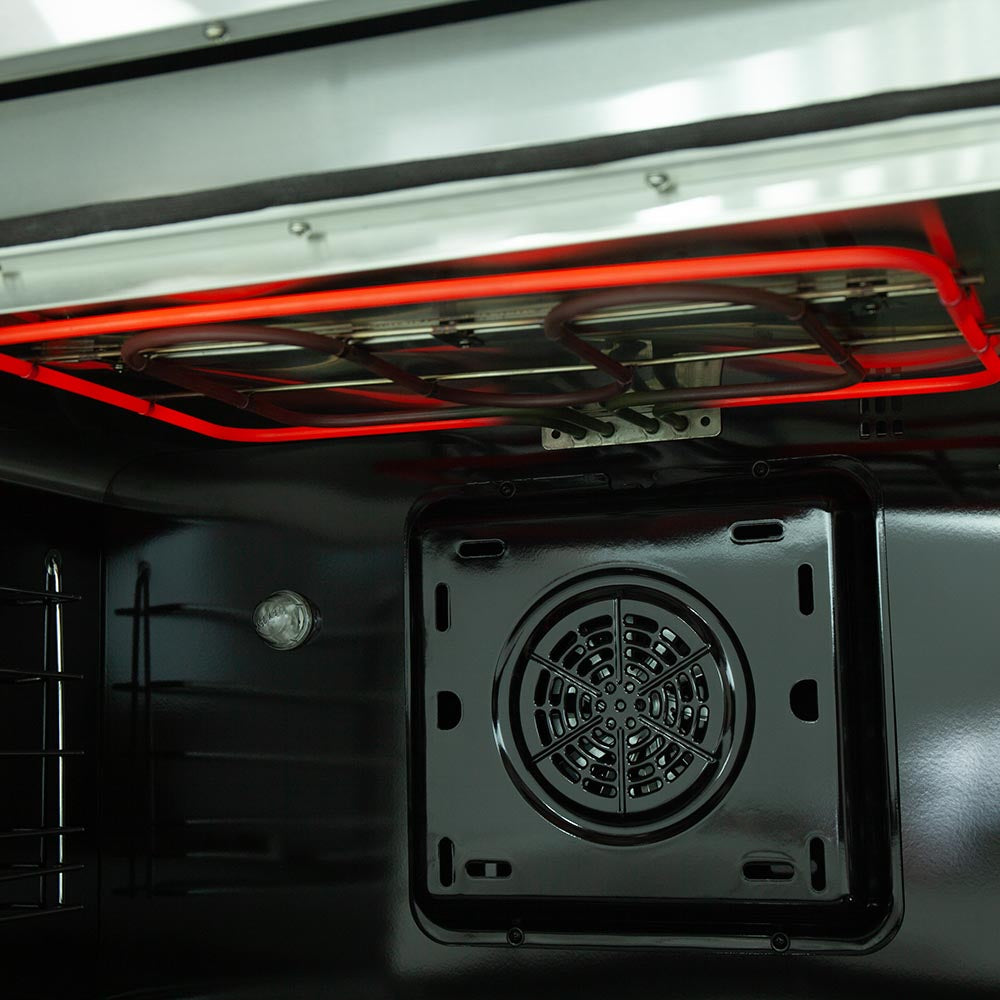

| Convection Fan | Yes |
|
Certifications |
|
| ETL Listed | Yes |
|
Details |
|
| Product Type | Freestanding |
| Color/Finish | Stainless Steel |
| Fuel Type | Gas & Electric |
| Gas Type | Natural Gas |
| Gas Heat Configuration | Sealed Burner |
| Number of Burners | 8 |

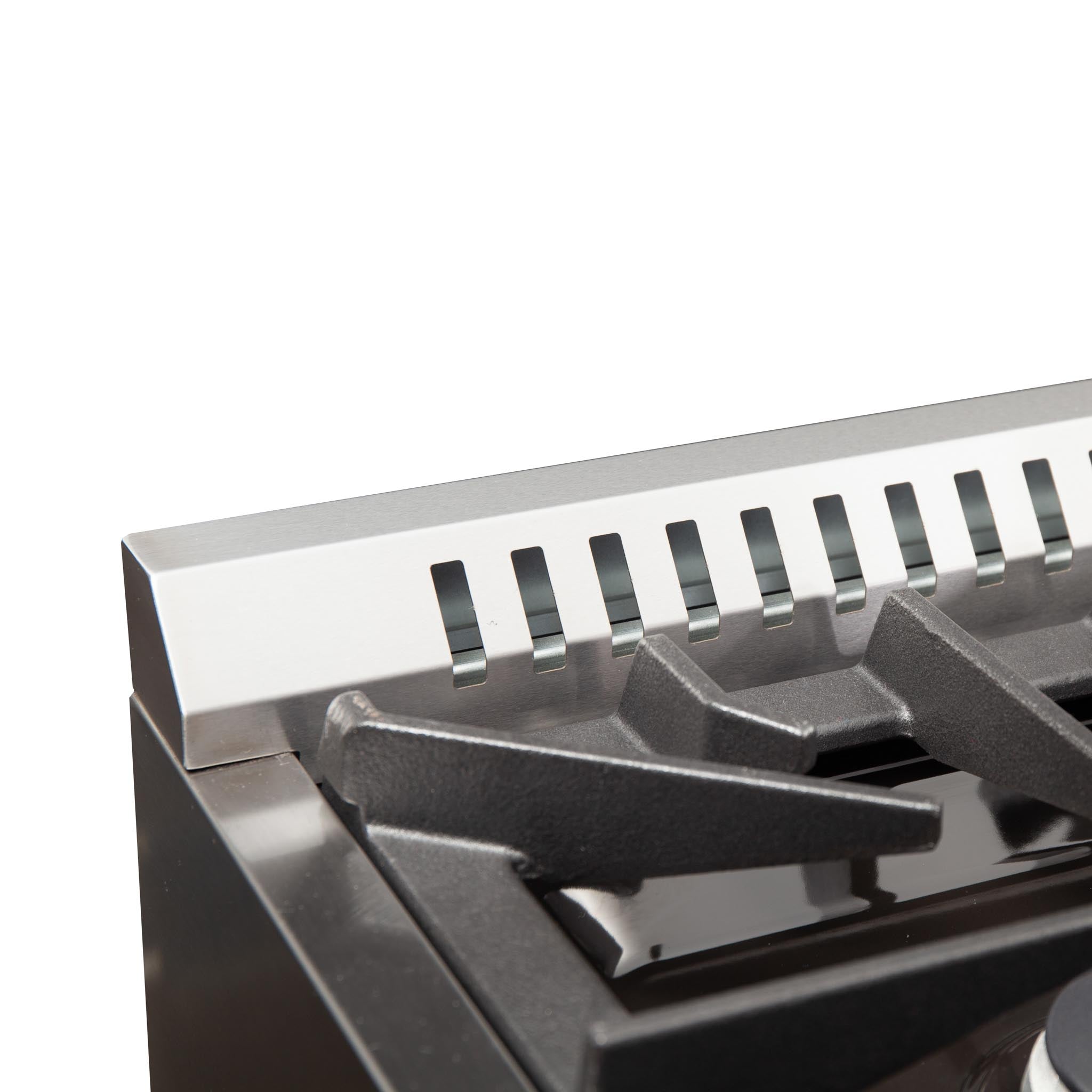

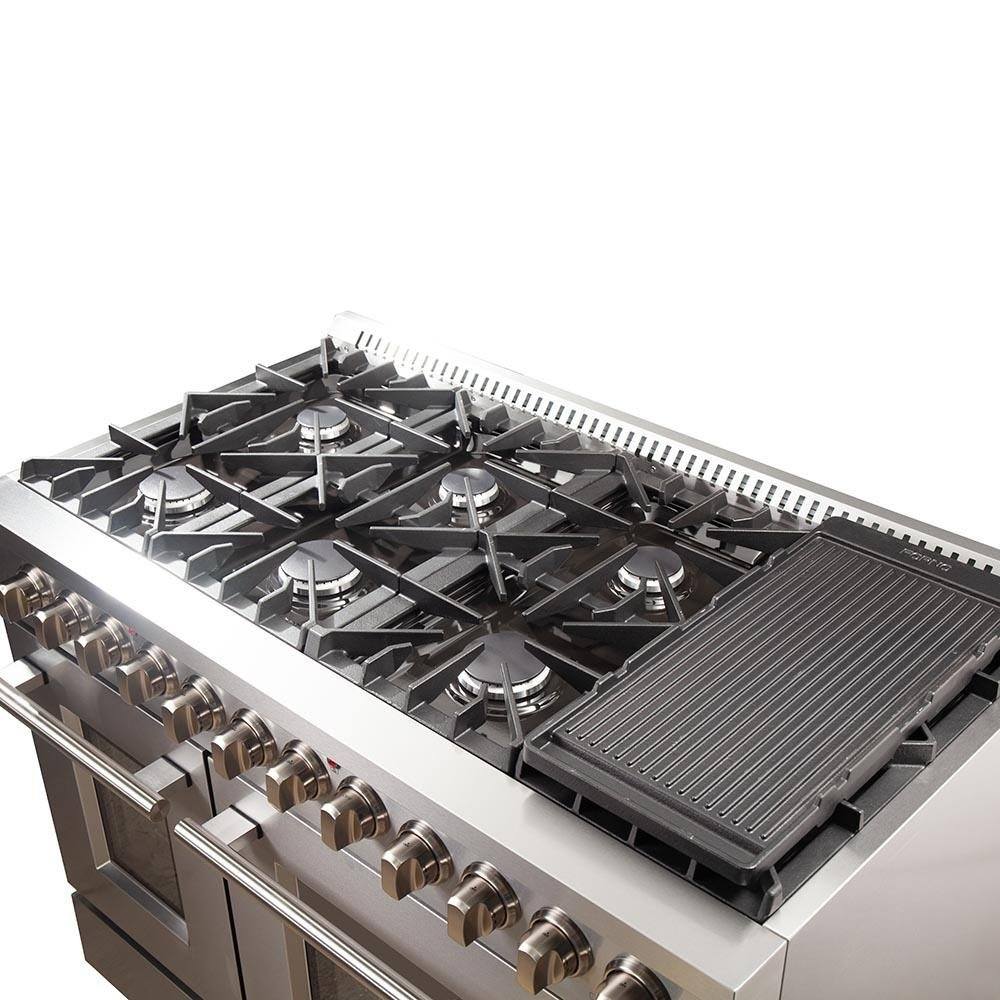

| Cooktop Surface | Continuous Cast Iron Grates |
| Cooktop Cavity |
Recessed Enamel |
| Number of Ovens | 2 |
| Number of Racks | 2 |
| Number of Rack Positions |
2 x 6 |
| Broiler | Electric |
| Bake Element | Electric |
| Cleaning Type | Manual |
| Cooking Process | True Convection |
| Interior Light | 2 |

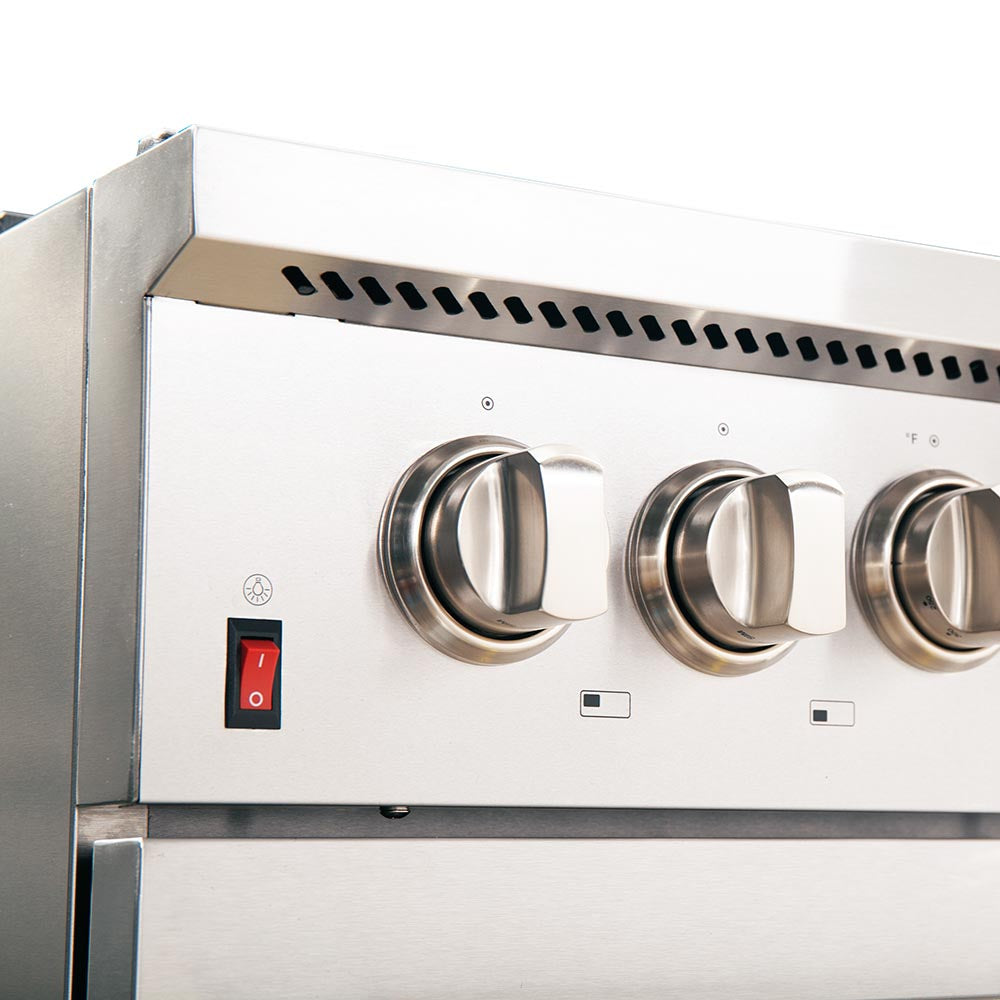

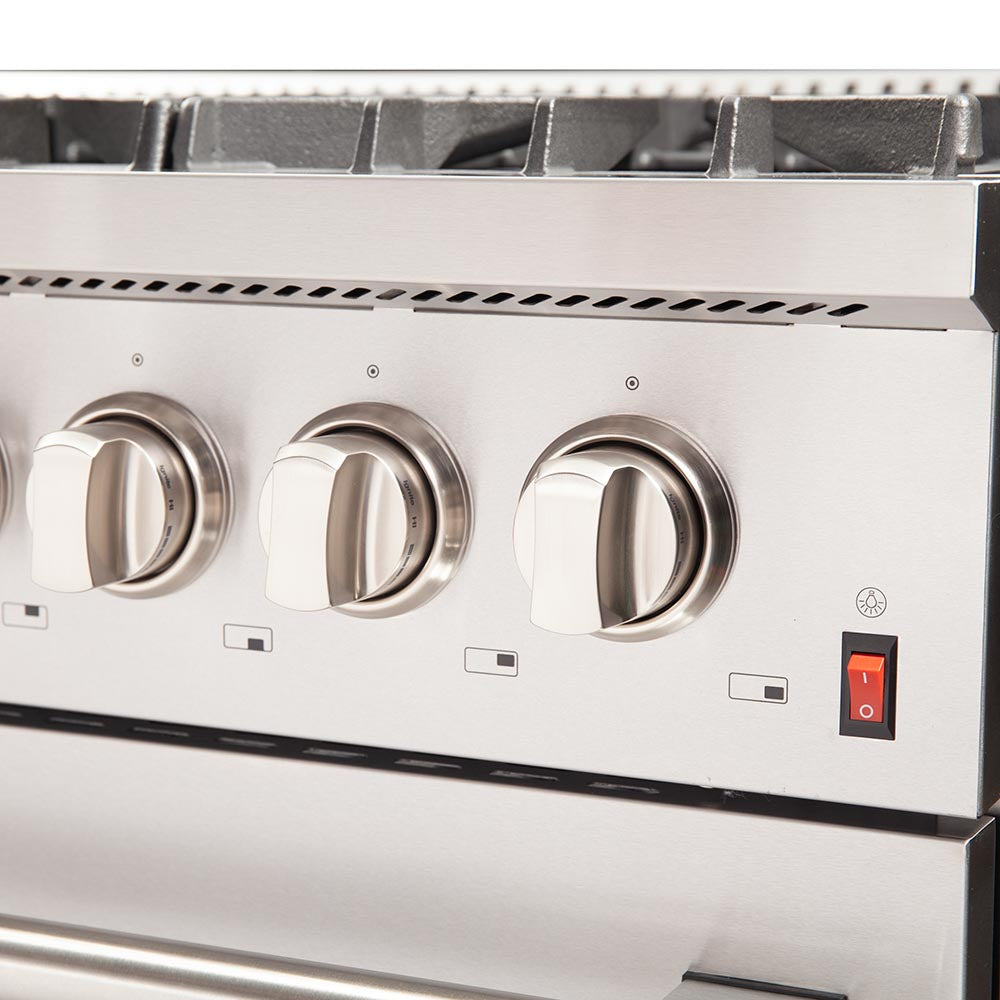

| Control Type | Knob |
| Control Location | Front |
| LP Gas Convertible | Yes |
| Black Enamel Oven Interior | Yes |
| LP Conversion Kit Included | |
| Temperature Gauge | No |
| Timer | No |
| Clock | No |
| Primary Material | Metal |
| Door Panel Material | Stainless Steel |
| Control Panel Material |
Stainless Steel |
| Kick Plate Material | Stainless Steel |
| Side Panel Material | Stainless Steel |
| Supplier Intended and Approved Use | Residential Use |
| Country of Origin | China |
| Warranty Type |
2 Years |
| Warranty Length |
2 Years |
| Warranty on Parts |
2 Years |
| Warranty on Labor |
2 Years |
