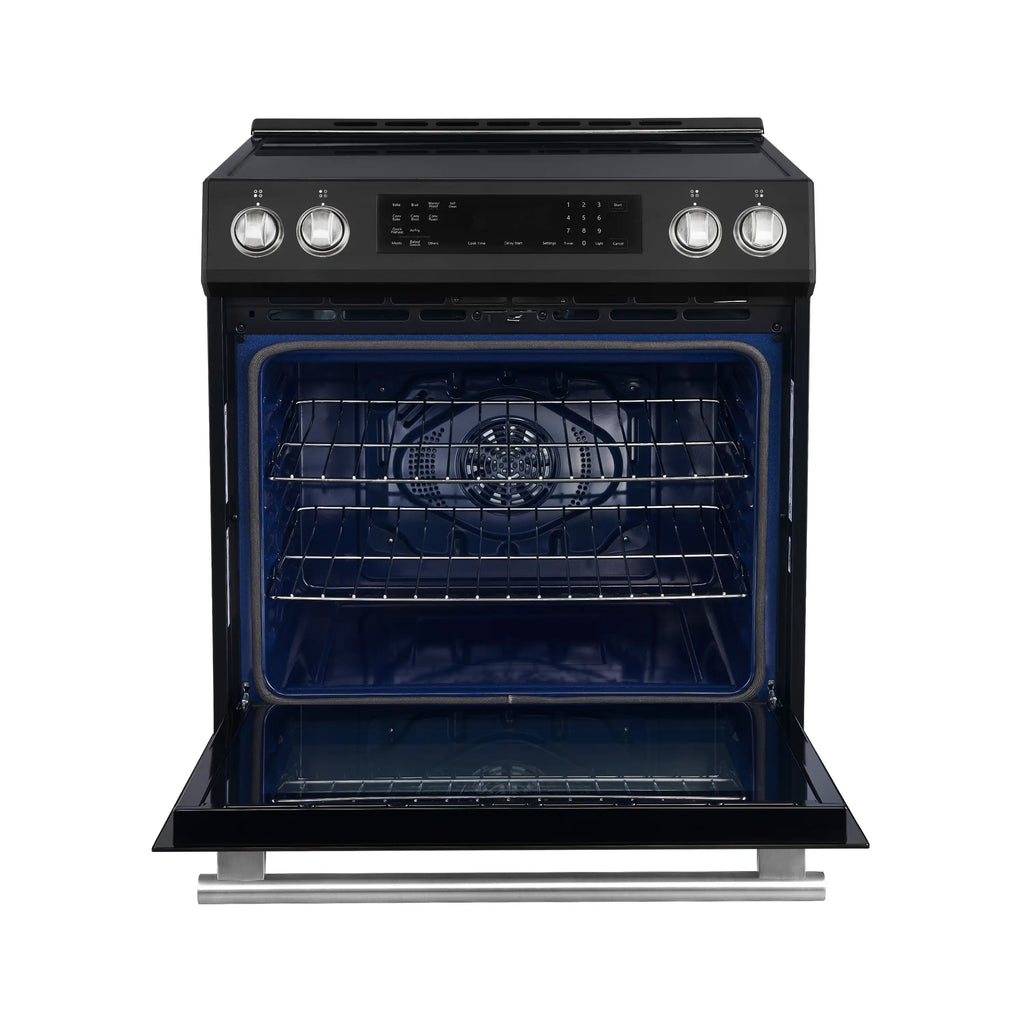

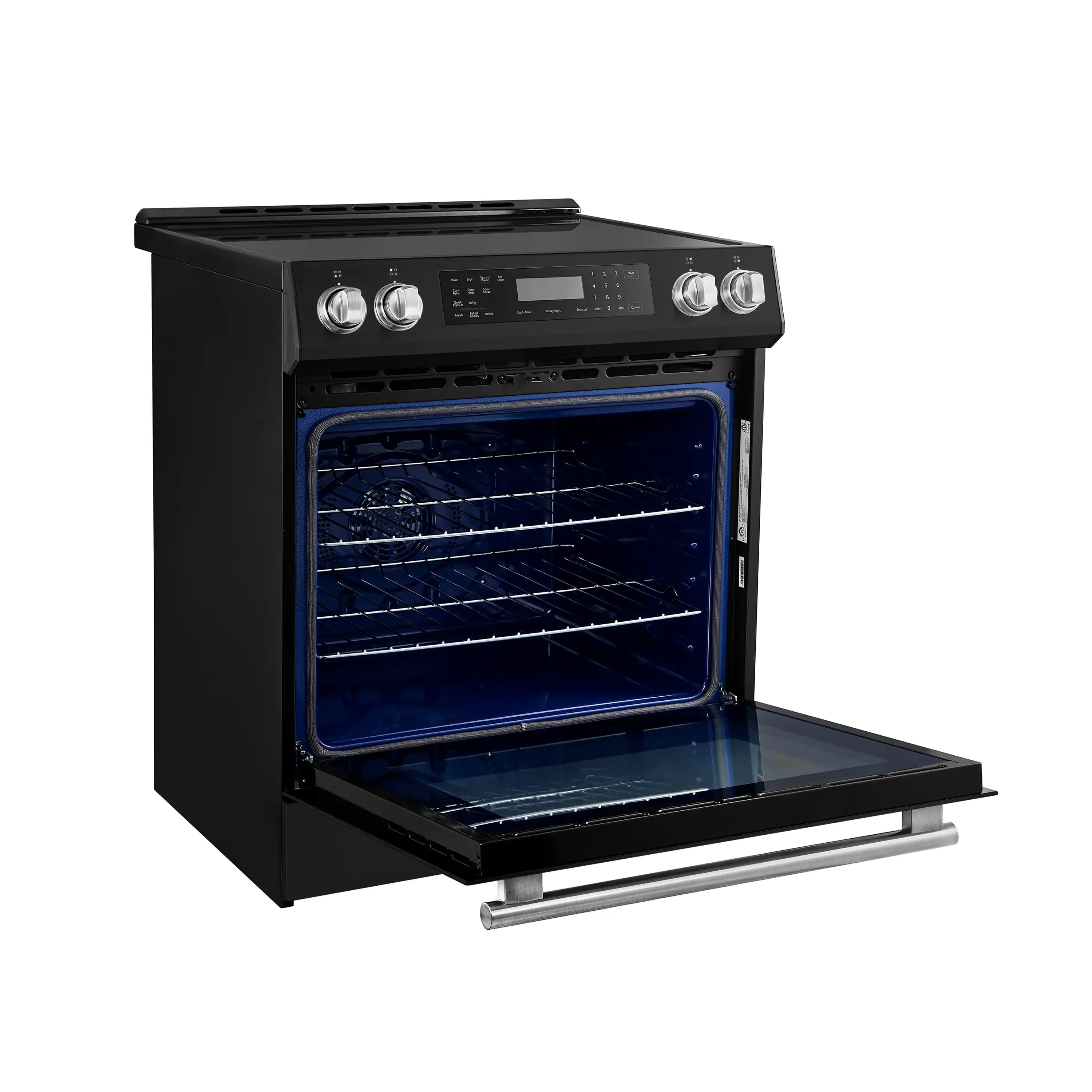

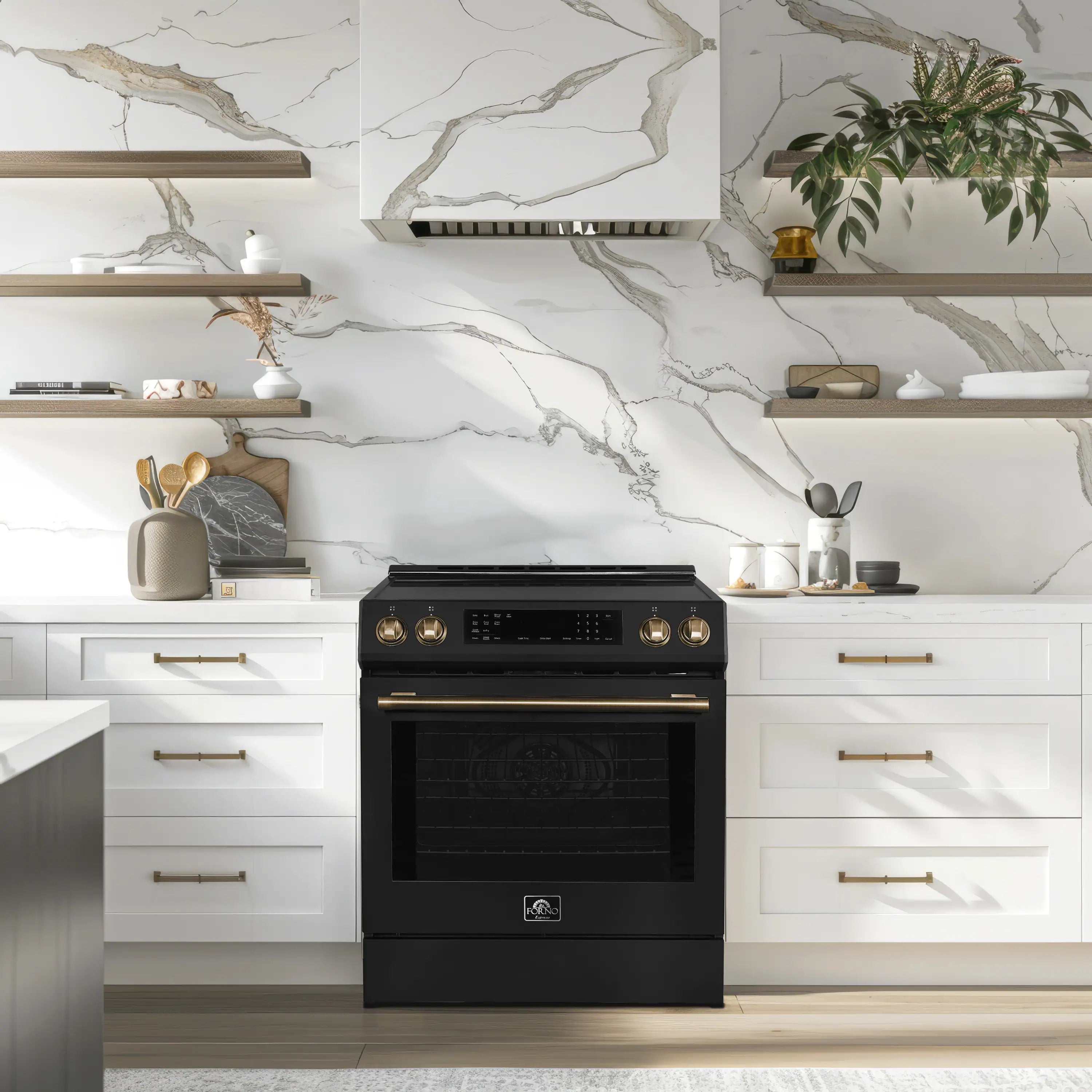

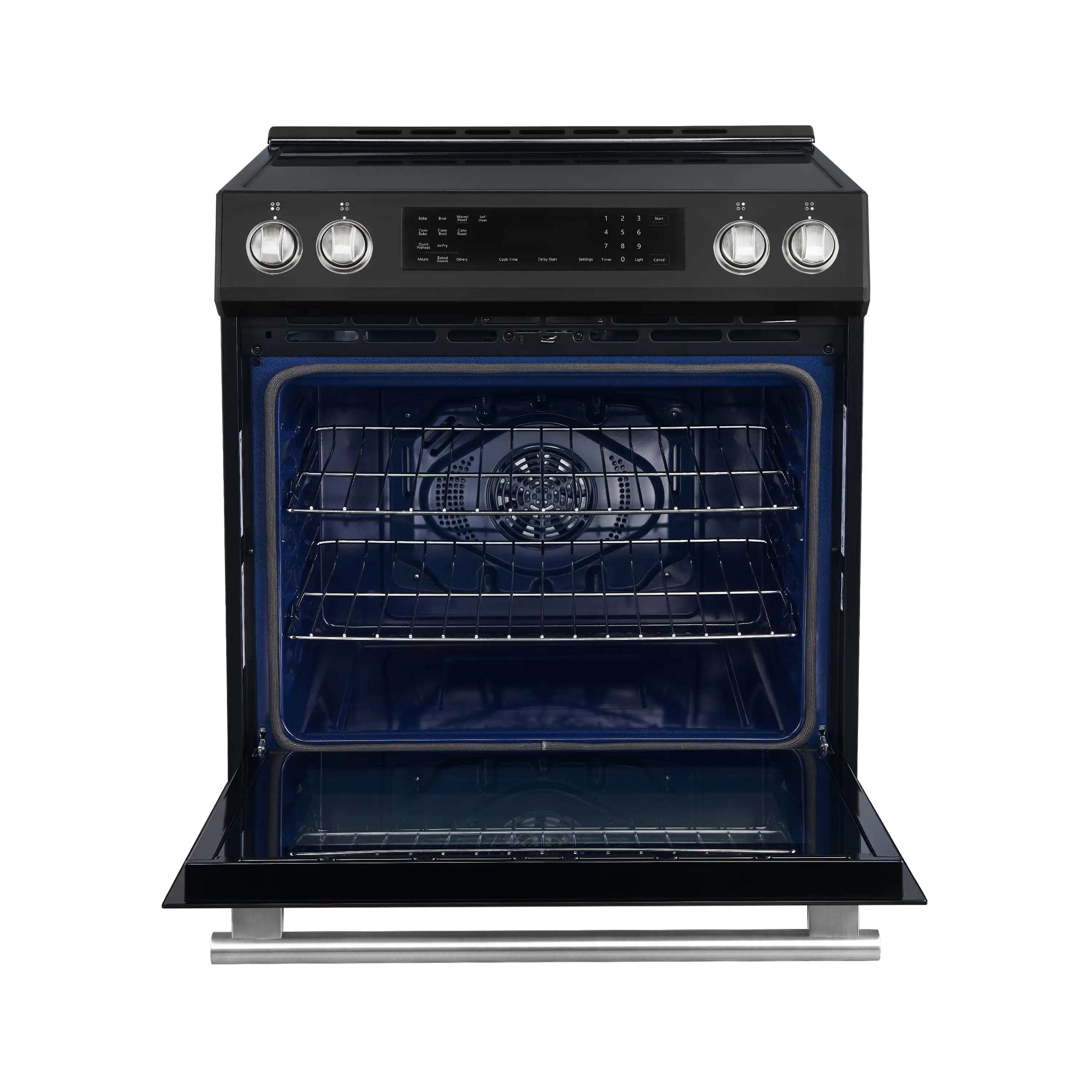

The Forno Donatello 30-inch black induction range harmonizes functionality with the precision of induction cooking. Customize your look effortlessly with two sets of interchangeable handles and knobs, switching between antique brass for a traditional touch or stainless steel for modern flair. The cooktop boasts four powerful induction elements totaling 8,100 watts, ensuring fast and precise cooking. The 5.0 cu.ft. speckled blue enamel oven features two racks with six adjustable levels, enabling versatile cooking for multiple dishes simultaneously. With Air Fry functionality, achieve crispy and delicious results effortlessly for healthier cooking options. This range caters to all cooking needs with its powerful cooktop and versatile oven, delivering quality and performance without the high price tags. Lower your cost of living with Forno.
Please Note: This appliance includes both brass and stainless steel handles. Some assembly is required to install your desired finish.
| DIMENSIONS | |
|---|---|
| Cutout Dimensions W x D x H (inches) | 30''W x 25''D x 36''H |
| Depth with Oven Door Open 90º (IN) | 46.25" |
| Depth without Oven Door Handle (IN) | 26.25" |
| Overall Weight (LBS) | 166.45 lbs |
| Power Cord Length Without Plug (FT) | 5.55 ft |
| Power Cord Length With Plug (FT) | 5.87 ft |
| Main Oven Interior (W x D x H) (IN) | 24.6"W x 19"D x 18.5"H |
| Usable Main Oven Interior Dimensions W x D x H (inches) | 24"W x 15.75"D x 16"H |
| Air Fry Basket Dimensions W x D x H (inches) | 16.14"W x 13.98"D x 1.34"H |
| GENERAL INFORMATION | |
| Product Type | Slide-In |
| Metal | Metal |
| Supplier Intended and Approved Use | Residential Use |
| ISTA 6A | Yes |
| DESIGN & FINISH | |
| Color | Black |
| Finish | Black |
| Overall WxDxH (IN) Biggest Dims Possible (with Handle, Backsplash, etc) | 29.92"W x 27.56"D x 37.13"H |
| Color/Finish | Black |
| Handle Finish | Antique Brass |
| Clock | Yes |
| Interior Light | Yes |
| Number Of Lights | 2 |
| Control Type | 4 |
| Number of Knobs | 4 |
| Knobs Color/Finish | Antique Brass |
| Control Location | Front |
| Control Lock | Yes |
| Primary Material | Steel |
| Control Panel Material | Steel |
| Kick Plate Material | Steel |

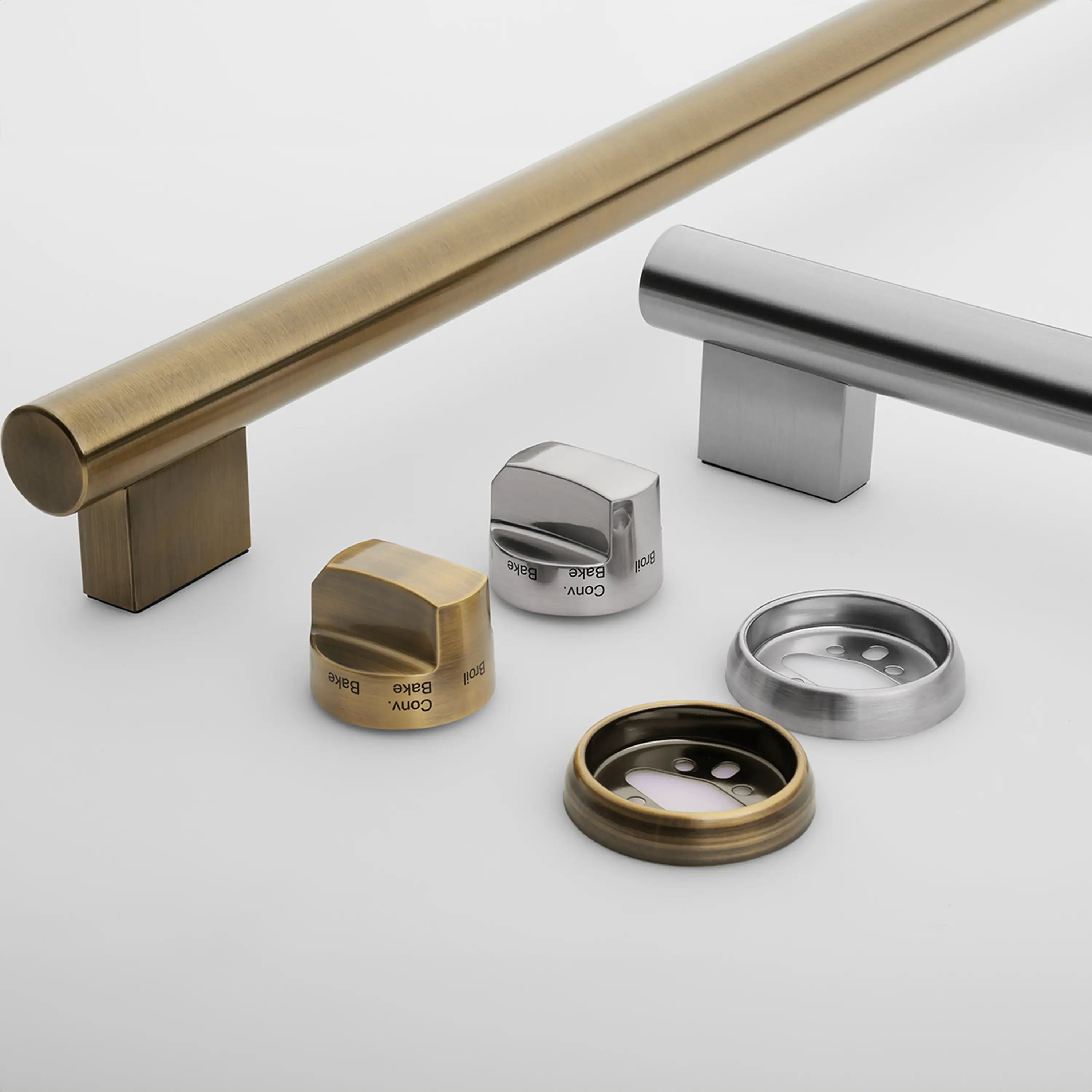

| Antique Brass Kit (Handle+Knobs+Knob Rings) | Yes |
| TECHNICAL DETAILS | |
| Dedicated Circuit Breaker Amperage | 50 Amp |
| Total Amps Use | 49.58 Amp |
| Volts | 240 V |
| Stand By Power (AMP) | 1.94 AMP |
| Rated Power (W) | 11,900 Watts |
| Power Cord Included | Yes |
| Plug Type | NEMA 14-50P |
| Fuel Type | Electric |
| Plug-In | Yes |
| Power Cord | Yes |
| COOKTOP FEATURES | |
| Cooktop Max Power (W) | 7,200 Watts |
| Burner Fuel | Electric |
| Electric Heat Configuration (Cooktop) | Induction |
| Total cooktop Wattage output | 8,100 Watts |
| Number of Burners | 4 |
| Double Ring Burner | No |
| Warmer Burner | No |
| Bridge Element/Flex Zone | No |
| Cooktop Surface Color | Black |
| Cooktop Surface Materiel | Ceramic Glass |
| Cooktop Surface Structure | Smoothtop |
| Cooking Surface Control Type | Knobs |
| Broiler Element Type | Single Element |
| Overall Broiler Element Wattage | 3,600 Watts |
| Bake Element | Yes |
| Overall Bake Element Wattage | 2,200 Watts |
| Hidden Bake Element | Hidden |
| Cooktop Hot Surface Indicator | Yes |
| Griddle | No |
| Front Right Burner Watts | 1,500 Watts |
| Front Right Burner Size (IN) | 7 |
| Front Left Burner Watts | 2,100 Watts |
| Front Left Burner Size (IN) | 9 |
| Rear Right Burner Watts | 3,000 Watts |
| Rear Right Burner Size (IN) | 9 |
| Rear Left Burner Watts | 1,500 Watts |
| Rear Left Burner Size (IN) | 7 |
| OVEN FEATURES | |
| Oven Max Power | 4,700 Watts |
| Oven Fuel | Electric |
| Number of Ovens | 1 |
| Oven Interior Finish | Speckled Blue |
| Telescopic Racks | No |

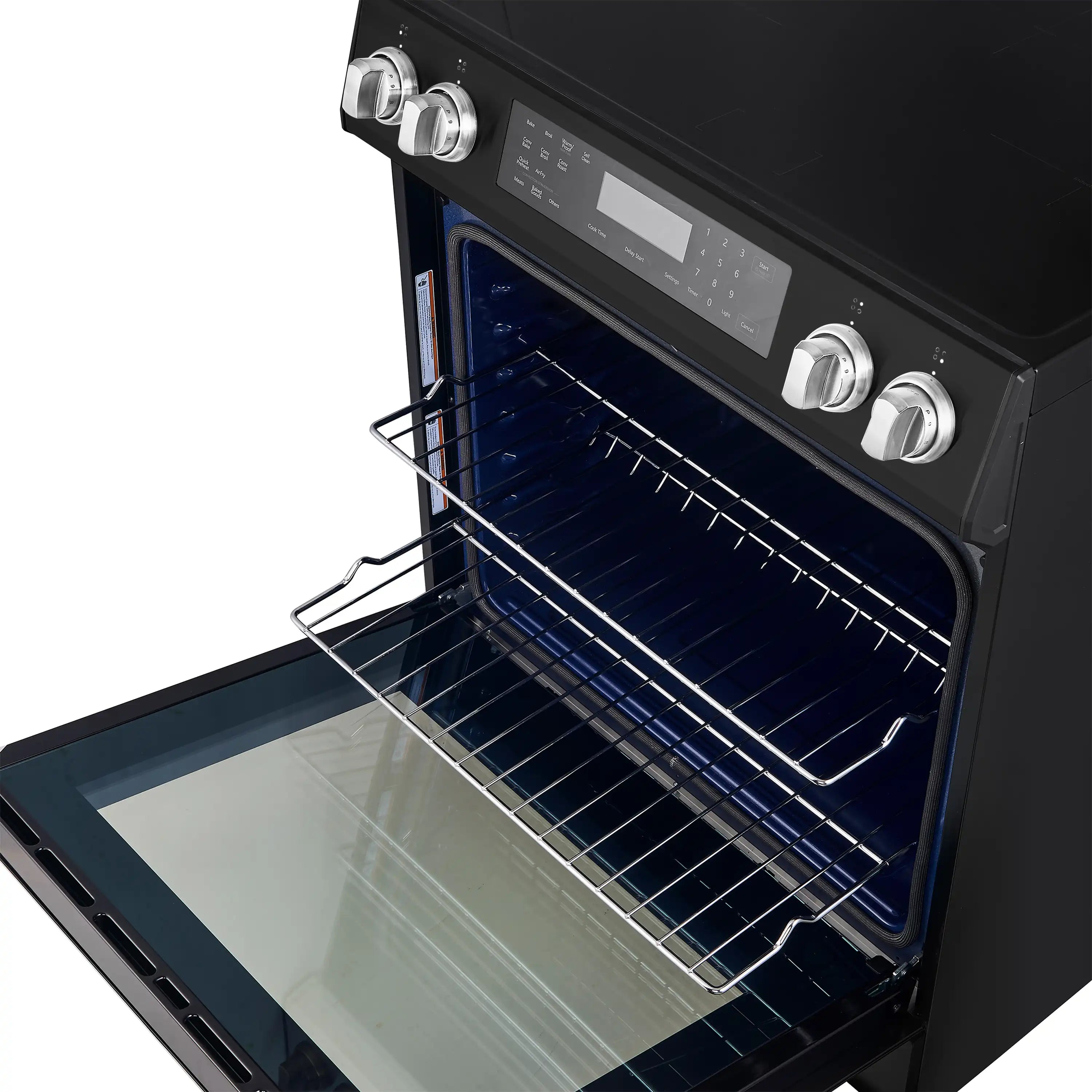

| Oven Racks Type | Standard |
| Number of Racks | 2 |
| Racks Material | Chrome-Plated |
| Number of Rack Positions | 6 |
| Broiler | Yes |
| Broiler Location | Oven |
| Convection Oven | Yes |
| Convection Type | True Convection |
| Automatic Convection Conversion | Yes |
| Cook time Option | Yes |
| Delay Start | Yes |
| Temperature Gauge | No |
| Timer | Yes |
| Sabbath Mode | Yes |
| Cleaning type |
|
| Oven Preheating Indicator | Yes |
| Door Lock Option | Yes |
| Storage Drawer | No |
| Door Panel Material | Steel |
| Air Fryer Kit (Basket + Support & Drip Pan) | Yes |
| Rotisserie Kit | No |
| Main Oven Capacity (cubic feet) | 5 cu.ft. |
| Main Oven Function |
|
| Main Oven Rack Size | 24"W x 15.75"D |
| Main Oven Total Broil Wattage | 3,600 Watts |
| Main Oven Bake Wattage | 2,200 Watts |
| Main Convection Fan | Yes |
| Main Oven Convection Fan Wattage | 50 Watts |
| Main Oven True Convection Wattage | 2,500 Watts |
| WARRANTY & CERTIFICATIONS | |
| Safety Listing | cETLus |
| File/Certification Number | 3100243 |
| ADA Compliant | No |
| Star-K Certified | Not Certified |
| Commercial Warranty | No |
| Warranty Type | Limited |
| Warranty Length | 2 Years |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |

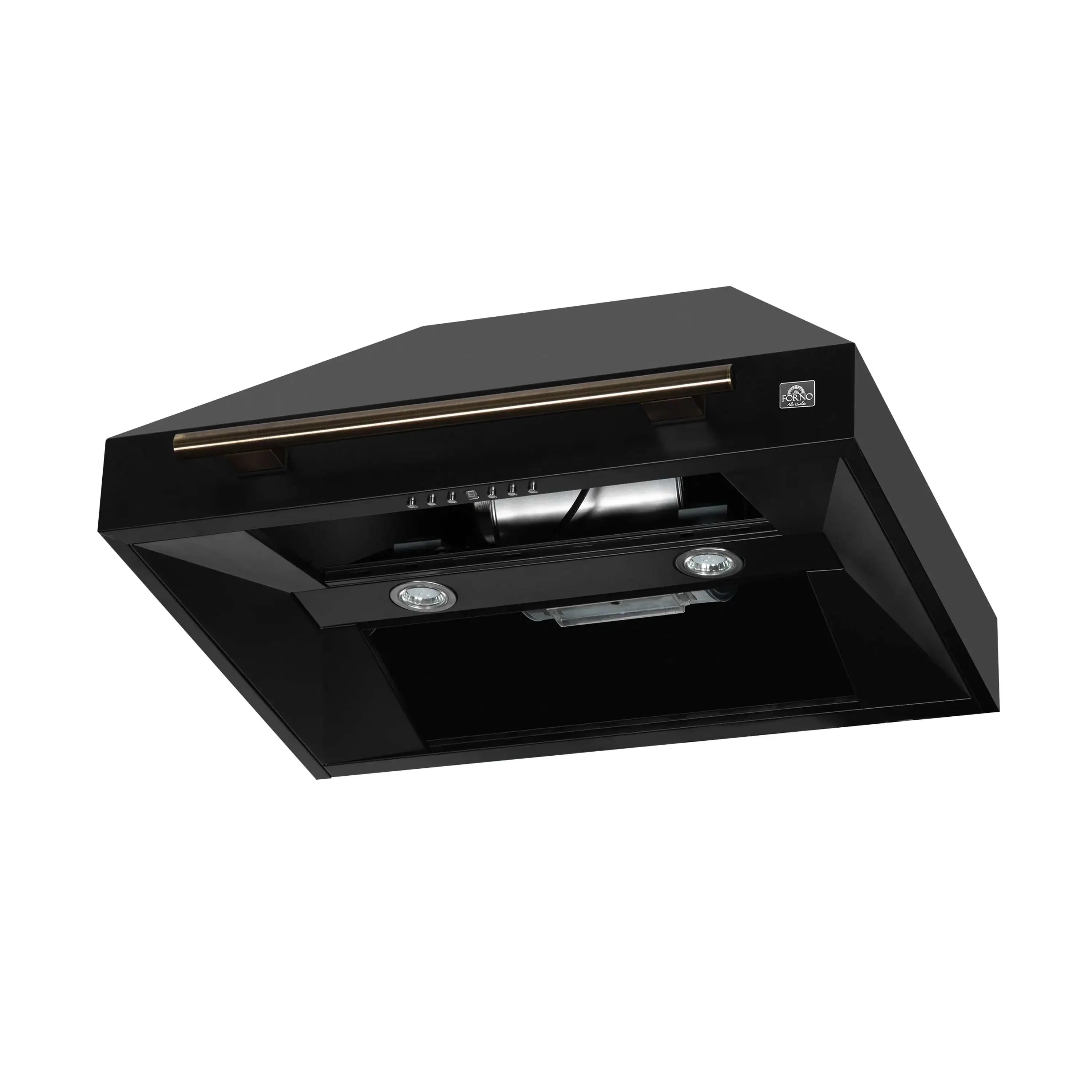

This 30 Inch Wall-Mounted Range Hood in black is designed for high-performance kitchen ventilation. With a powerful 600 CFM motor and 4-speed fan control, it removes smoke, grease, and cooking odors. Designed for ducted installation, the vertical upward air discharge ensures efficient airflow, while features like automatic shut-off, a built-in timer, and removable charcoal filters make it convenient to use and maintain. The included chimney extension kit and decorative crown molding allow for a custom, built-in look. Quiet operation at just 65 dB with built-in lighting for better visibility while cooking.
| DIMENSIONS | |
|---|---|
| Product Dimensions W x D x H (inches) | 29.5 x 23.6 x 44.5 |
| Cutout dimensions W x D x H (inch) | 30 x 11.6 x 44.5 |
| Minimum Height from Cooktop | 30 |
| GENERAL INFORMATION | |
| Bulb Type | LED GU10 |
| Exhaust Vent Location | Roof / Wall |
| DESIGN & FINISH | |
| Color/Finish | Black |
| Control Location | Under |
| Primary Material | Stainless Steel |
| Remote Control | No |
| Speed Control Type | Push Button Control |
| Filter Material | Stainless Steel |
| TECHNICAL DETAILS | |
| Decibel Speed 3 (dB) | 58 |
| Decibel Speed 1 (dB) | 44 |
| Motor(s) Power (Watts) | 60 |
| Minimum Decibel (dB) | 44 |
| Sones Speed 4 | 13 |
| Sones Speed 2 | 5 |
| Minimum Sones | 2 |
| RPM Speed 4 | 1510 |
| RPM Speed 2 | 1050 |
| Air Flow Speed 4 | 1020 |
| Air Flow Speed 2 | 637 |
| CFM speed 4 | 600 |
| CFM speed 2 | 375 |
| Minimum CFM | 275 |
| Power off Function | Yes |
| Duct Type | 6-in Round |
| Damper | Yes |
| Blower Material | Metal |

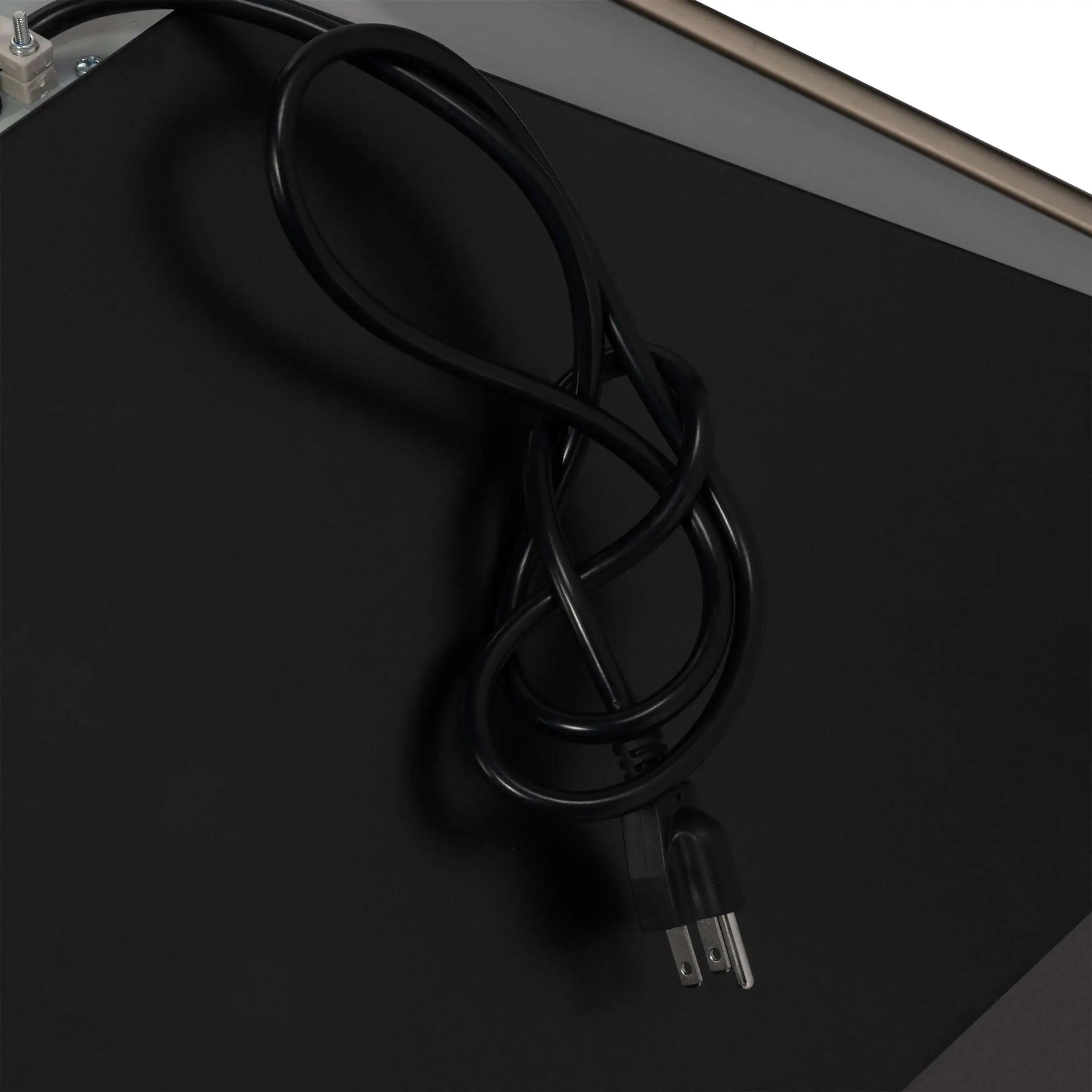

| Power Cord Location | Top |
| Decibel Speed 4 (dB) | 65 |
| Decibel Speed 2 (dB) | 51 |
| Bulb Wattage | 2 < |
| FEATURES | |
| Range Hood Shape | Pyramid |
| Number of Lights | 2 |
| Chimney Short Kit | Yes |
| Rangehood Chimney | Yes |
| Backsplash Included | No |
| Air Discharge Direction | Vertically Upward |

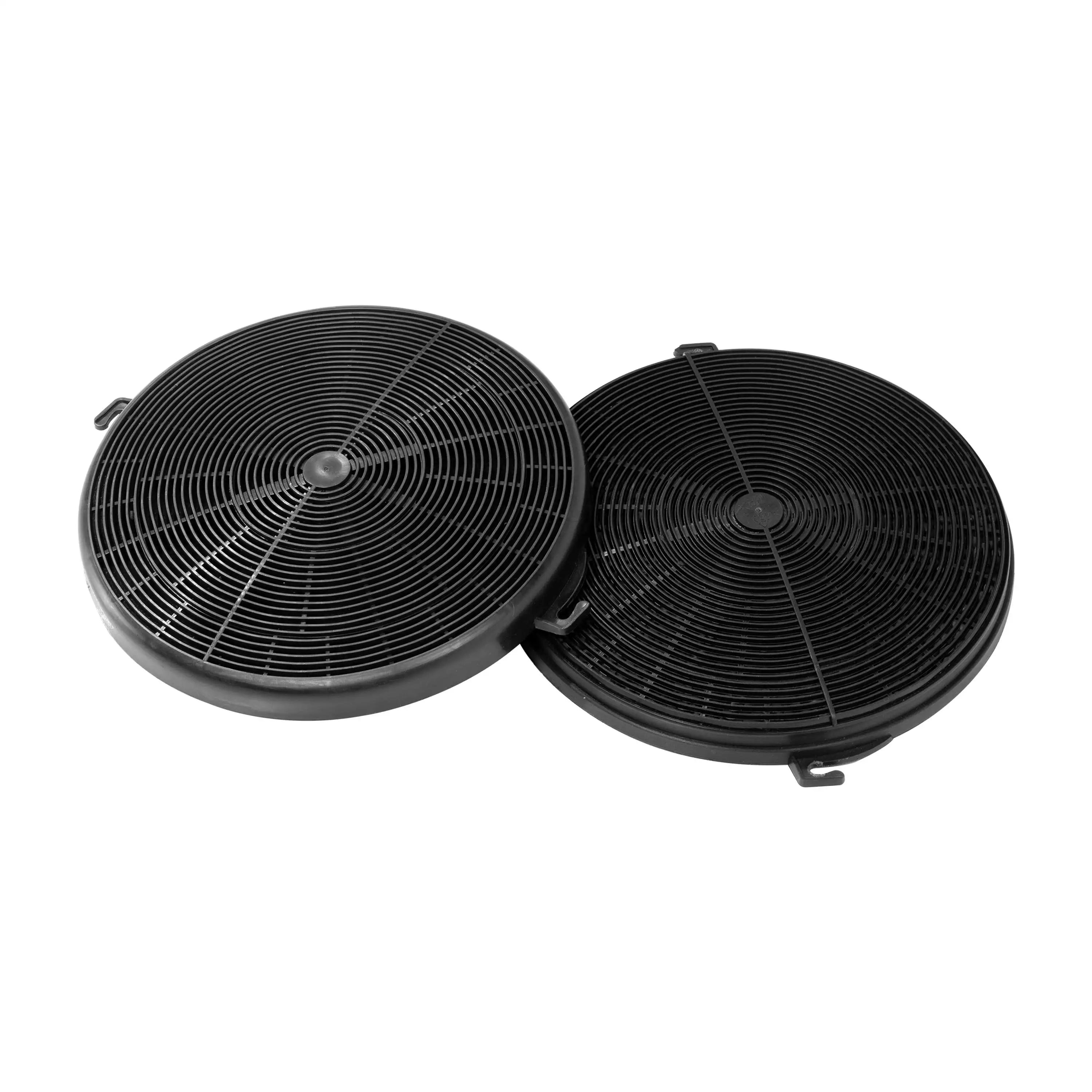

| Charcoal Filters | Yes |
| Fingerprint-Resistant | No |
| Dishwasher Safe Filters | Yes |
| Clock | No |

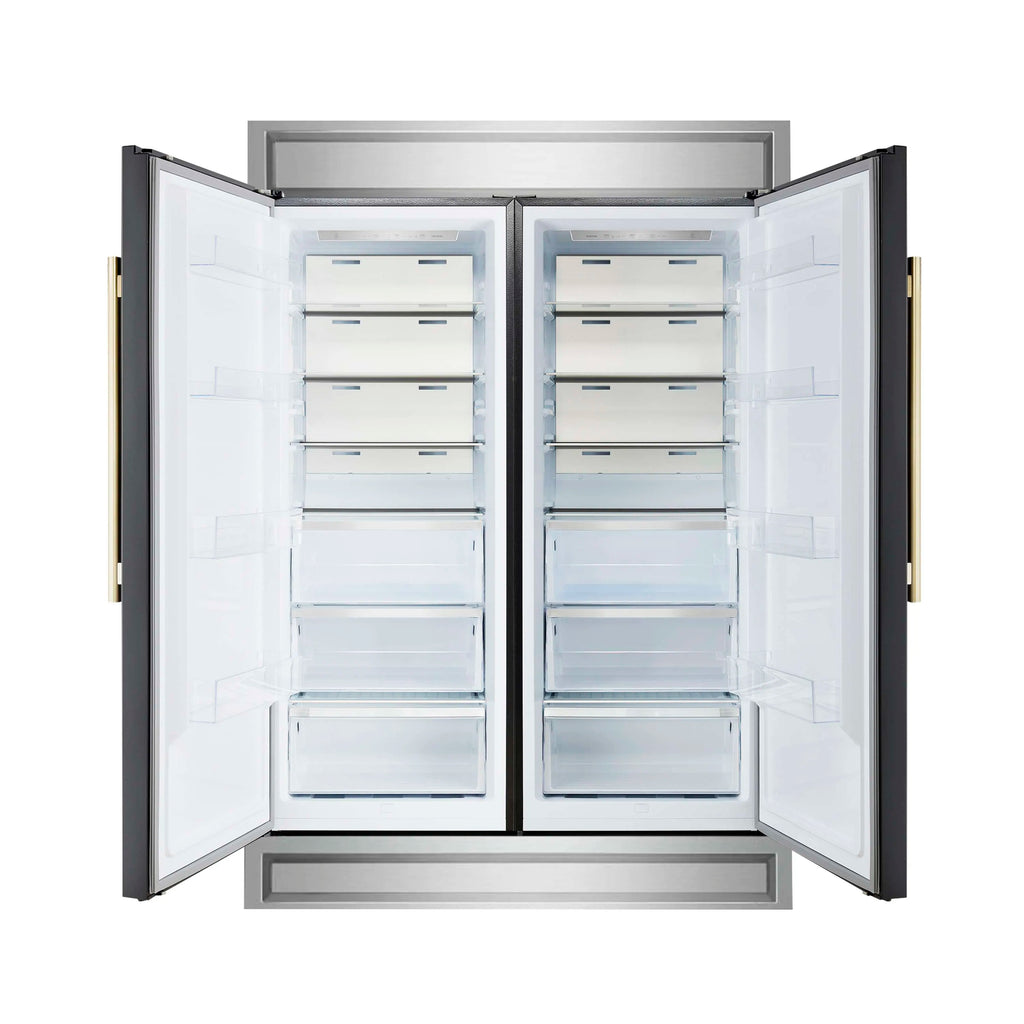

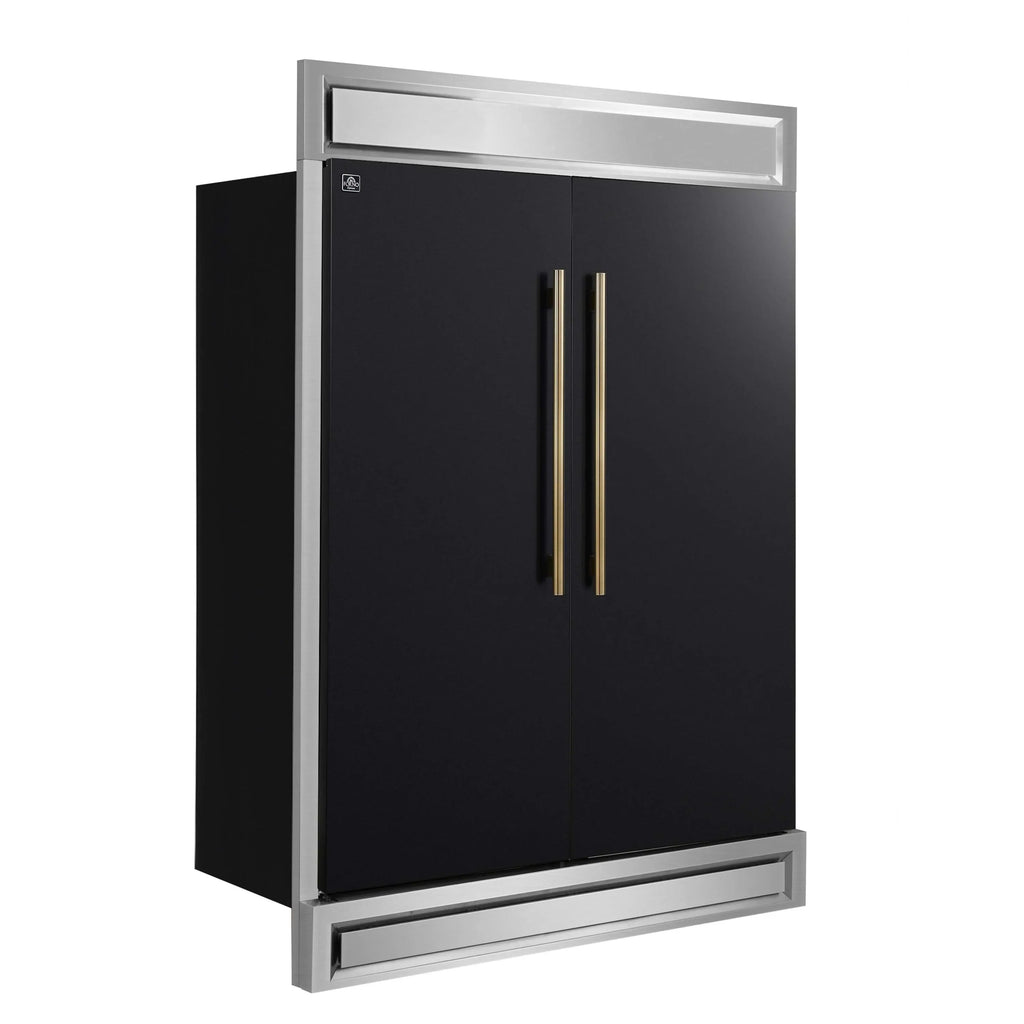

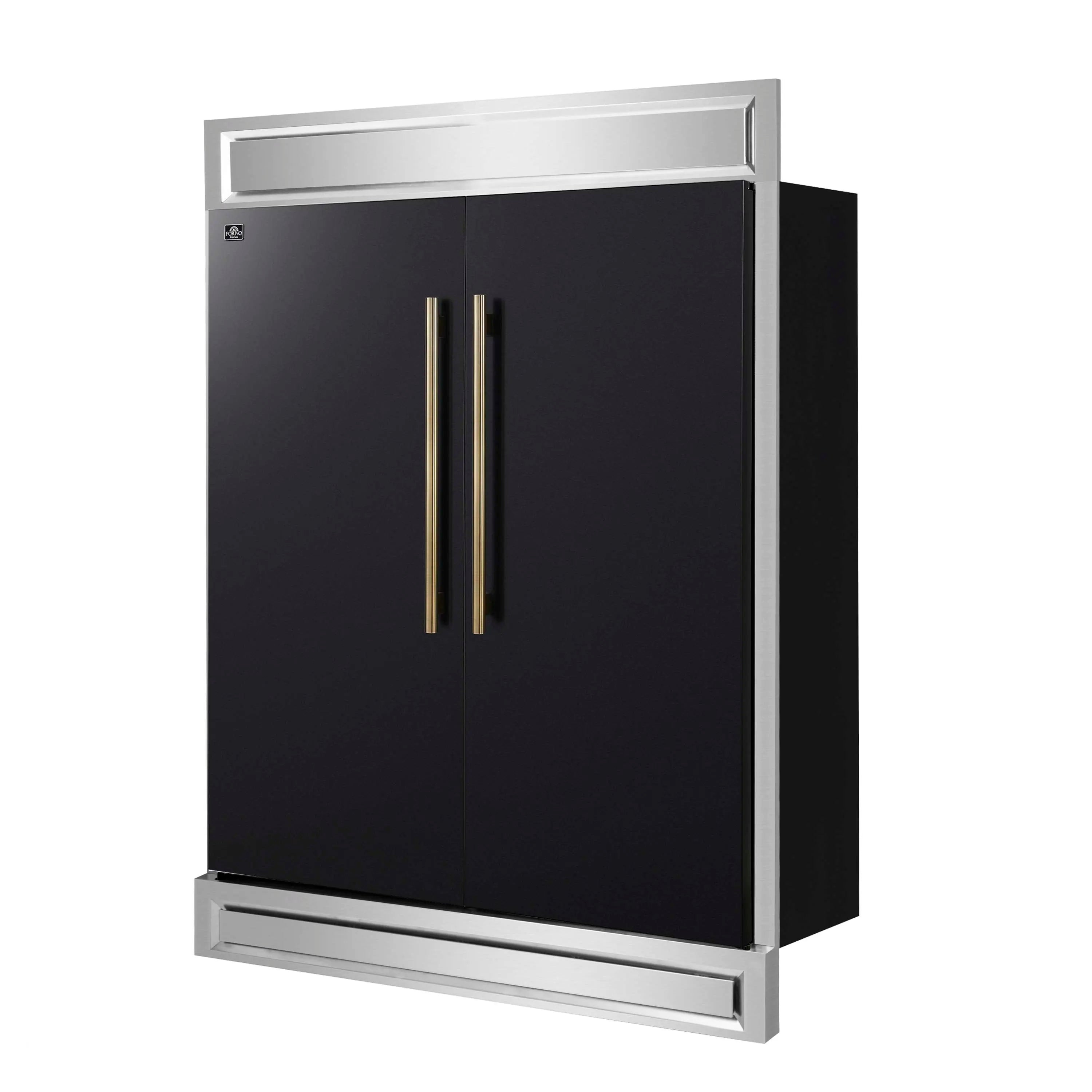

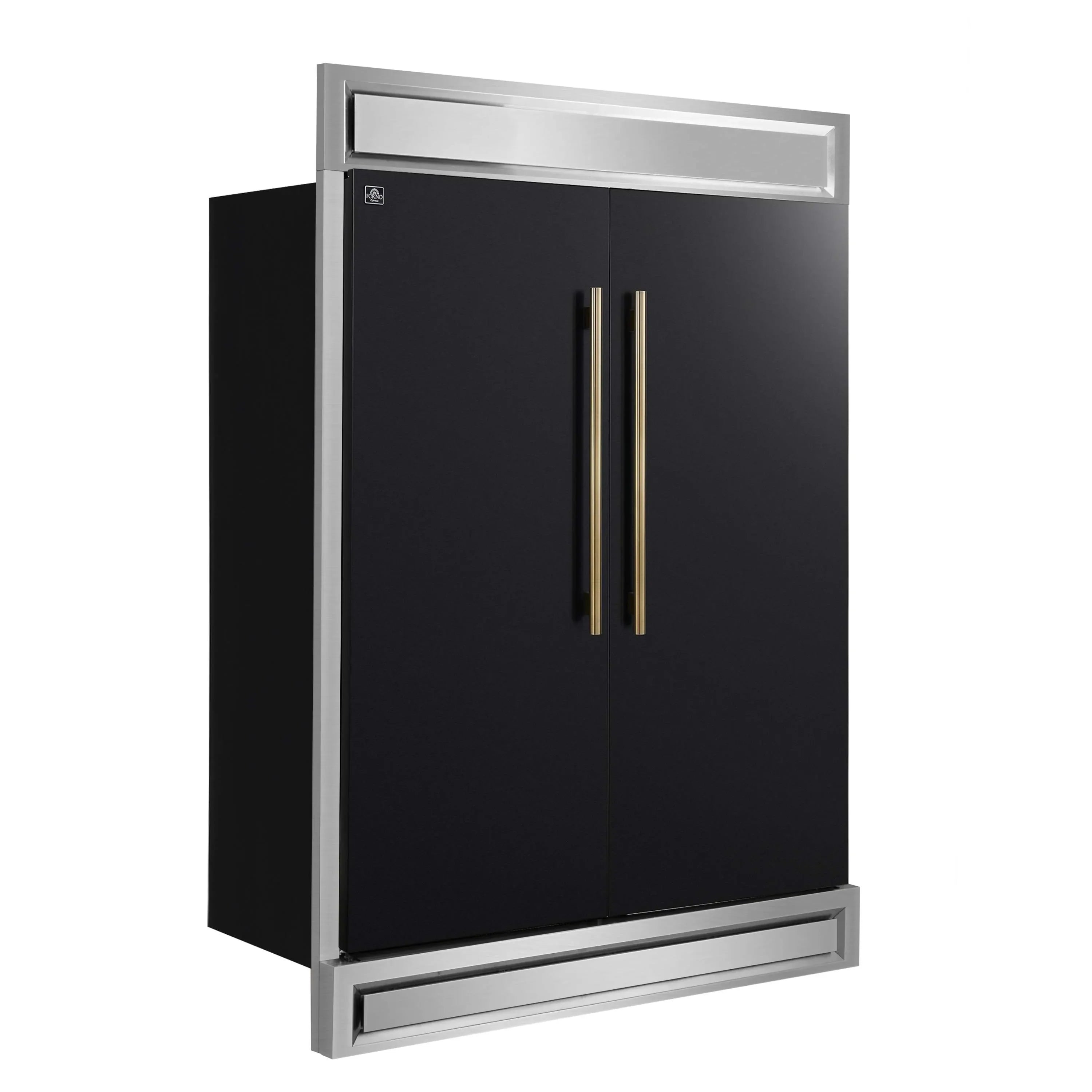

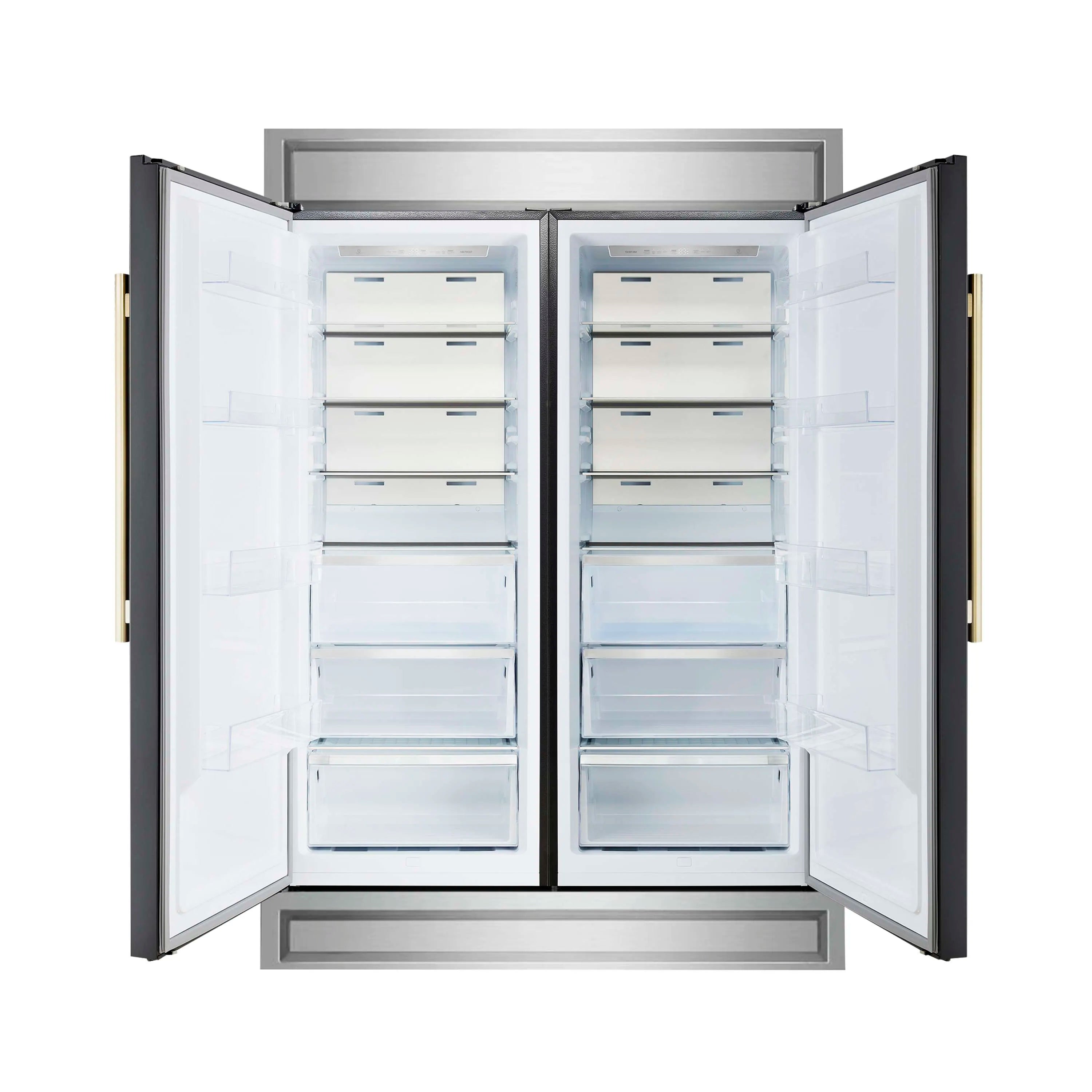

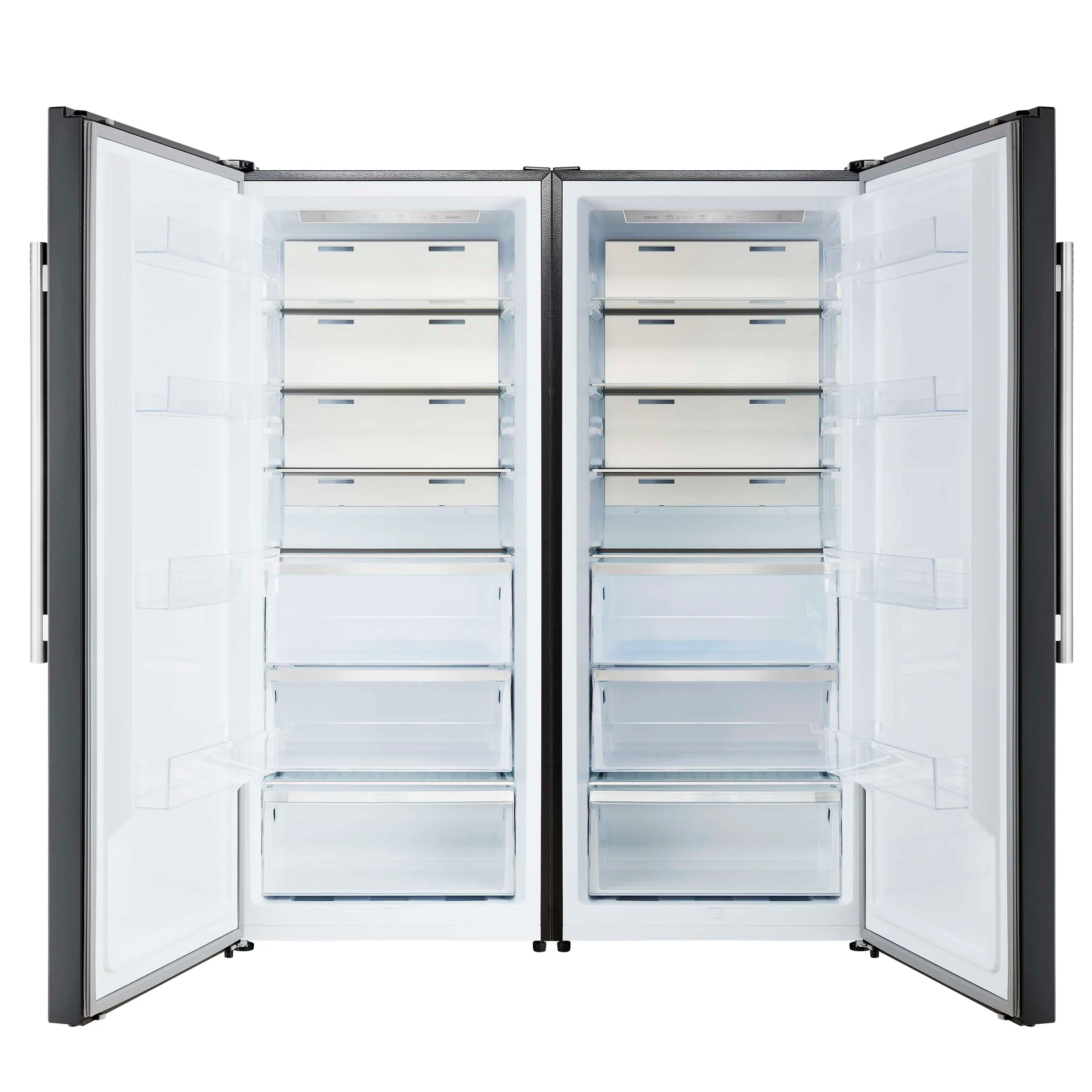

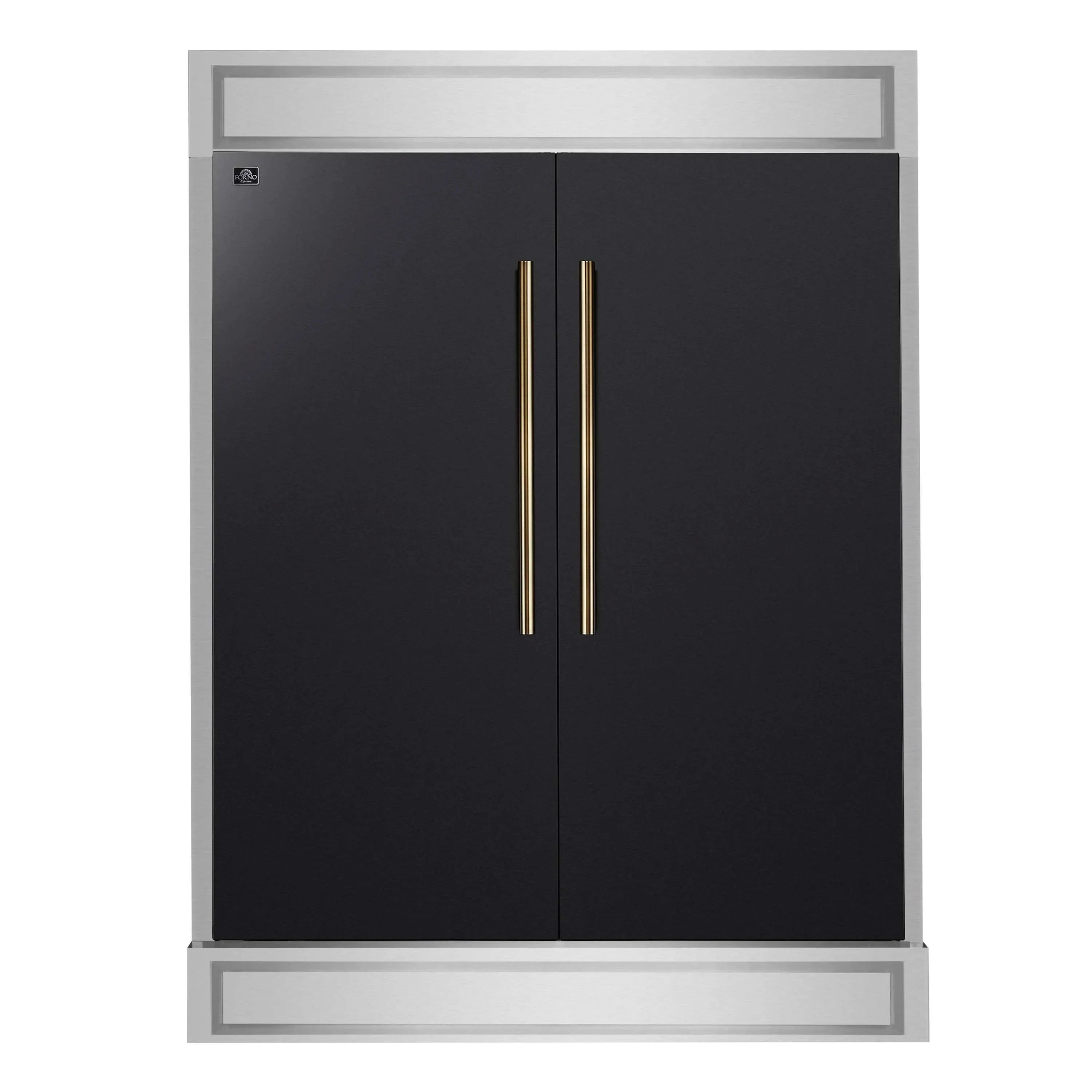

The Forno Maderno provides a premium 60 inch built-in refrigerator look by combining two 28 inch units with a trim kit for seamless side-by-side installation. This fridge freezer combo comes in a black finish with antique brass handles as part of our Espresso line, adding a boldness to any modern kitchen. With a total capacity of 27.2 cu.ft., it's ideal for large households or serious entertainers. Inside, you’ll find Convertible Cooling Zones that let you switch between refrigerator and freezer mode, Total No-Frost technology to prevent icy build-up, and a sleek digital control panel for easy adjustments. The Maderno includes six tempered glass shelves with silver trim, six storage drawers, and bright LED lighting to help keep everything organized and easy to find. VCM-coated doors and a durable metal back panel add strength and a fingerprint-resistant finish. Energy Star certification ensures this side-by-side built-in refrigerator is energy efficient.
| DIMENSIONS | |
|---|---|
| Overall Weight (Lbs) | 330 |
| Product Dimensions W x D x H (inches) | 55.2 x 26.9 x 67.1 |
| Cutout dimensions W x D x H (inch) | 55.9 x 28.94 x 69.06 |
| Minimum Back Clearance (IN) | 2.00 |
| Minimum Top Clearance (IN) | 4.00 |
| Height Top of the Cabinet/Case (inches) | 75.30 |
| Height Top of the Door (inches) | 75.90 |
| Sides Clearance - On Each Sides (IN) | 4.00 |
| Height Top of Door Hinge (inches) | 75.90 |
| Overall Capacity Cu. Ft. | 27.20 |
| GENERAL INFORMATION | |
| CEE Tier Qualified | Not Rated |
| Estimated Annual Operating Cost (USD) | 110 |
| Door Storage | Yes |
| Adjustable Door Storage | No |
| Cooling Type | Multi Air Flow |
| See-Thru Door | No |
| Fast Cool Function | Yes |
| Fast Freeze Function | Yes |
| Energy Saver Mode | Yes |
| Air Filtration | No |
| Door Texture | Smooth |
| Fingerprint-Resistant | No |
| Energy Policy Act 1992 Compliant | Yes |
| ISTA 6A | Yes |
| DESIGN & FINISH | |
| Color/Finish | Black |
| Interior Light | Yes |
| Control Location | Internal |
| Primary Material | Steel |
| Interior Light(s) Type | LED |
| Door Bins Material | Plastic |

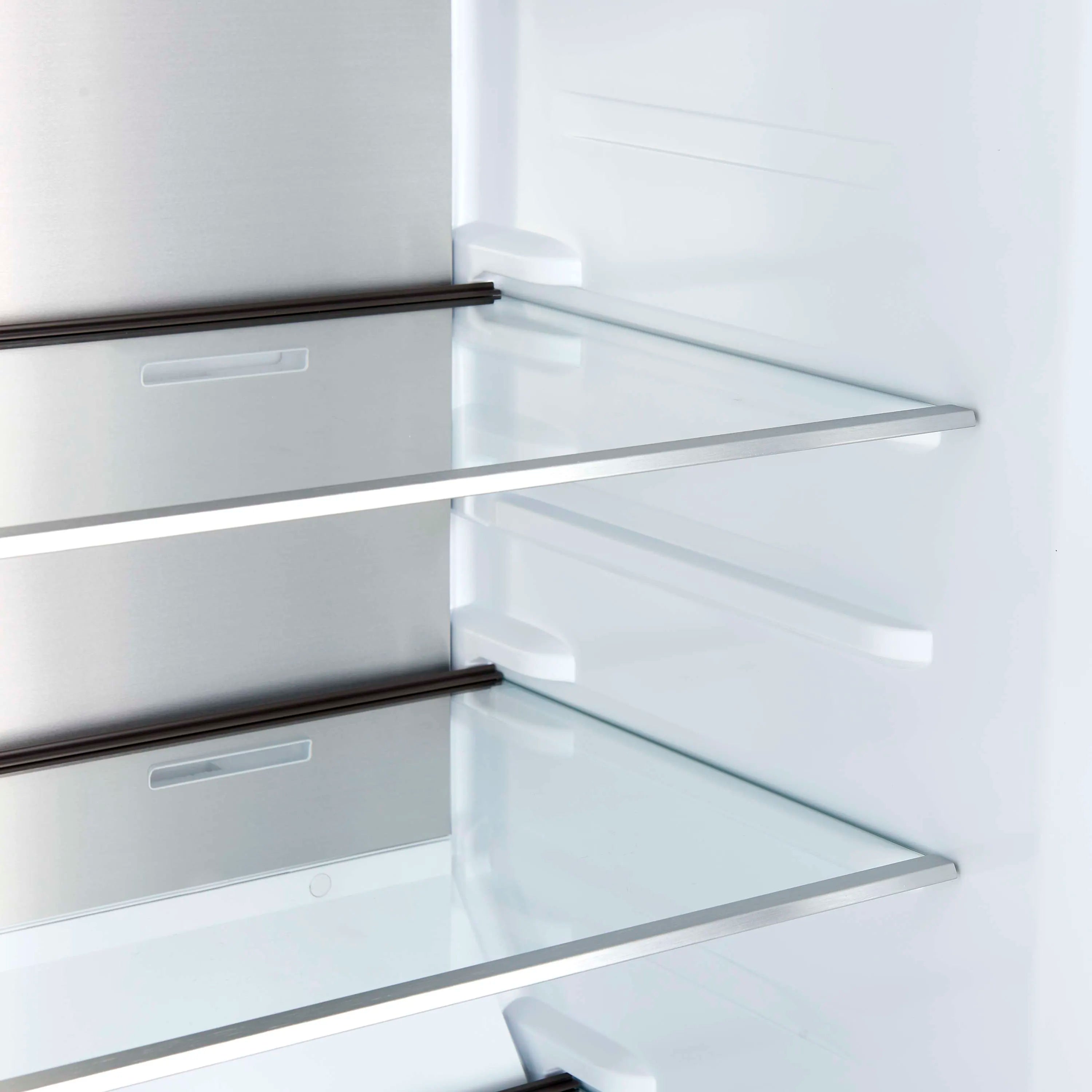

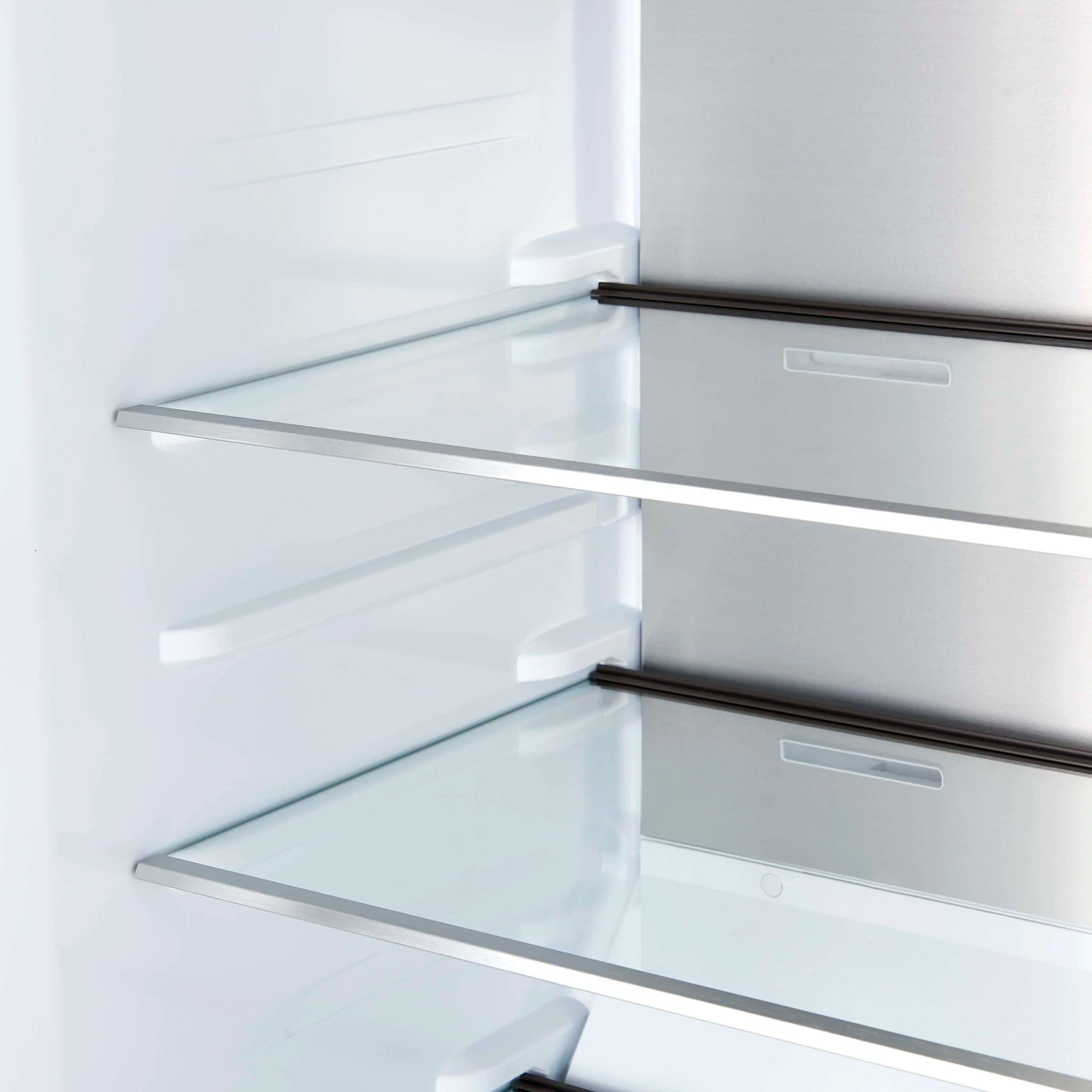

| Fresh Food Shelves Material | Glass With Silver Trim |
| Toe Grille Color | Stainless Steel |
| Cabinet Material | Embossed Galvanized Steel |
| Door Liner Color | White |
| Door Liner Material | High Impact Polystyrene |
| Door Style | Contoured |
| Number of Lights | 2 |
| Handle Color/Finish |
|
| TECHNICAL DETAILS | |
| Power Cord Location | Lower Back |
| Energy Consumption (kWh/yr) | 647 |
| Number of Power Cord | 2 |
| Dual Evaporator Cooling System | Yes |
| REFRIGERATOR FEATURES | |
| Temperature Range Refrigerator (°F) | 36°F to 46°F |
| Door Bins Color | Transparent |
| Temperature Range Refrigerator (°C) | 2°C to 8°C |

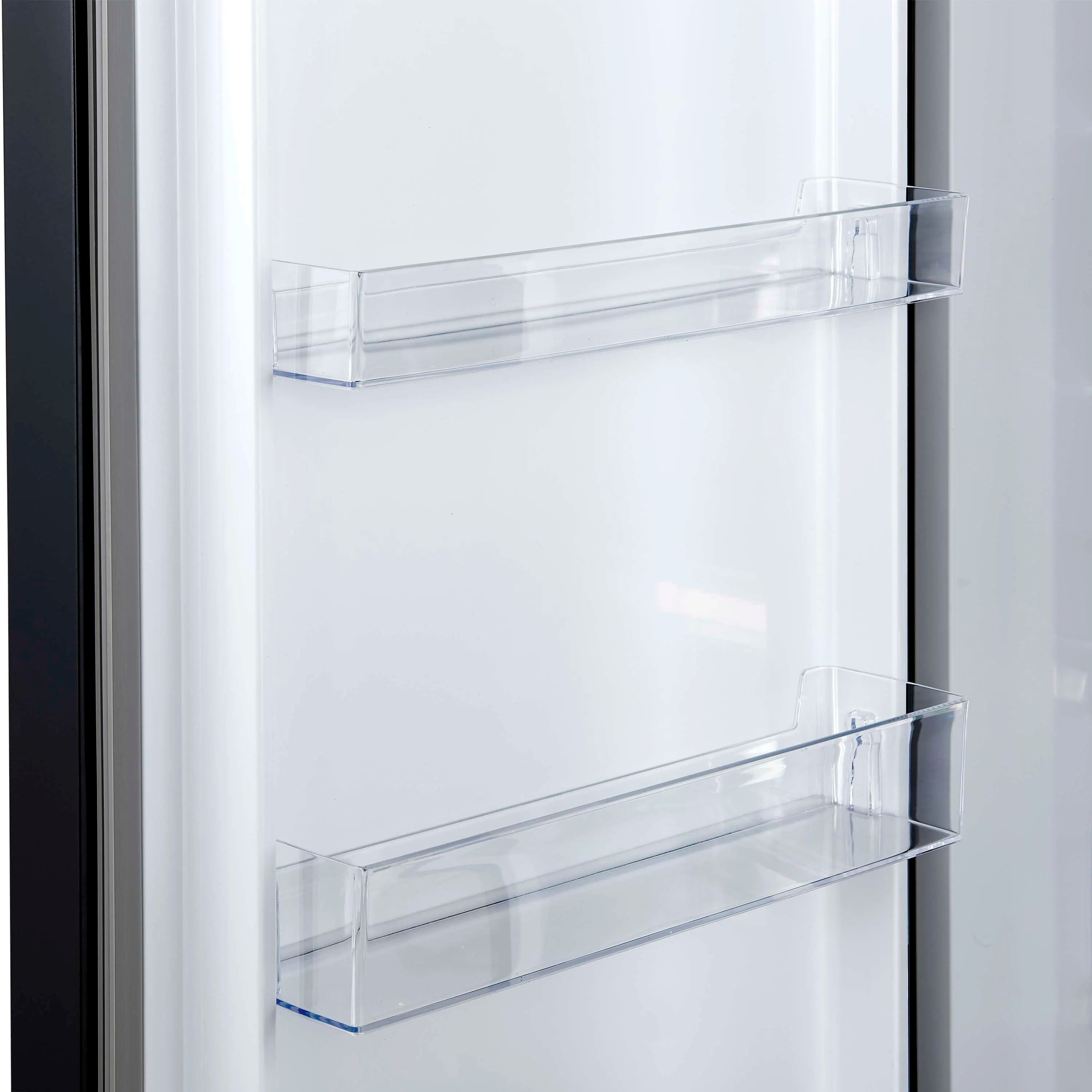

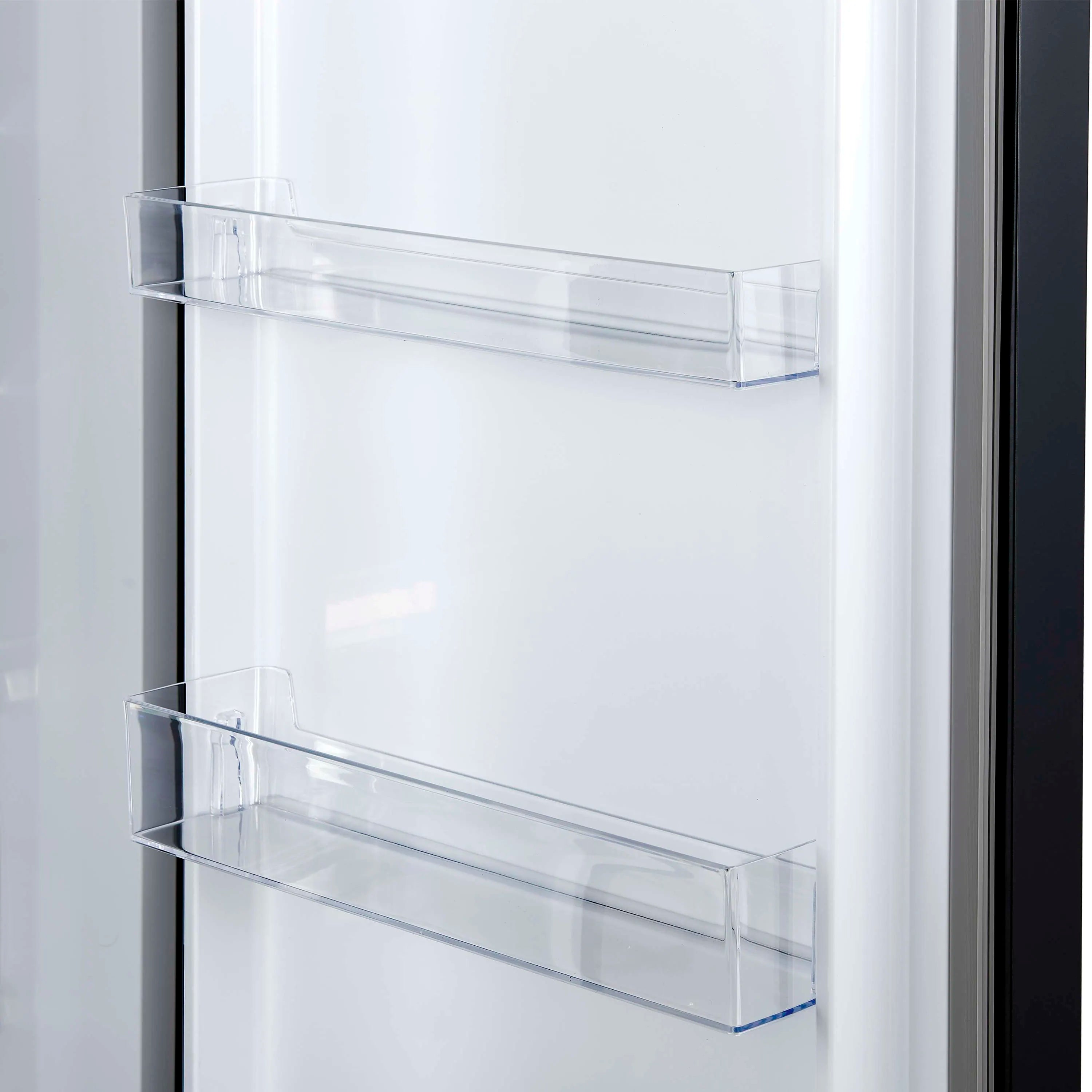

| Number of Standard Door Bins | 4 |
| Adjustable Fresh Food Shelves | Yes |
| Fresh Food Door Type | Swing Door |
| Number of Fresh Food Shelves | 4 |
| Number of Adjustable Shelves | 3 |
| Humidity Controleld Drawer(s) | Yes |

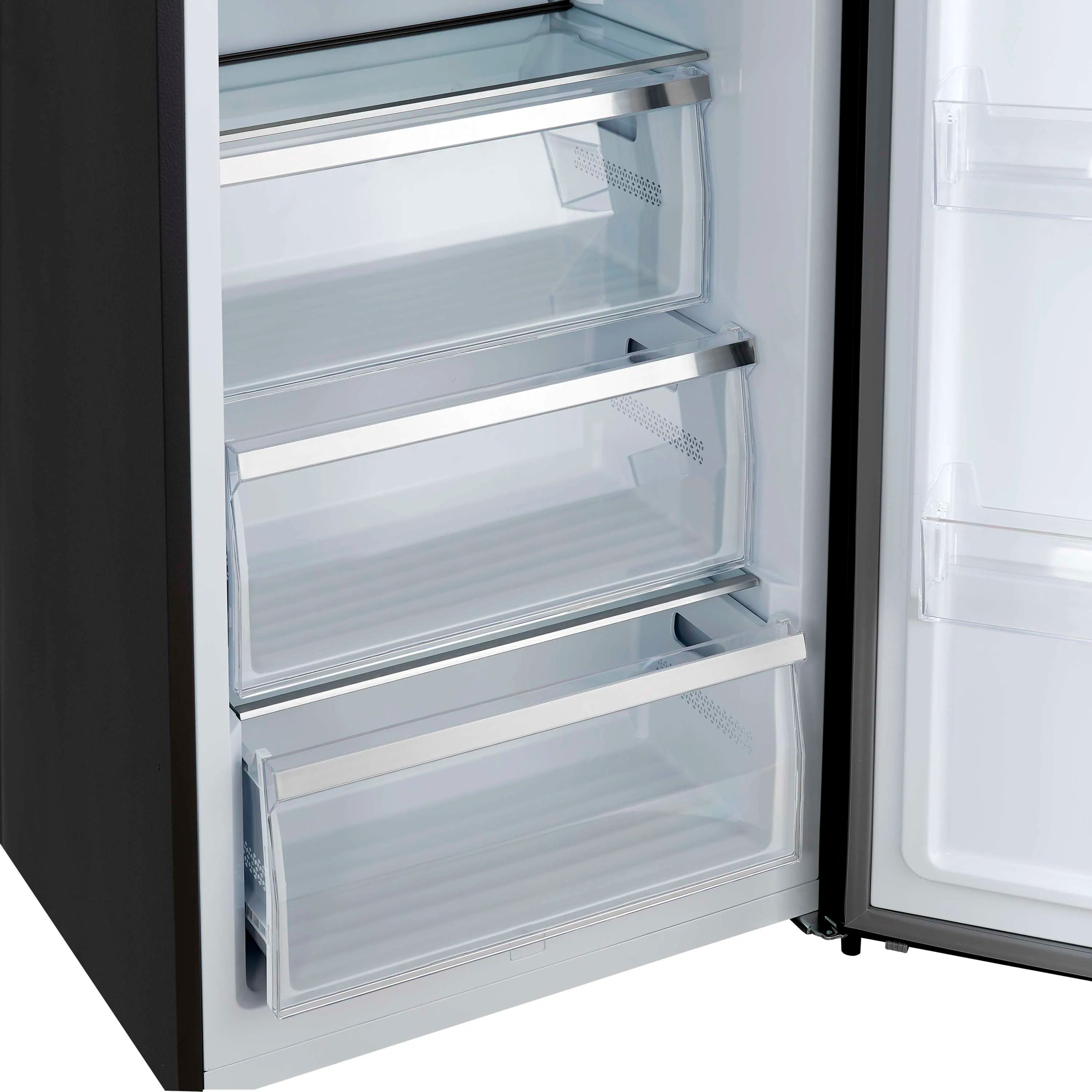

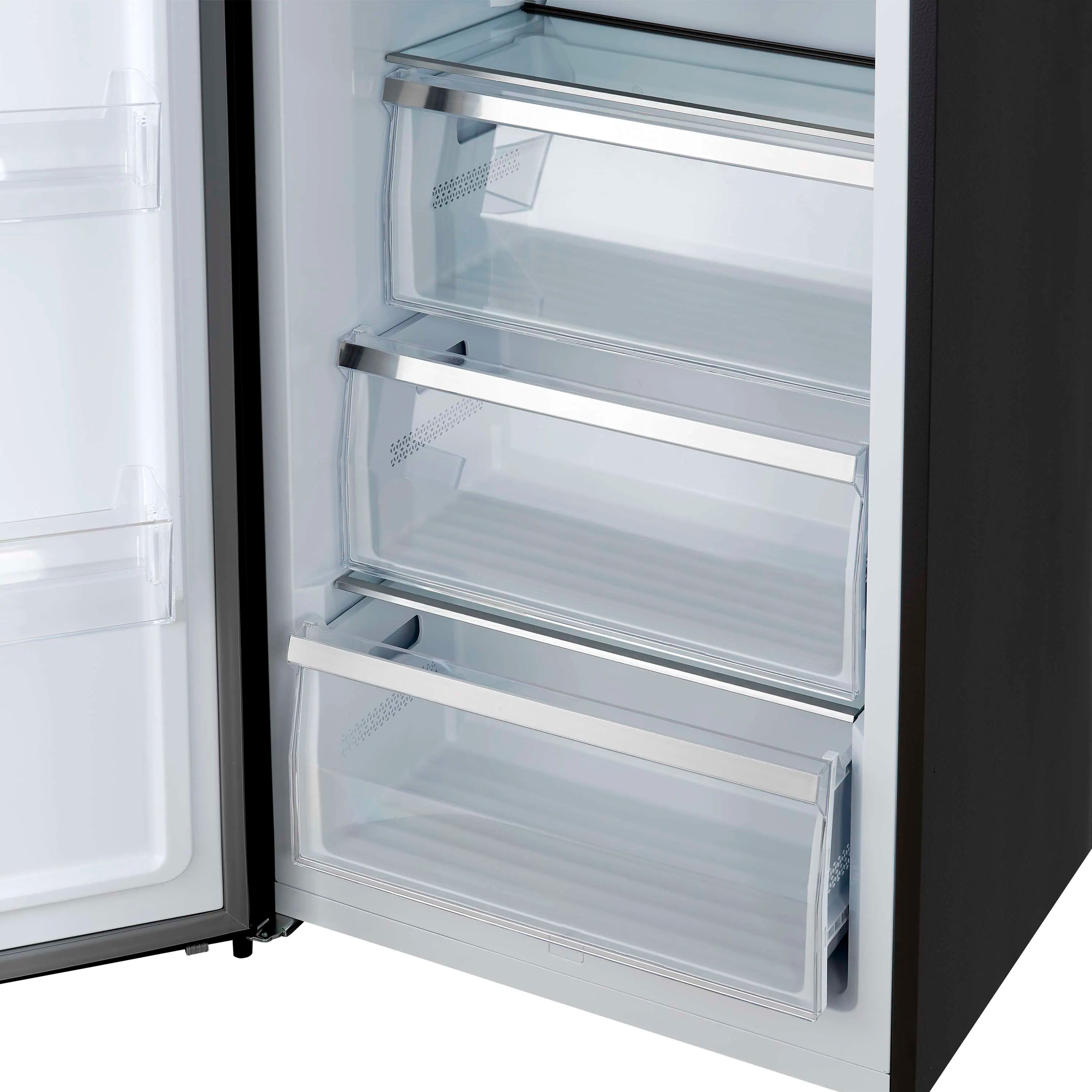

| Number of Fresh Food drawers | 3 |
| Temperature Controlled Drawer(s) | No |
| Interior Fresh Food Dimensions W x D x H (inches) | 21.58 x 19.96 x 59.84 |
| Fresh Food Capacity Cu. Ft. | 13.60 |
| Water Pipe Included | No |
| Extra Water Filter | No |
| Cabinet Color | White |
| Pantry Drawer | No |
| Spill-Proof Shelves | No |

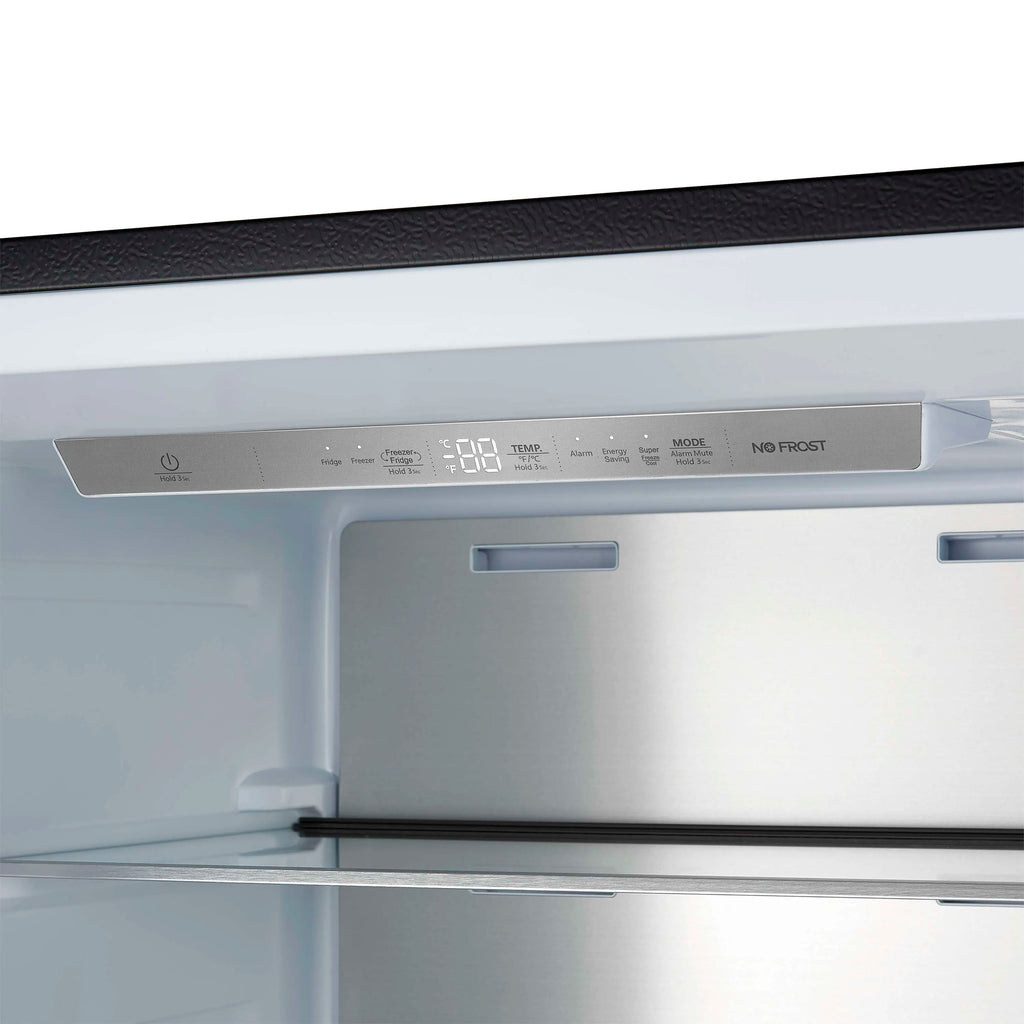

| Electronic Temperature Control | Yes |
| Temperature Memory Function | Yes |
| External Dispenser | No |
| Water Dispenser | No |
| FREEZER FEATURES | |
| Interior Freezer Dimensions W x D x H (in) | 21.58 X 19.96 X 59.84 |
| Temperature Range Freezer (°F) | - 11°F to 7°F |
| Freezer door storage | Yes |
| Temperature Range Freezer (°C) | -23°C to -13°C |

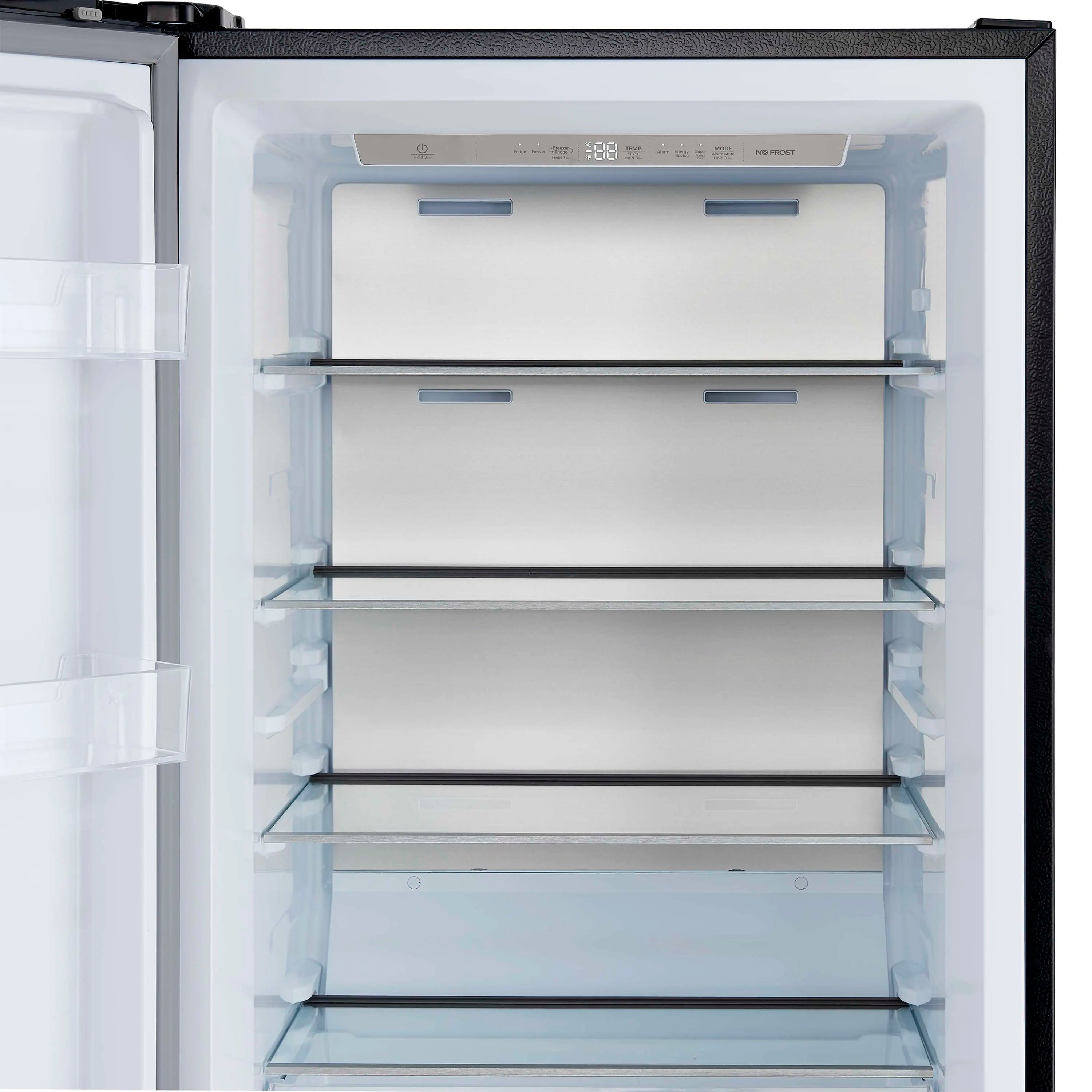

| Number of Freezer Adjustable Shelves | 3 |
| Number of Freezer Door Bins | 4 |
| Freezer Section Layout | Adjustable Racks,In-Door Storage,Freezer Drawers,Full Width |
| Freezer Shelf Material | Glass With Silver Trim |
| Adjustable Freezer Shelves | Yes |
| Interior Freezer Dimensions Height | 59.84 |
| Number of Freezer Shelves | 4 |
| Interior Freezer Dimensions Width | 21.58 |
| Number of Freezer Drawers | 3 |
| Freezer Light | Yes |
| Interior Freezer Dimensions Depth | 19.96 |
| Freezer Capacity | 13.60 |
| Freezer Door Style | Swing Door |
| WARRANTY & CERTIFICATIONS | |
| Energy Star Most Efficient | No |
| Safety Listing | cULus safety listing |
| Enegy Star Certified | Yes |
| Certificate of Conformity (GCC) | Yes |
| Commercial Warranty | No |
| Warranty on Parts | 2 Years |
| Warranty Type | Limited |
| Warranty on Labor | 2 Years |
| Warranty Length (Years) | 2 Years |

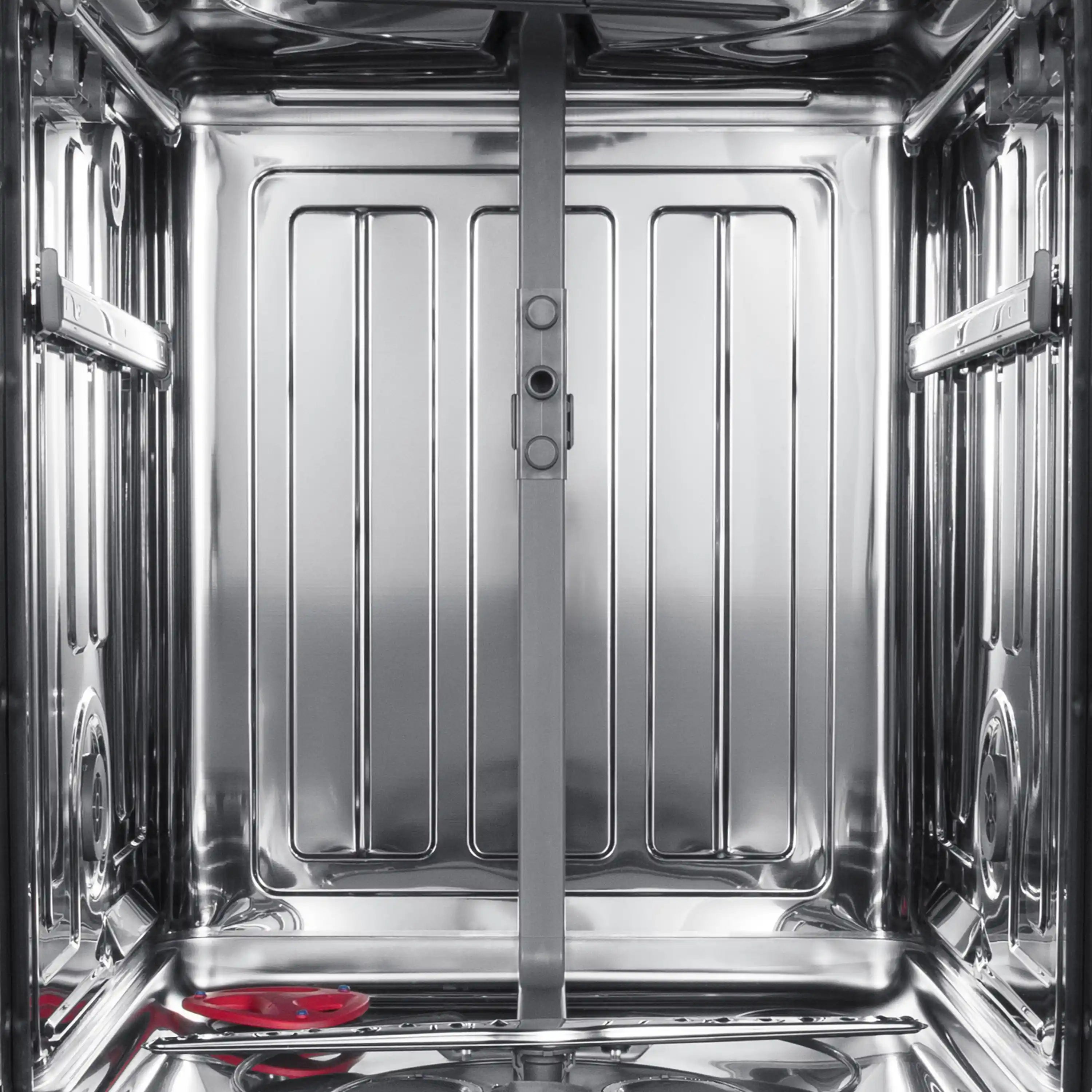

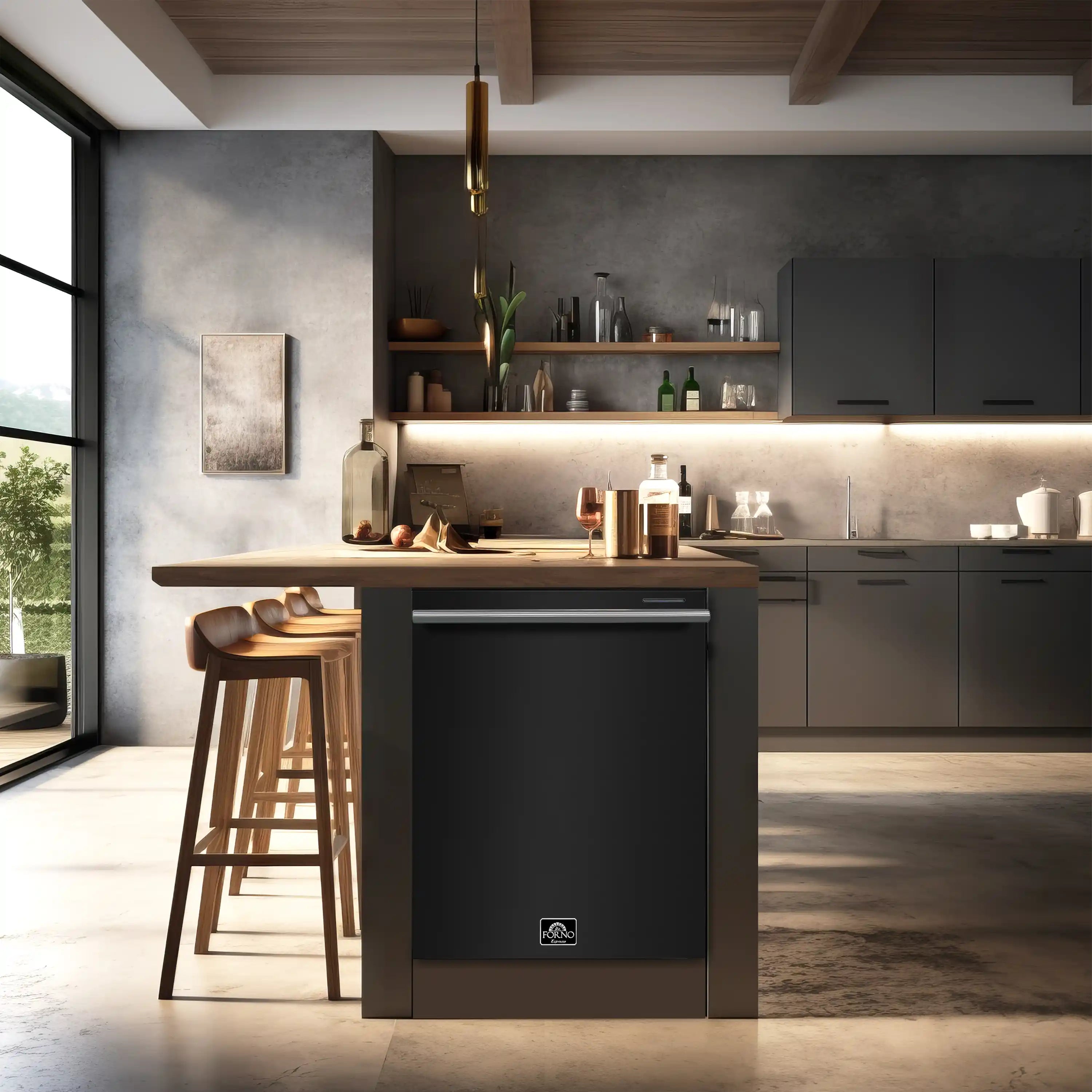

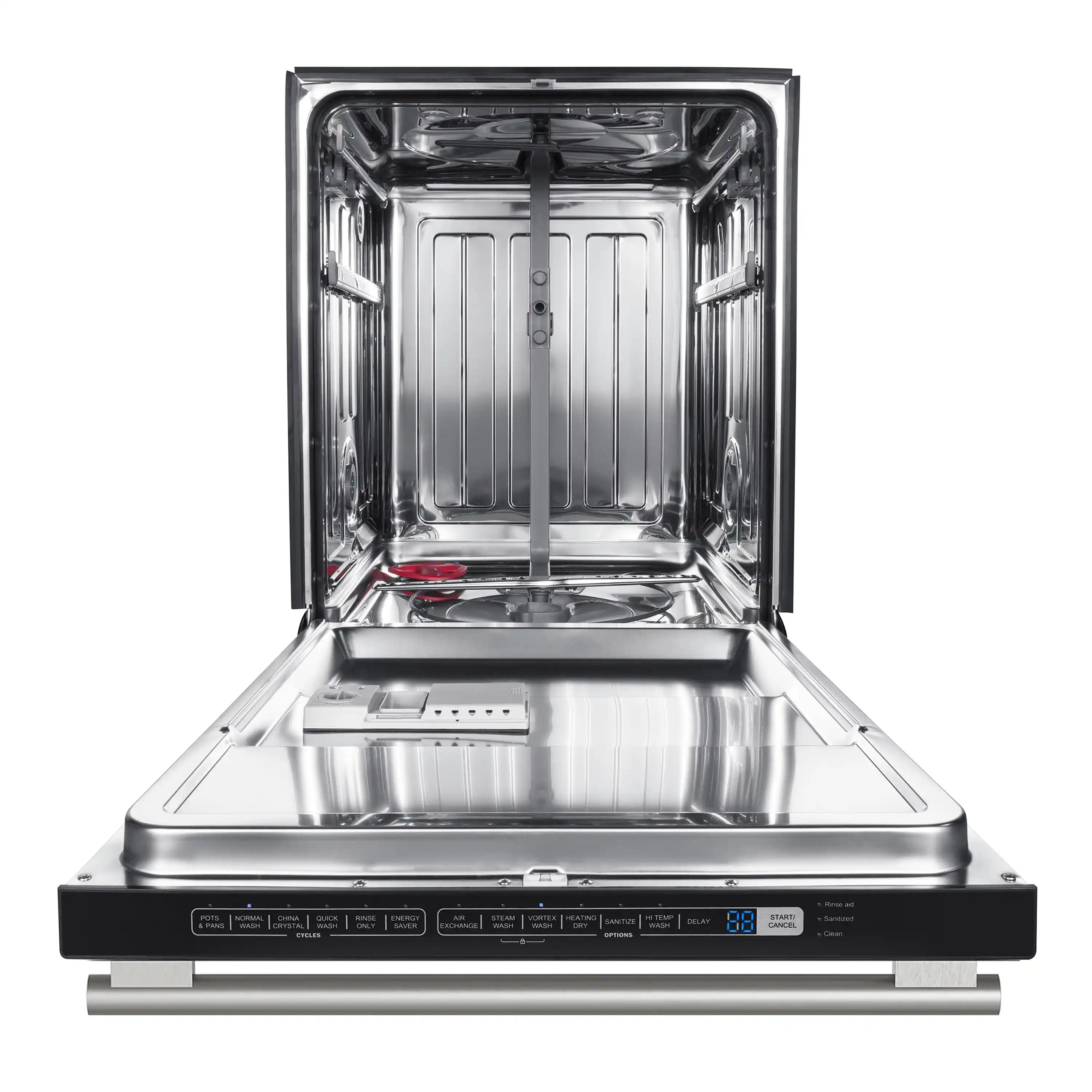

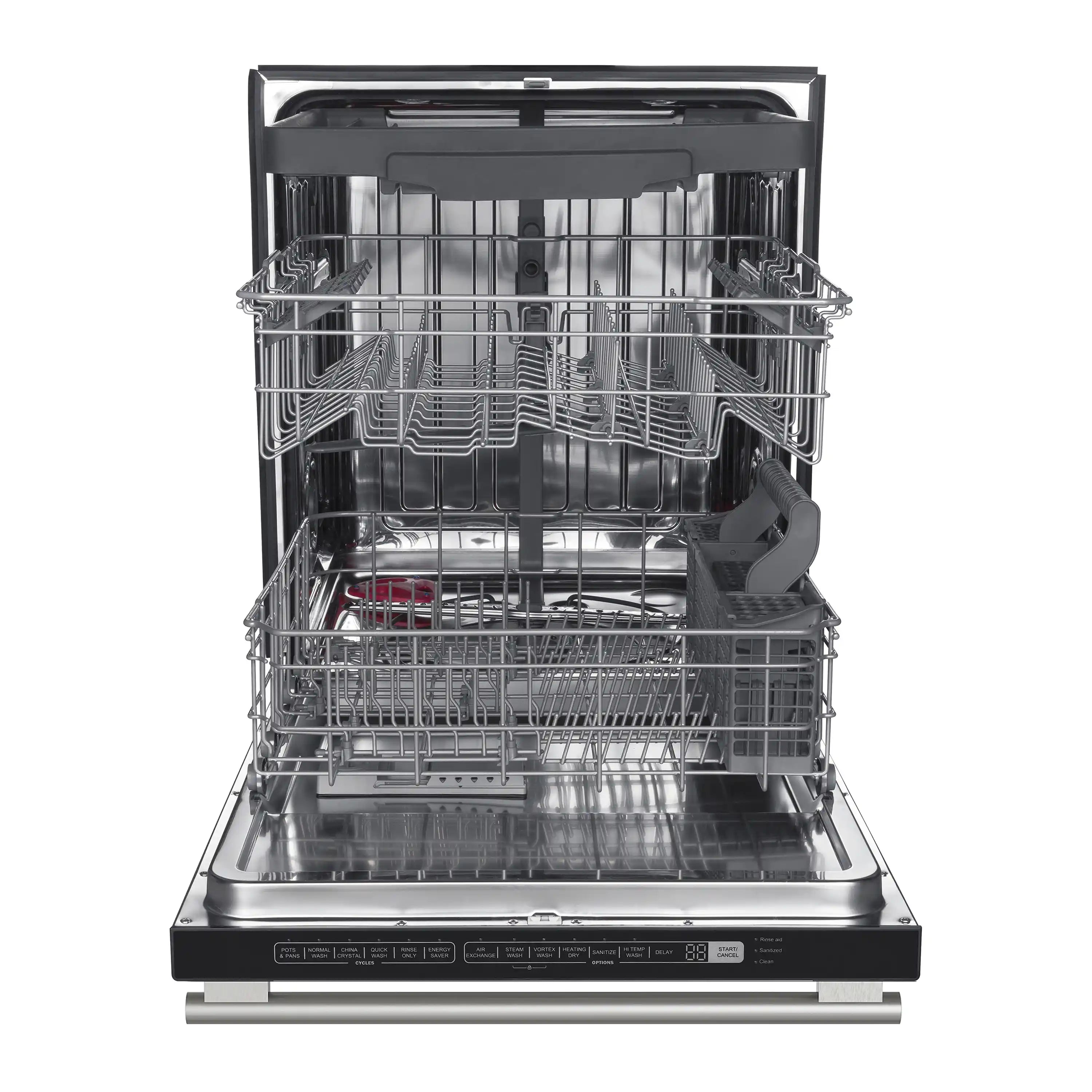

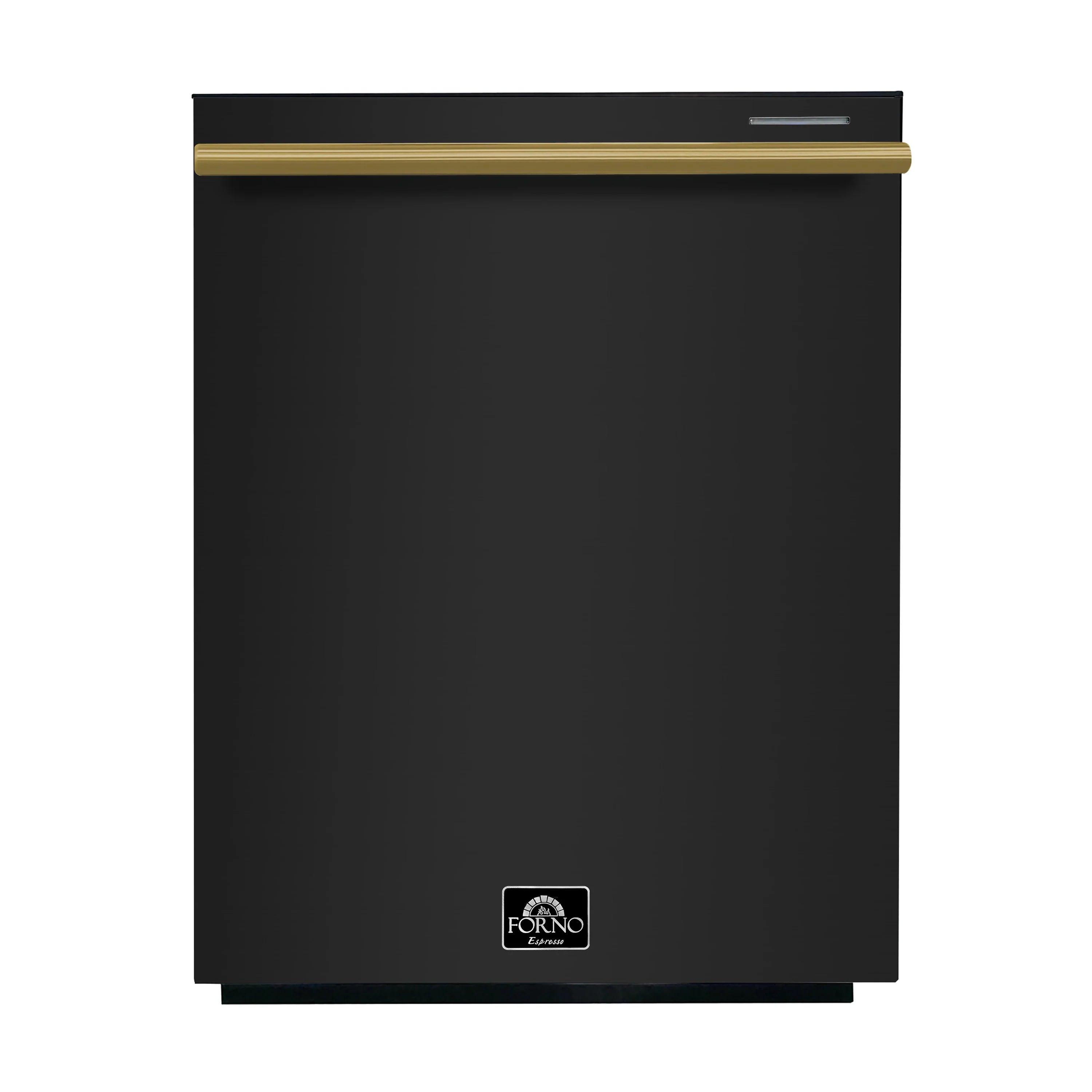

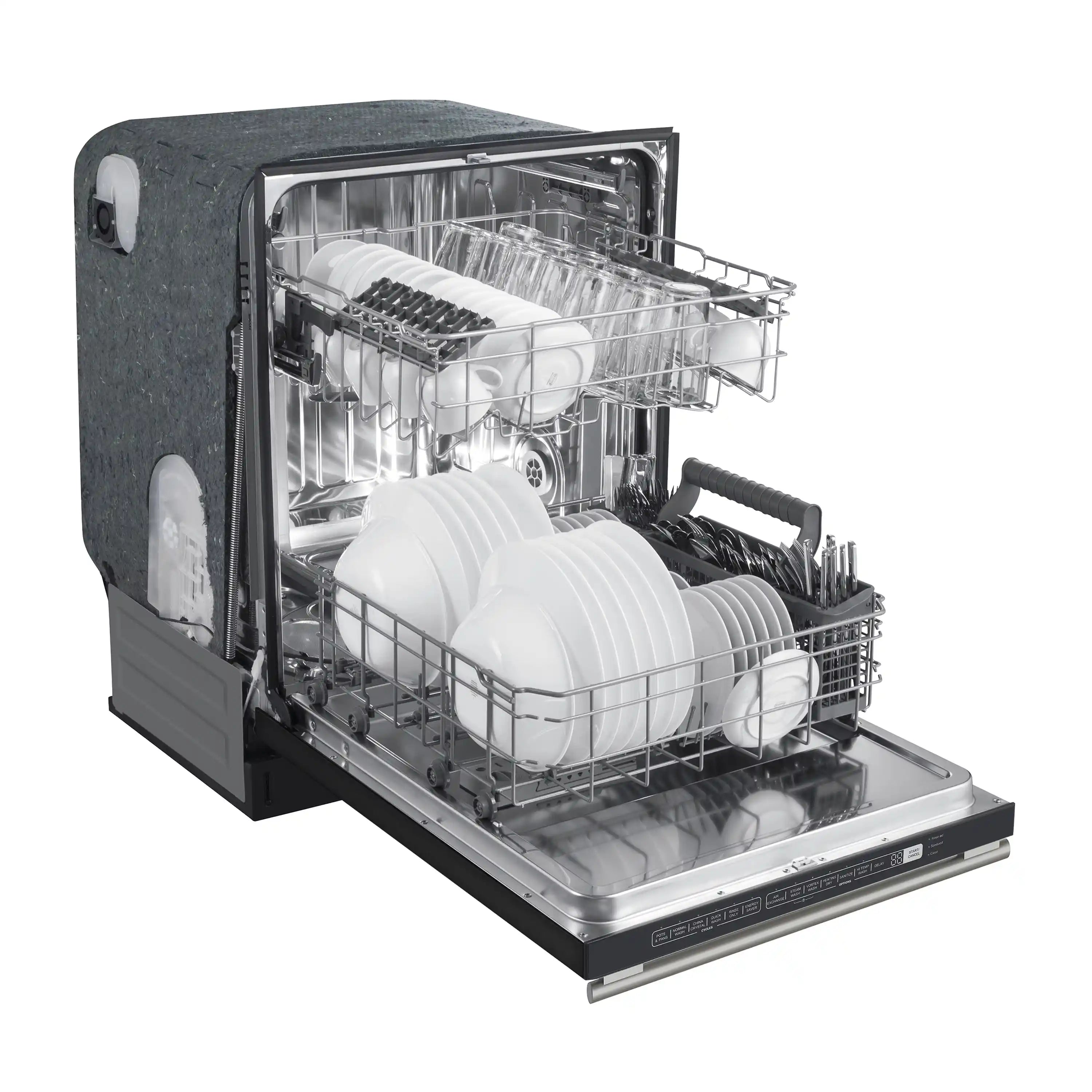

Pozzo 24 in. Built-In Tall Tub, Top Control, Dishwasher, 49 dBA, Soil-Sensing Capable, ENERGY STAR Certified
The Forno Pozzo 24-Inch tall-tub dishwasher, operating at a low noise level of 49 decibels for peaceful cleaning. Its black front and pro-style handle offer durability and style. Customize your look effortlessly with two sets of interchangeable handles, switching between antique brass for a traditional touch or stainless steel for modern flair. The dishwasher features a spacious stainless-steel tub with 3 baskets, providing ample loading flexibility for large dish capacity and utensils, with 3 racks and an additional silverware basket. With six wash programs and electronic controls featuring a sleek LED display, it offers efficient and customizable cleaning options. Energy Star certified for eco-friendly operation.
Please Note: This appliance includes both brass and stainless steel handles. Some assembly is required to install your desired finish.
| DIMENSIONS | |
|---|---|
| Product Dimensions | 23.85" W x 26" D x 33.74" H |
| Depth Excluding Handle (in) | 24" |
| Depth Including Handle (in) | 26" |
| Product Height Maximum | 35" |
| Depth Door Open 90º (back to front door open) | 50" |
| Cutout W x D X H | 24''W x 24''D x 34''H to 35''H |
| Overall Weight | 93.2 lbs |
| GENERAL INFORMATION | |
| Water Inlet Connection Size (inches) | 8-Mar |
| DESIGN & FINISH | |
| File/Control Number Number | E219644 |
| TECHNICAL DETAILS | |
| Water Pressure (PSI) | 20 - 120 |
| FEATURES | |
| Sound Rating (dB) | 49 |
| Water Inlet Location | Left Bottom Front |
| Water use (gallons/cycle) | 3.2 |
| WARRANTY & CERTIFICATIONS | |
| Safety Listing | cULus |
| Energy Star Certified | Yes |
| ENERGY STAR Unique ID | 2485657 |
| Energy Policy Act 1992 Compliant | Yes |
| ADA Compliant | No |
| ISTA 1A Certified | Yes |
| ISTA 6A Certified | Yes |
