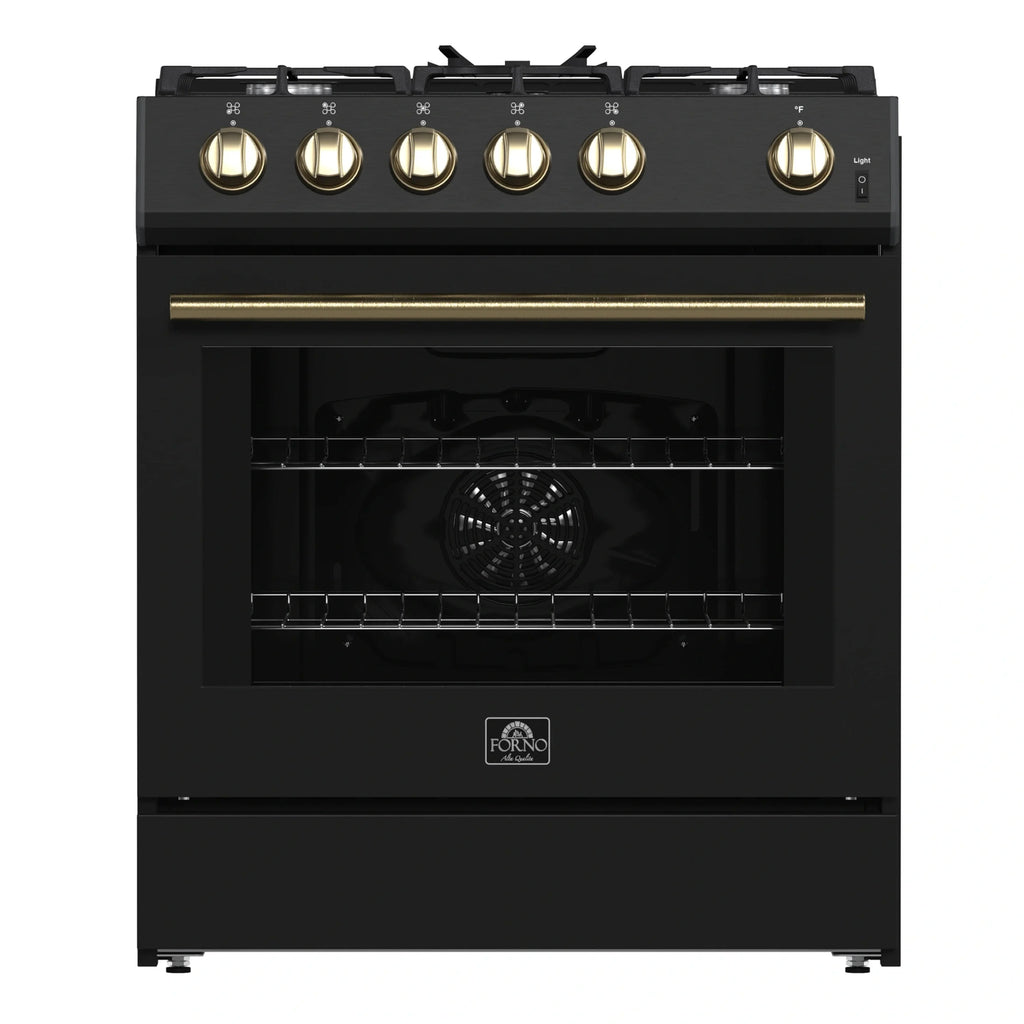

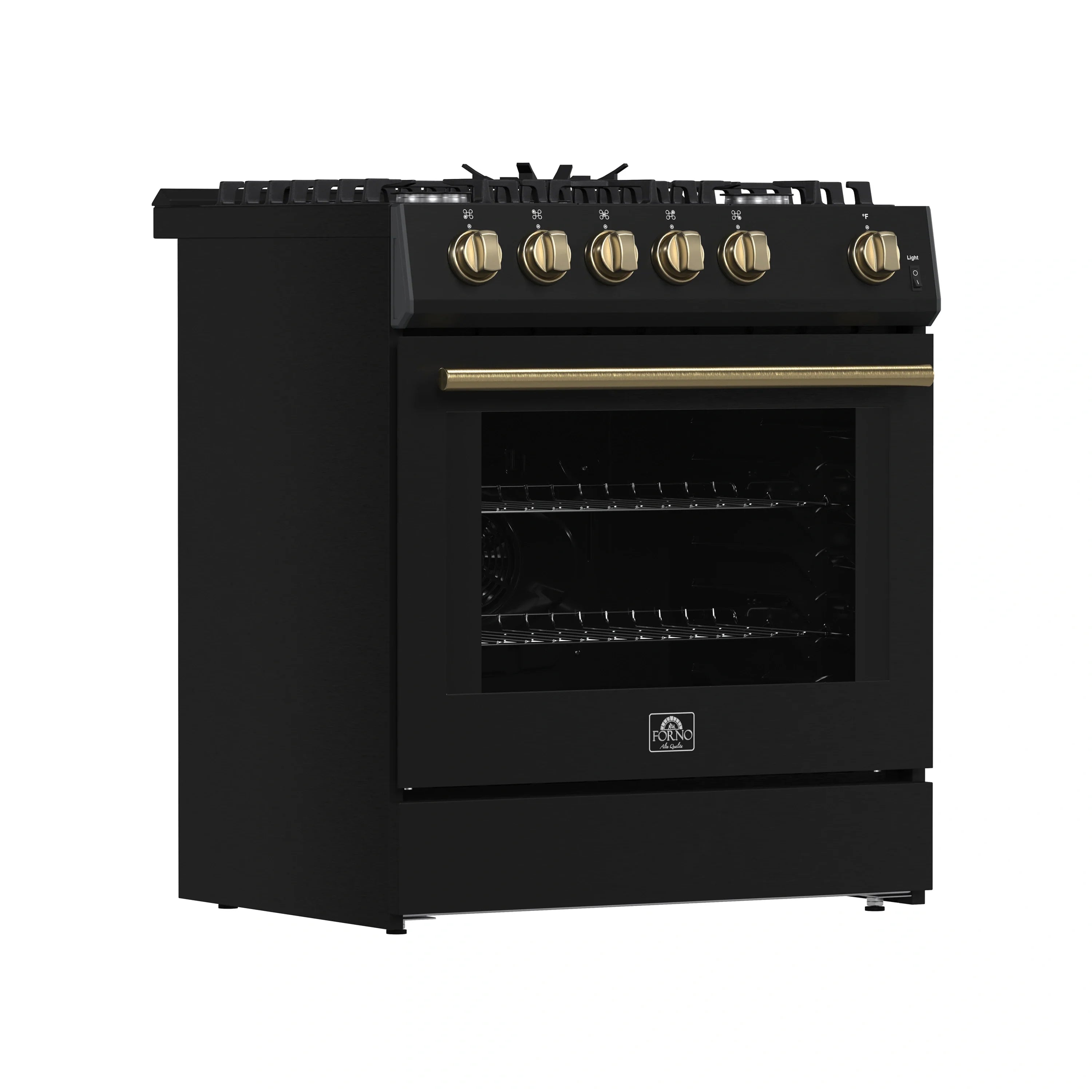

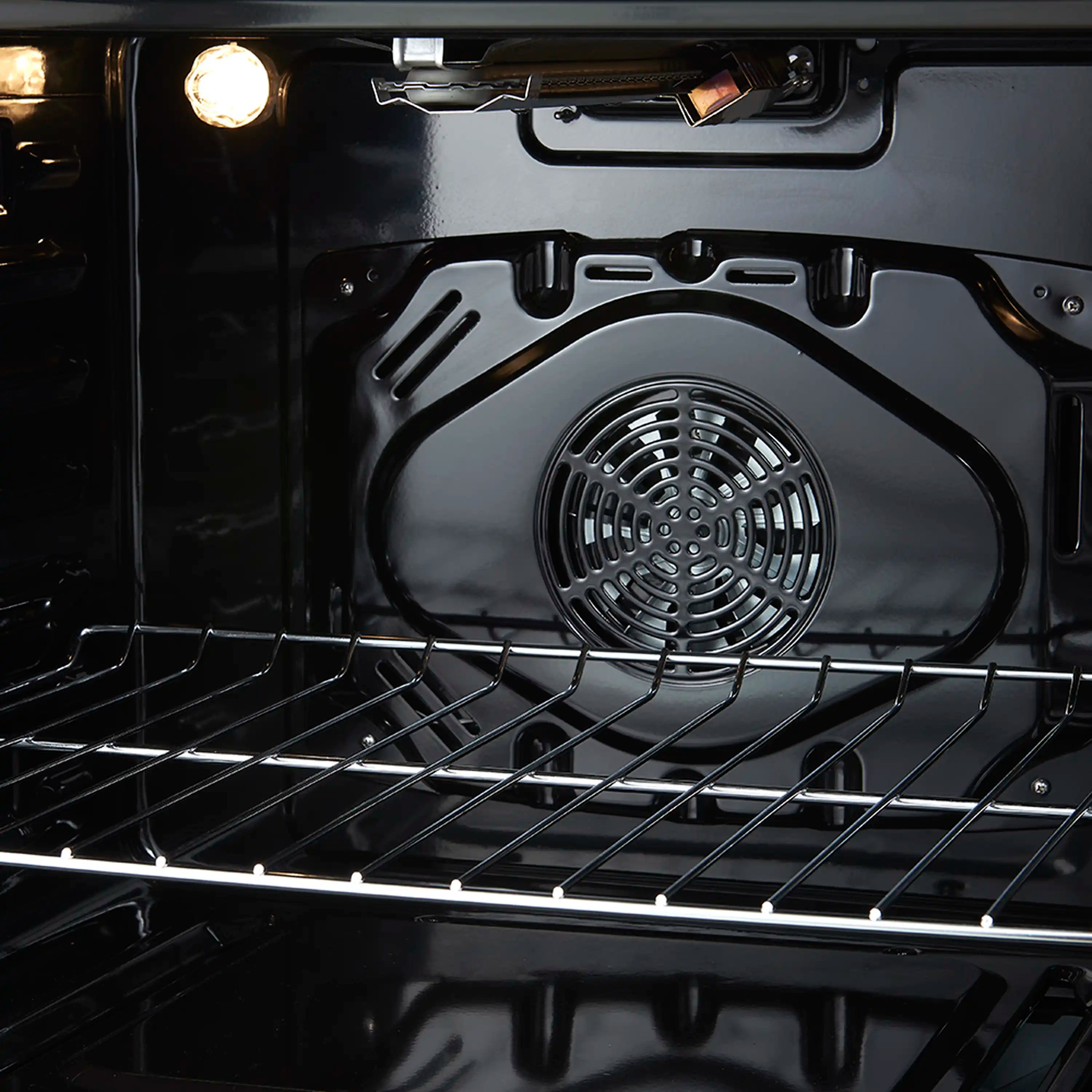

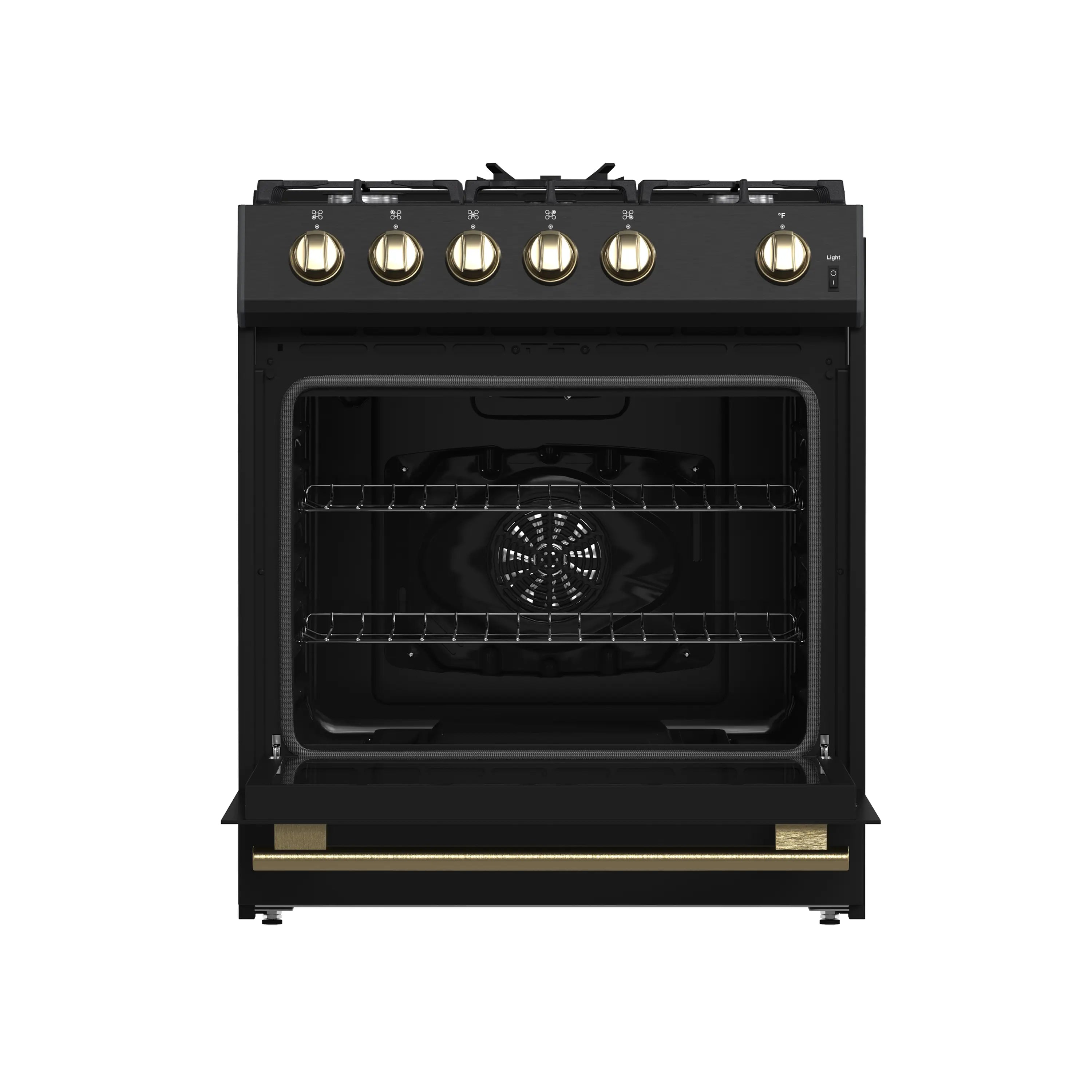

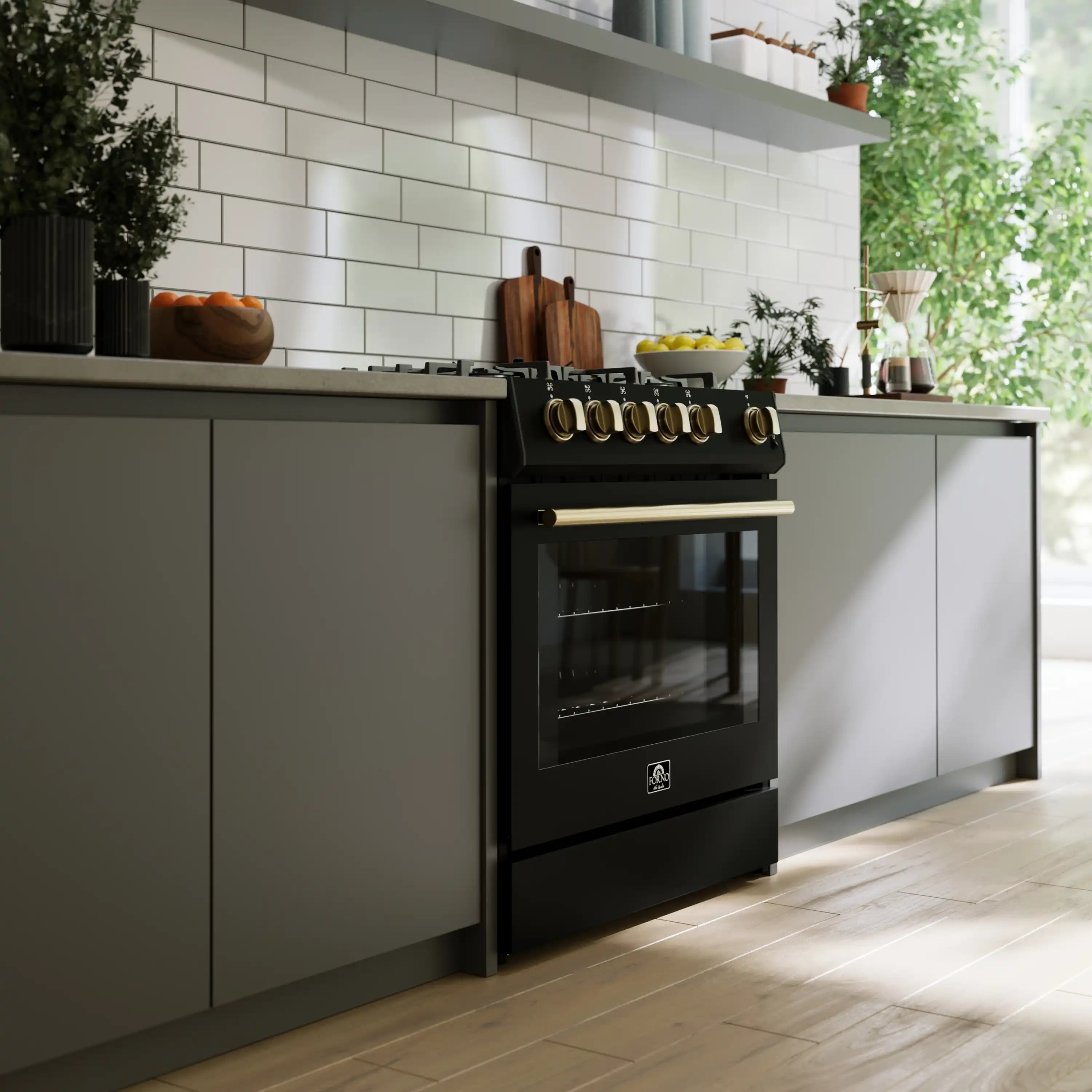

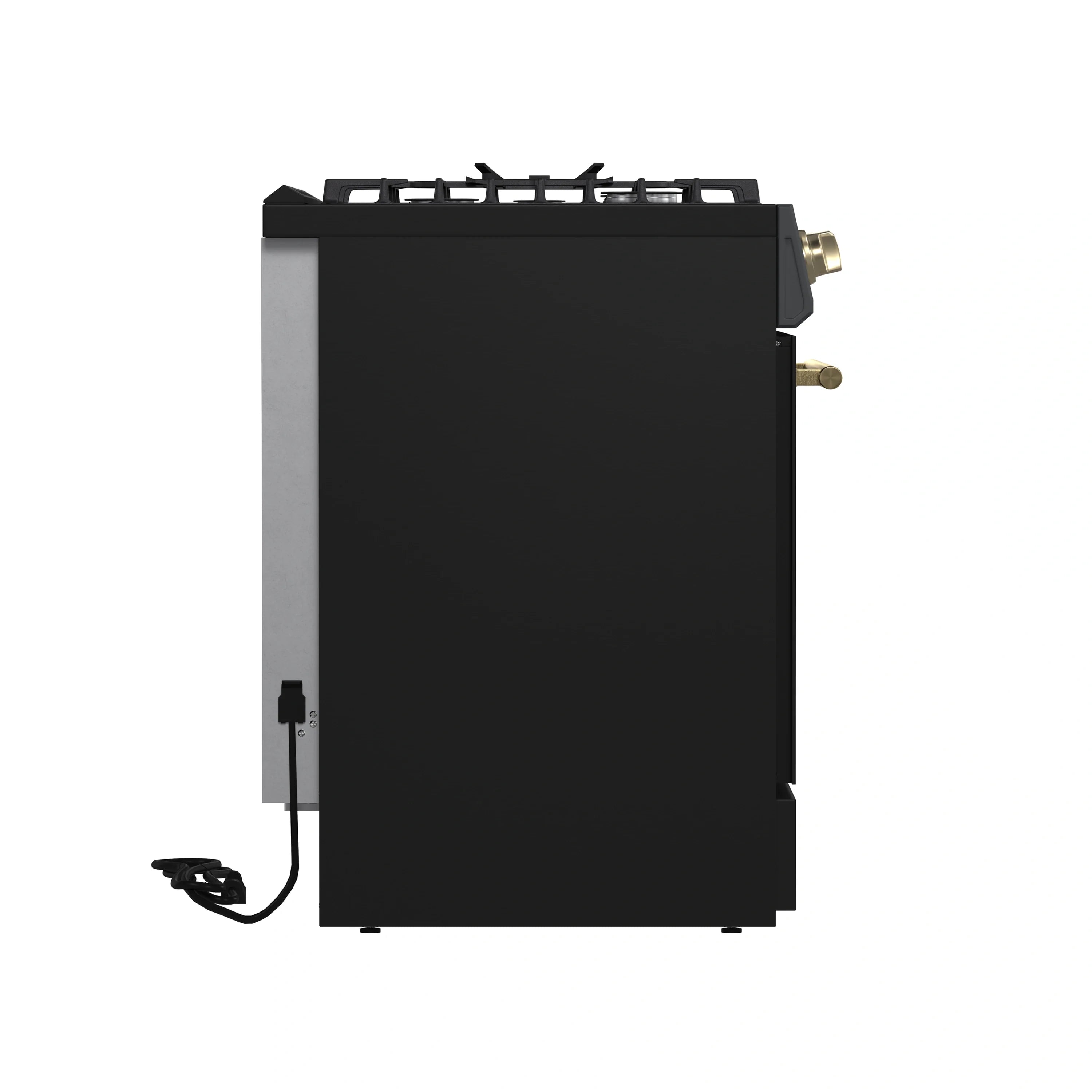

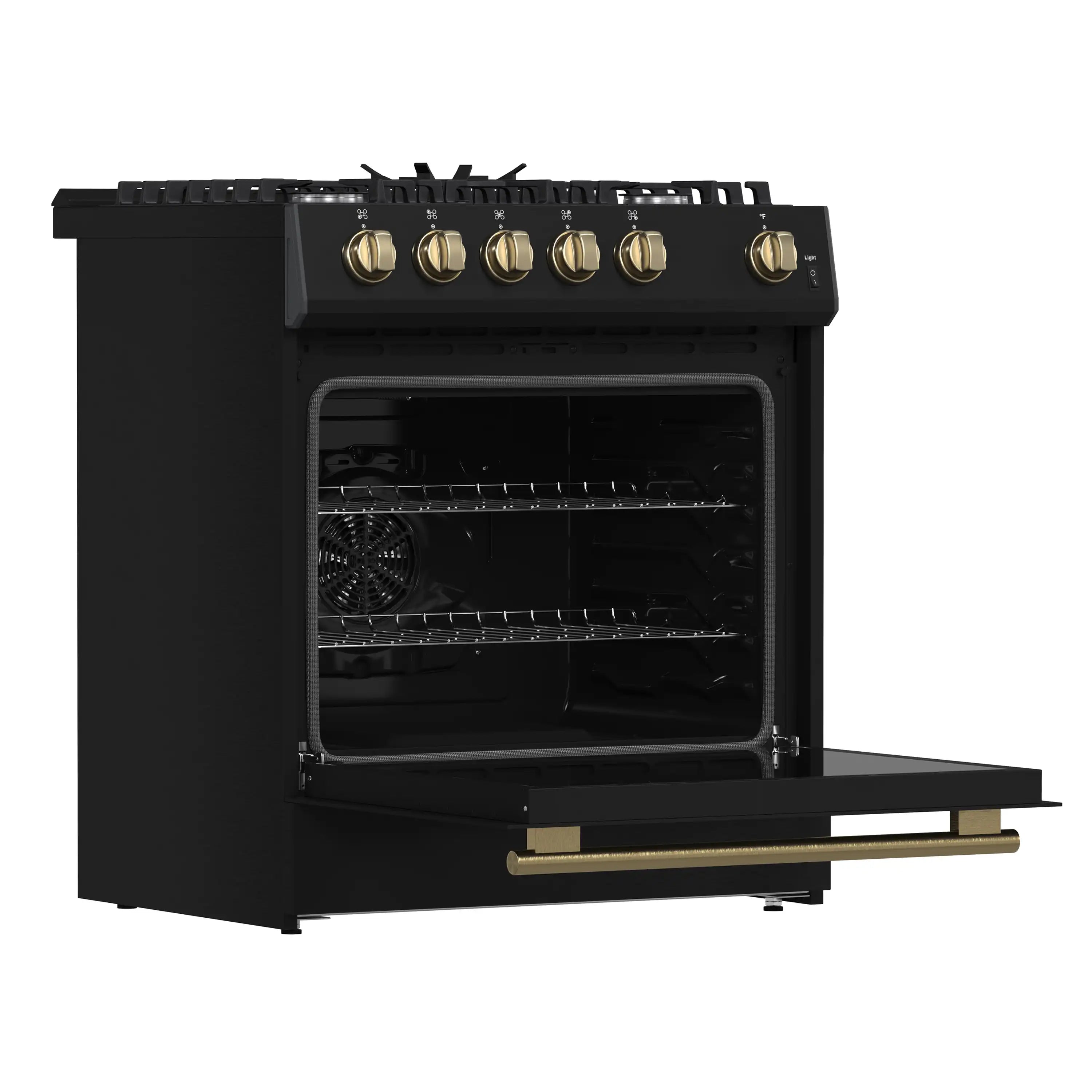

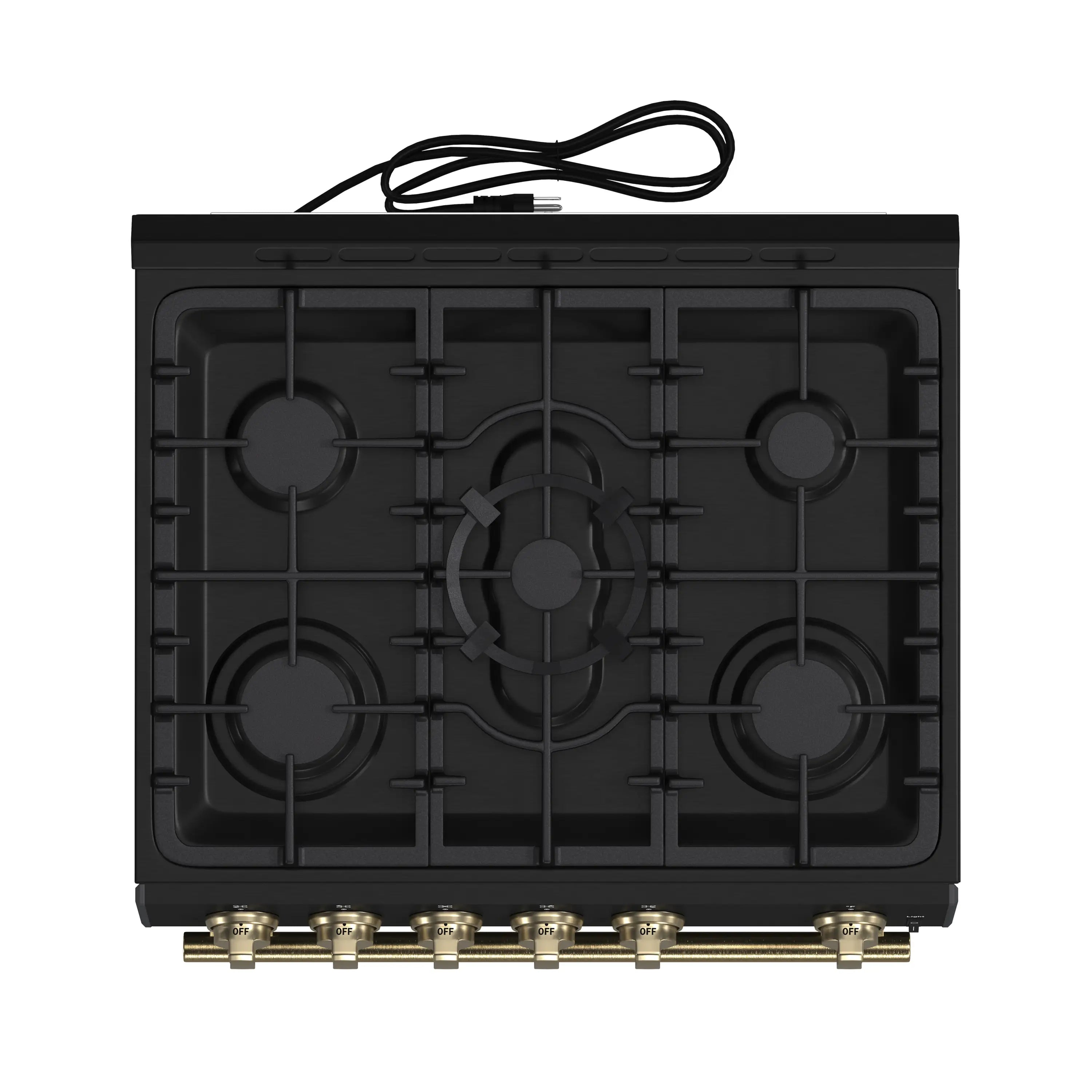

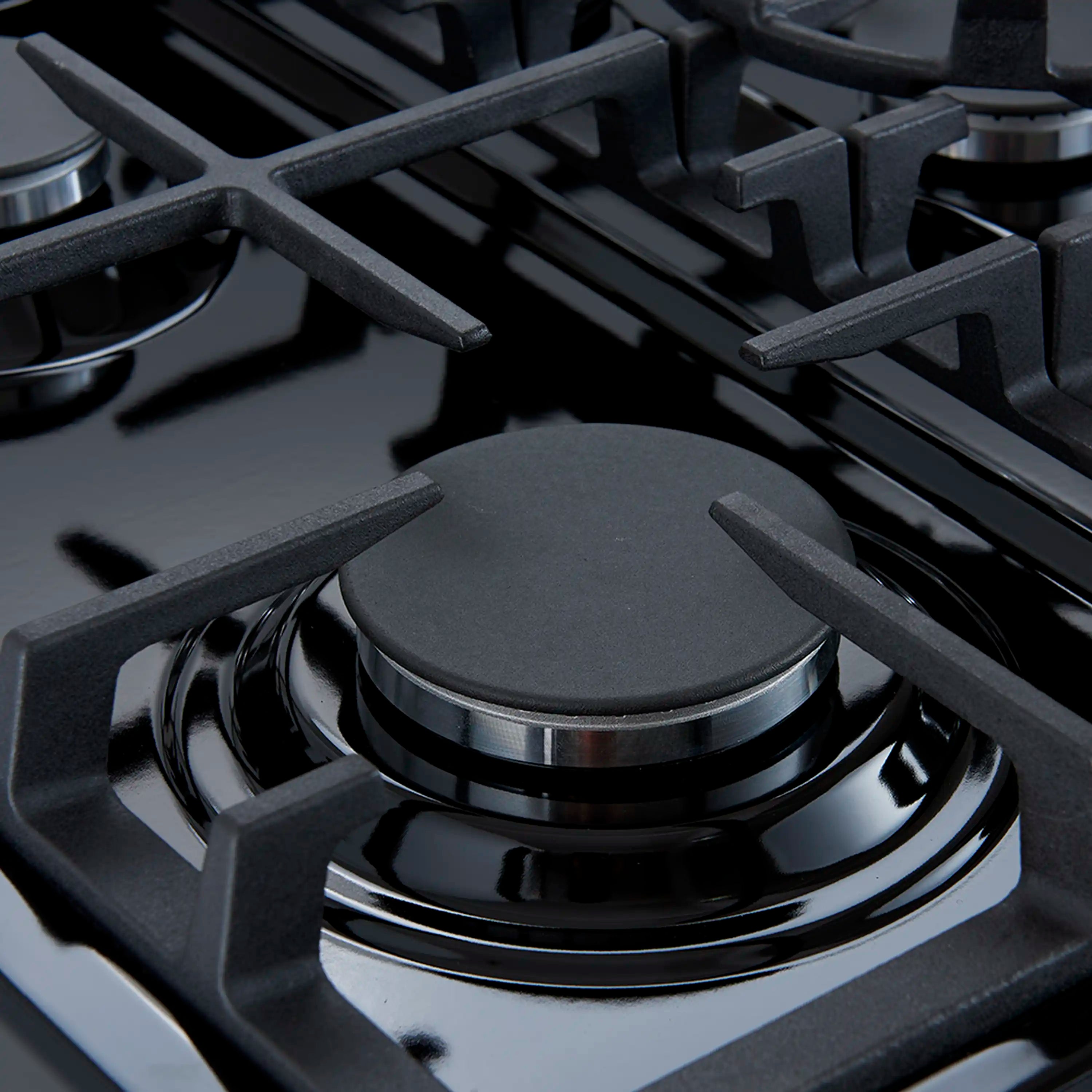

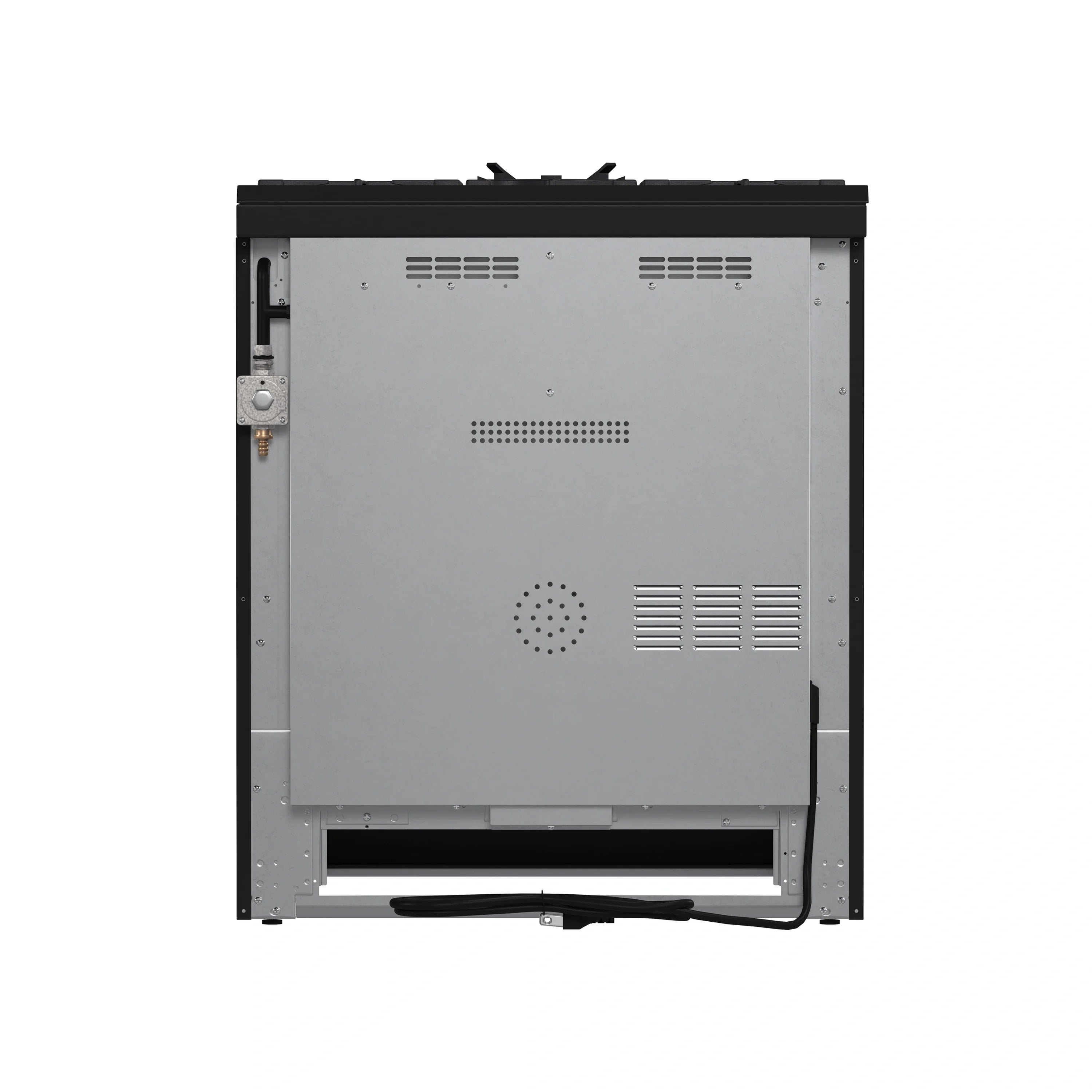

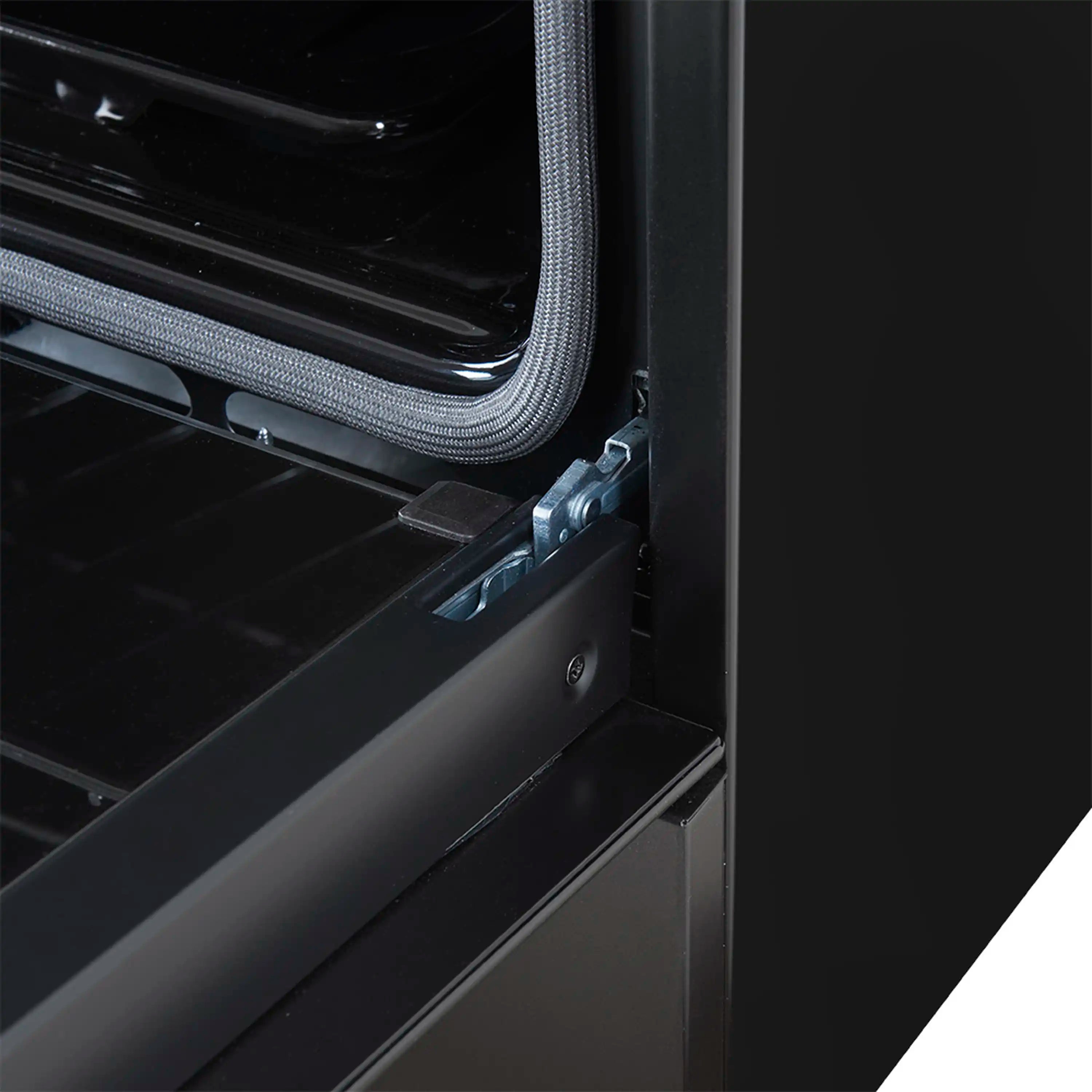

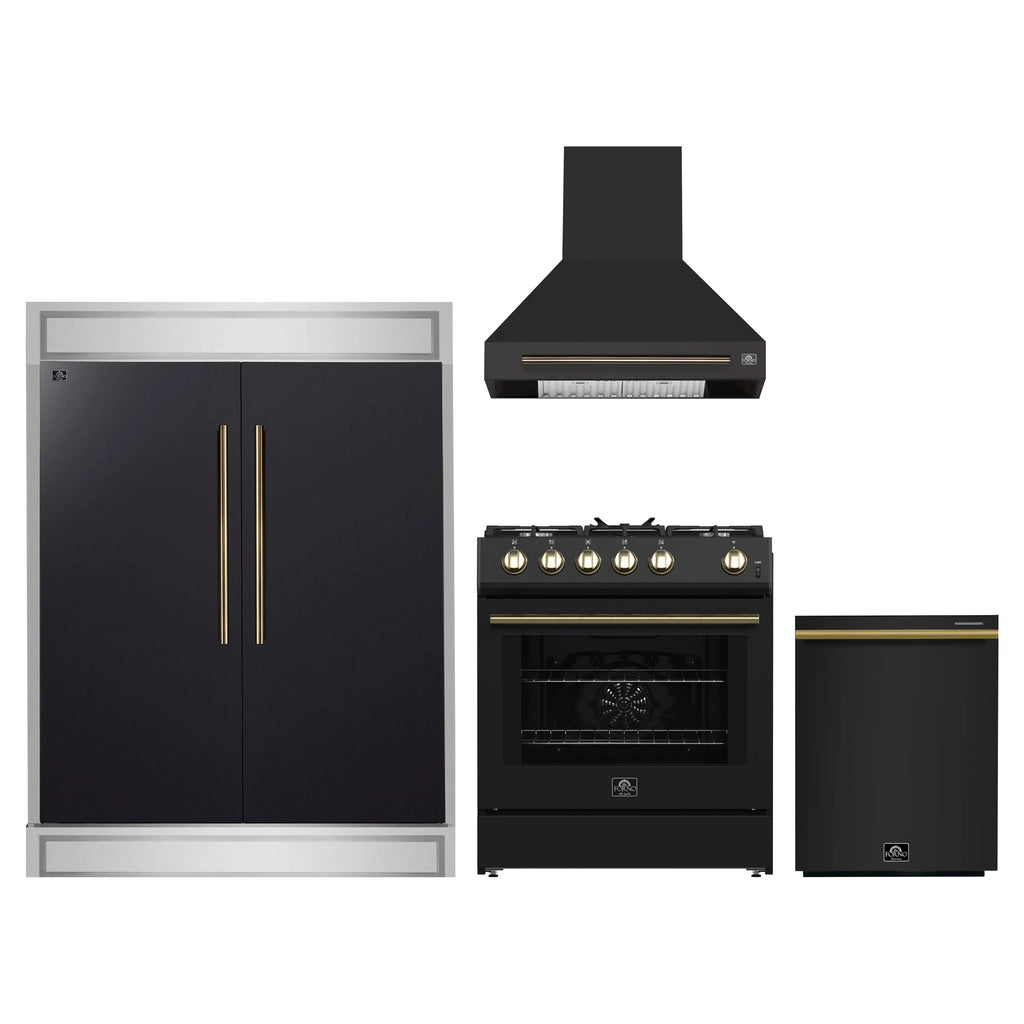

The Forno Leonardo Espresso 30 Inch 5.0 cu.ft. black gas range seamlessly blends style and functionality with the precision of gas power. Its high-performance range top delivers an impressive total output of 39,500 BTU, complemented by continuous cast iron grates that ensure unmatched stability and mobility for your cookware. Thanks to the deep recessed cavity of the black enamel range top, cleaning up spills is effortless. In the 5 cu.ft. convection oven, a combined broil and bake power of 22,500 BTU ensures precision cooking. With two adjustable rack heights and a robust convection fan, achieve consistent heat distribution for uniform cooking across multiple levels, meeting all your culinary needs with perfection.

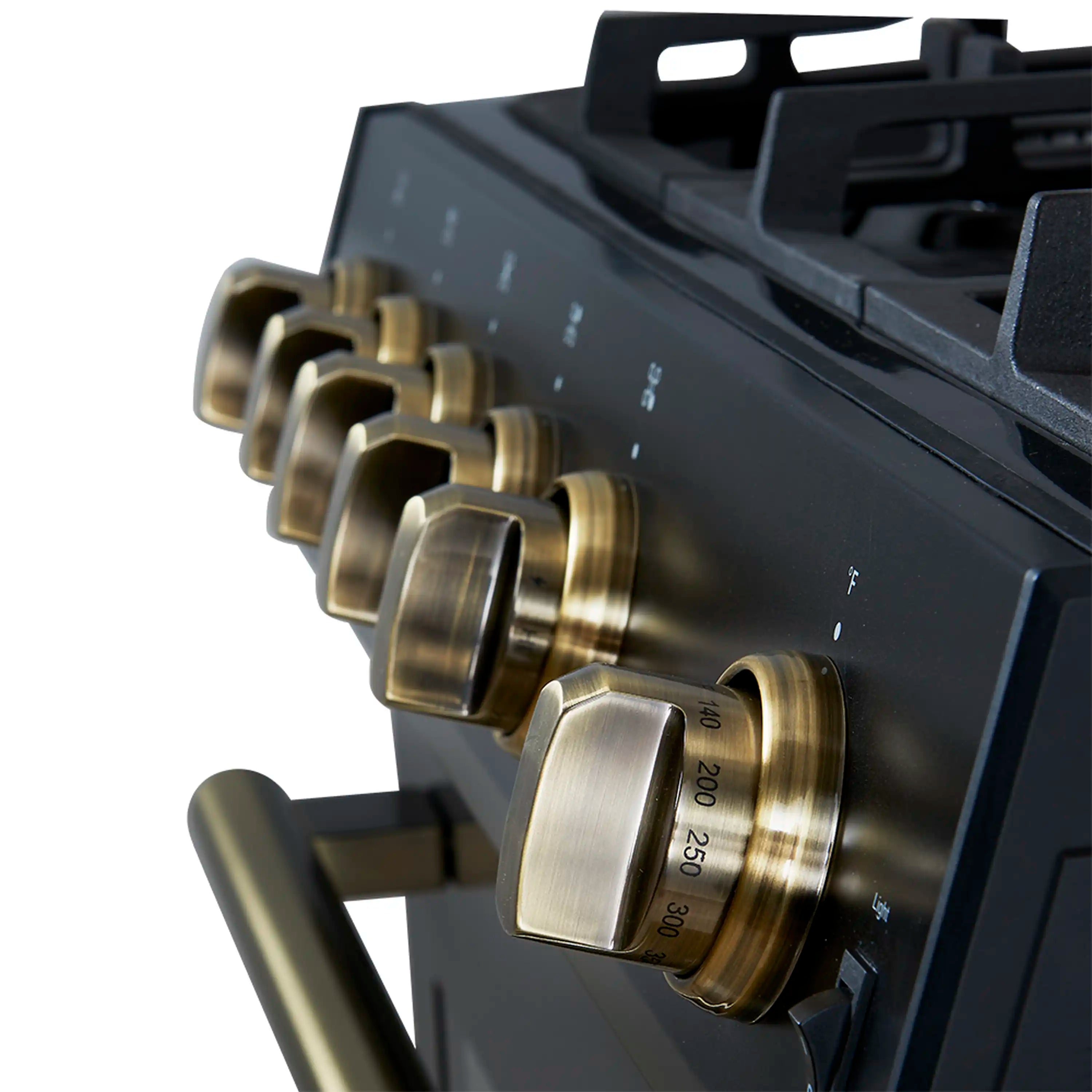

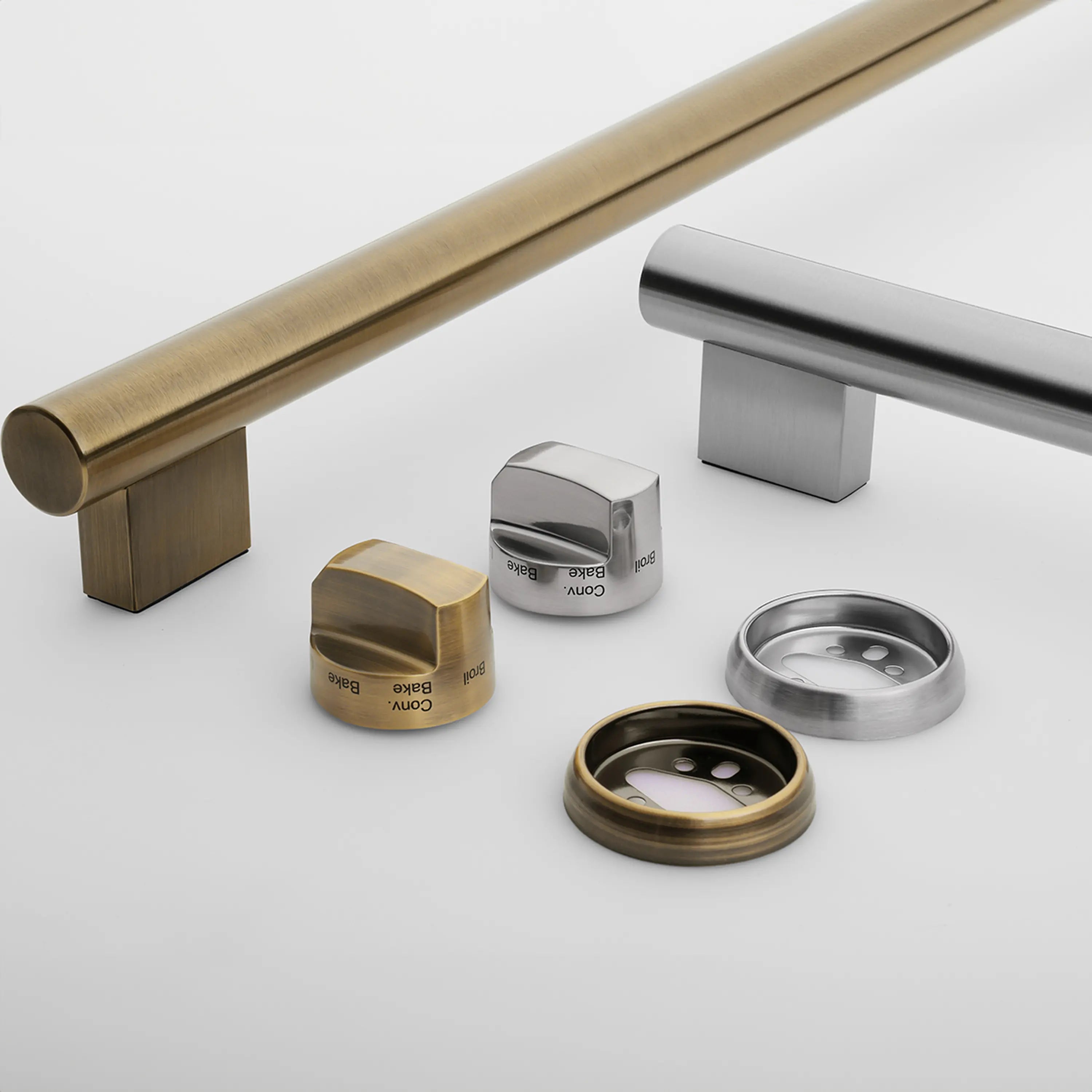

Customize your gas range effortlessly with our supplementary set of antique brass handles and knobs, adding a touch of sophistication to your unit and kitchen space. Safety is our priority, with the auto re-ignition feature ensuring reliable performance every time. Plus, with natural gas compatibility and an included conversion kit for propane, adaptability is at your fingertips, offering flexibility to suit your needs. This range caters to all cooking needs with its powerful cooktop and versatile oven, delivering quality and performance without the high price tags. Lower your cost of living with Forno.
Please Note: This appliance includes both brass and stainless steel handles. Some assembly is required to install your desired finish.
| DIMENSIONS | |
|---|---|
| Product Dimensions | 30" W x 26 1/4" D x 37 1/8" H |
| Oven interior Dimensions (WxHxD) | 24 13⁄32” x 19 11⁄16” x 17 29⁄32" |
| Range Size | 30" |
| Oven rack size (WxD) | 24 19⁄32” x 16 3⁄16” |
| GENERAL INFORMATION | |
| LP Kit Provided | Yes |
| Work Support | Yes |
| Leveling Leg | Max: 1” - Min: 25⁄64 |
| Appliance type | Gas Range |
| DESIGN & FINISH | |
| Color | Black |
| Finish | Black |
| Handle Color | Choice of SS or Anti-Brass |
| Knobs Color | Choice of SS or Anti-Brass |
| Number of Knobs | 6 |
| Case material | Steel |
| Case color | Black Steel |
| TECHNICAL DETAILS | |
| LP Convertible | Yes |
| COOKTOP FEATURES | |
| Simmer Burner | Yes |
| Cooktop surface type | Cast Iron Grates/Black enamel |
| OVEN FEATURES | |
| Convection Type | Single Fan |
| Oven Cleaning Type | Standard Clean |
| Oven Lights | 2 |
| Oven Cooking Function | Yes |
| Convection Bake | Yes |
| Broil | Yes |
| Oven lights control switch activated | Yes |
| Temperature Range | 140 0F - 500 0F |
| Rack material | Electroplated |
| Telescopic Racks | No |
| Oven capacity | 5 cu.ft. |
| Bake BTU | 15000 |
| Broiler BTU | 7500 |
| Door Color | Black |
| Oven interior color | Black |

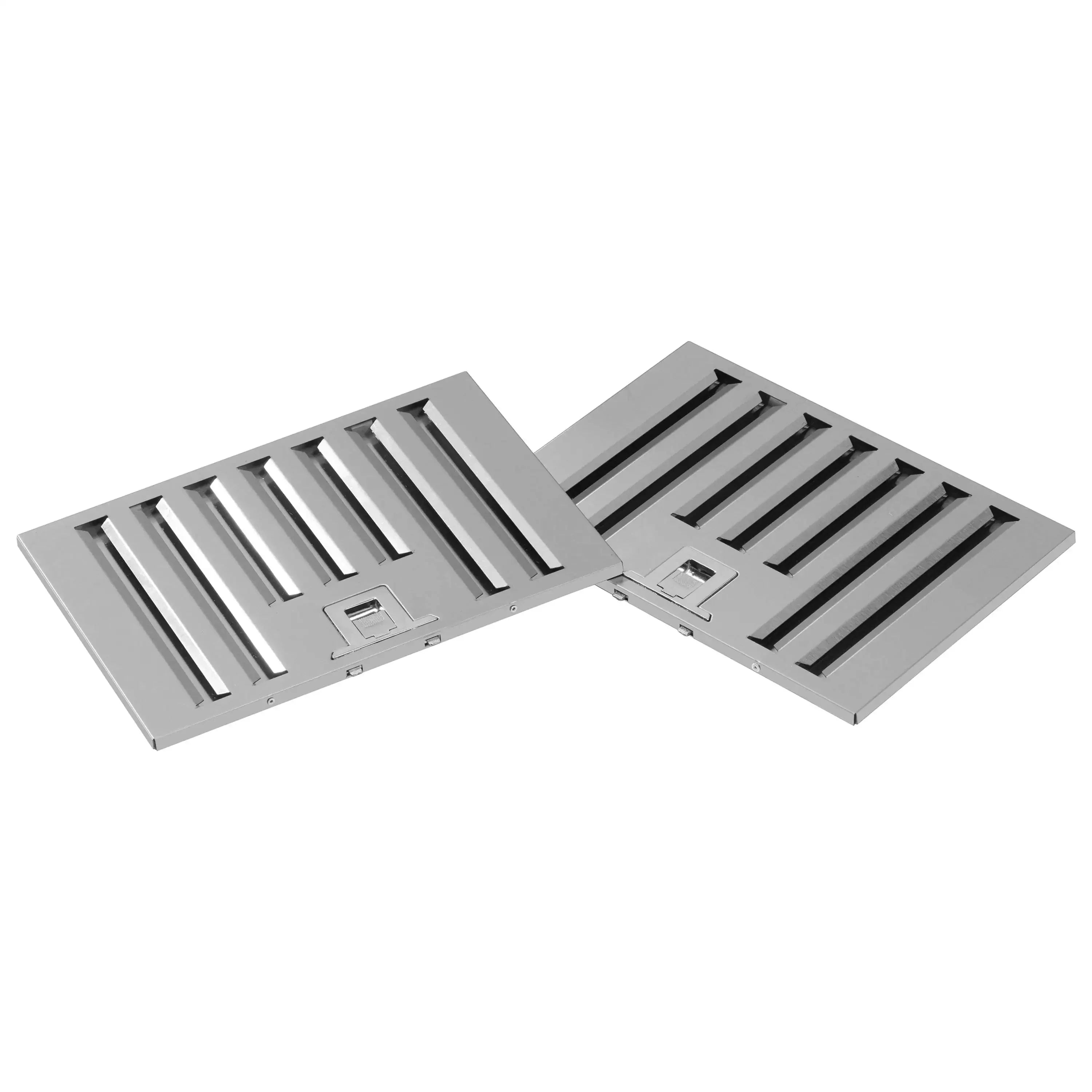

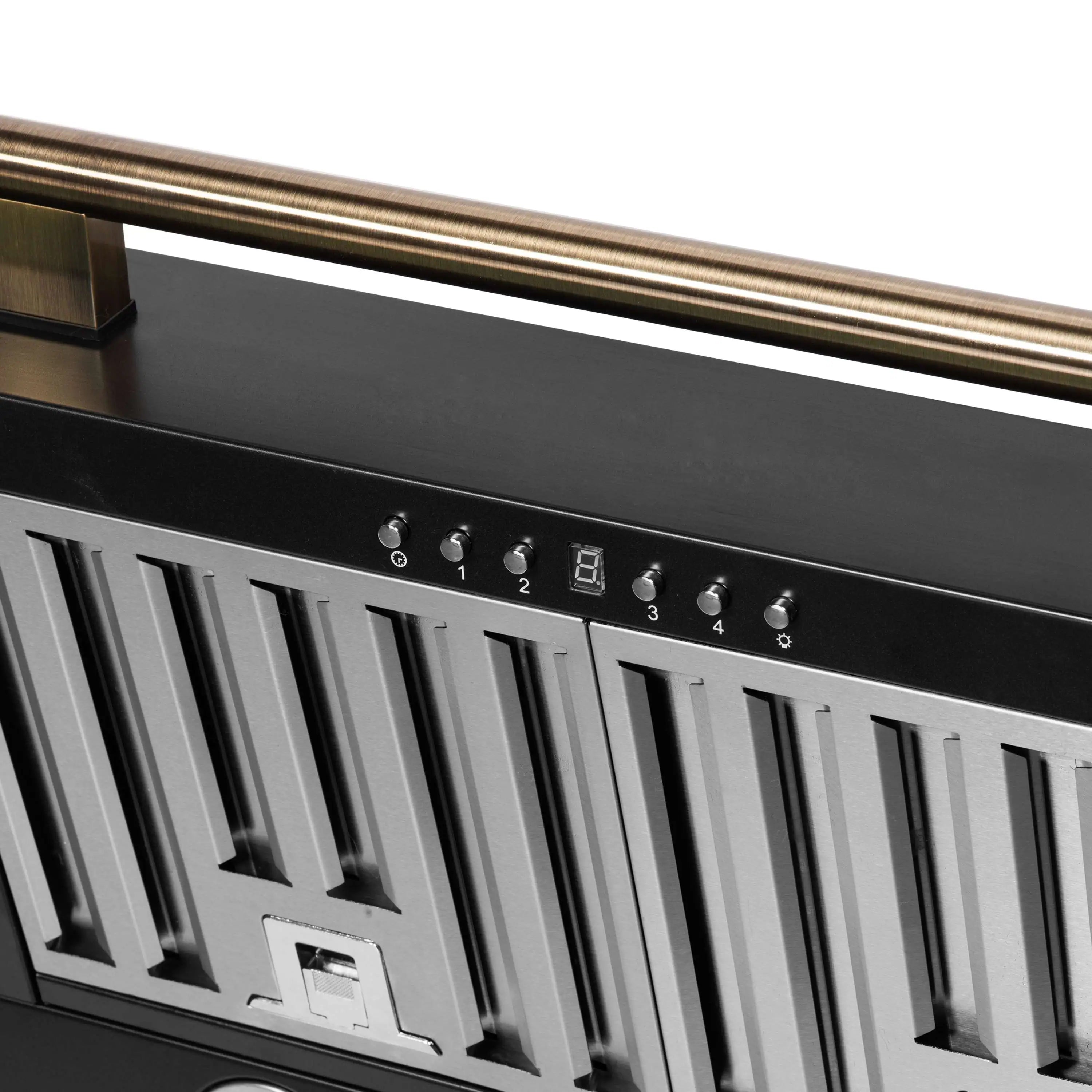

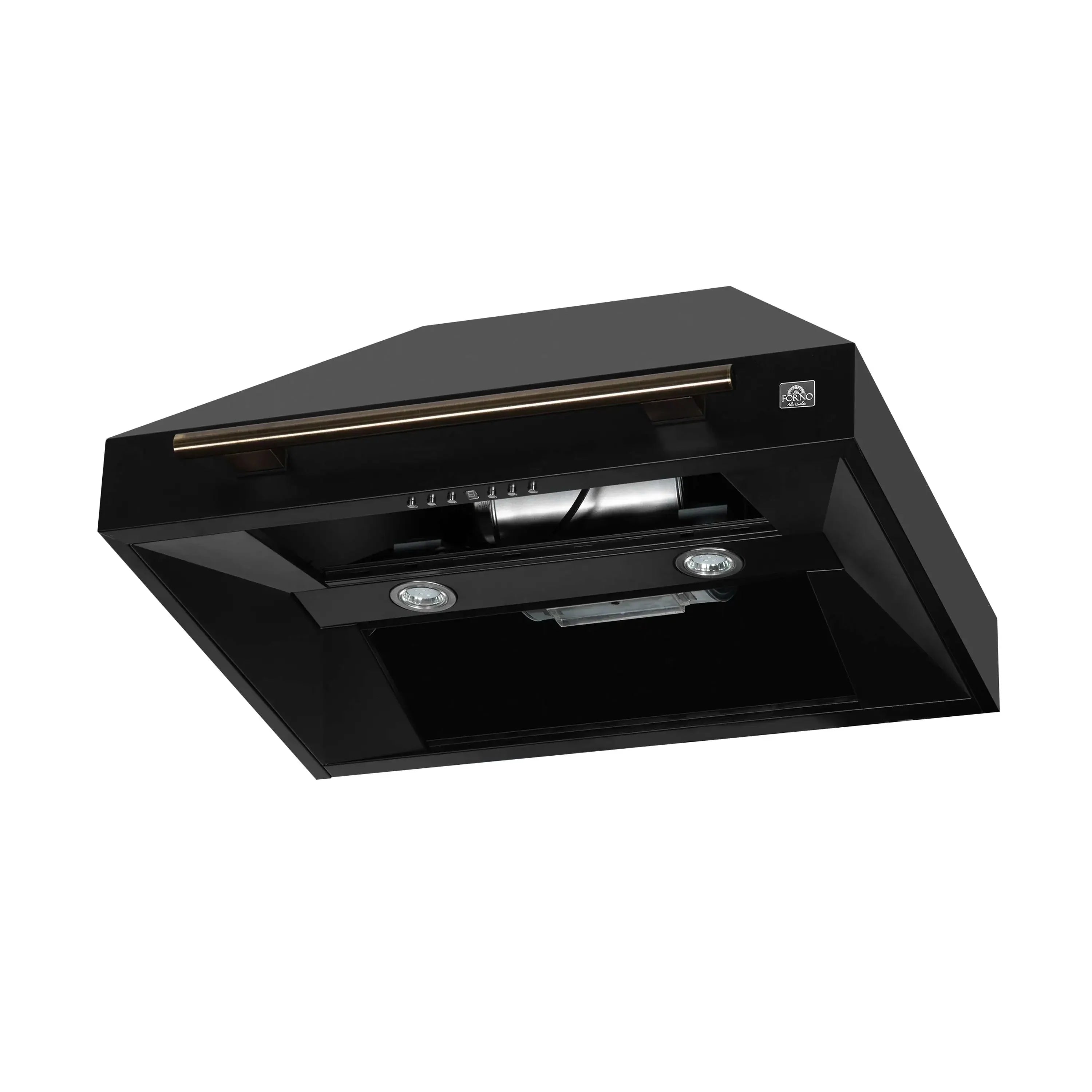

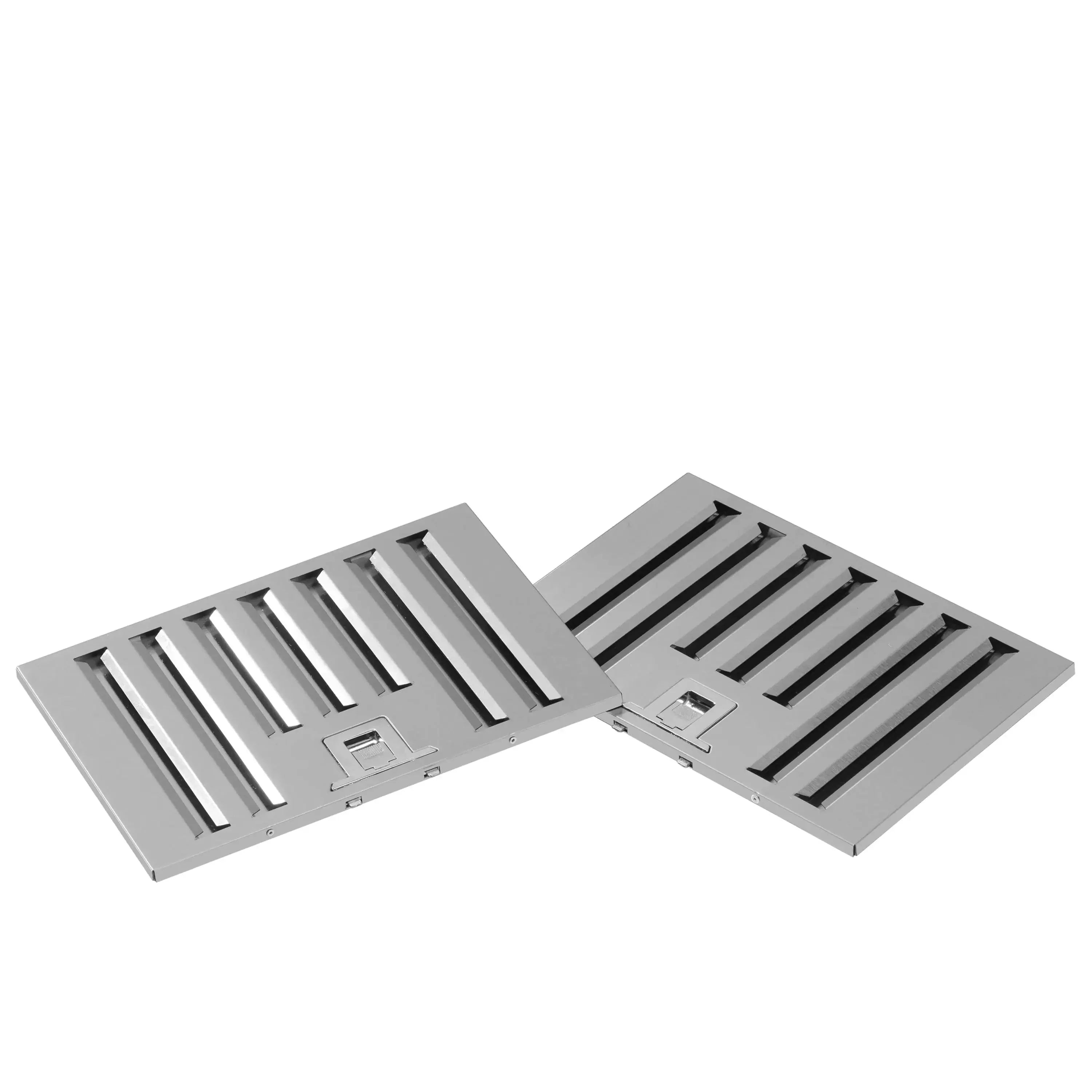

This 30 Inch Wall-Mounted Range Hood in black is designed for high-performance kitchen ventilation. With a powerful 600 CFM motor and 4-speed fan control, it removes smoke, grease, and cooking odors. Designed for ducted installation, the vertical upward air discharge ensures efficient airflow, while features like automatic shut-off, a built-in timer, and removable charcoal filters make it convenient to use and maintain. The included chimney extension kit and decorative crown molding allow for a custom, built-in look. Quiet operation at just 65 dB with built-in lighting for better visibility while cooking.
| DIMENSIONS | |
|---|---|
| Product Dimensions W x D x H (inches) | 29.5 x 23.6 x 44.5 |
| Cutout dimensions W x D x H (inch) | 30 x 11.6 x 44.5 |
| Minimum Height from Cooktop | 30 |
| GENERAL INFORMATION | |
| Bulb Type | LED GU10 |
| Exhaust Vent Location | Roof / Wall |
| DESIGN & FINISH | |
| Color/Finish | Black |
| Control Location | Under |
| Primary Material | Stainless Steel |
| Remote Control | No |
| Speed Control Type | Push Button Control |
| Filter Material | Stainless Steel |
| TECHNICAL DETAILS | |
| Decibel Speed 3 (dB) | 58 |
| Decibel Speed 1 (dB) | 44 |
| Motor(s) Power (Watts) | 60 |
| Minimum Decibel (dB) | 44 |
| Sones Speed 4 | 13 |
| Sones Speed 2 | 5 |
| Minimum Sones | 2 |
| RPM Speed 4 | 1510 |
| RPM Speed 2 | 1050 |
| Air Flow Speed 4 | 1020 |
| Air Flow Speed 2 | 637 |
| CFM speed 4 | 600 |
| CFM speed 2 | 375 |
| Minimum CFM | 275 |
| Power off Function | Yes |
| Duct Type | 6-in Round |
| Damper | Yes |
| Blower Material | Metal |
| Power Cord Location | Top |
| Decibel Speed 4 (dB) | 65 |
| Decibel Speed 2 (dB) | 51 |
| Bulb Wattage | 2 < |
| FEATURES | |
| Range Hood Shape | Pyramid |
| Number of Lights | 2 |
| Chimney Short Kit | Yes |
| Rangehood Chimney | Yes |
| Backsplash Included | No |
| Air Discharge Direction | Vertically Upward |

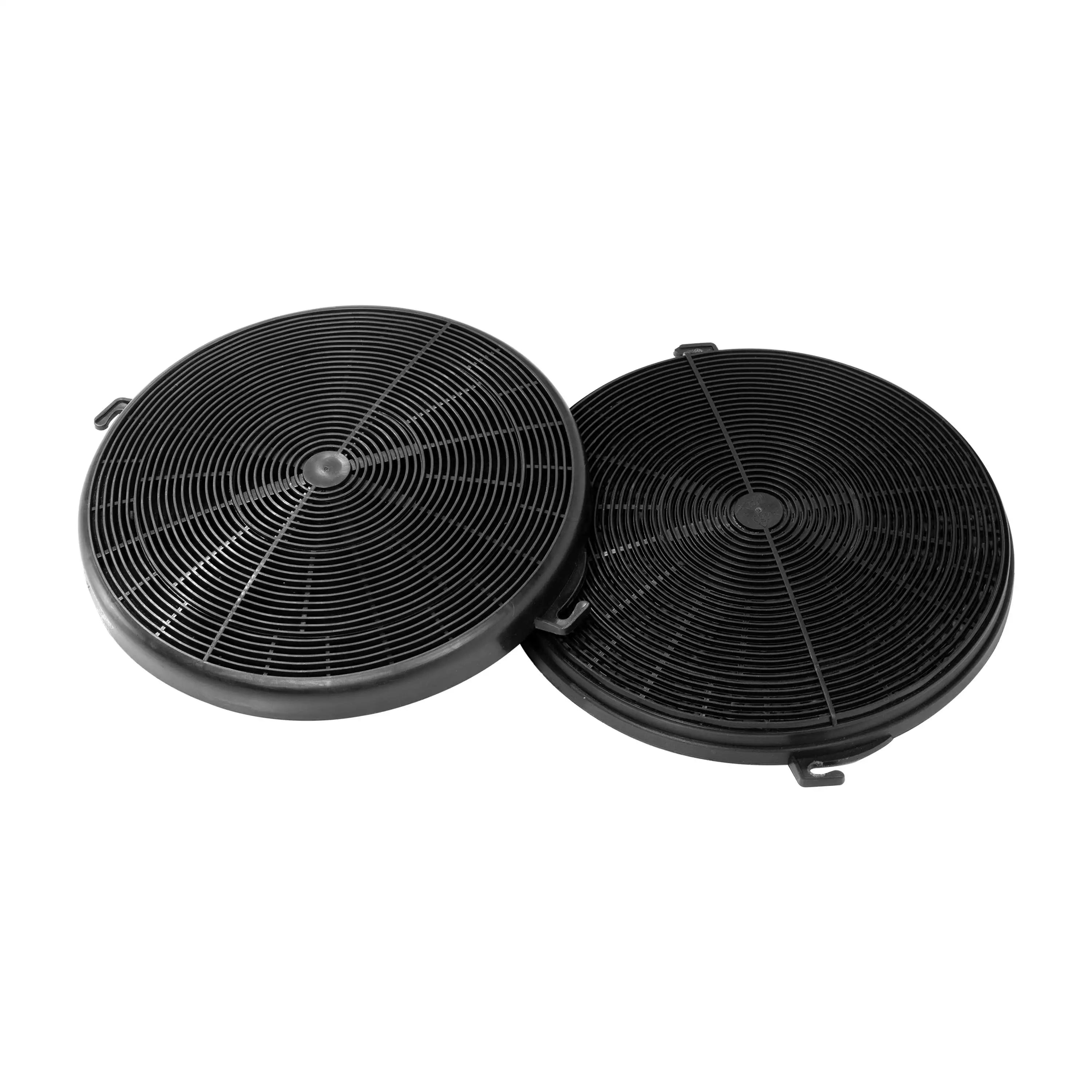

| Charcoal Filters | Yes |
| Fingerprint-Resistant | No |
| Dishwasher Safe Filters | Yes |
| Clock | No |

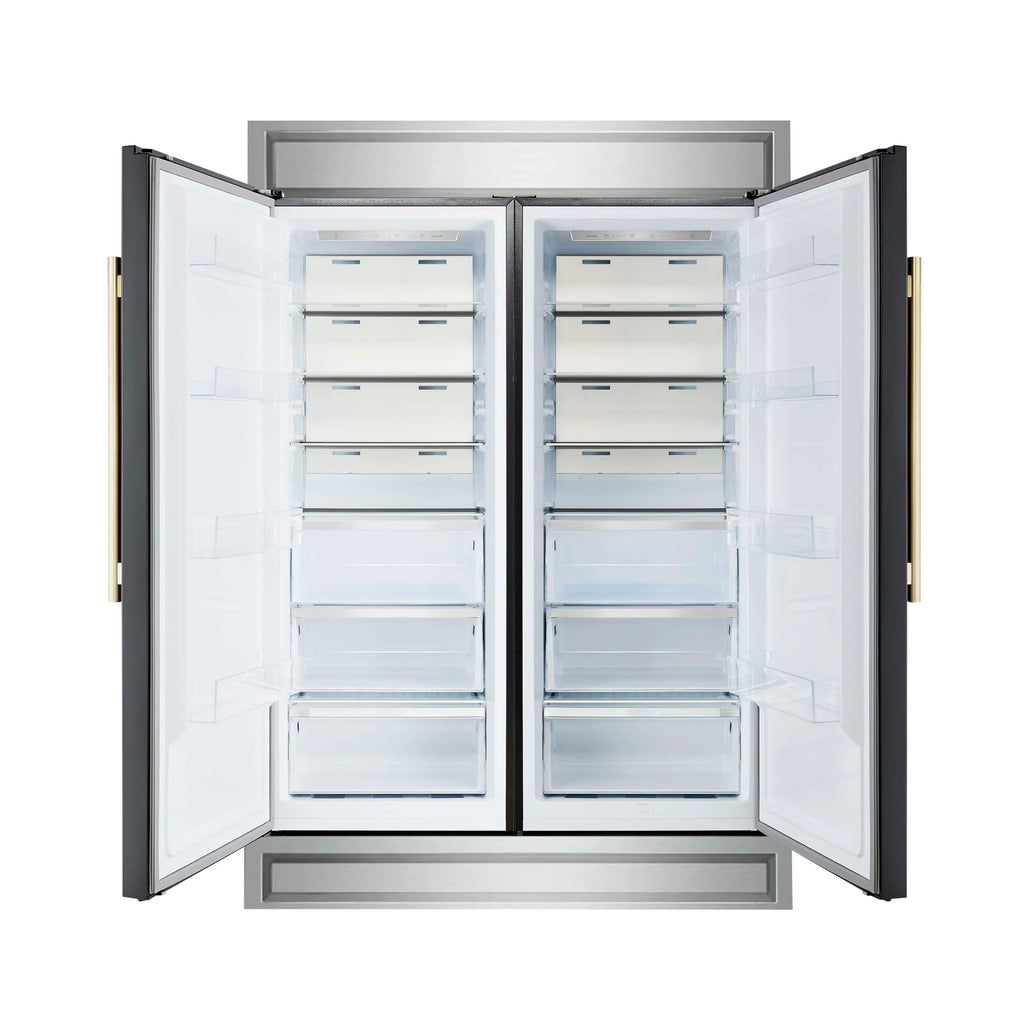

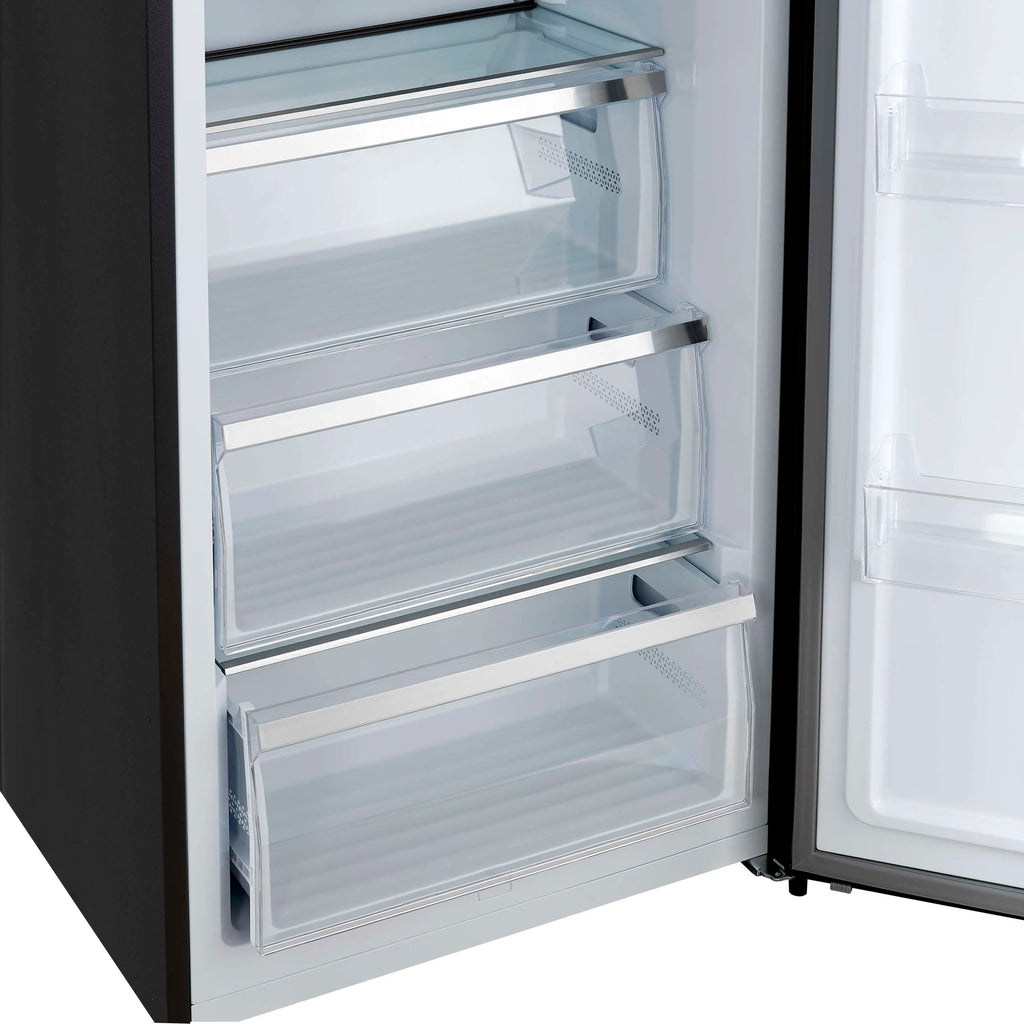

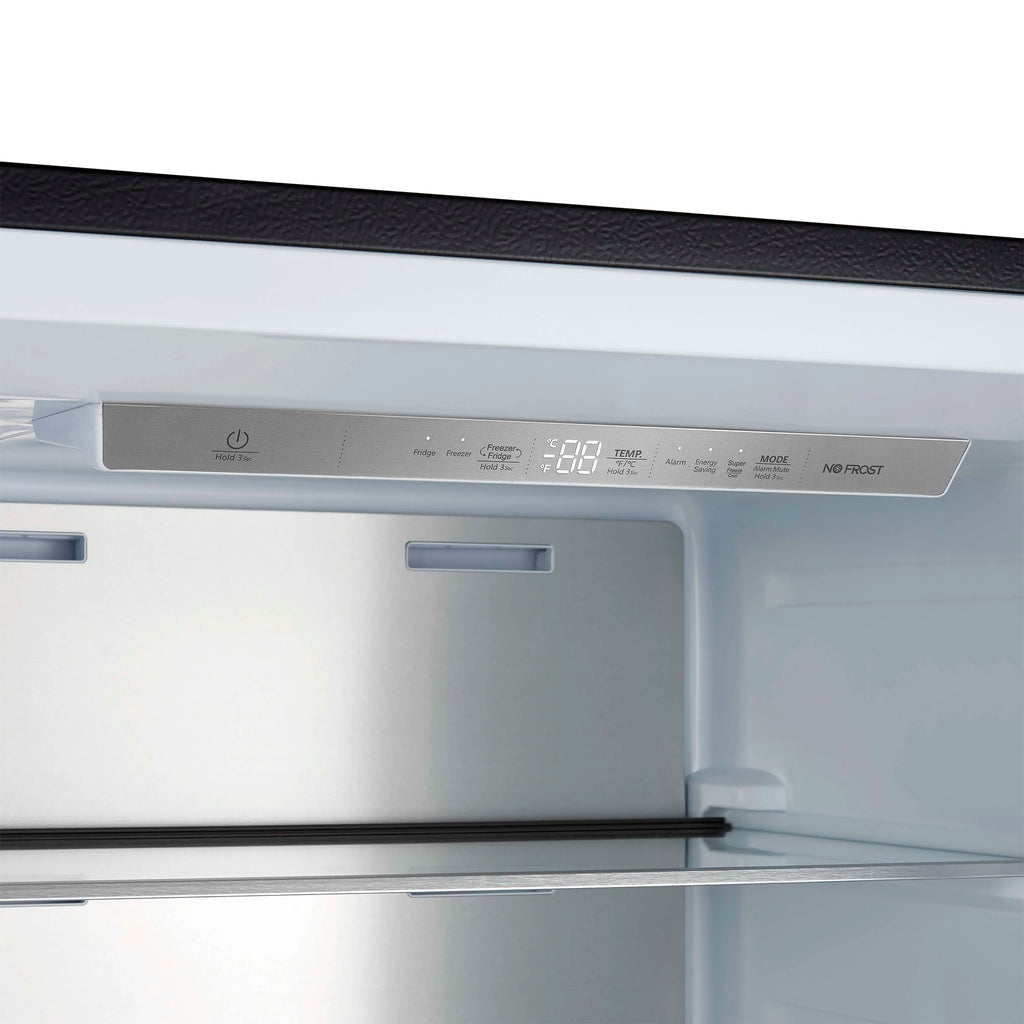

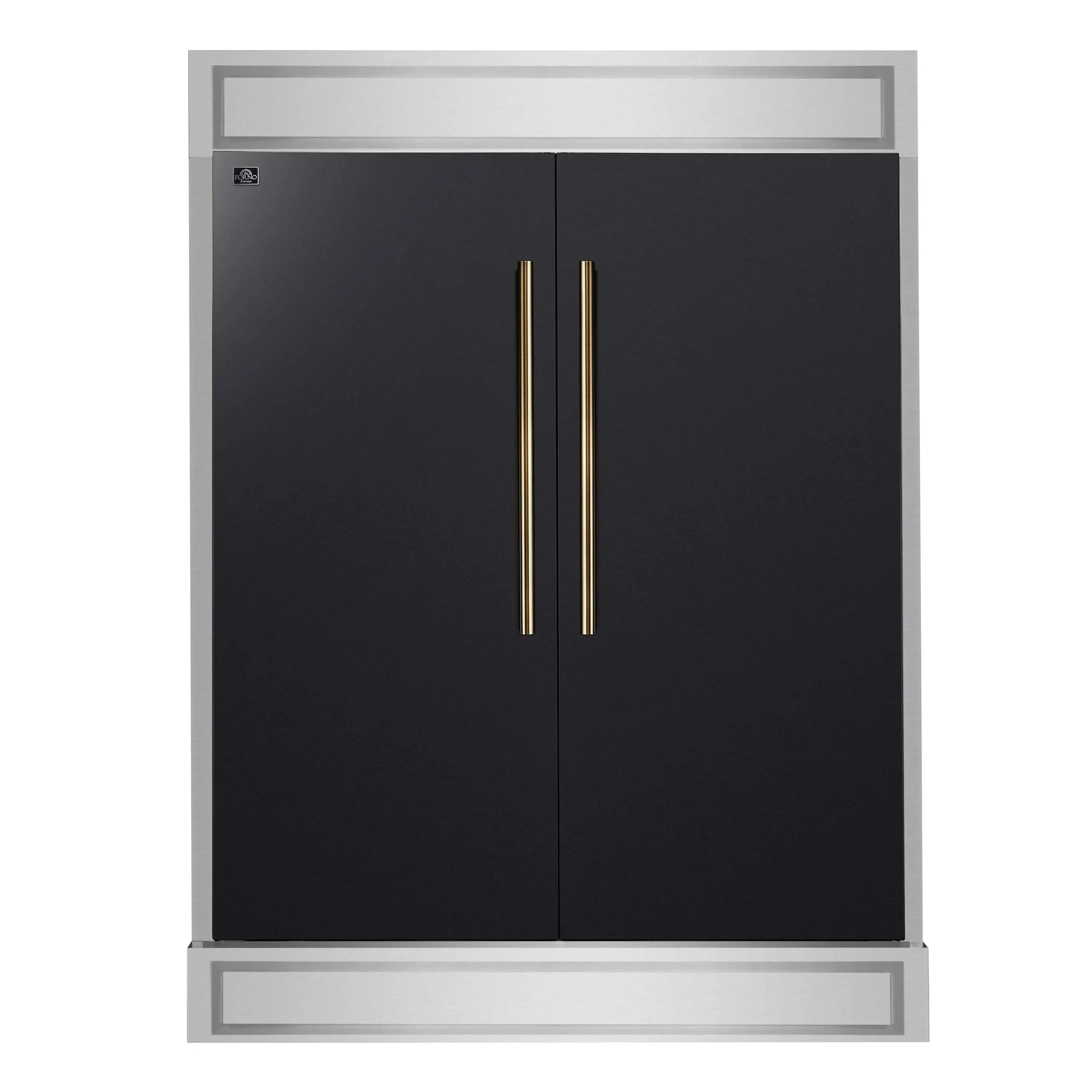

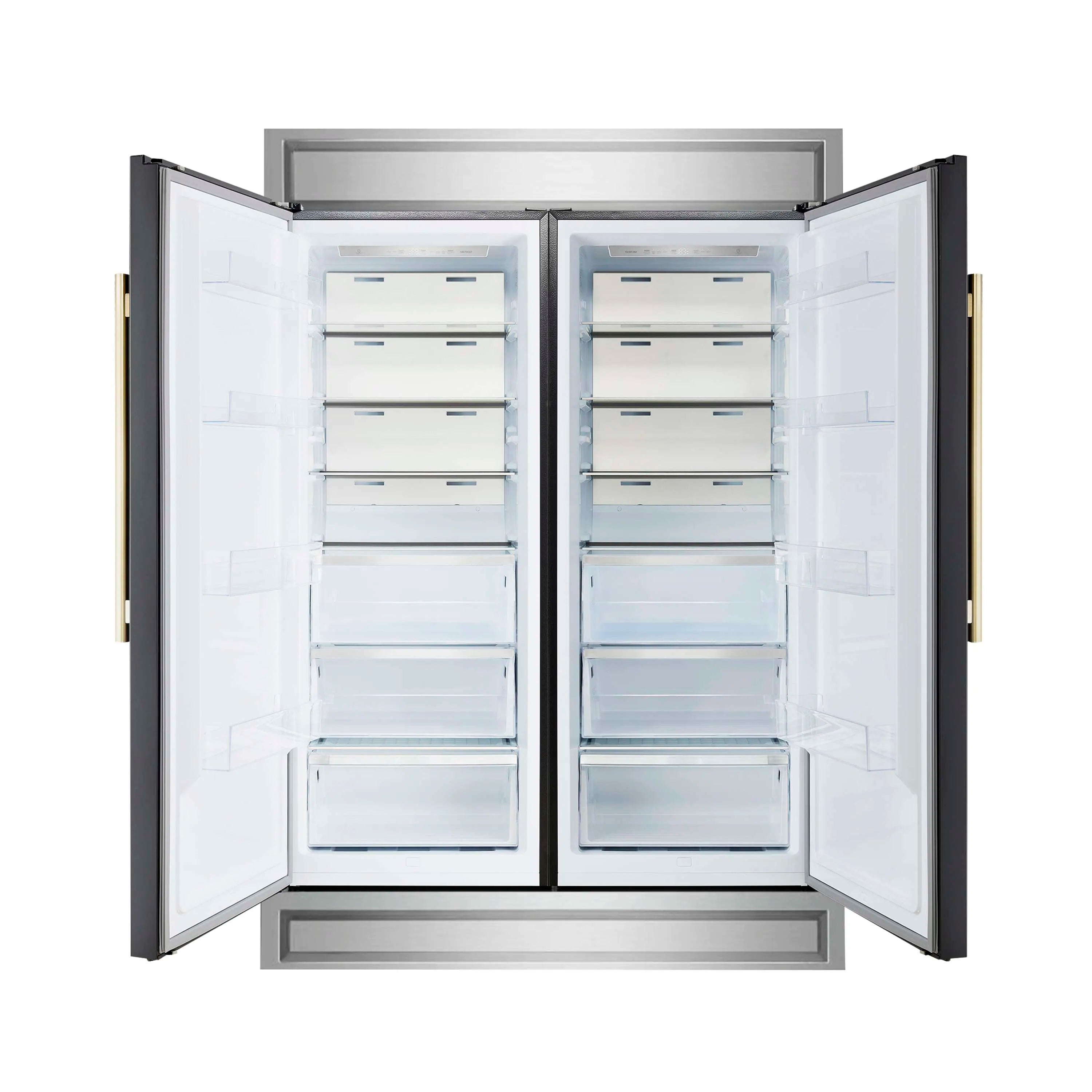

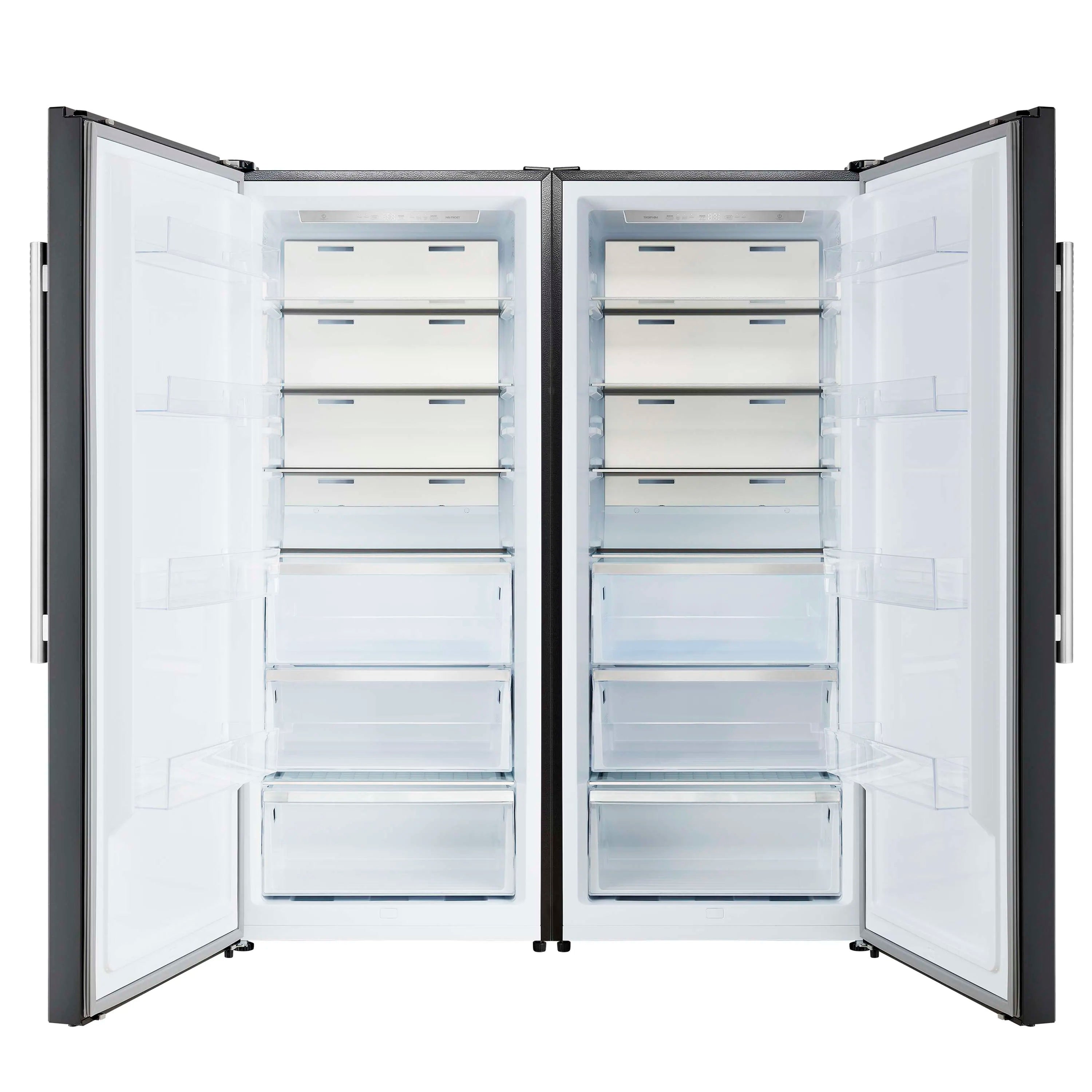

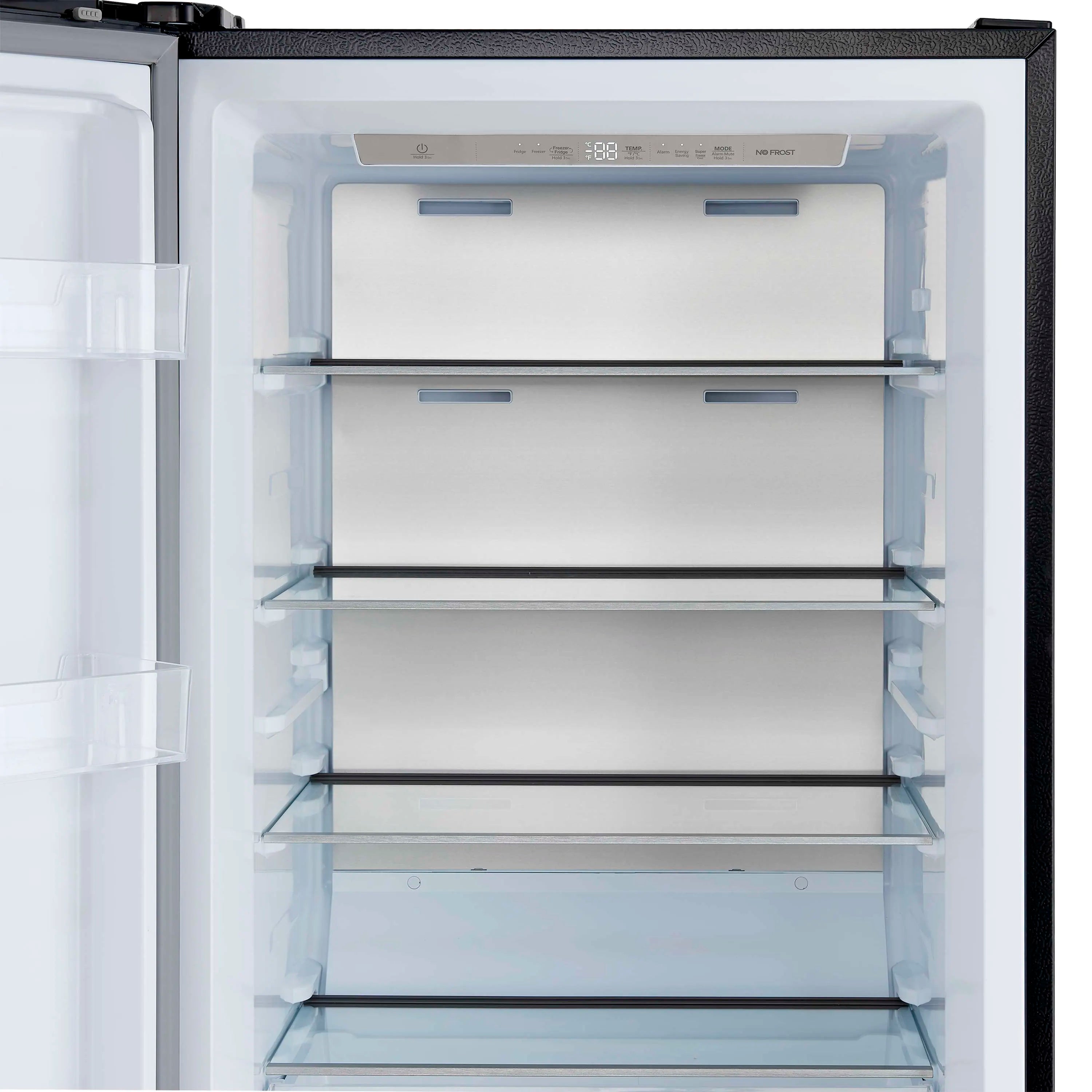

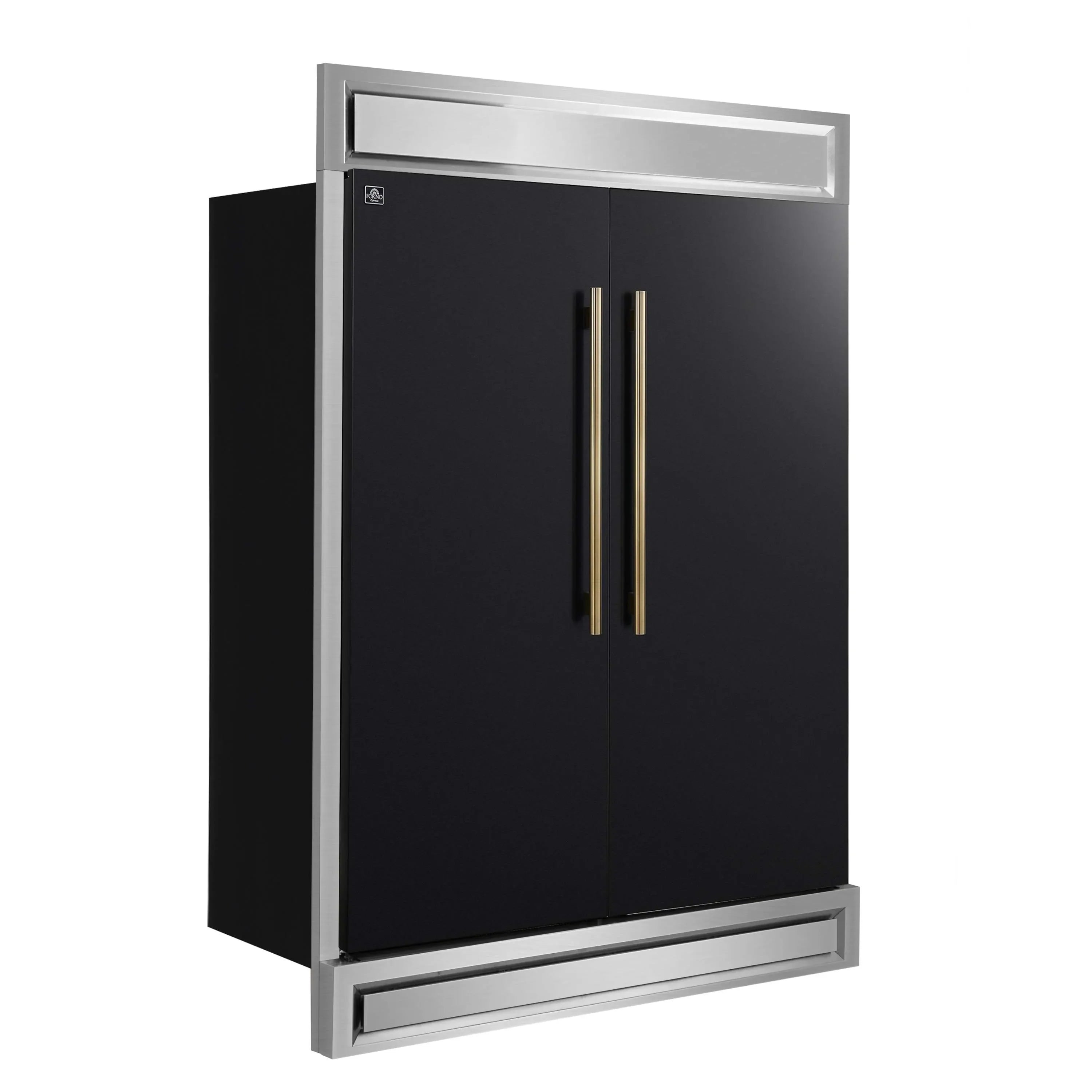

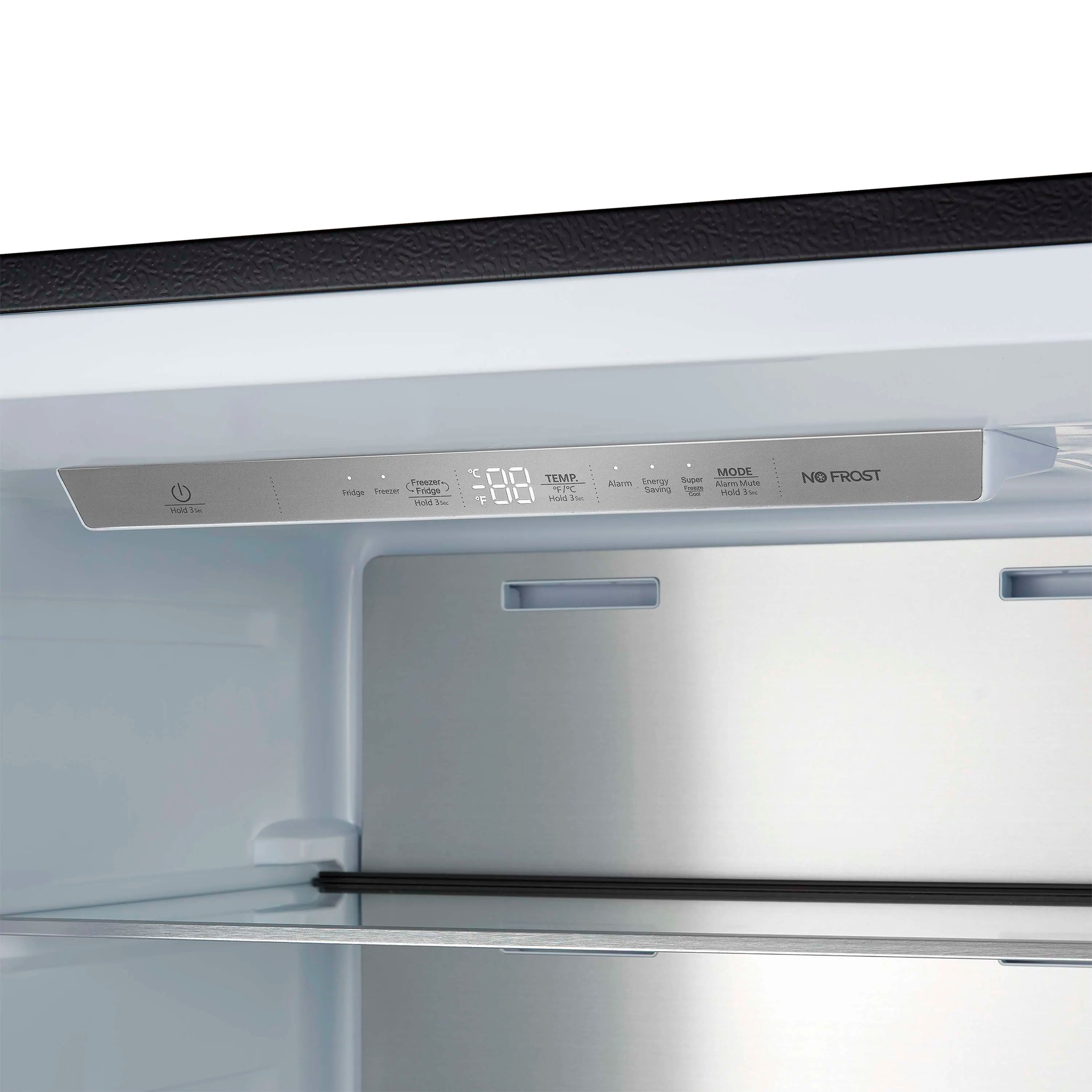

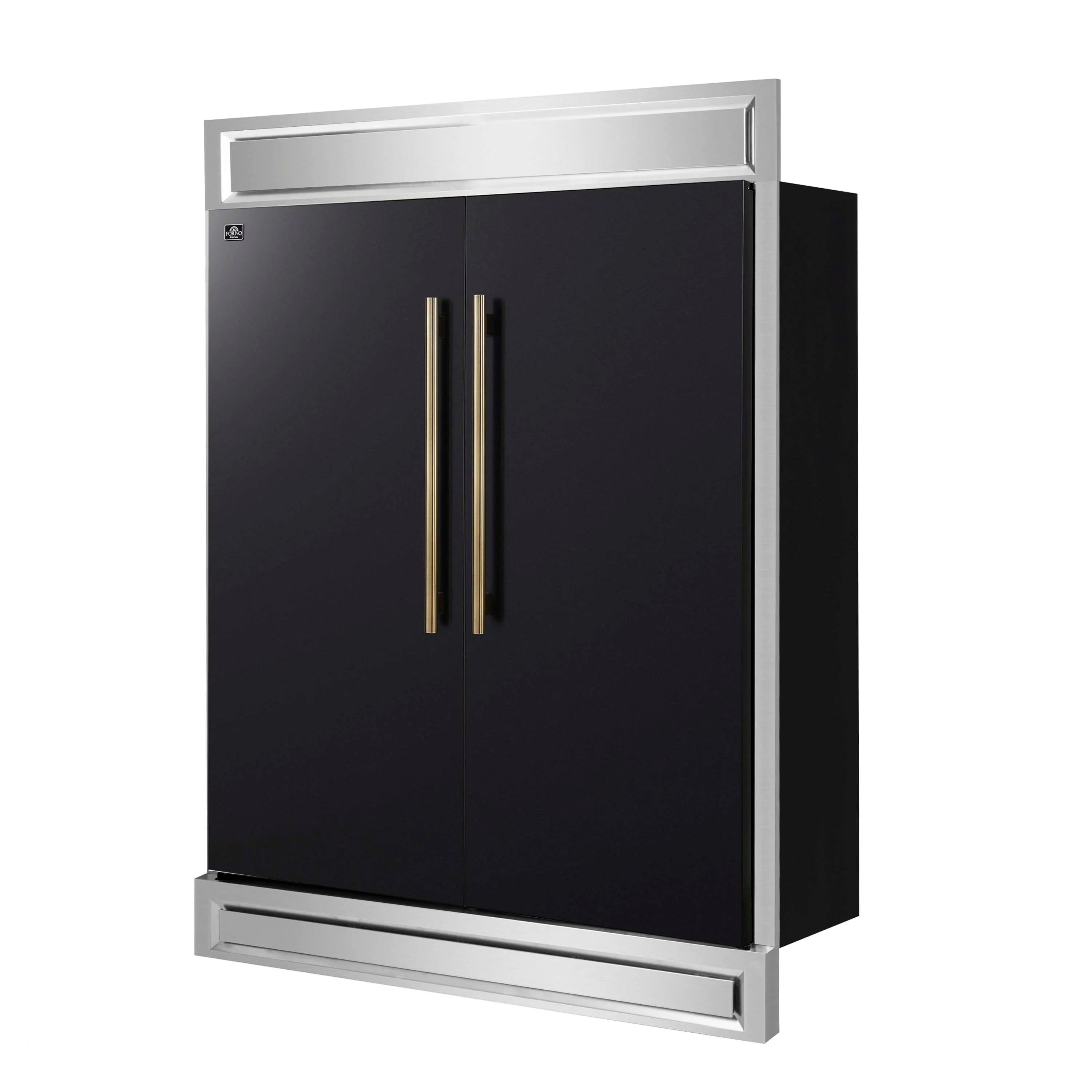

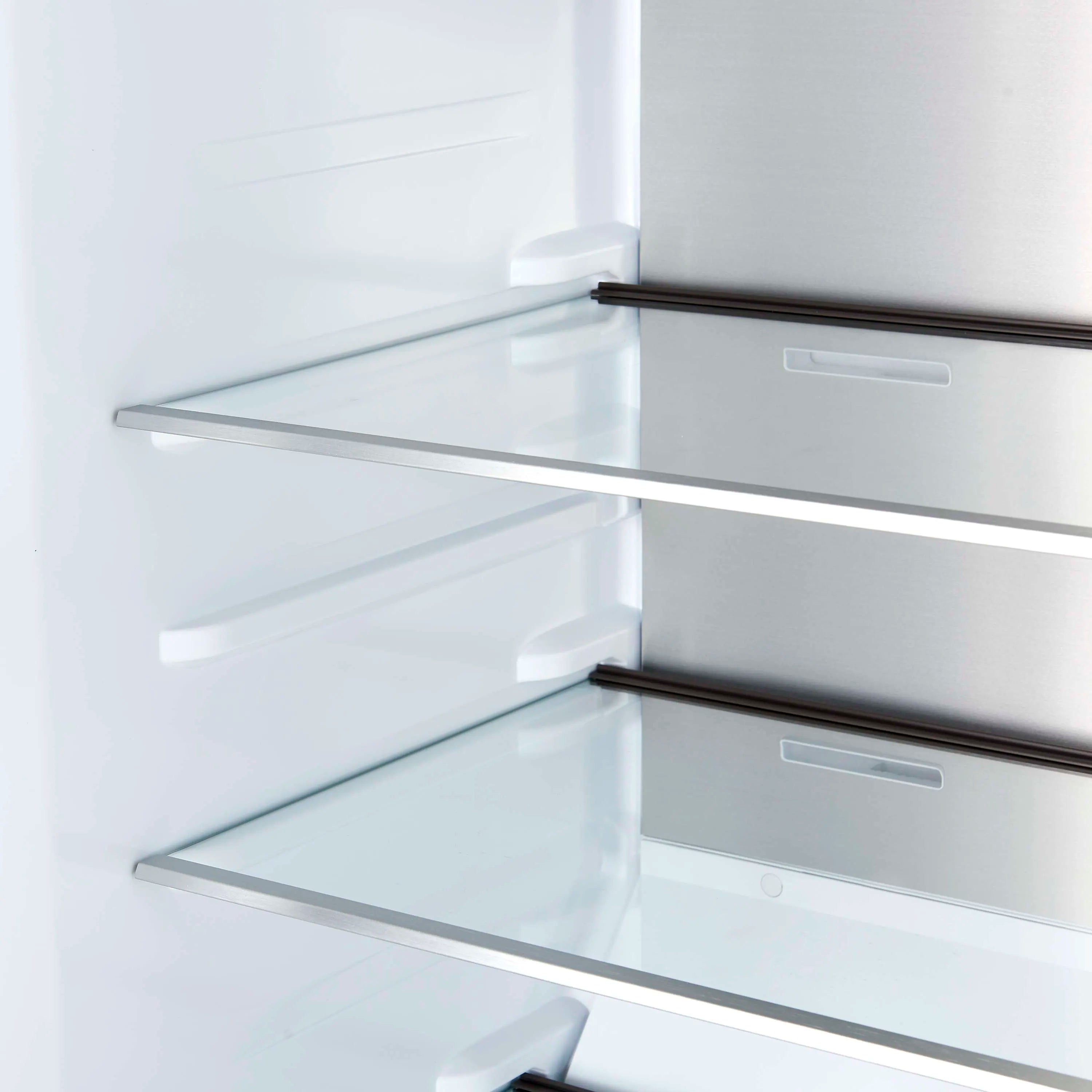

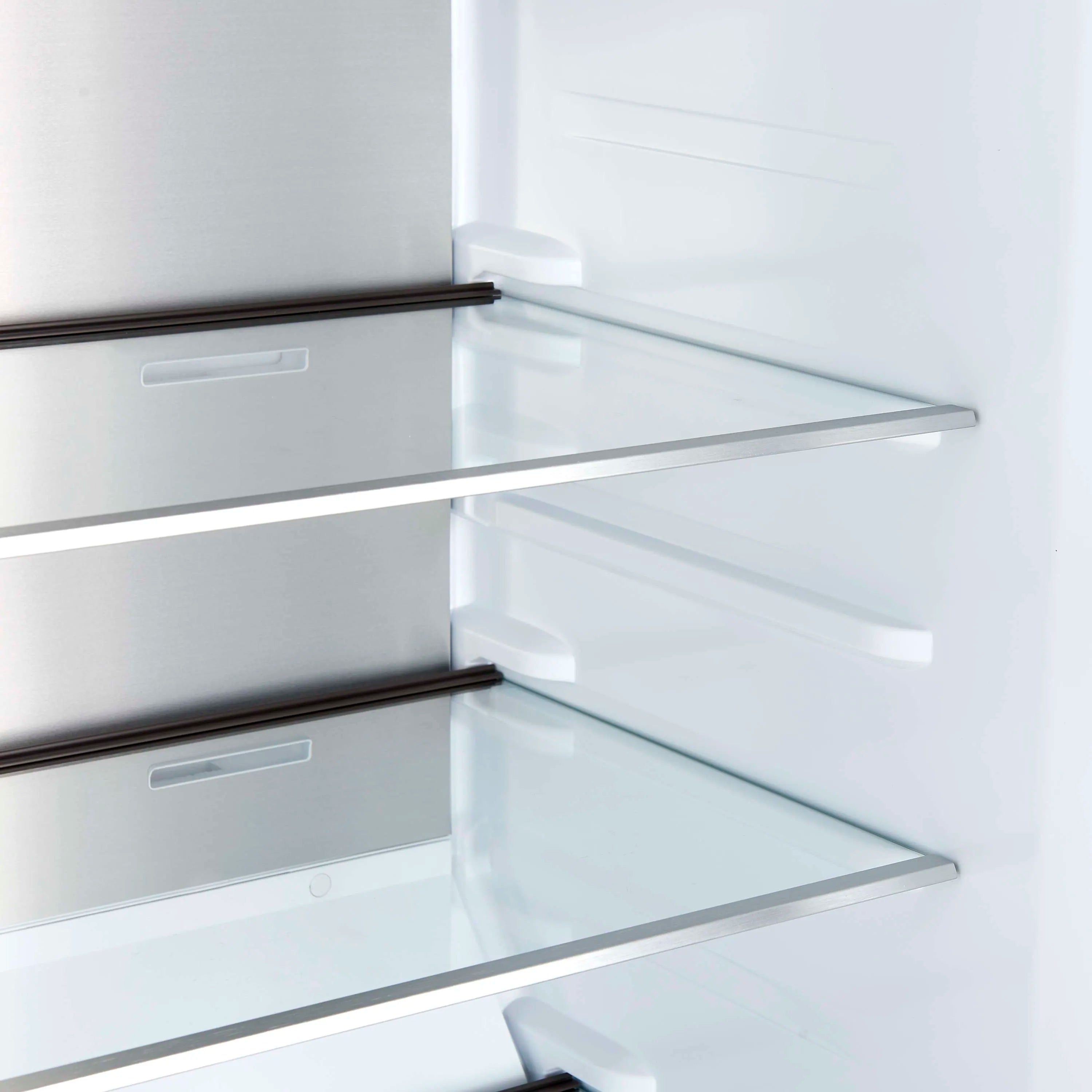

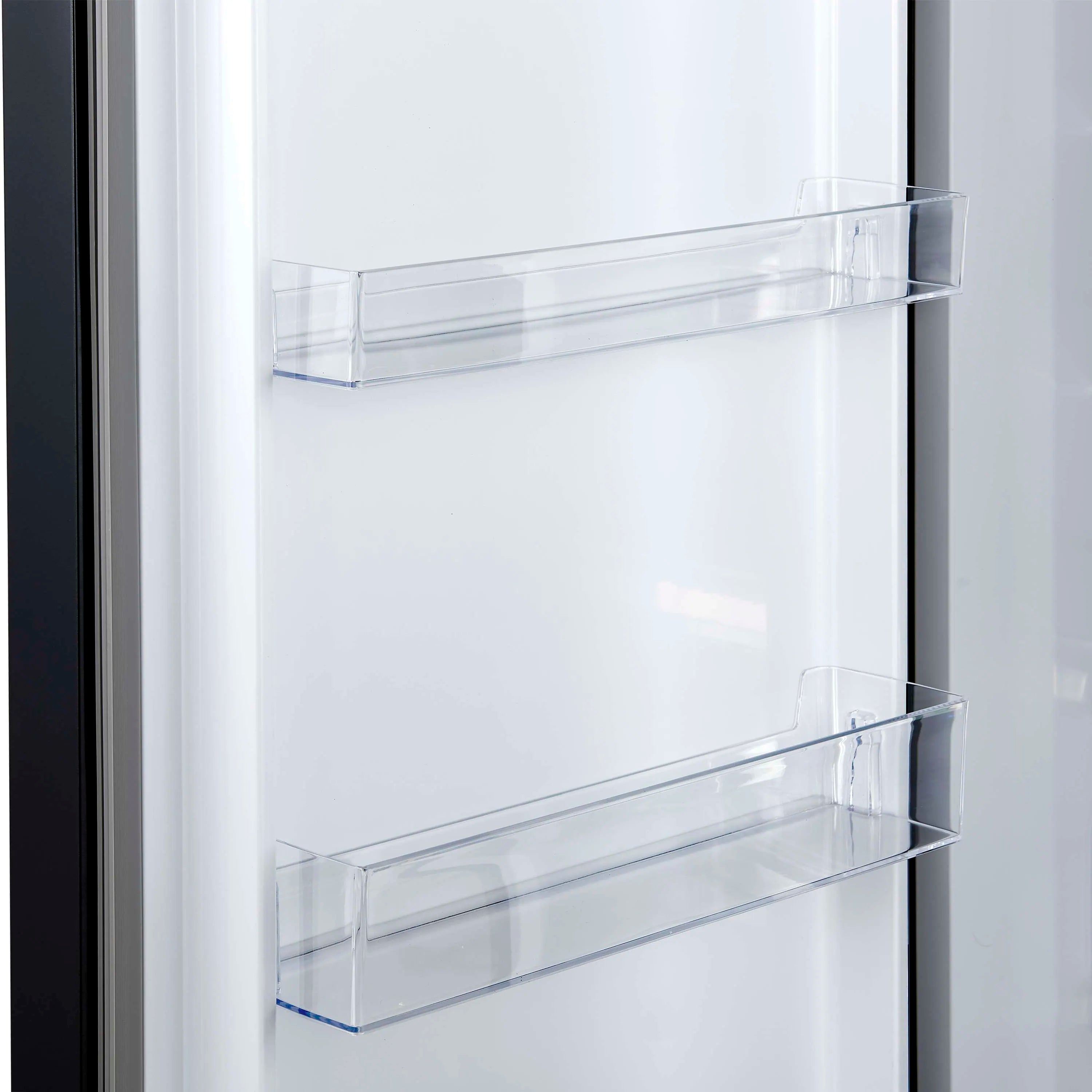

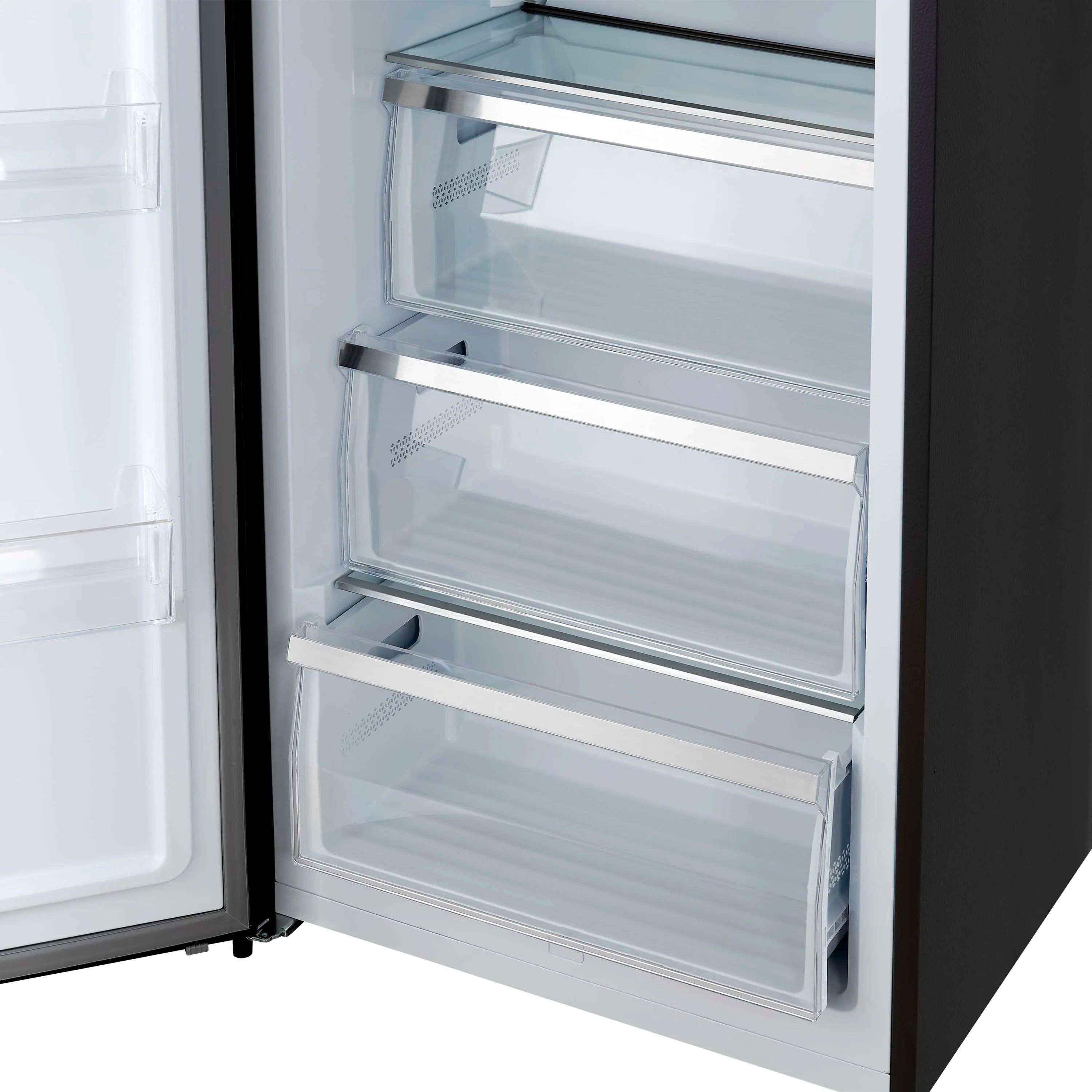

The Forno Maderno provides a premium 60 inch built-in refrigerator look by combining two 28 inch units with a trim kit for seamless side-by-side installation. This fridge freezer combo comes in a black finish with antique brass handles as part of our Espresso line, adding a boldness to any modern kitchen. With a total capacity of 27.2 cu.ft., it's ideal for large households or serious entertainers. Inside, you’ll find Convertible Cooling Zones that let you switch between refrigerator and freezer mode, Total No-Frost technology to prevent icy build-up, and a sleek digital control panel for easy adjustments. The Maderno includes six tempered glass shelves with silver trim, six storage drawers, and bright LED lighting to help keep everything organized and easy to find. VCM-coated doors and a durable metal back panel add strength and a fingerprint-resistant finish. Energy Star certification ensures this side-by-side built-in refrigerator is energy efficient.
| DIMENSIONS | |
|---|---|
| Overall Weight (Lbs) | 330 |
| Product Dimensions W x D x H (inches) | 55.2 x 26.9 x 67.1 |
| Cutout dimensions W x D x H (inch) | 55.9 x 28.94 x 69.06 |
| Minimum Back Clearance (IN) | 2.00 |
| Minimum Top Clearance (IN) | 4.00 |
| Height Top of the Cabinet/Case (inches) | 75.30 |
| Height Top of the Door (inches) | 75.90 |
| Sides Clearance - On Each Sides (IN) | 4.00 |
| Height Top of Door Hinge (inches) | 75.90 |
| Overall Capacity Cu. Ft. | 27.20 |
| GENERAL INFORMATION | |
| CEE Tier Qualified | Not Rated |
| Estimated Annual Operating Cost (USD) | 110 |
| Door Storage | Yes |
| Adjustable Door Storage | No |
| Cooling Type | Multi Air Flow |
| See-Thru Door | No |
| Fast Cool Function | Yes |
| Fast Freeze Function | Yes |
| Energy Saver Mode | Yes |
| Air Filtration | No |
| Door Texture | Smooth |
| Fingerprint-Resistant | No |
| Energy Policy Act 1992 Compliant | Yes |
| ISTA 6A | Yes |
| DESIGN & FINISH | |
| Color/Finish | Black |
| Interior Light | Yes |
| Control Location | Internal |
| Primary Material | Steel |
| Interior Light(s) Type | LED |
| Door Bins Material | Plastic |
| Fresh Food Shelves Material | Glass With Silver Trim |
| Toe Grille Color | Stainless Steel |
| Cabinet Material | Embossed Galvanized Steel |
| Door Liner Color | White |
| Door Liner Material | High Impact Polystyrene |
| Door Style | Contoured |
| Number of Lights | 2 |
| Handle Color/Finish |
|
| TECHNICAL DETAILS | |
| Power Cord Location | Lower Back |
| Energy Consumption (kWh/yr) | 647 |
| Number of Power Cord | 2 |
| Dual Evaporator Cooling System | Yes |
| REFRIGERATOR FEATURES | |
| Temperature Range Refrigerator (°F) | 36°F to 46°F |
| Door Bins Color | Transparent |
| Temperature Range Refrigerator (°C) | 2°C to 8°C |
| Number of Standard Door Bins | 4 |
| Adjustable Fresh Food Shelves | Yes |
| Fresh Food Door Type | Swing Door |
| Number of Fresh Food Shelves | 4 |
| Number of Adjustable Shelves | 3 |
| Humidity Controleld Drawer(s) | Yes |
| Number of Fresh Food drawers | 3 |
| Temperature Controlled Drawer(s) | No |
| Interior Fresh Food Dimensions W x D x H (inches) | 21.58 x 19.96 x 59.84 |
| Fresh Food Capacity Cu. Ft. | 13.60 |
| Water Pipe Included | No |
| Extra Water Filter | No |
| Cabinet Color | White |
| Pantry Drawer | No |
| Spill-Proof Shelves | No |
| Electronic Temperature Control | Yes |
| Temperature Memory Function | Yes |
| External Dispenser | No |
| Water Dispenser | No |
| FREEZER FEATURES | |
| Interior Freezer Dimensions W x D x H (in) | 21.58 X 19.96 X 59.84 |
| Temperature Range Freezer (°F) | - 11°F to 7°F |
| Freezer door storage | Yes |
| Temperature Range Freezer (°C) | -23°C to -13°C |
| Number of Freezer Adjustable Shelves | 3 |
| Number of Freezer Door Bins | 4 |
| Freezer Section Layout | Adjustable Racks,In-Door Storage,Freezer Drawers,Full Width |
| Freezer Shelf Material | Glass With Silver Trim |
| Adjustable Freezer Shelves | Yes |
| Interior Freezer Dimensions Height | 59.84 |
| Number of Freezer Shelves | 4 |
| Interior Freezer Dimensions Width | 21.58 |
| Number of Freezer Drawers | 3 |
| Freezer Light | Yes |
| Interior Freezer Dimensions Depth | 19.96 |
| Freezer Capacity | 13.60 |
| Freezer Door Style | Swing Door |
| WARRANTY & CERTIFICATIONS | |
| Energy Star Most Efficient | No |
| Safety Listing | cULus safety listing |
| Enegy Star Certified | Yes |
| Certificate of Conformity (GCC) | Yes |
| Commercial Warranty | No |
| Warranty on Parts | 2 Years |
| Warranty Type | Limited |
| Warranty on Labor | 2 Years |
| Warranty Length (Years) | 2 Years |
Pozzo 24 in. Built-In Tall Tub, Top Control, Dishwasher, 49 dBA, Soil-Sensing Capable, ENERGY STAR Certified

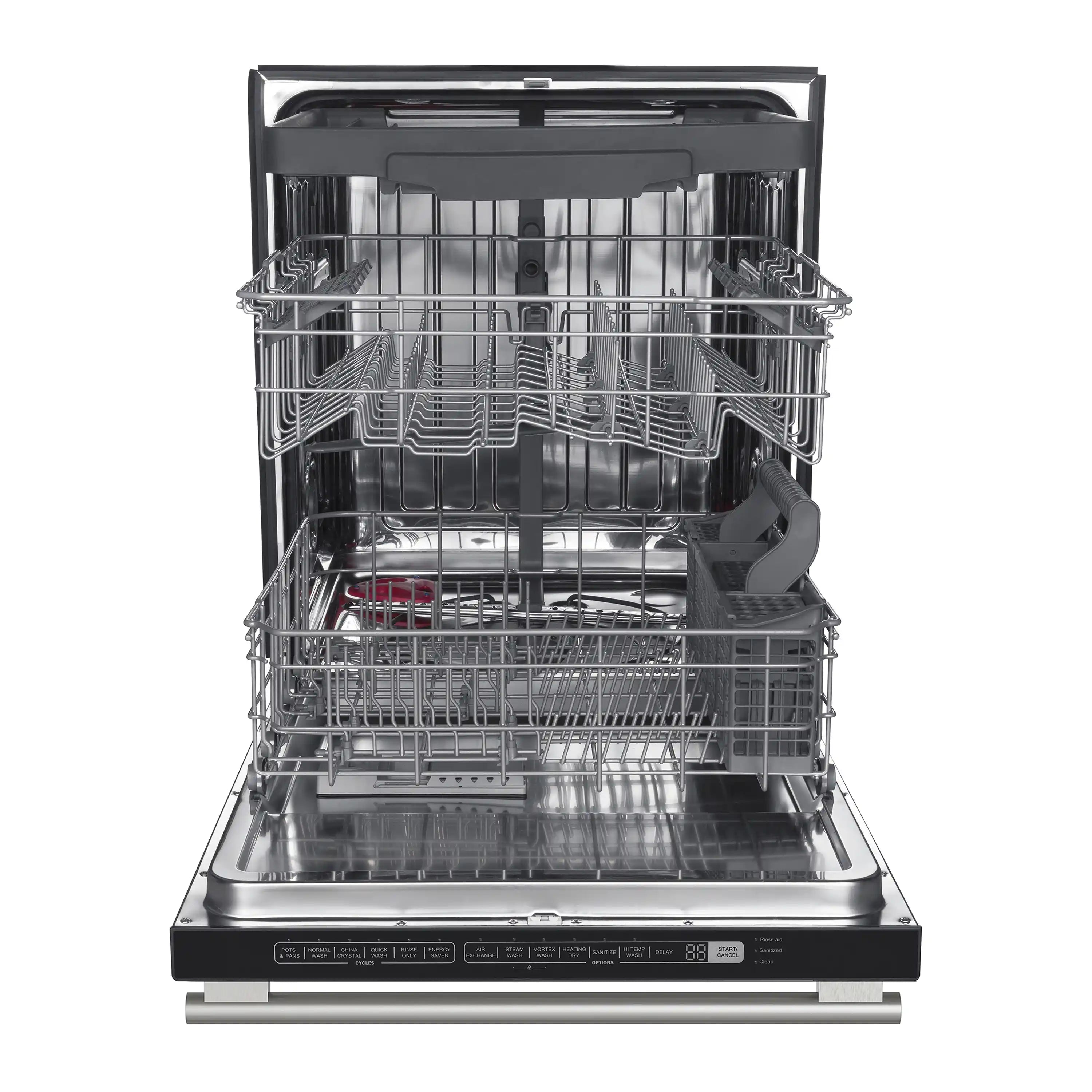

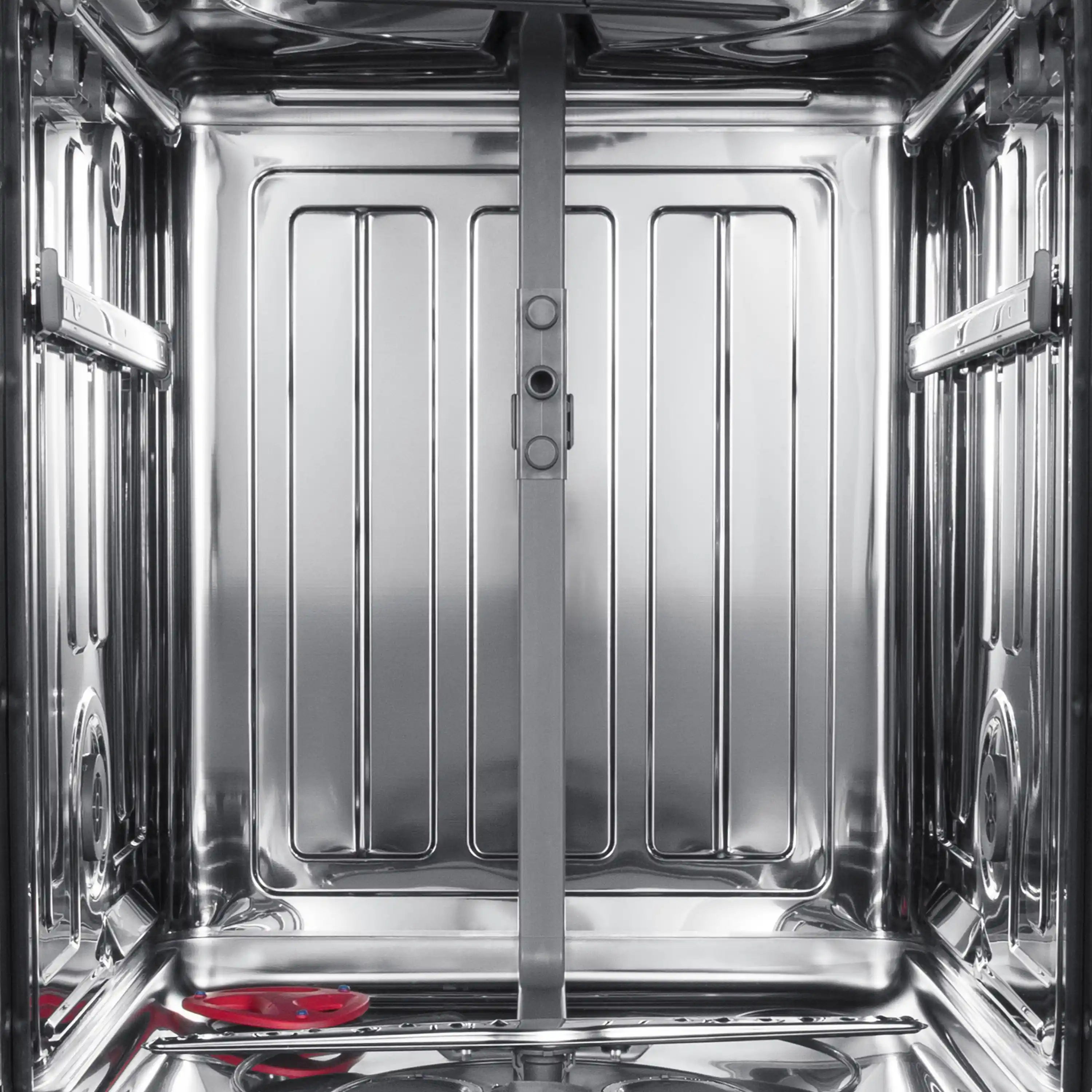

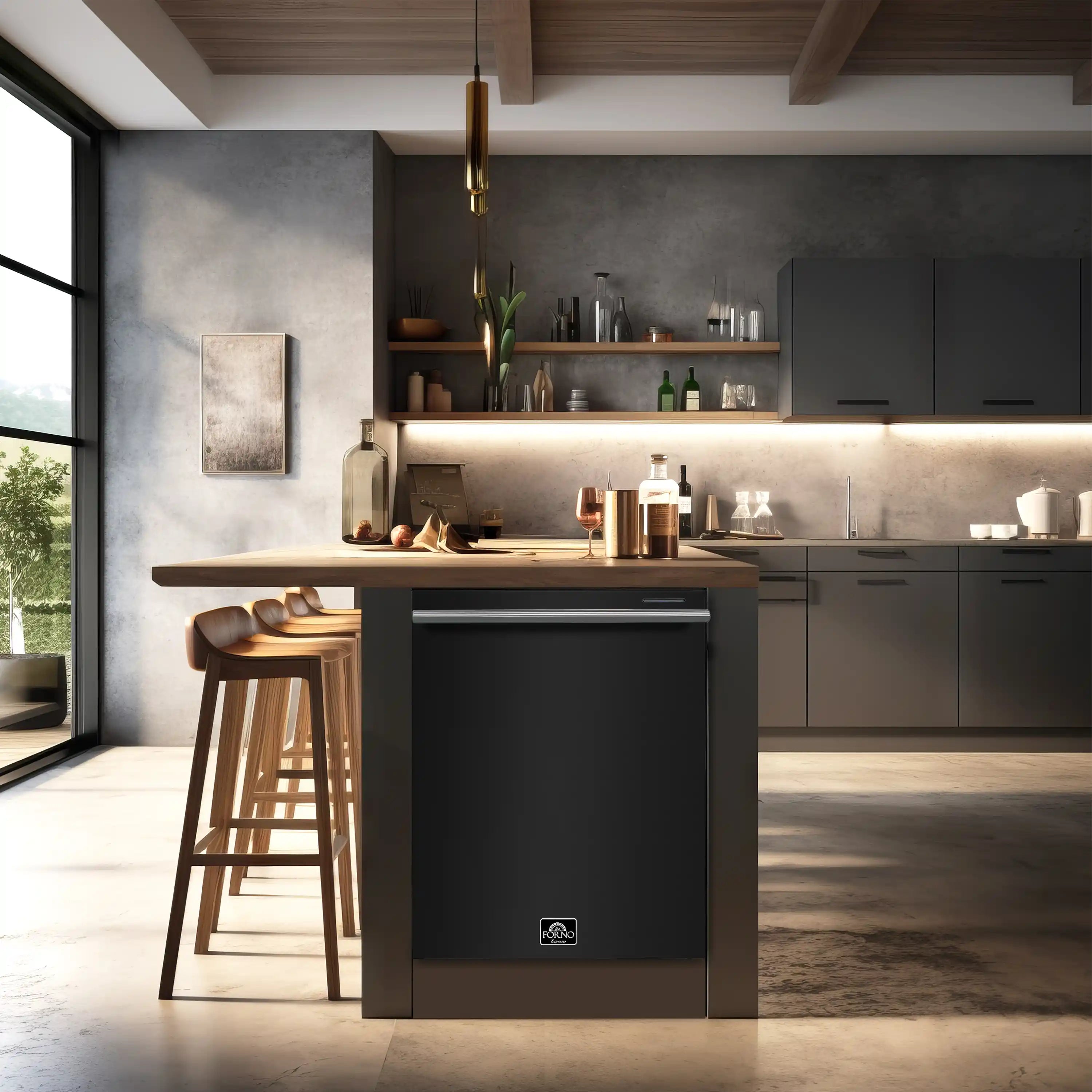

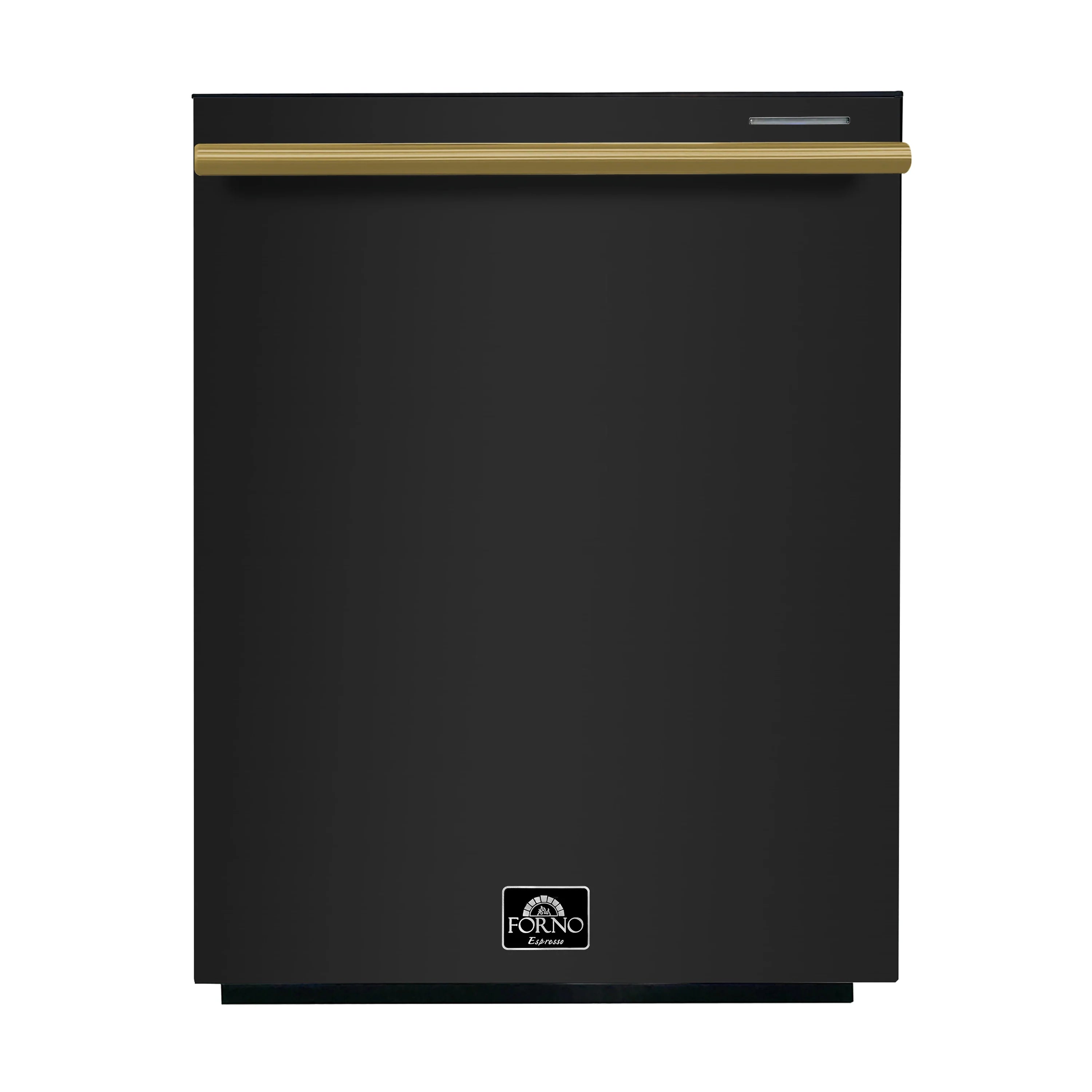

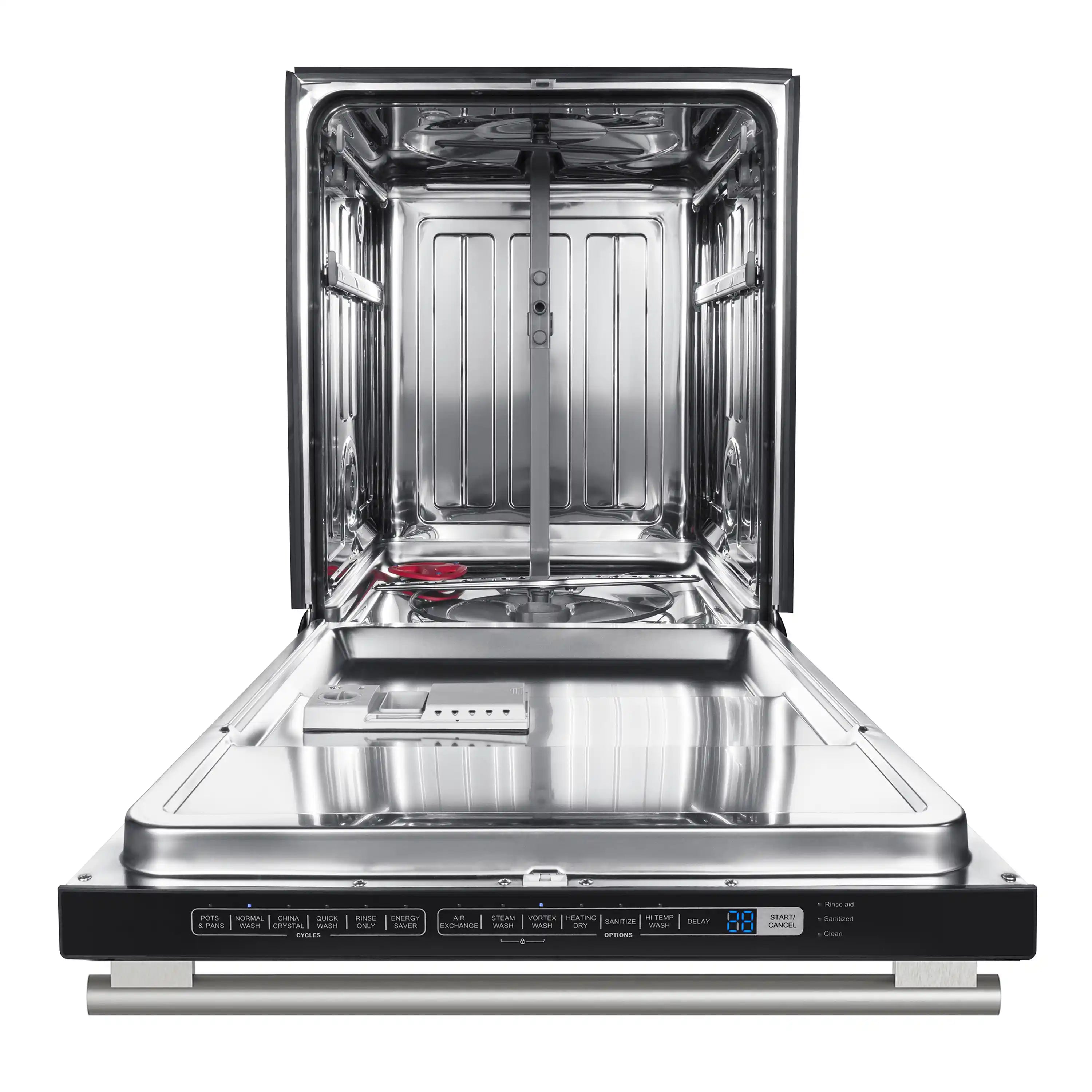

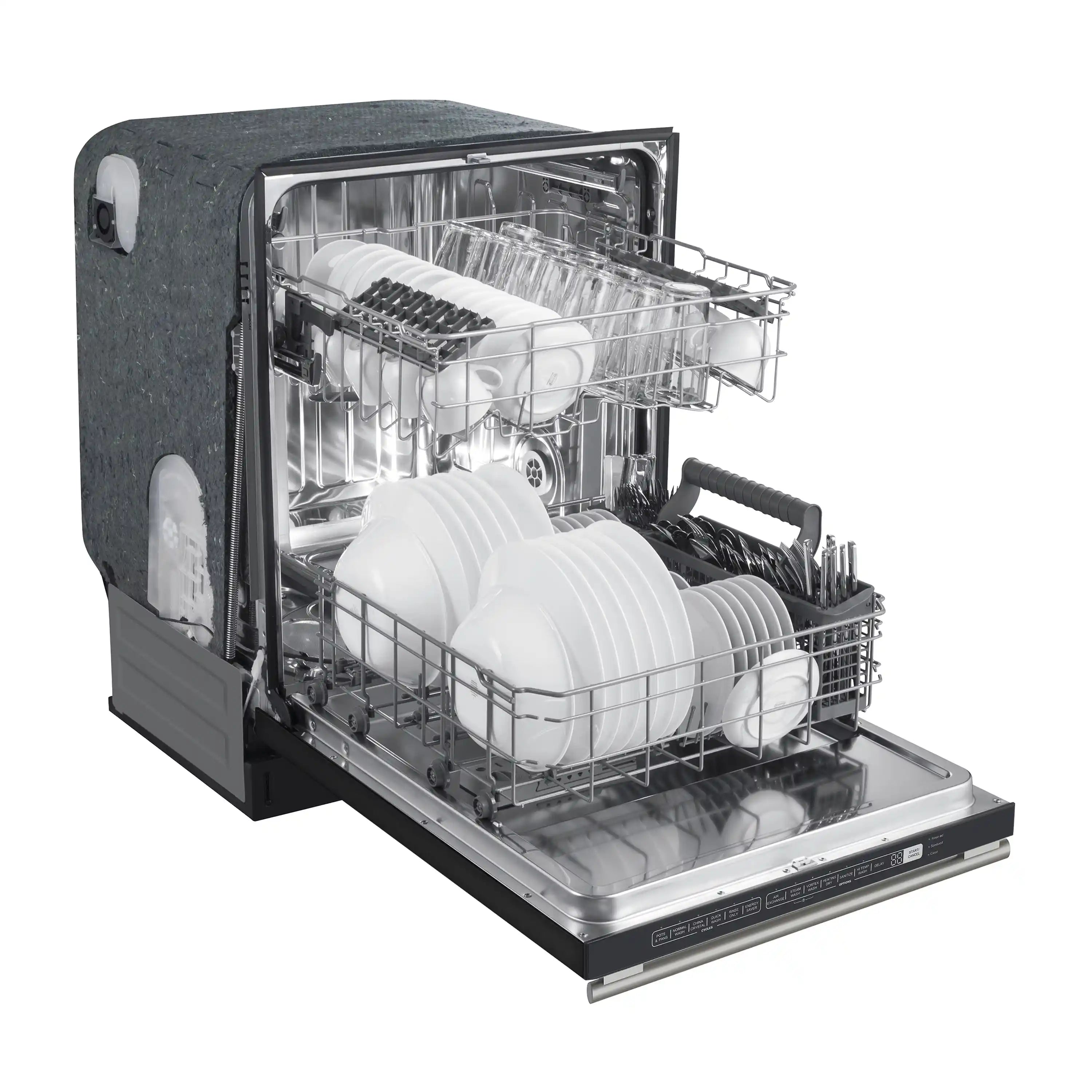

The Forno Pozzo 24-Inch tall-tub dishwasher, operating at a low noise level of 49 decibels for peaceful cleaning. Its black front and pro-style handle offer durability and style. Customize your look effortlessly with two sets of interchangeable handles, switching between antique brass for a traditional touch or stainless steel for modern flair. The dishwasher features a spacious stainless-steel tub with 3 baskets, providing ample loading flexibility for large dish capacity and utensils, with 3 racks and an additional silverware basket. With six wash programs and electronic controls featuring a sleek LED display, it offers efficient and customizable cleaning options. Energy Star certified for eco-friendly operation.
Please Note: This appliance includes both brass and stainless steel handles. Some assembly is required to install your desired finish.
| DIMENSIONS | |
|---|---|
| Product Dimensions | 23.85" W x 26" D x 33.74" H |
| Depth Excluding Handle (in) | 24" |
| Depth Including Handle (in) | 26" |
| Product Height Maximum | 35" |
| Depth Door Open 90º (back to front door open) | 50" |
| Cutout W x D X H | 24''W x 24''D x 34''H to 35''H |
| Overall Weight | 93.2 lbs |
| GENERAL INFORMATION | |
| Water Inlet Connection Size (inches) | 8-Mar |
| DESIGN & FINISH | |
| File/Control Number Number | E219644 |
| TECHNICAL DETAILS | |
| Water Pressure (PSI) | 20 - 120 |
| FEATURES | |
| Sound Rating (dB) | 49 |
| Water Inlet Location | Left Bottom Front |
| Water use (gallons/cycle) | 3.2 |
| WARRANTY & CERTIFICATIONS | |
| Safety Listing | cULus |
| Energy Star Certified | Yes |
| ENERGY STAR Unique ID | 2485657 |
| Energy Policy Act 1992 Compliant | Yes |
| ADA Compliant | No |
| ISTA 1A Certified | Yes |
| ISTA 6A Certified | Yes |
