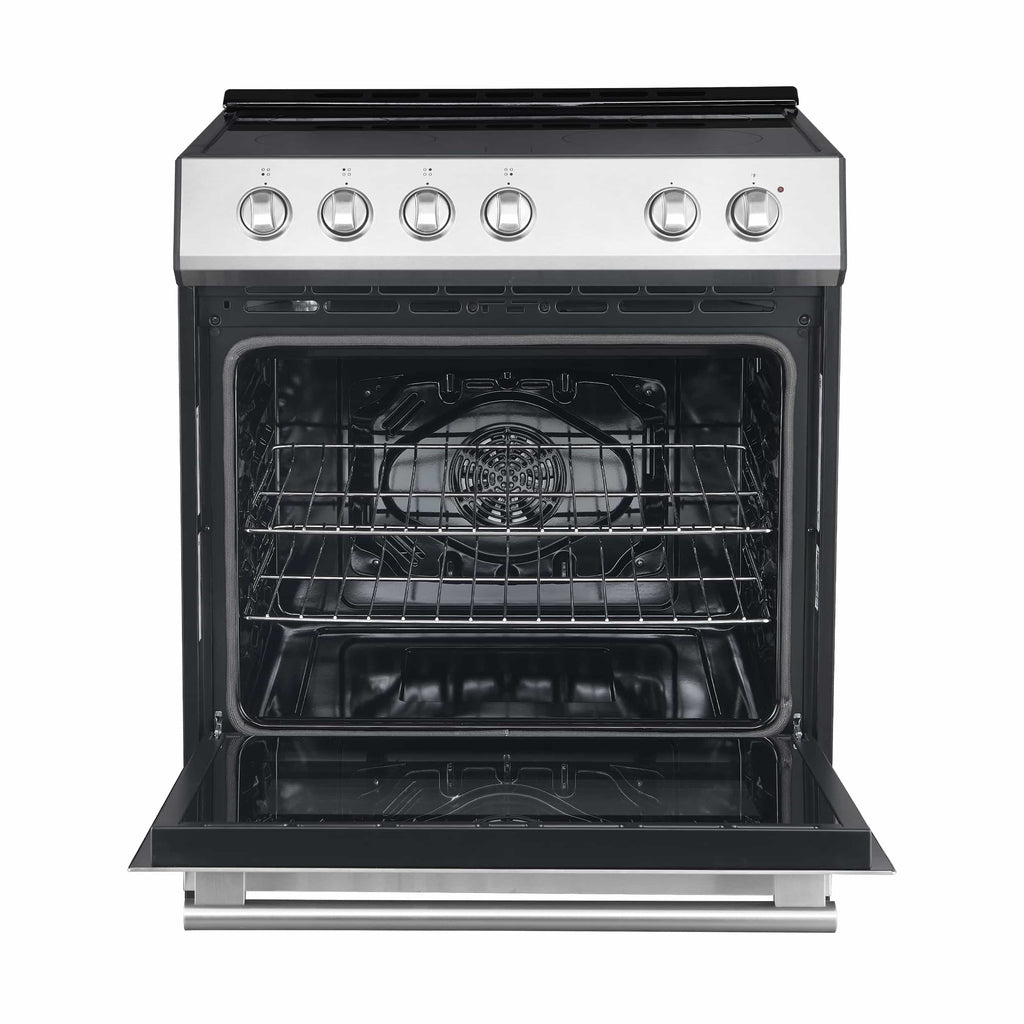

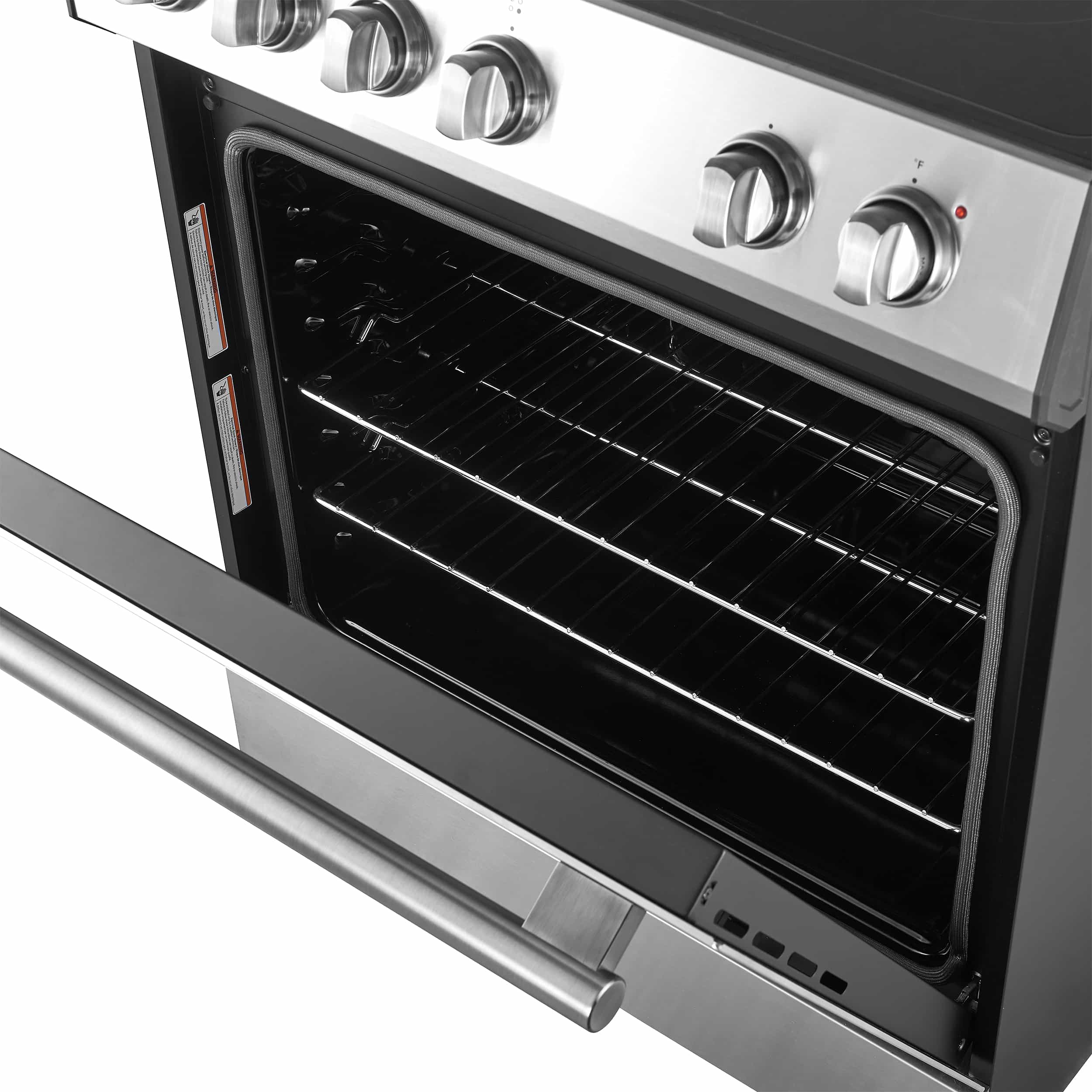

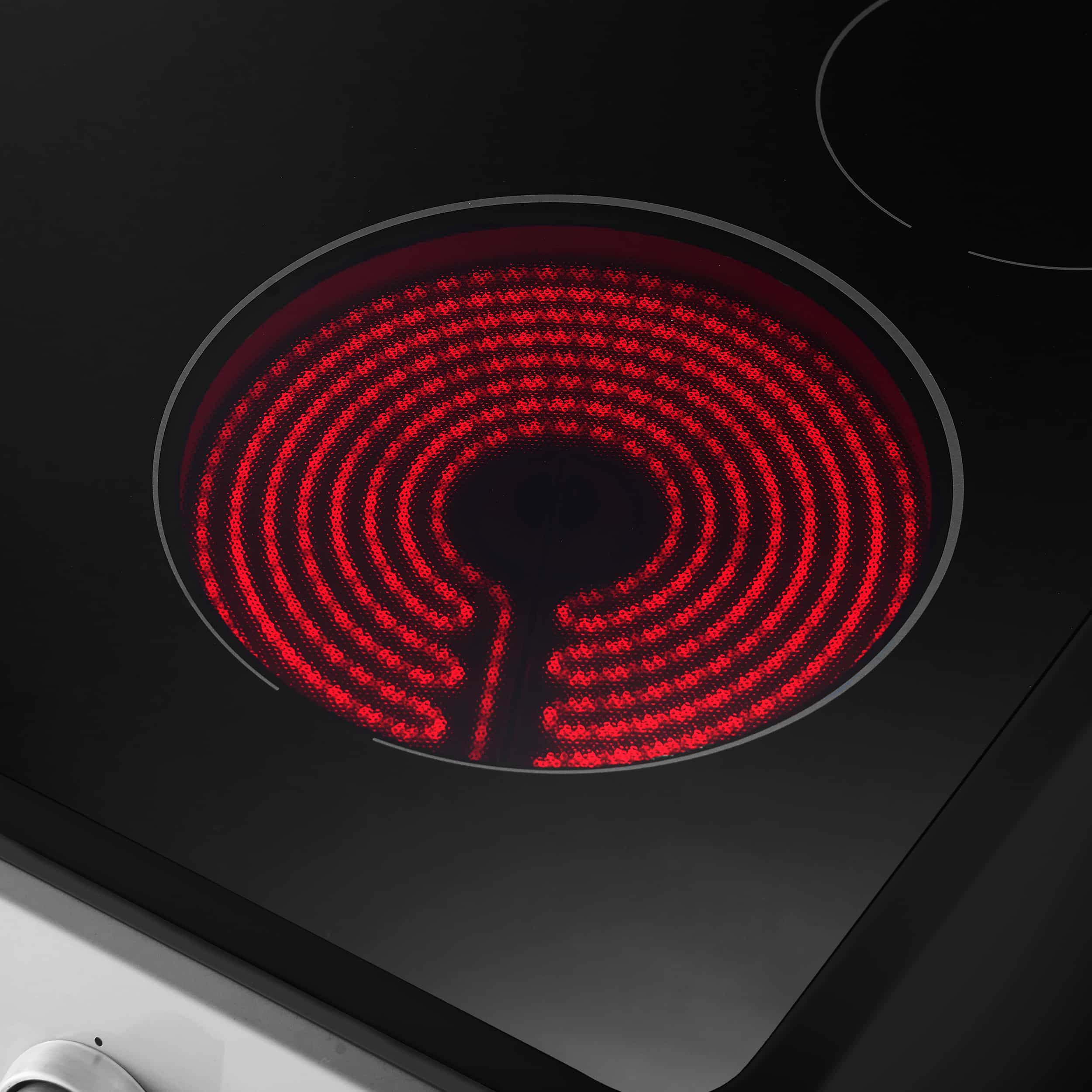

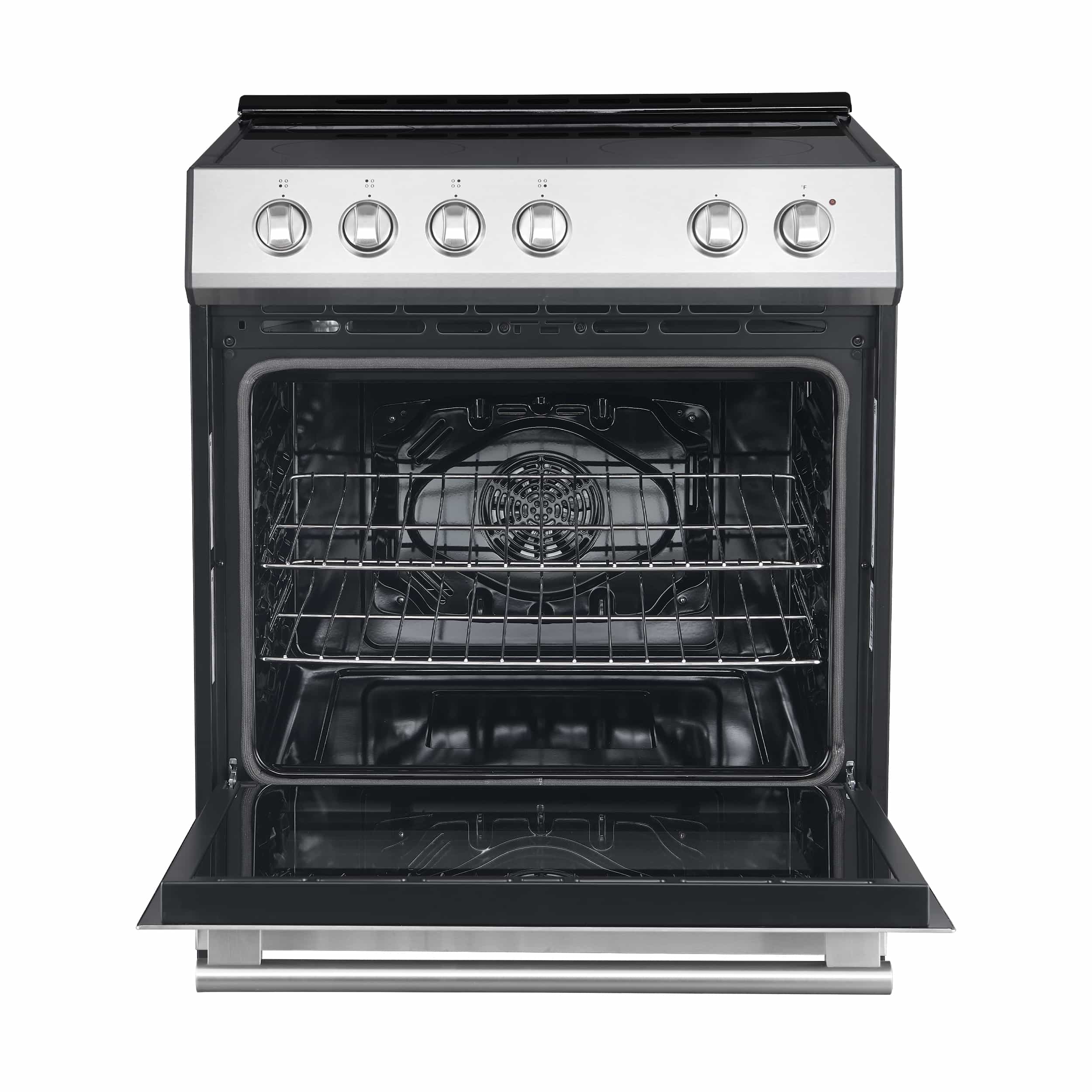

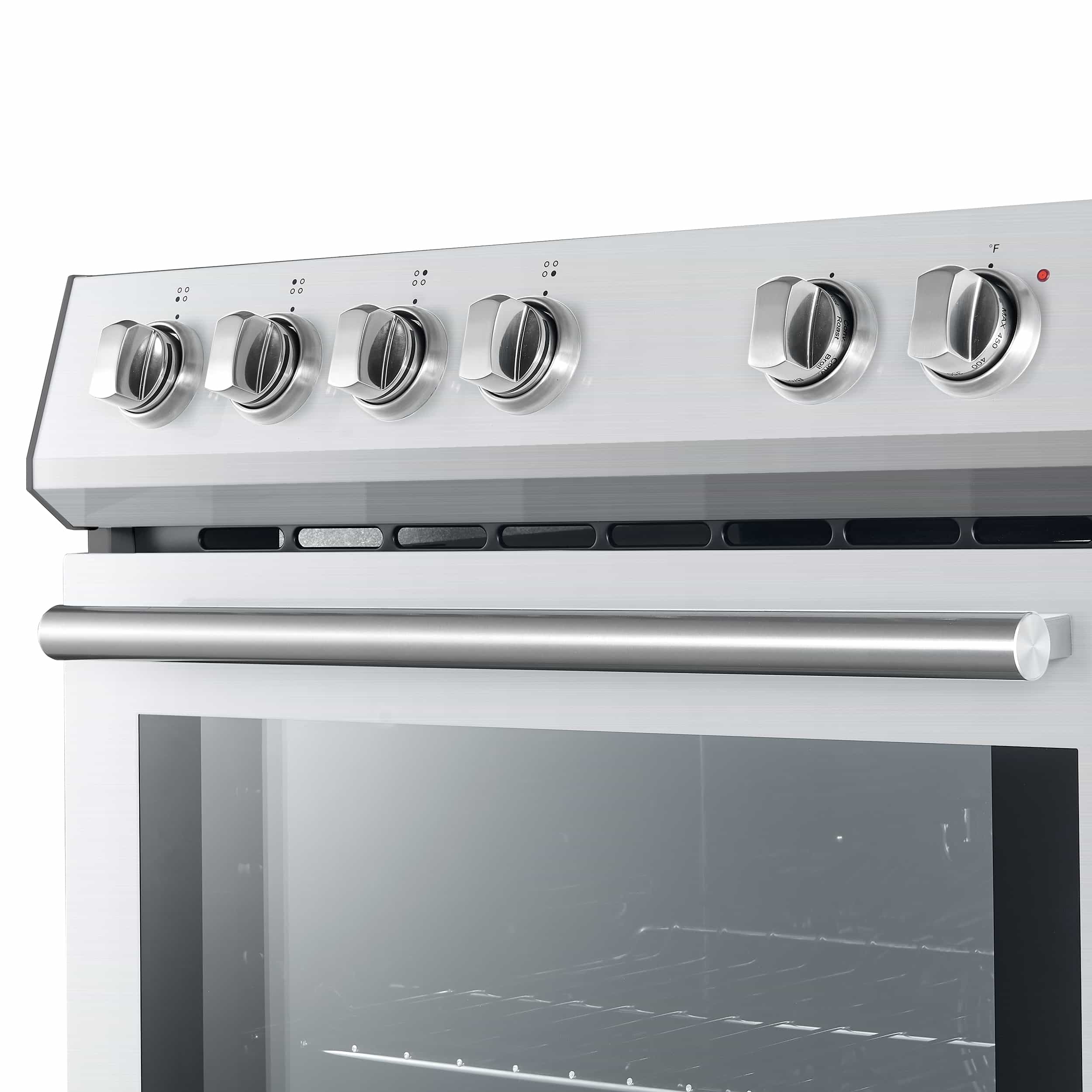

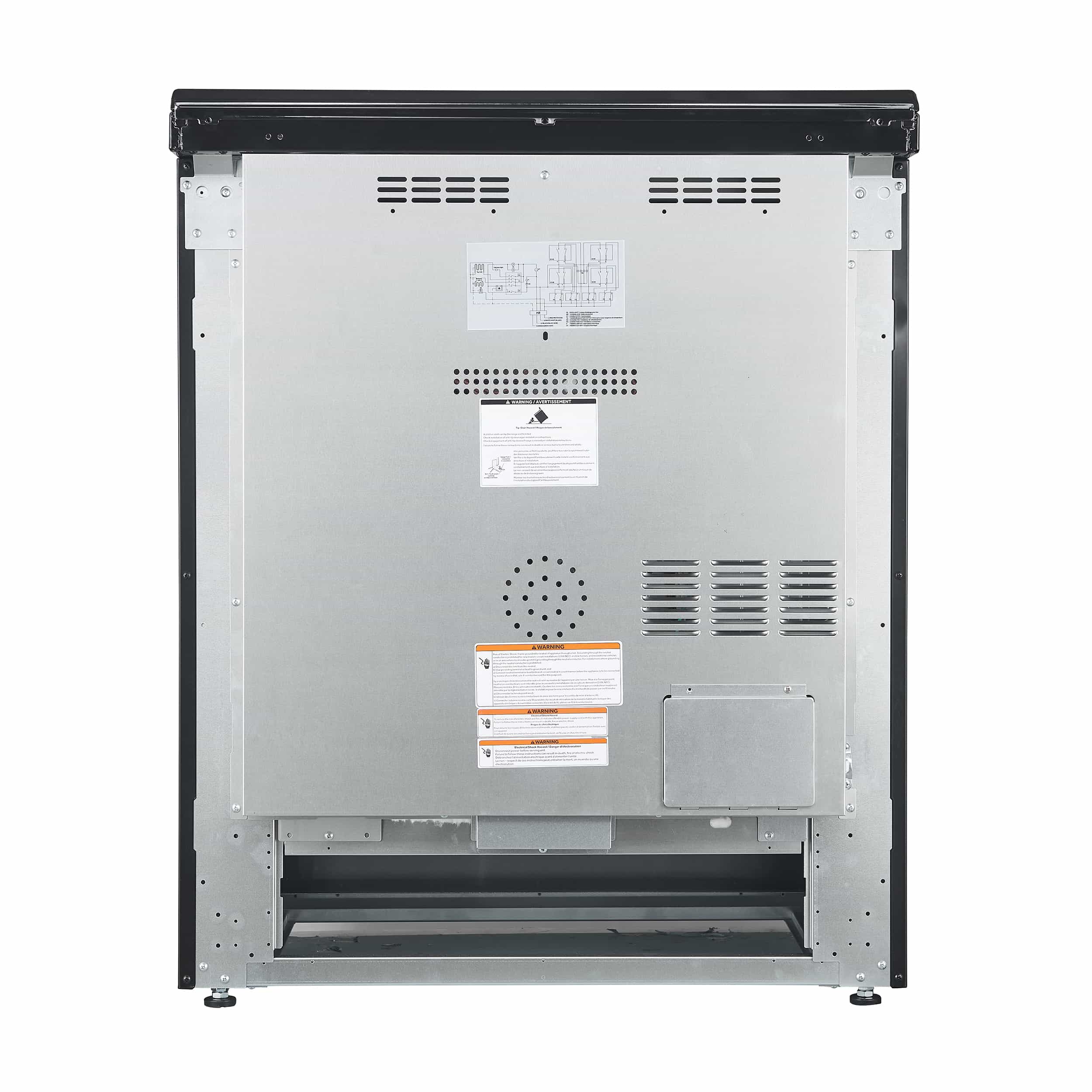

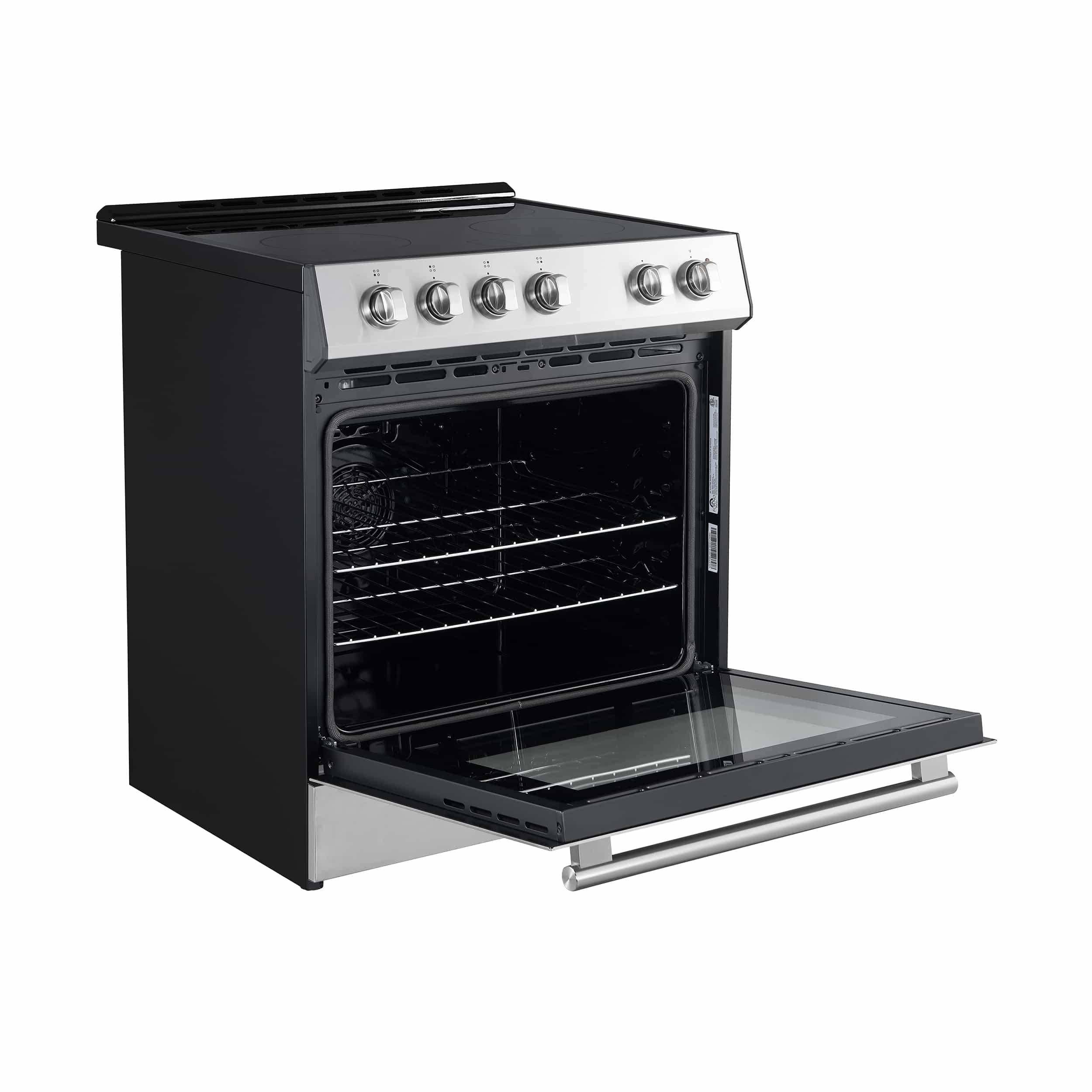

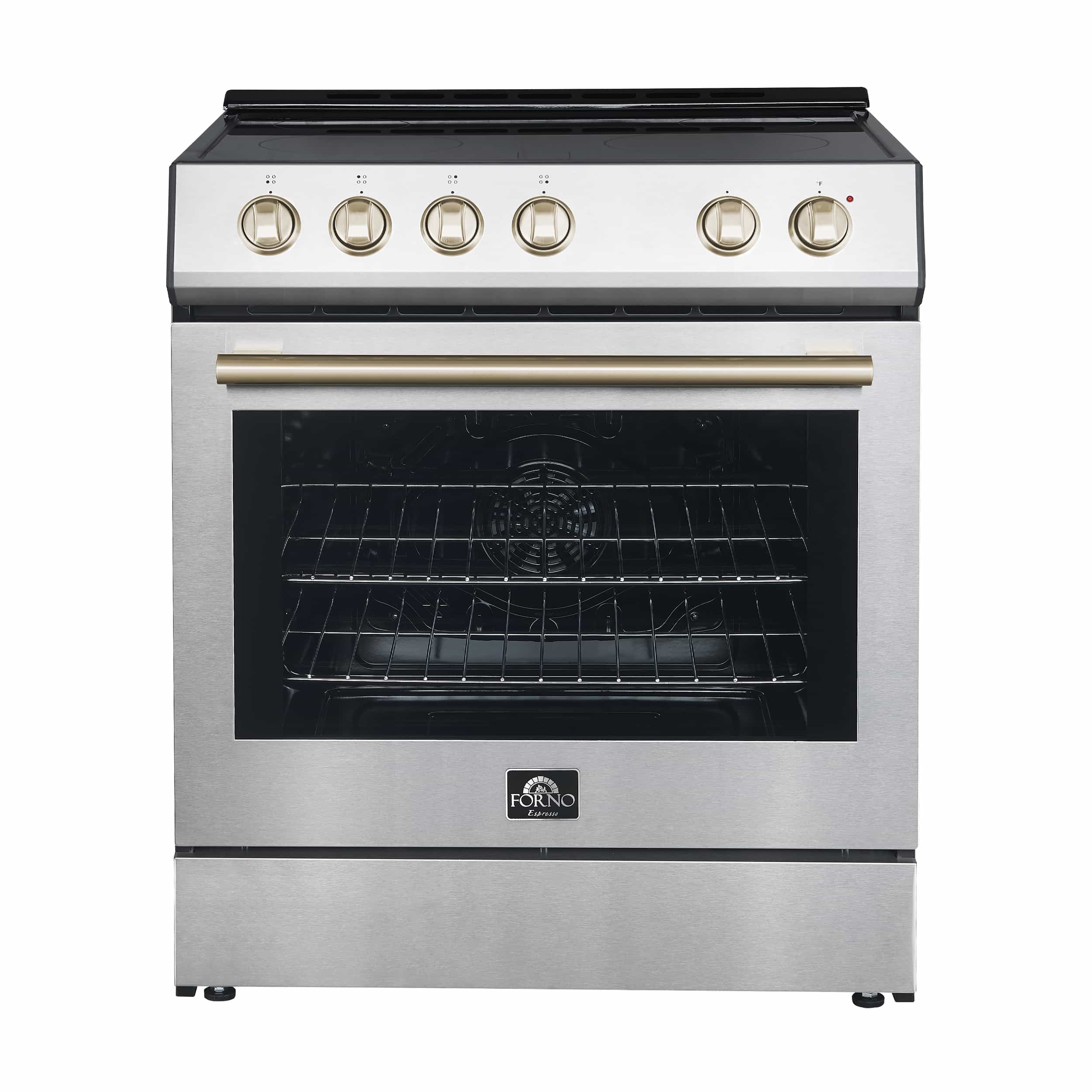

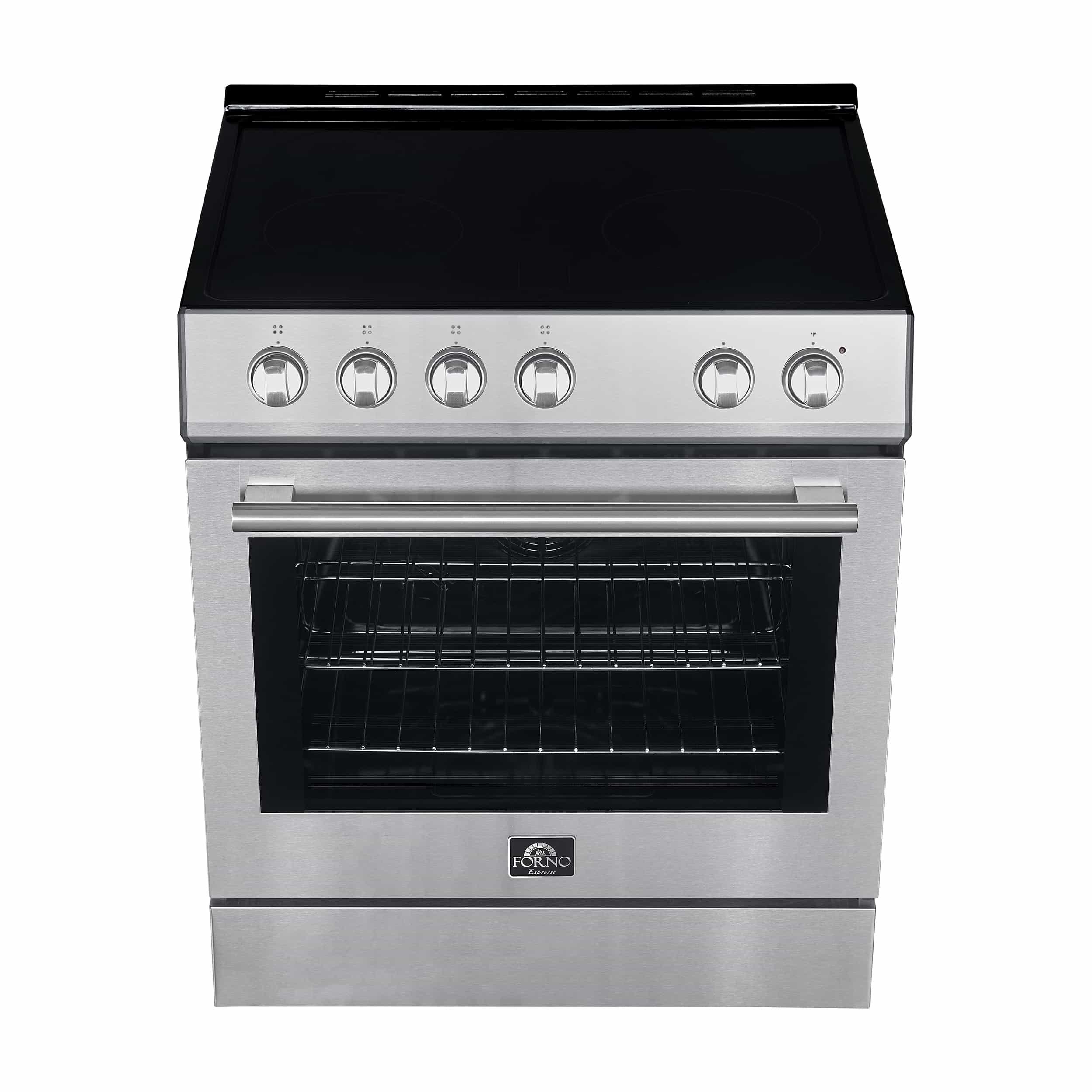

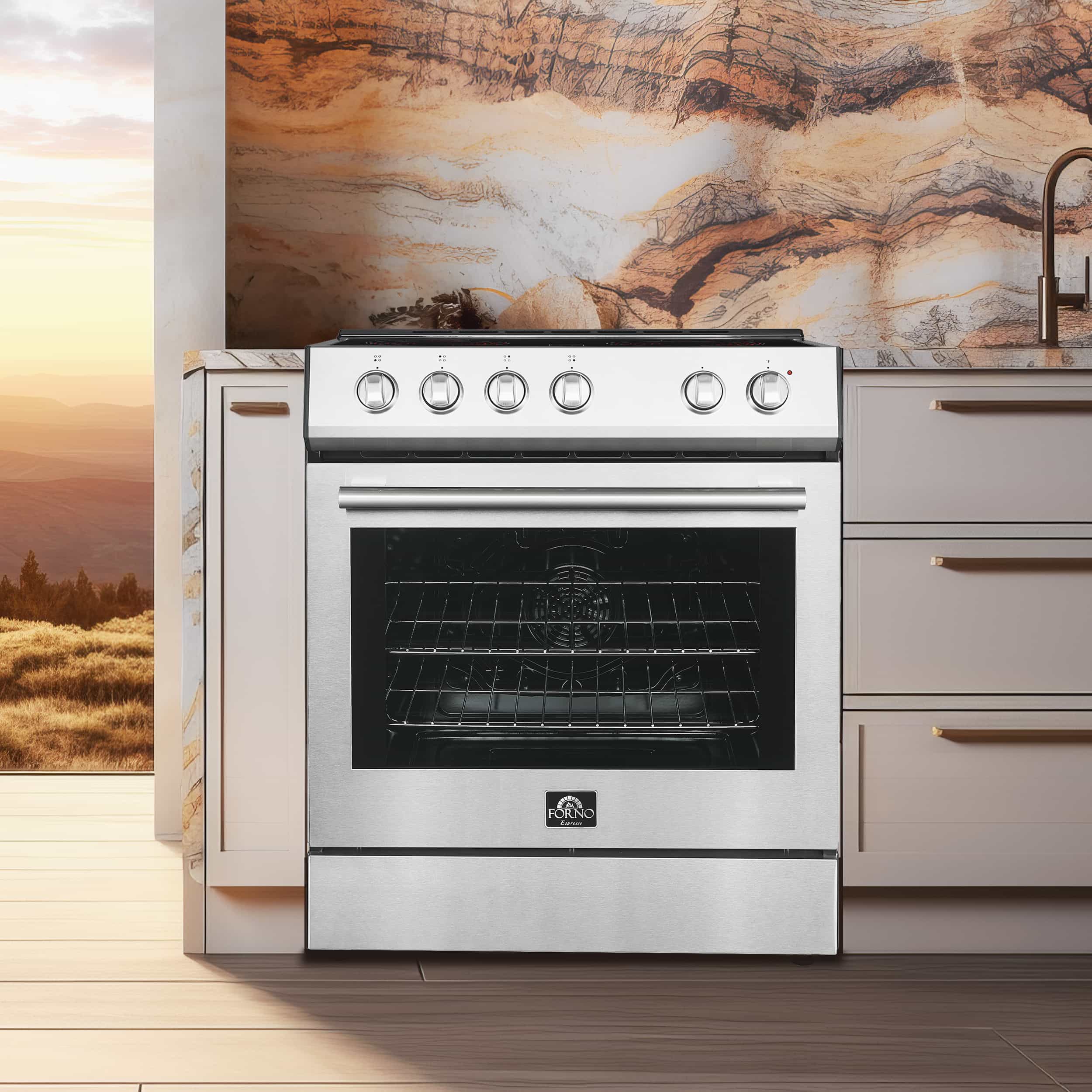

Introducing the Forno Leonardo Espresso 30" 5.0 cu. Ft. Stainless-Steel Electric Range, a kitchen game-changer. With 4 Radiant Elements, and a 5,500-watt Convection Oven, it combines style with top-notch performance. Ceramic Glass ensures even heat distribution. The Hidden Bake Element simplifies maintenance by preventing spills and odors. Elevate your kitchen with this timeless, user-friendly range, marrying durability with sophistication. Cook with confidence, and embrace efficiency and style with every use.
Experience peace of mind with FORNO products, each backed by a comprehensive 2-year warranty covering both labor and parts. Our commitment ensures your satisfaction and confidence in the reliability of our appliances.

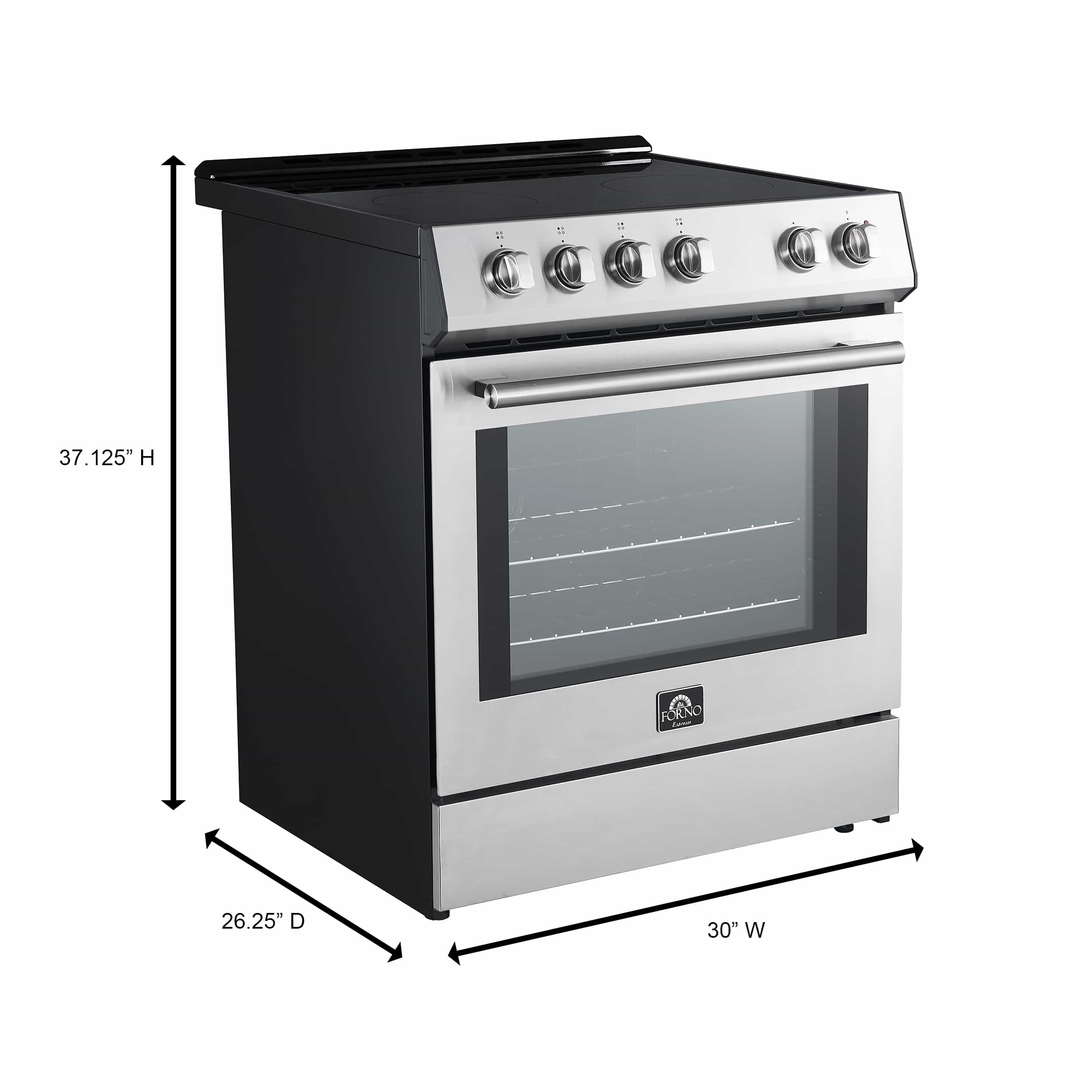

| DIMENSIONS | |
|---|---|
| Minimum Counter Height | 36" |
| Maximum Counter Height | 38" |
| Depth with Oven Door Open 90º | 46.25" |
| Depth without Oven Door Handle | 27.8" |
| Overall Weight | 145.5 lbs |
| Main Oven Interior | 24.6" W x 17.7" D x 19.6" H |
| GENERAL INFORMATION | |
| Product Type | Slide-In |
| Safety Lock | No |
| Supplier Intended and Approved Use | Residential Use |
| Country of Origin | China |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Overall - Biggest Dims Possible (with Handle, Backsplash, etc) | 30" W X 27.95" D X 38" H |
| Color/Finish | Stainless Steel |
| Handle Finish | Stainless Steel |
| Control Type | Knob |
| Number of Knobs | 6 |
| Knobs Color/Finish | Stainless Steel |
| Control Location | Front |
| Clock | No |
| Primary Material | Steel |
| Control Panel Material | Stainless Steel |
| Kick Plate Material | Stainless Steel |
| Side Panel Material | Stainless Steel |
| TECHNICAL DETAILS | |
| Fuel Type | Electric |
| Plug-In | No |
| Dedicated Circuit Breaker Amperage | 50 |
| Total Amps Use | 44.25 |
| Volts | 240 |
| Overall Max Power (W) | 10650 |
| Power Cord Included | No |
| COOKTOP FEATURES | |
| Burner Fuel | Electric |
| Electric Heat Configuration (Cooktop) | Radiant |
| Total cooktop Wattage output | 7100 |
| Number of Burners | 4 |
| Double Ring Burner | No |
| Warmer Burner | No |
| Bridge Element | No |
| Cooktop Surface Color | Black |
| Cooktop Surface Materiel | Ceramic Glass |
| Cooktop Surface Structure | Smoothtop |
| Cooking Surface Control Type | Push & Turn |
| Broiler Element Type | Single Element |
| Bake Element | Yes |
| Hidden Bake Element | Hidden |
| Cooktop Hot Surface Indicator | Yes |
| Front Right Burner Watts | 2500 |
| Front Left Burner Watts | 2200 |
| Rear Right Burner Watts | 1200 |
| Rear Left Burner Watts | 1200 |
| Cooktop Max Power (W) | 7100 |

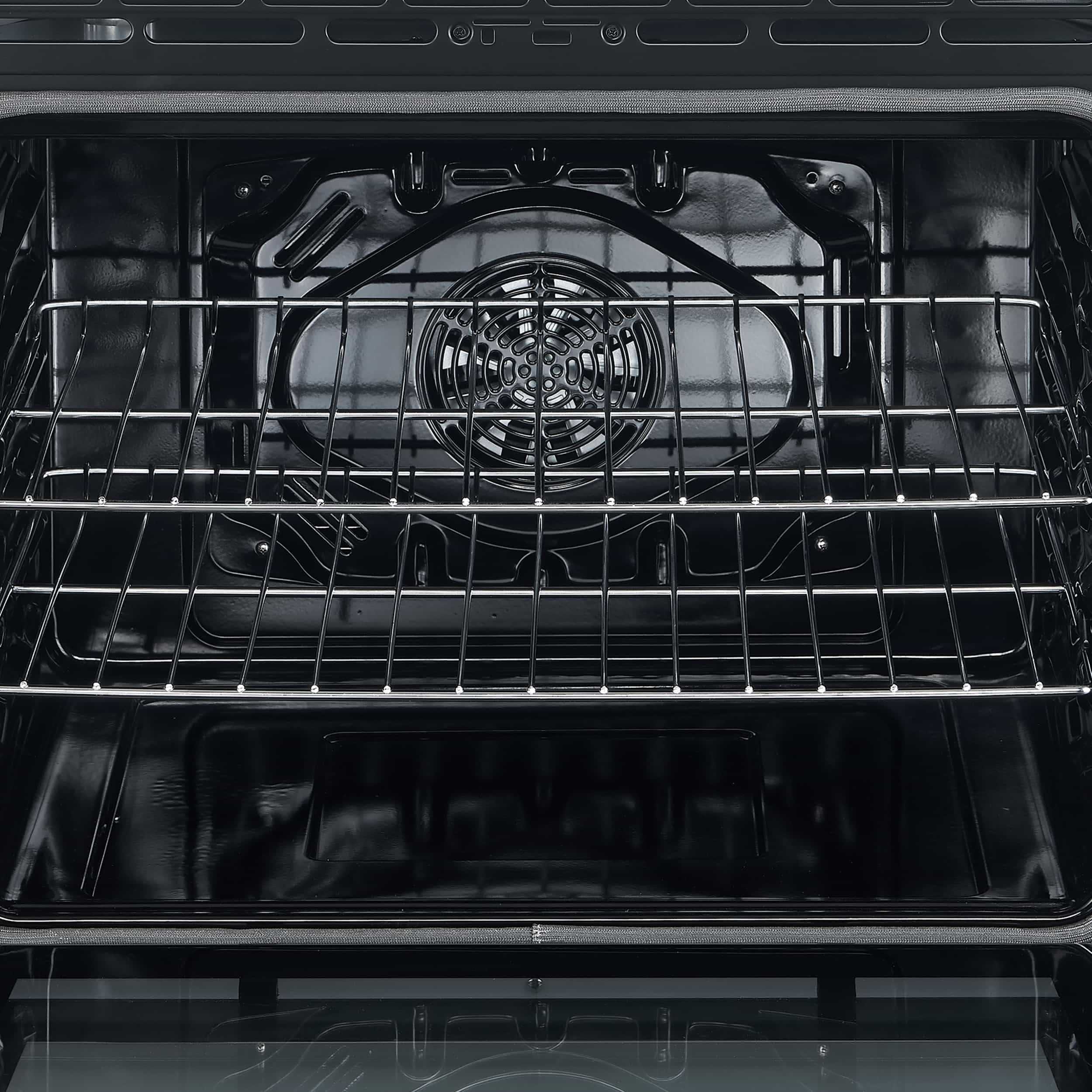

| OVEN FEATURES | |
| Oven Fuel | Electric |
| Number of Ovens | 1 |
| Overall Oven Capacity (cubic feet) | 5 |
| Oven Interior Finish | Black Enamel |
| Oven Racks Type | Standard |
| Number of Racks | 2 |
| Racks Material | Chrome-Plated |
| Number of Rack Positions | 6 |
| Broiler | Yes |
| Overall Broiler Wattage | 2000 |
| Broiler Location | Oven |
| Overall Bake Wattage | 1500 |
| Convection Oven | Yes |
| Convection Type | Standard Convection |
| Cooking Process |
|
| Cleaning Type | Standard |
| Rack position | Yes |
| Oven Preheating Indicator | Yes |
| Temperature Gauge | No |
| Timer | No |
| Storage Drawer | No |
| Door Panel Material | Stainless Steel |
| Main Oven Capacity (cubic feet) | 5 |
| Main Oven Rack Size W x D (in) | 24.6 x 15.9 |
| Main Oven Broil Wattage | 2000 |
| Main Oven Bake Wattage | 1500 |
| Main Convection Fan | Yes |
| Main Oven Convection Fan Wattage | 50 |
| Oven Max Power | 3550 |
| WARRANTY & CERTIFICATIONS | |
| Certification | ETL Listed |
| Commercial Warranty | No |
| Warranty Type | Limited |
| Warranty Length | 2 Years |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |
This 30 Inch Wall-Mounted Range Hood in stainless steel is designed for high-performance kitchen ventilation. With a powerful 600 CFM motor and 4-speed fan control, it removes smoke, grease, and cooking odors. Designed for ducted installation, the vertical upward air discharge ensures efficient airflow, while features like automatic shut-off, a built-in timer, and removable charcoal filters make it convenient to use and maintain. The included chimney extension kit and decorative crown molding allow for a custom, built-in look. Quiet operation at just 65 dB with built-in lighting for better visibility while cooking.
| DIMENSIONS | |
|---|---|
| Product Dimensions W x D x H (inches) | 29.5 x 23.6 x 44.5 |
| Cutout dimensions W x D x H (inch) | 30 x 11.6 x 44.5 |
| Minimum Height from Cooktop | 30 |
| GENERAL INFORMATION | |
| Bulb Type | LED GU10 |
| Exhaust Vent Location | Roof / Wall |
| DESIGN & FINISH | |
| Color/Finish | Stainless Steel |
| Control Location | Under |
| Primary Material | Stainless Steel |
| Remote Control | No |
| Speed Control Type | Push Button Control |
| Filter Material | Stainless Steel |
| TECHNICAL DETAILS | |
| Decibel Speed 3 (dB) | 58 |
| Decibel Speed 1 (dB) | 44 |
| Motor(s) Power (Watts) | 60 |
| Minimum Decibel (dB) | 44 |
| Sones Speed 4 | 13 |
| Sones Speed 2 | 5 |
| Minimum Sones | 2 |
| RPM Speed 4 | 1510 |
| RPM Speed 2 | 1050 |
| Air Flow Speed 4 | 1020 |
| Air Flow Speed 2 | 637 |
| CFM speed 4 | 600 |
| CFM speed 2 | 375 |
| Minimum CFM | 275 |
| Power off Function | Yes |
| Duct Type | 6-in Round |
| Damper | Yes |
| Blower Material | Metal |
| Power Cord Location | Top |
| FEATURES | |
| Range Hood Shape | Pyramid |
| Number of Lights | 2 |
| Chimney Short Kit | Yes |
| Rangehood Chimney | Yes |
| Backsplash Included | No |
| Air Discharge Direction | Vertically Upward |
| Charcoal Filters | Yes |
| Fingerprint-Resistant | No |
| Dishwasher Safe Filters | Yes |
| Clock | No |

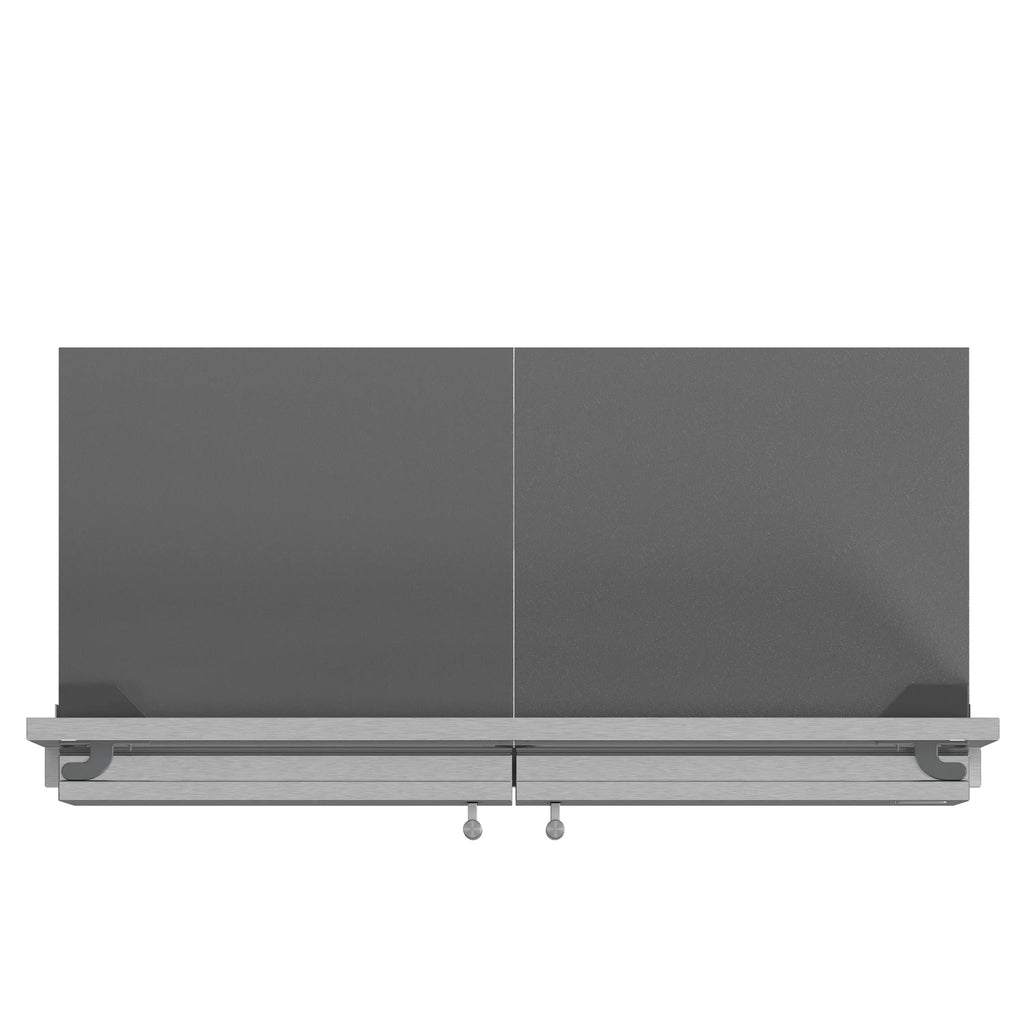

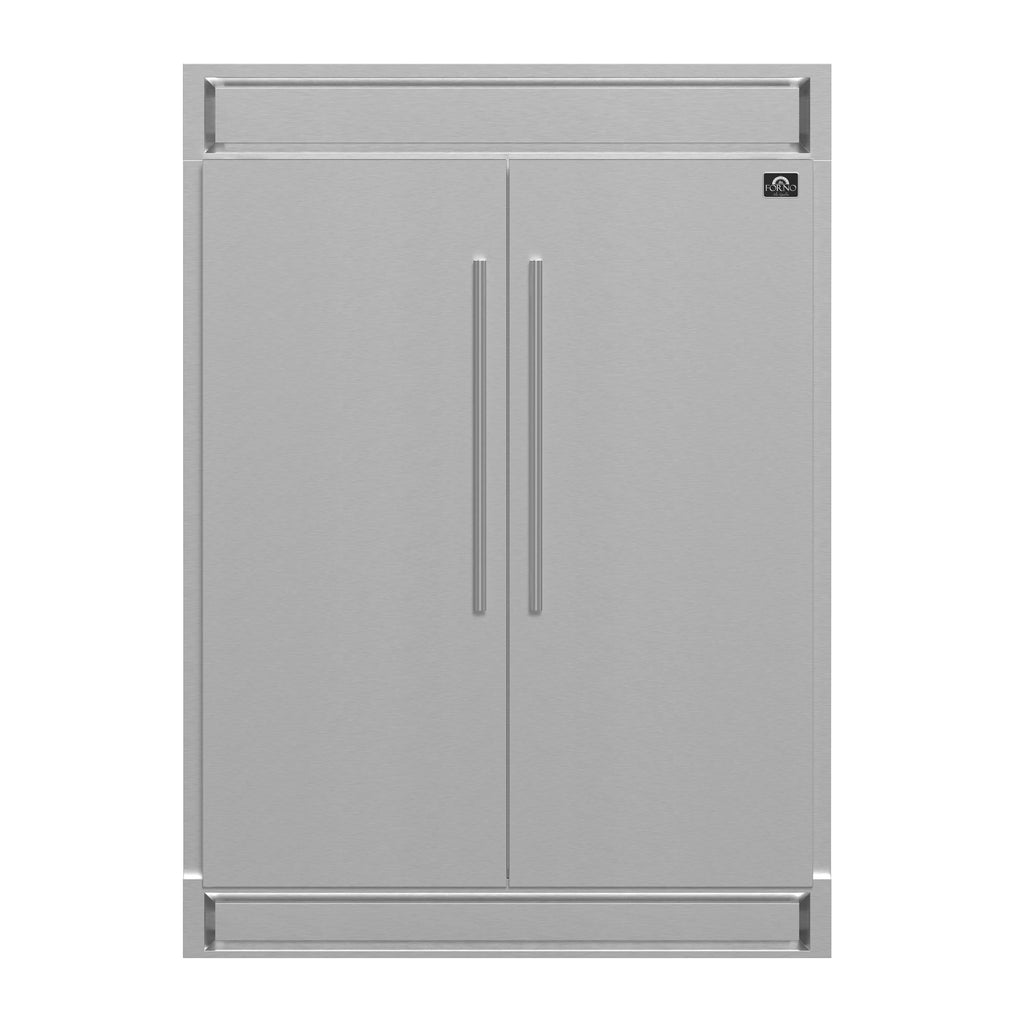

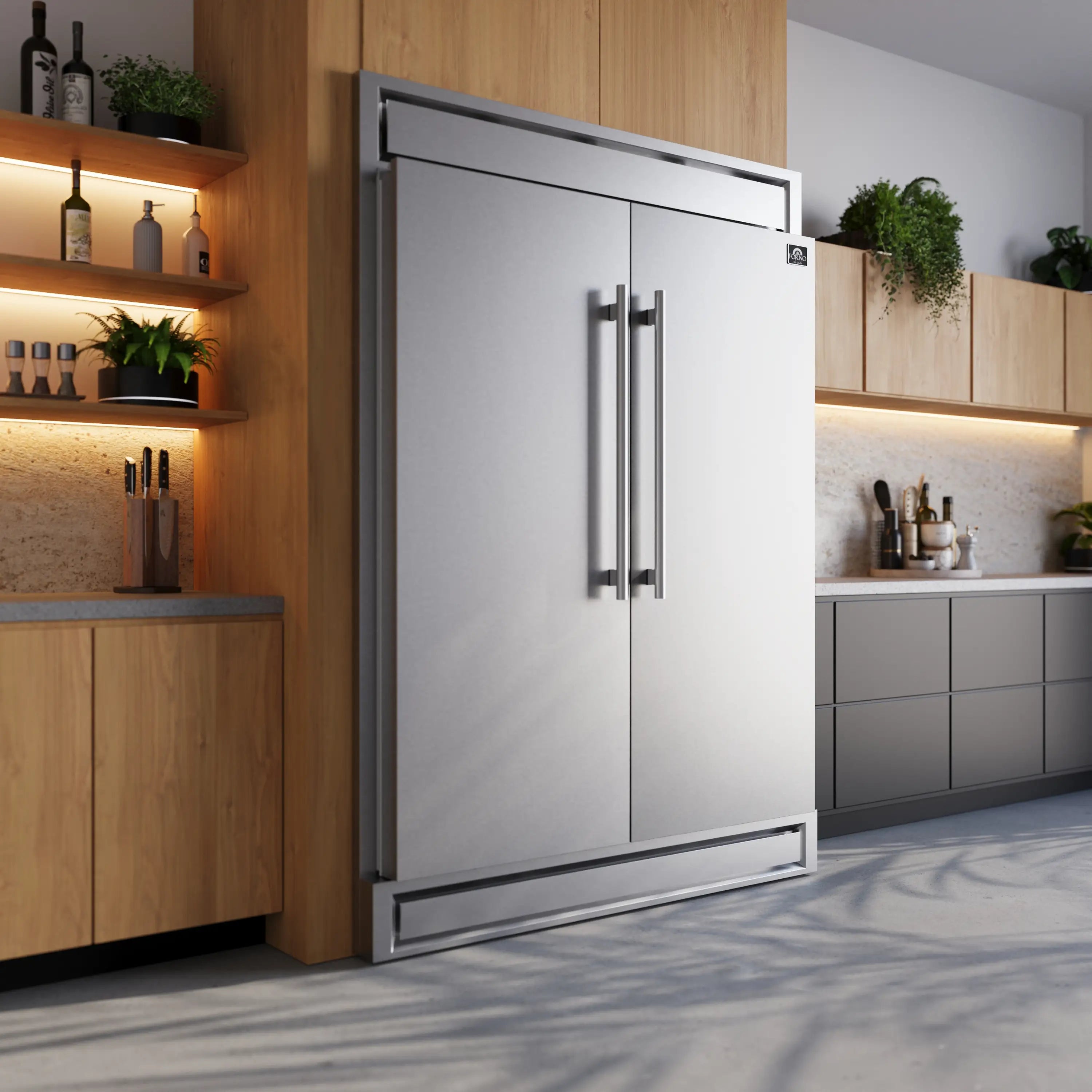

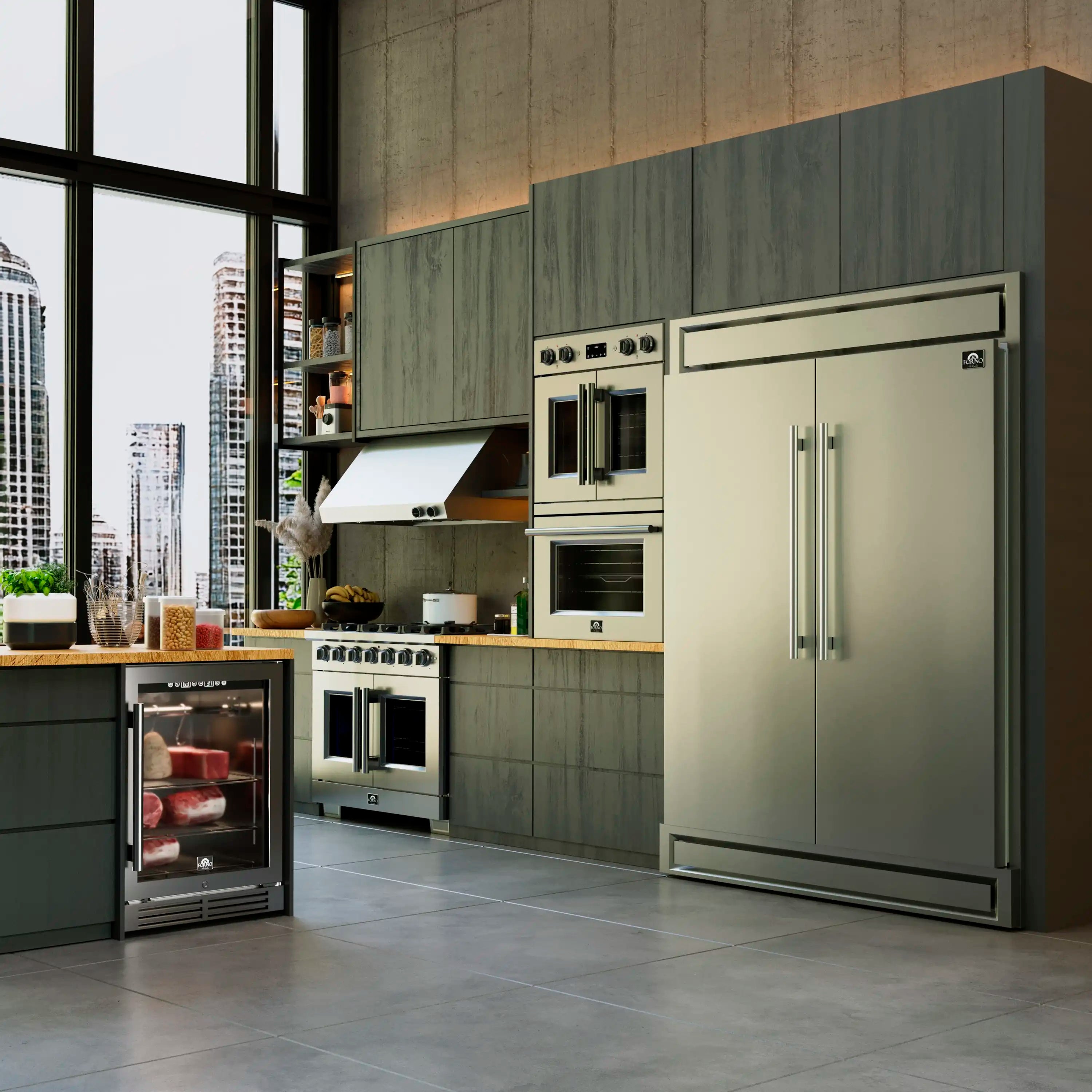

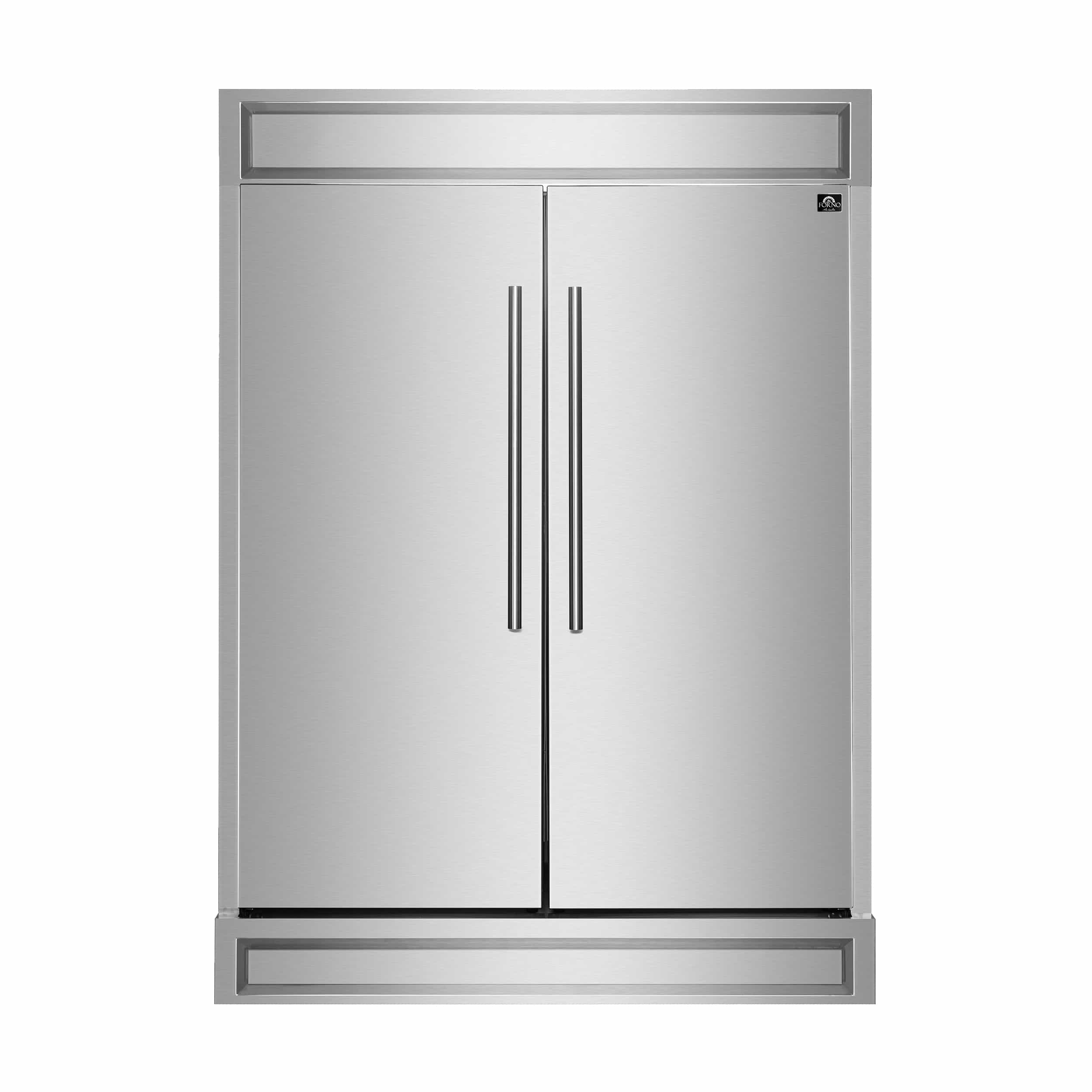

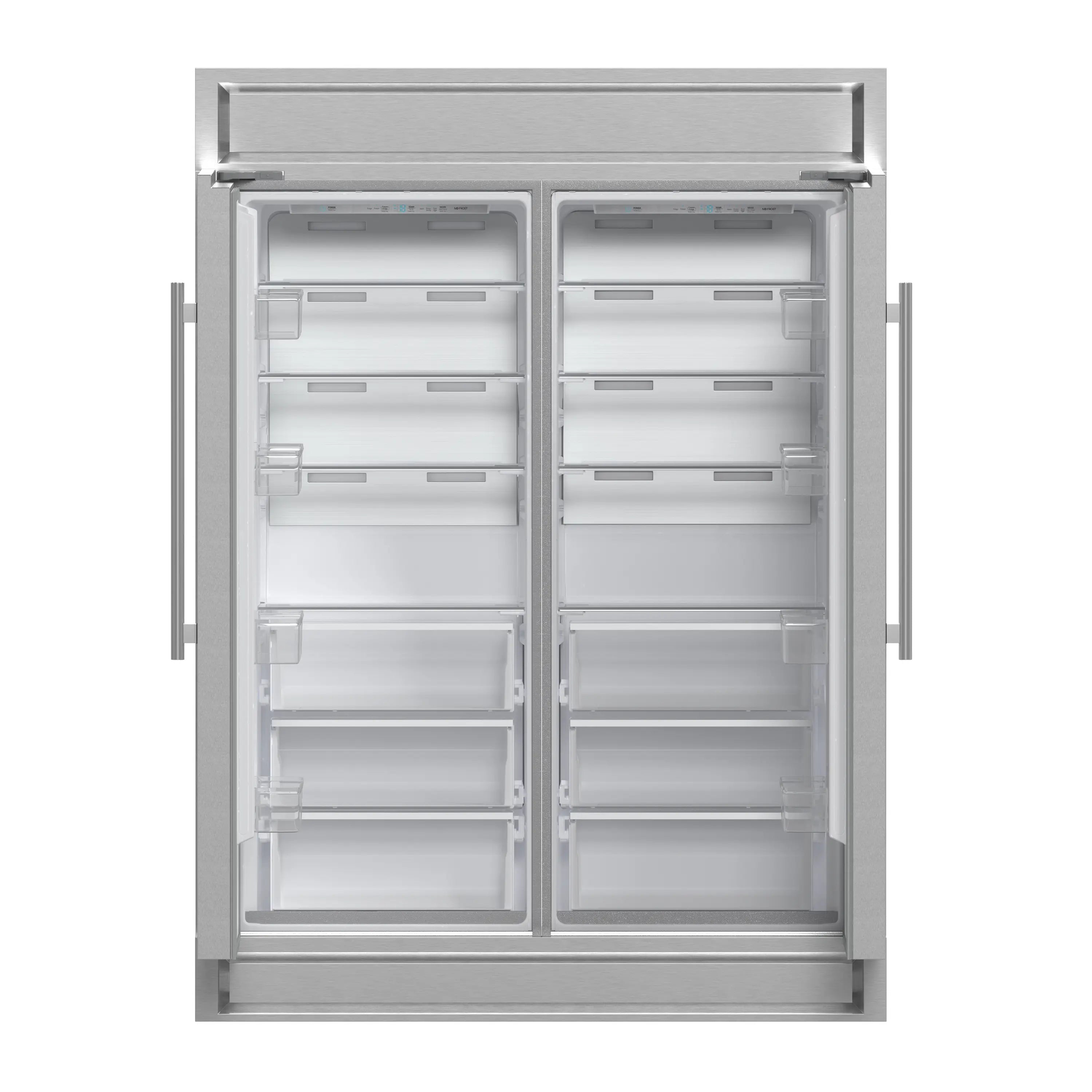

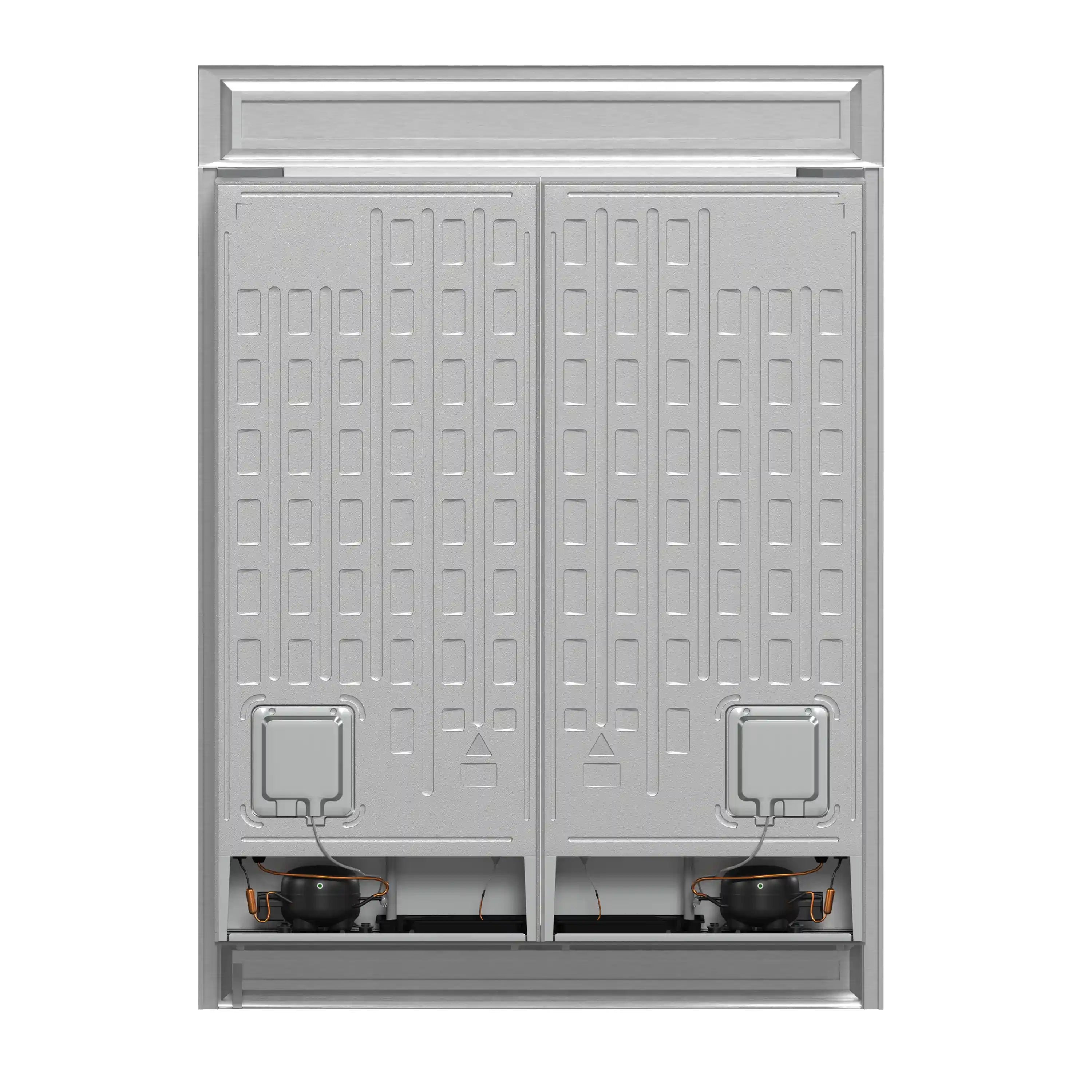

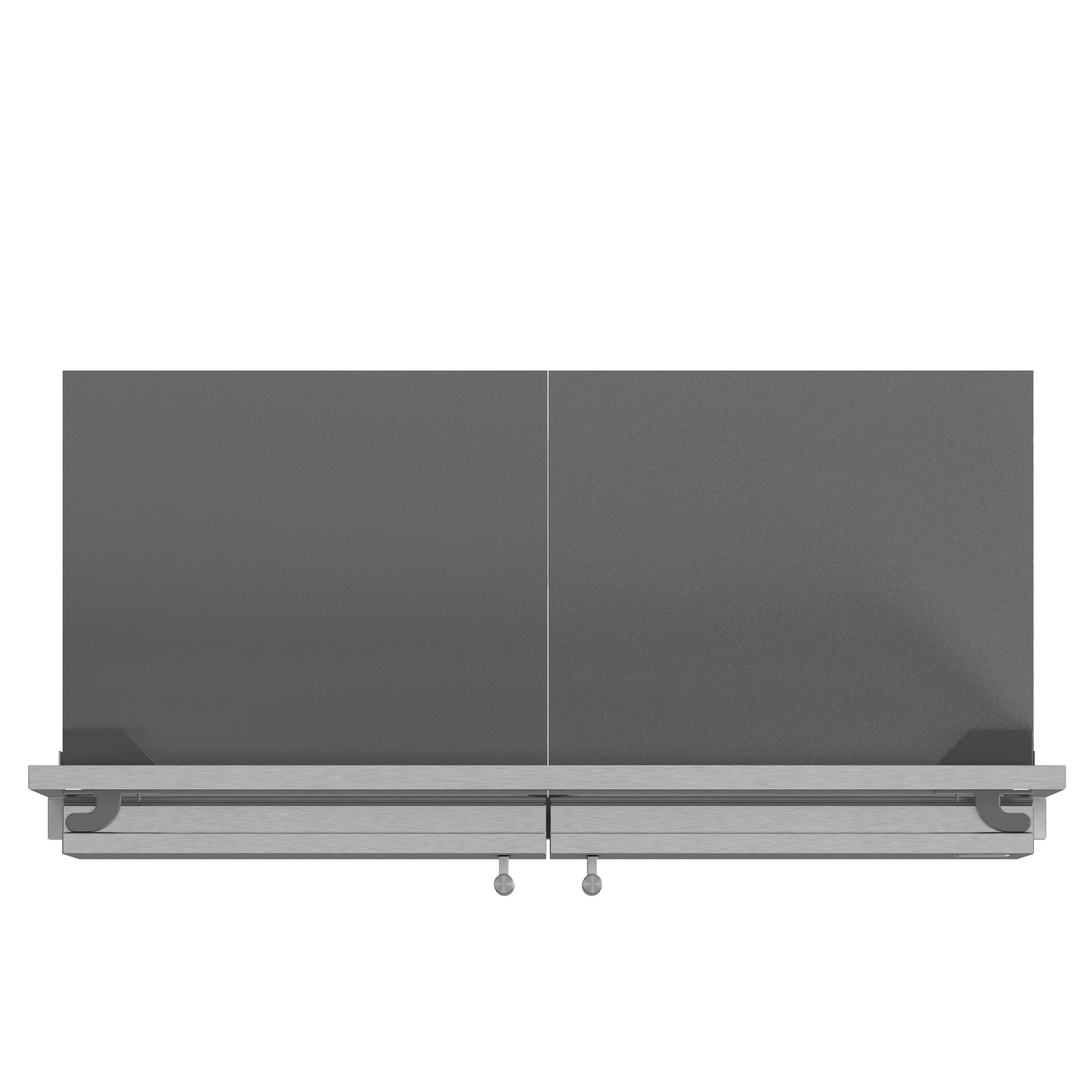

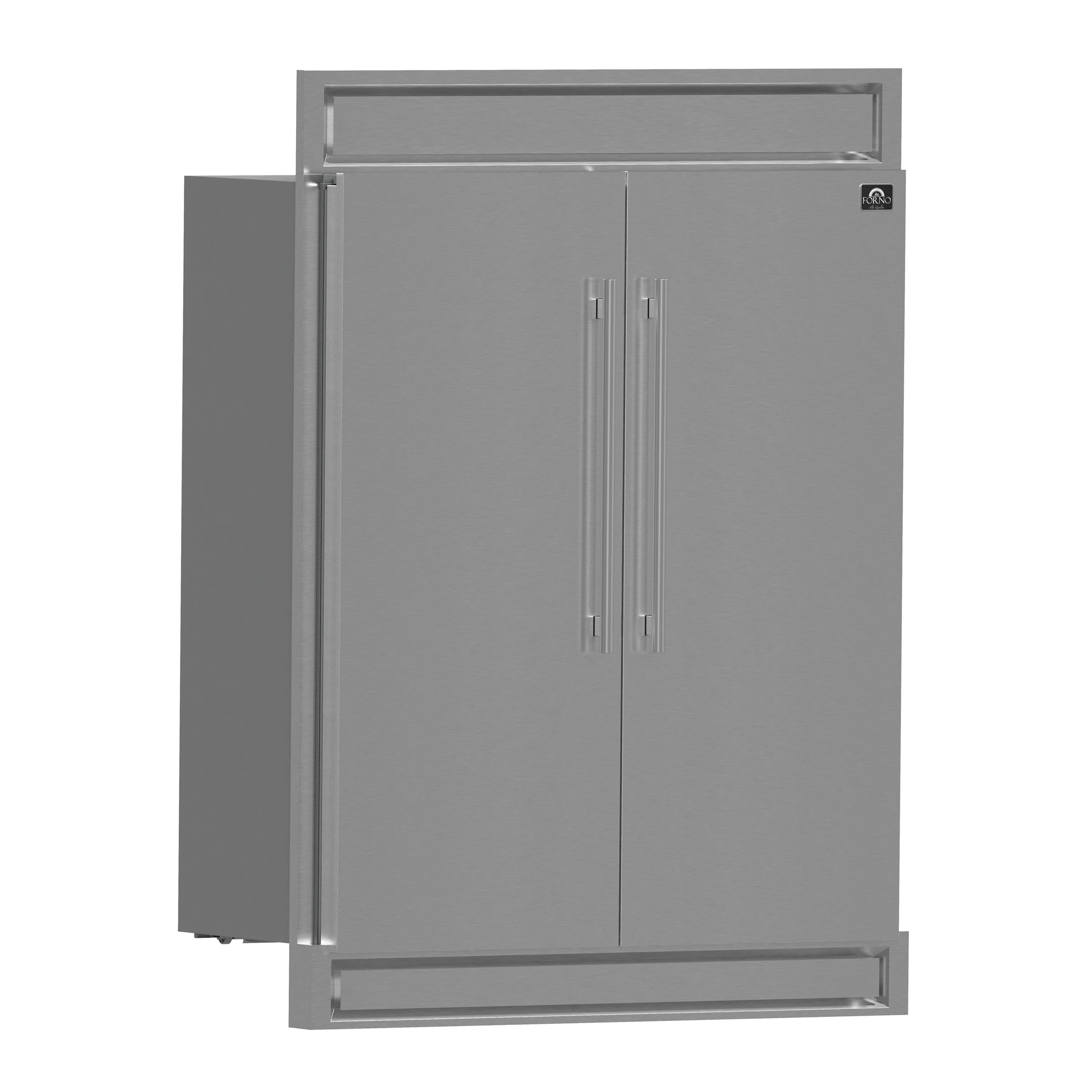

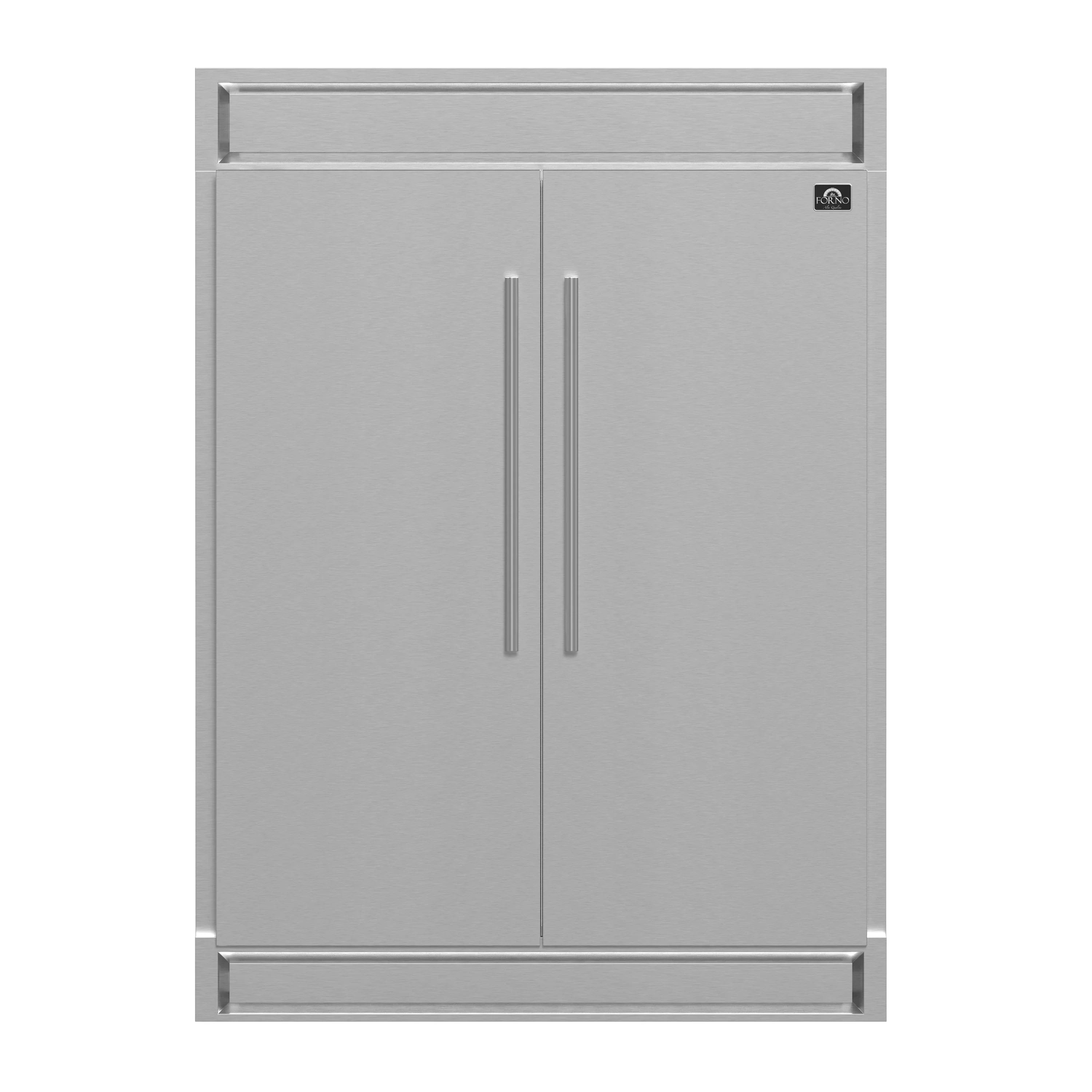

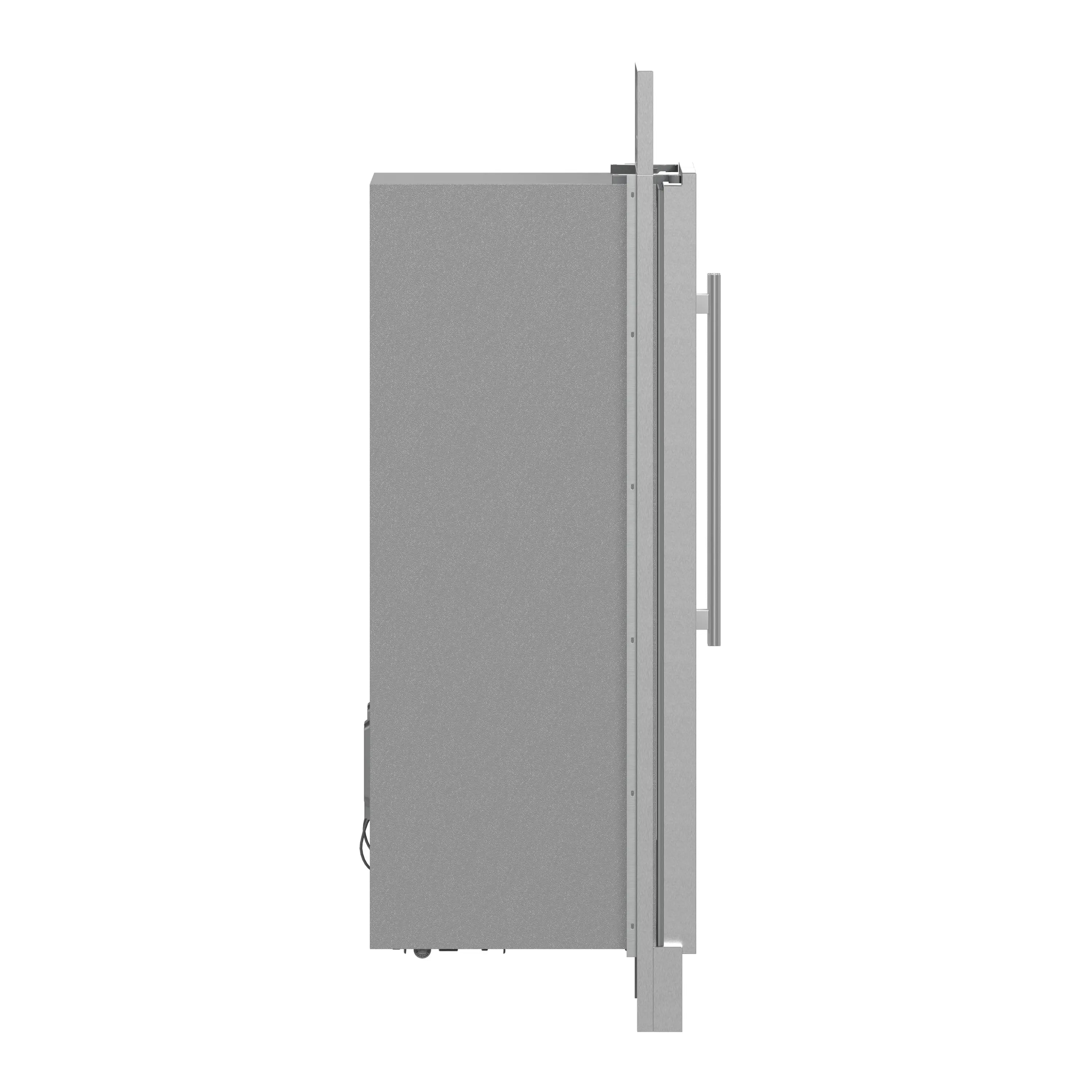

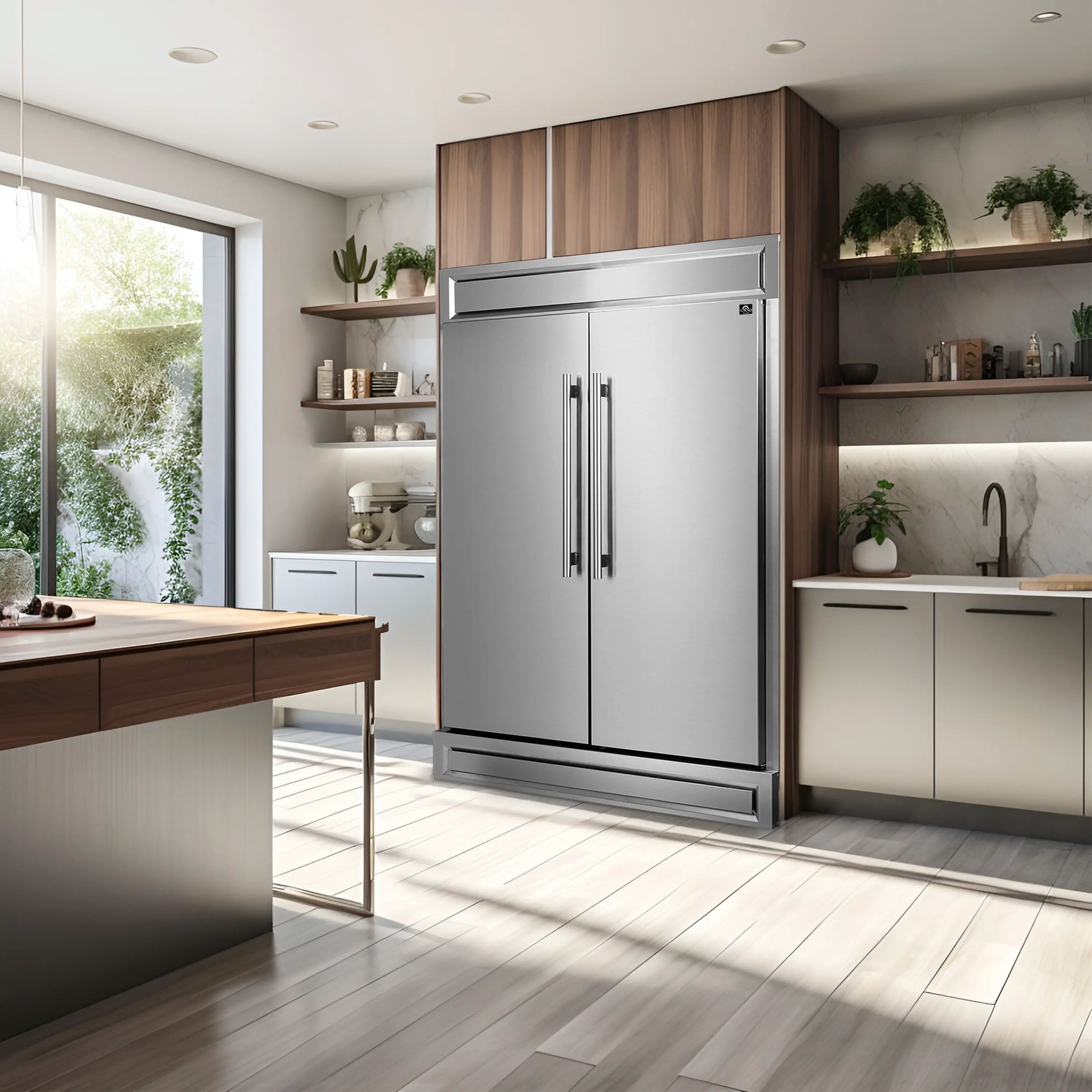

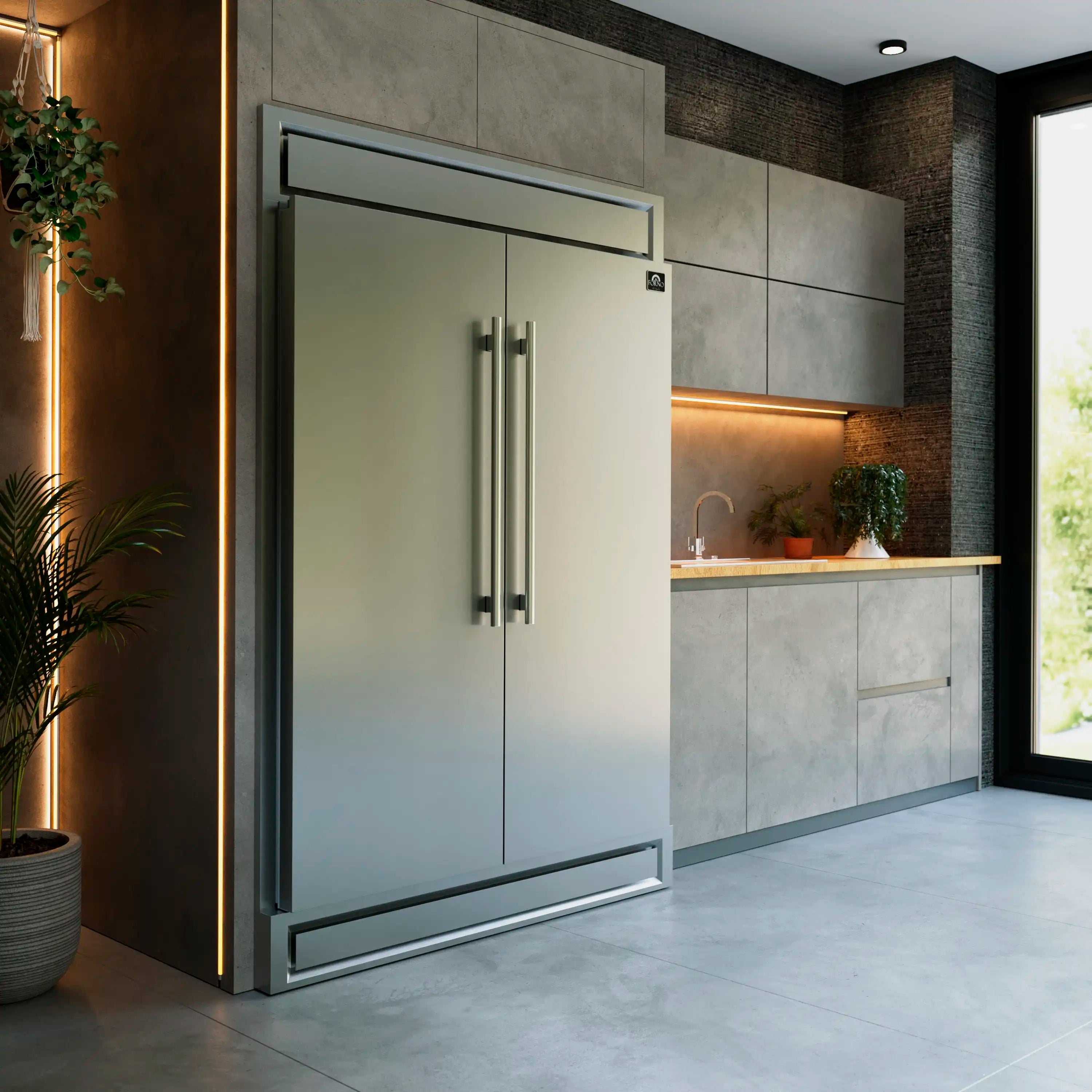

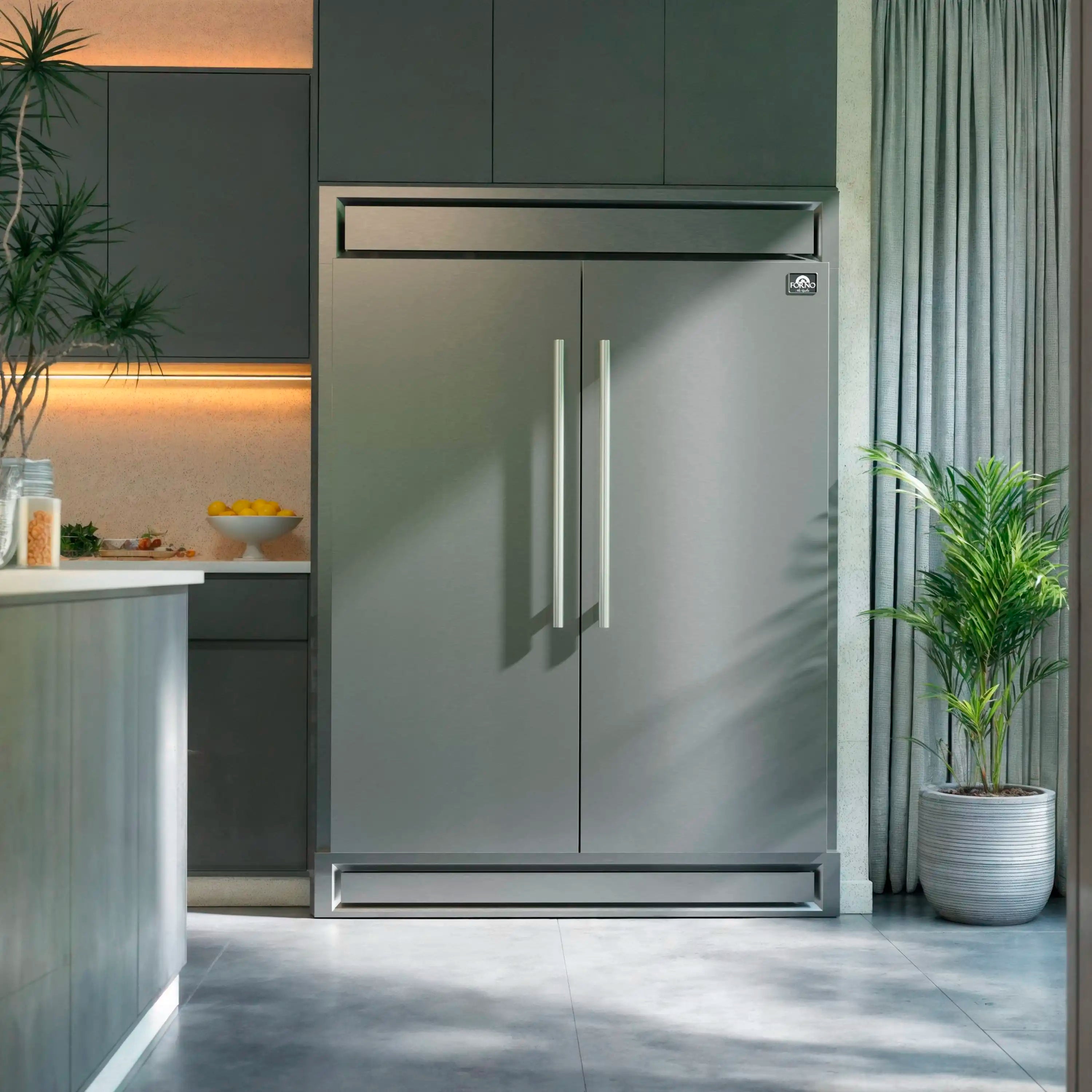

The Forno Maderno combines two 28 Inch refrigerators with decorative trim grille, extending to a 60 Inch width for a built-in appearance, harmoniously blending style with convenience. This combo offers ample storage space totaling 27.2 cu.ft. They feature customizable cooling with convertible function and total no frost technology, eliminating tedious defrosting.

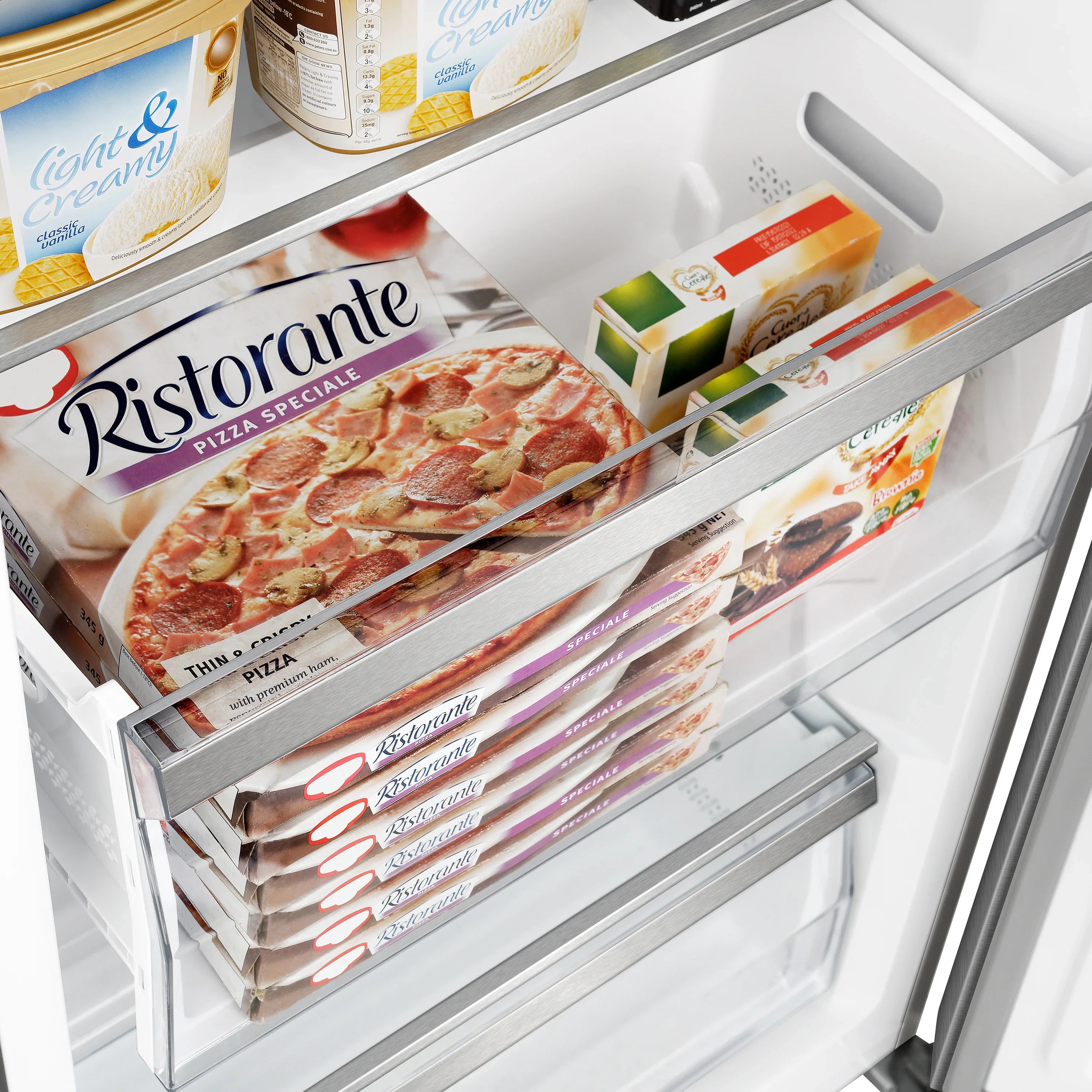

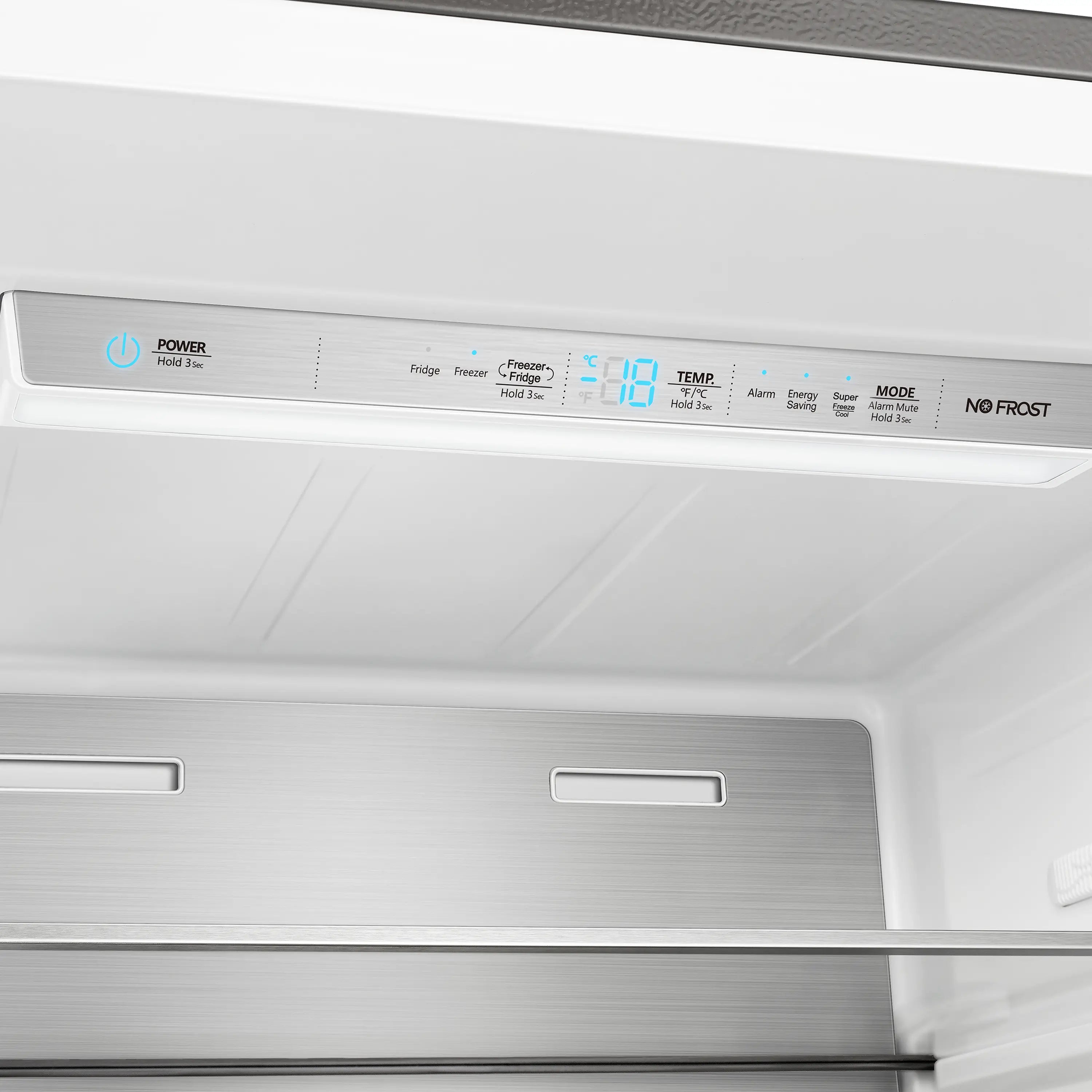

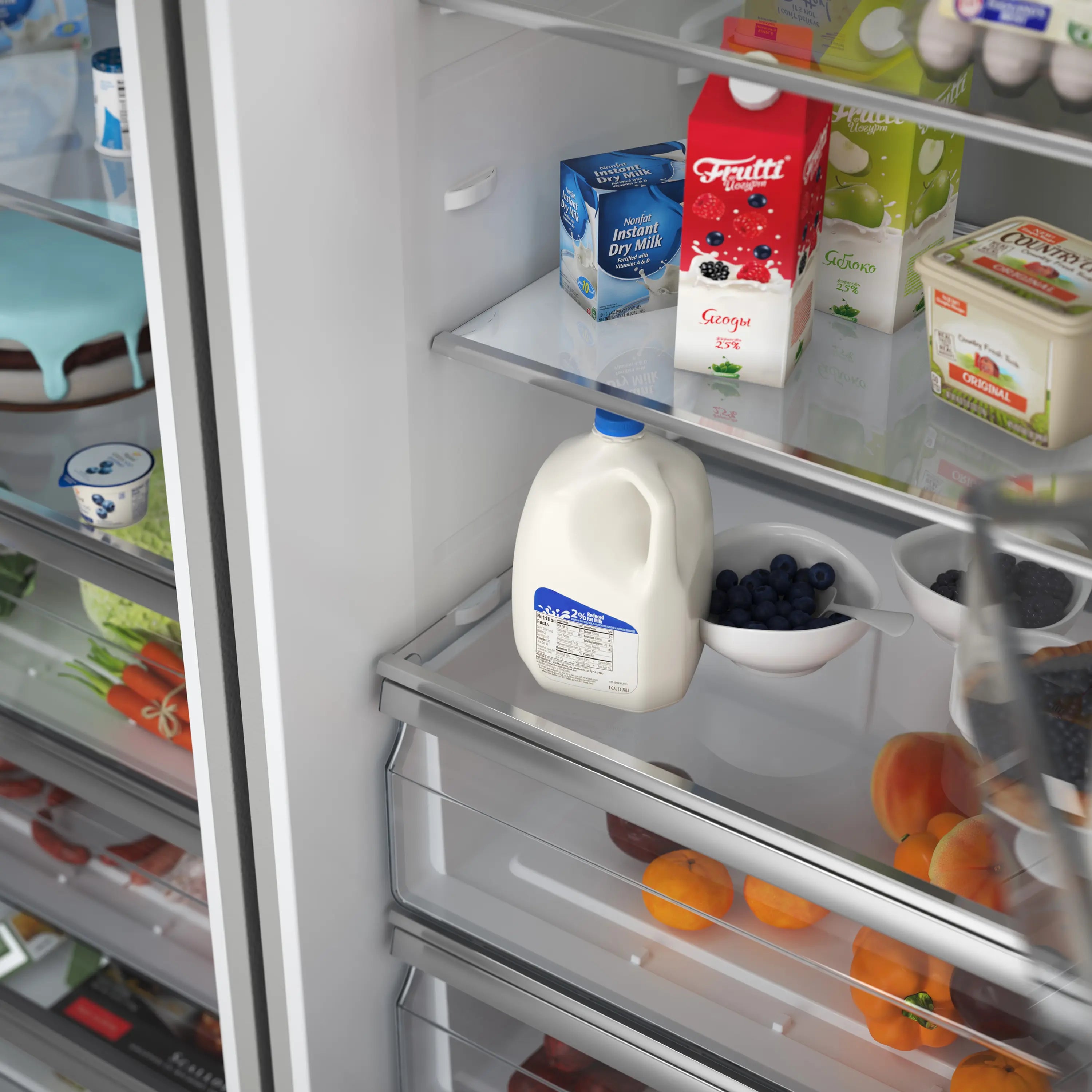

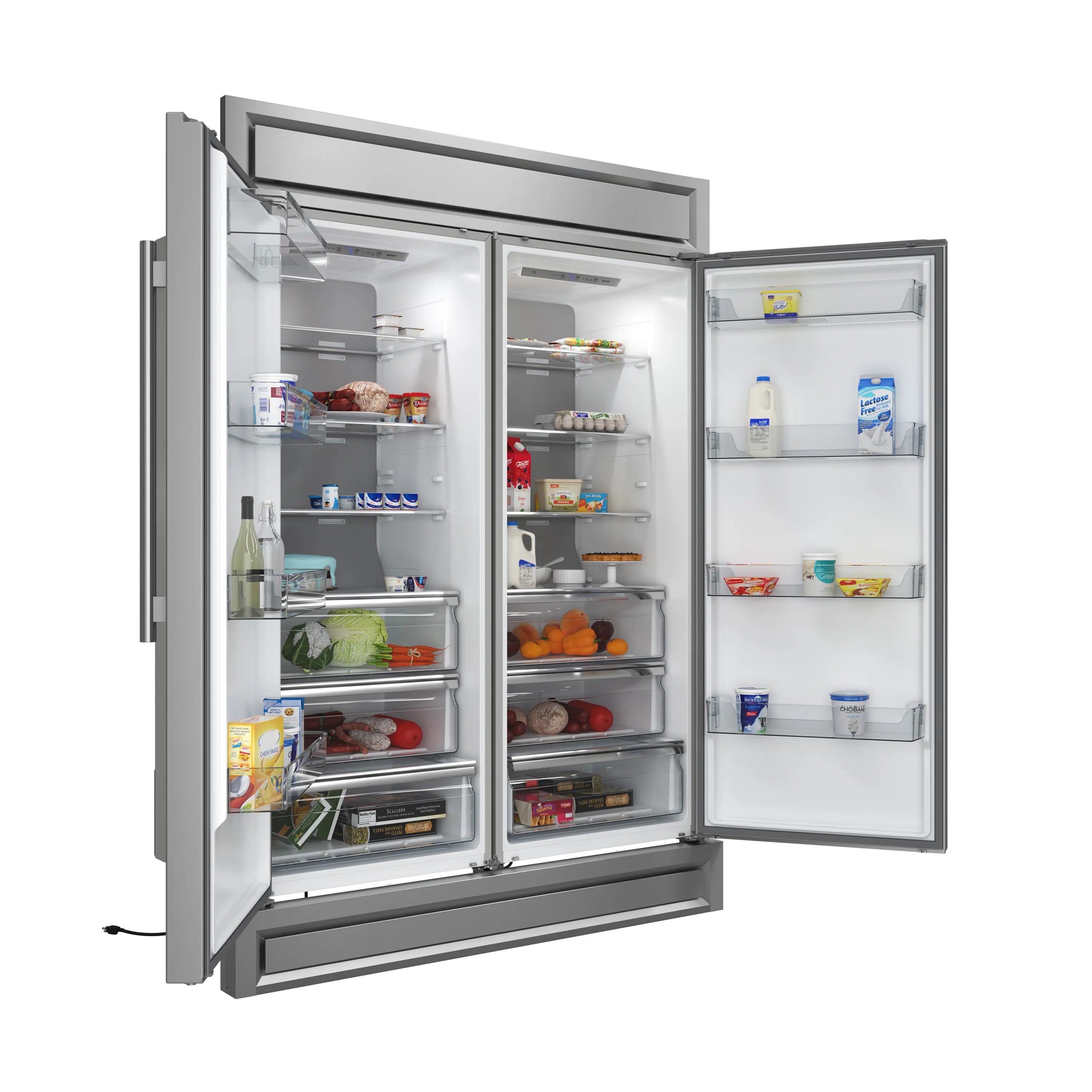

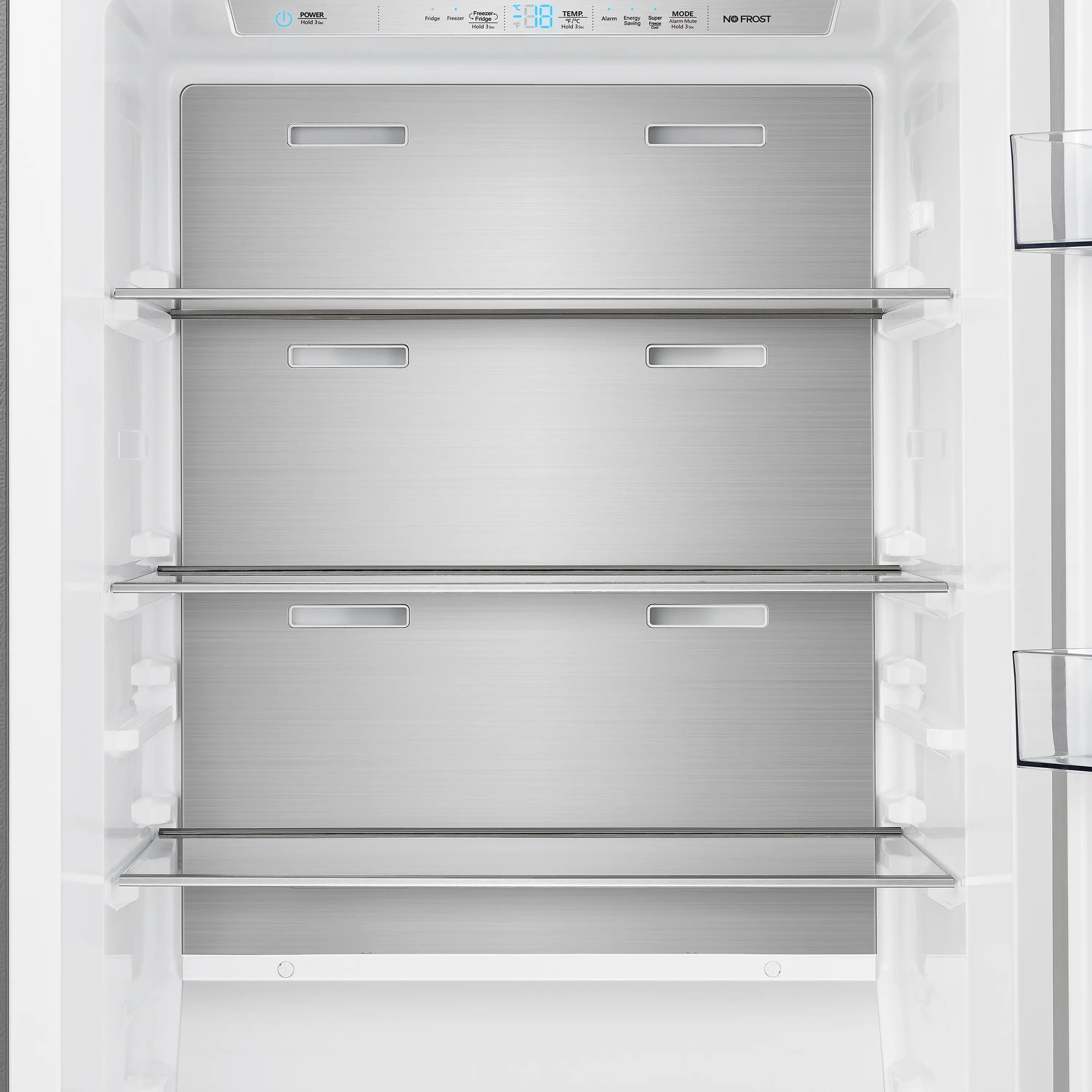

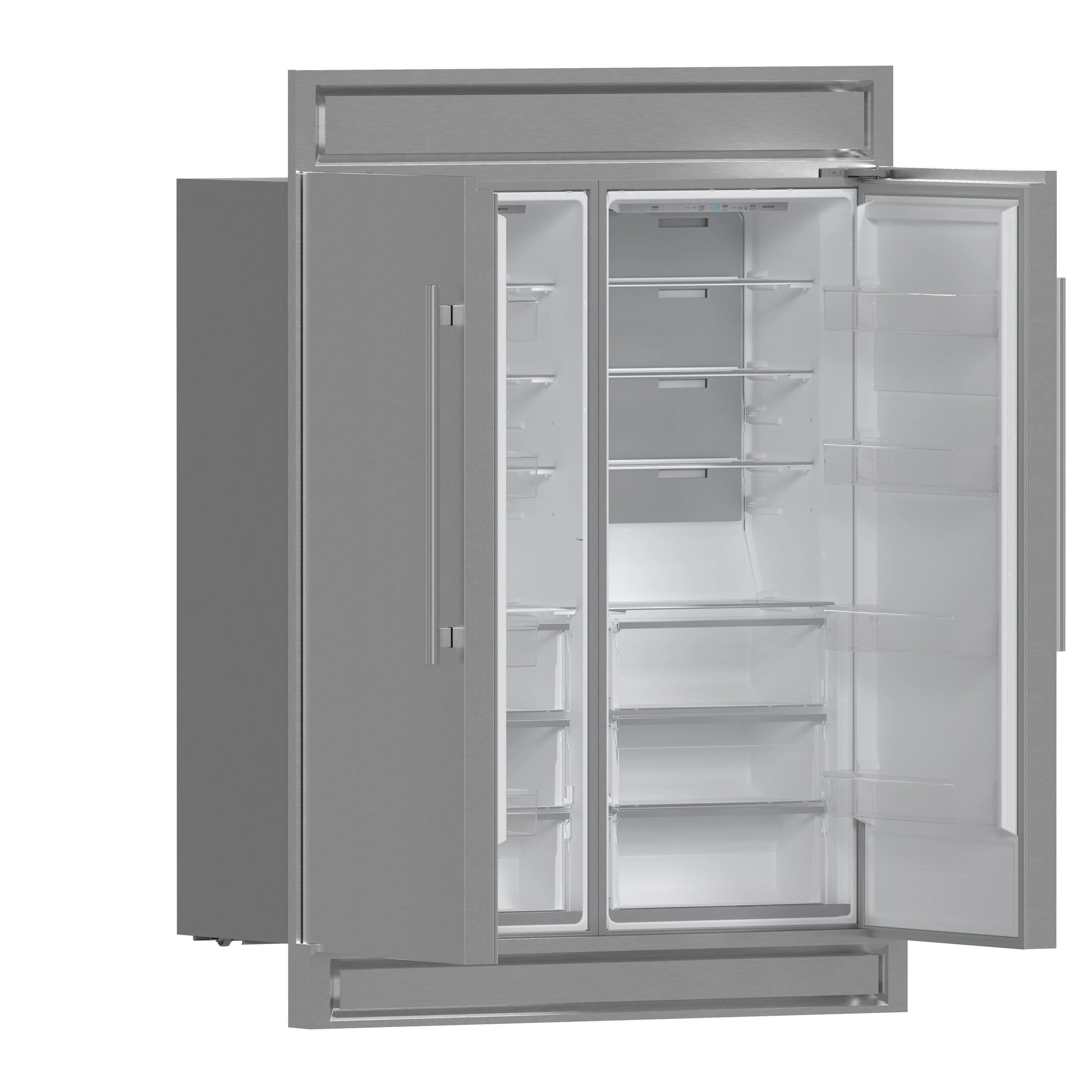

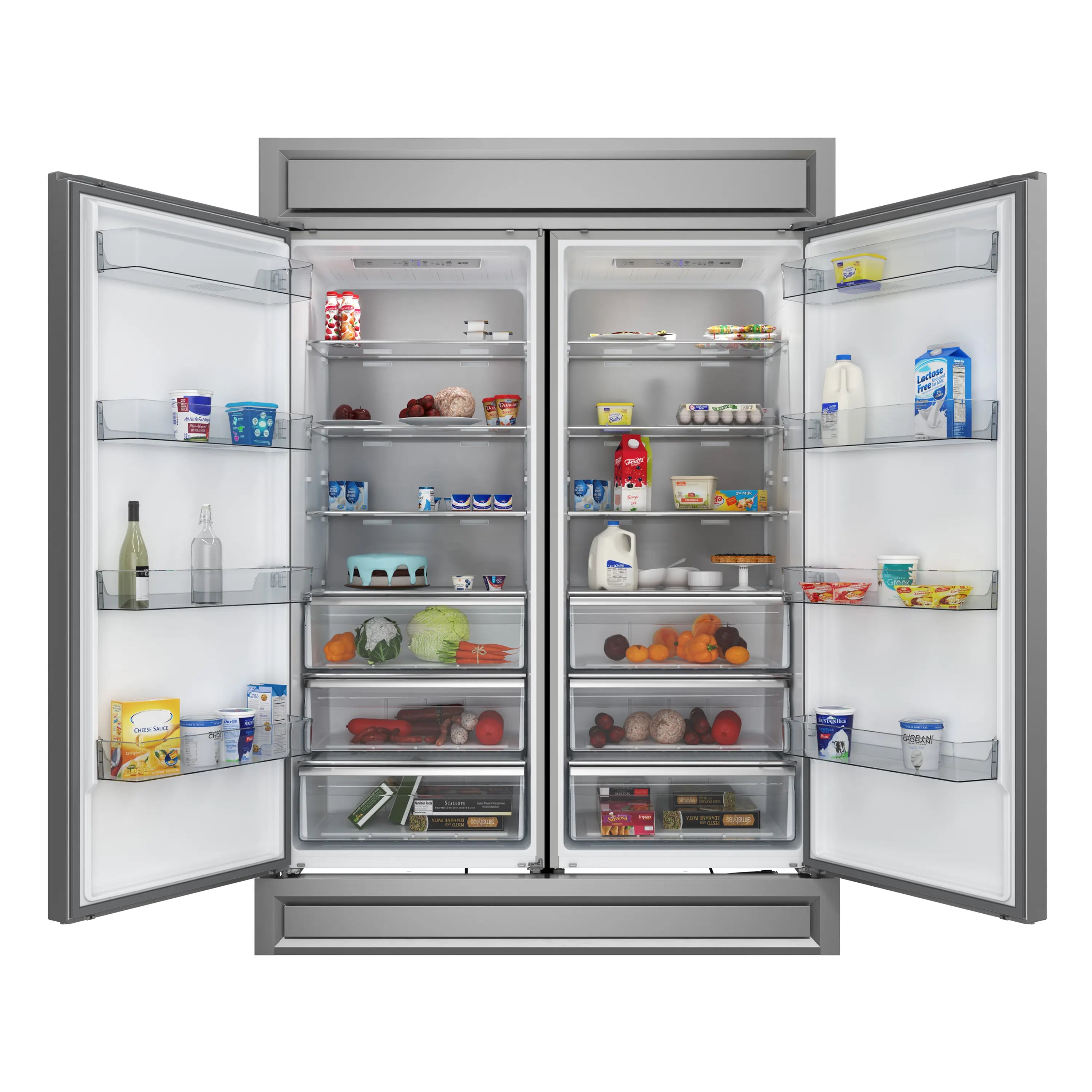

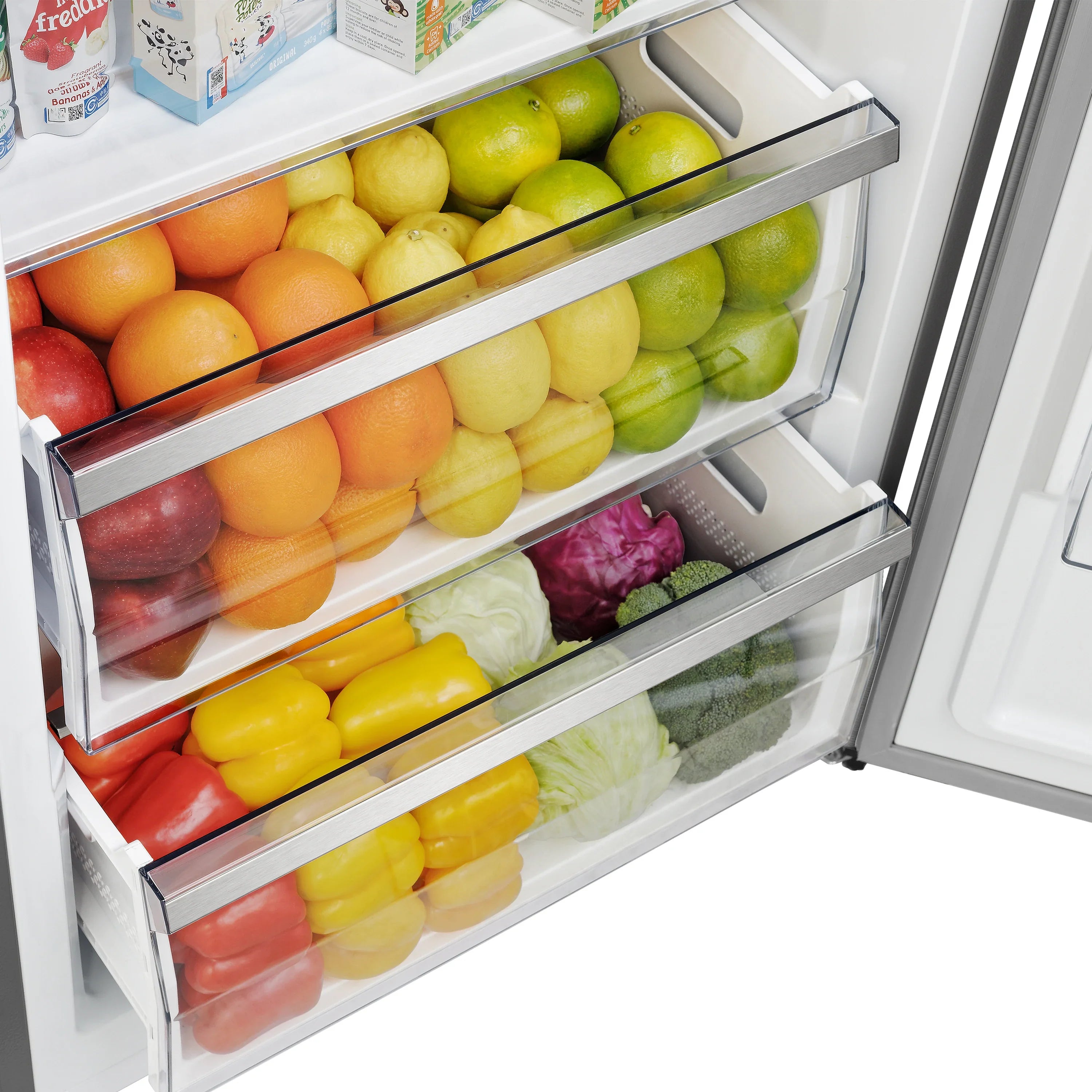

The side-by-side door design integrates seamlessly, while elegant glass shelves with silver trim and practical plastic door balconies enhance appeal and storage. Effortlessly switch between Fahrenheit and Celsius, aided by LED lighting for easy item location. Six glass shelves and six plastic drawers with silver trim provide flexible storage, and temperature settings are easily managed with the electronic touch control panel. The VCM door panel and metal back ensure durability, and the combo is T Climate Class certified with an E-star energy rating for sustainability.
This refrigerator comes in three pieces:
*Installation requires a base to be built for the refrigerator - please see cut-out sheet for more details
| DIMENSIONS | |
|---|---|

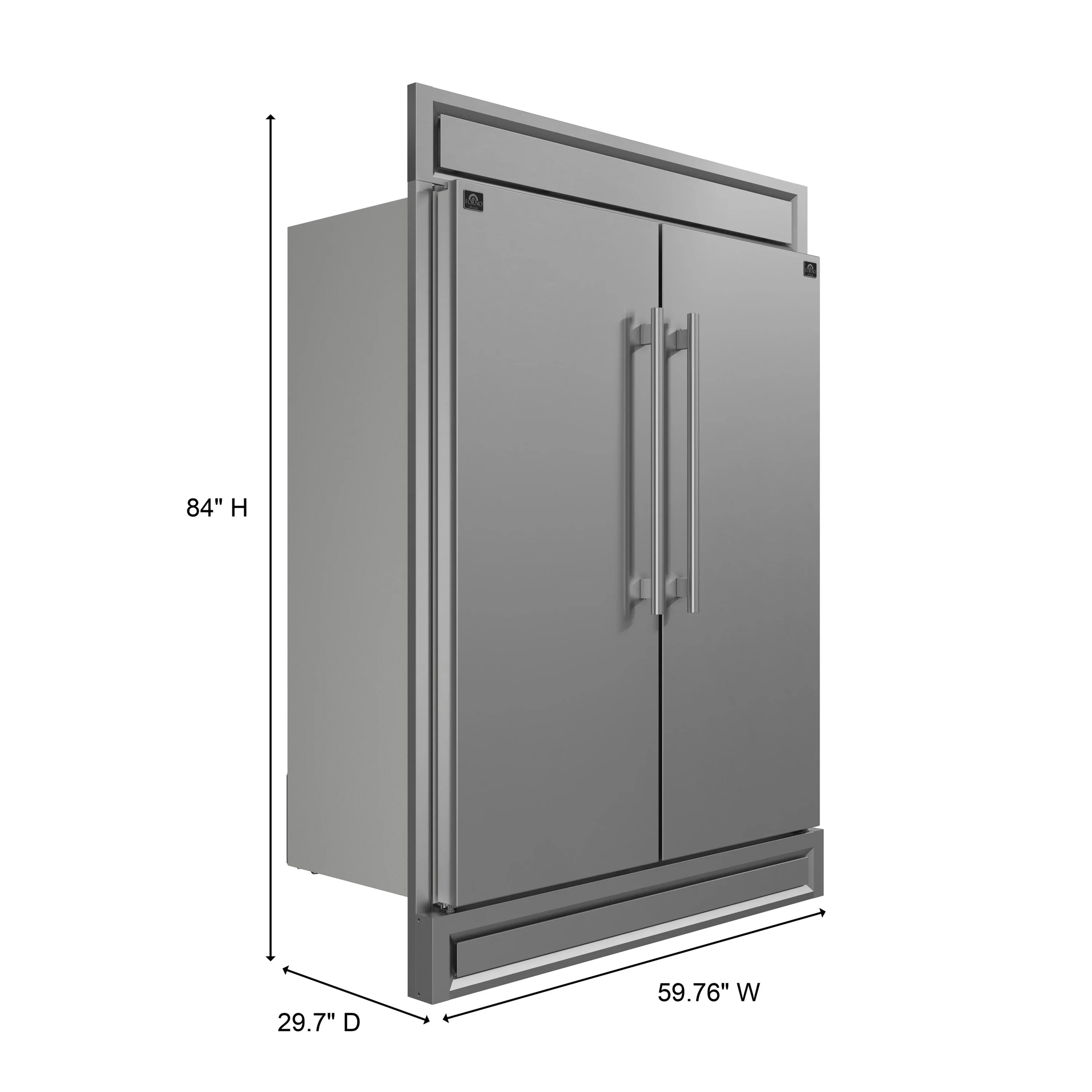

| Overall Dimensions | 59.76" W X 29.7" D X 84" H |
| Cutout Dimensions | 55.9" W X 28.94" D X 69.06" H |
| Product Overall Weight (lbs) | 330.00 |
| Advertised Unit Width | 60” |
| Counter-Depth | Yes |
| GENERAL INFORMATION | |
| Build Type | Built-In |
| Finger Print Resistant | Yes |
| Air Flow | Multi Air Flow |
| Vacation Mode / E-Saver | Yes |
| Super Cool | Yes |
| Super Freeze | Yes |
| Leveling Legs | Yes |
| DESIGN & FINISH | |
| Unit Style | Side-By-Side |
| Door Color | Stainless-Steel |
| Door Material | VCM Door Panel |
| Reversible Doors | No |
| Handle Color | Stainless steel |
| Case Material | Metal |
| Case Color | Light Gray |
| Primary Material | White HIPS |
| Control Type | Internal Touch Control |
| Lighting Type | LED |
| Shelf Material | Glass with Silver Trim |
| Drawers Material | Plastic with Silver Trim |
| Door Bins Material | Plastic |
| TECHNICAL DETAILS | |
| Defrost Type | Automatic |
| REFRIGERATOR FEATURES | |
| Sabbath Mode | No |
| Door Alarm | No |
| Leak Proof Shelves | No |
| Door Bins Color | Clear |
| Ice Maker | No |
| FREEZER FEATURES | |
| Converting Fridge/Freezer | Yes |

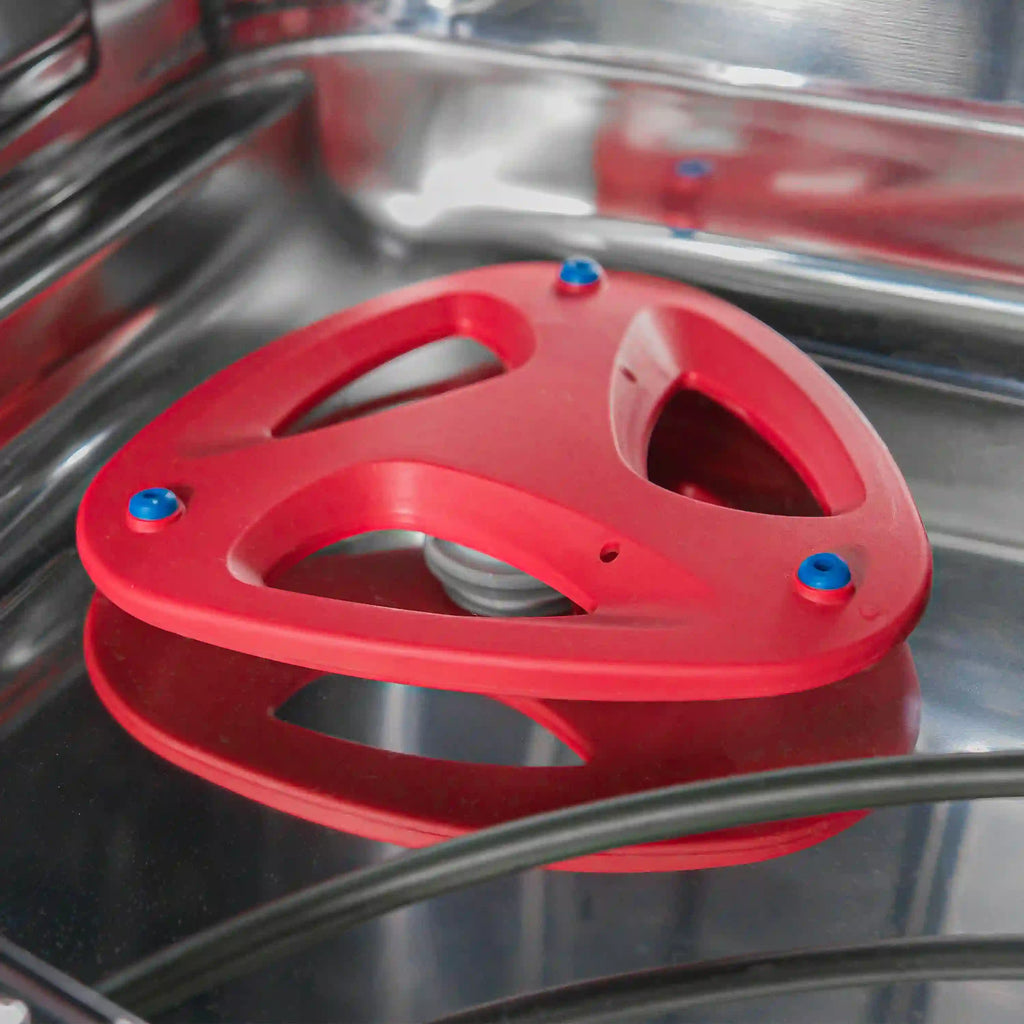

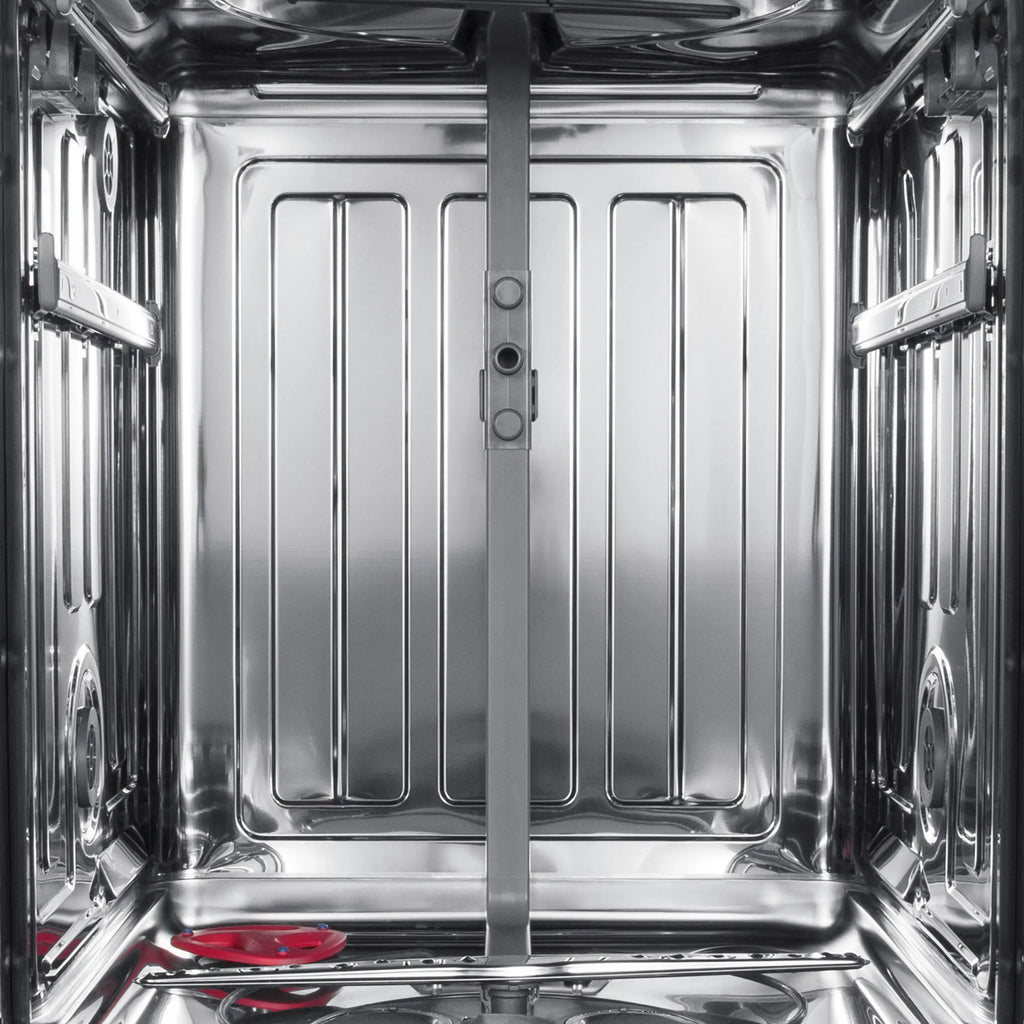

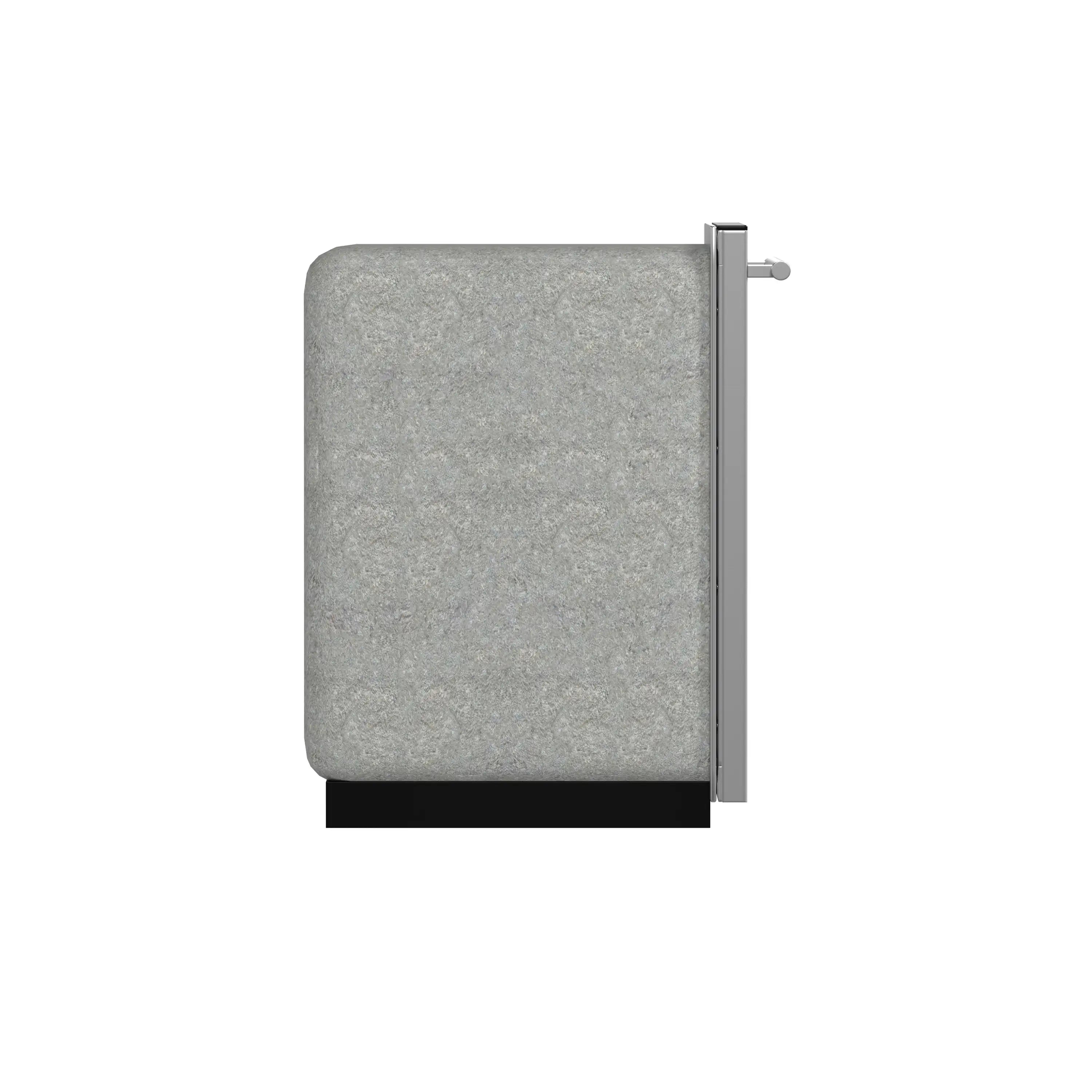

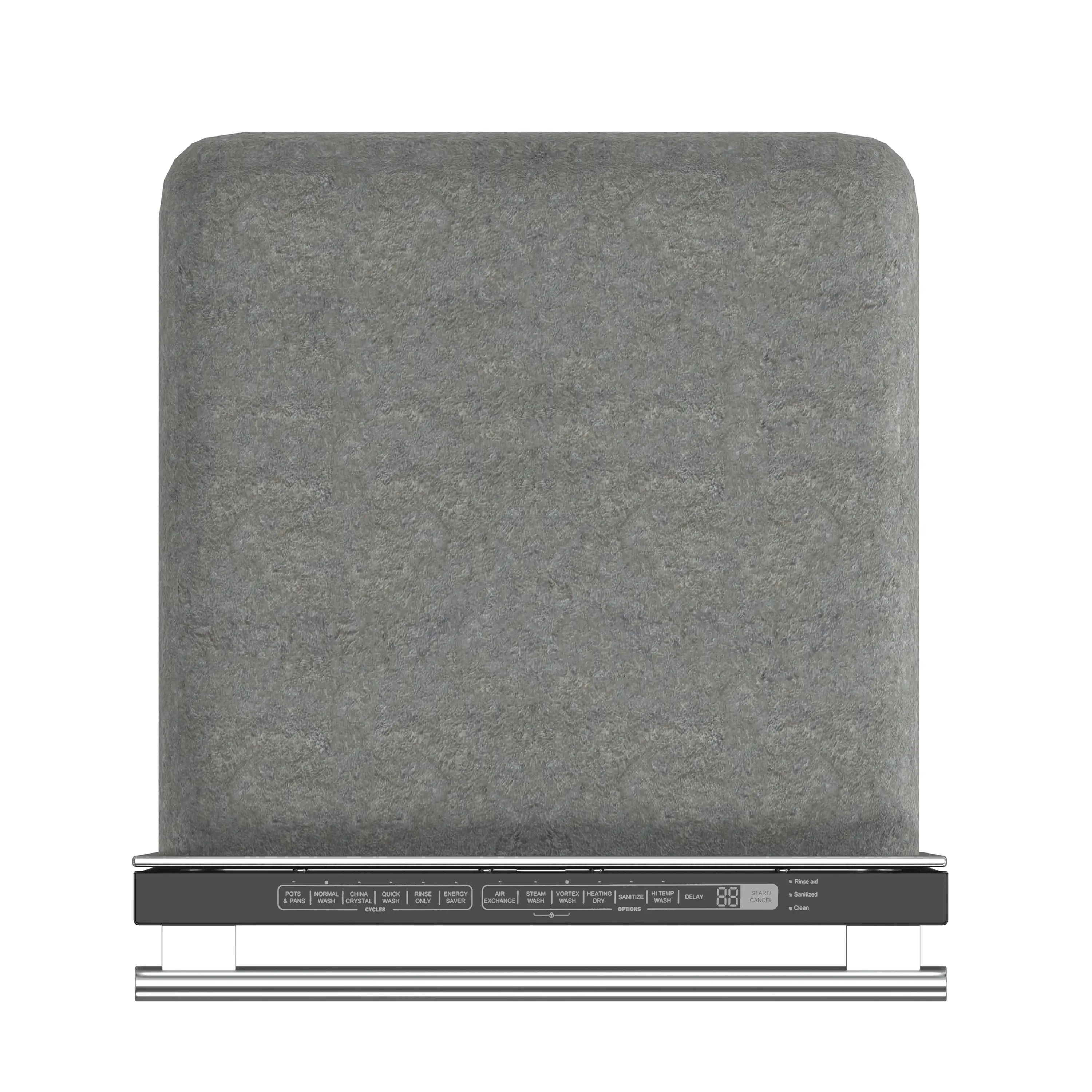

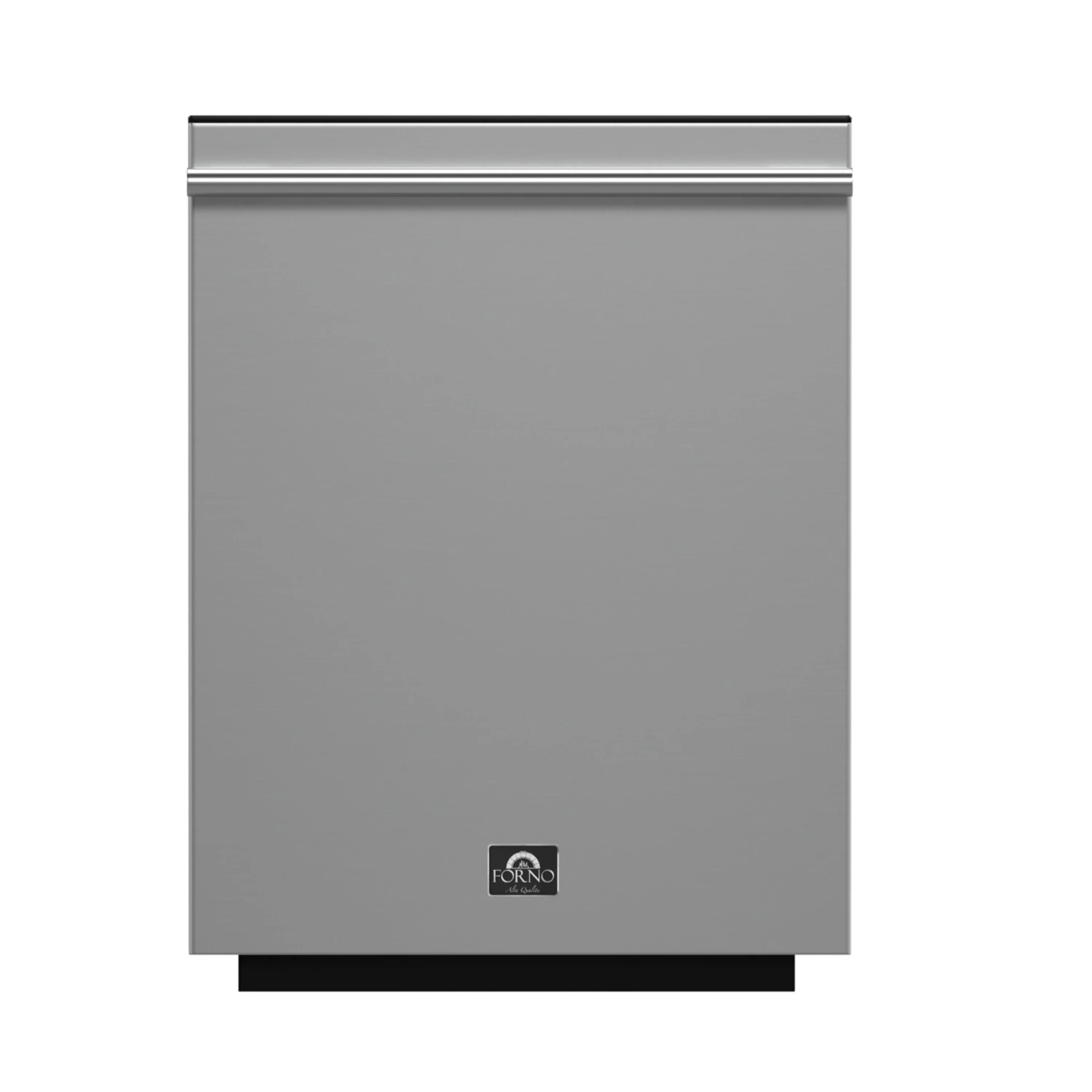

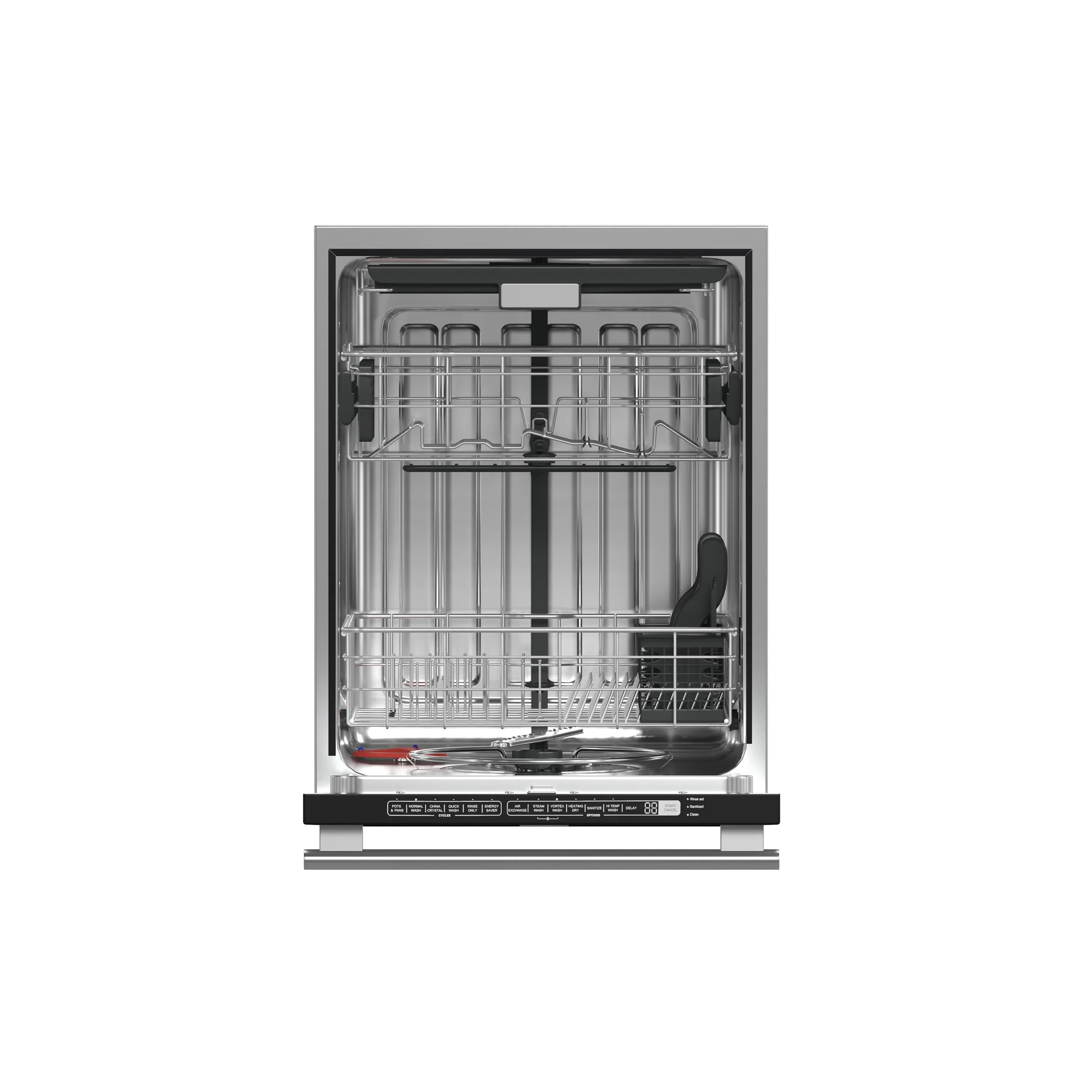

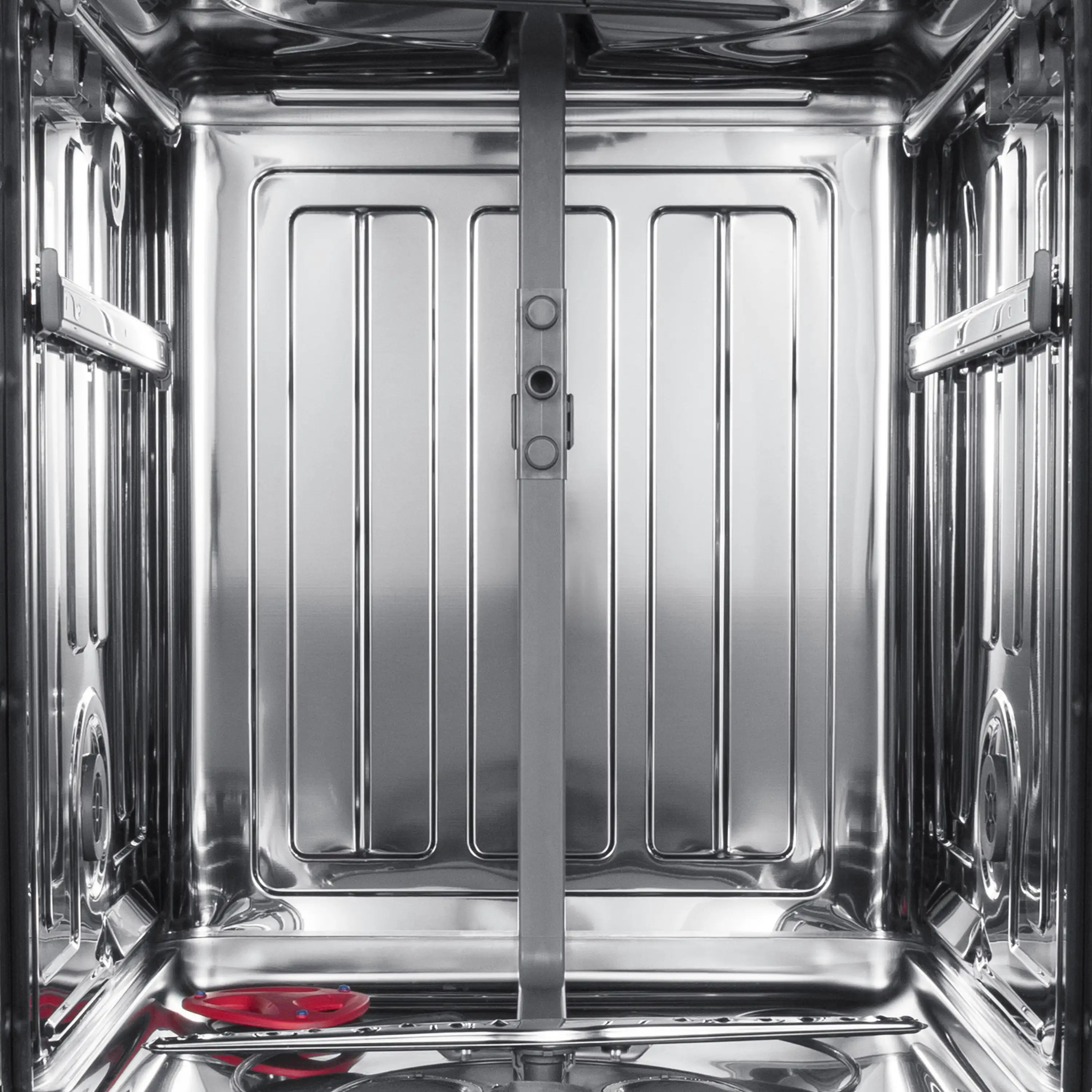

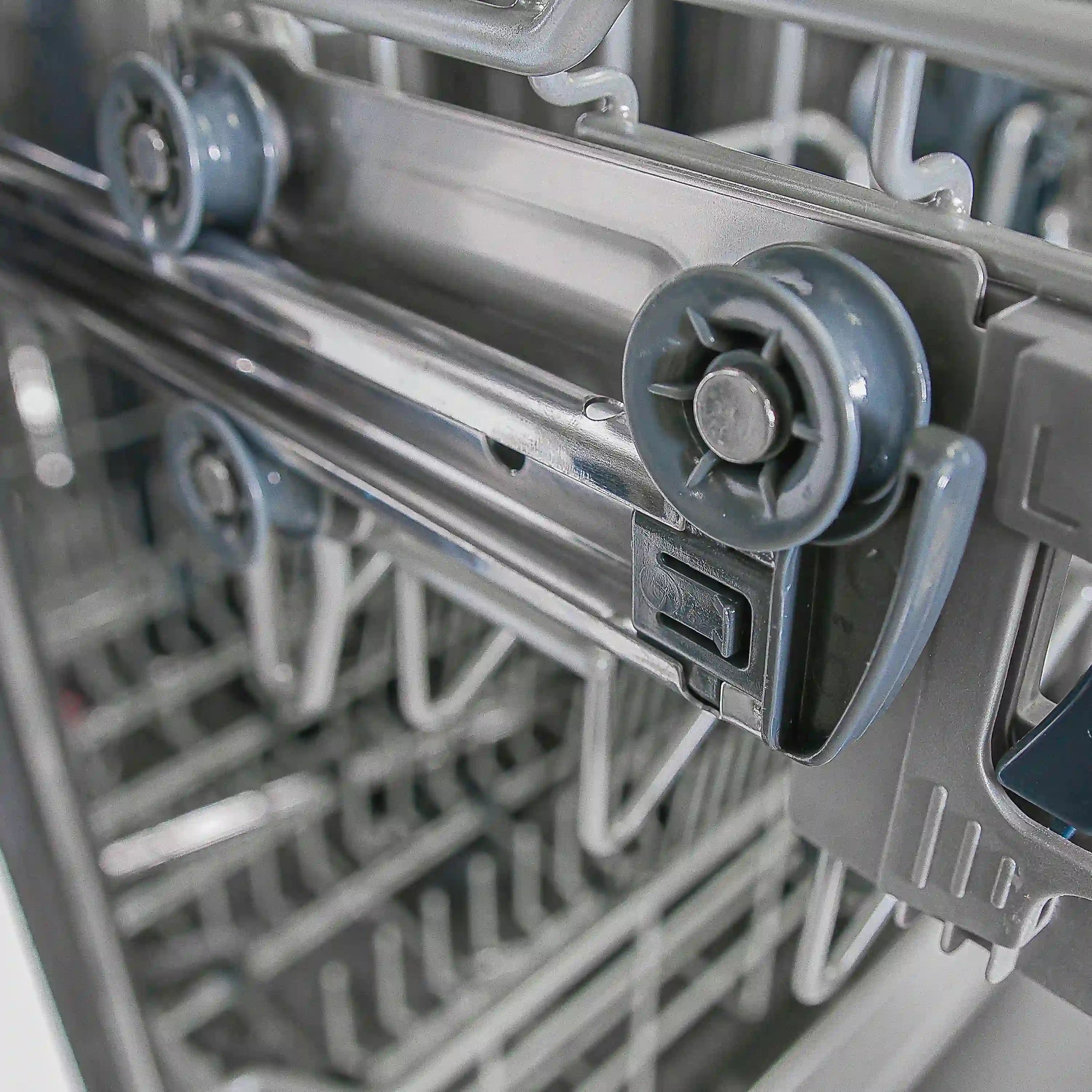

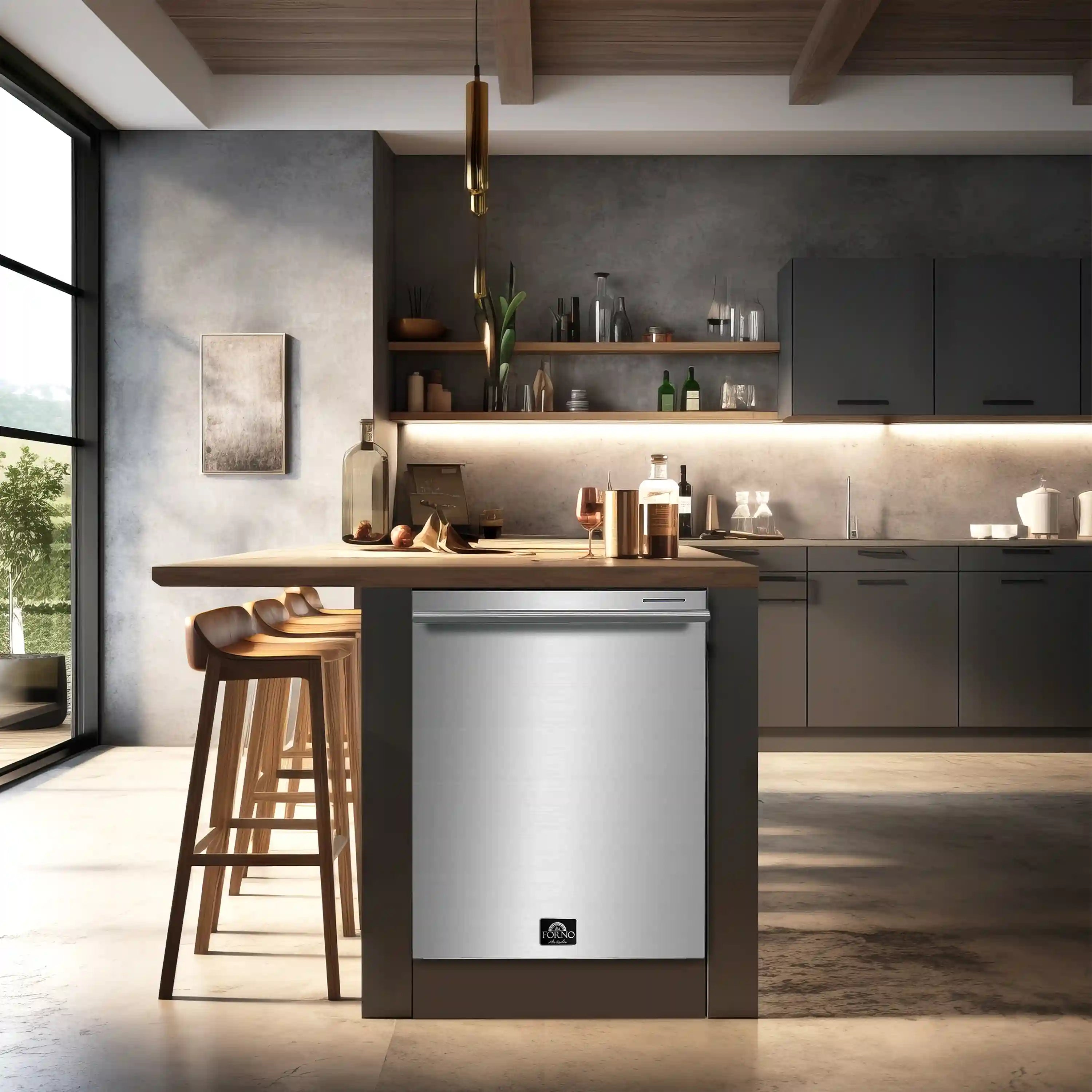

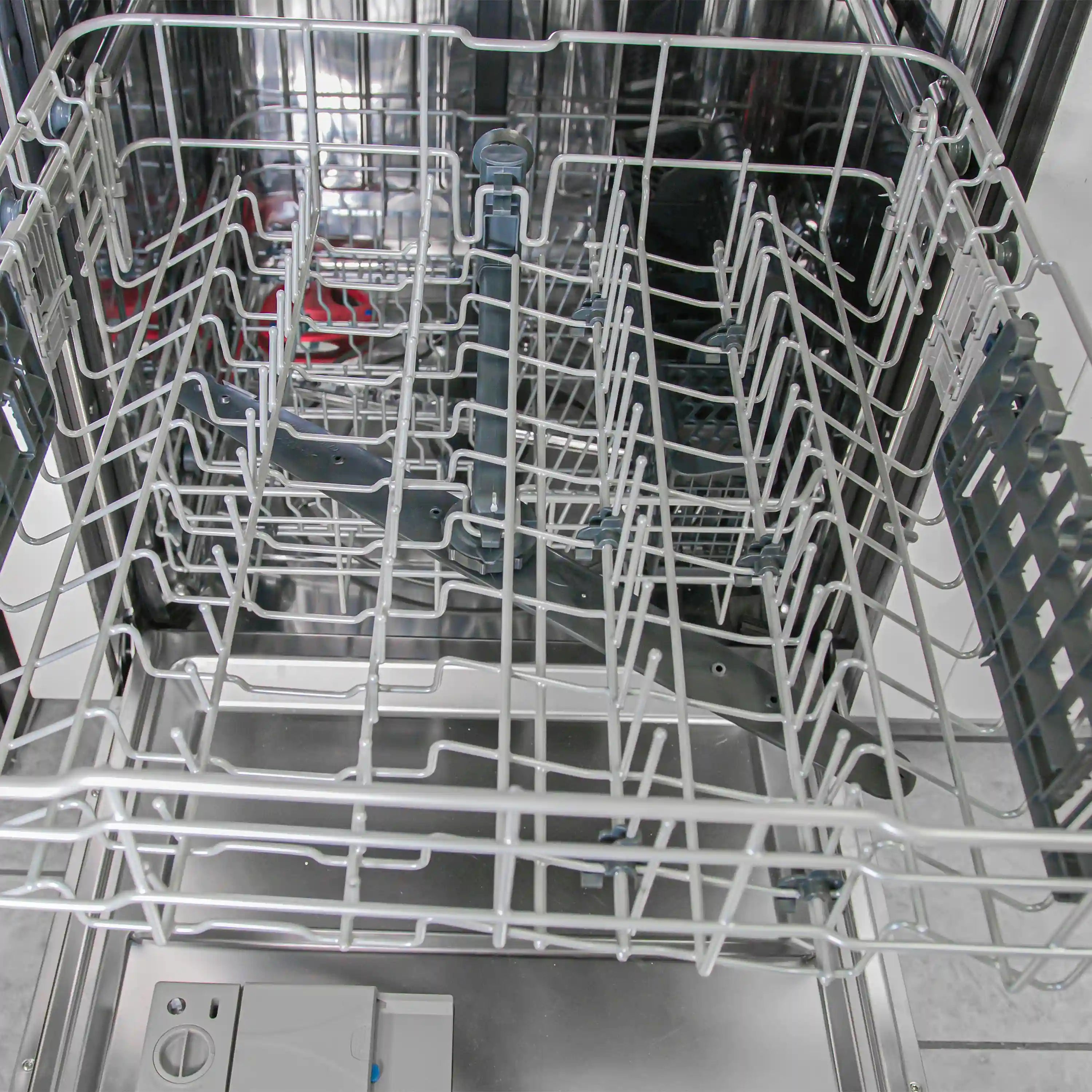

The Forno Pozzo 24-Inch tall-tub dishwasher, operating at a low noise level of 49 decibels for peaceful cleaning. Its stainless-steel front and pro-style handle offer durability and style. The dishwasher features a spacious stainless-steel tub with 3 baskets, providing ample loading flexibility for large dish capacity and utensils, with 3 racks and an additionnal silverware basket. With six wash programs and electronic controls featuring a sleek LED display, it offers efficient and customizable cleaning options. Energy Star certified for eco-friendly operation.
| DIMENSIONS | |
|---|---|
| Product Dimensions W x D x H (inches) | 23.85x26.54x33.74 |
| Cutout dimensions W x D x H (inch) | 24 x 24 x 34 |
| Product Overall Weight (lbs) | 93.20 |
| Minimum Product Height (IN) | 33.74 |
| DESIGN & FINISH | |
| Color/Finish | Stainless Steel |
| Racks Material | Nylon Coated Steel |
| Control Location | Top |
| Primary Material | Steel |

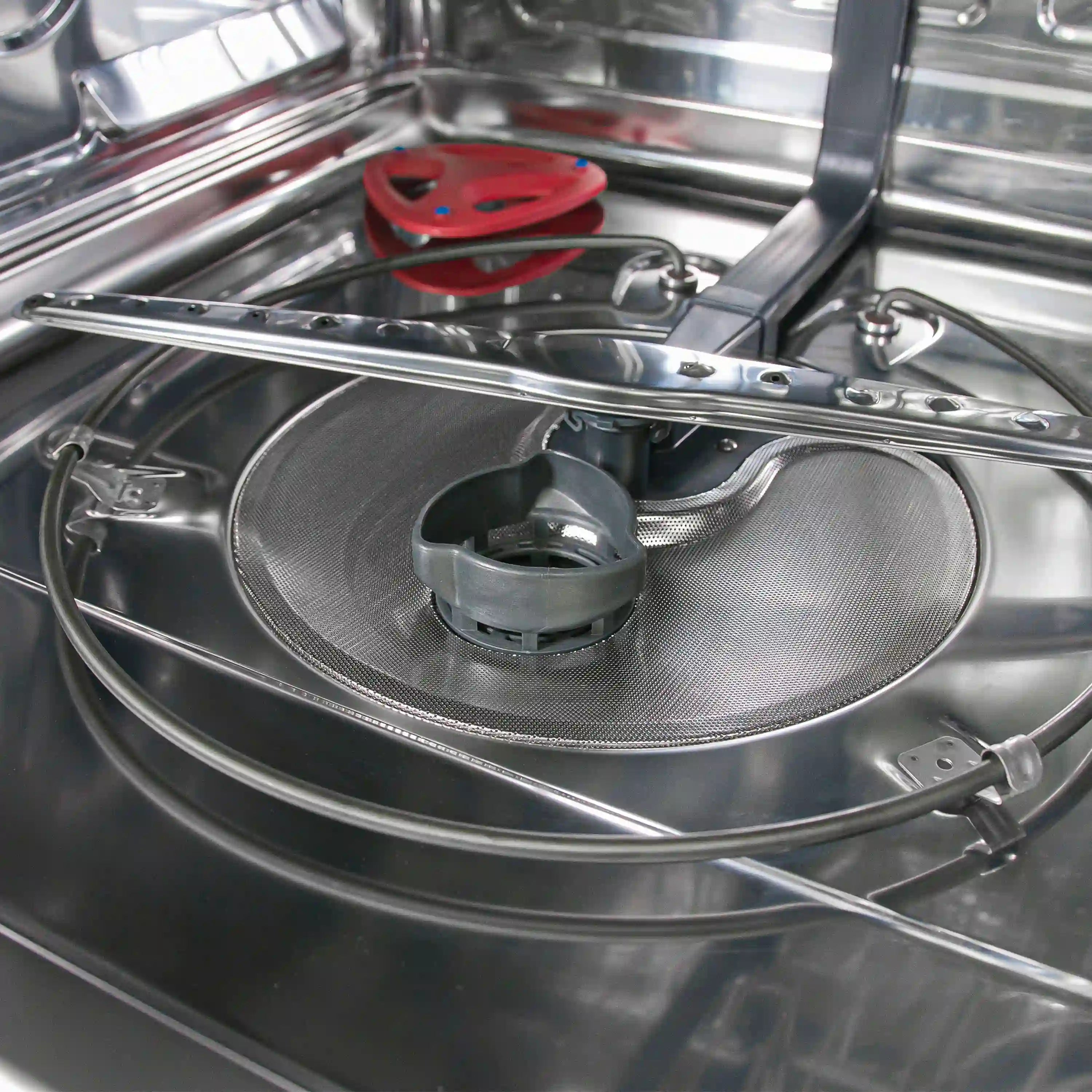

| Filter Material | Stainless Steel |
| TECHNICAL DETAILS | |
| Plug-in | No |
| FEATURES | |
| Number of Racks | 3 |
| Interior Light | No |
| Estimated Annual Operating Cost (USD) | 24 |
| Fingerprint-Resistant | No |
| WARRANTY & CERTIFICATIONS | |
| CEE Tier Qualified | Not Rated |
| Energy Star Most Efficient | No |
| Commercial Warranty | No |
| Warranty Type | Limited |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |
