Description
DIMENSIONS
- Overall Dimensions
- 30"W x 28"D x 37.4"H
- Cutout Dimensions
- 30"W x 28"D
- Overall Weight
- 231
- Power Cord Length
- 5 feet
GENERAL INFORMATION

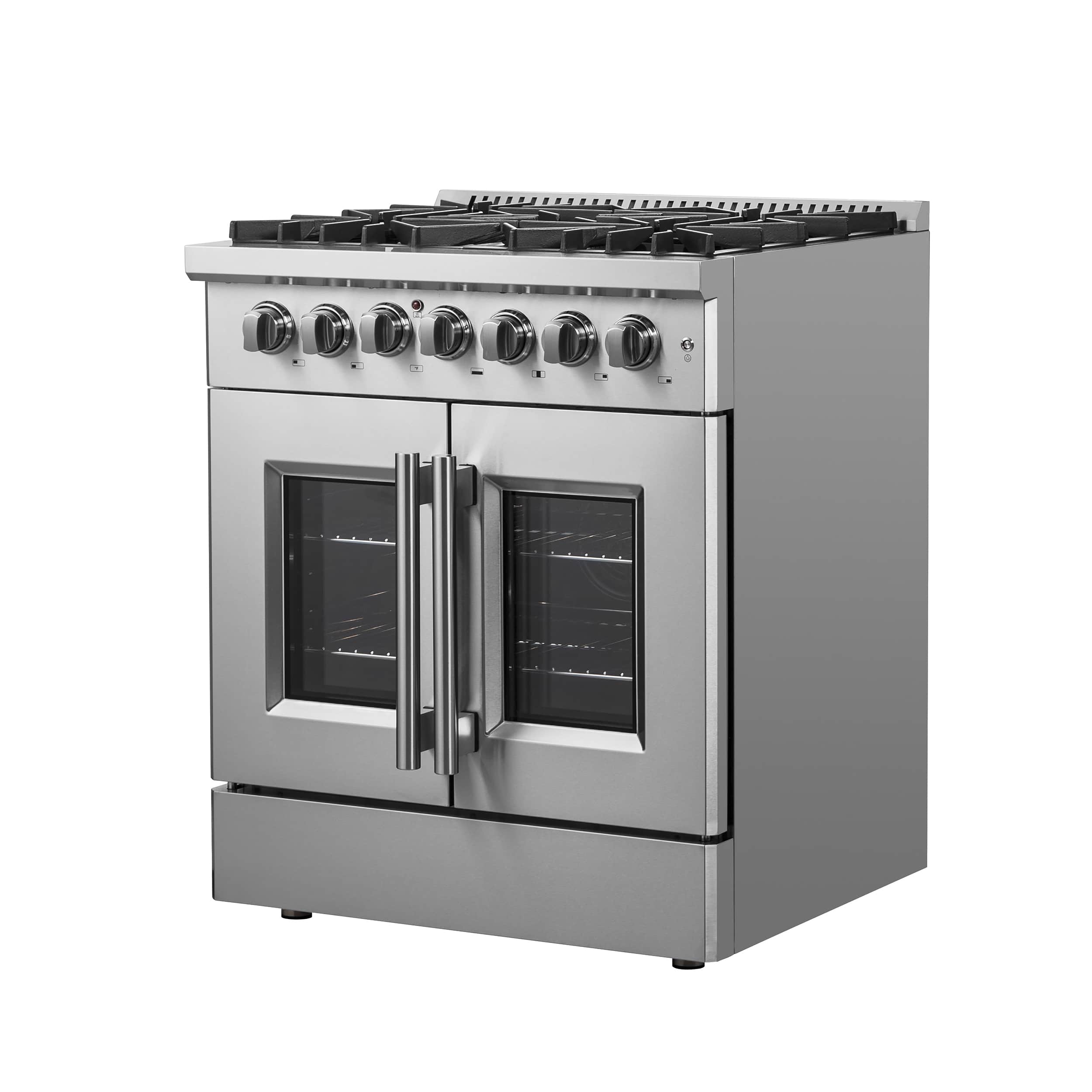

- Product Type
- Freestanding
- Supplier Intended and Approved Use
- Residential Use
- Country of Origin
- China
- Switches
- 0 + 1
- Title 20 - California Regulation
- No
DESIGN & FINISH
- Color
- Silver
- Finish
- Stainless Steel
- Color/Finish
- Stainless Steel
- Gas Heat Configuration
- Sealed Burner

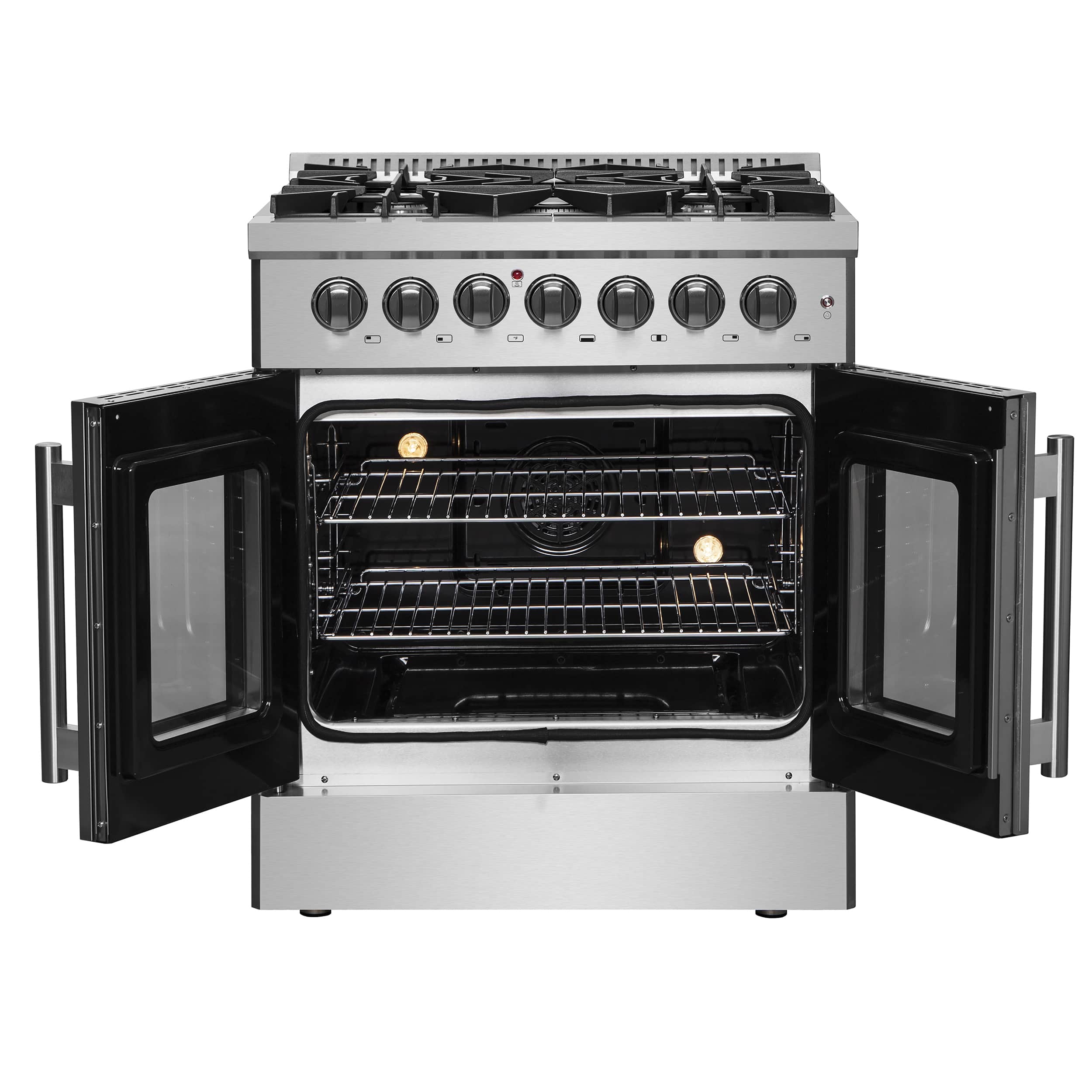

- Interior Light
- 2
- Control Type
- Knob
- Control Location
- Front
- Clock
- No
- Primary Material
- Stainless Steel
- Number of Knob
- 7
TECHNICAL DETAILS
- Amperage
- 30A
- Wattage
- 6,300W
- Voltage
- 240V
- Receptacle Type
- 4-Prong
- Fuel Type
- Gas & Electric
- Gas Type
- Natural Gas
- INCLUDES: LP Conversion Kit • Power Cord
- Yes
COOKTOP FEATURES
- Total Stovetop BTU / Watts
- 68,000 BTU

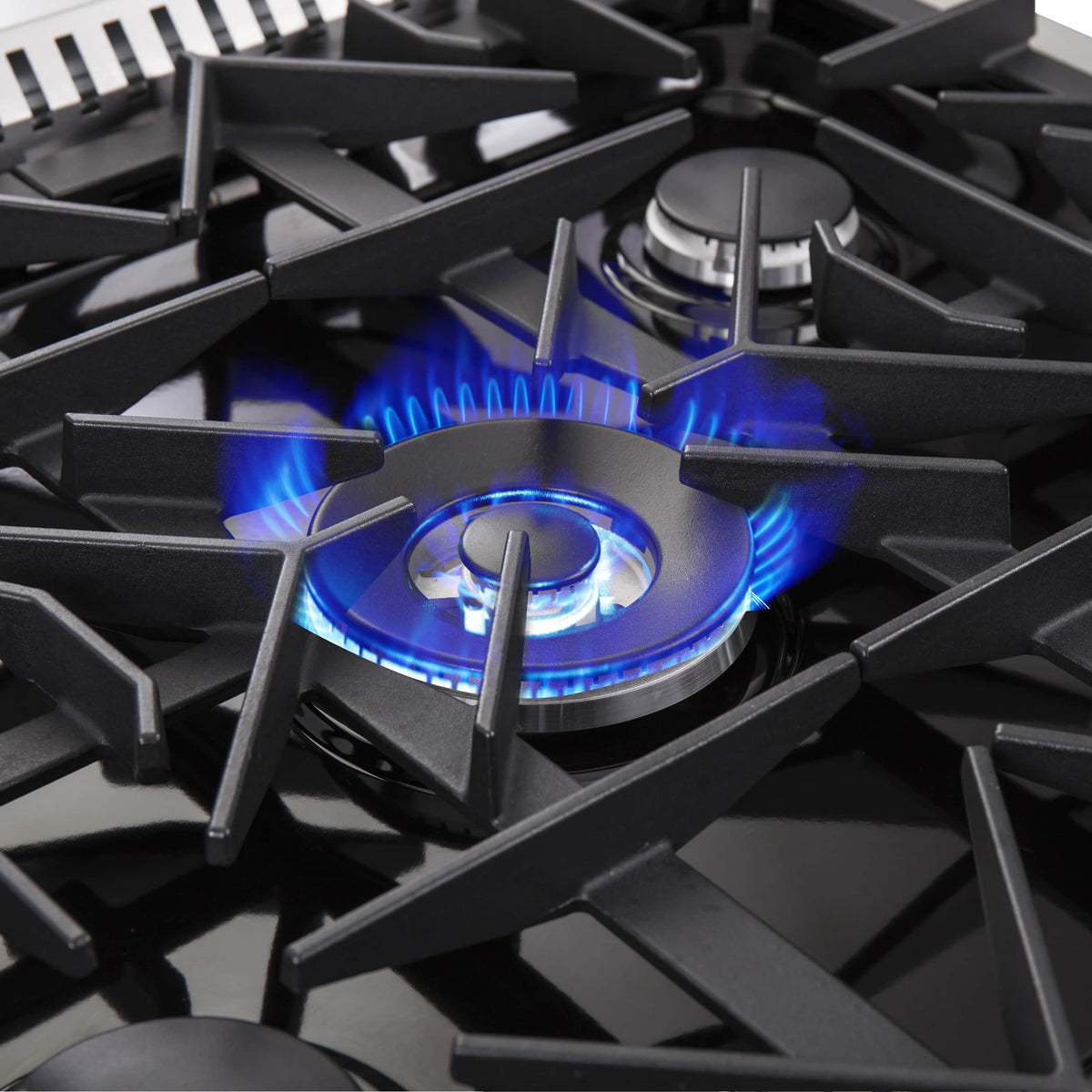

- Middle Burner
- 20,000 BTU
- Front Right
- 15,000 BTU
- Front Left
- 15,000 BTU
- Rear Right
- 9,000 BTU
- Rear Left
- 9,000 BTU
- Number of Burners
- 5
- Cooktop Surface
- Continuous Cast Iron Grates

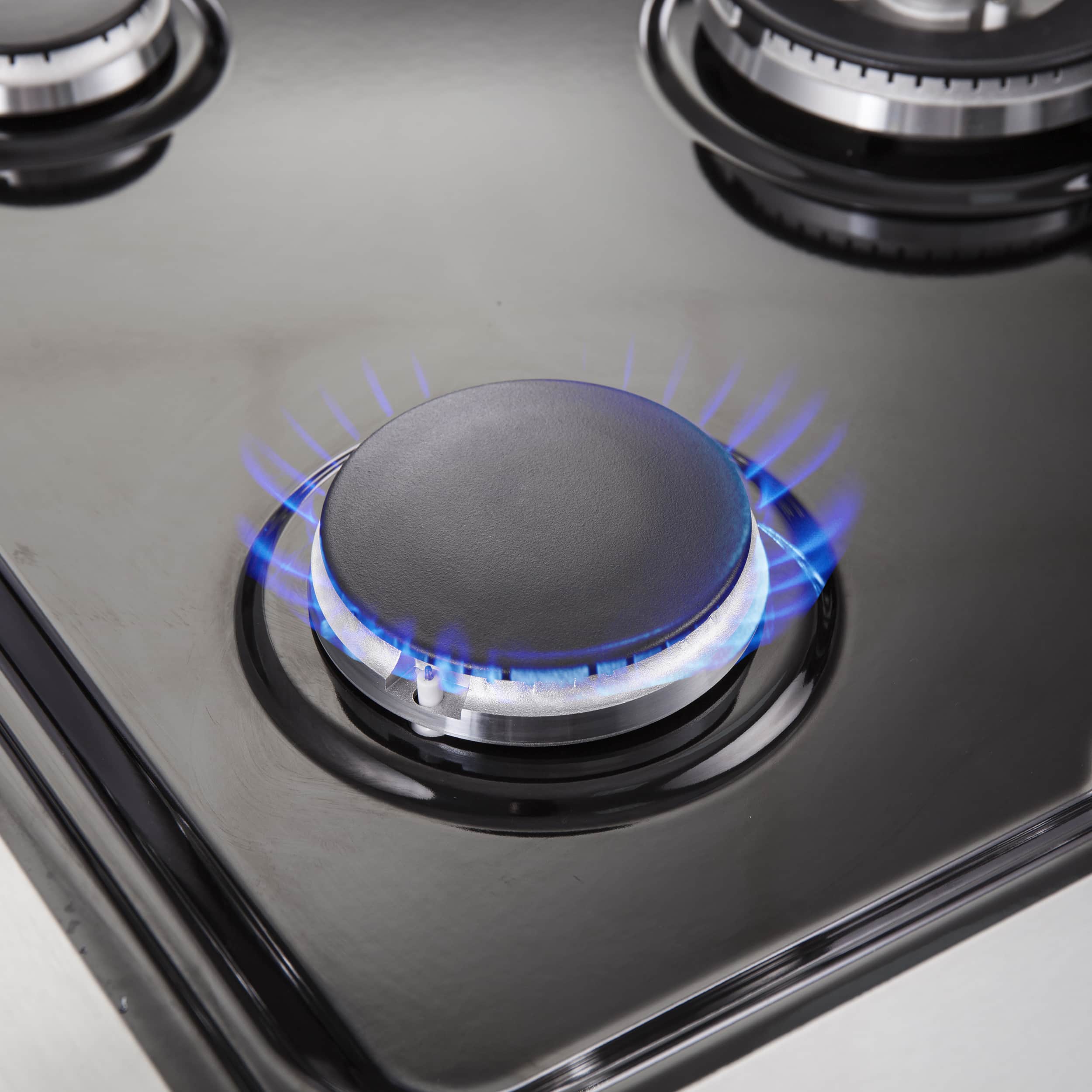

- Cooktop Cavity
- Recessed Enamel
- Bake Element
- Electric
OVEN FEATURES

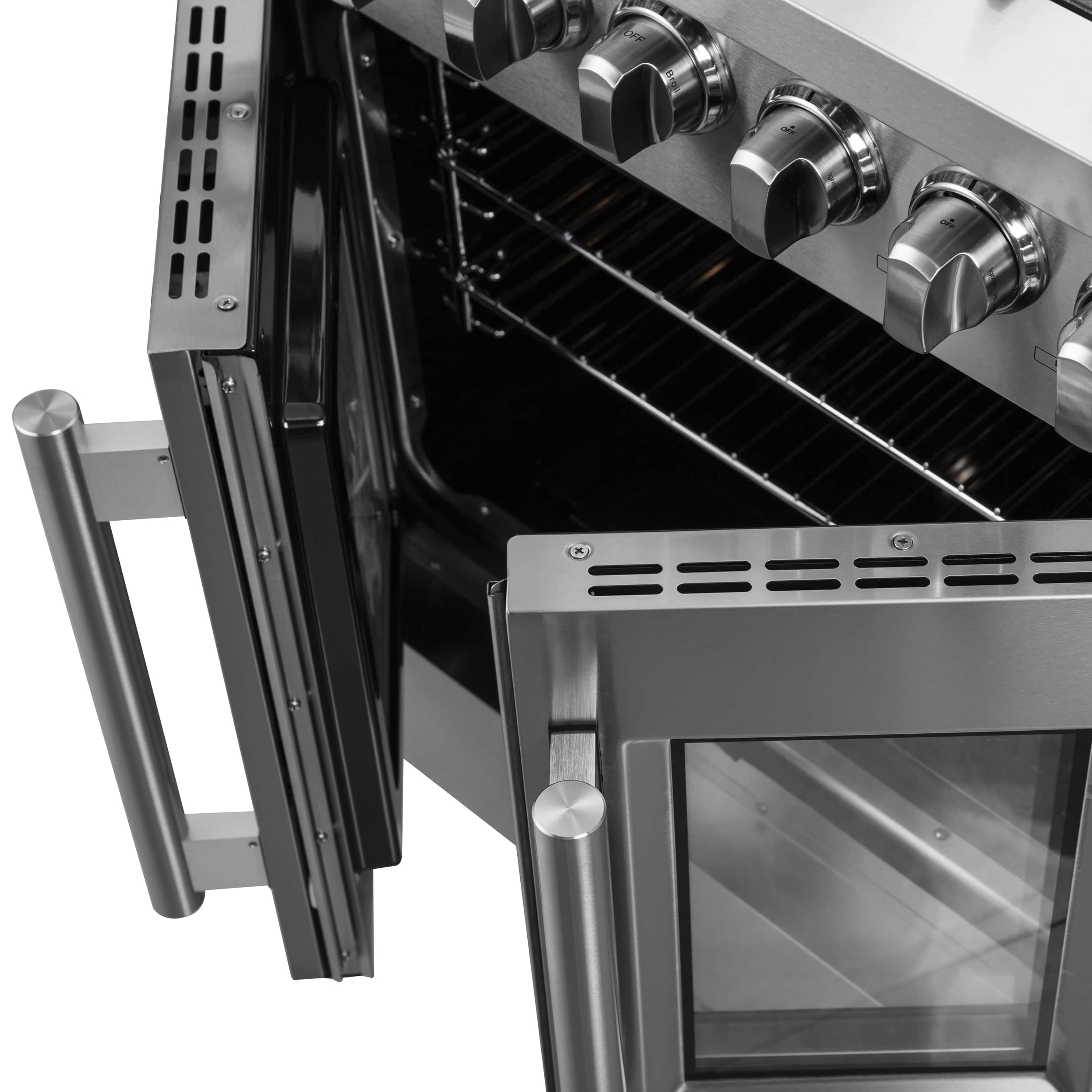

- Oven Door Open 90º
- 20"

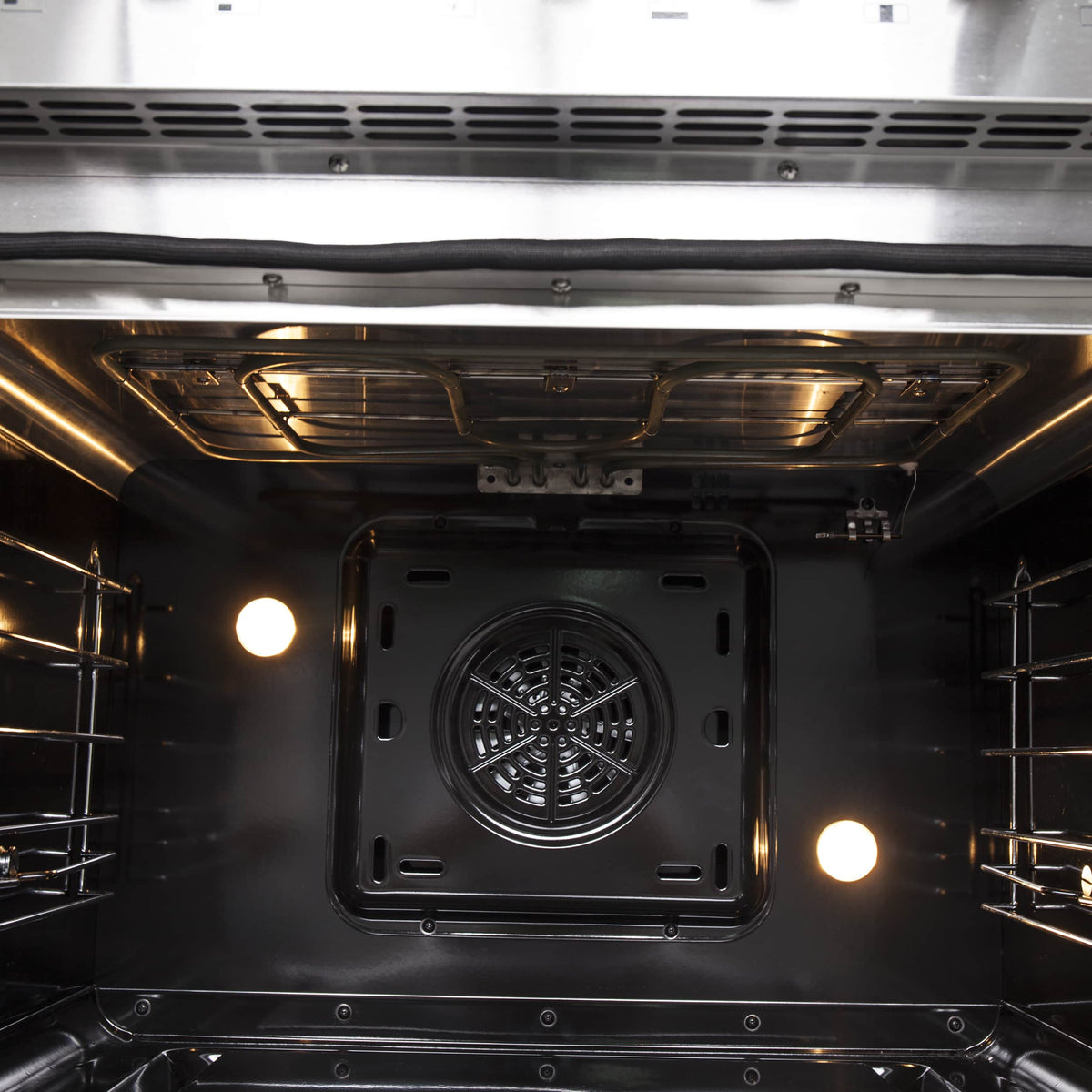

- Oven Interior
- 24.92''W x 18.7'D 'x16''H

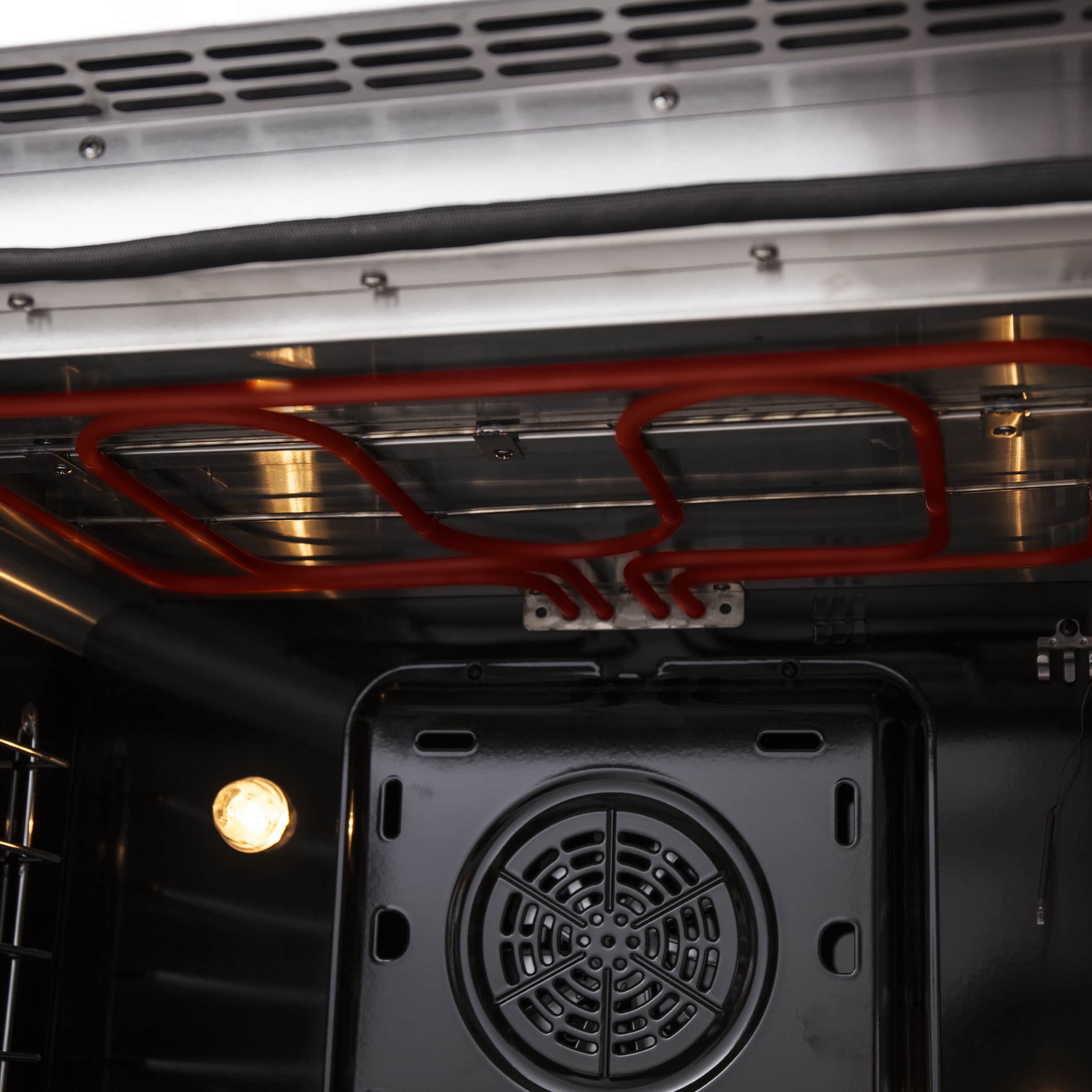

- Oven inside Broil Wattage
- 1000W
- Oven inside Broil Wattage (2)
- 1800W
- Oven Bake Wattage
- 2000W
- Convection Fan Wattage
- 1500
- Overall Oven Capacity
- 4.32 Cubic Feet
- Number of Ovens
- 1

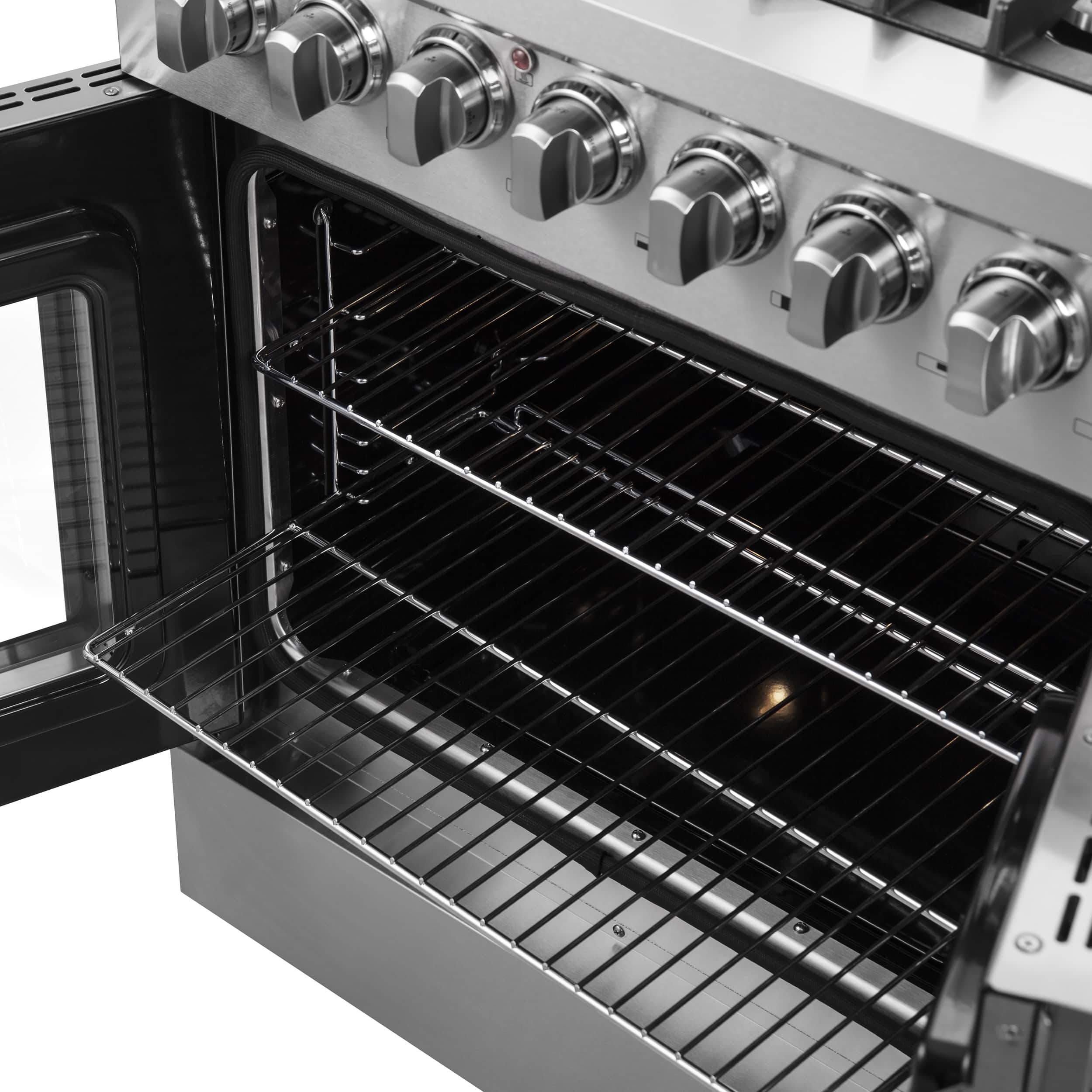

- Number of Racks
- 2

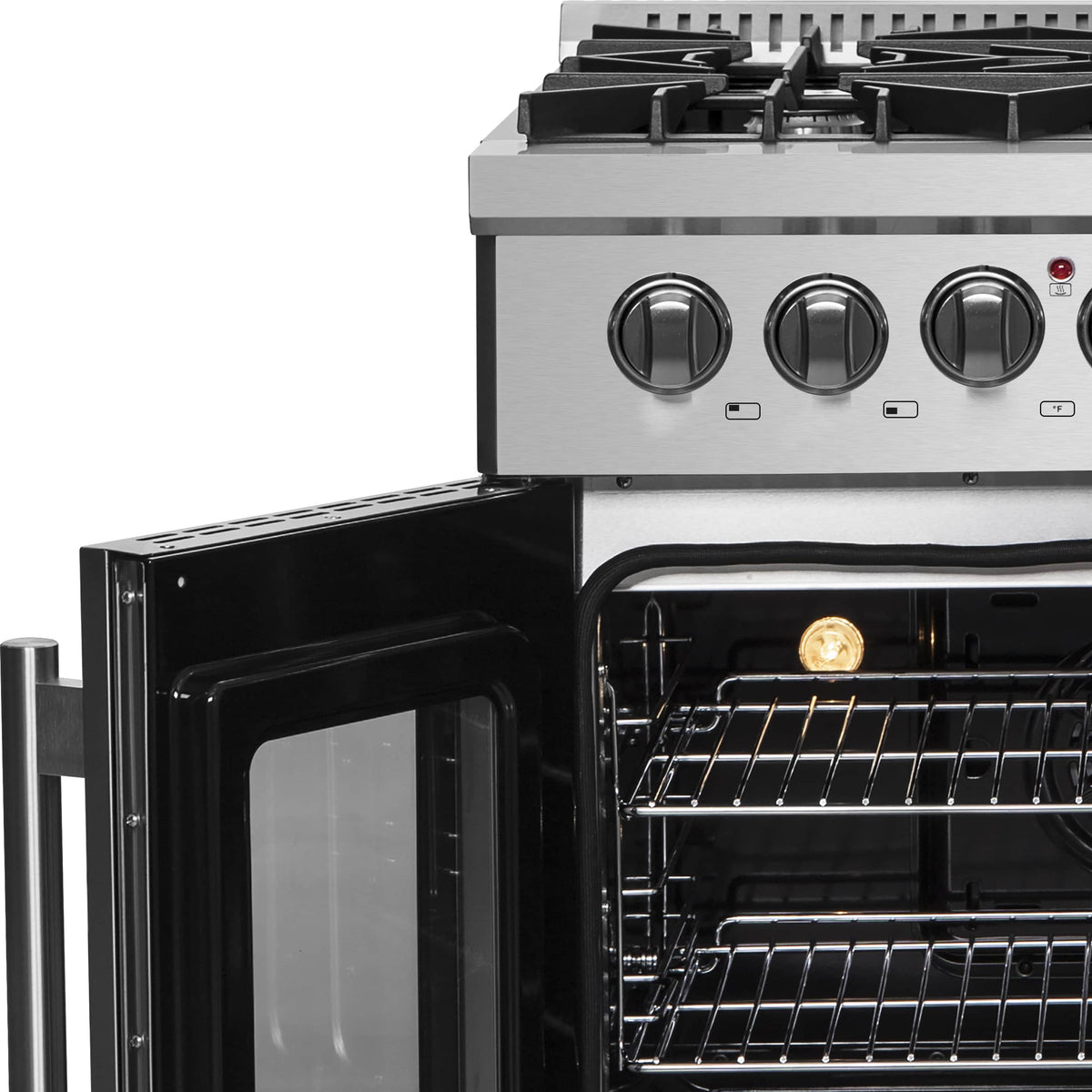

- Number of Rack Positions
- 6
- Broiler
- Electric
- Cooking Process
- True Convection
- Cleaning Type
- Manual
- Temperature Gauge
- No
- Timer
- No

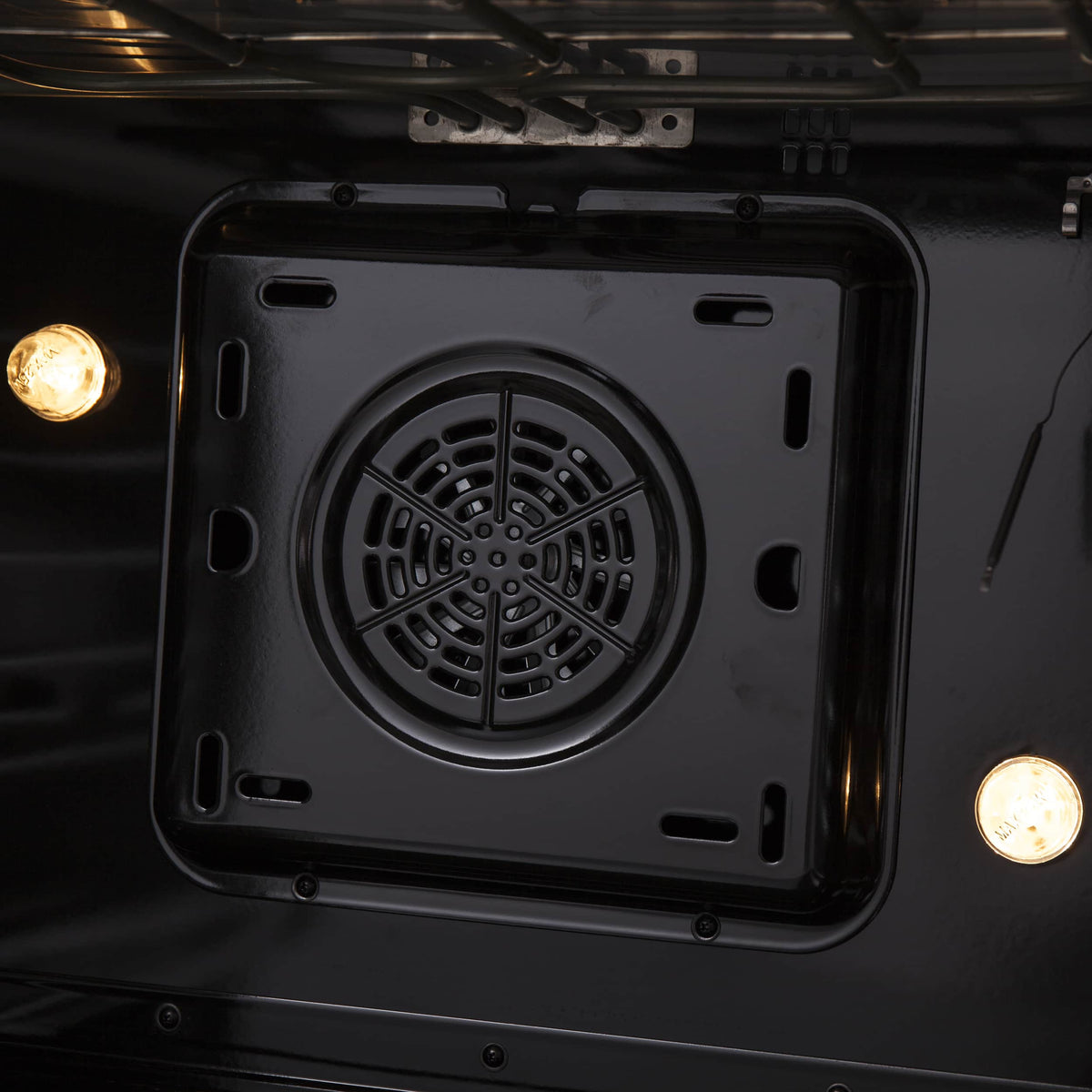

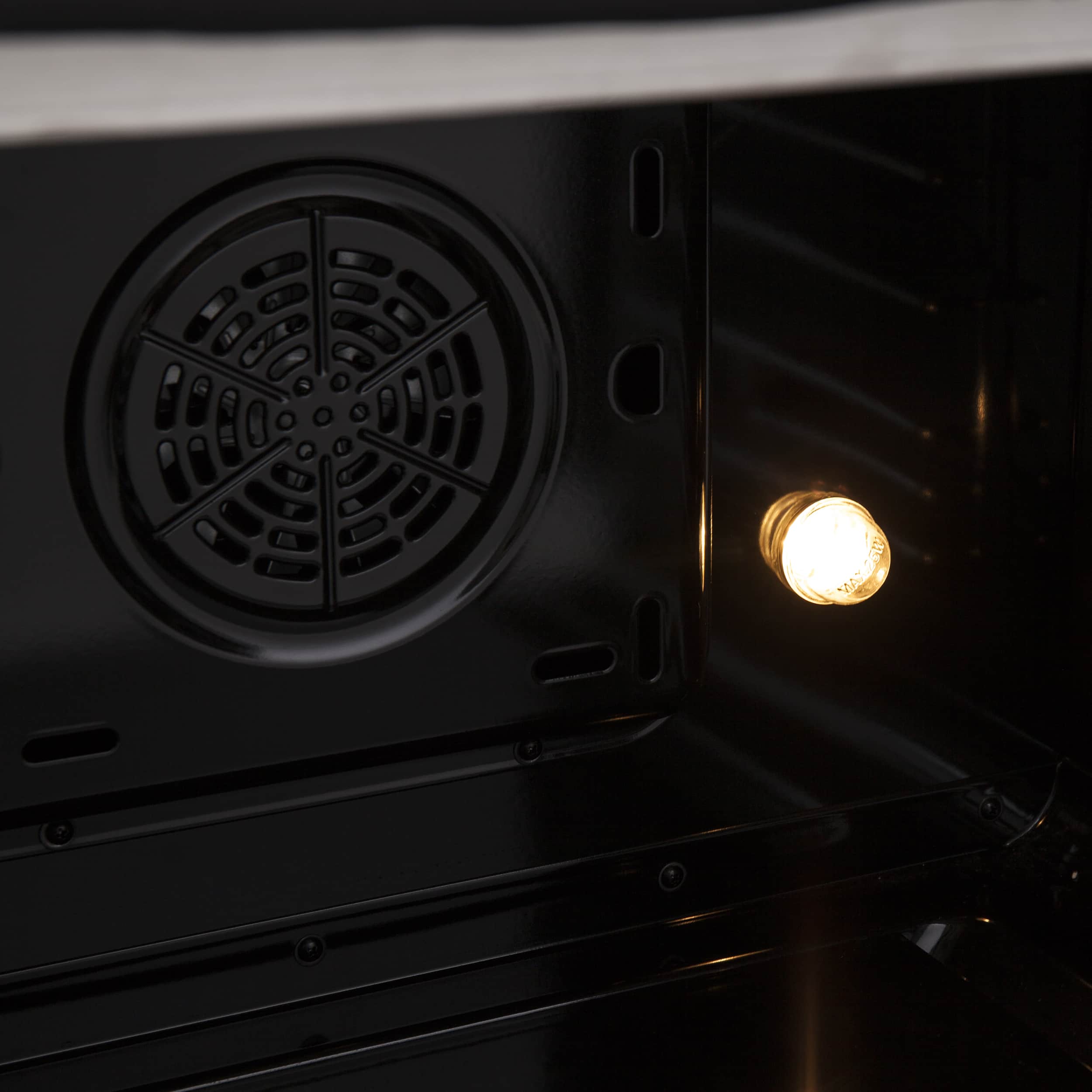

- Convection Fan
- Yes
WARRANTY & CERTIFICATIONS
- CSA Certified
- No
- ETL Listed
- Yes
- UL Listed
- No
- ADA Compliant
- No
- Star-K Certified
- No
- Commercial Warranty
- No
- Warranty Type
- Limited
- Warranty Length
- 2 Years
- Warranty on Parts
- 2 Years
- Warranty on Labor
- 2 Years
