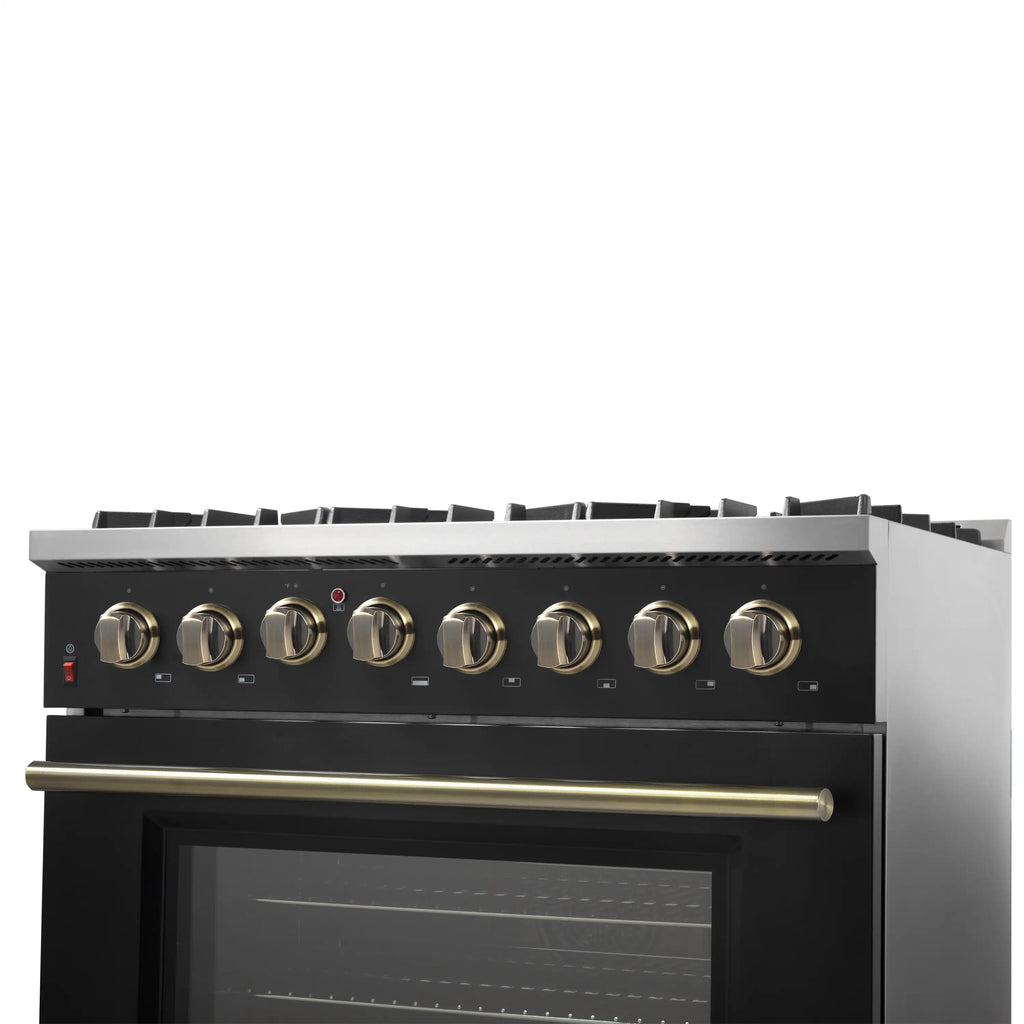

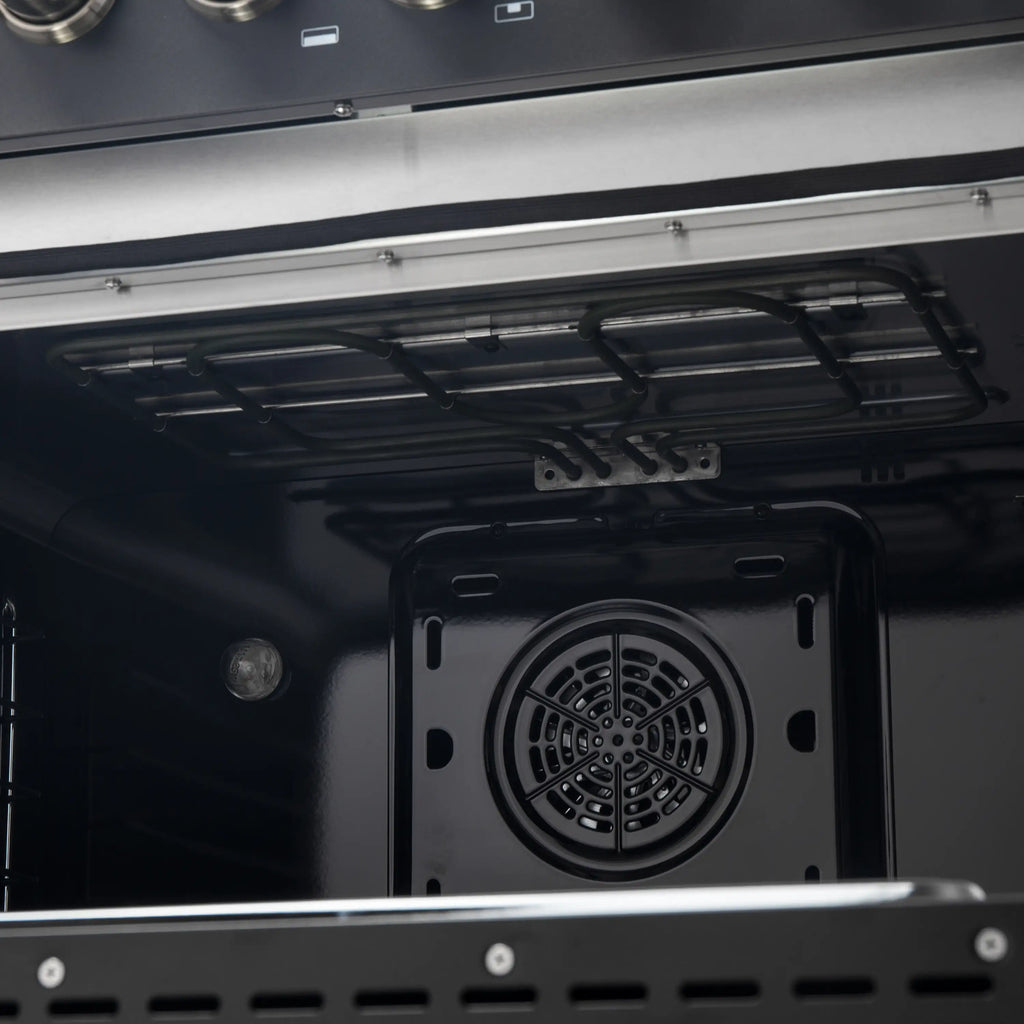

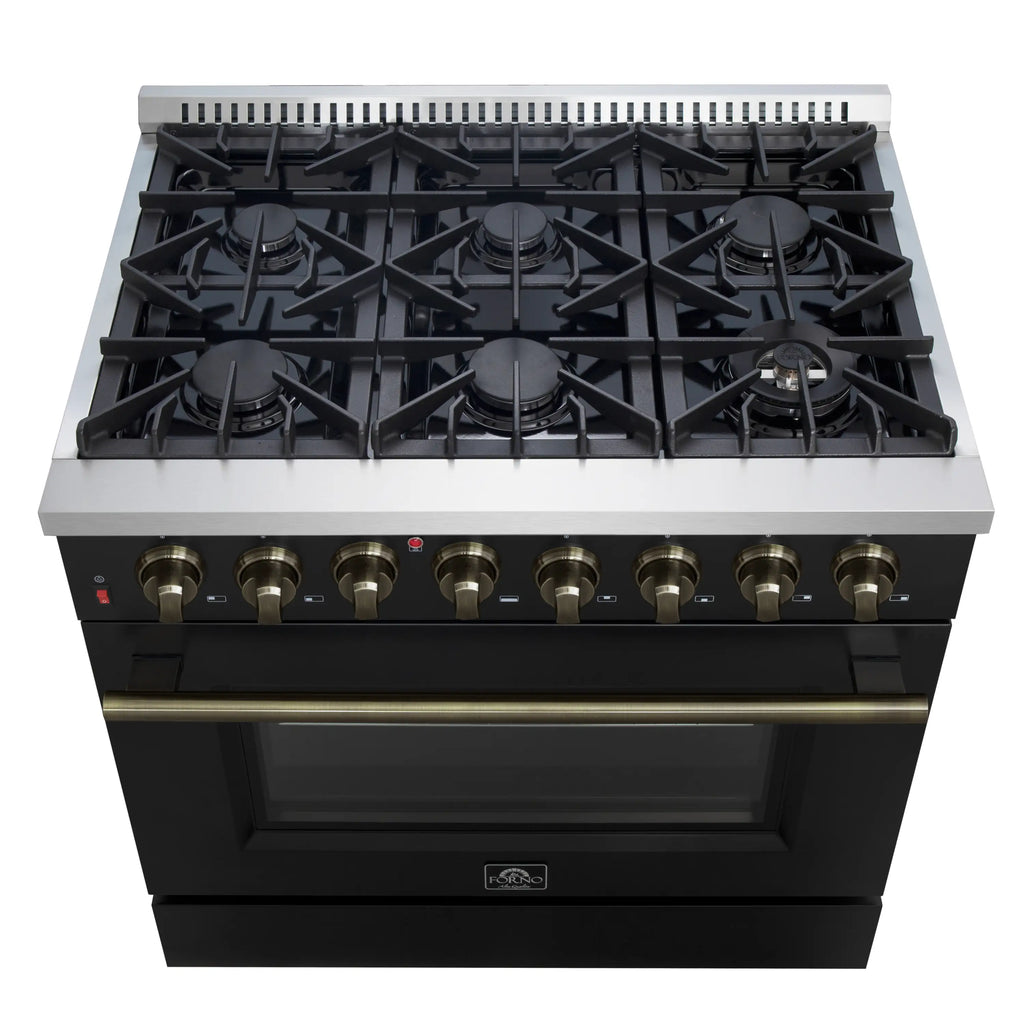

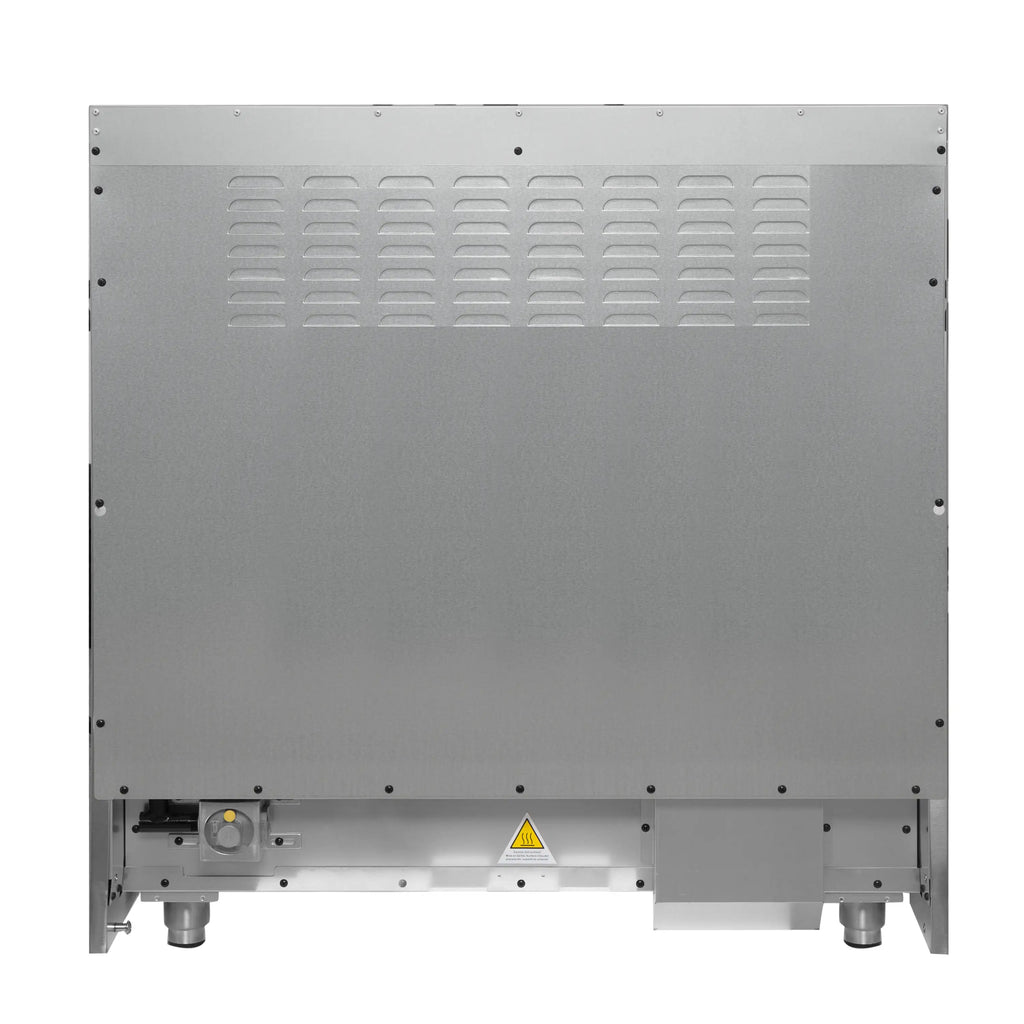

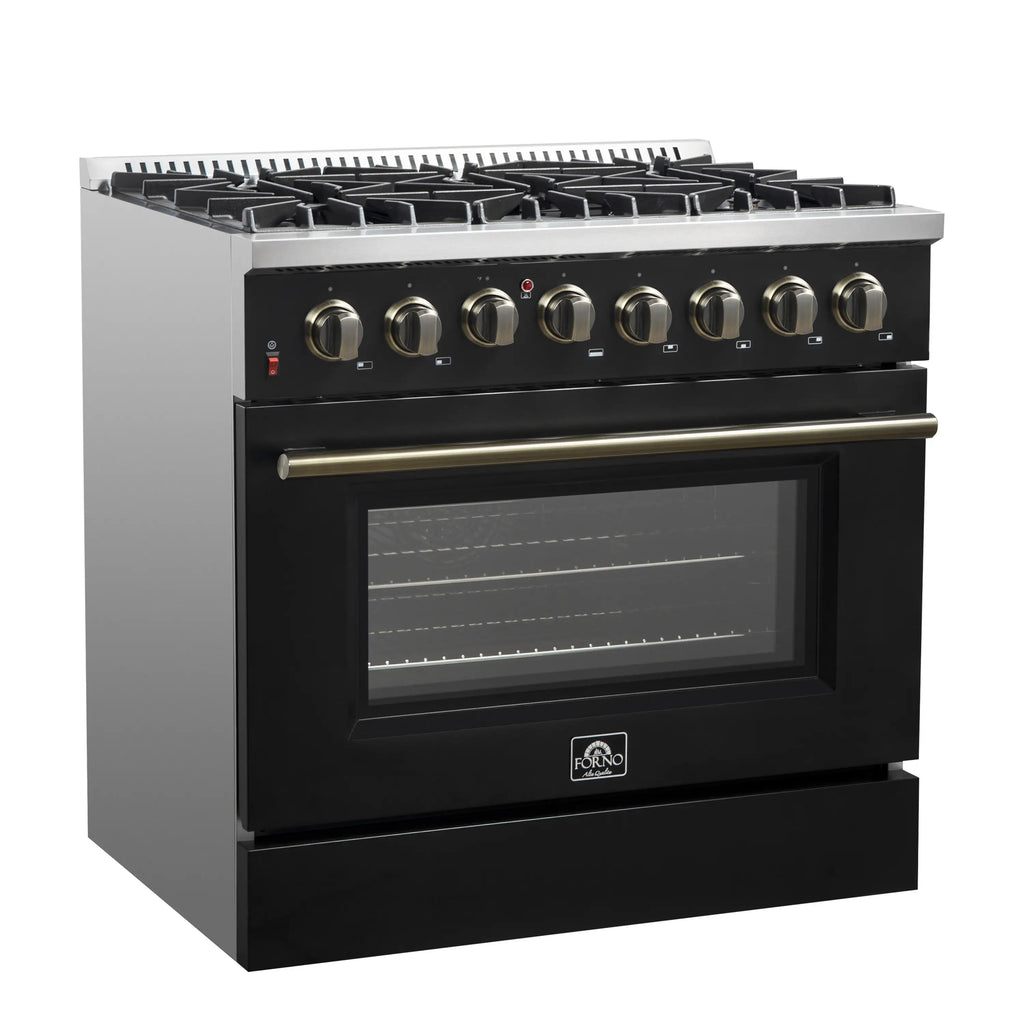

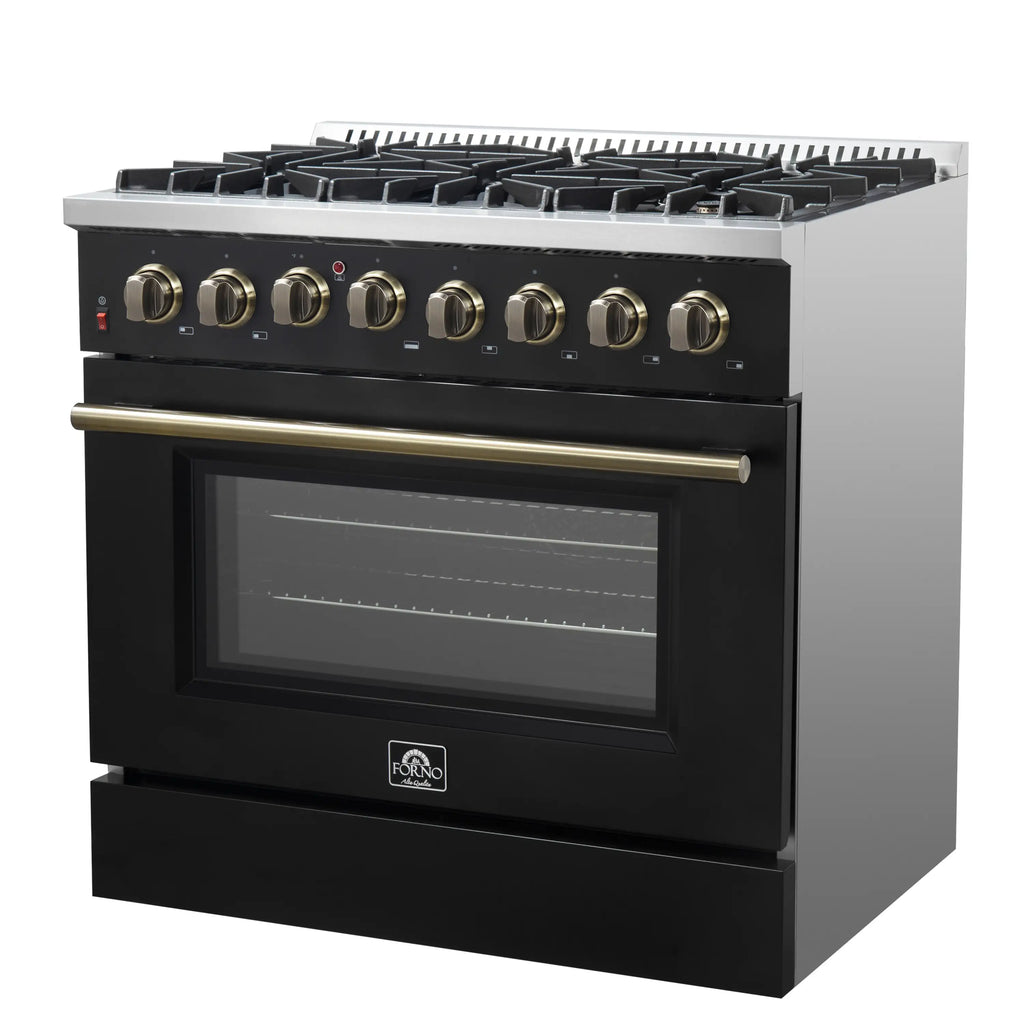

The Forno Galiano 36" Dual Fuel Range in sleek black with antique brass knobs and handles combines timeless style with high performance. Six sealed burners deliver 83,000 BTU total output, including a 20,000 BTU dual-ring burner for precise simmering at 1,000 BTU. The 5.36 cu.ft. true convection fan oven ensures even baking with a powerful 6,300-watt output. Black enamel interiors enhance heat distribution and are easy to clean, while smooth friction hinges and a 3-layer glass door ensure safety and durability. Adjustable stainless steel legs fit counters from 36" to 37". Includes 2 heavy-duty racks, a NEMA 14-50P power cord, and LP conversion kit. Backed by Forno’s 2-year in-house warranty for lasting peace of mind.
| DIMENSIONS | |
|---|---|
| Product Dimensions | 36" W x 28" D x 38" H |
| Cutout dimensions | 36" W x 25" D x 36" H |
| Product Overall Weight (lbs) | 222.66 |
| GENERAL INFORMATION | |
| CEE Tier Qualified | Not Rated |
| DESIGN & FINISH | |
| Color | Black |
| Finish | Black |
| Color/Finish | Black |
| Number of Knobs | 8 |
| Control Location | Front |
| Interior Light | Yes |
| Clock | No |
| Primary Material | Metal |
| Interior Light(s) Type | Halogen |
| Knobs Color/Finish | Antique Brass |
| Illuminated knob | No |
| Handle Color/Finish | Antique Brass |
| Bulb Type | G9 |
| Number of Lights | 2 |
| Fingerprint-Resistant | No |
| TECHNICAL DETAILS | |
| Fuel Type | Dual Fuel |
| Gas Type | Natural Gas |
| LP gas convertible | Yes |
| Power Cord Location | Back |
| COOKTOP FEATURES | |
| Burner Fuel | Gas |
| Gas Heat Configuration (cooktop) | Sealed Burners |
| Total Cooktop BTU Output | 83,000 |
| Number of Burners/Cooking Zones | 6 |
| Cooking Surface Control Type | Push & Turn/Knobs |
| Cooking Surface Ignition Type | Electronic |
| Oval Burner | No |
| Cooktop Surface Structure |
|
| Auto Re-Ignition | Yes |
| Oven Ignition Type | Automatic Ignition |
| Bake Element | Yes |
| Cooktop Hot Surface Indicator | No |
| Number of Dual-Ring Burner | 1 |
| Dual-Ring Burner | Yes |
| Hidden Bake Element | Yes |
| OVEN FEATURES | |
| Number of Ovens | 1 |
| Overall Oven Capacity (Cubic Feet) | 5.36 |
| Racks Material | Electroplated |
| Number of Racks | 2 |
| Number of Rack Positions | 6 |
| Broiler Location | Oven |
| Broiler | Yes |
| Automatic Convection Conversion | No |
| Oven Preheating Indicator | Yes |
| Temperature Gauge | No |
| Storage Drawer | No |
| Timer | No |
| Oven Fuel | Electric |
| Oven Racks Type | Standard |
| Overall Bake Wattage | 2000 |
| Overall Broil Wattage | 2800 |
| Convection Oven | Yes |
| Overall True Convection Wattage | 1500 |
| Convection Type | True Convection |
| Delay Start | No |
| Cook time Option | No |

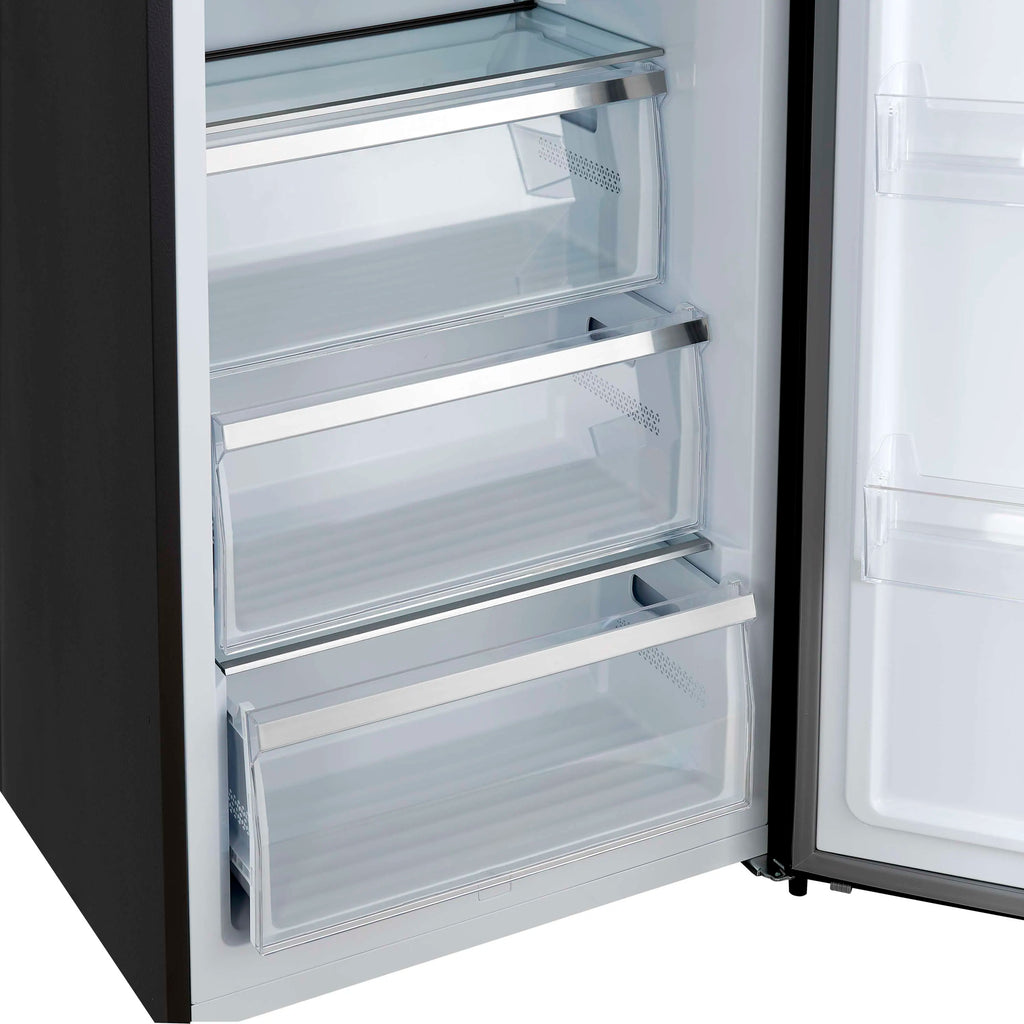

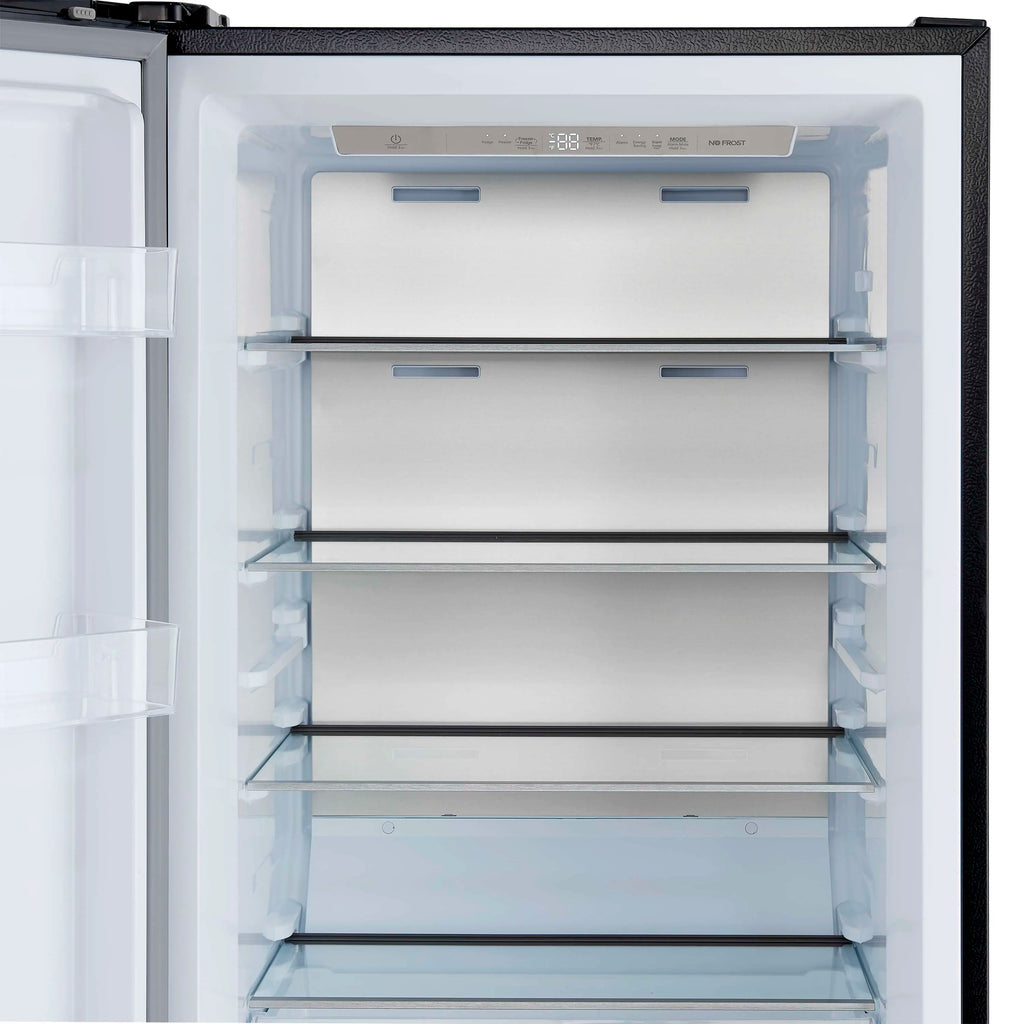

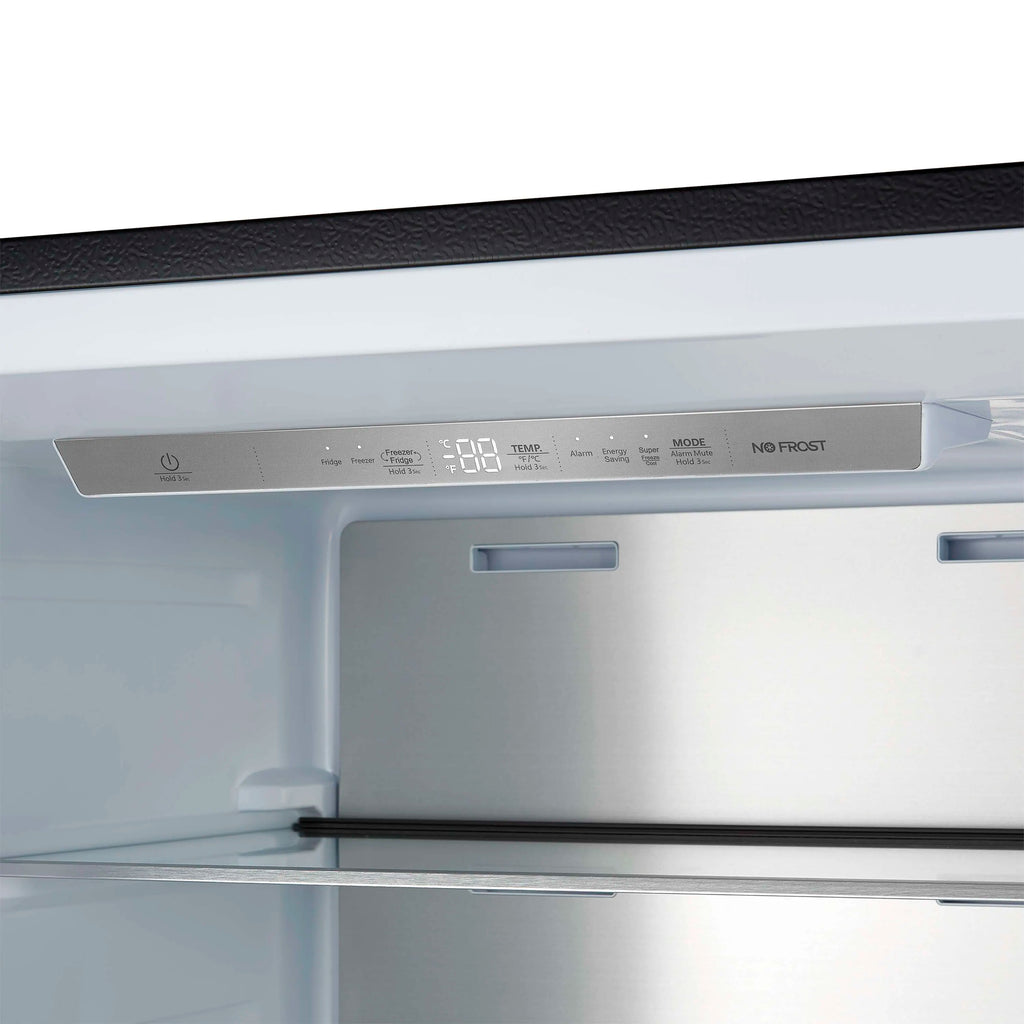

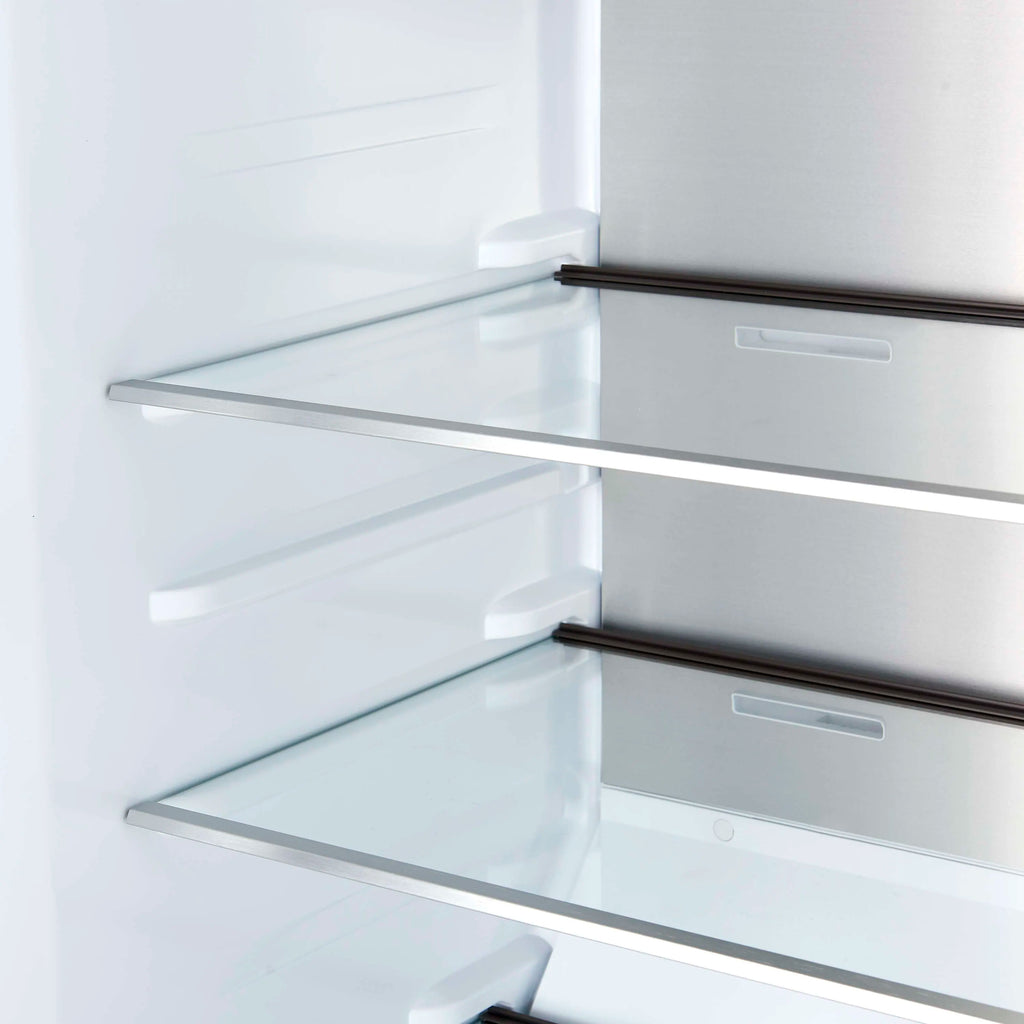

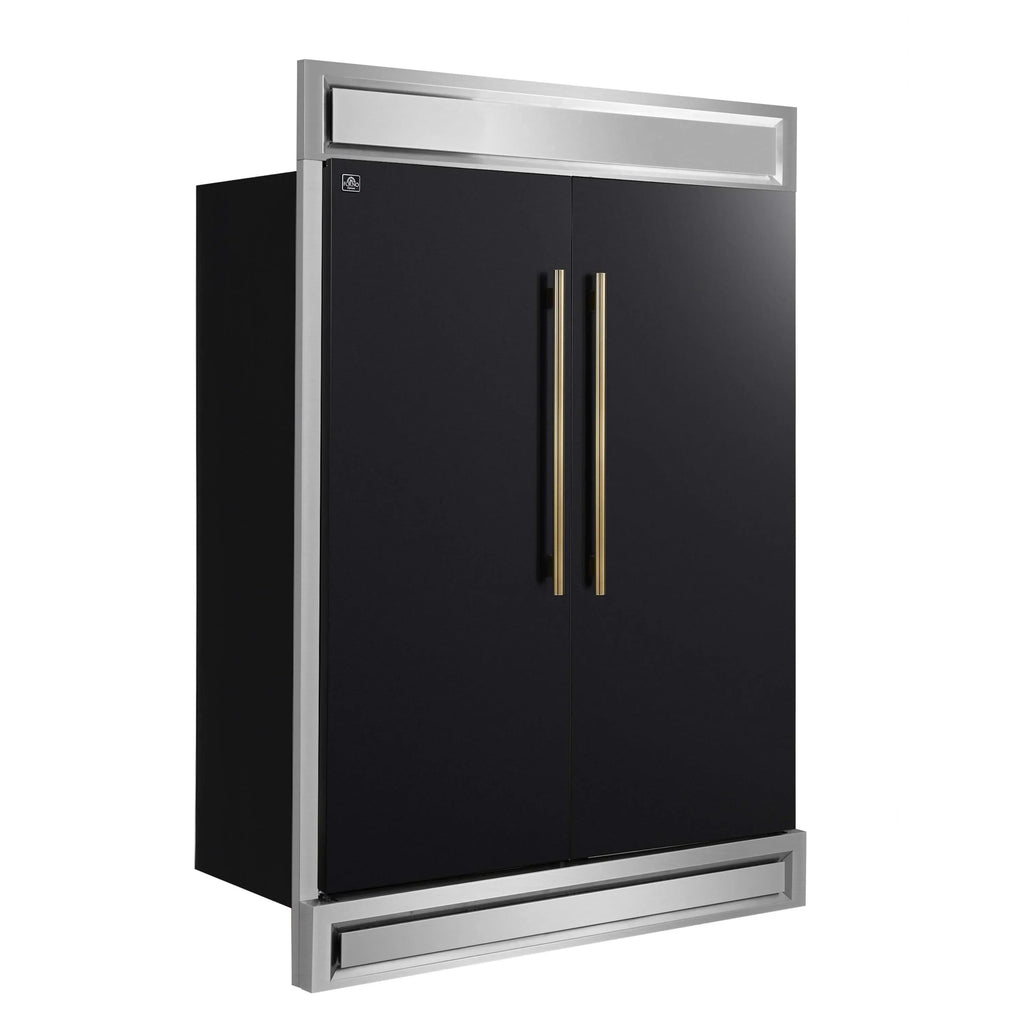

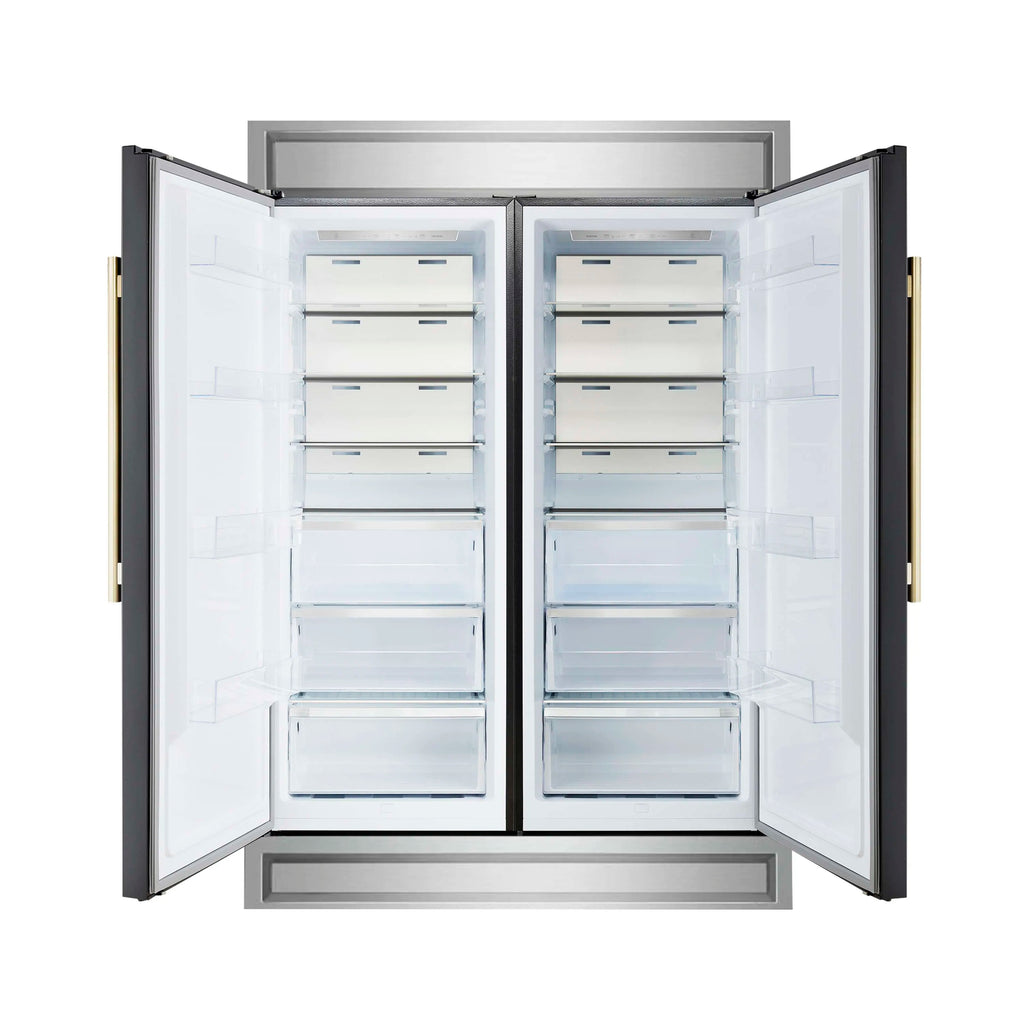

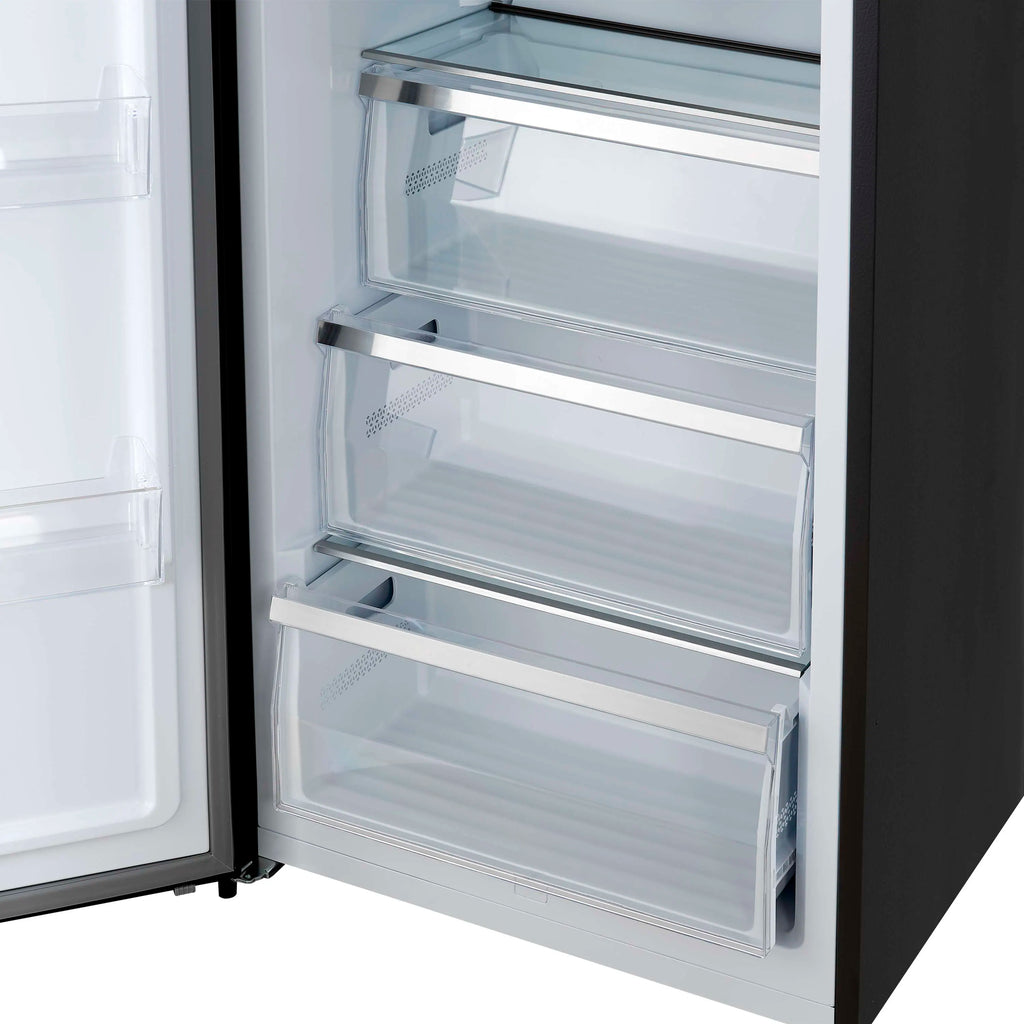

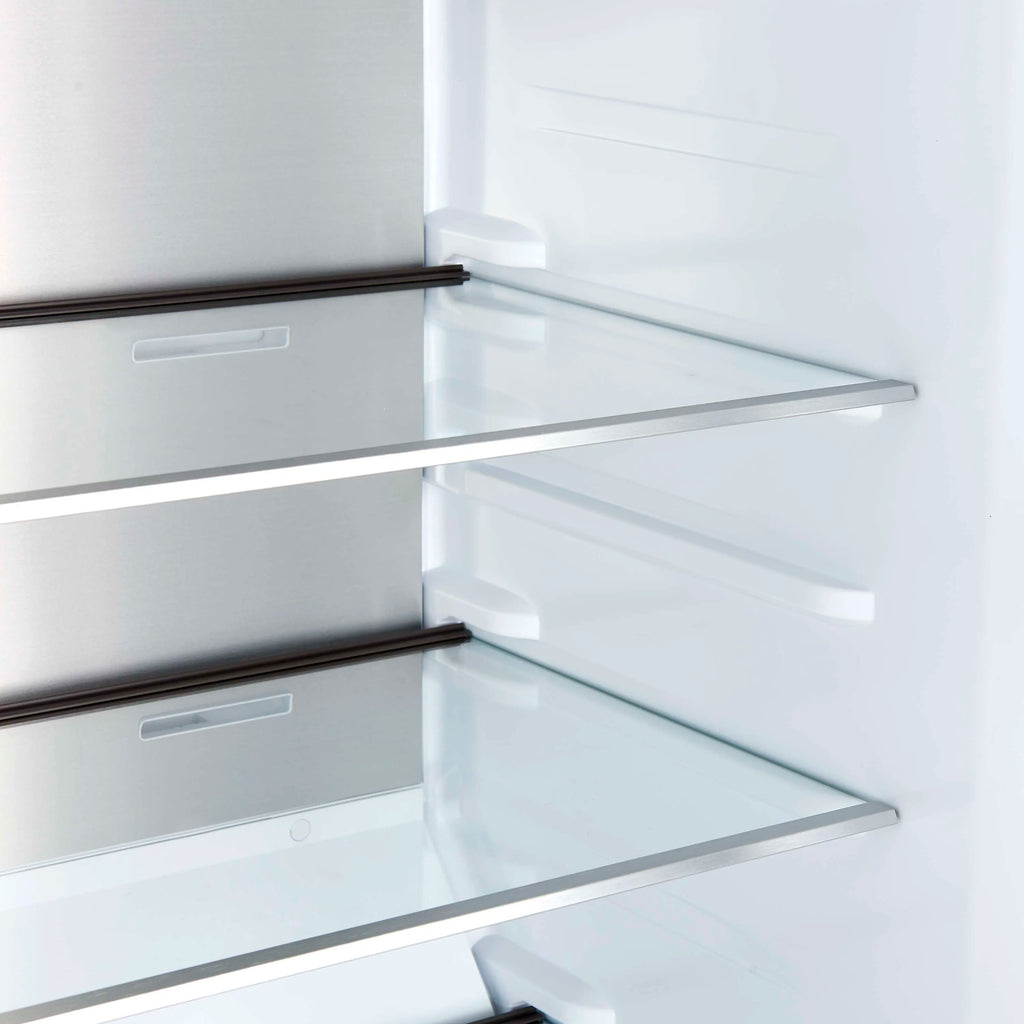

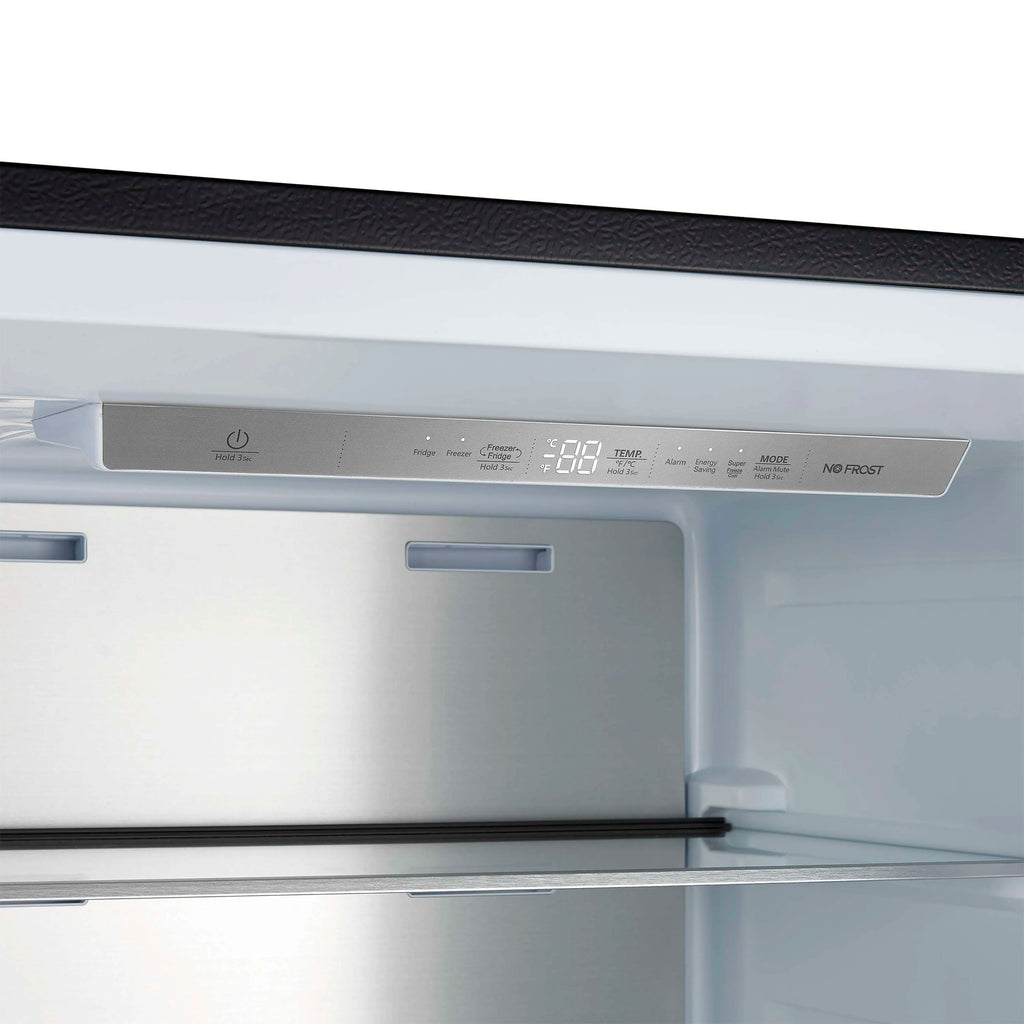

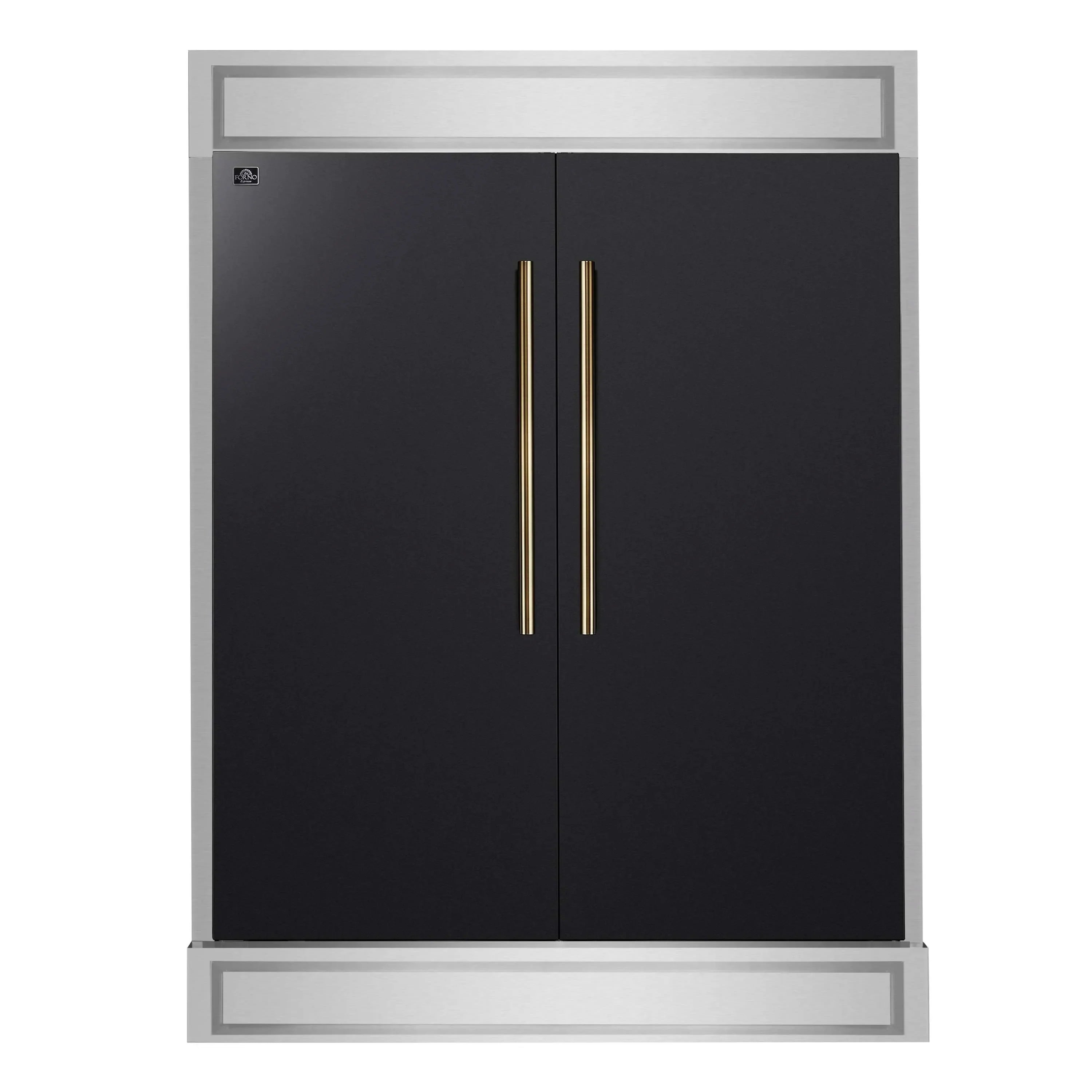

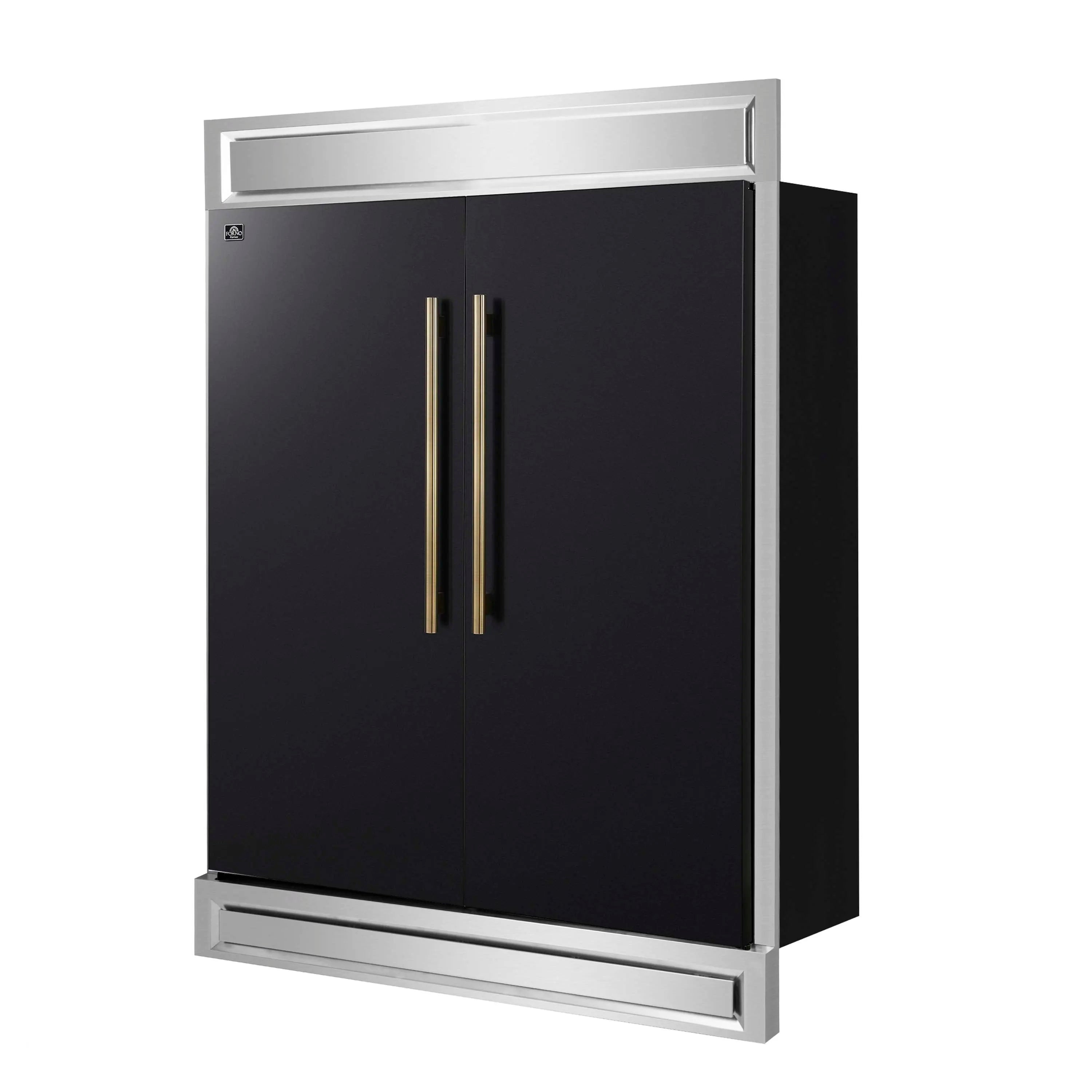

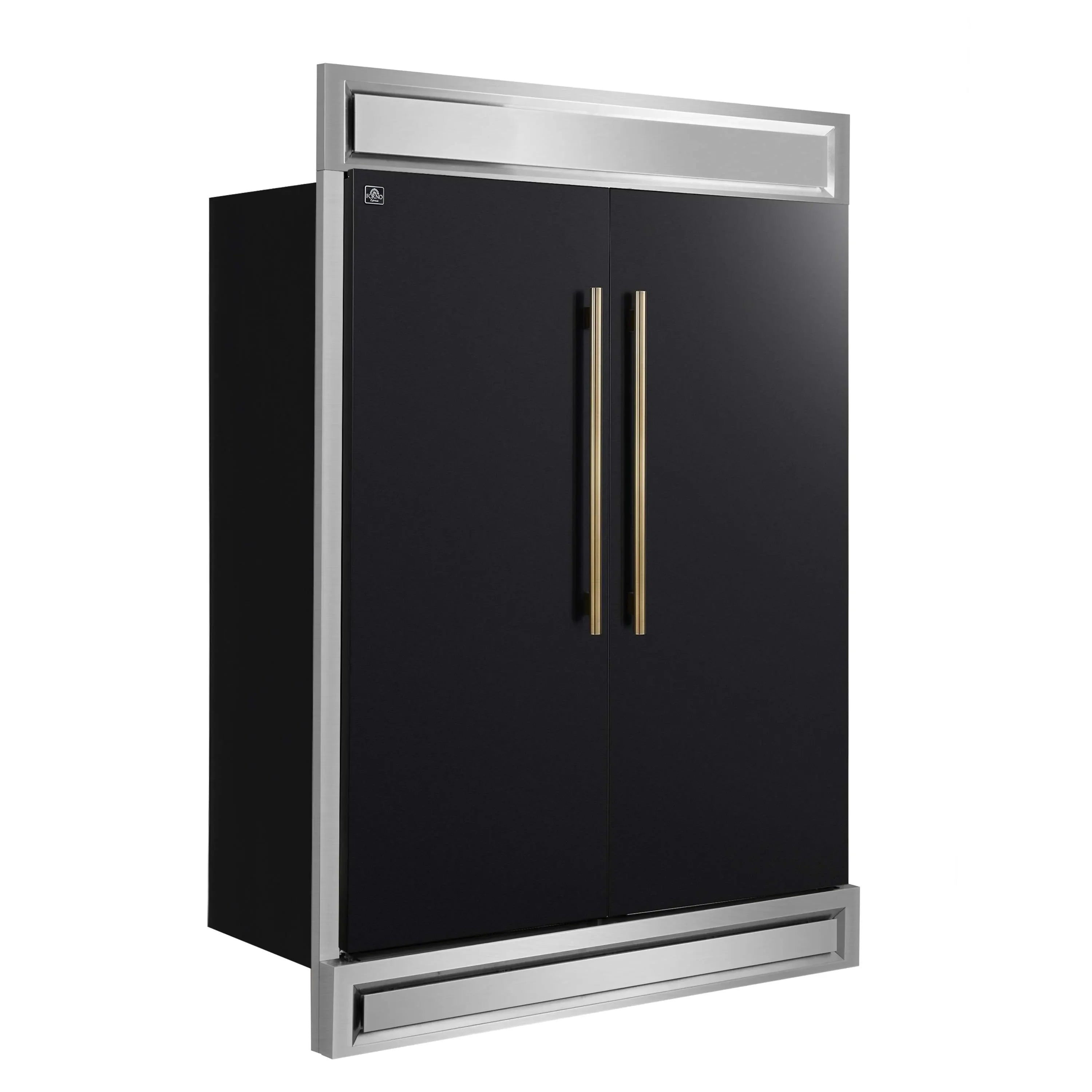

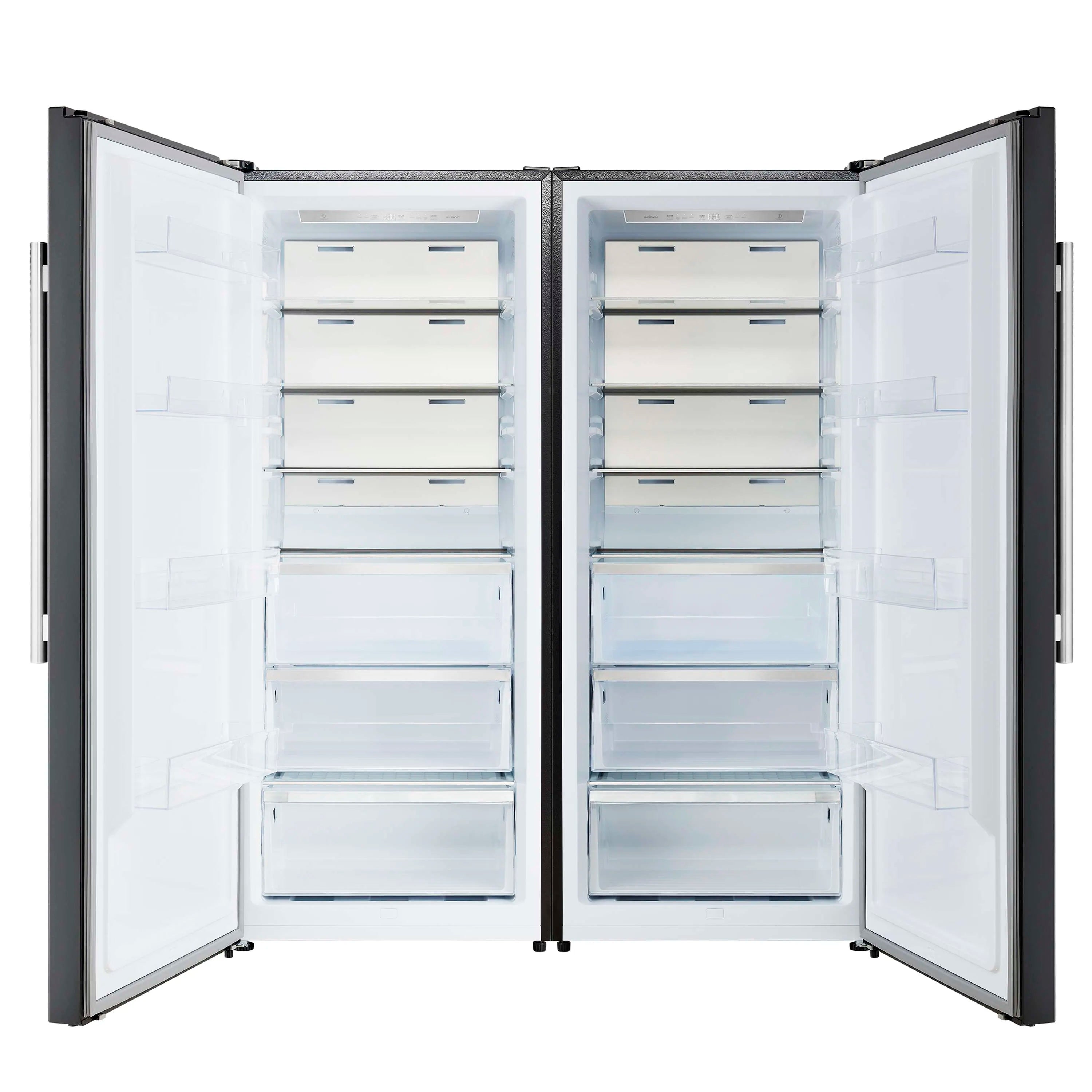

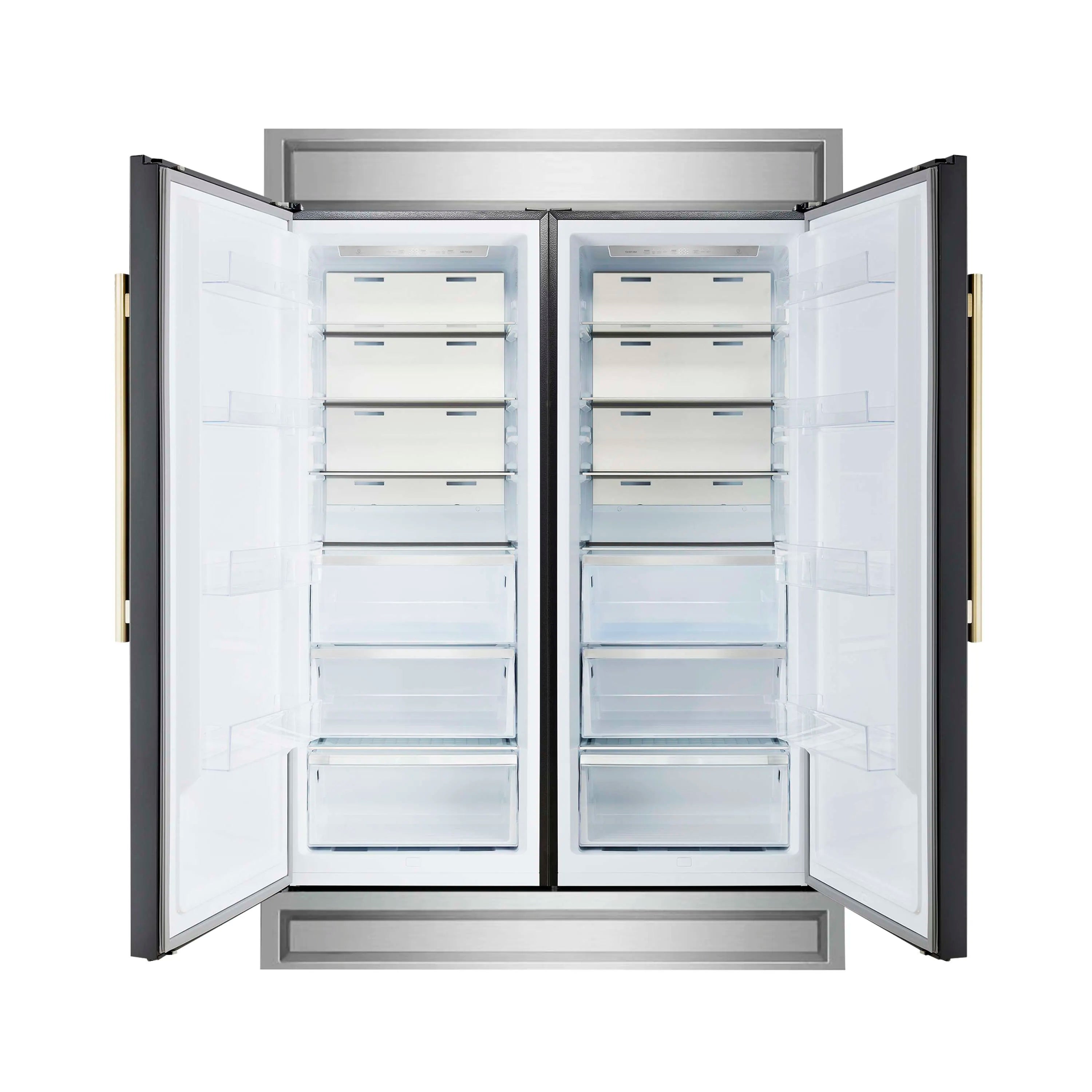

The Forno Maderno provides a premium 60 inch built-in refrigerator look by combining two 28 inch units with a trim kit for seamless side-by-side installation. This fridge freezer combo comes in a black finish with antique brass handles as part of our Espresso line, adding a boldness to any modern kitchen. With a total capacity of 27.2 cu.ft., it's ideal for large households or serious entertainers. Inside, you’ll find Convertible Cooling Zones that let you switch between refrigerator and freezer mode, Total No-Frost technology to prevent icy build-up, and a sleek digital control panel for easy adjustments. The Maderno includes six tempered glass shelves with silver trim, six storage drawers, and bright LED lighting to help keep everything organized and easy to find. VCM-coated doors and a durable metal back panel add strength and a fingerprint-resistant finish. Energy Star certification ensures this side-by-side built-in refrigerator is energy efficient.
| DIMENSIONS | |
|---|---|
| Overall Weight (Lbs) | 330 |
| Product Dimensions W x D x H (inches) | 55.2 x 26.9 x 67.1 |
| Cutout dimensions W x D x H (inch) | 55.9 x 28.94 x 69.06 |
| Minimum Back Clearance (IN) | 2.00 |
| Minimum Top Clearance (IN) | 4.00 |
| Height Top of the Cabinet/Case (inches) | 75.30 |
| Height Top of the Door (inches) | 75.90 |
| Sides Clearance - On Each Sides (IN) | 4.00 |
| Height Top of Door Hinge (inches) | 75.90 |
| Overall Capacity Cu. Ft. | 27.20 |
| GENERAL INFORMATION | |
| CEE Tier Qualified | Not Rated |
| Estimated Annual Operating Cost (USD) | 110 |
| Door Storage | Yes |
| Adjustable Door Storage | No |
| Cooling Type | Multi Air Flow |
| See-Thru Door | No |
| Fast Cool Function | Yes |
| Fast Freeze Function | Yes |
| Energy Saver Mode | Yes |
| Air Filtration | No |
| Door Texture | Smooth |
| Fingerprint-Resistant | No |
| Energy Policy Act 1992 Compliant | Yes |
| ISTA 6A | Yes |
| DESIGN & FINISH | |
| Color/Finish | Black |
| Interior Light | Yes |
| Control Location | Internal |
| Primary Material | Steel |
| Interior Light(s) Type | LED |
| Door Bins Material | Plastic |
| Fresh Food Shelves Material | Glass With Silver Trim |
| Toe Grille Color | Stainless Steel |
| Cabinet Material | Embossed Galvanized Steel |
| Door Liner Color | White |
| Door Liner Material | High Impact Polystyrene |
| Door Style | Contoured |
| Number of Lights | 2 |
| Handle Color/Finish |
|
| TECHNICAL DETAILS | |
| Power Cord Location | Lower Back |
| Energy Consumption (kWh/yr) | 647 |
| Number of Power Cord | 2 |
| Dual Evaporator Cooling System | Yes |
| REFRIGERATOR FEATURES | |
| Temperature Range Refrigerator (°F) | 36°F to 46°F |
| Door Bins Color | Transparent |
| Temperature Range Refrigerator (°C) | 2°C to 8°C |
| Number of Standard Door Bins | 4 |
| Adjustable Fresh Food Shelves | Yes |
| Fresh Food Door Type | Swing Door |
| Number of Fresh Food Shelves | 4 |
| Number of Adjustable Shelves | 3 |
| Humidity Controleld Drawer(s) | Yes |
| Number of Fresh Food drawers | 3 |
| Temperature Controlled Drawer(s) | No |
| Interior Fresh Food Dimensions W x D x H (inches) | 21.58 x 19.96 x 59.84 |
| Fresh Food Capacity Cu. Ft. | 13.60 |
| Water Pipe Included | No |
| Extra Water Filter | No |
| Cabinet Color | White |
| Pantry Drawer | No |
| Spill-Proof Shelves | No |
| Electronic Temperature Control | Yes |
| Temperature Memory Function | Yes |
| External Dispenser | No |
| Water Dispenser | No |
| FREEZER FEATURES | |
| Interior Freezer Dimensions W x D x H (in) | 21.58 X 19.96 X 59.84 |
| Temperature Range Freezer (°F) | - 11°F to 7°F |
| Freezer door storage | Yes |
| Temperature Range Freezer (°C) | -23°C to -13°C |
| Number of Freezer Adjustable Shelves | 3 |
| Number of Freezer Door Bins | 4 |
| Freezer Section Layout | Adjustable Racks,In-Door Storage,Freezer Drawers,Full Width |
| Freezer Shelf Material | Glass With Silver Trim |
| Adjustable Freezer Shelves | Yes |
| Interior Freezer Dimensions Height | 59.84 |
| Number of Freezer Shelves | 4 |
| Interior Freezer Dimensions Width | 21.58 |
| Number of Freezer Drawers | 3 |
| Freezer Light | Yes |
| Interior Freezer Dimensions Depth | 19.96 |
| Freezer Capacity | 13.60 |
| Freezer Door Style | Swing Door |
| WARRANTY & CERTIFICATIONS | |
| Energy Star Most Efficient | No |
| Safety Listing | cULus safety listing |
| Enegy Star Certified | Yes |
| Certificate of Conformity (GCC) | Yes |
| Commercial Warranty | No |
| Warranty on Parts | 2 Years |
| Warranty Type | Limited |
| Warranty on Labor | 2 Years |
| Warranty Length (Years) | 2 Years |
Pozzo 24 in. Built-In Tall Tub, Top Control, Dishwasher, 49 dBA, Soil-Sensing Capable, ENERGY STAR Certified

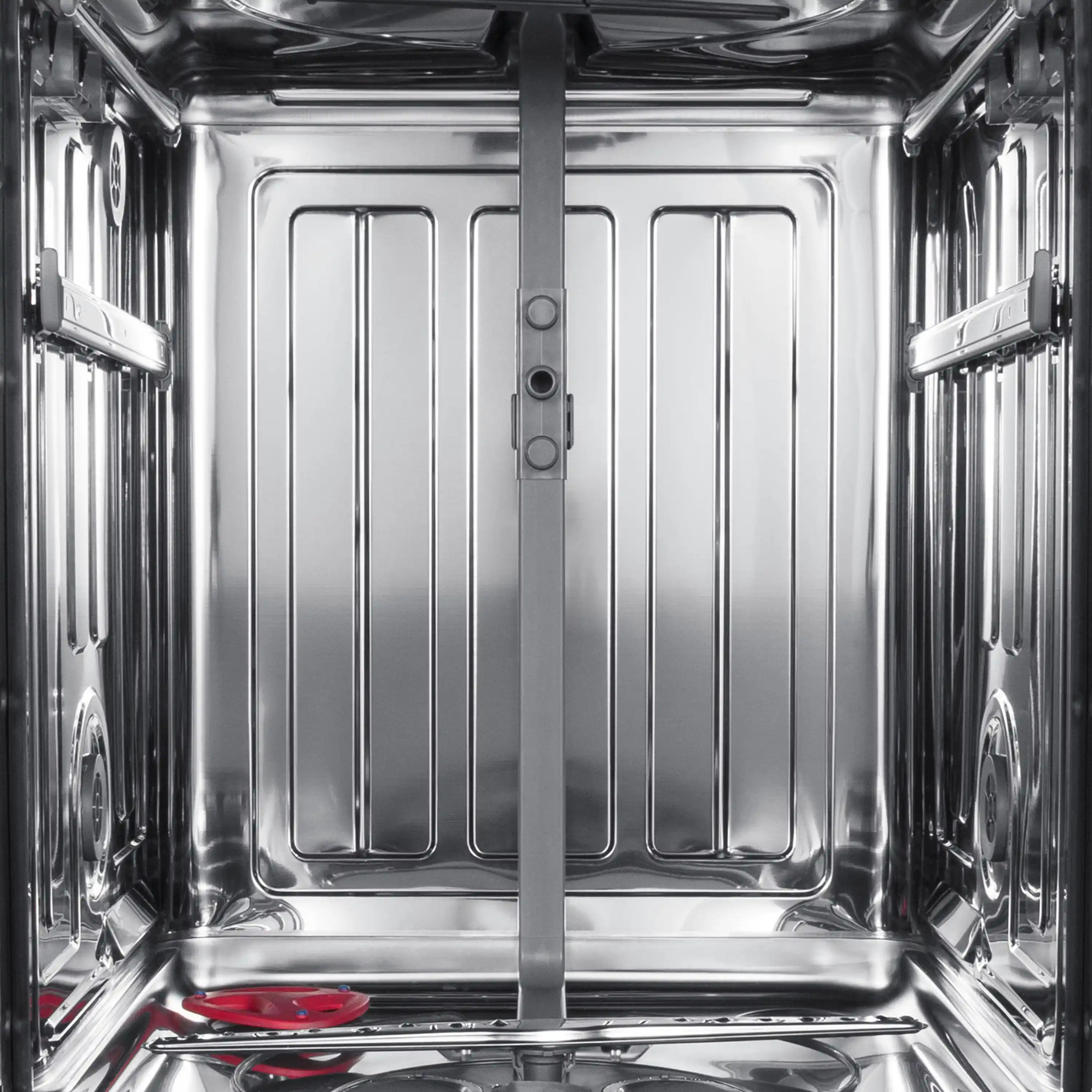

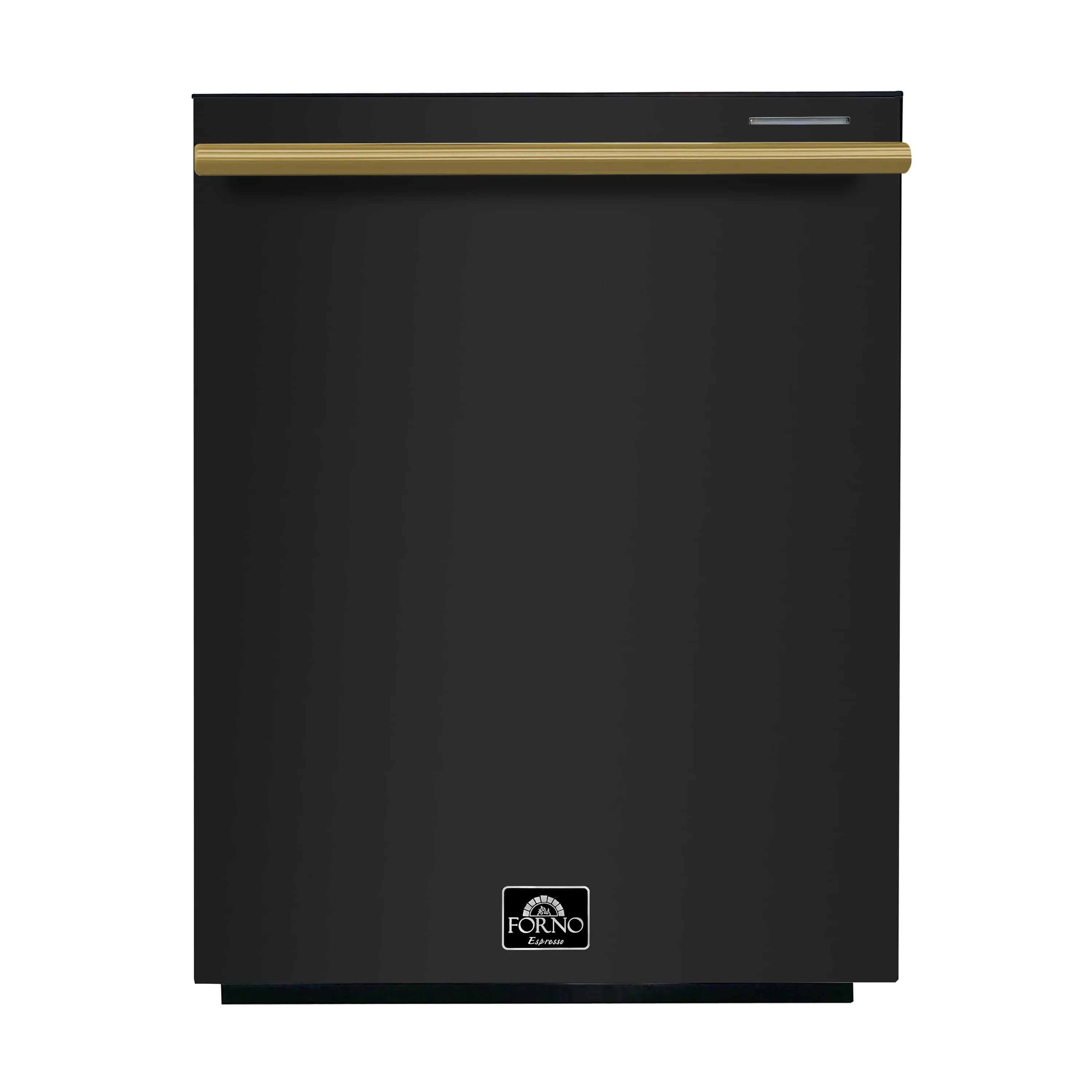

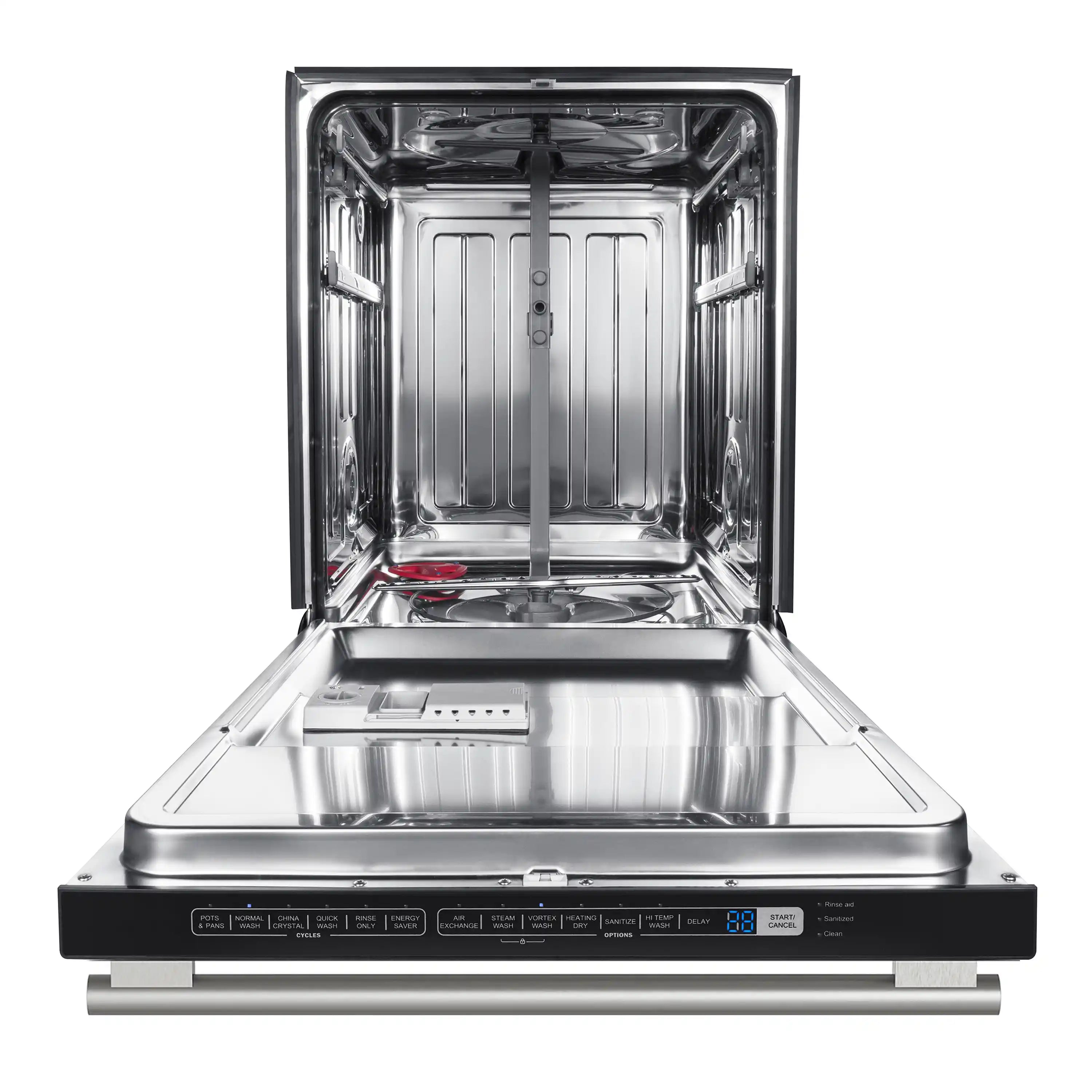

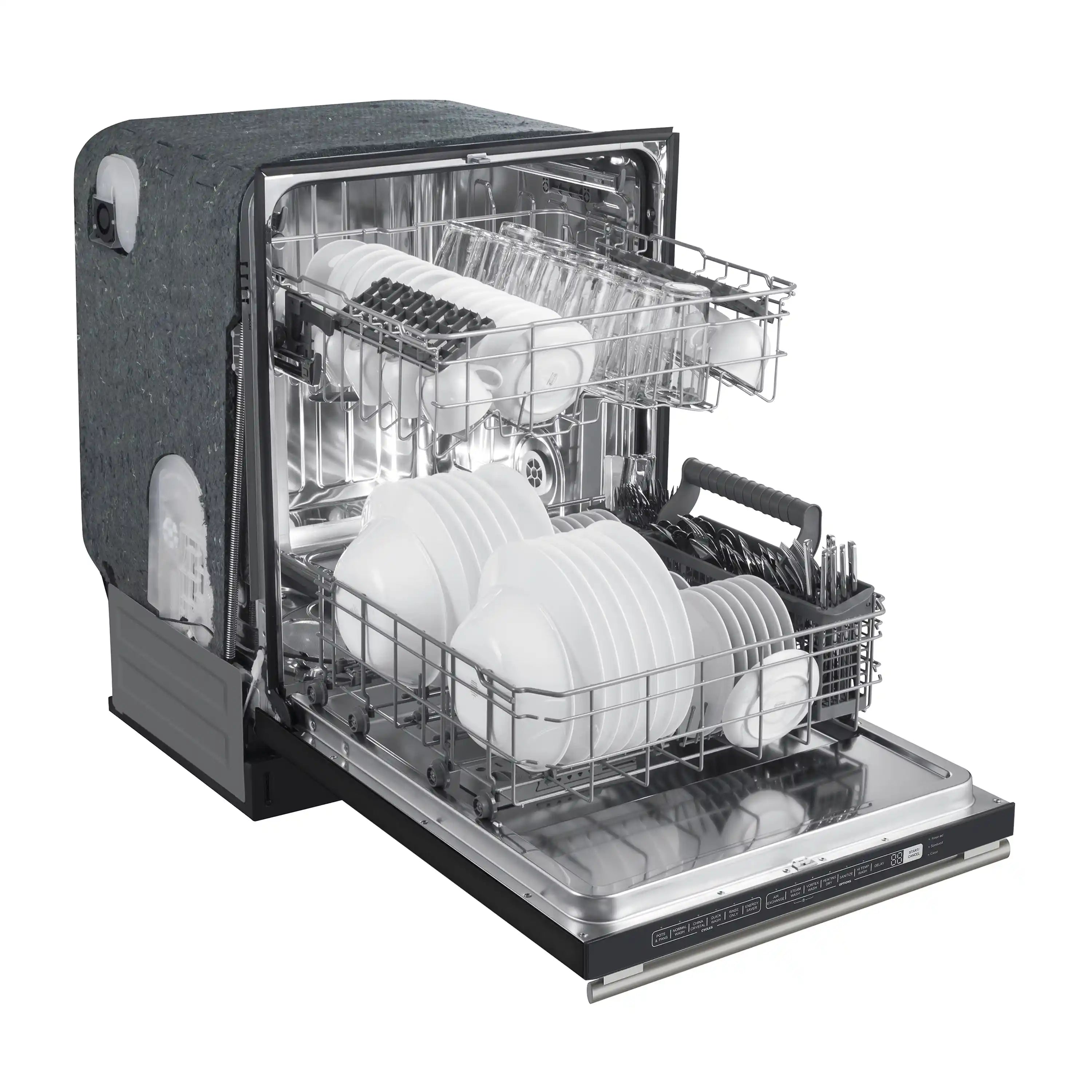

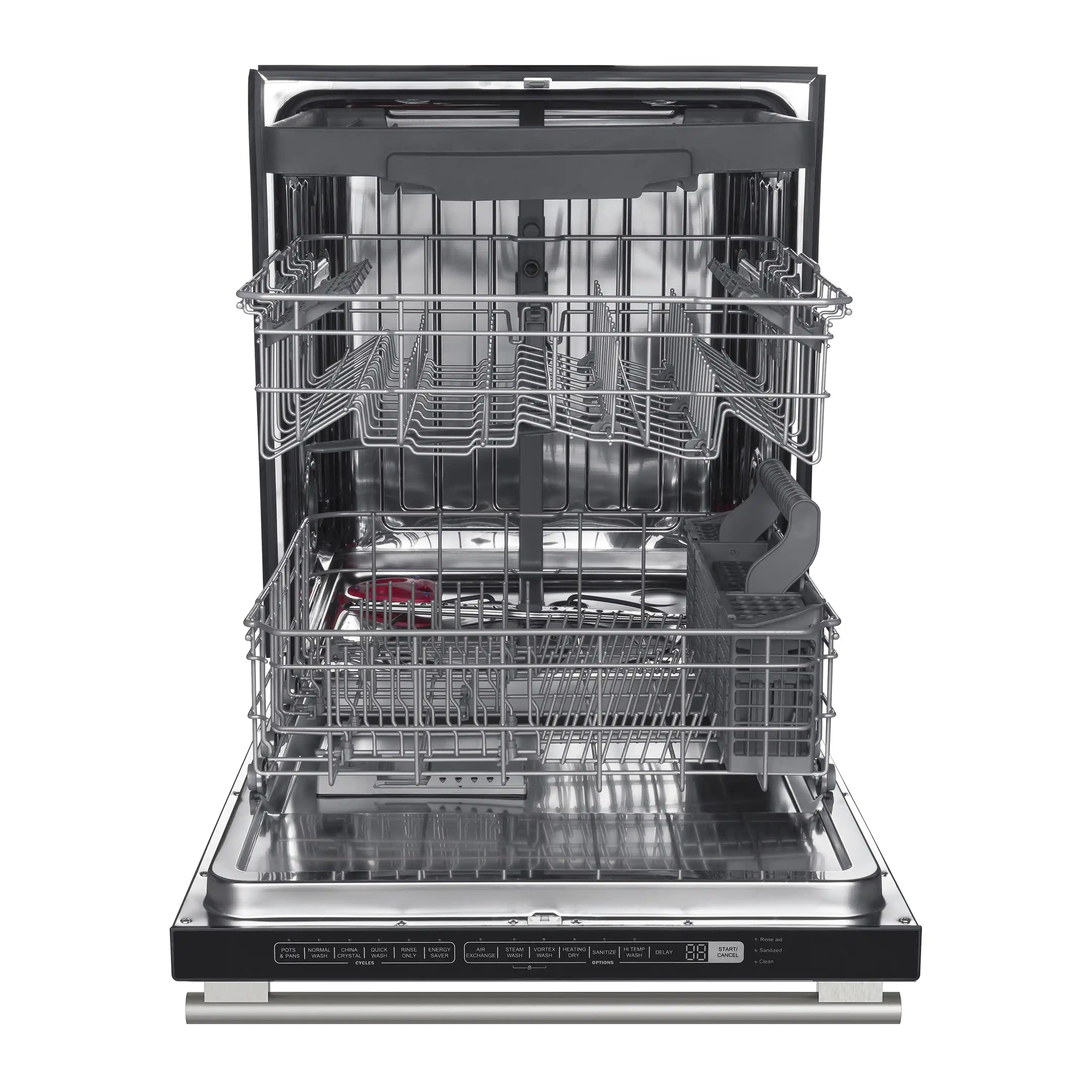

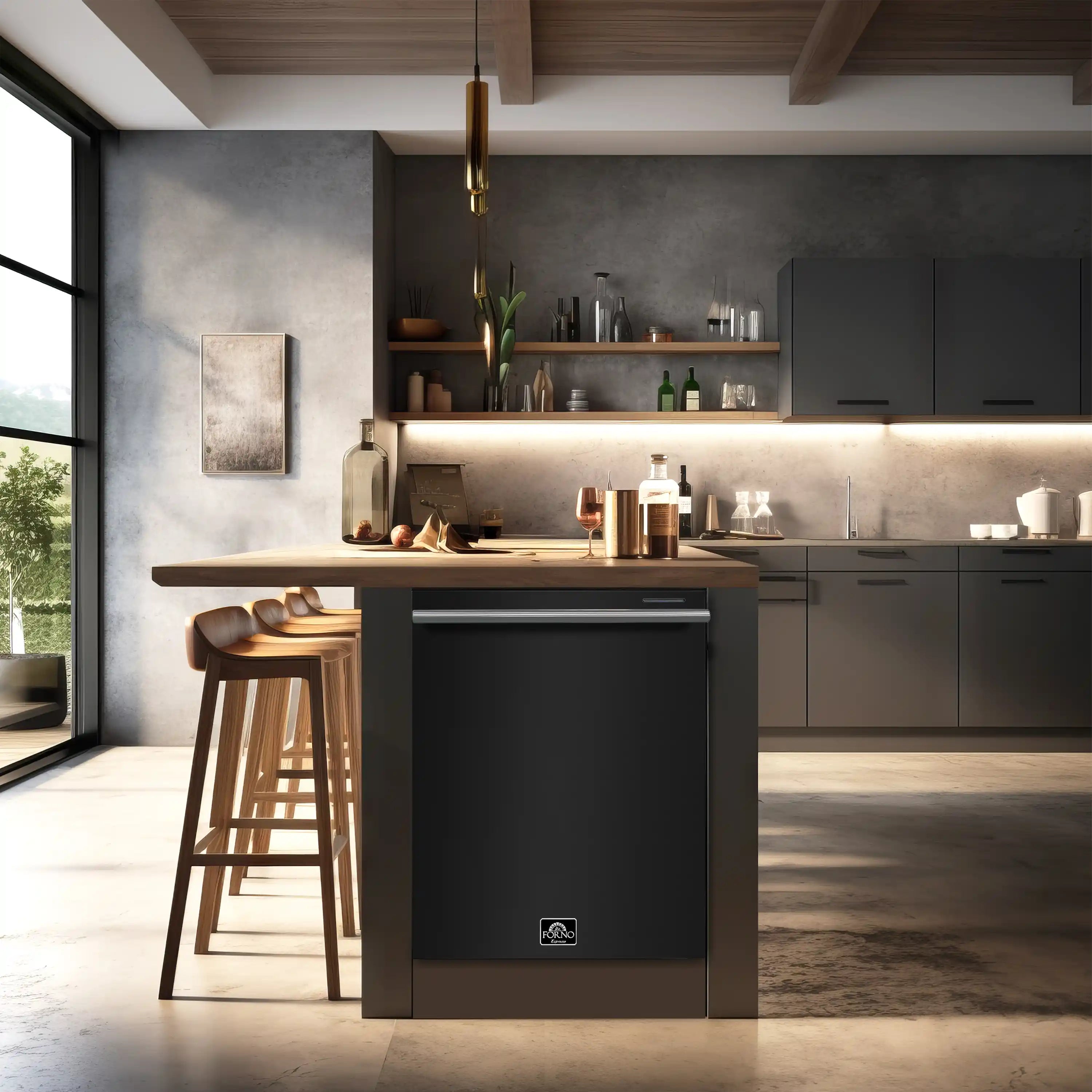

The Forno Pozzo 24-Inch tall-tub dishwasher, operating at a low noise level of 49 decibels for peaceful cleaning. Its black front and pro-style handle offer durability and style. Customize your look effortlessly with two sets of interchangeable handles, switching between antique brass for a traditional touch or stainless steel for modern flair. The dishwasher features a spacious stainless-steel tub with 3 baskets, providing ample loading flexibility for large dish capacity and utensils, with 3 racks and an additional silverware basket. With six wash programs and electronic controls featuring a sleek LED display, it offers efficient and customizable cleaning options. Energy Star certified for eco-friendly operation.
Please Note: This appliance includes both brass and stainless steel handles. Some assembly is required to install your desired finish.
| DIMENSIONS | |
|---|---|
| Product Dimensions | 23.85" W x 26" D x 33.74" H |
| Depth Excluding Handle (in) | 24" |
| Depth Including Handle (in) | 26" |
| Product Height Maximum | 35" |
| Depth Door Open 90º (back to front door open) | 50" |
| Cutout W x D X H | 24''W x 24''D x 34''H to 35''H |
| Overall Weight | 93.2 lbs |
| GENERAL INFORMATION | |
| Water Inlet Connection Size (inches) | 8-Mar |
| DESIGN & FINISH | |
| File/Control Number Number | E219644 |
| TECHNICAL DETAILS | |
| Water Pressure (PSI) | 20 - 120 |
| FEATURES | |
| Sound Rating (dB) | 49 |
| Water Inlet Location | Left Bottom Front |
| Water use (gallons/cycle) | 3.2 |
| WARRANTY & CERTIFICATIONS | |
| Safety Listing | cULus |
| Energy Star Certified | Yes |
| ENERGY STAR Unique ID | 2485657 |
| Energy Policy Act 1992 Compliant | Yes |
| ADA Compliant | No |
| ISTA 1A Certified | Yes |
| ISTA 6A Certified | Yes |
