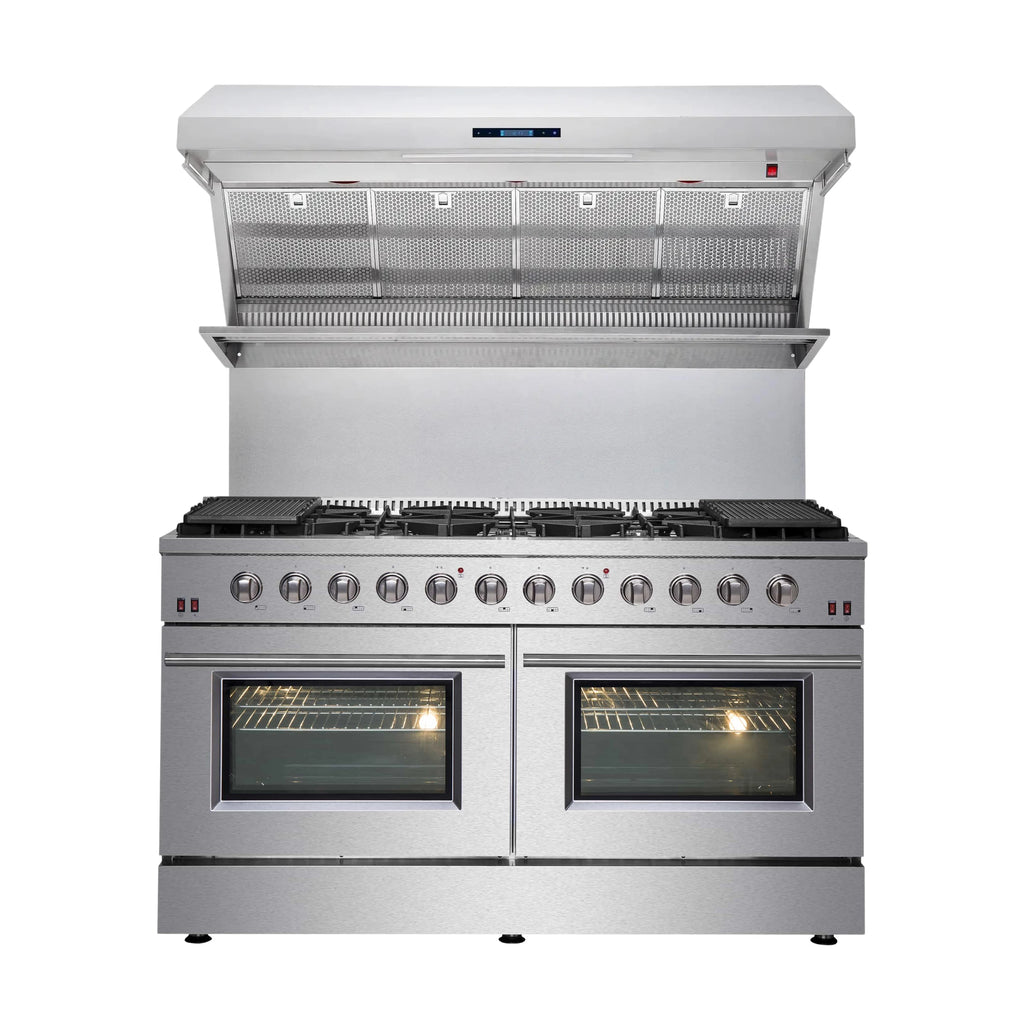

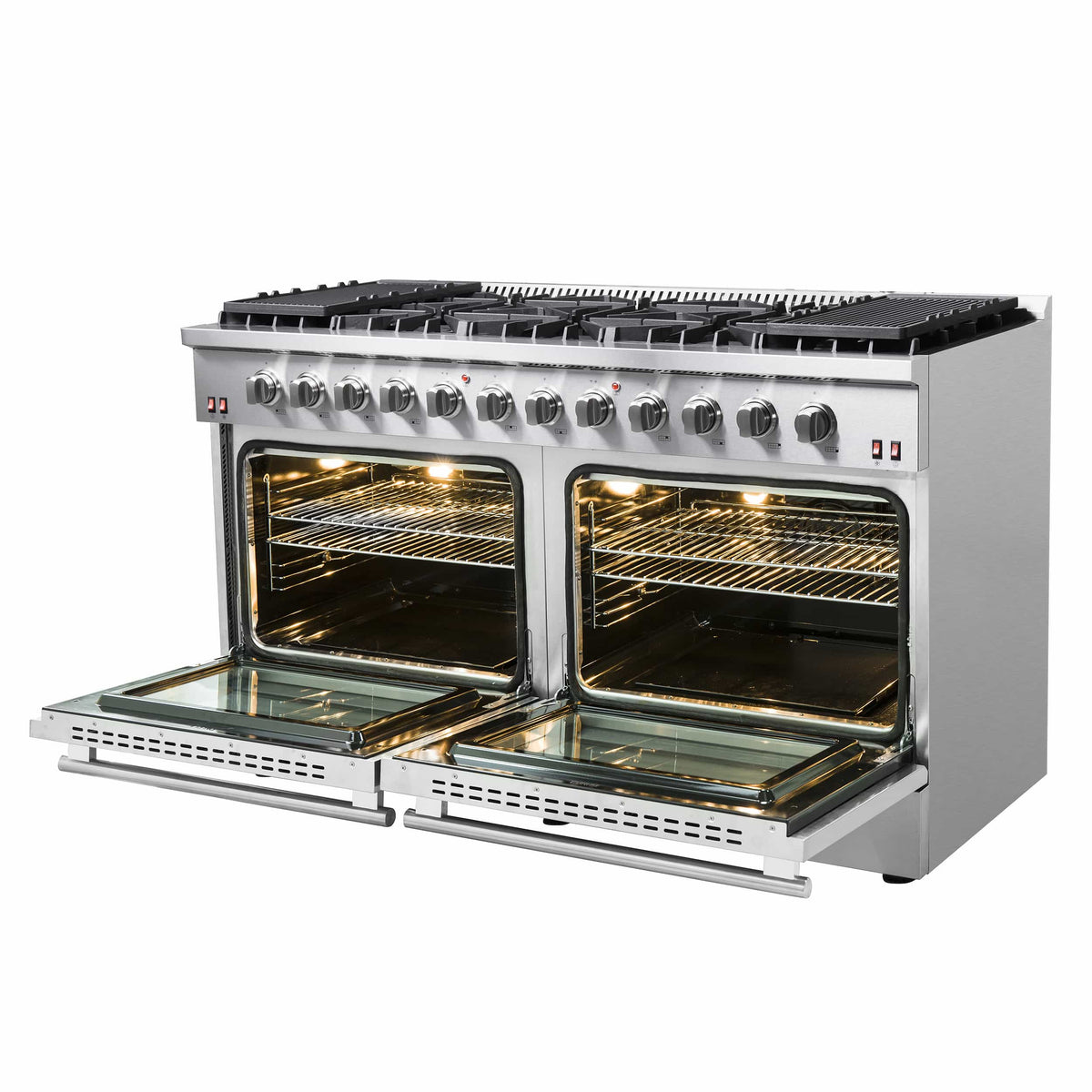

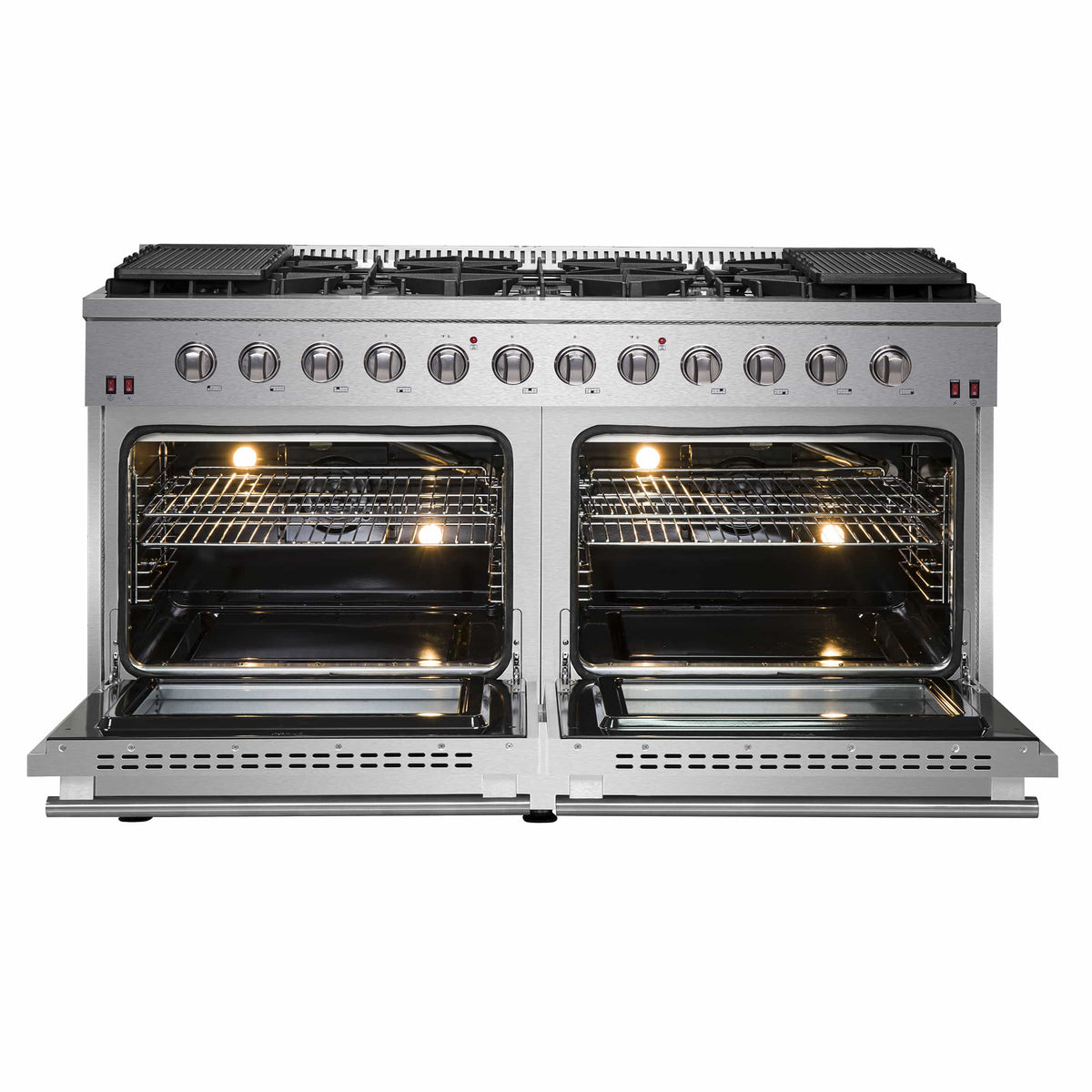

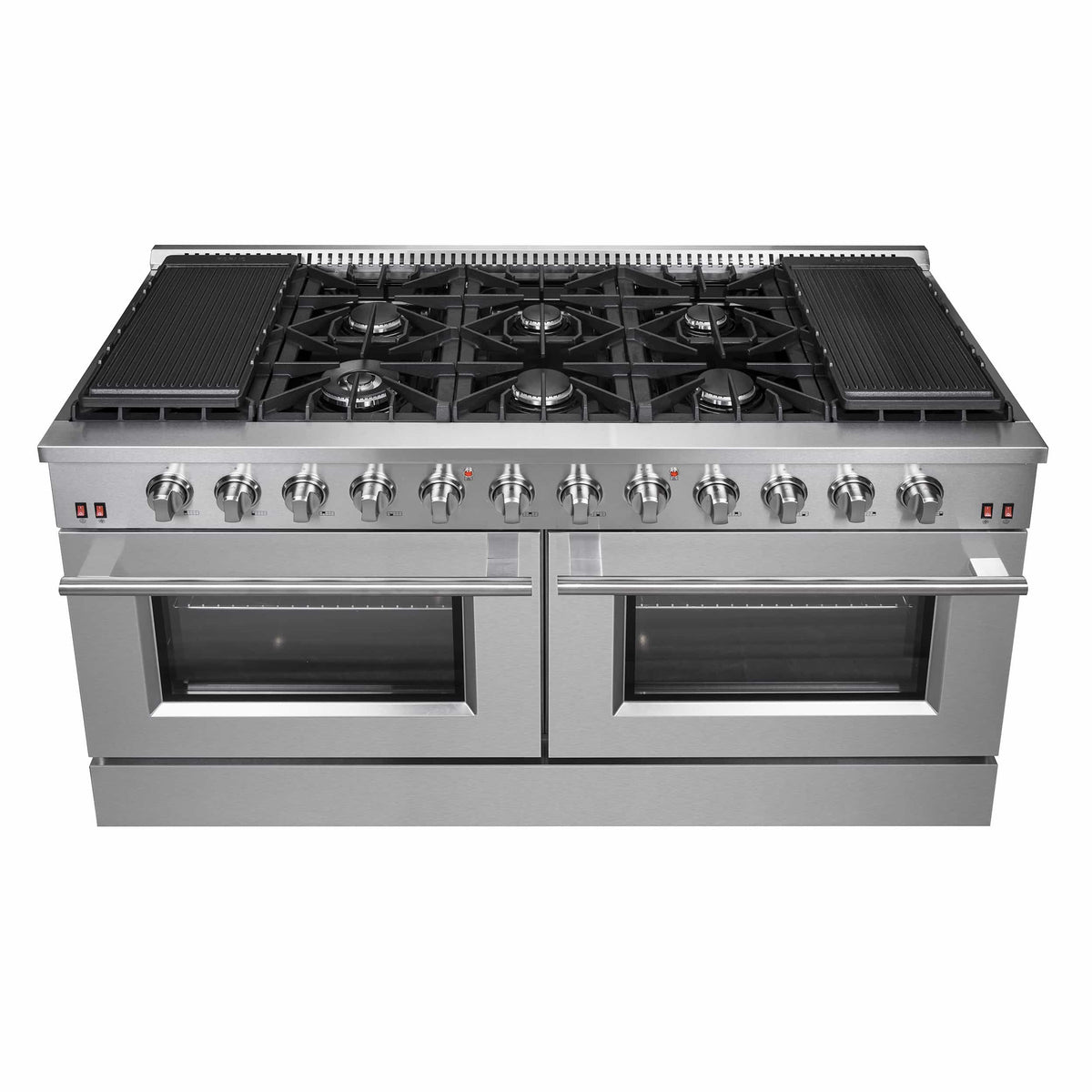

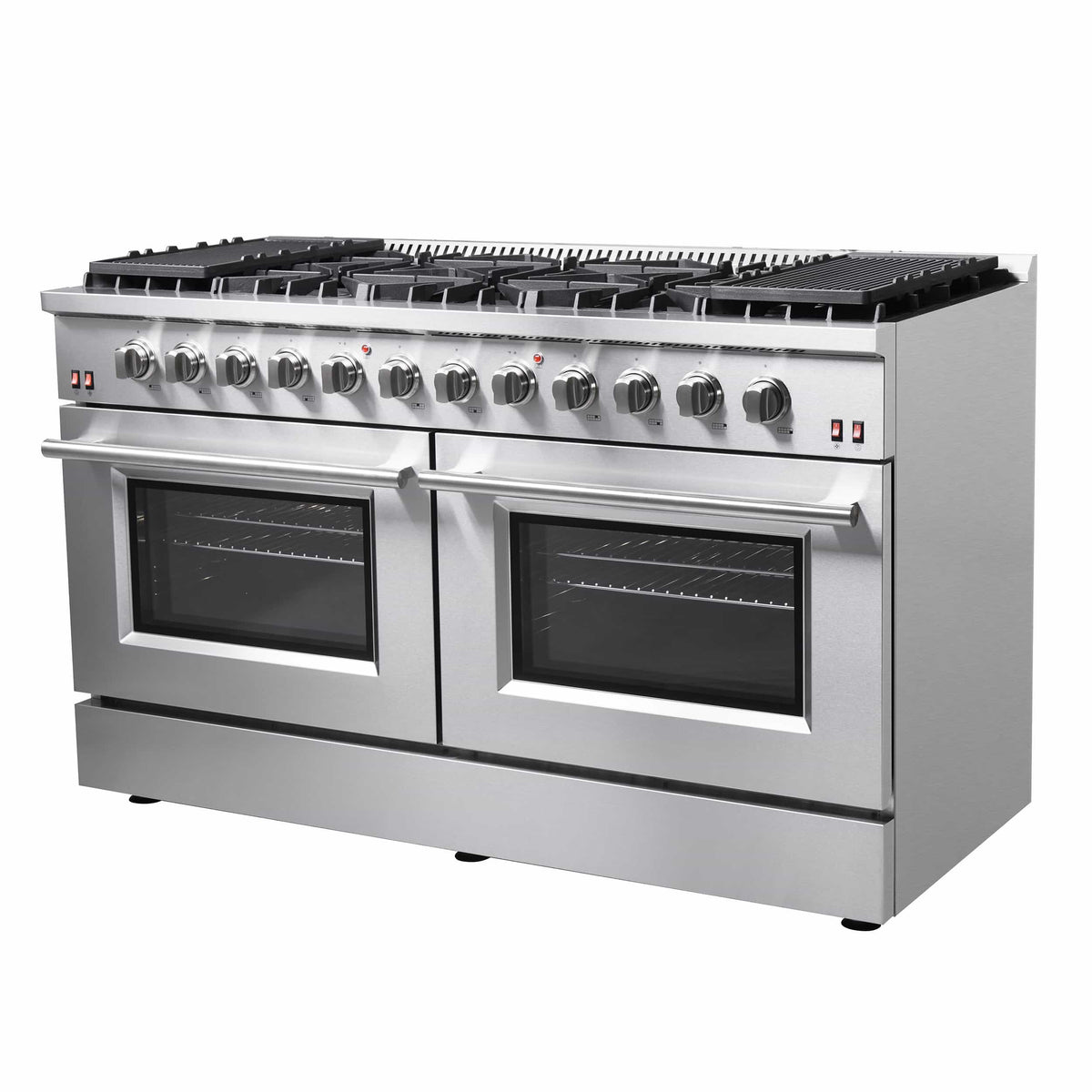

The 60” Galiano Gas Range brings professional styling and quality into your home kitchen with its durable stainless-steel design. The total stove top output of 142,000 BTU, the rangetop has 10 sealed burners including 2 sealed dual-ring burners for simmering delicate tasks like melting chocolate or cooking sauces, giving you the ability to cook up whatever delicious meals you desire. The continuous cast iron grates allow for even heat distribution and maximum stability of cookware mobility over a recessed enamel cooktop cavity which keeps spills and splashes contained and easy to clean. The cumulative capacity 8.64 cu. ft. double gas ovens with a total broil and bake output of 64,000 BTU, encased in black enamel interiors and tempered 3-layer glass oven door windows. . Included are 4 electroplated oven racks, 2 reversible griddles, concave wok-ring and LP conversion kit. Housed in a high-grade stainless steel body and zinc knobs, this unit sports a stylish look that is built to last. All Forno products are backed by an iron clad 2-year warranty for your satisfaction. Skip the high price tags without sacrificing quality and performance. Lower the cost of living with Forno.
| DIMENSIONS | |
|---|---|
| Overall Weight | 592 lbs |
| Overall Dimensions | 60”W x 37.4”H x 28”D |
| Cutout Dimensions | 60.25”W x 28”D |
| Right Oven Interior Dimensions | 24.92”W x 16″H x 18.7”D |
| Left Oven Interior Dimensions | 24.92”W x 16″H x 18.7”D |
| Power Cord Length | 5′ |
| GENERAL INFORMATION | |
| Title 20 – California Regulation | Yes |
| Switches | 2 + 2 |
| Product Type | Freestanding Range |
| Supplier Intended and Approved Use | Residential Use |
| Country of Origin | China |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Number of Knob | 12 |
| Color/Finish | Stainless Steel |
| Gas Heat Configuration | Sealed Burners |
| Interior Light | 2 |
| Control Type | Knob |
| Control Location | Front |
| Clock | No |
| Primary Material | Metal |
| Control Panel Material | Stainless Steel |
| Kick Plate Material | Stainless Steel |
| Side Panel Material | Stainless Steel |
| TECHNICAL DETAILS | |
| Volts/Amperage | 120V / 15A |
| Receptacle Type | 3-prong grounding-type |
| Fuel Type | Gas |
| Gas Type | Natural Gas |
| LP Gas Convertible | Yes |
| COOKTOP FEATURES | |
| Overall Burners BTU | 142,000 |
| Front Right Burner BTU | 1,000 to 20,000 |
| Front Right Center Burner BTU | 15,000 |
| Front Center Burner BTU | 15,000 |
| Front Left Center Burner BTU | 15,000 |
| Front Left Burner BTU | 20,000 |
| Rear Right Burner BTU | 9,000 |
| Rear Right Center Burner BTU | 15,000 |
| Front Center Burner BTU (2) | 9,000 |
| Rear Left Center Burner BTU | 15,000 |
| Rear Left Burner BTU | 9,000 |
| Number of Burners | 10 |
| Cooktop Surface | Continuous Cast Iron Grates |
| Cooktop Cavity | Recessed Enamel |
| Bake Element | Gas |
| OVEN FEATURES | |
| Oven Door Open 90º | 28” |
| Overall Oven Capacity | 8.64 Cubic Feet |
| Overall Broil Top BTU | 20,000 |
| Overall Bottom BTU | 40,000 |
| Right Oven Capacity | 4.32 Cubic Feet |
| Right Broil Top BTU | 10,000 |
| Right Bottom BTU | 20,000 |
| Left Oven Capacity | 4.32 Cubic Feet |
| Left Broil Top BTU | 10,000 |
| Left Bottom BTU | 20,000 |
| Convection Fan | Yes |
| Number of Ovens | 2 |
| Number of Racks | 4 |
| Number of Rack Positions | 2 x 6 |
| Broiler | Gas |
| Cleaning Type | Manual |
| Cooking Process | Convection |
| Temperature Gauge | No |
| Timer | No |
| Door Panel Material | Stainless Steel |
| WARRANTY & CERTIFICATIONS | |
| ETL Listed | Yes |

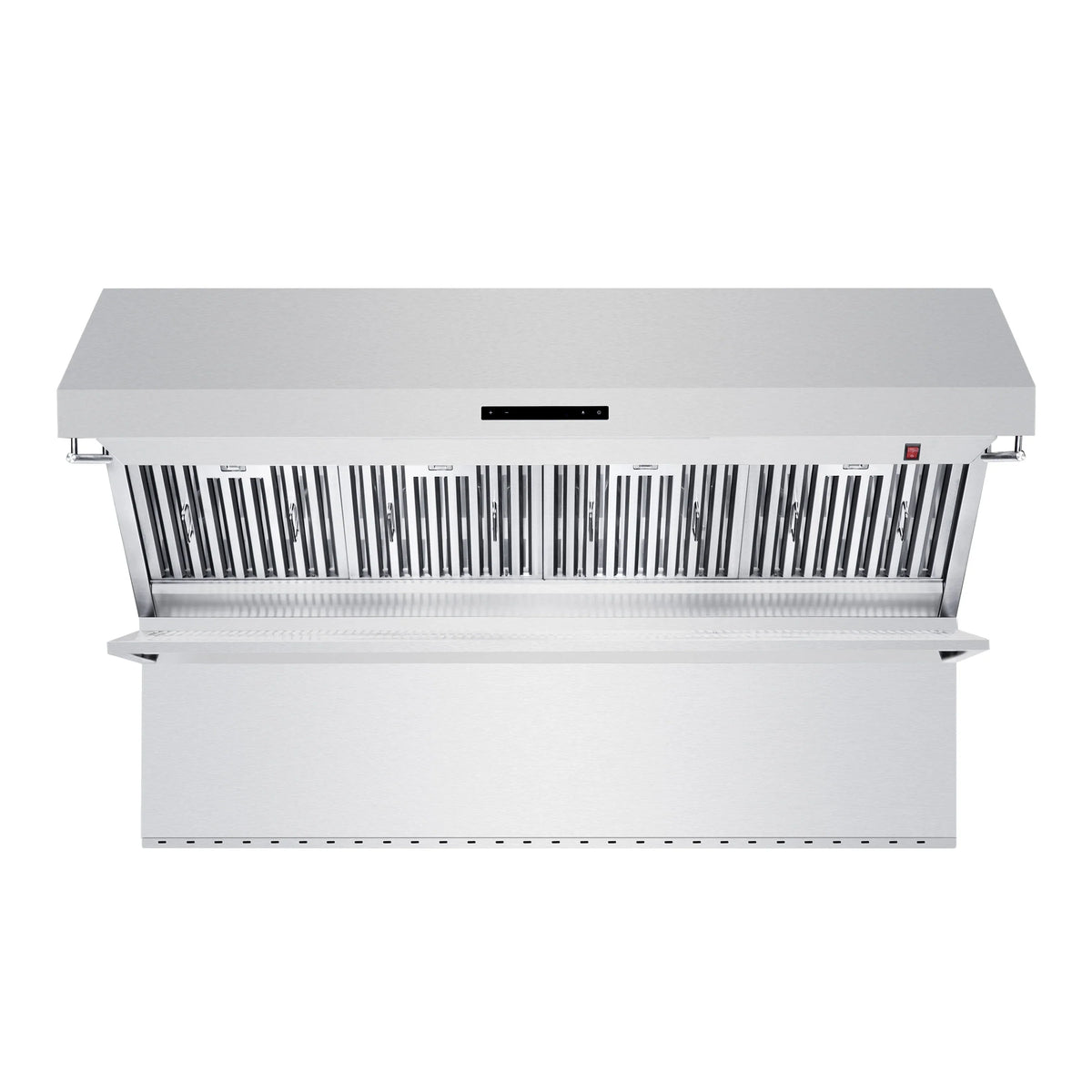

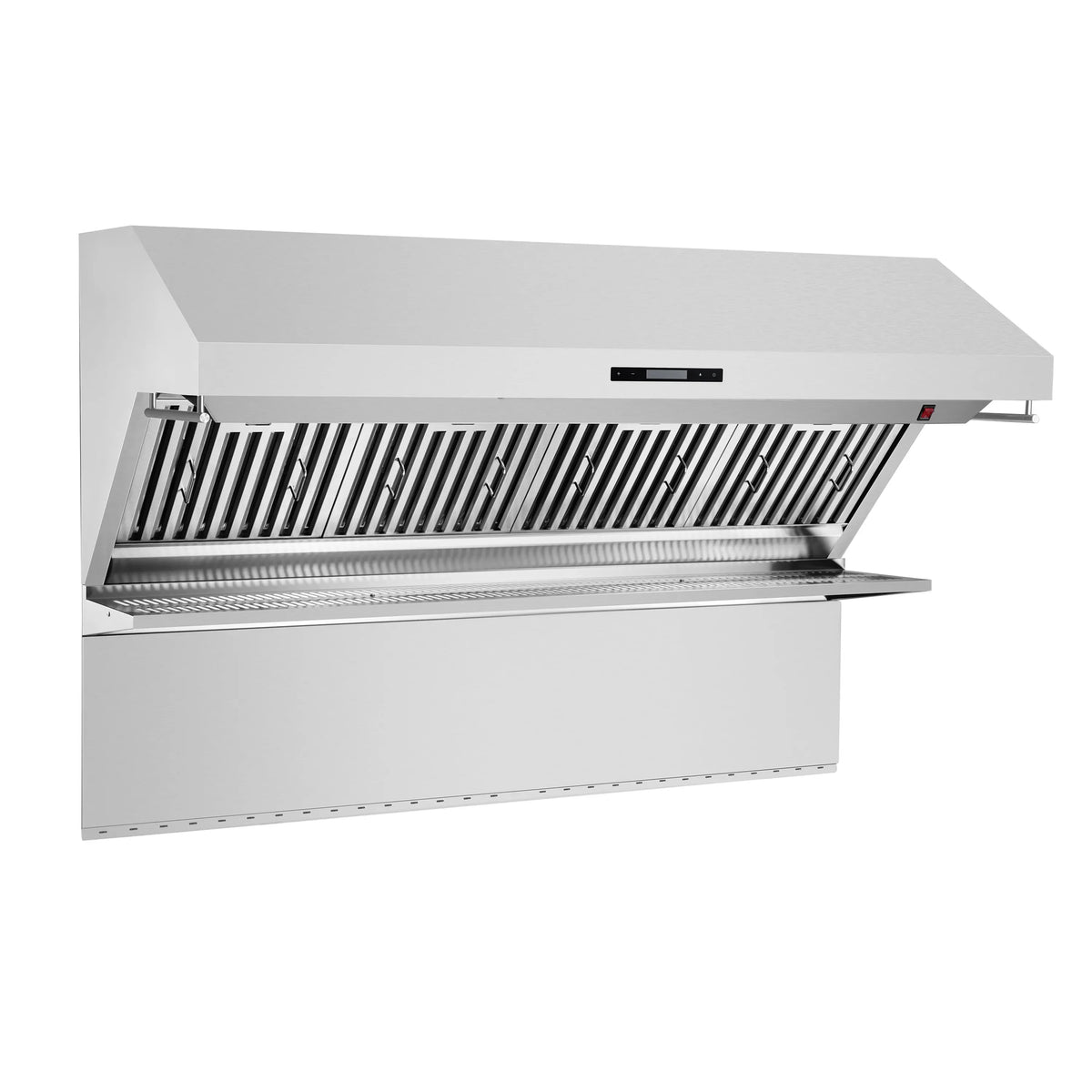

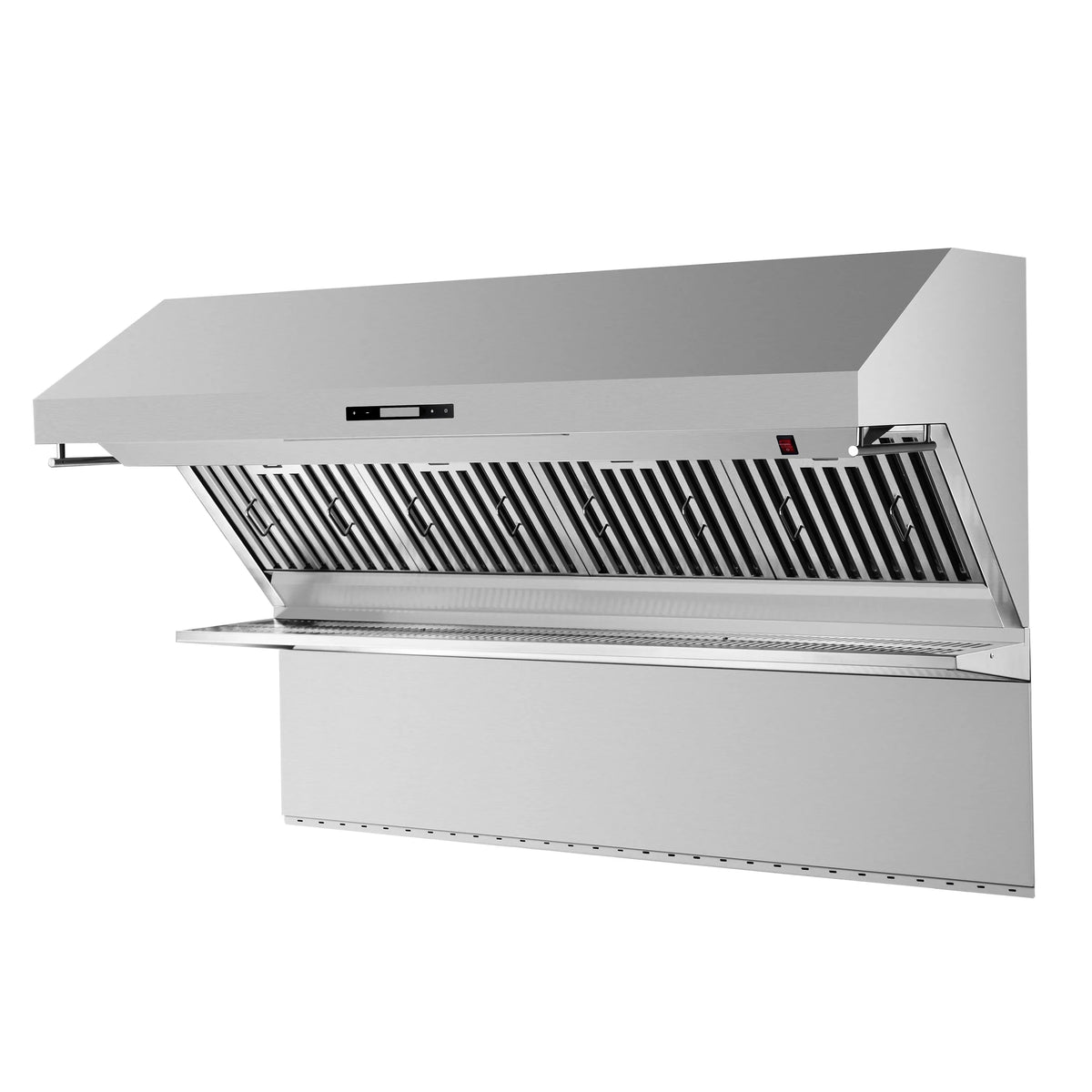

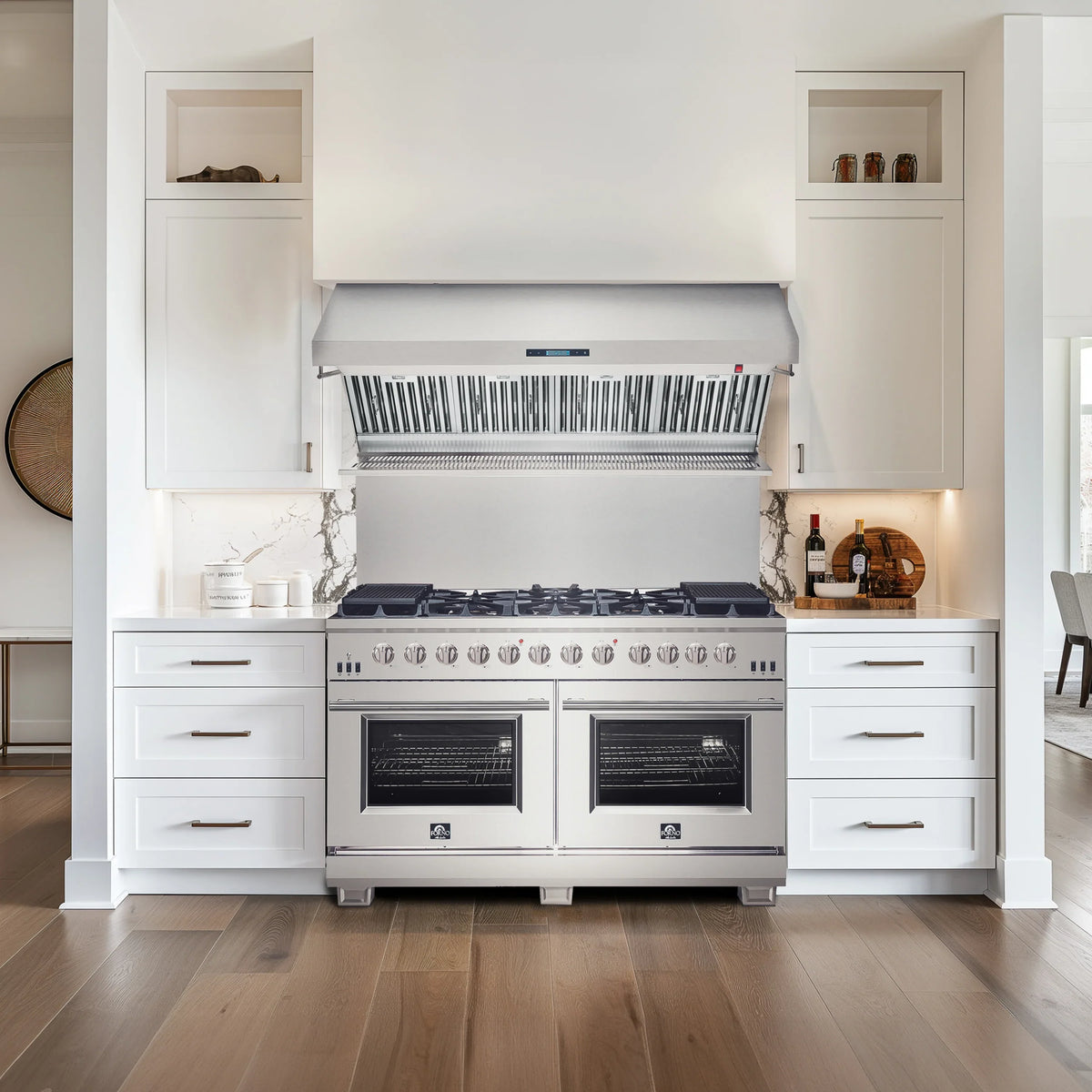

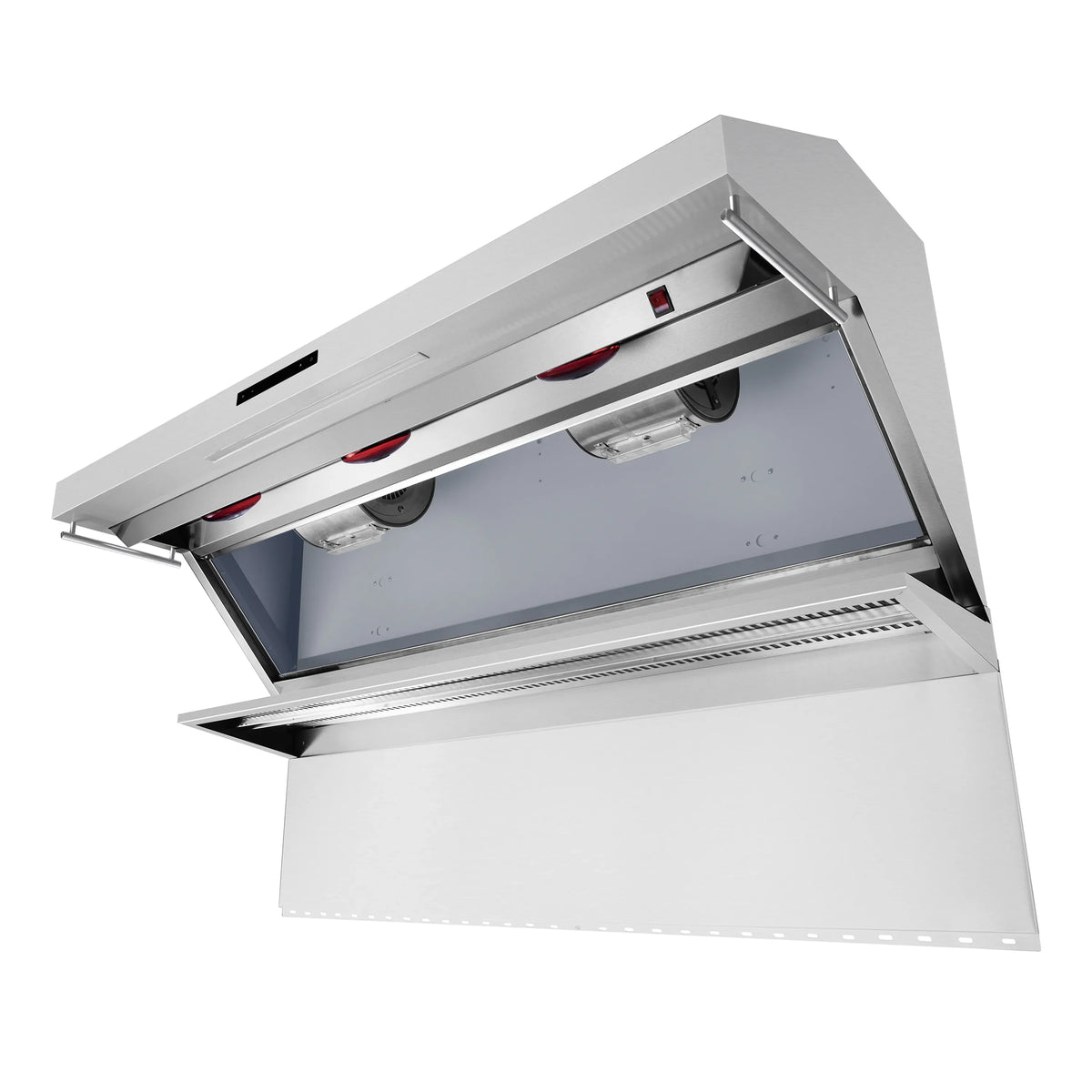

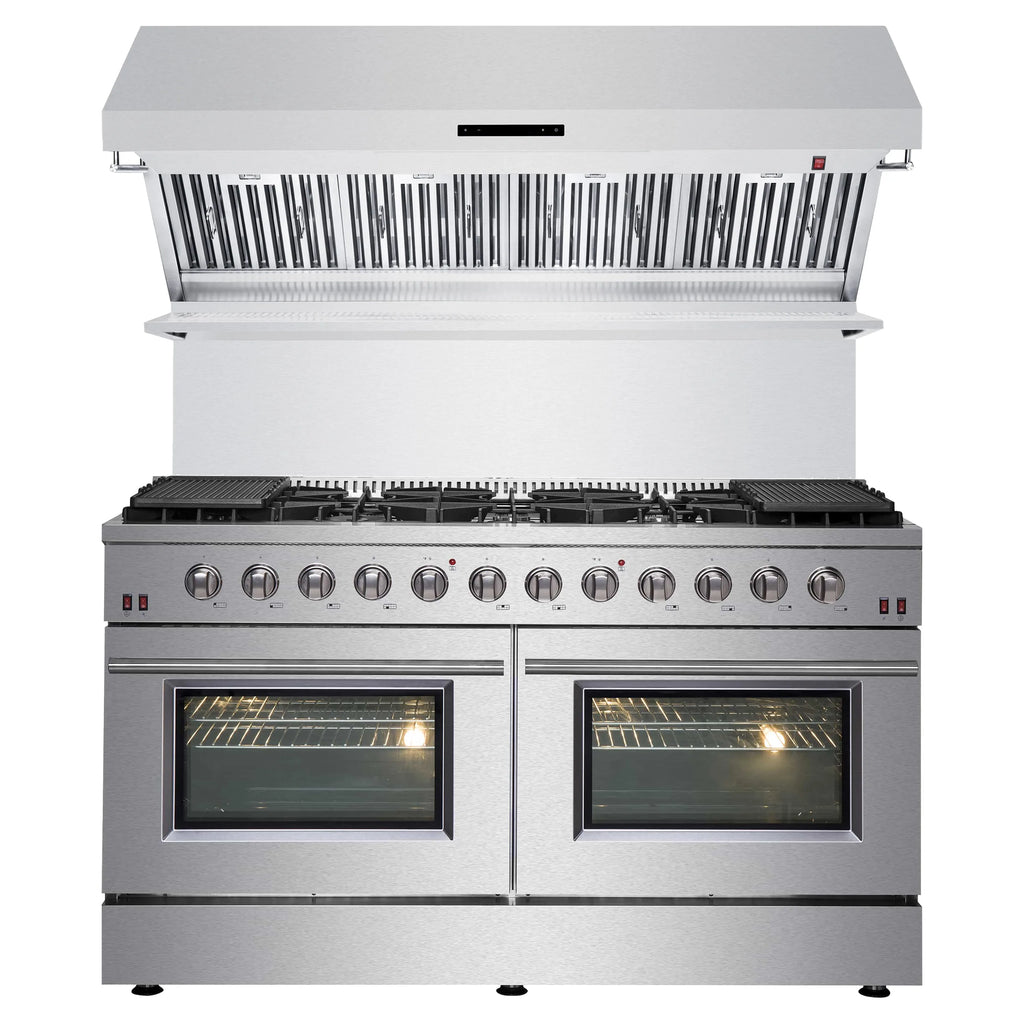

The Forno Savona 60" Wall Mount Range Hood delivers powerful ventilation with dual 600 CFM motors, offering a combined 1200 CFM airflow to eliminate smoke, grease, and odors efficiently. Constructed from premium stainless steel, it ensures long-lasting durability and a professional appearance. Baffle filters efficiently capture grease while ensuring excellent airflow. They are removable and dishwasher-safe for easy cleaning and maintenance. Multiple fan speed settings allow precise airflow control based on your cooking needs. The integrated upper warming shelf, heated by three warming lights, keeps dishes ready to serve. A sleek stainless steel backsplash adds both elegance and wall protection, while dual utensil hangers offer convenient storage or a stylish way to display cookware.
| DIMENSIONS | |
|---|---|
| Product Dimensions (W x D x H) | 59.06" x 25" x 39.49" |
| Product Width (in) | 59.06" |
| Product Depth (in) | 25" |
| Product Height (in) | 39.49" |
| Cutout Dimensions (W x D x H) | 60" x 25" x 39" |
| Cutout Width (in) | 60" |
| Cutout Depth (in) | 12" |
| Cutout Height (in) | 39" |
| Backsplash Dimensions (W x H) | 59.06" x 12.6" |
| Warming Shelf Dimensions (W x D x H) | 59.06" x 12.01" x 3.46" |
| Minimum Height from Cooktop (in) | 30" |
| Product Overall Weight (lbs) | 144.10 |
| DESIGN & FINISH | |
| Control Location | Front |
| Speed Control Type | Touch |
| Speed Control | 4 |
| Remote Control | No |
| TECHNICAL DETAILS | |
| Color/Finish | Stainless Steel |
| Primary Material | Stainless Steel |
| Hardware Finish | Stainless Steel |
| Range Hood Shape | Square |
| Display Type | LCD |
| Fingerprint-Resistant | No |

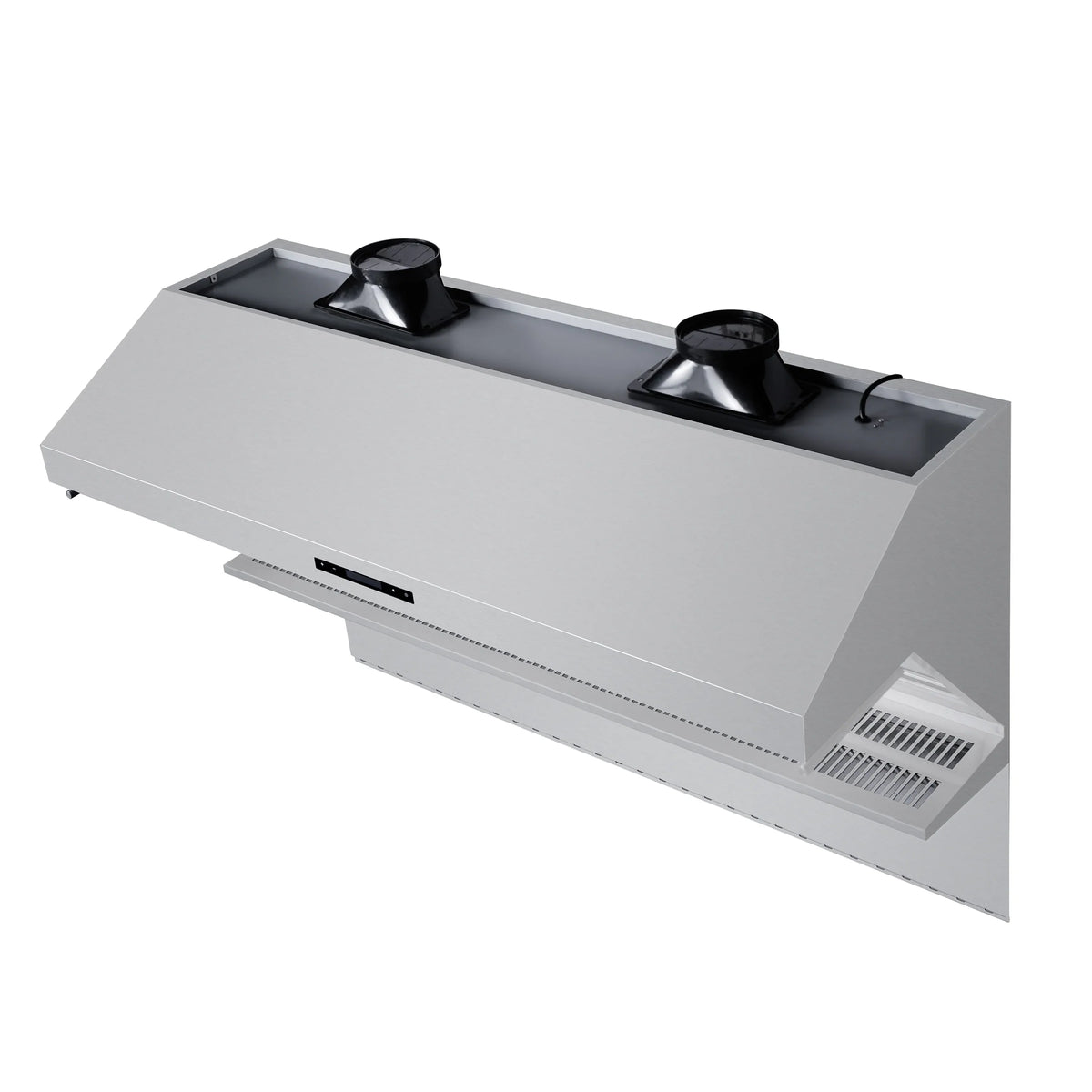

| Vent Type | Ducted |
| Vent Style | External |
| Air Discharge Direction | Vertically Upward |
| Exhaust Vent Location | Top |
| Number of Exhaust Vents | 2 |
| Number of Blowers | 2 |
| Blower Material | Metal |
| Reversible Blower | No |
| Duct Type | 6-in Round |
| Damper | Yes |
| Damper Type | 6-in Round |
| Motor Power (Watts) | 120W |
| Maximum CFM | 1200 |
| Minimum CFM | 550 |
| CFM Speed 1 | 550 |
| CFM Speed 2 | 750 |
| CFM Speed 3 | 950 |
| CFM Speed 4 | 1200 |
| Air Flow Speed 1 | 935 |
| Air Flow Speed 2 | 1274 |
| Air Flow Speed 3 | 1614 |
| Air Flow Speed 4 | 2039 |
| RPM Speed 1 | 880 |
| RPM Speed 2 | 1050 |
| RPM Speed 3 | 1350 |
| RPM Speed 4 | 1510 |
| Minimum Decibel (dB) | 48 |
| Maximum Decibel (dB) | 68 |
| Decibel Speed 1 (dB) | 48 |
| Decibel Speed 2 (dB) | 53 |
| Decibel Speed 3 (dB) | 60 |
| Decibel Speed 4 (dB) | 68 |
| Minimum Sones | 2.00 |
| Maximum Sones | 16.00 |
| Sones Speed 1 | 2.00 |
| Sones Speed 2 | 6.00 |
| Sones Speed 3 | 11.00 |
| Sones Speed 4 | 16.00 |
| Number of Light Settings | 1 |
| Clock | Yes |
| Power Off Function | Yes |
| Power Off Timer | 15 Minutes |
| Clean Filter Alert | No |
| Heat Sensors | No |
| Filter Type | Baffle |
| Filter Material | Stainless Steel |
| Removable Grease Filter | Yes |
| Dishwasher Safe Filters | Yes |
| Charcoal Filters | No |
| Number of Lights | 1 |
| Bulb Type | LED Light Strip |
| Bulb Wattage | 10W |

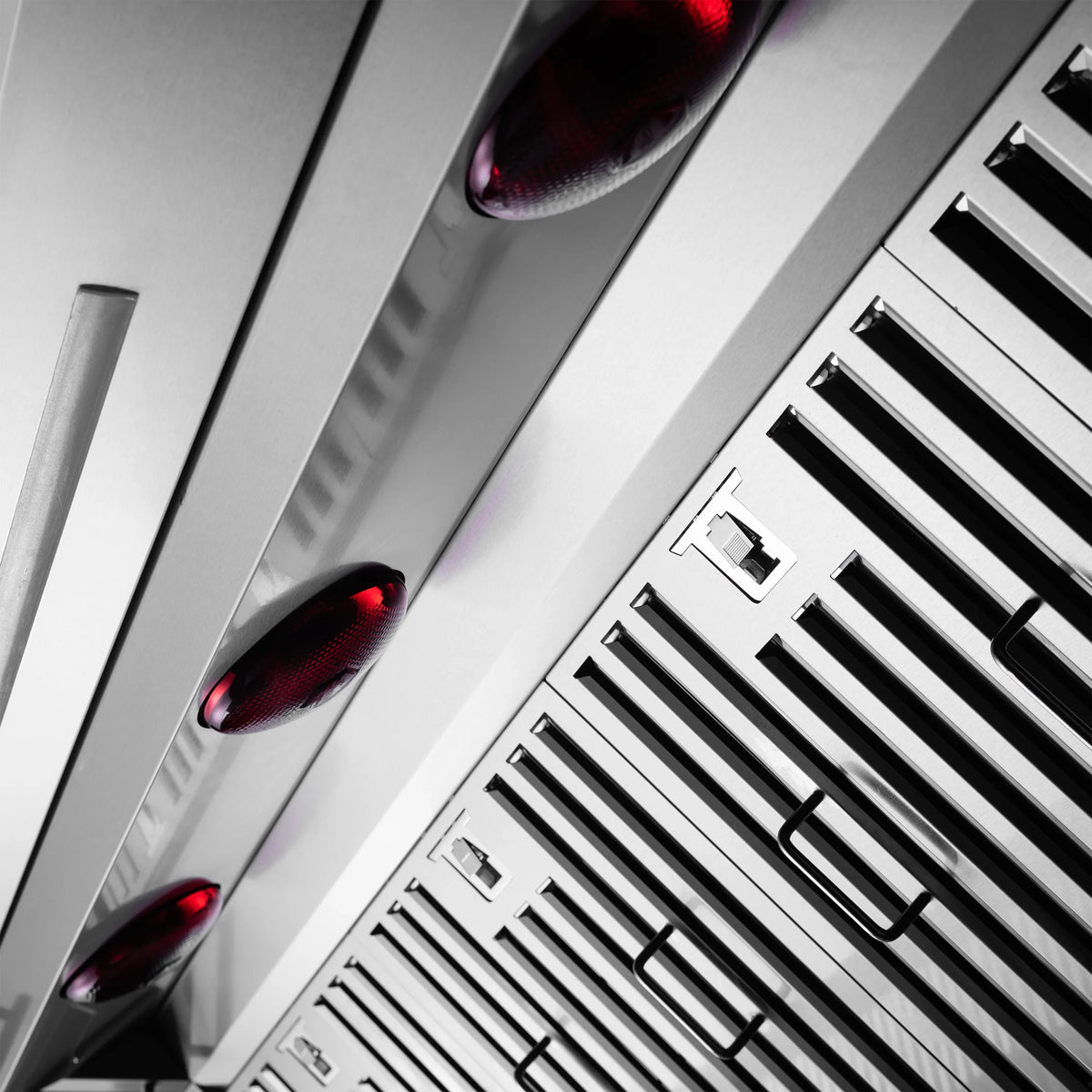

| Number of Heating Lamps | 3 |
| Heating Lamp Type | Tungsten-Halogen E26 |
| Heating Lamp Wattage | 175W |
| Heating Lamp Maximum Wattage | 220W |
| Heating Lamp Included | Yes |
| Backsplash Included | Yes |
| Warming Shelf Included | Yes |
| Crown Molding | No |
| Chimney Short Kit | No |
| Chimney Extension Kit | No |
| Rangehood Chimney | No |
| Power Cord Location | Top |
| Duct Length (in) | 59" |
| FEATURES | |
| ISTA 6A | Yes |
| UPLR Compliant | Yes |
| Title 20 California Regulation | Yes |
| TAA Compliant | No |
| WARRANTY & CERTIFICATIONS | |
| Safety Listing | cETLus |
| File/Certification Number | 5014042 |
| Energy Star Certified | No |
| ADA Compliant | No |
| Star-K Certified | No |
| Certificate of Conformity (GCC) | No |
| Commercial Warranty | No |
| Warranty Length | 2 Years |
| Warranty Type | Limited |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |
| Warranty Script (English) | Experience peace of mind with FORNO products, each backed by a 2-year warranty covering labor and parts, ensuring satisfaction and confidence in the reliability of our high-quality appliances. |
