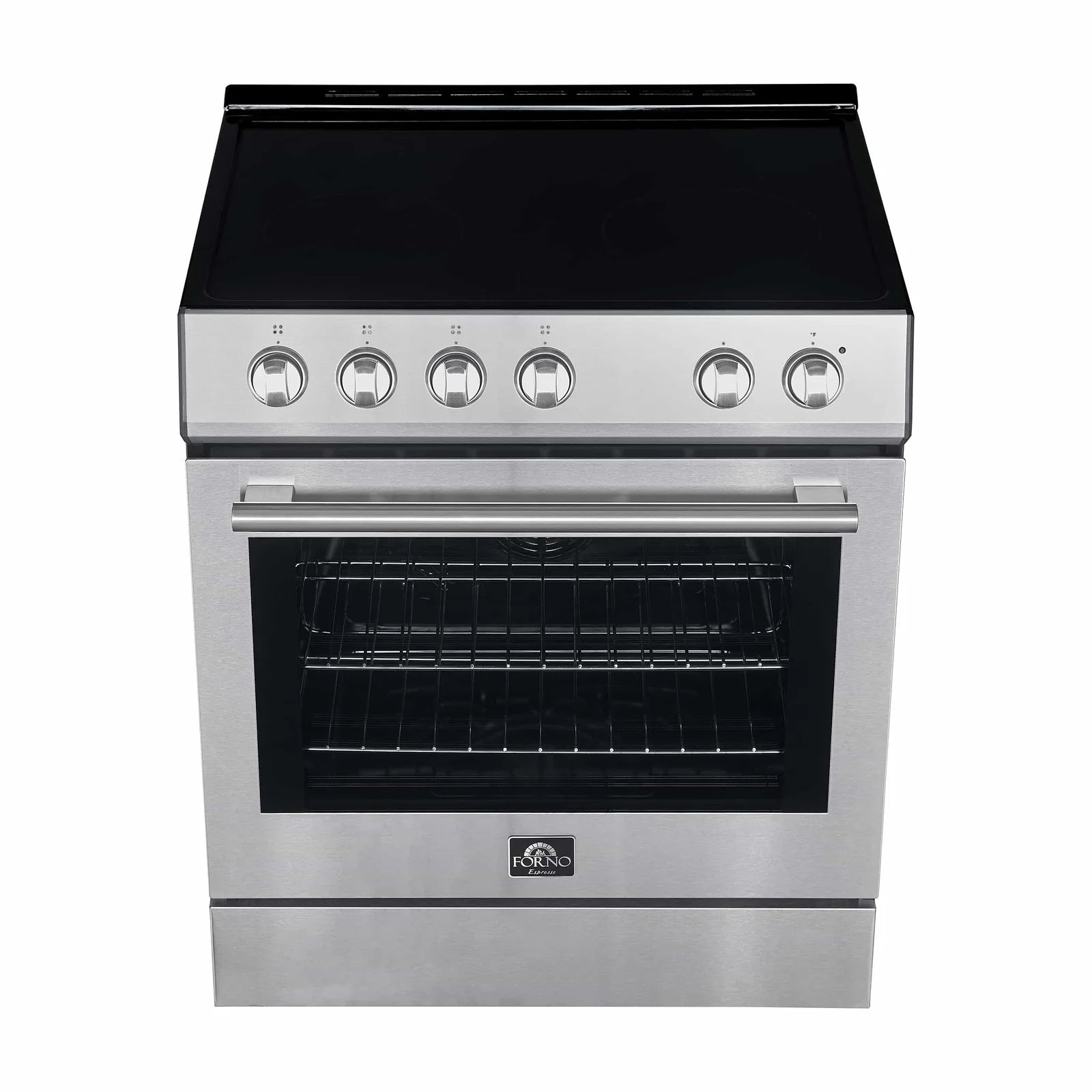

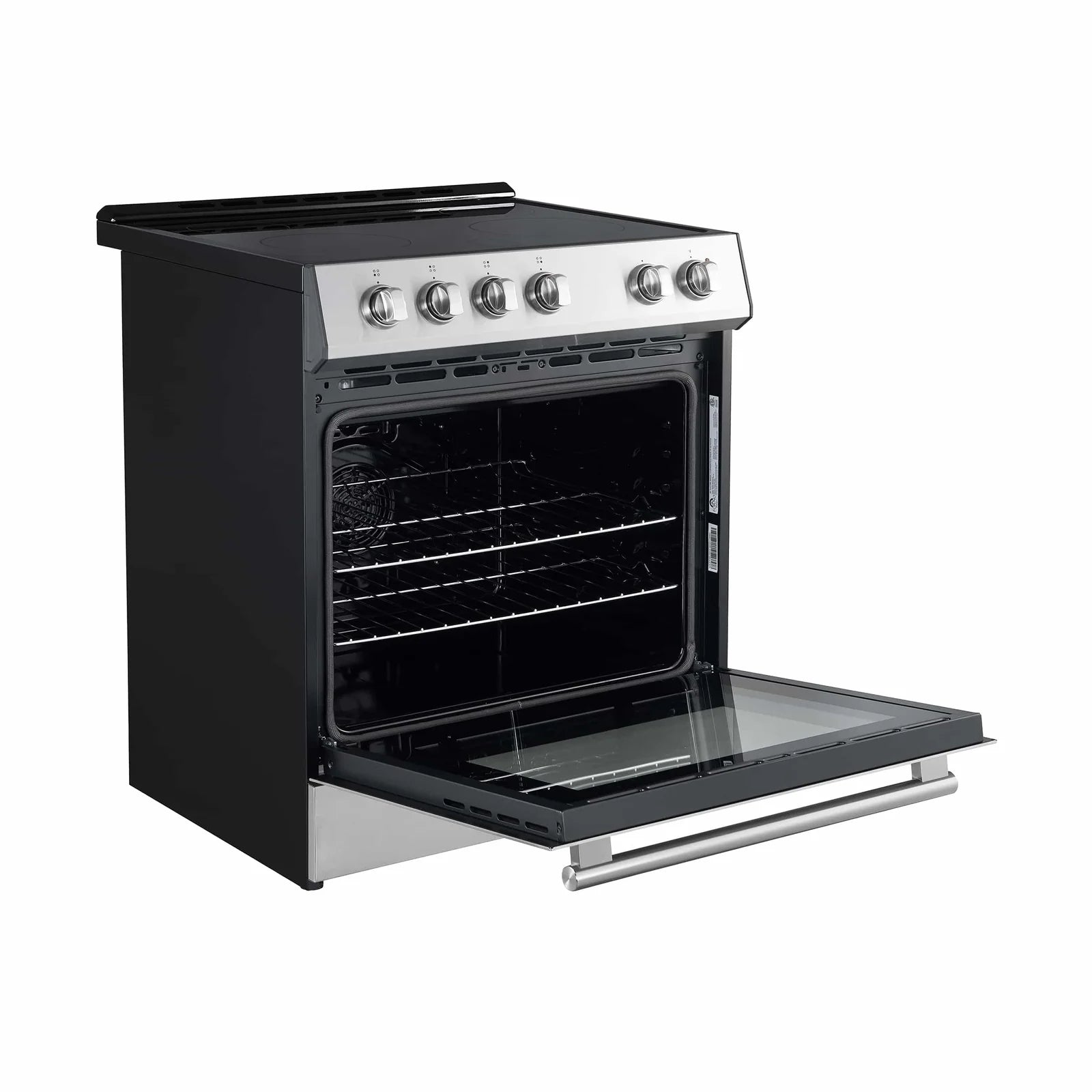

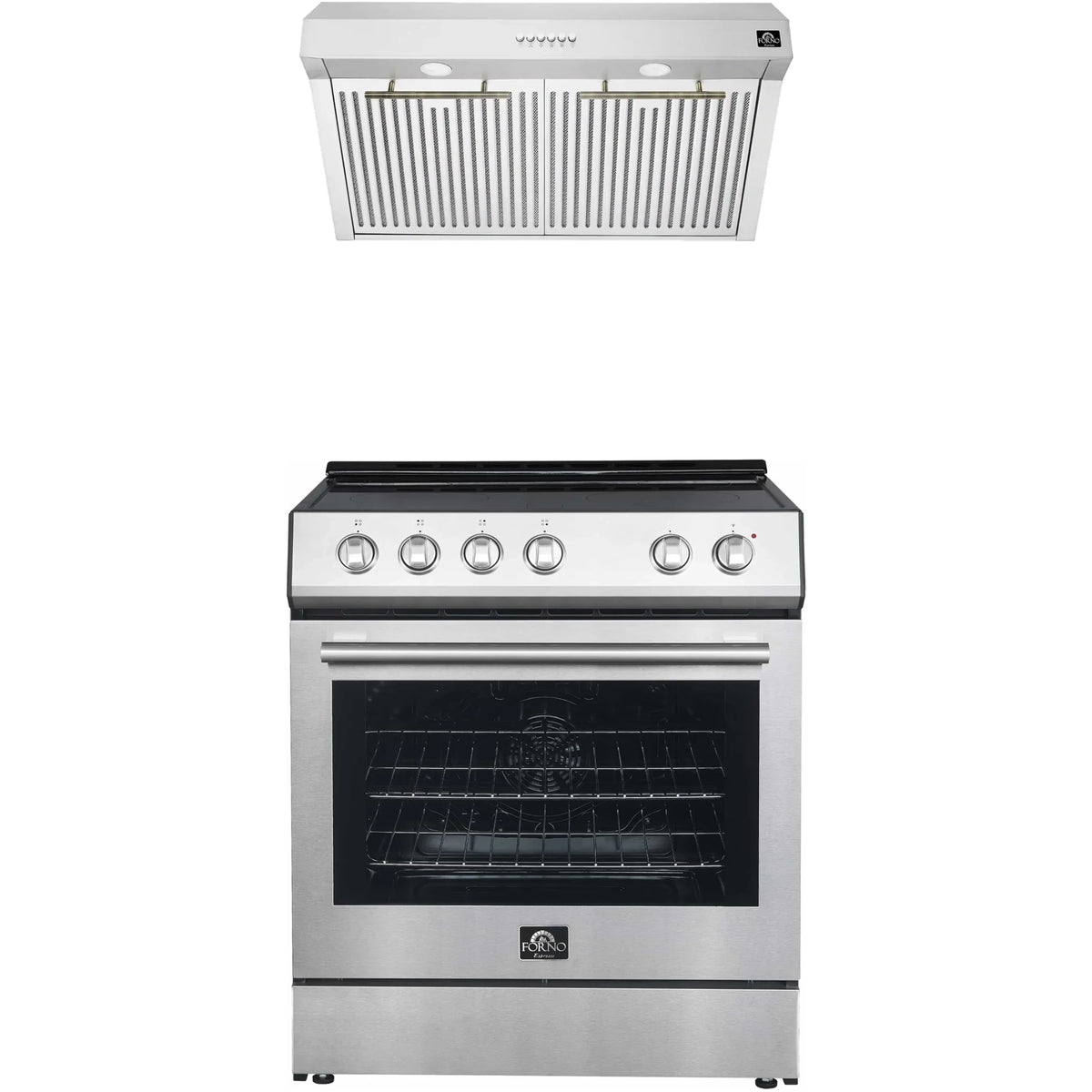

Introducing the Forno Leonardo Espresso 30" 5.0 cu. Ft. Stainless-Steel Electric Range, a kitchen game-changer. With 4 Radiant Elements, and a 5,500-watt Convection Oven, it combines style with top-notch performance. Ceramic Glass ensures even heat distribution. The Hidden Bake Element simplifies maintenance by preventing spills and odors. Elevate your kitchen with this timeless, user-friendly range, marrying durability with sophistication. Cook with confidence, and embrace efficiency and style with every use.
Experience peace of mind with FORNO products, each backed by a comprehensive 2-year warranty covering both labor and parts. Our commitment ensures your satisfaction and confidence in the reliability of our appliances.

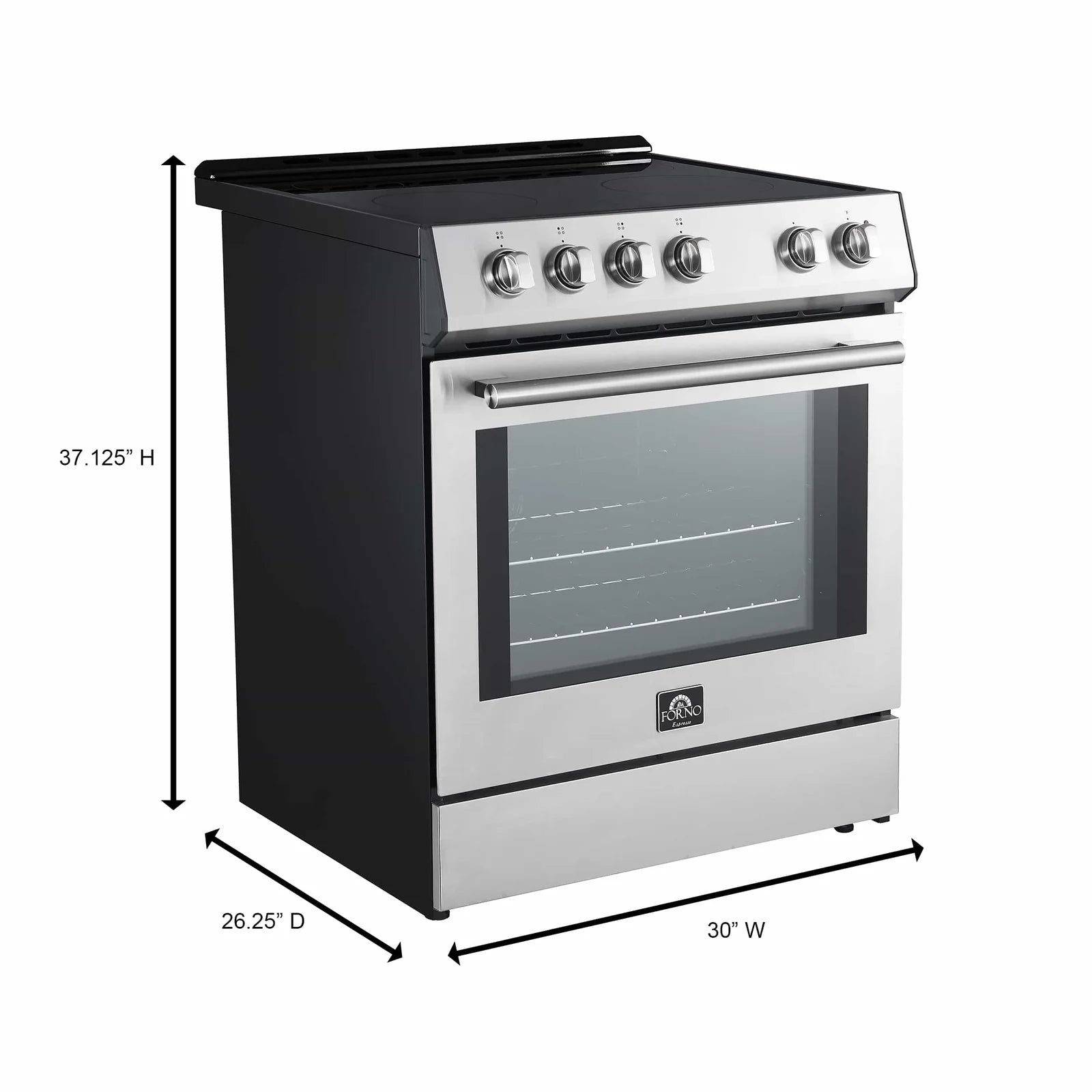

| DIMENSIONS | |
|---|---|
| Minimum Counter Height | 36" |
| Maximum Counter Height | 38" |
| Depth with Oven Door Open 90º | 46.25" |
| Depth without Oven Door Handle | 27.8" |
| Overall Weight | 145.5 lbs |
| Main Oven Interior | 24.6" W x 17.7" D x 19.6" H |
| GENERAL INFORMATION | |
| Product Type | Slide-In |
| Safety Lock | No |
| Supplier Intended and Approved Use | Residential Use |
| Country of Origin | China |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Overall - Biggest Dims Possible (with Handle, Backsplash, etc) | 30" W X 27.95" D X 38" H |
| Color/Finish | Stainless Steel |
| Handle Finish | Stainless Steel |

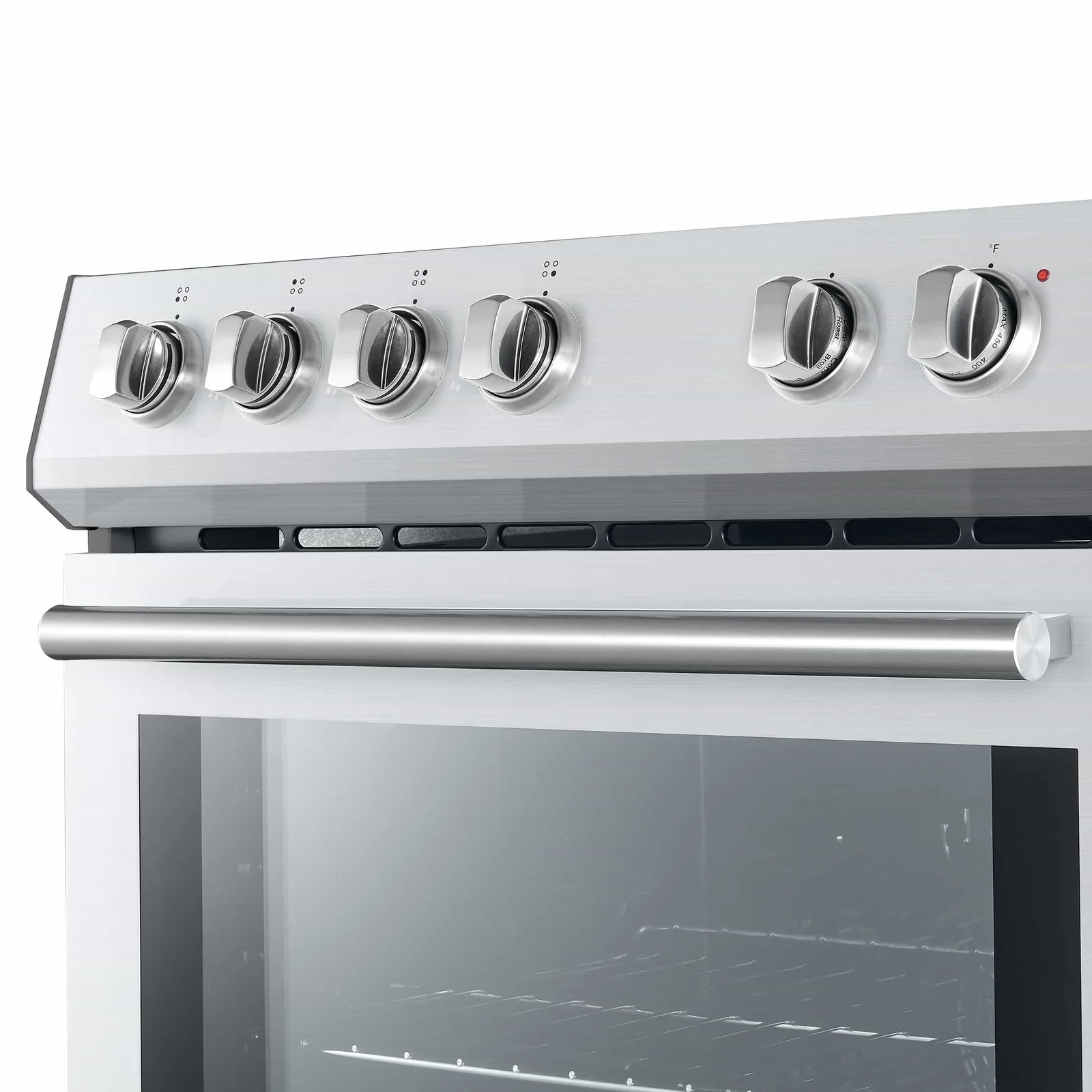

| Control Type | Knob |
| Number of Knobs | 6 |
| Knobs Color/Finish | Stainless Steel |
| Control Location | Front |
| Clock | No |
| Primary Material | Steel |
| Control Panel Material | Stainless Steel |
| Kick Plate Material | Stainless Steel |
| Side Panel Material | Stainless Steel |
| TECHNICAL DETAILS | |
| Fuel Type | Electric |
| Plug-In | No |
| Dedicated Circuit Breaker Amperage | 50 |
| Total Amps Use | 44.25 |
| Volts | 240 |
| Overall Max Power (W) | 10650 |
| Power Cord Included | No |
| COOKTOP FEATURES | |
| Burner Fuel | Electric |

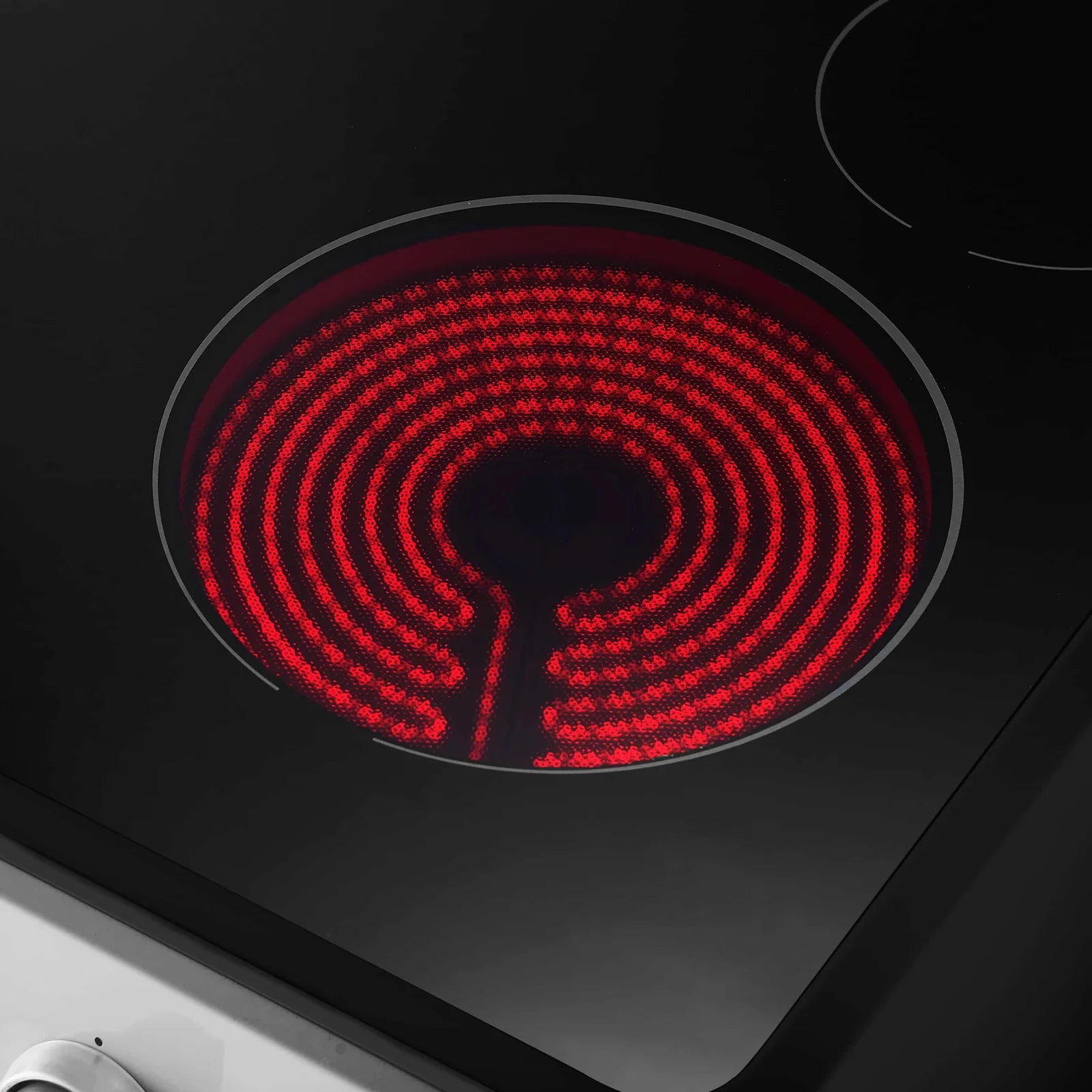

| Electric Heat Configuration (Cooktop) | Radiant |
| Total cooktop Wattage output | 7100 |
| Number of Burners | 4 |
| Double Ring Burner | No |
| Warmer Burner | No |
| Bridge Element | No |
| Cooktop Surface Color | Black |
| Cooktop Surface Materiel | Ceramic Glass |
| Cooktop Surface Structure | Smoothtop |
| Cooking Surface Control Type | Push & Turn |
| Broiler Element Type | Single Element |
| Bake Element | Yes |
| Hidden Bake Element | Hidden |
| Cooktop Hot Surface Indicator | Yes |
| Front Right Burner Watts | 2500 |
| Front Left Burner Watts | 2200 |
| Rear Right Burner Watts | 1200 |
| Rear Left Burner Watts | 1200 |
| Cooktop Max Power (W) | 7100 |

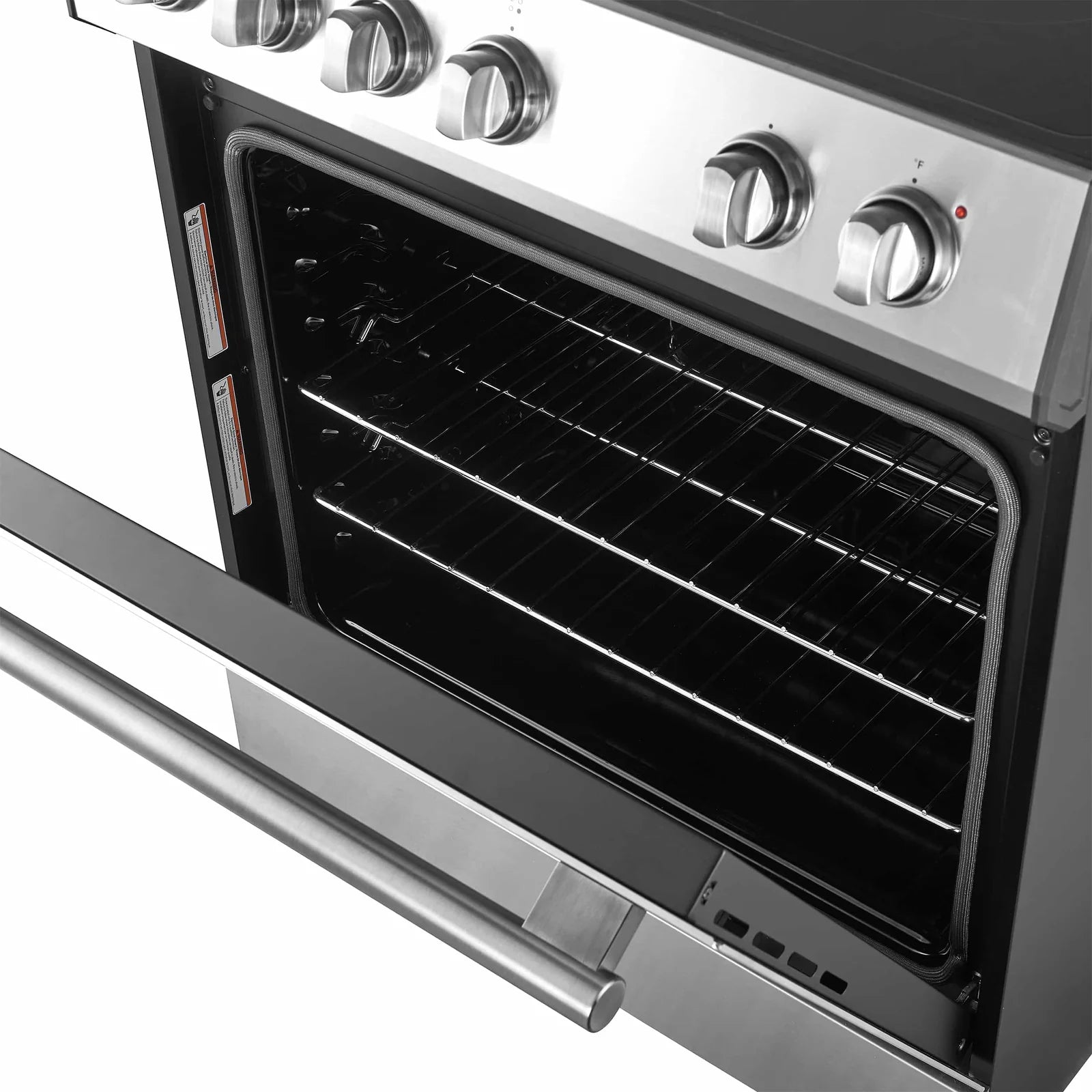

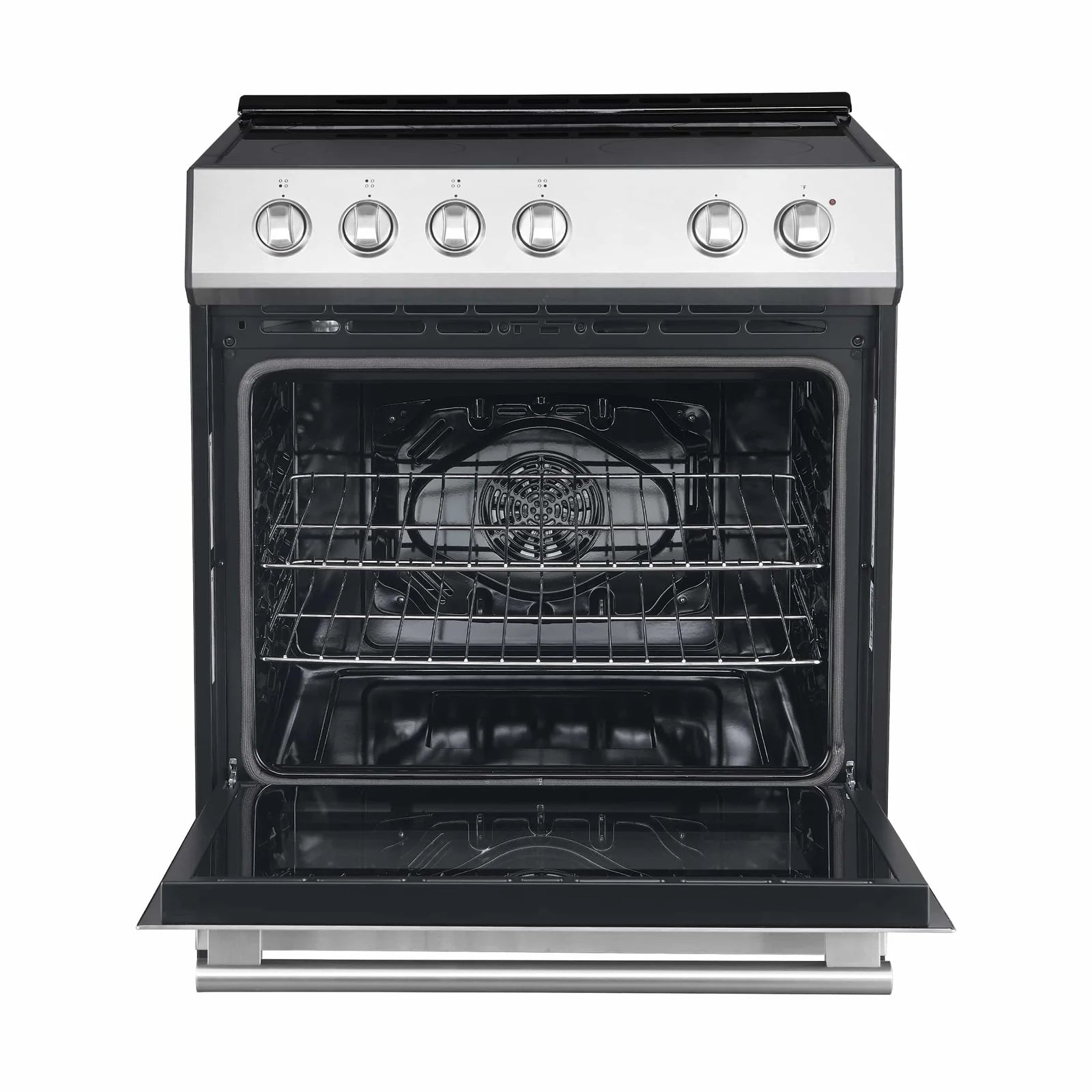

| OVEN FEATURES | |
| Oven Fuel | Electric |
| Number of Ovens | 1 |
| Overall Oven Capacity (cubic feet) | 5 |
| Oven Interior Finish | Black Enamel |
| Oven Racks Type | Standard |
| Number of Racks | 2 |
| Racks Material | Chrome-Plated |
| Number of Rack Positions | 6 |
| Broiler | Yes |
| Overall Broiler Wattage | 2000 |
| Broiler Location | Oven |
| Overall Bake Wattage | 1500 |
| Convection Oven | Yes |
| Convection Type | Standard Convection |
| Cooking Process |
|
| Cleaning Type | Standard |
| Rack position | Yes |
| Oven Preheating Indicator | Yes |
| Temperature Gauge | No |
| Timer | No |
| Storage Drawer | No |
| Door Panel Material | Stainless Steel |
| Main Oven Capacity (cubic feet) | 5 |
| Main Oven Rack Size W x D (in) | 24.6 x 15.9 |
| Main Oven Broil Wattage | 2000 |
| Main Oven Bake Wattage | 1500 |

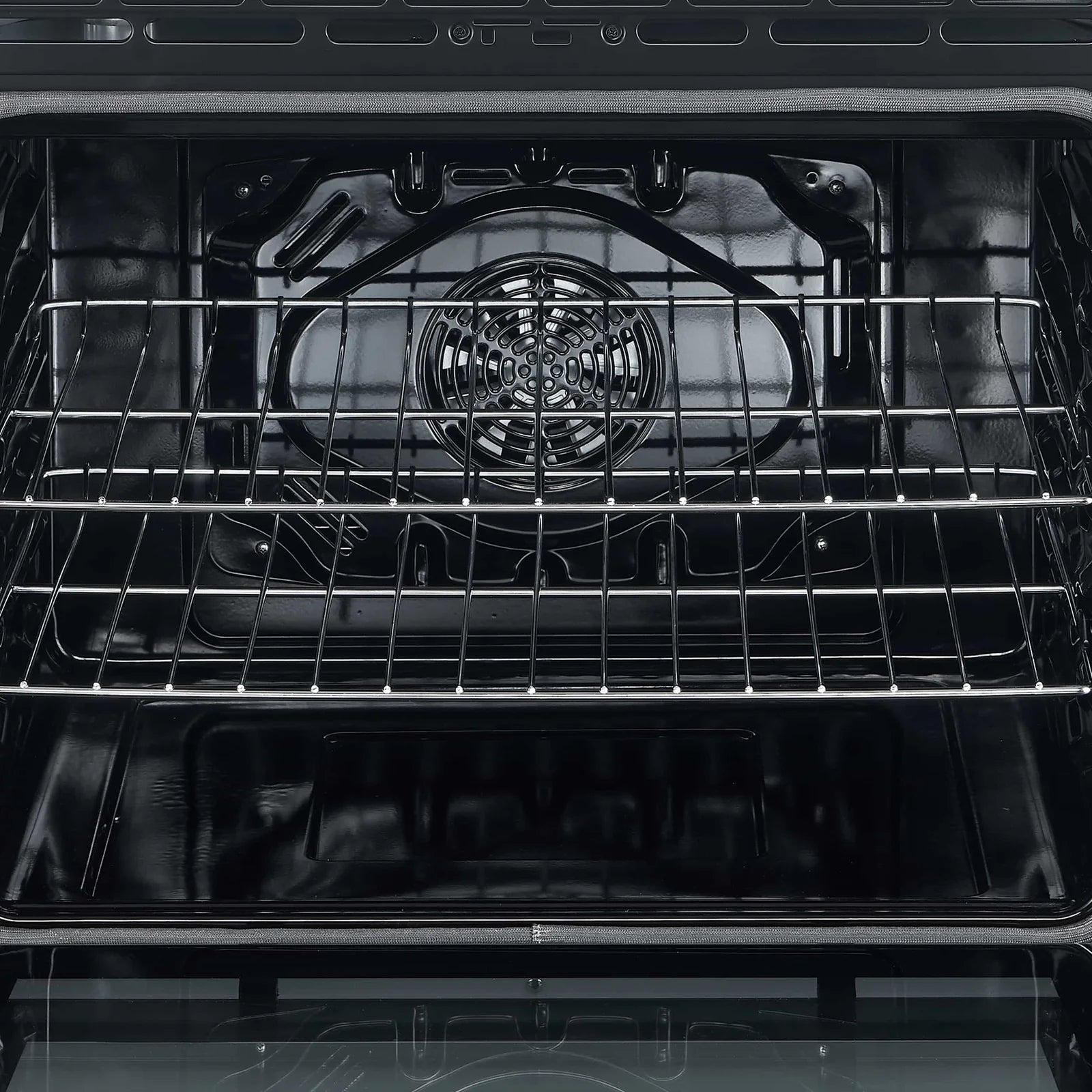

| Main Convection Fan | Yes |
| Main Oven Convection Fan Wattage | 50 |
| Oven Max Power | 3550 |
| WARRANTY & CERTIFICATIONS | |
| Certification | ETL Listed |
| Commercial Warranty | No |
| Warranty Type | Limited |
| Warranty Length | 2 Years |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |

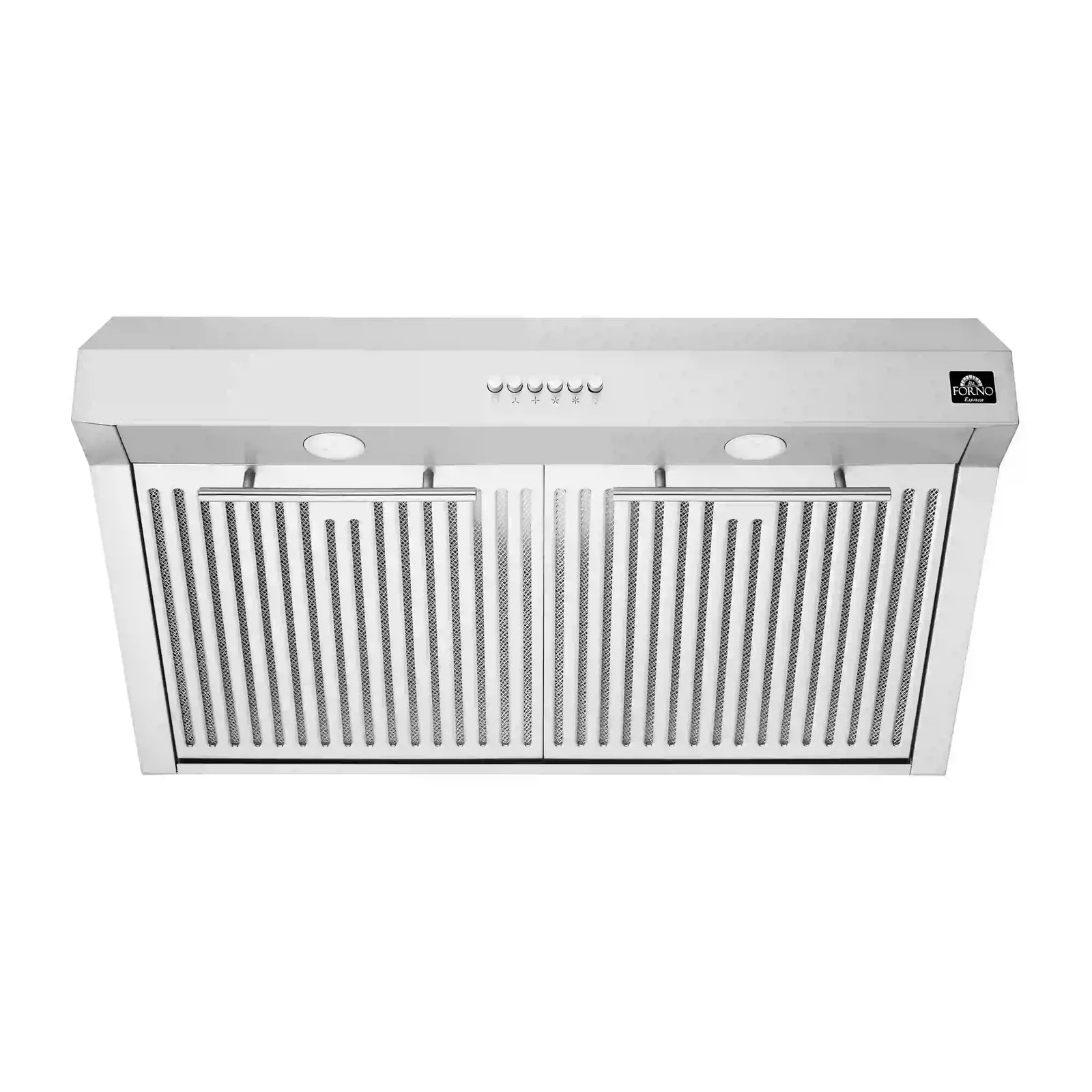

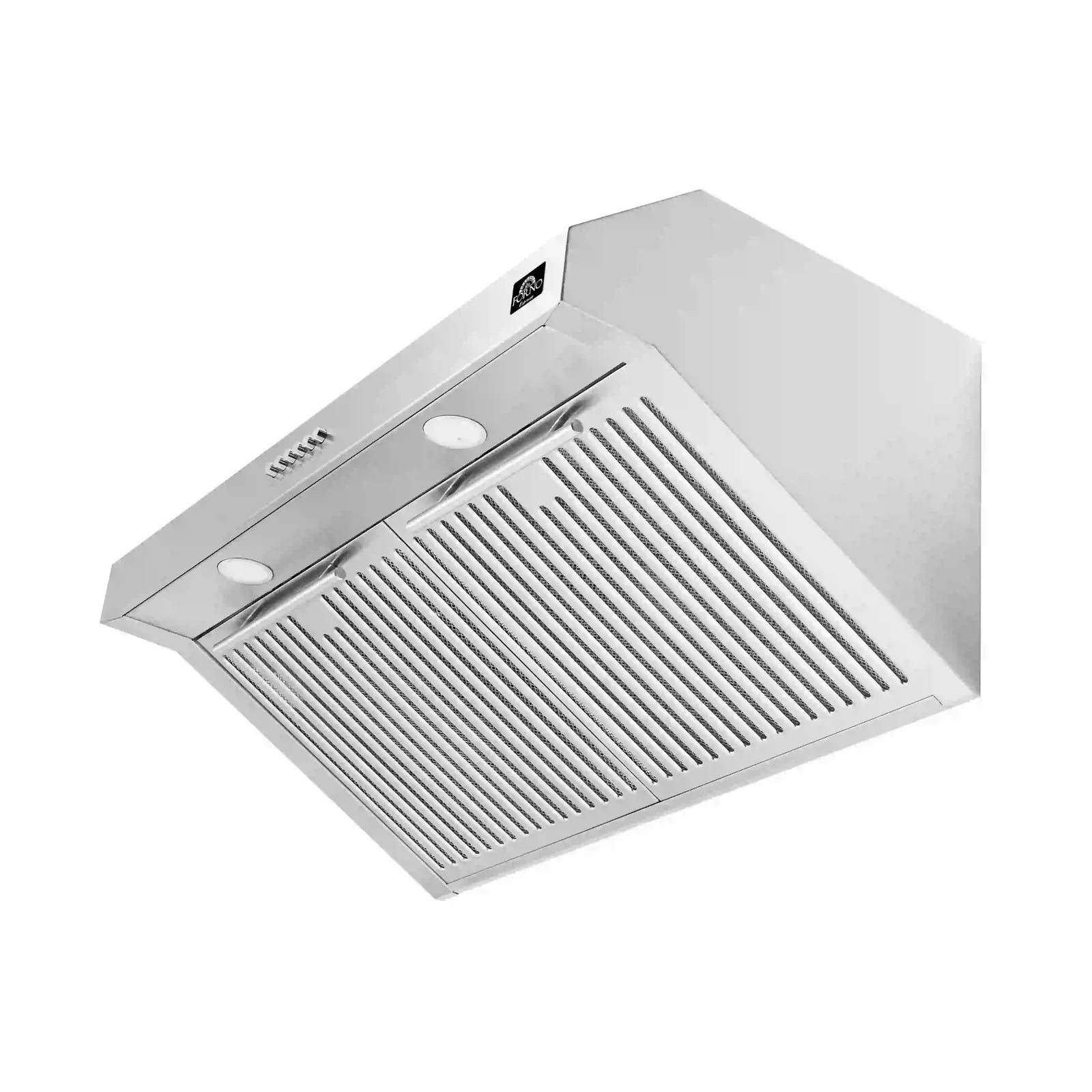

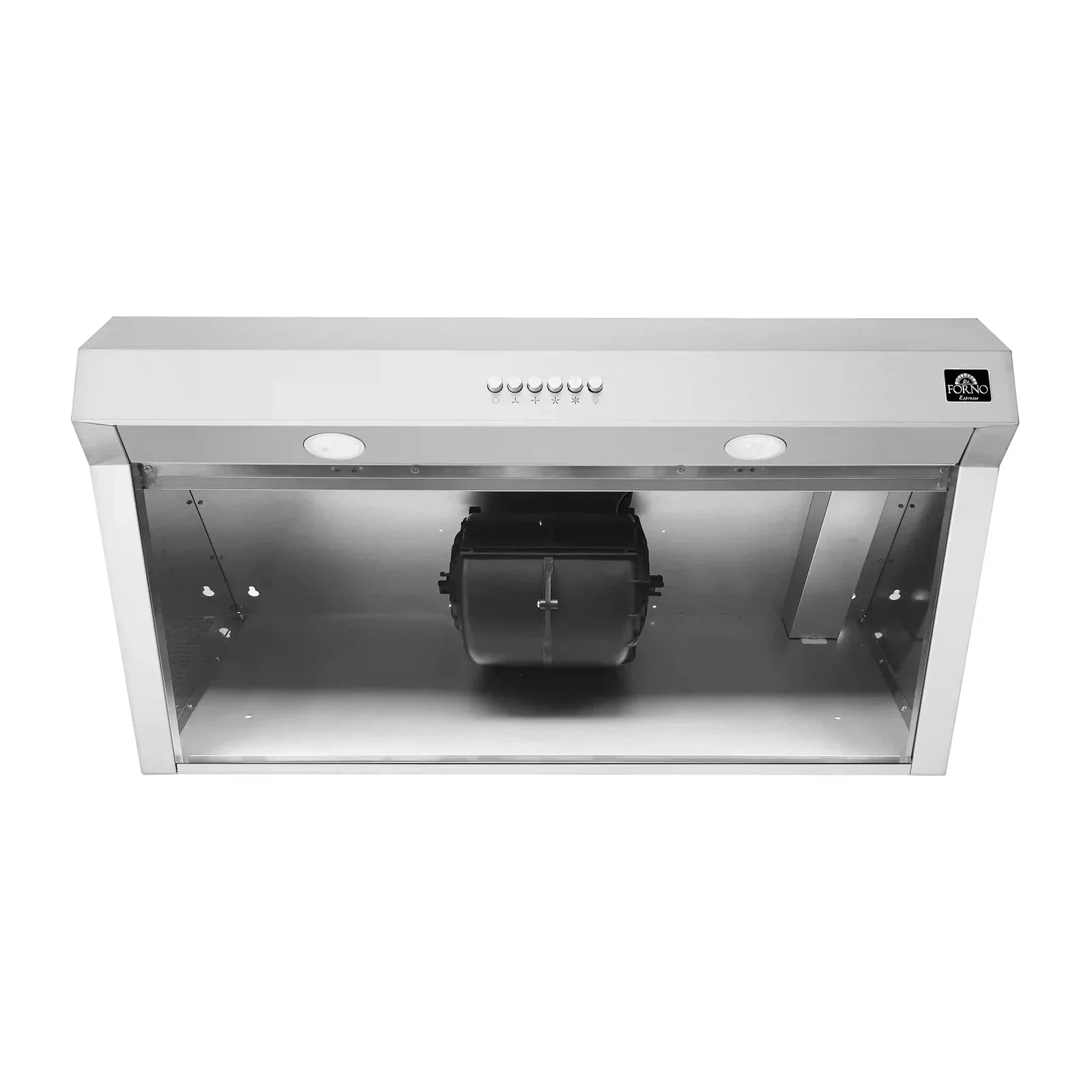

Forno presents the Bari 30” Espresso Range Hood, an exceptional under cabinet range hood that boasts an elegant stainless steel finish, adding a touch of sophistication to your kitchen space. With its powerful 400 CFM airflow, this range hood efficiently eliminates cooking odours, smoke, and airborne grease, ensuring a fresh and clean environment. The user-friendly 4 speed push button control allows you to adjust the ventilation settings effortlessly, providing optimal performance tailored to your needs. Illuminate your cooking area with two built-in LED surface lights, offering bright and even lighting for a delightful culinary experience. Equipped with a durable baffle and mesh filter, this range hood effectively traps grease and debris, ensuring easy maintenance and prolonging the lifespan of the appliance. Upgrade your kitchen with the versatile and high-performing under cabinet range hood from Forno, where style meets functionality.

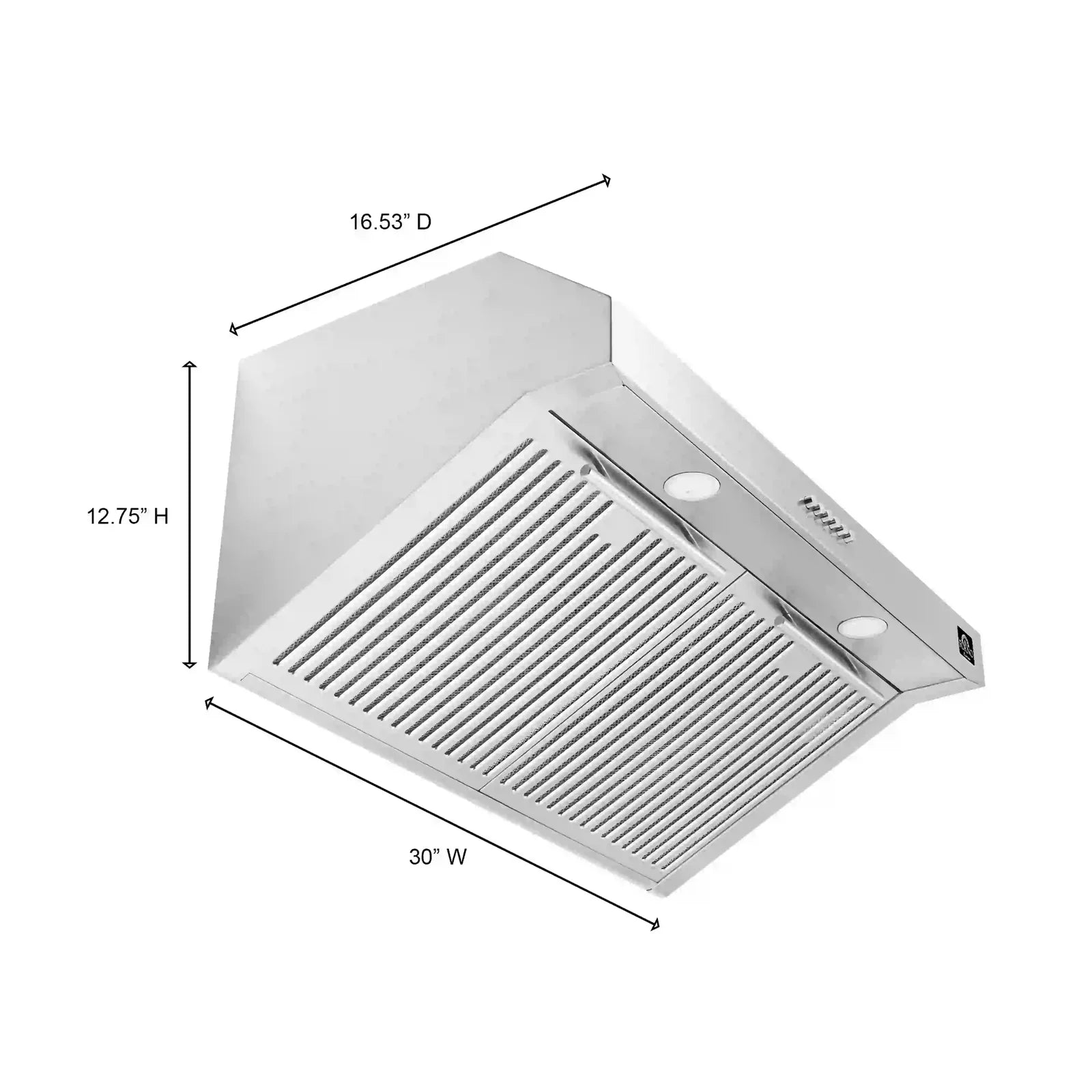

| Dimensions | 30" W x 16.5" D x 12.75" H |
| # Speed levels | 4 |

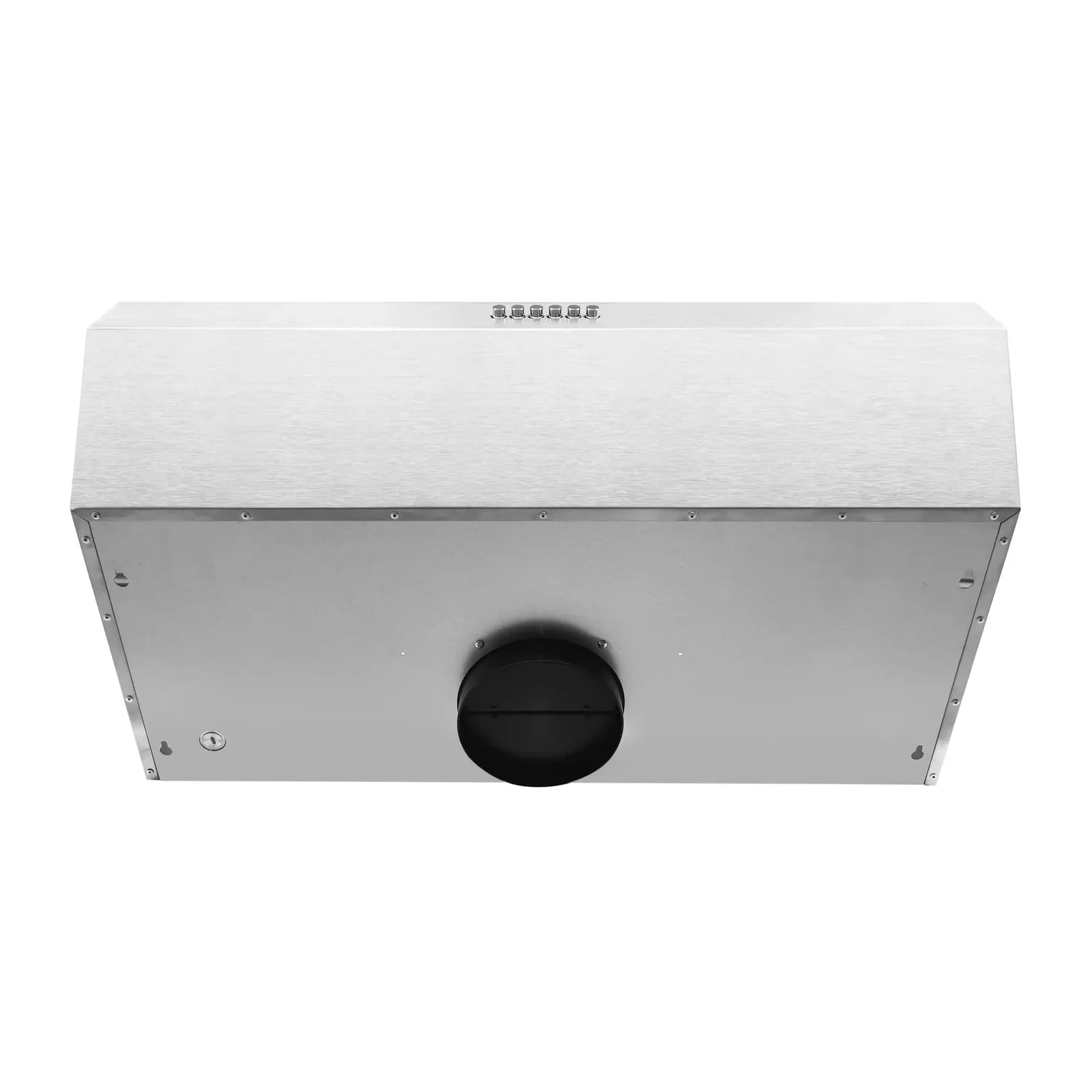

| Duct Shape | Circular |
| Duct Size | 6” |
| Size | 30" |
|
Style design |
Under cabinet hoods |
|
Unit Color |
Stainless steel |
|
Ventilation Type |
Roof vent |
|
Electrical supply |
110~120V/60Hz |
|
Power connection |
no plug |
|
Power rating |
310 W |
|
Certification |
ETL |
|
Warranty |
2 Year Limited |
|
Weight (lbs) |
24.4/31.2 |
|

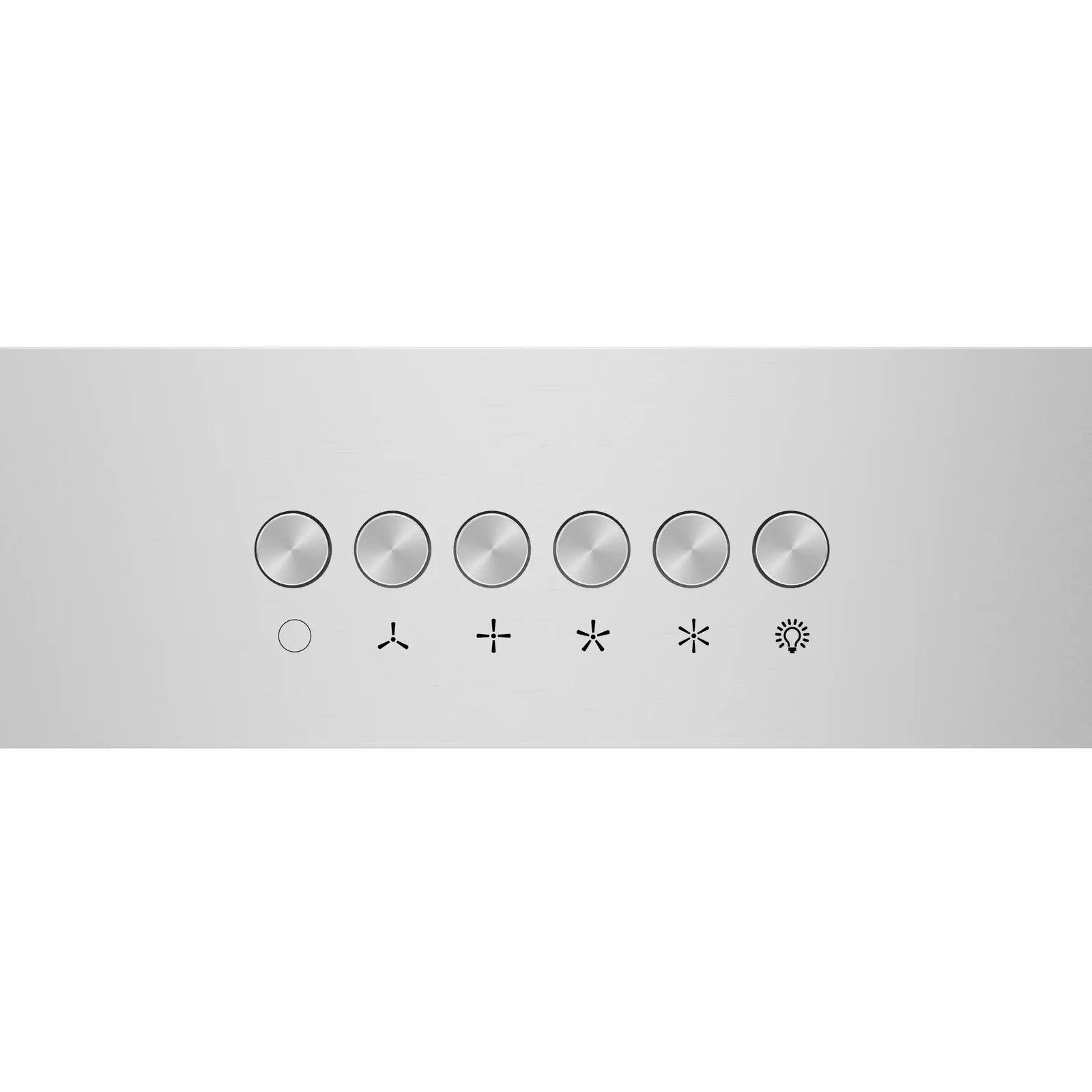

Control type |
Push buttons |
|
Number of Hood filters |
2 |
|
Hood Filter type |
Commercial hybrid filter (Baffle & Mesh filter)) |
|
Light Type |
LED Bulb (gu10) |
|
Number of Lights |
2 |
|
Damper |
1 |
|
Number of Ducts |
1 |
|
Handles |
Yes |
|
Handle Color |
Choice of Stainless steel or Antique Brass |
