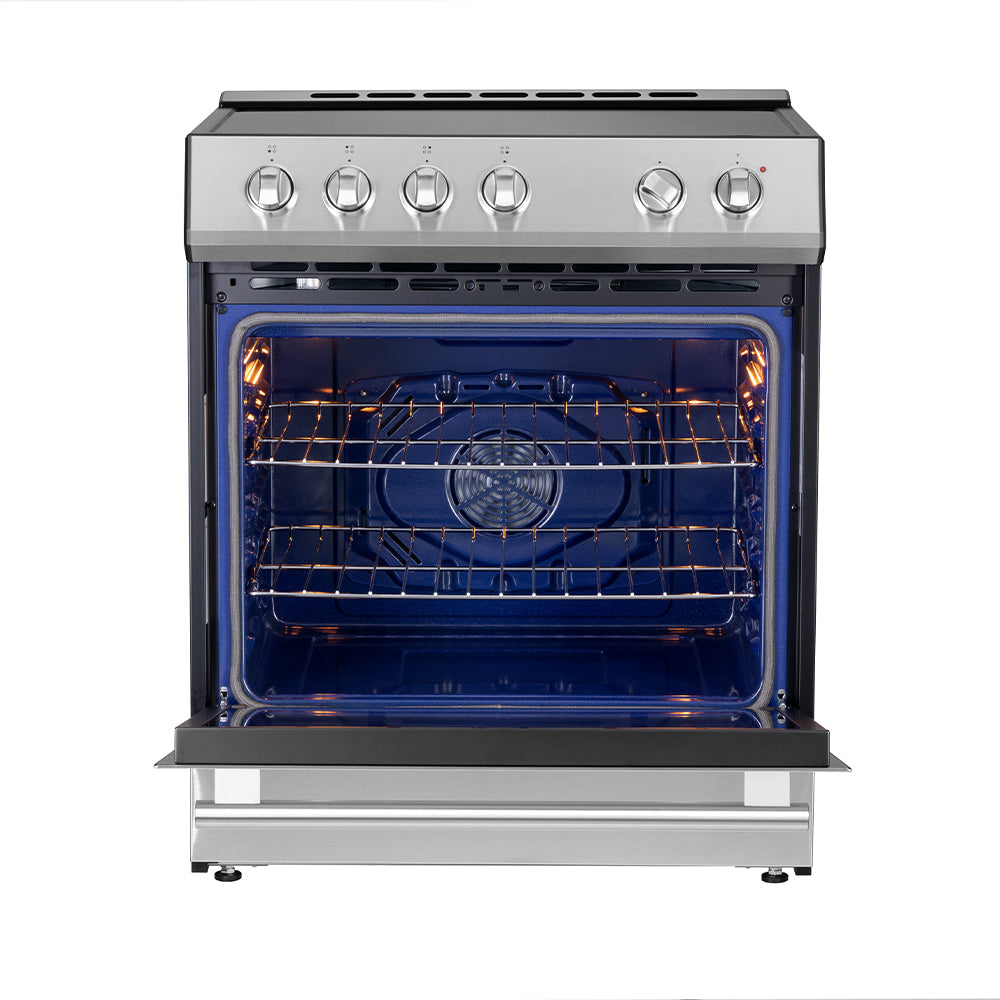

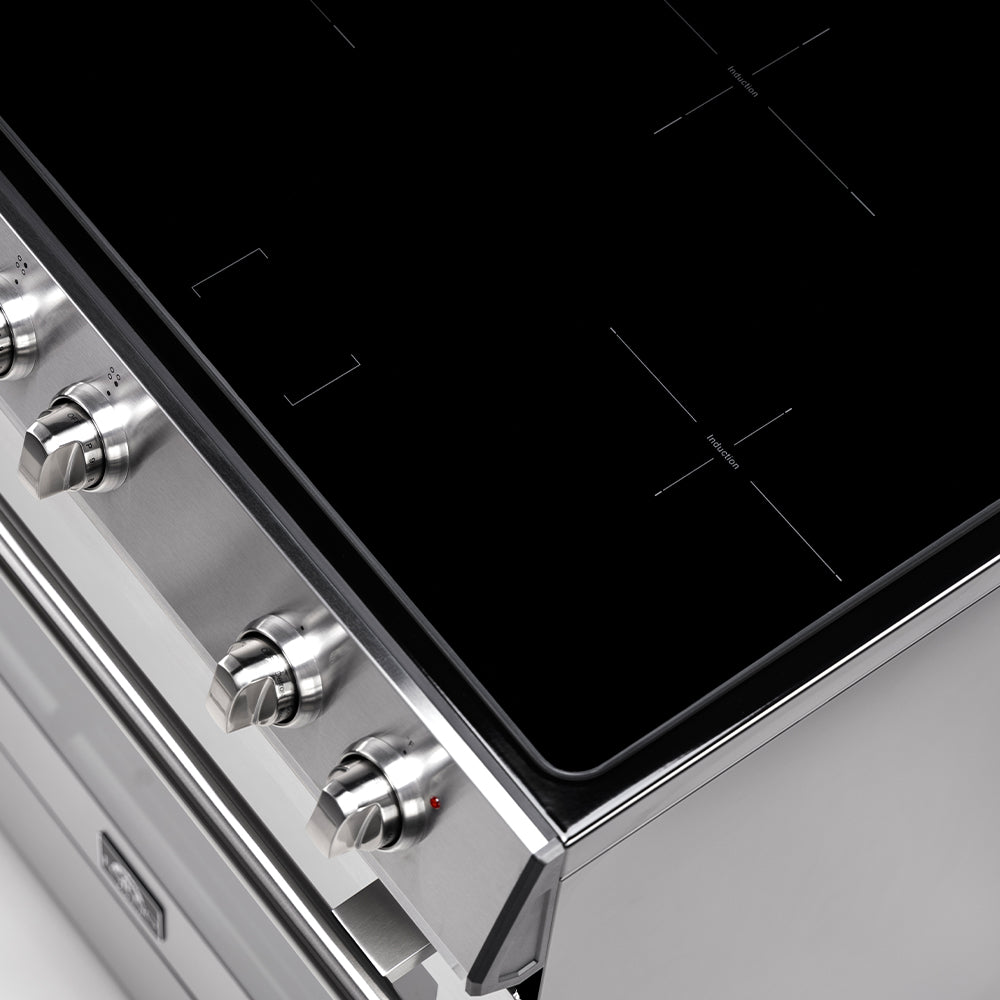

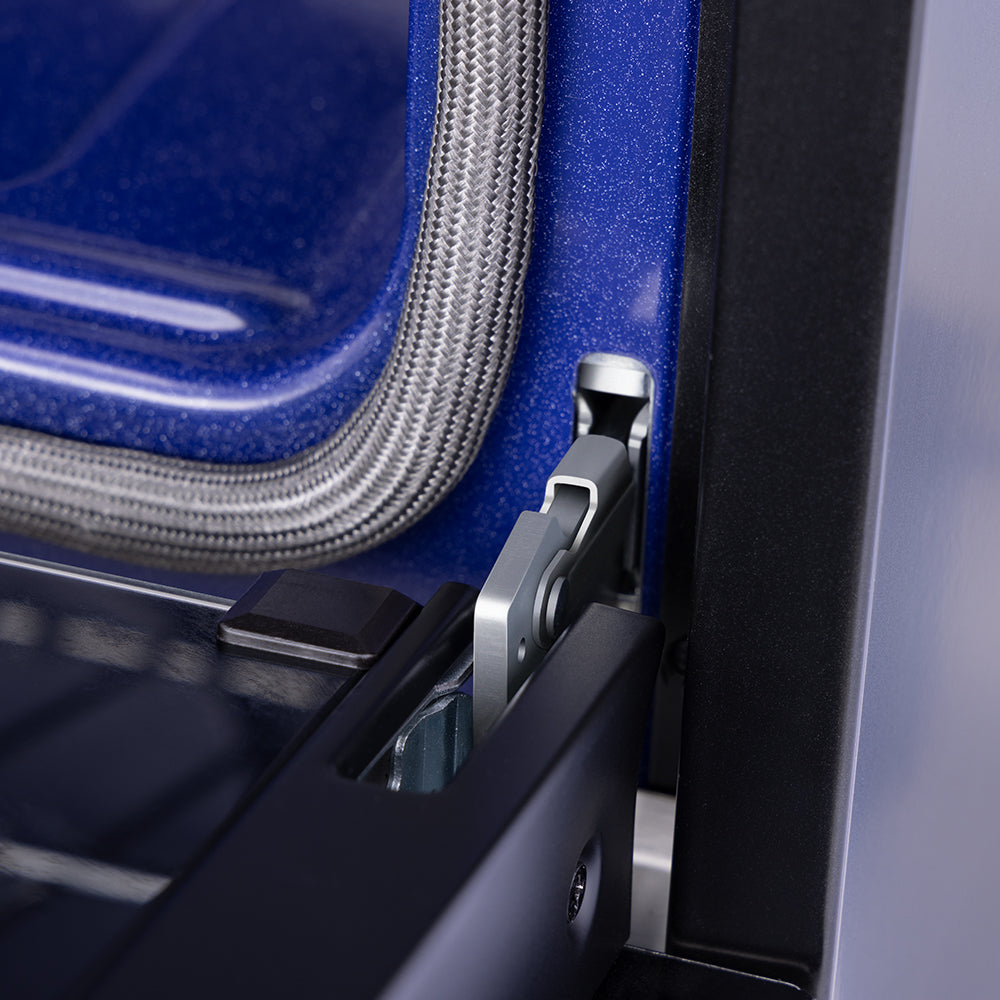

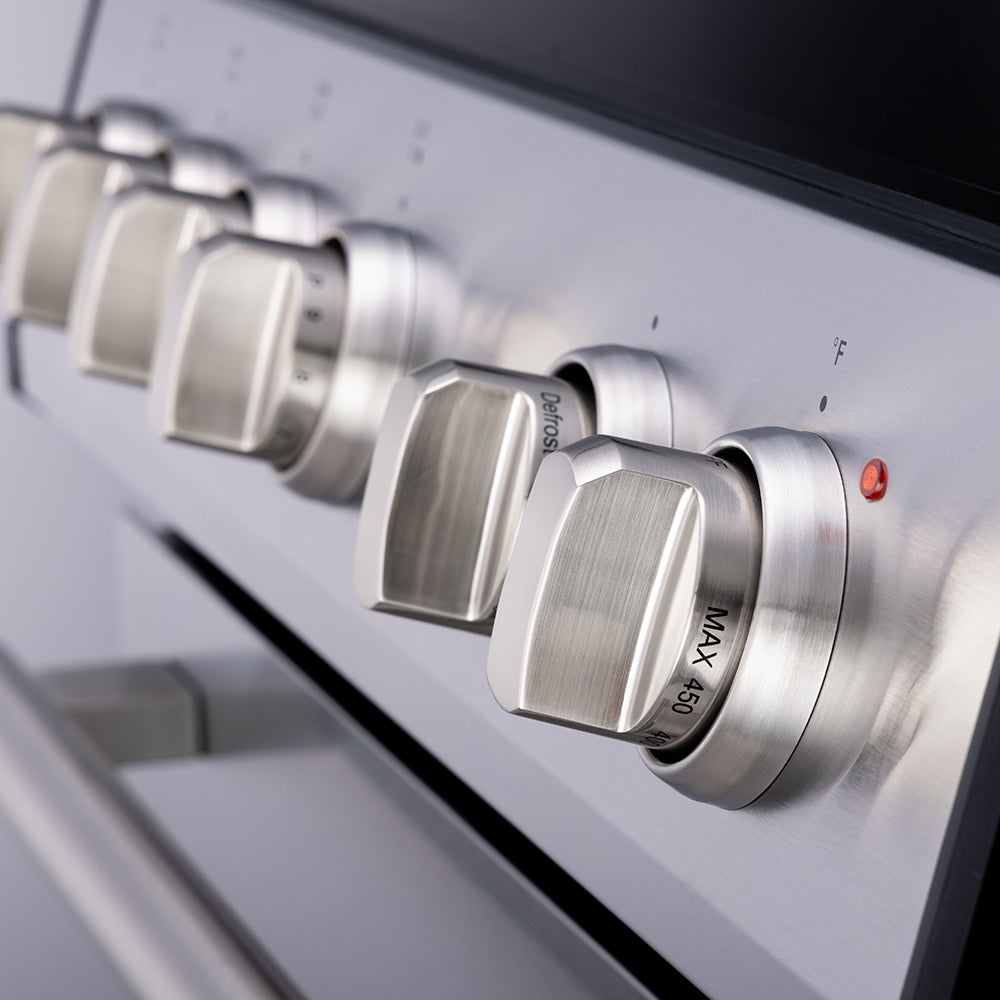

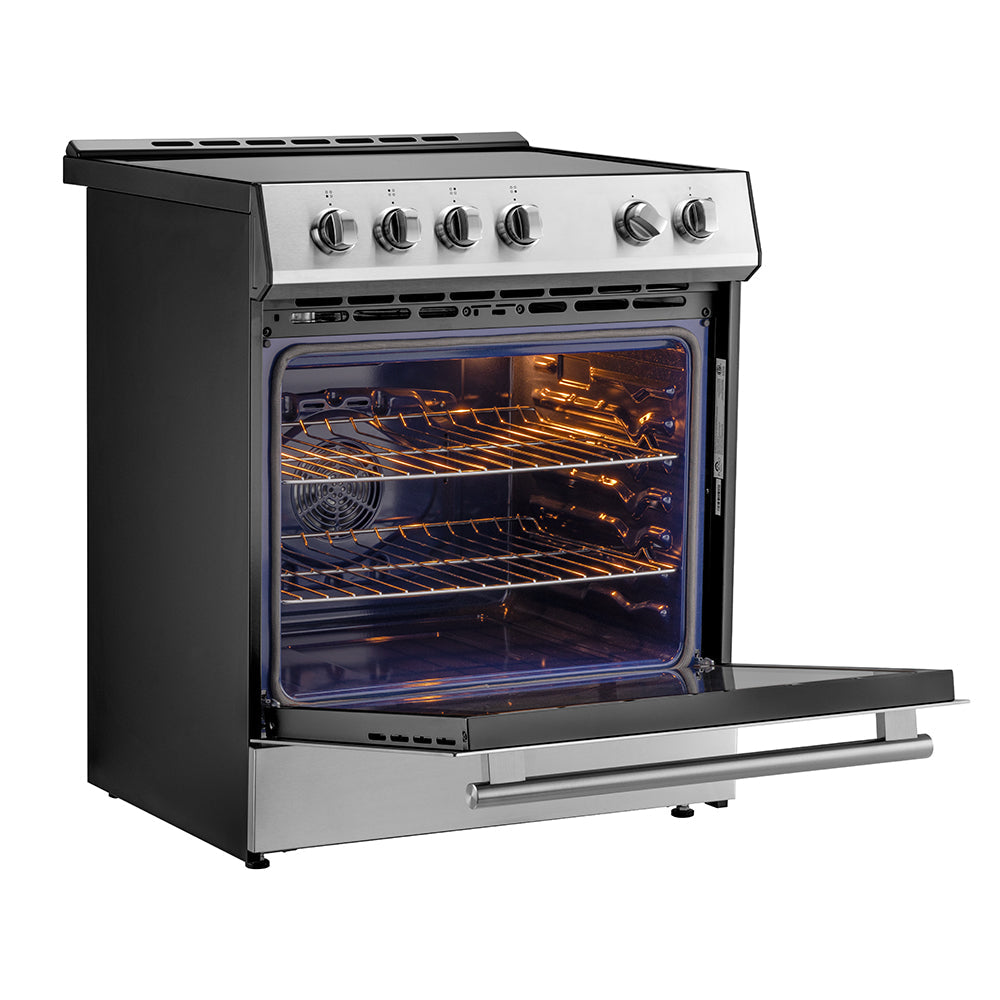

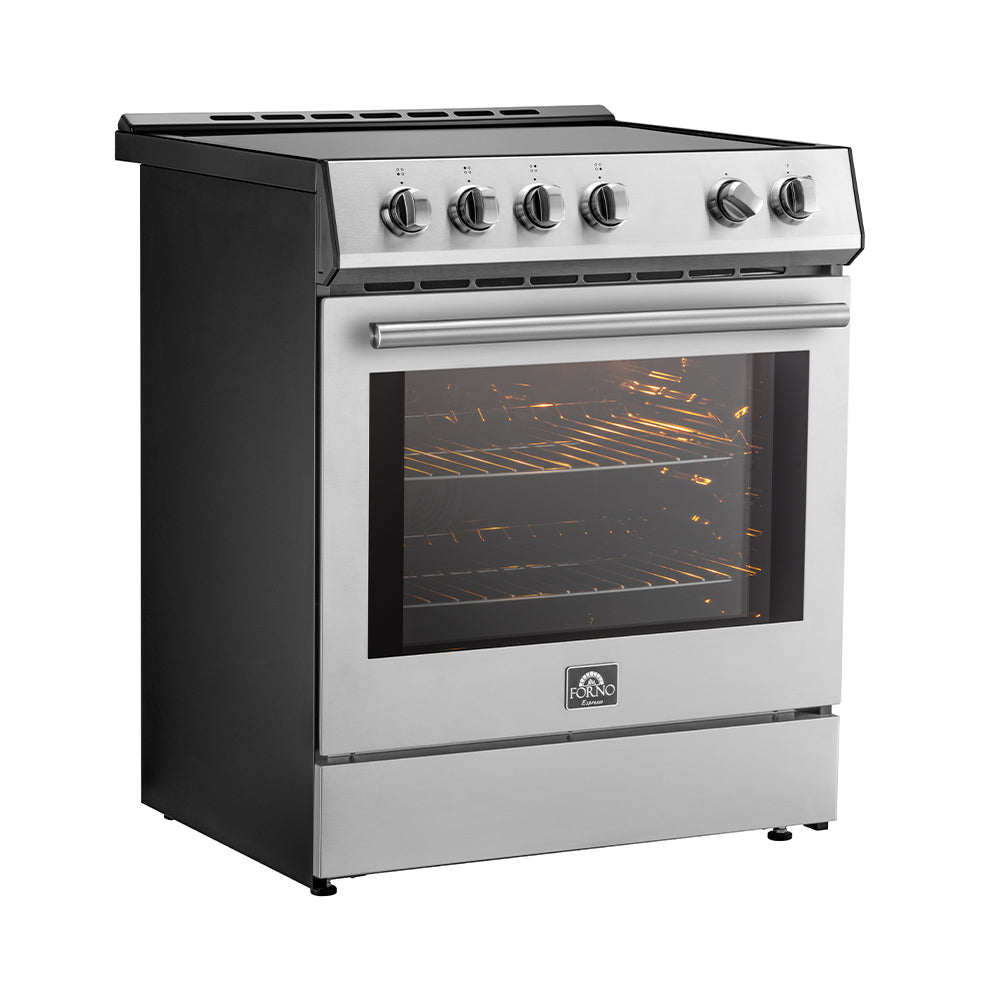

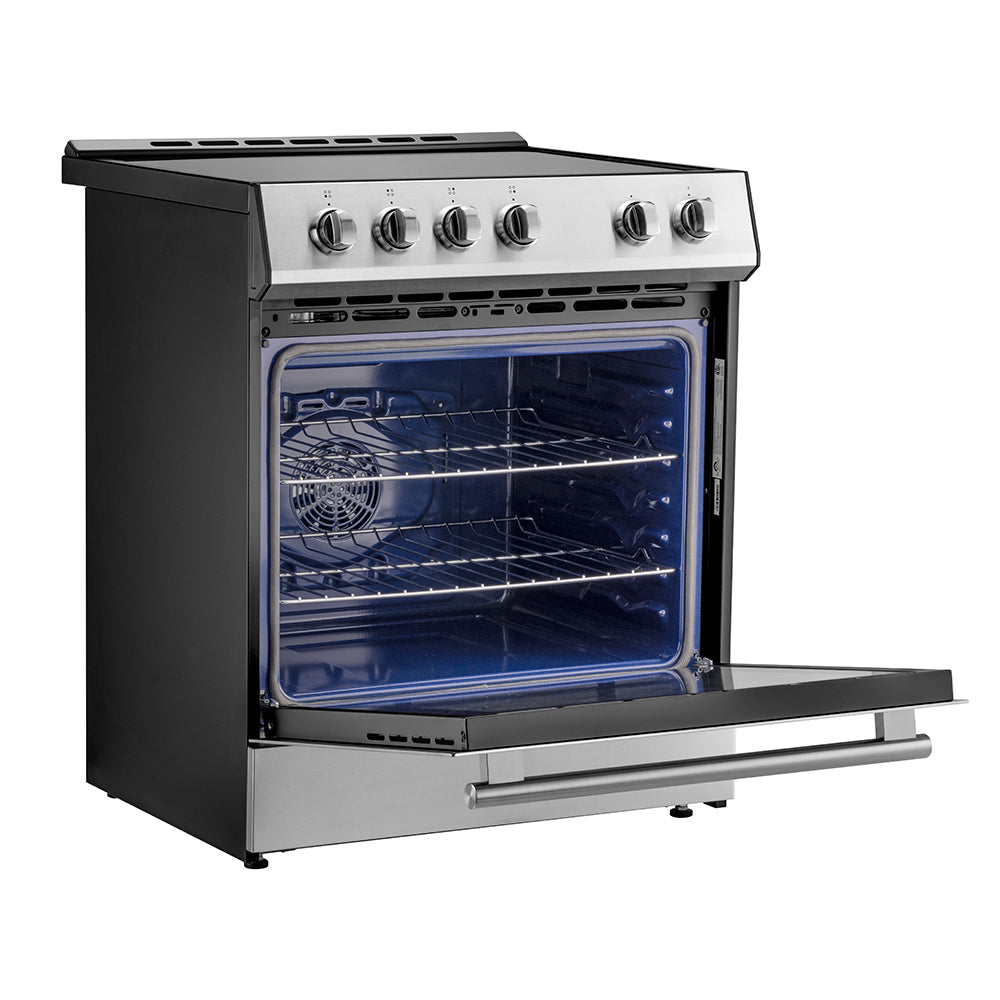

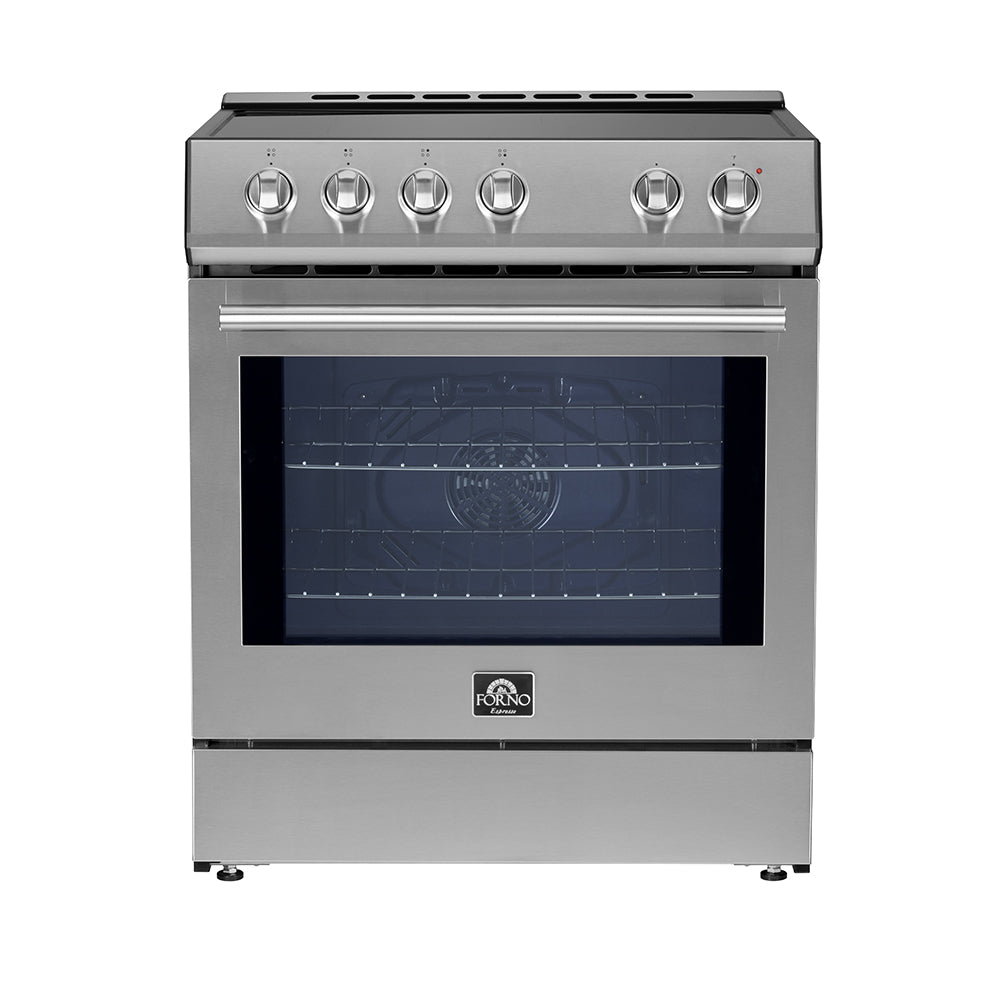

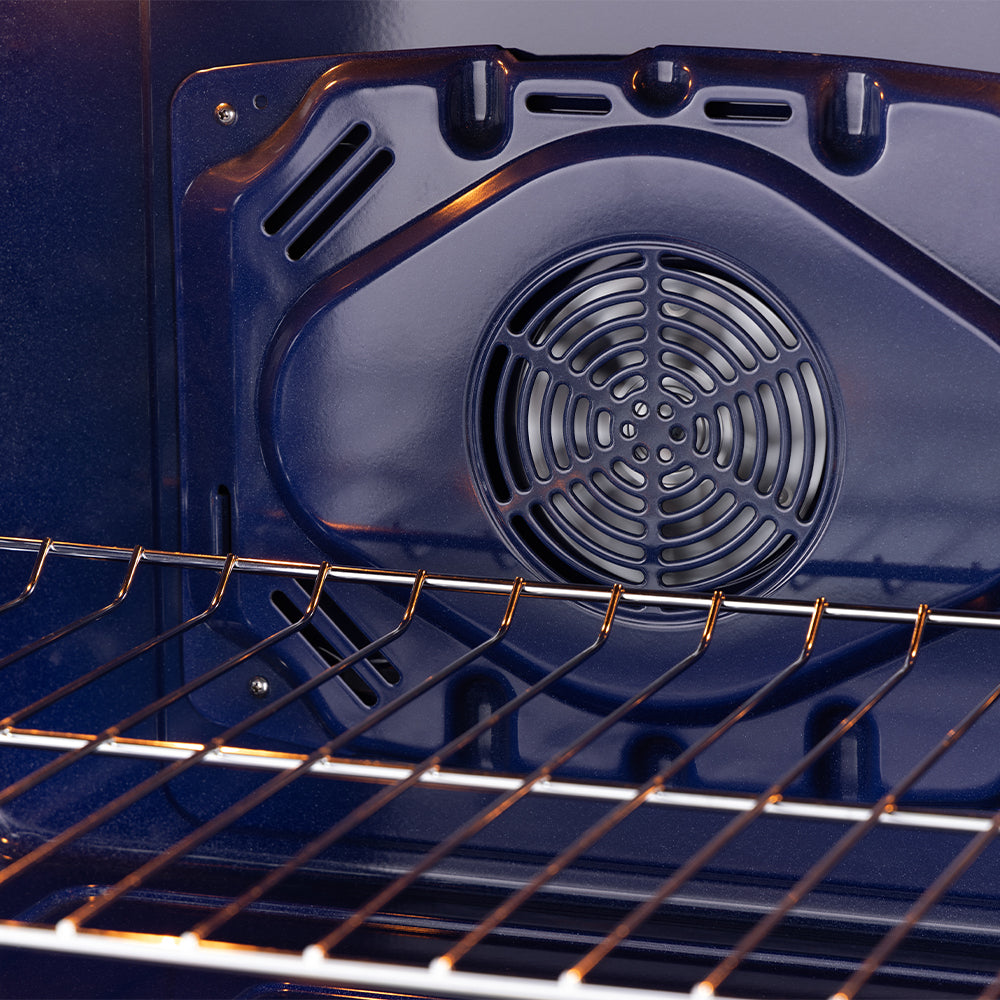

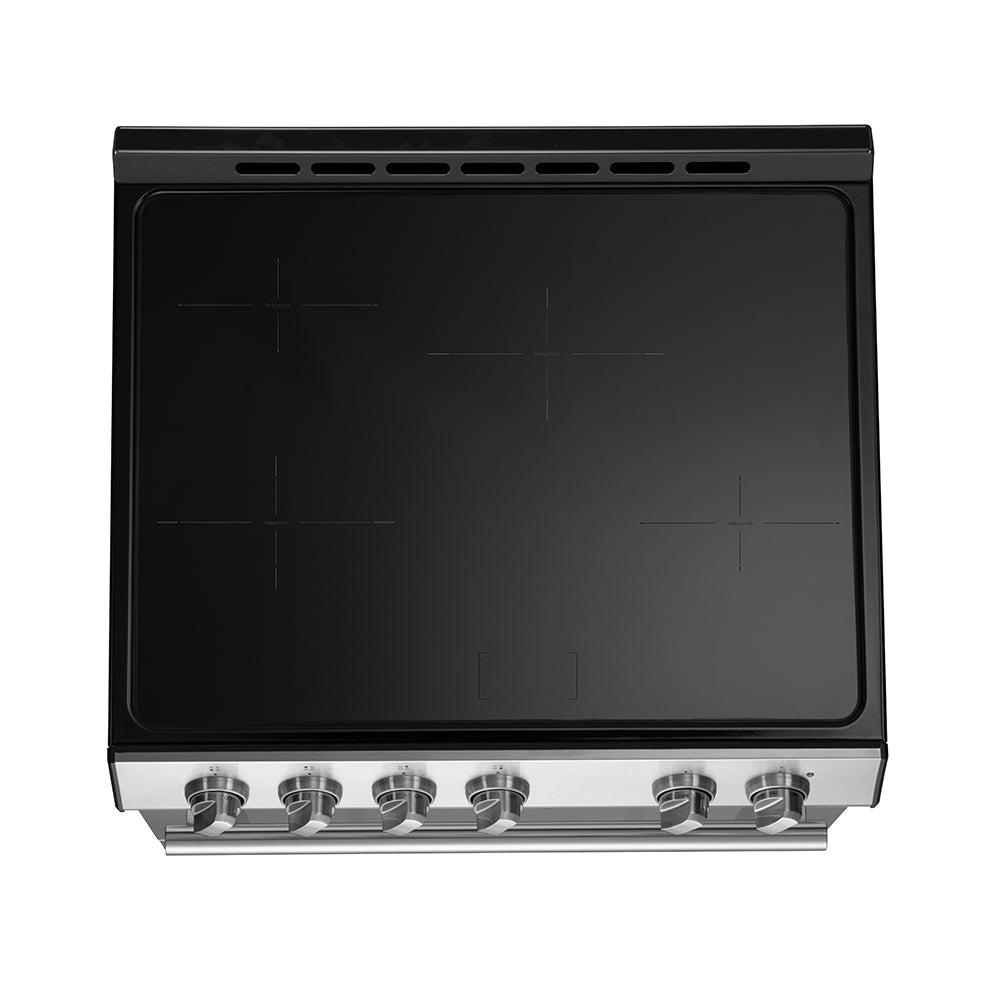

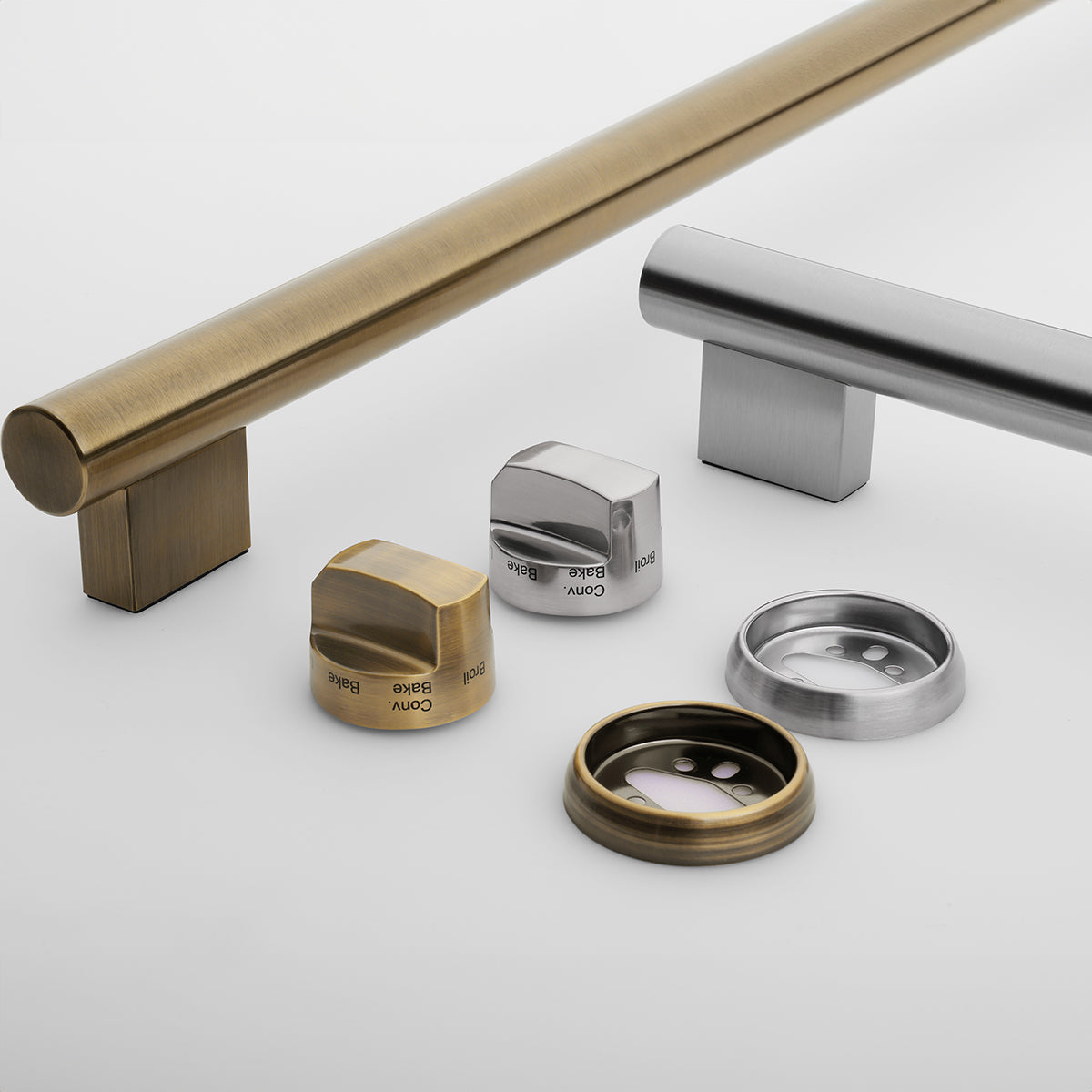

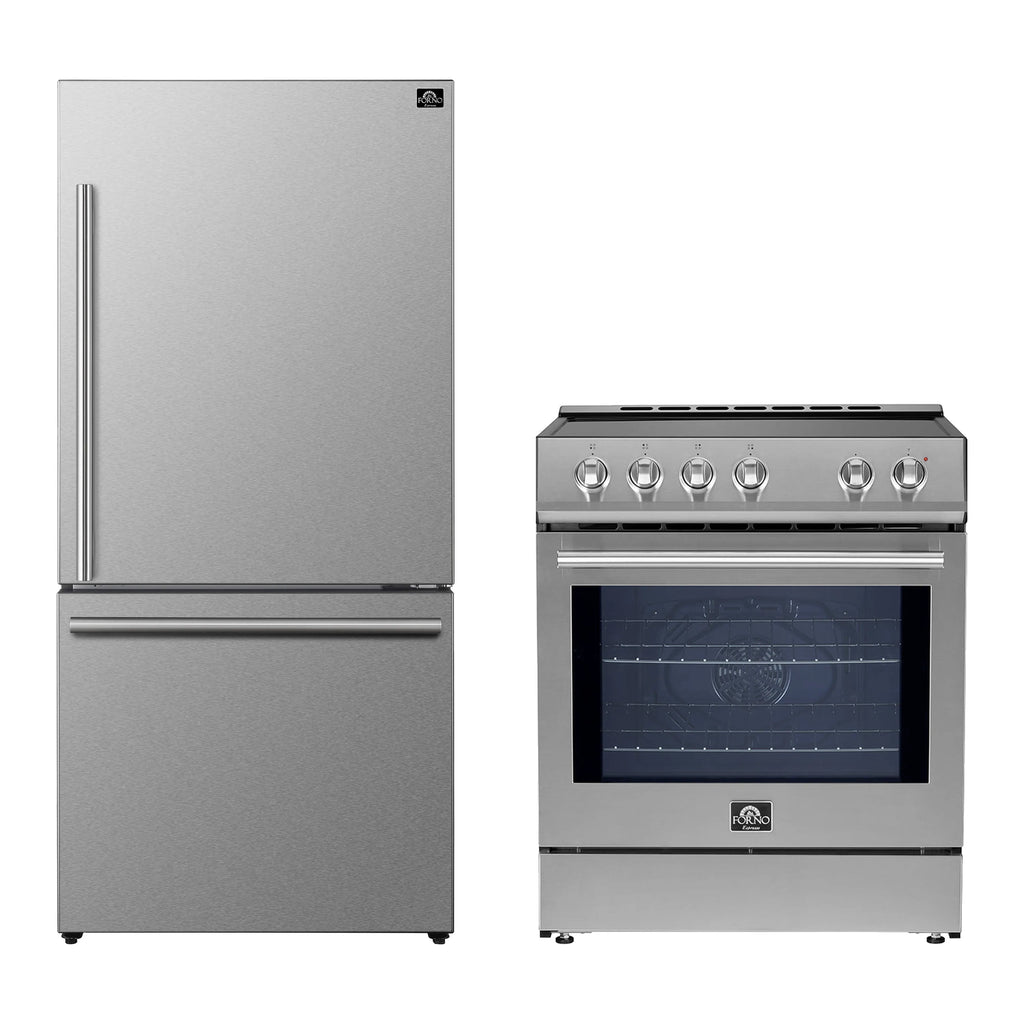

The FORNO Leonardo Espresso 30-Inch stainless steel induction range elevate your cooking experience with this perfect blend of style, functionality, and reliability. Combining customizable handles and knobs with powerful induction elements, that delivers a total power of 8,100 watts for efficient cooking. The ceramic glass cooktop guarantees precise heat distribution while facilitating effortless movement of cookware. The 5 cu.ft. convection oven boasts a high-performance convection fan and a broil and bake output of 3,500 watts. With two oven racks at your disposal, explore endless culinary possibilities with ease. The speckled blue enamel interior guarantees consistent heat absorption and retention, ensuring every dish is cooked to perfection. Effortless operation is ensured by friction-resistant hinges, while the hidden bake element prevents spills, simplifying maintenance. Skip the high price tags without sacrificing quality and performance. Lower the cost of living with Forno.
| DIMENSIONS | |
|---|---|
| Cutout Dimensions W x D x H (inches) | 30''W x 25''D x 36''H |
| Depth with Oven Door Open 90º (IN) | 46.25" |
| Depth without Oven Door Handle (IN) | 24.375" |
| Overall Weight (LBS) | 145.5 lbs |
| Power Cord Length With Plug (FT) | 5.77 ft |
| Main Oven Interior (W x D x H) (IN) | 24.6"W x 17.7"D x 19.7"H |
| Usable Main Oven Interior Dimensions W x D x H (inches) | 24"W x 15.75"D x 12"H |
| GENERAL INFORMATION | |
| Product Type | Slide-In |
| Supplier Intended and Approved Use | Residential Use |
| ISTA 6A | Yes |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Overall WxDxH (IN) Biggest Dims Possible (with Handle, Backsplash, etc) | 29.875"W x 27.625"D x 37.75"H |
| Color/Finish | Stainless Steel |
| Handle Finish | Stainless-Steel |
| Clock | No |
| Interior Light | Yes |
| Light(s) Control | Knob Activated |
| Number Of Lights | 2 |
| Control Type | Knobs |
| Number of Knobs | 4 |
| Knobs Color/Finish | Stainless Steel |
| Control Location | Front |
| Control Lock | Yes |
| Primary Material | Steel |
| Control Panel Material | Steel |
| Kick Plate Material | Steel |
| TECHNICAL DETAILS | |
| Dedicated Circuit Breaker Amperage | 50 Amp |
| Total Amps Use | 44.79 Amp |
| Volts | 240 V |
| Rated Power (W) | 10,750 Watts |
| Power Cord Included | Yes |
| Plug Type | NEMA 14-50P |
| Fuel Type | Electric |
| Plug-In | Yes |
| Power Cord | Yes |
| COOKTOP FEATURES | |
| Cooktop Max Power (W) | 7,200 Watts |
| Burner Fuel | Electric |
| Electric Heat Configuration (Cooktop) | Induction |
| Total cooktop Wattage output | 8,100 Watts |
| Number of Burners | 4 |
| Double Ring Burner | No |
| Warmer Burner | No |
| Bridge Element/Flex Zone | No |
| Cooktop Surface Color | Black |
| Cooktop Surface Materiel | Ceramic Glass |
| Cooktop Surface Structure | Smoothtop |
| Cooking Surface Control Type | Knobs |
| Broiler Element Type | Single Element |
| Overall Broiler Element Wattage | 2,000 Watts |
| Bake Element | Yes |
| Overall Bake Element Wattage | 1,500 Watts |
| Hidden Bake Element | Hidden |
| Cooktop Hot Surface Indicator | Yes |
| Griddle | No |
| Front Right Burner Watts | 1,500 Watts |
| Front Right Burner Size (IN) | 7 |
| Front Left Burner Watts | 2,100 Watts |
| Front Left Burner Size (IN) | 9 |
| Rear Right Burner Watts | 3,000 Watts |
| Rear Right Burner Size (IN) | 9 |
| Rear Left Burner Watts | 1,500 Watts |
| Rear Left Burner Size (IN) | 7 |
| OVEN FEATURES | |
| Oven Max Power | 3,500 Watts |
| Oven Fuel | Electric |
| Number of Ovens | 1 |
| Oven Interior Finish | Speckled Blue |
| Telescopic Racks | No |
| Oven Racks Type | Standard |
| Number of Racks | 2 |
| Racks Material | Chrome-Plated |
| Number of Rack Positions | 6 |
| Broiler | Yes |
| Broiler Location | Oven |
| Convection Oven | Yes |
| Convection Type | Standard Convection |
| Automatic Convection Conversion | No |
| Cook time Option | No |
| Delay Start | No |
| Temperature Gauge | No |
| Timer | No |
| Sabbath Mode | No |
| Cleaning type | Standard |
| Oven Preheating Indicator | Yes |
| Door Lock Option | No |
| Storage Drawer | No |
| Door Panel Material | Steel |
| Air Fryer Kit (Basket + Support & Drip Pan) | No |
| Rotisserie Kit | No |
| Main Oven Capacity (cubic feet) | 5 cu.ft. |
| Main Oven Function |
|
| Main Oven Rack Size | 24"W x 15.75"D |
| Main Oven Bake Wattage | 1,500 Watts |
| Main Convection Fan | Yes |
| Main Oven Type Of Convection | Single Fan |
| WARRANTY & CERTIFICATIONS | |
| Safety Listing | cETLus |
| File/Certification Number | 3100243 |
| ADA Compliant | No |
| Star-K Certified | Not Certified |
| Commercial Warranty | No |
| Warranty Type | Limited |
| Warranty Length | 2 Years |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |

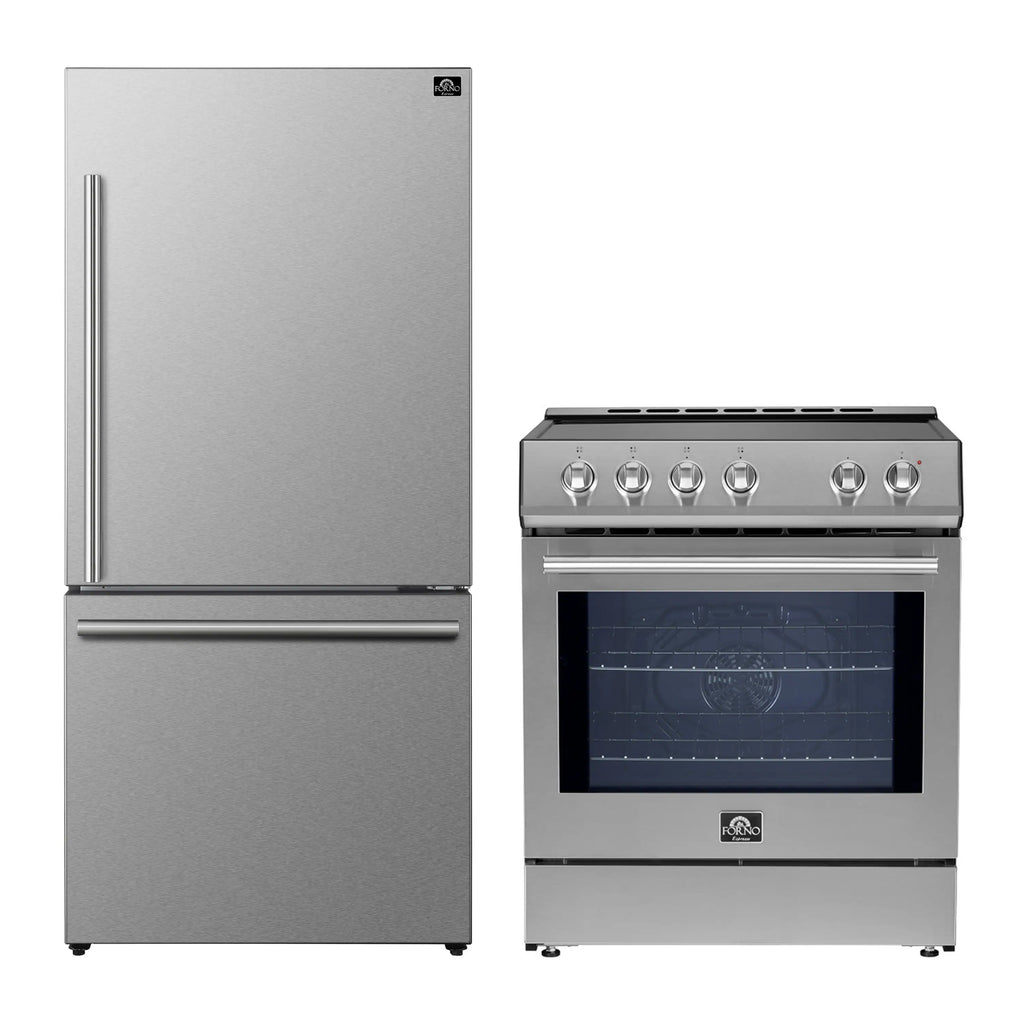

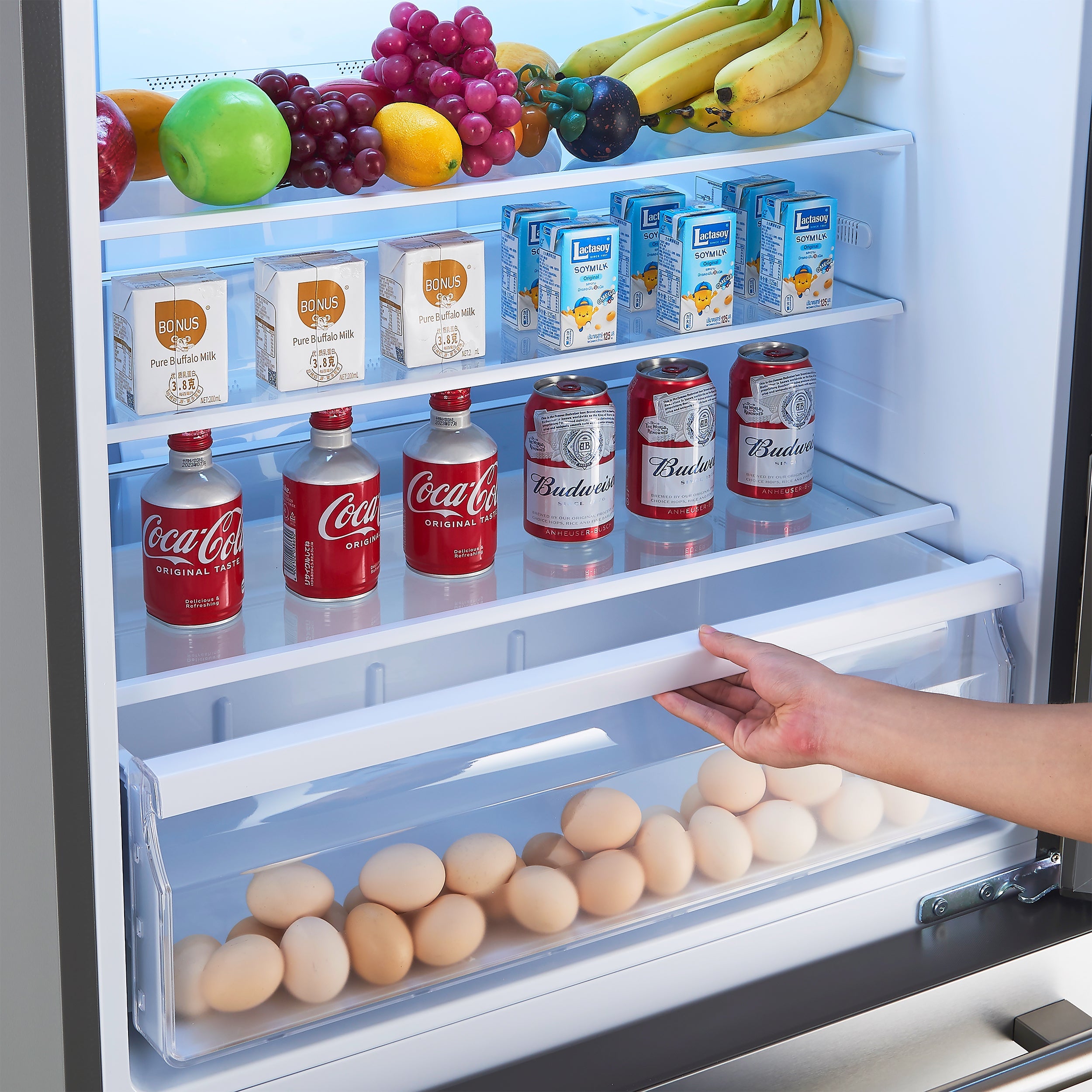

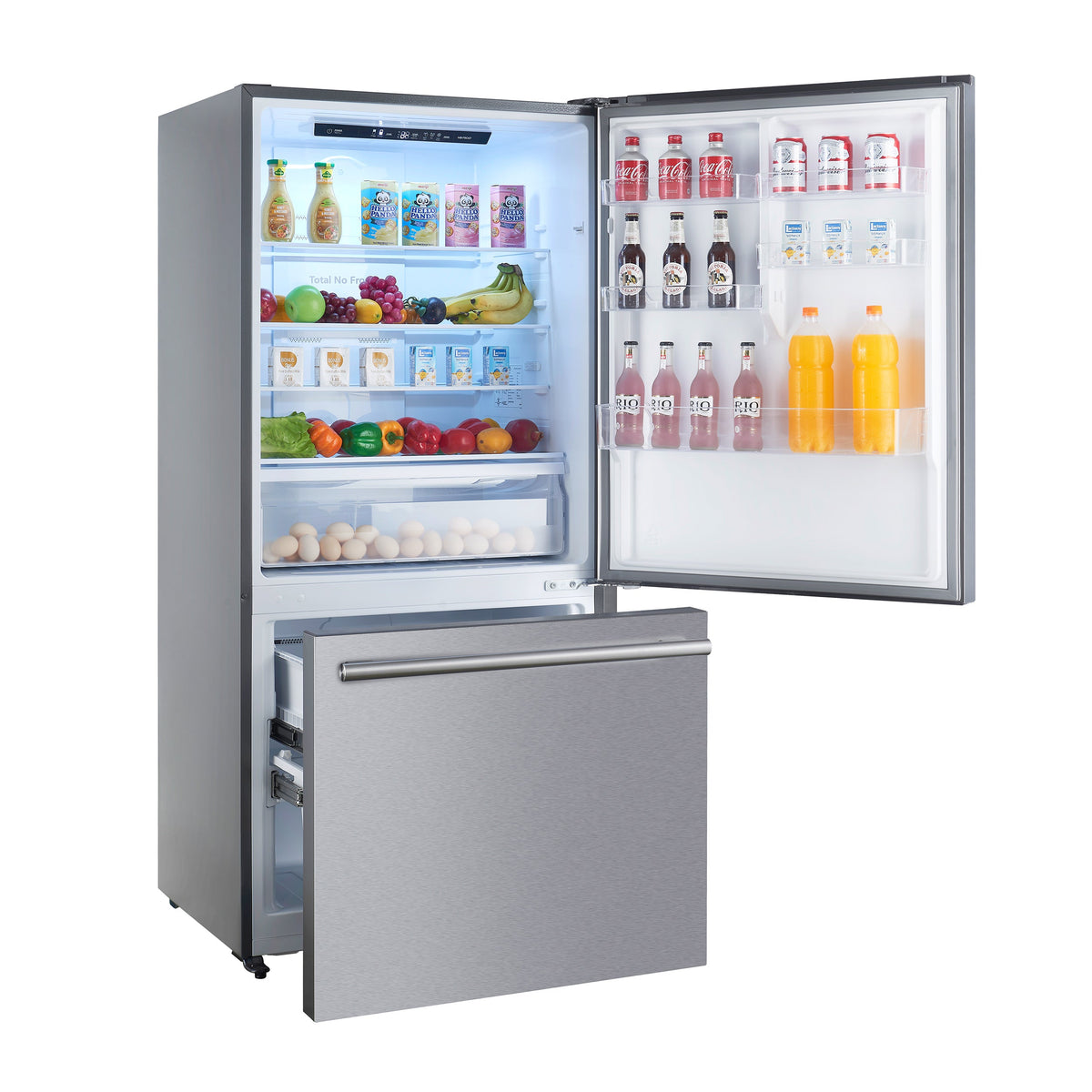

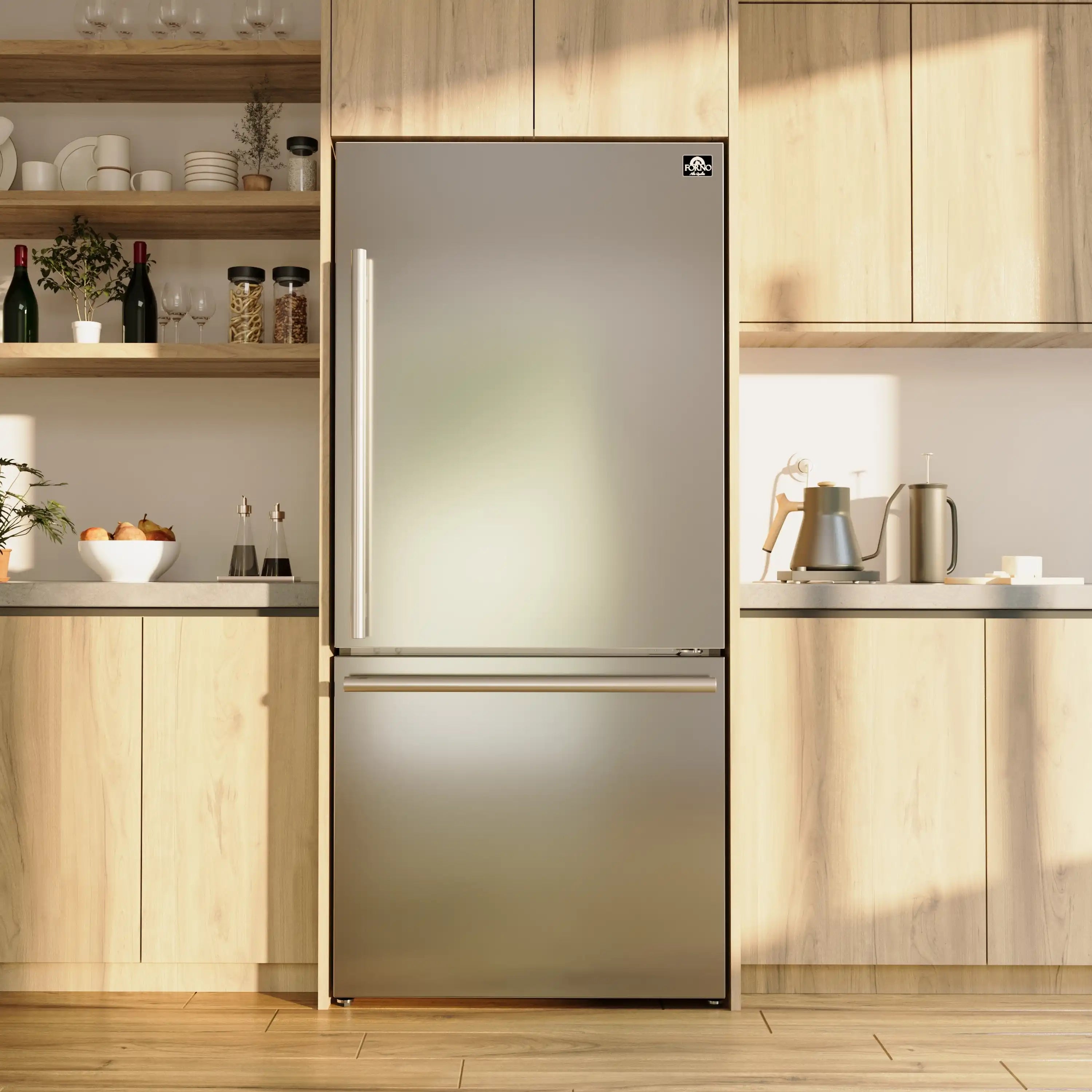

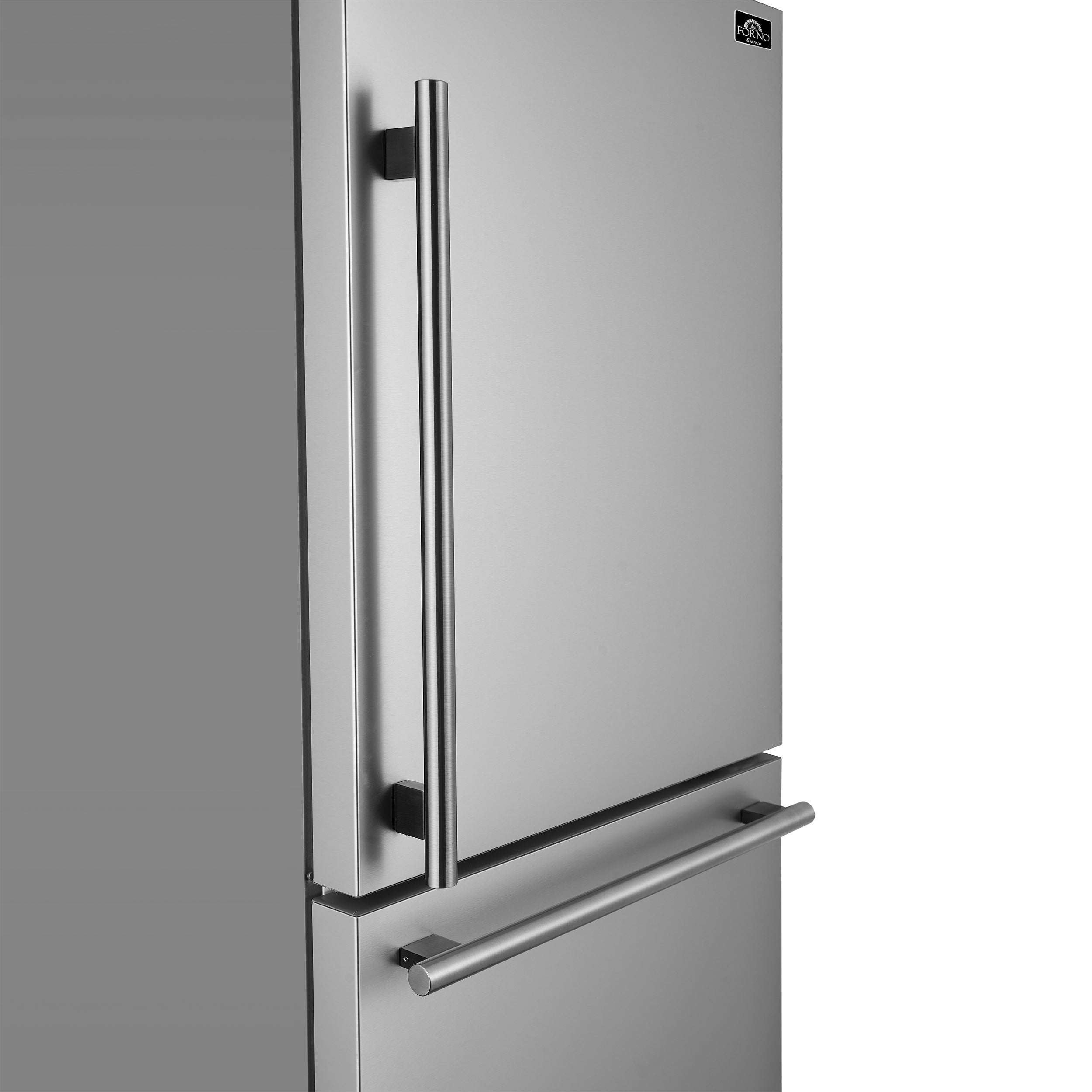

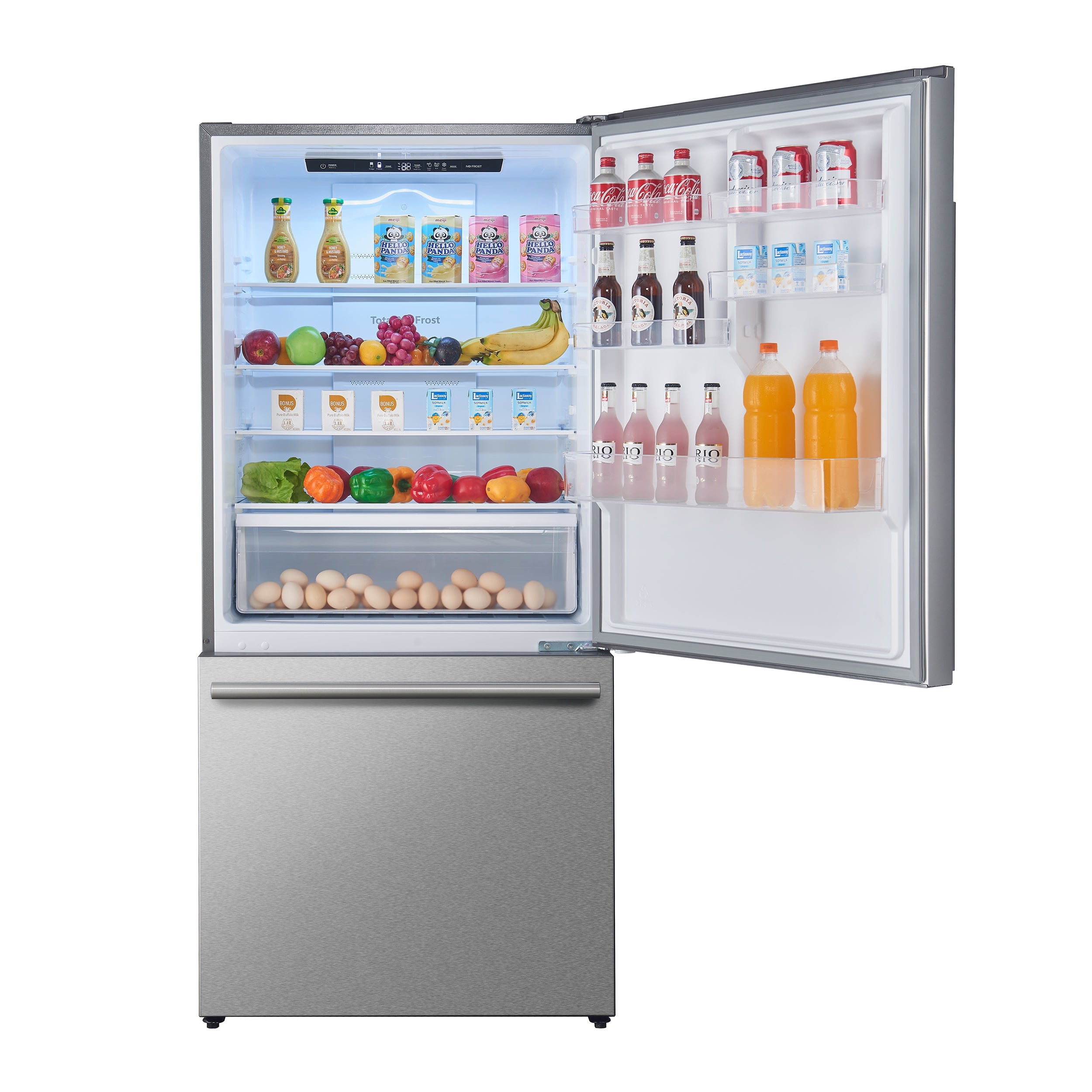

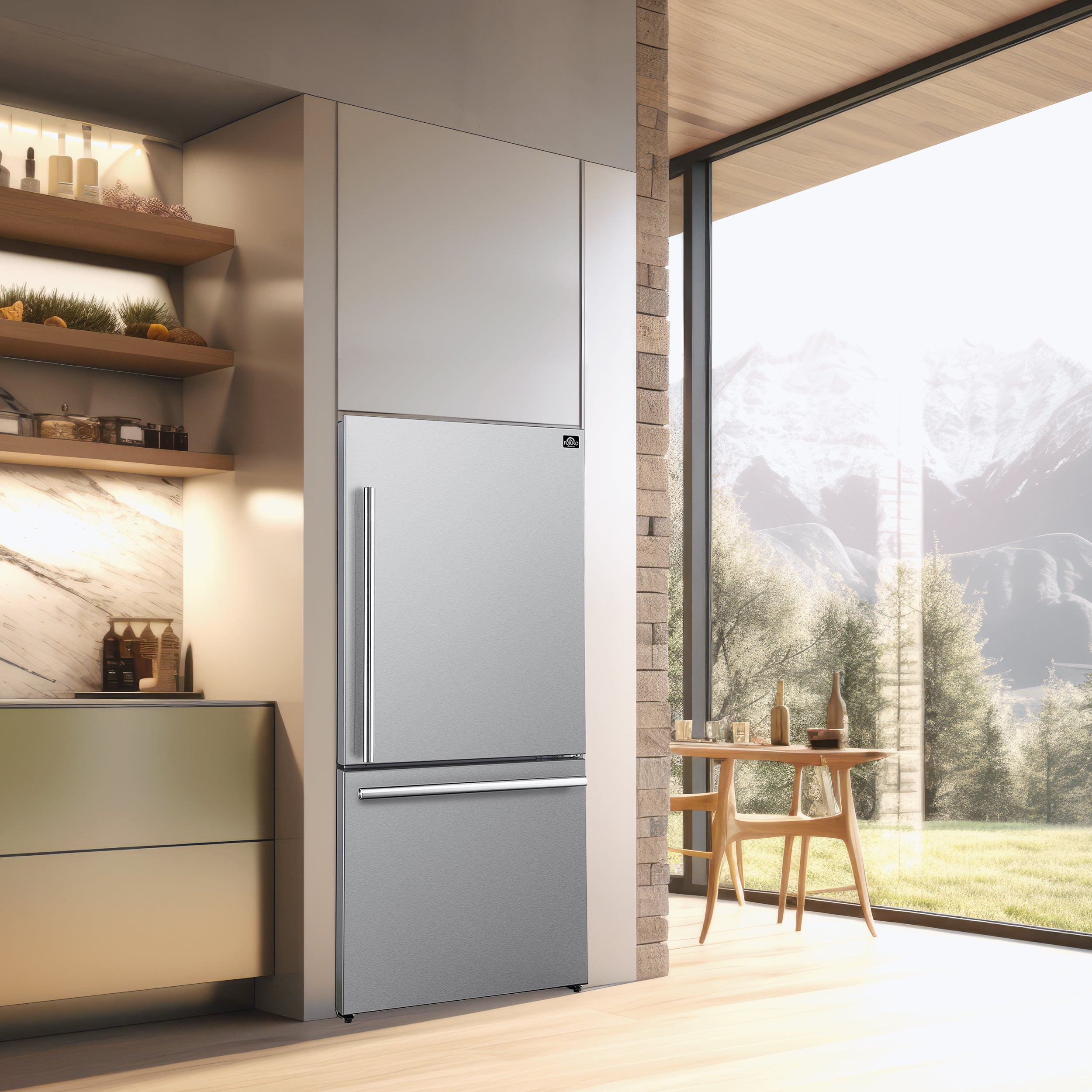

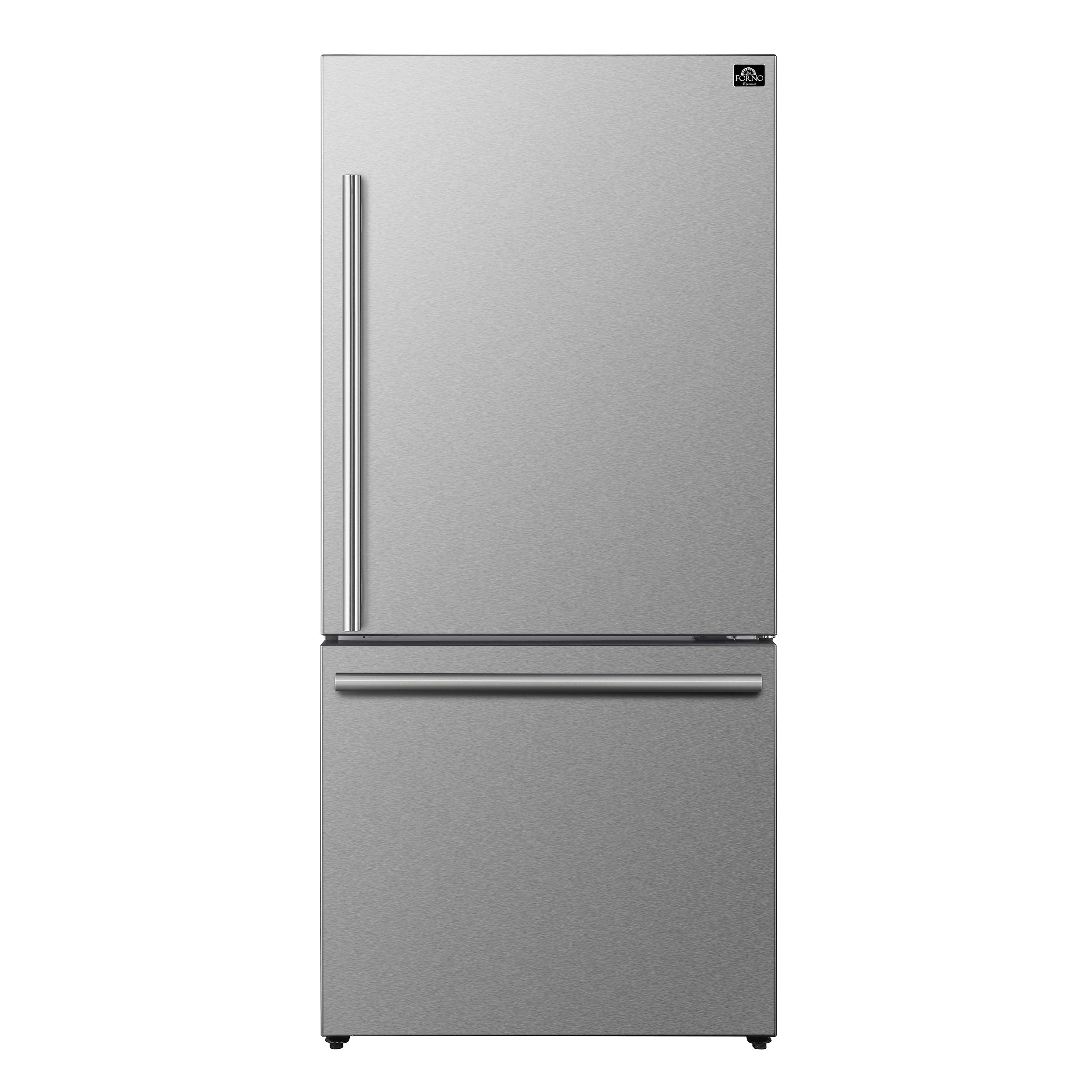

Introducing the FORNO 31" Milano Espresso Bottom Freezer Refrigerator that blends style and functionality seamlessly. Its compact 31" size and 17.2 cu ft capacity offer ample storage without compromising aesthetics. Two full-width freezer drawers optimize organization, while digital touch control ensures precise temperature settings and real-time monitoring. The fingerprint-resistant VCM door maintains a modern look effortlessly. Swift temperature adjustment with Super Cool and Super Freeze safeguards your groceries' quality. ENERGY STAR Certified for efficiency, and high-efficiency LED lighting reduces food spoilage. Adjustable features, including shelves, door bins, and a full-width crisper drawer, enhance user-friendliness. Upgrade your kitchen with style, convenience, and freshness!
| DIMENSIONS | |
|---|---|

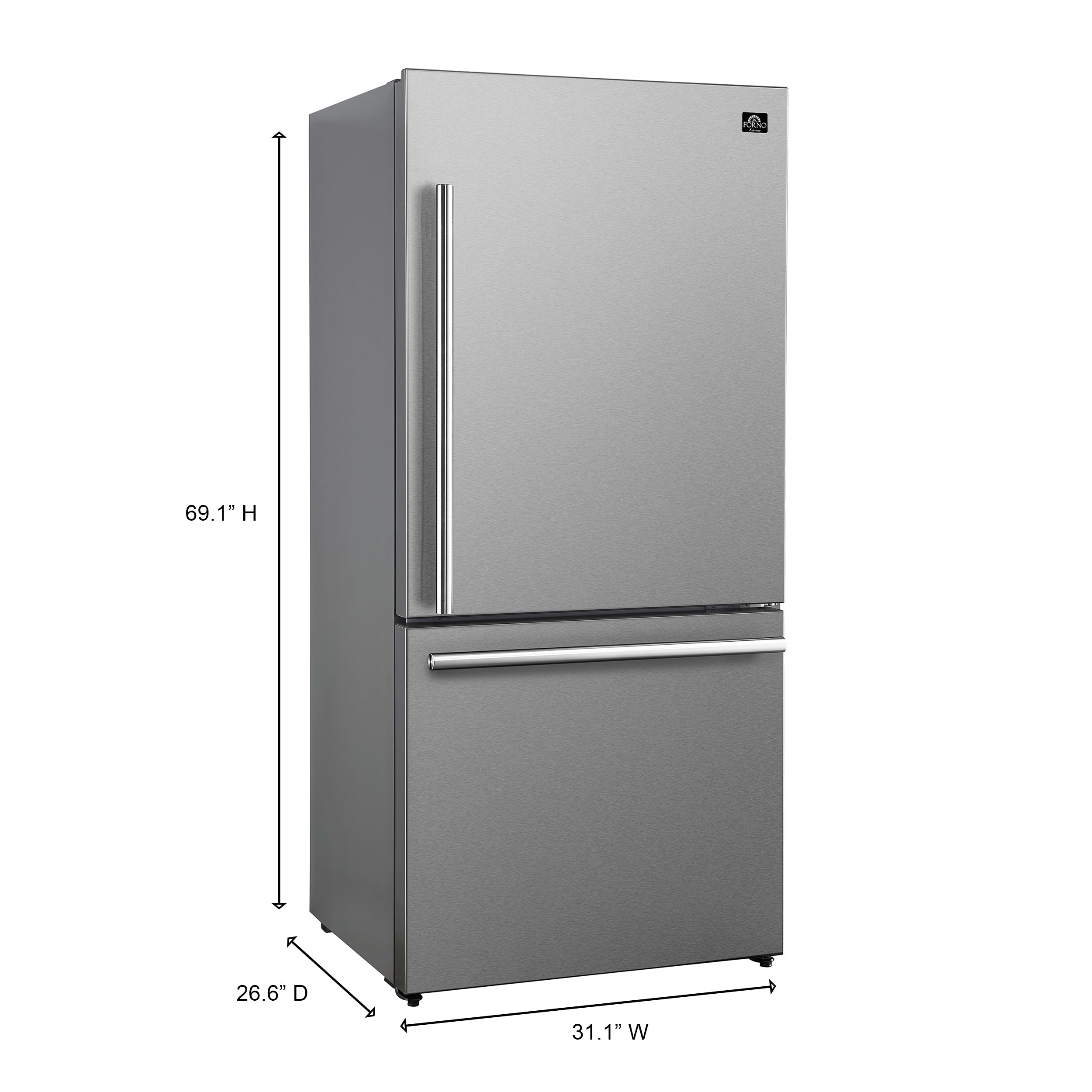

| Overall Dimensions (IN) W X D X H | 31.1 X 29.2 X 69.1 |
| Width Door(s) Open 130° (inches) | 52 |
| Cabinet Depth (no Door) | 23.6 |
| Depth without Handle (IN) | 26.6 |
| Depth Door(s) Open 90° (inches) | 56.3 |
| Depth Drawer(s) Open (inches) | 43.4 |
| Height Top of the Cabinet (inches) | 68.5 |
| Sides Clearance (IN) | 1" on the left 1.6" on the right for door opening if next to fixed wall |
| Minimum Back Clearance (IN) | 2 |
| Minimum Top Clearance (IN) | 1 |
| Cutout Dimensions (IN) W X D X H | 33.7 x 31.2 x 70.1 |
| Overall Weight (LBS) | 196 |
| Overall Capacity Cu. Ft. | 17.2 |
| Counter Depth | Yes |
| GENERAL INFORMATION | |
| UL Listed | Yes |
| Contain Gases | R600A |
| Product Type | Bottom Freezer |
| Installation Type | Freestanding |
| Door Orientation | Right Swing |
| Auto Door Closer | No |
| Leveling Legs | Yes |
| Door Ajarm Alarm | Yes |
| Garage Ready | No |
| Finger Print Resistant | Yes |
| Smudge Resistant | No |
| Filtration System | No |
| Vacation Mode | No |
| Energy Saver Mode | Yes |
| Fast Freeze/Cool Mode | Yes |
| Quiet Operation | Yes |
| Supplier Intended and Approved Use | Residential |
| Estimated Annual Operating Cost (USD) | 63 USD |
| Receptacle Type | 3-Prong Grounded NEMA 5-15 |
| DESIGN & FINISH | |
| Color/Finish | Stainless Steel VCM |
| Panel Ready | No |
| Reversible Door | No |
| Interior Light | Yes |
| Interior Light Type | LED |

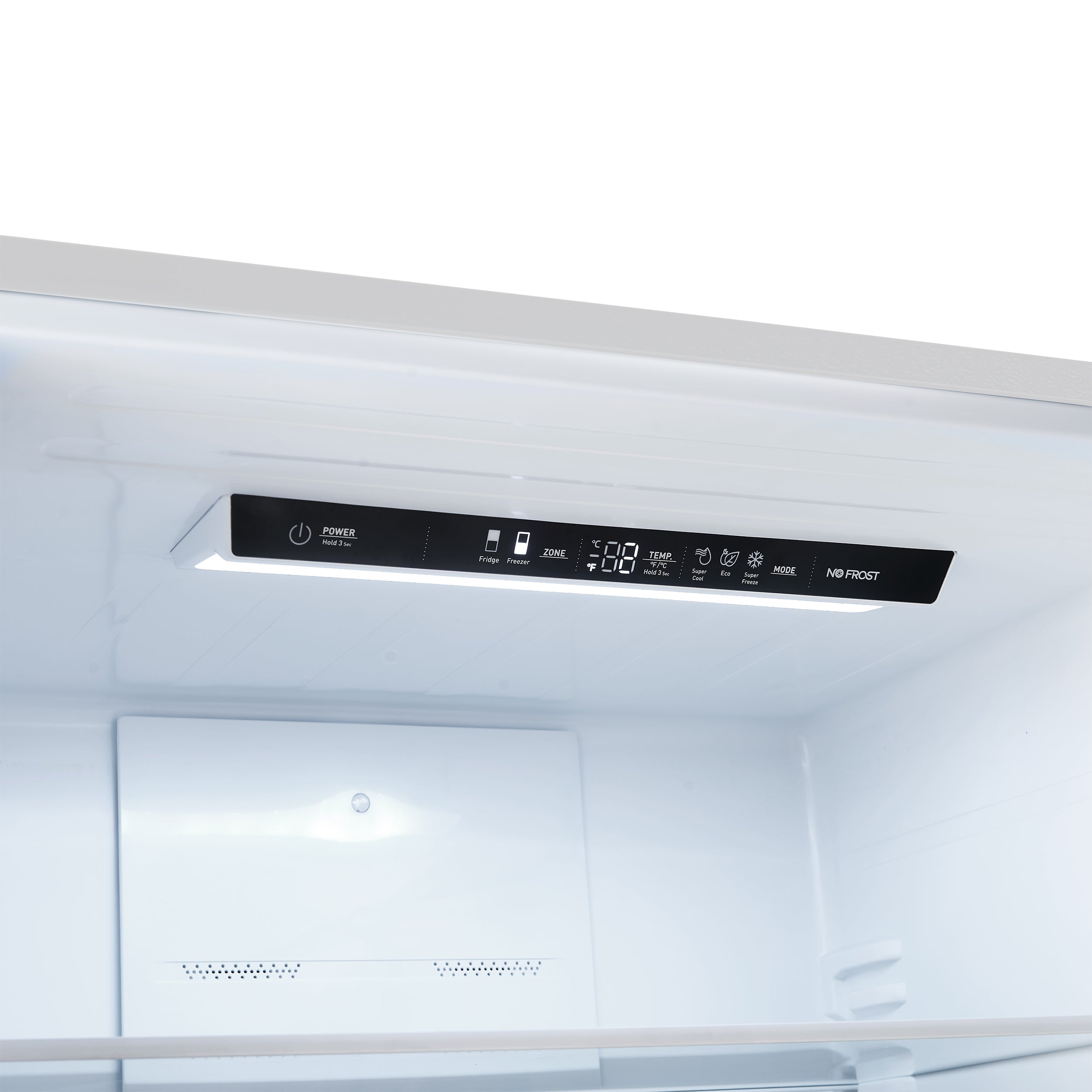

| Control Type | Touch Control |
| Control Location | Internal |
| Primary Material | Metal |
| Safety Lock | No |
| Display Screen | Yes |
| TECHNICAL DETAILS | |
| Defrost Type | Automatic |
| Cooling System | Multi Air Flow |
| Compressor Type | Constant Frequency Compressor |
| Noise Level (dBA) | 43 |
| Power Cord | 3-Prong NEMA 5-15 |
| Amperage (AMP) | 15 |
| Running Amperage (AMP) | 1.25 |
| Volts (V) | 120 |
| Frequency (Hz) | 60 |
| Power Consumption Cooling Wattage (W) | 80 |
| Power Consumption Defrost Wattage (W) | 220 |
| Energy Consumption (kWh/yr) | 453 |
| Power Cord Length without Plug | 5.58 Feet |
| Power Cord Length with Plug | 5.8 Feet |
| REFRIGERATOR FEATURES | |
| Ice Maker | No |
| Water Dispenser | No |
| External Dispenser | No |
| Temperature Range Refrigerator (°F) | 34°F to 44°F |
| Temperature Range Refrigerator (°C) | 1°C to 7°C |
| Adjustable Shelves | 3 |
| Spill-Proof Shelves | No |
| Sabbath Mode | No |
| Fresh Food Capacity Cu. Ft. | 12.09 |
| Interior Fresh Food Dimensions W x D x H | W:26.81” x D:21.08” x H:35.91” |
| Fresh Food drawers | 1 |
| Fresh Food Drawer(s) Size W x D x H (inches) | 26.6 x 15.7 x 7.8 |
| Fresh Food Door Type | Right Swing |
| Fresh Food Shelves | 4 |
| Fresh Food Shelve(s) Size W x D x H (inches) | 26.7 x 14.3 x 0.37 |

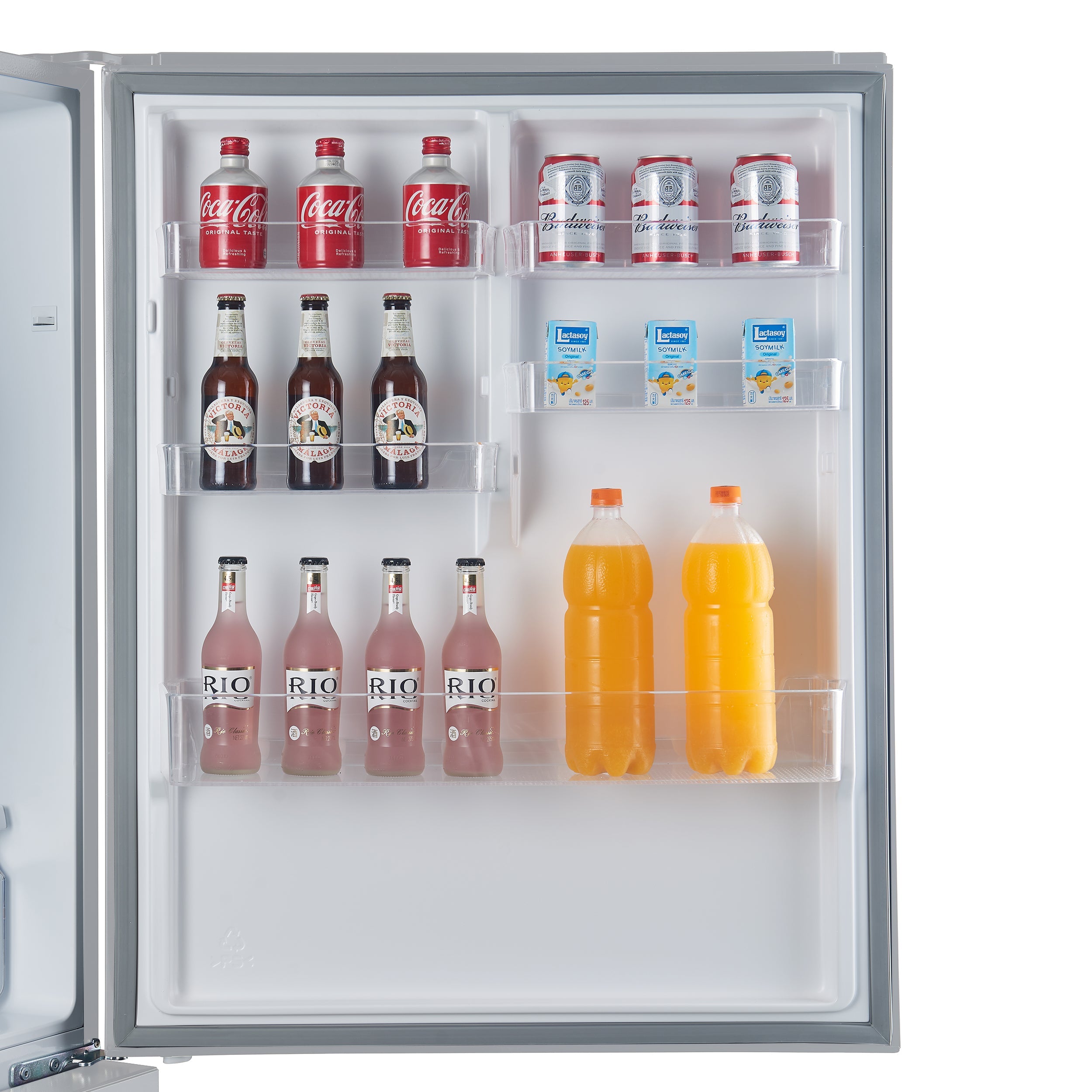

| Gallon Door Bins | 1 |
| Gallon (4 Liters) Door Bin(s) Size W x D x H (inches) | 26.8 x 5.6 x 3.5 |
| Half (2 Liters) Gallon Door Bins | 4 |
| Half (2 Liters) Gallon Door Bins Size W x D x H (inches) | 13.3 x 5.59 x 1.97 |
| Standard Door Bins | No |
| Door Bins Color | Transparent |
| FREEZER FEATURES | |
| Temperature Range Freezer (°F) | -11°F to 7°F |
| Temperature Range Freezer (°C) | -24°C to-14°C |
| Freezer Capacity | 5.14 |
| Interior Freezer Dimensions | 24.45” x D:16.00” x H:22.68” |

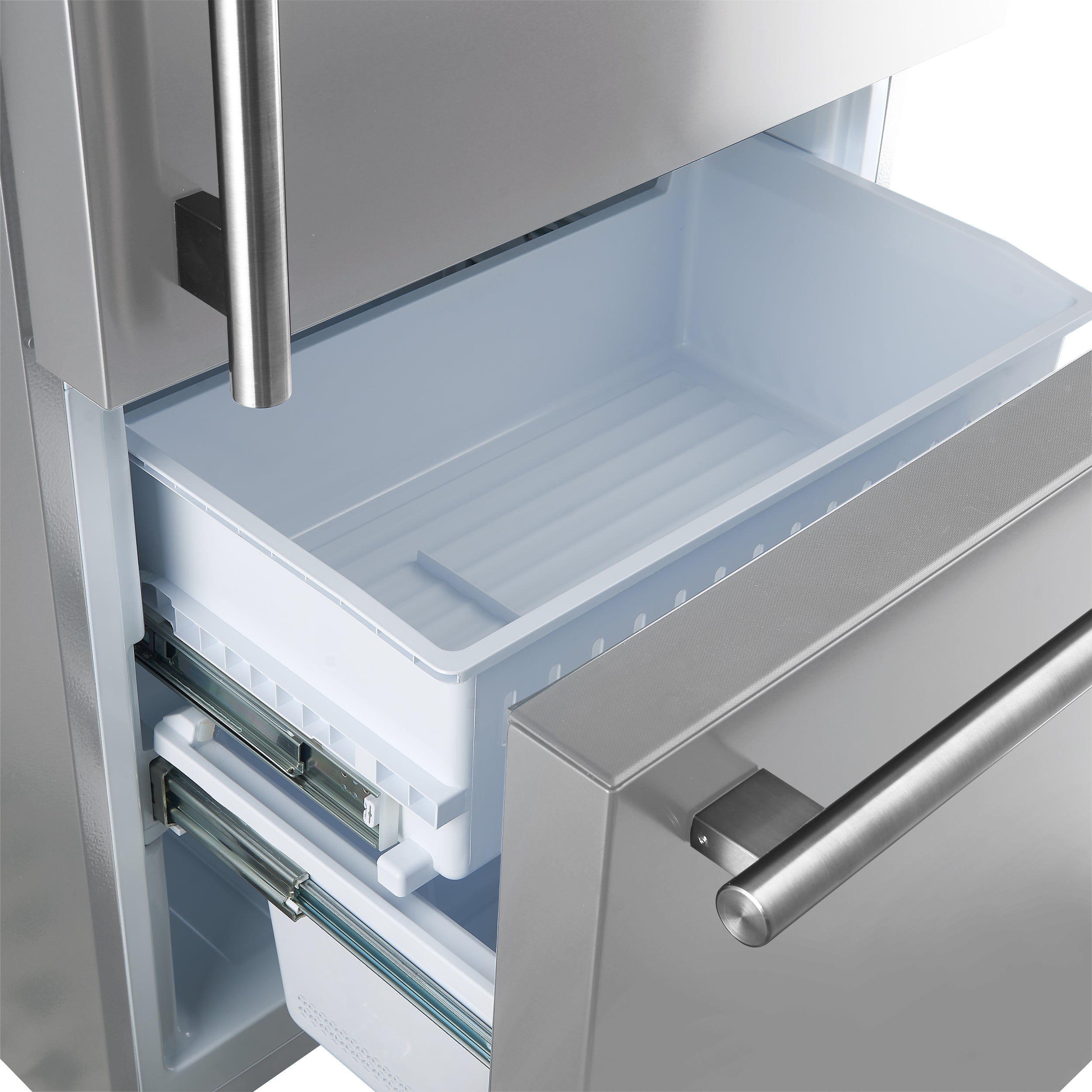

| Freezer drawers | 2 |
| Freezer Drawer(s) Size W x D x H (inches) | 25.7 x 14.78 x 11.38 |
| Freezer Door Style | Pull Out Drawer |
| Freezer Shelves | No |
| WARRANTY & CERTIFICATIONS | |
| Energy Star | Yes |
| ISTA 6A Certified | Yes |
| Commercial Warranty | No |
| Warranty Type | Limited |
| Warranty Length | 2 |
| Warranty on Parts | 2 |
| Warranty on Labor | 2 |
