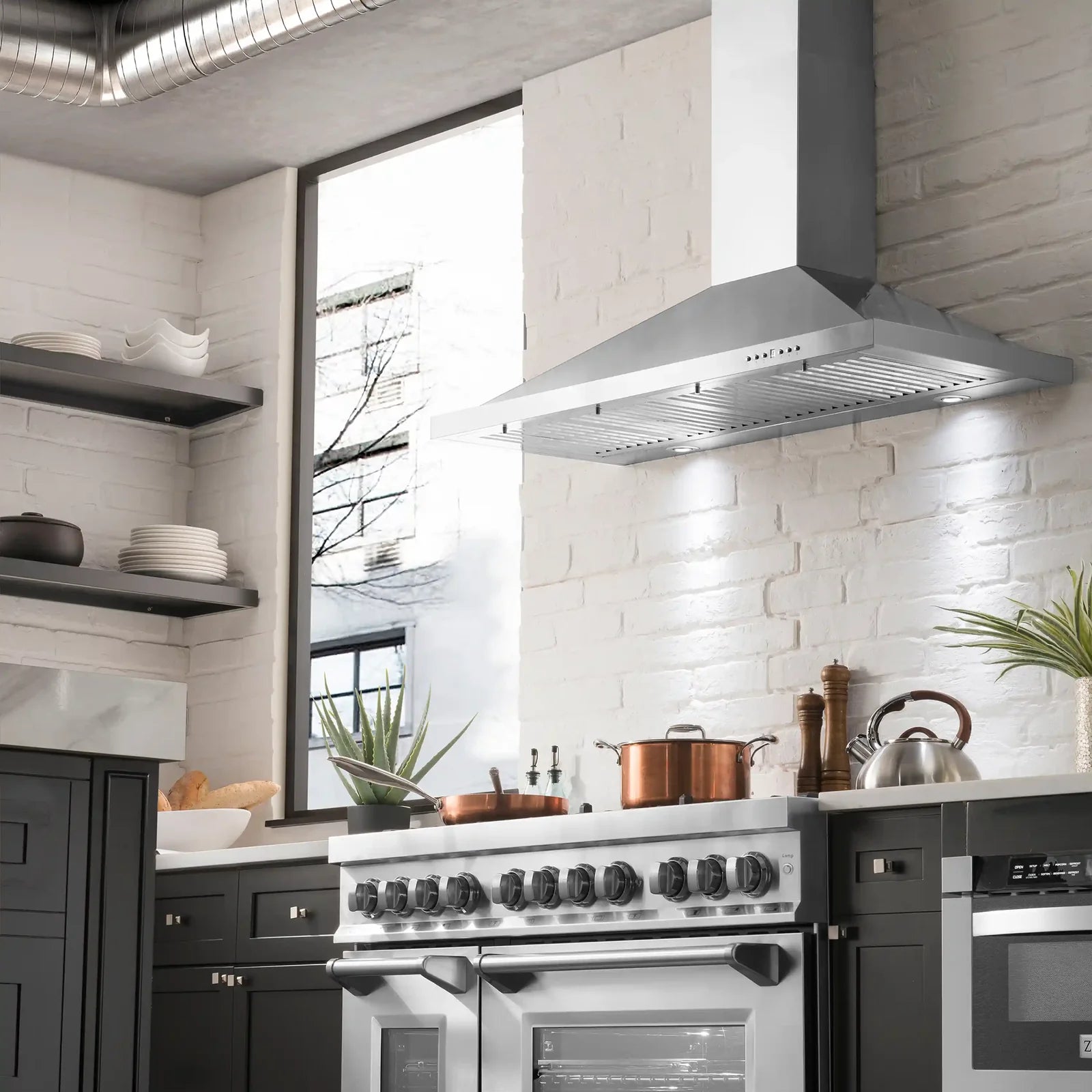

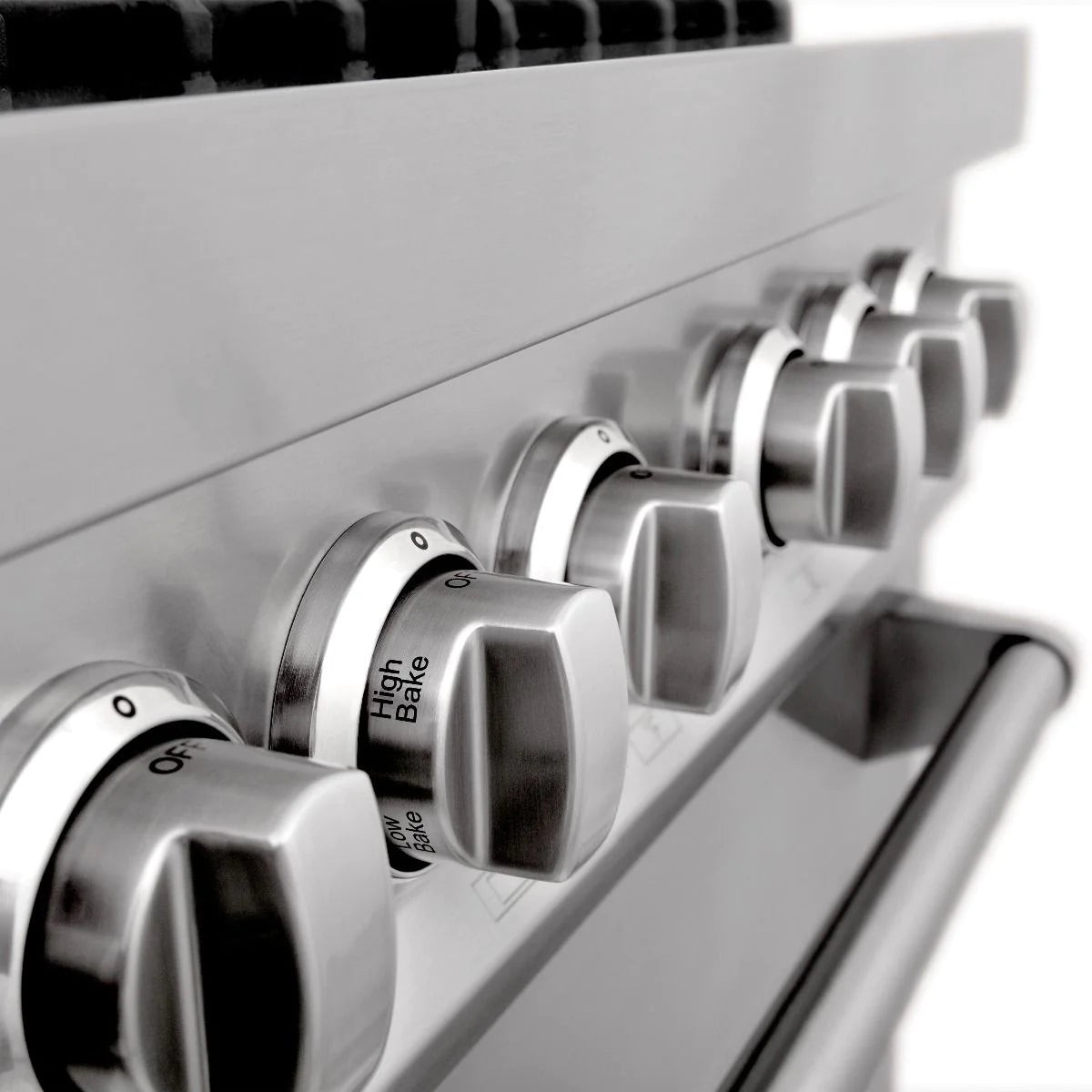

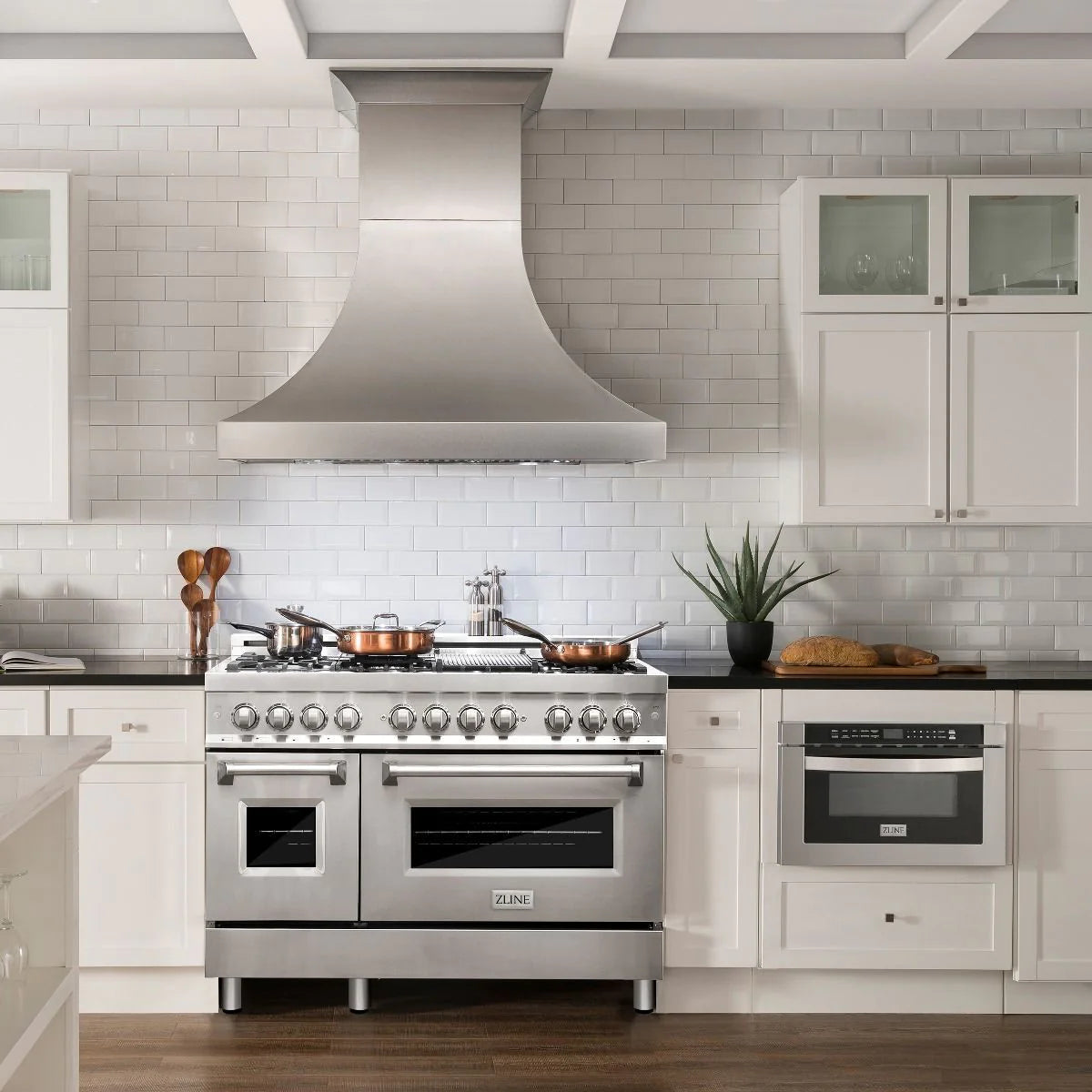

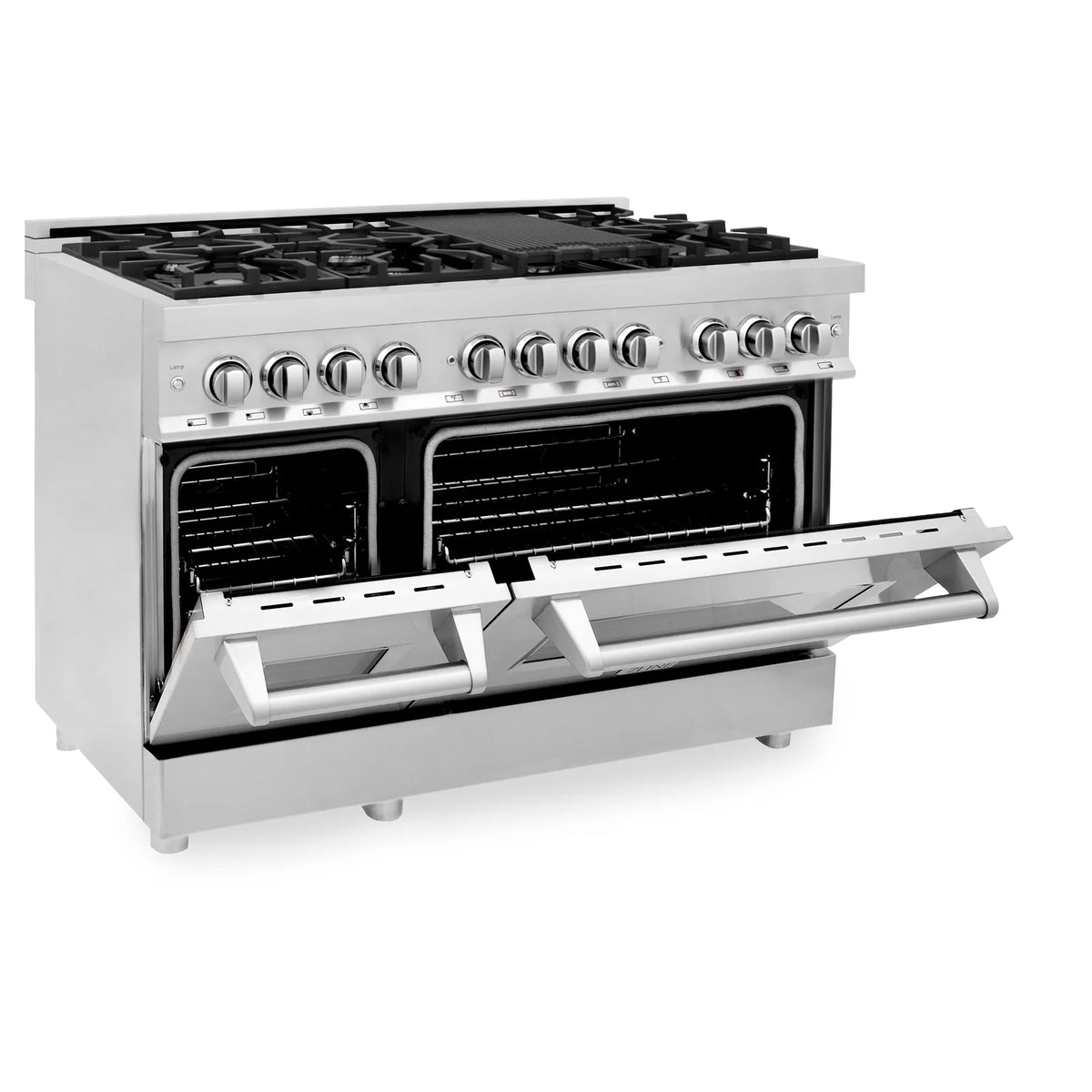

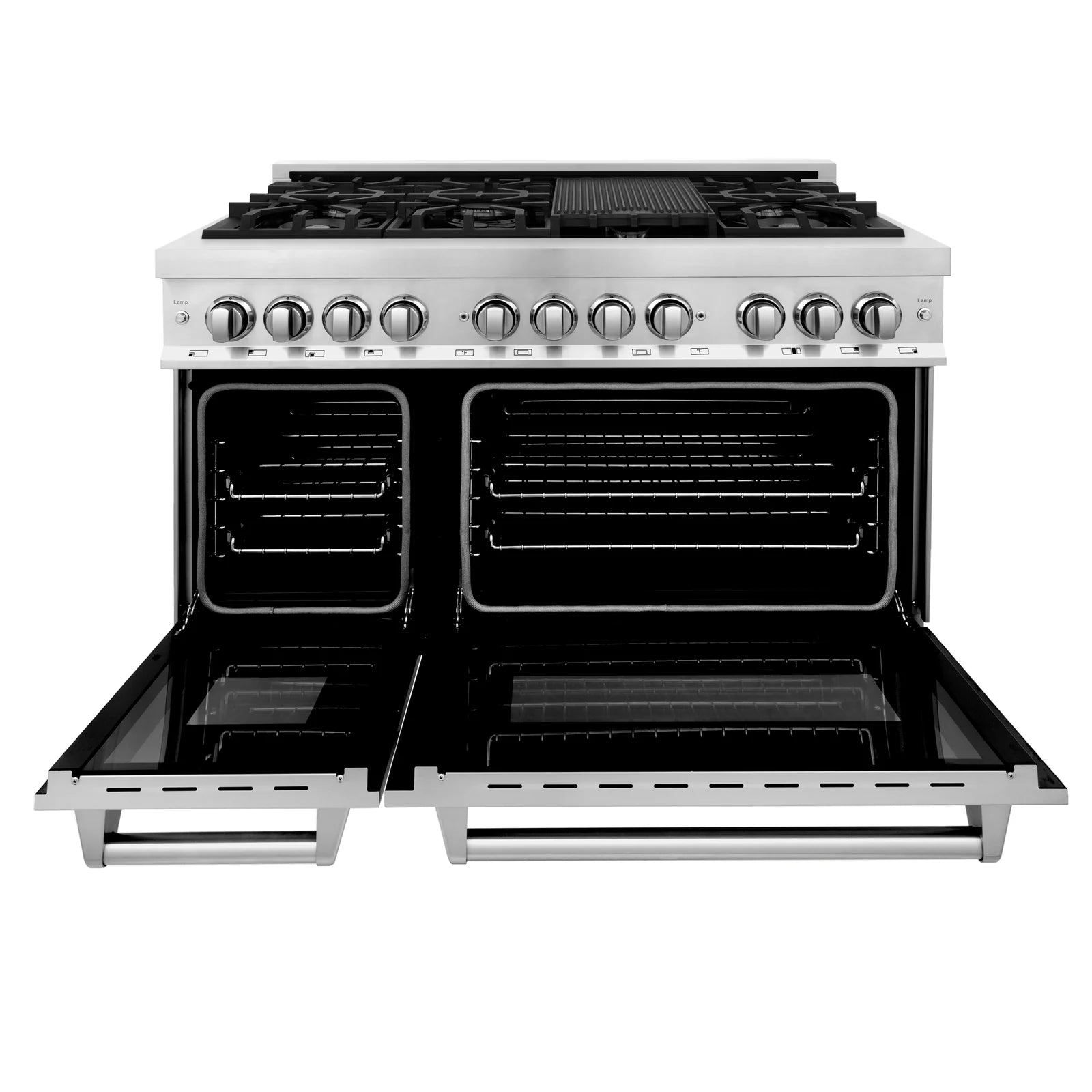

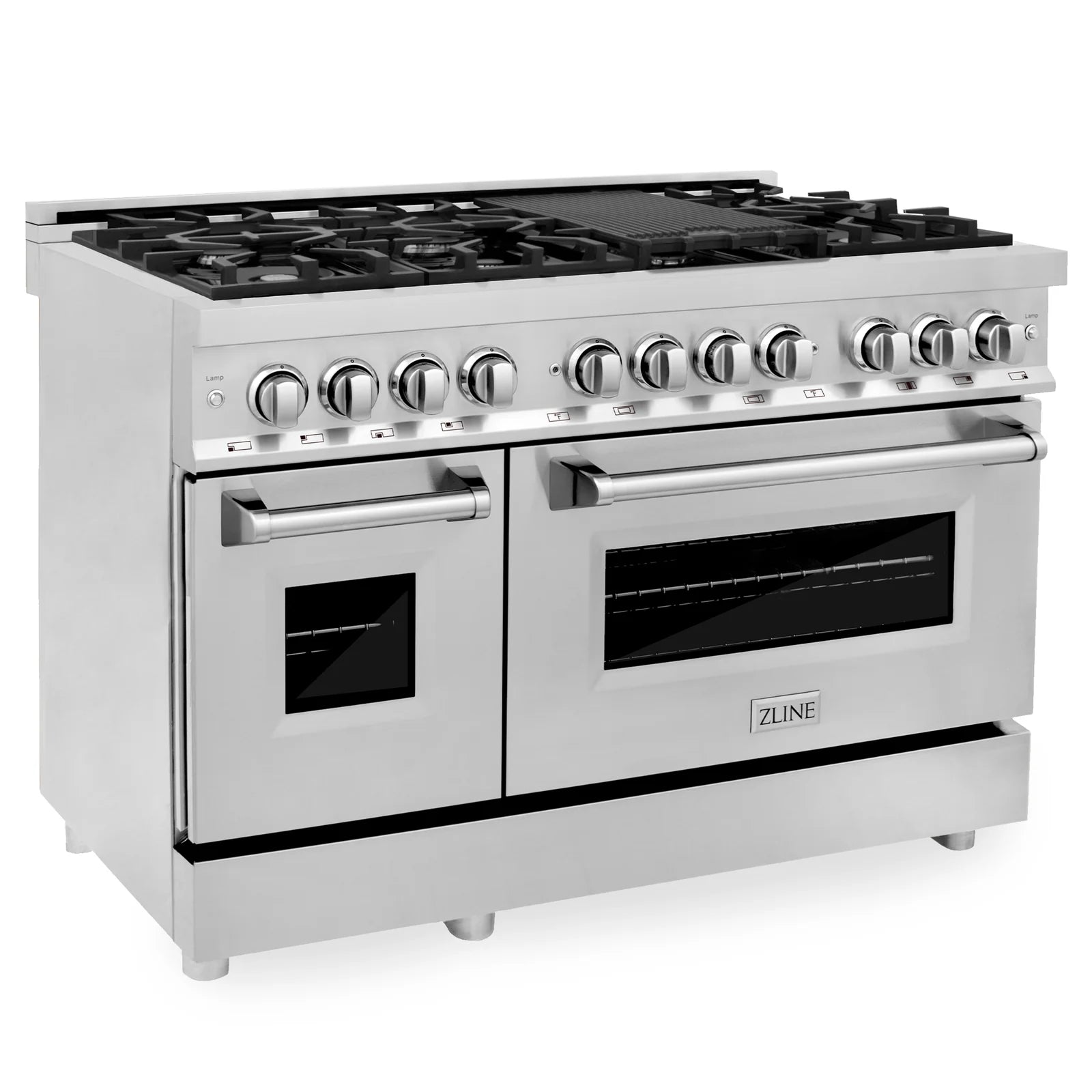

Luxury isn’t meant to be desired - it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 48" 6.0 cu. ft. Dual Fuel Range with Gas Stove and Electric Oven in Stainless Steel (RA48) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury excellence with innovative features designed to enhance your kitchen’s capability.
Build your dream kitchen with the ZLINE Dual Fuel Range
| Brand: |
|

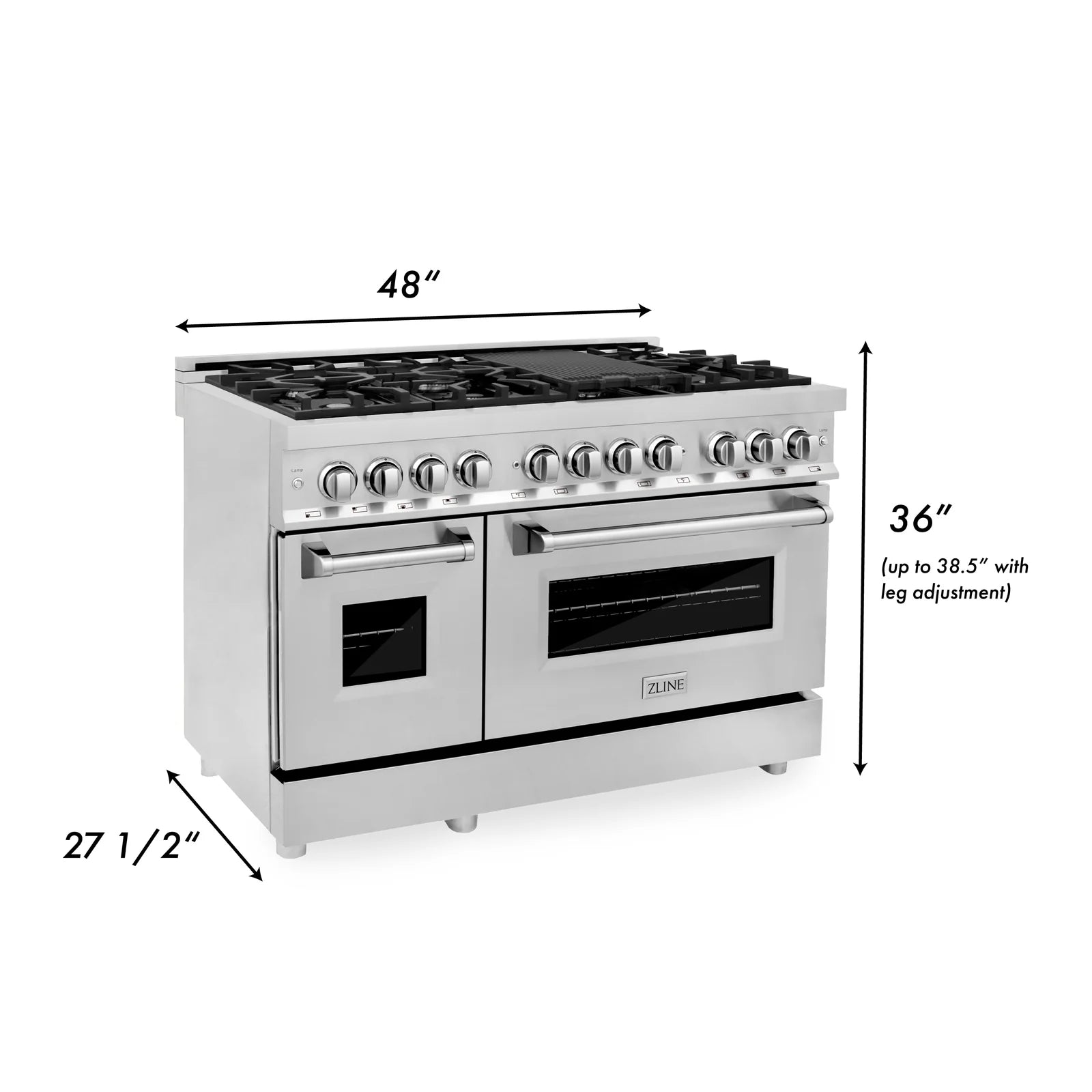

| Dimension: | 47.75" W x 27.5" D x 36.13" H |
| Dimensions with Handle: | 47.75" W x 29.63" D x 36.13" H |
| Open Door Depth: | 41.8" |
|
Oven Dimensions:
|
Oven Dimensions: 26.5"/12.5"W x 18.5" D x 14" H |
| Lighting: | Dual Lighting, controlled by light switch on front control panel |
|
Voltage:
|
240V/60Hz/40A
|
|
Mount Type:
|
Free Standing
|
|
Control Type:
|
Front Control
|
|
Material:
|
Stainless Steel frame with 1 Piece Porcelain Top- Italian made hinges and burners-Manual Clean
Red indicator light shuts off to let you know when oven has gotten to temperature |
|
Warranty:
|
1 Year Warranty
|
|
Features
|
Manufactured by ZLINE Kitchen and Bath
Model No. RA48 |
|
UPC:
|
817299022879
|
|
Certifications:
|
ETL Certified
|
|
Product Weight:
|
331 lbs.
|
|

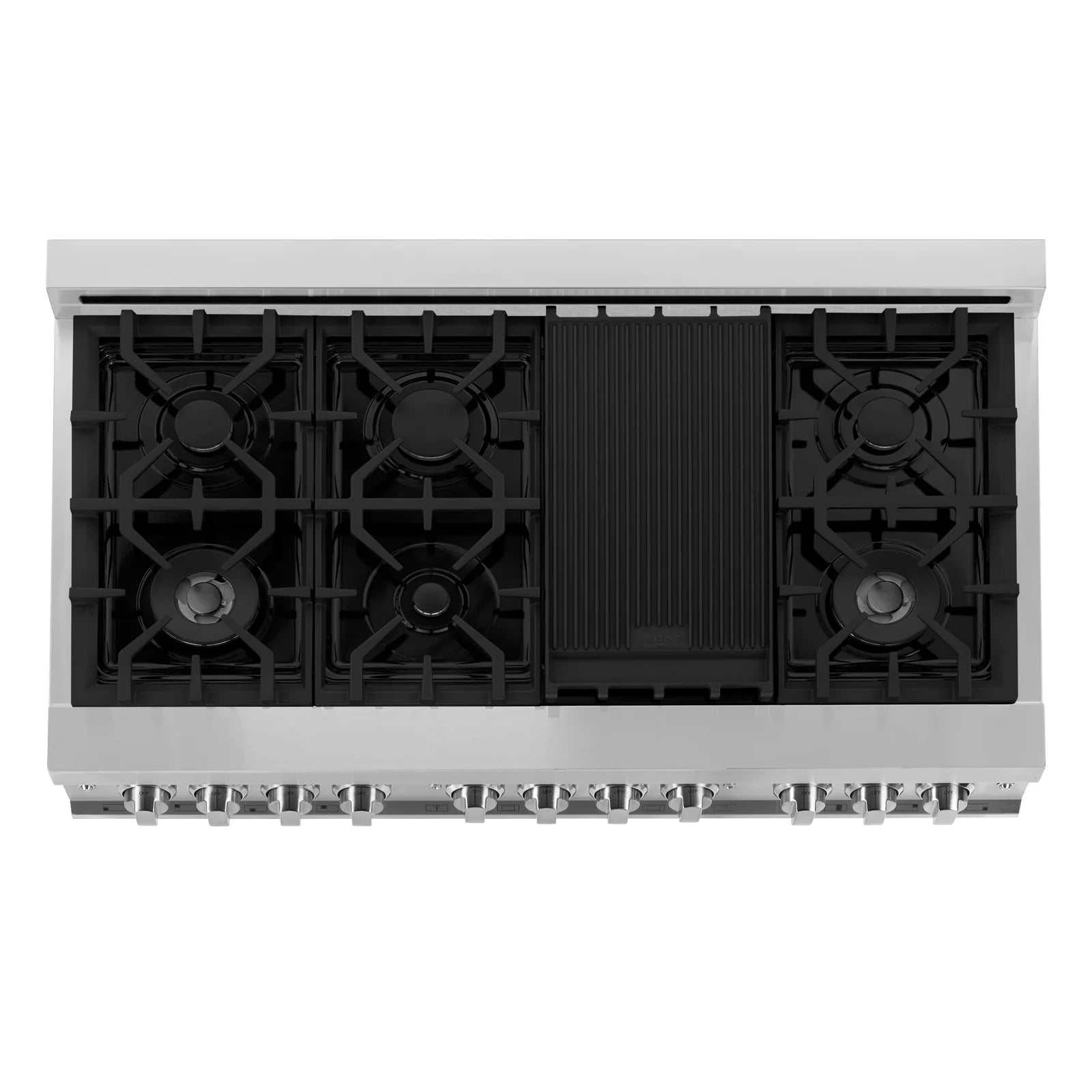

Cooktop:
|

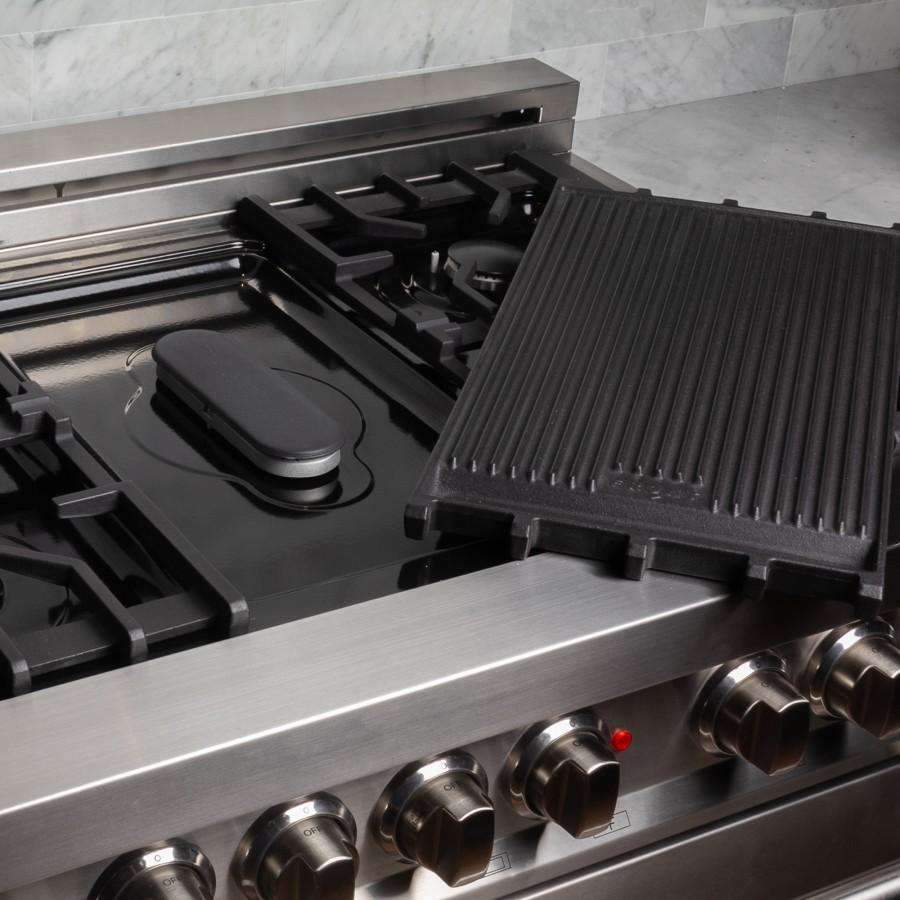

(7) Burners with Porcelain Cook Top with electronic spark ignition for all burners
|
| Gas Type: | Natural Gas or Liquid Propane via conversion kit |
| Liquid Propane | LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional |

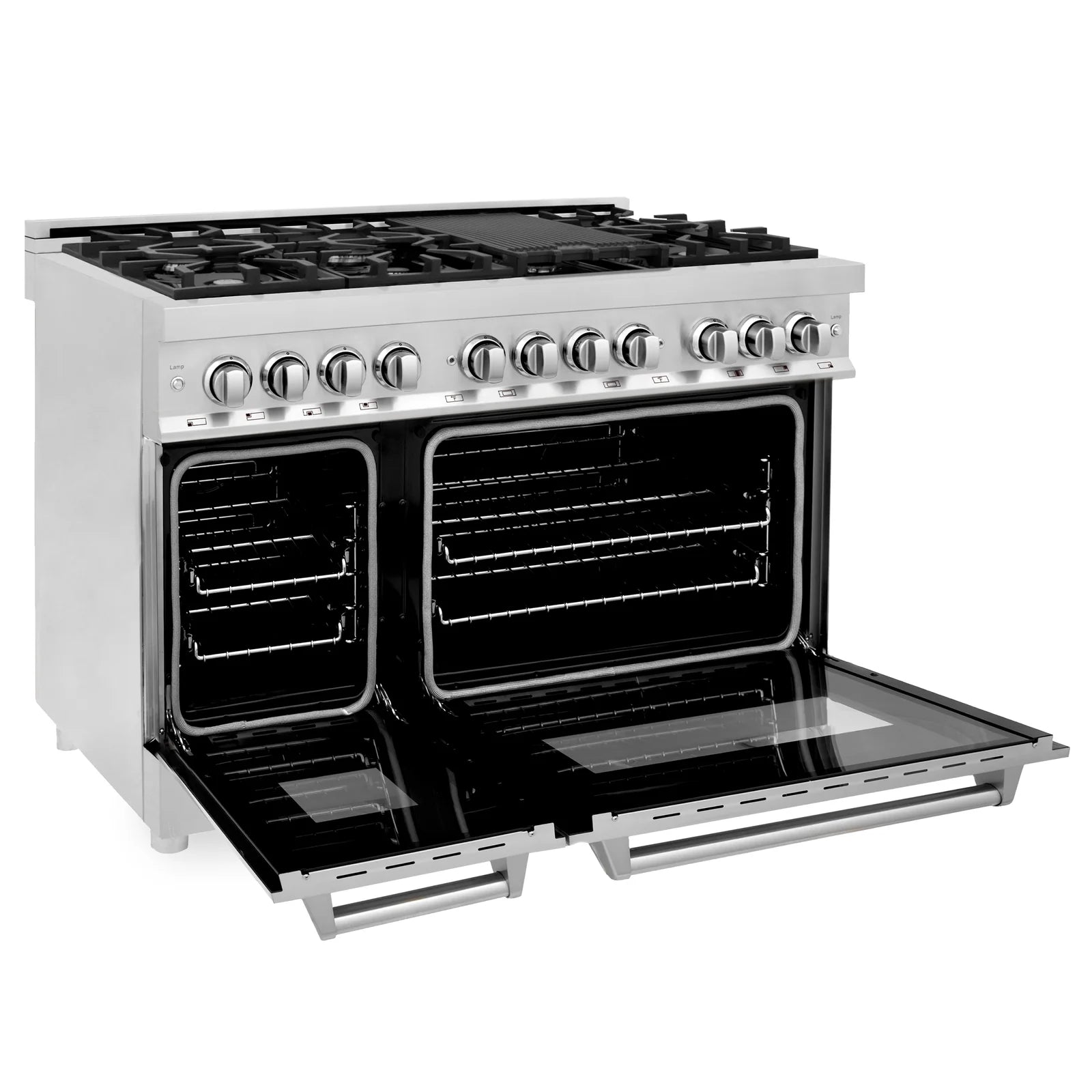

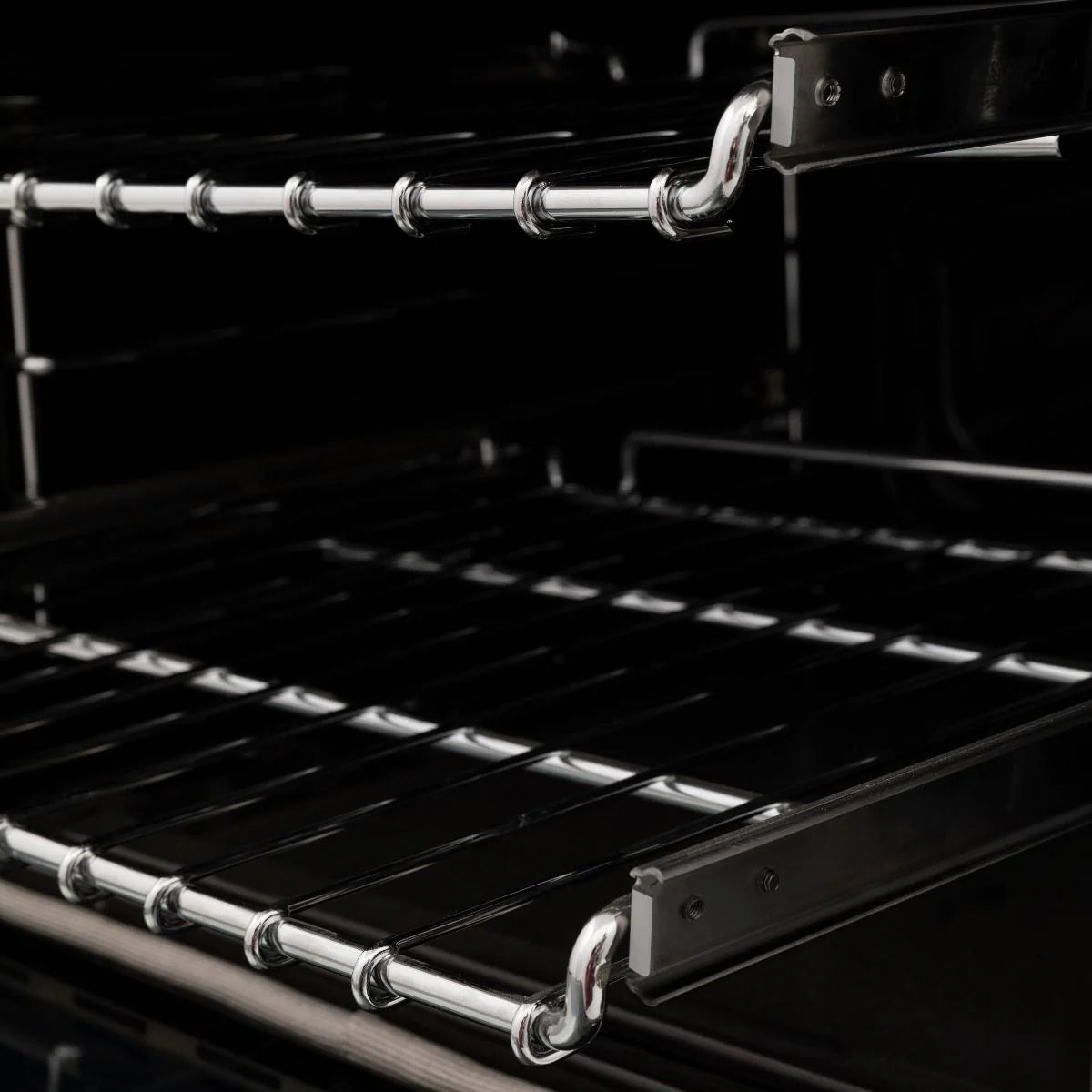

| Oven : | Manual Clean- Convection Electric- 4.6 cu.ft. deep oven- Triple Glass Window- Dual Lighting- Professional Aluminum Mesh Seal |
|
BTU Rating:
|
Dual Burner(x2) - 18,000 BTU
Griddle Burner - 13,000 Rapid Burner - 13,000 BTU Semi-Rapid Burner (x2) - 8,500 BTU Auxiliary Burner - 4,200 BTU |
| Fuel | All ZLINE Ranges come set to work with natural gas by default. All Ranges can also work with propane. Every range comes equipped with an LP conversion kit to convert from natural gas to propane; this conversion process must be done by a professional |
|
Fuel Type:
|
Convection Oven - Gas Cooktop
|

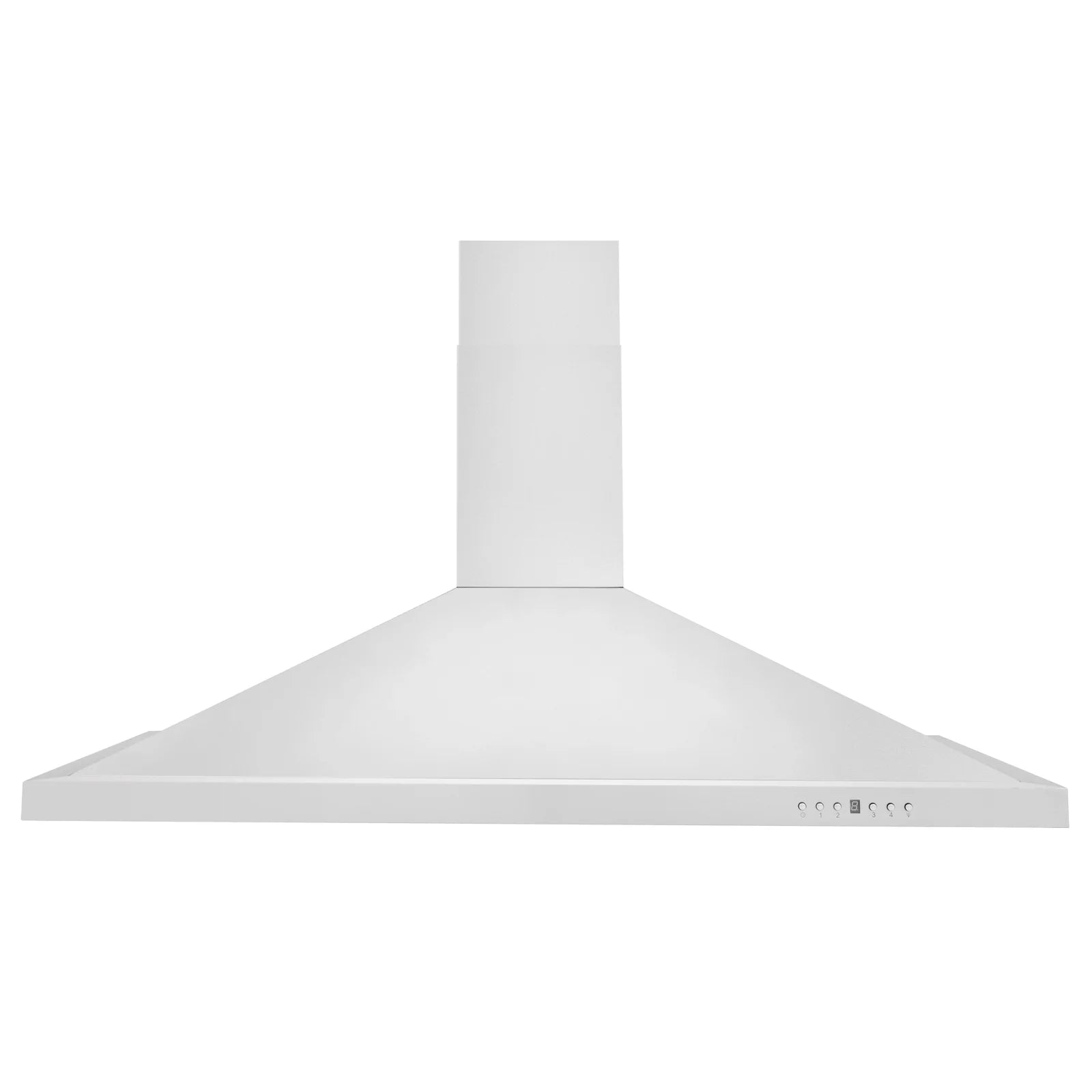

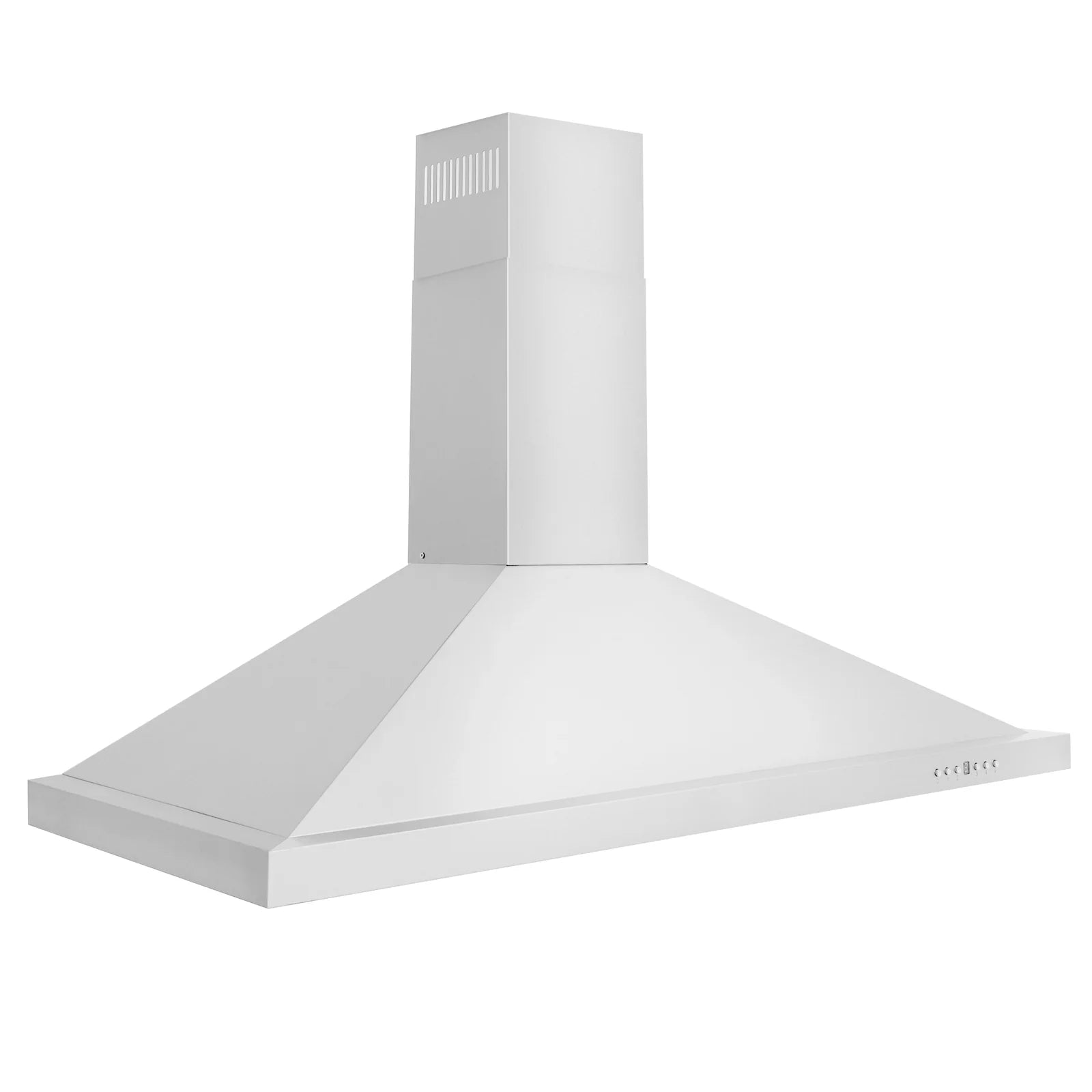

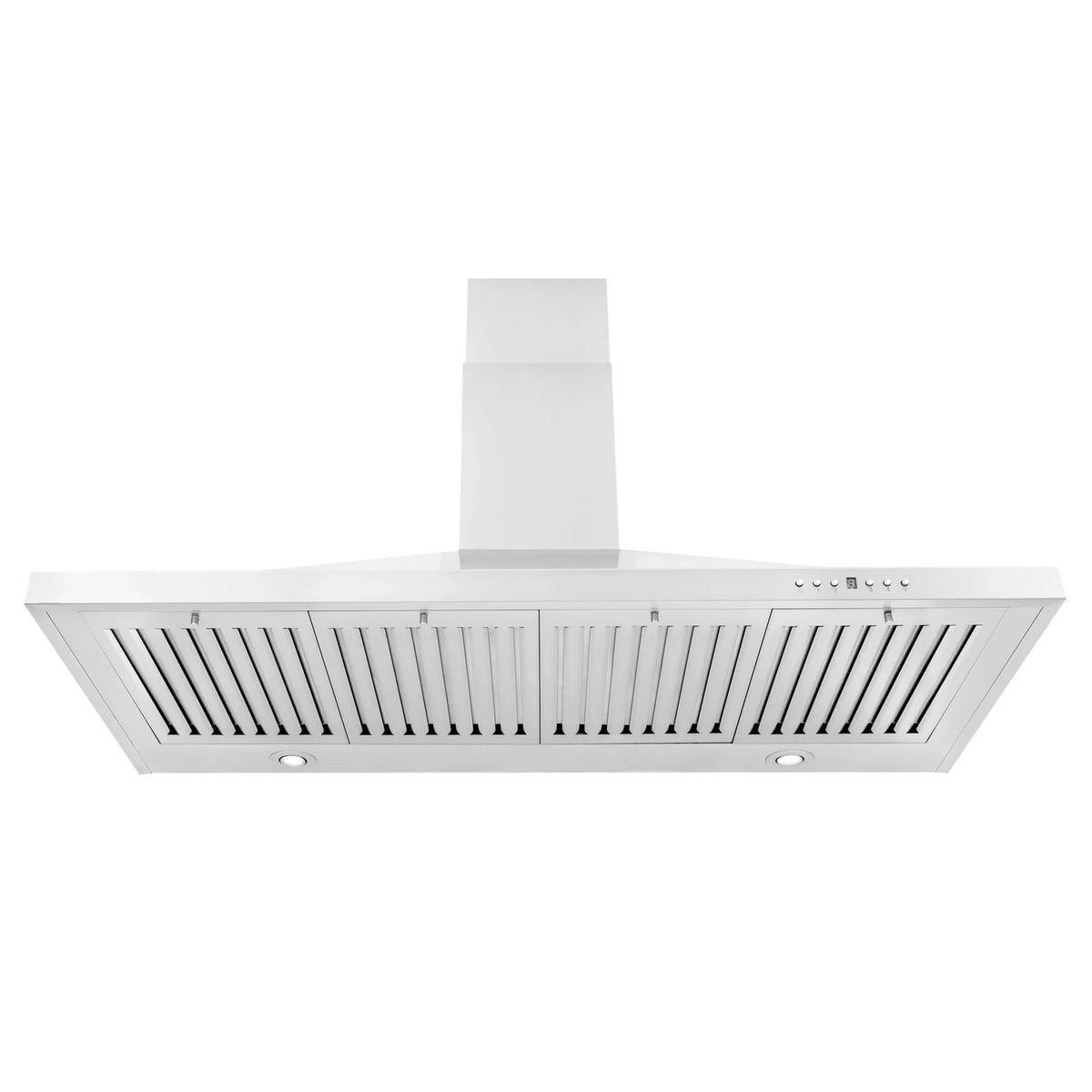

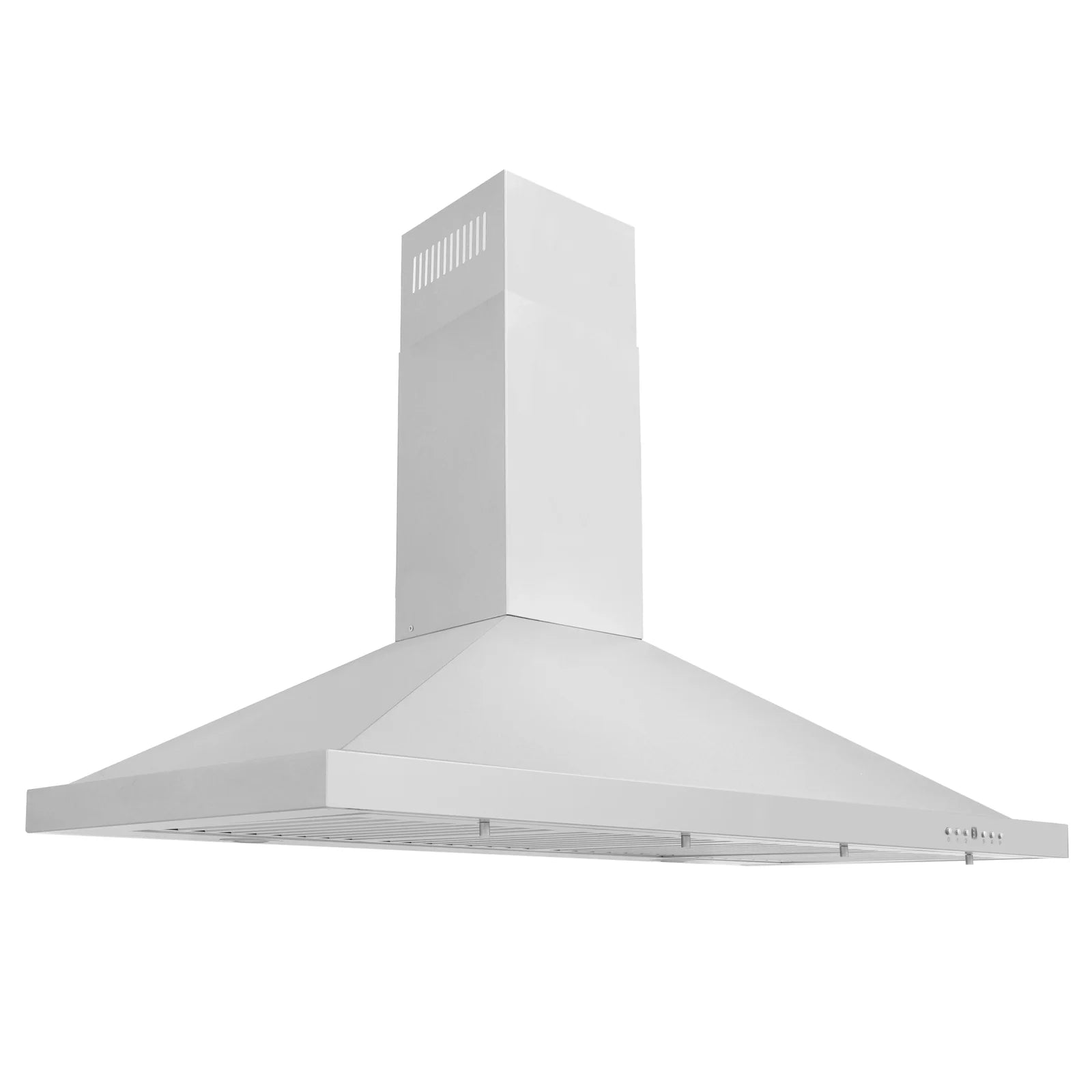

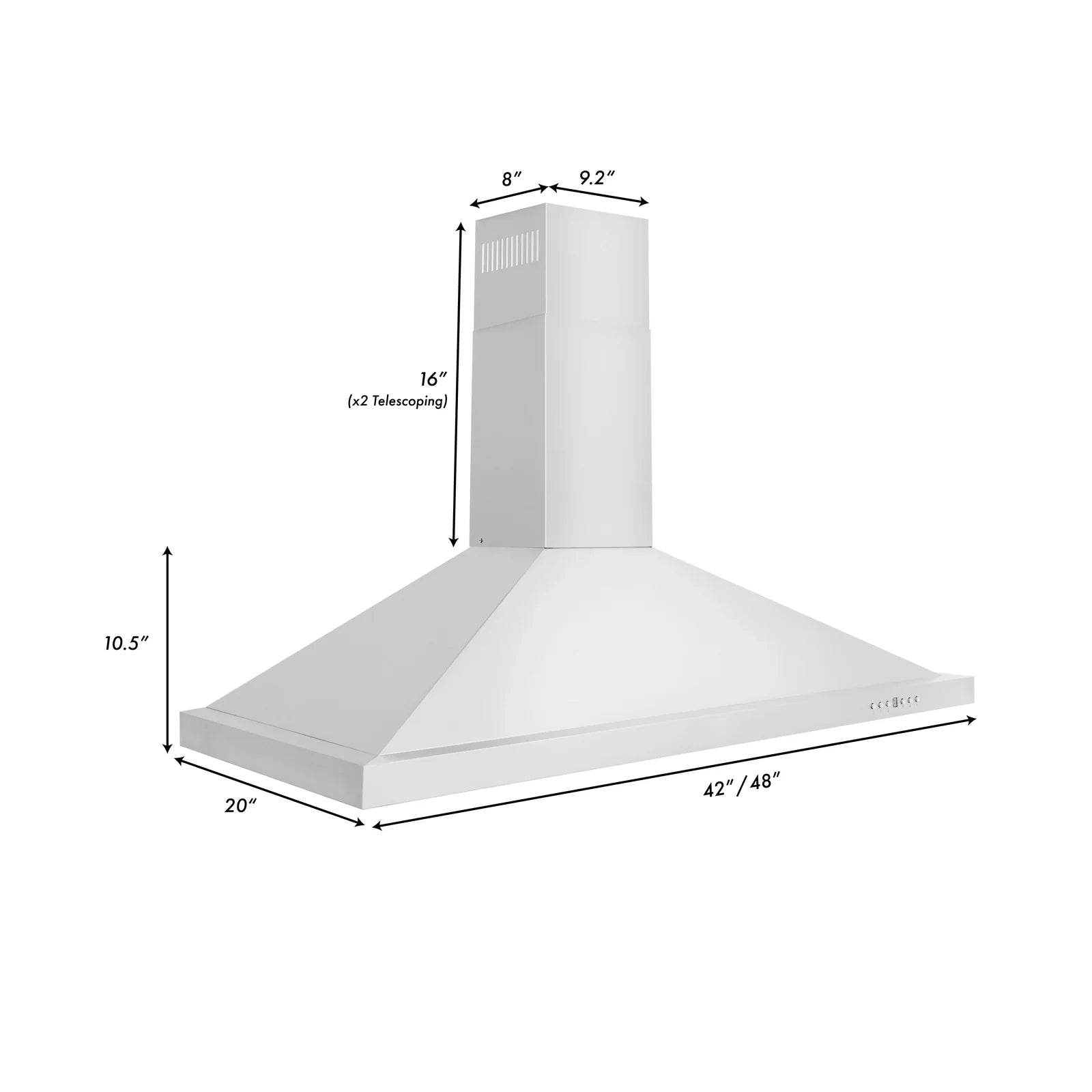

The ZLINE KB-48 is a 48-inch professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made of 430-grade stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.
This hood contains many unique features, such as:
| Dimension: |
48" W x 19.7" D x 10.5" H
|
| Chimney (Dimension): |
9.2" W x 8" D x 16" H (x2) (Telescoping)
|
| Venting Size: |
6" Outlet (Transition piece with backdraft damper to round ducting included)
Charcoal Filters (not included) available for ductless/recirculating option. |
| Airflow (Q/L/M/H): |
120/240/320/400
|
| Lighting: |

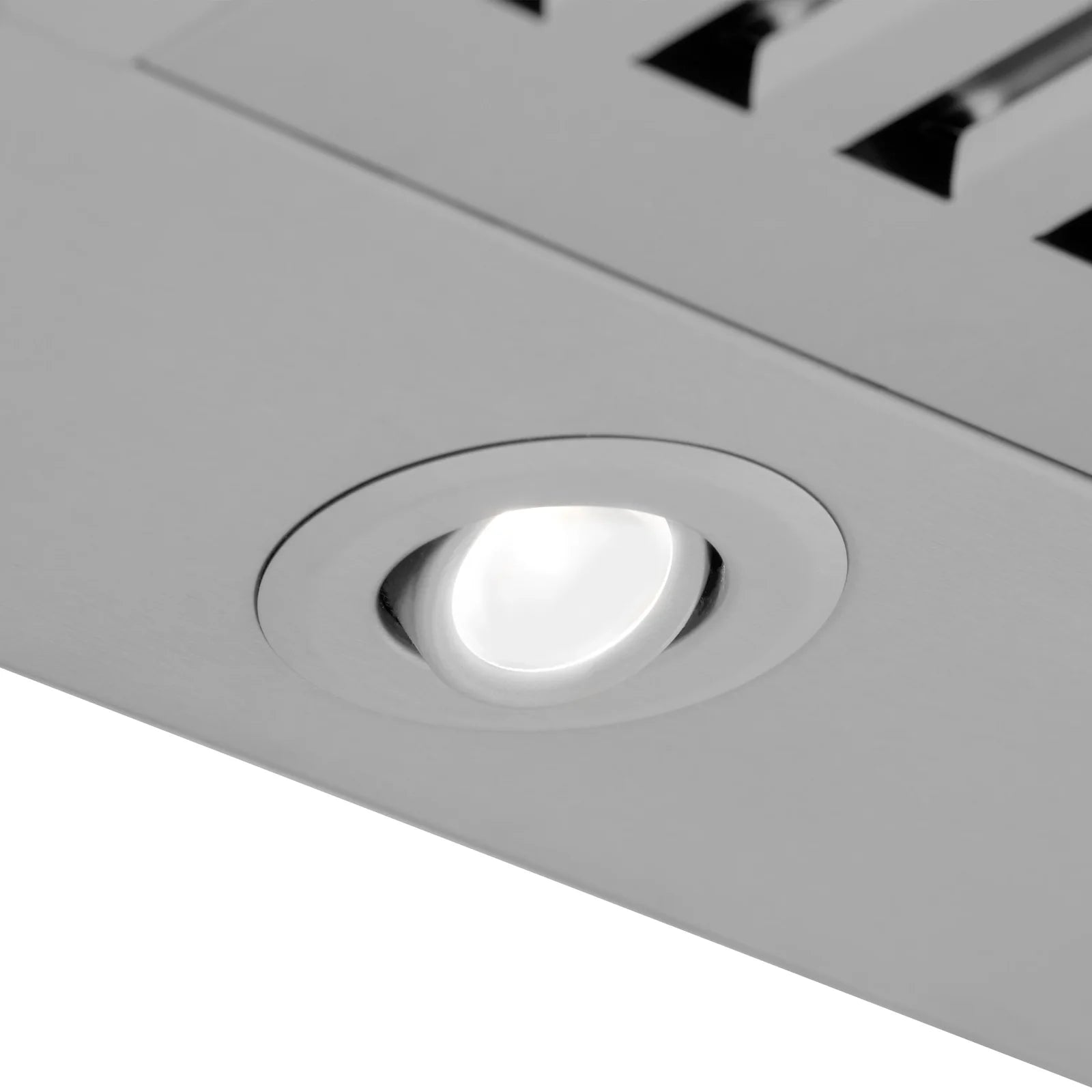

2 Directional LED Lights (3-Watt)
|
| Noise Level: |
20/29/34/41
|
| Voltage: |
110V/60HZ
|
| Motor: |
High Performance 400 CFM/4-Speed Motor
|
| Mount Type: |
Wall Mounted
|
| Speeds: |
4 Speeds
|
| Control Type: |

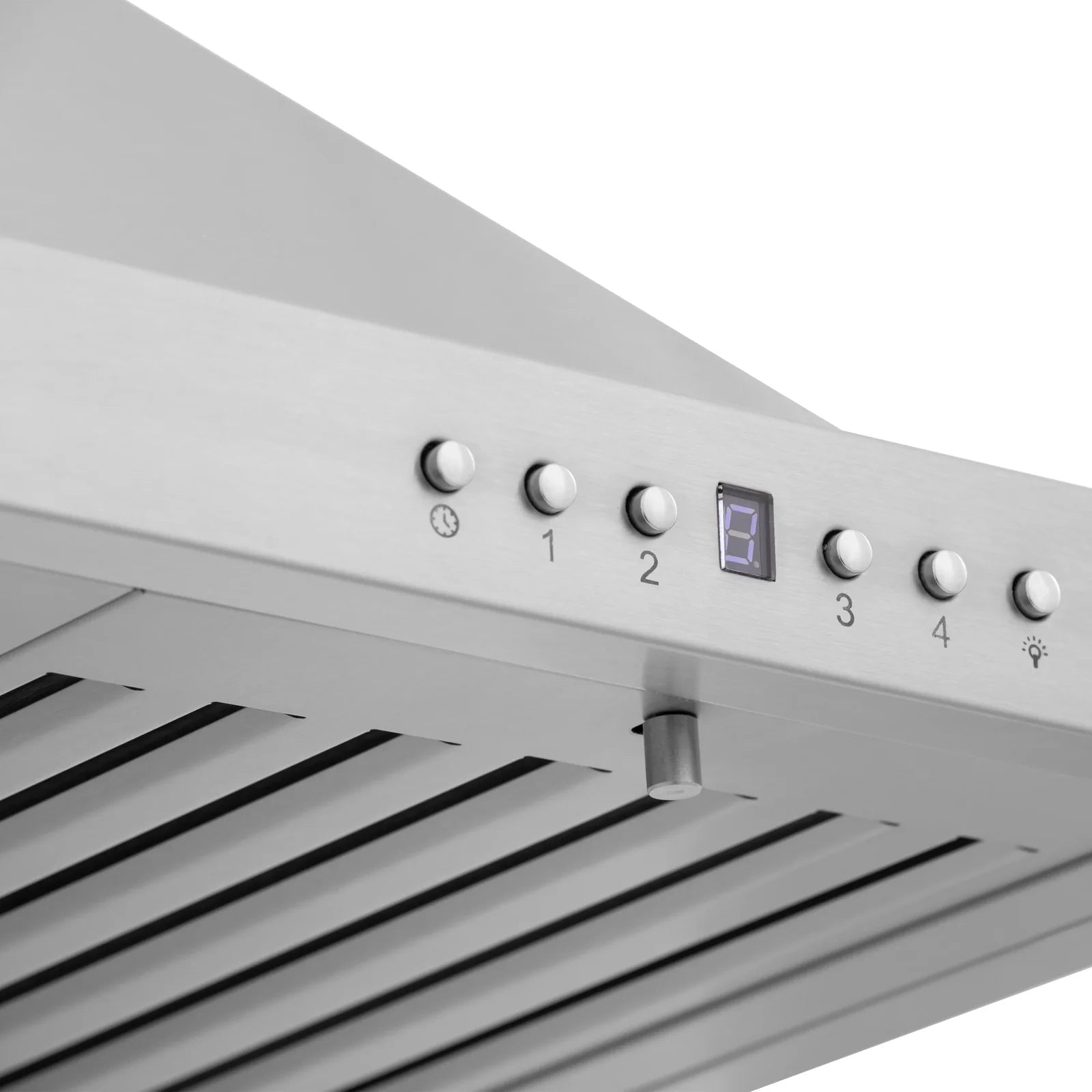

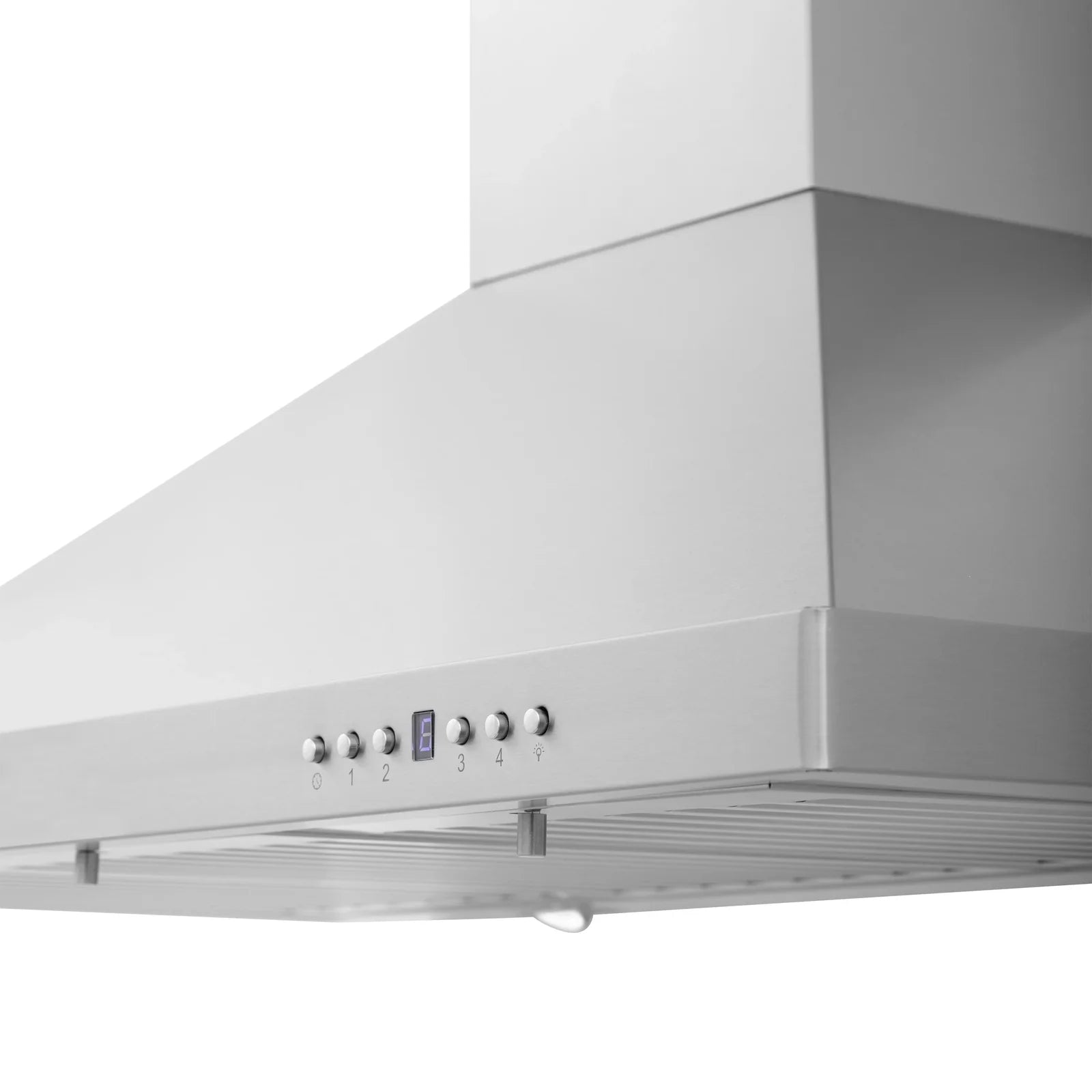

Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
|
| Filters: |
Stainless Steel Baffle Filters (Dishwasher Safe)
|
| Material: |
21g #430 Stainless Steel
|
| Warranty: |
3 Year Parts Warranty
|
| Features: |
Model No. KB-48 (ETL Listed) |
| UPC: |
855187005429
|
| Certifications: |
ETL Certified
|

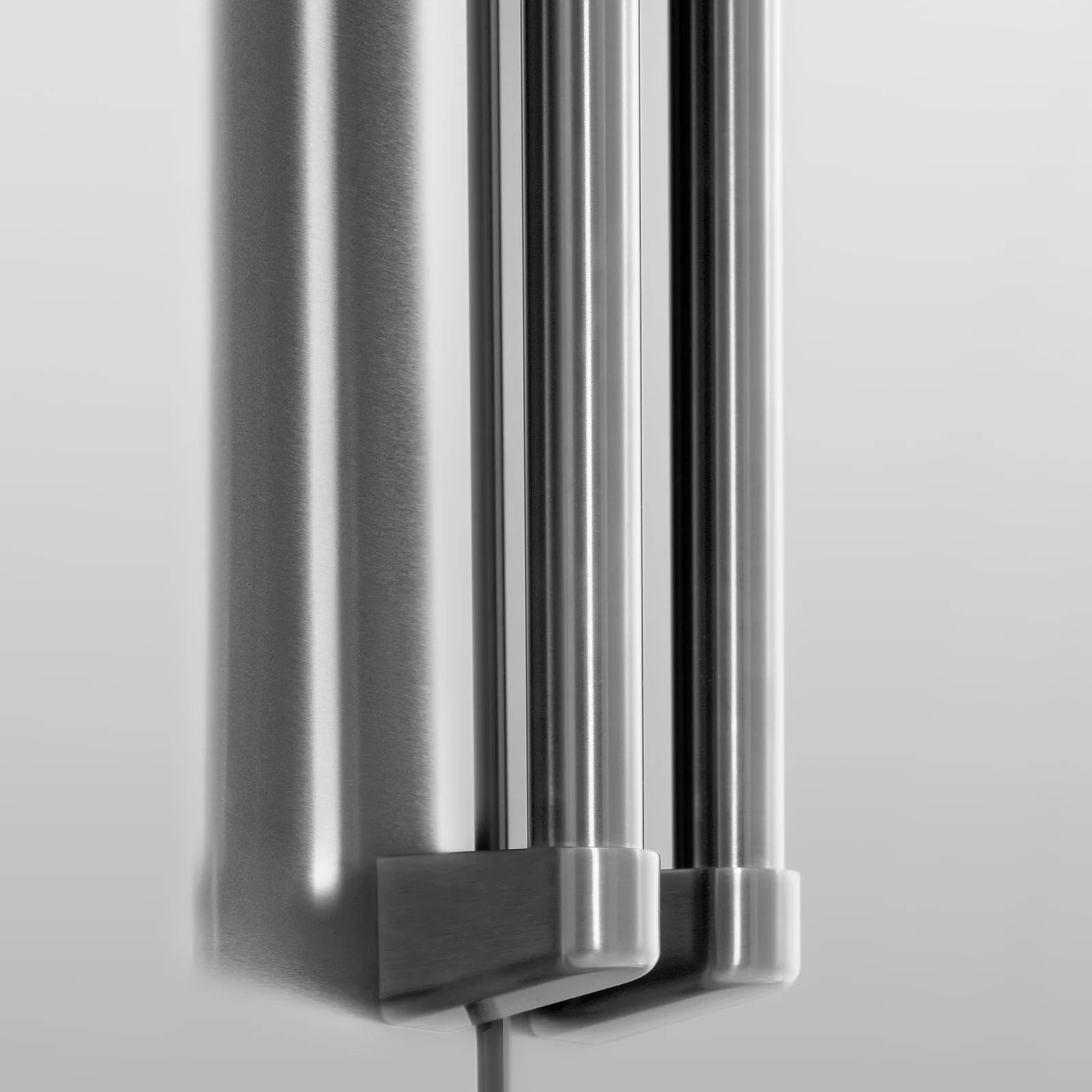

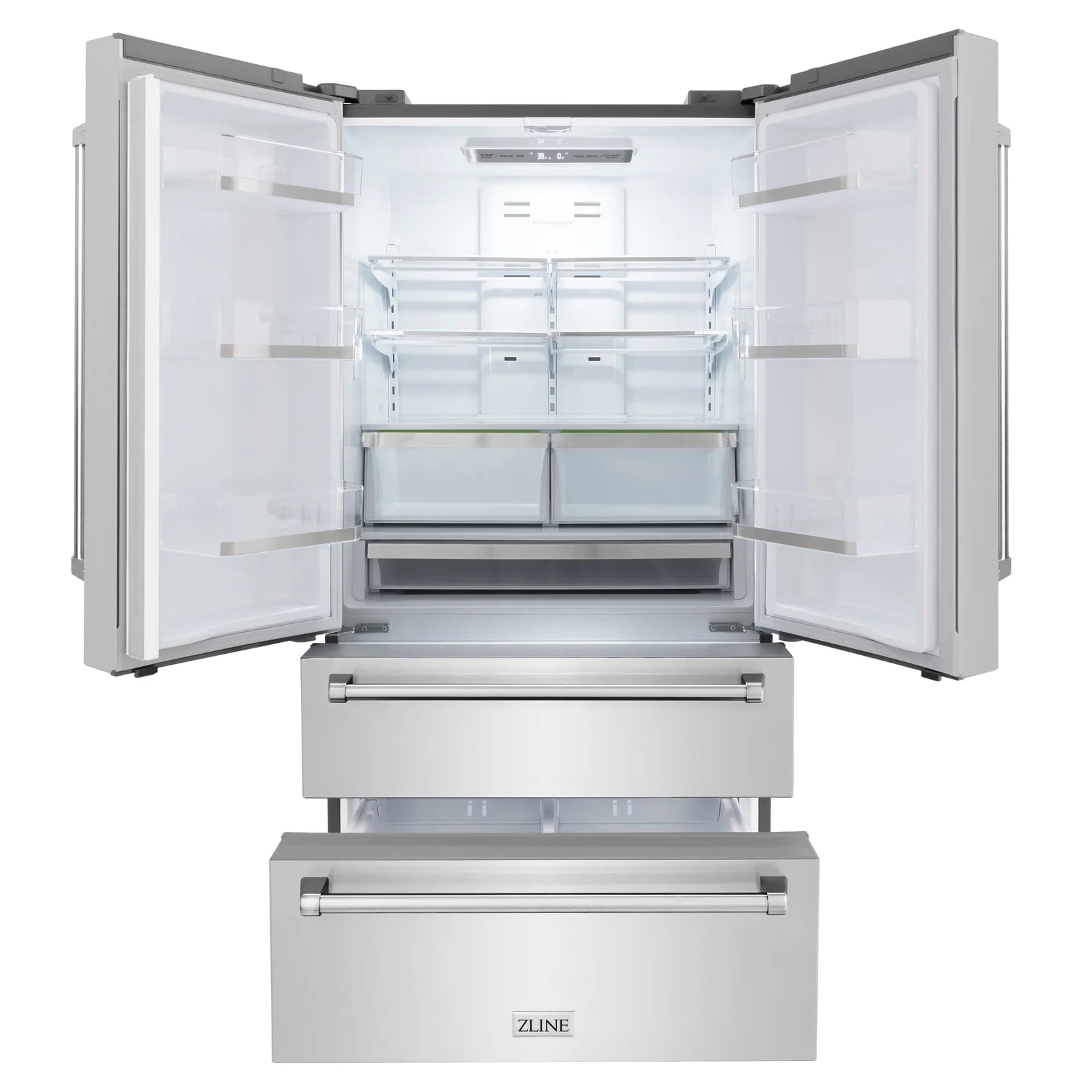

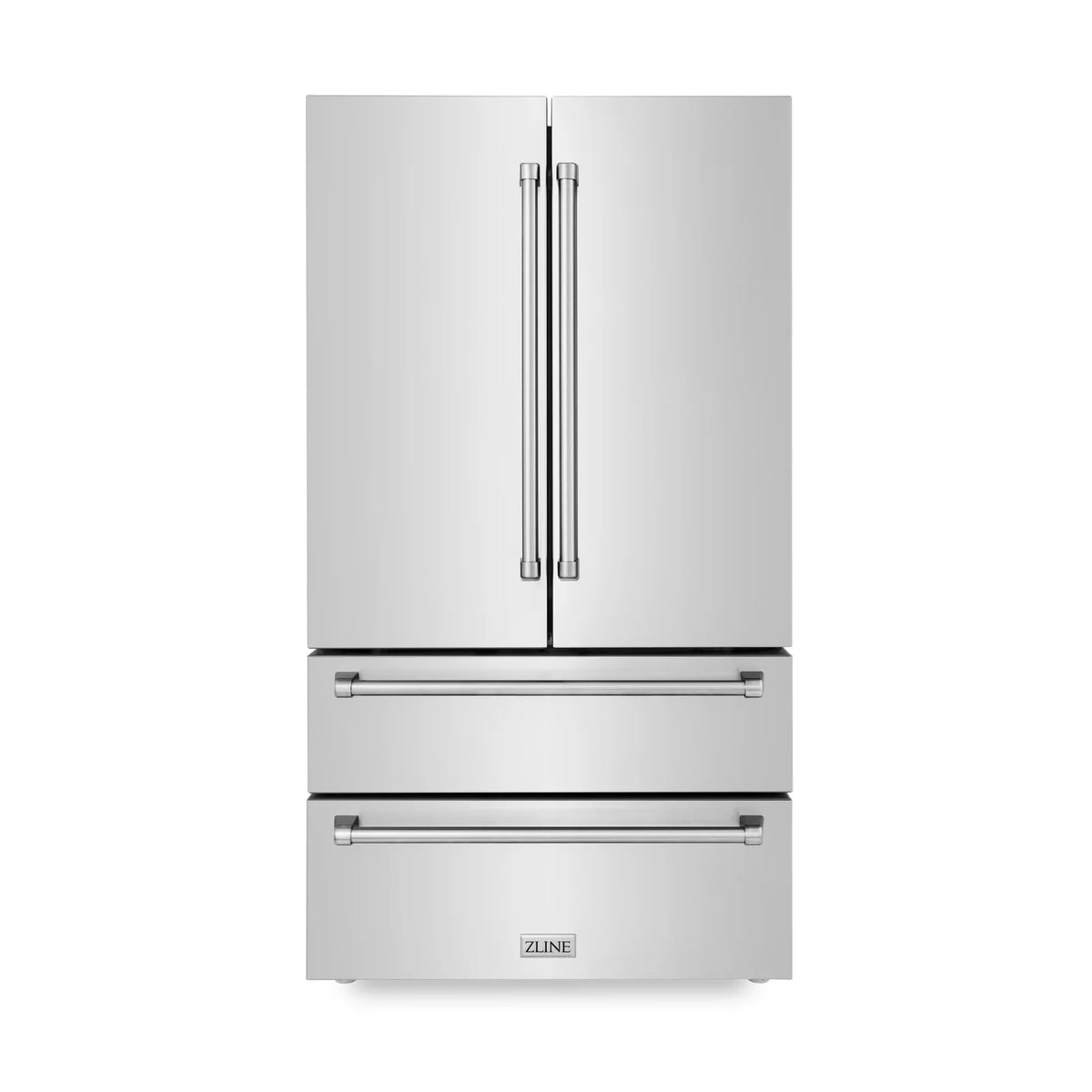

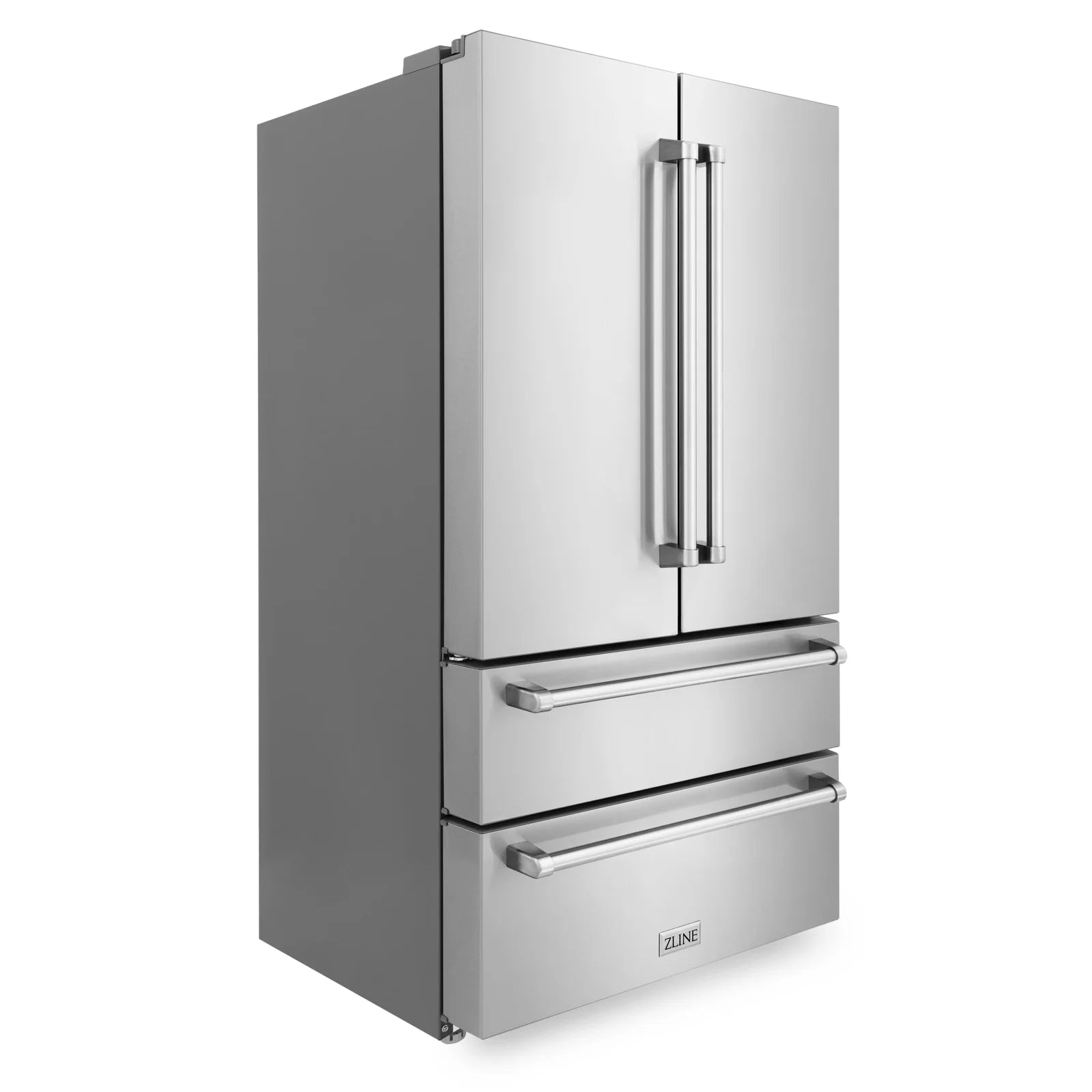

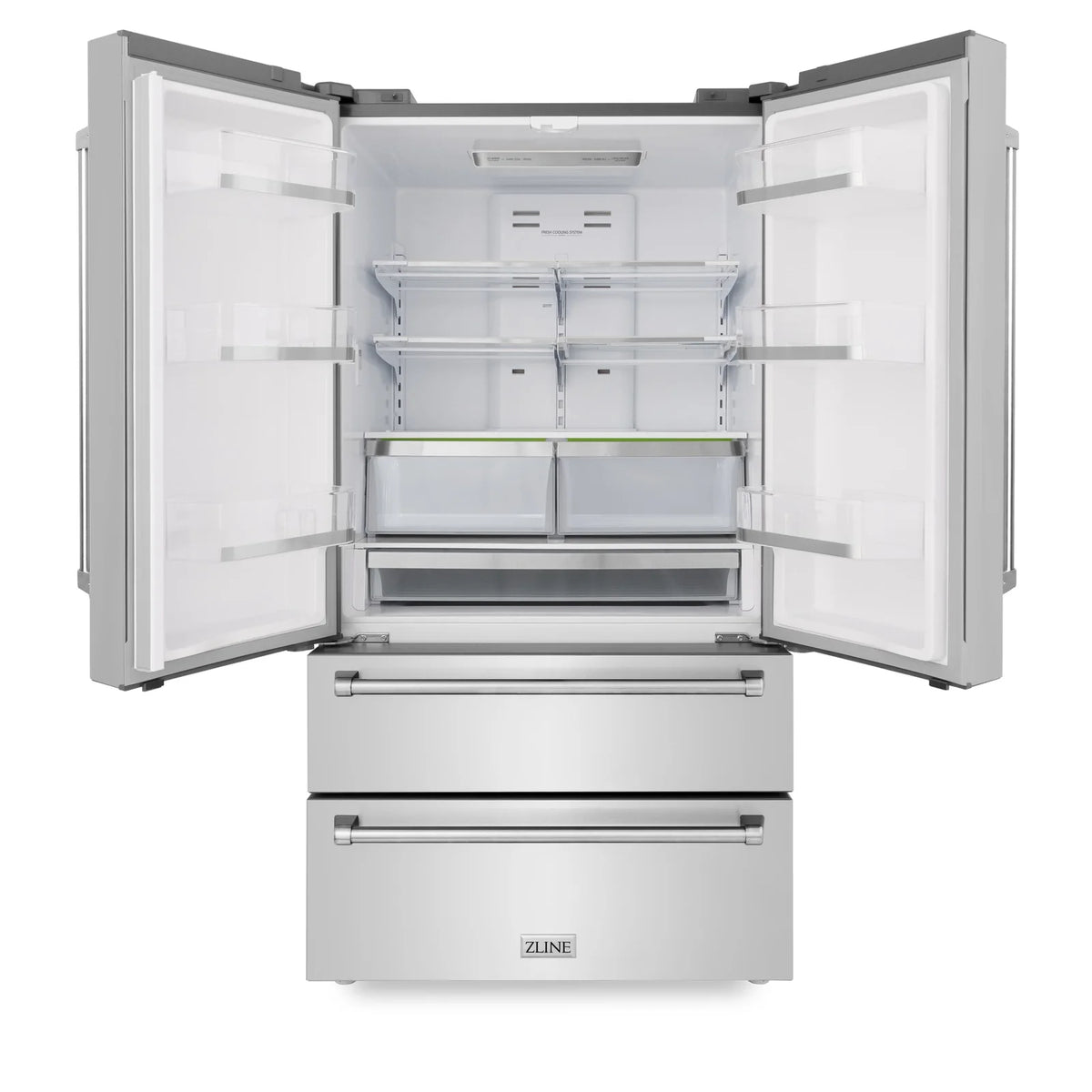

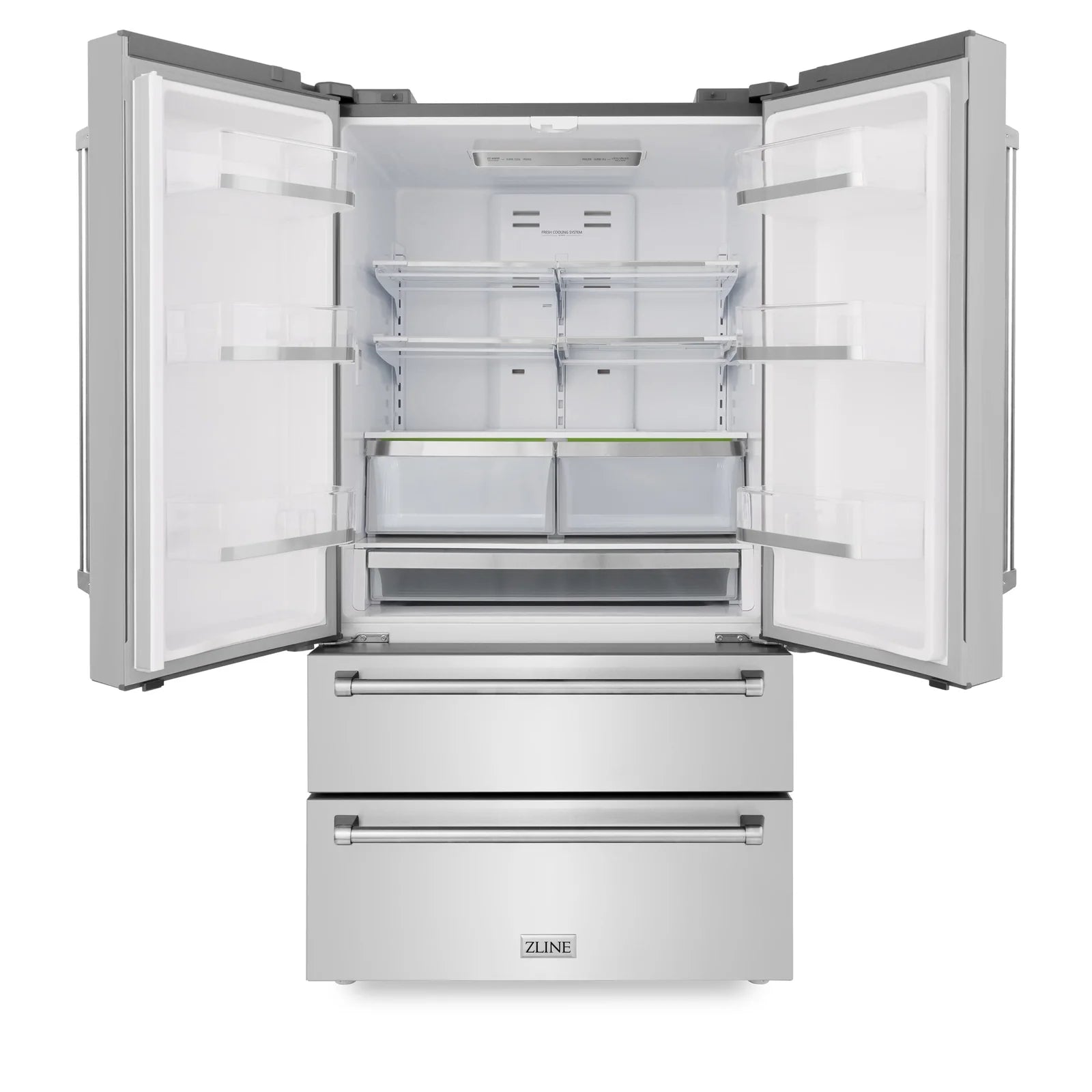

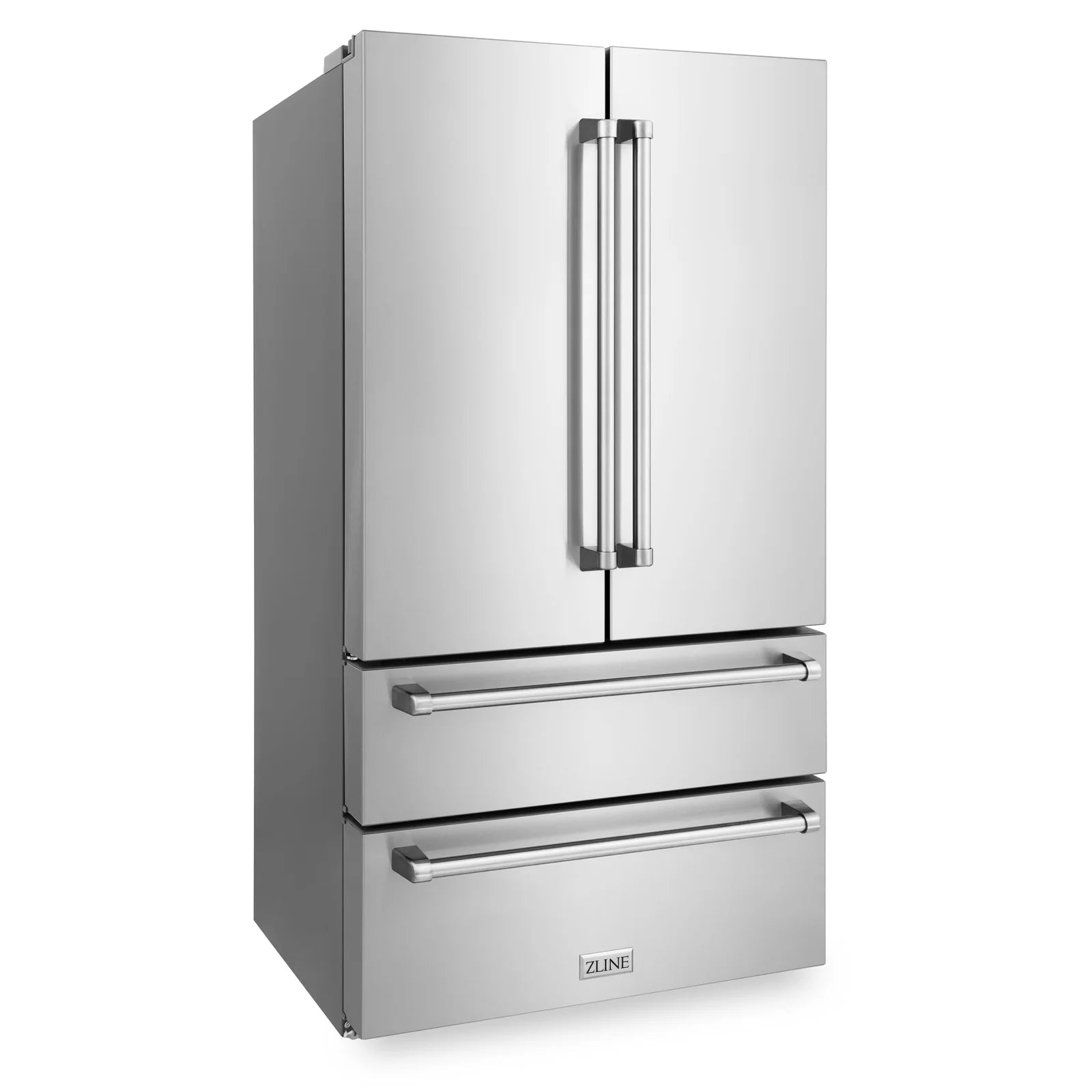

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE 36 in. 22.5 cu. ft. Counter-Depth French Door Refrigerator with Ice Maker in Fingerprint-Resistant Stainless Steel (RFM-36) delivers an elevated experience by pairing innovative dual cooling technology with a spacious counter-depth design and a high-capacity built-in ice maker. Achieve ZLINE Attainable Luxury® excellence with timeless features designed to enhance your kitchen’s capability.

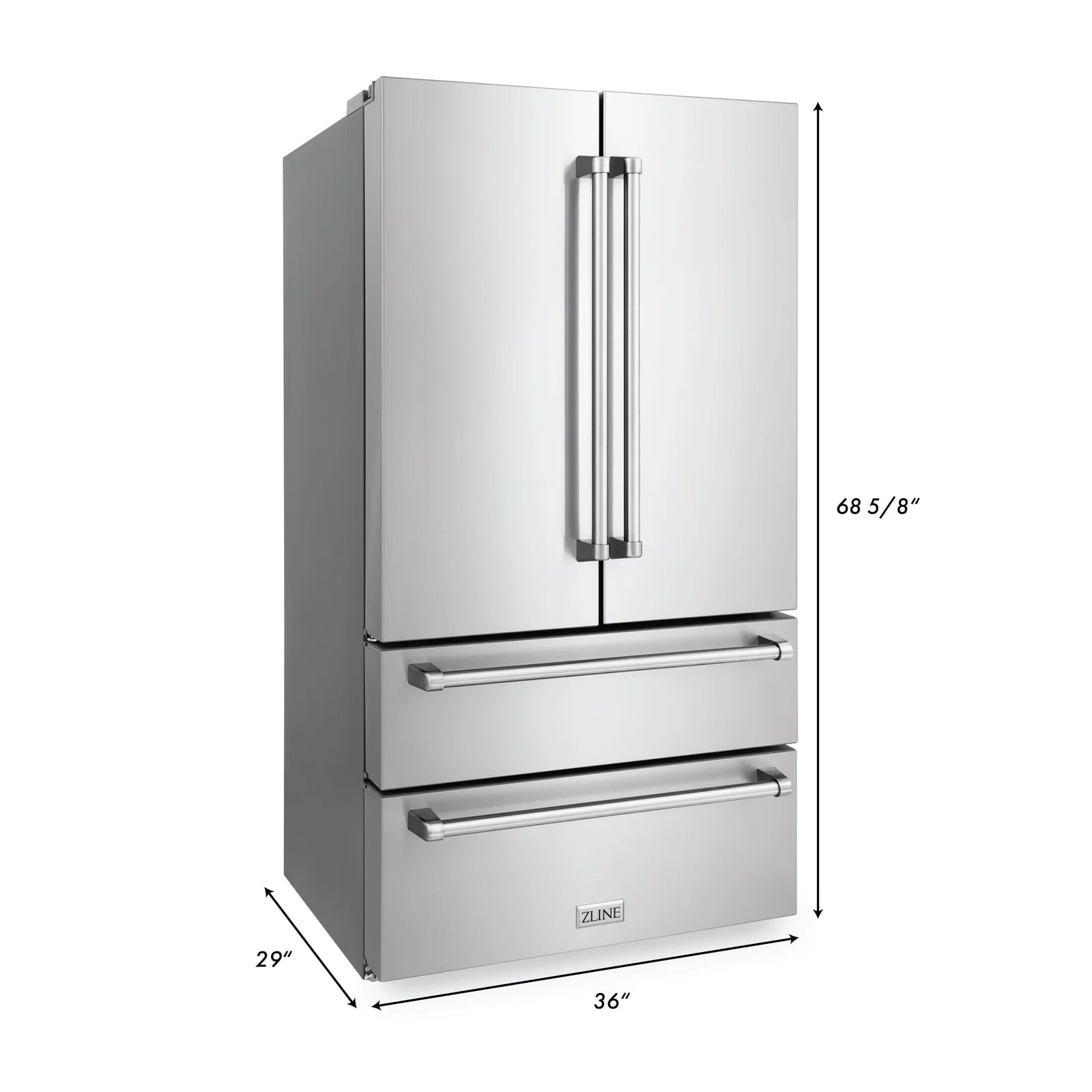

| Dimensions: | 35.75 in. W x 29.125 in. D x 69.6875 in. H |
| Total Capacity: | 22.5 cu. ft |
| Fridge Capacity: | 15.9 cu. ft |
| Freezer Capacity: | 6.6 cu. ft |
| Flex Drawer Capacity: | N/A |
| Flex Drawer Temp Controls: | N/A |
| Installation Depth: | 29 in. D |
| Depth with Door Open: | 43.5 in. |
| Ice Maker: | Yes |
| Ice Maker Types: | Single Ice Maker |
| Ice Amount Per Day: | 4.85 lbs |
| Ice Tray Storage: | 1.75 lbs |
| Water Dispenser: | No |
| Flowrate for Water Dispenser: | N/A |
| Fridge Lights: | 3 |
|
Energy Star: |
Yes |
| Energy Consumption (kWh/year) | 588 |
| Voltage: | 120V/60Hz |
| Amps: | 3 |
| Noise Level: | 45 Decibels |
| Humidity-Controlled Crispers: | 2 |
| Freezer Drawer Bins: | 2- Pull Out Drawers |
| Warranty: |
1-Year Parts and Labor Warranty |

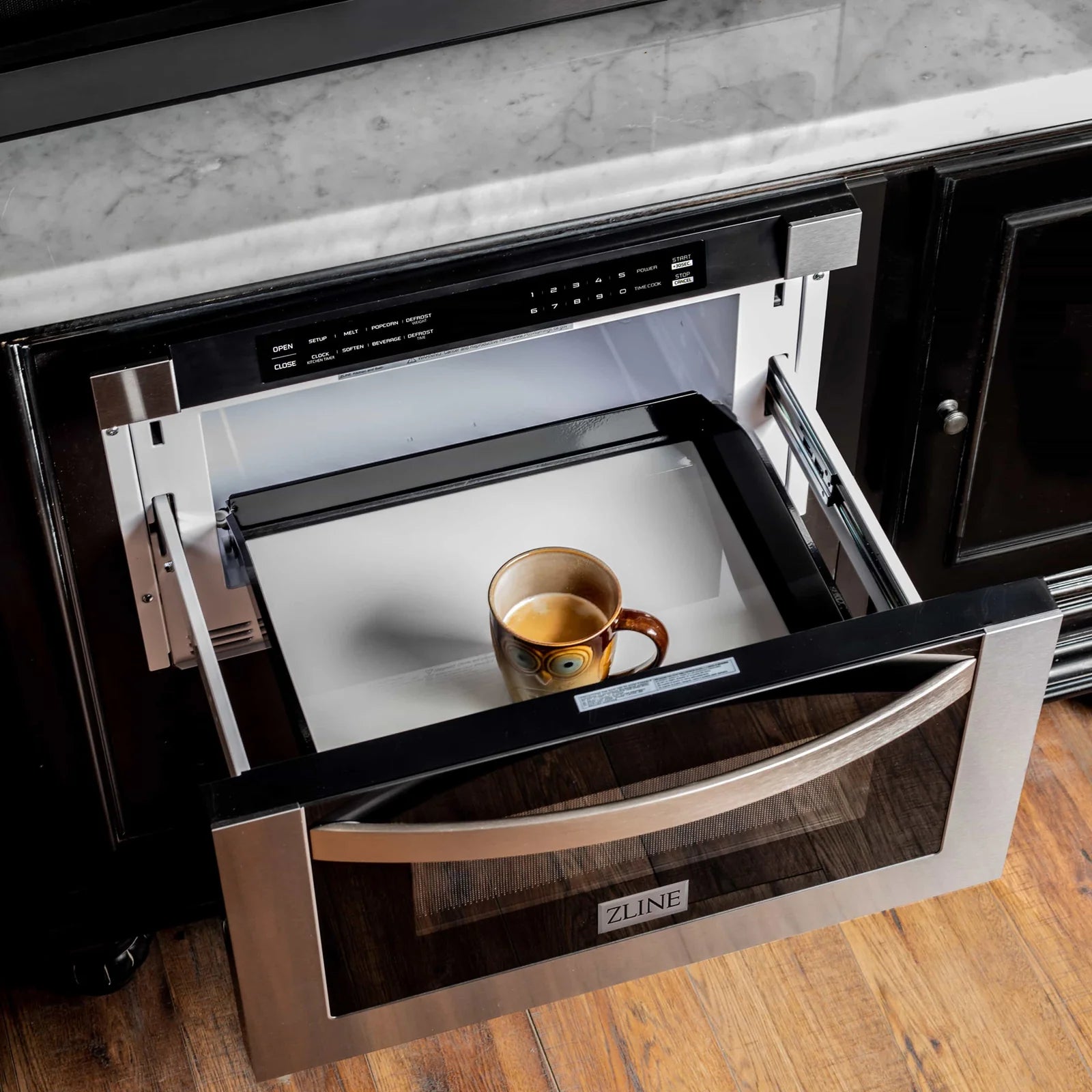

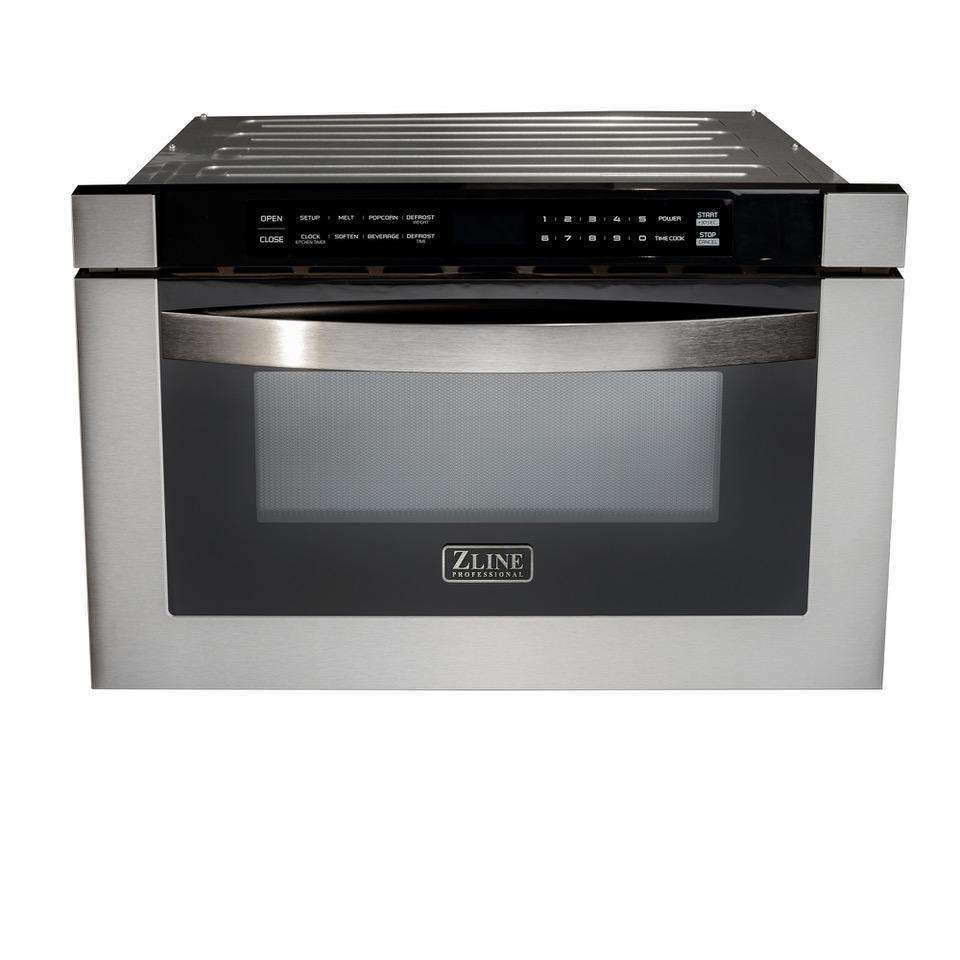

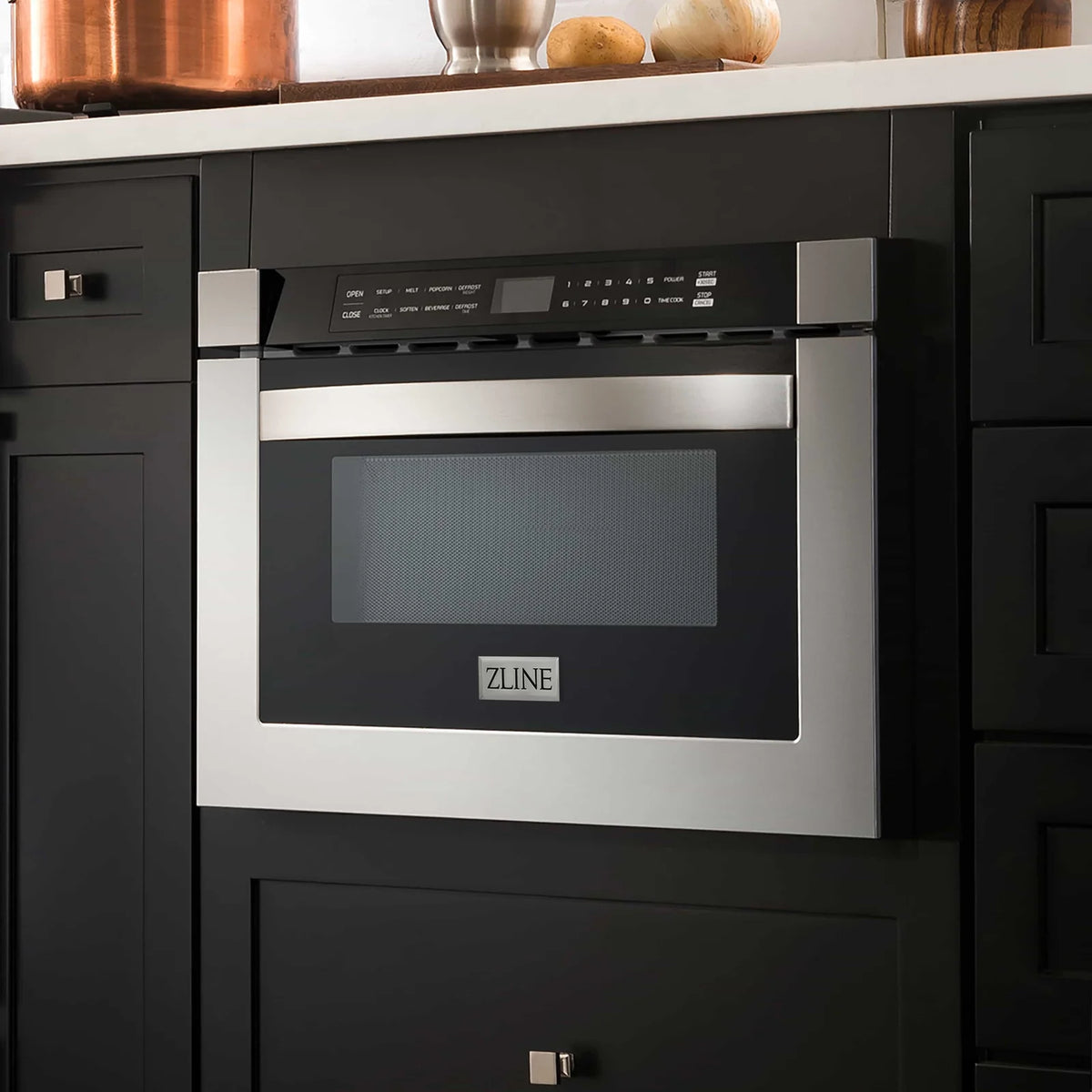

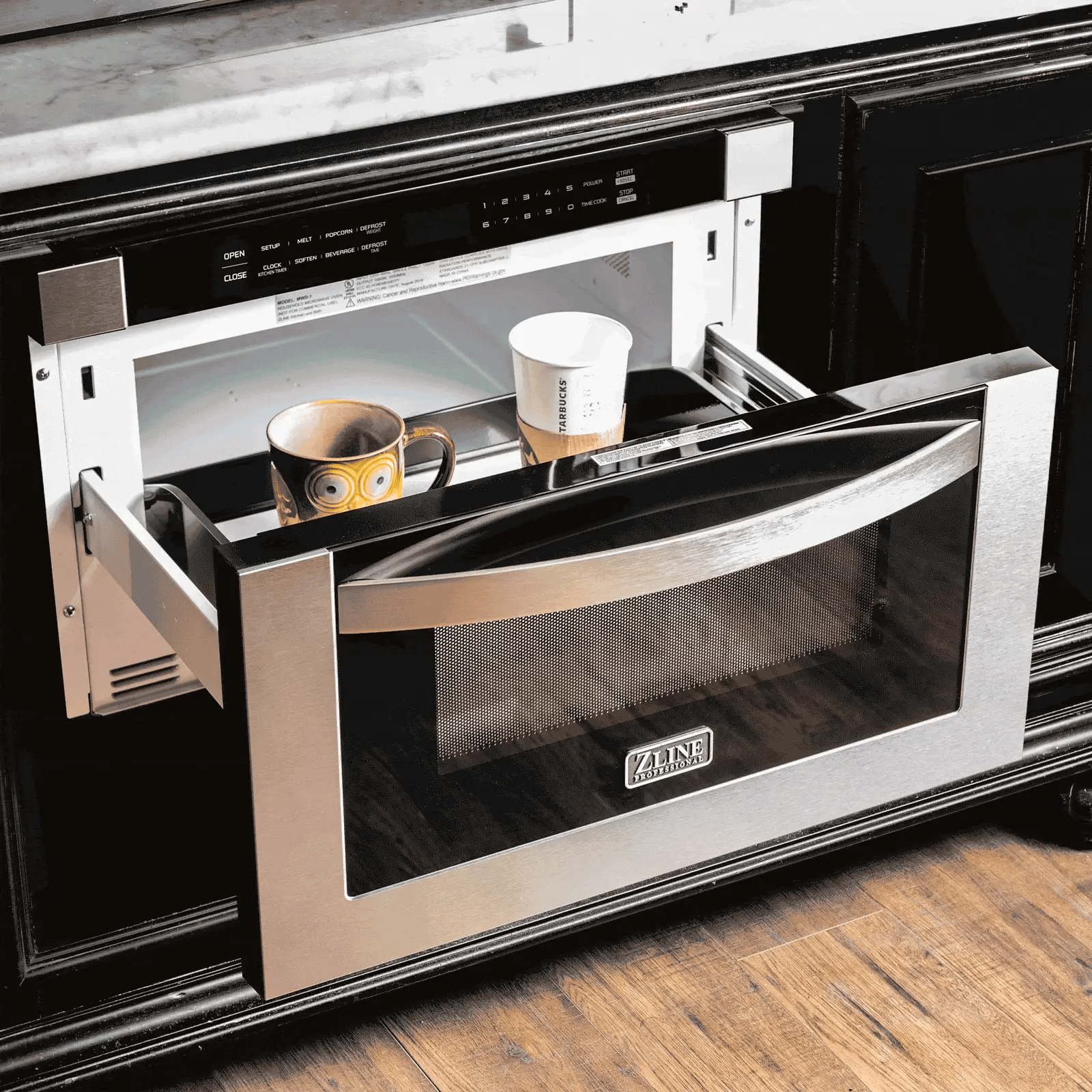

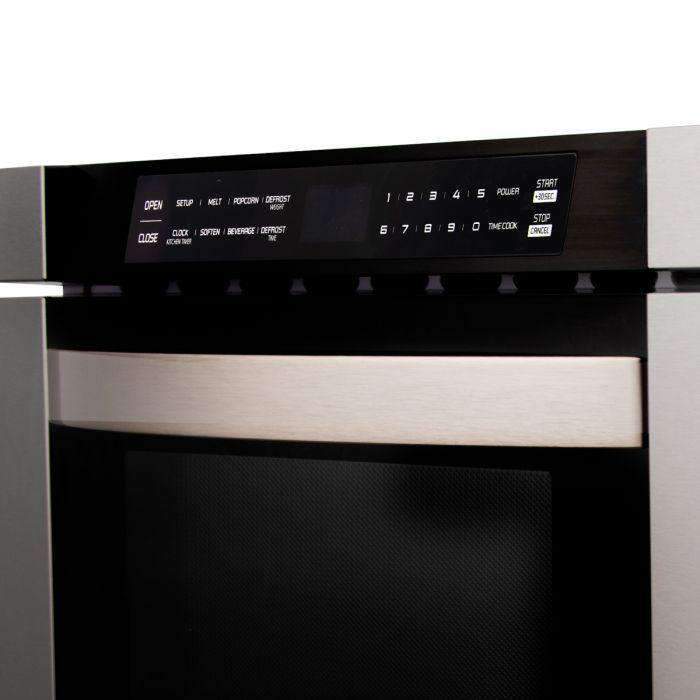

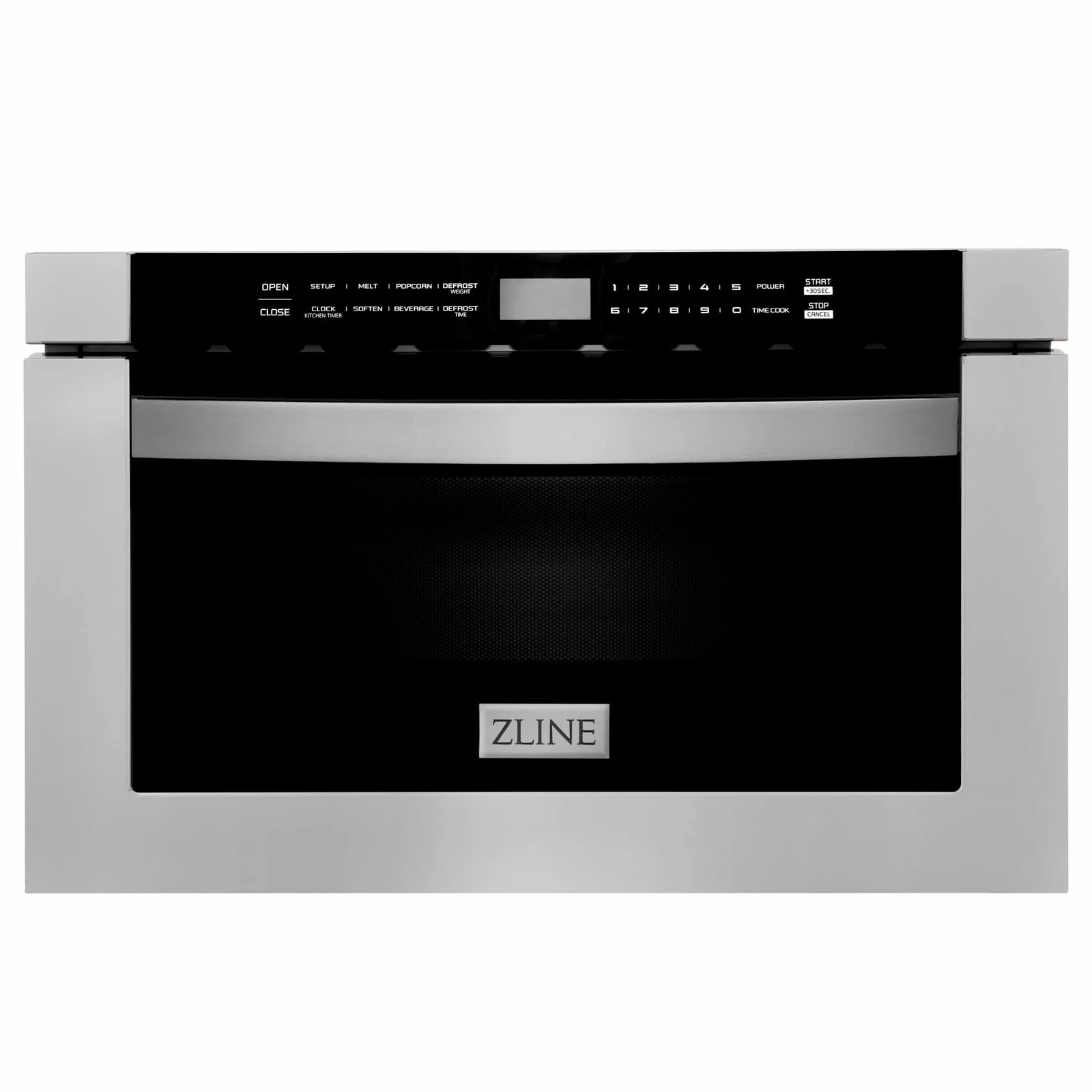

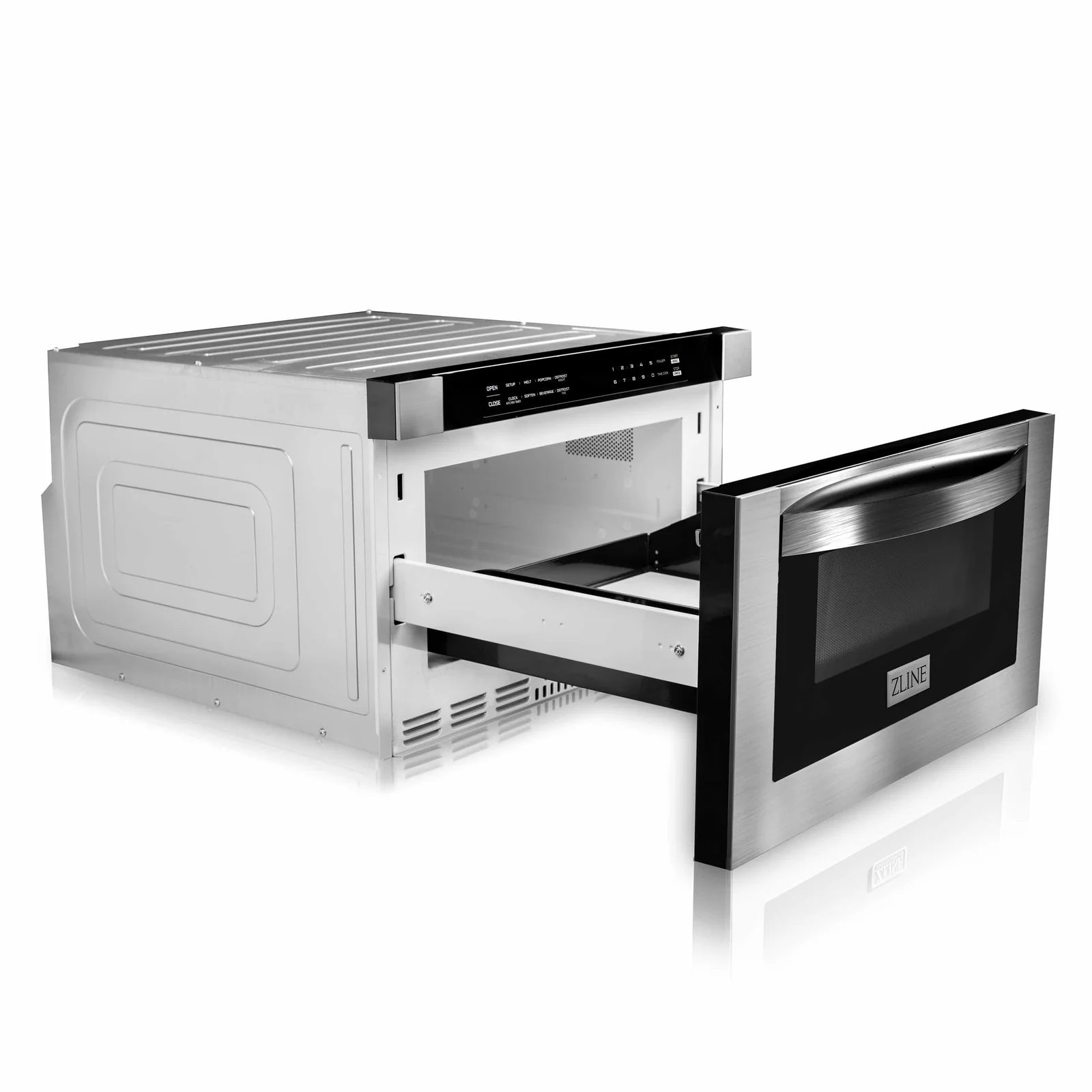

Luxury isn't meant to be desired - it's meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 24" 1.2 cu. ft. Built-in Microwave Drawer in Stainless Steel (MWD-1) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen's capability.

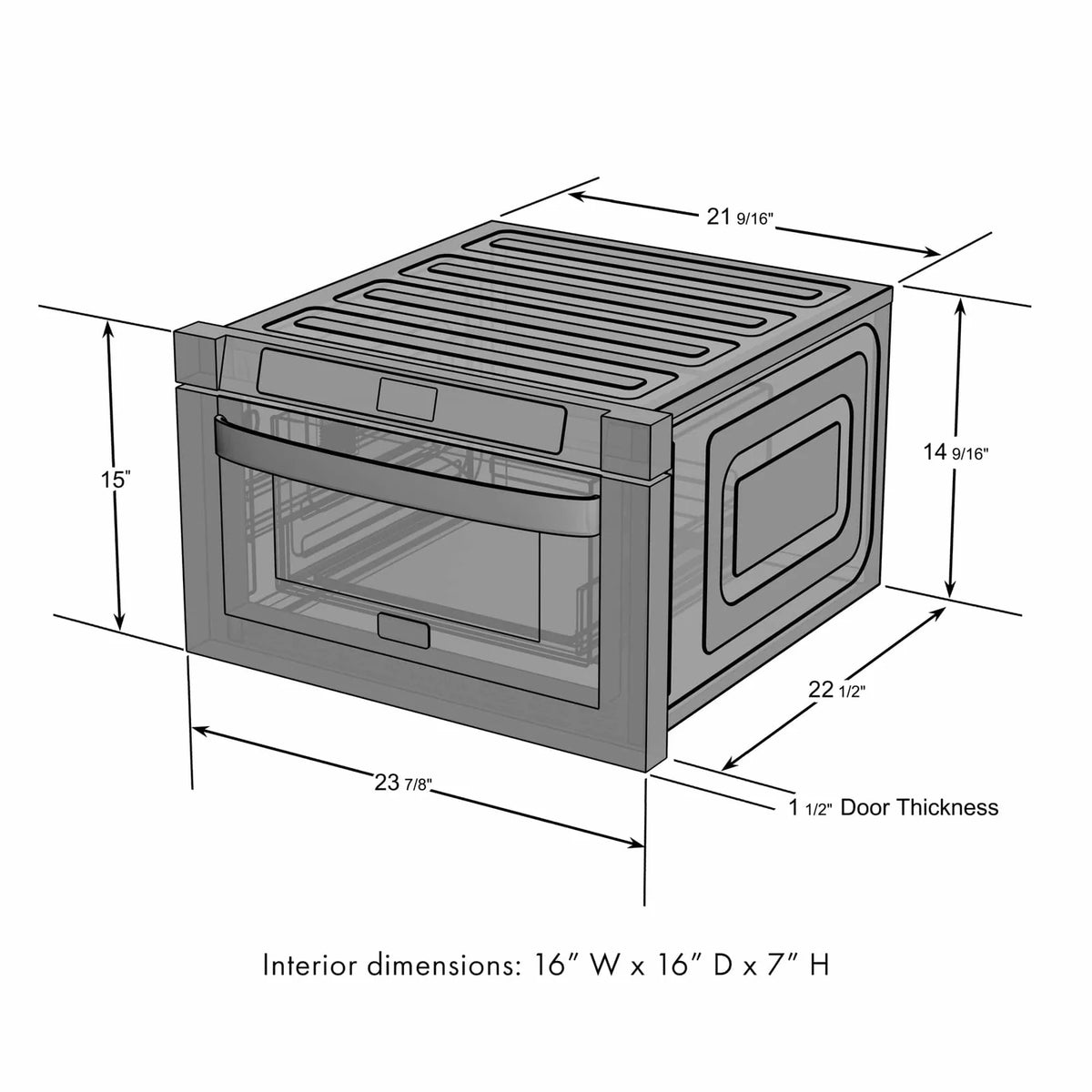

| Dimensions: | 23.5 in W x 23.31 in D x 14.88 in H |
| Cut Out Dimensions: | 22.13 in W x 23.5 in D x 15 in H |
| Nominal Width: | 25 |
| Power Specs: | Amperage 13 / Frequency 60 / Voltage 120 Watts |
| Certification: | ADA / Not Approved for Commercial use / UL Listed: yes |
| Control Type | Touch Screen |
| Voltage: | 120V/ 60HZ/13A |
| Motor | 1,000 Watts |
| Exhaust fan speed: | 1 |
| Auto Shut Off: | No |
| Product weight: | 69.9 lbs |
| Number of racks: | 1 |

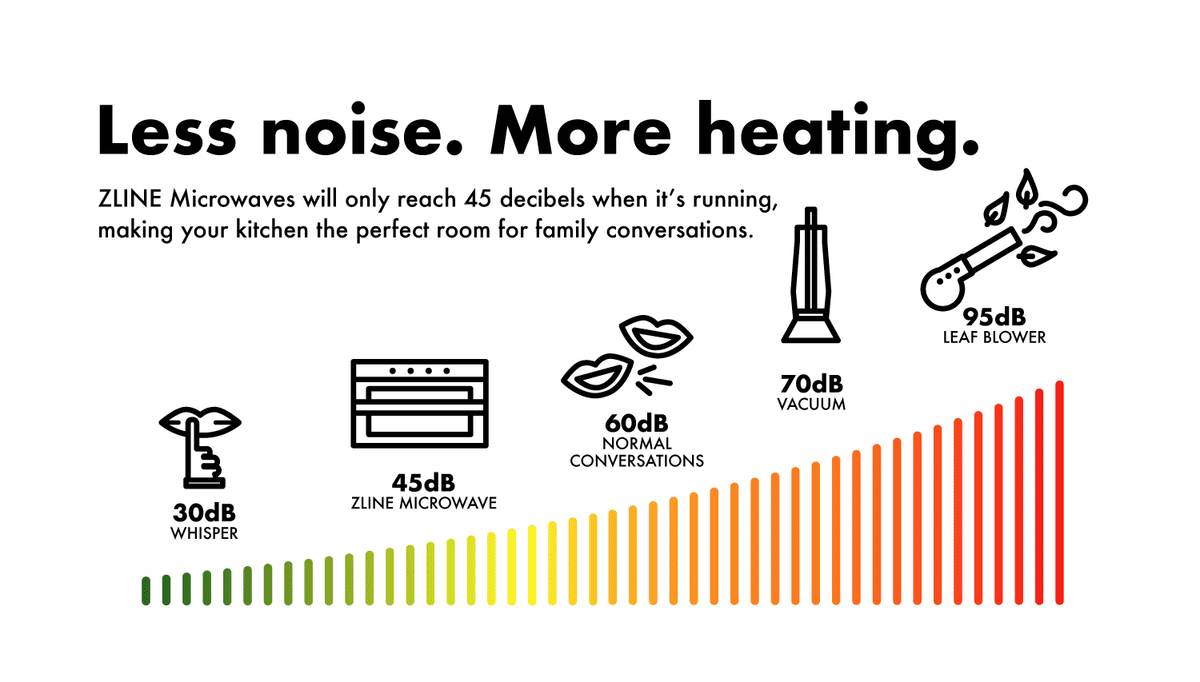

| Noise Level | 45 dB Max |
| Temperature settings: | 11 |
| Features | ADA Compliant |
| Total capacity: | 1.20 |
| Warranty | 2 Year Parts |
Luxury isn’t meant to be desired - it’s meant to be attainable.

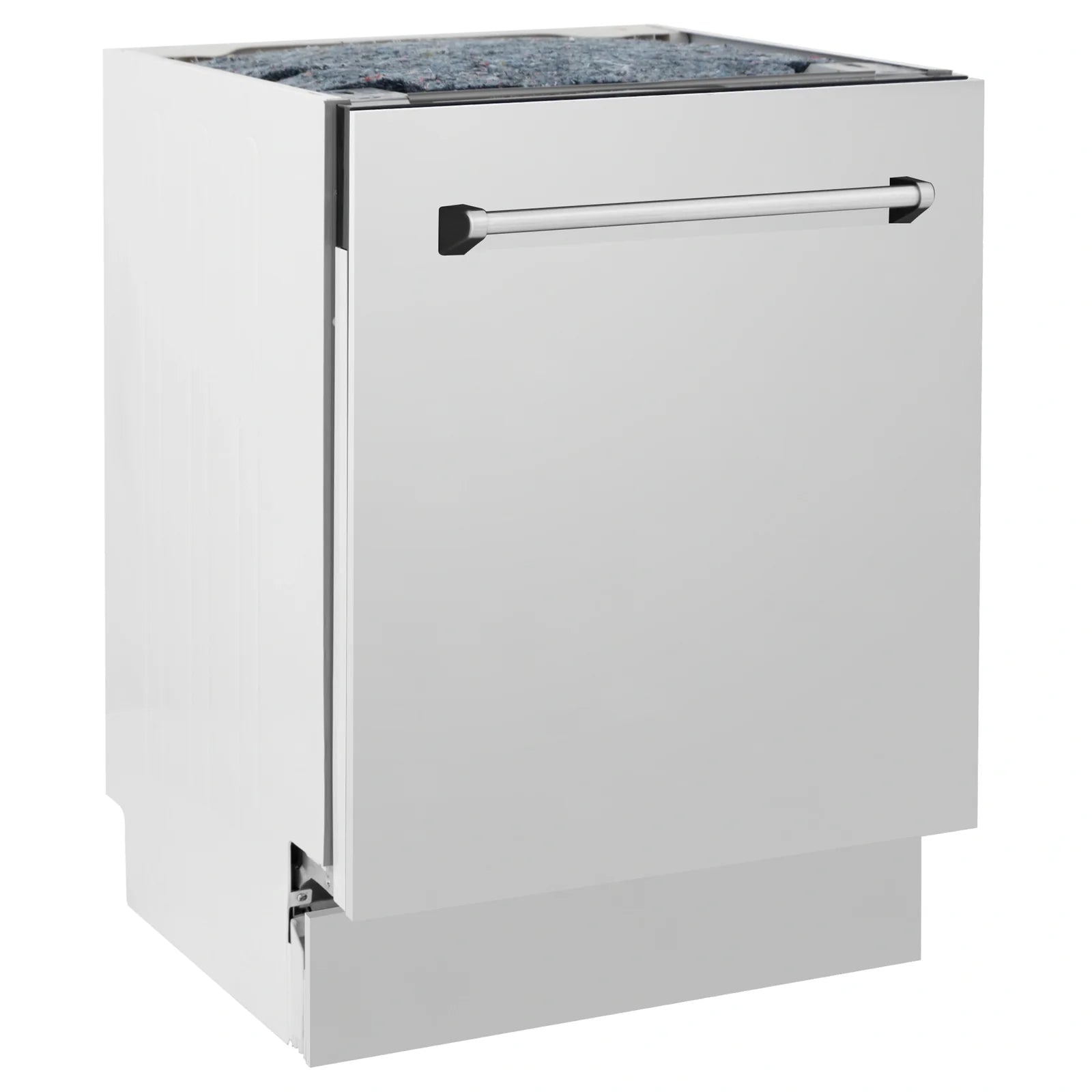

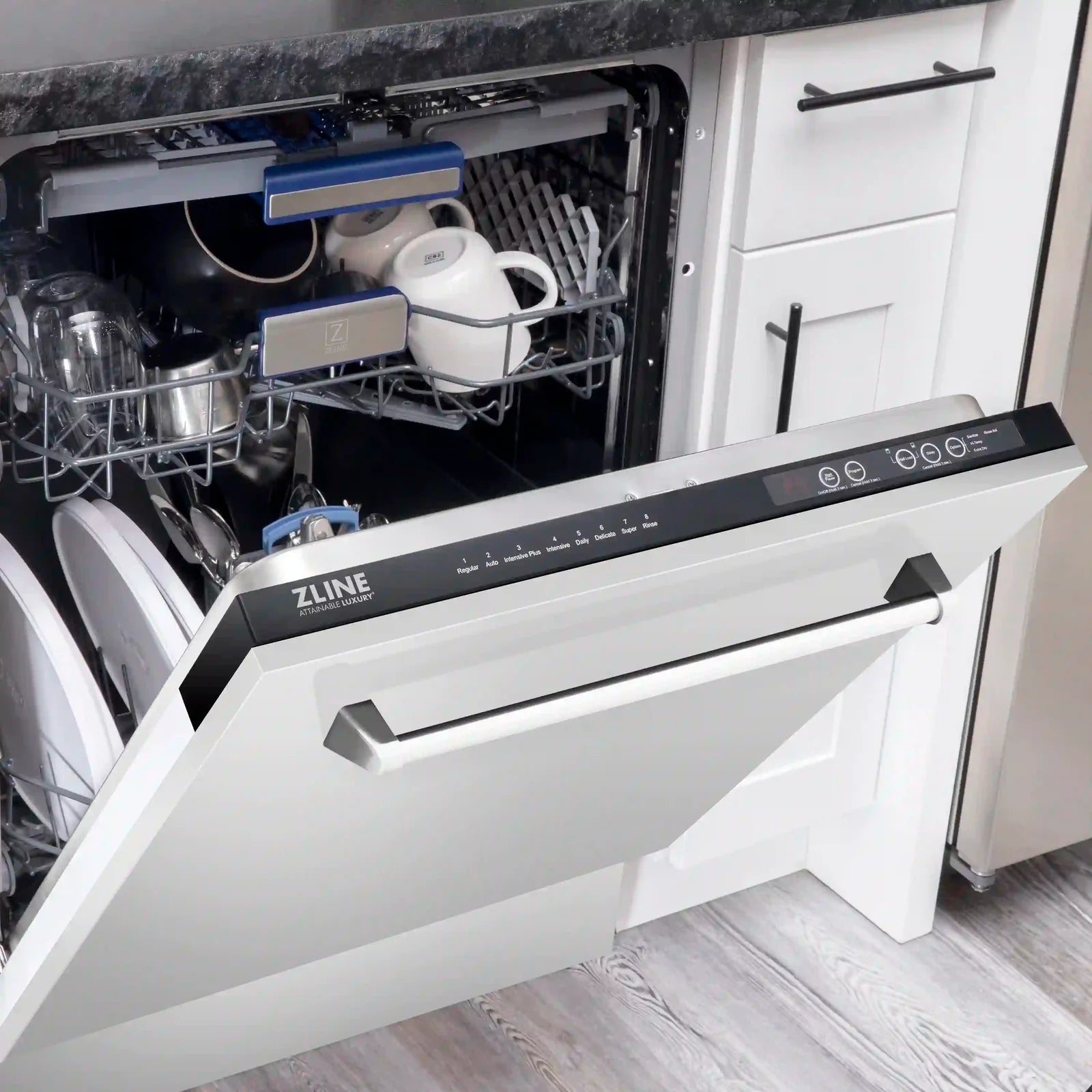

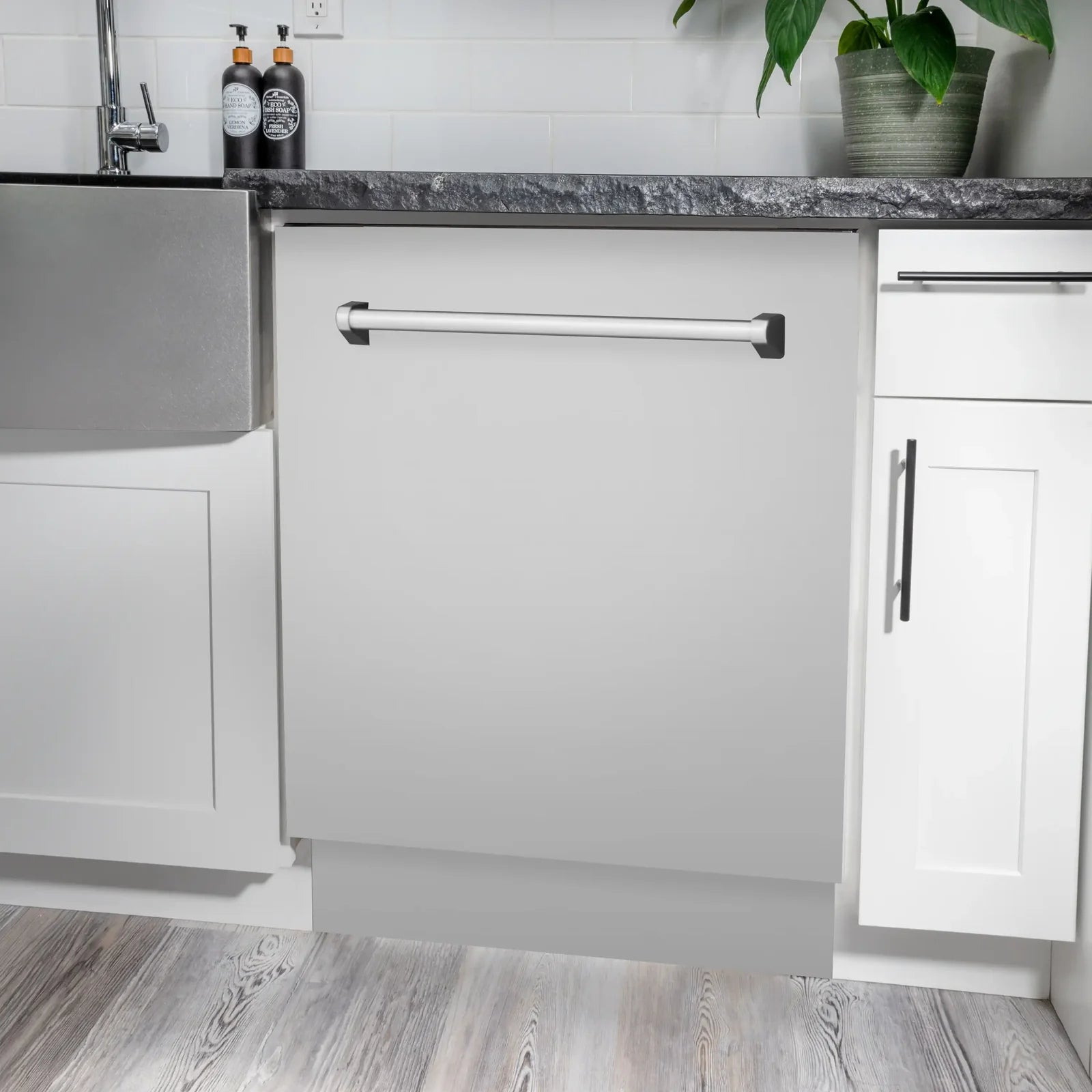

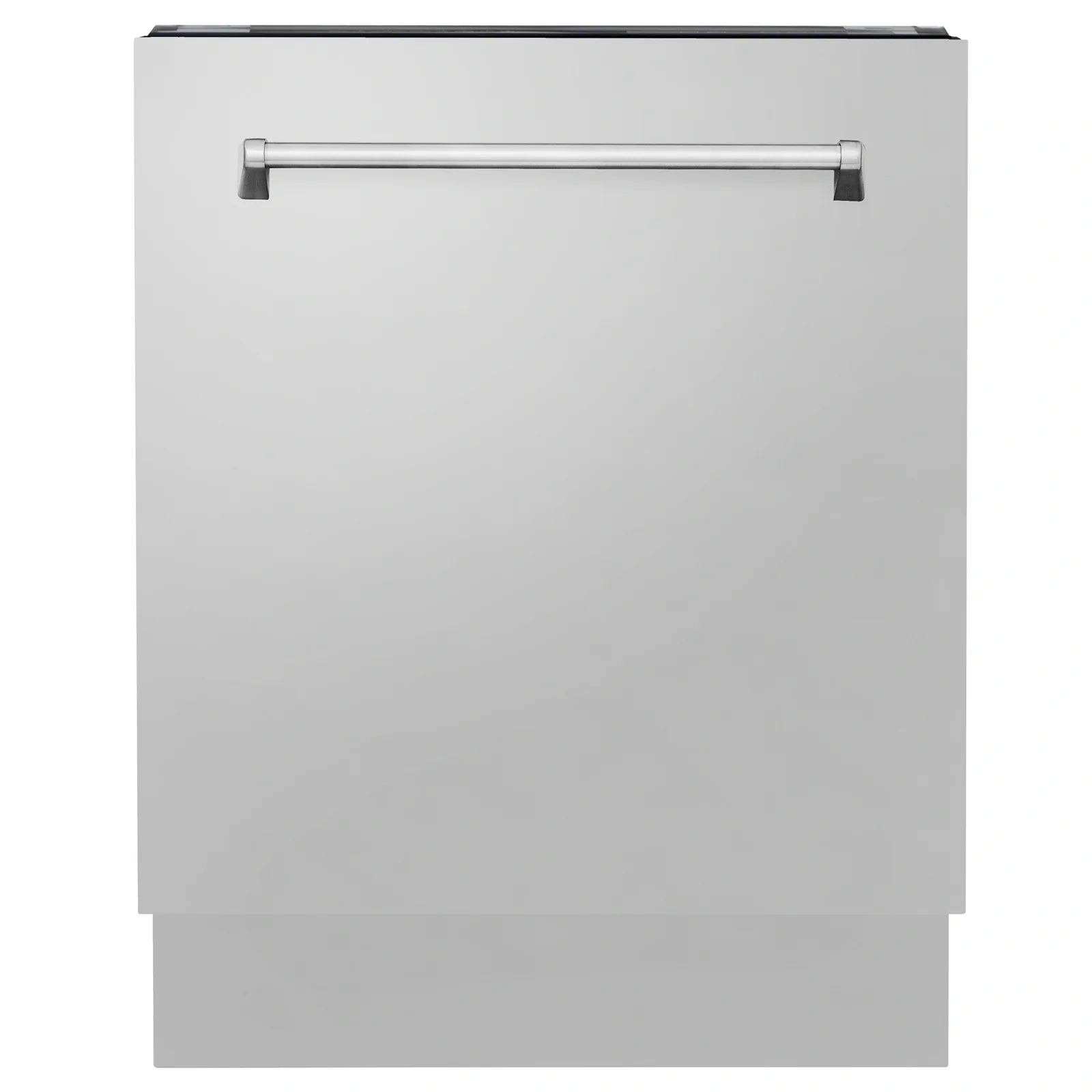

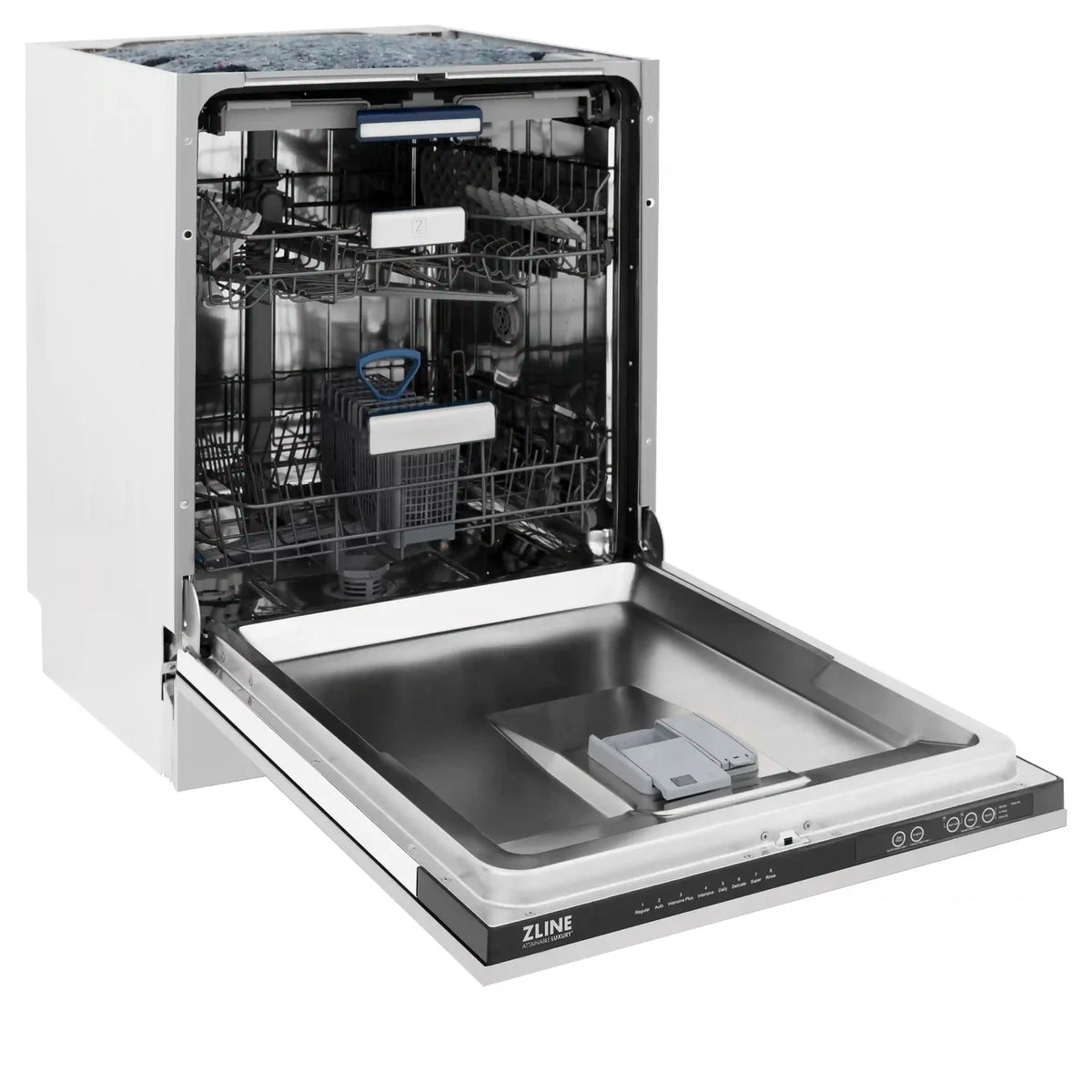

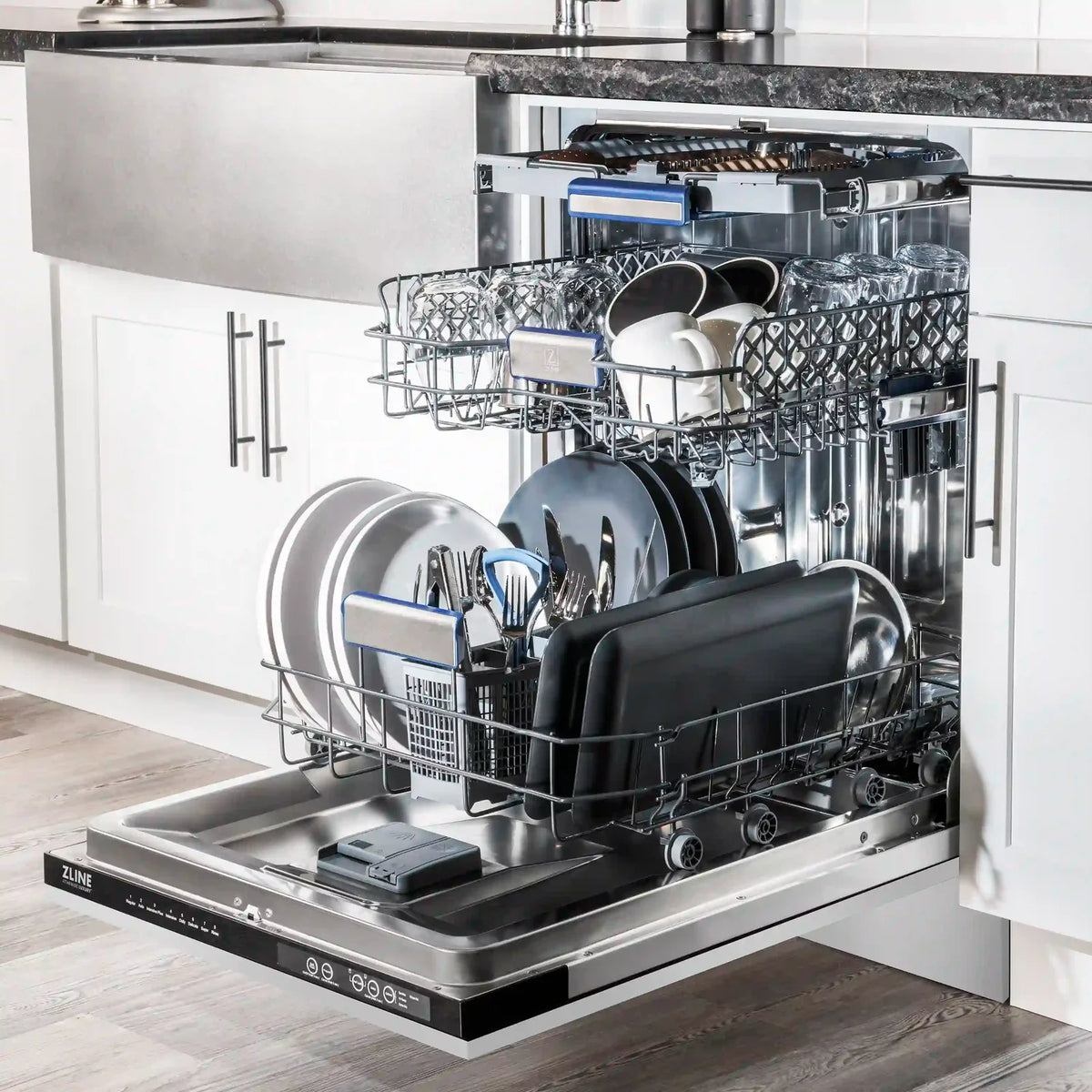

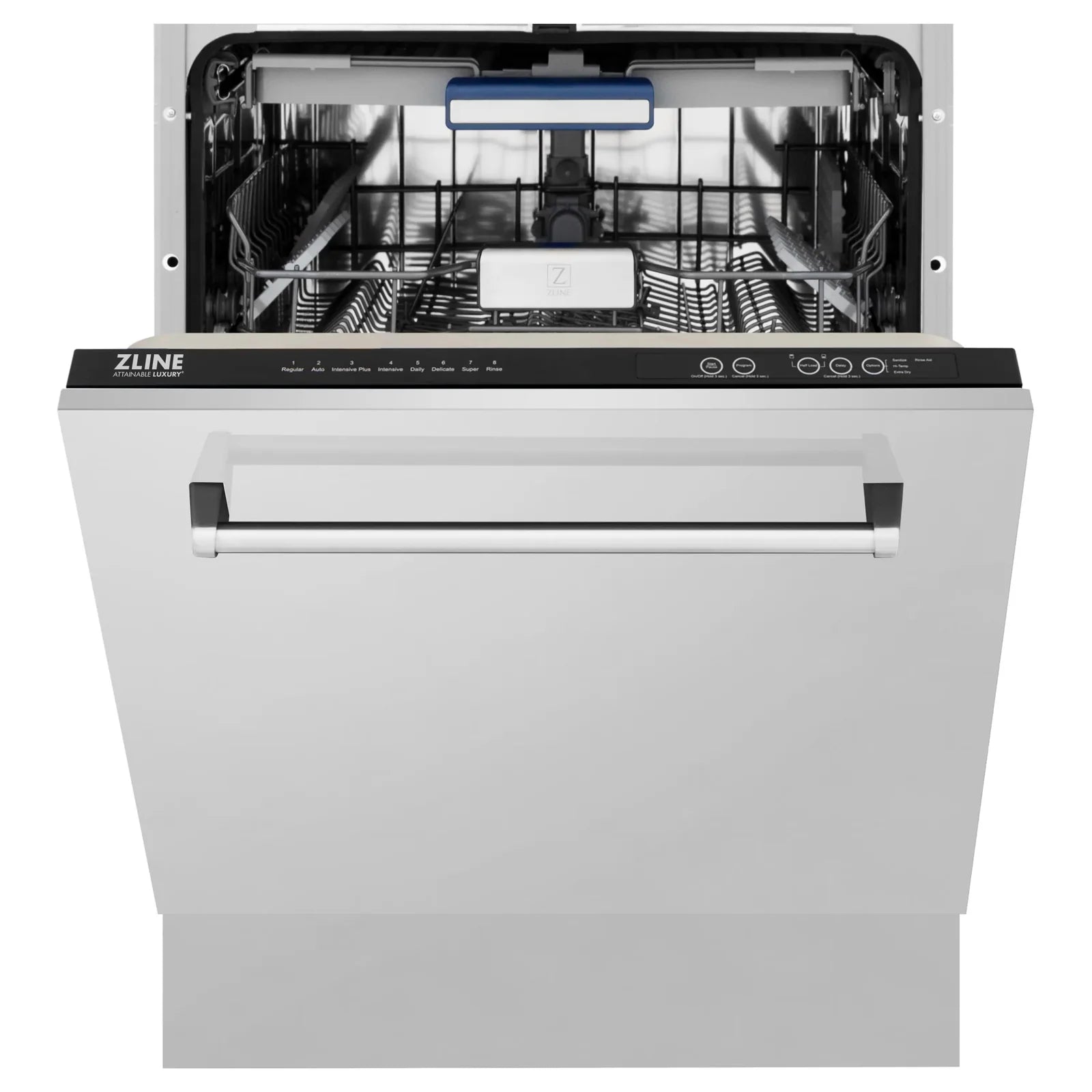

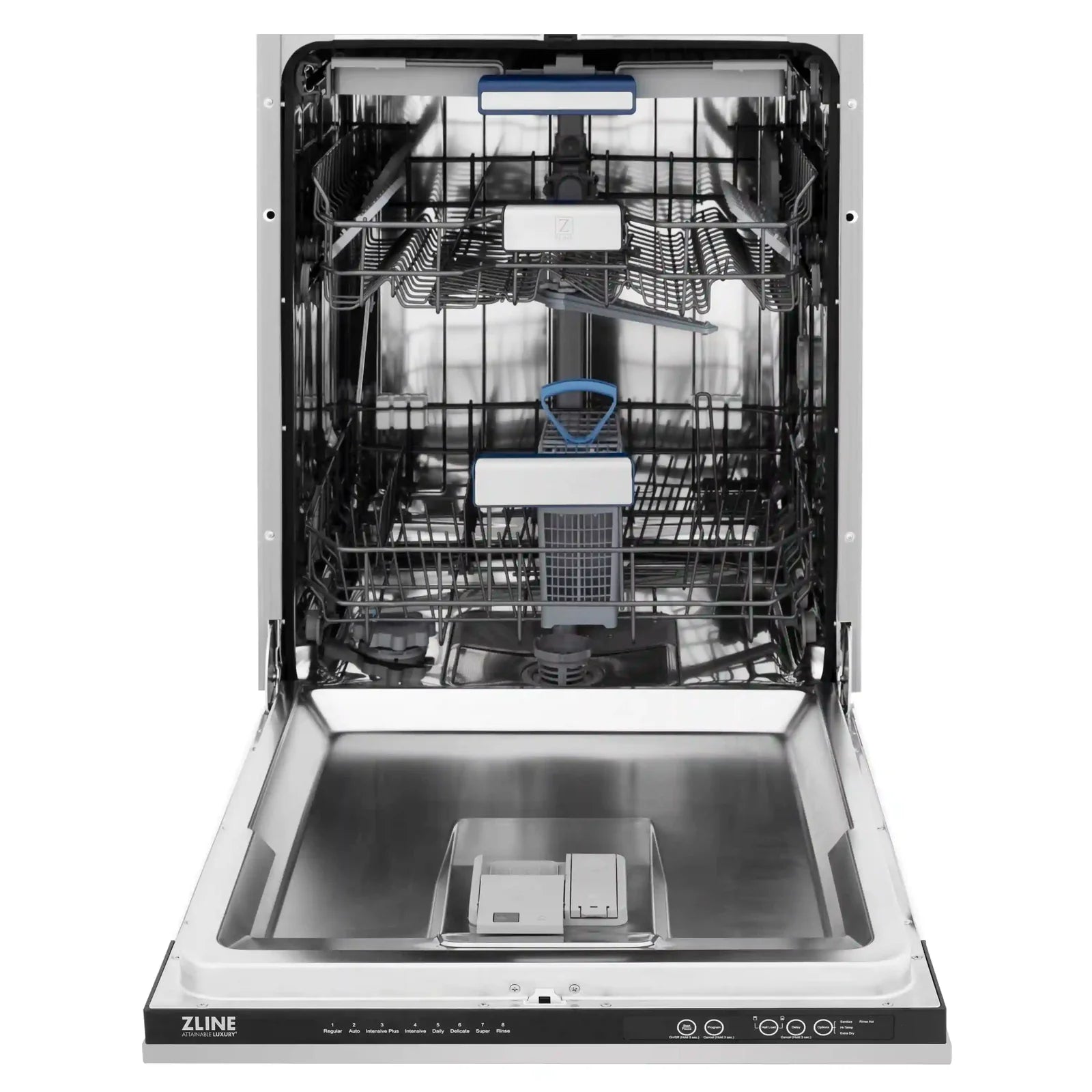

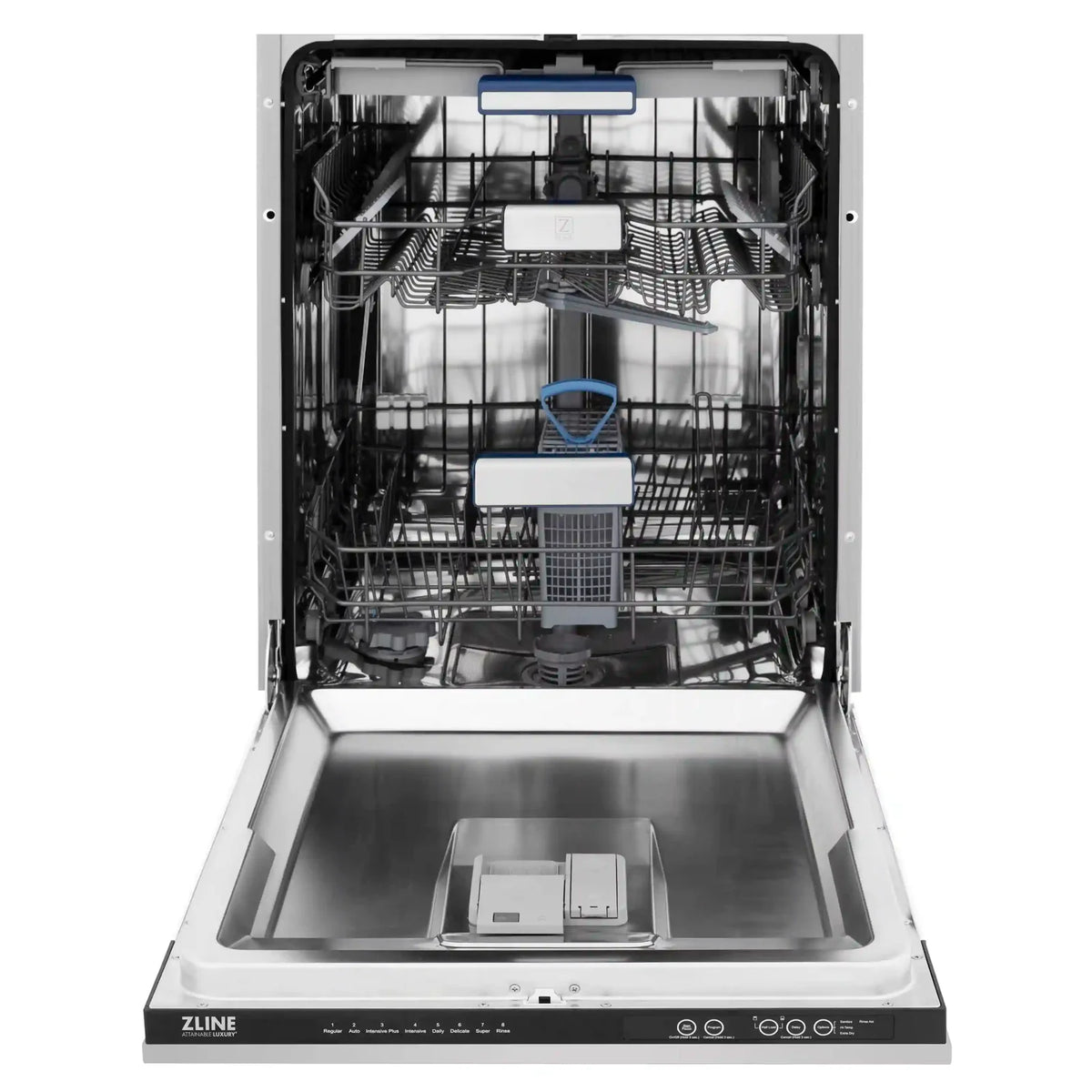

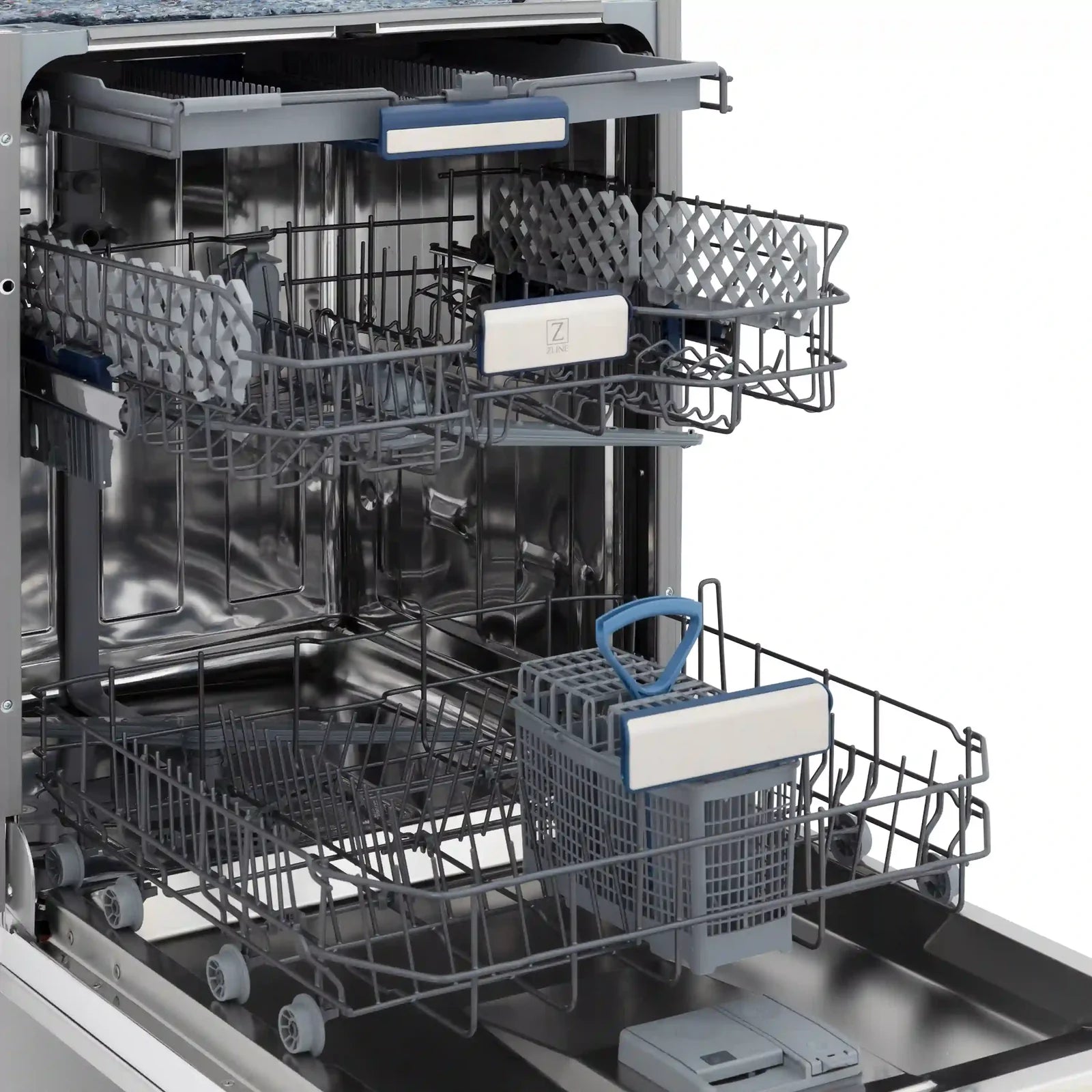

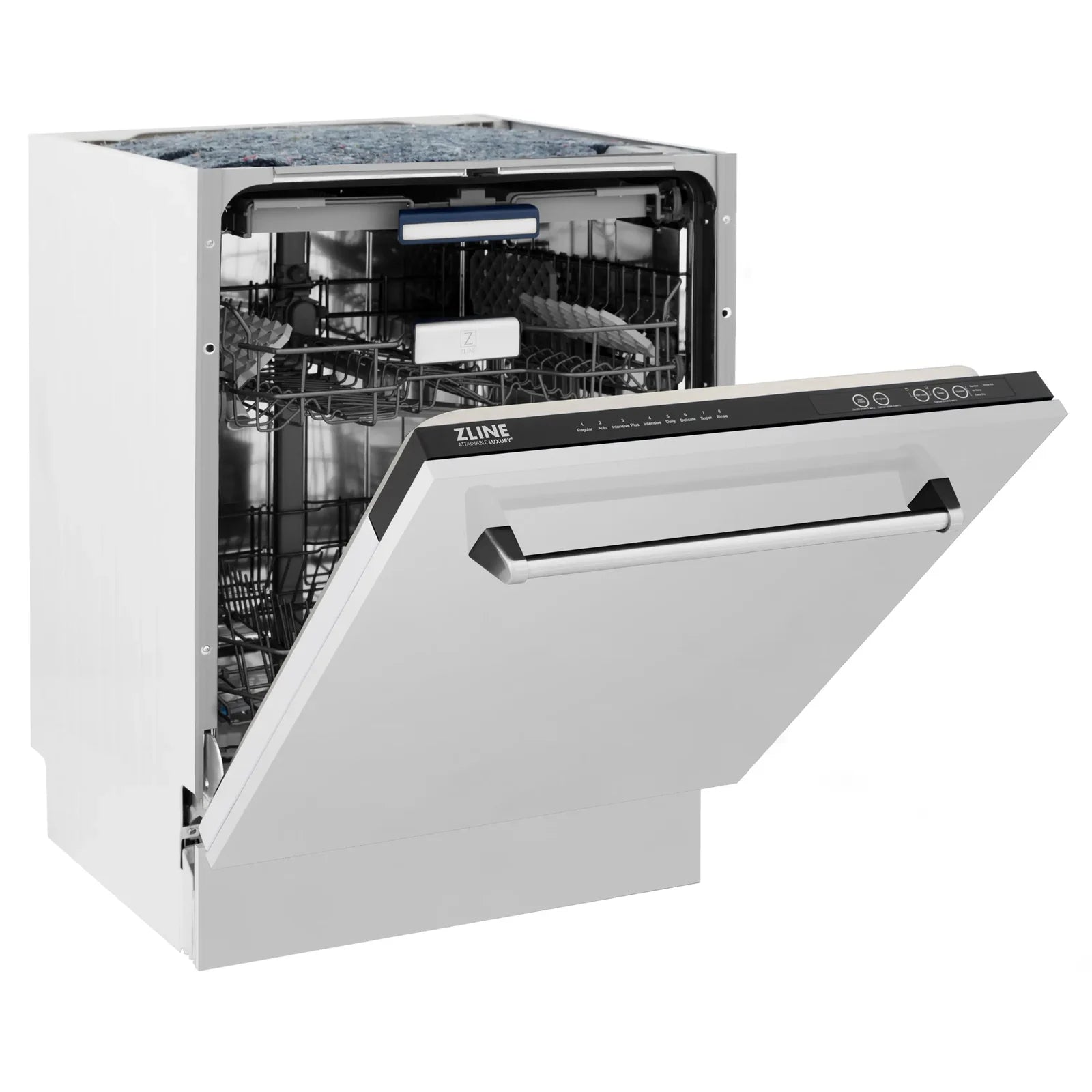

Designed in Lake Tahoe, USA, the ZLINE 24" Tallac Series 3rd Rack Tall Tub Dishwasher in Stainless Steel, 51dBa provides a professional culinary experience by pairing unmatched performance with timeless style.
Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability.
| Brand |
ZLINE Kitchen and Bath
|
| Product Type |
Tall Tub Style Dishwasher
|
|

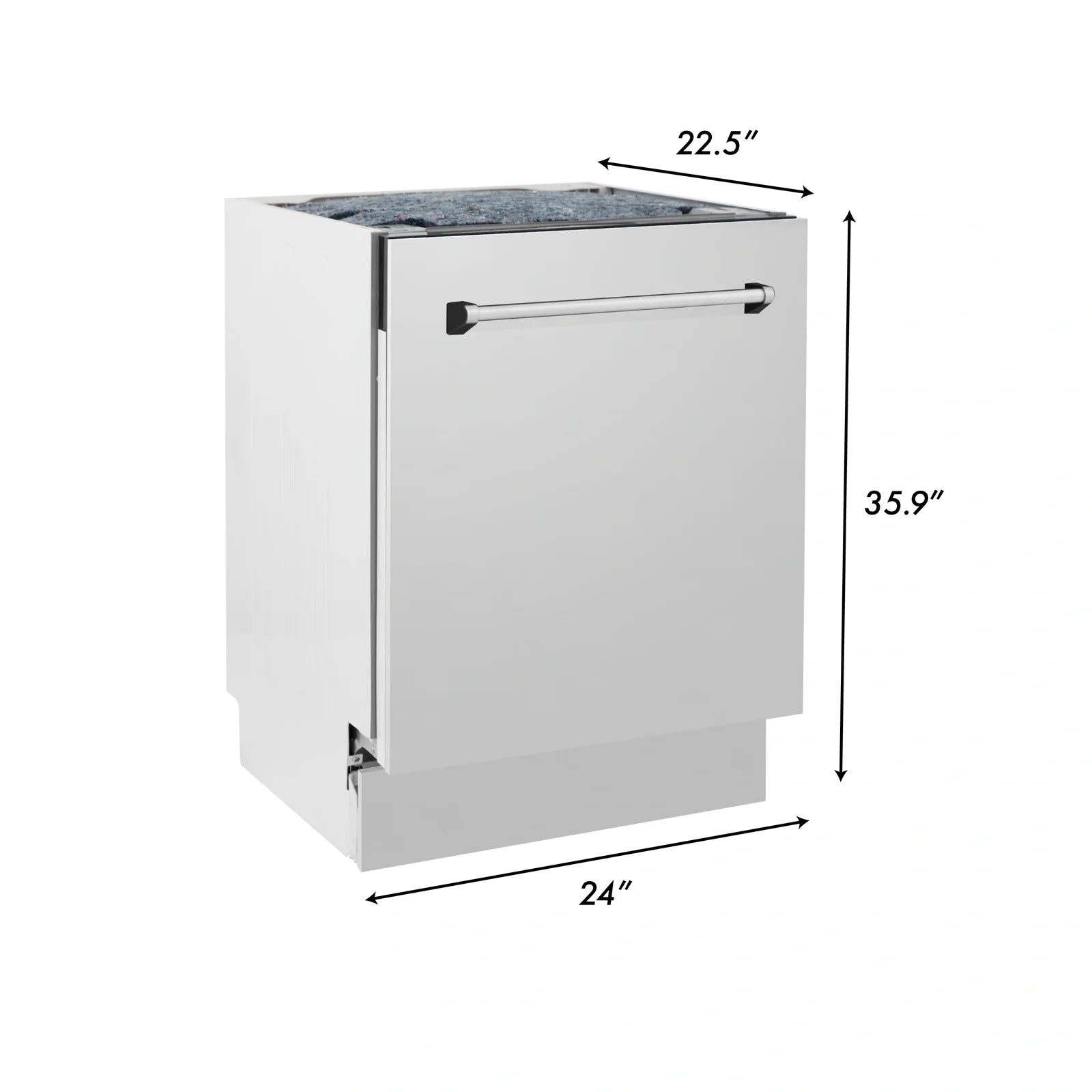

Product Dimensions Minimum Height |
23.5 in. W x24.25 in. D x 33.75 in. H |
| Product Dimensions Maximum Height | 23.5 in. W x24.25 in. D x 35.75 in. H |
|
Cut Out Dimensions
|
23.63 in. W x 24 in. D x 34 in. H |
|
Interior Dimensions (in.)
|
20.95" W x 20.5" D x 24.17"H
|
| Weight | 116.4 lbs |
|
Voltage
|
120vac
|
| Frequency (Hz) | 60Hz |
| Dedicated Circuit | 15A |
| Rated Current (Amps) | 12A |
|
Motor Wattage
|
108
|
|
Heater Wattage
|
1200
|
| Motor Amperage |
0.9A
|
| Heater Amperage |
10A
|
| Energy Consumption Per Year (kWh) |
260
|
| Water Consumption Per Cycle (Liters/Cycle) |
12.9
|
| Water Consumption Per Cycle (Gallons) |
3.4
|
| Hose Length (in.) |
56
|
| Panel Ready? Y/N | N |
| Panel Finish | 304 Grade Stainless Steel |
| Handle Finish | Stainless Steel |
| Drying System | Turbo Fan Drying |
| Control Location | Top Control |
| Control Type | Button Control |
| Decibels | 51 |
| Power Cord | Power Cord Included |
| Installation Type | Plug In - 3 Prong - Nema5-15 |
| Handle Type | Bar Handle- Traditional Style |
| Number of Cycles | 8 |
| Number of Place Settings | 15 |
| Max Plate Height (in.) | 13 |
| Rack Material | Nylon |
| Silverware Basket Location | Bottom Rack Center |
| Steam Function | Without Steam |
| Tub Material | Stainless Steel Tub |
| Certifications | Energy Star, CEC, UL |

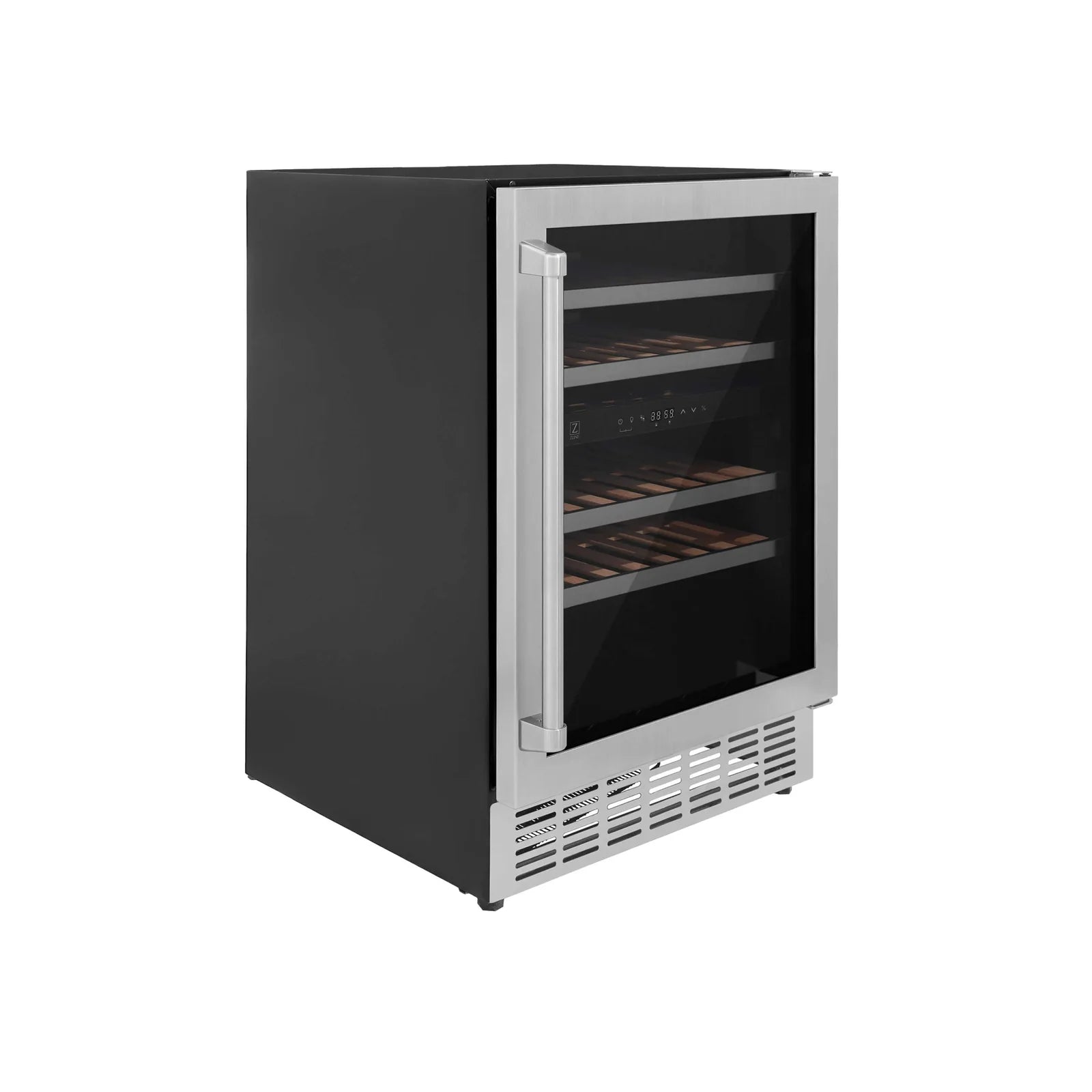

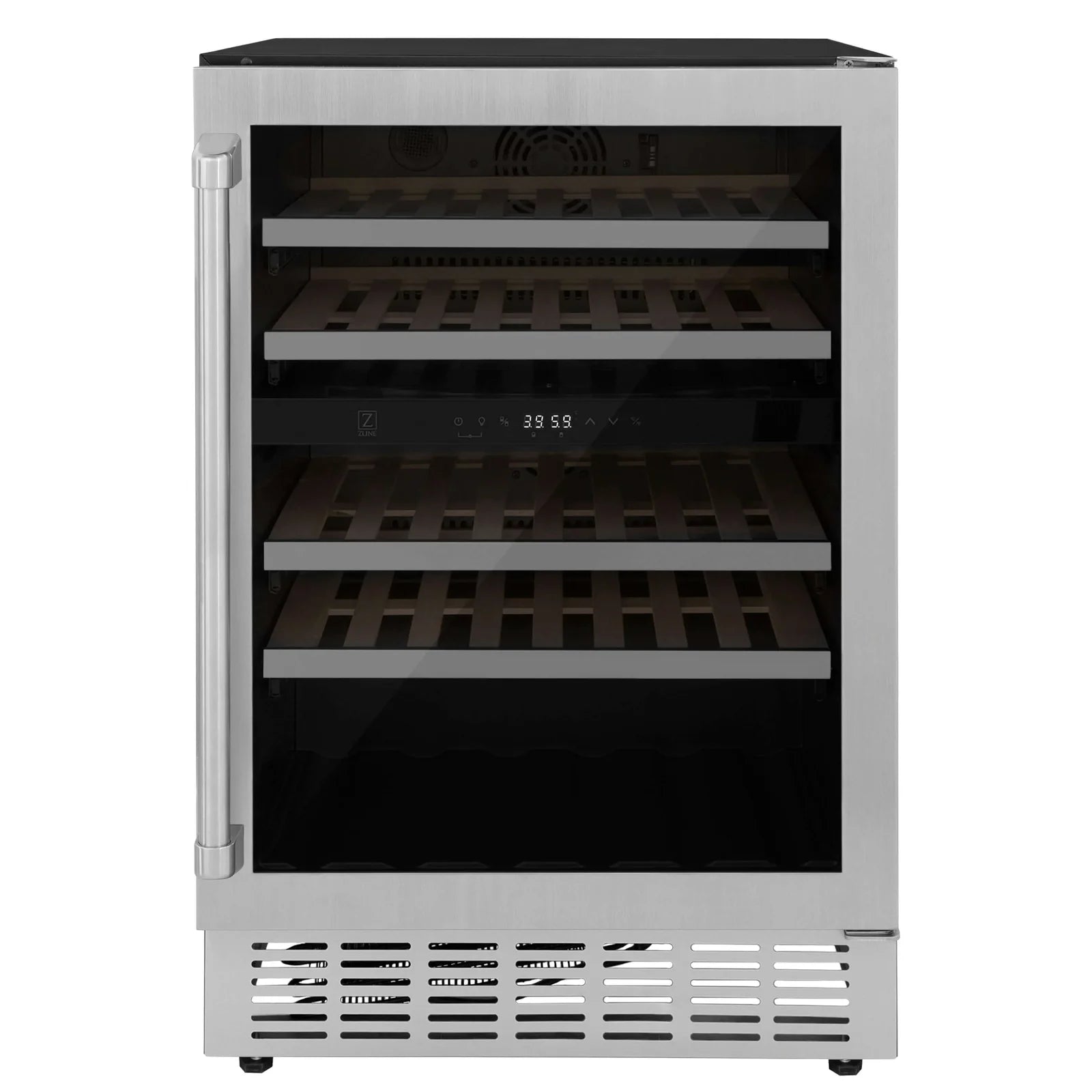

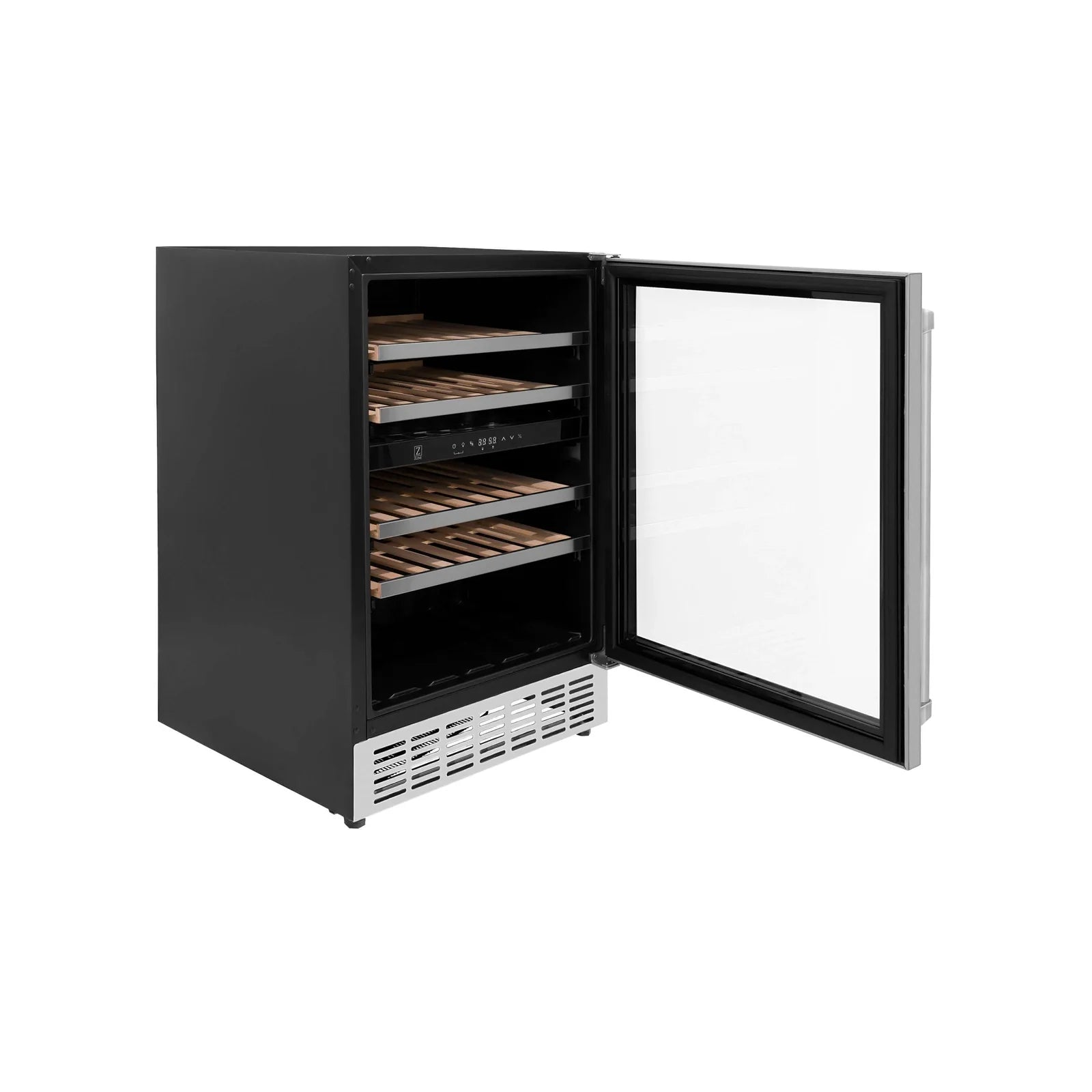

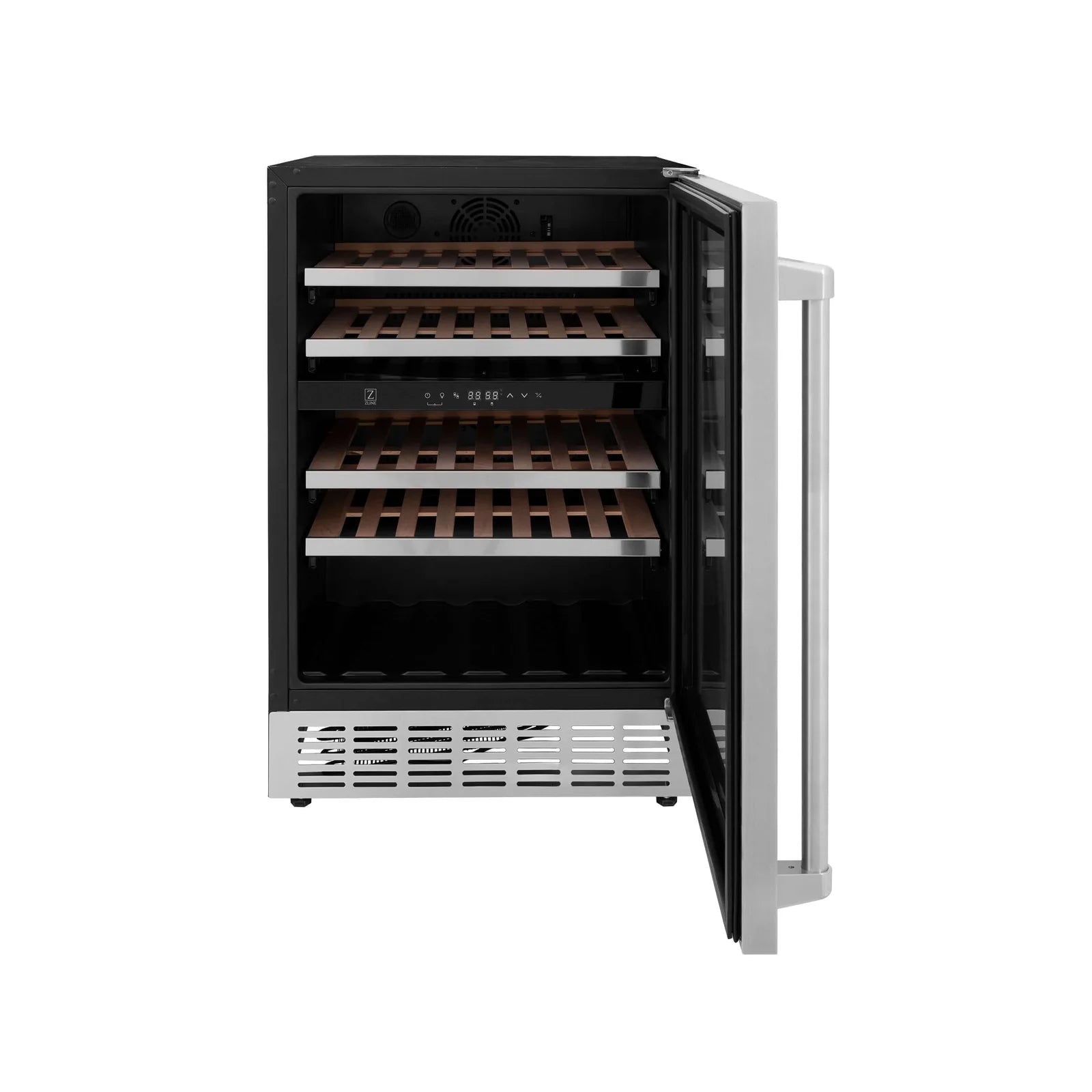

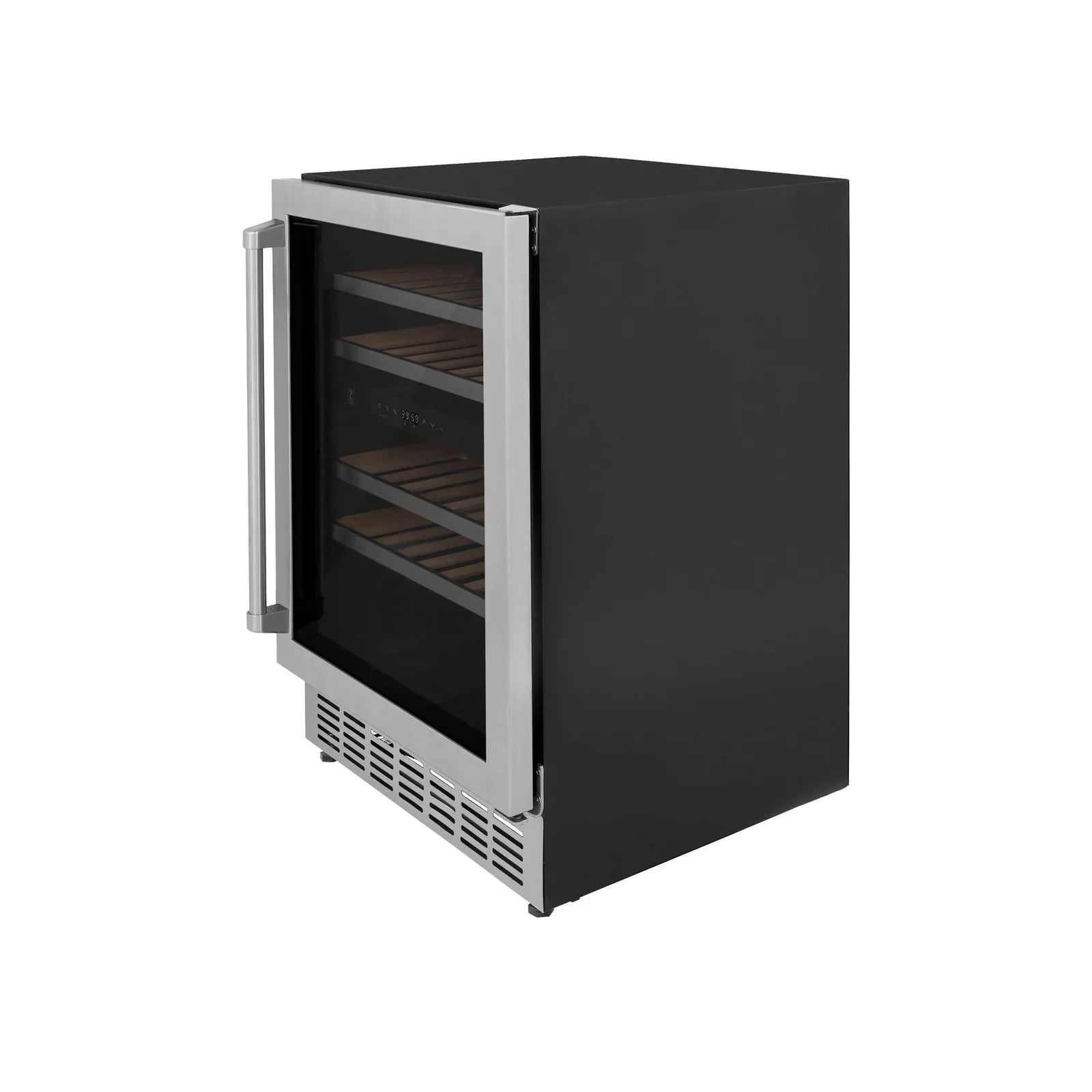

Luxury isn’t meant to be left desired - it’s meant to be attainable. Inspired by Lake Tahoe, USA, the ZLINE 24" Dual Zone 44-Bottle Wine Cooler in Stainless Steel with Wood Shelf (RWV-UD-24) provides a premium entertainment experience by pairing unmatched cooling technology with luxurious style. Achieve ZLINE Attainable Luxury® excellence with innovative technology designed to enhance your kitchen’s capability.

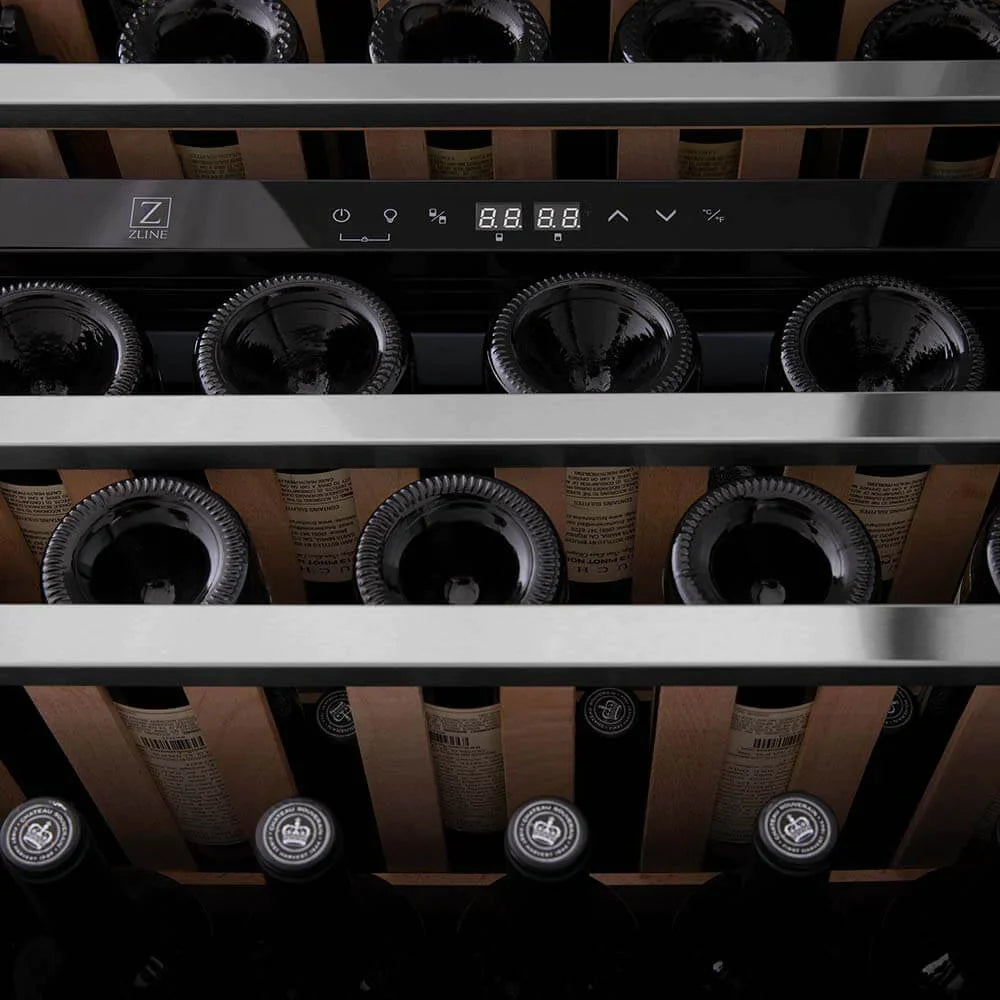

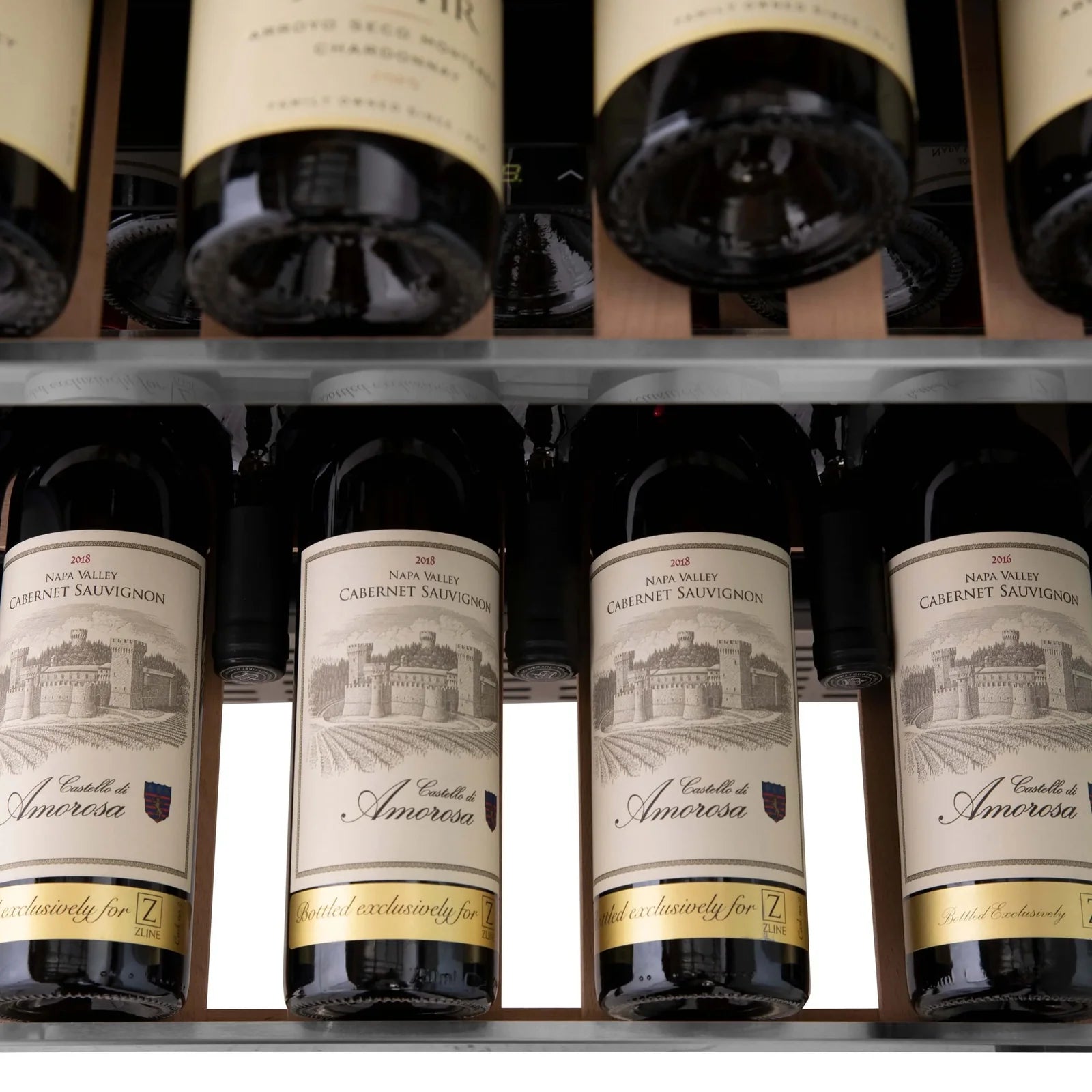

Spacious Storage - Easily store up to 44 Bordeaux-style wine bottles or 154 12 oz. cans with 4 durable wood storage shelves
Dual Zone Temperature Control - An adjustable upper zone of 39¬∞F-50¬∞F and lower zone of 50°F-68°F allows you to keep your red and white wines at an ideal temperature
LED Display - Easy-to-use LED display allows you to quickly change temperatures, lighting, and control a child lock for additional safety
Adjustable Glass Shelves - Maximize your space and accommodate a variety of beverage sizes with adjustable glass shelving
Built-in or Freestanding - Enjoy versatile installation options to perfectly match your style, either seamless within your cabinetry or standalone
Dual Pane Glass Door - Maintain the perfect cooling temperature for your beverages and easily spot your items with a well insulated UV-resistant dual pane glass door
Reversible Door - Provides additional installation flexibility with an easily reversible door hinge
LED Lighting - Illuminate the interior of the beverage cooler with bright built-in LED lights
Professional Look and Feel - A modern flat door design paired with a stainless steel door frame and professional handle provides a premium look and feel that complements any kitchen’s style
Carbon Filter - Included carbon filter protects wine and other beverages from harmful odors
Indoor and Outdoor Approved - Enjoy a chilled glass of wine in an indoor or outdoor kitchen with a durable weather-proof design
For California residents, please see Prop 65 Warning
| Weight & Dimensions | |

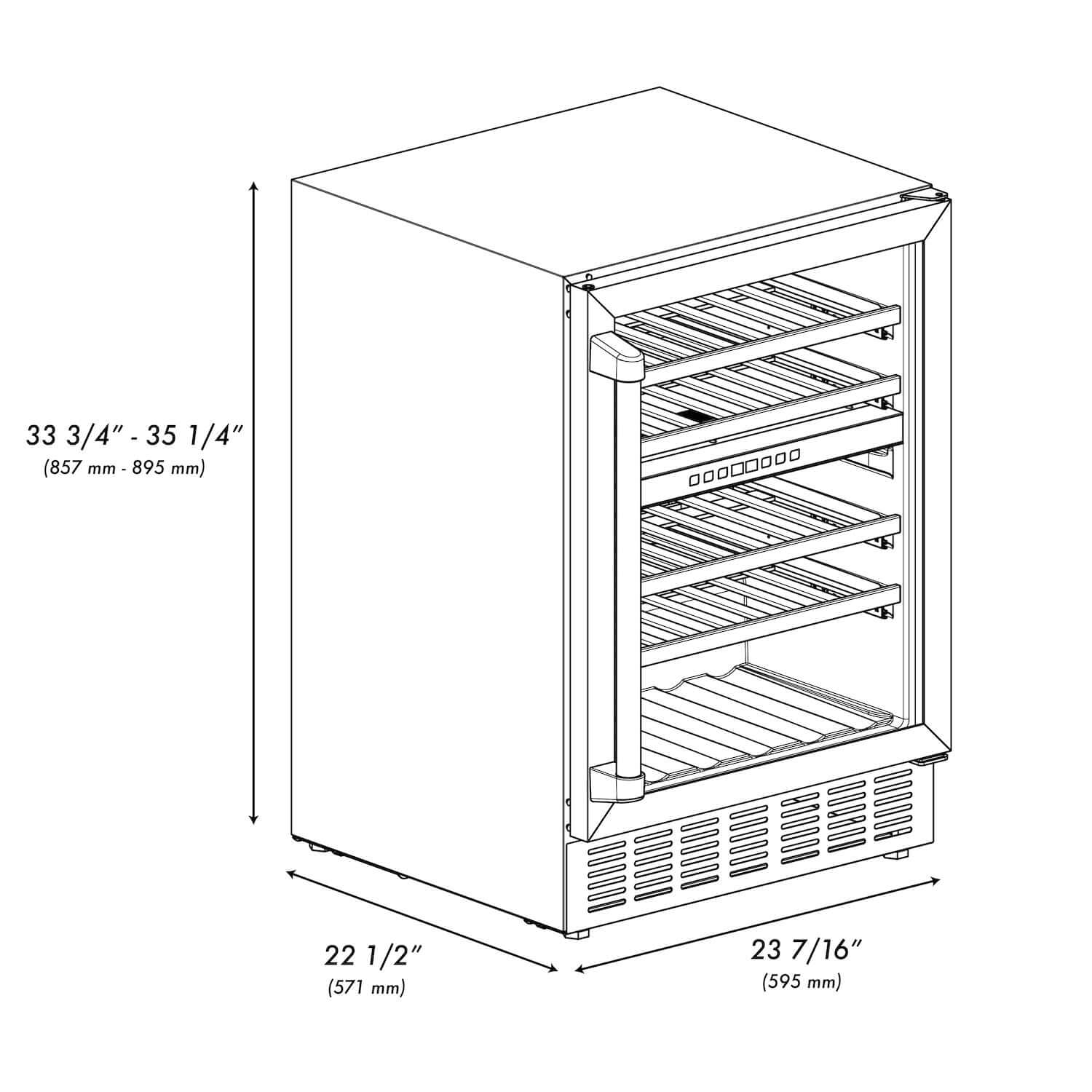

| Product Dimensions | 23.44 in. W x 22.5 in. D x 33.75 in. H |
| Cutout Dimensions | 24 in. W x 23.50 in. D x 34 in. H |
| Standard Sizing - Product Width | 24" |
| Depth Including Handles | 24.06" |
| Depth Without Panel | 20.63" |
| Depth with Door Open | 44.75" |
| Installation Depth | 24" |
| Product Recessed Height | 34.13" |
| Height to Top of Door | 34.13" |
| Weight | 93 lbs |
| Electrical | |
| Rated Current (Amps) | 2A |
| Supply Voltage | 115V/60Hz |
| Details | |
| Decibels | 39 dBA |
| Capacity | 4.5 cu. ft. |
| Fridge Capacity | 4.5 cu. ft. |
| Depth Type | Counter-Depth |
| Door Style | Single Door (Reversible Hinge) |
| Number of Fridge Shelves | 4 |
| Lights | 2 LED |
| Water Dispenser | No |
| ENERGYSTAR | No |
| Warranty | Manufacturing Warranty - 2-year parts and labor warranty, 5 years sealed system parts and labor |
| Certifications | ETL Listed, DOE certified |
