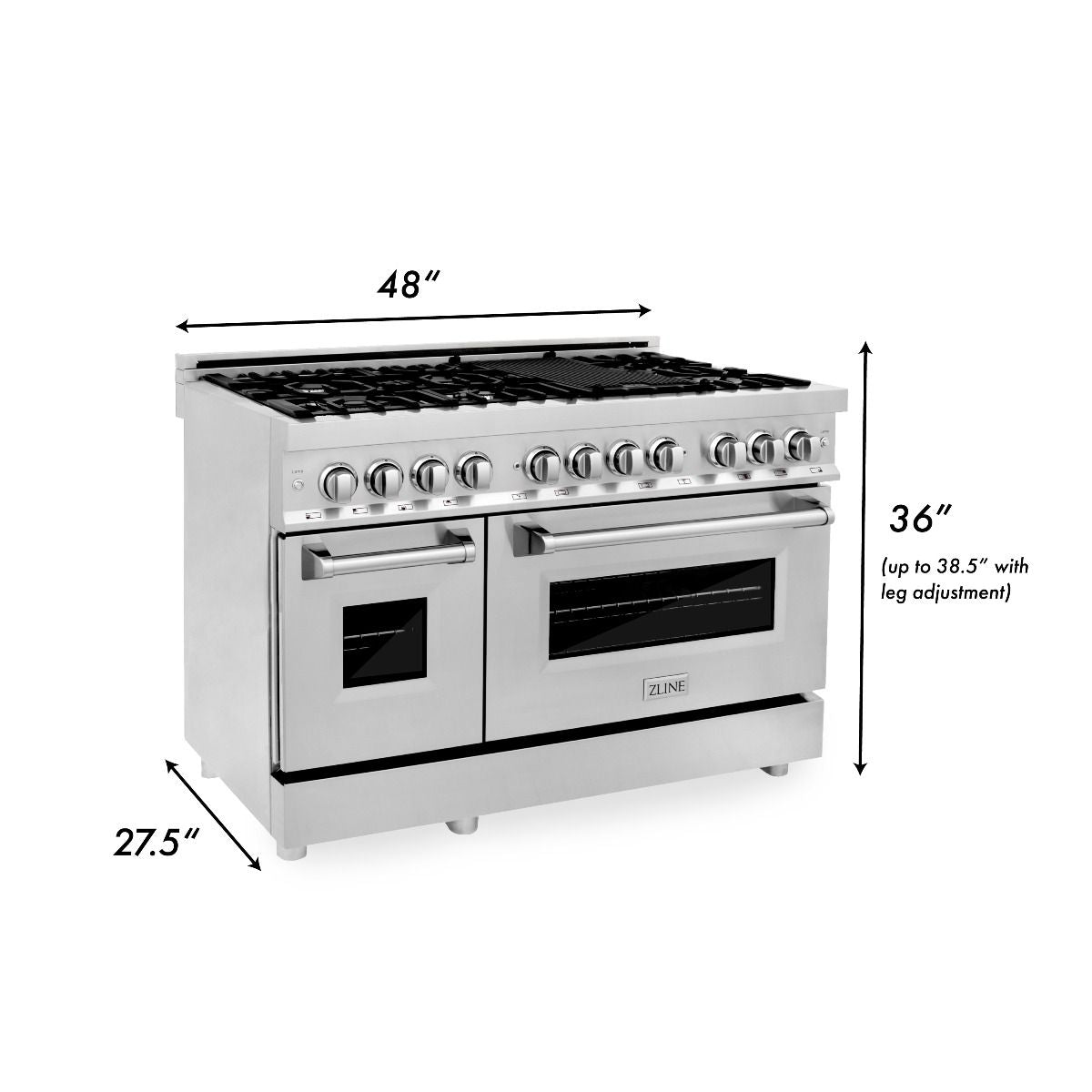

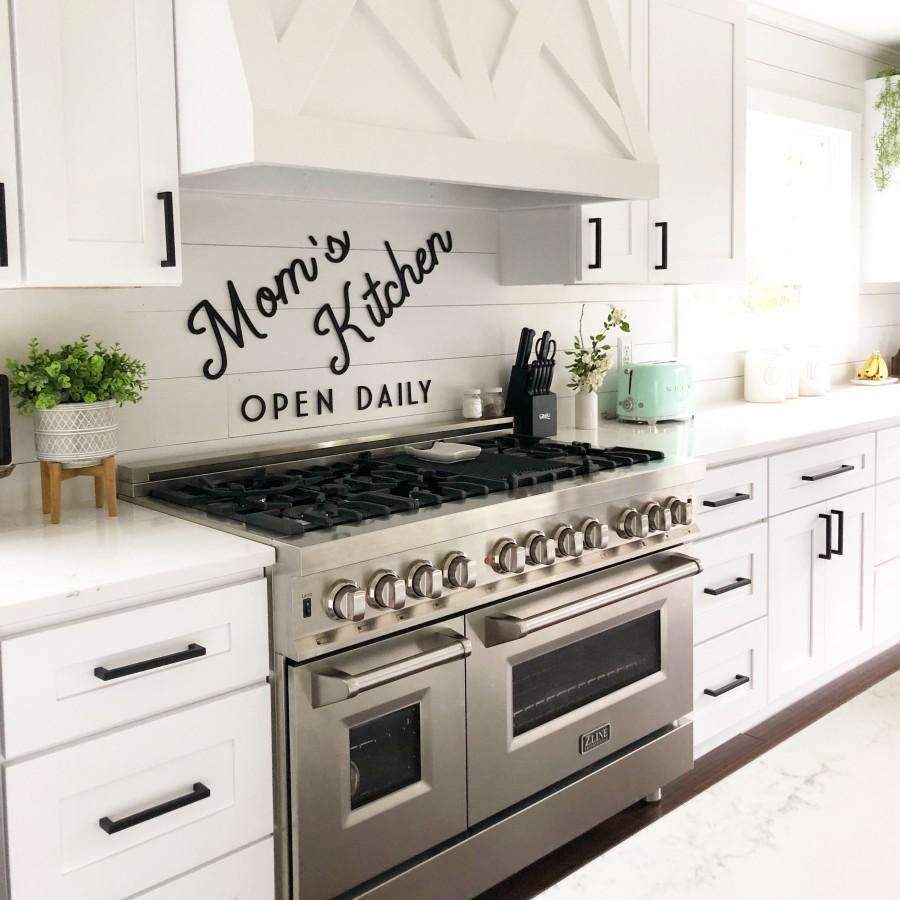

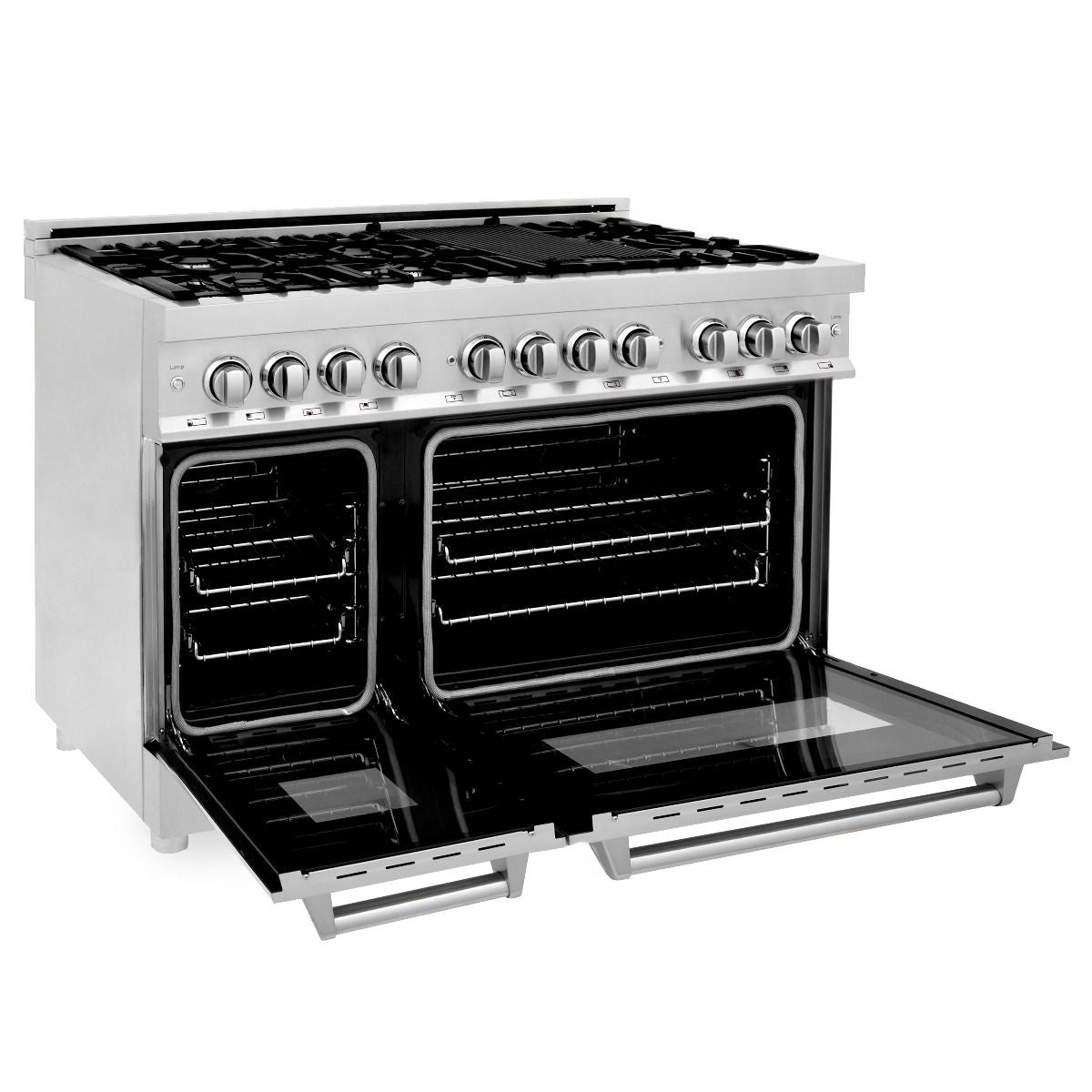

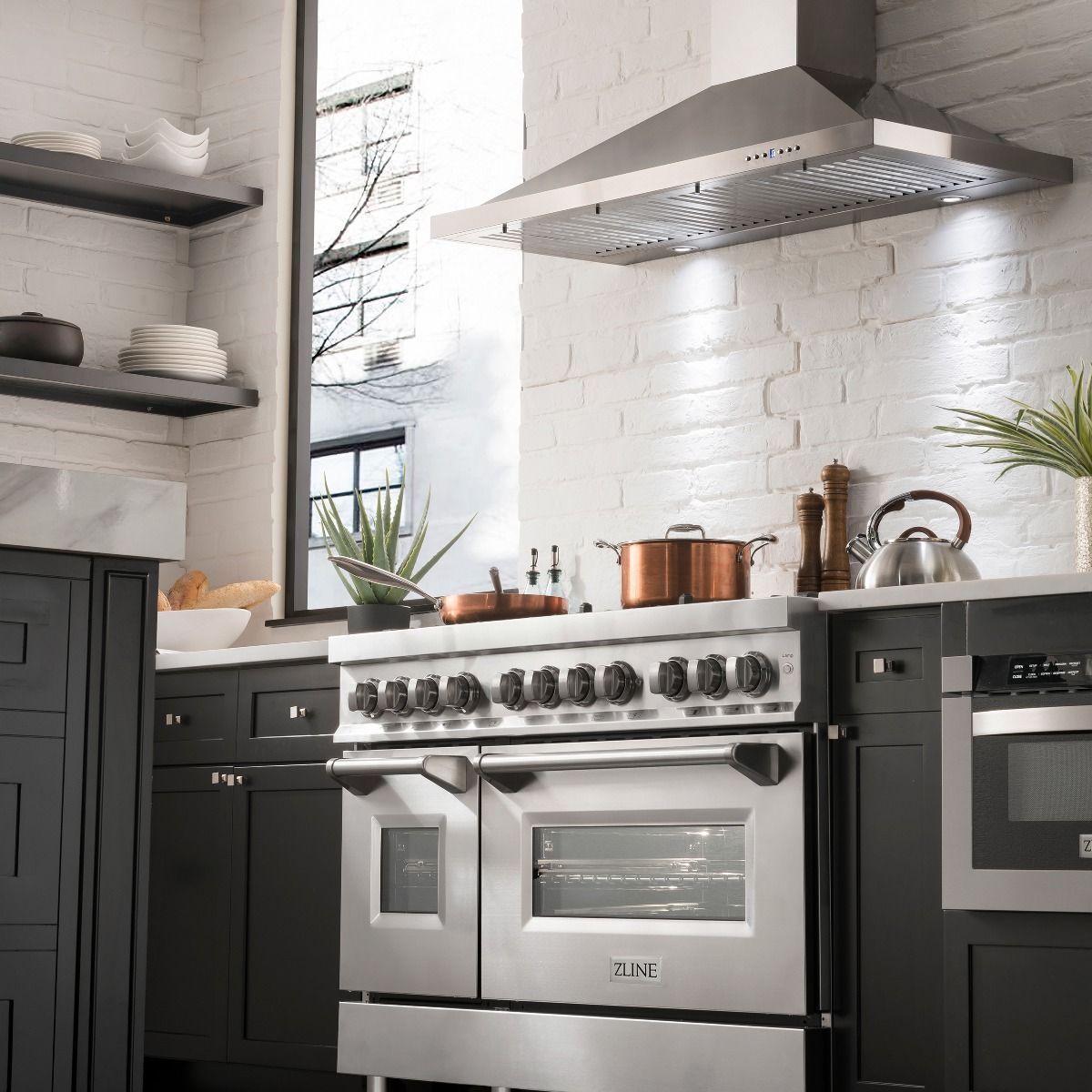

Luxury isn’t meant to be desired - it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 48" 6.0 cu. ft. Dual Fuel Range with Gas Stove and Electric Oven in Stainless Steel (RA48) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury excellence with innovative features designed to enhance your kitchen’s capability.
Build your dream kitchen with the ZLINE Dual Fuel Range

| DIMENSIONS | |
|---|---|
| Dimension | 47.75" W x 27.5" D x 36.13" H |
| Dimensions with Handle | 47.75" W x 29.63 " D x 36.13" H |
| Open Door Depth | 41.8" |
| Oven Dimensions | Oven Dimensions: 26.5"/12.5"W x 18.5" D x 14" H |
| Product Weight | 331 lbs. |
| GENERAL INFORMATION | |
| Brand | ZLINE Kitchen and Bath Available at Home Outlet Direct |
| Features | Manufactured by ZLINE Kitchen and Bath Model No. RA48 |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Lighting | Dual Lighting, controlled by light switch on front control panel |

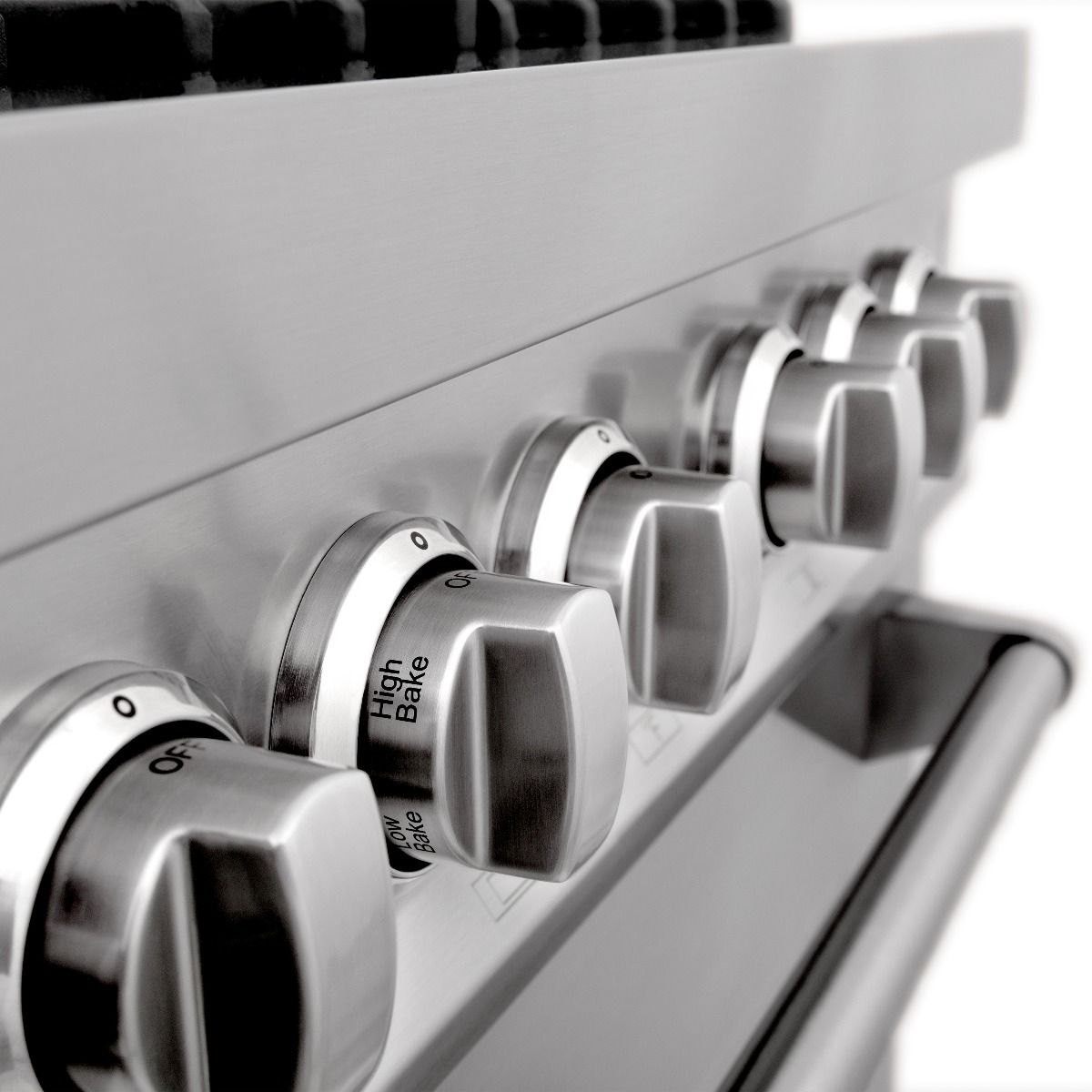

| Control Type | Front Control |
| Material | Stainless Steel frame with 1 Piece Porcelain Top- Italian made hinges and burners-Manual Clean Red indicator light shuts off to let you know when oven has gotten to temperature |
| TECHNICAL DETAILS | |
| Voltage | 240V/60Hz/40A |
| Mount Type | Free Standing |
| Gas Type | Natural Gas or Liquid Propane via conversion kit |
| Liquid Propane | LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional |
| Fuel | All ZLINE Ranges come set to work with natural gas by default. All Ranges can also work with propane. Every range comes equipped with an LP conversion kit to convert from natural gas to propane; this conversion process must be done by a professional |
| Fuel Type | Convection Oven - Gas Cooktop |
| COOKTOP FEATURES | |

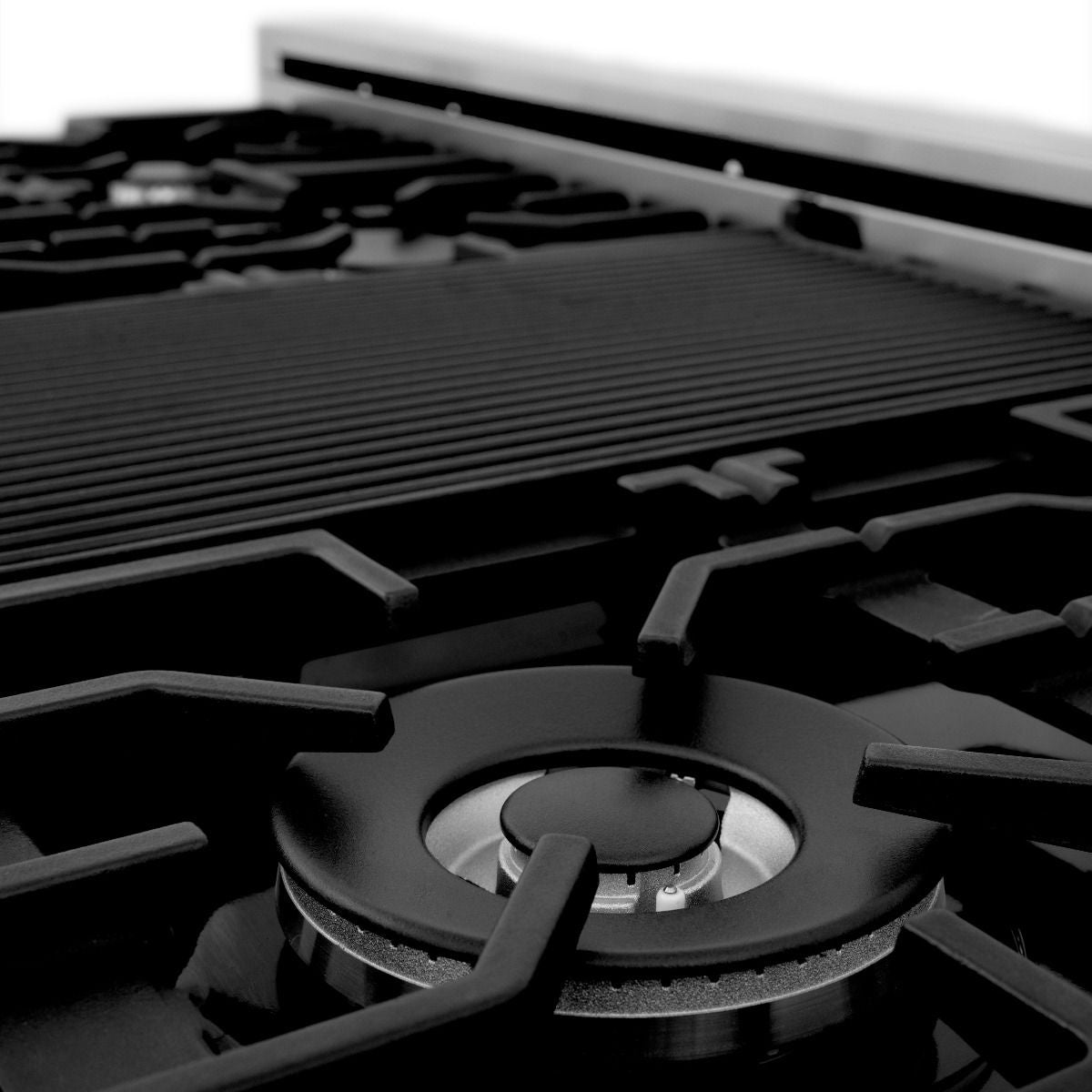

| Cooktop | (7) Burners with Porcelain Cook Top with electronic spark ignition for all burners |
| BTU Rating | Dual Burner(x2) - 18,000 BTU Griddle Burner - 13,000 Rapid Burner - 13,000 BTU Semi-Rapid Burner (x2) - 8,500 BTU Auxiliary Burner - 4,200 BTU |
| OVEN FEATURES | |
| Oven | Manual Clean- Convection Electric- 4.6 cu.ft. deep oven- Triple Glass Window- Dual Lighting- Professional Aluminum Mesh Seal |
| WARRANTY & CERTIFICATIONS | |
| Warranty | 1 Year Warranty |
| Certifications | ETL Certified |

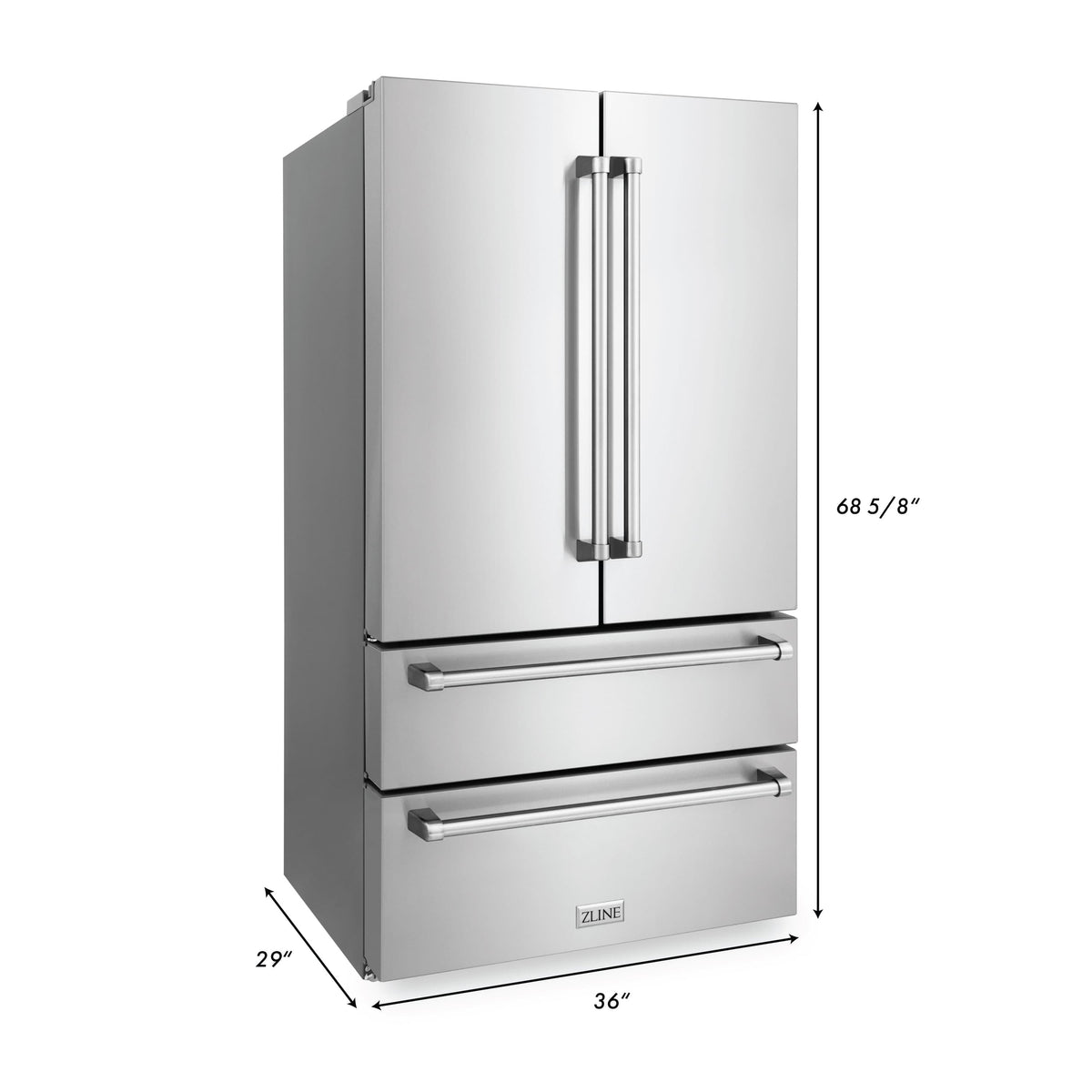

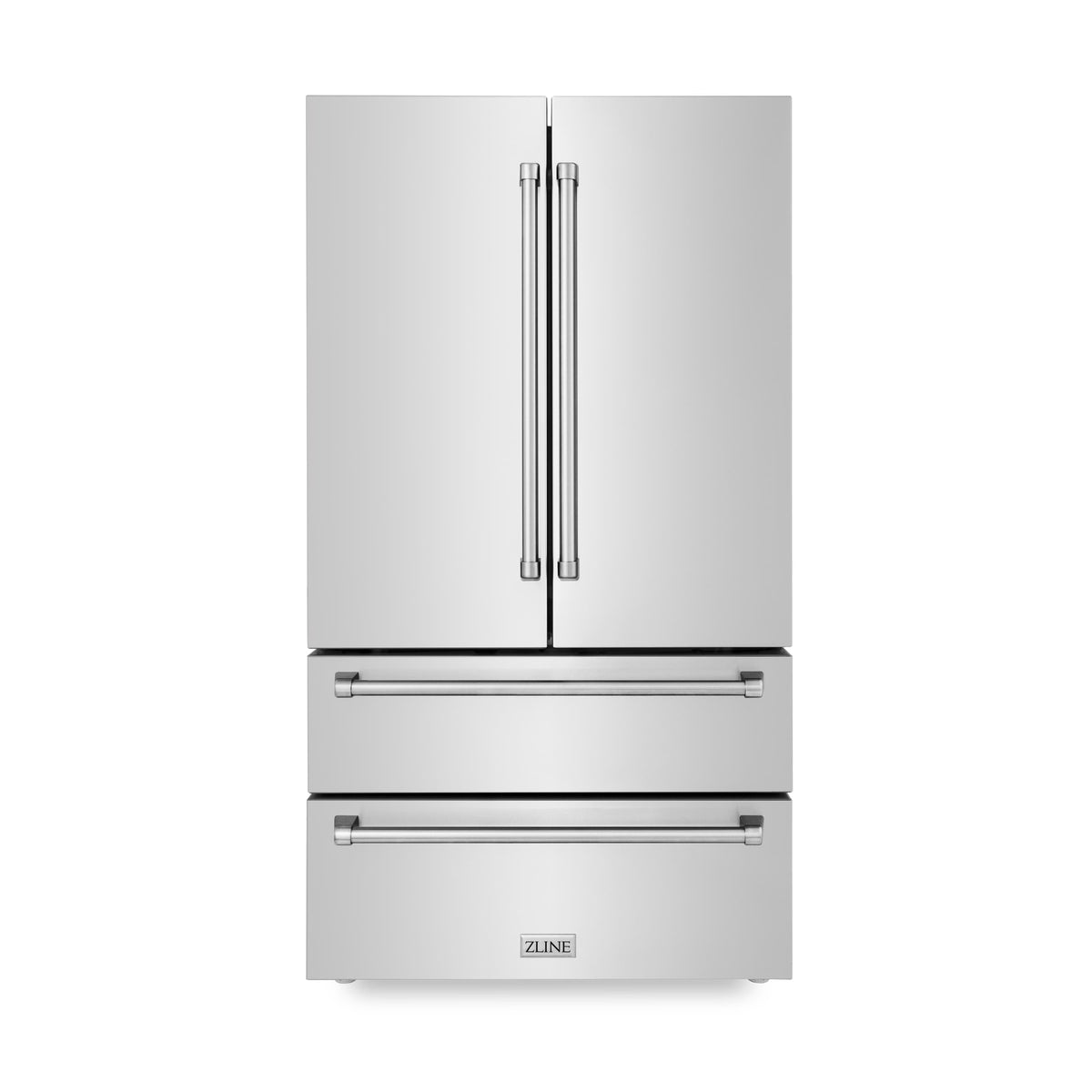

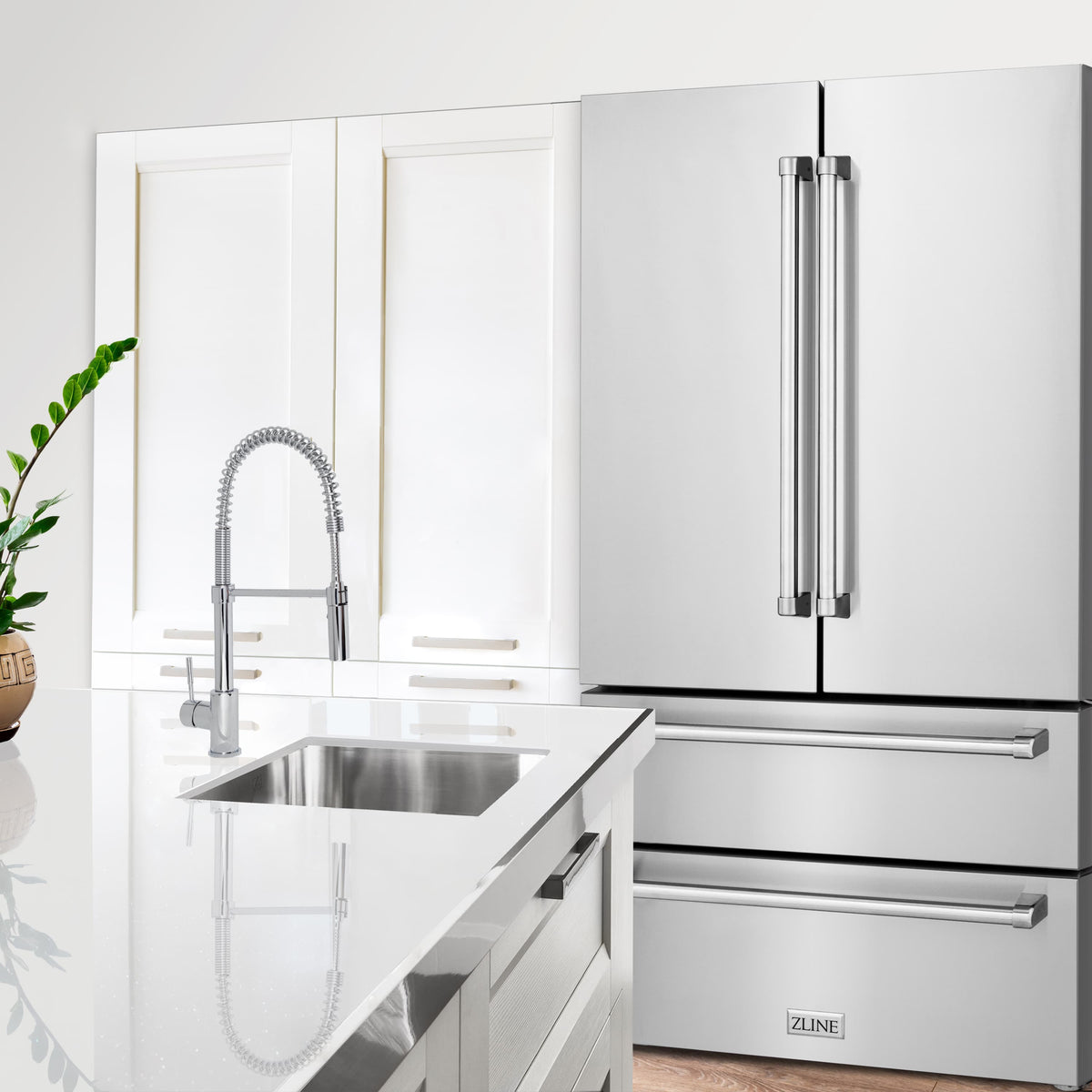

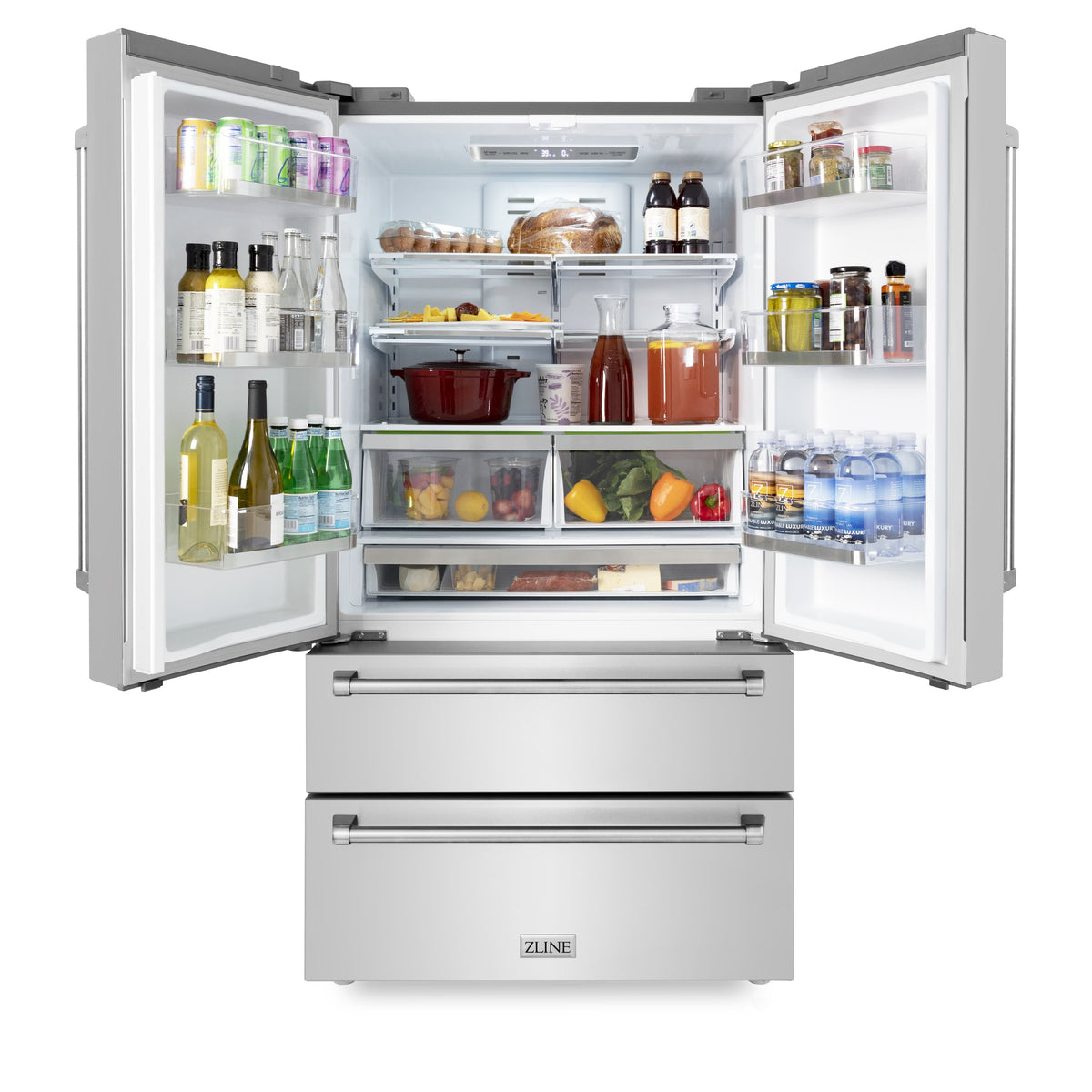

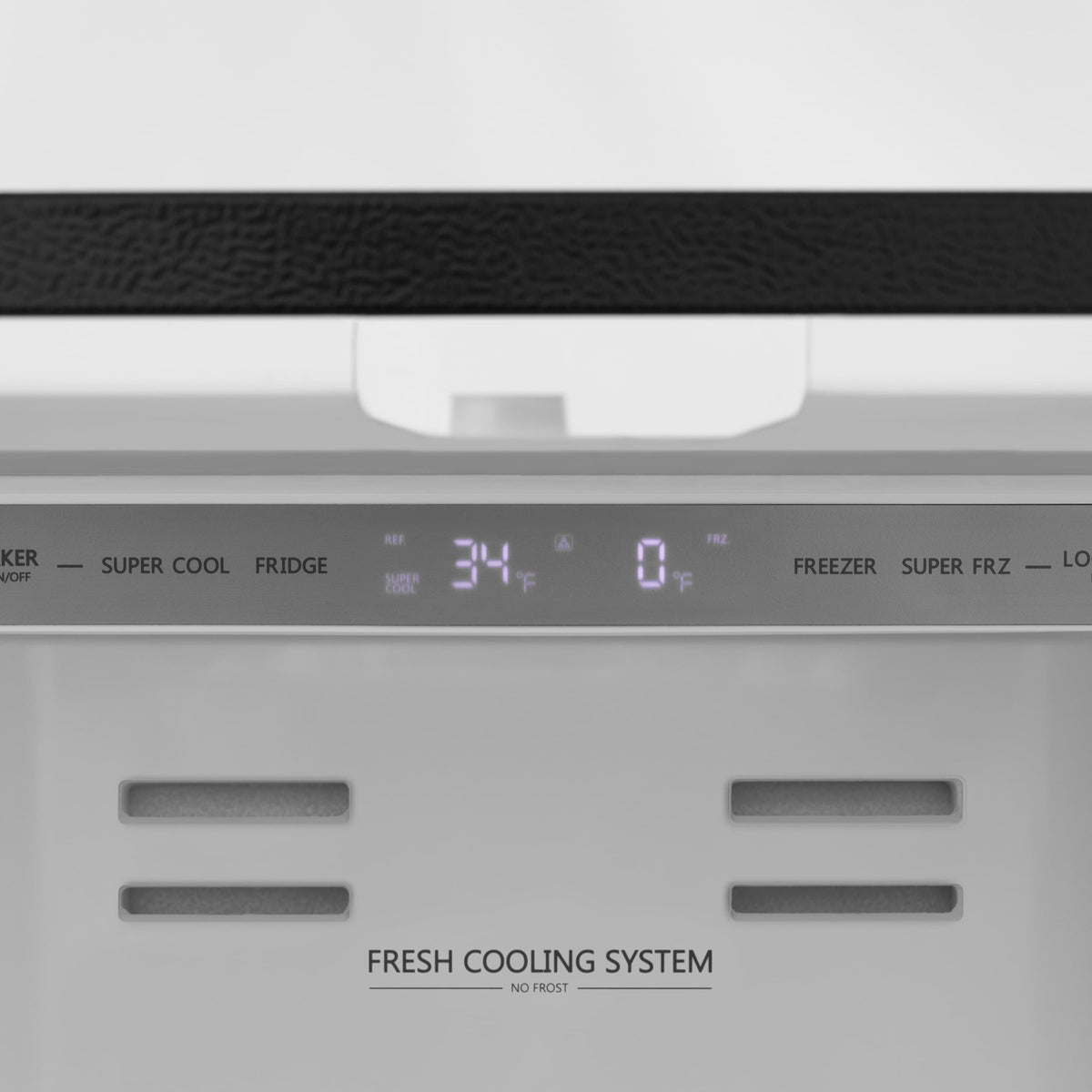

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE 36 in. 22.5 cu. ft. Counter-Depth French Door Refrigerator with Ice Maker in Fingerprint-Resistant Stainless Steel (RFM-36) delivers an elevated experience by pairing innovative dual cooling technology with a spacious counter-depth design and a high-capacity built-in ice maker. Achieve ZLINE Attainable Luxury® excellence with timeless features designed to enhance your kitchen’s capability.
| DIMENSIONS | |
|---|---|
| Dimensions | 35.75 in. W x 29.125 in. D x 69.6875 in. H |
| Total Capacity | 22.5 cu. ft |
| Installation Depth | 29 in. D |
| Depth with Door Open | 43.5 in. |
| TECHNICAL DETAILS | |

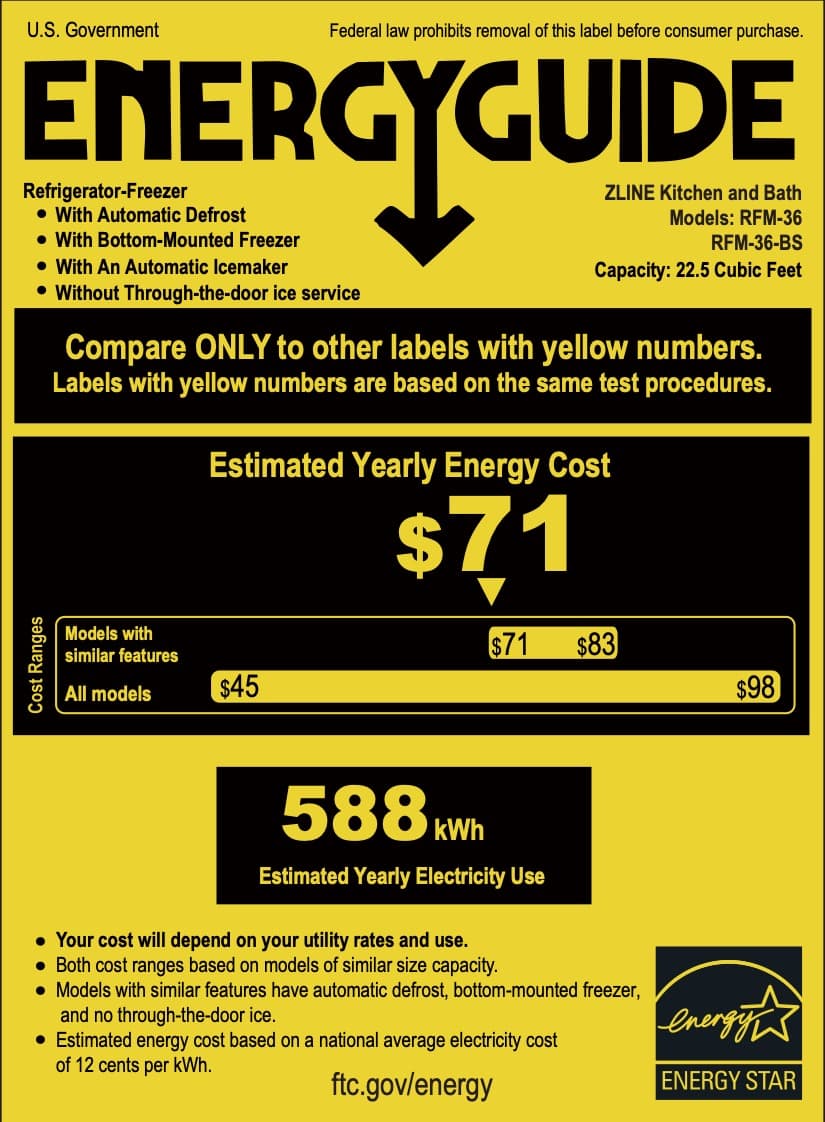

| Energy Consumption (kWh/year) | 588 |
| Voltage | 120V/60Hz |
| Amps | 3 |
| Noise Level | 45 Decibels |
| REFRIGERATOR FEATURES | |
| Fridge Capacity | 15.9 cu. ft |
| Flex Drawer Capacity | N/A |
| Flex Drawer Temp Controls | N/A |

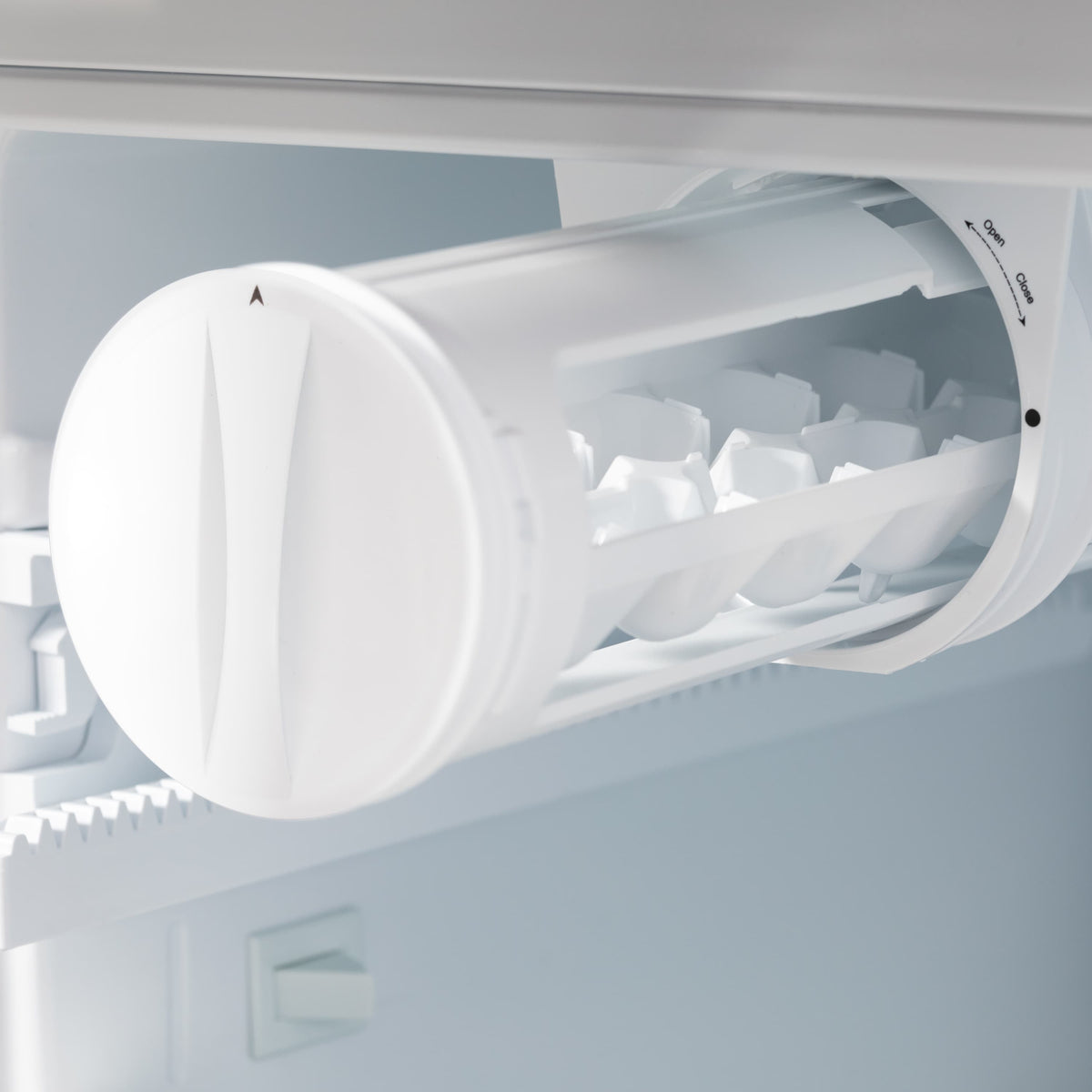

| Ice Maker | Yes |
| Ice Maker Types | Single Ice Maker |
| Ice Amount Per Day | 4.85 lbs |
| Ice Tray Storage | 1.75 lbs |
| Water Dispenser | No |
| Flowrate for Water Dispenser | N/A |
| Fridge Lights | 3 |
| Humidity-Controlled Crispers | 2 |
| FREEZER FEATURES | |
| Freezer Capacity | 6.6 cu. ft |
| Freezer Drawer Bins | 2- Pull Out Drawers |
| WARRANTY & CERTIFICATIONS | |
| Energy Star | Yes |
| Warranty | 1-Year Parts and Labor Warranty 5-year parts-only for Sealed System |

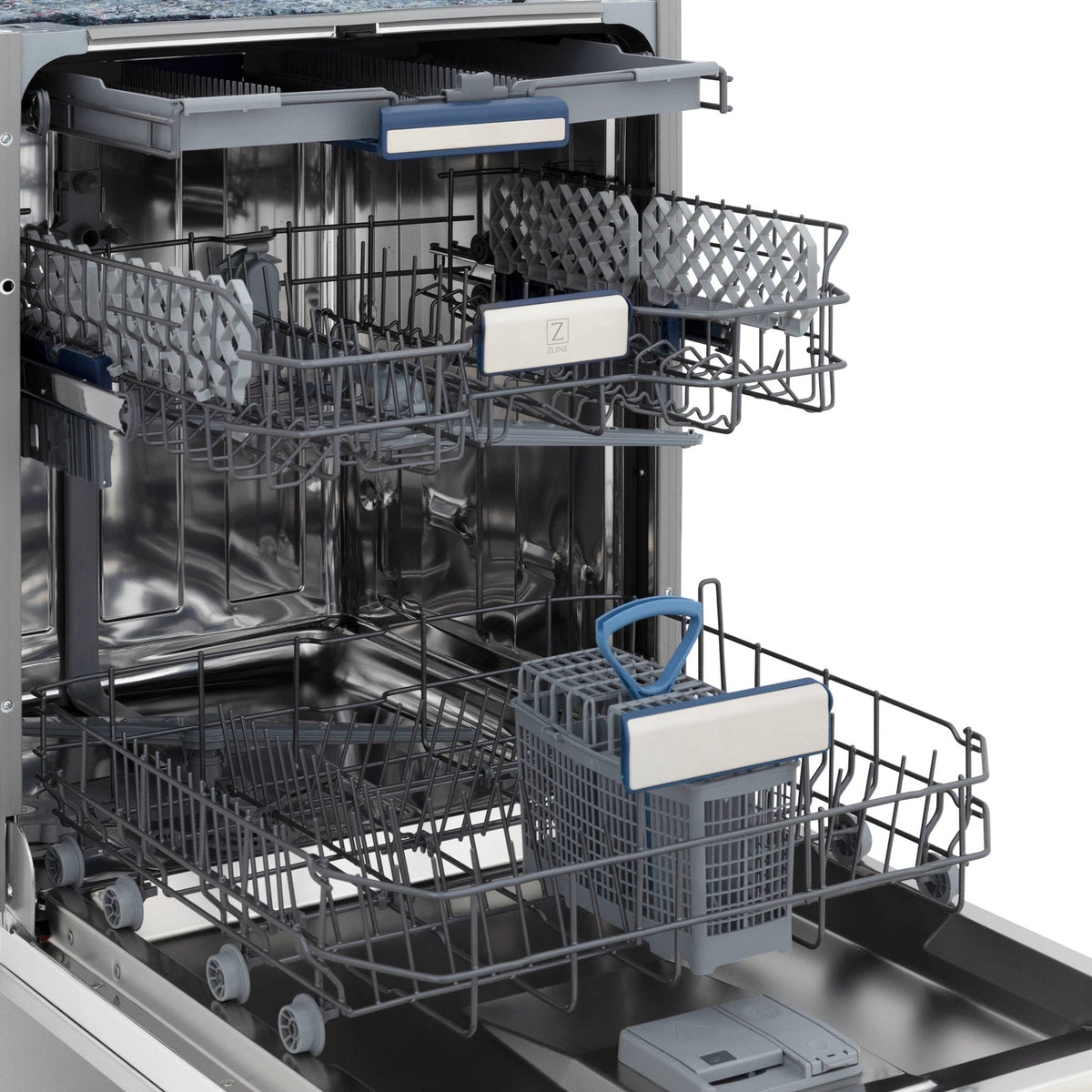

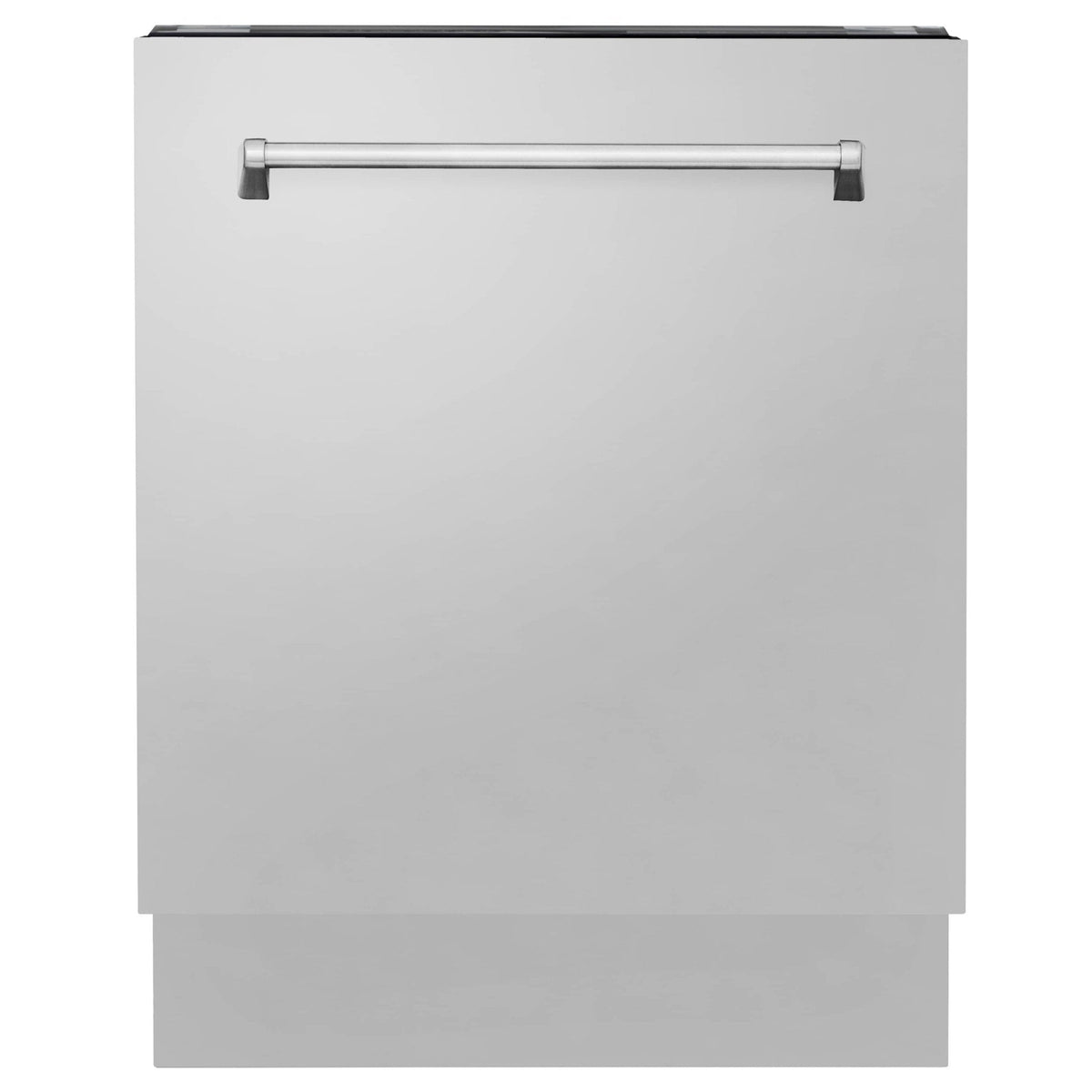

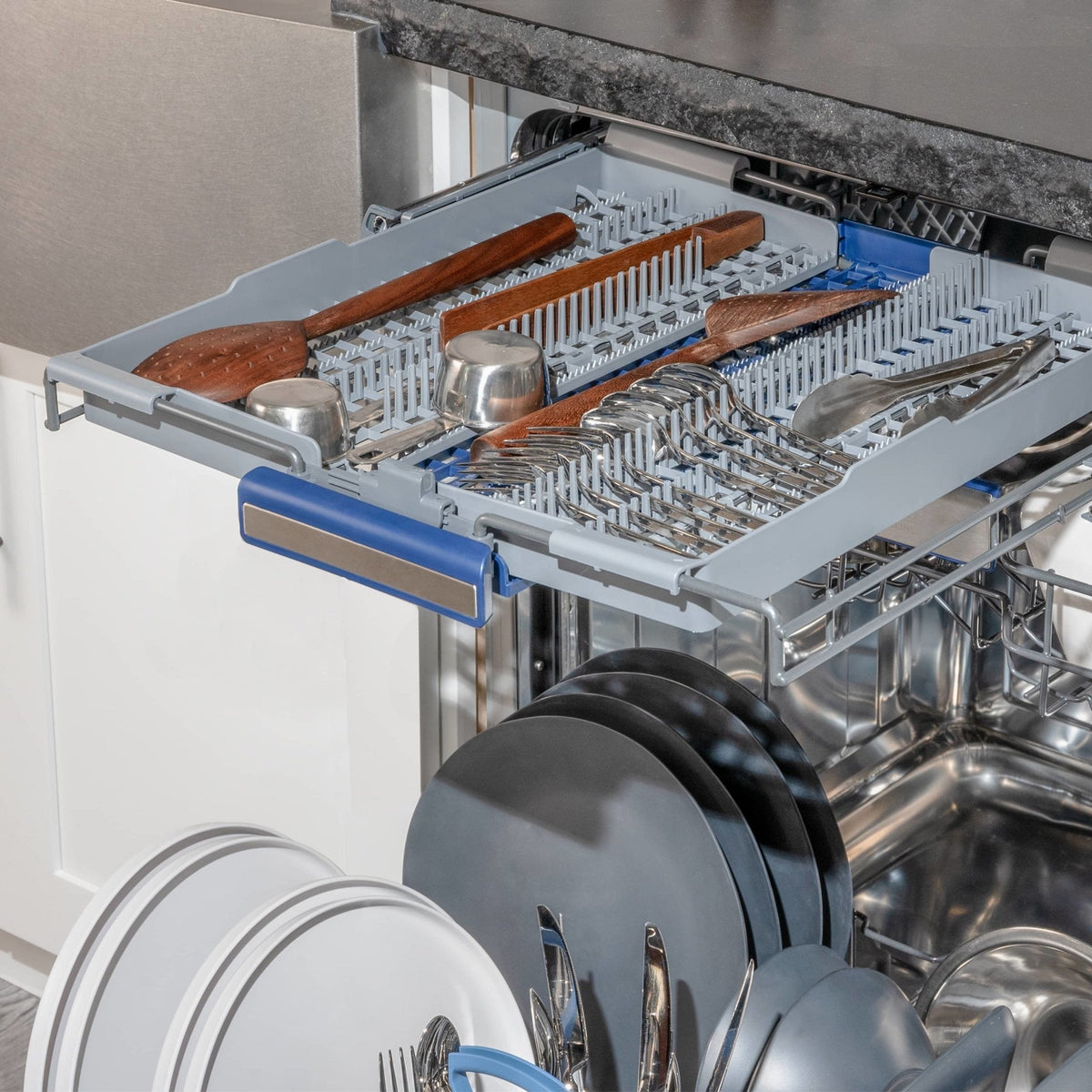

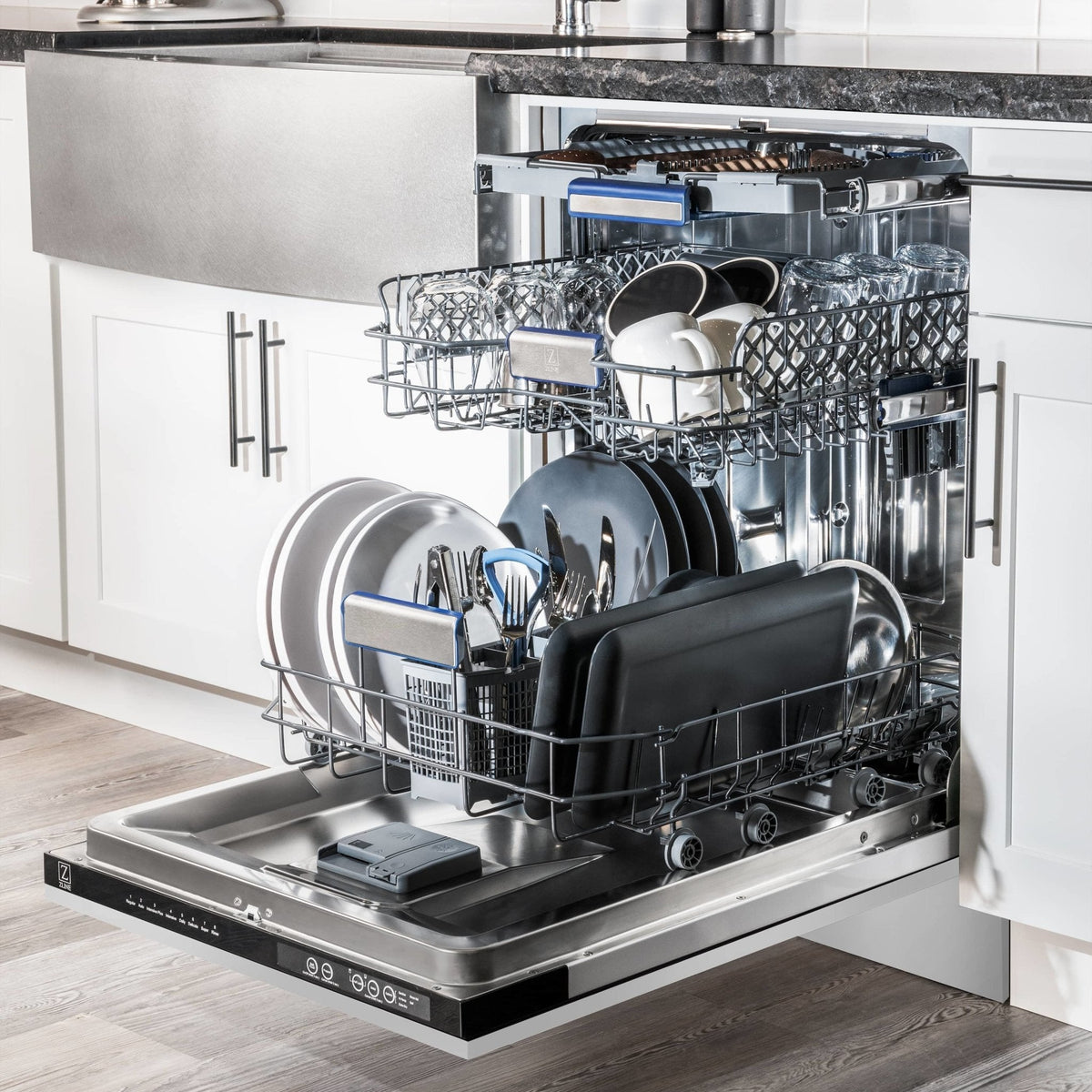

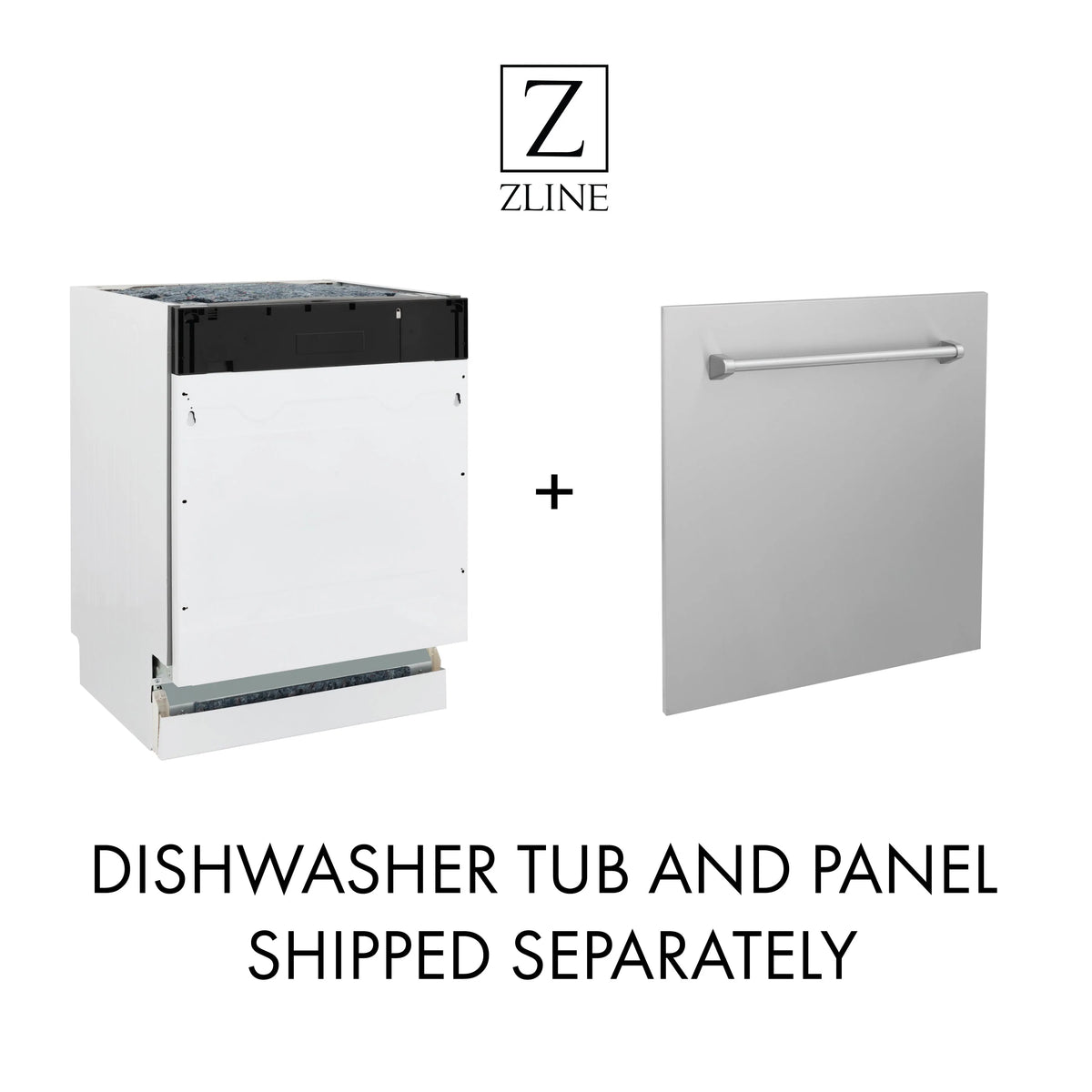

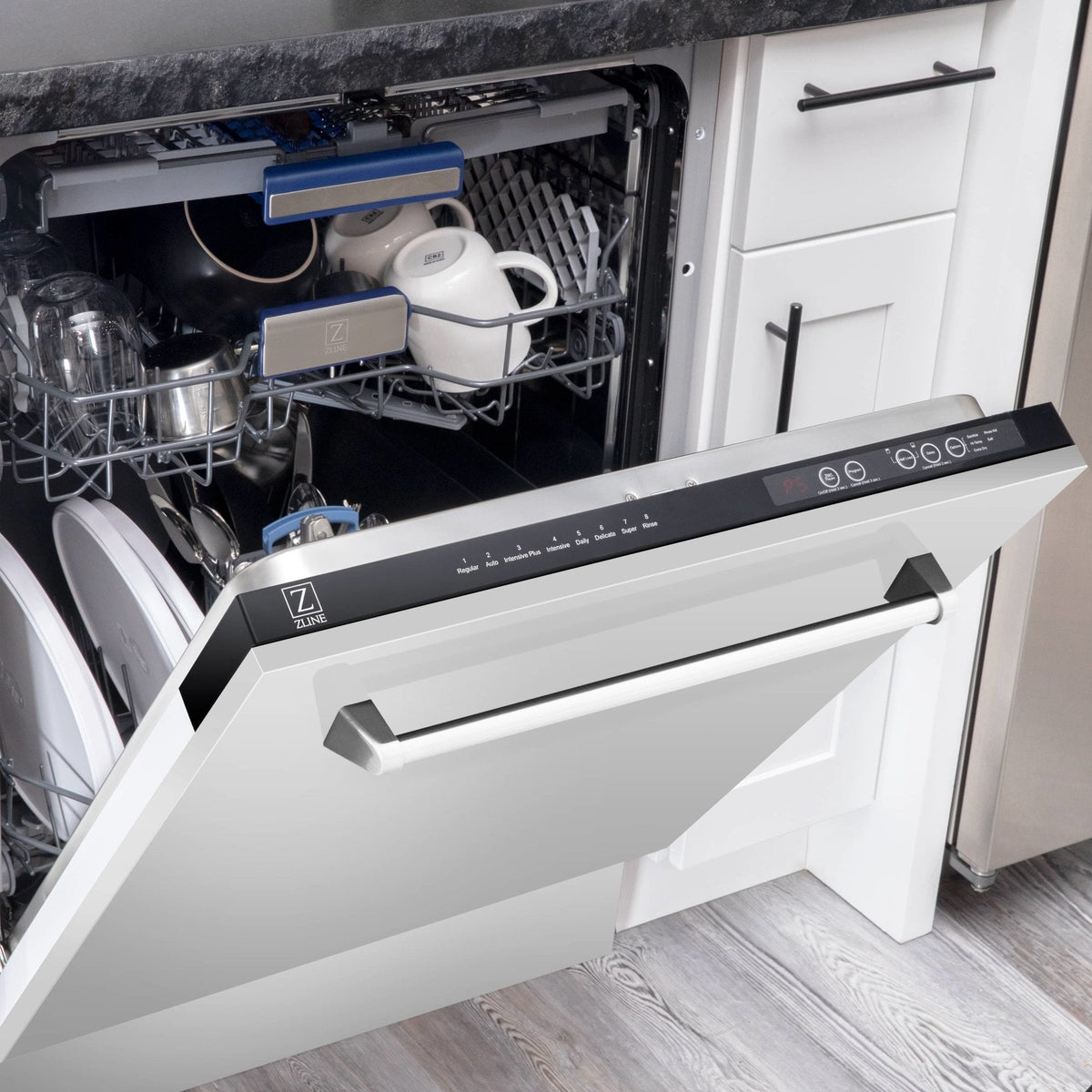

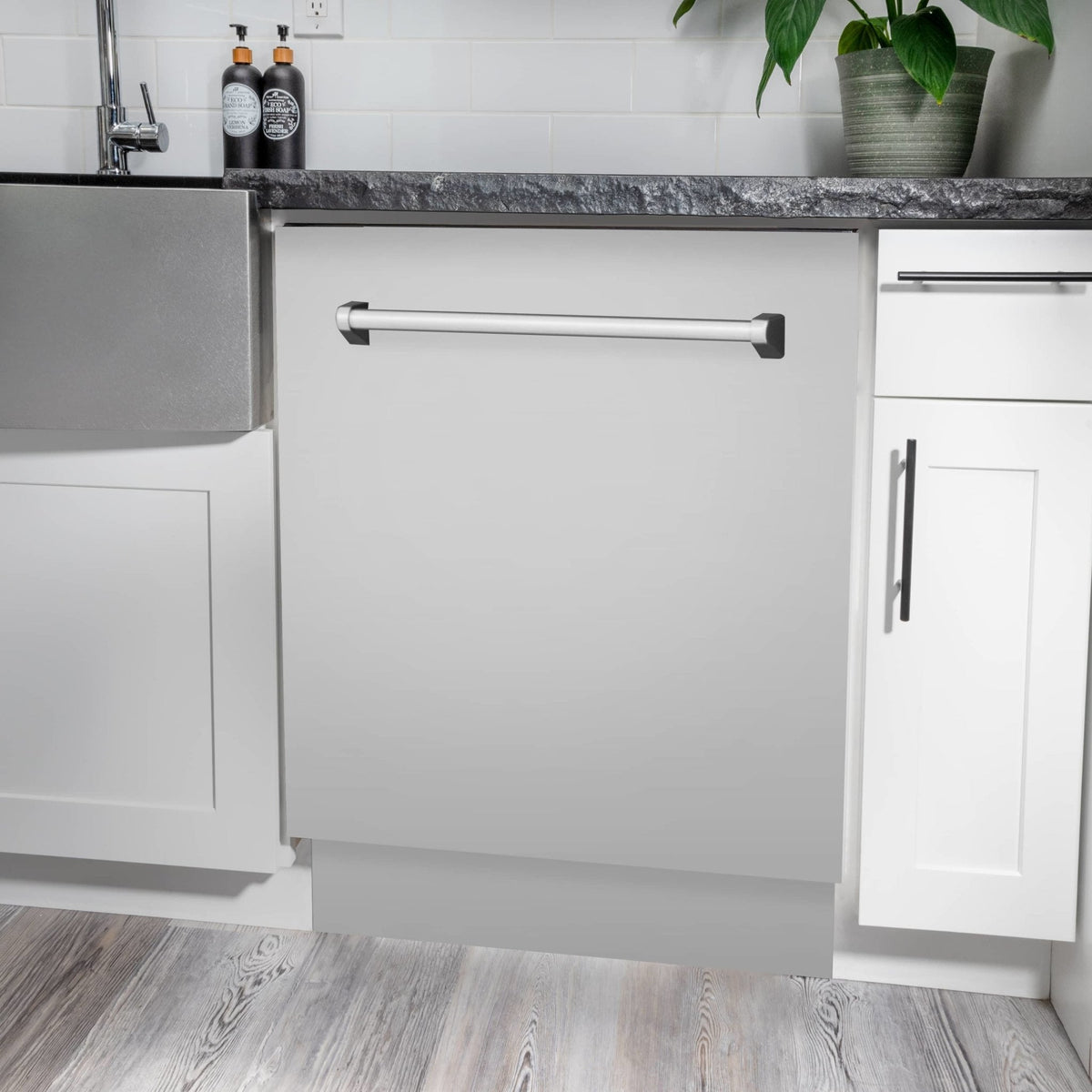

The ZLINE 24 in. Tallac Series 3rd Rack Dishwasher with Auto Door Open Drying, 51dBa, Stainless Steel Panel (DWV-304-24) features multiple wash cycles, a multi-filter cleaning system, and advanced Auto Door Open technology purposefully designed to deliver sparkling clean and dry dishes. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability with timeless style.
| DIMENSIONS | |
|---|---|
| Size | 24 in. |
| Dimensions | 23.6" W x 22.4" D x 33.9" H |
| Product Weight | 106.8 lbs |
| Cut-Out Height | 34.13 in. |
| Cut-Out Width | 24 in. |
| Interior Dimensions | 20.95" W x 20.5" D x 24.17"H |
| Max Plate Height | 13 in. |
| GENERAL INFORMATION | |
| Installation Type | Plug In - Nema 5-15 |
| Panel Ready | N |
| DESIGN & FINISH | |
| Panel Finish | 304 Grade Stainless Steel |
| Handle Finish | Stainless Steel |
| Handle Type | Traditional Style |
| Control Location | Top Control |
| Control Type | Button Control |
| Silverware Basket Location | Bottom Rack Center |
| TECHNICAL DETAILS | |
| Voltage | 120vac |
| Frequency | 60Hz |
| Dedicated Circuit | 15A |
| Rated Current | 12A |
| Motor Wattage | 100W |
| Heater Wattage | 1100W |
| Motor Amperage | 0.84A |
| Heater Amperage | 10A |
| Energy Consumption Per Year | 239 kWh |
| Water Consumption Per Cycle (Liters) | 11.73 L |
| Water Consumption Per Cycle (Gallons) | 3.1 gal |
| Decibels | 51 dBa |
| Extended Hose Length | 56 in. |
| FEATURES | |
| Drying System | Turbo Fan Drying + Auto Door |
| Steam Function | Without Steam |
| Features |
|
| WARRANTY & CERTIFICATIONS | |
| Certifications | Energy Star, CEC, UL |

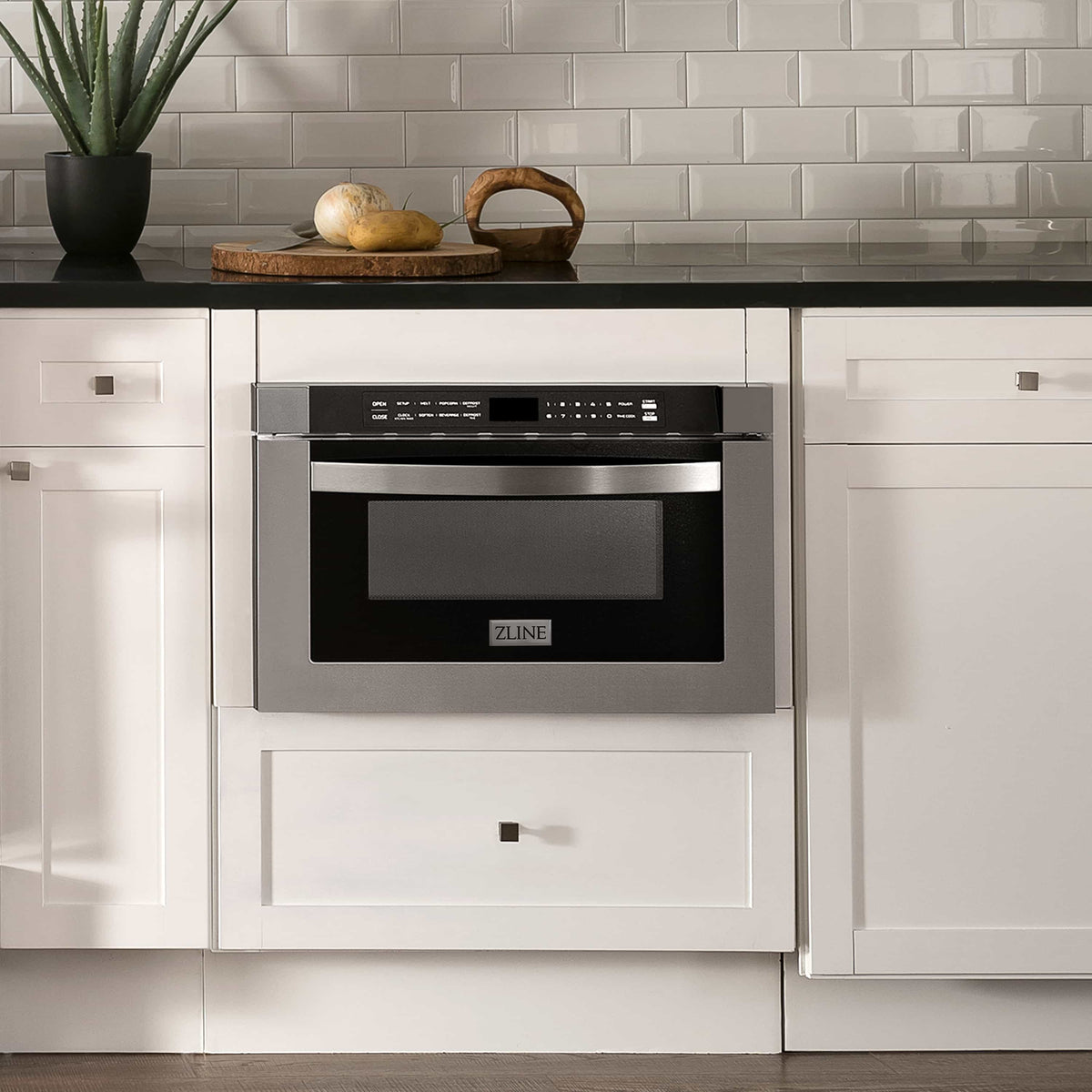

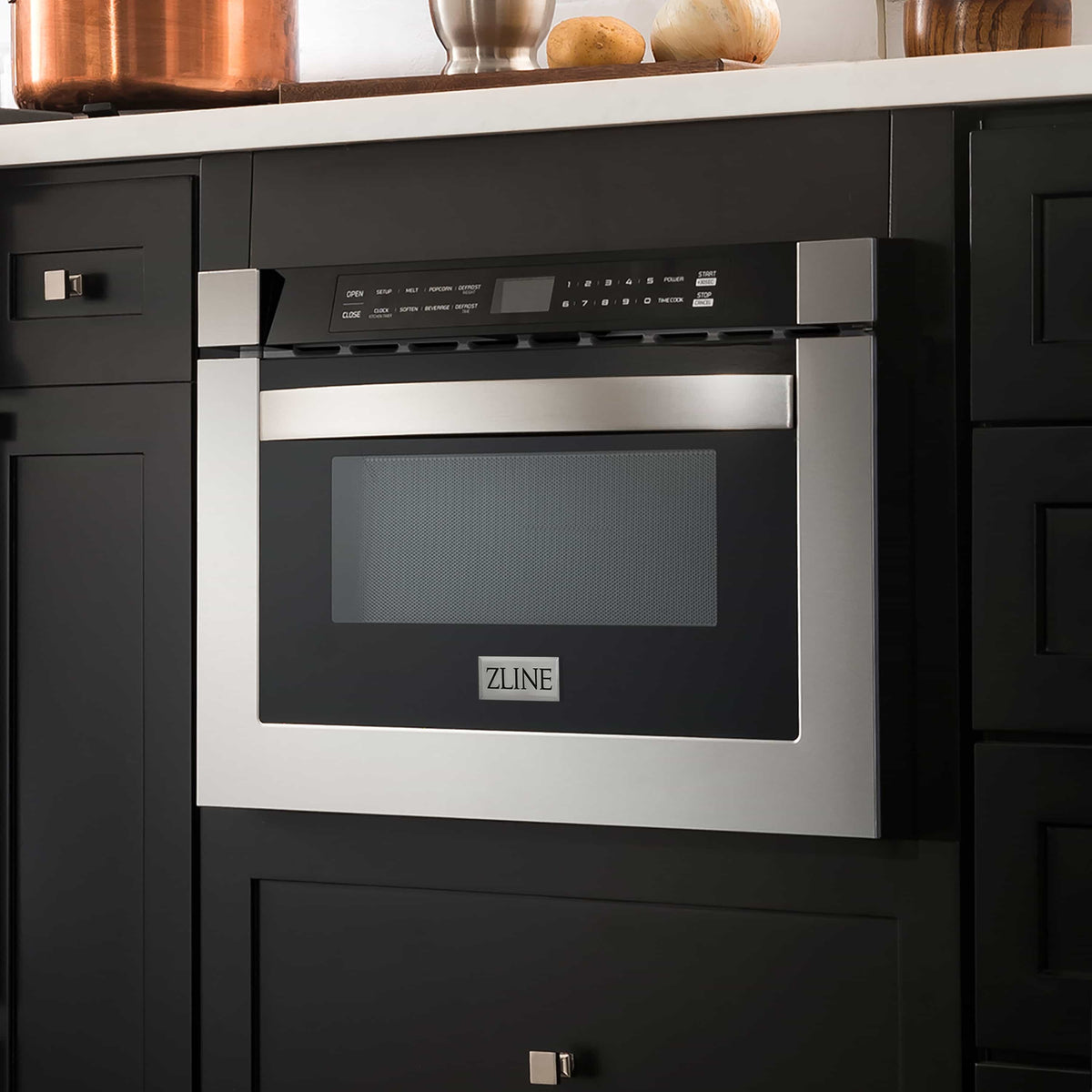

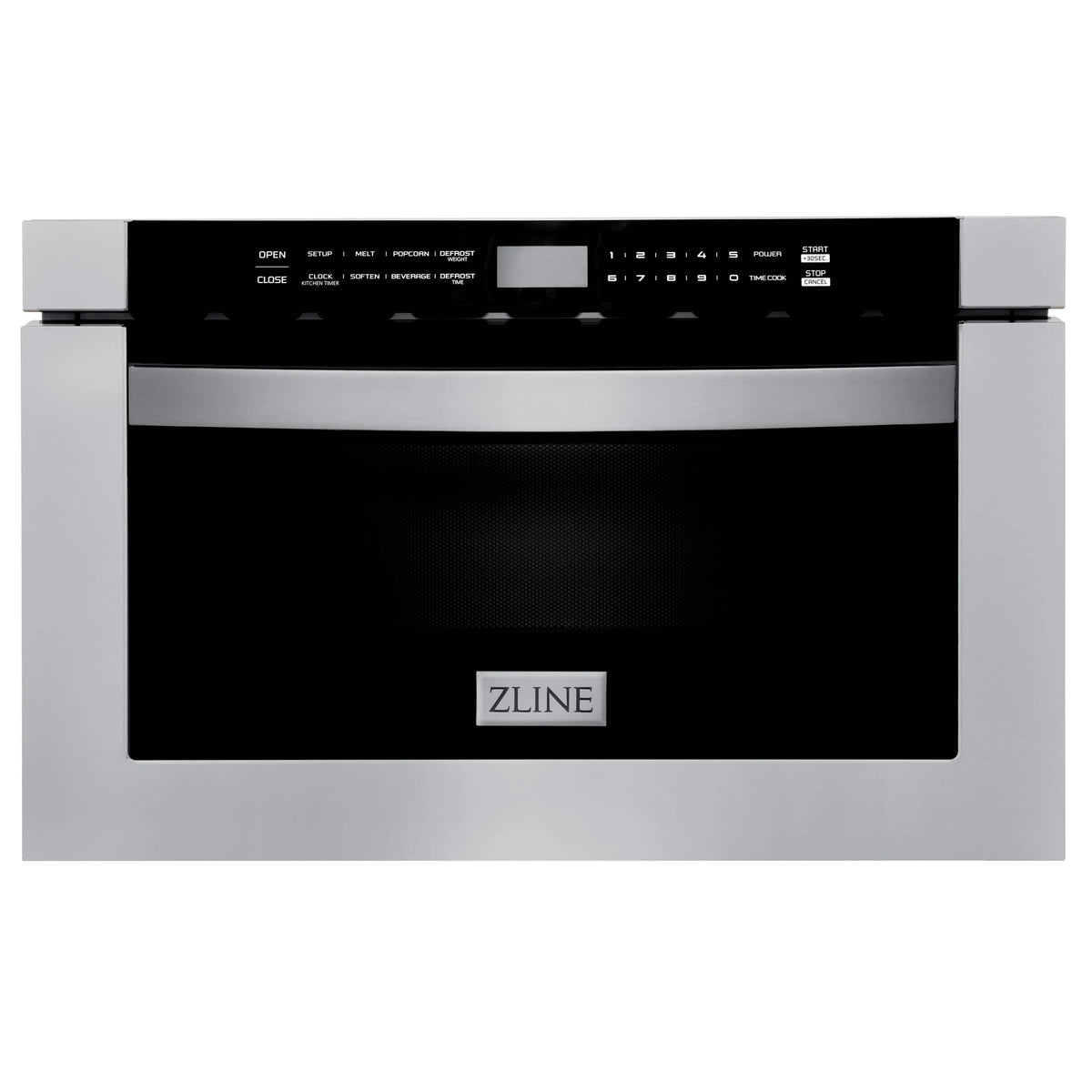

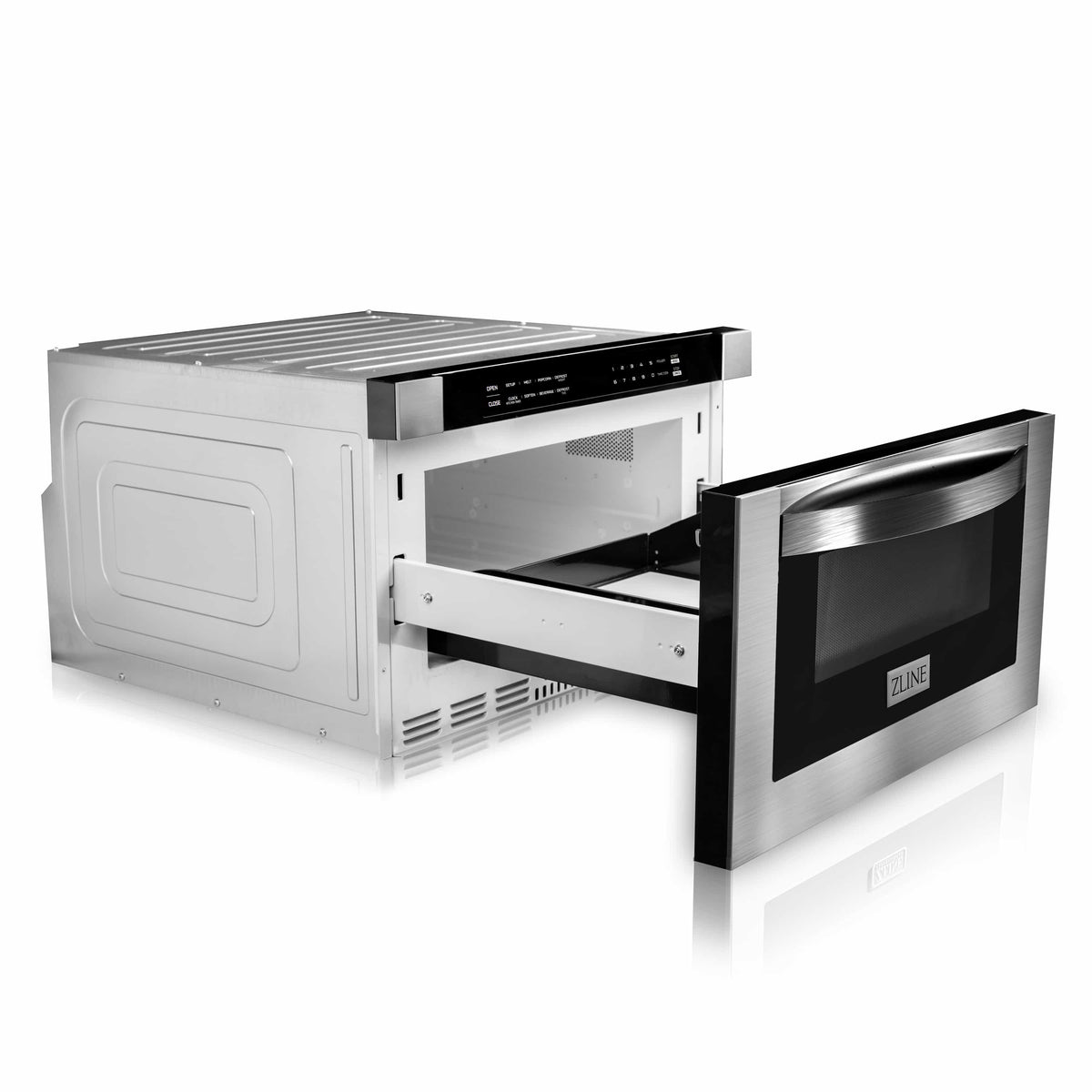

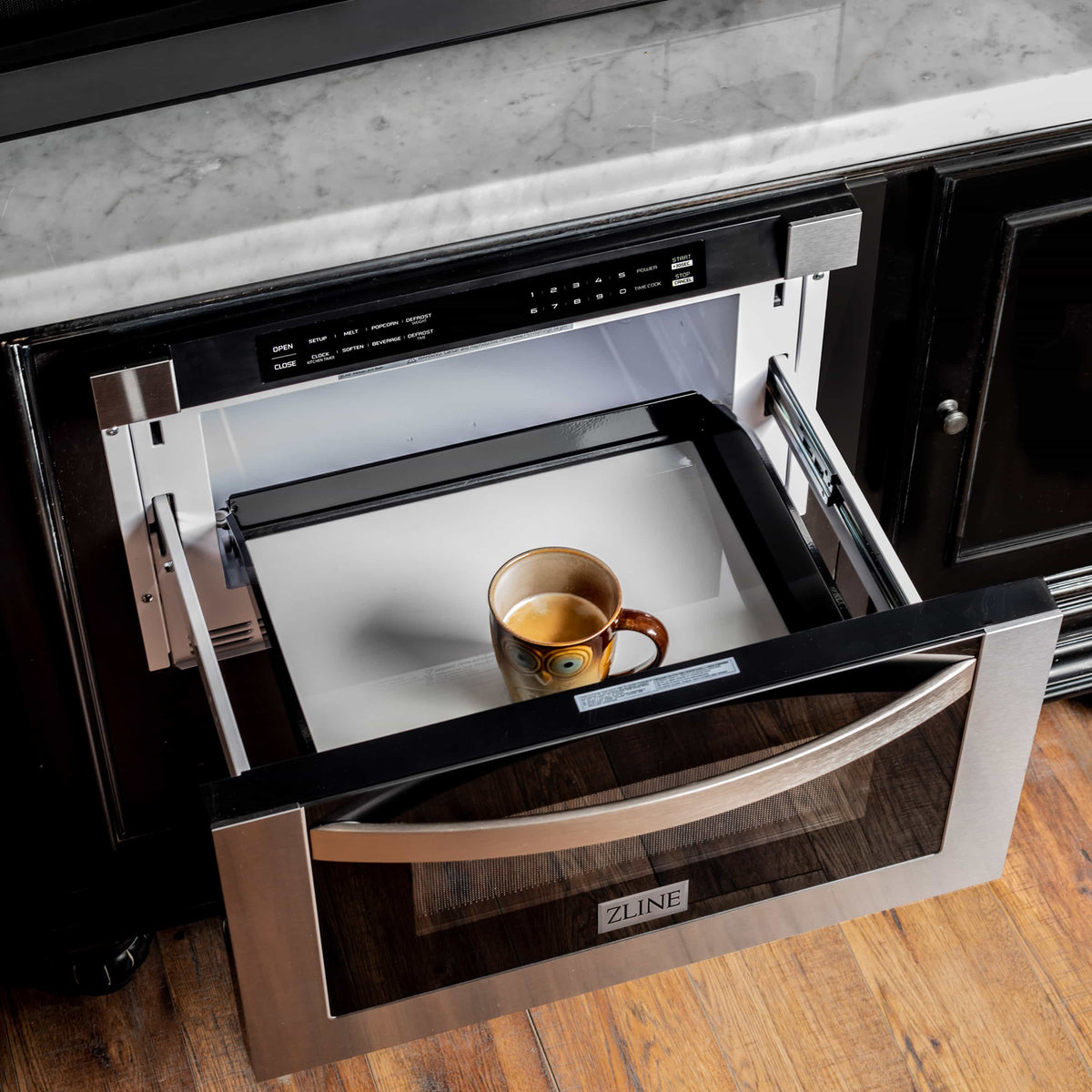

Luxury isn't meant to be desired - it's meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 24" 1.2 cu. ft. Built-in Microwave Drawer in Stainless Steel (MWD-1) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen's capability.

| DIMENSIONS | |
|---|---|

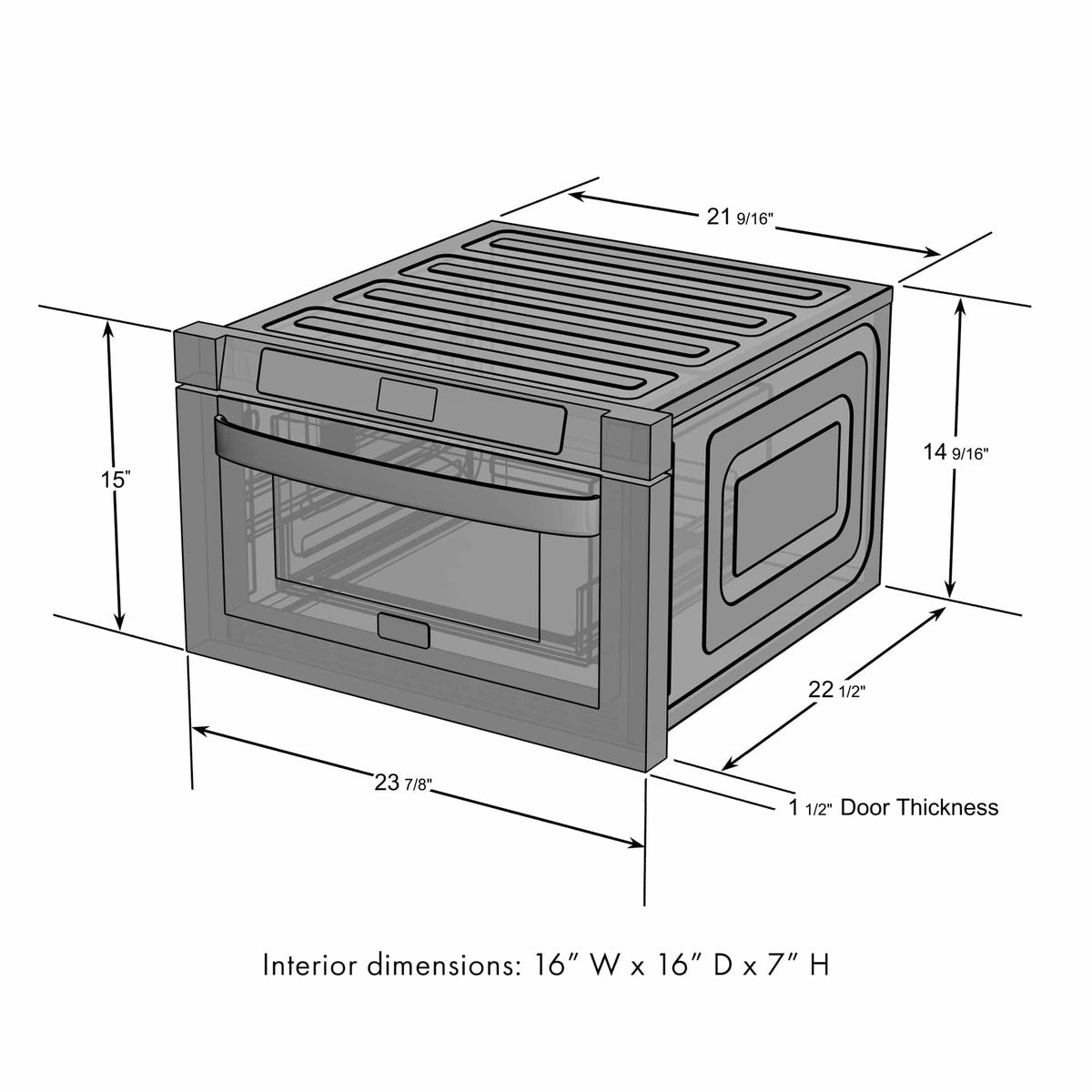

| Dimensions | 23.5 in W x 23.31 in D x 14.88 in H |
| Cut Out Dimensions | 22.13 in W x 23.5 in D x 15 in H |
| Nominal Width | 25 |
| Product weight | 69.9 lbs |
| Total capacity | 1.20 |
| DESIGN & FINISH | |
| Control Type | Touch Screen |
| TECHNICAL DETAILS | |
| Voltage | 120V/ 60HZ/13A |
| FEATURES | |
| Power Specs | Amperage 13 / Frequency 60 / Voltage 120 Watts |
| Motor | 1,000 Watts |
| Exhaust fan speed | 1 |
| Auto Shut Off | No |
| Number of racks | 1 |
| Noise Level | 45 dB Max |
| Temperature settings | 11 |
| Features | ADA Compliant |
| WARRANTY & CERTIFICATIONS | |
| Certification | ADA / Not Approved for Commercial use / UL Listed: yes |
| Warranty | 2 Year Parts |

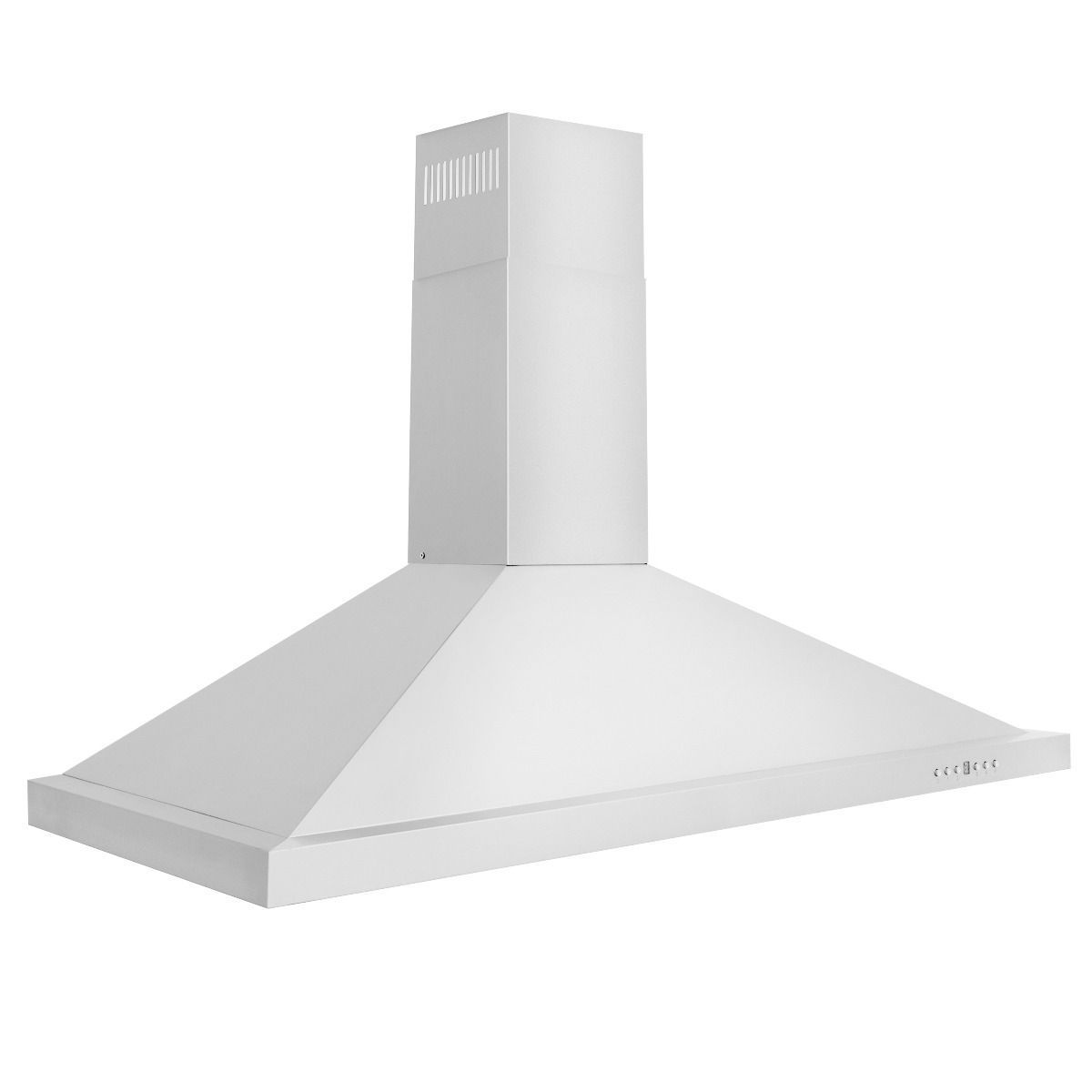

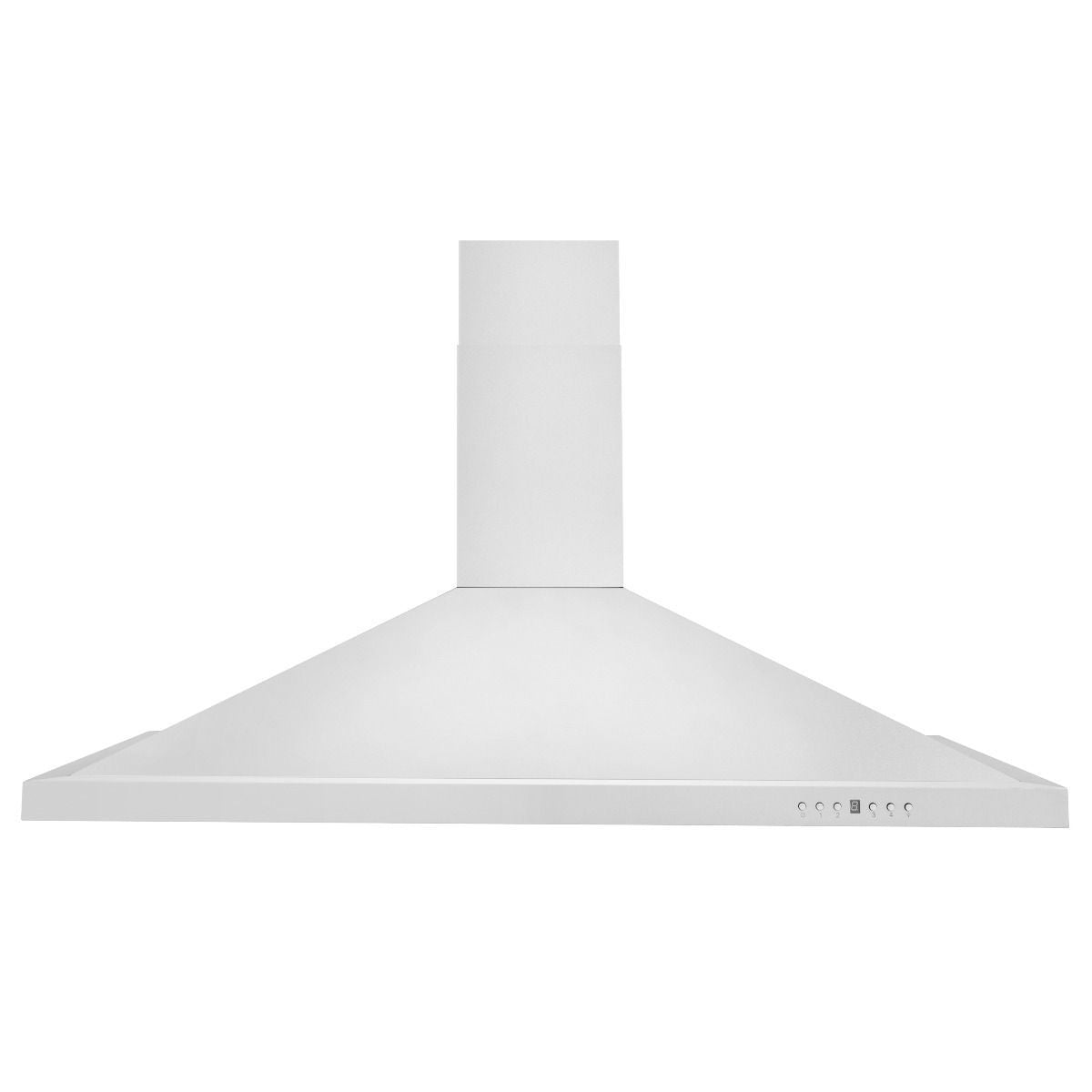

The ZLINE KB-48 is a 48-inch professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made of 430-grade stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.
This hood contains many unique features, such as:

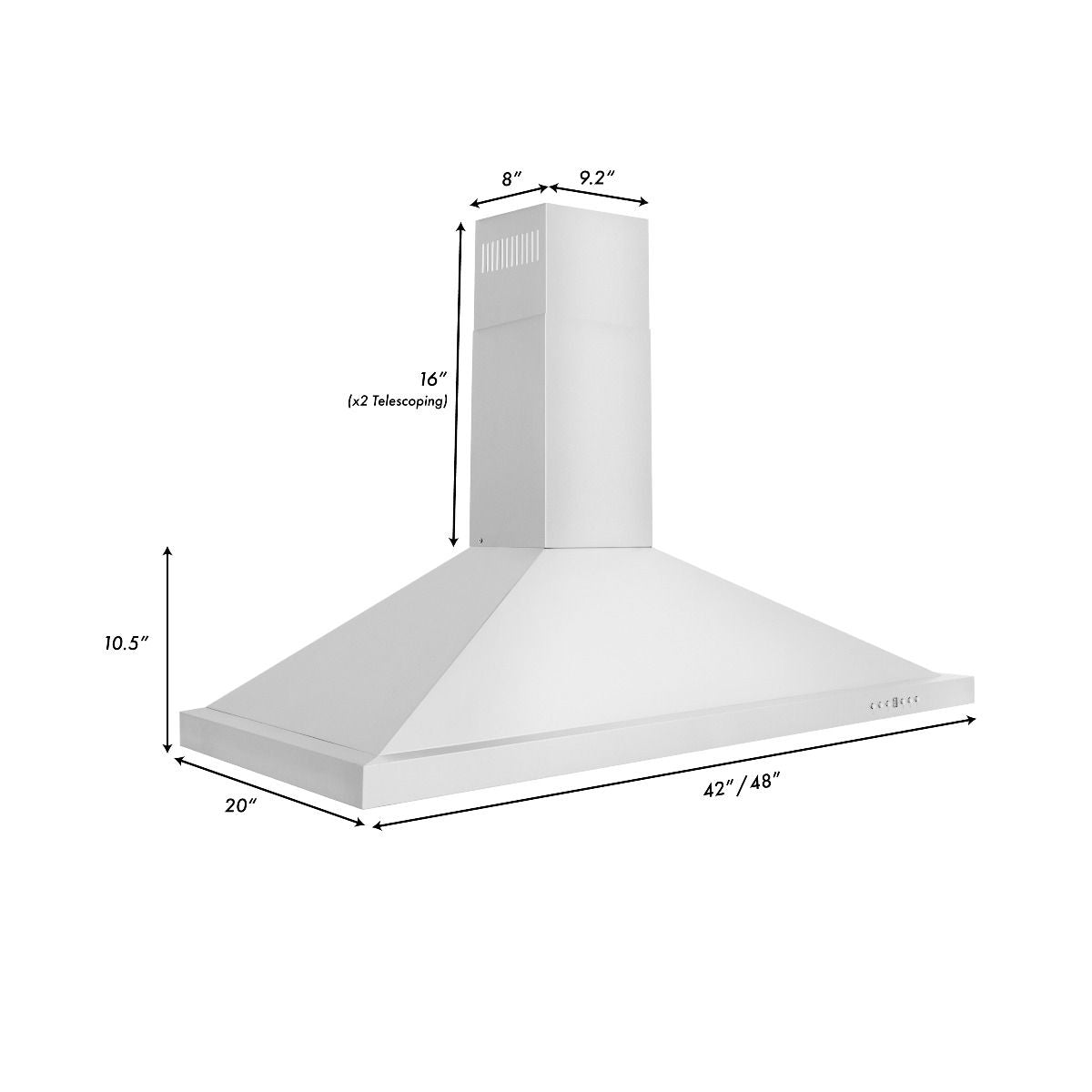

| DIMENSIONS | |
|---|---|
| Dimension | 48" W x 19.7" D x 10.5" H |
| Chimney (Dimension) | 9.2" W x 8" D x 16" H (x2) (Telescoping) Chimney Short Kit and Extension(s) Available: Short Kit (2-12") ~8 ft. Ceilings 1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings 2 PC Extension (2-36") ~10-12 ft. Ceilings |
| GENERAL INFORMATION | |
| Mount Type | Wall Mounted |
| DESIGN & FINISH | |

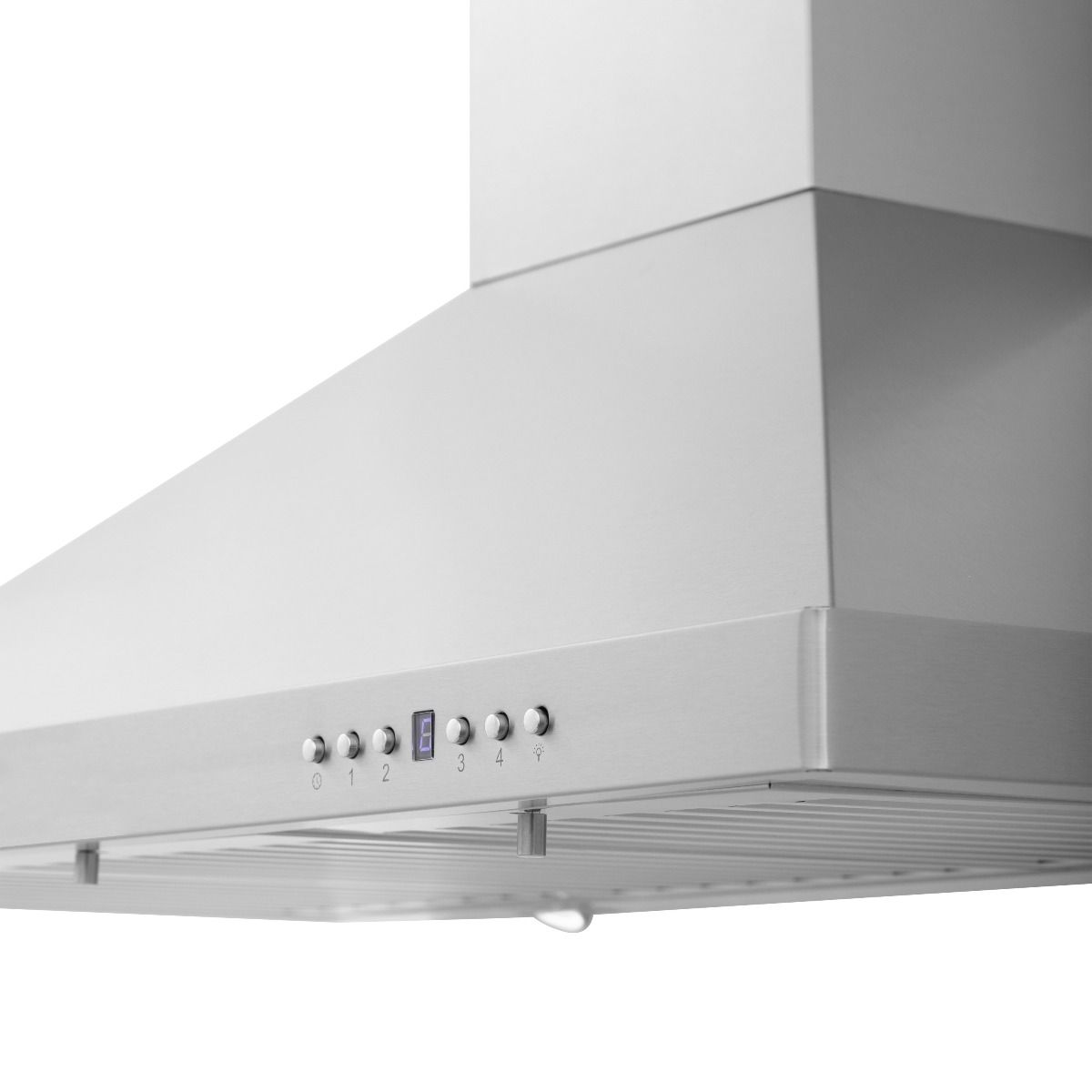

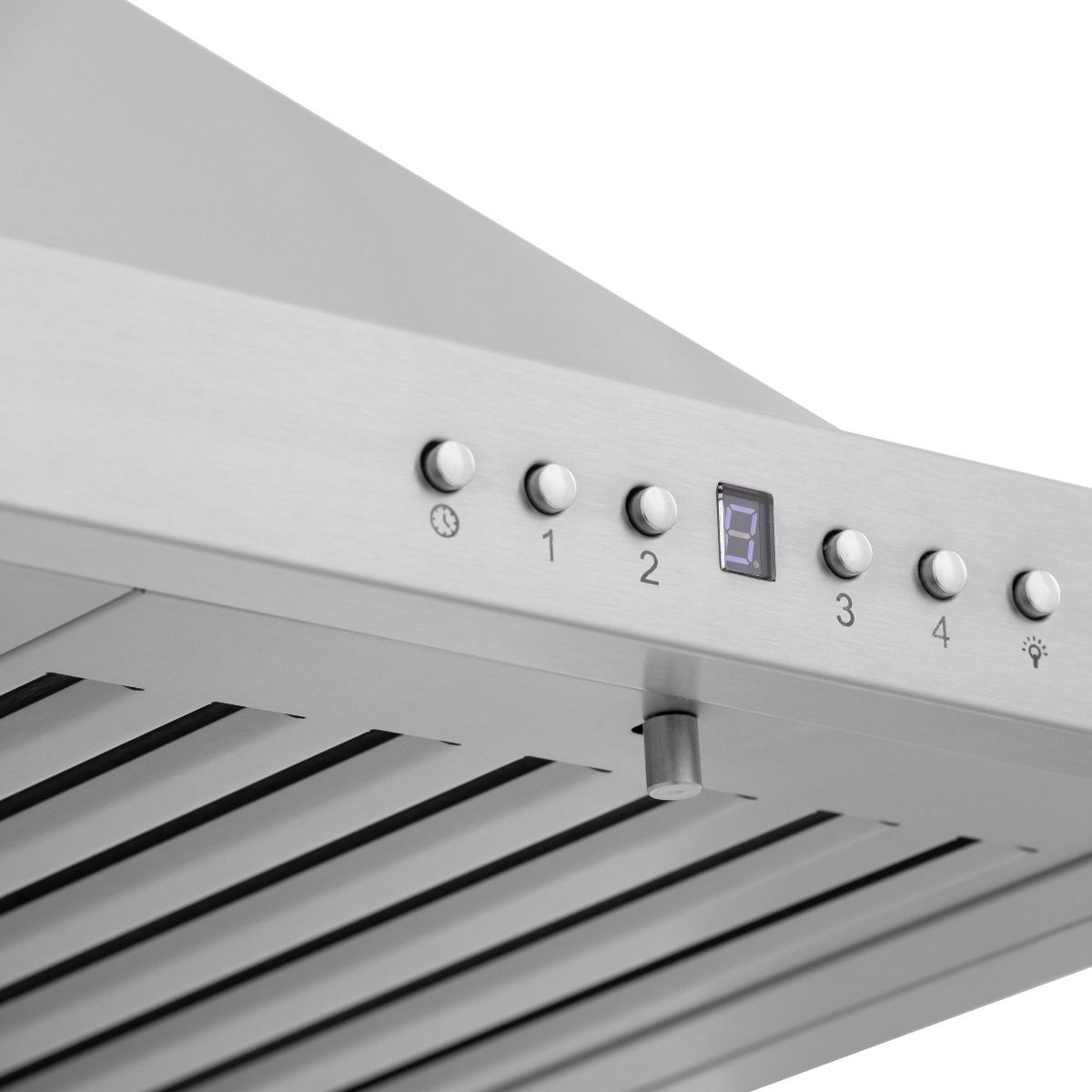

| Control Type | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Material | 21g #430 Stainless Steel |
| TECHNICAL DETAILS | |
| Venting Size | 6" Outlet (Transition piece with backdraft damper to round ducting included) Charcoal Filters (not included) available for ductless/recirculating option. |
| Airflow (Q/L/M/H) | 120/240/320/400 |
| Noise Level | 20/29/34/41 |
| Voltage | 110V/60HZ |
| Motor | High Performance 400 CFM/4-Speed Motor |
| Speeds | 4 Speeds |
| FEATURES | |

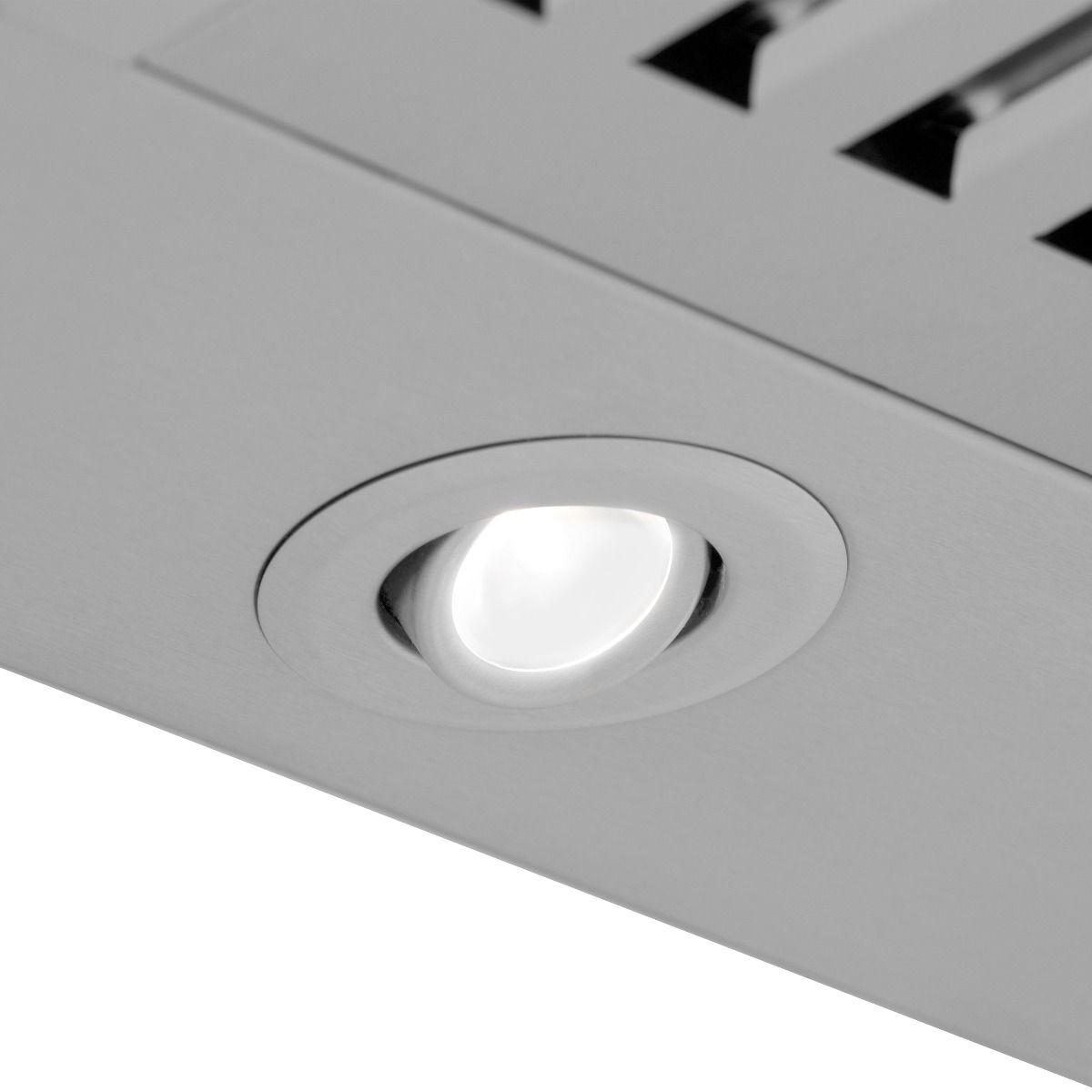

| Lighting | 2 Directional LED Lights (3-Watt) |

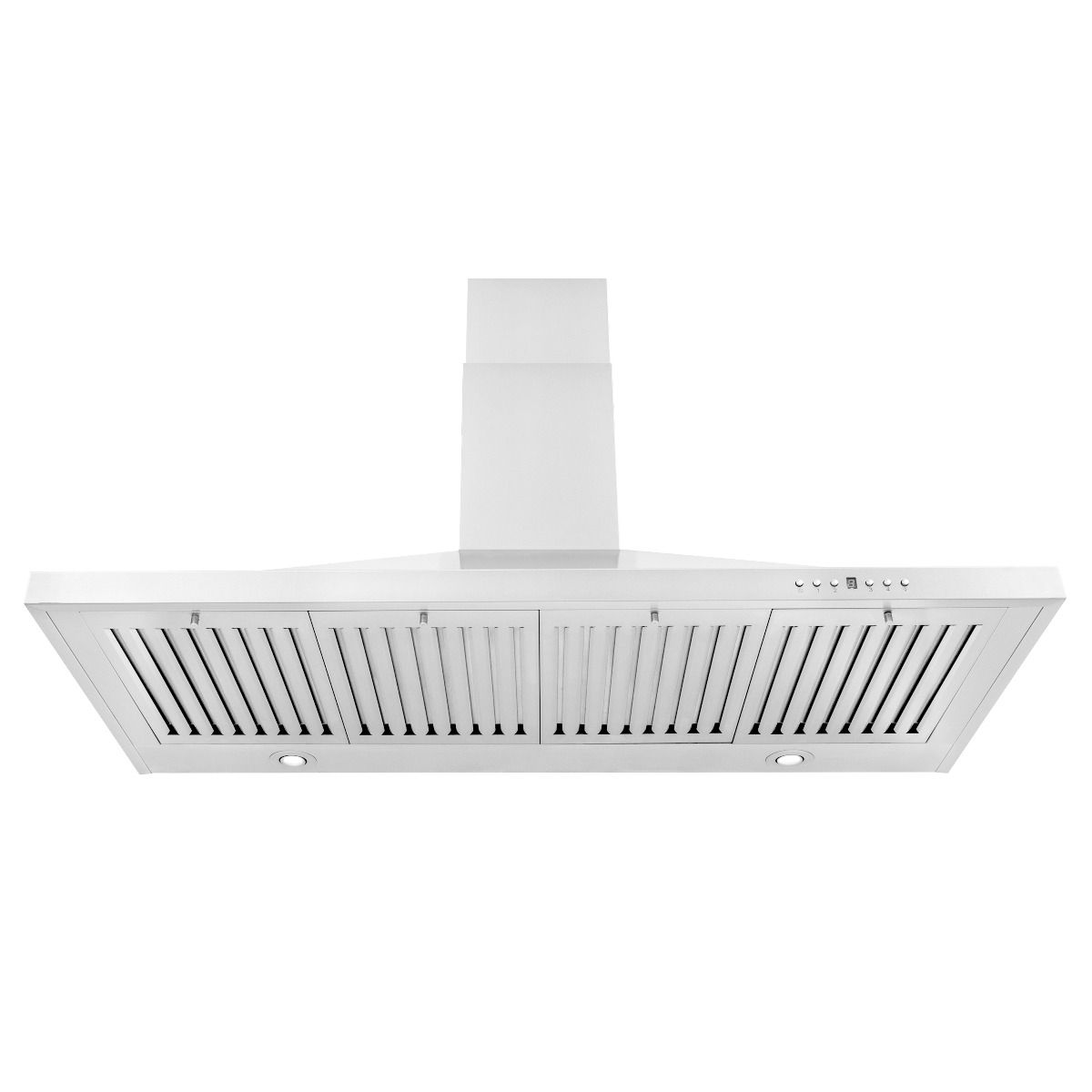

| Filters | Stainless Steel Baffle Filters (Dishwasher Safe) |
| Features | Model No. KB-48 (ETL Listed) ***CROWN MOLDING AVAILABLE FOR THIS MODEL*** |
| WARRANTY & CERTIFICATIONS | |
| Warranty | 3 Year Parts Warranty |
| Certifications | ETL Certified |
